WINDOW TYPE ROOM AIR CONDITIONER
Owner’s Manual
IMPORTANT NOTE:
Before using your air conditioner, please read
this manual carefully and keep it for future reference.
North America Products
SC Series
EN
ESC10BE
CONTENTS
Safety precautions
Installation instructions

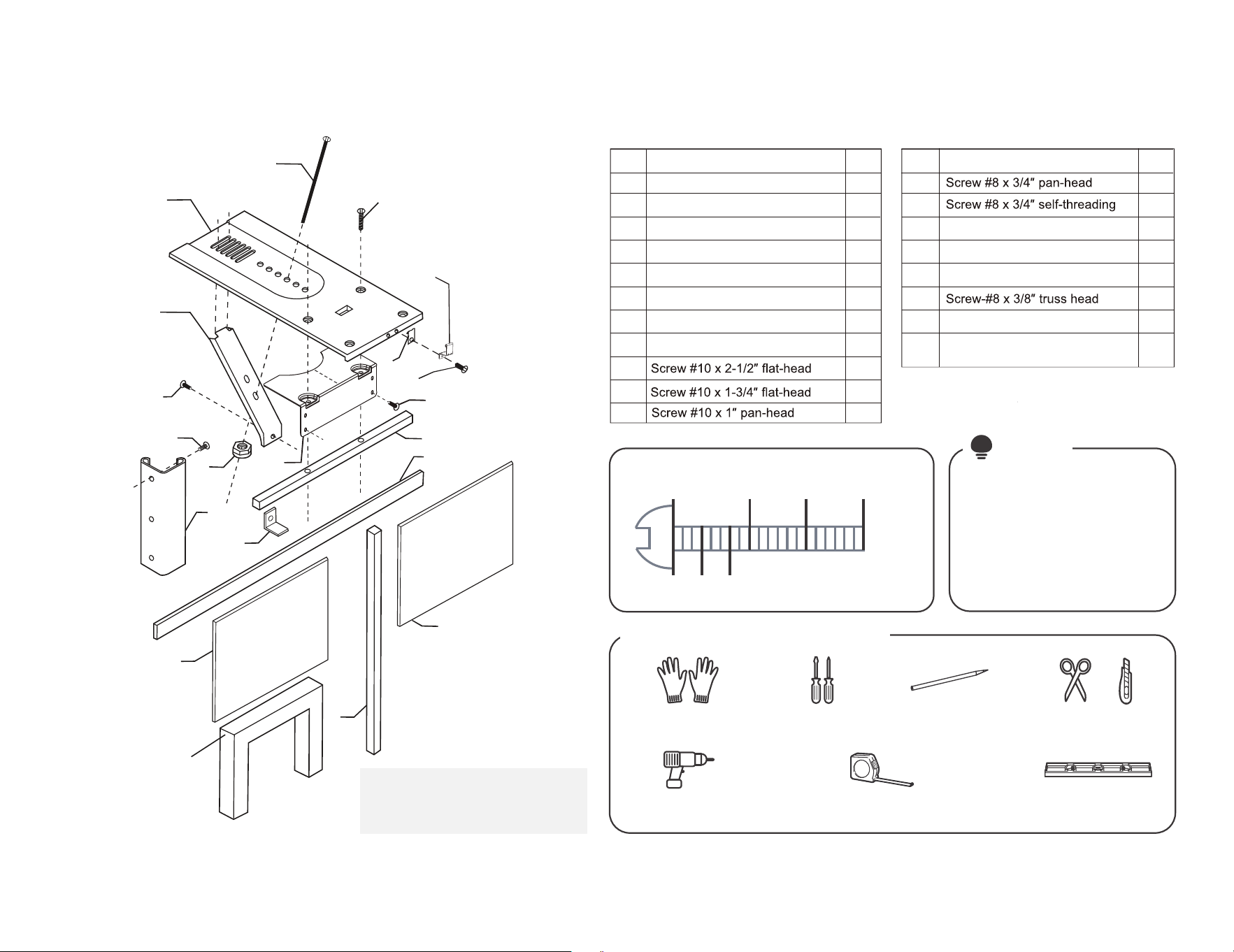

What is in the box
Before you get started
Installation overview
Installation operation
Operation instructions

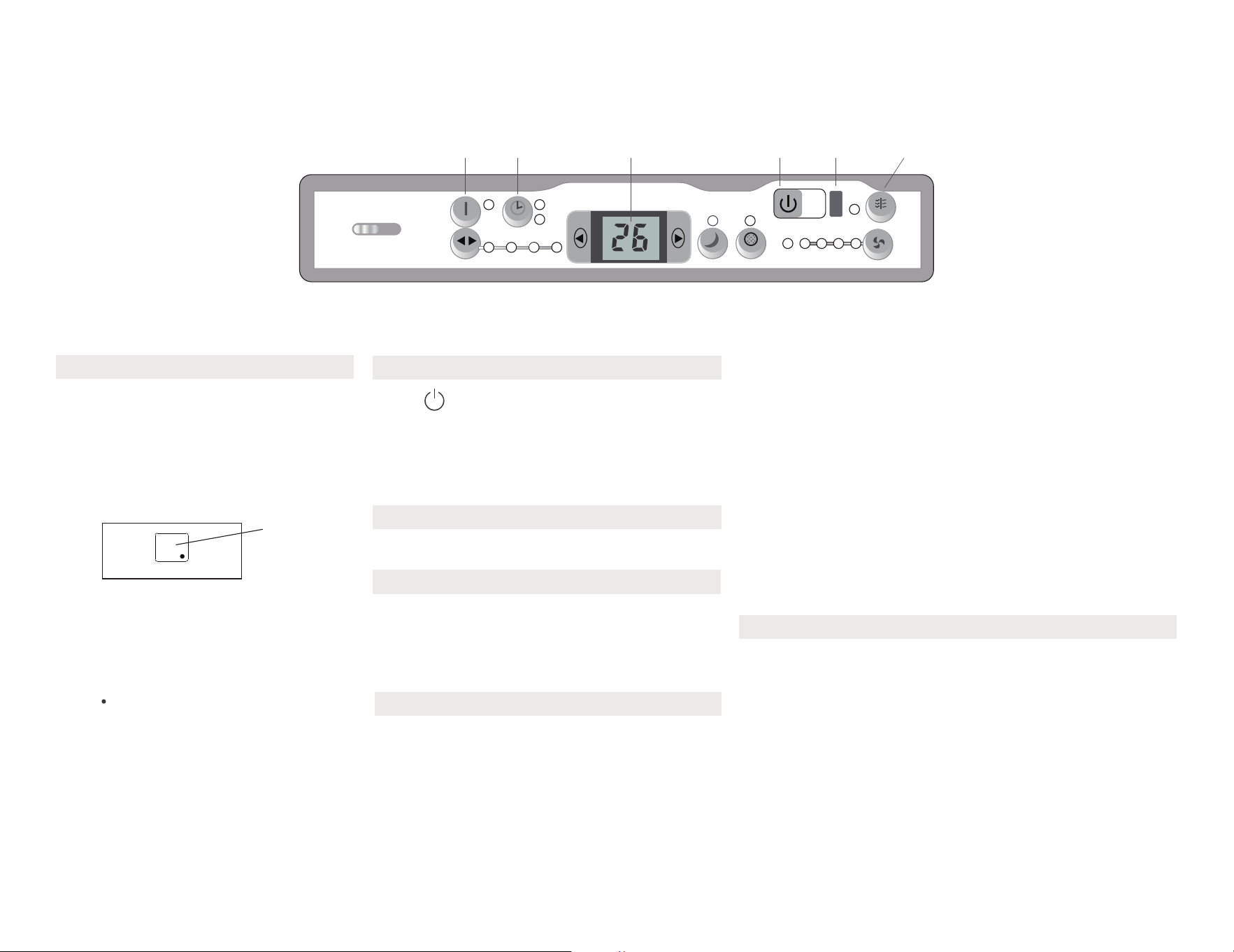

Get to know your AC
Care and cleaning
Troubleshooting
0 1
1 3
3 7
4 1
4 2
1 4
2 9
1 5
Inside you will find many helpful hints on how to use and maintain
your air conditioner properly. Just a little preventive care on your
part can save you a great deal of time and money over the life of
your air conditioner. You'll find many answers to common problems
in the chart of troubleshooting tips. If you review our chart of
Troubleshooting Tips first, you may not need to call for service at all.
To prevent injury to the user or other people and property
damage, the following instructions must be followed.
Incorrect operation due to ignoring of instructions may
cause harm or damage. The seriousness is classified by the
following i
ndications.
Safety Precautions
Warning
This signal word indicates a hazard with a medium level of risk which, if not avoided, may result in death or serious injury.
Always do this
This signal means that the operation can be performed.
Caution
This signal word indicates a hazard with a low degree of risk which, if not avoided, may result in minor or moderate injury.
Explanation of Symbols
Never do this
This signal indicates the prompt operation is prohibited, if not avoided, may result in Product damaged or injury.
Must read the warning message.
01
02
Plug in power plug properly. Otherwise, it may cause electric shock
or fire due to excess heat generation. Do not operate or stop the unit
by inserting or pulling out the power plug.It may cause electric shock
or fire due to heat generation. Do not damage or use an unspecified
power cord.It may cause electric shock or fire. If the power cord is
damaged, it must be replaced by the manufacturer or an authorized
service centre or a similarly qualified person in order to avoid a hazard.
Always install a circuit breaker and a dedicated power circuit. Incorrect
installation may cause fire and electric shock. Do not operate with wet
hands or in damp en
vironment. It may cause electric shock . Do not
direct airflow at room occupants only. This could damage your health.
Always ensure effective grounding.Incorrect grounding may cause
electric shock. Do not allow water to run into electric parts.It may
cause failure of machine of electric shock. Do not modify power cord
length or share the outlet with other appliances. It may cause electric
shock or fire due to heat generation.
WARNING
Unplug the unit if strange sounds, smell, or smoke
comes from it. It may cause fire and electric shock.
Do not use the socket if it is loose or damaged. It
may cause fire and electric shock. Do not open the
unit during operation. It may cause electric shock.
Keep firearms away. It may cause fire. Do not use
the power cord close to heating appliances.It may
cause fire and electric shock. Do not use the power
cord near flammable gas or combustibles, such as
gasoline, benzene, thinner, etc. It may cause an
explosion or fire.
Ventilate room before operating air conditioner if
there is a gas leakage from another appliance. It may
cause explosion, fir
e and, burns. Do not disassemble
or modify unit. It may cause failure and electric shock.
When the air filter is to be removed, do not touch the metal parts of
the unit. It may cause an injury.
Ventilate the room well when used together with a stove, etc. An
oxygen shortage may occur.
Do not use strong detergent such as wax or thinner but use a soft cloth.
Appearance may be deteriorated due to change of product color or
scratching of its surface. Do not clean the air conditioner with water.
Water may enter the unit and degrade the insulation. It may cause an
electric shock. Do not use for special p
urposes. Do not use this air
conditioner to preserve precision devices, food, pets, plants, and art
objects.lt may cause deterioration of quality, etc.
CAUTION
Stop operation and close the window in storm or
hurricane. Operation with windows opened may cause
wetting of indoor and soaking of household furniture.
When the unit is to be cleaned, switch the AC off and
turn the circuit breaker off.
Do not clean unit when power is on as it may cause fire
and electric shock, it may cause an injury.
Always insert the filters securely. It can cause
failure if operated without filters. Please clean filter
once every two weeks.
03
NOTE
Cooling
operation
Outdoor temp:
Indoor temp:
Heating
operation
Outdoor temp:
Indoor temp:
18-43°C/64-109°F（18-52°C/64-125°F for special tropical models）
17-32°C/62-90°F
-5-24°C/23-76°F
0-27°C/32-80°F
Note:Performance may be
reduced outside of these
operating temperatures.
This air conditioner is designed to be operated under the following conditions:
Do not place obstacles around air-inlets or inside of air-outlet.
It may cause failure of appliance or accident. Do not place
heavy object on the power cord and ensure that the cord is
not compressed. There is danger of fire or electric shock. Don’t
drink water drained from air conditioner. It contains
contaminants and could make you sick.
Use caution when unpacking and installing. Sharp edges could
cause injury.
If water enters the unit, turn the unit off at the power outlet
and switch off the circuit breaker. Isolate supply by taking the
power-plug out and contact a qualified service technician.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities
or lack of experience and knowledge,
CAUTION
Hold the plug by the head of the power plug when taking
it out. It may cause electric shock and damage. Turn off the
main power switch when not using the unit for a long time.
It may cause failure of product or fire.
Installation must be performed in accordance with the
requirement of NEC and CEC by authorized personnel only.
Do not operate your air conditioner in a wet room such as a
bathroom or laundry room.
The appliance with electric heater shall have at least 3 feet
space to the combustible materials.
Contact the authorized service technician for repair or
maintenance of this unit.
Contact the authorized installer for installation of this unit.
unless they have been given super vision or instruction
concerning use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that they do not play
with the appliance.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
The appliance shall be installed in accordance with national
wiring regulations.
04
NOTE
Operation of Current Device
The power supply cord contains a current device that senses damage to the power cord. To test your power supply cord do
the following:

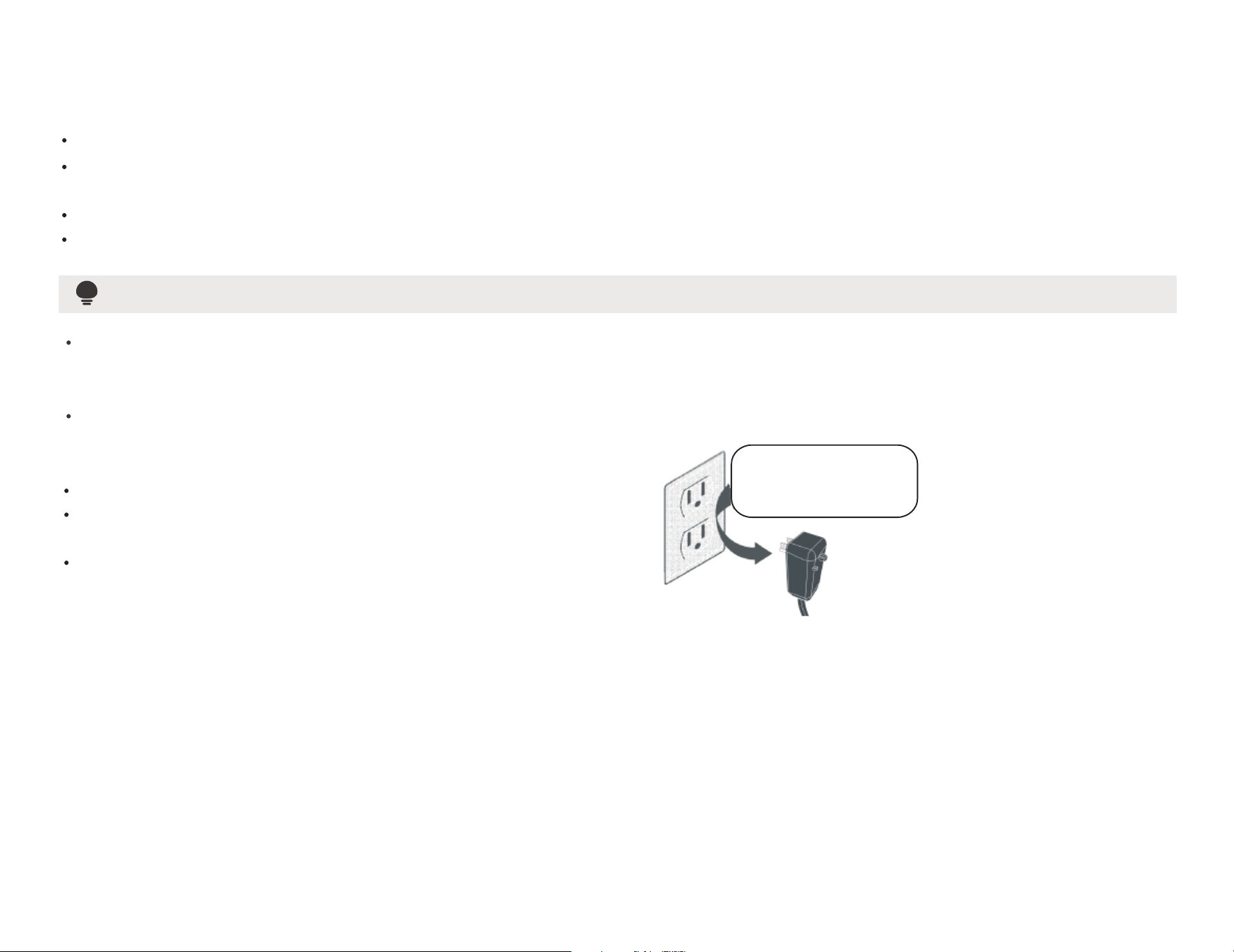

Plug in the Air Conditioner.
The power supply cord will have TWO buttons on the plug head. Press the TEST button, you will notice a click as the
RESET button pops out.
Press the RESET button again, you will notice a click as the button engages.
The power supply cord is now supplying electricity to the unit. (On some products this is also indicated by a light on the plug head).
Do not, under any
circumstances, cut,
remove, or bypass
the grounding prongs.
Grounding type wall receptacle
Power supply cord with
3-prong grounding plug
and current detection
device.
Do not use this device to turn the unit on or off
Always make sure the RESET button is pushed in for
correct operation.
The power supply cord must be replaced if it fails to
reset when either the TEST button is pushed or if it
cannot be reset.
The power supply cord with this air conditioner
contains a current detection device designed to reduce
the risk of fire.
In the event that the power cord is damaged, it cannot
be repaired – it must be replaced with a cord from the
product manufacturer.
05
Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
To reduce the risk of fire, electrical shock, or injury to persons
when using your air conditioner, follow basic precautions,
including the following:
Be sure the electrical service is adequate for the model you
have chosen. This information can be found on the serial
plate, which is located on the side of the the cabinet and
behind the grille.
For Your Safety
Prevent Accidents
If the air conditioner is to be installed in a window, you will
probably want to clean both sides of the glass first. If the
window is a triple-trackty pew it has screen panel included,
remove the screen completely before installation.
Be sure the air conditioner has been securely and correctly
installed according to the installation instructions in this manual.
Save this manual for possible future use in removing or
installing this unit. When handling the air conditioner, be
careful to avoid cuts from sharp metal fins on front and rear
coils.
WARNING
The complete electical rating of your new room air conditioner
is stated on the serial plate. Refer to the rating when checking
the electrical requirements.
Be sure the air conditioner is properly grounded. To minimize
shock and fire hazards, proper grounding is important. The
power cord is equipped with a three-prong grounding plug
for protection against shock hazards.
Your air conditioner must be used in a properly grounded
wall receptacle. If the wall receptacle you intend to use is not
adequately grounded or protected by a time delay fuse or
circuit breaker, have a qualified electrician install the proper
receptacle. Ensure the receptacle is accessible after the unit
installation.
Do not run the air conditioner without side protective cover in
place.This could result in mechanical damage within the air
conditioner.
Do not use an extension cord or an adapter plug.
Electrical Information
Avoid fire hazard or electric shock. Do not use an extension
cord or an adapter plug. Do not remove any prongs from
the power cord.
WARNING
Electrical Shock and Personal Injury Hazard
Electrical ground is required on this appliance.
DO NOT ground to a gas line.
If cold water pipe is interrupted by plastic,non-metallic gaskets, or
other insulatingmaterials,
DO NOT use for grounding.
Check with a qualified electrician if you arein doubt as to whether
the appliance is properly grounded.
DO NOT modify power supply cord plug. If it does not fit outlet,
have a proper outletinstalled by a qualified electrician.
DO NOT have a fuse in the neutral or grounding circuit.A fuse in
the neutral, or grounding circuit could result in an electrical shock.
DO NOT use an extension cord with this appliance.
Failure to follow these instructions couldresultin electrical shock,
serious injury, or death.
Observe all local governing codes and ordinances.
Do not, under any circumstances, remove the power
supply cord grounding prong.
NOTE: If codes permit, and a separate grounding wire is used;
it is recommended that a qualified electrican determine that
the grounding path is adequate and not interrupted by plastic,
nonmetallic gaskets, or other insulating materials.
Receptacle wiring
Receptacle wiring should be a minimum of 14 gauge. Use
copper wire only. It is your responsibility to provide proper
and adequate receptacle wiring, installed by a qualified
electrician.
Electrical requirements
A time delay fuse or time delay circuit breaker is also required.
A separate circuit, serving only this appliance, MUST be
provided.
Electrical Requirements
06
Electronic Work
WARNING:
BEFORE PERFORMING ANY ELECTRICAL OR WIRING WORK, TURN OFF THE MAIN POWER TO THE SYSTEM.
NOTE:
Please strictly follow the wiring label attached to the
machine for all wiring connections. The wiring diagram may
vary for di˛erent unit. Please refer to the wiring diagram on
the machine you have purchased. The above wiring diagram
is a simplified version for preliminary illustration purposes only.
Main Control
Compressor
Fan Motor
Display
Power
Supply
L/AC L/L1/L-IN
N/AC N/L2/N-IN
Other
Electronic Type
CAUTION:
Risk of fire
flammable materials
IMPORTANT NOTE:Read this manual
carefully before installing or operating
your new air conditioning unit. Make sure
to save this manual for future reference.
Explanation of symbols displayed on the unit
CAUTION
This symbol shows that the operation manual should be read carefully.
CAUTION
This symbol shows that a service personnel should be handling this equipment with
reference to the installation manual.
CAUTION
This symbol shows that information is available such as the operating manual or
installation manual.
WARNING:
- Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the
assistance of other skilled personnel shall be carried out under the supervision of a person competent in the use of flammable
refrigerants.
- DO NOT modify the length of the power cord or use an extension cord to power the unit.
- DO NOT share a single outlet with other electrical appliances. Improper power supply can cause fire or electrical shock.
- Please follow the instruction carefully to handle, install, clear, service the air conditioner to avoid any damage or hazard.
Flammable Refrigerant R32 is used within the air conditioner.
- When maintaining or disposing the air conditioner, the refrigerant (R32) shall be recovered properly.
Do not discharge to the air directly.
- Compliance with national gas regulations shall be observed.
- Keep ventilation openings clear of obstruction.
- The appliance shall be stored so as to prevent mechanical damage from occurring.
- The appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specified for operation.
07
- Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certi˜cate from an
industry-accredited assessment authority, which authorizes their competence to handle refrigerants safely in accordance with an
industry recognized assessment specification. All training shall follow the ANNEX HH requirements of UL 60335-2-40 4th Edition.
Examples for such working procedures are:
• breaking into the refrigerating circuit;
• opening of sealed components;
• opening of ventilated enclosures.
- No open fire or device-like switch which may generate spark/ arcing shall be around the air conditioner to avoid causing ignition of
the flammable refrigerant used. Please follow the instructions carefully to store or maintain the air conditioner to prevent
mechanical damage from occurring.
- Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
- The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating
gas appliance) and ignition sources or (for example: an operating electric heater) close to the appliance.
- Do not pierce or burn.
- Be aware that the refrigerants may not contain an odor.
See transport regulations.
1.Transport of equipment containing flammable refrigerants
See local regulations.
2.Marking of equipment using signs
See national regulations.
3.Disposal of equipment using flammable refrigerants
The storage of the appliance should be in accordance with the applicable regulations or instructions, whichever is more
stringent.
4.Storage of equipment/appliances
Storage package protection should be constructed such that mechanical damage to the equipment inside the package will not
cause a leak of the refrigerant charge. The maximum number of pieces of equipment permitted to be stored together will be
determined by local regulations.
5.Storage of packed (unsold) equipment
08
1)Checks to the area
Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of
ignition is minimized. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting
work on the system.
2)Work procedure
Work shall be undertaken under a controlled procedure so as to minimize the risk of a flammable gas or vapor being present while
the work is being performed.
3)General work area
All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out.
Work in confined spaces shall be avoided. The area around the workspace shall be sectioned off. Ensure that the conditions within
the area have been made safe by control of flammable material.
4)Checking for presence of refrigerant
The area shall be checked with an appropriate refrigerating detector prior to and during work to ensure the technician is aware of
potentially flammable atmospheres. Ensure that the leak detection equipment being used is suitable for use with flammable
refrigerants, i.e. non-sparking, adequately sealed or intrinsically safe.
5)Presence of fire extinguisher
If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate fire extinguishing
equipment shall be available. Have a dry powder or CO2 fire extinguisher adjacent to the charging area.
6)No ignition sources
No person carrying out work in relation to a refrigerating system which involves exposing any pipe work that contains or has
contained flammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion.
All possible ignition sources, including cigarette smoking, should be kept far away from the site of installation, repairing, removing,
and disposal, during which flammable refrigerant can possibly be released to the surrounding space.
Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no flammable hazards
or ignition risks. No Smoking signs shall be displayed.
7)Ventilated area
Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work.
A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any
released refrigerant and preferably expel it externally into the atmosphere.
8)Checks to the refrigerating equipment
Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times
the manufacturer's maintenance and service guidelines shall be followed. If in doubt consult the manufacturer's technical
department for assistance. The following checks shall be applied to installations using flammable refrigerants:
-The actual refrigerant charge is in accordance with the room size where the refrigerant containing parts are installed;
-The ventilation machinery and outlets are operating adequately and are not obstructed;
-If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant;
-Marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall be corrected;
6.Information on servicing
09
Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse
environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as
compressors or fans.
9.Cabling
Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide
torch (or any other detector using a naked flame) shall not be used. The following leak detection methods are deemed acceptable
for systems containing flammable refrigerants.
Electronic leak detectors shall be used to detect flammable refrigerants, but the sensitivity may not be adequate, or may need
re-calibration. (Detection equipment shall be calibrated in a refrigerant-free area).
Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used. Leak detection equipment shall
be set at a percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant employed and the appropriate
percentage of gas (25 % maximum) is confirmed.
Leak detection fluids are suitable for use with most refrigerants but the use of detergents containing chlorine shall be avoided as
the chlorine may react with the refrigerant and corrode the copper pipe work.If a leak is suspected, all naked flames shall be
removed/extinguished. If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from the
system, or isolated (by means of shut off valves) in a part of the system remote from the leak. Removal of refrigerant shall be
according to Removal and Evacuation.
10.Detection of flammable refrigerants
When breaking into the refrigerant circuit to make repairs – or for any other purpose–conventional procedures shall be used.
However, for flammable refrigerants it is important that best practices be followed, since flammability is a consideration. The
following procedure shall be adhered to:
a) Safely remove refrigerant following local and national regulations.
b) Evacuate.
11.Removal and evacuation
7.Sealed electrical components shall be replaced
8.Intrinsically safe components must be replaced
-Refrigerating pipe or components are installed in a position where they are unlikely to be exposed to any substance which may
corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to
being corroded or are suitably protected against being so corroded.
9)Checks to electrical devices
Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures.
If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily
dealt with. If the fault cannot be corrected immediately but it is necessary to continue operation, an adequate temporary solution
shall be used. This shall be reported to the owner of the equipment so all parties are advised. Initial safety checks shall include:
-That capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking;
-That there no live electrical components and wiring are exposed while charging, recovering or purging the system;
That there is continuity of earth bonding.
10
c) Purge the circuit with inert gas. (optional for A2L)
d) Evacuate. (optional for A2L)
e) Continuously flush or purge with inert gas when using flame to open circuit.
f) Open the circuit.
The refrigerant charge shall be recovered into the correct recovery cylinders if venting is not allowed by local and national codes.
For appliances containing flammable refrigerants, the system shall be purged with oxygen-free nitrogen to render the appliance
safe for flammable refrigerants. This process might need to be repeated several times.
Compressed air or oxygen shall not be used for purging refrigerant systems. For appliances containing flammable refrigerants,
refrigerant purging shall be achieved by breaking the vacuum in the system with oxygen-free nitrogen and continuing to fill until
the working pressure is achieved, then venting to atmosphere, and finally pulling down to a vacuum (optional for A2L). This
process shall be repeated until no refrigerant is within the system (optional for A2L). When the final oxygen-free nitrogen charge
is used, the system shall be vented down to atmospheric pressure to enable work to take place. Ensure that the outlet for the
vacuum pump is not close to any potential ignition sources and that ventilation is available.
In addition to conventional charging procedures, the following requirements shall be followed.
• Ensure that contamination of different refrigerants does not occur when using charging equipment
• Hoses or lines shall be as short as possible to minimize the amount of refrigerant contained in them
• Cylinders shall be kept in an appropriate position according to the instructions.
• Ensure that the refrigeration system is earthed prior to charging the system with refrigerant.
• Label the system when charging is complete (if not already).
• Extreme care shall be taken not to overfill the refrigeration system.
• Prior to recharging the system it shall be pressure tested with nitrogen.
• The system shall be leak tested on completion of charging but prior to commissioning.
• A follow up leak test shall be carried out prior to leaving the site.
12.Charging procedures
Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is
recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant
sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical power is
available before the task is commenced.
• Become familiar with the equipment and its operation.
• Isolate the system electrically.
• Before attempting the procedure ensure that:
-Mechanical handling equipment is available, if required, for handling refrigerant cylinders.
-All personal protective equipment is available and being used correctly.
-The recovery process is supervised at all times by a competent person.
-Recovery equipment and cylinders conform to the appropriate standards.
13.Decommissioning
11
• Pump down the refrigerant system, if possible.
• If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system.
• Make sure that cylinder is situated on the scales before recovery takes place.
• Start the recovery machine and operate in accordance with instructions.
• Do not overfill cylinders. (No more than 80 % volume liquid charge).
• Do not exceed the maximum working pressure of the cylinder, even temporarily.
• When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equipment are
removed from site promptly and all isolation valves on the equipment are closed off.
• Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked.
Equipment shall be labeled stating that it has been de-commissioned and emptied of refrigerant. The label shall be dated and
signed.
Ensure that there are labels on the equipment stating the equipment contains flammable refrigerant.
14.Labeling
• When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all
refrigerants are removed safely. When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery
cylinders are employed. Ensure that the correct number of cylinders for holding the total system charge is available. All cylinders
to be used are designated for the recovered refrigerant and labeled for that refrigerant (i.e. special cylinders for the recovery of
refrigerant).
• Cylinders shall be complete with pressure relief valve and associated shut-off valves in good working order. Empty recovery
cylinders are evacuated and, if possible, cooled before recovery occurs.
• The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and
shall be suitable for the recovery of flammable refrigerants. In addition, a set of calibrated weighing scales shall be available and
in good working order. Hoses shall be complete with leak-free disconnect couplings and in good condition.
• Before using the recovery machine, check that it is in satisfactory working order, has been properly maintained and that any
associated electrical components are sealed to prevent ignition in the event of a refrigerant release.
• Consult manufacturer if in doubt. The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery
cylinder, and the relevant Waste Transfer Note arranged.
• Do not mix refrigerants in recovery units and especially not in cylinders.
• If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain
that flammable refrigerant does not remain within the lubricant. The evacuation process shall be carried out prior to returning the
compressor to the suppliers. Only electric heating to the compressor body shall be employed to accelerate this process. When oil
is drained from a system, it shall be carried out safely.
• Non-duct connected appliances containing A2L refrigerants with the supply and return air openings in the conditioned space may
have the body of the appliance installed in open areas such as false ceilings not being used as return air plenums, as long as the
conditioned air does not directly communicate with the air of the false ceiling.
15.Recovery
12
What is in the Box.
Package content
Installation kit contents:
NOTE: R1 hardware is only
for Energy star models.
NOTE
Use scale below to
measure length of your
screws. The scale will
come in handy when
separating screws for
installation.
Identify Screws By Length
1″
(25mm)
1 -7/ 8 ″
(44mm)
2-1/2″
(63mm)
1/2″
(10mm)
3/4″
(19mm)
Level
Ruler or tape measureDrill
*Not Included
PencilGloves Screwdriver Scissors&Knife

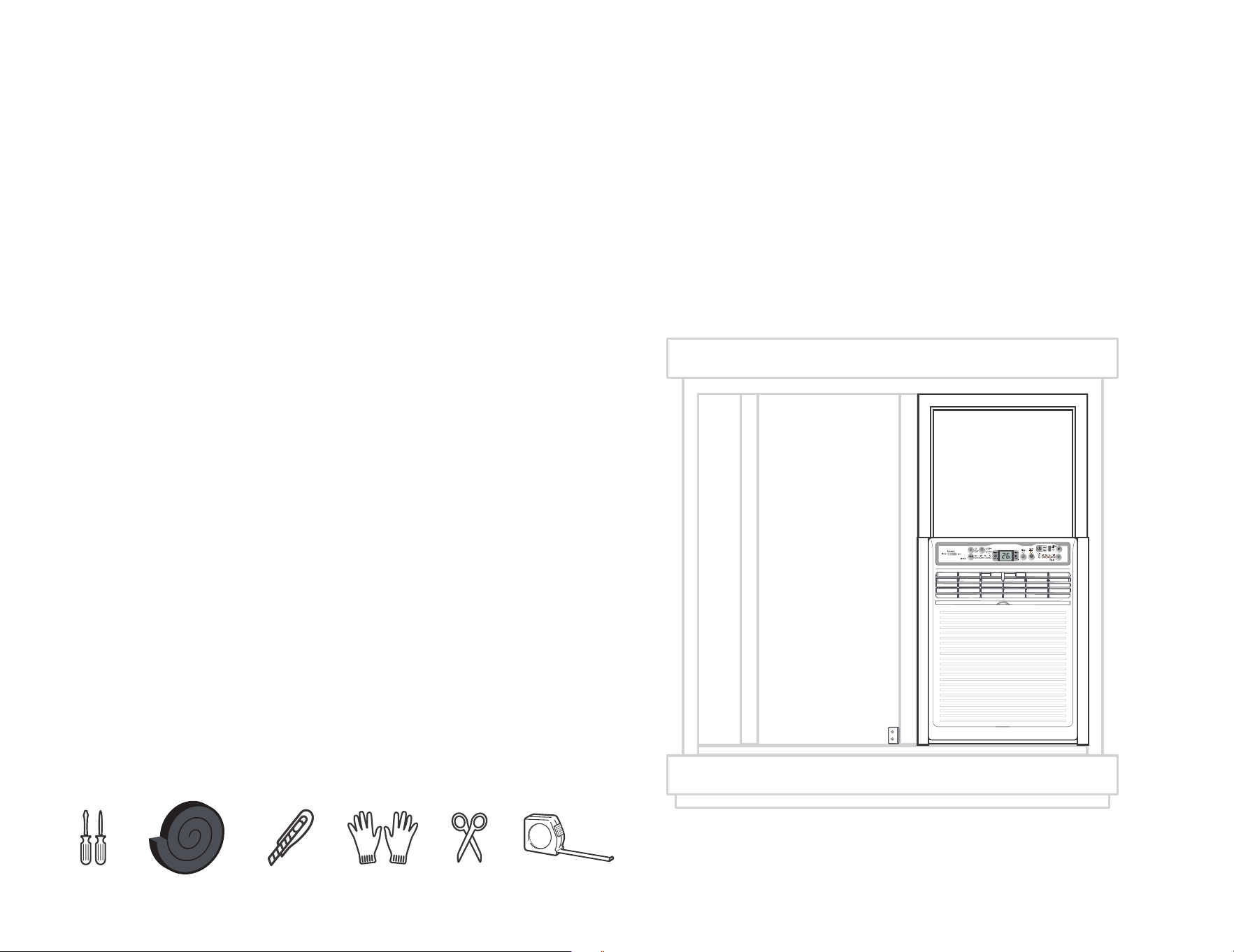

Prepare the following tools
1
2
12
19
17
16
14
4
3
9 or 10
or 11 or 17
13
8
20
5
21
17
7
15
6
18
Hardware
Side channel seal
Support brace
Platform
Adjustment bolt
Hex flange nut - 1/4
Track seal
Window sash seal
Safety bracket
Qty.
1
1
1
1
1
1
1
1
2
1
2
3
4
5
6
7
8
No.
9
Qty.
2
6
7
1
1
2
6
1
Hardware
Window locking bracket
Plastic window panel
Side channel
Panel frame/seal assembly
No.
12
2
11
10
13
14
15
16
17
18
1
19
R1 hardware
13
Choose the proper window location:
Before you get start.
Installing your
AC should take
about 60 minutes.
The installation must be
carried out in strict
accordance with the
instructions in this manual.
Manual
We recommend
doing this with
a helper.
We’re here if you need us,
please contact your local
distributor for assistance.

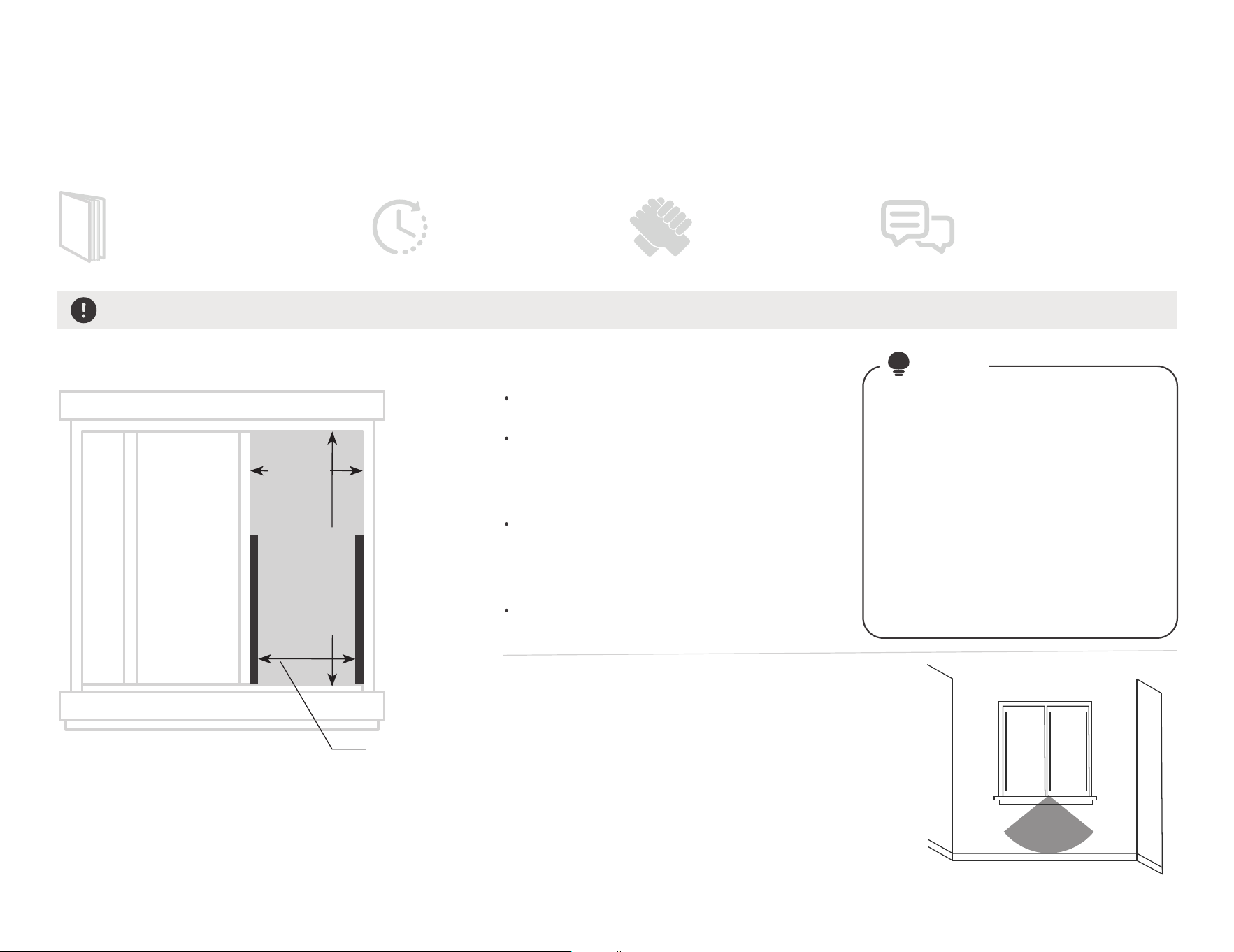

INSTALLATION POSITION REQUIREMENTS
Preparations before installation
15-1/2″
minimum
width
16-1/4″
maximum
width
(casement
windows)
20-5/16″
minimun
height
39-7/16″
maximun
height
15-1/2″ wide
wooden-frame
At least 1″
thick wood
For wood-frame casement windows:
Height measurement must be of
a clear opening above mounting
platform. In some cases, due to a
variety of stop and track
arrangements, the above
dimensions may vary slightly. If
necessary, installation can be made
by alternating window jambs.
(See Alternate Window
Jamb Applications).
It may be necessary to construct a frame,
using at least 1
″ thick wood, with a
15-1/2″ wide opening.
15-1/2 inches minimum width; 16-1/4
″
maximum width(for casement windows)
21-1/4″minimum height (with window
panel retainer); 20-5/16 inches minimum
height (window panel retainer removed)；
39-7/16 inches maximum height
For brick or cement building construction:
It may be necessary to put a wood stool
strip under AC, for mounting purpose.
NOTE
Choose a window that allows the cooled
air to flow freely and directy into room(s) you
wish to cool. Remember, it is difficult
to move air around corners. Also,choose a window
that is within 6 feet of an electrical outlet.
(See Meeting Electrical Requirements / Receptacle
wiring needs.)
Do not use an extension cord.
6 foot
power cord
reach
1 4

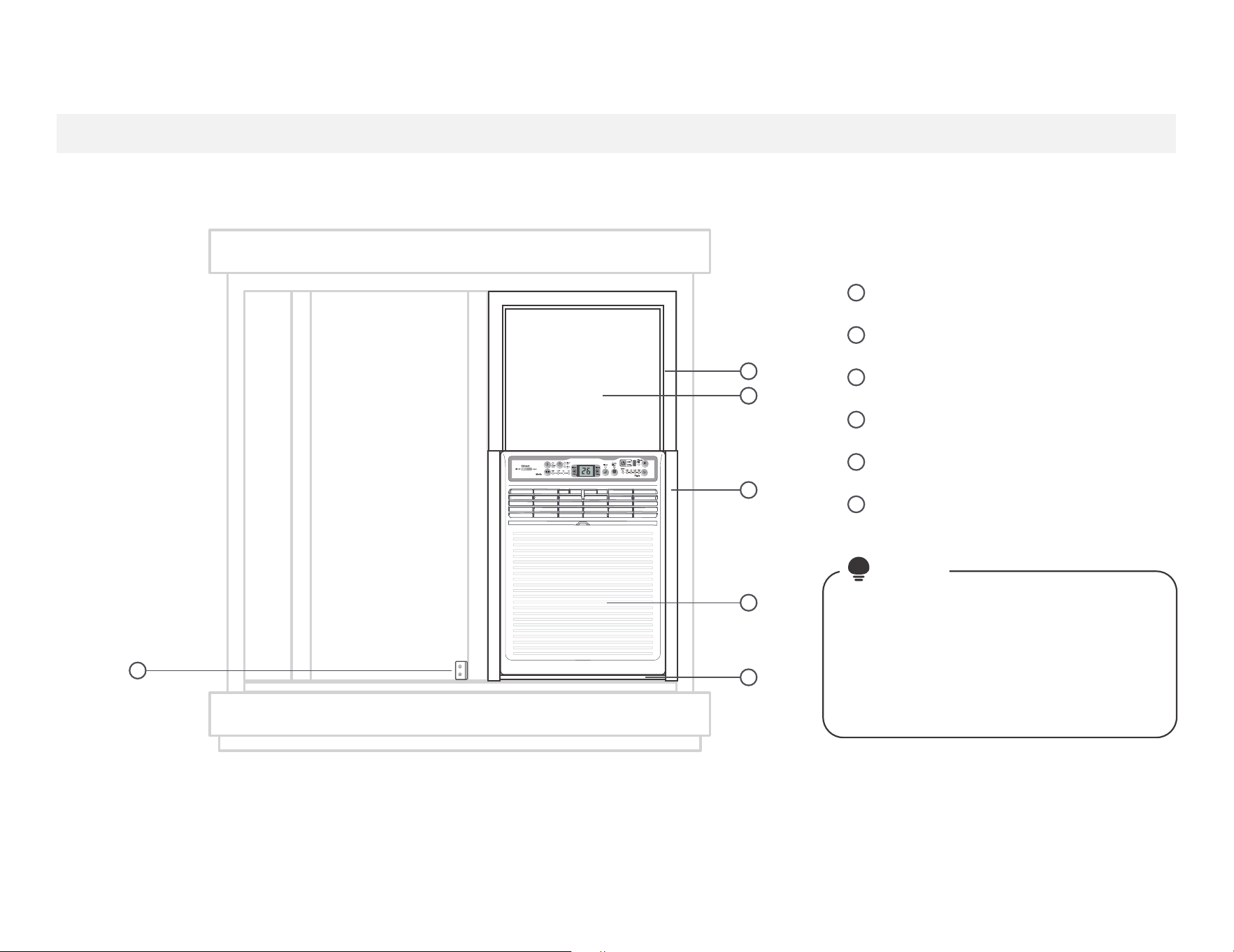

Installation overview.
1
3
2
6
4
5
Illustrations in this manual are for
explanatory purposes. The actual
shape of your indoor unit may be
slightly di˛ erent. The actual shape
shall prevail.
NOTE

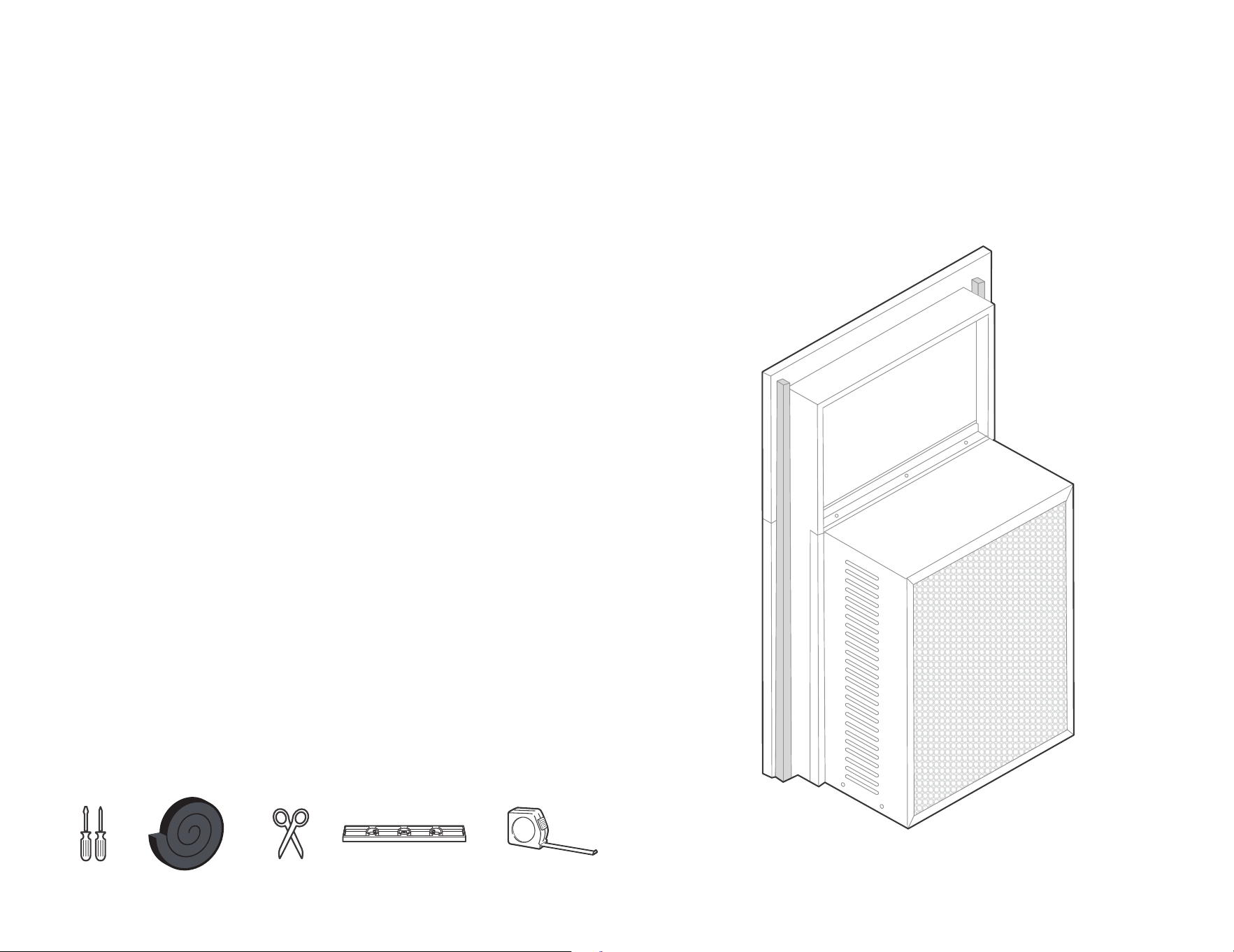

Installation Completion Display
Side channel x2
Air Conditioner unit x1
1
2
3
4
5
6
Window Sash Seal Foam x1
Side channel x2
Panel frame/seal assembly x1
Safety Lock x1

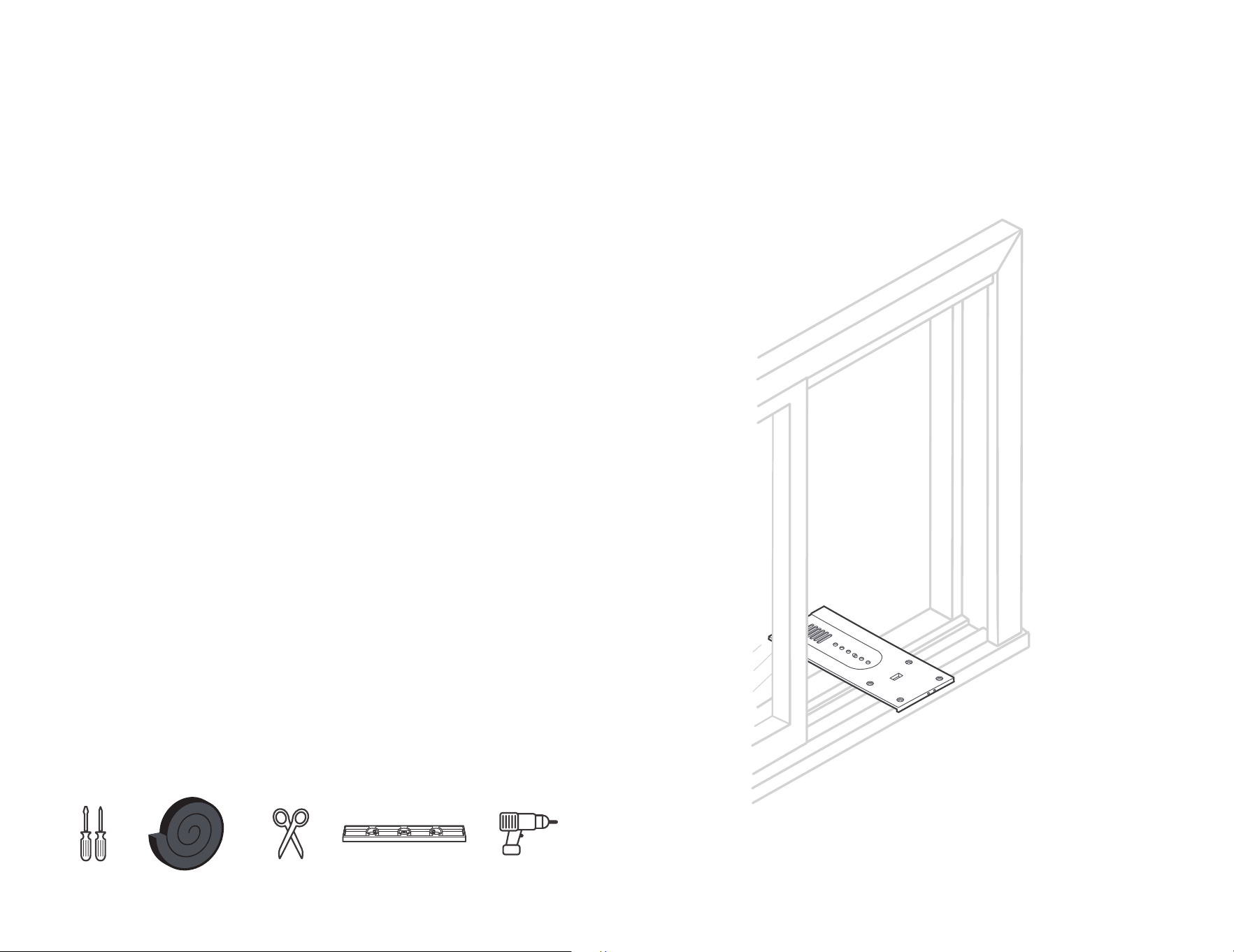

Installing Unit in a Sliding Window.
15
1Step

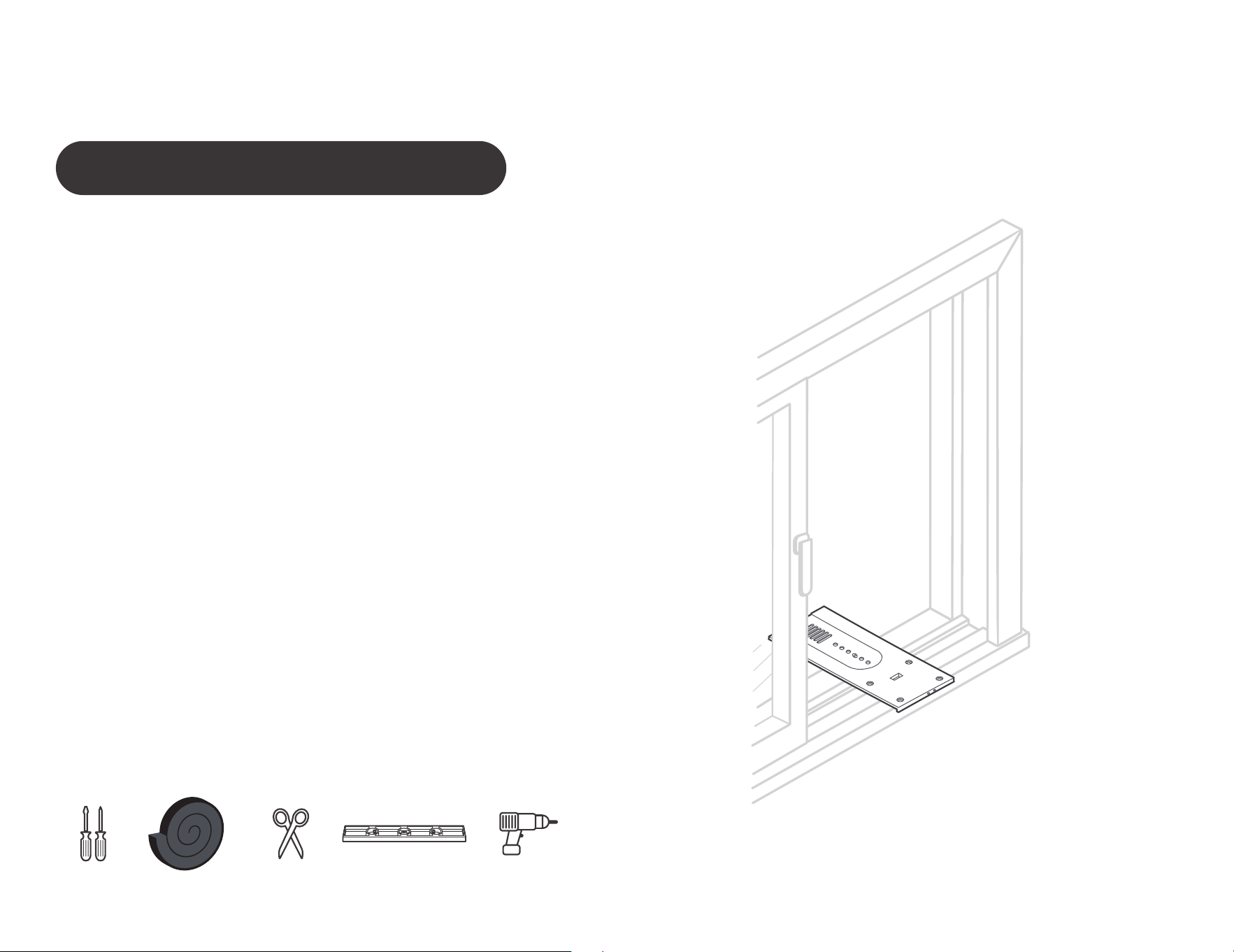

Attach
support brace.

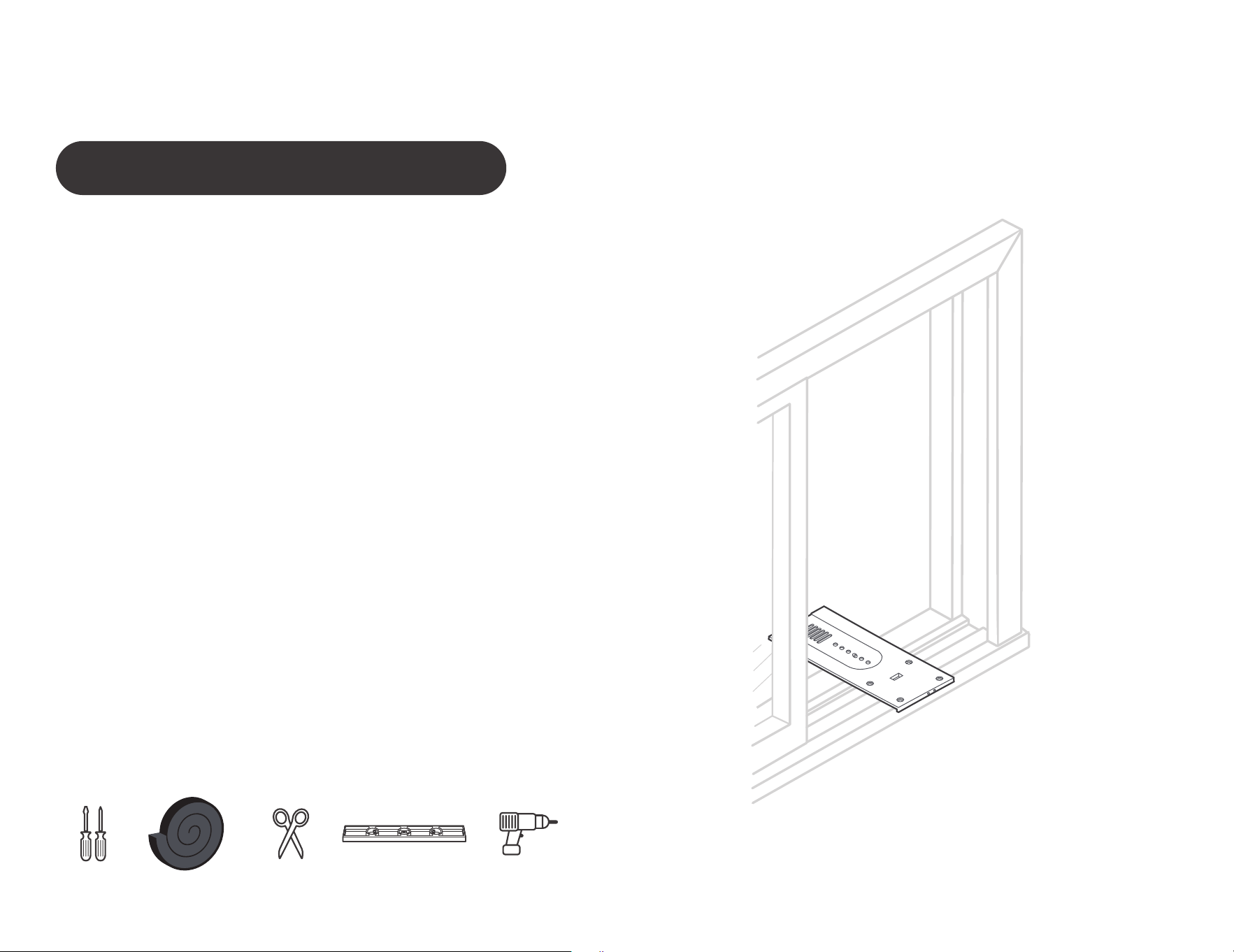

What you need.
The sliding window
16
1
2

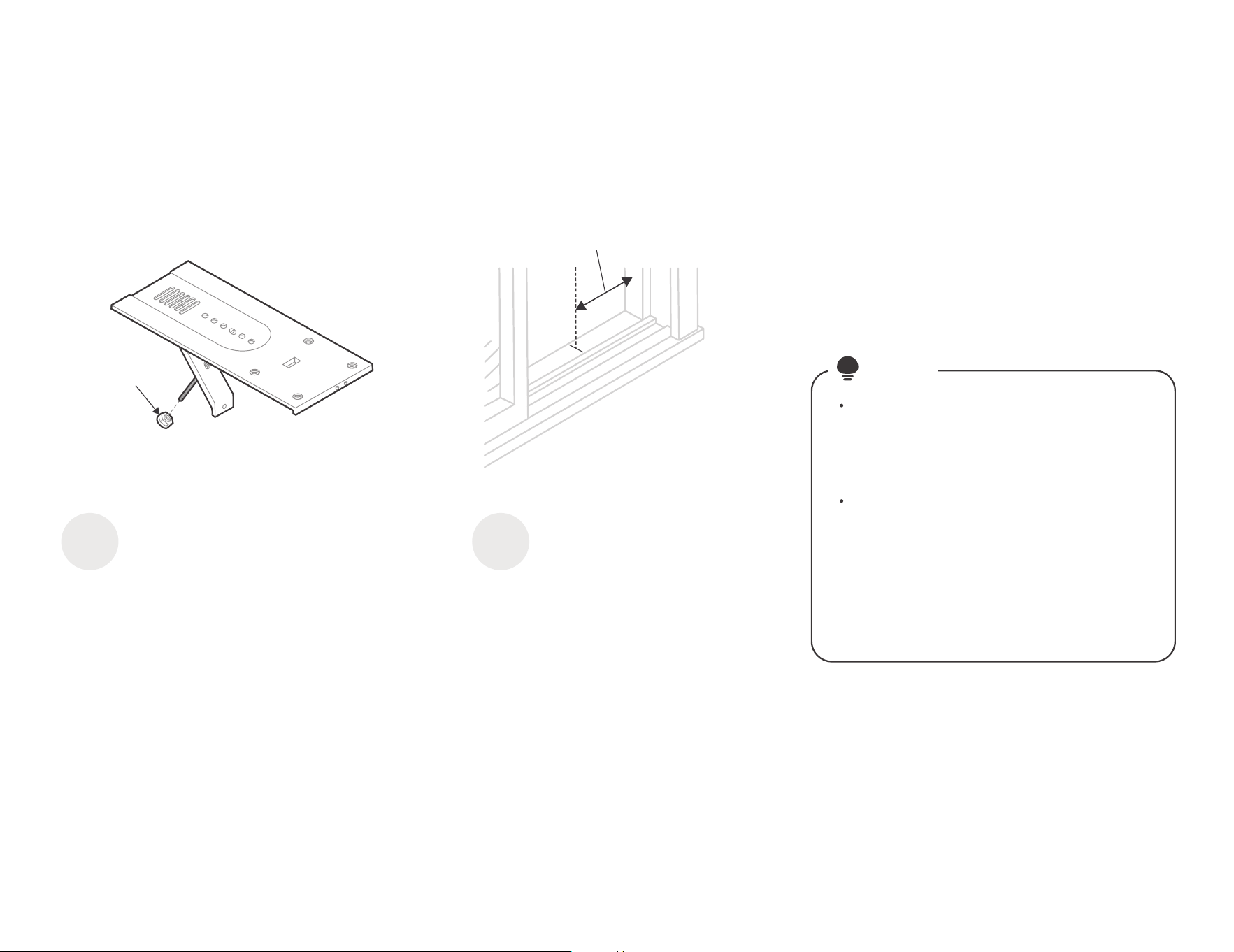

Attach support brace
to platform.
Use adjustment bolt and hex flange nut to
complete assembly. Choose slot and adjust-
ment bolt hole locations that will create a 45
degree angle between platform and support
brace. Try assembly in the window to deter-
mine if platform will rest properly, and allow
proper slope(3/16″lower on outside).
HEX FLANGE NUT
6mm(1/4″)
Platform Assembly

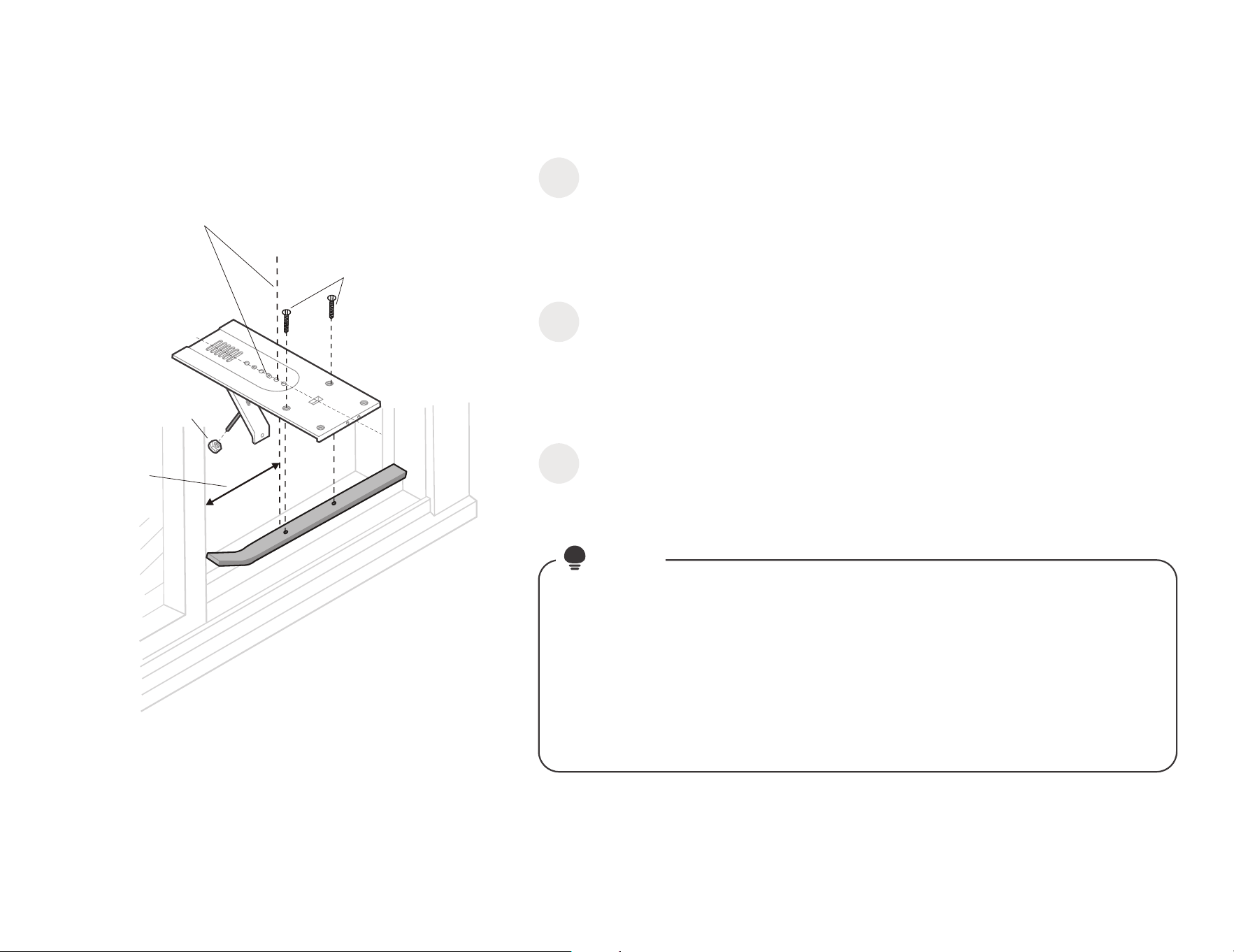

Measure and mark
the position of
support brace.
Measure and lightly mark a line
8-11/16″from window jamb.
8-11/16″
If you are planning to use a siding-
protection board (see Step 5) on the
outside of your house, hold board in
place when testing assembly in window.
NOTE
If any sash stop protrudes more than
1 ″from the side window jambs, the
8-11/16″measurement must be
increased accordingly. Screen and storm
window frames may also require
adjustments to the measurement.
Attach support brace.
1 7
Center platform
assembly on the window.
3
Center platform assembly on the
line with inside platform tab pressed
against inside edge of window track.
4
Apply seal to room side of
window track seal.

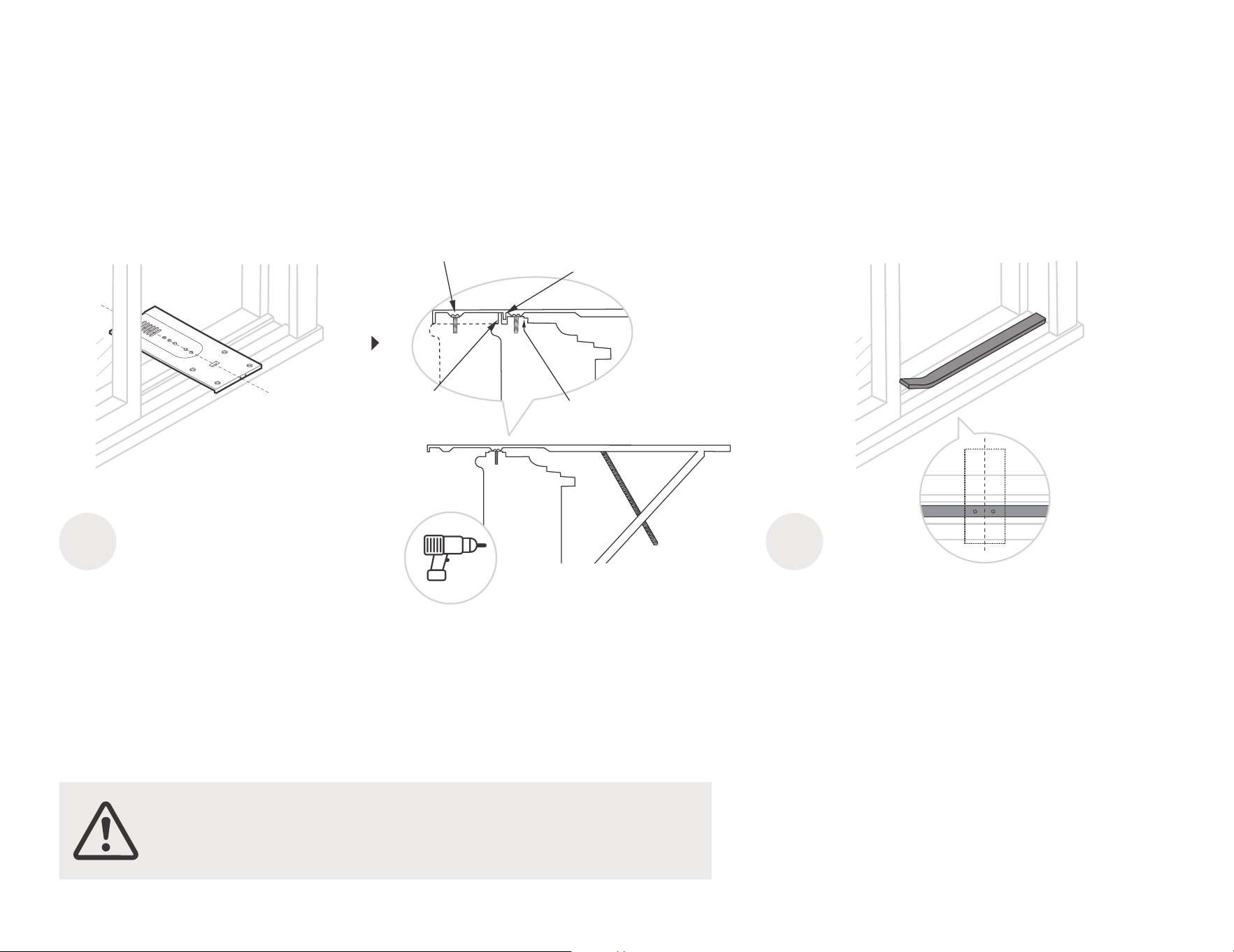

Using the holes in the platform as a guide,
mark and drill two 9/64
″ diameter holes.
Drill holes in either track or stool.
Center platform assembly
on the line with platform tab
pressed against window track
(Lines marked in step 2).
Alternate screw location
(depending on the stool depth)
Platform tab
Window seal
Please drill carefully
with an electric drill.
Window track
CAUTION: Be sure wood stool or window track is securely attached to
the building construction. Use longer screws in sub-framing if necessary.

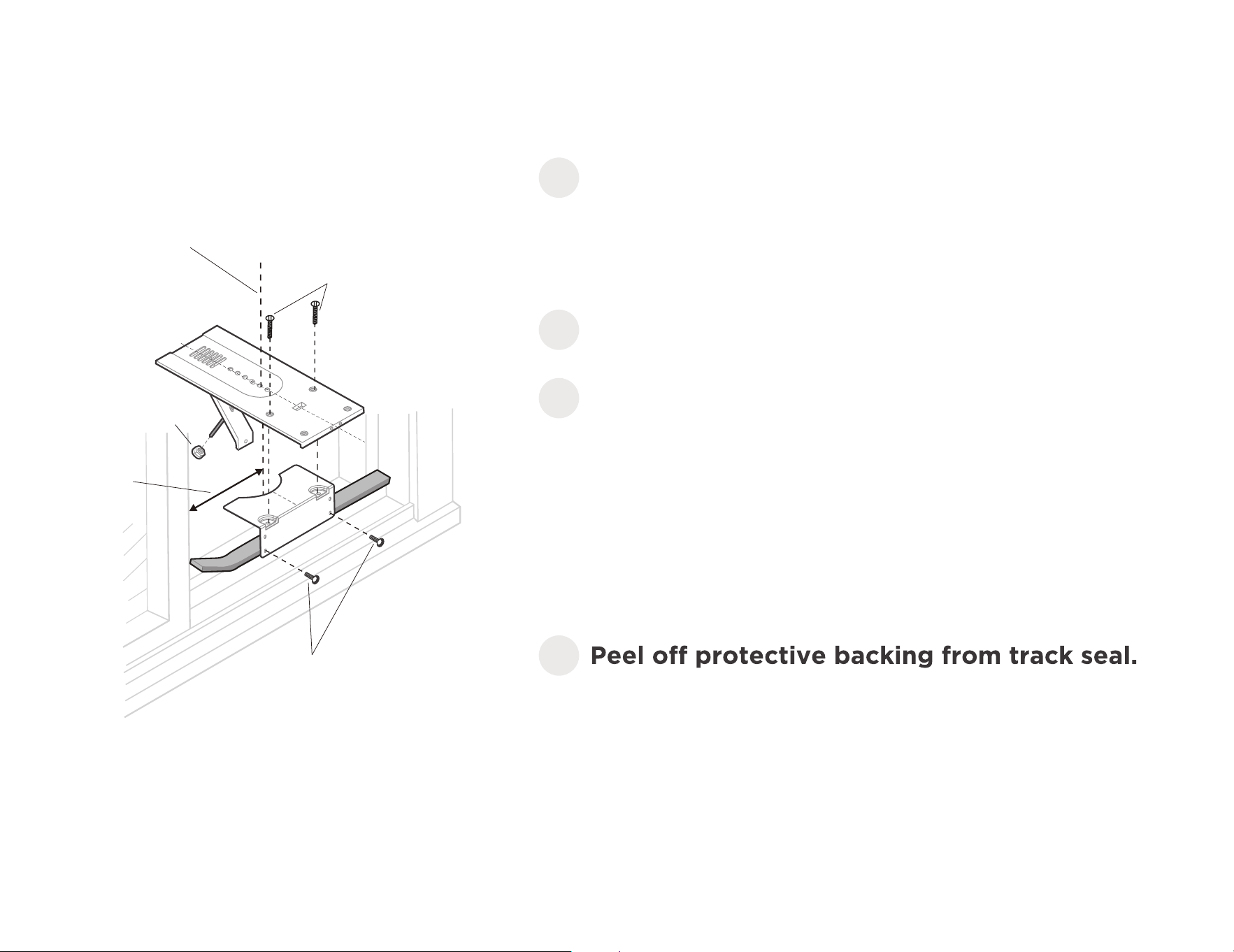

Peel off ptotective backing from track seal. Apply
seal to room side of window track seal. Center of seal
strip should coincide with the line marked in Step 2.
The two screw holes drilled in Step 3 should be
directly above seal strip in the inner track.
Apply track seal to
window side of track.
Attach support brace.
Top view
schematic
1 8
5
Securely attach a siding-protection
board to the outdoor side of window.
6

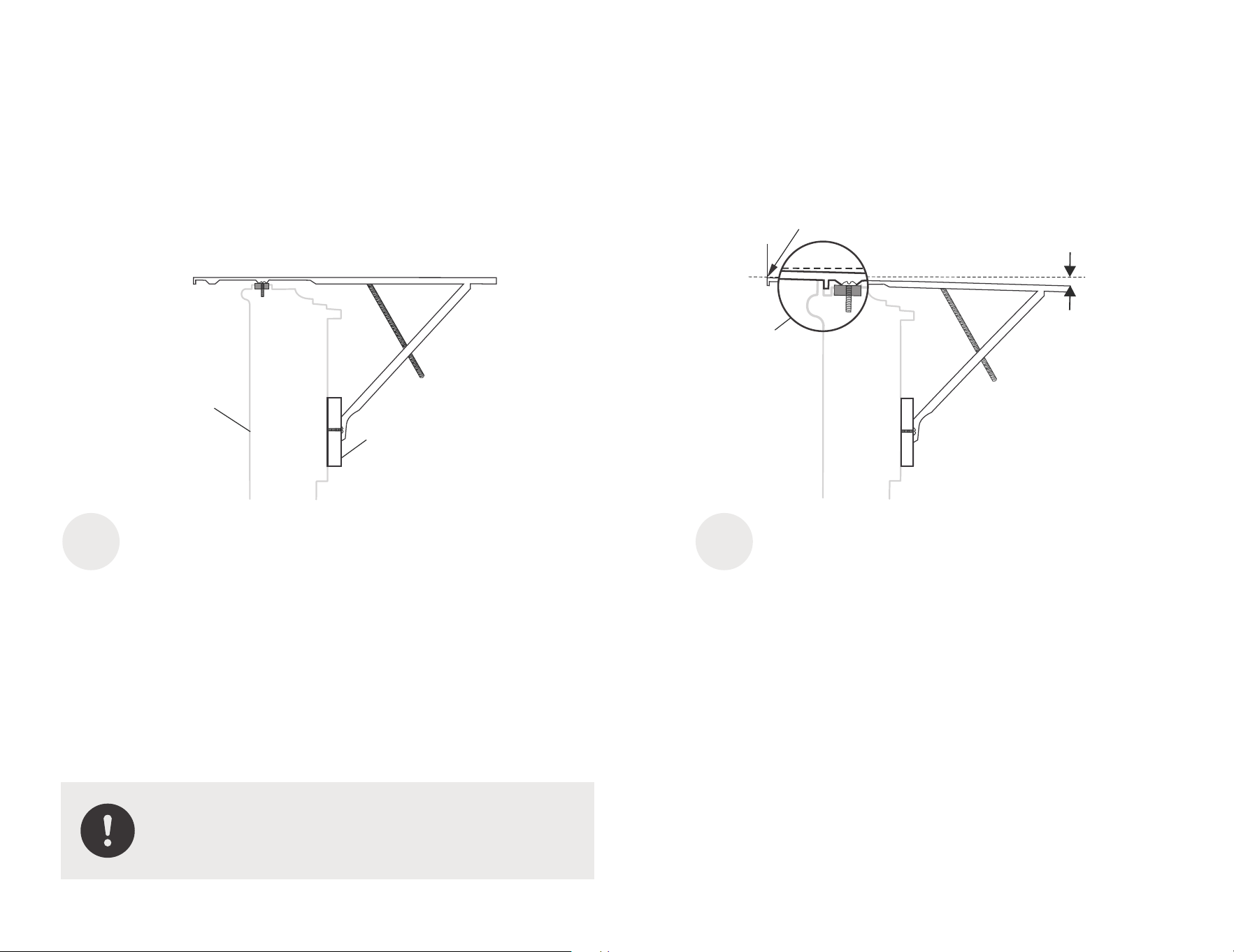

Adjust platform assembly.
Inside
wall of
house
Siding-protection
board
Put platform
tab against
inside of
track
Measure from here
About 3° to 4°

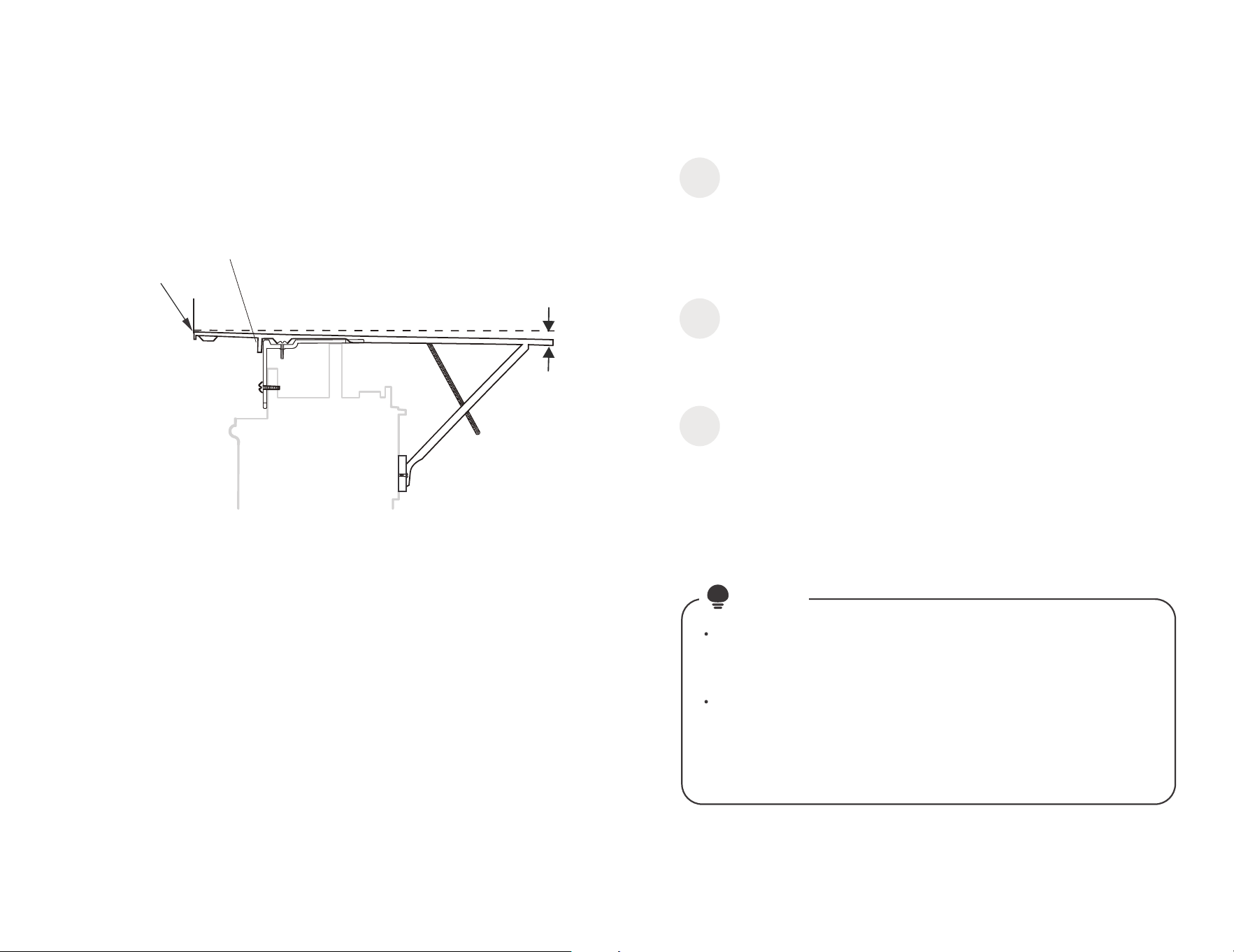

Adjust the platform assembly so that the air conditioning
Angle is about 3° to 4° lower than the horizontal Angle.
After proper installation, condensate should not drain from
the overflow drain hole during normal use, correct the
slope otherwise.
Place platform assembly,with platform tab against inside of window
track, and attach it to window jamb. Use appropriate length screws
(ltems9-11 in Preparing For Installation).
Attach support brace.
NOTICE: Siding-protection board should be long
enough to span 2 wall studs.
19
2Step
Install the
panel frame and
window panel.
What you need.
20
3

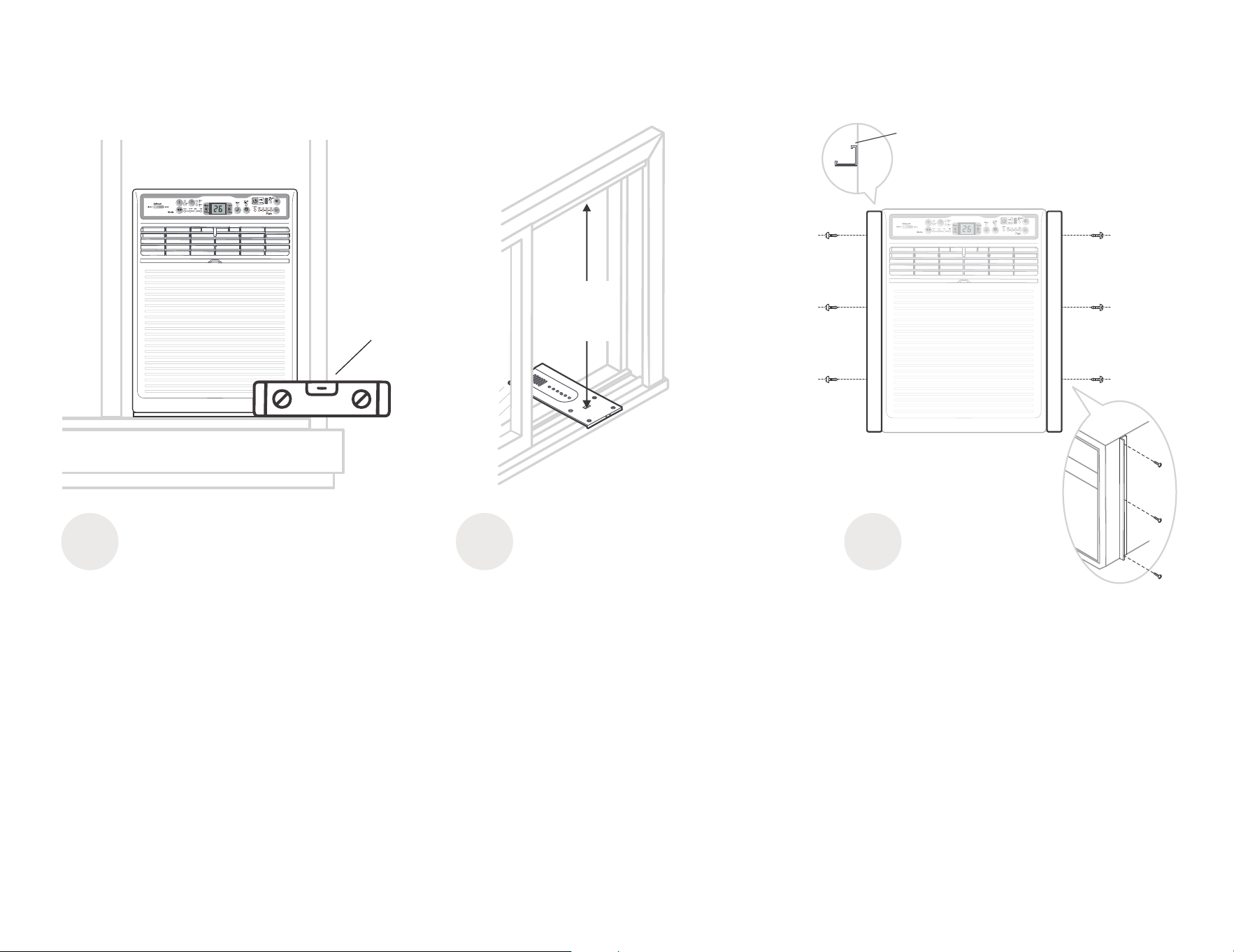

Fasten side channels.
Install the panel frame and window panel.
21
Ensure your unit is
level on the window.
Measure height of
window opening.
Level platform assembly from
side-to-side. Also, make sure window
track is level. Use leveling shims as
necessary to ensure unit is level from
side-to-side.
remain
horizontal
Measure height of window opening
from top of platform assembly as shown
right, Subtract 20-5/8 inches, Mark this
measurement on plastic window panel,
along the longer side.
Measure
distance
and subtract
20-5/8″.
Fastening
side channels
Towards
the back of
the unit
Top view
Fasten side channels to the sides of
the AC using 3 screws (Item 17) per
channel. Start with first screw at top of
channel. Make sure hook ends of channels
face toward back of unit.
1
2 1
4

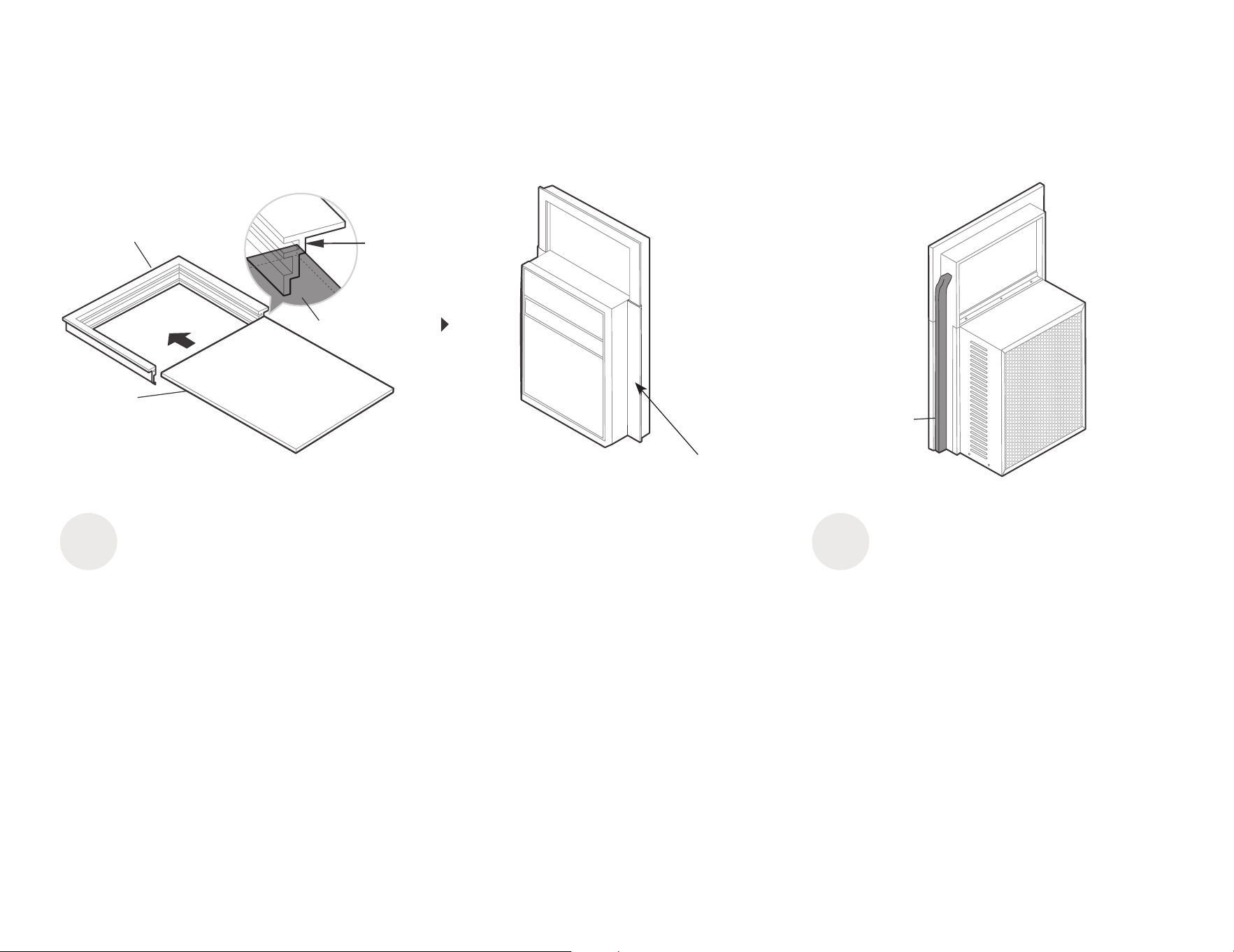

Slide plastic window panel into
panel frame.
5
Paste channel seal on the
back of the panel frame.
Install the panel frame and window panel.
Slide plastic window panel into panel frame,with the smooth side
to the room. Slide panel frame assembly into side channels of the
AC cabinet. Make sure plastic window panel is firmly enclosed on
all sides by the retainer grooves.
Panel frame
Plastic
window
panel
Plastic
window
panel
Insert the plastic
window panel into
the upper notch

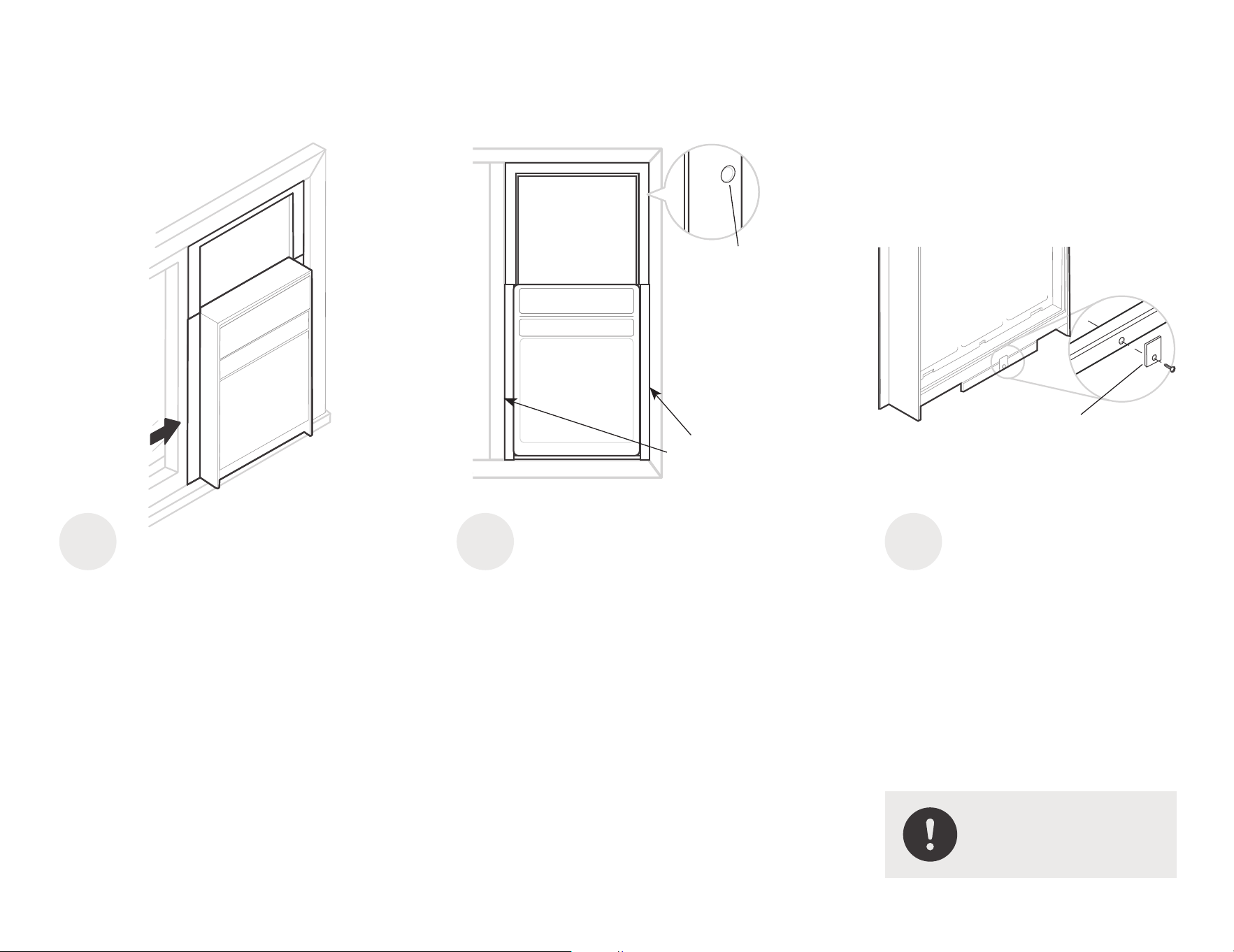

Slide panel frame assembly into
side channels of the AC cabinet.
Cut side channel seal into 2 equal lengths.
Remove protective backing and apply it to the
rear side of cabinet side channels,starting just
below panel frame assembly. Pinch off excessive
length so seal is even with the bottom of the
cabinet side channel.
Apply weather
seal to side
channels just
below edge of
panel frame.
2 2
NOTICE:
DO NOT push or pull air
direction louvers.

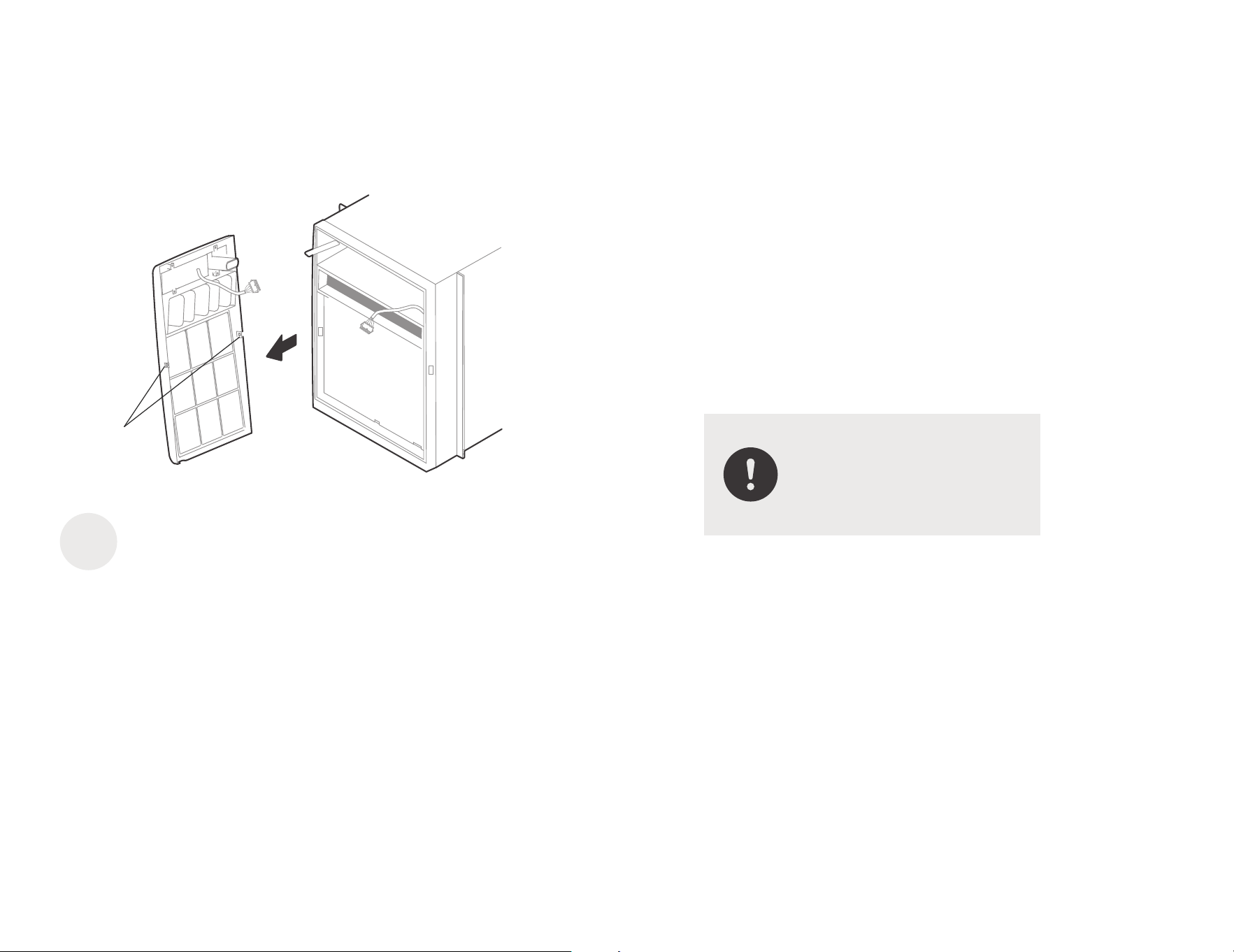

1. Remove the two front retaining screws from the front frame.
2. Gently pull the front out and lift up to release it from the case.
3. Then release the coupler plugs.
6
To remove front (Prepare
for the installation of Window).
Front
Retaining
Screw
Install the panel frame and window panel.
2 3
3Step
What you need.
Place AC
in window
opening.
24
Place AC in window opening.
1
Install the panel and the R1 hardware
to the panel frame.
In order to minimize air leaks and ensure
optimal insulation, it is necessary to install
the included plastic window panel and R1
hardware (Only E-star model) to the panel
frame. Follow the instructions above.

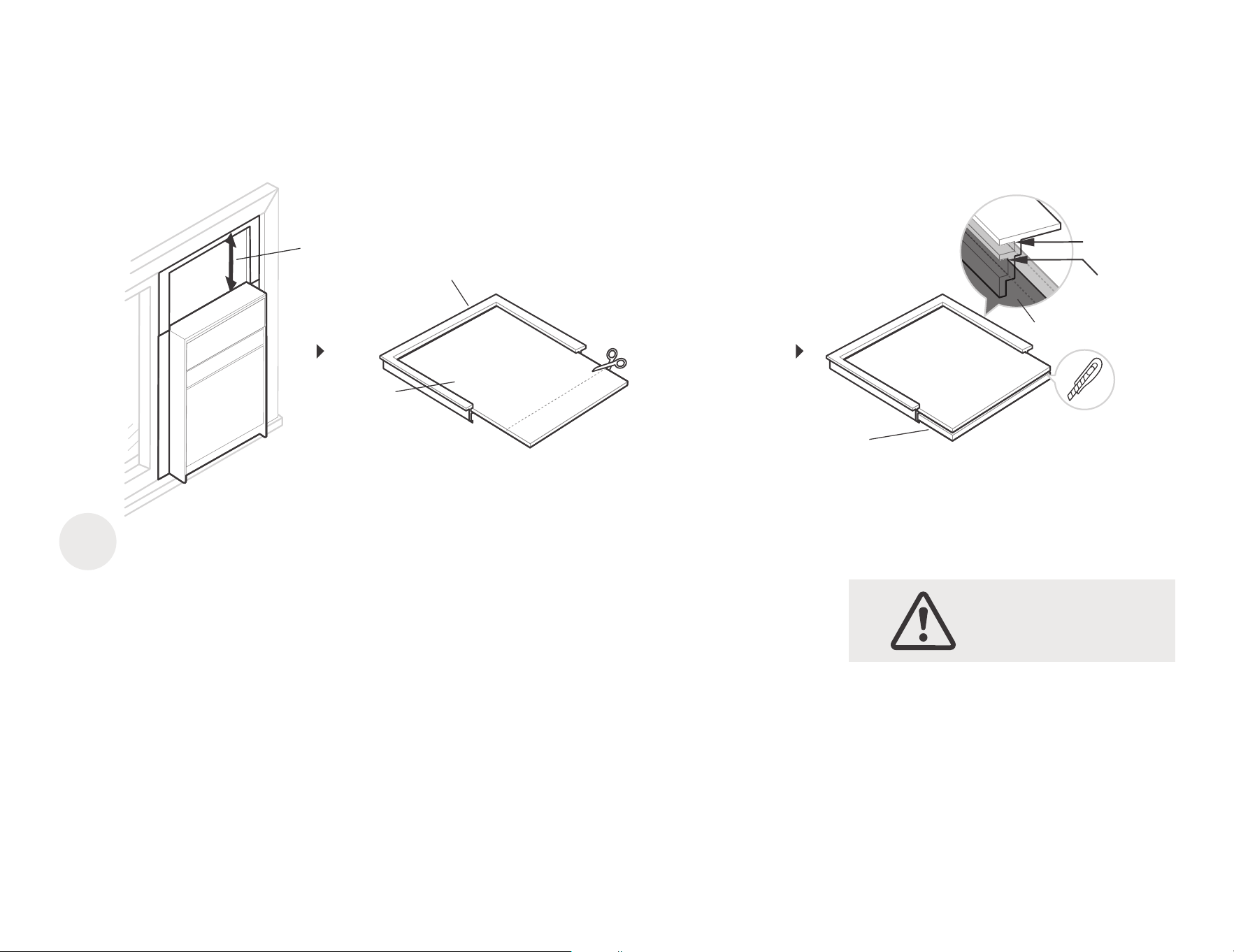

Measure the
inner height
of the panel
frame to the
top of the unit.
Panel frame
Cut off the excess
of the plastic window
panel according to the
measured length.
Plastic
window
panel
Cut off the excess
of the R1 hardware
according to the
measured length
by a knife.
The R1
hardware
Plastic
window
panel
the plastic
window panel
the R1
hardware
Step 1: After the unit is
installed to the window,
measure the inner height
of the panel frame to the
top of the unit.
Step 2: Remark a line on the provide
R1 hardware according to the measured
height in step 1, then cut the R1
insulation panel along the line.
Step 3: Remove the tape of the
R1 hardware, then attach to the
panel frame.
CAUTION: Be careful
when cutting operation.
2 5
Place AC in window opening.
2
Put the AC on the
window opening.
As shown above, it should sit on platform
assembly so that window panel frame,and
cabinet side channels are against top and
side window jambs.
3
Slide inner window
sash firmly.
Slide inner
window sash
firmly against
Cabinet.
Against side of the cabinet, make sure not to
peel the seal strips from the window track and
cabinet side channels.If the panel frame does
not fit snugly to the inner window sash, secure
the panel frame to the sash with 3/4″screws, or
3/4″self-threading screws, Use the partially
plugged holes in the panel frame. Drill 1/8″pilot
holes for the screws.
4
Install the safety
bracket.
against side
of the cabinet.
the panel frame
hole(Not perforated)
Hook the safety bracket over the
base of the unit and fasten it to the
front of the platform assembly. Use
a 3/4″ self-threading screw.
Safety bracket
NOTICE:
The bracket prevents movement
of the AC (either in or out) after
completing the installation.
2 6
5 6
strip/sash seal.

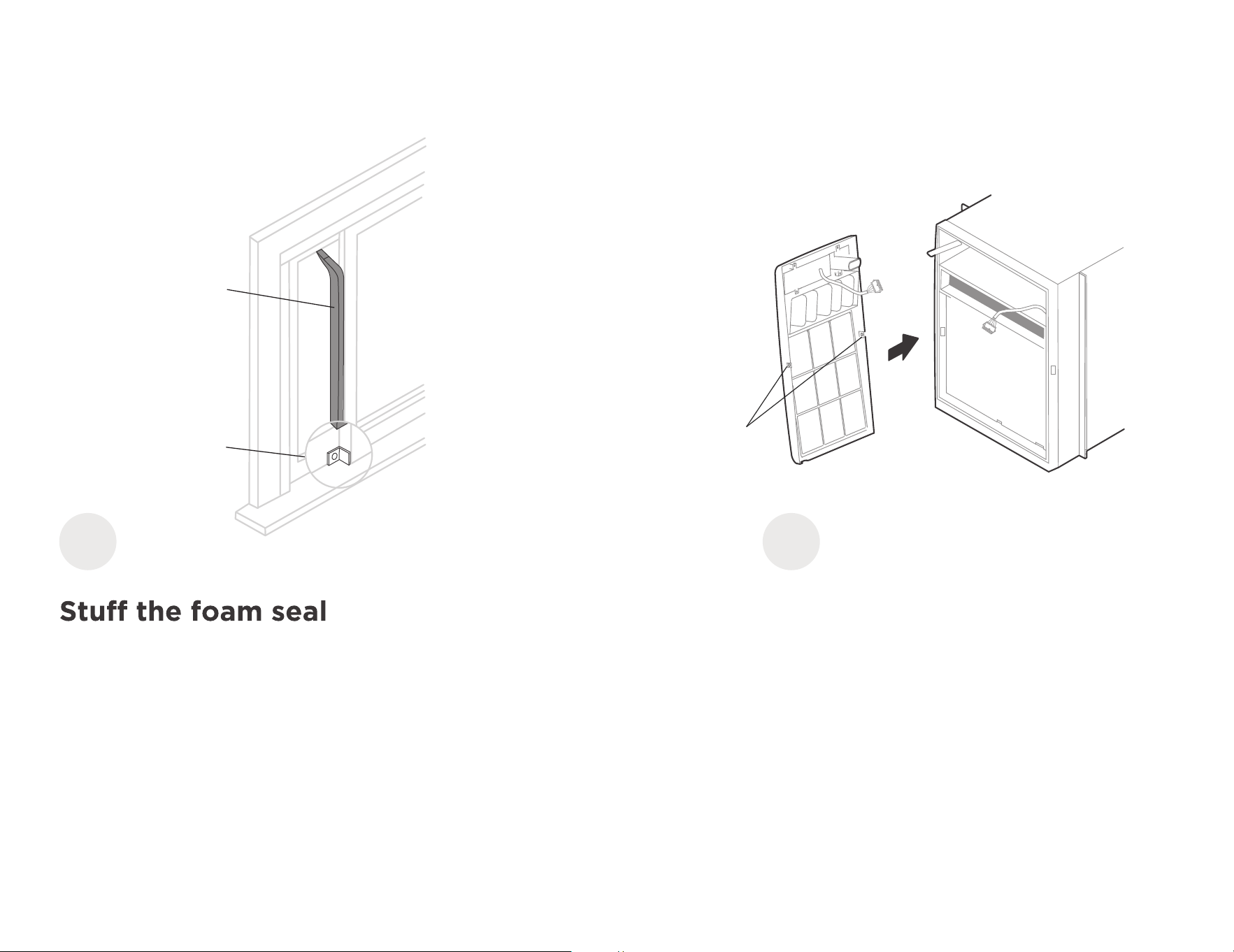

Stuff the foam seal strip/sash seal
between the vertical sash and the
window glass, as shown above.
Install the window
locking bracket.
To replace the front.
Use the window locking bracket to lock
the inner window sash to the base of the
outer window sash. Use one 3/4″ screw,
or 3/4″ self- threading screw.(Drill 1/8″
pilot hole).
Place AC in window opening.
Sash seal
Window
locking
bracket

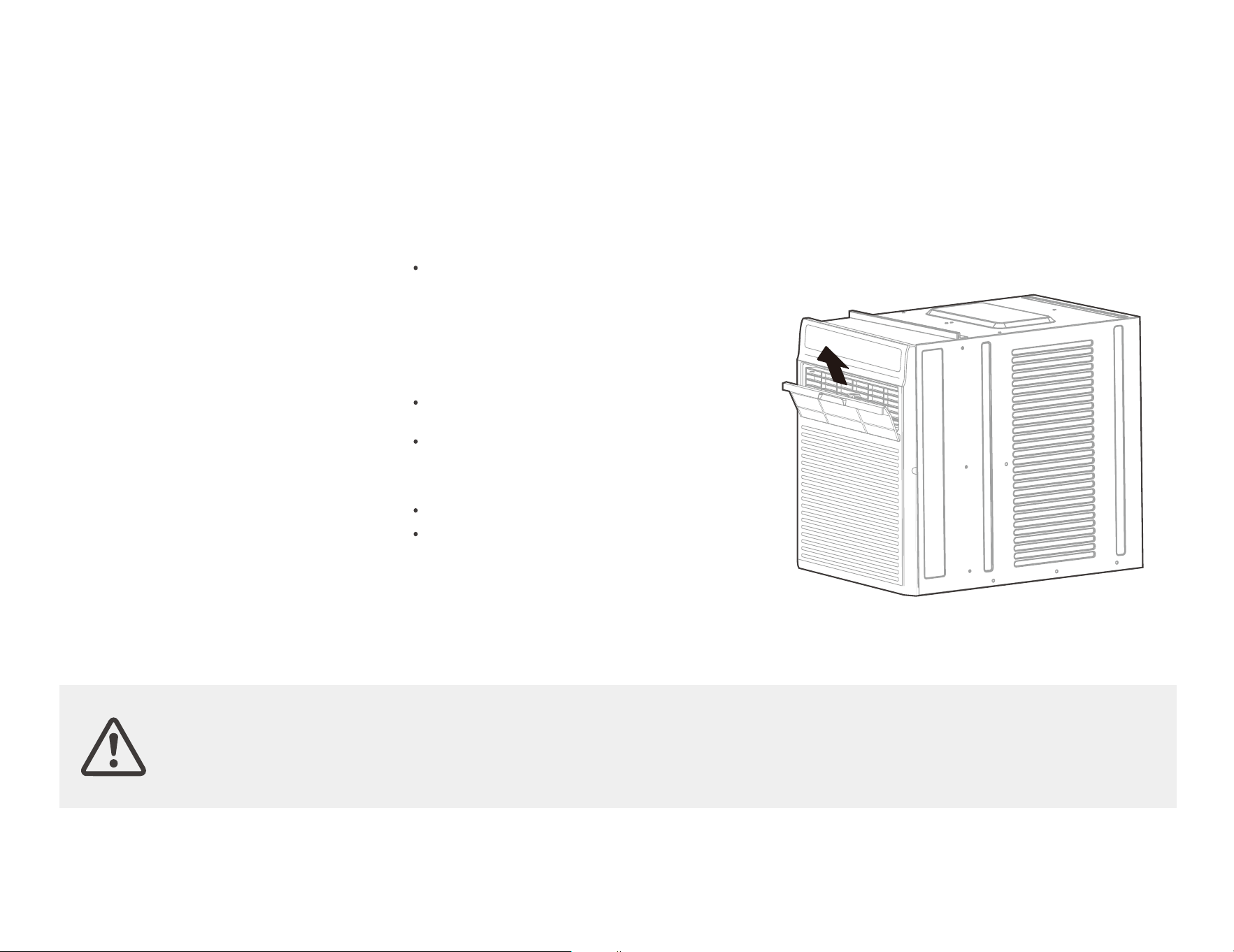

First reconnect the coupler plugs and make the
exhaust control positioned through the front in
the proper location. Then replace the retaining
screws that holds the panel in place. Do not
push or pull the front panel louvers.
Front
Retaining
Screw
2 7
Precautions for installation of dierent window types.
7

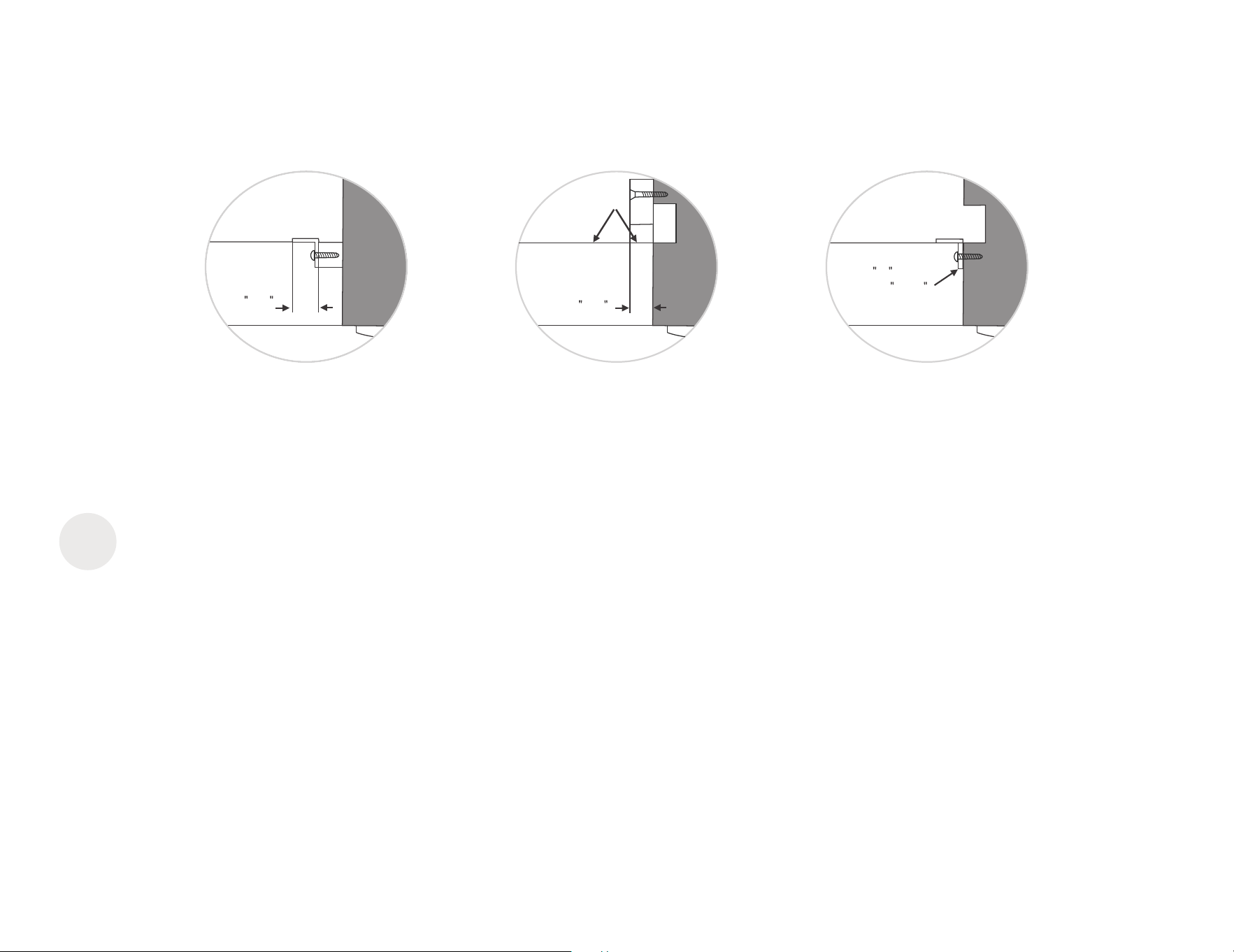

Alternate Window Jamb Applications
To install in windows having no flanges or wood stops on the top and side jambs, the channels and panel frame must fit against mating flange (or
1/16-inch max. thick angle) attached to the window jambs. Figure A shows this angle installed. Figures B & C show alternate treatments. On the
sash side of the opening,the leading corner of the inner sash becomes the flange. You can purchase the angle strip locally.
Room
Add angle to
wood stop
A
Room
Flush
Add wood
as shown
B
Room
Add 16-or 18-
gauge angle
C
1 x1 or
3/4 x3/4
angle
3/4 or 1
3/4 or 1
28
Installation for
Illustrations in this manual are for explanatory purposes. The actual shape of
your indoor unit may be slightly different. The actual shape shall prevail.
For casement window: to avoid crank handle and window clearance problems,
the unit can be installed in a stationary sash section.
However, the horizontal mullion and the 2 glass panels must be removed
before installation.
NOTE
Vinyl-Clad window & casement window
9
Attach
support brace.
What you need.
Vinyl-Clad window
30
Attach support brace (For vinyl-clad window).
1
2
3
HEX FLANGE NUT
6mm(1/4″)
Platform
Assembly
8-11/16″
Use screws other
than 3/4 ″
Alternate the screw
location (depending on
the height of the sill)
Platform support bracket, support
bracket and track seal must be
centered with the centerline of
the 8-11/16 ″marked window jamb.
Attach support brace to platform.
Install the support bracket on the window
track before you install the platform.
4
As shown on the side. Use adjustment bolt and hex flange nut to complete
assembly. Choose slot and adjustment bolt hole locations that will create a
45 degree angle between platform and support brace. Try assembly in the
window to determine if platform will rest properly, and allow proper slope
(about 3° to 4° lower than the horizontal Angle).
Measure, and lightly mark a line 8-11/16″from
window jamb.
You need to install the support bracket on the window track before you install
the platform. Follow the instructions below to do that.
1. Place the support bracket on the window sill as shown. Using the holes in
the support bracket as a guide, mark and drill two 1/8" diameter holes.
2. Applly the track seal on the room side of window track.
3. After applly the track seal, use two 3/8" screw (item 17) to fixing the
support bracket. Make sure the support bracket is level form side to side.
Keep going after you finish fixing the support bracket.
Apply seal to room side of window track. Center of seal strip should coincide
with the line marked in Step 2. The two screw holes drilled in Step 3 should
be directly above seal strip in the inner track.
3 1
Attach support brace (For vinyl-clad window).
Measure
from here
About 3° to 4°
Put platform tab
against inside edge
If you are planning to use a siding-protection board on the
outside of your house, hold board in place when testing
assembly in window.
NOTE
If any sash stop protrudes more than 1 ″from the side
window jambs, the 8-11/16″measurement must be
increased accordingly. Screen and storm window frames
may also require adjustments to the measurement.
5
Adjust platform assembly.
Adjust the platform assembly so that the air conditioning
Angle is about 3° to 4° lower than the horizontal Angle.
After proper installation, condensate should not drain
from the overflow drain hole during normal use, correct
the slope otherwise.
place platform assembly, with platform tab against insidh
edge of the support bracket, and use two 3/8" screw
(item 17) to attach it to support bracket as shown above.
Securely attach a
siding-protection board.
6
place platform assembly.
7
Securely attach a siding-protection board to side of house.
NOTICE: Siding-protection board should be long enough
to span 2 wall studs.
3 2
Attach
support brace.
What you need.
Casement window
33
Attach support brace (For casement window).
Drill a 9/64″diameter pilot hole.
Use the adjustment bolt and hex flange nut to complete the assembly.
Choose the slot and adjustment bolt hole locations that will create a 45
degree angle between the platform and the support brace. Try the assembly
in the window to determine if the platform will rest properly, and allow the
proper slope (about 3° to 4° lower than the horizontal Angle).
NOTE
Open the window the maximum amount to allow for clearance of the cabi-
net. The crank handle should be removed to allow the platform to be
fastened to the jamb.
If the window cannot open far enough (more than 15-1/2 inches) for the
cabinet to clear the window, remove the window entirely by drilling out the
rivets. Bolts can serve as the pivots in the future.
If you are planning to use a siding-protection board (see Step 6) on the
outside of your house, hold the board in place when testing the assembly in
the window.
Drill a 9/64″diameter pilot hole in the window jamb an equal distance from
each side of the jamb, and 3/16″up from the window sill. If the hole coin-
cides with the window lever slot in the jamb bottom, an additional hole will
have to be drilled through the platform edge and the window jamb to miss
this slot.
Apply seal to room side of window track seal.
Peel off the pr otective backing from the track seal, and stick the seal to the
window sill on the outside of the bottom jamb.
1
Attach support brace to platform.
2
3
In the middle
of the window
jamb bottom.
HEX FLANGE NUT
6mm(1/4″)
Platform
Assembly
Use 3/4 ″screws
Platform support bracket and track
seal must be centered with the
centerline of the marked window jamb.
3 4
Attach support brace (For casement window).
Center platform assembly on
the window.
Adjust platform assembly.
Adjust the platform assembly so that the air conditioning
Angle is about 3° to 4° lower than the horizontal angle.
After proper installation, condensate should not drain from
the overflow drain hole during normal use, correct the
slope otherwise.
Securely attach a siding-protection
board to the outdoor side of window.
Screw the platform assembly to the window jamb through the
pilot hole you drilled in Step 2. Use a 3/4″self-threading screw.
Securely attach a siding-protection board to the side of the house
where the platform assembly hit the house. The siding-protection
board should be long enough to span 2 wall studs.
NOTICE:
For the following installation steps, please refer to the
sliding window installation method for operation. Start
from Step 2-Install the panel frame and window panel.
4
5
6
Inside
wall of
house
Track seal
Screw
About 3° to 4°
Measure from here
Fasten siding-
protection board to
the house siding.
3 5
1
2
One more thing
Additional Notes
All the illustrations in this manual are for explanation purpose only.
Your air conditioner may be slightly di˛ erent. The actual shape
shall prevail.
“Gurgling or hissing ”noise may be heard due to refriger ant passing
through evaporator during normal operation.
Gurgle/Hiss
Unit may vibrate and make noise because of poor wall or window
construction or incorrect installation.
Vibration
High efficiency compressors may have a high pitched chatter during the
cooling cycle.
High Pitched Chatter
At the front of the unit, you may hear the sound of rushing air being
moved by the fan.
Sound of Rushing Air
Droplets of water hitting condenser during normal operation may cause
“pinging or switching”sounds.
Pinging or Switching
3 6
Get to know your AC.

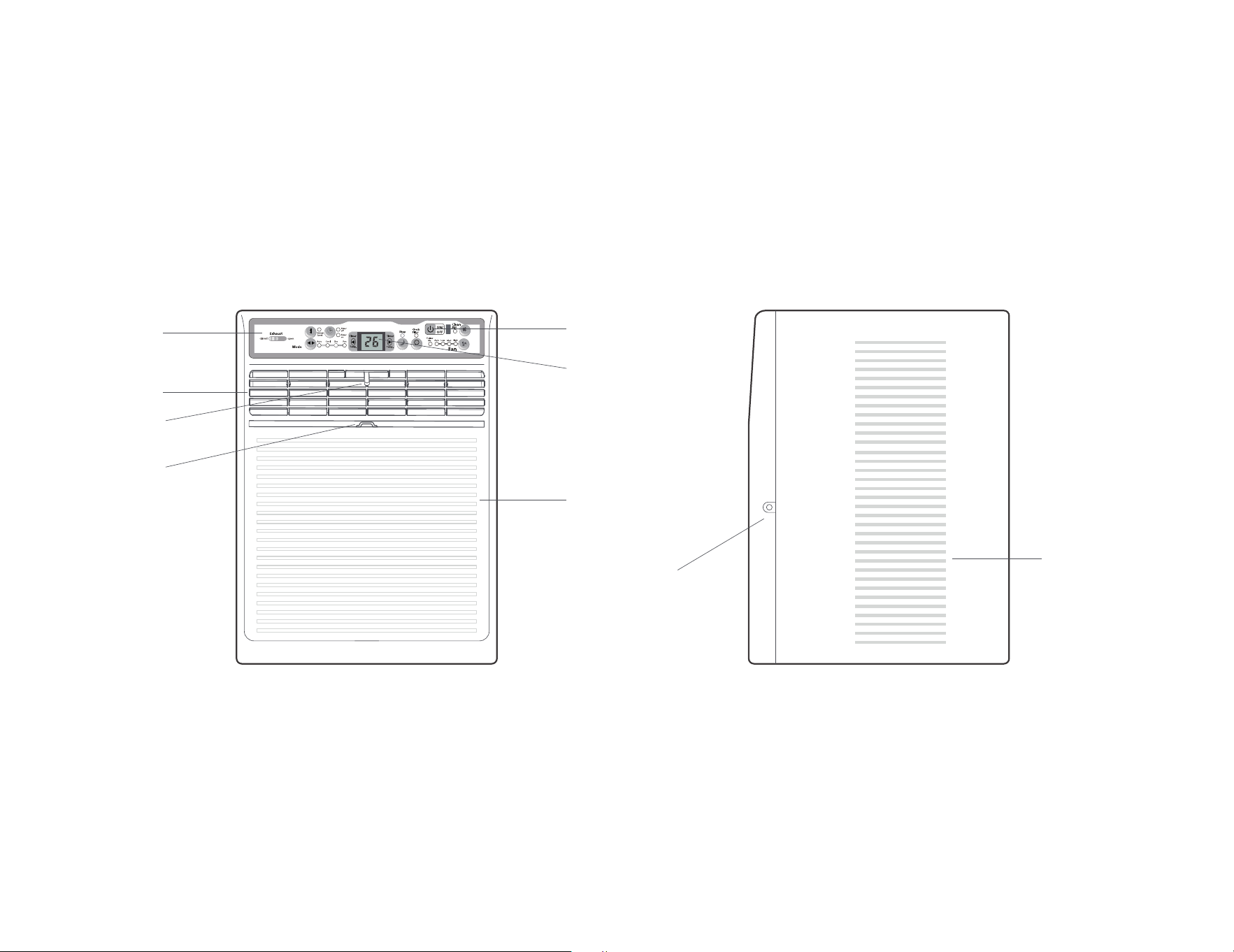

AC unit overview
Display
Air Direction
Filter pull
handle
Feature
selection
Screw holes
in front panel
Levers
Power key
Front Intake Grille
(The filter is
behind this)
Rear Condenser
Vents
37
1. Display
2. To turn unit ON or OFF
Get to know your AC.

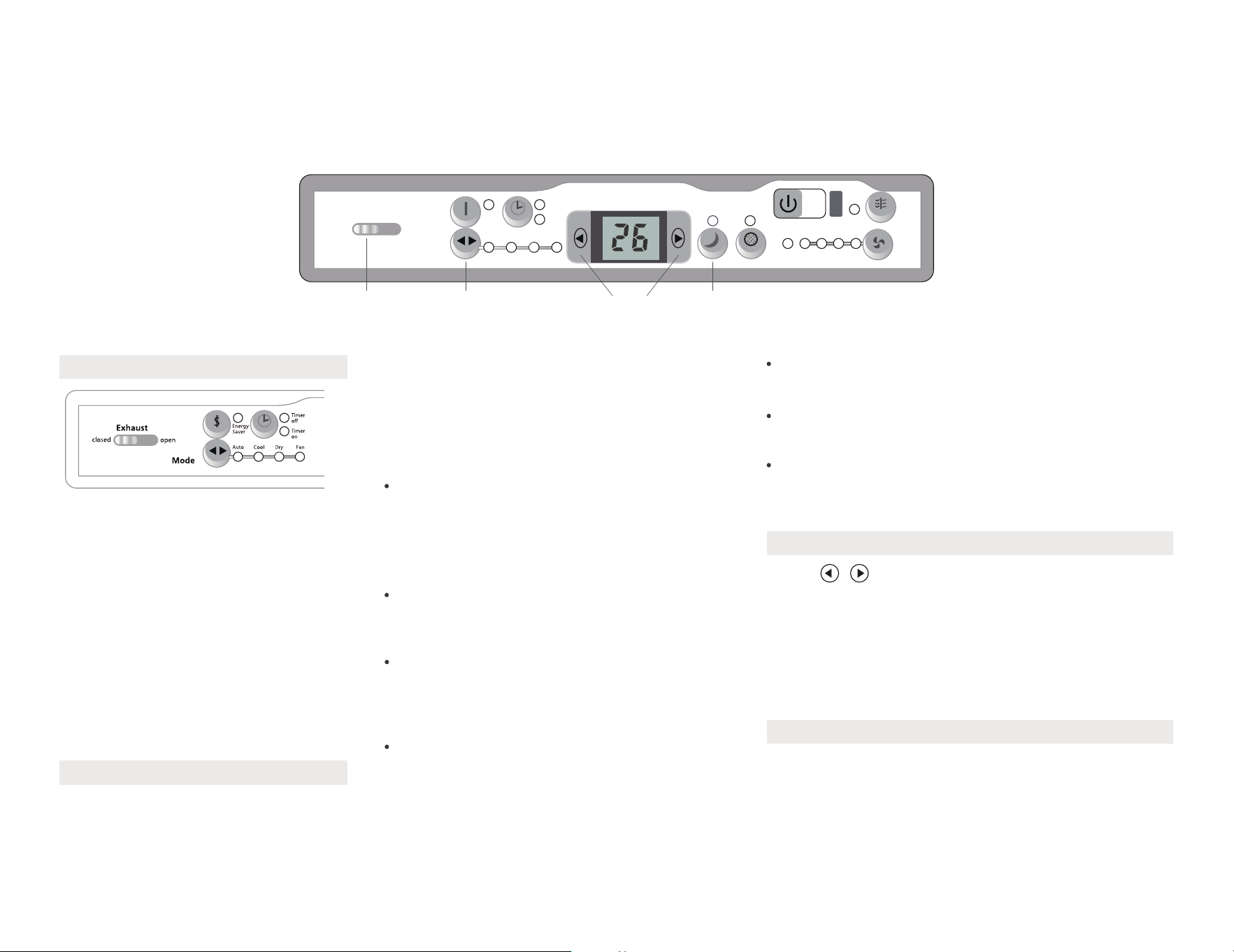

Electronic control operating instructions
NOTE: The unit will initiate autom atically the
Energy Saver function under Cool, Dry, Auto
(only Auto-Cooling and Auto-Fan) modes.
Press POWER button to turn
unit on or off.
Give signal feedback on your actions.
3. Remote Signal Receptor
4. Clean Air Feature(on some models)
5. Timer: auto start / stop feature
6. Energy saver feature
15 6 2 3 4
S
Exhaust
closed
Energy
Saver
Follow
Me
Timer
off
Timer
on
open
Mode
Timer
Temp.
Timer
Temp.
Auto Cool Dry Fan
Sleep
Check
Filter
ON/
OFF
Auto
Med
Low High
Fan
Clean
Air

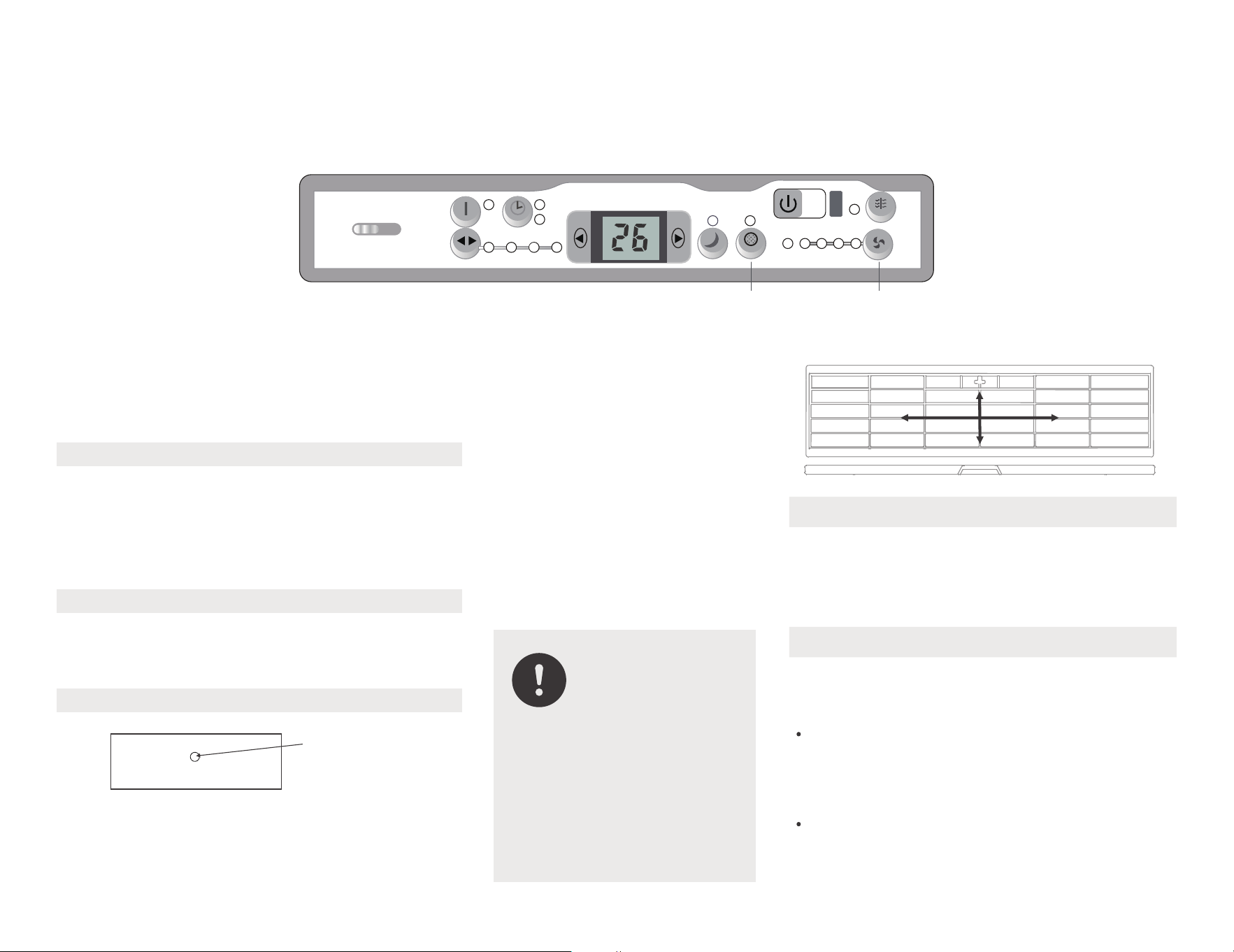

Press Clean Air button,the ion generator
is energized and will help to re move pollen
andim purities from the air, and trap them
in the filter.
When the unit is on or off, first press Timer
button, the TIMER ON indicator light
illuminates. It indicates the Auto Start
program is initiated.
When the time of TIMER ON is displayed, press the
Timer button again, the TIMER OFF indicator light
illuminates. It indicates the Auto Stop program is initiated.
The selected time will register in 5 seconds, and the
system will automatically revert back to display the
previous temperature setting or room temperature when
the unit is on. (when the unit is off there is no display).
Press or hold the UP or DOWN button to change the
Auto time by 0.5 hour increments, up to 10 hours, then at
1 hour increments up to 24 hours. The control will count
down the time remaining until start.
Turning the unit ON or OFF at any time or adjusting the
timer setting to 0.0 will cancel the Auto Start / Stop
timed program.
Press Energy saver button to initiate this function. This
function is available on COOL, DRY, AUTO (only
AUTO-COOLING and AUTO-FAN) modes. The fan will
continue to run for 3 minutes after the compressor shuts
off. The fan then cycles on for 2 minutes at 10 minute
intervals until the room temperature is above the set
temperature, at which time the compressor turns back
on and Cooling Starts.
Shows the set temperature in "°C"
or"°F " and the Auto-timer
settings .While on Fan only mode, it
shows the room temperature. If the
room temperature is too high or low, it
will display“HI” or “LO”.
Displays
AS-Room temperature sensor
error-Unplug the unit and plug it back
in .If error repeats, call for service.
ES or -Evaporator temperature sensor
error-Unplug the unit and plug it back
in. If error repeats, call for service.
HS-Electric heating sensor error-Un-
plug the unit and plug it back in. If
error repeats, call for service.
Error codes:
3 8
7. Exhaust control
8. To select the operating mode
9. To change temperature setting
10. Sleep feature
This Exhaust Control allows the air
conditioner to either circulate inside
air (Closed) or exhaust air to the
outside (Open).
The Closed position is used when
maximum cooling is desired. It may
also be used for air recirculation
without cooling when the air
conditioner is set in any FAN
position.
The Open position removes stale air
from the room and exhausts it to the
outside. Fresh air is drawn in through
normal passages in the home.
To choose operating mode, press
Mode button. Each time you press
the button, a mode is selected in a
sequence that goes from Auto, Cool,
Dry and Fan.
The unit will initiate automatically the Energy
Saver function under Cool, Dry, Auto (only
Auto-Cooling and Auto-Fan) modes.
The indicator light beside will be illuminated
and remained on once the mode is selected.
To operate on Auto feature:
When you set the air conditioner in AUTO
mode, it will automatically select cooling,
heating (cooling only models without), or fan
only operation depending on what
temperature you have selected and the
room temperature.
The air conditioner will control room
temperature automatically round the
temperature point set by you.
In this mode, the fan speed cannot be
adjusted, it starts automatically at a speed
according to the room temperature.
To operate on Fan Only:
Use this function only when cooling is not
desired, such as for room air circulation or to
exhaust stale air (on some models).
Remember to open the vent during this
function, but keep it closed during cooling for
maximum cooling efficiency. You can choose
any fan speed you prefer.
To operate on Dry mode:
In this mode, the air conditioner will generally
operate in the form of a dehumidifier. Since the
conditioned space is a closed or sealed area, some
degree of cooling will continue.
During this function, the display will show the actual
room temperature, not the set temperature as in the
cooling mode.
In Fan only mode, the temperature is not adjusted.
Press / UP/DOWN button to change
temperature setting.
NOTE: Press or hold either UP or DOWN button
until the desired temperature is seen on the display.
This temperature will be automatically maintained
anywhere between 62° F(17°C) and 86 °F(30°C).
If you want the display to read the actual room
temperature, see “ To Operate on Fan Only ” section.
Press Sleep button to initiate the sleep mode. In this
mode the selected temperature will increase by
2°F/1(or 2) °C 30 minutes after the mode is selected.
The temperature will then increase by another 2°F/1
(or 2)°C after an additional 30minutes. This new
temperature will be maintained for 6 hours before it
returns to the originally selected temperature.
Electronic control operating instructions
7 8 9 10
S
Exhaust
closed
Energy
Saver
Follow
Me
Timer
off
Timer
on
open
Mode
Timer
Temp.
Timer
Temp.
Auto Cool Dry Fan
Sleep
Check
Filter
ON/
OFF
Auto
Med
Low High
Fan
Clean
Air
Get to know your AC.
3 9
Electronic control operating instructions
& Air directional louvers operation
Get to know your AC.
11. Check filter feature
12. To adjust fan speeds
13. Follow me feature
NOTICE:
This control panel is
based on the typical
model. Not all the
functions describing
in this manual are
available for all the
models.The machine
you purchased may
be slightly di˛ erent.
This ends the Sleep mode and the unit will continue
to operate as originally programmed. The Sleep
mode program can be cancelled at any time during
operation by pressing the Sleep button again.
Press Check filter button to initiate theis feature.
This feature is a reminder to clean the Air Filter for
more efficient operation. The LED (light) will
illumi-nate after 250 hours of operation. To reset
after cleaning the filter, press the Check Filter
button and the light will go off.
Press to select the Fan Speed in four steps-Auto,
Low, Med or High. Each time the button is
pressed,the fan speed mode is shifted.
This feature can be activated from the remote
control ONLY. The remote control serves as a
remote thermostat allowing for the precise
temperature control at its location.
Light flashes or
illuminates
Follow Me
To activate the Follow Me feature,
point the remote control towards
the unit and press the Follow Me
button. The remote display is
actual temperature at its location.
The remote control will send this
signal to the air conditioner every
3 minutes interval until press the
Follow Me button again. If the unit
does not receive the Follow Me
signal during any 7 minutes interval,
the unit will beep to indicate the
Follow Me mode has ended.
The 4-Way air directional louvers allow you to
direct air flow up or horizontal, left or right
throughout the room as needed. To adjust the air
directional louvers side-to-side, use the center
handle as you move it side-to-side.
Air directional louvers
Now that you have mastered the operating
procedure, here are more features in your
control that you should become familiar with.
The Cool circuit has an automatic 3 minute time
delayed start if the unit is turned off and on
quickly. This prevents overheating of the
compressor and possible circuit breaker tripping.
The fan will continue to run during this time.
The control is capable of displaying temperature
in degrees Fahrenheit or degrees Celsius. To
convert from one to the other, press and hold
the Left and Right Temp/Timer buttons at the
same time, for 3 seconds.
Additional Things you should know
11 12
S
Exhaust
closed
Energy
Saver
Follow
Me
Timer
off
Timer
on
open
Mode
Timer
Temp.
Timer
Temp.
Auto Cool Dry Fan
Sleep
Check
Filter
ON/
OFF
Auto
Med
Low High
Fan
Clean
Air
4 0
How to clean & maintenance your AC.
Cleaning & maintenance
CAUTION: Clean your air conditioner occasionally to
keep it looking new. Be sure to unplug the unit before
cleaning to prevent chock or fire hazards.
CAUTION: If you plan to store the air conditioner during the winter,
remove it carefully from the window according to the installation
instructions. Cover it with plastic or return it to the original carton.
The air filter should be checked at least once
a month to see if cleaning is necessary.
Trapped particles in the filter can build up
and cause an accumulation of frost on the
cooling coils.
• Take the filter by the center and pull up and
out. Wash the filter using liquid dishwashing
detergent and warm water. Rinse fi
lter
thoroughly.
• Gently shake excess water from the filter.
Be sure the filter is thoroughly dry before
replacing. Or, instead of washing you may
vacuum the filter clean.
Note: Never use hot water over 104°F(40°C)
to clean the air filter. Never attempt to
operate the unit without the air filter.
To prevent rust or electrical connections from
being damaged, store air conditioner in an
upright position and in a dry place.
Air Filter & Cabinet Cleaning
Be sure to unplug the air conditioner to
prevent shock or fire hazard. The cabinet
and front may be dusted with an oil-free
cloth or washed with a cloth dampened in
a solution of warm water and mild liquid
dishwashing detergent.
Rinse thoroughly and wipe dry.
Be sure to wring excess water from the
cloth before wiping around the controls.
Excess water in or around the controls
may cause damage to the air conditioner.
Never use harsh cleaners, wax or polish on
the cabinet front.
Plug in air conditioner.
Save Carton and these Installation
Instructions for future reference. The carton
is the best way to store unit during winter,
or when not in use.
When handling unit, be careful to avoid cuts
from sharp metal edges and aluminum fins
on front and rear coils.
4 1
Problem Solving
Troubleshooting
Before calling for service, review this list. It may save your time and expense. This list includes common occurrences that are not the result of
defective workman-ship or materials in this appliance.
Air conditioner
does not start.
Wall plug disconnected. Push plug firmly into wall outlet.
House fuse blown or circuit breaker tripped. Replace fuse with time delay type or reset circuit breaker.
Plug Current Device Tripped. Press the RESET button.
Power is OFF. Turn power ON.
Air from unit does
not feel cold
enough.
Room temperature below 62°F(17°C). Cooling may not occur until room temperature rises above 62°F(17°C).
Temperature sensing behind air filter element touching cold coil. Keep it from the cold coil.
Set to a Lower temperature.
Compressor stopped when changing modes. Wait for 3 minutes after set to the COOL mode.
Air conditioner
cooling, but room
is too warm- ice
forming on cooling
coil behind
decorative front.
Outdoor temperature below 64°F(18°C). To defrost the coil, set FAN ONLY mode.
Air filter may be dirty. Clean filter. Refer to Care and Cleaning section. To defrost, set to FAN ONLY mode.
Thermostat set too cold for night-time cooling. To defrost the coil, set to FAN ONLY mode. Then, set temperature to a
higher setting.
Problem Solution
4 2
Remote Sensing
Deactivating
Prematurely (Only
remote models)
Remote control not located within range. Place remote control within 20 feet and pointed in the general direction of
the air conditioner unit.
Remote control signal obstructed. Remove obstruction.
Problem Solution
Problem Solving
Air conditioner
cooling, but room
is too warm- NO
ice forming on
cooling coil behind
decorative front.
Air conditioner
rapidly
Noise when unit is
cooling
Dirty air filter- air restricted. Clean air filter. Refer to Care and Cleaning section.
Temperature is set too High, set temperature to a Lower setting.
Air directional louvers positioned improperly. Position louvers for better air distribution.
Front of units is blocked by drapes, blinds, furniture, etc. - restricts air distribution. Clear blockage in front of unit.
Doors, windows, registers, etc. Open- cold air escapes. Close doors, windows, registers.
Unit recently turned on in hot room. Allow additional time to remove Stored heat from walls, ceiling, floor and furniture.
Dirty air filter- air restricted. Clean air filter.
Outside temperature extremely hot. Set FAN speed to a Higher setting to bring air past
cooling coils more frequently.
Air movement sound. This is normal . If too loud, set to a slower FAN setting.
Window vibration - poor installation. Refer to installation instructions or check with installer.
Water dripping
OUTSIDE when
unit is cooling.
Unit removing large quantity of moisture from humid room. This is normal during excessively humid days.
Room too cold
Set temperature too low. Increase set temperatur.
4 3
Element Appliance Limited Warranty
(the “Products” or “Product” when referencing a singular product herein)
This Product (including any accessories included in the original packaging) as supplied and distributed in new condition, is warranted by Element
Appliance Company, LLC ("Element") to the original customer who purchases the Product from an authorized Element retailer (the “Original
Customer” or “you”) against defects in material and workmanship under proper use, maintenance, and care according to the owner’s manual,
warnings, and instructions accompanying the Product (“Warranty”) as follows:
* PLEASE NOTE – Proof of purchase evidencing the date of purchase by the Original Purchaser from an authorized Element retailer (“Valid
Proof of Purchase”) is required for all Warranty service. The express Warranty set forth herein is subject to all terms and conditions set forth
below.
1. WARRANTY SERVICE:
A. ONE-YEAR WARRANTY: Except as provided in subpart 1.B below, for a period of one (1) year from the date of purchase by the
Original Customer (the “Warranty Period”), if the parts or components covered by this Warranty are determined by Element or Element’s
authorized service provider to be defective in material or workmanship, Element will, at its sole and absolute discretion and option: (i) repair
the defective part or component at no charge to the Original Customer, (ii) replace the defective Product with a new Product of similar or better
quality, at no charge to the Original Customer, or (iii) refund the documented purchase price paid by the Original Customer (excluding tax) to
the Original Customer upon return of the defective Product as directed by Element. After the Warranty Period expires, the Original Customer
must pay for all parts, components, shipping and handling, labor, and replacement costs associated with the Product or any part or component
thereof, regardless of any defects in the Product or any part or component thereof.
B. LIMITED EXTENDED WARRANTY THROUGH PRODUCT REGISTRATION: If and only if the Original Customer registers the
Product at www.elementelectronics.com within ninety (90) days of the date of purchase by the Original Customer, then the Warranty Period
discussed in subpart 1.A. above shall be extended an additional one (1) year to a new Warranty Period equaling two (2) years from the date of
purchase by the Original Customer. If the Product is not registered as provided for in this subpart 1.B, then the standard one-year Warranty
Period set forth in subpart 1.A shall apply.
C. TIMING AND PROCEDURE: Before Warranty service can commence, the Original Customer must contact either (i) the retailer
from whom the Original Customer purchased the Product, or (ii) Element directly, in either case for problem determination and service
procedures. Valid Proof of Purchase evidencing that the Product is within the Warranty Period MUST be presented by Original Customer in
order to obtain the requested Warranty service. Please have your model and serial number available, along with your date of purchase of the
Product. To remain eligible for Warranty service, Original Customer may not return the Product or any part or component thereof to the retailer
or Element without Element’s prior written consent.
2. EXCLUSIONS AND LIMITATIONS TO WARRANTY SERVICE
The Warranty covers manufacturing defects in materials and workmanship of the Product encountered in the normal, non-commercial use of
the Product, and does not cover (a) damages or malfunctions resulting from improper or unreasonable use or maintenance, abuse, negligence,
failure to follow instructions contained in any written materials that accompany the Product, deterioration by reason of excess moisture,
corrosive atmosphere, lightning, power surges, connections to improper voltage supply, unauthorized alteration, or other external causes such
as extremes in temperature or humidity, modifications, scratches or discoloration; (b) any damage caused by using non-authorized parts or
service facilities for repair of Products (however, for avoidance of doubt, using non-authorized parts or service facilities will not, in and of itself,
void the Warranty); (c) transportation, shipping, delivery, pickup, insurance, installation, or set-up costs; (d) ordinary wear and tear, cosmetic
damage, or damage due to acts of nature, including but not limited to, water, floods, wind, storm, tornado, earthquake, or fire, or due to
damage caused by extraordinary impact events, such as dropping, crushing, demolition or other extraordinary damage; (e) commercial use of
the Product, or use of the Product for anything other than single-family household or residential use; or (f) modification of the Product or any
part of the Product.
This Warranty is made to the Original Customer only and does not cover Products sold AS IS or WITH ALL FAULTS. The Warranty is invalid if the
factory-applied serial number has been altered or removed from the Product. This Warranty is valid only in the United States, and only applies
to Product if it was purchased and serviced in the United States. The addition of equipment or features to the Product that are not
manufactured or recommended by Element could affect the intended function of the Product, and therefore may void the Warranty.
Furthermore, the exposure of the Product to chemicals, heat, cold, humidity, or other elements can affect the Product components, and
therefore, the Warranty does not cover discoloration, fading, cosmetic changes, rust, or any damages or failure related to any such items. The
Warranty is contingent upon the proper use, maintenance, and care of the Product. The Warranty may be void if the Product has been used in
a manner contradictory to, or in violation of, the terms of the user’s manual, warnings, or instructions accompanying the Product.
THIS WARRANTY IS MADE IN LIEU OF AND SUPERSEDES ALL OTHER WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE OR GENERAL USE, WHETHER EXPRESS, IMPLIED, COLLATERAL, STATUTORY, OR PROVIDED BY COMMON LAW, THE
UNIFORM COMMERCIAL CODE, OR OTHERWISE. ELEMENT FURTHER DISCLAIMS ALL WARRANTIES AFTER THE END OF THE WARRANTY TERM
DEFINED ABOVE. NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY OTHER PERSON, FIRM, OR ENTITY WITH RESPECT TO THE
PRODUCT SHALL BE BINDING ON ELEMENT. REPAIR, REPLACEMENT, OR REFUND OF THE ORIGINAL PURCHASE PRICE, AT ELEMENT’S SOLE
DISCRETION, ARE THE EXCLUSIVE REMEDIES OF THE CUSTOMER.
ELEMENT SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE, OR INABILITY TO USE
THE PRODUCT. THESE INCLUDE, BUT ARE NOT LIMITED TO, ANY DAMAGES IN THE FORM OF LOST PROFITS, LOSS OF USE, LEGAL FEES,
ECONOMIC LOSS, PERSONAL INJURIES, OR ANY OTHER DAMAGES CAUSED BY CIRCUMSTANCES BEYOND THE CONTROL OF ELEMENT.
NOTWITHSTANDING THE FOREGOING, ELEMENT’S AGGREGATE LIABILITY TO ANY CUSTOMER SHALL NOT EXCEED THE ORIGINAL PURCHASE
PRICE OF THE PRODUCT. THIS WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL CUSTOMER WHO PURCHASED THE
PRODUCT, AND IS NOT TRANSFERRABLE. NO PERSON IS AUTHORIZED TO ALTER, EXTEND, OR WAIVE THIS WARRANTY OR ANY OF ITS TERMS
OR CONDITIONS.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on warranties, so the above
limitations or exclusions may not apply to you. This Warranty gives you specific rights, and you may have other rights, which vary from state to
state. The exclusions and limitations to the Warranty apply to the maximum extent permitted by law and unless restricted or prohibited by
law. Where any term of this Warranty is prohibited by applicable law, it shall be null and void, but the remainder of this Warranty shall remain
in effect.
PLEASE DIRECT ALL CORRESPONDENCE TO:
Element Appliance Company, LLC
customerservice@elementelectronics.com
(888) 842-3577
https://elementelectronics.com
CW011UI-SC(NEW)A
16120300A37433
Element, the Element Logo, and Bring it home are trademarks of Element Brand
Holding, LLC. All other trademarks are the property of their respective owner,
who has not sponsored, endorsed, or approved this product. ©2025 Element
Appliance Company, LLC. All rights reserved.
Distributed by Element Appliance Company, LLC
Augusta, GA 30909
