Recreational Vehicle Intelligent
Control System Host
D880
User Manual
Ver.
Verison Discription
Author
Review
Approval
Date
V1.0.0
Jianglong Li
25/11/25
16/F, Wanli Building, Yuhang District, Hangzhou
Web：www.intibeam.com
E-mail：[email protected]
2
1. Overview of the Intelligent System
1.1 Product Overview
With the growing popularity of self-driving travel, as multi-functional travel
tools, have become increasingly prevalent. However, the intelligent control
system, which serves as the core for RVs safety and intelligent control, has
failed to keep pace with market development. Currently, the entire intelligent
control system of most RVs is a patchwork of household and industrial
components, which cannot meet the requirements of driving control.
To address this issue, Intibeam Technology developed the "RVs Intelligent
Control System" in May 2023 in accordance with automotive-grade
requirements. The system integrates advanced functions and devices such as
AI human-computer interaction, voice control, automotive-grade on-board
equipment, 3D surround view and monitoring, Beidou positioning, WIFI/BT
communication, mobile phone APP expansion, and cloud data center. It
provides users with a convenient and user-friendly interactive interface,
enabling centralized control and management of various on-board devices via
touch screen, intelligent voice, mobile phone APP and other methods, and
offering users a comprehensive, intelligent control and driving assistance
solution.
The system not only achieves high integration of RV control to facilitate
mobile living, but also enhances travel safety and comfort, allowing users to
enjoy an unprecedented intelligent experience on the road. Through the
intelligent control system or mobile phone APP, you can easily control all
on-board devices, enjoy wonderful music and video, and fully appreciate the
beautiful scenery along the journey.
3

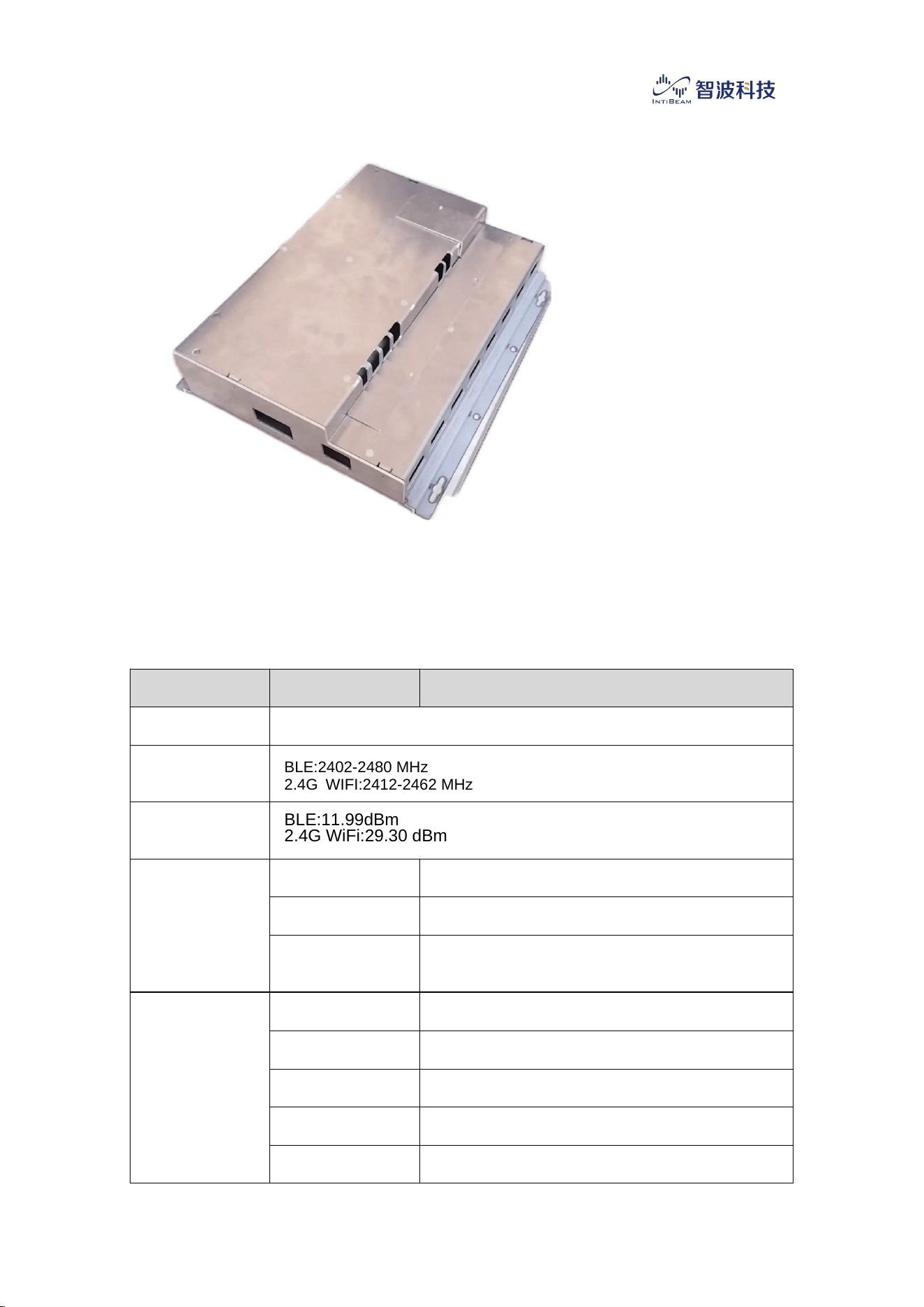

1.2 Product Picture
2. Basic Parameters
Category Name Spec
Wireless Wifi 2.4GHz&Bluetooth
Wireless
Frequency Band
Max Powe
BLE:2402-2480 MHz
2.4G WIFI:2412-2462 MHz
r
Host Parameter
BLE:11.99dBm
2.4G WiFi:29.30 dBm
s
Main Processor 8-core ARM Cortex-A76/A55, 8GB+64GB
Coprocessor ARM Cortex-M4
Operating
System
Andriod 14.0 + FreeRTOS real-time System
Host Interfaces
ACC ACC Power-on control
HDMI HDMI
USB2.0 USB2.0
Type-C Type-C
USB3.0 USB3.0
4
Category Name Spec
DMIC Audio input
LAN0 Standard Network Port
LAN1 Standard Network Port
LIN-OUT Audio Output Interface
PWR Power Button
BOOT Reset Power Button
DC
12pin
Interfaces
12V/24V-IN
Ⅰ
See Interface Information Summary
12pin Interfaces
Ⅱ
See Interface Information Summary
12pin Interfaces
Ⅲ
See Interface Information Summary
12pin Interfaces
Ⅳ
See Interface Information Summary
12pin Interfaces
Ⅴ
See Interface Information Summary
Mechanical
Characteristics
4pin
Interface*12
IN1-(A1-A4) 12V/24V, IN2-(B2-B4) 12V/24V,
IN3-(S1-S4,T1-T4) 12V/24V/48VGND-(Common
Ground for IN1/IN2) (B1, H3,
H4)OUT1-(C1-C4,F4,G1-G4,H1,H2),
OUT2-(D1-D4,E1-E4,F1,F2), OUT3-(P1-P8) See
Interface Information Summary
24pin Interface See Interface Information Summary
12pin Interface See Interface Information Summary
Power
Characteristics
Static Power
Consumption
＜ 5W
Standby Power
Consumption
＜ 1W

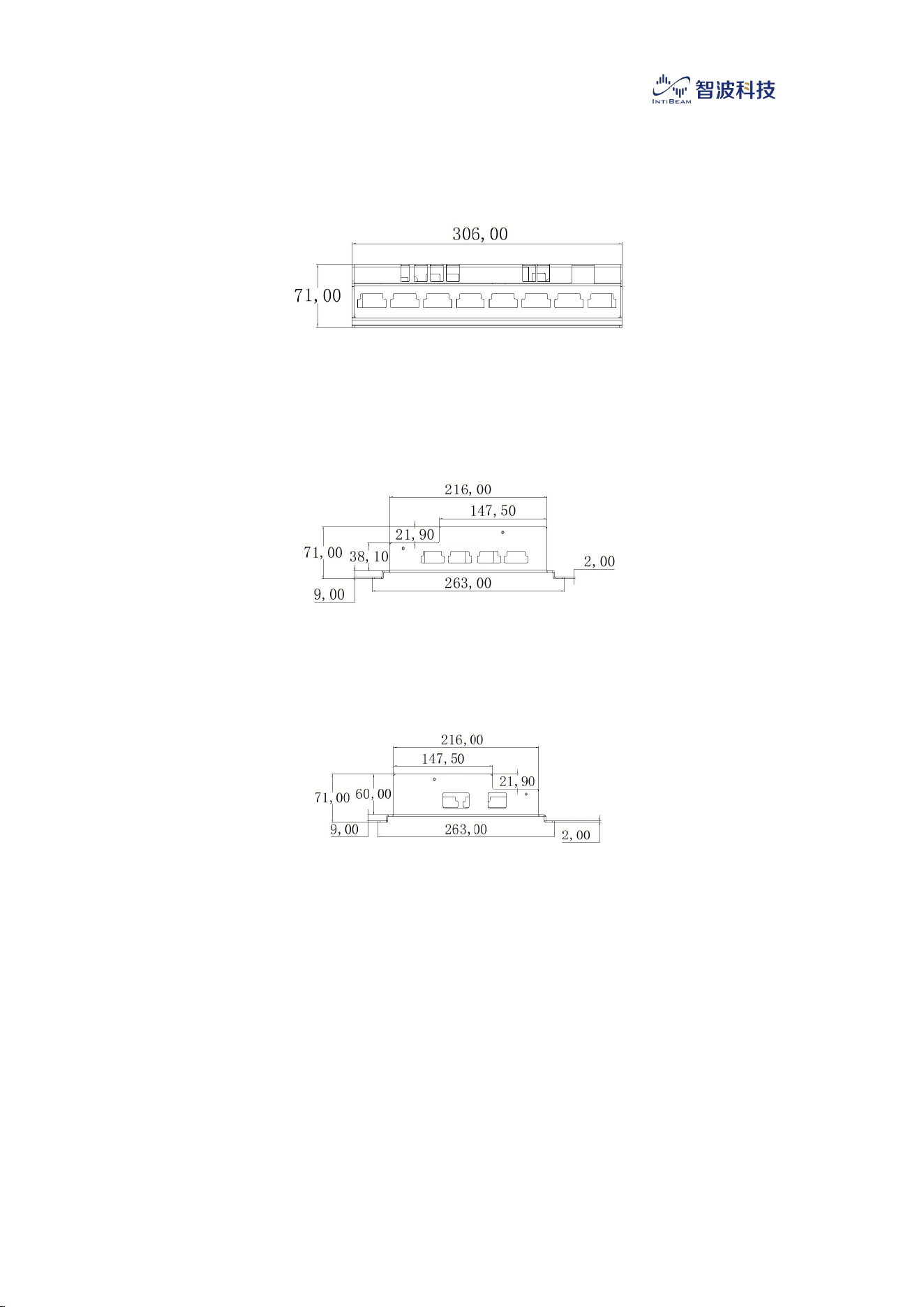

Mechanical
Characteristics
Overall
Dimension
306mm × 71mm × 265mm (L×W×H)
Installation
Method
Wall-mounted
5
Category
Name
Spec
Housing
Material
Aluminum Alloy
Environmental
Characteristics
Operating
Temperature
-40~+85℃
Storage
Temperature
-45~+90℃
3. Product Function
Function Category
Main Function Description
Intelligent Device
Control
• Centralized Control: Integrated control of in-vehicle lighting,
lifting roof, electric support legs, tailgate, air conditioner, heater,
water pump, audio and other devices via touch screen or voice.
• Multi-channel Relay Output: Provides 28 independent control
interfaces (8 channels of constant power + 21 relays) to meet
the access requirements of various electrical appliances.
• Automated Scenarios: Supports one-click scene modes and
customizable multi-device linkage scenarios.
Energy Management
and Monitoring
• Power Input: Supports 12V voltage DC input.
• Real-time Current Monitoring: Built-in 8-channel Hall current
sensors for real-time monitoring of power consumption and
operating status of each channel.
• Battery and Inverter Management: Monitors battery level and
solar charging status, and intelligently manages inverter
operation.
Environmental Sensing
and Regulation
• Multi-parameter Monitoring: Real-time monitoring of in-vehicle
temperature (±0.5℃), humidity (±3%RH), PM2.5, CO and CO₂
concentrations.
• Safety Early Warning: The system actively issues an alarm
when CO or CO₂ concentrations exceed the standard to ensure
occupant safety.
• Linkage Regulation: Air conditioners, heaters, exhaust fans
and other devices can be adjusted automatically or manually
based on environmental data.
Panoramic Safety
Monitoring
• 360° Surround View: Provides a dead-angle-free panoramic
view around the vehicle via 4-channel 1080P wide-angle
cameras.
• Multiple Display Modes: Supports 2D panoramic view, 3D
stereoscopic view and single-camera close-up.• Starlight Night
Vision: Features starlight-level night vision, enabling clear
imaging even in low light environments down to 0.1lux.
• Video Storage: Supports event-triggered or continuous
surround view video recording and storage.
6
Function Category
Main Function Description
Intelligent
Human-Computer
Interaction
• Touch Screen Interaction: 13.3-inch full HD touch screen with
an intuitive and smooth graphical operation interface.
• Intelligent Voice Control: Integrated AI voice large model,
supporting Chinese and English wake-up words and
commands, and enabling screen-off wake-up and control.
• Remote Control: Supports remote status monitoring and
device control via mobile phone APP.
Communication and
Expansion
• Multi-protocol Support: Natively supports CAN, RS485,
RS232, Bluetooth and other communication protocols for easy
connection with vehicle bus and other intelligent devices.
• Rich Hardware Interfaces: Provides a variety of control, video,
network and USB interfaces with strong expandability.
System Maintenance
and Safety
• OTA Remote Upgrade: Supports remote wireless upgrade of
system firmware and applications without device disassembly.
• Automotive-grade Reliability: Core components comply with
AEC-Q100 automotive-grade standards, adaptable to harsh
on-board environments.

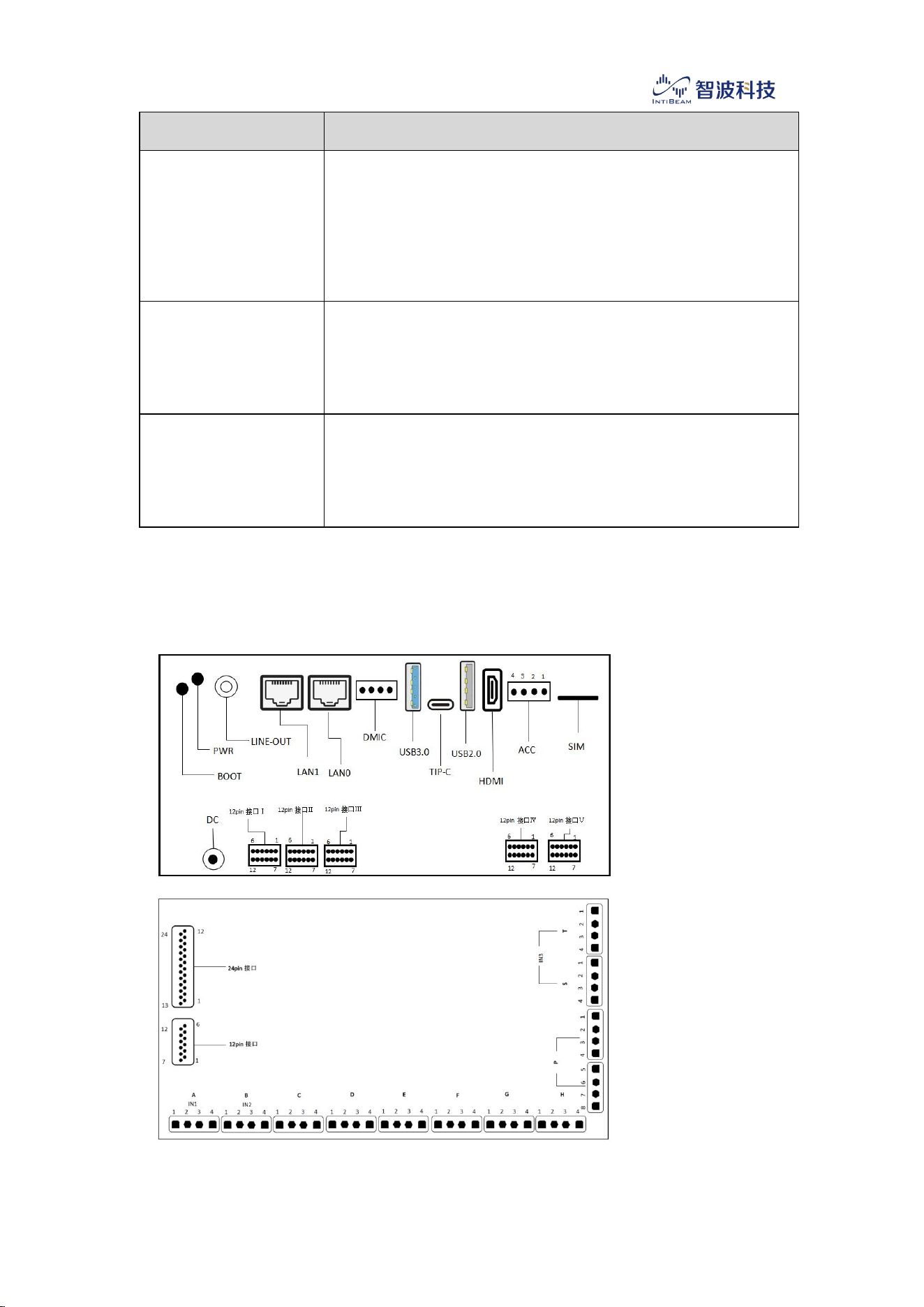

4. Interface Definition

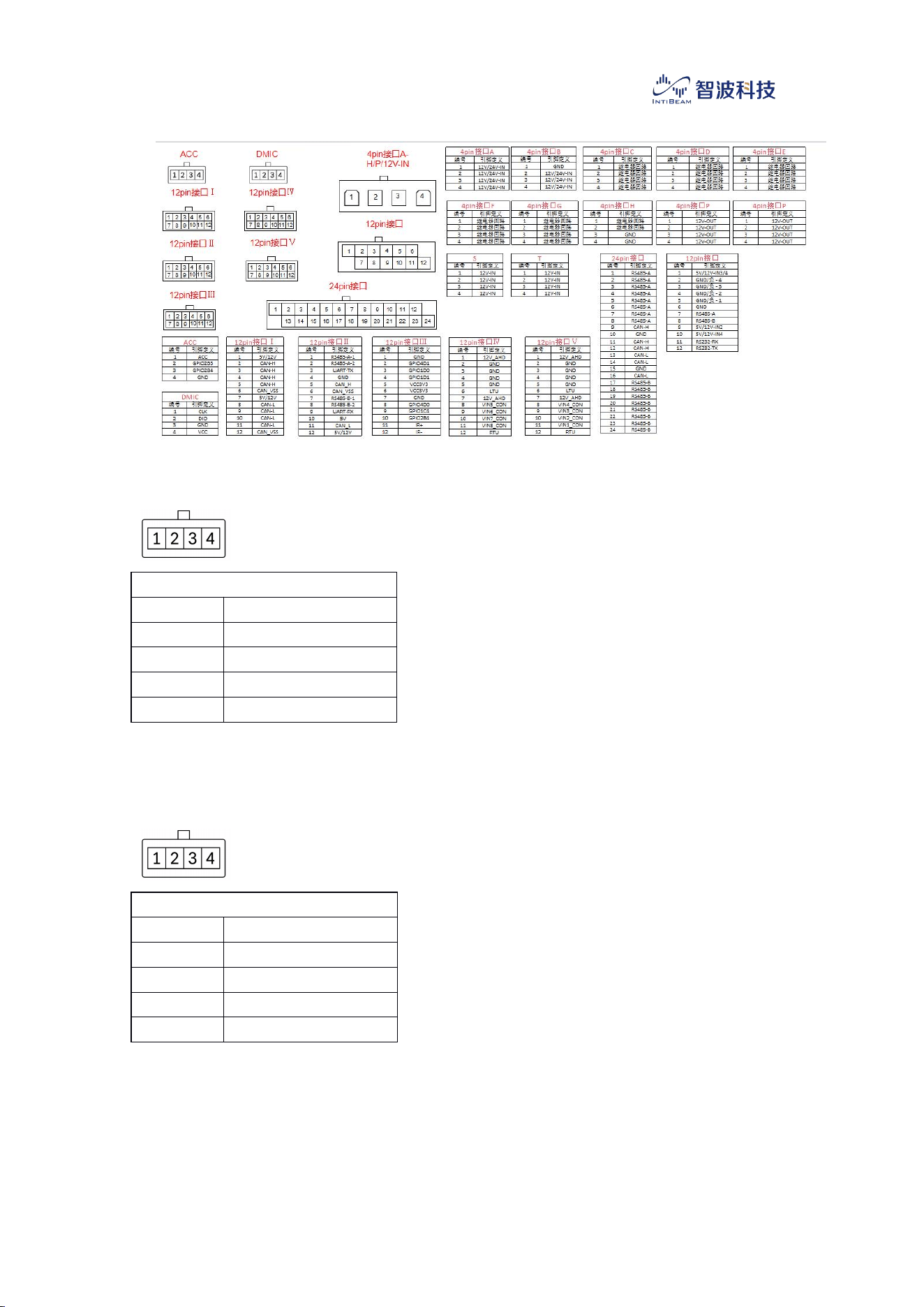

4.1 Interface Information Summary
7
4.2 Interface Information Summary
ACC
Pin No.
Pin Definition
1
ACC
2
GPIO2B5
3
GPIO2B4
4
GND
4.3 DMIC Interface Definition
DMIC
Pin No.
Pin Definition
1
CLK
2
DIO
3
GND
4
VCC
8
4.4 12pin Interface I Definition
12pin Interface I
Pin No.
Pin Definition
1
5V/12V
2
CAN-H
3
CAN-H
4
CAN-H
5
CAN-H
6
CAN_VSS
7
5V/12V
8
CAN-L
9
CAN-L
10
CAN-L
11
CAN-L
12
CAN_VSS
4.5 12pin Interface II Definition
12pin Interface II
Pin No.
Pin Definition
1
RS485-A-1
2
RS485-A-2
3
UART-TX
4
GND
5
CAN_H
6
CAN_VSS
7
RS485-B-1
8
RS485-B-2
9
UART-RX
10
5V
11
CAN_L
12
5V/12V
9

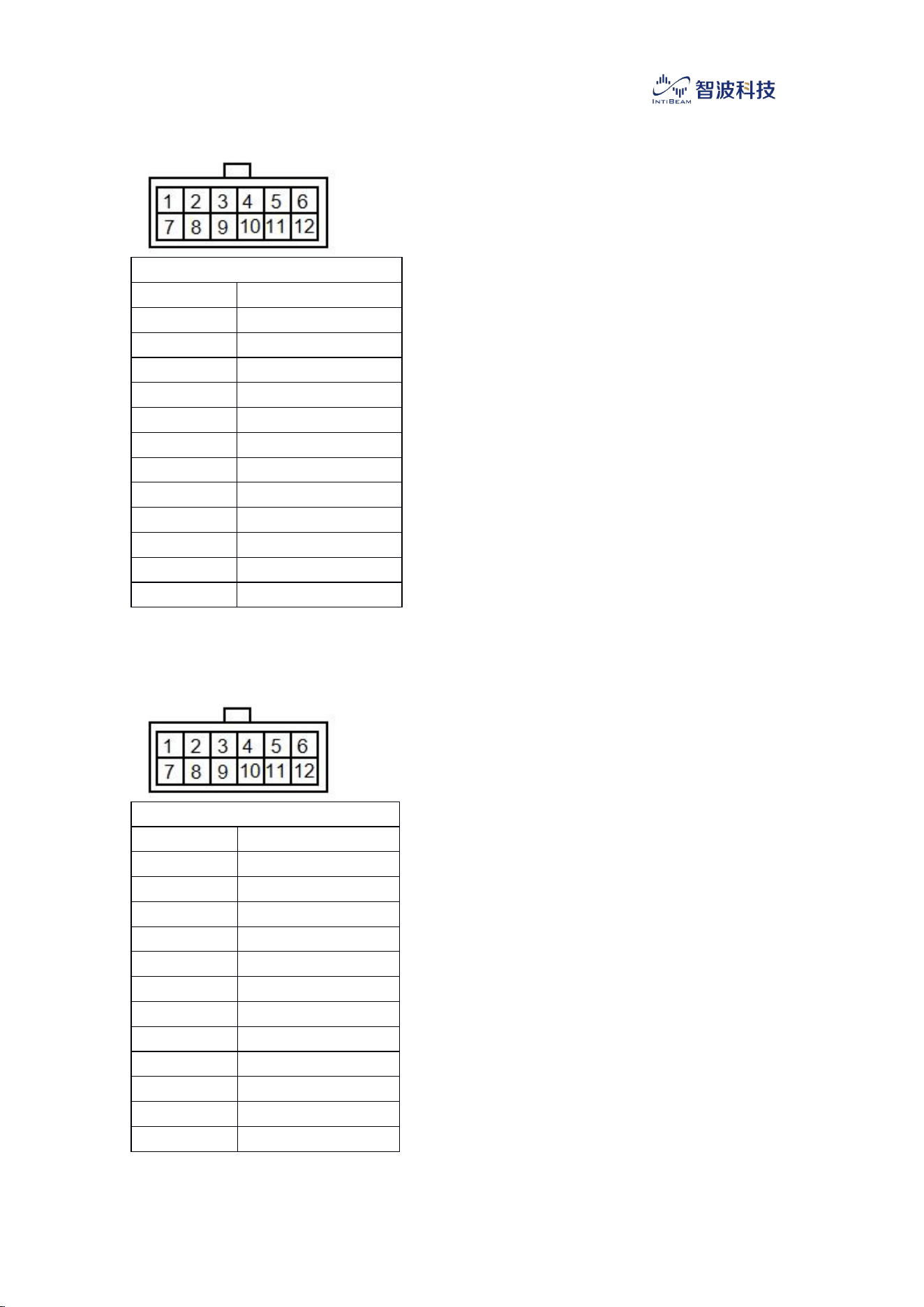

4.6 12pin Interface III Definition
12pin Interface III
Pin No.
Pin Definition
1
GND
2
GPIO4D1
3
GPIO1D0
4
GPIO1D1
5
VCC3V3
6
VCC3V3
7
GND
8
GPIO4D0
9
GPIO1C4
10
GPIO2B4
11
IR+
12
IR-
4.7 12pin Interface IV Definition
12pin Interface IV
Pin No.
Pin Definition
1
12V_AHD
2
GND
3
GND
4
GND
5
GND
6
LTU
7
12V_AHD
8
VIN5_CON
9
VIN6_CON
10
VIN7_CON
11
VIN8_CON
12
RTU
10

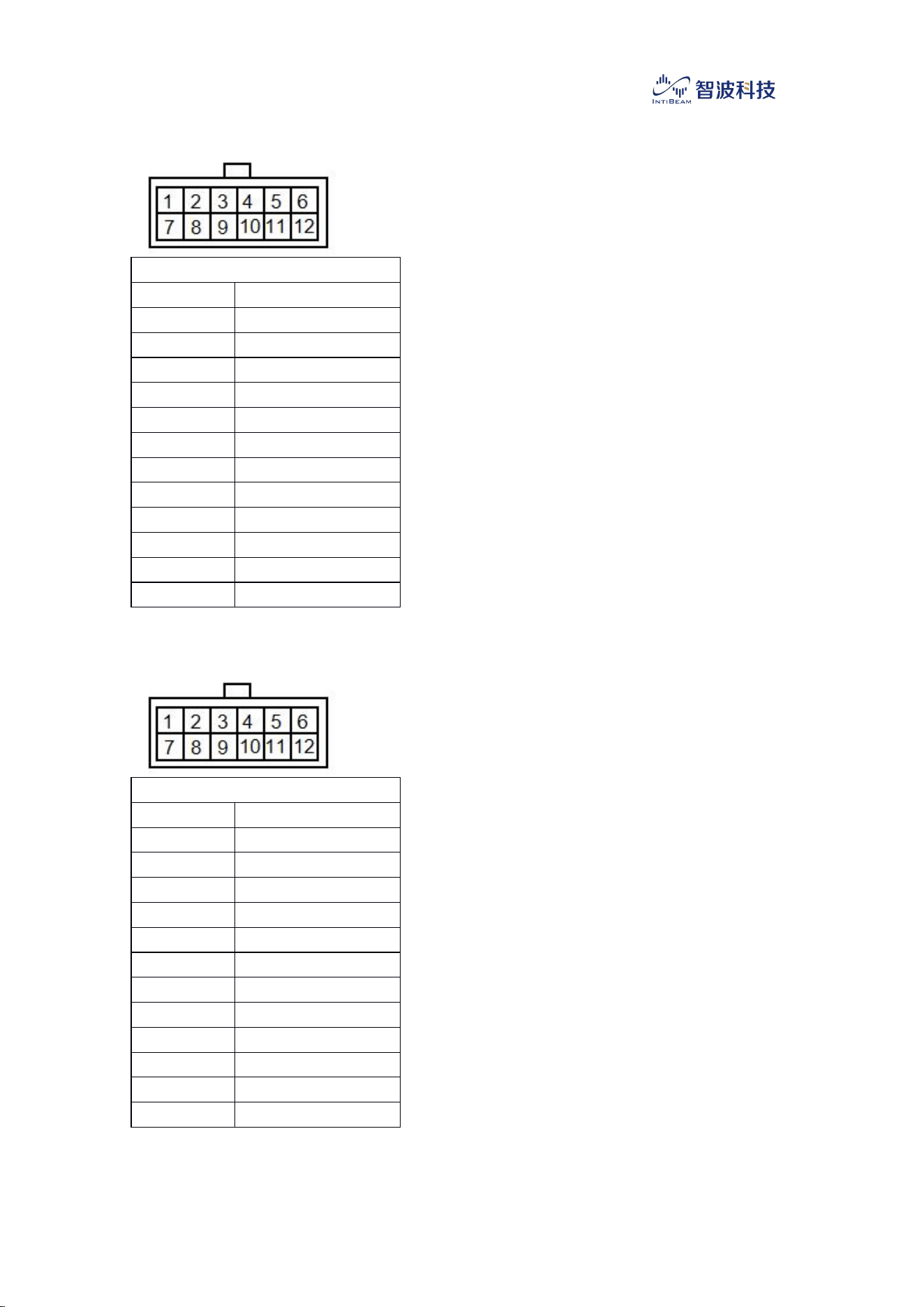

4.8 12pin Interface V Definition
12pin Interface V
Pin No.
Pin Definition
1
12V_AHD
2
GND
3
GND
4
GND
5
GND
6
LTU
7
12V_AHD
8
VIN4_CON
9
VIN3_CON
10
VIN2_CON
11
VIN1_CON
12
RTU

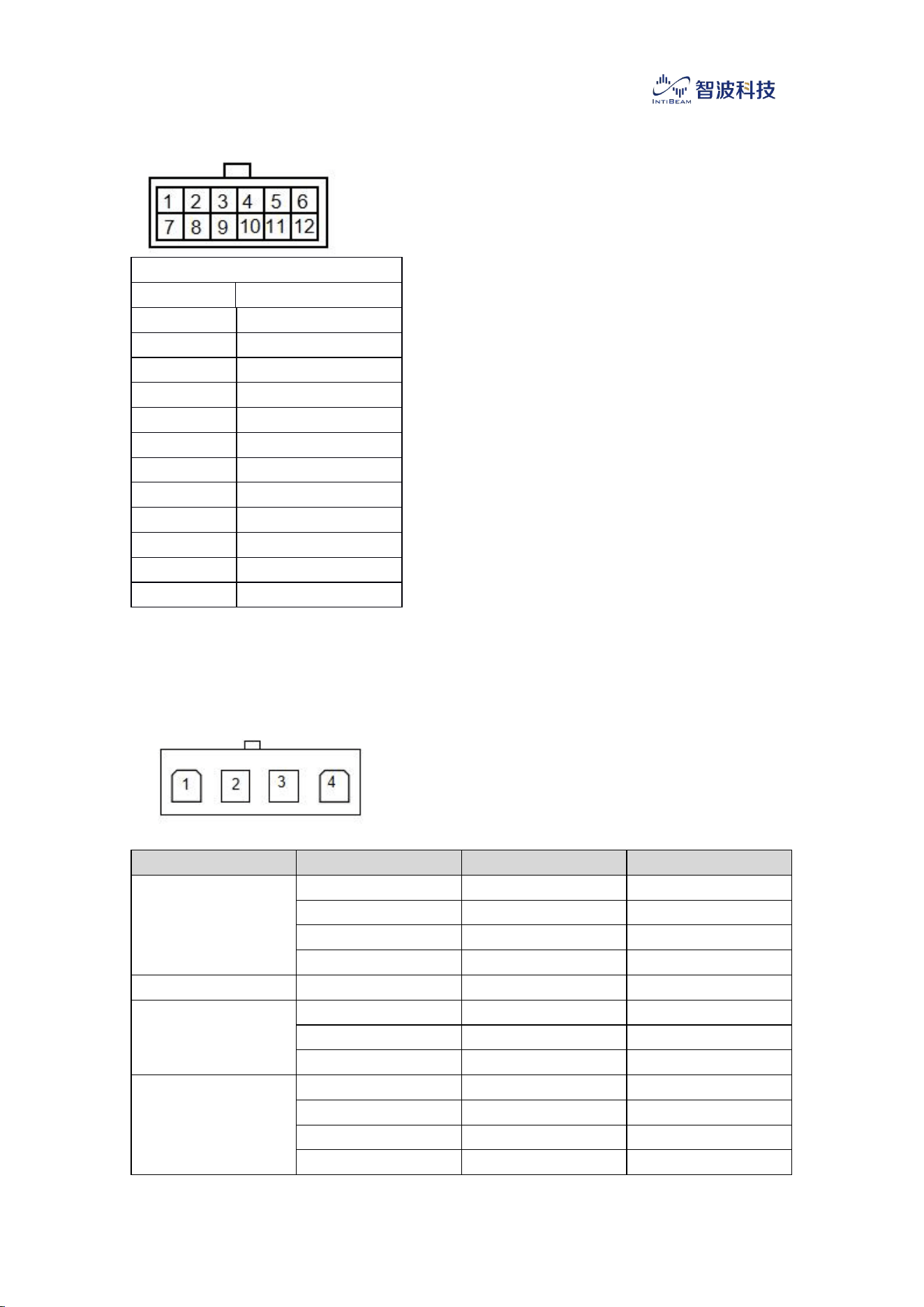

4.9 4pin*12 Interface Definition
Port Summary
Port No.
Rated Current
Port Discrition
IN1
A1
30A
12V-IN
A2
30A
12V-IN
A3
30A
12V-IN
A4
30A
12V-IN
GND
B1
30A
GND
IN2
B2
30A
12V-IN
B3
30A
12V-IN
B4
30A
12V-IN
OUT1
C1
30A
OUT
C2
30A
OUT
C3
30A
OUT
C4
30A
OUT
11
OUT2
D1
30A
OUT
D2
30A
OUT
D3
30A
OUT
D4
30A
OUT
OUT2
E1
30A
OUT
E2
30A
OUT
E3
30A
OUT
E4
30A
OUT
OUT2
F1
30A
OUT
F2
30A
OUT
OUT1
F3
30A
OUT
F4
30A
OUT
OUT1
G1
30A
OUT
G2
30A
OUT
G3
30A
OUT
G4
30A
OUT
OUT1
H1-H2
30A
OUT
GND
H3
30A
GND
GND
H4
30A
GND
IN3
S1
30A
12V-IN
S2
30A
12V-IN
S3
30A
12V-IN
S4
30A
12V-IN
T1
30A
12V-IN
T2
30A
12V-IN
T3
30A
12V-IN
T4
30A
12V-IN
OUT3
P1
30A
OUT
P2
30A
OUT
P3
30A
OUT
P4
30A
OUT
P5
30A
OUT
P6
30A
OUT
P7
30A
OUT
P8
30A
OUT
12

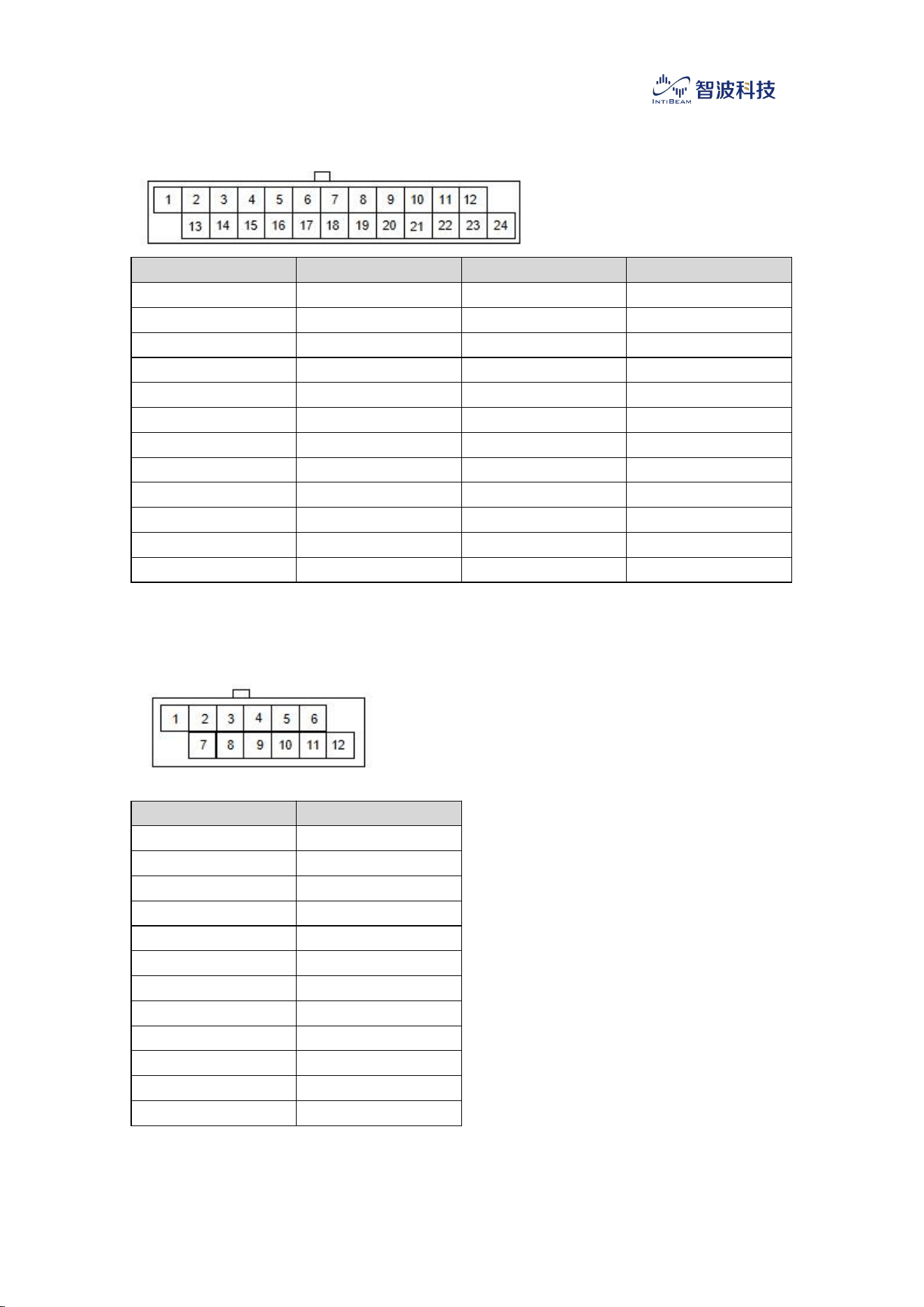

4.10 24pin Interface Definition
Port No.
Port Definition.
Port No.
Port Definition.
1
RS485-A
13
CAN-L
2
RS485-A
14
CAN-L
3
RS485-A
15
GND
4
RS485-A
16
CAN-L
5
RS485-A
17
RS485-B
6
RS485-A
18
RS485-B
7
RS485-A
19
RS485-B
8
RS485-A
20
RS485-B
9
CAN-H
21
RS485-B
10
GND
22
RS485-B
11
CAN-H
23
RS485-B
12
CAN-H
24
RS485-B
4.11 12pin Interface 4 Definition
Port No.
Port Definition.
1
5V/12V-IN
2
GND/Negative-4
3
OUT3
4
OUT2
5
OUT1
6
GND
7
RS485-A
8
RS485-B
9
5V/12V-IN2
10
5V/12V-IN4
11
RS232-RX
12
RS232-TX
13
5.APP Operation Interface Introduction

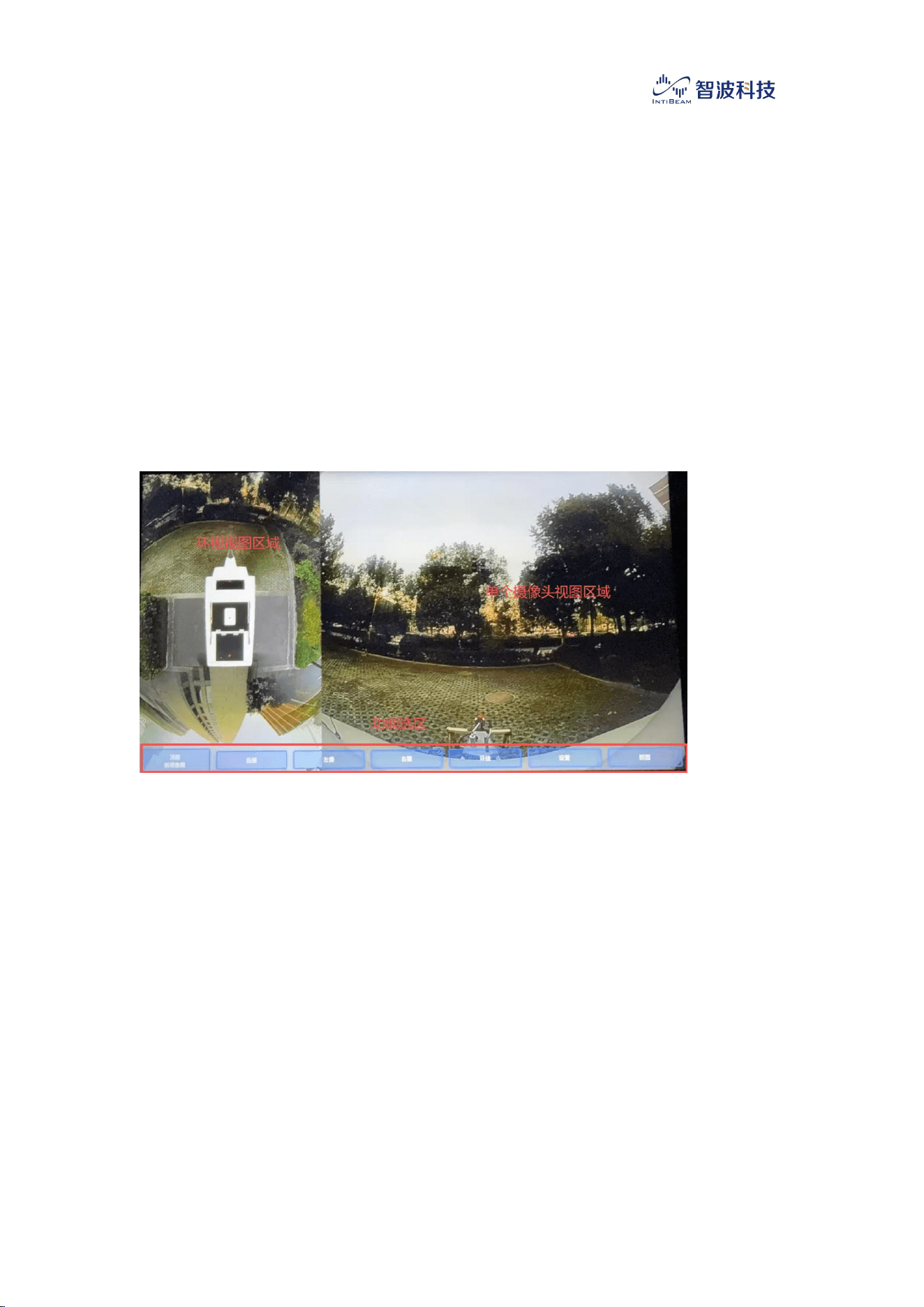

Vehicle Camera Surround View System
Function Description: Provides a 360°dead-angle-free view of the
environment around the vehicle through integrated multi-camera technology.
Drivers can view the front, rear, left and right sides of the vehicle to avoid blind
spot collisions and handle complex road conditions.
Features: Offers independent viewing angles for different directions to
improve safety; supports real-time video monitoring and recording in the main
view, with recordings storable and replayable.

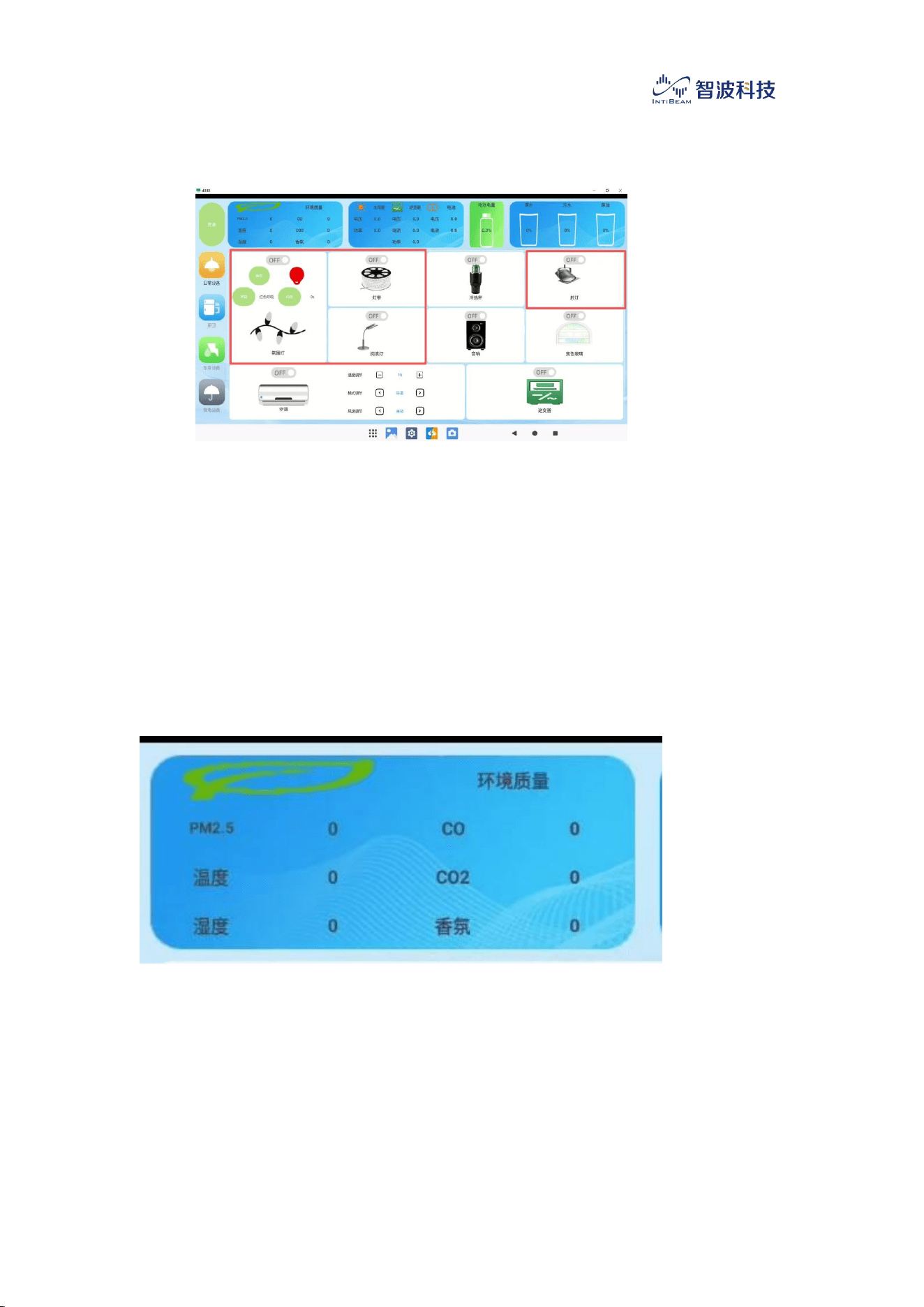

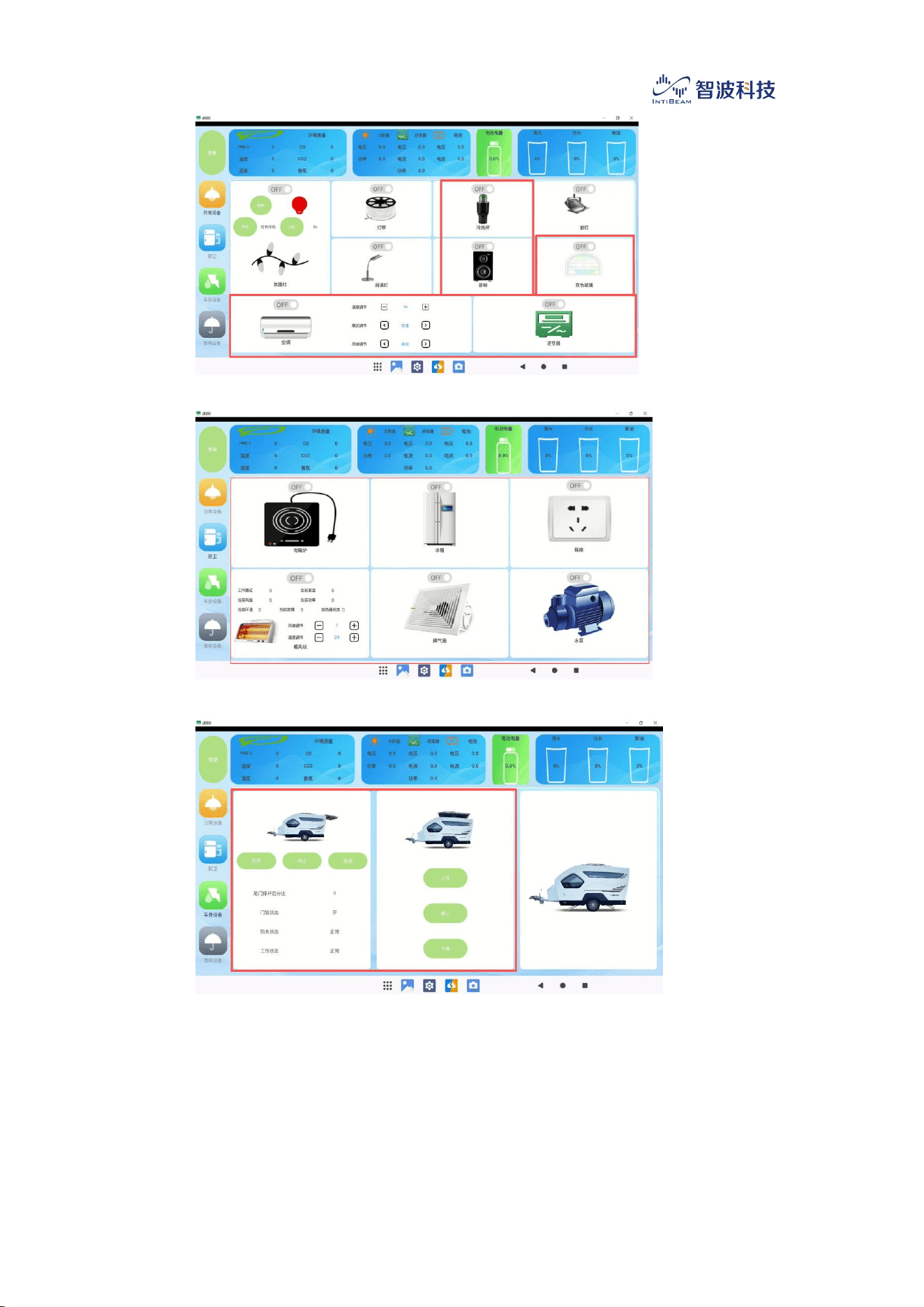

Electrical Appliance Control
Function Description: Controls various in-vehicle electrical appliances (e.g.,
refrigerator, air conditioner, heater) via touch screen or voice. Users can view
the real-time operating status of electrical appliances and implement
centralized control.
Features: Supports one-click operation for convenient device control.
14
Light Control
Function Description: Provides intelligent light management; users can
control and adjust in-vehicle light modes (e.g., colorful ambient light, light strip,
reading light) via touch screen or mobile phone APP to enhance the
comfortable atmosphere.
15
Features: Supports multiple light control modes to adapt to different scene
requirements.
Air Quality Display
Function Description: Monitors in-vehicle air quality in real time, including the
concentrations of pollutants such as PM2.5 and CO₂. The system
automatically adjusts air purification equipment based on monitoring data to
ensure in-vehicle air quality.
Features: Provides health protection, especially for vehicle owners on long
trips, with automatic adjustment to keep the air fresh.

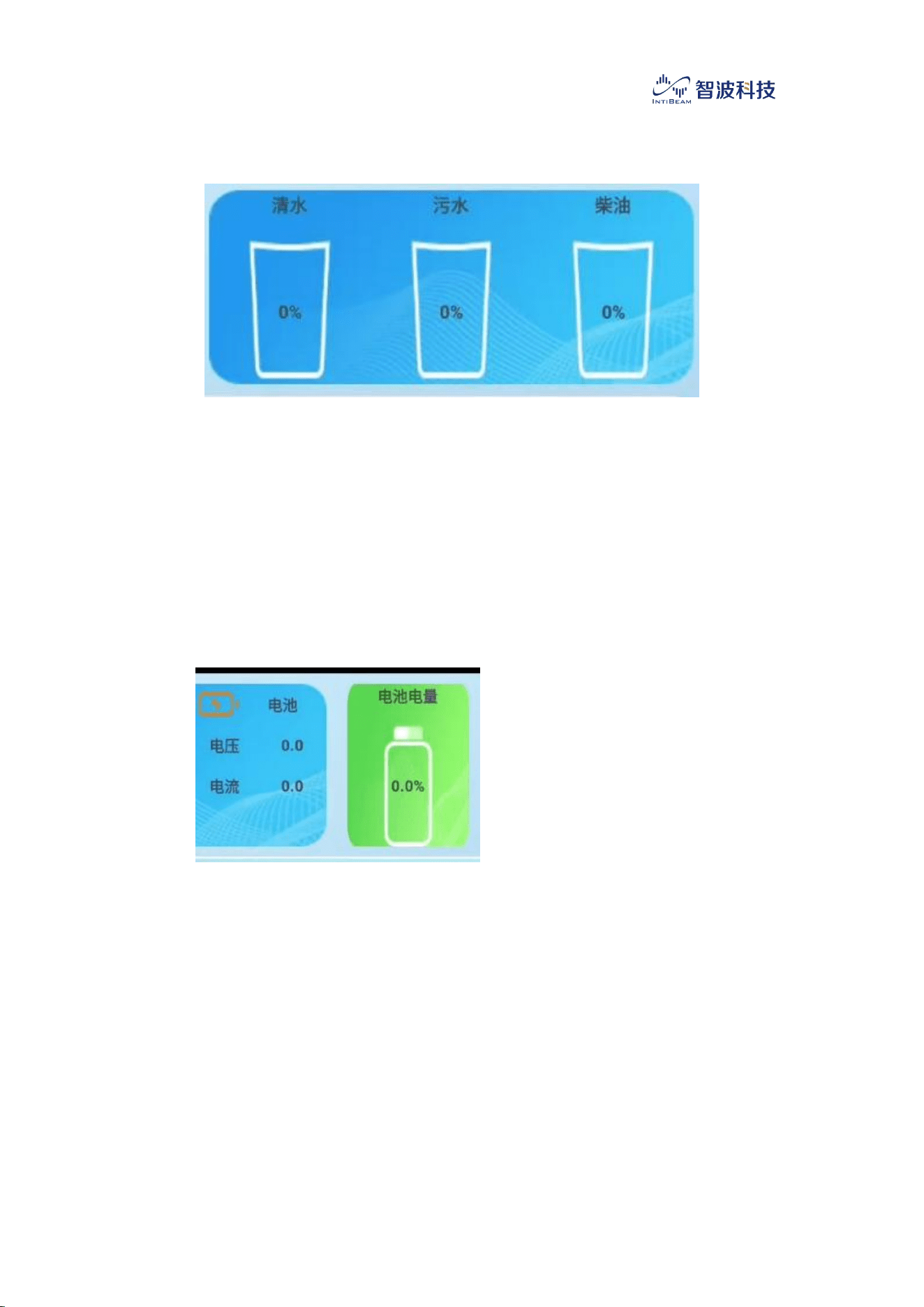

Liquid Level Display
Function Description: Monitors the liquid levels of various in-vehicle liquids
(e.g., water tank, fuel tank) in real time via liquid level sensors, ensuring
vehicle owners are informed of the liquid storage status at all times.
16
Features: Suitable for monitoring water, oil and other liquids, facilitating
rational management and usage by vehicle owners.
Battery Data Display
Function Description: Displays the real-time power status of the in-vehicle
battery, including the current and remaining power, helping vehicle owners
arrange usage rationally to avoid power shortage.
Features: Displays battery voltage and status information to remind vehicle
owners to charge in a timely manner.

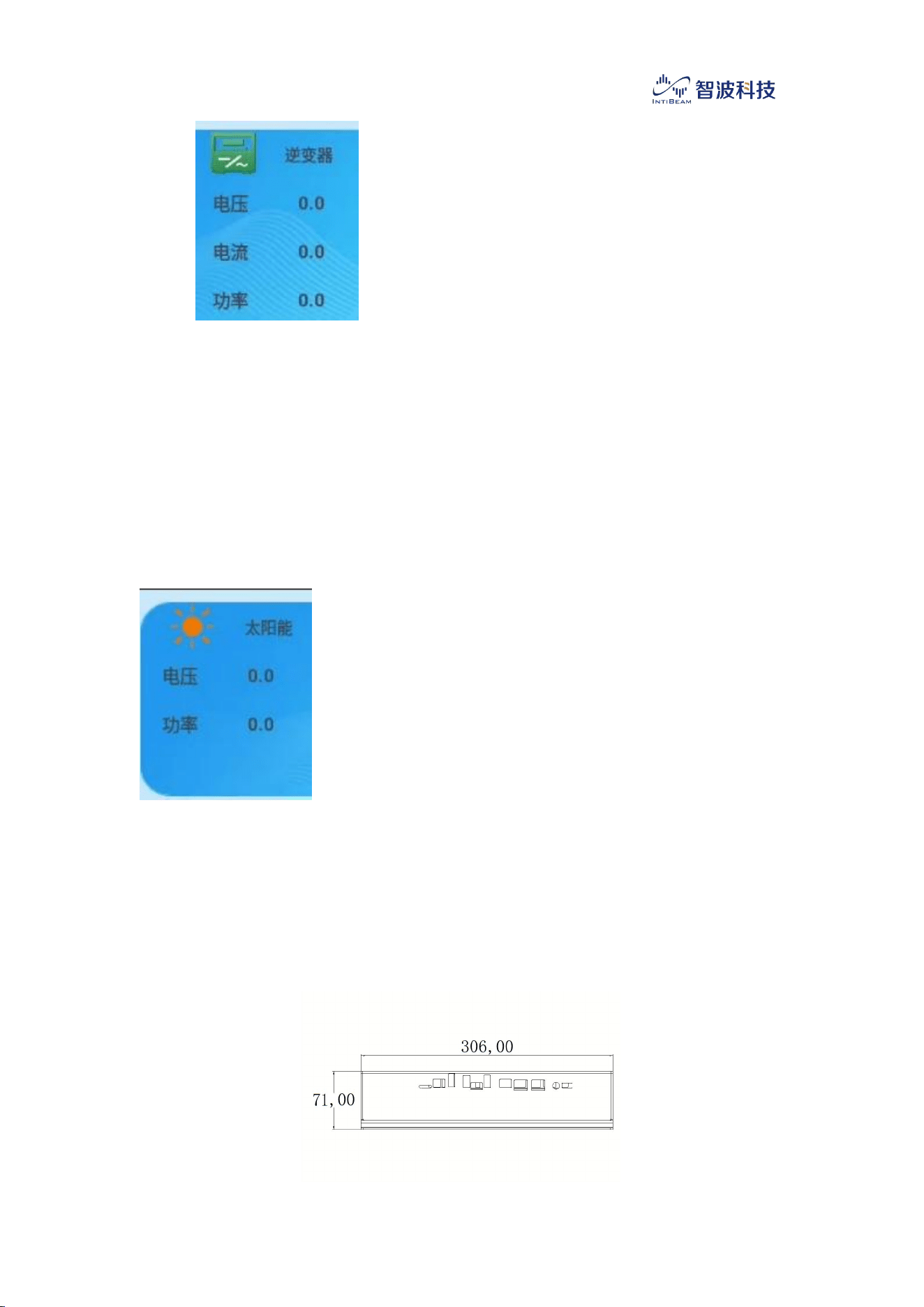

Inverter Data Display
Function Description: Monitors the operating status of the inverter and
displays its voltage and current data to ensure the stability and safety of power
conversion.
Features: Displays the real-time output voltage and current of the inverter to
ensure the normal operation of the power system.
17
Solar Energy Display
Function Description: Displays the voltage and current data of solar panels,
monitors the operating status of the solar charging system, and helps vehicle
owners optimize the utilization of solar energy.
Features: Enables real-time data monitoring to ensure the efficient operation
of the solar energy system and provide green energy.
6.Product Dimension and Structure
Front View
18
Back View
Side View
Top View
19
●FCC STATEMENT:
This
device
complies
with
part
15
of
the
FCC
Rules.
Operation
is
su
bject to the following two conditions:
(1)
This
device
may
not
cause
harmful
interference,
and
(2)
this
dev
ice must accept any interference received, including interference th
at may cause undesired operation.
Any
Changes
or
modifications
not
expressly
approved
by
the
party
responsible for compliance could void the user's authority to operat
e the equipment.
Note:
This
equipment
has
been
tested
and
found
to
comply
with
the
limits for a Class B digital device, pursuant to part 15 of the FCC R
ules. These limits are designed to provide reasonable protection
against
harmful
interference
in
a
residential
installation.
This
equip
ment generates uses and can radiate radio frequency energy and, i
f not installed and used in accordance with the instructions, may ca
use harmful interference to radio communications. However, there i
s no guarantee that interference will not occur in a particular installa
tion. If this equipment does cause harmful interference to radio or te
levision reception, which can be determined by turning the equipme
nt off and on, the user is encouraged to try to correct the interferenc
e by one or more of the following measures:
-Reorient
or
relocate
the
receiving
antenna.
-Increase
the
separation
between
the
equipment
and
receiver.
-Connect
the
equipment
into
an
outlet
on
a
circuit
different
from
that
to which the receiver is connected.
-Consult
the
dealer
or
an
experienced
radio/TV
technician
for
help.
This
equipment
complies
with
FCC
radiation
exposure
limits
set
forth for an uncontrolled environment.
This
equipment
should
be
installed
and
operated
with
minimum
distance 20cm between the radiator & your body
