HXWSG100
LoRaWAN Gateway
Product Overview
HXWSG100 is an outdoor IoT gateway based on LoRa® low-power wide area network technology. It
has a built-in Semtech high-performance 8-channel transceiver SX1302 chip, supports half-duplex
mode and more than 2,000 nodes accessing the gateway, and a communication distance of up to 5
kilometers.
HXWSG100 uses an IP67 waterproof and dustproof casing, supports up to 8 hours of
operation and alarm under abnormal power failure, and meets t
he LoRa® network coverage of
various outdoor complex environments.
HXWSG100 can transmit data to the cloud server via 4G network or wired Ethernet. It is not only
compatible with a variety of mainstream LoRaWAN® network servers
(ChirpStack/Semtech/Basics Station, etc.), but can also connect to the HEXING open platform and
third-party IoT platforms t
o quickly deploy your own IoT applications and realize customized smart
services.
LoR
aWAN Gateway
Product Highlights
¾ High-Performance: Equipped with the Semtech high-performance 8-channel SX1302 chip,
ensuring efficient and reliable data processing.
¾ High Capacity: Supports connectivity for thousands of end devices.
¾ High Compatibility: Compatible with mainstream LoRaWAN® network server platforms
such as ChirpStack, Semtech, Basics Station, etc.
¾ Flexible Connectivity: Compatible with multiple network interfaces, including Ethernet and
4G.
¾ Rugged Design: Built for harsh environments with IP67 waterproof, dustproof, and
interference-resistant features.
Product Feature
¾ The gateway features a high-performance NUC972 CPU with 128MB DDR2 and 1GB NAND
Flash, ensuring efficient data processing and storage, which enhances operational
reliability and user experience.
¾ Designed for extreme conditions, the gateway operates reliably between -25°C to 70°C and
is waterproof/dustproof, ensuring continuous performance in harsh environments and
minimizing downtime.
¾ The gateway includes both a built-in rechargeable lithium iron phosphate battery and a
super capacitor, allowing it to maintain critical "last gasp" functionality during power
failures, ensuring uninterrupted data communication and system operation.
¾ Equipped with GPS positioning and an external antenna, the gateway enables precise
real-time location tracking, enhancing asset management and operational security.
¾ The gateway supports remote monitoring and maintenance via Wi-Fi and webserver,
reducing on-site visits and enabling prompt issue resolution, saving time and operational
costs.
¾ Supporting NTP synchronization, the gateway ensures precise timekeeping across the
network, critical for reliable timestamping of data and events.
¾ Tamper detection alerts users to unauthorized cover opening, enhancing security and
safeguarding data integrity.
¾ Constructed from die-cast aluminum with outdoor powder coating, the gateway offers
exceptional durability and corrosion resistance, extending its lifespan even in harsh
conditions.
濄濦濣濘濩濗濨澔濇濤濙濗濝濚濝濗濕濨濝濣濢濧澔
HXWSG100
Physical Specifications
CPU
NUC972, ARM926EJ-S core, 300MHz
RAM
128M Byte DDR2
Flash
1G Byte NAND Flash
Cab
inet material
Aluminum
Power Supply
AC power supply: 90~350 VAC
Frequency
50/60Hz
Humidity Range
Up to 95%
Protection Degree
IP67
Pole Mount
Yes
Dimension
Installation Dimensions: 375 mm x 300 mm x 106 mm
Weight
Less than 2kg
Operation Temperature
-30ȭ to 70ȭ
Battery Backup Options
Integrated modular battery
For safety protection, discharge temperature: -10ć to 50ć
Power Consumption
Less than 8Watts
LoRaWAN®
Chipset
SX1302
Channel
8
Frequency
EU868/US915/AU915
Receiving sensitivity
[email protected]z_SF7_BW125
Transmit power
Typ. [email protected]z
Protocol
Class A / Class C
Communication distance
2km@SF8
5km@SF10
Ethernet
Data Rate
1 × 10/100 Mbps
Wi-Fi
Antenna
4G+WiFi in 1 Fiberglass Antenna
Standard
IEEE 802.11 b/g/n, 2.4GHz
Mode
AP Mode
Security
WEP/WPA/WPA2 certification
Support WEP/TKIP/AES encryption
Cellular
Antenna
4G+WiFi in 1 Fiberglass Antenna
Frequency
LTE FDD: B2/B4/B5/B7
WCDMA: B2/B5 GSM: B2/ B5
GPS
Antenna
Fiberglass Antenna, 16±3dBi
Positioning
GPS / BeiDou / GANLOSS
Sensitivity
-163dBm @Tracking Mode
-148dBm @Acquisition Mode,
Horizontal positioning accuracy
Autonomous positioning less than 2.5m CEP
Bluetooth
Antenna
Built-in embedded antenna
Standard
BLE 5.0
Regulatory Compliance
Electrostatic Discharge
Contact discharge: 6 kV
Fast transient burst
4.4 kV
Surge immunity
4 kV (common mode)
2 kV (differential mode)
Impulse voltage
1.2/50μs, main connections 5kV
AC voltage
4 kV during 1 min
RTC
Support time sync from NTP

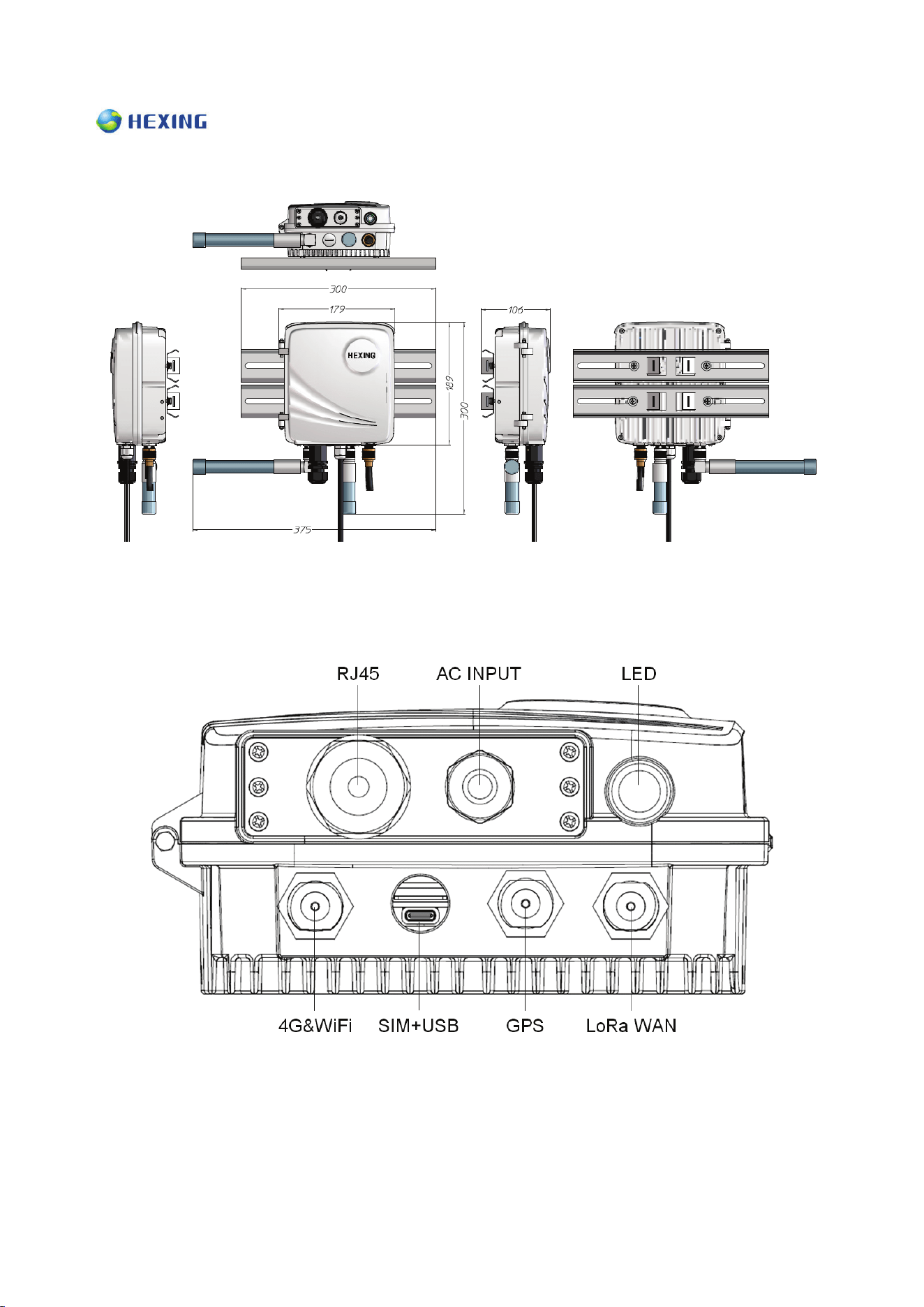

Product Dimensions
Product Interfaces

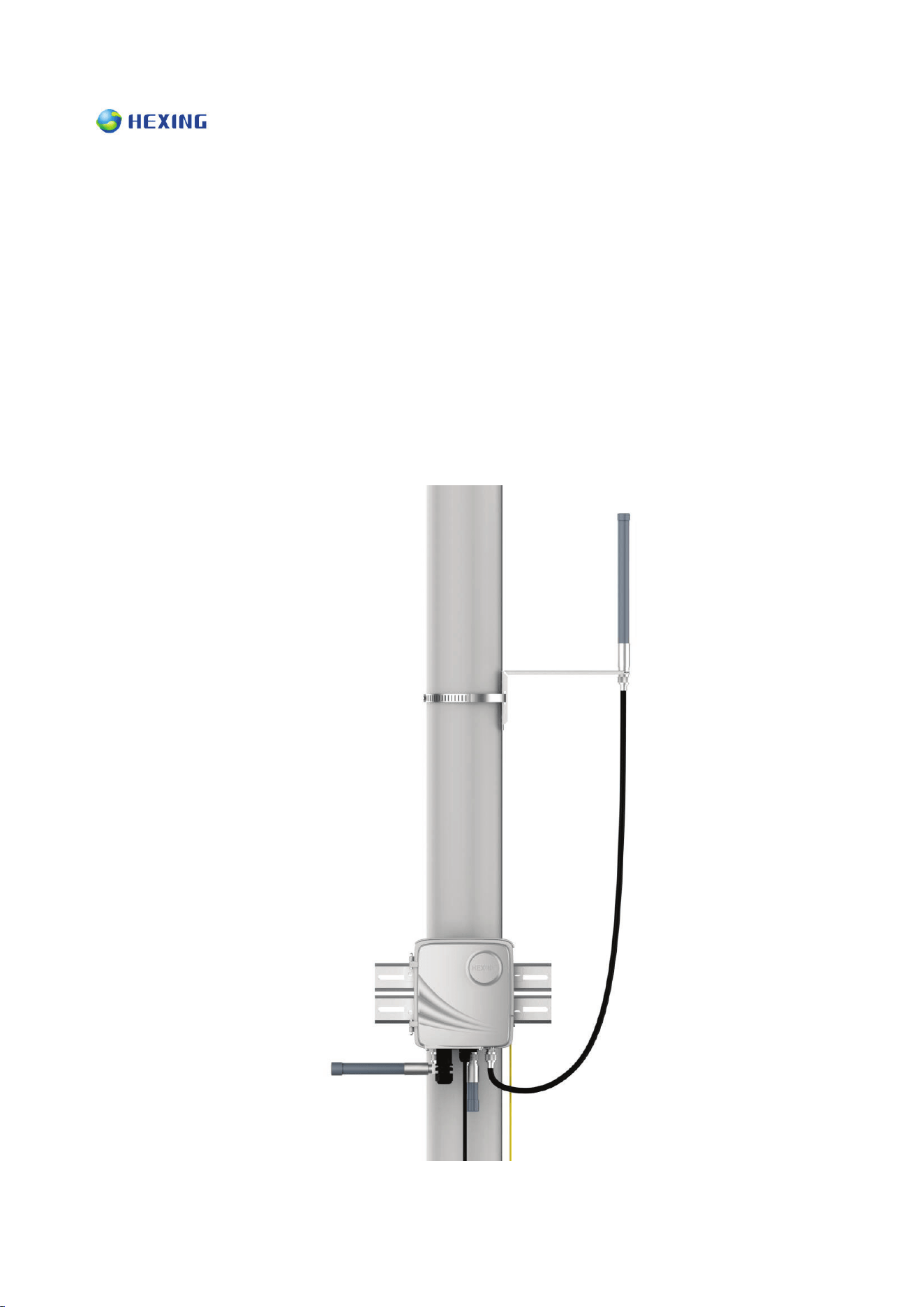

Caution in use
¾ Do not put this product completely enclosed in the metal box; if it must be installed in the
metal shell, the antenna of the module must be led out of the metal shell.
¾ If it is used in the outdoor high position, and the surrounding is quite open, then it is needed
to install lightning rod, in order to prevent lightning strike.
¾ N-type antenna connector, please make sure it is waterproof.
¾
Antenna Professional Installation˖
To ensure optimal performance and operational safety, it
is highly recommended that the high-gain antenna for this product be installed and adjusted
by qualified personnel. Precise calibration of the antenna's placement, azimuth (direction),
and elevation (tilt) is critical for achieving maximum signal strength and communication
stability. Professional installation mitigates risks such as signal degradation, equipment
damage, or potential safety hazards resulting from improper setup, thereby safeguarding
your investment and ensuring you receive the full benefits of the product. Please contact our
technical support team or an authorized service provider to arrange for professional
installation services.
Note: The products are not sold to the general public but only to distributors.
Warranty
Our product comes with a 1-year warranty covering parts, ensuring prompt attention to any defects
in materials or workmanship during the initial year of ownership. To maintain the overall health and
longevity of your product, it's important to follow proper maintenance procedures, including those
for the integrated lithium iron phosphate (LFP) battery.
Battery Maintenance
¾ Regular Charging: To preserve battery health and ensure that your device is ready for use
even after prolonged periods of inactivity, it is recommended to perform regular charging of
the LFP battery. In general, we advise charging the battery every 2 to 3 months if the device
is not being used regularly.
¾ Avoid Deep Discharge: Allowing the battery to fully discharge can negatively impact its
lifespan and performance. By regularly charging the battery as recommended, you can help
prevent deep discharge scenarios.
¾ Proper Storage Conditions: Store the device in a cool, dry environment with temperatures
within the manufacturer's recommended range to protect the battery and ensure optimal
performance.
Please note that following these maintenance guidelines will help maintain the battery's warranty
coverage and contribute to the overall longevity of your product.
