USER MANUAL

OBDII/EOBD VD30 PRO CODE READER

www.vdiagtool.com

Safety Information

To ensure your safety and prevent damage to the device or vehicle, please

carefully read and follow all instructions in this manual before use.

When operating the device, always verify proper testing procedures and

strictly adhere to the instructions provided. As automotive electrical

systems may vary, you must assess potential risks and ensure a safe

testing environment.

Always observe all safety warnings, use appropriate tools, and disconnect

power sources when necessary. Improper operation may result in person-

al injury, equipment damage, or voided warranty.

Safety Messages

Safety messages use standardized signal words to indicate hazard levels

and prevent injuries or equipment damage:

DANGER

Will result in death or serious injury if ignored

Indicates an immediately life-threatening hazard.

WARNING

Could result in death or serious injury if ignored

Indicates a potentially dangerous situation.

Safety Instructions

This manual covers known safety hazards, but cannot anticipate all possi-

ble risks. You are responsible for ensuring safe operating conditions and

procedures.

DANGER

• Always ventilate the service area when engine is running or use building

exhaust removal system if available

• Carbon monoxide is odorless and deadly - can cause loss of conscious-

ness or death

WARNINGS

• Always conduct testing in a safe, controlled environment.

• Wear ANSI-approved safety goggles during all operations.

• Keep all objects away from moving or hot engine components.

• Ensure proper ventilation to avoid toxic exhaust fumes.

• Secure the vehicle in PARK (automatic) or NEUTRAL (manual) with park-

ing brake engaged.

• Place wheel chocks and never leave the vehicle unattended during tests.

• Exercise extreme caution around ignition systems - hazardous voltages

are present.

• Maintain an ABC-rated fire extinguisher within immediate reach.

• Never connect/disconnect test equipment with ignition on or engine

running.

• Keep all test equipment clean, dry and free from contaminants.

• Never operate test equipment while driving - focus solely on testing.

• Strictly follow the vehicle service manual's diagnostic procedures.

• Verify full battery charge and secure DLC connections before testing.

• Never place test equipment near the distributor due to EMI risks.

Legal Information

Trademarks

VDIAGTOOL is a registered trademark of Shenzhen VDIAGTOOL Technol-

ogy Co., Ltd in the United States and other jurisdictions. All other product

names mentioned herein may be trademarks of their respective owners.

No reproduction, distribution, or transmission of this manual is permitted

without express written authorization from VDIAGTOOL. This prohibition

applies to all forms of copying including electronic, mechanical, photo-

copying, and recording.

Disclaimer & Liability Statement

Product Documentation Notice

All illustrations, specifications, and technical data in this manual are for

reference only and subject to change without notice.

For the latest documentation, visit:

https://www.vdiagtool.com/support/downloads

Limitation of Liability

VDIAGTOOL expressly disclaims all liability for:

• Any direct, indirect, incidental, or consequential damages

• Loss of profits or business interruption

• Product modifications or unauthorized use

This manual does not:

• Modify existing purchase/lease agreements

• Create additional liabilities for VDIAGTOOL

• Constitute additional product warranties

IMPORTANT:

Always consult this manual before operation, with special attention to all

safety warnings. VDIAGTOOL reserves the right to modify product specifi-

cations at any time.

Product Support & Training Resources

Technical Support

• Official Website: www.vdiagtool.com

• Support Email: suppor[email protected]

• US Hotline: +1-213-355-7171

• Online Form:

https://www.vdiagtool.com/support/tech-support

Training Videos

Free product operation videos:

1. Visit Training Center:

https://www.vdiagtool.com/support/training-center

2. Select Code Reader category

3. Watch model-specific tutorials

Contents

1. General Information.......................................................................... 1

1.1 On-Board Diagnostics(OBD) II........................................................... 1

1.2 Diagnostic Trouble Codes(DTCs)....................................................... 1

1.3 Location of the Data Link Connector (DLC).................................. 2

2. Using the Code Reader.................................................................... 3

2.1 Control Buttons.................................................................................... 3

2.2 Included Accessories.......................................................................... 4

2.3 Technical Specifications...................................................................... 4

3. Getting Started................................................................................. 4

3.1 Power Connection Method............................................................... 4

3.2 Application Overview......................................................................... 5

4. OBDII/EOBD....................................................................................... 5

4.1 Read DTC............................................................................................... 5

4.1.1 Stored DTCs.................................................................................. 6

4.1.2 Pending DTCs............................................................................... 6

4.1.3 Permanent DTCs.......................................................................... 6

4.1.4 Stored DTC................................................................................... 6

4.2 Clear DTC............................................................................................... 7

4.3 Live Data................................................................................................ 7

4.3.1 View All Items.............................................................................. 7

4.3.2 Select Items................................................................................. 8

4.3.3 View Graphic Items................................................................... 8

4.3.4 Record All.................................................................................... 8

4.3.5 Record Select.............................................................................. 8

4.4 Freeze Frame........................................................................................ 9

4.5 MIL Status.............................................................................................. 9

4.6 Vehicle Information........................................................................... 10

4.7 O2 Sensor............................................................................................ 10

4.8 On-Board Monitoring (Mode 6).................................................... 10

4.9 EVAP System Test (Mode 8)............................................................. 11

4.10 I/M Readiness.................................................................................... 12

5. Battery............................................................................................... 14

6. DTC Lookup...................................................................................... 15

7. Setting............................................................................................... 15

7.1 Language.............................................................................................. 15

7.2 Unit of Measure.................................................................................. 16

7.3 Self Tests............................................................................................... 16

7.3.1 Keys Test...................................................................................... 16

7.3.2 TFT Test....................................................................................... 16

7.3.3 LED Test....................................................................................... 17

7.4 Help....................................................................................................... 17

7.4.1 Tool Information........................................................................ 17

7.4.2 About OBD................................................................................. 17

7.4.3 About Datastream.................................................................... 17

7.5 Beep...................................................................................................... 17

8. Review................................................................................................ 18

9. Updating........................................................................................... 18

9.1 Updating the Code Reader.............................................................. 18

9.2 Printing................................................................................................. 19

9.3 Manual.................................................................................................. 19

9.4 Software Language Setting............................................................. 19

10. Warranty......................................................................................... 20

11. Contact Us....................................................................................... 20

OBDII/EOBD VD30 Pro Code Reader

1. General Information

1.1 On-Board Diagnostics(OBD) II

The first generation of On-Board Diagnostics (OBD I) was introduced by

the California Air Resources Board (ARB) in 1988 to monitor basic emission

control components in vehicles. With advancements in technology and

the need for enhanced diagnostics, a more sophisticated system—OBD

II—was developed.

OBD II continuously or periodically monitors emission control systems and

critical engine components through specialized tests. If an issue is detect-

ed, the system activates a Malfunction Indicator Light (MIL) on the dash-

board, typically labeled "Check Engine" or "Service Engine Soon."

Additionally, OBD II records essential diagnostic data to assist technicians

in identifying and resolving problems efficiently.

Key information includes:

• MIL Status: Whether the warning light is activated ("on") or deactivated

("off").

• Diagnostic Trouble Codes (DTCs): Specific error codes stored in the

system.

• Readiness Monitor Status: The completion status of emission-related

self-tests.

1.2 Diagnostic Trouble Codes(DTCs)

Diagnostic Trouble Codes (DTCs) are alphanumeric codes stored by the

vehicle’s OBD II system when a malfunction is detected. These codes help

pinpoint the source of a problem, serving as a guide for troubleshooting.

An OBD II DTC follows a 5-character format:

• First character (letter) – Indicates the affected system:

P = Powertrain (Engine/Transmission)

B = Body (e.g., Airbags, Climate Control)

C = Chassis (e.g., ABS, Stability Control)

U = Network/Communication (e.g., CAN Bus)

• Remaining four digits – Specify the exact issue

OBDII/EOBD VD30 Pro Code Reader

Sub-systems

1 = Fuel and air metering

2 = Ignition system or engine misre

3 = Auxilia emissions controls

4 = Vehicle speed control and idle controls

5 = Computer output circuits

6 = Trabsnussuib cibiks

Systems

B = Body

C = Chassis

P = Powerain

U = Network

Code Type

Geberuc (SAE):

Manufacturer Specic:

P1, P2

B1, B2

C1, C2

U1, U2

Last two digits identify individual

component within the system

See the following DTC breakdown for a visual explanation of how the

codes are structured.

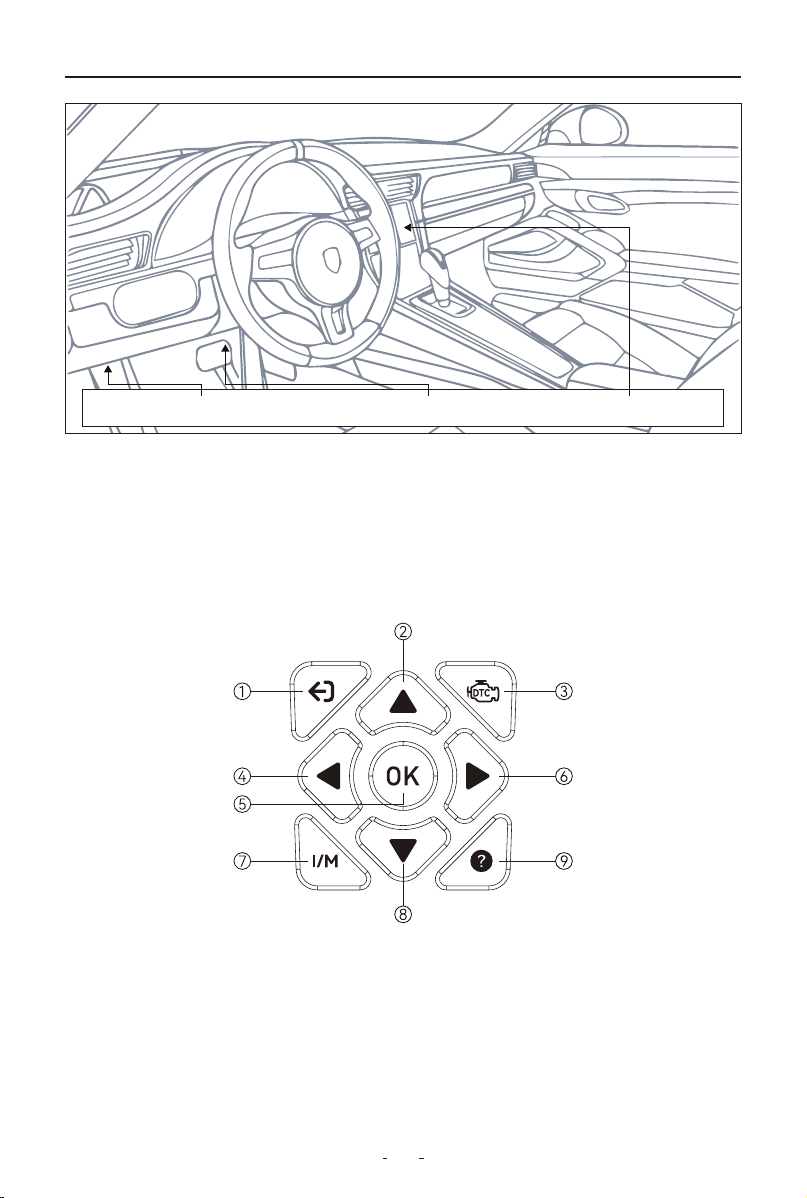

1.3 Location of the Data Link Connector (DLC)

The Data Link Connector (DLC), also known as the Diagnostic Link

Connector, is a standardized 16-pin port used to connect diagnostic scan

tools to the vehicle's onboard computer.

Typical DLC Locations:

• Most vehicles: Within 12 inches of the dashboard center, typically under

or near the driver’s side.

• Some Asian/European models: Behind the ashtray (may require removal

for access).

• If not visible: Check for a location label or consult the vehicle’s service

manual.

OBDII/EOBD VD30 Pro Code Reader

LEFT CORNER OF DASH NEAR CENTER OF DASH BEHIND ASHTRAY

2. Using the Code Reader

This section describes the external features, ports, and connectors of the

code reader.

2.1 Control Buttons

①ESC button - Returns to previous screen (press once to exit other tests)

②Up button - Menu navigation up; previous page in multi-screen info;

edits DTC characters

③DTC button - Direct access to Read DTC function

④Left button - Previous page in multi-screen info; navigate character

positions

⑤OK button - Confirms selection

OBDII/EOBD VD30 Pro Code Reader

⑥Right button - Next page in multi-screen info; navigate character

positions

⑦I/M button - Checks emissions readiness and drive cycle status

⑧Down button - Menu navigation down; next page in multi-screen info;

edits DTC characters

⑨Help button - Opens help menu

2.2 Included Accessories

• Type-C Cable: For:

- Computer connection

- Firmware updates

• User Manual: Complete operation instructions

2.3 Technical Specifications

Display: 2.8” TFT color

Operating Temperature: 0°C to 60°C (32°F to 140°F)

Storage Temperature: -20°C to 70°C (-4°F to 158°F)

Connection: Wired via main cable

Power Source: Vehicle DLC port or Type-C connection

Compatibility: OBDII & EOBD (12V) vehicles

Dimensions: 6.5×3.48×1.02 inches

Weight: 7.69 oz

3. Getting Started

Power on your code reader by connecting to vehicle power or computer

before using any applications.

3.1 Power Connection Methods

Vehicle Power Connection (Recommended)

(1) Locate the vehicle's DLC (typically under dashboard)

(2) With ignition ON, connect code reader to DLC

(3) Device will auto-power on

Important:

• Never use Type-C power during vehicle communication

• Ensure clean connector contact

OBDII/EOBD VD30 Pro Code Reader

Computer Connection (For Updates/Data Transfer)

(1) Connect Type-C cable to device and computer

(2) Device will auto-power on

3.2 Application Overview

Upon startup, you'll see these preloaded applications:

• OBDII/EOBD - Shows OBDII screen for all nine OBD system tests.

• Battery - Shows screen that tests and displays voltage of vehicle battery.

• DTC Lookup - Shows screen for diagnostic trouble code lookup.

• Setting - Shows screen for access to modify your settings like Language,

Unit of Measure, etc

• Review - Shows screen for access to tested data files.

• Print - Shows screen for access to printing function.

4. OBDII/EOBD

When you select the OBDII/EOBD application from the home screen, your

vehicle's diagnostic information will display as shown below:

Press OK to access the diagnostic menu with these available tests:

Diagnostic Test Menu:

• Read DTC

• Clear DTC

• Live Data

• Freeze Frame

• MIL Status

• Vehicle Info

• O2 Sensor

• Mode 6

• Mode 8

4.1 Read DTC

This function allows you to check stored fault codes in the vehicle's control

modules.

Available Code Types:

• Stored DTCs

• Pending DTCs

OBDII/EOBD VD30 Pro Code Reader

• Permanent DTCs

• Record DTC

4.1.1 Stored DTCs

Stored DTCs are active fault codes that are stored in the vehicle's ECU

when the onboard diagnostic system confirms a problem. These codes

will typically illuminate the check engine light (MIL) immediately upon

detection. Current DTCs can be cleared using the code reader's erase

function, though some may clear automatically after several problem-free

drive cycles if the issue doesn't recur.

4.1.2 Pending DTCs

Pending DTCs are temporary fault codes stored when a potential issue is

first detected by your vehicle's monitoring systems. Unlike regular trouble

codes, these won't turn on the check engine light immediately. The system

keeps them as a warning - if the problem happens again on your next

drive, they'll turn into confirmed trouble codes and activate the warning

light. You can clear these pending codes with your code reader, or they'll

disappear automatically if the issue doesn't recur after several driving

cycles.

These codes are useful for spotting intermittent problems early or check-

ing if a repair fixed an issue.

4.1.3 Permanent DTCs

Permanent DTCs are fault codes that were severe enough to originally

trigger the check engine light (MIL), and remain stored in the vehicle's

computer even after the light turns off. These codes preserve a record of

the fault whether the MIL was cleared manually or stopped illuminating

because the problem didn't reoccur. They automatically erase only after:

(1) the underlying issue is fully repaired, and (2) the system successfully

completes 3 consecutive drive cycles without detecting the fault.

4.1.4 Stored DTC

This function allows you to record the DTCs if there are trouble codes in

the vehicle.

OBDII/EOBD VD30 Pro Code Reader

To read codes from a vehicle:

(1) Select "Read DTC" from the OBDII/EOBD menu using the arrow keys,

then press OK.

(2) Choose the code type (Stored, Pending, or Permanent DTCs) and

confirm with OK.

(3) The tool will display all detected codes along with their descriptions.

4.2 Clear DTC

This function allows you to clear stored diagnostic trouble codes (DTCs)

from the vehicle's ECU with the ignition ON (engine OFF).

To erase codes from a vehicle:

(1) Select "Clear DTC" from the OBDII menu.

(2) Follow the on-screen prompts to confirm and complete the erasure.

(3) Immediately rescan the system to check for remaining codes.

After Erasure:

If codes persist: This may indicate permanent DTCs. Please repair or

replace the affected components before attempting to clear the codes

again.

4.3 Live Data

This function allows real-time monitoring of vehicle sensor data and

system parameters (PIDs) from the ECU.

• View All Items

• Select Items

• View Graphic Items

• Record All

• Record Select

4.3.1 View All Items

This function displays real-time monitoring of all available vehicle parame-

ters from the ECU, including engine RPM, coolant temperature, fuel trim

values (both short-term and long-term), oxygen sensor voltages, throttle

position, and other critical system measurements.

OBDII/EOBD VD30 Pro Code Reader

View Graphic Items

max 0 0 00.0

mix 0 0 00.0

MIL-DIST=0miles

WARM-UPS=0

EVAP-PCT=0.0%

CLR-DIST=0miles

4.3.2 Select Items

This function enables focused monitoring of specific vehicle parameters.

To view selected PIDs:

(1) Navigate through the parameter list using the UP/DOWN button

(2) Press OK to select/deselect each desired parameter

(3) Press ESC to display all selected parameters in real-time

4.3.3 View Graphic Items

This function allows you to view the PID data as a graphing.

4.3.4 Record All

This function is used to record PIDs to help diagnose intermittent drivabili-

ty problems that can’t be determined by any other method.

4.3.5 Record Select

This function allows you to record the PID data you selected.

CAUTION

• Always park the vehicle before using the code reader

• When recording live data during driving, ensure two occupants are

present - one to drive and one to operate the device

OBDII/EOBD VD30 Pro Code Reader

MIL Status

< 1/2 >

Check Engine Light Status

OFF

Run Time with Check Engine Light On

Day

Hours

Minutes

Distance with Check Engine Light On

0.00

Miles

NOTE：

Vehicle communication speeds and supported PIDs vary by make/mod-

el/year. Some parameters may not be available on all vehicles.

4.4 Freeze Frame

The Freeze Frame function provides a snapshot of critical vehicle parame-

ters (engine RPM, load, fuel system status, etc.) recorded at the moment a

fault code was triggered. This data helps diagnose intermittent issues by

showing exact operating conditions when the problem occurred.

To access freeze frame Data:

(1) Select Freeze Frame from the OBDII menu

(2) Scroll through recorded parameters using UP/DOWN button

(3) View detailed condition readings for each parameter

Note: If no data is available, the display will show "No freeze frame data

stored"

4.5 MIL Status

Performing MIL status function, it will show you some detailed informa-

tion, such as the Check Engine Light status, the Run Time with Check

Engine Light on, the Distance with Check Engine Light on and etc.

OBDII/EOBD VD30 Pro Code Reader

4.6 Vehicle Information

The Vehicle Information function retrieves the vehicle's VIN number,

calibration IDs (identifying control module software versions), and calibra-

tion verification numbers (CVNs), which are values calculated according to

OBDII regulations to verify whether emission-related calibrations have

been modified.

Note that multiple CVNs may be reported for a single control module and

the calculation process may take several minutes to complete. Available

options will vary depending on the connected vehicle.

4.7 O2 Sensor

O2 Sensor Test opens a menu of tests available for checking the integrity

of the oxygen sensors.

Making a selection displays all of the pertinent O2S parameters for the

specific test.

4.8 On-Board Monitoring (Mode 6)

The On-Board Monitoring(Mode 6) function is useful after servicing or

after clearing a vehicle ECU's memory. It receives test results for emis-

sion-related powertrain components and systems that are not continu-

ously monitored for Non-CAN vehicles. And for CAN vehicles, it receives

test data for emission-related powertrain components and systems that

are and are not continuously monitored. It is vehicle manufacturer who is

responsible for assigning test and component IDs.

NOTE：

Test results do not necessarily indicate a faulty component or system.

To request On-board Monitor Test (Mode 6) results:

(1) Use the UP/DOWN key to highlight On-board Monitor Test(Mode

6) from OBDII/EOBD menu and press the OK key.

(2) A screen will show:

OBDII/EOBD VD30 Pro Code Reader

On-Board Monitoring

Catalyst Monitor B1

VVT Monitor Bank 1

Sensor Heater B1-S1

Sensor Heater B1-S2

Misfire Cylinder 1

Misfire Cylinder 2

Misfire Cylinder 3

Misfire Cylinder 4

(3) Use the UP/DOWN key to highlight a test group and press the OK key

to confirm, a screen with details of the selected sensor displays. Use the

UP/DOWN arrow keys to scroll through data to select lines.

4.9 EVAP System Test (Mode 8)

The EVAP System Test (Mode 8) allows the code reader to control opera-

tion of vehicle components, tests of systems.

EVAP(Evaporative Emission Control System) is an automotive system

designed to prevent fuel vapor from escaping into the atmosphere, there-

by reducing air pollution.

Its main functions include:

(1) Preventing Fuel Vapor Leakage: The EVAP system captures and stores

fuel vapor to avoid its escape into the environment while the vehicle is in

operation or parked.

(2) Storing Vapor: The system uses a fuel vapor canister to store vapors,

minimizing their impact on the environment.

(3) Recycling Vapor: When the engine is running, the system directs the

stored vapor back to the combustion chamber via an electromagnetic

valve for re-burning, enhancing fuel efficiency.

(4) Monitoring for Leaks: The EVAP system is equipped with sensors that

monitor pressure changes in real-time to detect any leaks within the

system, ensuring its integrity.

OBDII/EOBD VD30 Pro Code Reader

(5) Improving Fuel Efficiency: By effectively capturing and reusing fuel

vapor, the EVAP system contributes to improved fuel economy and

reduced fuel consumption.

NOTE：

• Some manufactures do not allow tools to control vehicle systems.

• The manufacturer sets the criteria to automatically stop test. Refer to

appropriate vehicle service manual before using this function.

4.10 I/M Readiness

I/M Readiness, or Inspection and Maintenance Readiness, refers to the

status of a vehicle's on-board diagnostic (OBD) system's readiness to

perform emissions testing. It indicates whether the various emissions-re-

lated systems on the vehicle are operating properly and have completed

their self-diagnostic checks. This is crucial for passing state emissions

inspections, as some monitors must be "ready" for the vehicle to be

compliant.

Monitor Status:

• OK - Test completed successfully

• INC (Incomplete) - Test not yet finished (needs more driving)

• N/A (Not Applicable) - This monitor is not required/supported for your

specific vehicle

There are two types of I/M Readiness tests:

• Since DTCs Cleared - shows the status of monitors since the last time

diagnostic trouble codes (DTCs) were cleared.

• This Drive Cycle - shows the status of monitors since the beginning of

the current driving cycle.

The code reader supports these standard OBDII monitor abbreviations

and full names:

OBDII/EOBD VD30 Pro Code Reader

No Abbreviation Name

1 MIS Misre Monitor

2 FUEL Fuel System Monitor

3 CCM Comprehensive Components Monitor

4 CAT Catalyst Monitor

5 HCAT Heated Catalyst Monitor

6 EVAP Evaporative System Monitor

7 AIR Air Conditioning Refrigerant Monitor

8 O2S Oxygen Sensor Monitor

9 HTR Oxygen Sensor Heater Monitor

I/M Readiness

MIS EVAP

DTC 0 Pd DTC 3

MIL IGN ComPr

FUE AIR

CCM O2S

CAT HRT

HCAT

NOTE：

• To check I/M Readiness status, ensure the ignition is ON (engine OFF)

• Monitor availability varies by vehicle specifications.

To retrieve I/M Readiness Status data by one-click I/M Readiness hotkey:

1. Press the I/M Readiness hot key on the keypad and the following screen

displays:

2. Colored LED and build-in beeper provide both visual and audible

reminders for emission check and DTCs.

OBDII/EOBD VD30 Pro Code Reader

Battery

Battery Volt

12.1V

Normal battery voltage, good

battery status.

When the LED is:

• Yellow - The tool finds a possible problem. It indicates the following two

conditions:

(1) Pending DTCs exist. Please check the I/M Readiness test result screen

and use the Read Codes function to view detailed codes information.

(2) Some of the vehicle's emission monitors have not working properly. If

the I/M Readiness screen shows no DTC(including pending DTC), but the

Yellow LED is still illuminated, it indicate a "Monitor Has Not Run" status.

• Red - Indicates some problems exist with one or more of the vehicle's

system, and the vehicle is not ready for an Emissions Test. As well there are

DTCs found. The MIL lamp on the vehicle's instrument panel will light

steady. The problem that is causing the illumination of Red LED should be

fixed before an Emissions Test or driving the vehicle further.

NOTE：

The built-in beeper which makes different tones corresponding to differ-

ent LED indicators is invaluable when the test is performed while driving

or in bright areas where LED illumination may not be visible.

5. Battery

This function provides real-time battery voltage monitoring.

OBDII/EOBD VD30 Pro Code Reader

6. DTC Lookup

This function provides instant access to the built-in diagnostic trouble

code database, containing both SAE standard and manufacturer-specific

code definitions.

To Search for DTC Definitions:

(1) Select DTC Lookup from the main menu

(2) Enter the code using:

• LEFT/RIGHT to navigate character positions

• UP/DOWN to change digit values

• OK to confirm

(3) View the code definition

Note:

• For manufacturer-specific codes (P1xxx/C1xxx/B1xxx/U1xxx), select the

vehicle make

• If no definition is found, consult the vehicle service manual

7. Setting

This menu allows you to customize the code reader's configuration to suit

your preferences.

Available Options:

• Language - Select display language

• Unit of Measure - Choose metric/imperial units

• Self Tests - Run device self-test

• Help - Access device information

• Beep - Turn beep on or off

7.1 Language

Selecting Language opens a screen that allows you to choose system

language.

To configure system language:

(1) Select Language from the Settings menu

(2) Choose your desired language from the available list

(3) Confirm selection with OK

OBDII/EOBD VD30 Pro Code Reader

7.2 Unit of Measure

This setting allows you to switch between measurement systems:

Available Options:

• Metric (km/h, °C)

• US Customary (mph, °F)

Configuration Steps:

(1) Select Unit of Measure from the Settings menu

(2) Choose preferred system

(3) Confirm with OK

7.3 Self Tests

This feature verifies proper operation of the device hardware components.

Available Tests:

• Keys Test

• TFT Test

• LED Test

7.3.1 Keys Test

Selecting Keys Test option opens a screen that allows you to check the

functionality of the keypad.

To test the keypad:

(1) Select Key Test from Self-Test menu

(2) Press any button - the display will show button name

(3) Double-press ESC to exit

7.3.2 TFT Test

Selecting TFT Test option opens a screen that allows you to check the

functionality of the screen.

To test the screen:

(1) Select TFT Test

(2) Visually inspect for:

• Dead pixels

• Color uniformity

(3) Press ESC to complete

OBDII/EOBD VD30 Pro Code Reader

7.3.3 LED Test

Selecting LED Test option opens a screen that allows you to check the

functionality of the LED.

To test the LED:

(1) Select LED Test

(2) All status LEDs will illuminate sequentially

(3) Press ESC to terminate

7.4 Help

Access this section for essential product information and diagnostic refer-

ences.

Available Resources:

• Device Information

• About OBD

• About Data Stream

7.4.1 Tool Information

This option will show information about your code reader, such as hard-

ware and software version.

7.4.2 About OBD

This option will show you what is OBD, OBDII modes and vehicle cover-

age.

7.4.3 About Datastream

This option will show you some brief introductions about each sensor and

module.

7.5 Beep

Opens a settings dialog to enable/disable the keypress sound from the

built-in speaker.

OBDII/EOBD VD30 Pro Code Reader

VDLINK_V24.07

Manual

Upgrade

EnglishLanguage:

Clear message Upgrade

Prompt messages:

1. The device must enter the upgrade mode

2. To enter the upgrade mode:

3. Press and hold down the arrow key of the diagnostic device (the device does not need to be connected to the OBD po and USB po).

4. Hold down the Down arrow key and use the USB cable to connect the diagnostic device to the computer

5. Wait until UPDATE MODE is displayed on the device screen, and release the arrow key Down. The device enters the upgrade mode successfully

6. Click the upgrade button in the lower right corner

Po:

8. Review

This function provides access to all recorded diagnostic data through the

following menu options:

• Review DTC

• Review Datastream

• Review Freeze Frame

• Delete DTC Data

• Delete Datastream

• Delete Freeze Frame

To review or delete recorded data:

(1) Select Review from the main menu

(2) Navigate through the six options using UP/DOWN button

(3) Press OK to view or delete selected data

9. Updating

9.1 Updating the Code Reader

(1) Download and install the VD30 Pro Update Client from

https://www.vdiagtool.com/support/downloads.

(2) Launch the VD30 Pro Update Client.

(3) With the device powered off, hold the Down button while connecting

via USB-C until "UPDATE MODE" appears.

(4) Click Upgrade and wait for completion.

OBDII/EOBD VD30 Pro Code Reader

VDLINK_V24.07

Manual

Upgrade

Language:

Po:

Clear message Upgrade

Prompt messages:

1. The device must enter the upgrade mode

2. To enter the upgrade mode:

3. Press and hold down the arrow key of the diagnostic device (the device does not need to be connected to the OBD po and USB po).

4. Hold down the Down arrow key and use the USB cable to connect the diagnostic device to the computer

5. Wait until UPDATE MODE is displayed on the device screen, and release the arrow key Down. The device enters the upgrade mode successfully

6. Click the upgrade button in the lower right corner

English

Français

Čeština

Türkçe

Español

Deutsch

Italiano

Polski

Русский

Pouguês

9.2 Printing

This function transfers saved diagnostic data to your computer as a .txt file

for printing.

(1) Open the VD30 Pro software and connect the device to your computer

and

(2) Click Print in the software

(3) On the device, select the test results to print and confirm

(4) The data will transfer as a .txt file

(5) Click Open File in the software to locate and print the report

9.3 Manual

A copy of user manual in PDF format will show up when you click this

option.

9.4 Software Language Setting

This option allows you to set the language of the update client.

VDLINK_V24.07

Manual

Upgrade

EnglishLanguage:

Po:

Clear message Upgrade

Prompt messages:

1. When printing, make sure the device is properly connected to the computer.

2. Power on the device and access the print function.

3. On the device Print page, select the required data.

4. The device will send data to the computer software.

OBDII/EOBD VD30 Pro Code Reader

10. Warranty

Limited Three Years Warranty

This warranty is expressly limited to buyer who purchase VDIAGTOOL

VD30 Pro product for purposes of resale or use in the ordinary course of

the buyer’s business.

VDIAGTOOL VD30 Pro is warranted against defects in materials and work-

manship for three years(36 months) from date of delivery to the buyer.

This warranty does not cover any part that has been abused, altered, used

for a purpose other than for which it was intended, or used in a manner

inconsistent with instructions regarding use. The exclusive remedy for any

tool found to be defective is repair or replacement, and it shall not be

liable for any consequential or incidental damages.

11. Contact Us

Warranty & Support

Email: suppor[email protected]

Website: www.vdiagtool.com

For wholesale business or become our distributors:

Email: [email protected]

Invent with us, test products before they hit market, help us make

better products for everyone:

Email: [email protected]

Create social media content, post online and help our community:

Email: [email protected]

OBDII/EOBD VD30 Pro Code Reader

Facebook Page: Search for "vdiagtool"

Facebook User Group: Search for "VDIAGTOOL OFFICIAL User Group"

Instagram: Search for "vdiagtool_official"

TikTok: Search for "vdiagtool_us"

YouTube: Search for "Vdiagtool Official"

VDIAGTOOL VD30 PRO OBD2 Scanner, Car Diagnostic Tool, Fault Code Reader

Product's Documents

User Manual

Specifications

VDIAGTOOL VD30 PRO Questions and Answers
