GENERAL SAFETY WARNINGS
The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible
conditions and situations that may occur. It must be understood by the operator that common sense and
caution are factors which cannot be built into this product, but must be supplied by the operator. Read
carefully and understand all
ASSEMBLY AND OPERATION
INSTRUCTIONS
before operating. Failure to
follow the safety rules and other basic safety precautions may result in serious personal injury.
•
The power tool plug should match the socket. Do not change the plug at al
l times. Do not connect the
adapter of the plug o
f grounded power tool to be used together. Not changing the plug and matching the
socket will reduce the occurrence of electric shock.
•
Do not place the power tools in rain or in a humid environment. Liquid entering the power tool will increase
the risk of
electric shock.
•
Do not damage the power cord. Do not use the power cord to drag and pull the power tool. Keep the
power cord away from hot, oil, sharp edges or moving objects. Damage to the power cord or other objects
twined can increase the risk of electric shock.
•
Keep the workplace clean and tidy and with sufficient lighting. Chaos and darkness of the environment
are likely to cause safety accidents.
•
Do not operate the machine in hazardous environments that is flammable and explosive, such as flammable
and explosive liquids, gases or dust. Power tools are prone to generate sparks that can ignite dust or gas.
•
When ignite these operating dusts the or machine, gases. keep unrelated personnel (including children,
bystanders, non-staff, etc.) away from the work site. Distraction could easily lead to the occurrence of
s
afety accidents.
•
Do not use power tools in the event of fatigue or affected by medicine, alcohol or drugs. Careless operation
will lead to serious injury.
•
Use personal protective equipment properly and always wear safety goggles. Personal protective equipment
includes dust masks, non-slip safety shoes, hard mats or thermal protection devices. Appropriate use of
the protective equipment will reduce the risk of injury.
•
Keep the body in balance and do not lose balance when operating the machine. This will help you to
better control the tools in case of accidents.
•
Do not overuse the power tools. Please choose the appropriate power tools on different occasions. The
right tools will help you work faster and more safely.
•
If the switch does not work, do not use the power tool. Any power tool can be very dangerous if switch
cannot be controlled and it must be repaired immediately.
•
Tools must be disconnected or removed with the battery before adjustment, replacement of accessories
and storage. These measures can prevent the risk of accidentally starting the tool.
•
Store the power tools out of the reach of unrelated personnel, especially children, power tools can be
dangerous for an untrained person.
•
Check dangerous the tools for untrained periodically to personnel. see if there are moving parts not in the
correct position, damaged parts or other damage conditions that may affect the normal use of the tool.
Be sure to repair ii before use.
•
When using the power tool outdoors, please use a wiring board suitable for outdoor operation. Avoid
using the power tools in a humid environment. Please use the GFCI protection device, which can reduce
the risk of electric shock.
•
Keep the tool as close as possible to the pipe. When the tool is difficult to approach the pipe, use
the front guide tube. If the distance is too long, it may cause the winding or break off of flexible
shaft.
•
Do not operate the machine while reversing (pressing the forward and reverse rotation button R).
Operating in the (R) stale can cause damage to the flexible shaft. The button (R) is only used to exit
the flexible axis in the case of block.
•
Use the guide hose to prevent the flexible shaft from bringing foreign matter when jittering.
•
After using detergent in the pipe, avoid direct contact with skin or eyes. Some detergents can
cause severe burns.
•
Do not use the tool when the handle, switch, grounding plug or fuse is damaged. Poorly maintained
tools can cause serious injury.
•
Wear gloves with colloidal particle.
•
Do not use damaged or failed cables.
•
Put the machine near the pipe opening.
•
Place the GFCI leakage protection device in pla
ce.
•
Wear gloves with colloidal particle.
•
Wear safety goggles.
•
est the fuse to confirm proper operation.
•
Do not use soft gloves or cloth to hold the rotating flexible shaft, which may cause serious injury.
•
Do not over-deliver the flexible shaft, excessive delivery due to blockage may cause the winding or
break off of flexible shaft and cause serious injury.
0 SAVE THESE RNINGS
SPECFICATIONS
VOLTAGE:
120V /60Hz
SWITCH:
CVT switch can reverse
ROTATING SPEED:
0 - 560RPM
DREDGING CAPACITY:
3/4 - 2"
WEIGHT:
9.03LBS
2

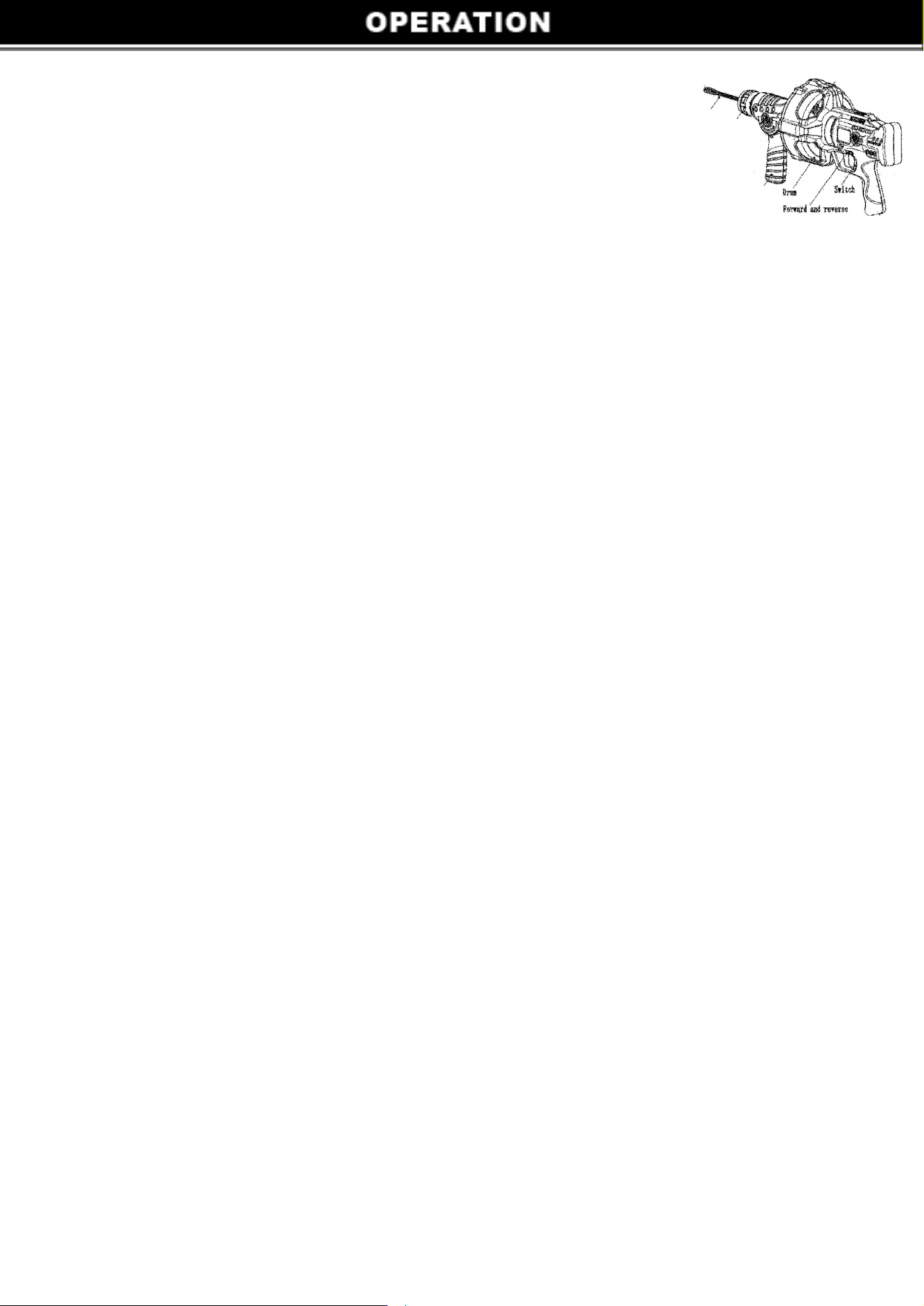

CHECK BEFORE OPERATION
I
01ibl• n
/
• Make sure the plug is unplugged
• Check if the cable plug is damaged.
• Check if the waterproof plug on the drum is installed.
• Check if there are damaged machine parts that may pose a threat to
your safety.
tkini
1
/
0rali l,
• Lubric
ate the flexible sha in according to the operation manual.
• Selection of appropriate accessories for pipe dredge can improve the efficiency and quality of
dredging.
temf �hg
Jtatfon ·,her
L
\
,�i\
ohcthe sl�ve �
positi
.(
Hl, \\
• Check if the flexible sha is worn or damaged. In the cases of worn flat, corrosion and bending
deformation, please immediately replace the nexible shaft.
• Check the workplace to ensure sufficient lighting, no flammable liquid, gas or dust. Check the connection
of cable and socket to ensure that the cable will not be damaged.
• Do not place the side of the flexible sha towards the operator or other people.
• Please use the standard power cord. When using the power tool outdoors, use extension
cable marked with "W-A" or "" and the wire insulation layer must be thick enough. These
cables are suitable for outdoor use and can reduce the occurrence of electric shock.
• Insert the plug into the socket, and confirm that the dredger can easily approach the pipe opening, if the
distance is too long, add extension cord.
Minimum Wire Gauge For Extension Cord Nameplate
Total Length(in feet)
Amps
0-25
25-50
51-100
0-6
6-10
10-12
18AWG 16AWG
18AWG 16AWG
16AWG 16AWG
16AWG
14AWG
14AWG
12-16
14AWG 12AWG NOT RECOMMENDED
3
CONTROL
Notice: Befo
r
e
u
s
ing t
he machine, you must be familiar with the functions and
be proficient in operating it.

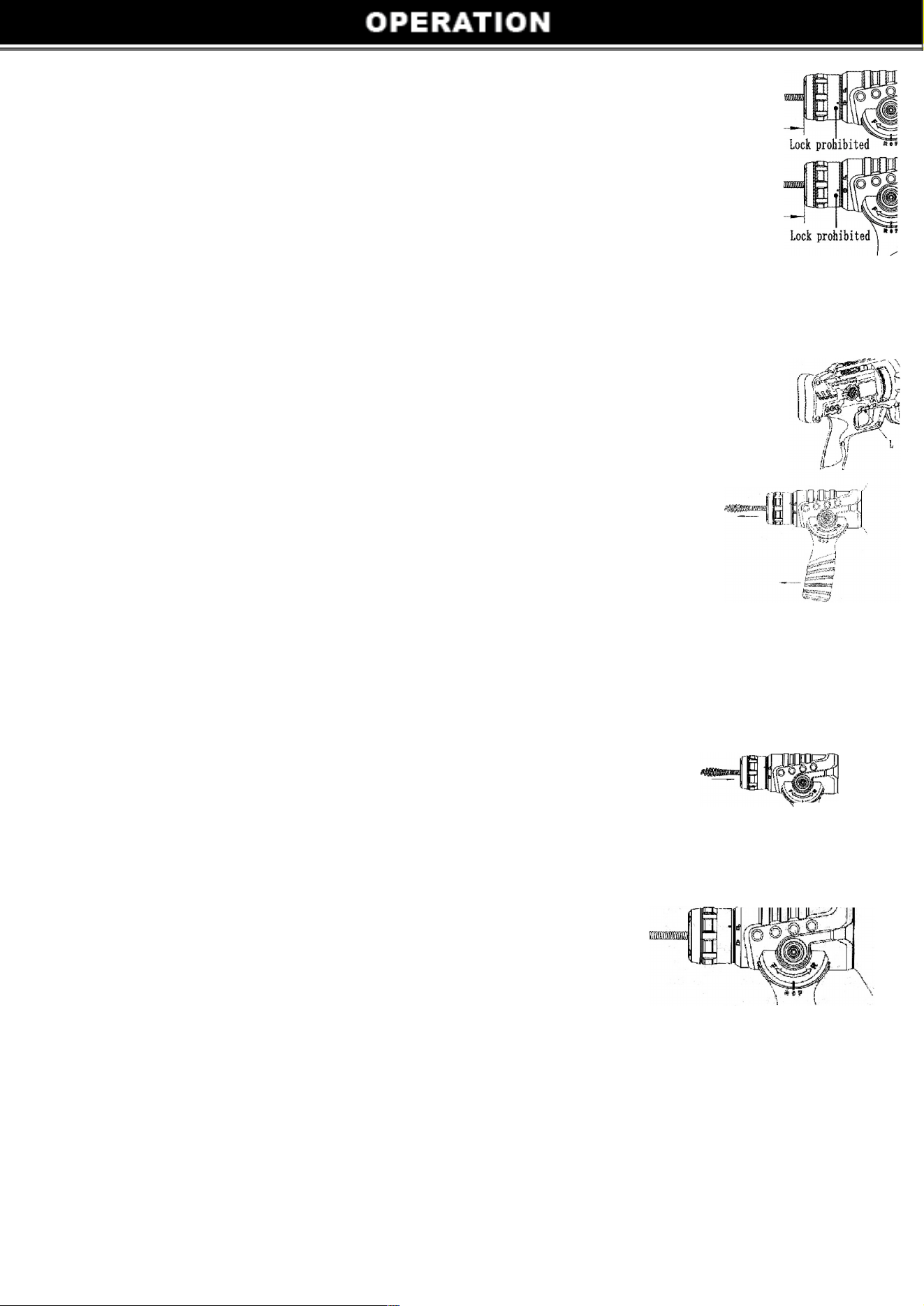

ANNULAR JAW
Rotate the locking ring counterclockwise to make the jaw grasp the flexible shaft and
produce a large thrust, so as to facilitate the removal of blocked garbage and
prevent the flexible shaft from retracting into the drum; rotate the locking ring
clockwise to relax the flexible shaft for easy advance and retract of the flexible shaft.
NOTICE:
When the flexible shaft out of the tool is less than 7.8" or more than 19.6ft,
it is forbidden to set the locking ring in the locked state. Otherwise, it will cause the
flexible shaft and jaw to be damaged. Be careful while using ii.
�
)19.6ft
<
7.8ft
W
/
'•
Control
SWITCH
the
RIABLE
speed b
etween
SPEED
0-560RPM, exert pressure on the
/�- _
0
.,
_
·,�_ [: . �i/ I :
\:�---�-, ·. I
�} (·--1i \\_;
switch: the greater the pressure, the higher the speed.
SWITCH FORD AND REVERSE ROION
This switch can control the steering of the flexible shaft: press
the L for forward rotation and press the R for reverse rotation.
;
·
-
-
,
i
,
Notice: The reverse rotation is only used in retract the flexible shaft in the
trapped state.
FLEXIBLE SHAFT AUTO SCALING
I.
Press the forward and reverse rotation button L: I) Press the speed switch lightly, move the handle forward
to the
F
position, and the flexible shaft will be delivered forward (Fig. 4);
\
l�
�
�
/
\,
�,�-�/
2) Press the speed switch lightly, pull the handle back to the R position, and
the flexible shaft will retr
act backwards.
When the forward and reverse rotation button R is pressed, the
flexible
shaft stretches in the opposite direction.
When
the
forward and reverse rotation button R is pressed, the flexible
shaft stretches in the opposite direction. When the operating handle is in
the O neutral position, the flexible shaft stops stretching no matter in
forward or reverse rotation.
Pipe dredge (before operation, be familiar with the automatic scaling
operation of the flexible shaft, otherwise ii will lead to personal injury or
damage to the tool)
4

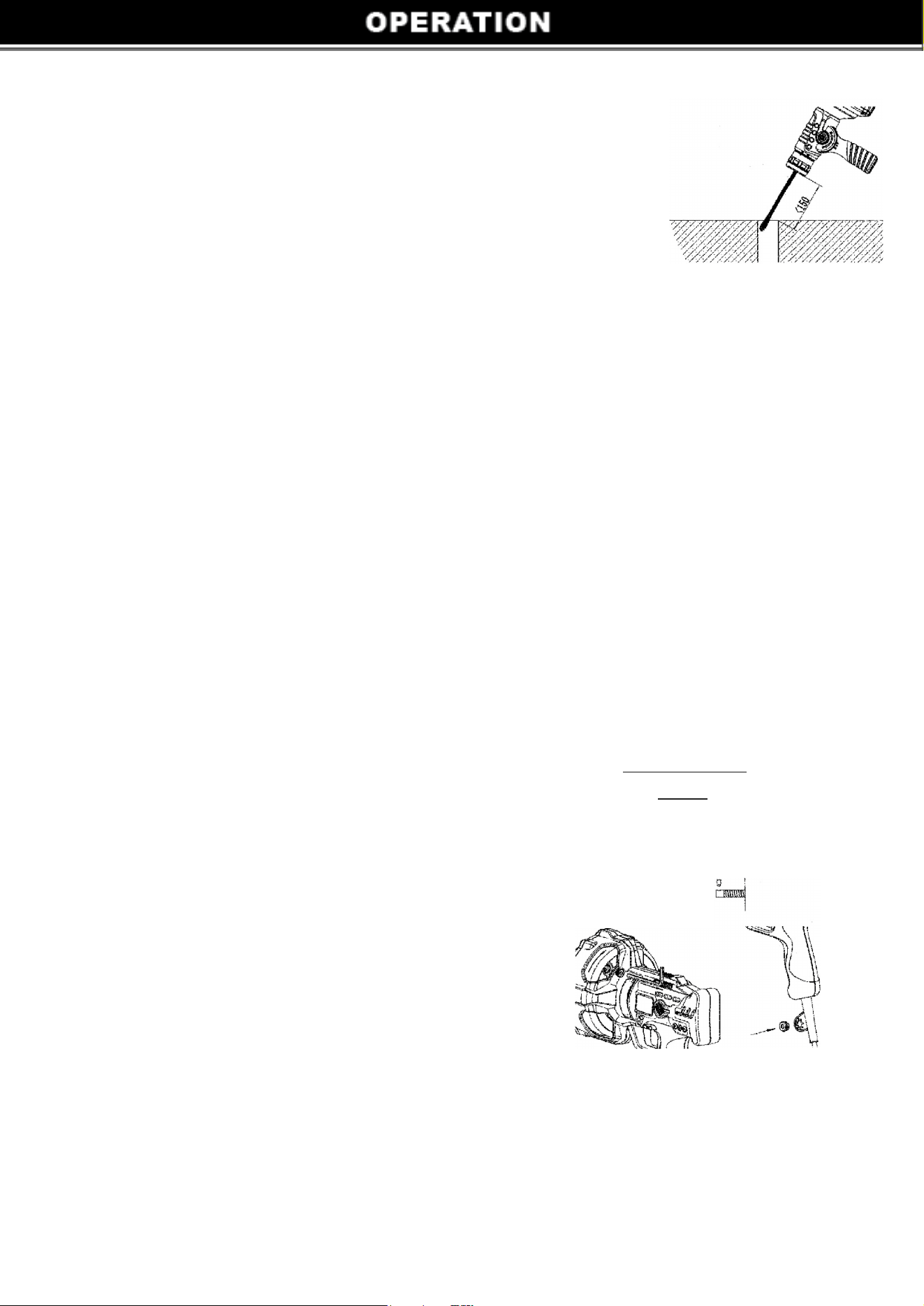

Place the tool head at a distance of less than 150mm away from the pipe
opening. If the distance is too long, it will cause the flexible shaft to be
twisted and knotted; and do not place the tool head too close to the pipe,
which is inconvenient to observe the condition of the flexible shaft.
Press the forward and reverse rotation button L, press the speed switch
slightly, pull the handle forward to the F position, and the flexible shaft will
be delivered forward to start dredging; after dredging the pipe, pull the
handle back to the R position to retract the flexible shaft.
In the cases of blockage or blocked cornering of the flexible shaft, pull back the handle to retract for a certain
distance, and then pull forward to deliver again. Repeatedly move forward and backward the operating
handle to dredge the pipe and move through the corners. Do not force the delivery of
the flexible shaft,
otherwise the flexible shaft will twist knotted or be broken and cause serious injury.
If the blockage is too stubborn, apply the following two methods: Rotate the locking ring counterclockwise to
obtain a greater thrust. In this case, it is necessary to lightly press the speed switch to closely observe
the state of the flexible shaft. If the flexible shaft is obstructed, twisted or knolled, release the speed
switch immediately and stop the rotation. Do not force the delivery of the flexible shaft; 2) Switch the
operating handle in F and O positions, and dredge the pipe slowly according to the actual situation.
If the flexible shaft is trapped in the pipe: that is, it cannot dredge or be retracted, press the forward and
reverse rotation button R, and pull the handle forward to retract the flexible shaft.
NOTICE:
Situations of pipe blockage are varied, it is necessary to closely observe the situation of
the flexible shaft when using it. If it is distorted or blocked, stop the machine immediately, and then take
different operations according to the actual situation. If the pipe cannot be dredged, please ask for professional
for help. Do not force the operation and cause unnecessary troubles.
tor·�
-I
�
'
�
a
,
y
M4 screv
\
I .
�
Place th e operating han dle in the O p osition then take out the
flexible shaft to exp ose the connector; Uns crew the M4 set
screws with an Allen wrench and r emove the unwanted flexible
shaft and Insert the new f lexible shaf t into the connector, align
the screw holes, an d tigh ten the
M4
set screws again. Push the
flexible shaft manually to the inside of the drum. Do not sta rt the
tool to retract the flexible shaft. because the exposed flexible shaft
can lead to unpredictable pe rsonal injury. tool damage dam age to
indoor objects fire electric sho ck and other dangerous situations.
If the flexible shaft cannot be replaced normally, pl ease send it to
the designated service cen ter for repair.
5
��
�
HOW TO REPLACE A SHAFT
Confirm the unit is powered off and unplugged before replacing the
flexible shaft
