FLOOR-TYPE AIR CONDITIONERS
INDOOR UNIT
MFZ-KW25VGK MFZ-KW35VGK MFZ-KW42VGK
MFZ-KW50VGK MFZ-KW60VGK
English
OPERATING INSTRUCTIONS
For user
• To use this unit correctly and safely, be sure to read these operating
instructions before use.
Contents
• Since rotating parts and parts which could cause an electric shock are used
in this product, be sure to read these “Safety Precautions” before use.
• Since the cautionary items shown here are important for safety, be sure to
observe them.
• After reading this manual, keep it together with the installation manual in a
handy place for easy reference.
• Be sure to receive a guarantee card from your dealer and check that the
purchased date and shop name, etc. are entered correctly.
Marks and their meanings
Warning :
Incorrect handling could cause serious hazard, such as
death, serious injury, etc. with a high probability.
Caution :
Incorrect handling could cause serious hazard depending
on the conditions.
Meanings of symbols used in this manual
: Be sure not to do.
: Be sure to follow the instruction.
: Never insert your nger or stick, etc.
: Never step onto the indoor/outdoor unit and do not put anything on
them.
: Danger of electric shock. Be careful.
: Be sure to disconnect the power supply plug from the power outlet.
: Be sure to shut o the power.
: Risk of re.
Safety Precautions
Warning
Do not connect the power cord to an intermediate point,
use an extension cord, or connect multiple devices to a
single AC outlet.
• This may cause overheating, re, or electric shock.
Make sure the power plug is free of dirt and insert it se-
curely into the outlet.
• A dirty plug may cause re or electric shock.
Do not bundle, pull, damage, or modify the power cord, and
do not apply heat or place heavy objects on it.
• This may cause re or electric shock.
Do not turn the breaker o/on or disconnect/connect the
power plug during operation.
• This may create sparks, which can cause re.
• After the indoor unit is switched o with the remote controller,
make sure to turn the breaker o or disconnect the power
plug.
Do not expose your body directly to cool air for a prolonged
length of time.
• This could be detrimental to your health.
The unit should not be installed, relocated, disassembled,
altered, or repaired by the user.
• An improperly handled air conditioner may cause re, electric
shock, injury, or water leakage, etc. Consult your dealer.
• If the power supply cord is damaged, it must be replaced
by the manufacturer or its service agent in order to avoid a
hazard.
When installing, relocating, or servicing the unit, make sure
that no substance other than the specied refrigerant (R32/
R410A) enters the refrigerant circuit.
• Any presence of foreign substance such as air can cause
abnormal pressure rise and may result in explosion or injury.
• The use of any refrigerant other than that specied for the
system will cause mechanical failure, system malfunction,
or unit breakdown. In the worst case, this could lead to a
serious impediment to securing product safety.
This appliance is not intended for use by persons (includ-
ing children) with reduced physical, sensory or mental ca-
pabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance.
Meanings of symbols displayed on indoor unit and/or outdoor unit
Warning
(Risk of re)
This unit uses a ammable refrigerant.
If refrigerant leaks and comes in contact with re or heating part, it will create harmful gas and there is risk of re.
Read the OPERATING INSTRUCTIONS carefully before operation.
Service personnel are required to carefully read the OPERATING INSTRUCTIONS and INSTALLATION MANUAL before operation.
Further information is available in the OPERATING INSTRUCTIONS, INSTALLATION MANUAL, and the like.
■ Safety Precautions 1

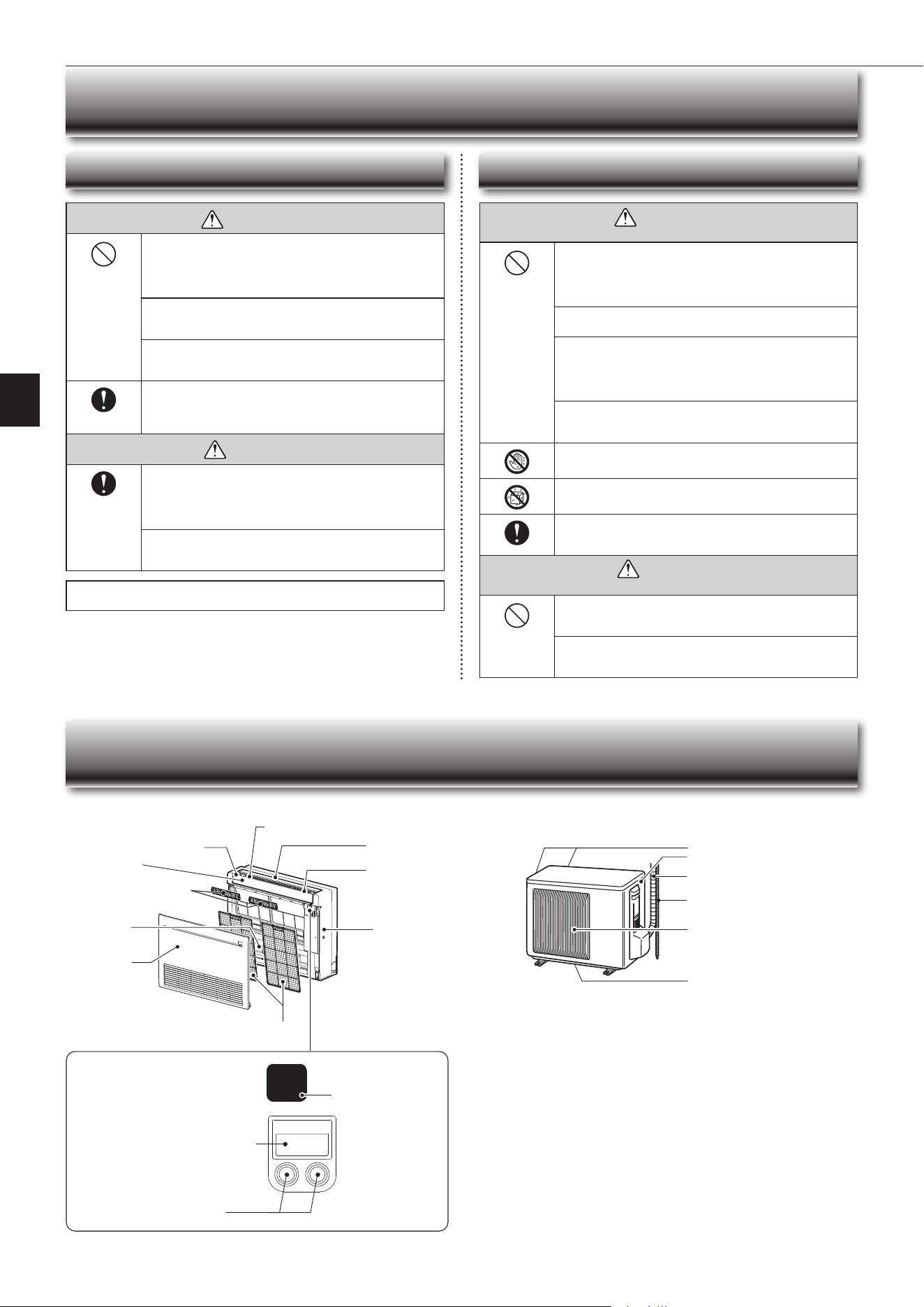

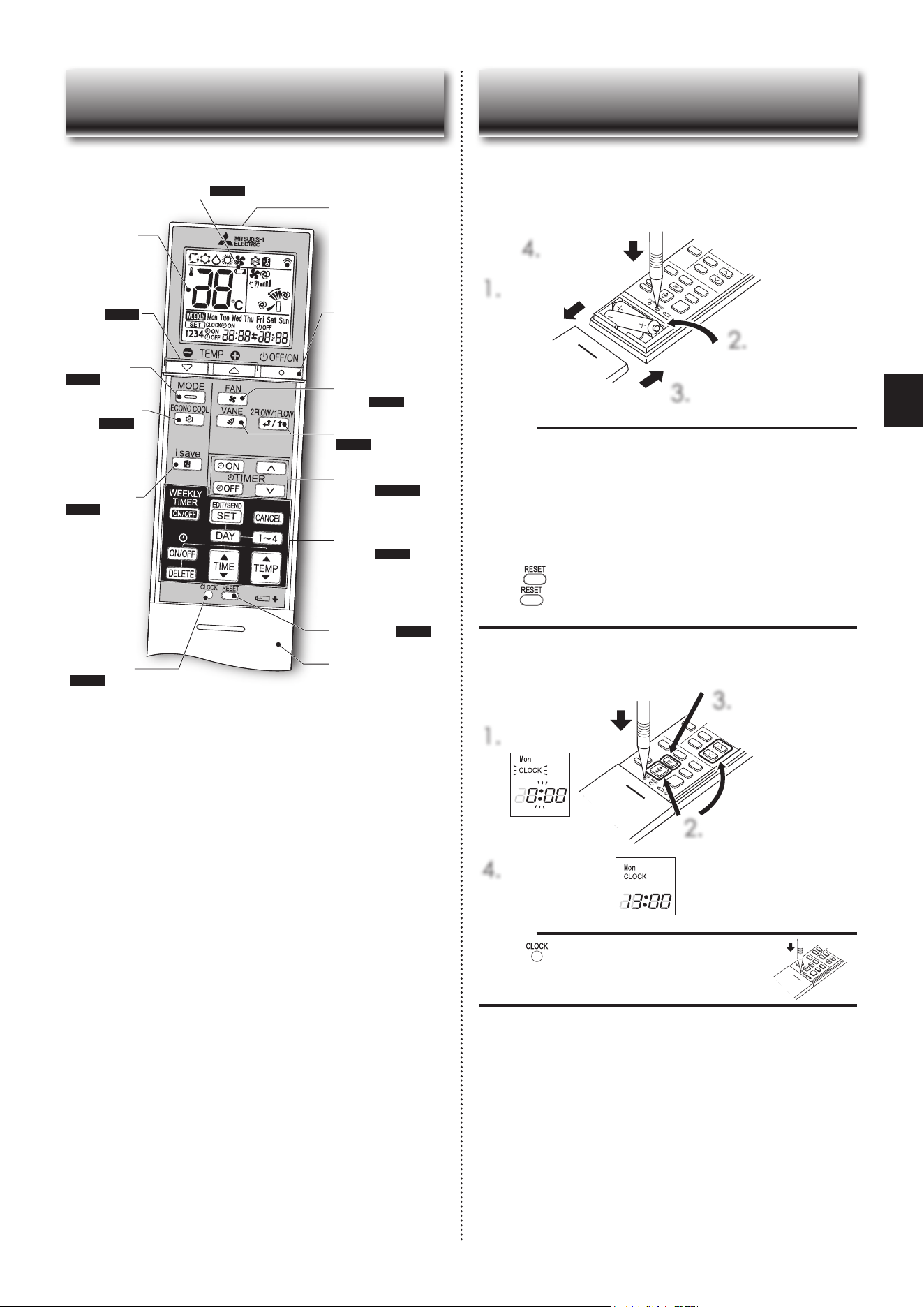

■ Name of Each Part 3
■ Preparation Before Operation 4

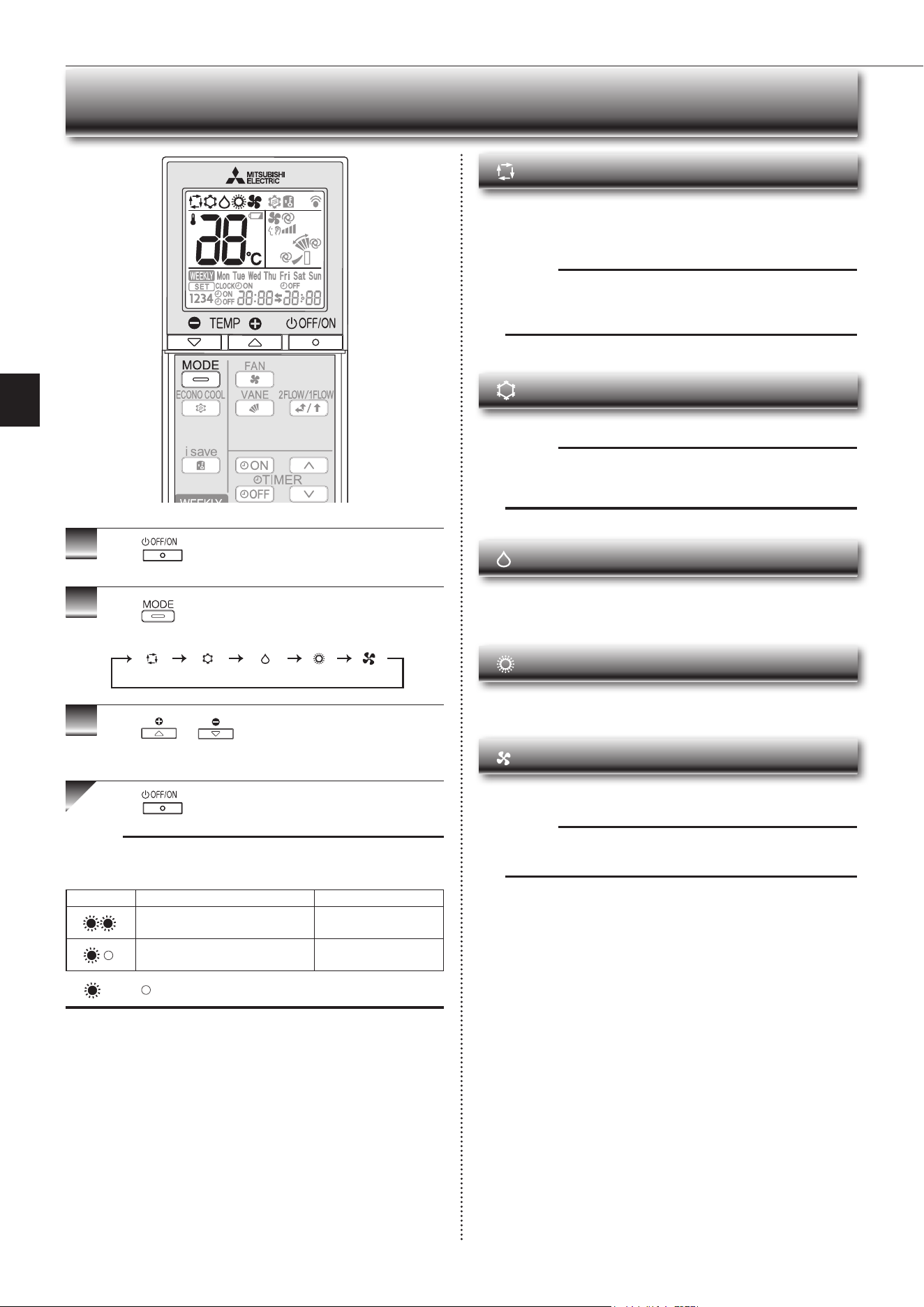

■ Selecting Operation Modes 5

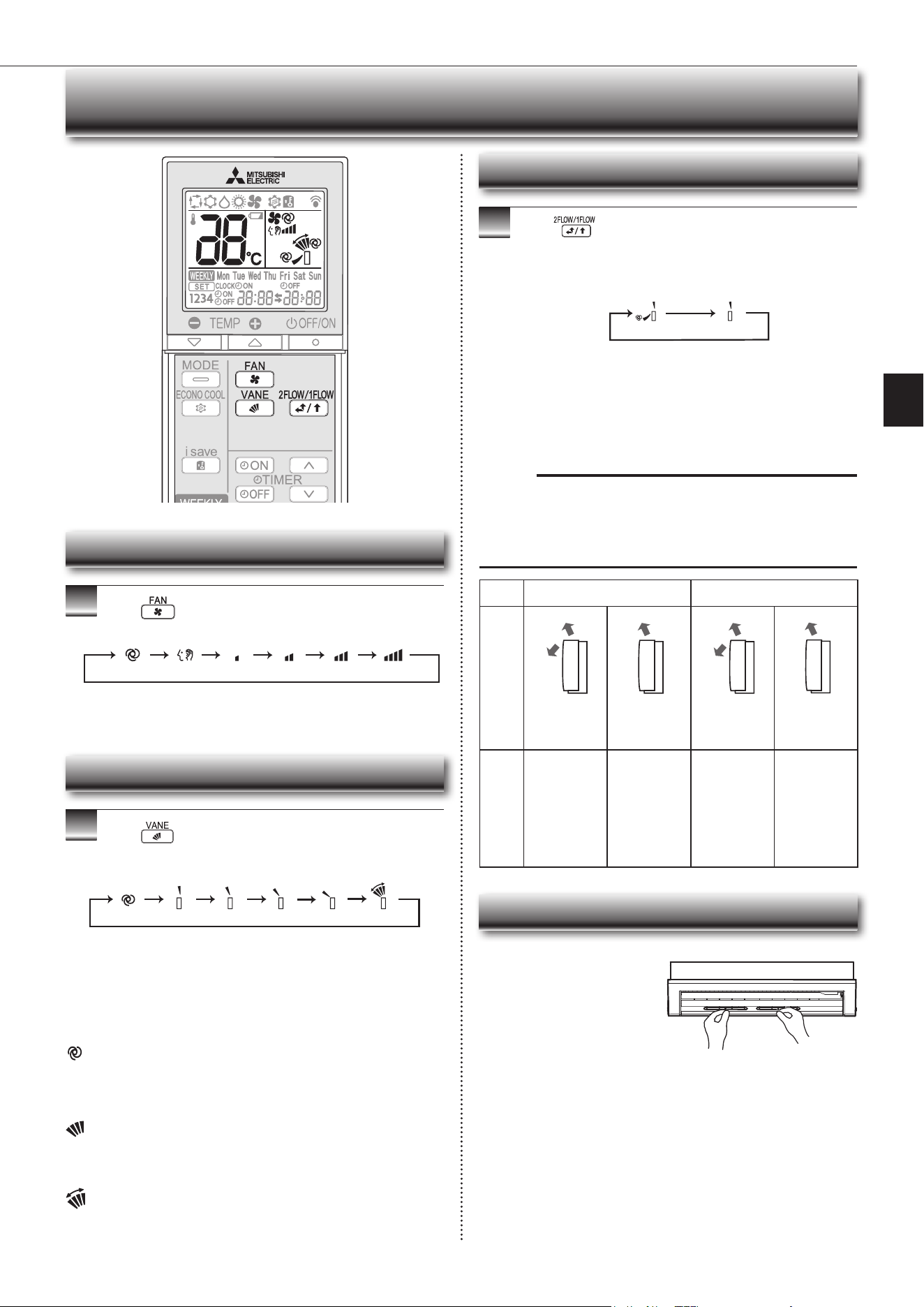

■ Fan Speed and Airflow Direction Adjustment 6

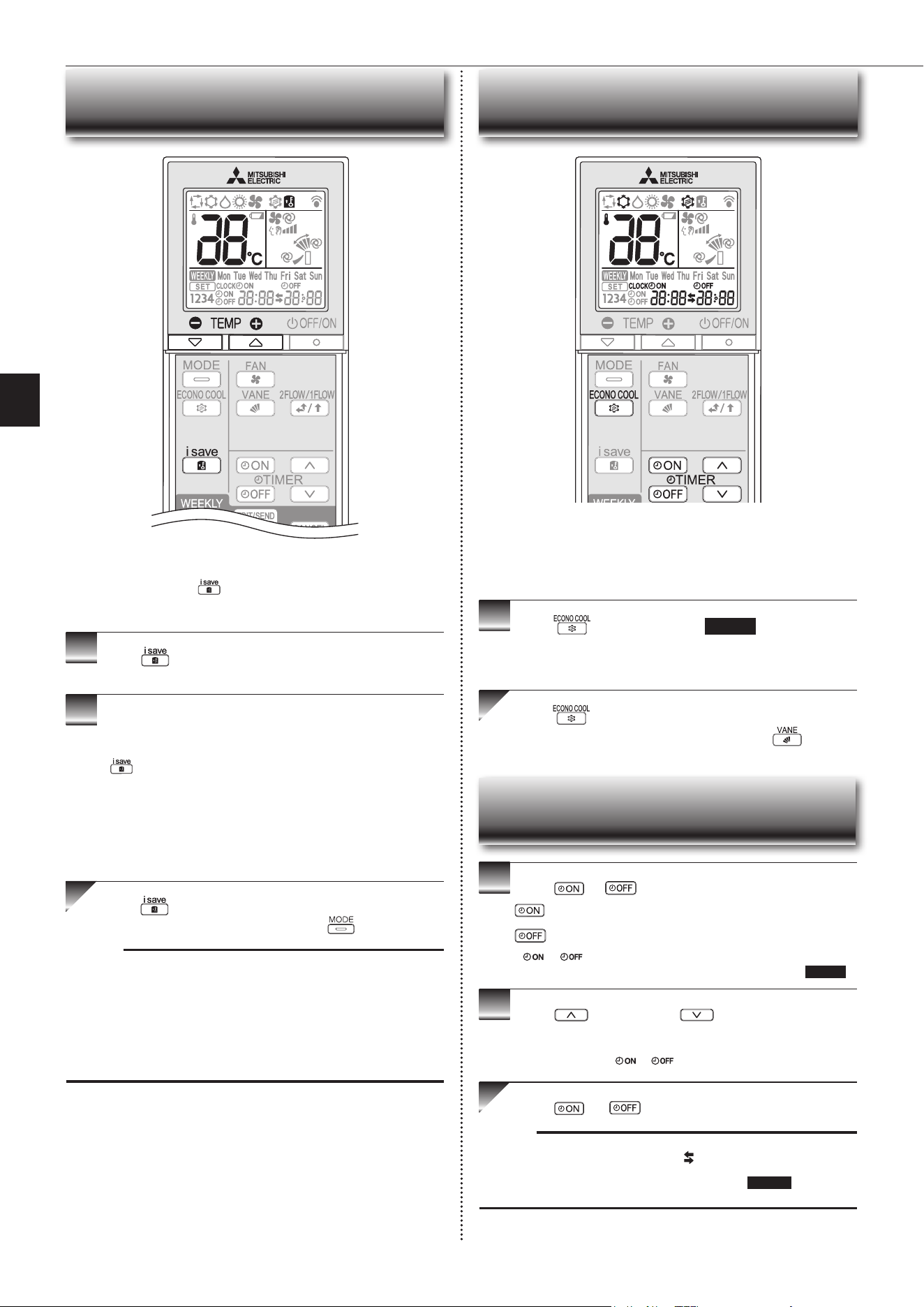

■ I-SAVE Operation 7
■ ECONO COOL Operation 7
■ Timer Operation (On/Off Timer) 7

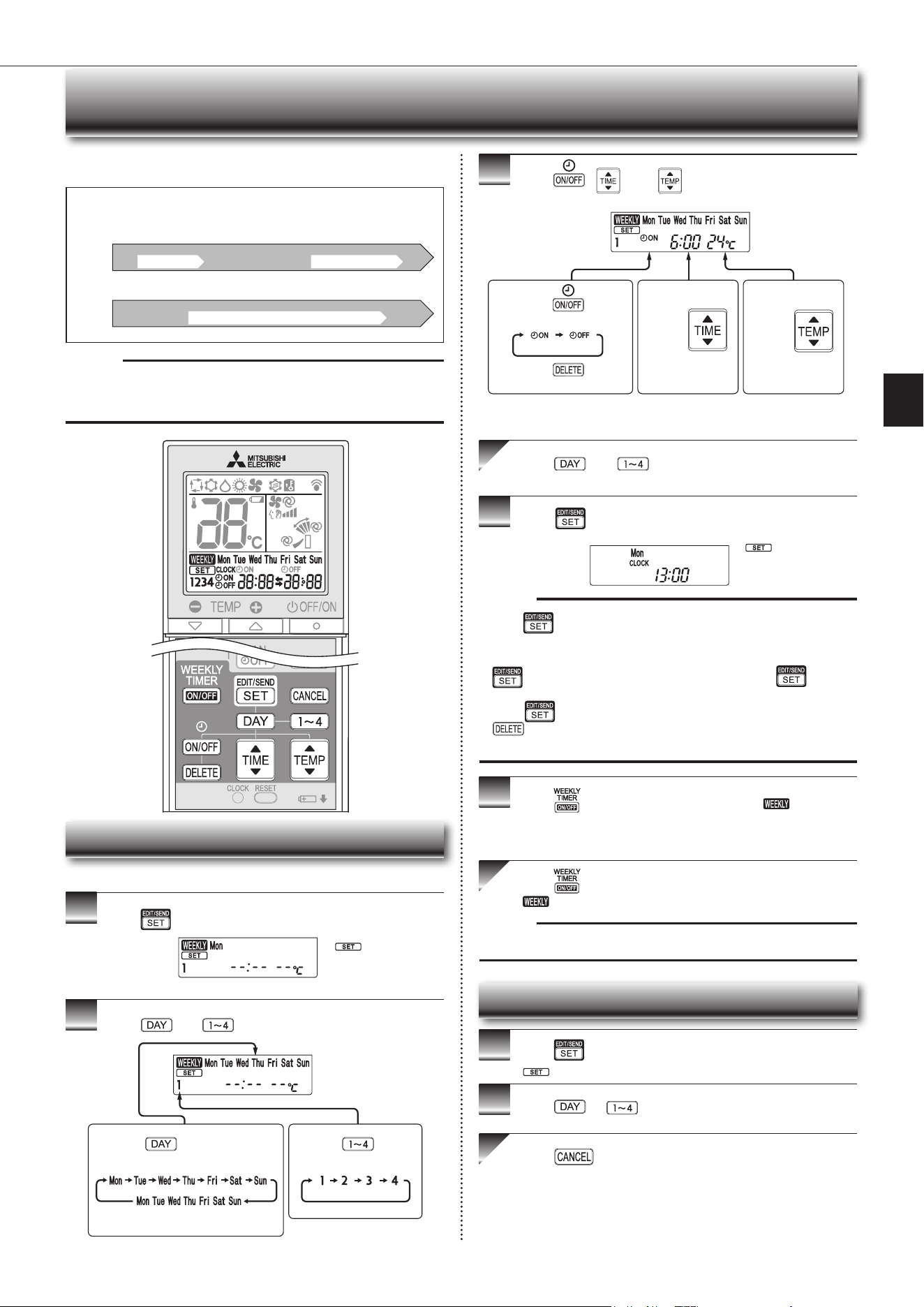

■ Weekly Timer Operation 8

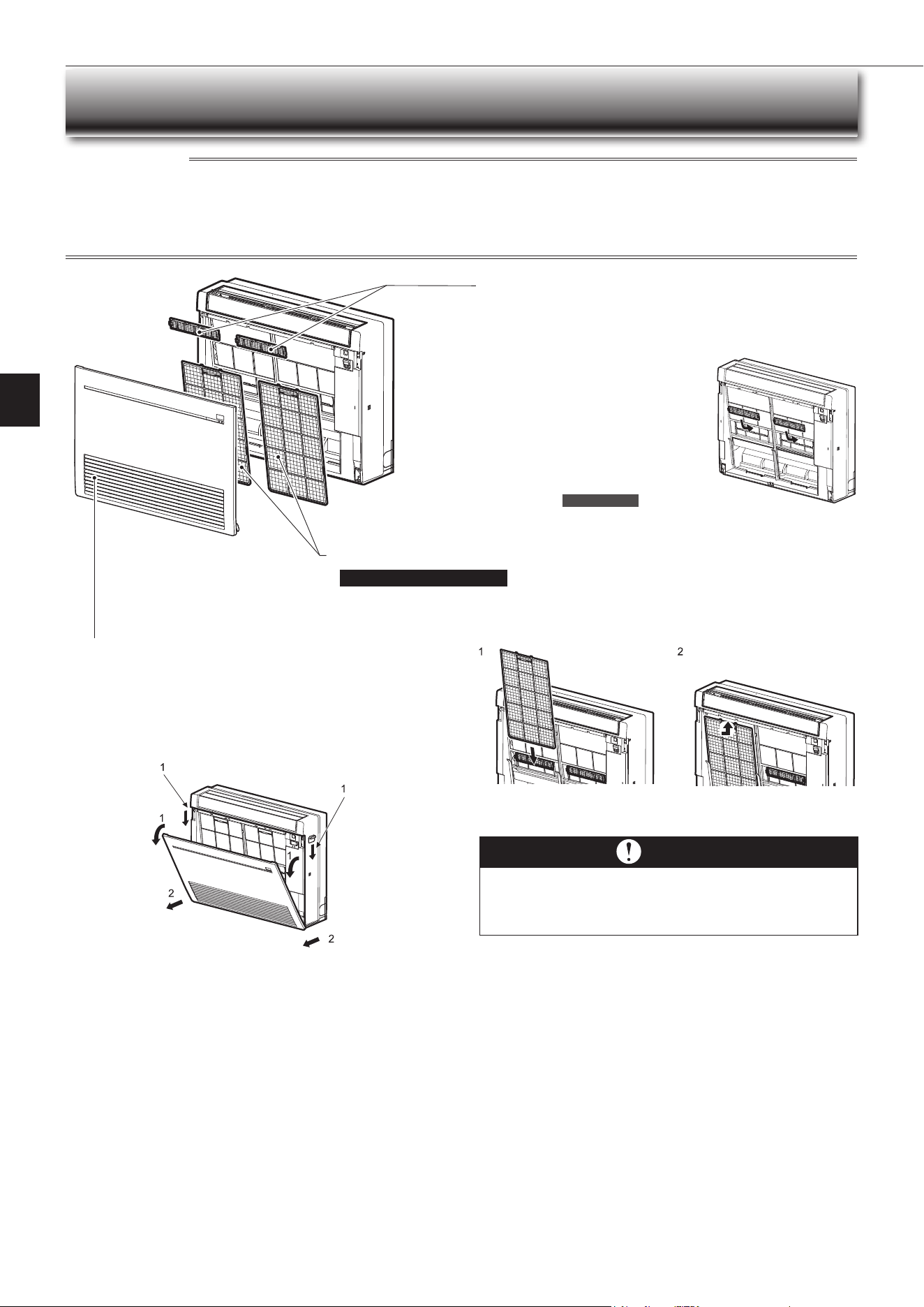

■ Cleaning 9

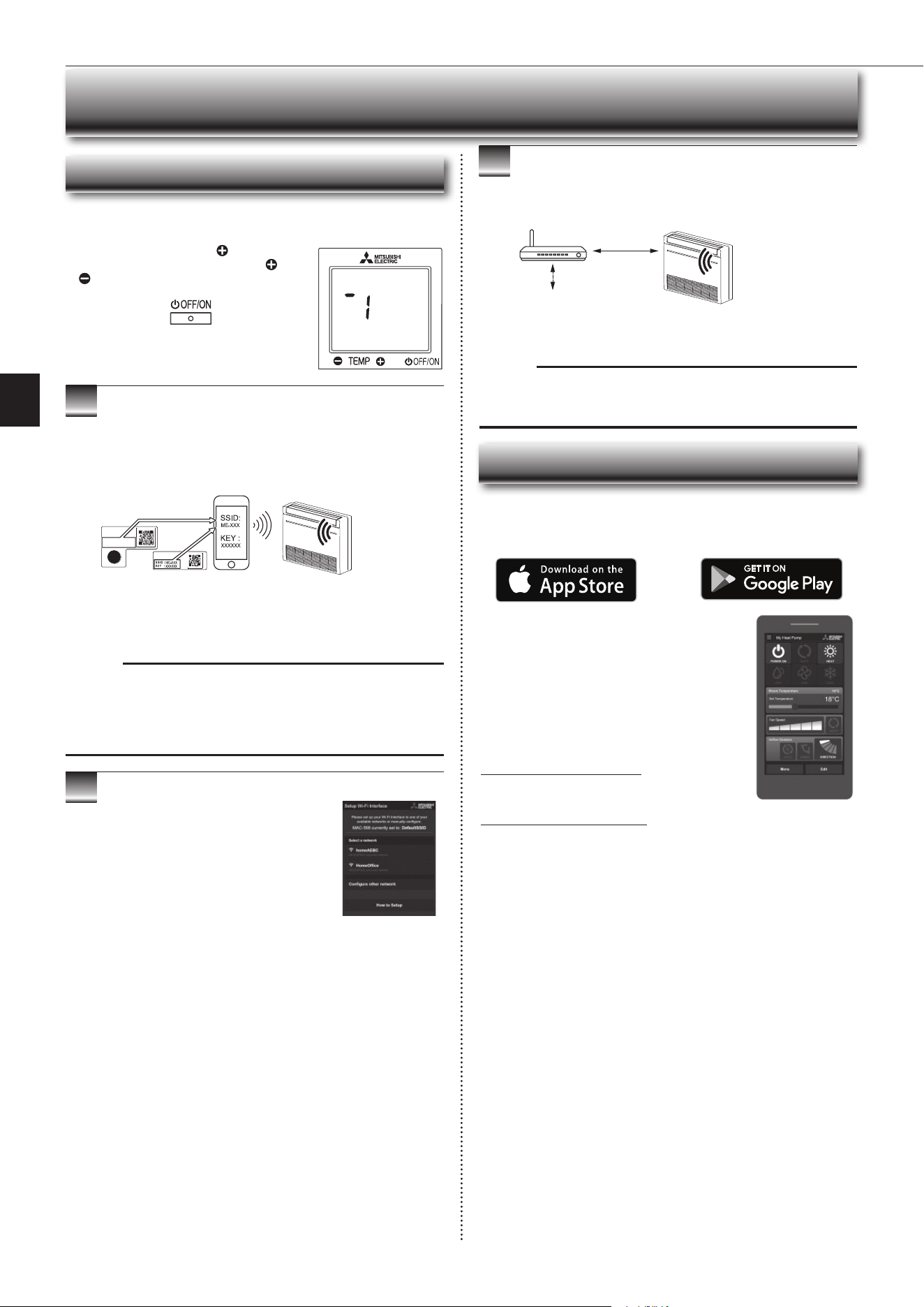

■ Wi-Fi Module Setting Up 10
■ When You Think That Trouble Has Occurred 12
■ Emergency Operation 14
■ Auto Restart Function 14
■ When the Air Conditioner Is Not Going to Be Used for a Long Time 14
■ Installation Place and Electrical Work 14
■ Specifications 15
● OPERATING INSTRUCTIONS ●
ENGLISH IS ORIGINAL
EN-1
Safety Precautions
Do not turn the breaker o except the case of burning smell,
or when performing maintenance or inspection.
• The refrigerant leakage cannot be detected, and this may
cause a re.
Do not install the unit in a place where smoke, gas, or
chemicals may ll.
• Do not use any gas equipment for propane, butane or
methane, sprays such as bug killer, and paint etc., near by
the indoor unit.
• The refrigerant sensor reacts to it and displays an error. This
may cause the unit not to operate.
(Procedure in case of refrigerant leakage)
If the refrigerant leaks, extinguish a re such as a heater,
and ventilate the room adequately by opening the window.
• Then contact your dealer.
• The indoor unit spreads the refrigerant by fan mode to pre-
vent a re. Do not turn the breaker o during this situation.
Do not insert your nger, a stick, or other objects into the
air inlet or outlet.
• This may cause injury, since the fan inside rotates at high
speeds during operation.
In case of an abnormal condition (such as a burning smell),
stop the air conditioner and disconnect the power plug or
turn the breaker o.
• A continued operation in the abnormal state may cause a
malfunction, re, or electric shock. In this case, consult your
dealer.
When the air conditioner does not cool or heat, there is a
possibility of refrigerant leakage. If any refrigerant leakage
is found, ventilate the room well and consult your dealer
immediately. Do not turn the breaker o. If a repair involves
recharging the unit with refrigerant, ask the service techni-
cian for details.
• The refrigerant used in the air conditioner is not harmful.
Normally, it does not leak. However, if refrigerant leaks and
comes in contact with re or heating part of such a fan heater,
kerosene heater, or cooking stove, it will create harmful gas
and there is risk of re.
The user should never attempt to wash the inside of the
indoor unit. Should the inside of the unit require cleaning,
contact your dealer.
• Unsuitable detergent may cause damage to plastic material
inside the unit, which may result in water leakage. Should
detergent come in contact with electrical parts or the motor,
it will result in a malfunction, smoke, or re.
• The appliance shall be stored in a room without continuously
operating ignition sources (for example: open ames, an
operating gas appliance or an operating electric heater).
• Be aware that refrigerants may not contain an odour.
• Do not use means to accelerate the defrosting process or
to clean the appliance, other than those recommended by
the manufacturer.
• Do not pierce or burn.
This unit should be installed in rooms which exceed the
oor space specied in outdoor unit installation manual.
• Refer to outdoor unit installation manual.
This appliance is intended to be used by expert or trained
users in shops, in light industry and on farms, or for com-
mercial use by laypersons.
Caution
Do not touch the air inlet or the aluminum ns of the indoor/
outdoor unit.
• This may cause injury.
Do not use insecticides or ammable sprays on the unit.
• This may cause a re or deformation of the unit.
Do not expose pets or houseplants to direct airow.
• This may cause injury to the pets or plants.
Do not place other electric appliances or furniture under
the indoor/outdoor unit.
• Water may drip down from the unit, which may cause damage
or malfunction.
Do not leave the unit on a damaged installation stand.
• The unit may fall and cause injury.
Do not step on an unstable bench to operate or clean
the unit.
• This may cause injury if you fall down.
Do not pull the power cord.
• This may cause a portion of the core wire to break, which
may cause overheating or re.
Do not charge or disassemble the batteries, and do not
throw them into a re.
• This may cause the batteries to leak, or cause a re or
explosion.
Do not operate the unit for more than 4 hours at high hu-
midity (80% RH or more) and/or with windows or outside
door left open.
• This may cause the water condensation in the air conditioner,
which may drip down, wetting or damaging the furniture.
• The water condensation in the air conditioner may contribute
to growth of fungi, such as mold.
Do not use the unit for special purposes, such as storing
food, raising animals, growing plants, or preserving preci-
sion devices or art objects.
• This may cause deterioration of quality, or harm to animals
and plants.
Do not expose combustion appliances to direct airow.
• This may cause incomplete combustion.
Never put batteries in your mouth for any reason to avoid
accidental ingestion.
• Battery ingestion may cause choking and/or poisoning.
Before cleaning the unit, switch it o and disconnect the
power plug or turn the breaker o.
• This may cause injury, since the fan inside rotates at high
speeds during operation.
Replace all batteries of the remote controller with new
ones of the same type.
• Using an old battery together with a new one may cause
overheating, leakage, or explosion.
If the battery uid comes in contact with your skin or
clothes, wash them thoroughly with clean water.
• If the battery uid comes in contact with your eyes, wash them
thoroughly with clean water and immediately seek medical
attention.
Ensure that the area is well-ventilated when the unit is
operated together with a combustion appliance.
• Inadequate ventilation may cause oxygen starvation.
Do not operate the air conditioner after applying protecting
agent on the oor.
• Components in the protecting agent may attach to the inside
of the indoor unit, resulting in water leakage or splattering of
dew.
Turn the breaker o when you hear thunder and there is a
possibility of a lightning strike.
• The unit may be damaged if lightning strikes.
After the air conditioner is used for several seasons, per-
form inspection and maintenance in addition to normal
cleaning.
• Dirt or dust in the unit may create an unpleasant odor, con-
tribute to growth of fungi, such as mold, or clog the drain
passage, and cause water to leak from the indoor unit.
Consult your dealer for inspection and maintenance, which
require specialized knowledge and skills.
Do not operate switches with wet hands.
• This may cause electric shock.
Do not clean the air conditioner with water or place an
object that contains water, such as a ower vase, on it.
• This may cause re or electric shock.
Do not step on or place any object on the outdoor unit.
• This may cause injury if you or the object falls down.
Important
Dirty lters cause condensation in the air conditioner which will con-
tribute to the growth of fungi such as mold. It is therefore recommended
to clean air lters every 2 weeks.
To use this unit correctly and safely, be sure to read these operating instructions before use.
EN-2
Safety Precautions
Warning
Consult your dealer for installing the air conditioner.
• It should not be installed by the user since installation
requires specialized knowledge and skills. An improperly
installed air conditioner may cause water leakage, re, or
electric shock.
Provide a dedicated power supply for the air conditioner.
• A non-dedicated power supply may cause overheating or
re.
Do not install the unit where ammable gas could leak.
• If gas leaks and accumulates around the outdoor unit, it may
cause an explosion.
Earth the unit correctly.
• Do not connect the earth wire to a gas pipe, water pipe,
lightning rod, or a telephone earth wire. Improper earthing
may cause electric shock.
Caution
Install an earth leakage breaker depending on the installa-
tion location of the air conditioner (such as highly humid
areas).
• If an earth leakage breaker is not installed, it may cause
electric shock.
Ensure that the drain water is properly drained.
• If the drain passage is improper, water may drip down from
the indoor/outdoor unit, wetting and damaging the furniture.
In case of an abnormal condition
Immediately stop operating the air conditioner and consult your dealer.
For installation
Warning
(Improper handling may have serious consequences, including serious injury or death.)
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
Do not use the Wi-Fi interface nearby the medical electrical
equipment or people who have a medical device such as a car
-
diac pacemaker or an implantable cardioverter-debrillator.
• It can cause an accident due to malfunctions of the medical
equipment or device.
Do not install the Wi-Fi interface nearby the automatic
control devices such as automatic doors or re alarms.
• It can cause accidents due to malfunctions.
Do not touch the Wi-Fi interface with wet hands.
• It can cause damage to the device, electric shock, or re.
Do not splash water on the Wi-Fi interface or use it in a bathroom.
• It can cause damage to the device, electric shock, or re.
When the Wi-Fi interface is dropped, or the holder or cable is dam-
aged, disconnect the power supply plug or turn the breaker o.
•
It may cause re or electric shock. In this case, consult your dealer.
Caution
(Improper handling may have consequences, including injury or damage to building.)
Do not step on unstable stepstool to set up or clean the
Wi-Fi interface.
• It may cause injury if you fall down.
Do not use the Wi-Fi interface nearby other wireless de-
vices, microwaves, cordless phones, or facsimiles.
• It can cause malfunctions.
For Wi-Fi Interface
Outdoor unitIndoor unit
Fan guard
Air cleaning lter
(Anti-Allergy Enzyme lter)
Air lter (Air purifying lter)
Panel
Front panel
Horizontal vane
Vertical vane
Multi-ow vane
Spec name
plate *1
Name of Each Part
E.O
SW
Display and operation section
(When the front panel is opened)
Operation indicator lamp
Emergency operation
switch
Remote control receiving section
Air outlet
Outdoor units may be dierent in appearance.
*1 The manufacturing year and month is indicated on the spec name plate.
Air inlet (back and side)
Refrigerant piping
Drainage hose
Air outlet
Drain outlet
Spec name plate *1
● OPERATING INSTRUCTIONS ●
EN-3
Name of Each Part Preparation Before Operation
Remote controller
Signal transmitting
section
Distance of signal :
About 6 m
Beep(s) is (are) heard from
the indoor unit when the
signal is received.
Operation
display section
O/On
(stop/operate) button
Lid
Slide the lid down
to open the remote
controller. Slide it down
further to get to the
weekly timer buttons.
Only use the remote controller provided with the unit.
Do not use other remote controllers.
If two or more indoor units are installed in proximity to one another, an indoor
unit that is not intended to be operated may respond to the remote controller.
Before operation: Insert the power supply plug into the power outlet and/or
turn the breaker on.
Installing the remote controller batteries
1.
Remove the front lid.
2.
Insert the negative
pole of AAA
alkaline batteries rst.
3.
Install the front lid.
4.
Press the reset
button.
Note:
• Make sure the polarity of the batteries is correct.
• Do not use manganese batteries and leaking batteries. The remote controller
could malfunction.
• Do not use rechargeable batteries.
• The battery replacement indicator lights up when the battery is running low.
In about 7 days after the indicator starts lights up, the remote controller stops
working.
• Replace all batteries with new ones of the same type.
• Batteries can be used for approximately 1 year. However, batteries with ex-
pired shelf lives last shorter.
• Press
button gently using a thin instrument.
If the
button is not pressed, the remote controller may not operate cor-
rectly.
Setting current time
1.
Press the clock button.
4.
Press the clock
button again.
2.
Press either the time button
or the timer buttons to set the
time.
Each press changes the clock
1 minute forward/backward (10
minutes when pressed longer).
3.
Press the day button
to set the day.
Note:
• Press
button gently using a thin instrument.
Temperature
buttons
Page 5
Operation
select button
Page 5
ECONO COOL
button
Page 7
Fan speed control
button
Page 6
Vane control button
Page 6
Time, timer set
buttons Page 4, 7
forward button
backward button
Clock button
Page 4
Reset button Page 4
I-SAVE button
Page 7
Weekly timer set
buttons
Page 8
Battery replacement indicator Page 4
EN-4
1
Press
to start the operation.
2
Press to select operation mode. Each press
changes mode in the following order:
3
Press or to set the temperature.
Each press raises or lowers the temperature by 1°C.
Press
to stop the operation.
Selecting Operation Modes
Note:
Operation indicator lamp
The operation indicator lamp shows the operation state of the unit.
Indication Operation state Room temperature
The unit is operating to reach the set
temperature
About 2°C or more away
from set temperature
The room temperature is approach-
ing the set temperature
About 1 to 2°C from set
temperature
Lit Not lit
(Auto) (Cool) (Dry) (Heat) (Fan)
The unit selects the operation mode according to the dierence between
the room temperature and the set temperature. During auto mode, the unit
changes mode (cool mode↔heat mode) when the room temperature is about
2°C away from the set temperature for more than 15 minutes.
Note:
During multi system operation, the unit may not be able to switch opera-
tion mode between cool mode and heat mode. In this case, the indoor
unit becomes standby mode (Refer to table of Operation indicator lamp).
Auto mode (auto change over)
Cool mode
Enjoy cool air at your desired temperature.
Note:
Do not operate cool mode at very low outside temperatures (less than
-10°C). Water condensed in the unit may drip and wet or damage furni-
ture, etc.
Dry mode
Heat mode
Fan mode
Dehumidify your room. The room may be cooled slightly.
Temperature cannot be set during dry mode.
Circulate the air in your room.
Temperature cannot be set during fan mode.
Note:
After cool mode/dry mode operation, it is recommended to operate in the
fan mode to dry inside the indoor unit.
Enjoy warm air at your desired temperature.
EN-5
● OPERATING INSTRUCTIONS ●
Fan Speed and Airow Direction Adjustment
1
Press to select vertical airow direction. Each
press will change airow direction in the following
order:
(Auto) (1) (2) (3) (4) (Swing)
• Two short beeps will be heard from the indoor unit when set to Auto.
• Moving the horizontal vane/multi-flow vane manually can cause trou-
ble.
• The horizontal vane/multi-flow vane automatically moves in certain in-
tervals to determine its position, and then it returns to the set position.
• When the air outlet is switched between 1 flow and 2 flow, the horizon-
tal vanes may move and change their positions.
(Auto) .........The vane will be set to the most ecient airow direction.
Cool/Dry/Fan mode (2 ow) : position (2)
Cool/Dry/Fan mode (1 ow) : position (1)
Heat mode (2 ow) : position (2)
Heat mode (1 ow) : position (3)
(Manual) ..... For efficient air conditioning, select upper position for cool
mode/dry mode, and lower position for heat mode. During cool
mode/dry mode, when the vane is set to position (3) or (4), the
vane automatically moves to position (1) after 0.5 to 1 hour to
prevent water dripping.
(Swing) ....... The horizontal vane will move up and down intermittently.
Left-right airflow direction
■ To change the horizontal airow direction.
Move the vertical vane manually
before starting operation.
1
Press to select fan speed. Each press changes
fan speed in the following order:
(Auto) (Silent) (Low) (Medium) (High) (Super High)
• Two short beeps are heard from the indoor unit when set to Auto.
• Use higher fan speed to cool/heat the room quicker. It is recommend-
ed to lower the fan speed once the room is cool/warm.
• Use lower fan speed for quiet operation.
1
Press to select the air outlet(s).
When 2 ow is selected, air blows from the top and the
front of the unit. When 1 ow is selected, air blows only
from the top of the unit.
(2 ow) (1 ow)
The multi-flow vane is automatically set to the appropriate position.
Even if 2 flow is selected, air will blow only from the top of the unit in the
following conditions:
• During cool mode/dry mode: The room temperature is close to set
temperature. The air conditioner has op-
erated for 0.5 to 1 hour.
• During heat mode: The air flow temperature is low.
(During defrosting operation, start of operation, etc.)
Note:
Movement at the start of the 2 ow operation
• Cool mode/Dry mode, heat mode: It takes 0.5 to 1 minute to start the 2 ow
operation.
• Heat mode: When cold air blows out from the air outlet, the multi-ow vane
may stop moving for up to 10 minutes to make and blow out warm air.
Operation
Cool (Dry) operation Heat operation
Airow
2 ow Upward
and downward
airow
1 ow Upward
airow
2 ow Upward
and downward
airow
1 ow Upward
airow
Conditions
When the room
temperature
diers from the
set temperature
When the room
temperature is
close to the set
temperature.
Or, after
approximately 1
hour has passed
since operation
started.
When the
airow
temperature is
high.
When the airow
temperature is low.
(Examples:
During defrosting
operation
At the start of operation
When the temperature
approaches the set
temperature)
Air outlet selection
Fan speed
Up-down airflow direction
EN-6
I-SAVE Operation ECONO COOL Operation
Timer Operation (On/O Timer)
• A simplified set back function enables to recall the preferred (preset) setting
with a single push of the
button. Press the button again and you can go
back to the previous setting in an instance.
• I-SAVE operation cannot be set on the weekly timer.
1
Press during cool mode or heat mode to select
I-SAVE mode.
2
Set the temperature, fan speed, airow direction, and 2
ow/1 ow.
• The same setting is selected from the next time by simply pressing
.
• Two settings can be saved. (One for cool mode, one for heat mode)
• Select the appropriate temperature, fan speed, airflow direction, and 2
flow/1 flow according to your room.
• Normally, the minimum temperature setting in heat mode is 16°C.
However, during I-SAVE operation only, the minimum temperature set-
ting is 10°C.
Press again to cancel I-SAVE operation.
• I-SAVE operation also is cancelled when the is pressed.
Note:
Example of use:
1. Low energy mode
Set the temperature 2°C to 3°C warmer in cool mode and cooler in heat
mode. This setting is suitable for unoccupied room, and while you are sleep-
ing.
2. Saving frequently used settings
Save your preferred setting for cool mode and heat mode. This enables you
to select your preferred setting with a single push of the button.
Swing airow (change of air ow) makes you feel cooler than stationary airow.
The set temperature and the airow direction are automatically changed by the
microprocessor.
It is possible to perform cooling operation with keeping comfort.
As a result energy can be saved.
1
Press during cool mode page 5 to start ECONO
COOL operation.
The unit performs swing operation vertically in various cycles according to the
temperature airflow.
Press again to cancel ECONO COOL operation.
• ECONO COOL operation is also cancelled when the is pressed.
1
Press or during operation to set the timer.
(On timer) : The unit turns on at the set time.
(O timer) : The unit turns o at the set time.
*
or blinks.
*
Make sure that the current time and day are set correctly.
Page 4
2
Press (forward) and (backward) to set the
time of timer.
Each press changes the set time 10 minutes forward/backward.
• Set the timer while
or is blinking.
Press
or
again to cancel timer.
Note:
• On and o timers can be set together.
mark indicates the order of timer
operations.
• If power failure occurs while an on/o timer is set, see
page 14 “Auto Restart
Function”.
EN-7
● OPERATING INSTRUCTIONS ●
• A maximum of 4 on or o timers can be set for individual days of the week.
• A maximum of 28 on or o timers can be set for a week.
Setting the weekly timer
* Make sure that the current time and day are set correctly.
1
Press to enter the weekly timer setting mode.
2
Press and to select setting day and number.
3
Press , , and to set on/o, time, and
temperature.
Press and to continue setting the timer for
other days and/or numbers.
4
Press to complete and transmit the weekly timer
setting.
Note:
• Press to transmit the setting information of weekly timer to the indoor
unit. Point the remote controller toward the indoor unit for 3 seconds.
• When setting the timer for more than one day of the week or one number,
does not have to be pressed per each setting. Press once after
all the settings are complete. All the weekly timer settings will be saved.
• Press
to enter the weekly timer setting mode, and press and hold
for 5 seconds to erase all weekly timer settings. Point the remote
controller toward the indoor unit.
5
Press to turn the weekly timer on. ( lights.)
* When the weekly timer is on, the day of the week whose timer setting
is complete, will light.
Press again to turn the weekly timer o.
(
goes out.)
Note:
The saved settings will not be cleared when the weekly timer is turned o.
Checking weekly timer setting
1
Press to enter the weekly timer setting mode.
* blinks.
2
Press or to view the setting of the particular
day or number.
Press to exit the weekly timer setting.
*
which was blink-
ing goes out, and the
current time will be
displayed.
* blinks.
Note:
The simple on/o timer setting is available while the weekly timer is on. In this
case, the on/o timer has priority over the weekly timer; the weekly timer opera-
tion will start again after the simple on/o timer is complete.
E.g. : Runs at 24°C from waking up to leaving home, and runs at 27°C from
getting home to going to bed on weekdays.
Runs at 27°C from waking up late to going bed early on weekends.
Setting1 Setting2 Setting3 Setting4
Setting1 Setting2
6:00 8:30 17:30 22:00
21:00
24°C 27°C
On O On O
On O
Mon
Fri
~
Sat
Sun
~
27°C
Pressing selects the day of
the week to be set.
Pressing selects
the setting number.
* All days can be selected.
E.g. : [Mon Tue ... Sun]
and [1] are selected.
E.g. : [ON], [6:00]
and [24°C] are
selected.
Pressing
selects on/o timer.
Pressing
deletes timer setting.
Pressing
adjusts the time.
Pressing
adjusts the tem-
perature.
* Hold down the button to change the time quickly.
* The temperature can be set between 16°C and 31°C at weekly timer.
Weekly Timer Operation
8:00
EN-8
Cleaning
Air cleaning lter
(Anti-Allergy Enzyme lter)
Back side of air lter
Clean every 3 months:
• Remove dirt by a vacuum cleaner.
When dirt cannot be removed by
vacuum cleaning:
• Soak the lter and its frame in lukewarm water
before rinsing it.
(Diluted mild detergents can be used when
dirt cannot be removed.)
• After washing, dry it well in shade.
Every year:
• Replace it with a new air cleaning lter for best
performance.
• Parts Number
MAC-408FT-E
Air lter (Air purifying lter)
•
Clean every 2 weeks
• Remove dirt by a vacuum cleaner, or rinse with water.
• After washing with water, dry it well in shade.
Important
• Clean the lters regularly for best performance and to re-
duce power consumption.
• Dirty lters cause condensation in the air conditioner which
will contribute to the growth of fungi such as mold. It is
therefore recommended to clean air lters every 2 weeks.
Instructions:
• Do not expose parts to direct sunlight, heat, or ames to dry.
• Do not use water hotter than 50°C.
• Do not use a scrubbing brush, a hard sponge, or the like.
• Do not soak or rinse the horizontal vane.
• Do not apply excessive force on the fan as it may cause cracks or breakage.
• Switch o the power supply or turn o the breaker before cleaning.
• Be careful not to touch the metal parts with your hands.
• Do not use benzine, thinner, polishing powder, or insecticide.
• When dirt stands out, wash it with kitchen neutral detergent diluted with luke-
warm water to the specied concentration, then wipe o the detergent with a
damp towel.
Front panel
1. Push down the tab on the both sides of the unit to open the front panel.
2. Pull the front panel toward you to remove it.
3. Open the front panel completely and then remove it.
• Wipe with a soft dry cloth or wash it with water.
• Do not soak it in water for more than two hours.
• Dry it well in shade before installing it.
4. Install the front panel by following the removal procedure in reverse.
● OPERATING INSTRUCTIONS ●
EN-9

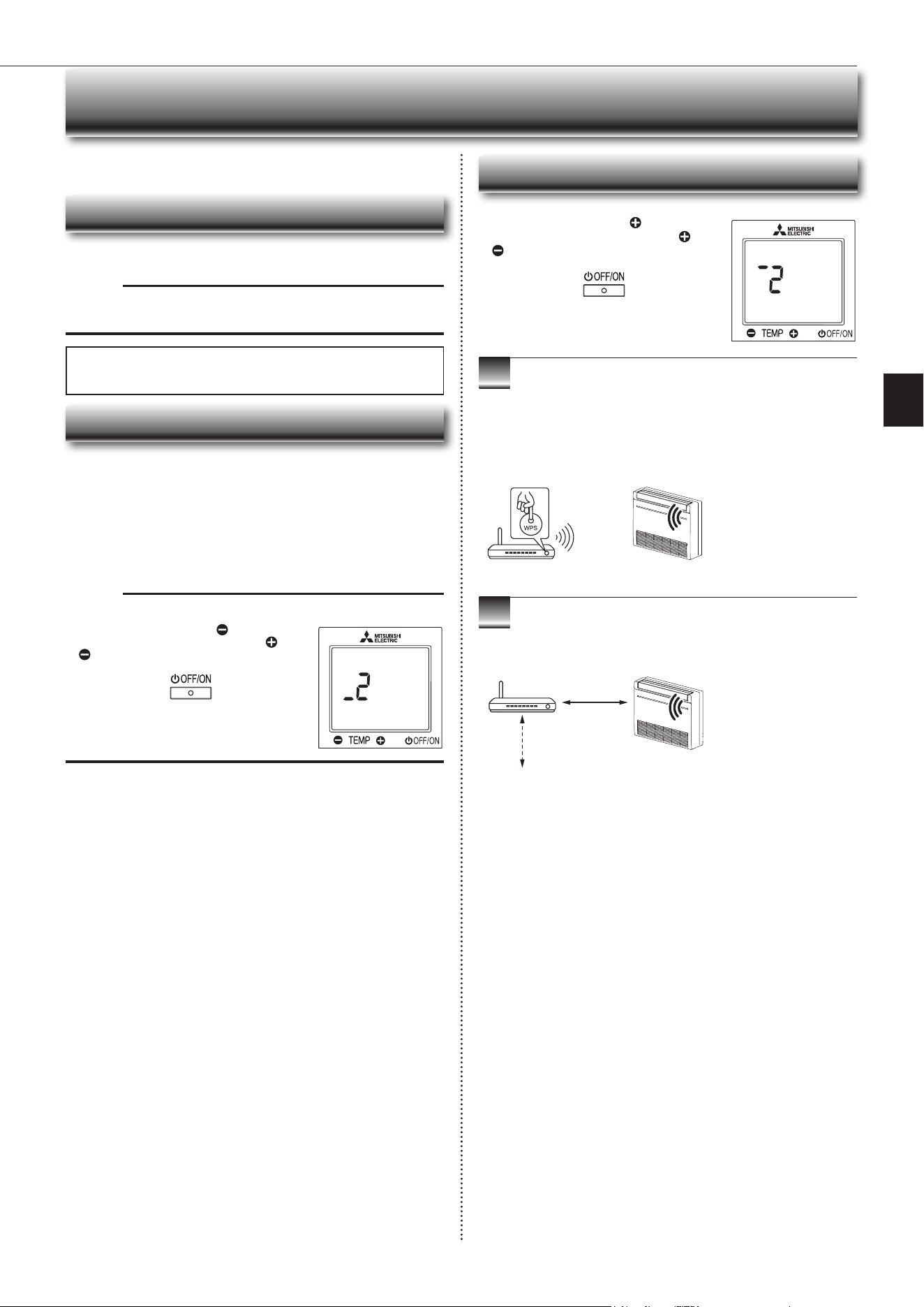

Wi-Fi Module Seing Up
This Wi-Fi module, communicates the status information and controls the com-
mands from Wi-Fi Control App by connecting to an indoor unit.
Setting up in WPS-PUSH mode
To enter the mode
• Hold down the Temperature
for 5 seconds.
• Select “¯ 2” by pressing Temperature
and
as shown on the right.
• Point the remote controller toward the indoor
unit and press the
.
1
Connect the Router to the air conditioner.
Make sure that the LED indication is as shown below.
Push WPS button of the Router within 2 minutes after the mode selec-
tion has completed.
The WPS-PUSH mode will return to initial state if WPS button is not
pressed for 2 minutes.
2
LED indication will be as shown below when connec-
tion between the Router and Wi-Fi module is complet-
ed and connection to the server starts.
If the indication LED does not change or ashes 5 times, connection fails.
Please reset connection and setup the Wi-Fi module and the Router again.
Main Causes that WPS failed are as follows.
Communication distance (from the Wi-Fi module to Router), Router settings
(encryption, authentication, limit of connections, etc.)
WPS-Push mode
Connecting
Router
The LED lights up for 3
seconds then ashes twice.
A beep sounds as the LED
ashes. This series of actions
is repeated.
Connected
Connecting
SERVER
The LED lights up for 5
seconds and then a beep
sounds for 1 second.
Setting up
Set up a connection between the Wi-Fi module and the router.
Note:
Setup is possible only after operating the air conditioner using the wireless re-
mote controller.
Download and install Wi-Fi Control App to your
compatible Apple or Android smartphone/tablet
(search term: Mitsubishi Wi-Fi Control).
Selecting a mode
The Wi-Fi module has to be paired with the Router in order for communication
between the indoor unit and Wi-Fi Control App to begin. There are 2 methods of
pairing the Wi-Fi module with the Router:
• WPS-PUSH mode
• Access Point mode
The mode to be set depends on whether your Router has the WPS button.
Please use the pairing mode most suitable for your system.
Follow the instructions below to set the pairing mode with Remote controller.
Set up the Wi-Fi module and the Router again when the Router has been replaced.
Note:
To reset connection and set up the Wi-Fi module and the router again
• Hold down the Temperature
for 5 seconds.
• Select “_ 2” by pressing Temperature
and
.
• Point the remote controller toward the indoor
unit and press the
.
• The indoor unit beeps 3 times when resetting
is complete.
EN-10
Wi-Fi Module Seing Up
Setting up in Access Point mode
Complete the setting up in the Access Point mode within 10 minutes.
To enter the mode
• Hold down the Temperature
for 5 seconds.
• Select “¯ 1” by pressing Temperature
and
as shown on the right.
• Point the remote controller toward the indoor
unit and press the
.
1
Connect your smartphone to the air conditioner.
Make sure that the LED indication is as shown below.
On the Wi-Fi Setting Screen on your smartphone, select SSID and enter
KEY, which are printed on the information label.
Note:
• Check Wi-Fi setting of your smartphone if SSID does not appear on it.
• Enter KEY again if SSID appears on your smartphone, but it cannot connect
to the Wi-Fi module.
• The LED indication does not change or ashes 5 times if connection fails. In
that case, reset connection and set up the Wi-Fi module and the router again.
2
Open Wi-Fi Control App and follow the ‘How to
Setup’ instructions in the ‘Setup Wi-Fi interface’
section.
If the app does not go to this section, you are not
connected to the Wi-Fi interface’s Access Point;
please start process again.
You can either select your available Wi-Fi Net-
work, or manually congure a Wi-Fi Network.
Access Point mode
E.O.
SW
MAC:
ID:
SSID:
KEY:
XXXXXXXXXXXX
XXXXXXXXXX
ME-XXXXXXXXXX
XXXXXXXXXXXX
SSID:
KEY:
ME-XXXXXXXXXX
XXXXXXXXXXXX
Connecting
SmartphoneOtherWi-Fi module
The LED lights up for 3
seconds then ashes once.
A beep sounds as the LED
ashes. This series of actions
is repeated.
3
LED indication will be as shown below when connec-
tion between the Router and Wi-Fi module is complet-
ed and connection to the server starts.
Note:
It may take several minutes to show the indication above.
The LED indication does not change or ashes 5 times if connection fails.
In that case, reset connection and set up the Wi-Fi module and the router again.
SERVER
Connected
Connecting
The LED lights up for 5
seconds and then a beep
sounds for 1 second.
Once registered you will be able to con-
trol your heat pump with your smartphone, tablet
or online account using an internet connection.
(For a list of compatible devices, please visit the Mitsubishi
Electric website).
User Manual
A copy of the user manual, terms & conditions and privacy
policy can be downloaded at any time from the Mitsubishi
Electric website.
Mitsubishi Electric New Zealand
www.mitsubishi-electric.co.nz/wi
Phone: 0800 639 434
Mitsubishi Electric Australia
www.mitsubishielectric.com.au/wi
Phone: 1300 728 119
Register Your Heat Pump(s)
Thank you for choosing a Mitsubishi Electric Heat Pump with Wi-Fi Control.
Once your Wi-Fi interface is installed, either download the app (search term:
Mitsubishi Wi-Fi Control) or visit our website to register your heat pump(s).
*Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S.
and other countries. App Store is a service mark of Apple Inc., registered in
the U.S. and other countries.
*Google Play and the Google Play logo are trademarks of Google Inc.
Mitsubishi Electric Wi-Fi Heat Pump Control
EN-11
● OPERATING INSTRUCTIONS ●
When it doesnʼt connect well
Check the following, and pair the Wi-Fi module and the Router according to
Selecting a mode.
• Make sure that the communication distance is not too far between the Wi-Fi
module and the Router.
• Make sure that the Router uses WPA2-AES encryption.
• Make sure that the number of connected devices to the Router does not exceed
the limit.
• Make sure that DHCP is enabled, or check IP address setting of the Wi-Fi
module.
• Check DNS settings of the Router, or check DNS address of the Wi-Fi module.
• Check if the Router is connected to Internet.
• Set up the Wi-Fi module after operating the air conditioner using the wireless
remote controller at least once.
If the connection fails even after checking the above, set up the Wi-Fi module
and the router again by the following method.
• Hold down the Temperature
for 5 seconds.
• Select “_ 2” by pressing Temperature
and .
• Point the remote controller toward the indoor unit and press the
.
• The indoor unit beeps 3 times when resetting is complete.
[About trademarks]
• WPS is the connection via Wi-Fi Protected Setup.
• “Wi-Fi®”, “Wi-Fi Protected Setup™”, “WPA2™” are trademarks or registered
trademarks of the Wi-Fi Alliance.
The Wi-Fi module uses Open Source Software. To view the Open Source
software licence(s), please go to the following website whilst connected to
the Wi-Fi module during the Access Point mode.
http://192.168.11.1/license
Note:
• Ensure that the Router supports the WPA2-AES encryption setting before
starting the Wi-Fi module setup.
• The End user should read and accept the terms and conditions of the Wi-Fi
service before using this Wi-Fi module.
• To complete connection of this Wi-Fi module to the Wi-Fi service, the Router
may be required.
• This Wi-Fi module will not commence transmission of any operational data
from the system until the End user registers and accepts the terms and con-
ditions of the Wi-Fi service.
• This Wi-Fi module should not be installed and connected to any Mitsubishi
Electric system which is to provide application critical cooling or heating.
• Please write down the information regarding the Wi-Fi module setting on the
last page of this manual, when you set up this Wi-Fi module.
• At the time of relocation or disposal, reset the Wi-Fi module to the factory
default.
Mitsubishi Electric’s Wi-Fi module is designed for communication to
Mitsubishi Electric’s Wi-Fi service.
Mitsubishi Electric is not responsible for any (i) underperformance of a
system or any product;
(ii) system or product fault; or (iii) loss or damage to any system or product;
which is caused by or arises from connection to and/or use of any third
party Wi-Fi module or any third party Wi-Fi service with Mitsubishi Electric
equipment.
For the latest information regarding Wi-Fi Control:
New Zealand based enquiries please visit: www.mitsubishi-electric.co.nz/wi
Australian based enquiries please visit: www.mitsubishielectric.com.au/wi
Wi-Fi Module Seing Up
When You Think That Trouble
Has Occurred
Even if these items are checked, when the unit does not recover from the
trouble, stop using the air conditioner and consult your dealer.
Symptom Explanation & Check points
Indoor unit
The unit cannot be operated. • Is the breaker turned on?
• Is the power supply plug connected?
• Is the on timer set?
The unit cannot be operated
for about 3 minutes when
restarted.
• This protects the unit according to instructions
from the microprocessor. Please wait.
Mist is discharged from the air
outlet of the indoor unit.
• The cool air from the unit rapidly cools moisture
in the air inside the room, and it turns into mist.
White smoke is discharged
from the air inlet of the indoor
unit.
• When the heating operation starts after the
defrosting operation, vapor generated from the
condensation on the heat exchanger looks like
white smoke.
The swing operation of the
horizontal vane is suspended
for a while, then restarted.
• This is for the swing operation of the horizontal
vane to be performed normally.
The air ow direction changes
during operation.
The direction of the horizontal
vane/multi-ow vane cannot
be adjusted with the remote
controller.
• In the heating operation, if the air ow tempera-
ture is too low or when defrosting is being done,
the horizontal vane is automatically set to vertical
position. The multi-ow vane is set to the closed
position.
• When the air conditioner is operated in cool mode
or dry mode, if the operation continues with air
blowing horizontally for 1 hour, the direction of
the air ow is automatically set to position (1) to
prevent condensed water from dropping. The
multi-ow vane is set to the closed position.
• The horizontal vane and the multi-ow vane auto-
matically moves in certain intervals to determine
its position, and then it returns to the set position.
The operation is stopped for
about 10 minutes in the heating
operation.
• Defrosting of the outdoor unit is being done.
Since this is completed in max.10 minutes,
please wait. (When the outside temperature is
too low and humidity is too high, frost is formed.)
The unit starts operation by
itself when the main power is
turned on, though it isn’t oper-
ated with the remote controller.
• These models are equipped with an auto
restart function. When the main power is
turned off without stopping the unit with the
remote controller and is turned on again, the
unit starts operation automatically in the same
mode as the one set with the remote control-
ler just before the shuto of the main power.
Refer to “Auto Restart Function”.
Page 14
In cool mode/dry mode, when
the room temperature reaches
near the set temperature, the
outdoor unit stops, then the
indoor unit operates at low
speed.
• When the room temperature deviates from the
set temperature, the indoor fan starts running
according to the settings on the remote controller.
The multi-ow vane opens and
closes automatically.
• The multi-ow vane is automatically controlled by
a microcomputer according to the air ow tem-
perature and operation time of the air conditioner.
The indoor unit which is not
operating becomes warm and
a sound, similar to water ow-
ing, is heard from the unit.
• A small amount of refrigerant continues to ow
into the indoor unit even though it is not operating.
The indoor unit discolors over
time.
• Although plastic turns yellow due to the inuence
of some factors such as ultraviolet light and
temperature, this has no eect on the product
functions.
The walls around the indoor
unit have smudges.
• It is because the walls get dust in the air due to
air circulation by the air conditioner.
Water leaks from the indoor
unit.
• Does water ow smoothly from the edge of the
drain hose?
Outdoor unit
The fan of the outdoor unit
does not rotate even though
the compressor is running.
Even if the fan starts to rotate,
it stops soon.
• When the outside temperature is low during cool-
ing operation, the fan operates intermittently to
maintain sucient cooling capacity.
Water leaks from the outdoor
unit.
• During cooling operation and dry operation, pipe
or pipe connecting sections are cooled and this
causes water to condense.
• In the heating operation, water condensed on the
heat exchanger drips down.
• In the heating operation, the defrosting operation
makes water frozen on the outdoor unit melt and
drip down.
White smoke is discharged
from the outdoor unit.
• In the heating operation, vapor generated by the
defrosting operation looks like white smoke.
EN-12
Symptom Explanation & Check points
Remote controller
The display on the remote
controller does not appear or it
is dim. The indoor unit does not
respond to the remote control
signal.
• Are the batteries exhausted? Page 4
• Is the polarity (+, -) of the batteries correct?
Page 4
• Did you press the reset button after replacing the
batteries?
Page 4
• Is the setting of multiple indoor units’ installation
the same as before replacing the batteries?
Page 4
• Are any buttons on the remote controller of other
electric appliances being pressed?
• The indoor unit may not receive the signal well
depending on the condition in the room. Get
close to the indoor unit and operate the remote
controller.
Does not cool or heat
The room cannot be cooled or
heated suciently.
• Is the temperature setting appropriate?
Page 5
• Is the fan setting appropriate? Please change
fan speed to High or Super High.
Page 6
• Is the air outlet selection is set to 1 ow? Set it
to 2 ow.
Page 6
• Is the lter clean?
Page 9
• Is the fan or heat exchanger of the indoor unit
clean?
• Are there any obstacles blocking the air inlet or
outlet of the indoor or outdoor unit?
• If there is an obstacle above the indoor unit,
the room may not be cooled or warmed due to
insucient airow.
Page 14
• If something is blocking the airow from the
downward airow ap during 2 ow (upward and
downward airow), the airow will be weakened
and the room temperature will not be detected
correctly.
Do not place any obstacles near the unit as it will
become dicult to heat or cool the entire room.
If you cannot move obstacles, set (
) on
the remote controller to 1 ow operation (upward
airow).
• Is a window or door open?
• It may take a certain time to reach the setting
temperature or may not reach that depending on
the size of the room, the ambient temperature,
and the like.
The room cannot be cooled
suciently.
• When a ventilation fan or a gas cooker is used
in a room, the cooling load increases, resulting
in an insucient cooling eect.
• When the outside temperature is high, the cool-
ing eect may not be sucient.
The room cannot be heated
suciently.
• When the outside temperature is low, the heating
eect may not be sucient.
Air does not blow out soon in
the heating operation.
• Please wait as the unit is preparing to blow out
warm air.
Airow
The air from the indoor unit
smells strange.
• Is the lter clean? Page 9
• Is the fan or heat exchanger of the indoor unit
clean?
• The unit may suck in an odor adhering to the
wall, carpet, furniture, cloth, etc. and blow it out
with the air.
In the following cases, stop using the air conditioner and consult your dealer.
• When water leaks or drips from the indoor unit.
• When the left operation indicator lamp blinks.
• When the breaker trips frequently.
• The remote control signal is not received in a room where an electronic on/o type
uorescent lamp (inverter-type uorescent lamp, etc.) is used.
• Operation of the air conditioner interferes with radio or TV reception. An amplier
may be required for the aected device.
• When an abnormal sound is heard.
• When any refrigerant leakage is found.
Symptom Explanation & Check points
Sound
Cracking sound is heard. • This sound is generated by the expansion/
contraction of the panel, etc. due to change in
temperature.
“Burbling” sound is heard. • This sound is heard when the outside air is
absorbed from the drain hose by turning on the
range hood or the ventilation fan, making water
owing in the drain hose to spout out.
This sound is also heard when the outside air
blows into the drain hose in case the outside
wind is strong.
Mechanical sound is heard
from the indoor unit.
• This is the switching sound in turning on/o the
fan or the compressor.
The sound of water owing is
heard.
• This is the sound of refrigerant or condensed
water owing in the unit.
Hissing sound is sometimes
heard.
• This is the sound when the ow of refrigerant
inside the unit is switched.
The sound of motor and swirl-
ing sound is heard from the
indoor unit.
• This is the sound of water condensed during
cooling operation/dry operation being drained
from the indoor unit.
• Sound of water draining may also be heard from
indoor units which are not operating. (The sound
will stop automatically. Please wait.)
Heating operation stops and
the sound is heard.
• The outdoor unit is defrosting.
Heating operation starts after the frost on the
outdoor unit has been removed. This can take
about 2 to 10 minutes.
• Cracking sound, Sound of water owing, Hissing
sound and Whistling sound are heard.
Timer
Weekly timer does not operate
according to settings.
• Is the on/o timer set? Page 7
• Transmit the setting information of the weekly
timer to the indoor unit again. When the infor-
mation is successfully received, a long beep will
sound from the indoor unit. If information fails to
be received, 3 short beeps will be heard. Ensure
information is successfully received.
Page 8
• When a power failure occurs and the main power
turns o, the indoor unit built-in clock will be
incorrect. As a result, the weekly timer may not
work normally.
Be sure to place the remote controller where
the signal can be received by the indoor unit.
Page 4
The unit starts/stops the opera-
tion by itself.
• Is the weekly timer set? Page 8
Dirt
The ceiling and wall around the
indoor unit get dirty.
• Please clean the periphery of the air conditioner
frequently.
• Stains can be prevented by reducing the amount
of air directed toward the ceiling and the walls
and by adjusting the vertical wind direction.
Wi-Fi Interface
When error occurs during con-
nection setup or operation.
Refer to the SETUP MANUAL.
For SETUP MANUAL, please go to the website
below.
New Zealand:
www.mitsubishi-electric.co.nz/wi
Australian:
www.mitsubishielectric.com.au/wi
Other
The aluminum n on the edge
of the heat exchanger is dis-
colored as if it is burnt.
• This is the coating resin discolored due to weld-
ing heat when the heat exchanger was being
produced.
• The operation of the air conditioner is not the
cause of the discoloration.
It aects neither the performance of the heat
exchanger nor the use of the air conditioner.
When You Think That Trouble Has Occurred
EN-13
● OPERATING INSTRUCTIONS ●

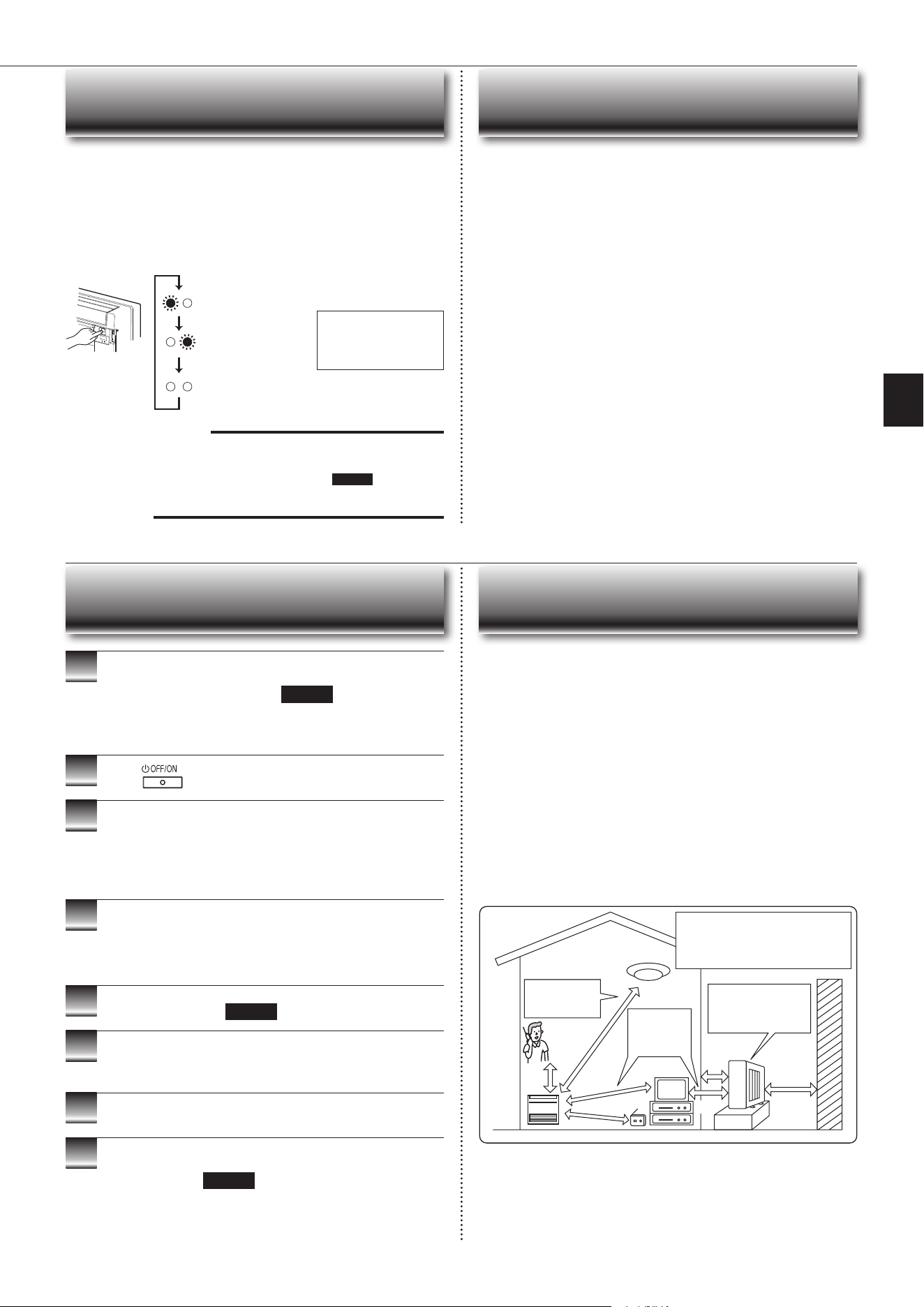

Installation Place and Electrical
Work
When the Air Conditioner Is Not
Going to Be Used for a Long Time
Installation place
Avoid installing the air conditioner in the following places.
• Where there is much machine oil.
• Salty places such as the seaside.
• Where sulde gas is generated such as hot spring, sewage, waste water.
• Where oil is splashed or where the area is lled with oily smoke (such as cook-
ing areas and factories, in which the properties of plastic could be changed
and damaged).
• Where there is high-frequency or wireless equipment.
• Where the air from the outdoor unit air outlet is blocked.
• Where the operation sound or air from the outdoor unit bothers the house next
door.
• Do not install the indoor unit at a place higher than 150 mm.
• Do not operate the air conditioner during interior construction and nishing
work, or while waxing the oor. Before operating the air conditioner, ventilate
the room well after such work is performed. Otherwise, it may cause volatile
elements to adhere inside the air conditioner, resulting in water leakage or
scattering of dew.
Electrical work
• Provide an exclusive circuit for the power supply of the air conditioner.
• Be sure to observe the breaker capacity.
If you have any questions, consult your dealer.
wall, etc.
For the optimum eciency
and to extend the life time of
using, the outdoor unit should
be installed in a well-ventilated
dry place.
3 m or
more
The installation location of the outdoor unit should be at
least 3 m away from the antennas for TV sets, radios,
etc. In areas where the reception is weak, provide
greater space between the outdoor unit and the antenna
of the aected device if operation of the air conditioner
interferes with radio or TV reception.
100 mm
or more
500 mm
or more
1
Set to the highest temperature in manual cool mode,
and operate for 3 to 4 hours. Page 5
• This dries the inside of the unit.
• Moisture in the air conditioner contributes to favorable conditions for
growth of fungi, such as mold.
2
Press
to stop the operation.
3
Do not turn the breaker o except the case of burning
smell, or when performing maintenance or inspection.
The refrigerant leakage cannot be detected, and this
may cause a re.
4
Remove all batteries from the remote controller.
When using the air conditioner again:
1
Clean the air lters. Page 9
2
Check that the air inlet and outlet of the indoor and
outdoor units are not blocked.
3
Check that the earth is connected correctly.
4
Refer to the “Preparation Before Operation”, and follow
the instructions. Page 4
To prevent the eects
of a uorescent lamp,
keep as far apart as
possible.
Inverter-type
uorescent lamp
Keep a space
to prevent the
picture distortion
or the noise.
Radio
TV
Cordless phone
or portable
phone
1 m
or more
1 m
or more
If a power failure occurs or the main power is turned o during operation, “Auto
Restart Function” automatically starts operation in the same mode as the one set
with the remote controller just before the shuto of the main power. When timer is
set, timer setting is cancelled and the unit starts operation when power is resumed.
If you do not want to use this function, please consult the service repre-
sentative because the setting of the unit needs to be changed.
Auto Restart Function
Set temperature : 24°C
Fan speed : Medium
Horizontal vane : Auto
Air outlet : 2 ow
Note:
• The rst 30 minutes of operation is test run. Temperature
control does not work, and fan speed is set to High. The
air outlet selection is set to 2 ow.
Page 6
• In the emergency heating operation, the fan speed gradu-
ally rises to blow out warm air.
Emergency
operation
switch
(E.O SW)
Emergency cooling
operation
Emergency heating
operation
Stop
Operation indicator lamp
When the remote controller cannot be used...
Emergency operation can be activated by pressing the emergency operation
switch (E.O. SW) on the indoor unit.
Each time the E.O. SW is pressed, the operation changes in
the following order:
Emergency Operation
EN-14
Specications
Model
Indoor MFZ-KW25VGK-A1 MFZ-KW35VGK-A1 MFZ-KW42VGK-A1
Outdoor MUFZ-KW25VG2-A1 MUFZ-KW35VG2-A1 MUFZ-KW42VG2-A1
Function Cooling Heating Cooling Heating Cooling Heating
Power supply ~/N, 230 V, 50 Hz
Capacity kW 2.5 3.4 3.5 4.3 4.2 5.4
Input kW 0.57 0.78 0.87 1.14 1.11 1.43
Weight
Indoor kg 15
Outdoor kg 35
Refrigerant lling capacity (R32) kg 1.0
IP code
Indoor IP20
Outdoor IP24
Permissible excessive
operating pressure
LP ps MPa 2.77
HP ps MPa 4.17
Noise level
Indoor (Super High/
High/Med./Low./Quiet)
dB(A)
44/38/32/
26/20
44/38/31/
25/18
44/38/32/
26/20
44/38/31/
25/18
51/43/36/
28/20
51/44/36/
27/18
Outdoor dB(A) 48 46 48 47 48 47
Indoor
Outdoor
MUFZ-
KW25/35/42/50/60VG2
MUFZ-
KW50/60VGHZ2
Cooling
Upper limit
32°C DB
23°C WB
46°C DB
—
46°C DB
—
Lower limit
21°C DB
15°C WB
-10°C DB
—
-10°C DB
—
Heating
Upper limit
27°C DB
—
24°C DB
18°C WB
24°C DB
18°C WB
Lower limit
20°C DB
—
-15°C DB
-16°C WB
-25°C DB
-26°C WB
Note:
Rating condition
Cooling — Indoor: 27°C DB, 19°C WB
Outdoor: 35°C DB
Heating — Indoor: 20°C DB
Outdoor: 7°C DB, 6°C WB
Guaranteed operating range
DB: Dry Bulb
WB: Wet Bulb
Wi-Fi interface
Model MAC-588IF-E
Input Voltage DC12.7 V (from indoor unit)
Power consumption MAX. 2 W
Size H×W×D (mm) 73.5×41.5×18.5
Weight (g) 96 g (including cable)
Transmitter power level (MAX.)
20 dBm
@IEEE 802.11b
RF channel 1ch ~ 13ch (2412~2472 MHz)
Radio protocol IEEE 802.11b/g/n (20)
Encryption AES
Authentication WPA2-PSK
Length of cable (mm) 2,040
For Declaration of Conformity, please go to the website below.
http://www.mitsubishielectric.com/ldg/ibim/
Model
Indoor MFZ-KW50VGK-A1 MFZ-KW60VGK-A1
Outdoor MUFZ-KW50VG2-A1 MUFZ-KW50VGHZ2-A1 MUFZ-KW60VG2-A1 MUFZ-KW60VGHZ2-A1
Function Cooling Heating Cooling Heating Cooling Heating Cooling Heating
Power supply ~/N, 230 V, 50 Hz
Capacity kW 5.0 5.8 5.0 5.8 6.1 6.5 6.1 6.5
Input kW 1.32 1.53 1.32 1.53 1.73 1.88 1.73 1.88
Weight
Indoor kg 15
Outdoor kg 54
Refrigerant lling capacity (R32) kg 1.3
IP code
Indoor IP20
Outdoor IP24
Permissible excessive
operating pressure
LP ps MPa 2.77
HP ps MPa 4.17
Noise level
Indoor (Super High/
High/Med./Low./Quiet)
dB(A)
44/39/35/
31/27
50/45/40/
35/29
44/39/35/
31/27
50/45/40/
35/29
53/46/39/
35/27
51/47/41/
35/29
53/46/39/
35/27
51/47/41/
35/29
Outdoor dB(A) 53 56 53 56 53 56 53 56
Wi-Fi interface setting information
Indoor unit model name
Indoor unit serial number
Outdoor unit model name
Outdoor unit serial number
Wi-Fi interface MAC address (MAC)
Wi-Fi interface serial number (ID)
Wi-Fi interface SSID (SSID)
Wi-Fi interface KEY (KEY)
System commissioning date
Wi-Fi interface installation date
Installer contact details
Name
Telephone number
● OPERATING INSTRUCTIONS ●
EN-15
DG79T878H02
HEAD OFFICE: TOKYO BUILDING, 2-7-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN
