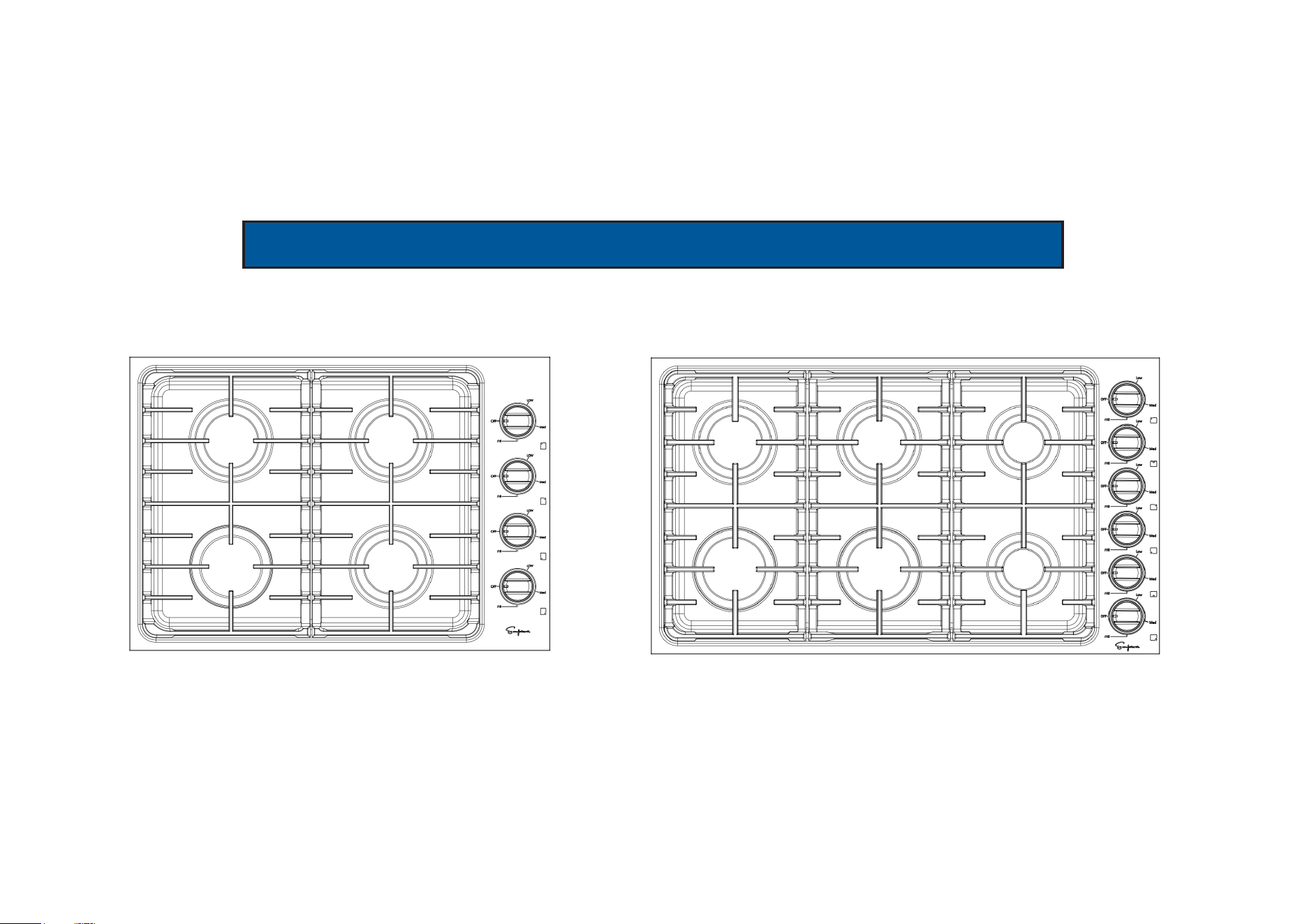

EMPAVA PROFESSIONAL GAS COOKTOP
EMPV-30GC33&EMPV-36GC34
—
1
—
WARNING: If the inf
ormat1on 1n this manual is not followed exactly,a fire
or explosion may result causing property damage, personal injury, or
death.
— DO NOT store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
—WHAT TO DO IF YOU SMELL GAS:
• DO NOT try to light any appliance.
-DO NOT touch any electrical switch.
-DO NOT use any phone in your building.
-Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
-If you cannot reach your gas supplier, call the fire department.
— Installation and service must be performed by a qualified
installer, service agency, or the gas supplier.
Contents
Important safety information
3
Cooktop surface
18

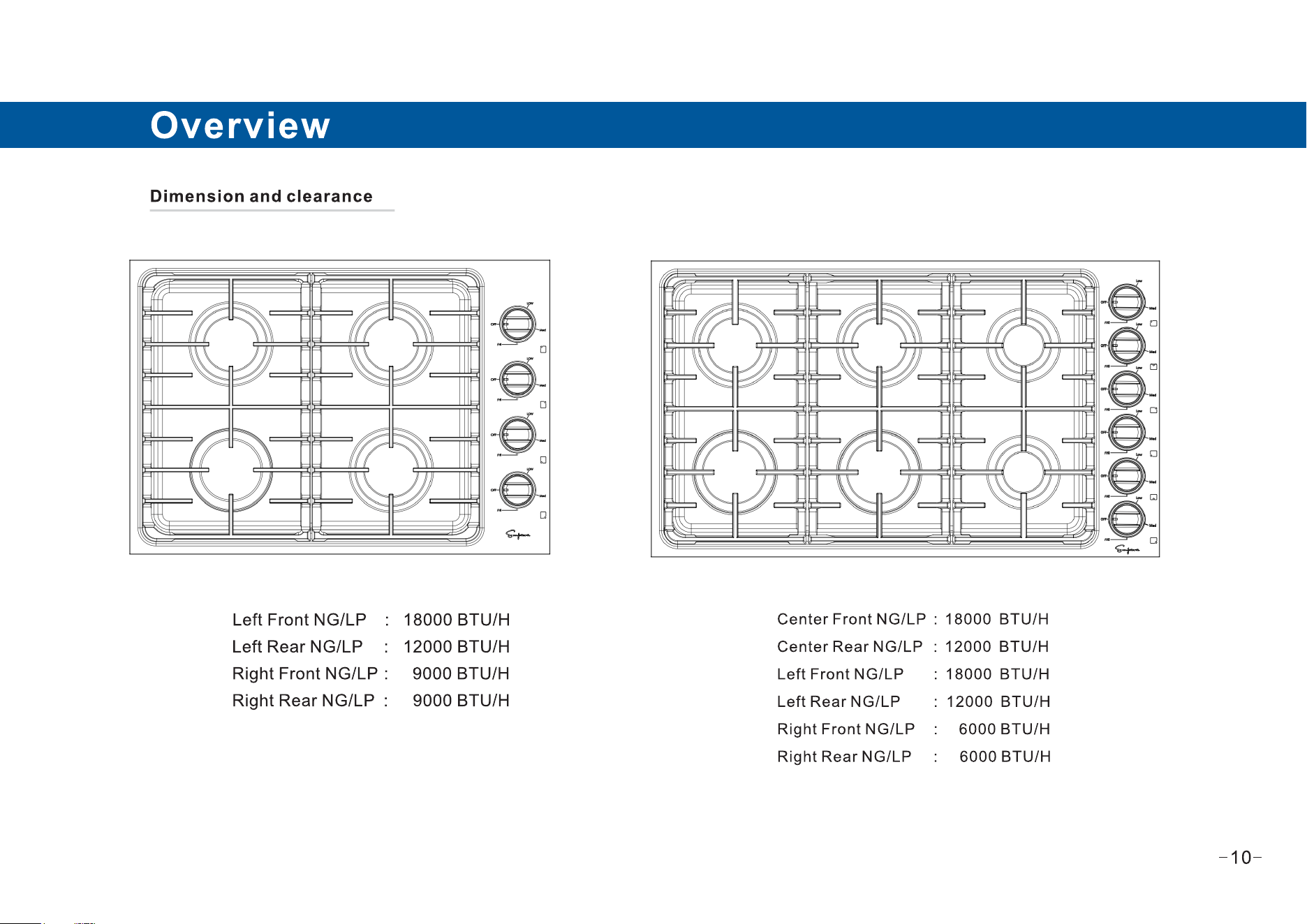

Overview
10
Stainless steel surfaces
19

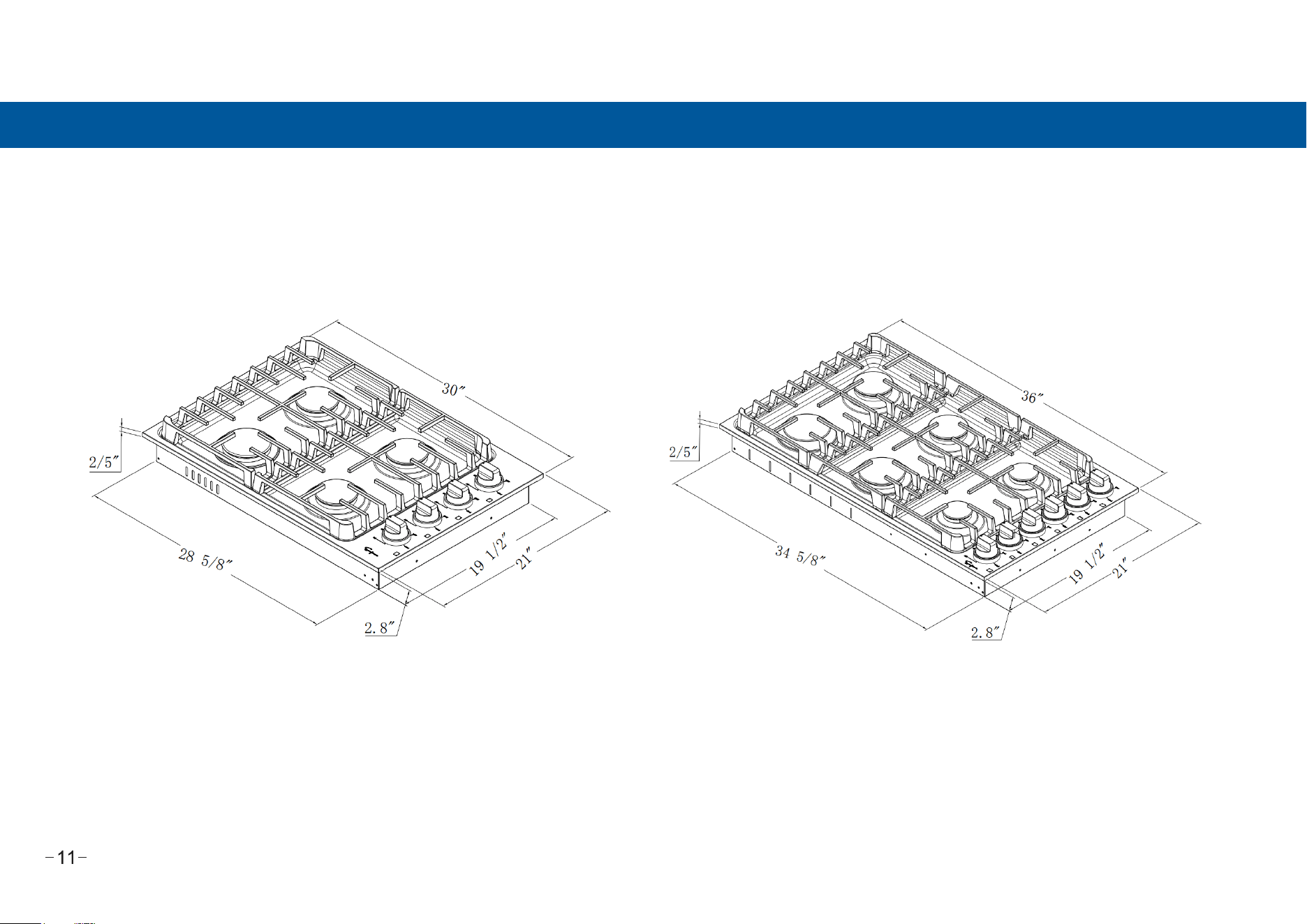

Dimension and clearance
10
Control knobs
19

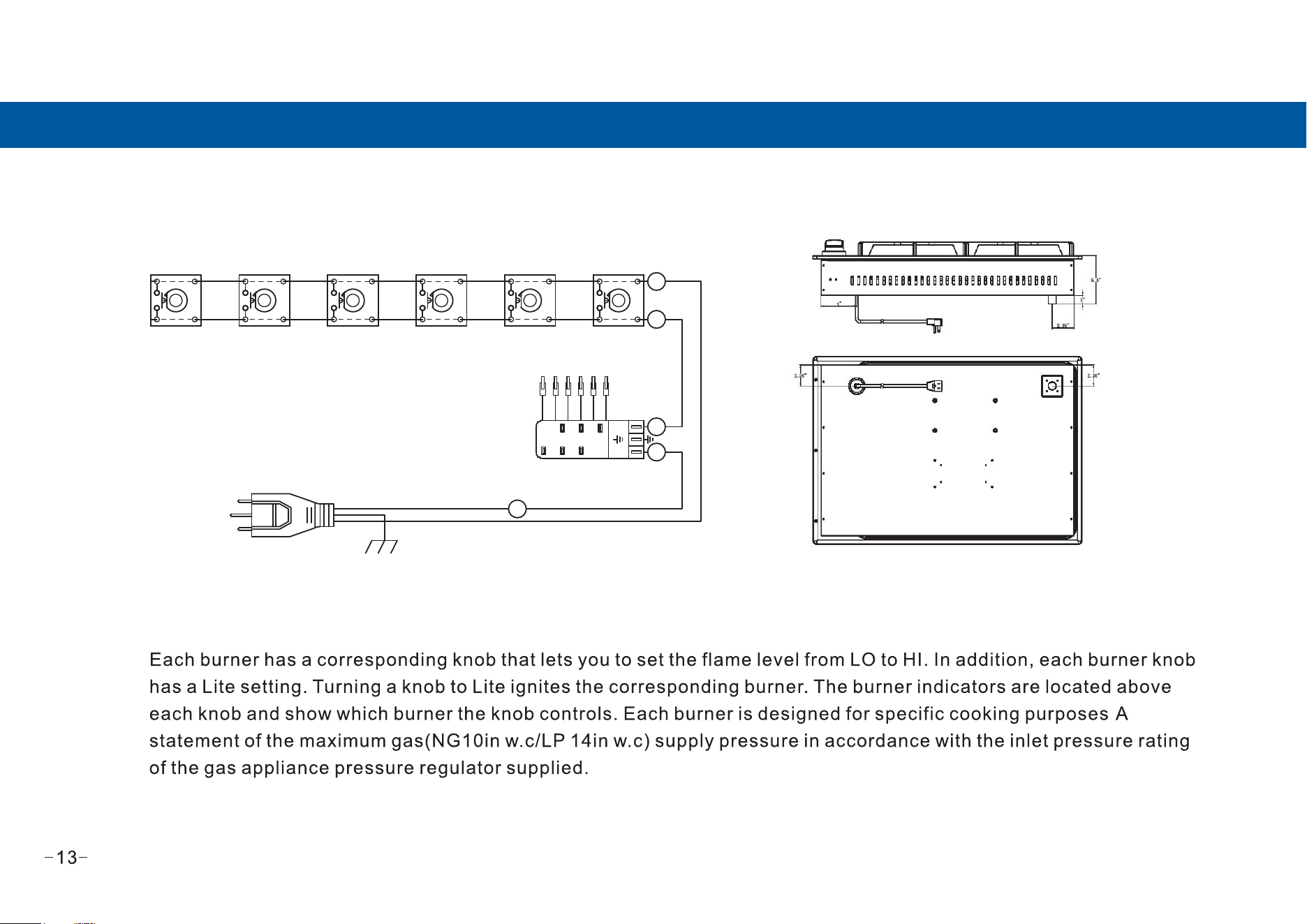

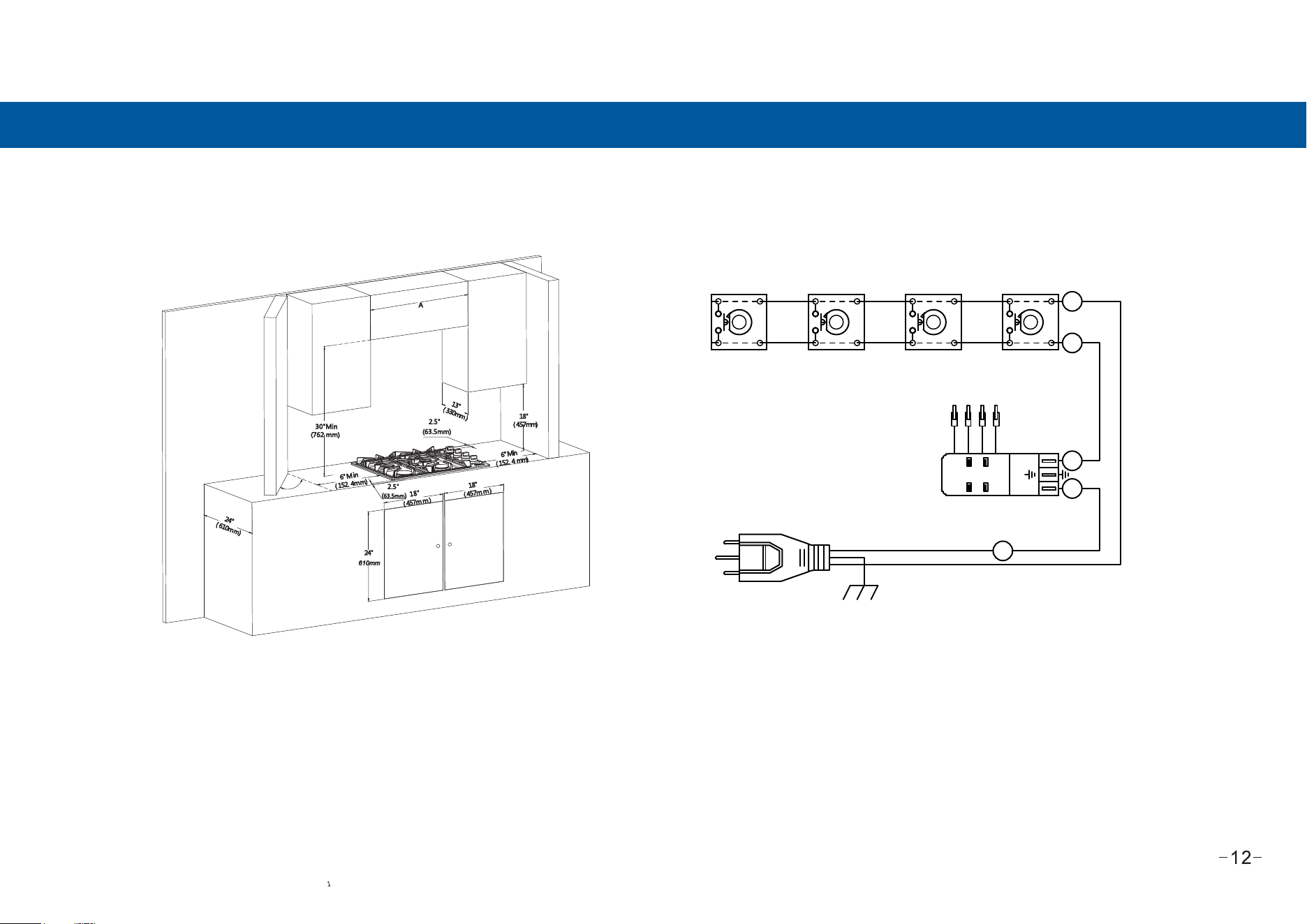

Circuit Diagram
12
Burner grates and components
20
Side &Back Panel Layout
13
Burner caps and heads
20

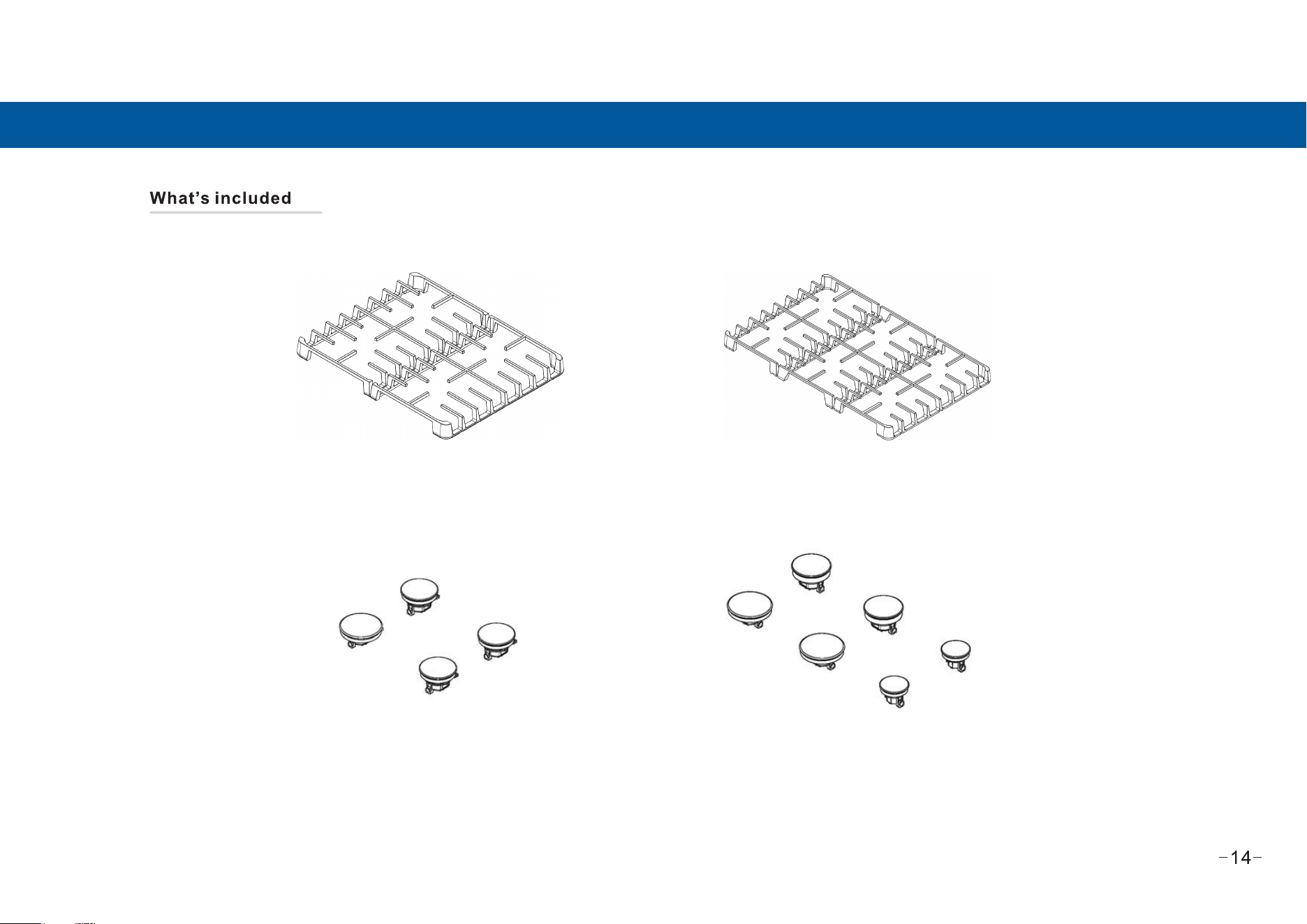

What's included
14
Burner bases
21

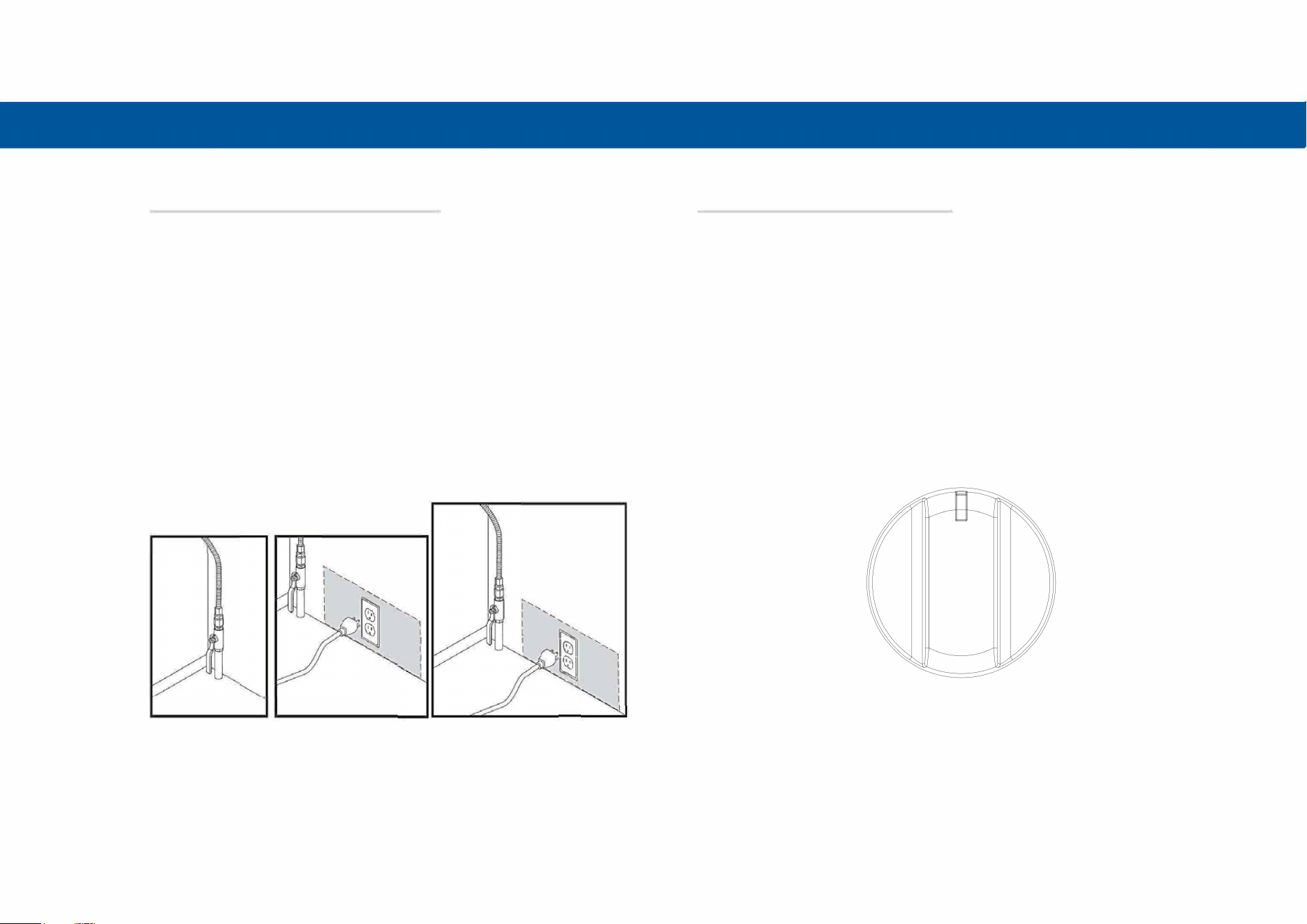

Electrical Requirements
15
Electrodes
21
Using the cooktop burners
15
Grates
21
Ignition
15

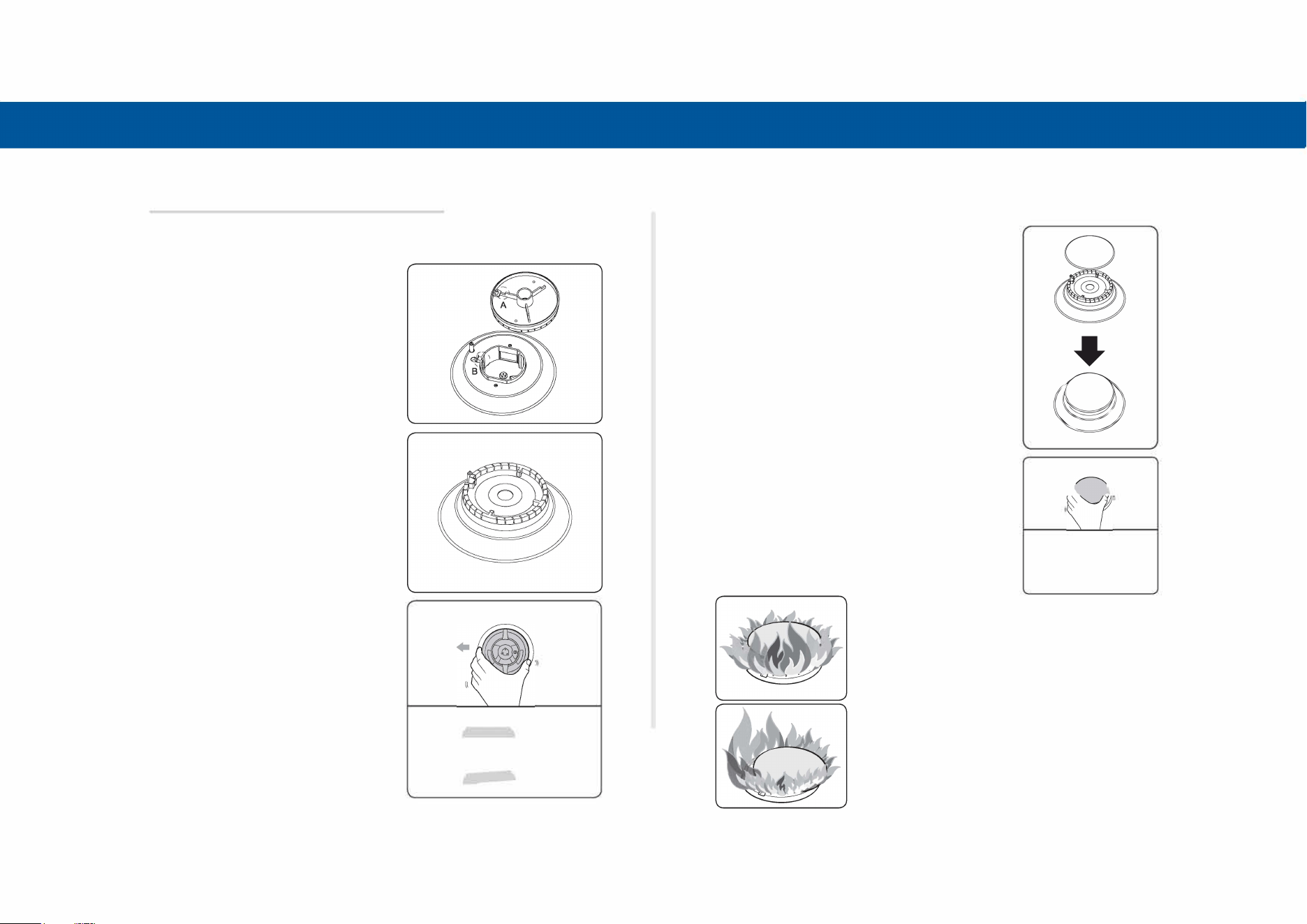

Burner head and cap replacement
22
Cookware
17
Burner cap
23
Install the grates
17
Troubleshooting
24
Care and cleaning of the cooktop
18
Checkpoints
24

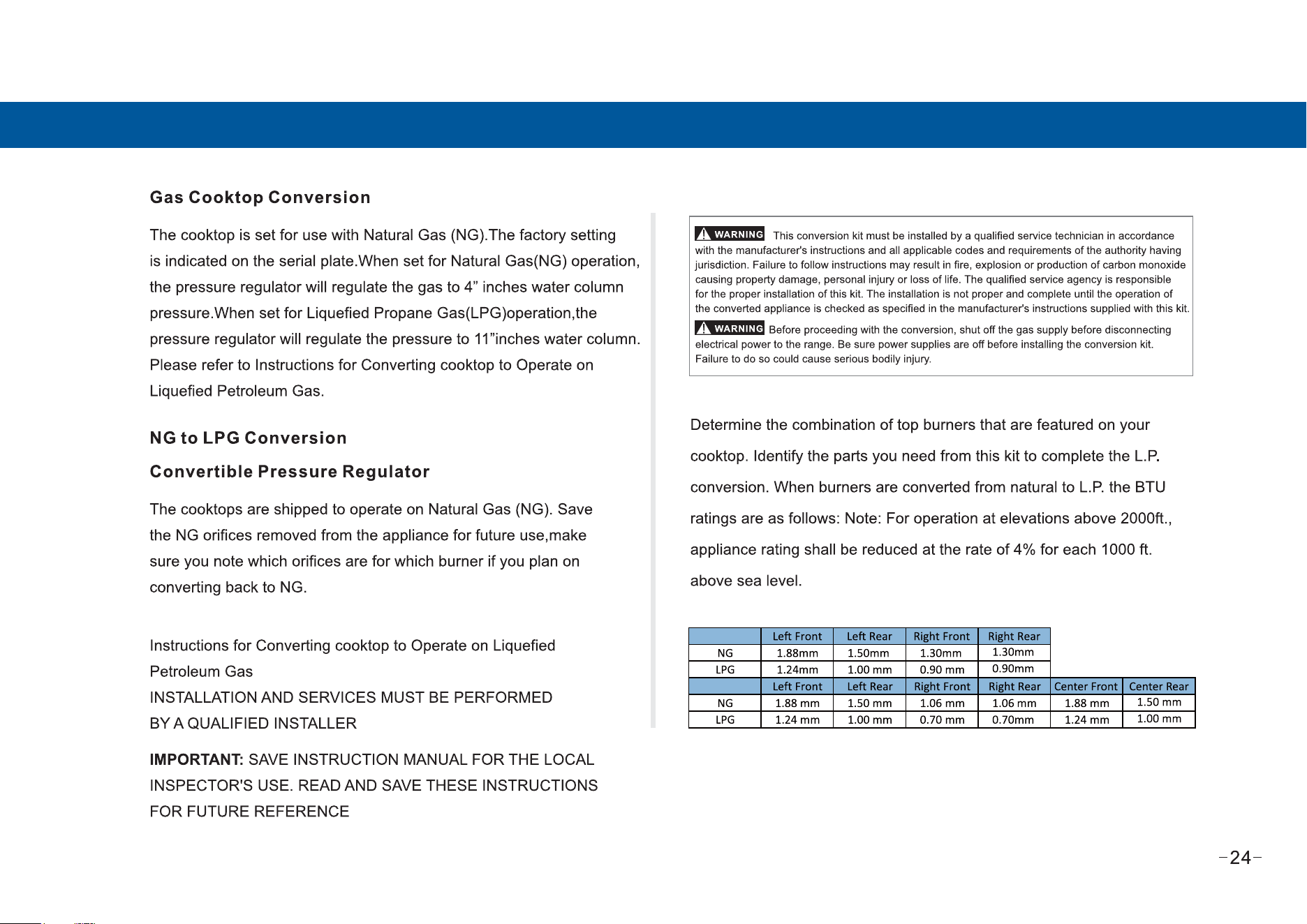

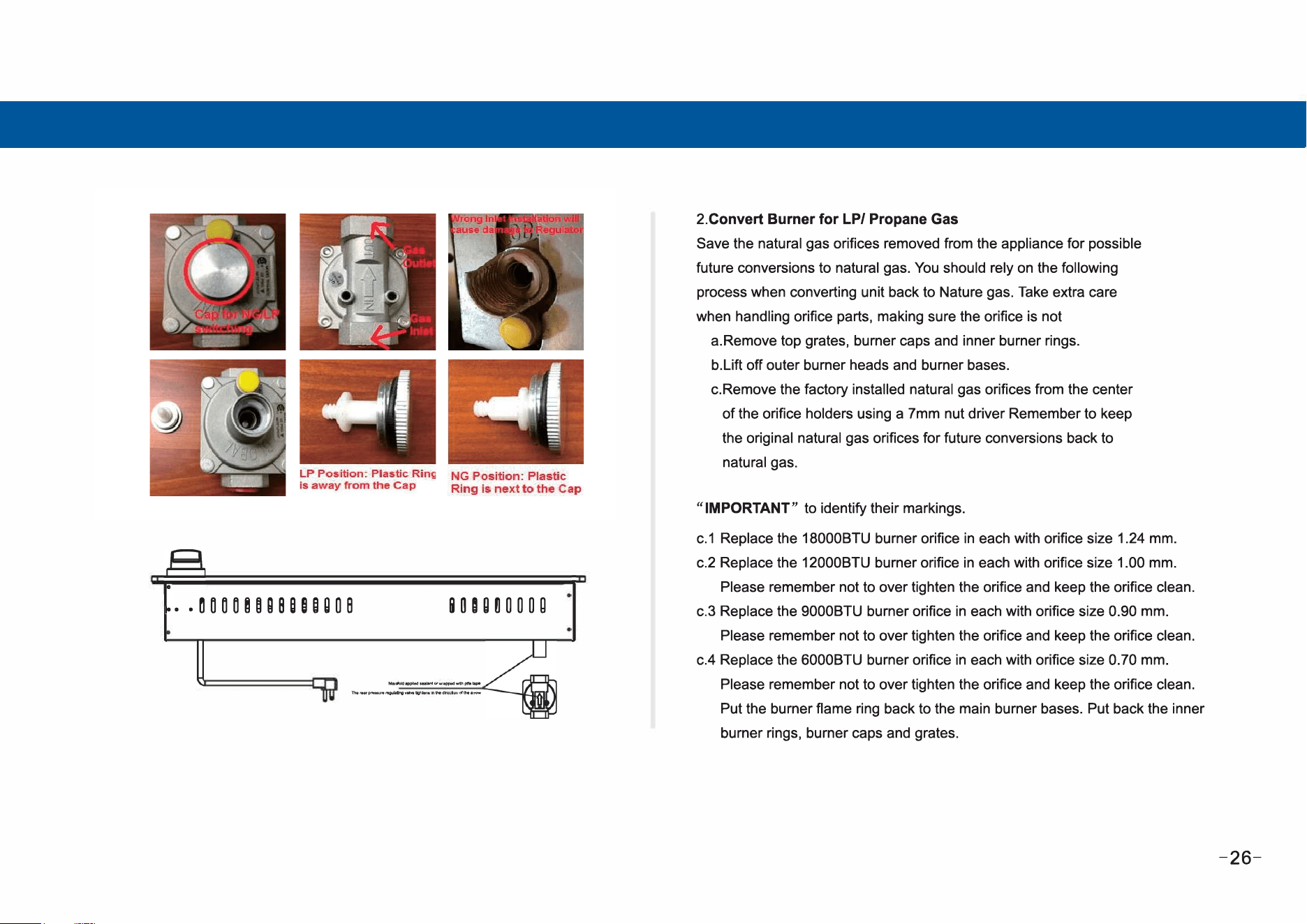

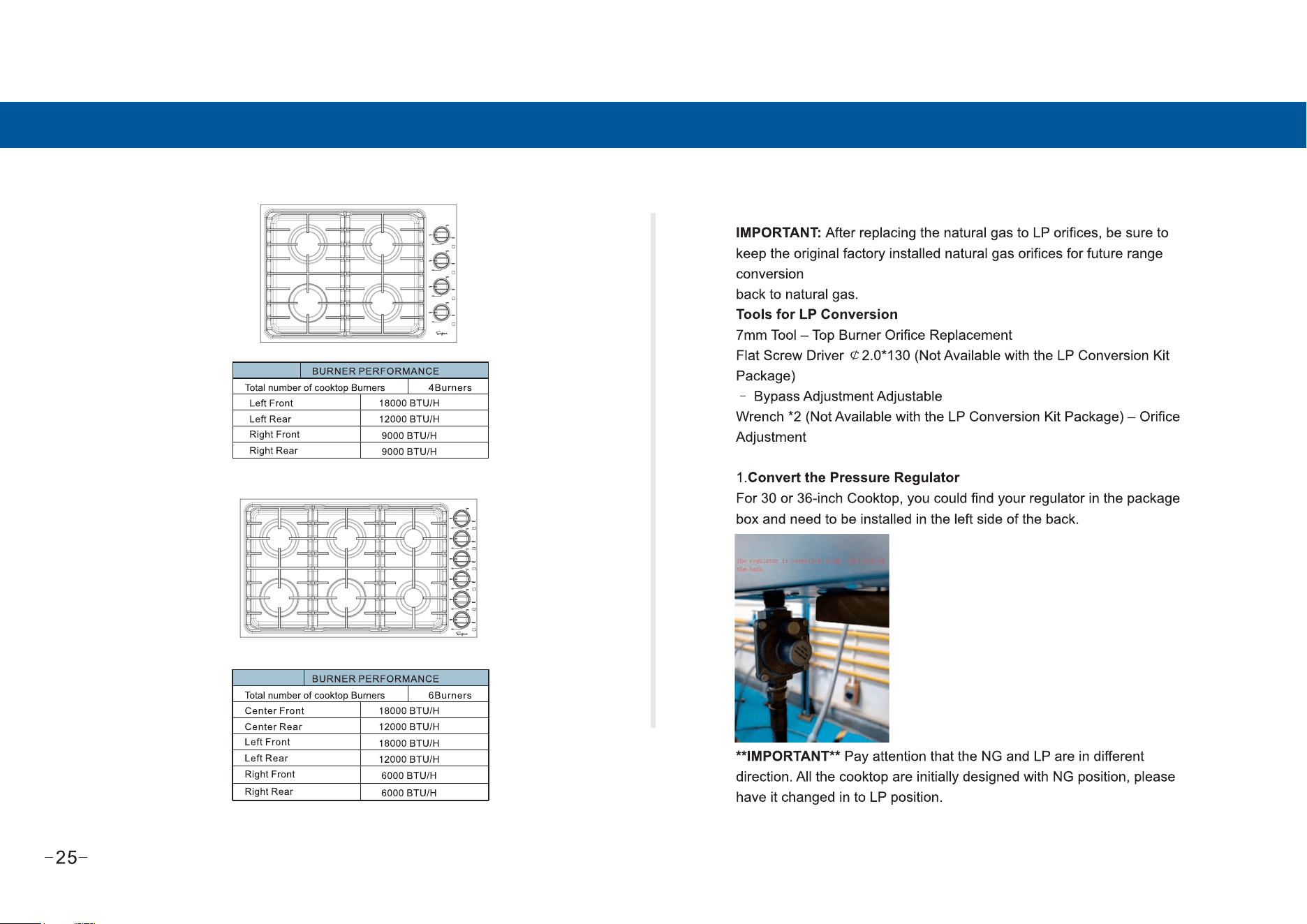

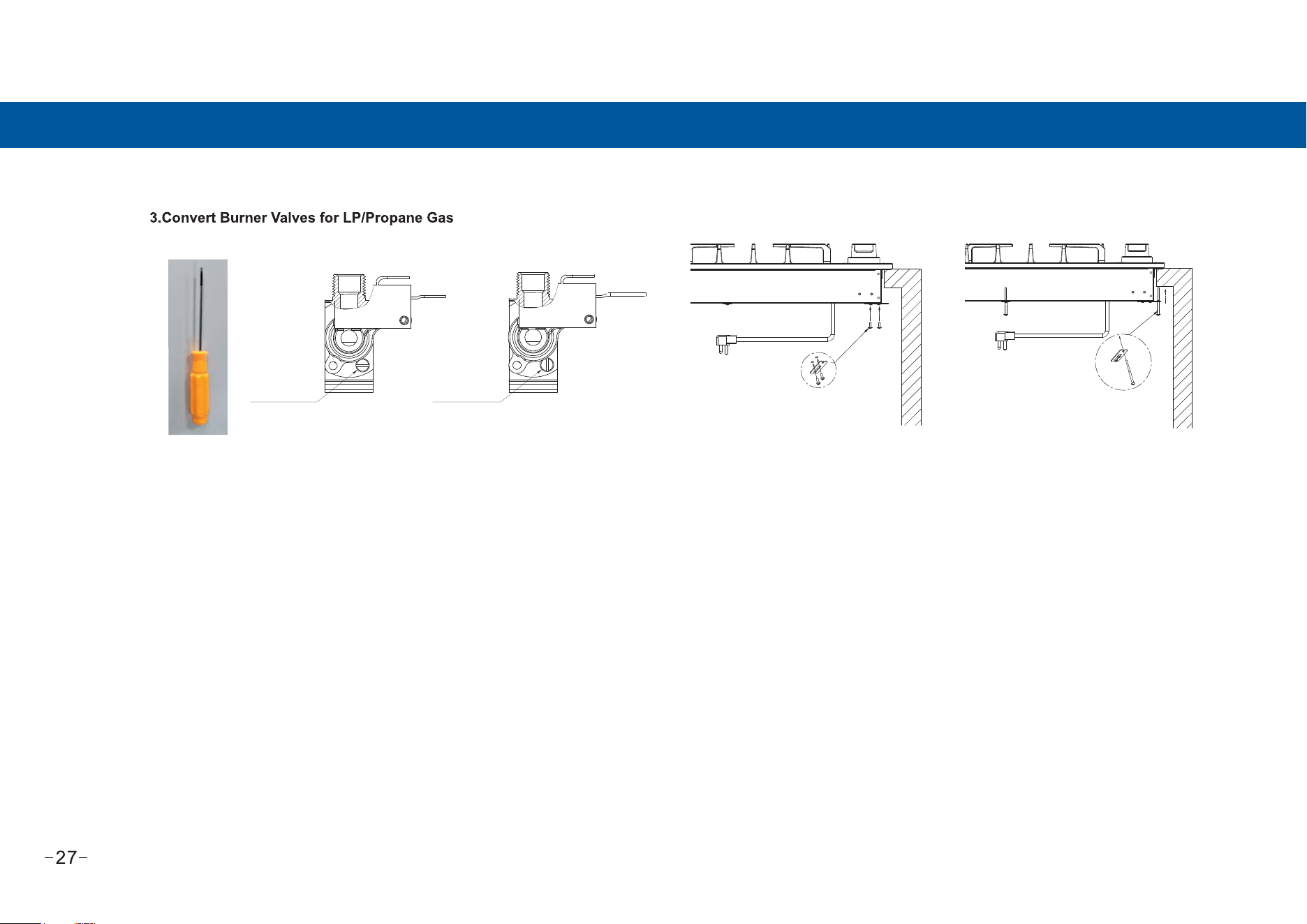

Gas Cooktop Conversion
25
—
2
—
-3-
Important safety information
Read all instructions before using this appliance
• All electrical and gas equipment with moving parts can be
dangerous. Please read the important safety instructions
for this appliance in this manual. The instructions must
be followed to minimize the risk of injury, death, or property
damage.
·Save this manual. Please Do Not Discard.
S
y
mbols used in this manual
AwARNING
Hazards or unsafe practices that may result in severe
personal injury or death.
八 CAUTION
Hazards or unsafe practices that may result in electric
shock, personal injury, or property damage.
@NOTE
Useful tips and instructions
These warning icons and symbols are here to prevent
injury to you and others. Please follow them explicitly.
After reading this section, keep it in a safe place for
future reference.
State of California Proposition 65 warning (US onl
y
)
WARNING
This product contains chemicals known to the State of
California to cause cancer and birth defects or other
reproductive harm.
Gas appliances can cause low-level exposure to Proposition
65 listed substances, including but not limited to, benzene,
carbon monoxide, formaldehyde and soot.substances
resulting from the incomplete combustion of natural gas or LP
fuels.For more information go to www.P65warnings.ca.gov
Commonwealth of Massachusetts
• This product must be installed by a licensed plumber or gas
fitter qualified or licensed by the State of Massachusetts.
When using ball-type gas shut-off valves,you must use the
T-handle type. Multiple flexible gas lines must not be
connected in series.
General safety
WARNING
reduce the risk of fire, electric shock, personal injuries, and/or death, observe the following precautions.
• Do not touch any part of the cooktop, including but not limited to cooktop burners during or immediately after cooking.
• Know the location of the gas shut-off valve and how to shut it off.
• Make sure the hold down brackets are properly installed on the cooktop. See the installation instructions for more information.
• Do not let children near the cooktop. Do not let children go onto the cooktop. Do not let children play with the cooktop or any
part(s) of the cooktop. Do not leave children unattended in an area where the cooktop is in use.
• Remove all packaging materials from the cooktop before operating to prevent ignition of these materials. Keep all packaging
materials out of children's reach.Properly dispose the packaging materials after the cooktop is unpacked.
• Do not store any object of interest to children on the cooktop or back-guard of the cooktop. Children climbing on the cooktop to
reach items could be killed or seriously injured.
• Do not operate the cooktop if the cooktop or any part of the cooktop is damaged, malfunctioning, or missing parts.
• Do not use the cooktop as a space heater. Use the cooktop for cooking only.
Use only dry pot holders.
• Do not use the cooktop to heat unopened food containers.
• Unplug or disconnect the power cord before servicing.
• Never store combustible materials (dishtowels, paper products, etc.) or packaged or canned food under the cooktop in a way that
would let them come in contact with the underside of the cooktop. The combustible material could catch fire and the packaged or
canned food could explode.
• Make sure the gas line is not compressed or bent by heavy objects. Otherwise, gas leaks or incomplete combustion may occur.
—
4
—
—
5
—
Fire safety
WARNING
To reduce the risk of fire, electric shock, personal injuries,
and/or death, observe the following precautions.
• Do not store, place, or use flammable or combustible
materials such as paper,plastic, pot holders, linens
curtains, gasoline or other flammable vapors or liquids
near the cooktop.
• Do not wear loose fitting or hanging garments while
using the cooktop.
• avoid grease buildup, regularly clean the vents.
• Do not let pot holders or other flammable materials touch
a heating element. Do not use a towel or other bulky items
made out of cloth in place of a pot holder.
• Do not use water on a grease fire. To put out a grease
fire, turn off the heat source and smother the fire with a
tight-fitting lid or use a multipurpose dry chemical or foam
type fire extinguisher.
• Do not heat unopened food containers. The buildup of
pressure may cause the container to burst and result in
1
n
J
ury.
• Always check if the burners are com busting normally.
Overheating may cause a fire, and incomplete combustion
may cause carbon-monoxide poisoning.
Gas safety
AwARNING
To reduce the risk of fire, electric shock, personal injuries,
and/or death, observe the following precautions.
Checking for gas leaks
• Leak testing of the appliance must be conducted according
to the manufacturer's instructions. Do not use a flame to check
for gas leaks. Use a brush to spread a soapy water mixture
around the area you are checking. If there is a gas leak, you
will see small bubbles in the soapy water mixture at the leak
point.
If you smell gas:
• Close the valve and do not use the cooktop.
• Do not light a match, candle, or cigarette.
• Do not turn on any gas or electric appliances.
• Do not touch any electrical switches or plug a power cord
into an outlet.
• Do not use any phone in your building.
• Evacuate the room, building, or area of all occupants.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
Electrical and grounding safety
WARNING
To reduce the risk of fire, electric shock, personal injuries, and/or death, observe the following precautions.
• Plug the power cord into a grounded 3-prong outlet.
• Do not remove the grounding prong.
• Do not use an adapter or an extension cord.
• Do not use a damaged power plug, power cord, or loose power outlet.
• Do not modi the power plug, power cord, or power outlet in any way.
• Do not put a fuse in a neutral or ground circuit.
• Use a dedicated 120-volt, 60-Hz, 20-amp, AC, fused electrical circuit r this cooktop. A time-delay fuse or circuit breaker is recommended.
Do not plug more than one appliance into this circuit.
• Do not connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.
• This cooktop must be Earth grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electrical shock by
providing a path r the electric current. This cooktop is equipped with a cord having a grounding plug. The plug must be firmly plugged into an
outlet that is properly installed and grounded in accordance with the local codes and ordinances. If you are unsure whether your electrical outlet
is properly grounded, have it checked by a licensed electrician.
• The cooktop is supplied with a 3-pronged grounded plug. This cord must be plugged into a matching, grounded 3-prong outlet that meets all
local codes and ordinances. If codes permit the use of a separate ground wire, we recommend that a qualified electrician determine the proper
path r this ground wire.
• Electrical service to the cooktop must conrm to local codes. Barring local codes,it should meet the latest ANSI/NF No. 70 - Latest Revision
(r theU.S.) or the Canadian Electrical Code CSA C22.1 - Latest Revisions.
• It is the personal responsibility of the cooktop owner to provide the correct electrical service r this cooktop.
-6-
-7-
Installation safety
WARNING
To reduce the risk of fire, electric shock, personal injuries, and/or death, observe the following precautions.
• Have your cooktop installed and properly grounded by a qualified installer, in accordance with the installation instructions. Any adjustment
and service should be performed only by qualified gas cooktop installers or service technicians.
• Do not attempt to service, modi, or replace your cooktop or any part of your cooktop unless it is specifically recommended in this manual.
All other service should be referred to a qualified technician.
• Always use new flexible connectors when installing a gas appliance. Do not use old flexible connectors.
• Make sure the hold down brackets are properly installed on the cooktop. See the installation instructions r more inrmation.
• Remove all tape and packaging materials.
• Remove all accessories from the cooktop, Grates and griddles are heavy. Use caution when handling them.
• Make sure no parts came loose during shipping.
• Make sure your cooktop is correctly installed and adjusted by a qualified service technician or installer r the type of gas (natural or LP) you
will use. For your cooktop to utilize LP gas, the installer must replace the 4 or 6 surface burner orifices with the provided LP orifice set,
and reverse the GPR adapter. Further more the bypass in burner valve will need to be adjusted.These adjustments must be made by a qualified
service technician in accordance with the manufacturer's instructions and all codes and requirements of the authority having jurisdiction.
The qualified agency performing this work assumes the gas conversion responsibility.
• Installation of this cooktop must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code,
ANSI Z223.1/NFPA.54, latest edition. In Canada, installation must conform with the current Natural Gas Installation Code, CAN/CGA-B149.1,
or the current Propane Installation Code, CAN/CGA-B149.2, and with local codes where applicable. This cooktop has been design-certified
by ETL according to ANSI Z21.1, latest edition, and Canadian Gas Association according to CAN/CGA-1.1, latest edition.
• Make sure the middle valve has adequate capacity and is not clogged.
• This cooktop must be installed by a qualified technician. Otheise, gas leaks, fire, or defective ignition may occur.
Location safety
WARNING
To reduce the risk of fire, electric shock, personal injuries,
and/or death, observe the following precautions.
• This cooktop is r indoor, household use only. Do not install
the cooktop in areas exposed to the weather and/or water.
• Do not install the cooktop in a place which is exposed to a strong
draft.
• Select a location where a grounded, 3- prong outlet is easily
accessible.
• If the cooktop is located near a window, do not hang long
curtains or paper blinds on that window.
• For the cooktop to ventilate properly, there must be enough
clearance at the top, back and sides of the cooktop, and underneath
the cooktop. The vents allow the necessary exhaust r the cooktop
to operate properly with correct combustion.
• Make sure the wall coverings around the cooktop can withstand
heat up to 194
°
F (90
°
C).
• Cabinet storage above the surface of the cooktop should be avoided.
If cabinet storage above the cooktop is necessary: allow a minimum
clearance of 30 inches (76.2 cm) between the cooking surface and
the bottom of the cabinets.
Cooktop safety
WARNING
To reduce the risk of fire, electric shock, personal injurie$
and/or death, observe the following precautions.
• Select cookware that is designed r range top cooking. Use cookware
that is large enough to cover the burner grates. Adjust the burner flames
so that the flames do not extend beyond the bottom of the cookware.
• Make sure all burners are o when not in use.
• Do not use aluminium foil to line the grates or any part of the cooktop.
• Do not leave burners unattended on medium or high heat settings.
• Bere igniting, make sure all burner caps are properly in place and
all burners are level.
• Always use the LITE position when igniting the burners and make sure
the burners have ignited. If ignition fails, turn the knob to OFF and wait
until the gas has dissipated.
• When you set a burner to simmer, do not turn the knob quickly.
Make sure the flame stays on.
• Do not place any objects other than cookware on the cooktop.
·If ods are flamed, they should only be flamed under a ventilation
hood that is on.
-8-
-9-
• Bere removing or changing cookware, turn o the burners.
• Remove od and cookware immediately after cooking.
• Bere removing any parts of the burner r cleaning, make sure the cooktop is o and completely cool.
• After cleaning the burner spreader, make sure it is completely dry before re-assembling.
• To avoid carbon monoxide poisoning, do not pour water into the cooktop well while cleaning.
• To avoid cookware discoloration, dermity, and/or carbon monoxide poisoning, do not use cookware that is substantially larger than the grate.
• Make sure cooare handles are turned to the side or rear of the cooktop and not over other suace burners.
·Stand away from the cooktop while frying.
• Always heat frying oils slowly, and watch as they heat. If you are frying ods at high heat, carefully watch during the cooking process. If a
combination of fats or oils is to be used during frying, mix them together bere heating.
·Use a deep-fryer thermometer whenever possible. This prevents overheating the fryer beyond the smoking point.
• Use a minimum amount of oil when shallow pan-frying or deep-frying. Avoid cooking unthawed od or od with excessive amounts of ice.
• Before moving cookware full of fats or oils, make sure it has completely cooled.
• To prevent delayed eruptive boiling, always allow heated liquids to stand at least 20 seconds after you have turned o the burner so that the
temperature in the liquid can stabilize. In the event of scalding, llow these first aid instructions:
1.lmmerse the scalded area in cool or lukewarm water for at least 10 minutes.
2.Do not apply any creams, oils, or lotions.
3.Cover with a clean, dry cloth.
• If a power failure occurs or the electric ignition fails to operate, do not use matches or lighters to ignite the burners. This may cause a fire or
physical burns.
• Do not place and use electric-powered cooking devices such as IH rice cookers or desktop cooking heaters on top of your cooktop. Electromagnetic
rces from these appliances may cause the cooktop to malfunction.
EMPV-30GC33 EMPV-36GC34
30" /36”Model:EMPV-30GC33/EMPV-36GC34
EMPV-30GC33 : Cut Out Dimension EMPV-36GC34 : Cut Out Dimension
EMPV-30GC33&EMPV-36GC34 Gas Cooktop Clearance Circuit Diagram
SW1
EMPV-30GC33 Circuit
Diagram SW2 SW3
SW4
burner valve
L
PL
PL
N
Right Front Right Rear
Left Front Left Rear
Ignition pin
L
N
INPUT: 120V/AC 60Hz
Power Plug
L (Black wire)
N (White wire)
PE(Green wire)
Pulse ignitor
HV-4pin
N
EMPV-30GC33&EMPV-36GC34 Side &Back Panel Layout
SW1 SW2
EMPV-36GC34 Circuit
Diagram SW3 SW4
burner valve
L
PL
PL
N
Right Front Right Rear
Left Front Left Rear
Ignition pin
L
N
Pulse ignitor
HV-6pin
SW5 SW6
Middle Front Middle Rear
N
L (Black wire)
N (White wire)
PE(Green wire)
INPUT: 120V/AC 60Hz
Power Plug
EMPV-30GC33
Surface burner
grates (2)
EMPV-30GC33
Surface burners and
caps (4)
EMPV-36GC34
Surface burner
grates (3)
EMPV-36GC34
Surface burners and
caps (6)
ELECTRICAL REQUIREMENTS
Using the cooktop burners
Gas cooktop requires 110 volts, 50/60 Hz electrical supply to
operate the ignition system.
WARNING
Electrical Grounding lnstructionsThis appliance is equipped
with a (three-prong)(four-prong) grounding plug for your
protection against shock hazard and should be plugged directly
into a properly grounded receptacle. Do not cut or remove the
grounding prong from this plug.

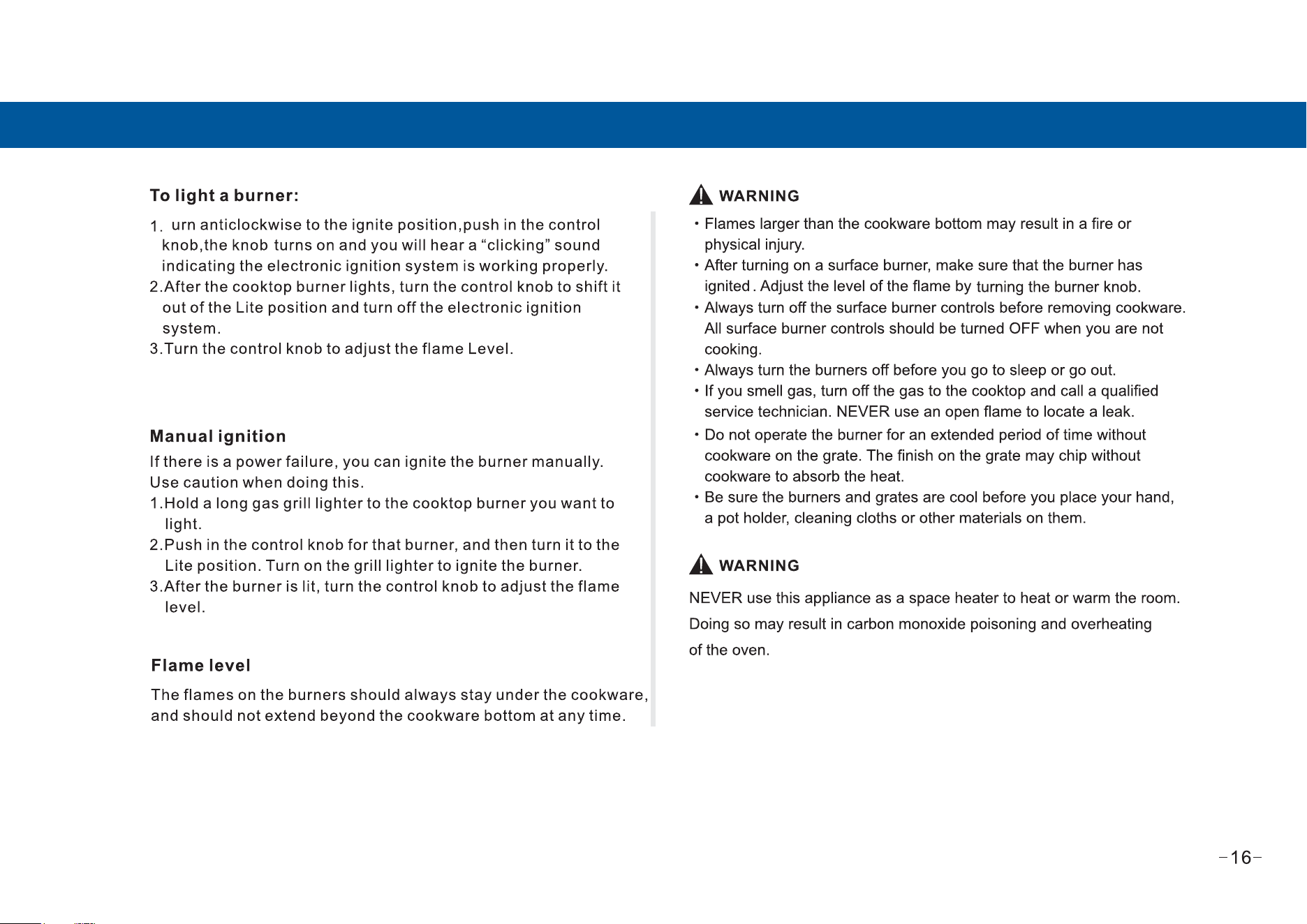

Ignition
心 CAUTION
Make sure all cooktop burners are properly installed. A statement of
the gas supply pressure for checking the regulator setting[The
pressure stated shall be at least NG 5in w.c/LP 1 Oin w.c above the
manufacturer's specified manifold pressure.]
l1_
、
、
．
、
I
、
、
伺
、
I~
、
f
4
11
11
1
1
II
ll
II
、
j `
、
、
、
沁闷罔}
＼～
、
、
J_lI
I
I
I
OFF
Med
�
�
-15-
HI
LOW
T
—
17
—
Cookware
Requirements
·Flat bottom and straight sides
·Tight-fitting lid
·Well-balanced with the handle weighing less than the main
portion of the pot or pan.
Size limitations
心 CAUTION
• Do not place a pan or pot with a bottom diameter of about
10 inches or more on the Le Front or Right Front burner.
• Always make sure cookware handles are turned to the side
or rear of the cooktop and not over other surface burners.
• This will minimize the chance of burns,spillovers, and the
ignition of flammable materials that can occur if pots or pans
are bumped accidently.
• If using glass cookware, make sure it is designed for
cooktop cooking.
• Never leave plastic items on the cooktop. They can melt or
ignite. Heating a sealed plastic container can cause
a building up of dangerous pressure which can cause the
container to explode.
• When use a wok ,make sure you hold the handle of a wok
or a small one-handled pot while cooking.
Install the grates
Install the grates as instructed below for longest life.
When installed properly, the openings in the grates are
centered over the burners.
The three cooktop grates are designed to fit in specific
positions on the cooktop. For maximum stability,
these grates should only be used in their proper positions.
The back of the right grate is notched to help you orient
the grates correctly. See the illustration below.
To replace the grates corre ctly, llow these steps:
1.Locate the notch on the back of the right grate.
2.0rient the right grate so that it is on the right side of
the cooktop with the notch in the back.
3.Gently lower the legs of the right grate into the
corresponding dimples on the cooktop.
4.Gently lower the legs of the remaining two grates into
the corresponding dimples on the cooktop as shown
in the illustration
Care and cleaning of the cooktop
A WARNING
Be sure electrical power is off and all surfaces are cool before
cleaning any part of the cooktop.
Cooktop surface
We recommend that you remove food spills immediately aer they
take place.
1.Turn o all surface burners.
2.Wait until all burner grates cool down, and then remove them.
3.Clean the cooktop surface using a so cloth. If food spills run into
gaps of the burner components, remove the burner cap and the
head,and wipe up the spills.
4.When you are done cleaning, reinsert the burner components,
and then put the burner grates back into position.
-18-
-19-
Stainless steel surfaces
1.Do not remove any spills, spots, and grease stains using
a soft, wet cloth until suace is cool.
2.Apply an approved stainless steel cleanser to a cloth or
paper towel.
3.Clean one small area at a time, rubbing with the grain of
the stainless steel if applicable.
4.when done, dry the surface using a soft, dry cloth.
5.Repeat steps 2 through 4 as many times as necessary.
6 CAUTION
• Do not use a steel-wool pad or abrasive cleaner, which
can scratch or damage the surface.
• Do not remove the cooktop surface to clean it. The gas
lines leading to the burner manilds can be damaged,
resulting in a fire or system failure.
• Do not pour water into the cooktop well while cleaning
the cooktop. This could leak down into the cooktop gas
and electrical systems creating a risk of electrical shock or
high levels of Carbon Monoxide due to corrosion of the gas
valves or ports.
• Do not spray any type of cleanser into the manild holes.
The ignition system is located in those holes and must be
kept free of moisture.
Control knobs
Make sure all surface burner knobs are in OFF position.
1.Grasp each knob and pull straight up to remove
2.Clean the knobs with soft cloth and warm, soapy water.
Then rinse and dry them thoroughly.
3.Clean the stainless steel surfaces using stainless steel
cleaner.
4.Re-attach the knobs in the OFF position to the control
valve stems.
5.Do not remove spill protector.
Do not clean the control knobs in a dishwasher.
Do not spray cleansers directly onto the control panel.
Moisture entering the electric circuits may cause electric
shock or product damage.
Burner grates and components
Turn o all surface burners and make sure they have
all cooled down.
1.Remove the burner grates.
2.Remove the burner caps from the burner heads.
3.Remove the burner heads from the valve manifolds to reveal the
starter electrodes.
4.Clean all removable grates and burner components in warm,
soapy water. Do not use steel-wool pads or abrasive cleaners.
5.Rinse and dry grates and burner components thoroughly.
6.Return the burner heads to their positions on top of the manild
valves. Make sure a starter electrode is inserted through the hole in
each burner head burner component re-assembly instructions.
?.Return the burner caps to their positions on top of the burner
heads. To ensureproper and safe operation, make sure the burner
caps lie flat on top of the burner heads.
8.Re-install the burner grates in their respective positions.
9.Turn on each burner and check if it operates properly.Aer
veriing that a burner operates normally, turn it o.
Burner caps and heads
NOTE
Bere removing the burner caps and heads, remember their size
and location. Replace them in the same location aer cleaning.
Wash burner caps and burner heads in hot, soapy water and rinse
with clean running water. u may scour with a plastic scouring pad
to remove burned-on od particles.
Use a sewing needle or twist tie to unclog the small holes in the
burner head, if required.
CAUTION
• Do not wash any burner parts in a dishwasher.
• Do not use steel wool or scouring powders to clean the burners
-20-
—
21
—
Burner bases
& CAUTION
The burner bases cannot be removed for cleaning. Make sure
that no water gets into the burner bases and the brass gas
orifices. Wipe clean with a damp cloth. Be careful not to scratch,
deform, or damage the bases. Allow them to dry fully before using.
Electrodes
Do not attempt to remove the electrode from the cooktop or
burner bases.Be careful not to push in any cooktop controls
while cleaning the cooktop. A slight electrical shock might
result which could cause you to knock over hot cookware.
Make sure that the white ceramic electrodes in the cooktop
are clear of soil and dry.Clean the metal part of the electrode
with a soft cloth. Do not use water to clean the igniters. Before
reassembling the surface burners,push down gently on each of
the white ceramic, electrodes to make sure they are pressed
against the burners bases.
NOTE
Do not attempt to remove the electrode from the cooktop.
Grates
Do not clean the grates in a dishwasher. They will be damaged.
Li grates out when cool. Grates should be washed regularly
and after spillovers. Wash them in hot, soapy water and rinse with clean
water. When replacing the grates, be sure they are positioned securely
over the burners.
Burner head and cap replacement
Round Burner head
1.Align the burner (point A) with
the notch in the bottom
cup.(point
B
)
2. turn the burner over and cover
the bottom cup.
Burner cap
丛 CAUTION
Make sure all burner components
(heads and caps) are re-installed
properly. They will be stable and
rest flat when correctly installed.
Burner Head
畛
�
o
二0
1.Match the burner caps to the burners by size,
and then re-install the caps on the burner heads.
�CAUTION
Make sure each cap is re-installed on the
correct burner head, is centered on the burner
head, and lies flat.
&CAUTION
Make sure all burner components (heads and
caps) are re-installed properly. They will be stable
and rest flat when correctly Installed
三易勹
Burner cap
令
八
入
畴
二
0
三
0
After installation of surface burners, check the
ignition.
Incorrect placement of a burner head or cap
will result in poor ignition or uneven flames
(as shown in the pictures).
—
22
—
-23-
Troubleshooting
If you encounter a problem with the cooktop, check the tables starting
below, and then try the suggested actions.
Checkpoints
Gas safety
Problem
Possible cause
Action
You smell gas.
The surface burner knob is not in the
Turn the burner knob to OFF.
OFF position and the burner is not lit.
There is a gas leak.
Clear the room, building, or area of all occupants. Immediately call your gas
supplier from a neighbor's phone. Do not call from your phone. It is
electrical and could cause a spark that could ignite the gas. Follow the gas
supplier's instructions.If you cannot reach your gas supplier, call the fire
department.
Surface
The control knob is not set properly.
Push in the control knob and turn it to the Lite position.
burners do
not light.
The burner caps are not in place.
Clean the electrodes. Put the burner cap on the burner head.Align the
The burner base is misaligned.
burner base.
A surface burner
The control knob has been left in the
After the burner lights, turn the control knob to a desired setting.If the
clicks during
Lite position.
burner still clicks, contact a service technician.
operation.
Very large
The wrong burner orifice is installed.
Check the burner orifice size. Contact your installer if you have the wrong
or yellow surface
orifice (LP gas instead of natural gas or natural gas instead of LP gas).
burner flames.
EMPV-30GC33
EMPV-36GC34
EMPV-30GC33
EMPV-36GC34
EMPV-30GC33&EMPV-36GC34 LP Conversion
One 5/64” flat screw driver is needed for the Bypass Adjustment on Burner Valve .
a.
Please
take off the burner knobs to get access to the burner valve part. There's a hole located at bottom right of the burner valve,
providing access to the adjustment of burner valve bypass orifice. Take out the bezel if needed. The hole is part of the micro-switch (the
black part) sticking to the burner valve.
Use the screw driver to go across the micro-switch and reach the bypass orifice on the burner valve. Bypass orifice could help to control
the flame.
b.
Put
the knob back, adjust the flame by rotating the knob. The original location of bypass is for NG. If converted to LP, adjust the vertical
direction of the adjustment shaft groove is LP.If converted from LP to NG,adjust the horizontal direction of the shaft groove is NG.
Originally, the Bypass is located at NG Position and it's not screwed to the bottom (tightest)
For LP conversion of bypass, not bypass orifice needs to be changed. Screw the Bypass Orifice to bottom (clockwise).
c.
Save
the main bypass jets, in the plastic bag labeled main jets . When you are using your top burners, if the flame needs to be adjusted
accordingly to fit your need, please adjust the bypass orifices on the burner valve. Put back the knob on and adjust the flame by rotating
the bypass via a small flat screw driver. Check the flame's condition to get the best performance.
Adjust the horizontal direction of
the shaft groove is NG
The vertical direction of the
adjustment shaft groove is LP
1. Place the product on the desktop, and use
two cross-shaped flat-head screws to fix the desktop
fixing device on the product base.
2. The countertop pan-head screw passes
through the countertop fixing piece, and twist
the screw to lock the countertop.
INSTALLING THE COOKTOP
4.Reconnect Gas and Electrical Supply to Cooktop.
Leak testing of the appliance shall be conducted according to the
installation instructions provided with the cooktop. Checking r
Manild Gas Pressure . If it is necessary to check the manifold
gas pressure, remove the burner cap, inner ring, outer burner
head and burner base of the right front top burner and connect a
manometer (water gauge) or another pressure test device to the
burner orifice. Use a rubber hose with inside diameter of
approximately¼" and hold the end of the tube tight over the orifice.
Turn the gas valve on. For a more accurate pressure check,
have at least two other top burners burning. Be sure that the gas
supply (inlet) pressure is at least one inch above the specified
manild pressure. The gas supply pressure should never be
over 14" water column. When properly adjusted the manifold water
column pressure is 1 O" r LP/Propane gas or 5" for Natural Gas.
5.lnstallation of New LP/ Propane Rating / Serial Plate
Record the model and serial number on the LP / Propane Rating
serial plate provided in this kit. The inrmation can be obtained
from the existing Rating /Serial plate. Place the new plate as close
as possible to the existing Rating /Serial plate on the range.
,,. 罚丽
Do not use a flame to check r gas leaks
a.Disconnect the range and its individual shut-off valve from the
gas supply piping system during any pressure of that system at
test pressures greater than 14" of water column pressure
(approximately½
" psig)
b.The appliance must be isolated from the gas supply piping system
by closing its individual manual hut-o valve during any pressure
testing of the supply system at test pressure equal to or less than 14"
water column pressure(approximately
½
" psig)
-28-
warranty applies to products purchased and located in the United States.
Products purchased or located outside this area are excluded. The warranty
does not apply to damage resulting from abuse, accident, natural disaster,
loss of electrical power to the product for any reason, alteration, outdoor
use, improper installation, and improper operation, repair or service of the
product by anyone other than an authorized Empava, service agency or
representative.
Some states do not allow limitations on how long implied warranty lasts, so
the above limitation may not apply to your implied warranty.
All repair labor and cost of replacement parts found to be defective due to
material and workmanship. Service must be provided by a Empava
Authorized Service Agency during normal working hours.
1. Service to instruct you on how to use your cooktop to correct house
wiring, replace or repair house fuses, service to correct the installation of
your cooktop.
2. Repairs when your cooktop is used for other than normal, single-family
household use or when it is used in a manner that is contrary to published
Warranty
3. Cosmetic damage, including chips, dents, scratches or other damage to the
finish of your cooktop, unless such damage results from defects in materials or
workmanship and is reported to Empava within 30 days from the date of
purchase.
4. Costs associated with the removal from your home of your cooktop for
repairs. This cooktop is designed to be repaired in the home and only
in-home service is covered by this warranty.
5. Damage resulting from misuse, alteration, accident, abuse, fire, flood, acts of
God, improper installation, installation not in accordance with electrical, or use
of consumables or cleaning products not approved by Empava.
6. Service to repair or replace consumable parts. Consumable parts are not
included in the warranty coverage.
7. The removal and re-installation of your cooktop if it is installed in an
inaccessible location or is not installed in accordance with published installation
instructions.
8. Repairs to parts or systems resulting from unauthorized modifications made
to the appliance.
9. Expenses for travel and transportation for product service if your cooktop is
located in a remote area where service by an authorized Empava servicer is not
available.
1). Serial number that have been removed, altered or cannot be readily
determined;
2). Product that has been transferred from its original owner to another party or
outside the USA or Canada;
3). Rust on the interior or exterior of the unit;
4). Products purchased “as-is” are not covered by this warranty;
5). Products used in a commercial setting;
2-Year Parts and Labor Warranty
Warranty
6). Service calls which do not involve malfunction or defects in materials or
workmanship, or in accordance with the provided instructions;
7). To correct the installation of your appliance or to instruct how to use the
appliance;
8). Expenses for making the appliance accessible for service, such as removal
of trim, cupboards, shelves, etc., which are not part of the appliance when it is
shipped from the factory;
9). Service calls to repair or replace appliance light bulbs, air filters, other
consumables, or knobs, handles, or other cosmetic parts;
10). Surcharges including, but not limited to, any after-hour, weekend, or
holiday service calls, tolls, ferry trip charges, or mileage expense for service
calls to remote areas, including Hawaii, Alaska and Canada;
11). Damages to the finish of appliance or home incurred during installation,
including but not limited to floors, cabinets, walls, etc.;
12). Damages caused by: services performed by unauthorized service
companies; use of parts other than genuine Empava parts or parts obtained
from persons other than authorized service companies; or external causes
such as abuse, misuse, inadequate power supply, accidents, fires,
or acts of God;
The warranty applies to appliances purchased and used for personal, family or
household purposes only. It does not cover appliances used for commercial
applications.
Should the appliance be sold by the original purchaser during the warranty
period, warranty shall extend to the new owner until the expiration date of the
original purchaser warranty period.
Warranty and Product Registration
Empava is not responsible for incidental or consequential damages. Under no
circumstances will Empava's liability exceed the cost that you paid for the
product. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitations or exclusion may not apply
to you.
This warranty gives you specific legal rights, and you may also have other
rights that vary from state to state. Whenever you call our customer service
at 1-888-682-8882 (Empava cooktop) for technical information and parts
sales in the United States or to request service for your appliance, please
have your complete model number and serial number ready. The model and
serial number can be found on the product data plate. Please enter the
information requested in the spaces provided.
Model No.
Date of Purchase
Dealer
Town
Serial No.
Purchaser
Suburb
Country
Note: You must provide proof of purchase and installation date for in-warranty
service.
Online Warranty Registration
You can register to activate your product warranty online to receive full benefit
of Empava warranty service at www.empava.com
Please rest assured that under no conditions will Empava sell your name or any
of the information your provide to us. We are very grateful that you have
chosen Empava products for your home.
