CHECK FOR CONCEALED DAMAGE
FILE CLAIM WITH DELIVERING FREIGHT CARRIER
Installation Instructions For
STOS & TOS SERIES
SERVING SHELVES

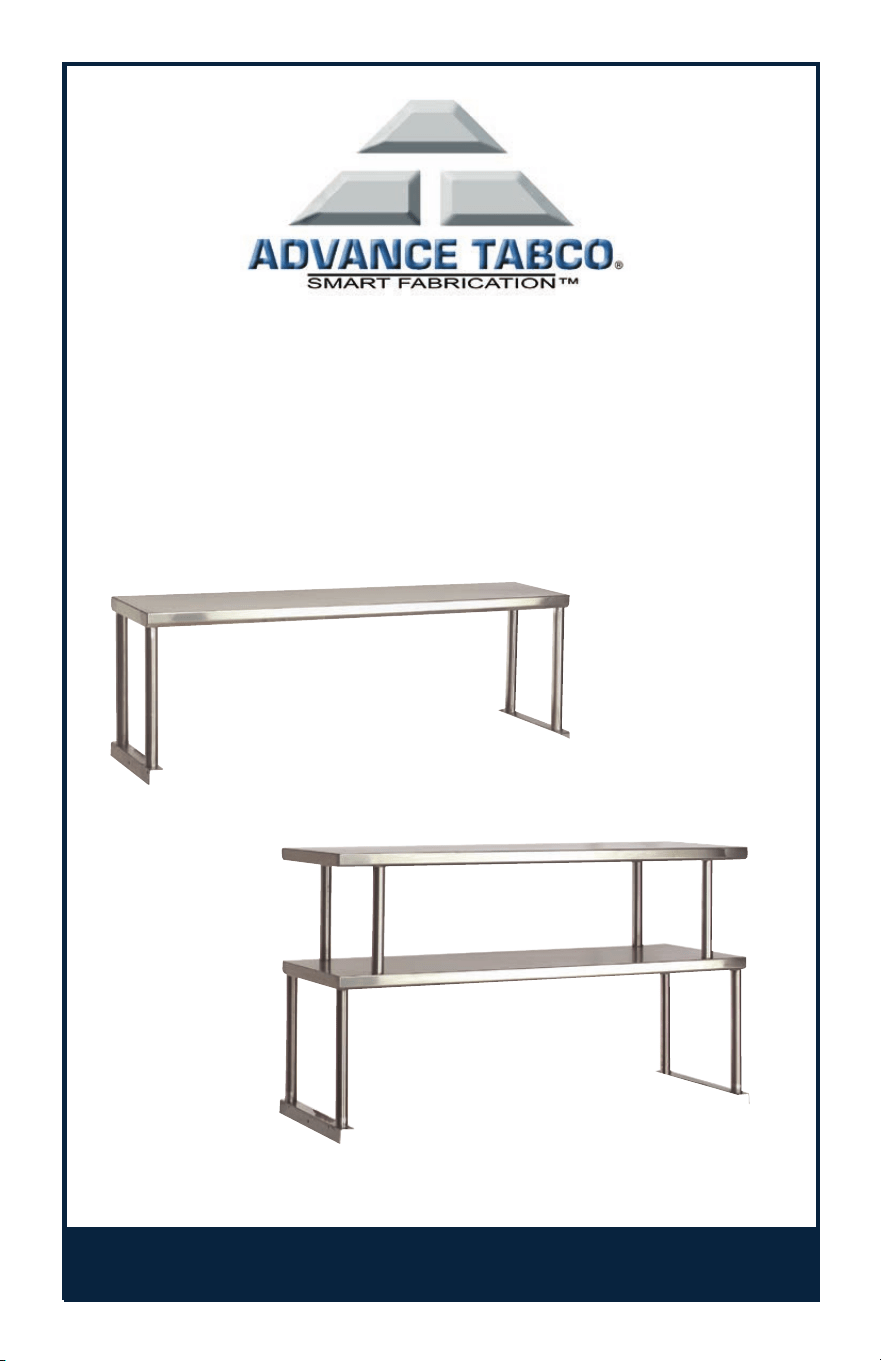

STOS Series Shelf
TOS Series Shelf
Contents:
(4) Expander Leg Bolts
(6) Sheet Metal Screws
(16) Dome Cap Nuts
Tools Required:
Philip’s Head Screw Driver
Pliers
STEP 1: Place top shelf (A) upside down and mount top leg
assembly (B) to the studs inside the shelf using the dome cap
screws (D).
STEP 2: Insert the expander leg bolts (C) thru the bottom shelf
and assemble the bushings and knurled nut as shown in Figure 1.
STEP 3: Place the stainless shelf (E) onto the top leg assembly
and tighten the expander bolts until they grab the inside of the legs
tightly.
STEP 4: Attach the bottom leg assembly (G) thru the studs inside
the bottom shelf using the dome cap screws.
STEP 5: Then use the remaining cap nuts to tighten the bottom
shelf to the bottom leg assemblies
STEP 6: Remove the existing sheet metal screws from the hot
food table sides, then turn the assembled unit over and place in
the center of your hot food table. Use the sheet metal screws (H)
to then attach the over shelf in the existing holes.
2

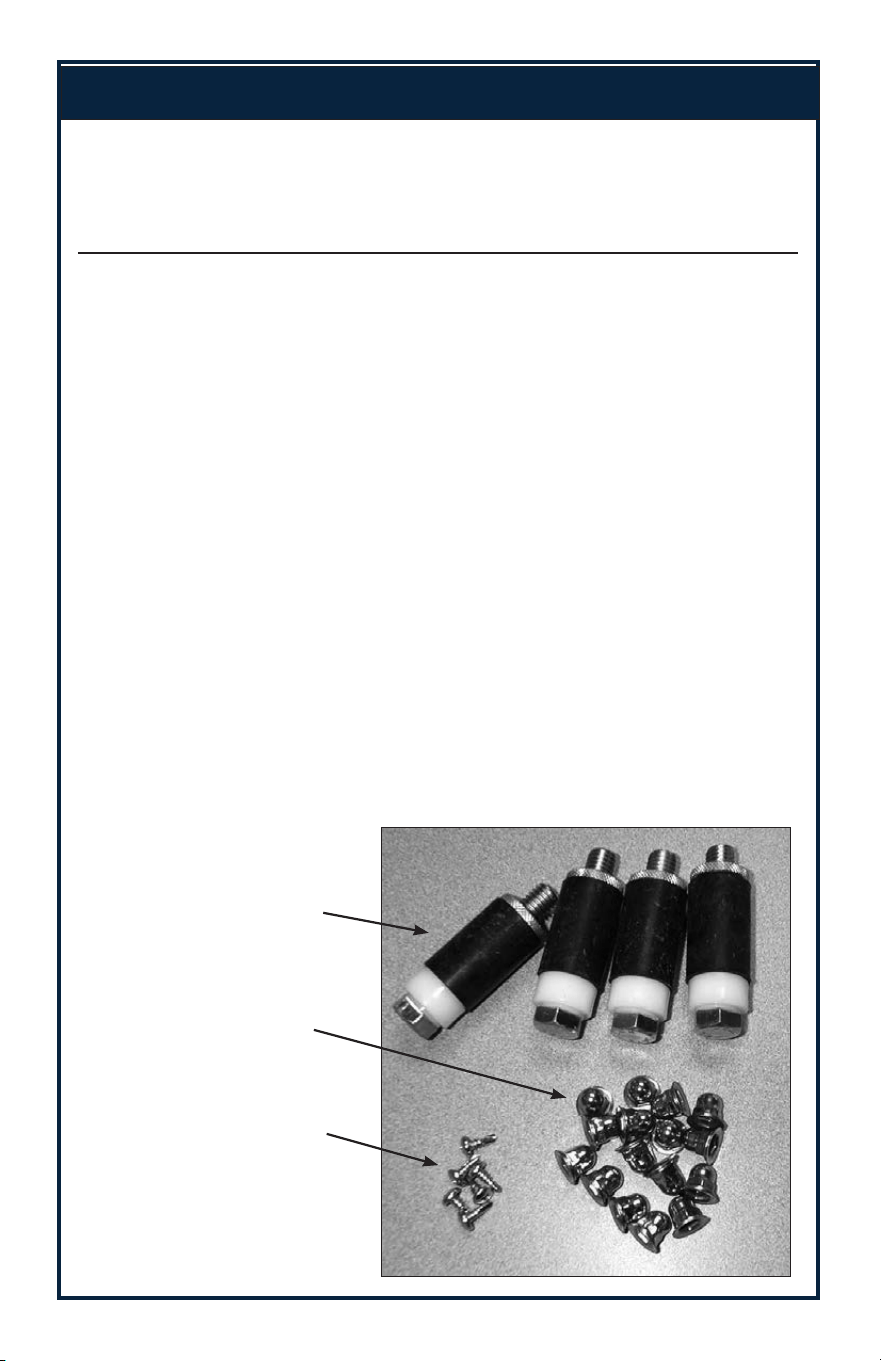

(C) Expander Leg Bolts
(D) Dome Cap Screws
(H) Sheet Metal Screws

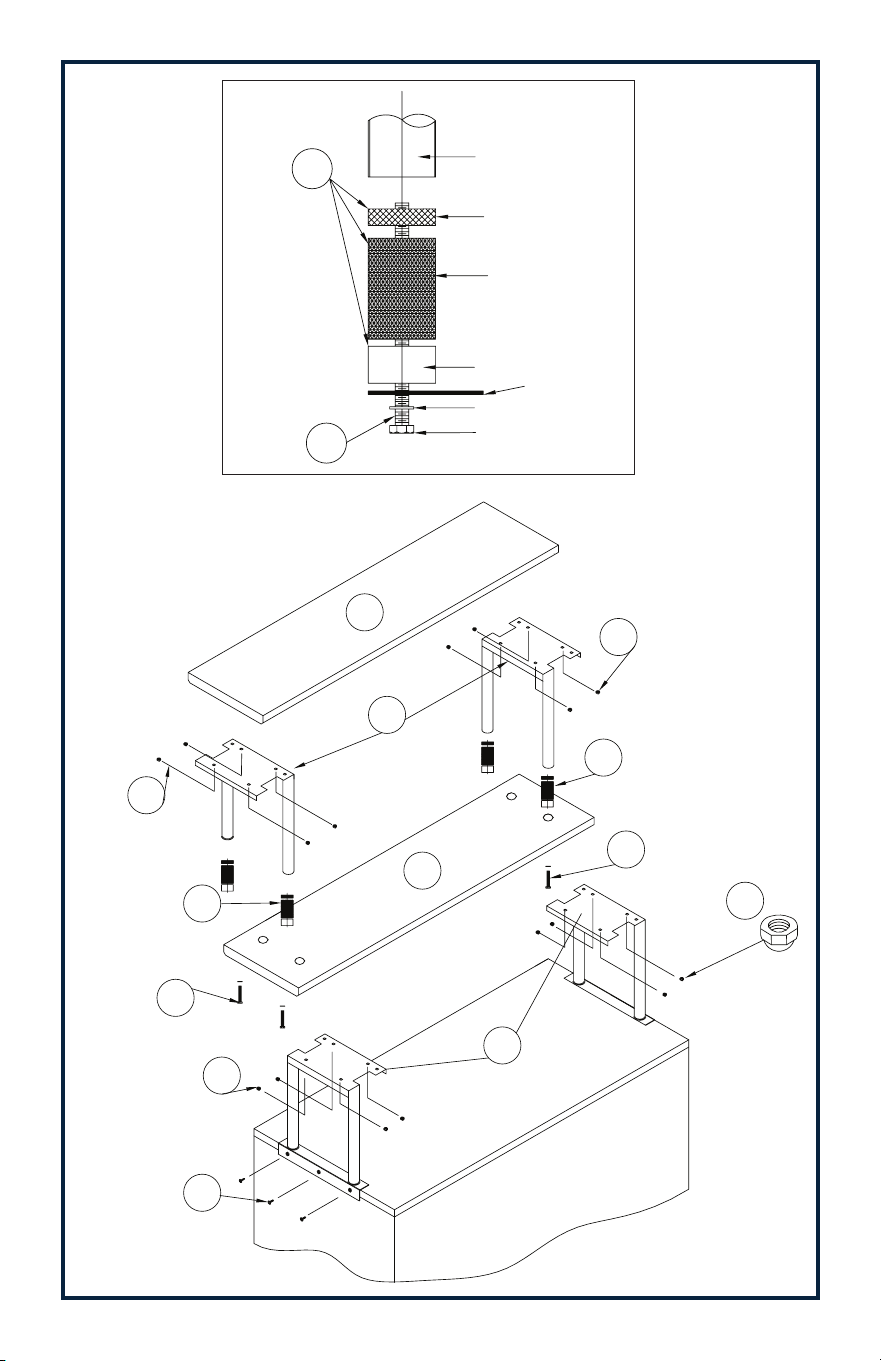

INSTALLATION FOR TOS SERIES SHELF
F
NUT
SHELF
NYLON WASHER
NYLON SPACER
RUBBER
EXPANDER
G
KNURLED NUT
LEG
I
H
A
E
G
F
D
D
D
D
B
G
F
F
NUT
SHELF
NYLON WASHER
NYLON SPACER
RUBBER
EXPANDER
G
KNURLED NUT
LEG
I
H
A
E
G
F
D
D
D
D
B
G
F
Figure 1
Figure 2
3
Edgewood, New York 11717-8380
©ADVANCE TABCO JULY 2016
For Further Assistance
Contact Customer Service at:
800-645-3166
or
Contents:
(6) Sheet Metal Screws
(8) Dome Cap Nuts
Tools Required:
Philip’s Head Screw Driver
Pliers
STEP 1: Remove the existing Sheet Metal Screws from the Hot
Food Table sides, then place the sides in the center of your hot
food table. Use the existing Sheet Metal Screws (B) to then attach
the over shelf in the existing holes. See Figure 1.
STEP 2: Place the stainless shelf (C) onto the top of the uprights
lining up the studs through the holes on the upright assembly.
Using the Dome Cap Screws (D) secure the stainless shelf (C) to
the uprights.

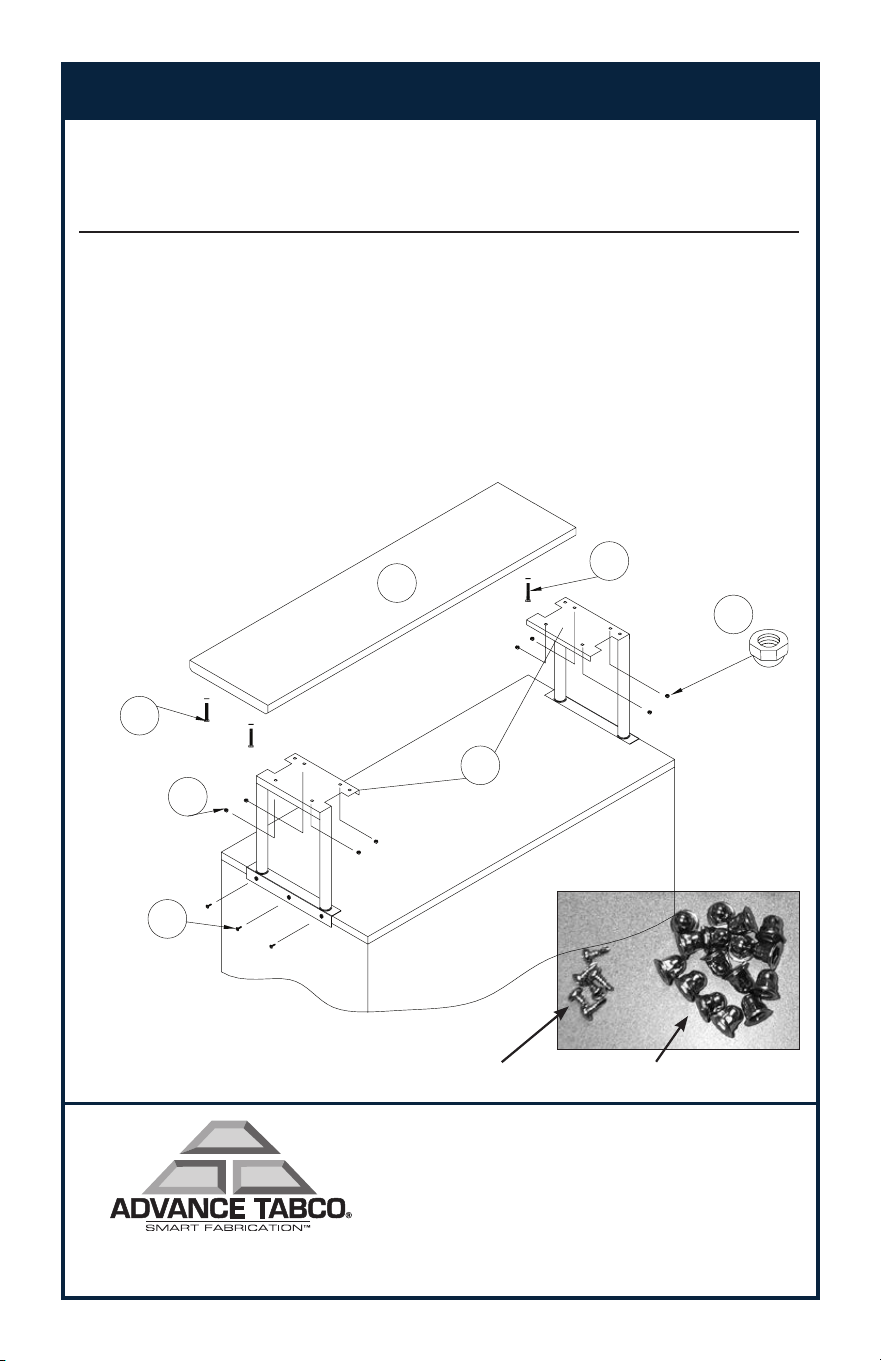

(B) Sheet Metal Screws
A
C
E
D
D
B
E
(D) Dome Cap Screws
Figure 1
INSTALLATION FOR STOS SERIES SHELF
