Digital Projector
User Manual
LU935 / LU935ST
V 1.03
2 Warranty and Copyright information
Warranty and Copyright information
Limited warranty
BenQ warrants this product against any defects in material and workmanship, under normal usage and
storage.
Proof of purchase date will be required with any warranty claim. In the event this product is found to be
defective within the warranty period, BenQ's only obligation and your exclusive remedy shall be
replacement of any defective parts (labor included). To obtain warranty service, immediately notify the
dealer from which you purchased the product of any defects.
Important: The above warranty shall be void if the customer fails to operate the product in accordance
with BenQ's written instructions, especially the ambient humidity must be in-between 10% and 90%,
temperature in-between 0°C and 35°C, altitude lower than 4920 feet, and avoiding to operate the
projector in a dusty environment. This warranty gives you specific legal rights, and you may have other
rights which vary from country to country.
For other information, please visit www.BenQ.com.
Copyright
Copyright © 2023 by BenQ Corporation. All rights reserved. No part of this publication may be
reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or
computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical,
manual or otherwise, without the prior written permission of BenQ Corporation.
Disclaimer
BenQ Corporation makes no representations or warranties, either expressed or implied, with respect
to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any
particular purpose. Further, BenQ Corporation reserves the right to revise this publication and to make
changes from time to time in the contents hereof without obligation to notify any person of such
revision or changes.
*DLP, Digital Micromirror Device and DMD are trademarks of Texas Instruments. Others are
copyrights of their respective companies or organizations.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos
are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
3 Table of Contents
Table of Contents
Warranty and Copyright information ................................................................................ 2
Important safety instructions .............................................................................................. 4
Introduction .......................................................................................................................... 6
Shipping contents ....................................................................................................................................... 6
Projector exterior view ............................................................................................................................ 8
Controls and functions.............................................................................................................................. 9
Positioning your projector ................................................................................................. 11
Choosing a location .................................................................................................................................11
Obtaining a preferred projected image size....................................................................................... 13
Mounting the projector........................................................................................................................... 15
Adjusting the projector position........................................................................................................... 16
Adjusting the projected image ..............................................................................................................17
Connection .......................................................................................................................... 19
Operation ............................................................................................................................ 21
Starting up the projector ........................................................................................................................21
Using the menus ....................................................................................................................................... 22
Securing the projector ............................................................................................................................23
Switching input signal ...............................................................................................................................25
Controlling the projector through a Wired LAN environment ...................................................25
Shutting down the projector .................................................................................................................28
Direct power off ......................................................................................................................................28
Menu operation ................................................................................................................... 29
Basic menu ............................................................................................................................................... 34
Advanced menu ..................................................................................................................................... 36
Maintenance ........................................................................................................................ 47
Care of the projector ..............................................................................................................................47
Light source information ........................................................................................................................ 48
Troubleshooting ................................................................................................................. 50
Specifications ...................................................................................................................... 51
Projector specifications ..........................................................................................................................51
Dimensions ................................................................................................................................................ 52
Timing chart............................................................................................................................................... 53
4 Important safety instructions
Important safety instructions
Your projector is designed and tested to meet the latest standards for safety of information
technology equipment. However, to ensure safe use of this product, it is important that you follow
the instructions mentioned in the user manual / installation guide and marked on the product.
1. Please read the user manual / installation guide before you operate your projector.
Save it for future reference.
2. Do not look straight at the projector lens during operation. The intense light beam
may damage your eyes.
3. Refer servicing to qualified service personnel.
4. Always open the lens shutter (if any) or remove the lens cap (if any) when the
projector light source is on.
5. The light source becomes extremely hot during operation.
6. In some countries, the line voltage is NOT stable. This projector is designed to operate safely
within a mains voltage between 100 to 240 volts AC, but could fail if power cuts or surges of
±10 volts occur. In areas where the mains voltage may fluctuate or cut out, it is
recommended that you connect your projector through a power stabilizer, surge
protector or uninterruptible power supply (UPS).
7. Do not block the projection lens with any objects when the projector is under operation as
this could cause the objects to become heated and deformed or even cause a fire. To
temporarily turn off the light source, use the blank function.
8. Do not operate light sources beyond the rated light source life.
9. Do not place this product on an unstable cart, stand, or table. The product may fall,
sustaining serious damage.
10. Do not attempt to disassemble this projector. There are dangerous high voltages inside which
may cause death if you should come into contact with live parts.
Under no circumstances should you ever undo or remove any other covers. Refer servicing
only to suitably qualified professional service personnel.
11. Do not block the ventilation holes.
- Do not place this projector on a blanket, bedding or any other soft surface.
- Do not cover this projector with a cloth or any other item.
- Do not place inflammables near the projector.
If the ventilation holes are seriously obstructed, overheating inside the projector may result in
a fire.
12. Do not stand the projector on end vertically. Doing so may cause the projector to fall over,
causing injury or resulting in damage to the projector.
13. Do not step on the projector or place any objects upon it. Besides probable physical damage
to the projector, doing so may result in accidents and possible injury.
14. When the projector is under operation, you may sense some heated air and odor from its
ventilation grill. It is a normal phenomenon and not a product defect.
15. Do not place liquids near or on the projector. Liquids spilled into the projector may cause it
to fail. If the projector does become wet, disconnect it from the power supply's power outlet
and call BenQ to have the projector serviced.
16. This apparatus must be earthed.
5 Important safety instructions
17. Do not place this projector in any of the following environments.
- Space that is poorly ventilated or confined. Allow at least 50 cm clearance from walls and free flow of air
around the projector.
- Locations where temperatures may become excessively high, such as the inside of a car with all windows rolled
up.
- Locations where excessive humidity, dust, or cigarette smoke may contaminate optical components, shorten
the projector's life span and darken the image.
- Locations near fire alarms
- Locations with an ambient temperature above 40°C / 104°F
- Locations where the altitudes are higher than 3000 m (10000 feet).
18. To avoid damaging the DLP chips, do not direct a high-power laser beam onto the projection
lens.

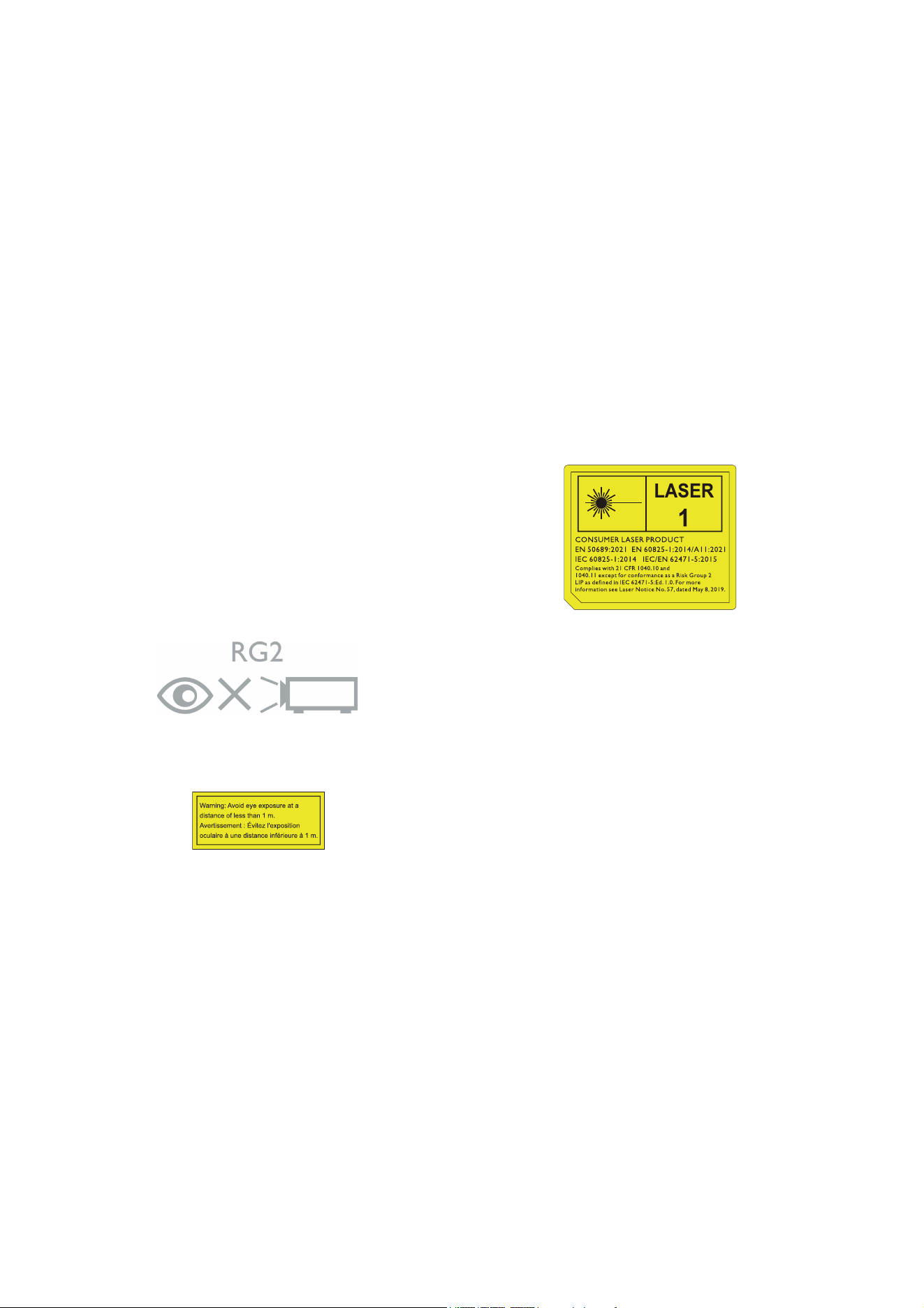

Risk Group 2
1. According to the classification of
photobiological safety of light sources and
light source systems, this product is Risk
Group 2, IEC 62471-5:2015.
2. Possibly hazardous optical radiation emitted
from this product.
3. Do not stare at operating light source. May
be harmful to the eyes.
4. As with any bright source, do not stare into
the direct beam.
The projector’s light source unit uses a laser.
• Notice is given to supervise children and to
never allow them to stare into the projector
beam at any distance from the projector.
• Notice is given to use caution when using the
remote control for starting the projector while
in front of the projection lens.
• Notice is given to the user to avoid the use of
optical aids such as binoculars or telescopes
inside the beam.
Laser Caution
This product belongs to CLASS 1 consumer laser
product and complies with IEC 60825-1:2014, EN
60825-1:2014/A11:2021 and EN 50689:2021.
Above laser caution are located on the bottom of
this apparatus.
Caution – Use of controls or adjustments or
performance of procedures other than those
specified herein may result in hazardous radiation
exposure.
6 Introduction
Introduction
Shipping contents

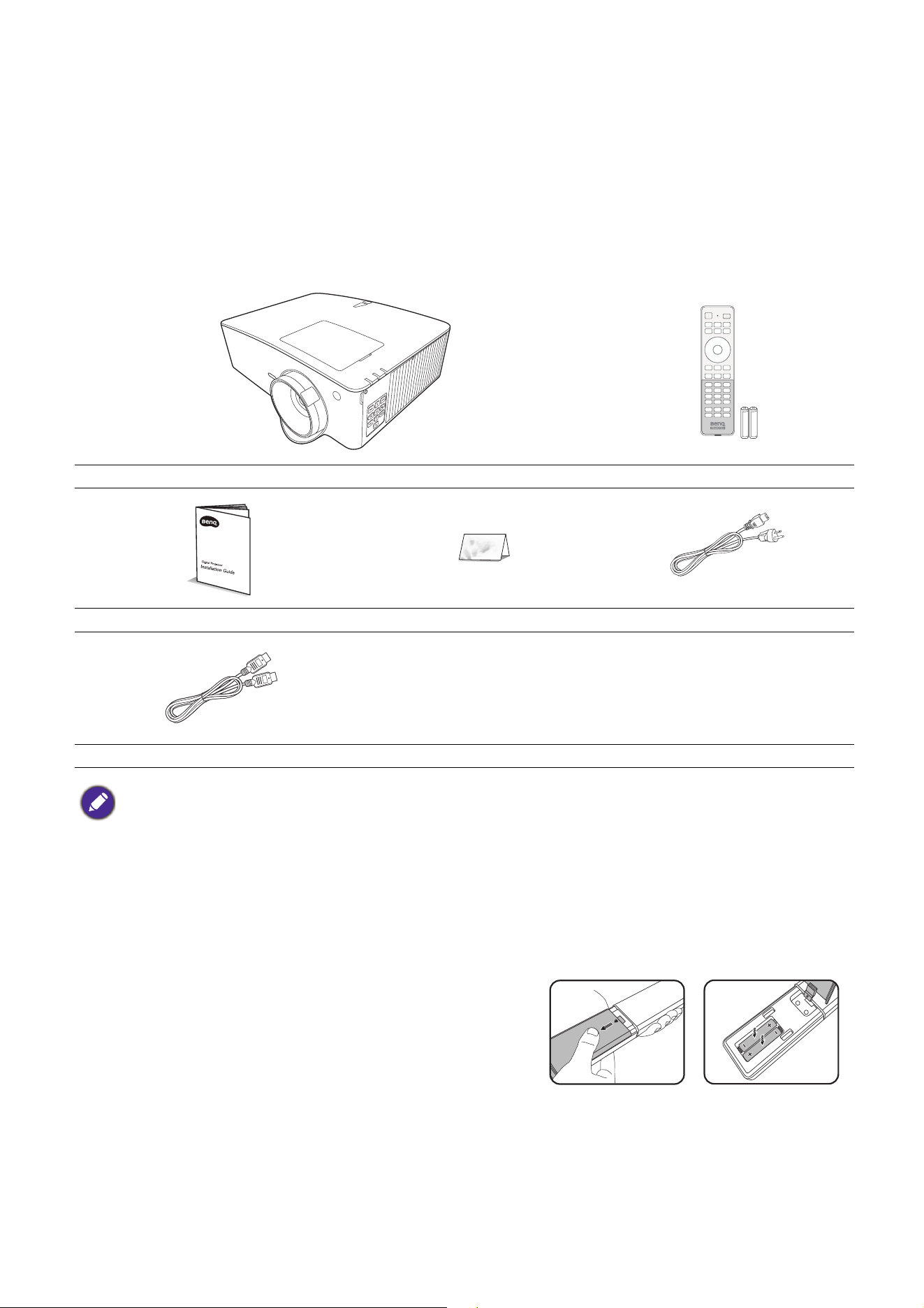

Carefully unpack and verify that you have all of the items shown below. If any of these items are
missing, please contact your place of purchase.
Standard accessories
Optional accessories
Replacing the remote control batteries
1. Press and slide off the battery cover, as illustrated.
2. Remove the old batteries (if applicable) and install
two AAA batteries. Make sure that the positive and
negative ends are positioned correctly, as
illustrated.
3. Slide the battery cover in until it clicks into place.
Projector Remote control with batteries
Installation guide Warranty card* Power cord
HDMI cable
• The supplied accessories will be suitable for your region, and may differ from those illustrated.
• *The warranty card is only supplied in some specific regions. Please consult your dealer for detailed information.
1. 3D glasses
2. InstaShow™ (WDC10/WDC20)
3. Wireless dongles (QCast Mirror)
7 Introduction
• Avoid leaving the remote control and batteries in an excessive heat or humid environment like the kitchen,
bathroom, sauna, sunroom or in a closed car.
• Replace only with the same or equivalent type recommended by the battery manufacturer.
• Dispose of the used batteries according to the manufacturer's instructions and local environment regulations for
your region.
• Never throw the batteries into a fire. There may be danger of an explosion.
• If the batteries are dead or if you will not be using the remote control for an extended period of time, remove the
batteries to avoid damage to the remote control from possible battery leakage.
8 Introduction

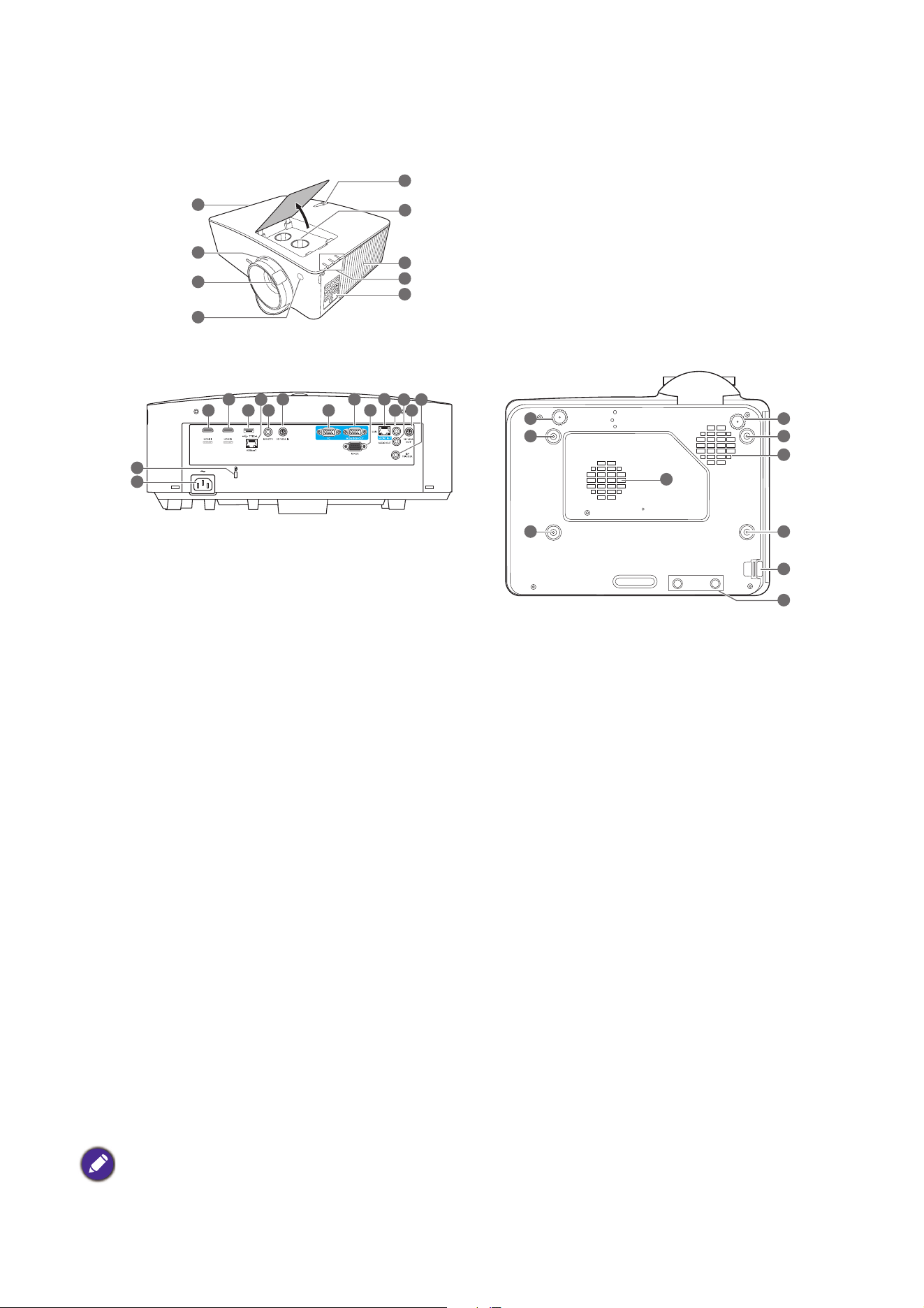

Projector exterior view
1. Vent (air exhaust)
2. Focus and zoom ring
3. Projection lens
4. IR remote sensor
5. Lens shift adjustment knobs (LEFT/RIGHT,
UP/DOWN)
6. Vent (air inlet)
7. POWER indicator light/TEMPerature
warning light/LIGHT indicator light
(See Indicators on page 49.)
8. External control panel
(See Controls and functions on page 9.)
9. HDMI 1 input port
10. HDMI 2 input port
11. USB Type A port (5V/1.5A power for
WDC10/QCast Mirror)
12. RGB (PC) signal input jack
13. RGB (PC) signal output jack
14. RS-232 control port
15. RJ-45 LAN input jack
16. Audio input jack
17. Audio output jack
18. 12V trigger
19. Kensington anti-theft lock slot
20. AC power jack
21. HDBaseT port
For connection to a HDBaseT transmitter via an
Ethernet cable (Cat5/Cat6) to input up to WUXGA
(1920 x 1200) timing, RS232 control signal and IR
control signal. The HDBaseT port does not support
LAN control.
22. Remote control jack
23. 3D VESA input
24. 3D VESA output
25. Wall mount holes
26. Adjuster feet
27. Security bar
28. InstaShow holes
*Power for WDC20 should come from external power supply.
1
3
2
4
4
8
6
6
6
25
25
25
26 26
25
27
7
5
28
19
20
9 11 12
16
24 22
10
23
13 15
14
17
18
21
9 Introduction

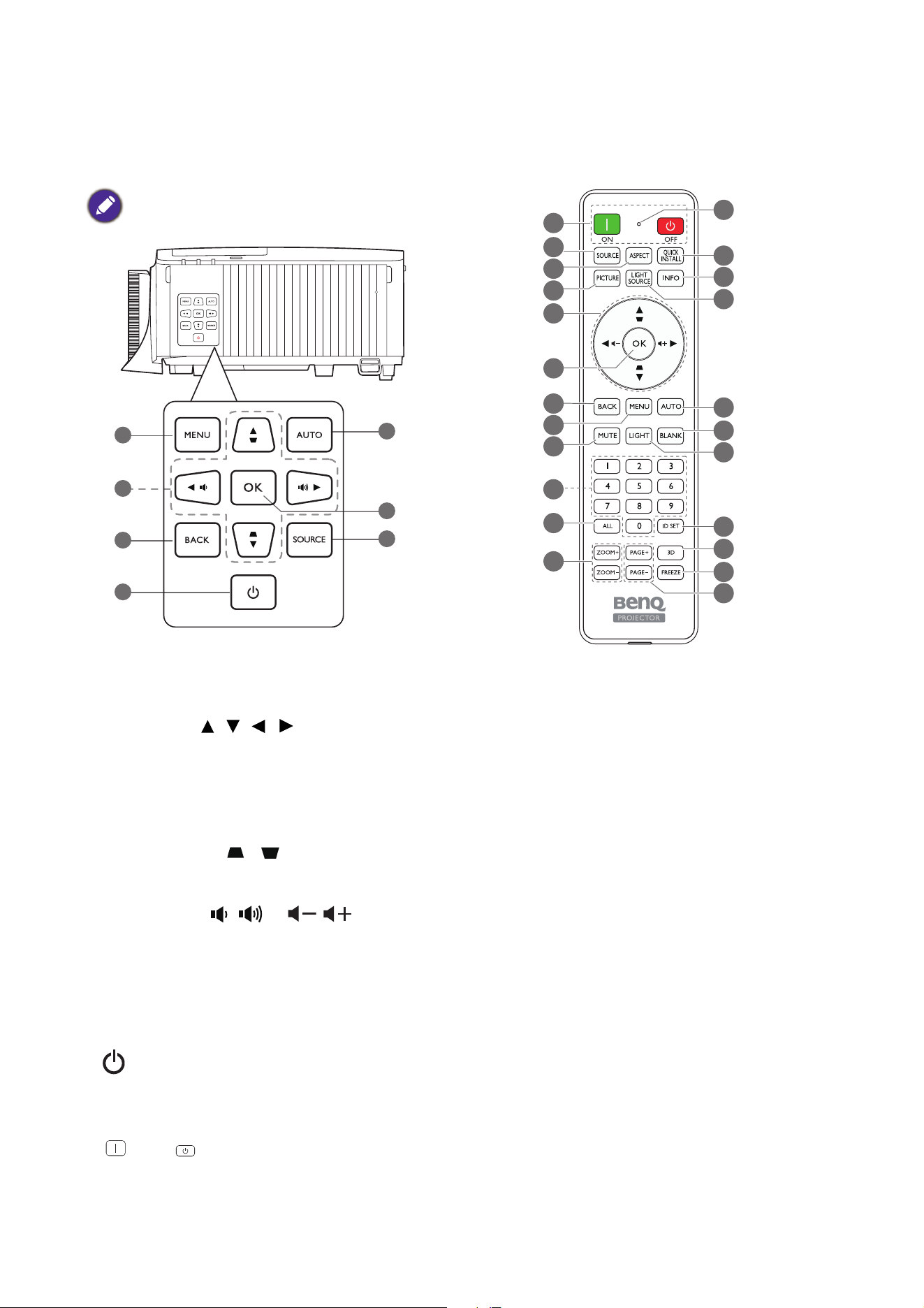

Controls and functions
Projector & Remote control
1. MENU
Turns on the On-Screen Display (OSD) menu.
2. Arrow keys ( , , , )
When the On-Screen Display (OSD) menu is
activated, these keys are used as directional
arrows to select the desired menu items and
to make adjustments.
Keystone keys ( , )
Displays the keystone correction page.
Volume keys ( / ), ( / )
Decreases or increases the projector volume.
3. BACK
Goes back to previous OSD menu, exits and
saves menu settings.
4. POWER
Toggles the projector between standby mode
and on.
ON/ Off
Toggles the projector between standby mode
and on.
5. AUTO
Automatically determines the best picture
timings for the displayed image when PC signal
(analog RGB) is selected.
6. OK
Confirms the selected On-Screen Display
(OSD) menu item.
7. SOURCE
Displays the source selection bar.
8. ASPECT
Selects the display aspect ratio.
9. PICTURE
Selects an available picture setup mode.
10. MUTE
Toggles projector audio between on and off.
11. Numeric buttons
Enters numbers in network settings or when
setting the remote control ID. Numeric
buttons 1, 2, 3, 4 cannot be pressed when
asked to enter password.
1
3
4
2
6
5
7
15
16
5
18
20
21
22
17
14
19
23
7
4
2
6
8
1
9
10
13
12
3
11
All the key presses described in this document
are available on the remote control or projector.
10 Introduction

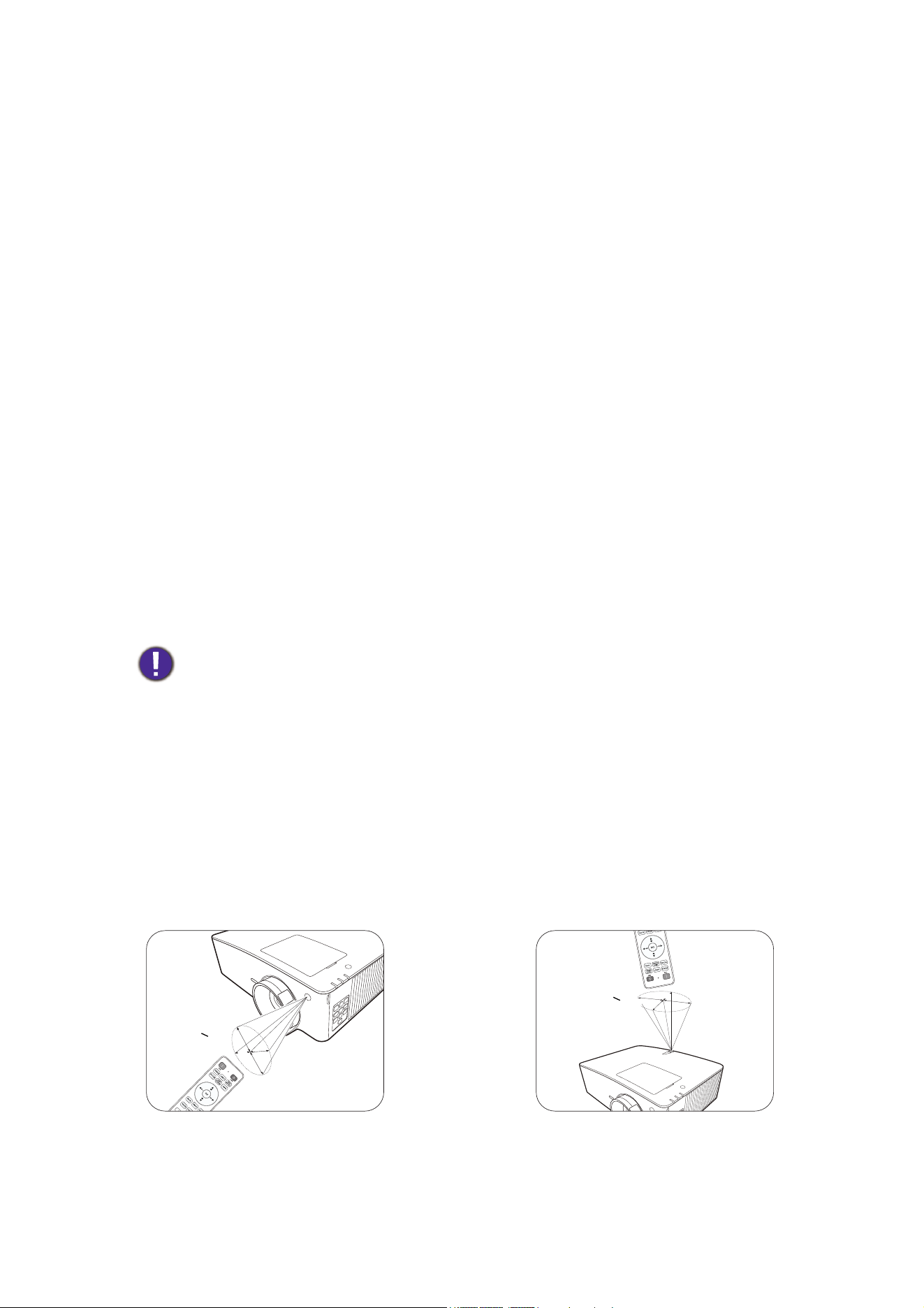

Remote control effective range
The remote control must be held at an angle within 30 degrees perpendicular to the projector's
IR remote control sensor(s) to function correctly. The distance between the remote control and
the sensor(s) should not exceed 8 meters (~ 26 feet).
Make sure that there are no obstacles between the remote control and the IR sensor(s) on the
projector that might obstruct the infra-red beam.
12. ALL
Press and hold ID SET until the ID setting
indicator lights up. Press ALL to clear current
ID setting of the remote control. The ID is
cleared successfully when you see the ID
setting indicator starts flickering and then
blackout.
13. ZOOM+/ZOOM-
Magnifies or reduces the projected picture
size.
14. ID setting indicator
15. QUICK INSTALL
Quickly selects several functions to adjust the
projected image and displays the test pattern.
16. INFO
Displays the projector information.
17. LIGHT SOURCE
Selects an available light mode.
18. BLANK
Used to hide the screen picture.
Do not block the projection lens from
projecting as this could cause the blocking
object to become heated and deformed or
even cause a fire.
19. LIGHT
Turns on the remote control backlight for a
few seconds. To keep the backlight on, press
any other key while the backlight is on. Press
the key again to turn the backlight off.
20. ID SET
Sets the code for this remote control. Press
and hold ID SET until the ID setting indicator
lights up. Enter the ID for the remote control
(between 01~99). The remote control ID
should be the same as the corresponding
projector ID. The ID is saved successfully
when you see the ID setting indicator starts
flickering and then blackout.
21. 3D
Displays the 3D menu.
22. FREEZE
Freezes the projected image.
23. PAG E + /PAGE-
No function.
• Operating the projector from the front • Operating the projector from the top
A
p
p
r
o
x
.
+
3
0
º
A
p
p
r
o
x
.
+
3
0
º
11 Positioning your projector
Positioning your projector

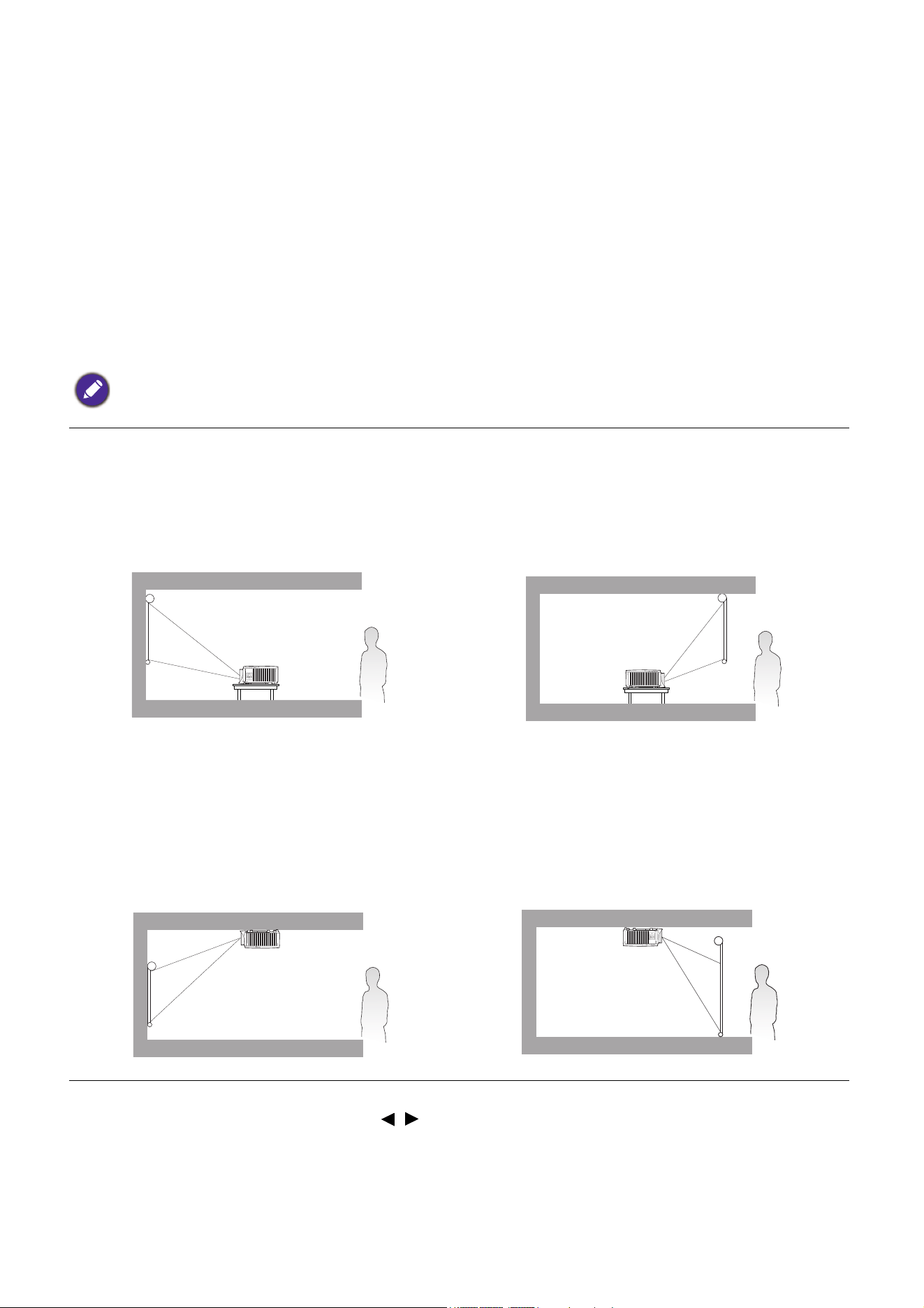

Choosing a location
Before choosing an installation location for your projector, take the following factors into
consideration:
• Size and position of your screen
• Electrical outlet location
• Location and distance between the projector and the rest of your equipment
You can install your projector in the following ways.
After turning on the projector, go to Advanced Menu - Settings > Projector Installation >
Projector Installation and press / to select a setting.
You can also use QUICK INSTALL on the remote control to access this menu.
The illustrations below are for reference only. Refer to Projection dimensions for installation.
1. Front Table
Select this location with the projector placed on
the table in front of the screen. This is the most
common way to position the projector for quick
setup and portability.
2. Rear Table
Select this location with the projector placed on
the table behind the screen. Note that a special
rear projection screen is required.
3. Front Ceiling
Select this location with the projector suspended
upside-down from the ceiling in front of the
screen. Purchase the BenQ Projector Ceiling
Mount Kit from your dealer to mount your
projector on the ceiling.
4. Rear Ceiling
Select this location with the projector suspended
upside-down from the ceiling behind the screen.
Note that a special rear projection screen and the
BenQ Projector Ceiling Mount Kit are required
for this installation location.
12 Positioning your projector
The projector can also be installed at following angles:

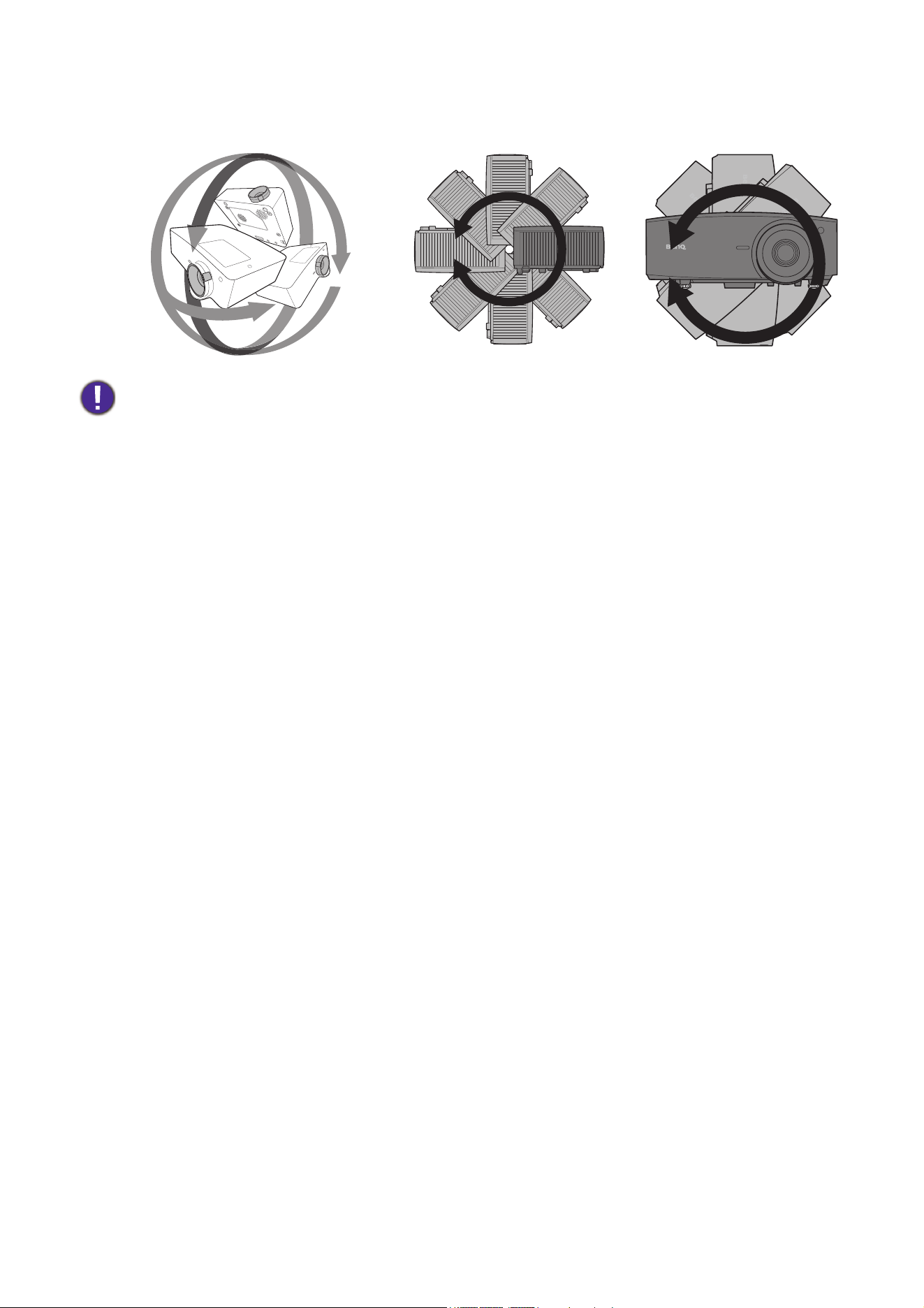

360-degree projection
Installation of the projector should be performed carefully. Incomplete or improper installation may cause the
projector to fall, resulting in personal injury or property damage.
13 Positioning your projector
Obtaining a preferred projected image size

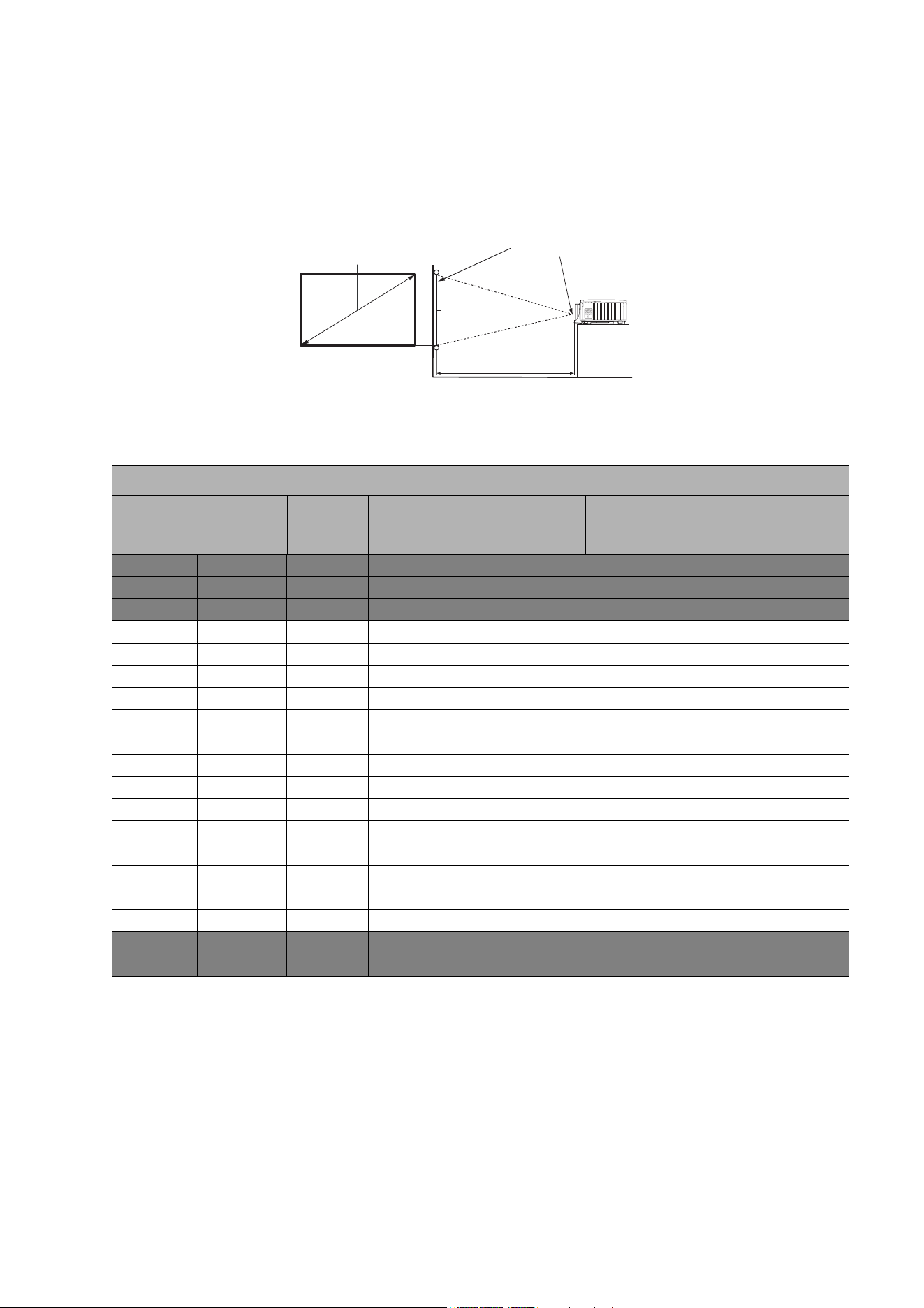

The distance from the projector lens to the screen, the zoom setting (if available), and the video
format each factors in the projected image size.
Projection dimensions
LU935
• The screen aspect ratio is 16:10 and the projected picture is in a 16:10 aspect ratio
For example, if you are using a 120-inch screen, the recommended projection distance is 4575
mm.
If your measured projection distance is 4000 mm, the closest match in the "Projection distance
(mm)" column is 3812 mm. Looking across this row shows that a 100'' (about 2.8 m) screen is
required.
H
W
Projection distance
Center of lens
Screen
16:10 Screen diagonal
Screen size Projection distance (mm)
Diagonal
W (mm) H (mm)
Min length
Average
Max length
Inch mm (max. zoom) (min. zoom)
30 762 646 404 879 1144 1409
40 1016 862 538 1172 1525 1878
50 1270 1077 673 1465 1906 2348
60 1524 1292 808 1758 2287 2817
80 2032 1723 1077 2343 3050 3756
90 2286 1939 1212 2636 3431 4226
100 2540 2154 1346 2929 3812 4696
110 2794 2369 1481 3222 4194 5165
120 3048 2585 1615 3515 4575 5635
130 3302 2800 1750 3808 4956 6104
140 3556 3015 1885 4101 5337 6574
150 3810 3231 2019 4394 5719 7043
160 4064 3446 2154 4687 6100 7513
170 4318 3662 2289 4980 6481 7982
180 4572 3877 2423 5273 6862 8452
190 4826 4092 2558 5566 7244 8922
200 5080 4308 2692 5859 7625 9391
250 6350 5385 3365 7323 9531 11739
300 7620 6462 4039 8788 11437 14087
14 Positioning your projector
LU935ST
• The screen aspect ratio is 16:10 and the projected picture is in a 16:10 aspect ratio
For example, if you are using a 120-inch screen, the recommended projection distance is 2197
mm.
If your measured projection distance is 2500 mm, the closest match in the "Projection distance
(mm)" column is 2563 mm. Looking across this row shows that a 140'' (about 3.6 m) screen is
required.
• To optimize your projection quality, we suggest you do the projection within non-gray area.
• All measurements are approximate and may vary from the actual sizes.
BenQ recommends that if you intend to permanently install the projector, you should physically test the
projection size and distance using the actual projector in situ before you permanently install it, so as to make
allowance for this projector's optical characteristics. This will help you determine the exact mounting position so
that it best suits your installation location.
Screen size Projection distance (mm)
Diagonal
W (mm) H (mm)
Min length
Average
Max length
Inch mm (max. zoom) (min. zoom)
30 762 646 404 523 549 575
40 1016 862 538 698 732 767
50 1270 1077 673 872 915 958
60 1524 1292 808 1047 1098 1150
80 2032 1723 1077 1396 1465 1534
90 2286 1939 1212 1570 1648 1725
100 2540 2154 1346 1745 1831 1917
110 2794 2369 1481 1919 2014 2109
120 3048 2585 1615 2094 2197 2300
130 3302 2800 1750 2268 2380 2492
140 3556 3015 1885 2443 2563 2684
150 3810 3231 2019 2617 2746 2875
160 4064 3446 2154 2791 2929 3067
170 4318 3662 2289 2966 3112 3259
180 4572 3877 2423 3140 3295 3451
190 4826 4092 2558 3315 3479 3642
200 5080 4308 2692 3489 3662 3834
250 6350 5385 3365 4362 4577 4792
300 7620 6462 4039 5234 5492 5751
• To optimize your projection quality, we suggest you do the projection within non-gray area.
• All measurements are approximate and may vary from the actual sizes.
BenQ recommends that if you intend to permanently install the projector, you should physically test the
projection size and distance using the actual projector in situ before you permanently install it, so as to make
allowance for this projector's optical characteristics. This will help you determine the exact mounting position so
that it best suits your installation location.
15 Positioning your projector
Mounting the projector
If you intend to mount your projector, we strongly recommend that you use a proper fitting BenQ
projector mounting kit and that you ensure it is securely and safely installed.
If you use a non-BenQ brand projector mounting kit, there is a safety risk that the projector may
fall down due to an improper attachment through the use of the wrong gauge or length screws.
Before mounting the projector
• Purchase a BenQ projector mounting kit from the place you purchased your BenQ projector.
• BenQ recommends that you also purchase a separate Kensington lock compatible security cable
and attach it securely to both the anti-theft lock slot on the projector and the base of the
mounting bracket. This will perform the secondary role of restraining the projector should its
attachment to the mounting bracket become loose.
• Ask your dealer to install the projector for you. Installing the projector on your own may cause
it to fall and result in injury.
• Take necessary procedures to prevent the projector from falling off such as during an
earthquake.
• The warranty doesn’t cover any product damage caused by mounting the projector with a
non-BenQ brand projector mounting kit.
• Consider the surrounding temperature where the projector is ceiling/wall mounted. If a heater is
used, the temperature around the ceiling may be higher than expected.
• Read the user manual for the mounting kit about the range of torque. Tightening with torque
exceeding the recommended range may cause damage to the projector and subsequently falling
off.
• Make sure the power outlet is at an accessible height so that you can easily shut down the
projector.

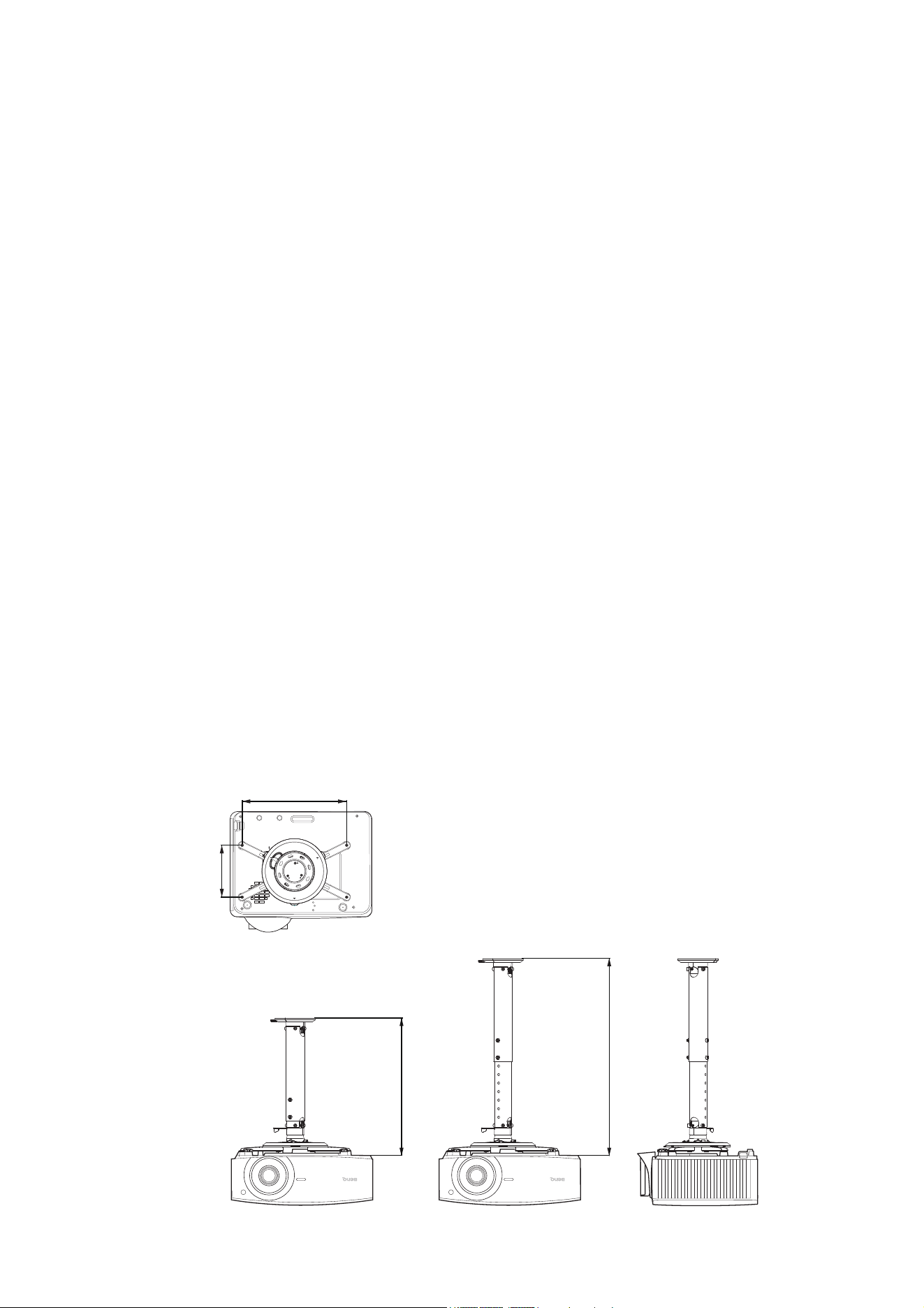

Ceiling/Wall mount installation diagram
Ceiling/Wall
mount screw:
U
576.50
412.3
304
151
BenQ ceiling mount CMG3 (5J.JAM10.001)
Ceiling mount screw: M4
(Max. L = 25 mm; Min. L = 20 mm)
Unit: mm
16 Positioning your projector
Adjusting the projector position
Shifting the projection lens

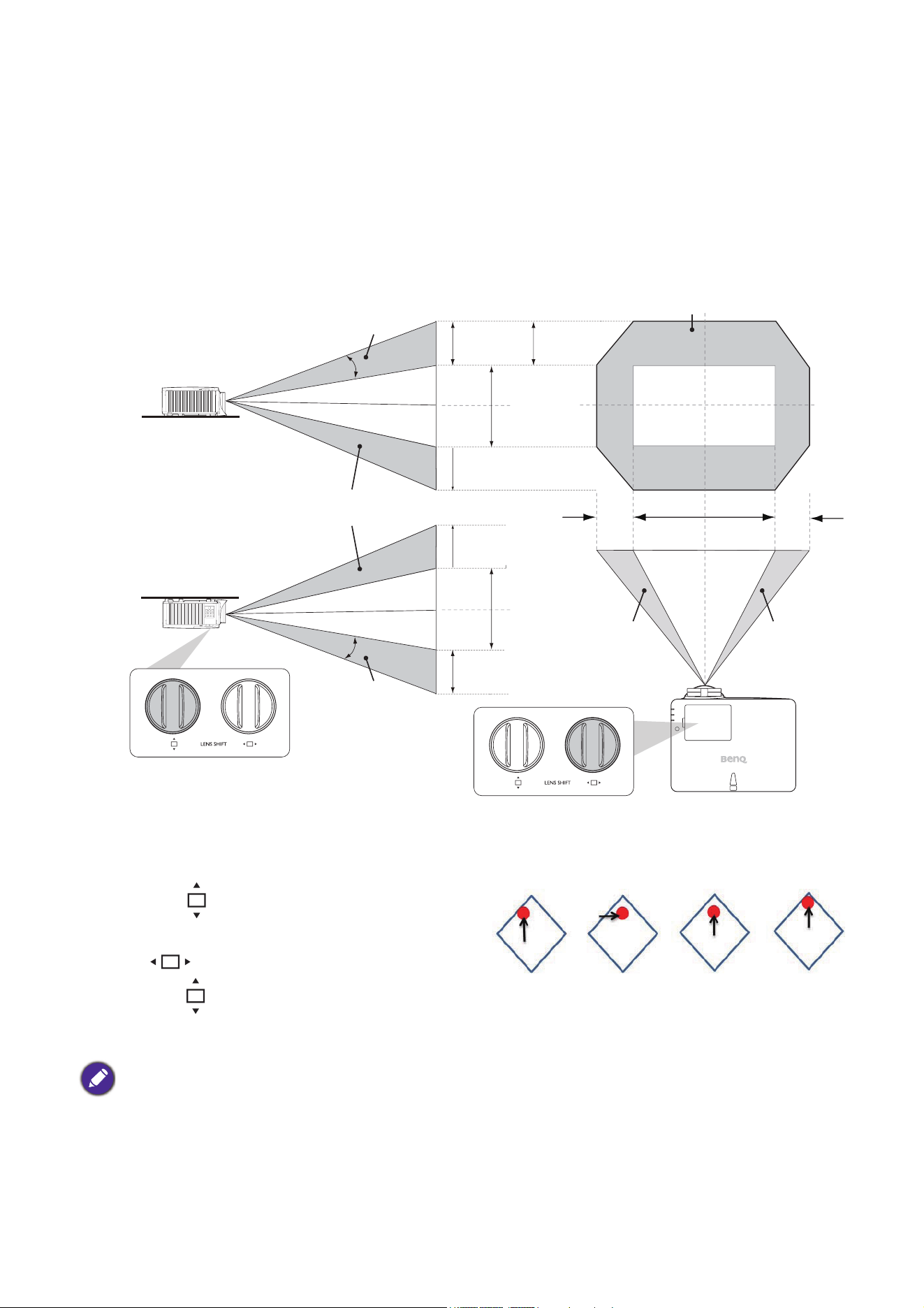

The lens shift control provides flexibility for installing your projector. It allows the projector to be
positioned off the center of the screen.
The lens shift is expressed as a percentage of the projected image height or width. You can turn
the knobs on the projector to shift the projection lens in any direction within the allowable range
depending on your desired image position.
To reach the highest or lowest projection position:
1. Turn (Up/Down).
2. When you feel it is reaching the limit, turn
(Left/Right) to the left or right and
turn again.
3. Repeat the step above until finding the suitable position you need.
Desk-front
projection
Ceiling mount-front
projection
Vertical shift
Vertical shift
Vertical shift
Height of
projected
Max. 0.6V
Max. 0.6V
Max. 0.6V
Max. 0.6V
1V
1V
Effective projection position
Max.
0.23H
Max.
0.23H
Height of
projected
Width of projected image
1H
Shift to
left
Shift to
right
V: Height of projected image
H: Width of projected image
• If you hear a “clicking sound” during the adjustment, it means that the knob is past its adjustment limit. Please
stop adjusting it, in order to avoid any unexpected damage, and turn the knob in the opposite direction, at least
to one step before the click.
• If you can’t turn it back, please press and turn the knob back at same time.
17 Positioning your projector
Adjusting the projected image

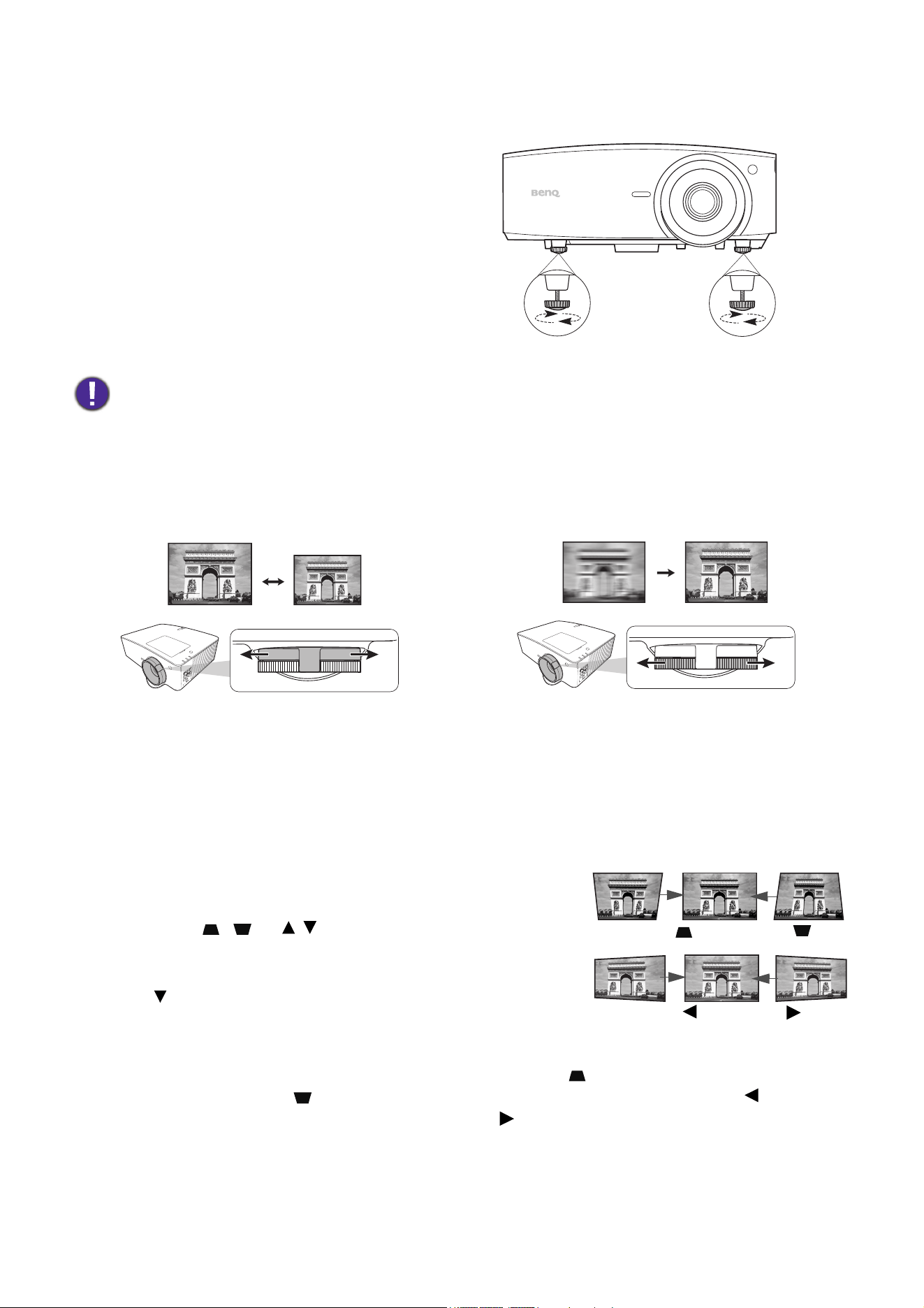

Adjusting the projection angle
If the projector is not placed on a flat surface
or the screen and the projector are not
perpendicular to each other, the projected
image becomes trapezoidal. You can screw the
adjuster feet to fine-tune the horizontal angle.
To retract the feet, screw the adjuster feet in a
reverse direction.
Fine-tuning the image size and clarity
Correcting keystone
Keystoning refers to the situation where the projected image becomes a trapezoid due to angled
projection.
To correct trapezoidal distortion, you can activate the Auto Vertical Keystone function in the
Advanced Menu - Display menu. Or you can manually correct it following these steps.
1. Do one of the following steps to display the keystone
correction page.
• Press / or / on the projector or remote
control.
• Press QUICK INSTALL on the remote control. Press
to highlight 2D Keystone and press OK.
• Go to Advanced Menu - Display > 2D Keystone
and press OK.
2. After the 2D Keystone correction page displays. Press to correct keystoning at the top
of the image. Press to correct keystoning at the bottom of the image. Press to correct
keystoning at the right side of the image. Press to correct keystoning at the left side of the
image.
3. When 2D Keystone correction page displays, you can also do the following settings:
• Press AUTO to reset the keystone values.
Do not look into the lens while the light source is on. The strong light from the light source may cause damage to
your eyes.
Adjust the projected image to the size that you
need using the zoom ring.
Sharpen the image by rotating the focus ring.
Press .
Press .
Press .
Press .
18 Positioning your projector
• Press / to disable the auto vertical keystone function.

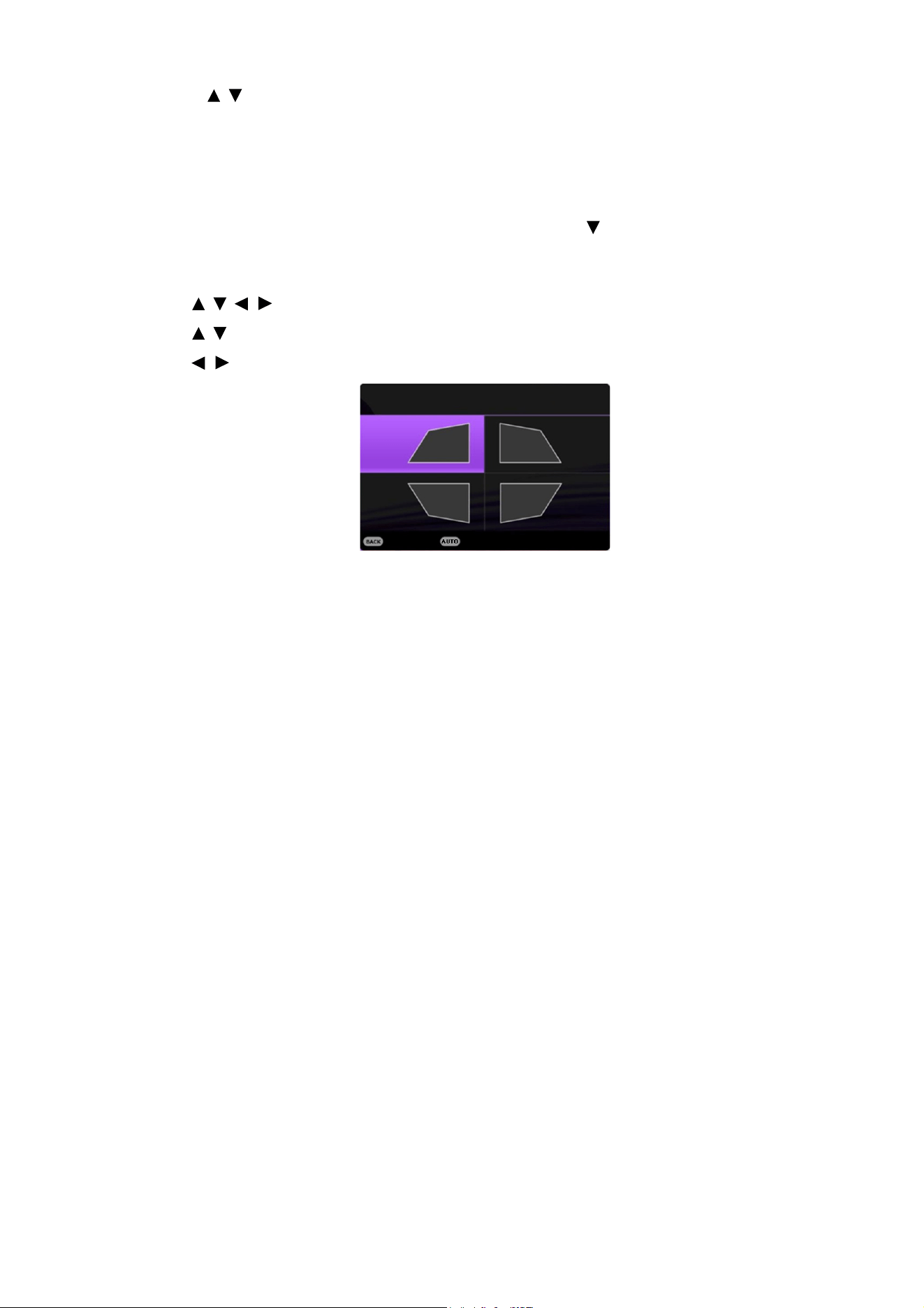

Adjusting Corner Fit
You can manually adjust four corners of the image by setting the horizontal and vertical values.
1. Do one of the following steps to display the corner fit correction page.
• Press QUICK INSTALL on the remote control. Press to highlight Corner Fit and
press OK.
• Go to Advanced Menu - Display > Corner Fit and press OK.
2. Press / / / to select one corner and press OK.
3. Press / to adjust vertical values.
4. Press / to adjust horizontal values.
Corner Fit
Press to reset corner value
Exit

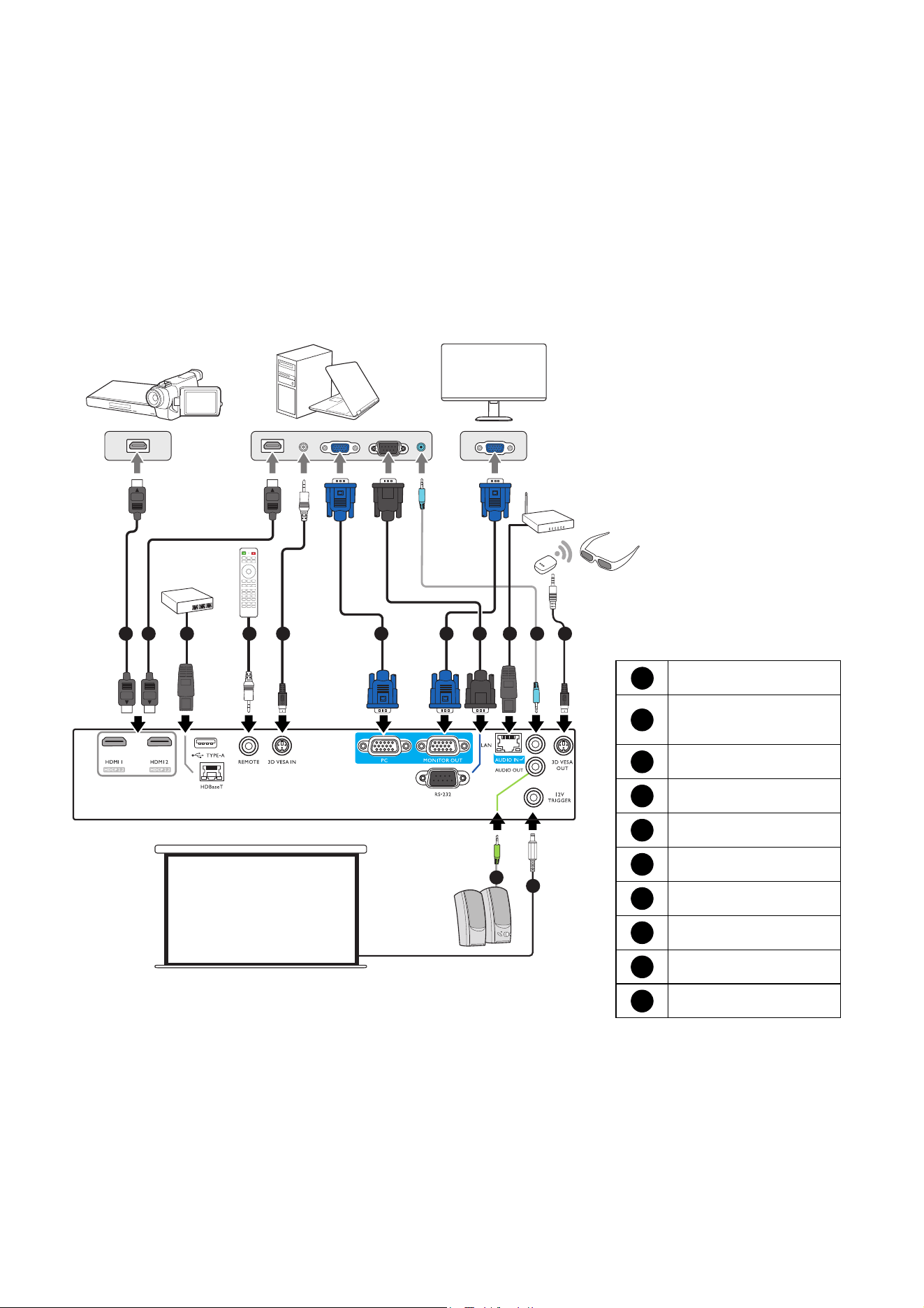

19 Connection
Connection
When connecting a signal source to the projector, be sure to:
1. Turn all equipment off before making any connections.
2. Use the correct signal cables for each source.
3. Ensure the cables are firmly inserted.
10
8
5 5 76 81 1 32 4 9
Notebook or
desktop computer
HDMI cable
HDBaseT matrix
switcher
Wired remote control
3D enabled device
VGA cable
RS-232 cable
RJ-45 cable
Audio cable
3D IR emitter
12V trigger cable
1
2
3
4
5
6
7
8
9
10
Speakers
Monitor
A/V device
20 Connection
You need only connect the projector to a video source device using just one of the connecting
methods, however each may provide a different level of video quality.
Connecting audio
The projector has built-in mono speaker(s) which are designed to provide basic audio
functionality accompanying data presentations for business purposes only. They are not designed
for, nor intended for stereo audio reproduction use as might be expected in home theater or
home cinema applications. Any stereo audio input (if provided), is mixed into a common mono
audio output through the projector speaker(s).
The built-in speaker(s) will be muted when the AUDIO OUT jack is connected.
• In the connections above, some cables may not be included with the projector (see Shipping contents on page 6).
They are commercially available from electronics stores.
• The connection illustrations are for reference only. The rear connecting jacks available on the projector vary with
each projector model.
• Many notebooks do not turn on their external video ports when connected to a projector. Usually a key combo
like FN + function key with a monitor symbol turns the external display on/off. Press FN and the labeled function
key simultaneously. Refer to your notebook's documentation to find your notebook's key combination.
• If the selected video image is not displayed after the projector is turned on and the correct video source has been
selected, check that the video source device is turned on and operating correctly. Also check that the signal cables
have been connected correctly.
Te r m i n a l Picture quality
HDMI 1
Best
HDMI 2
Best
• The projector is only capable of playing mixed mono audio, even if a stereo audio input is connected.
• If the selected video image is not displayed after the projector is turned on and the correct video source has been
selected, check that the video source device is turned on and operating correctly. Also check that the signal cables
have been connected correctly.
21 Operation
Operation
Starting up the projector
1. Plug the power cord. Turn on the power outlet
switch (where fitted). The power indicator on the
projector lights orange after power has been
applied.
2. Press on the projector or on the remote
control to start the projector. The power indicator
flashes green and stays green when the projector is
on.
The start up procedure takes about 30 seconds. In
the later stage of start up, a startup logo is projected.
(If necessary) Rotate the focus ring to adjust the image clearness.

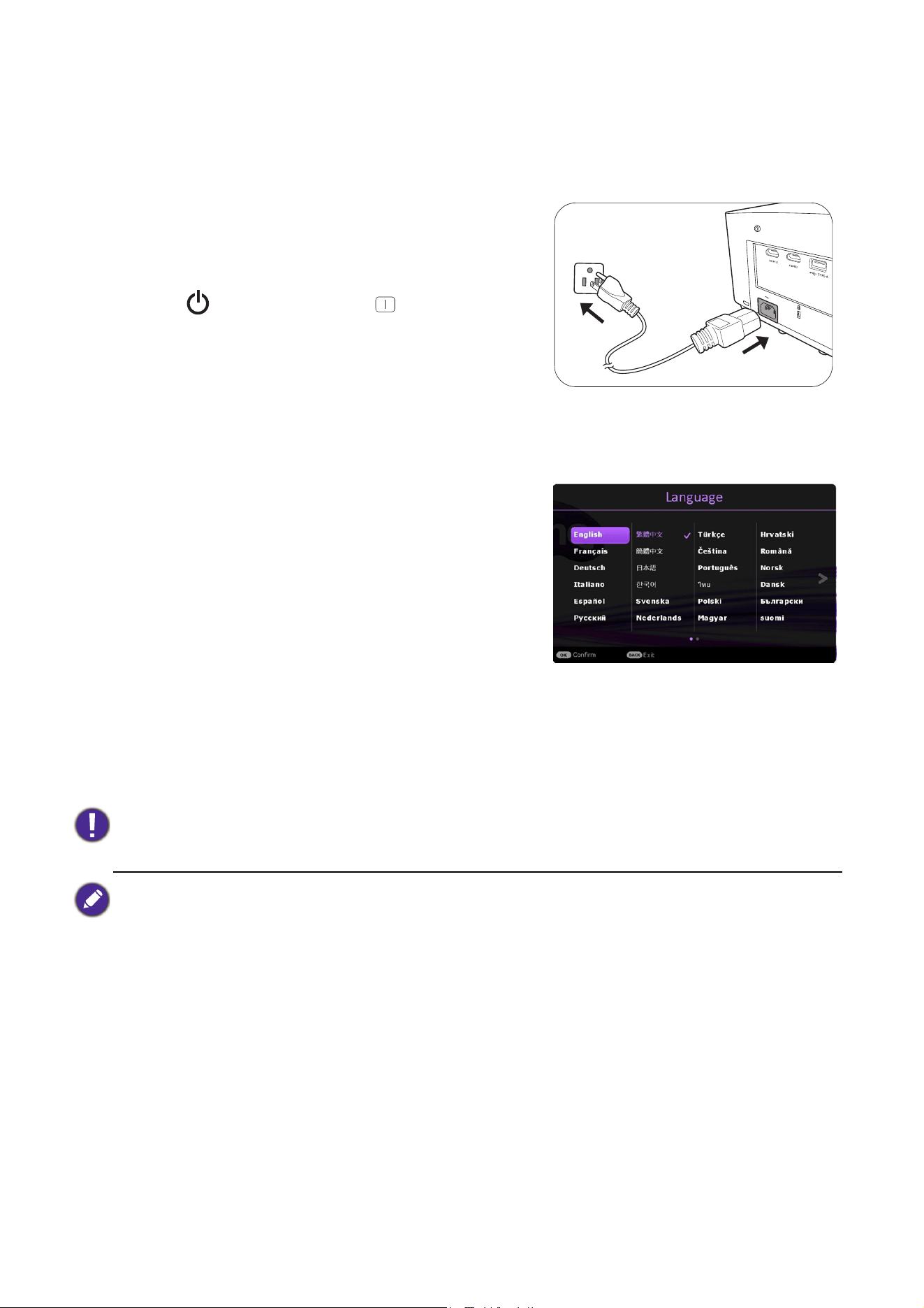

3. If the projector is activated for the first time, select
your OSD language following the on-screen
instructions.
4. If you are prompted for a password, press the
arrow keys to enter a 6-digit password. See
Utilizing the password function on page 23.
5. Switch all of the connected equipment on.
6. The projector will search for input signals. The
current input signal being scanned appears. If the
projector does not detect a valid signal, the message “No Signal” will continue displaying until
an input signal is found.
You can also press SOURCE to select your desired input signal. See Switching input signal on
page 25.
• Please use the original accessories (e.g. power cord) to avoid possible dangers such as electric shock and fire.
• If the projector is still hot from previous activity, it will run the cooling fan for approximately 90 seconds before
energizing the light source.
• The Setup Wizard screenshots are for reference only and may differ from the actual design.
• If the frequency/resolution of the input signal exceeds the projector's operating range, you will see the message
“Out of Range” displayed on the background screen. Please change to an input signal which is compatible with
the projector's resolution or set the input signal to a lower setting. See Timing chart on page 53.
• If no signal is detected for 3 minutes, the projector automatically enters saving mode.
22 Operation
Using the menus
The projector is equipped with 2 types of On-Screen Display (OSD) menus for making various
adjustments and settings.
• Basic OSD menu: provides primary menu functions. (See Basic menu on page 34)
• Advanced OSD menu: provides full menu functions. (See Advanced menu on page 36)
To access the OSD menu, press MENU on the projector or remote control.
• Use the arrow keys ( / / / ) on the projector or remote control to move through the menu
items.
• Use OK on the projector or remote control to confirm the selected menu item.
The first time you use the projector (after finishing the initial setup), Advanced OSD menu
displays.
Below is the overview of the Advanced OSD menu.
If you intend to switch from the Advanced OSD menu to the Basic OSD menu, follow the
instructions below:
1. Go to Advanced Menu - System > Menu Settings and press OK.
2. Select Menu Type and OK.
3. Press / to select Basic. Next time when you turn on the projector, you may access the
Basic OSD menu by pressing MENU.
The OSD screenshots below are for reference only, and may differ from the actual design.

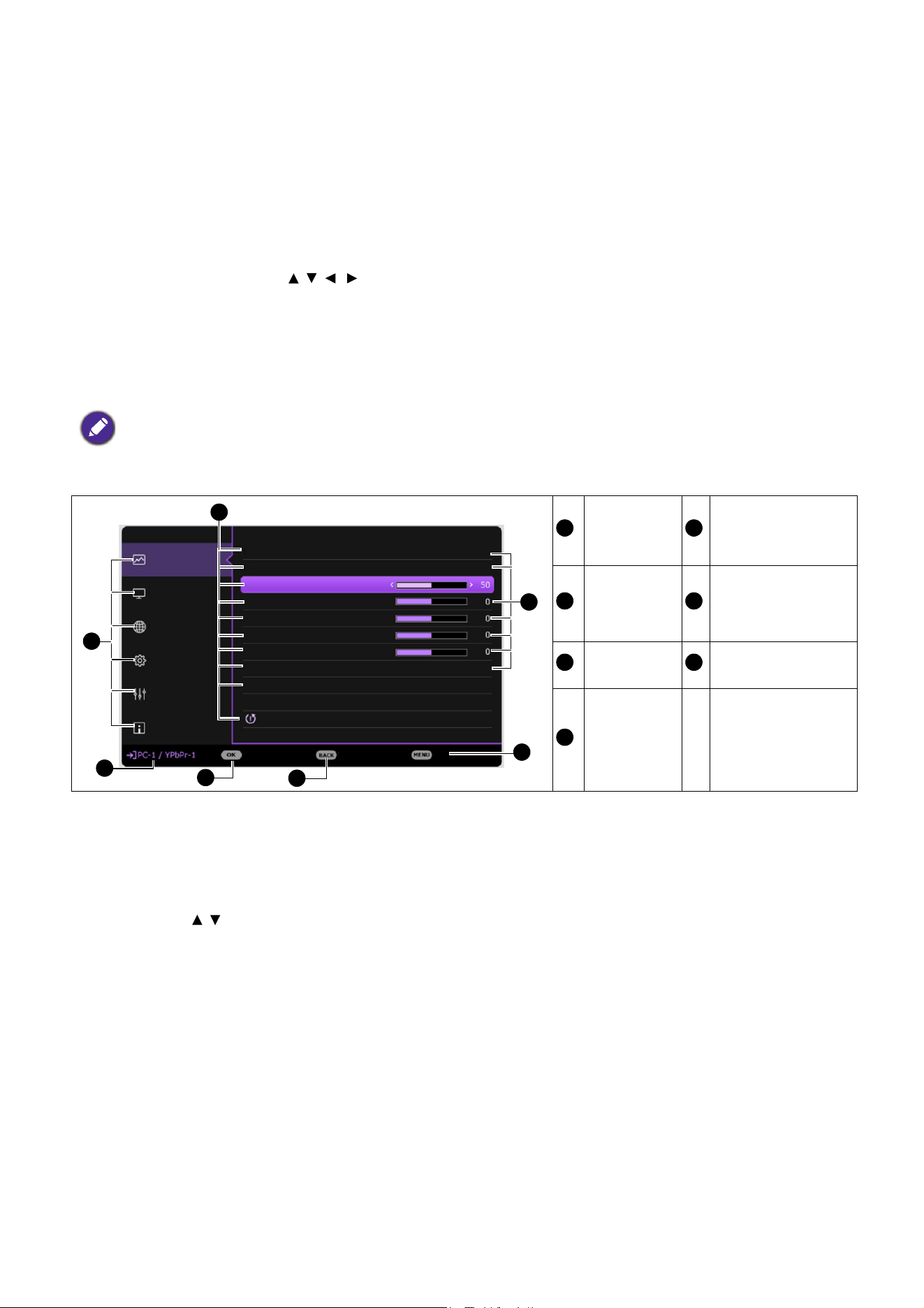

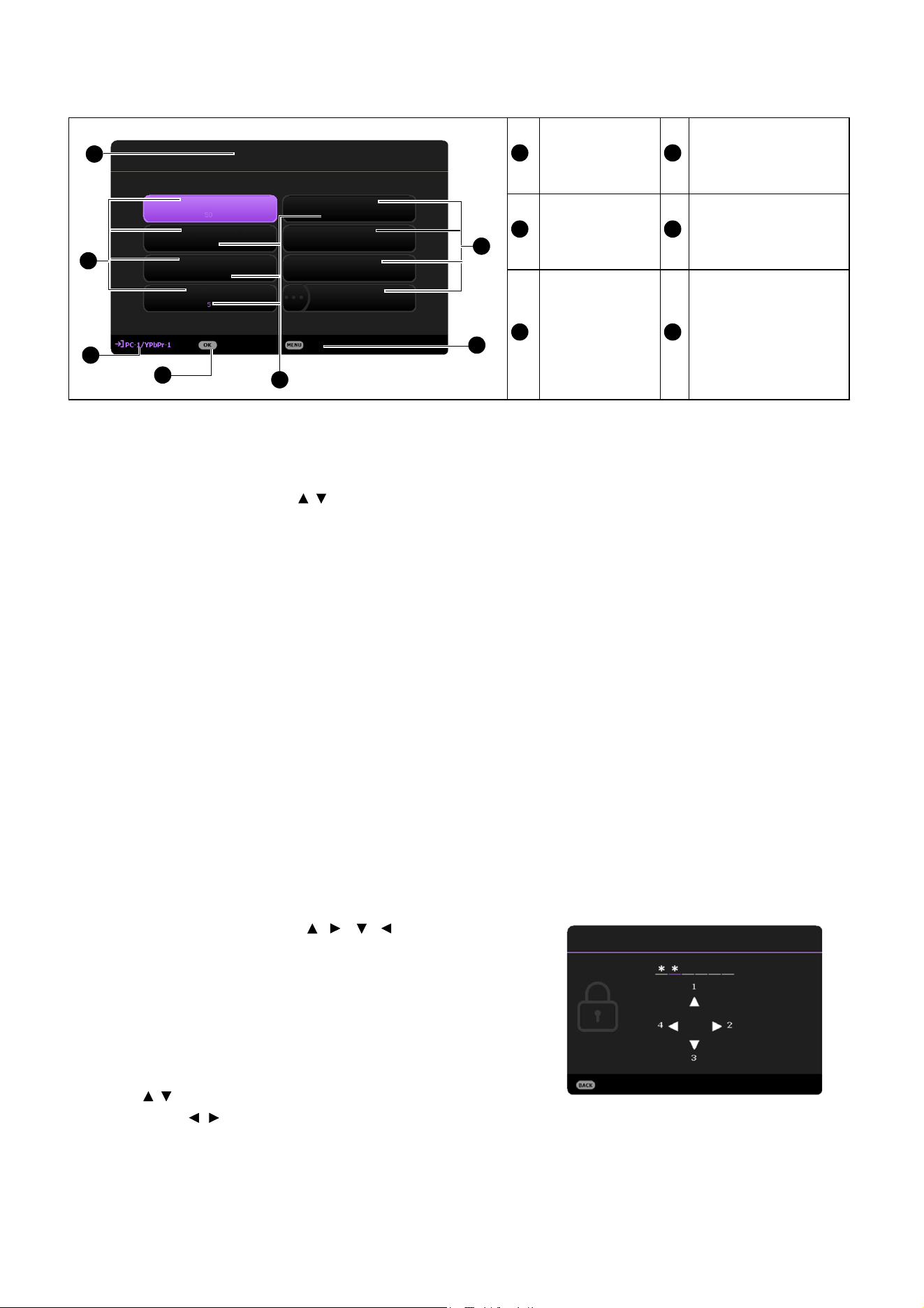

Main menu
& Main
menu icon
Press BACK to go
to the previous
page.
Sub-menu
Press MENU to
exit.
Current
input signal
Status
Press OK
to enter the
menu.
Picture Mode
Brightness
Contrast
Color
Tint
Sharpness
Off
Reference Mode
1
7
6
Brilliant Color
Advanced Color Settings
Display
Network
Settings
Information
Enter Exit
Return
Presentation
Presentation
Reset Picture
System
2
3
4
5
1
5
2
6
3
7
4
23 Operation
Below is the overview of the Basic OSD menu.
Likewise, when you wish to switch from the Basic OSD menu to the Advanced OSD menu,
follow the instructions below:
1. Go to Basic Menu > Menu Type.
2. Press OK and press / to select Advanced. Next time when you turn on the projector,
you may access the Advanced OSD menu by pressing MENU.
Securing the projector
Using a security cable lock
The projector has to be installed in a safe place to prevent theft. Otherwise, purchase a lock, such
as the Kensington lock, to secure the projector. You can locate an anti-theft lock slot on the rear
side of the projector. See item 19 on page 8.
A Kensington security cable lock is usually a combination of key(s) and the lock. Refer to the lock’s
documentation for finding out how to use it.
Utilizing the password function
Setting a password
1. Go to Advanced Menu - System > Security Settings. Press OK. The Security
Settings page appears.
2. Highlight Change Password and press OK.
3. The four arrow keys ( , , , ) respectively
represent 4 digits (1, 2, 3, 4). According to the
password you desire to set, press the arrow keys
to enter six digits for the password.
4. Confirm the new password by re-entering the new
password.
5. To activate the Power On Lock function, press
/ to highlight Power On Lock and press OK.
Press / to select On. Input the password again.
Menu Type
Press OK to enter
the menu.
Main menu Status
Current input
signal
Press MENU to
exit.
Basic Menu
Wireless LAN
Brightness
Aspect Ratio
2
1
2
6
Light Mode
Picture Mode
Volume
Information
Menu Type
Auto
Presentation
Normal
Enter
Exit
5
3
4
1
4
2
5
3
6
Input New Password
Return
24 Operation
If you forget the password
If you enter the wrong password, the password error
message will appear, and the Input Current
Password message follows. If you absolutely do not
remember the password, you can use the password
recall procedure. See Entering the password recall
procedure on page 24.
If you enter an incorrect password 5 times in
succession, the projector will automatically shut down in a short time.
Entering the password recall procedure

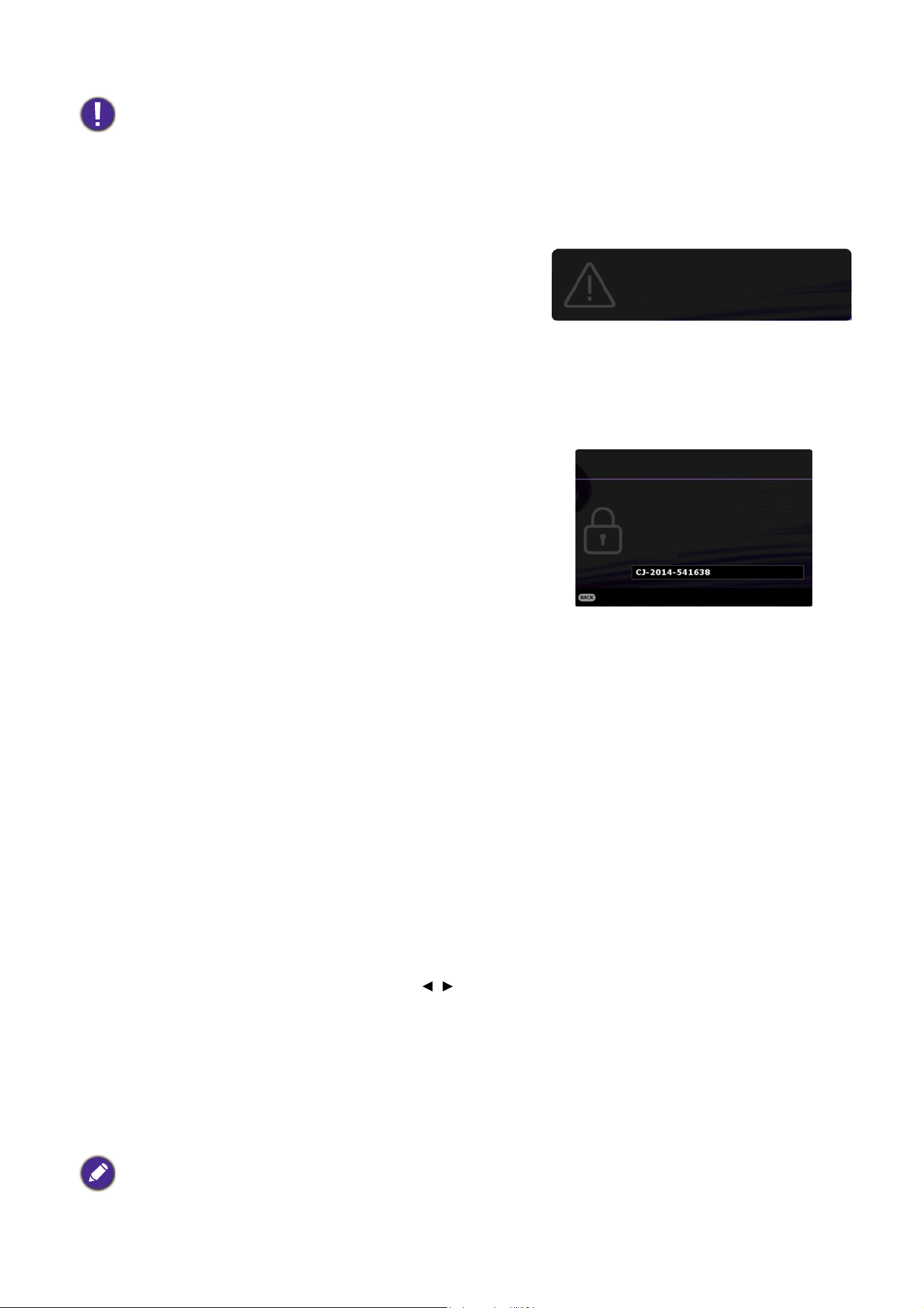

1. Press and hold AUTO for 3 seconds. The projector
will display a coded number on the screen.
2. Write down the number and turn off your
projector.
3. Seek help from the local BenQ service center to
decode the number. You may be required to
provide proof of purchase documentation to verify
that you are an authorized user of the projector.
Changing the password
1. Go to Advanced Menu - System > Security Settings > Change Password.
2. Press OK. The message “Input Current Password” appears.
3. Enter the old password.
• If the password is correct, another message “Input New Password” appears.
• If the password is incorrect, the password error message will appear, and the message
“Input Current Password” appears for your retry. You can press BACK to cancel the
change or try another password.
4. Enter a new password.
5. Confirm the new password by re-entering the new password.
Disabling the password function
To disable password protection, go to Advanced Menu - System > Security Settings >
Power On Lock and press OK. Press / to select Off. The message “Input Current
Password” appears. Enter the current password.
• If the password is correct, the OSD menu returns to the Security Settings page. You will
not have to enter the password next time turning on the projector.
• If the password is incorrect, the password error message will appear, and the message
“Input Current Password” appears for your retry. You can press BACK to cancel the
change or try another password.
• The digits being input will display as asterisks on-screen. Make a note of your selected password and keep it in a
safe place in advance or right after the password is entered so that it is available to you should you ever forget it.
• Once a password has been set and the power on lock is activated, the projector cannot be used unless the
correct password is entered every time the projector is started.
Password Error
Please try again.
Please write down the recall code, and contact
BenQ Customer Center.
Recall Code:
Recall Password
Return
Though the password function is disabled, you need to keep the old password in hand should you ever need to
re-activate the password function by entering the old password.
25 Operation
Switching input signal
The projector can be connected to multiple devices at the same
time. However, it can only display one full screen at a time.
When starting up, the projector automatically searches for the
available signals.
Be sure the Advanced Menu - Settings > Auto Source
Search menu is On if you want the projector to automatically
search for the signals.
To select the source:
1. Press SOURCE. A source selection bar appears.
2. Press / until your desired signal is selected and press
OK.
Once detected, the selected source information will appear at the corner of the screen for
seconds. If there is multiple equipment connected to the projector, repeat steps 1-2 to search
for another signal.
Controlling the projector through a Wired LAN
environment
Wired LAN allows you to manage the projector from a computer using a web browser when the
computer and the projector are properly connected to the same local area network.
Configuring the Wired LAN
If you are in a DHCP environment:
1. Take a RJ45 cable and connect one end to the RJ45 LAN input jack of the projector and the
other end to the RJ45 port.
2. Make sure the menu type is Advanced. See Using the menus on page 22 for how to switch
to the Advanced OSD menu.
3. Go to Advanced - Network.
4. Highlight Wired LAN and then press OK. The Wired LAN page is displayed.
5. Press / to highlight DHCP and press / to select On.
6. Press / to highlight Apply and press OK.
7. Go back to the Network page.
8. Press / to highlight AMX Device Discovery and press / to select On or Off.
When AMX Device Discovery is On, the projector can be detected by AMX controller.
9. Please wait for around 15 - 20 seconds, and then re-enter the Wired LAN page.
Source
• The brightness level of the projected image will change accordingly when you switch between different input
signals.
• For best display picture results, you should select and use an input signal which outputs at the projector’s native
resolution. Any other resolutions will be scaled by the projector depending upon the “aspect ratio” setting,
which may cause some image distortion or loss of picture clarity. See Aspect Ratio on page 34.
When connecting the RJ45 cable, avoid coiling and intertwining the cable as it may cause signal noise or interruption.
26 Operation
10. The IP Address, Subnet Mask, Default Gateway, and DNS Server settings will be
displayed. Note down the IP address displayed in the IP Address row.
If you are in a non-DHCP environment:
1. Repeat steps 1-4 above.
2. Press / to highlight DHCP and press / to select Off.
3. Contact your ITS administrator for information on the IP Address, Subnet Mask, Default
Gateway, and DNS Server settings.
4. Press / to select the item you want to modify and press OK.
5. Press / to move the cursor and then press / to enter the value.
6. To save the setting, press OK. If you do not want to save the setting, press BACK.
7. Press BACK to return to Wired LAN page, press / to highlight AMX Device
Discovery and press / to select On or Off.
8. Press BACK to exit the menu.
Controlling the projector remotely through a web browser
As Adobe no longer support Flash Player after December 31 2020, access to Flash Player is
removed from all browsers, including Internet Explorer and Google Chrome. As a result, the
Crestron RoomView service from BenQ, which is Flash-based, will also be discontinued. BenQ
suggests using the following alternatives to manage and monitor multiple projectors.
1. Crestron RoomView Express: this software can be downloaded from Crestron’s official
website. https://www.crestron.com/resources/get-roomview
2. BenQ DMS Local: this software can be downloaded from the official BenQ website. Please
reach out to BenQ service for further assistance with installation if needed.
https://www.benq.com/en-us/business/projector/dms-local.html
If the IP Address still does not display, contact your ITS administrator.
• Menu (MENU)• Auto PC (AUTO) See Projector & Remote control on page 9 for
details.
• OK
• ( )
• ( )
•
•
• Blank (BLANK) • Input (SOURCE)
To switch input source, click on your desired signal.
The source list varies according to the connectors available on the projector. ''Video'' stands for the Video signal.
i
ii
27 Operation

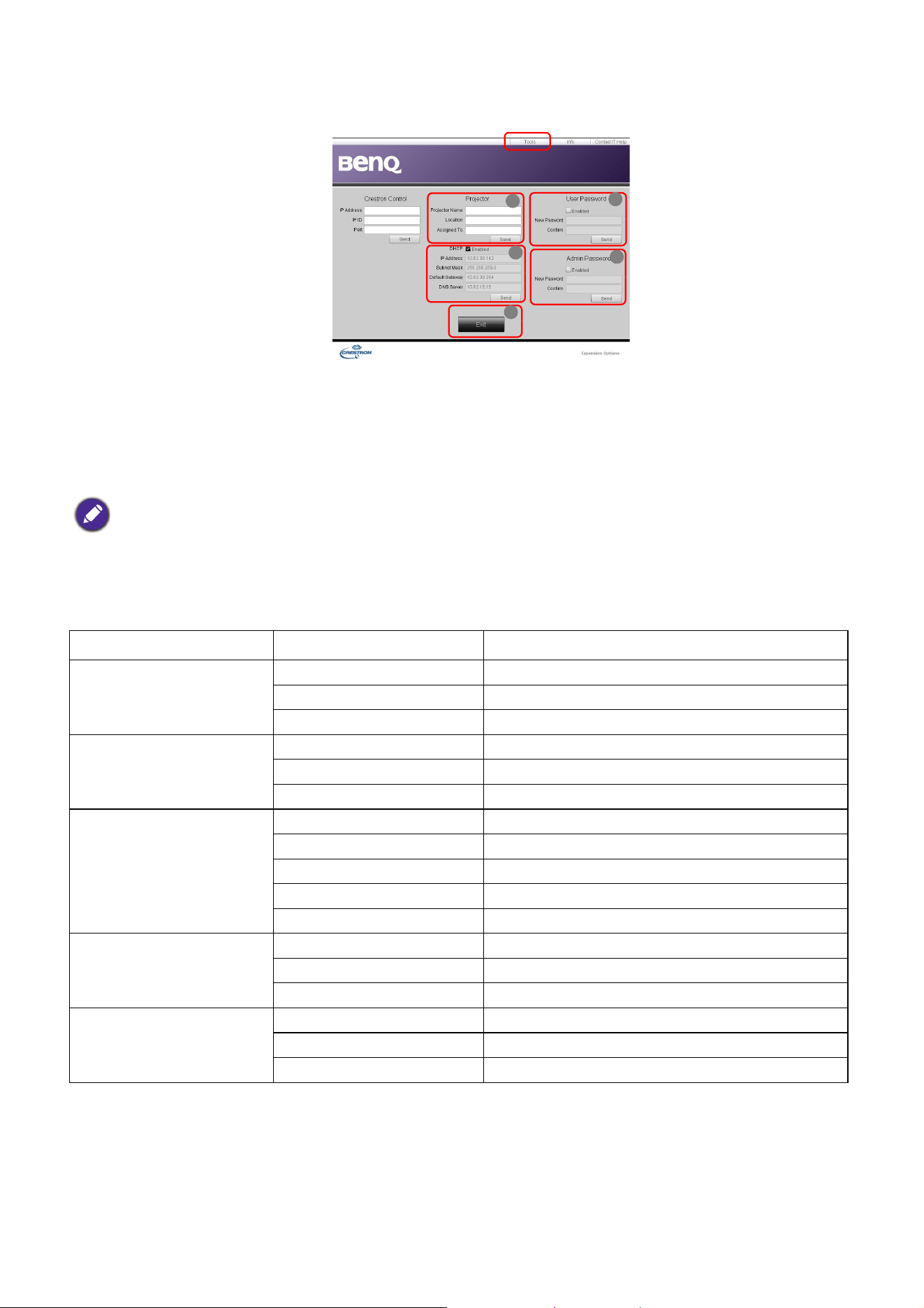

The tools page allows you to manage the projector, configure the Network settings and
secure access of remote network operation on this projector.
i. You can name the projector, keep track of its location and the person in charge of it.
ii. You can adjust the Network settings.
iii. Once set, access to the remote network operation on this projector has been
password-protected.
iv. Once set, access to the tools page has been password-protected.
v. Press Exit to go back to the remote network operation page.
Please pay attention to the limitation of input length (including space and other punctuation
keys) in the list blow:
iv
iii
ii
v
i
After making the adjustments, press the Send button and the data will be saved in the projector.
Category Item Input Length Maximum Number of Characters
Crestron Control
IP Address 15
IP ID 4
Port 5
Projector
Projector Name 22
Comment 22
Assigned To 22
Network Configuration
DHCP (Enabled) (N/A)
IP Address 15
Subnet Mask 15
Default Gateway 15
DNS Server 15
User Password
Enabled (N/A)
New Password 15
Confirm 15
Admin Password
Enabled (N/A)
New Password 15
Confirm 15
28 Operation

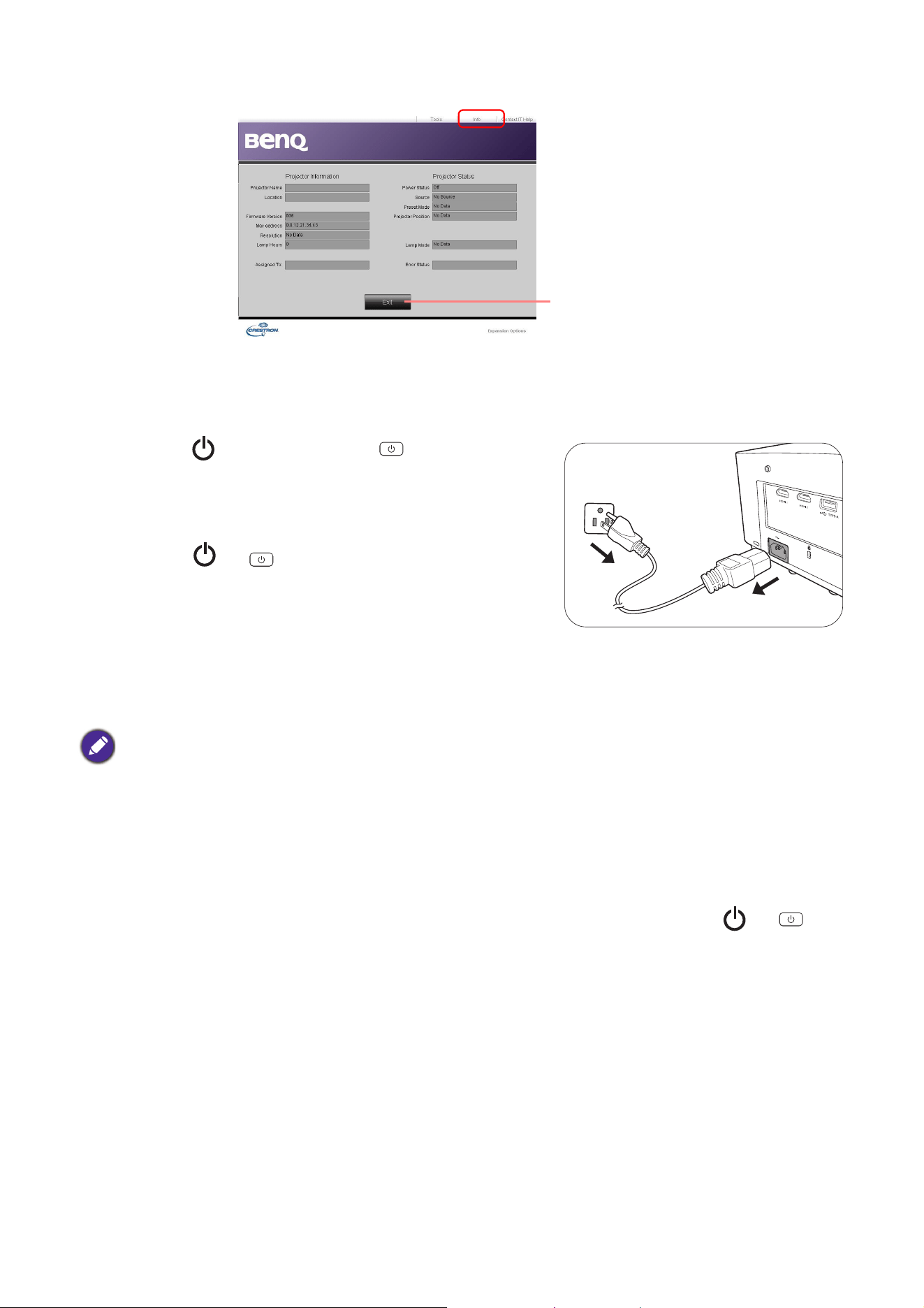

The info page displays the information and status of this projector.
For more information, visit http://www.crestron.com & www.crestron.com/getroomview.
Shutting down the projector
1. Press on the projector or on the remote
control and a confirmation message will appear
prompting you. If you don't respond in a few
seconds, the message will disappear.
2. Press or a second time. The power
indicator flashes orange, the projection light source
shuts down, and the fans will continue to run for
approximately 90 seconds to cool down the
projector.
3. Once the cooling process finishes, the power indicator becomes a steady orange and fans
stop. Disconnect the power cord from the power outlet.
Direct power off
The AC power cord can be pulled out right after the projector is turned off. To protect the light
source, wait about 10 minutes before re-starting the projector. If you attempt to re-start the
projector, the fans may run for a few minutes to cool down. In such cases, press or again
to start the projector after the fans stop and the power indicator turns orange.
Press Exit to go back to the remote
network operation page.
• To protect the light source, the projector will not respond to any commands during the cooling process.
• Avoid turning on the projector immediately after turning it off as excessive heat may shorten light source life.
• Light source life results will vary depending on environmental conditions and usage.
29 Menu operation
Menu operation
Please note that the on-screen display (OSD) menus vary according to the signal type selected and
the projector model you are using.
The menu items are available when the projector detects at least one valid signal. If there is no
equipment connected to the projector or no signal detected, limited menu items are accessible.
Basic menu
Main menu Options
Brightness
0~50~100
Aspect Ratio Auto/Real/4:3/16:9/16:10/2.4:1
Picture Mode
Bright/Presentation/sRGB/Infographic/Video/
Golf/(3D)/(HDR10)/(HLG)/User 1/
User 2
Volume
0~5~10
Light Mode Normal/ECO/Dimming/Custom
Information
Native Resolution
Detected Resolution
Source
Picture Mode
Light Mode
3D Format
Color System
Light Usage Time
Projector ID
Firmware Version
Menu Type Basic/Advanced
30 Menu operation
Advanced menu
Main menu Submenu Options
Picture Mode
Bright/Presentation/sRGB/
Infographic/Video/Golf/(3D)/(HDR
10)/(HLG)/User 1/User 2
Reference Mode
Bright/Presentation/sRGB/
Infographic/Video/Golf/(3D)
Brightness
0~50~100
Contrast
-50~0~50
Color
-50~0~50
Tint
-50~0~50
Sharpness
0~17~31
Brilliant Color
0~10
Advanced Color
Settings
Gamma
Selection
1.8 / 2.0 / 2.1 / 2.2 / 2.3 /2.4 / 2.6 /
BenQ/DICOM
HDR Brightness
-2~2
Color
Temperature
Cool/Normal/Warm
Color
Temperature
Tuning
R Gain (0~50~100)
G Gain (0~50~100)
B Gain (0~50~100)
R Offset (-50~0~50)
G Offset (-50~0~50)
B Offset (-50~0~50)
Color
Management
R (Primary Color/Hue/
Saturation/Gain)
G (Primary Color/Hue/
Saturation/Gain)
B (Primary Color/Hue/
Saturation/Gain)
C (Primary Color/Hue/
Saturation/Gain)
M (Primary Color/Hue/
Saturation/Gain)
Y (Primary Color/Hue/
Saturation/Gain)
White Balance R Gain/B Gain/G Gain
Wall Color
Off/Light Yellow/Pink/Light
Green/Blue/Blackboard
Reset Picture Reset/Cancel
31 Menu operation
Display
Aspect Ratio Auto/Real/4:3/16:9/16:10/2.4:1
2D Keystone
H: -30~0~30
V: -30~0~30
Corner Fit
Test Pattern Off/Grid W/Grid G/RGB Ramps
PC & Component YPbPr Tuning
Phase
H. Size
Position
3D
3D Sync Mode DLP Link/VESA 3D
3D Mode
Auto/Top Bottom/Frame
Sequential/Frame Packing/Side by
Side/Off
3D Sync Invert Disable/Invert
3D Sync Out
Delay
0~359
3D Sync Out
Reference
3D VESA/Bypass
Apply 3D
Settings
3D Settings 1/3D Settings 2/3D
Settings 3/Off
Save 3D
Settings
3D Settings 1/3D Settings 2/3D
Settings 3
HDMI Format
Auto/RGB Limited/RGB Full/
YUV Limited/YUV Full
Image Resizing
Digital Zoom
1.0X/2.0X
Digital Shrink &
Shift
0.75X~1.0X
Blanking
Modes of Adjustment
Top
Bottom
Left
Right
Native
Resolution
Display
Resolution
Switch
WUXGA/1080P
Digital Lens Shift
Fast Mode On/Off
Reset Display Reset/Cancel
Main menu Submenu Options
32 Menu operation
Network
Wired LAN
Status
DHCP On/Off
IP Address
Subnet Mask
Default Gateway
DNS Server
Apply
AMX Device Discovery On/Off
MAC Address (Wired)
Settings
Projector Installation
Front Table/Rear Table/Rear
Ceiling/Front Ceiling
Remote Receiver Front/Top/Front+Top
Auto Source Search On/Off
Auto Sync On/Off
Dynamic Dimming On/Off
HDR Auto/SRD/HDR10/HLG
Light Settings
Light Mode
Normal/ECO/Dimming/
Custom
Custom Brightness
Light Usage Time
Operation
Settings
Blank Timer
Disable/5 min/10 min/15 min/
20 min/25 min/30 min
Reminder
Message
On/Off
High Altitude
Mode
On/Off
Power On/Off
Settings
Direct Power On
Signal Power On
Auto Power Off
Power Off Timer
12V Trigger On/Off
Serial Port
Setting
Port Selection RS232/HDBaseT
Baud Rate
9600/14400/19200/38400/57600/
115200
HDMI Equalizer
HDMI 1
Auto/Lower/Low/Middle/High/
Higher
HDMI 2
Auto/Lower/Low/Middle/High/
Higher
Image Memory
Save Image
Memory
Memory-1/Memory-2/Memory-3/
Memory-4/Memory-5
Apply Image
Memory
Rename
Reset Settings Reset/Cancel
Main menu Submenu Options
33 Menu operation
System
Language
Standby Settings
Standby Mode ECO/Network/Normal
Auto Disable
Network
Standby Mode
Off/20 min/1 hr/3 hr/6 hr
Audio Pass
Through
Off/Audio in/Audio L/R/HDMI
1/HDMI 2
Background
Settings
Background BenQ/Gray/Black/Blue/Purple
Splash Screen BenQ/Black/Blue
Menu Settings
Menu Type Basic/Advanced
Menu Display
Time
5 sec/10 sec/20 sec/30 sec/Always
Audio Settings
Mute On/Off
Volume
0~5~10
Power On/Off
Ring Tone
On/Off
Security
Settings
Panel Key Lock On/Off
Change Password
Power On Lock On/Off
Projector ID Setting Off/01/02/.../99
Factory Default Reset/Cancel
Reset System Reset/Cancel
Information
Native Resolution
Detected Resolution
Source
Picture Mode
Light Mode
3D Format
Color System
Light Usage Time
Projector ID
Firmware Version
Service Code
Main menu Submenu Options
Bhs Ind
34 Menu operation
Basic menu
Brightness
The higher the value, the brighter the image. Adjust this control so the black areas
of the image appear just as black and that detail in the dark areas is visible.

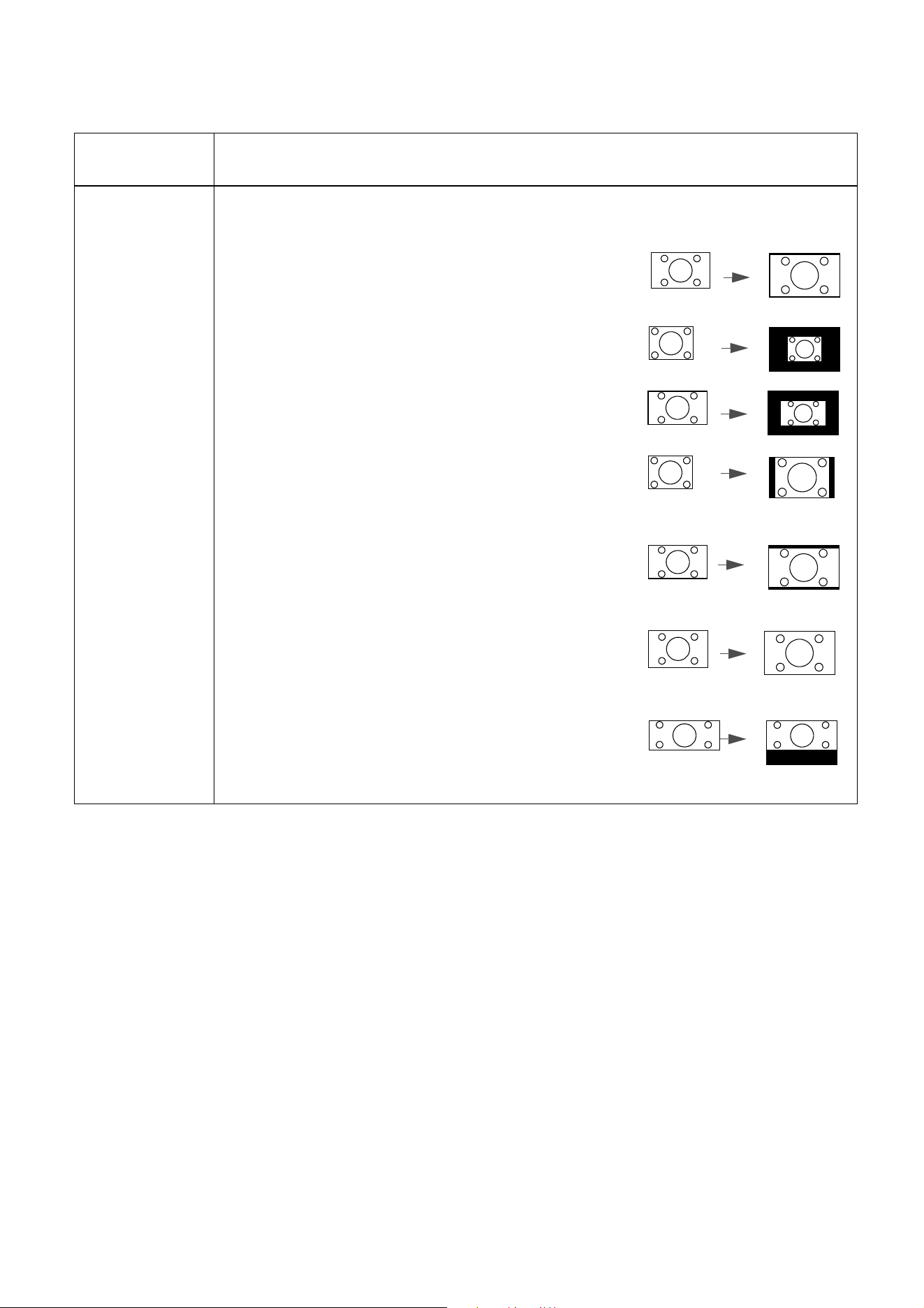

Aspect Ratio
There are several options to set the image's aspect ratio depending on your input
signal source.
• Auto: Scales an image proportionally to fit the
projector's native resolution in its horizontal or
vertical width.
• Real: Projects an image as its original resolution and
resizes it to fit within the display area. For input signals
with lower resolutions, the projected image will be
displayed in its original size.
• 4:3: Scales an image so that it is displayed in the center
of the screen with a 4:3 aspect ratio.
• 16:9: Scales an image so that it is displayed in the
center of the screen with a 16:9 aspect ratio.
• 16:10: Scales an image so that it is displayed in the
center of the screen with a 16:10 aspect ratio.
• 2.4:1: Scales an image so that it is displayed aligned
with the upper edge of the display region with a 2.4:1
aspect ratio.
15:9 picture
4:3 picture
16:9 picture
4:3 picture
16:9 picture
16:10 picture
2.4:1 picture
35 Menu operation
Picture Mode
The projector is preset with several predefined picture modes so that you can
choose one to suit your operating environment and input signal picture type.
• Bright: Maximizes the brightness of the projected image. This mode is suitable for
environments where extra-high brightness is required, such as using the projector
in well lit rooms.
• Presentation: Is designed for presentations. The brightness is emphasized in this
mode to match PC and notebook coloring.
• sRGB: Maximizes the purity of RGB colors to provide true-to-life images
regardless of brightness setting. It is most suitable for viewing photos taken with an
sRGB compatible and properly calibrated camera, and for viewing PC graphic and
drawing applications such as AutoCAD.
• Infographic: Is perfect for presentations with the mixture of text and graphics
due to its high color brightness and better color gradation to see the details
clearly.
• Video: Is suitable for playing videos in an environment where there is ambient
light. Dynamic color details are preserved by BenQ enhancement technology.
• Golf: Is designed for golf simulators and optimizes the blue sky and the green
grass color.
• 3D: Is appropriate for playing 3D images and 3D video clips. This mode is only
available when 3D function is enabled and 3D content is detected.
• HDR10: Delivers High Dynamic Range effects with higher contrasts of brightness
and colors. This mode is only available when Settings > HDR is set at Auto or
HDR10, and HDR content is detected.
• HLG: Delivers High Dynamic Range effects with higher contrasts of brightness
and colors. This mode is only available when Settings > HDR is set at Auto or
HLG, and HLG content is detected.
• User 1/User 2: Recalls the settings customized based on the current available
picture modes. See Reference Mode on page 36.
Volume Adjusts the sound level.
Light Mode See Setting the Light Mode on page 48.
Information
• Native Resolution: Shows the native resolution of the projector.
• Detected Resolution
: Shows the native resolution of the input signal.
• Source: Shows the current signal source.
• Picture Mode: Shows the selected mode in the Picture menu.
• Light Mode: Shows the selected mode in the Light Settingsmenu.
• 3D Format: Shows the current 3D mode.
• Color System: Shows input system format.
• Light Usage Time: Shows the number of hours the light source has been used.
• Projector ID: Shows projector ID of the projector.
• Firmware Version: Shows the firmware version of your projector.
Menu Type Switches to the Advanced OSD menu. See Using the menus on page 22.
36 Menu operation
Advanced menu
Picture Mode
The projector is preset with several predefined picture modes so that you can
choose one to suit your operating environment and input signal picture type.
• Bright: Maximizes the brightness of the projected image. This mode is suitable
for environments where extra-high brightness is required, such as using the
projector in well lit rooms.
• Presentation: Is designed for presentations. The brightness is emphasized in this
mode to match PC and notebook coloring.
• sRGB: Maximizes the purity of RGB colors to provide true-to-life images
regardless of brightness setting. It is most suitable for viewing photos taken with
an sRGB compatible and properly calibrated camera, and for viewing PC graphic
and drawing applications such as AutoCAD.
• Infographic: Is perfect for presentations with the mixture of text and graphics
due to its high color brightness and better color gradation to see the details
clearly.
• Video: Is suitable for playing videos in an environment where there is ambient
light. Dynamic color details are preserved by BenQ enhancement technology.
• Golf: Is designed for golf simulators and optimizes the blue sky and the green
grass color.
• 3D: Is appropriate for playing 3D images and 3D video clips. This mode is only
available when 3D function is enabled and 3D content is detected.
• HDR10: Delivers High Dynamic Range effects with higher contrasts of brightness
and colors. This mode is only available when Settings > HDR is set at Auto or
HDR10, and HDR content is detected.
• HLG: Delivers High Dynamic Range effects with higher contrasts of brightness
and colors. This mode is only available when Settings > HDR is set at Auto or
HLG, and HLG content is detected.
• User 1/User 2: Recalls the settings customized based on the current available
picture modes. See Reference Mode on page 36.
Reference
Mode
There are 2 user-definable modes if the current available picture modes are not
suitable for your need. You can use one of the picture modes (except the User
1/User 2) as a starting point and customize the settings.
1. Go to Picture > Picture Mode.
2. Press / to select User 1 or User 2.
3. Press to highlight Reference Mode, and press / to select a picture
mode that is closest to your need.
4. Press to select a menu item to be changed and adjust the value. The
adjustments define the selected user mode.
Brightness
The higher the value, the brighter the image. Adjust this control so the black areas
of the image appear just as black and that detail in the dark areas is visible.
37 Menu operation
Contrast
The higher the value, the greater the contrast. Use this to set the peak white level
after you have previously adjusted the Brightness setting to suit your selected input
and viewing environment.
Color
Lower setting produces less saturated colors. If the setting is too high, colors on
the image will be overpowering, which makes the image unrealistic.
Tint
The higher the value, the more greenish the picture becomes. The lower the value,
the more reddish the picture becomes.
Sharpness The higher the value, the sharper the picture becomes.
Brilliant Color
This feature utilizes a new color-processing algorithm and system level
enhancements to enable higher brightness while providing truer, more vibrant
colors in picture. It enables a greater than 50% brightness increase in mid-tone
images, which are common in video and natural scenes, so the projector
reproduces images in realistic and true colors. If you prefer images with that quality,
select a desired level.
When 0 is selected, the Color Temperature function is not available.
Advanced
Color Settings
Gamma Selection
Gamma refers to the relationship between input source and picture brightness.
• 1.8/2.0/2.1/BenQ/DICOM: Select these values according to your
preference.
• 2.2/2.3: Increases the average brightness of the picture. Best for a lit
environment, meeting room or family room.
• 2.4/2.5: Best for viewing movies in a dark environment.
• 2.6: Best for viewing movies which are mostly composed of dark scenes.
HDR Brightness
The projector can automatically adjust the brightness levels of your image according
to the input source. You can also manually select a brightness level to display better
picture quality. When the value is higher, the image becomes brighter; when the
value is lower, the image becomes darker.
Color Temperature
There are several preset color temperature settings available. The available settings
may vary according to the signal type selected.
• Normal: Maintains normal colorings for white.
• Cool: Makes images appear bluish white.
• Warm: Makes images appear reddish white.
Color Temperature Tuning
You can also set a preferred color temperature by adjusting the following options.
• R Gain/G Gain/B Gain: Adjusts the contrast levels of Red, Green, and Blue.
• R Offset/G Offset/B Offset: Adjusts the brightness levels of Red, Green,
and Blue.
High Brightness
Low Contrast
Low Brightness
High Contrast
1.8 2.0 2.1 2.2 2.3 2.4 2.5 2.6 BenQ
38 Menu operation
Advanced
Color Settings

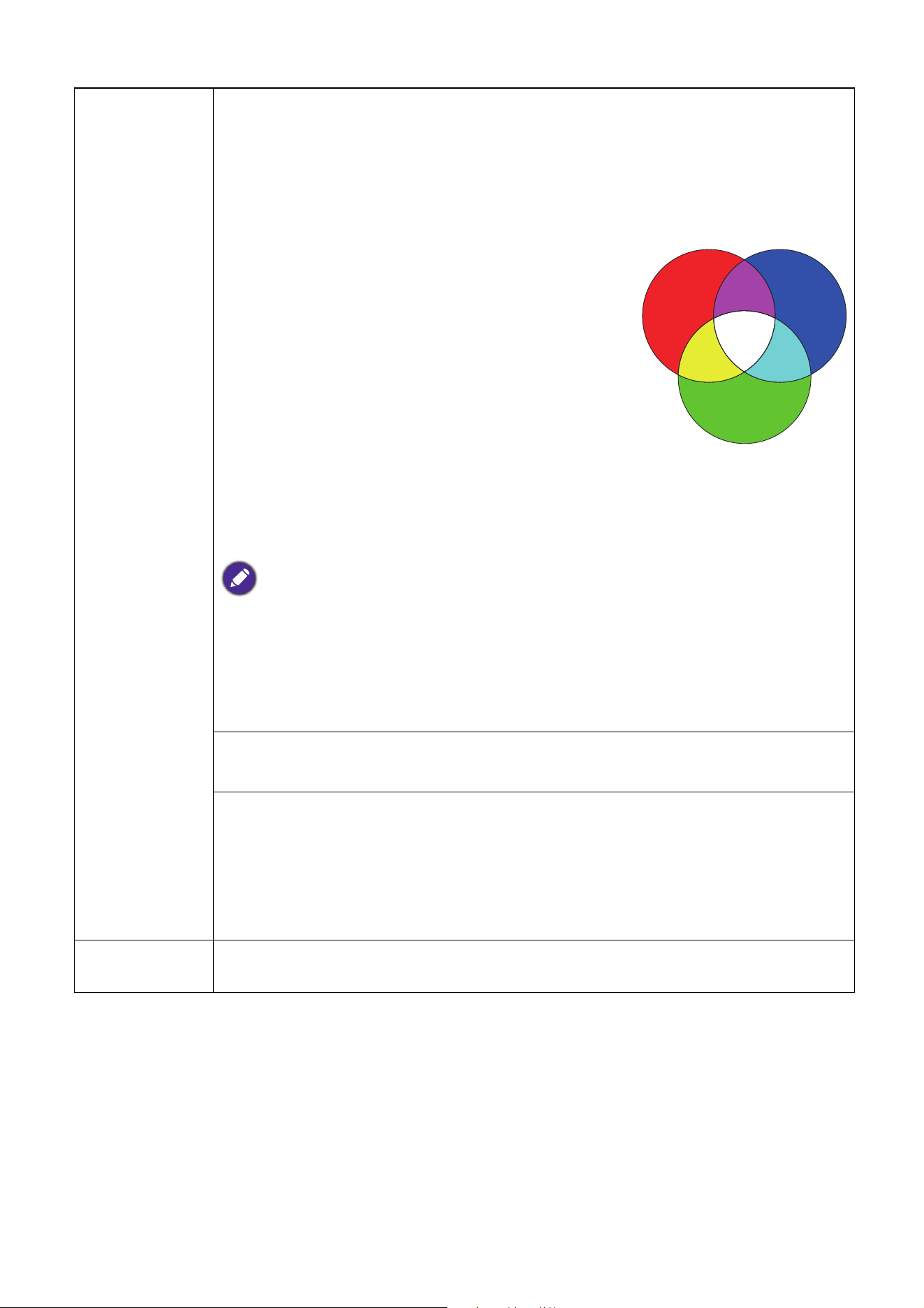

Color Management
This function provides six sets (RGBCMY) of colors to be adjusted. When you
select each color, you can independently adjust its range and saturation according
to your preference.
• Primary Color: Selects a color from among R (Red), G (Green), B (Blue), C
(Cyan), M (Magenta), or Y (Yellow).
• Hue: Hue is used for adjusting the color
balance. Increase in the value will include colors
consisted of more proportions of its adjacent
colors in counterclockwise order. Decrease in
the value will have effect in clockwise order.
Please refer to the illustration for how the colors
relate to each other
For example, if you select Red and set its value at
0, only pure red in the projected picture will be
selected. Increasing its value will include red
close to yellow while decreasing its value will include red close to magenta.
• Saturation: Adjusts the values to your preference. Every adjustment made
will reflect to the image immediately. For example, if you select Red and set its
value at 0, only the saturation of pure red will be affected.
Saturation is the amount of that color in a video picture. Lower settings produce less saturated
colors; a setting of “0” removes that color from the image entirely. If the saturation is too high, that
color will be overpowering and unrealistic.
• Gain: Adjusts the values to your preference. The contrast level of the
primary color you select will be affected. Every adjustment made will reflect to
the image immediately.
White Balance
Color temperature of white can be modified by adjusting the red/green/blue gain.
Wall Color
Corrects the projected picture’s color when the projection surface such as a
painted wall which may not be white, the Wall Color feature can help correct the
projected picture’s colors to prevent possible color difference between the source
and projected pictures. There are several precalibrated colors to choose from:
Light Yellow, Pink, Light Green, Blue, and Blackboard.
Reset Picture
Returns all of the adjustments you’ve made for the Picture menu to the factory
preset values.
RED
BLUE
GREEN
Yellow
Cyan
Magenta
39 Menu operation
Display

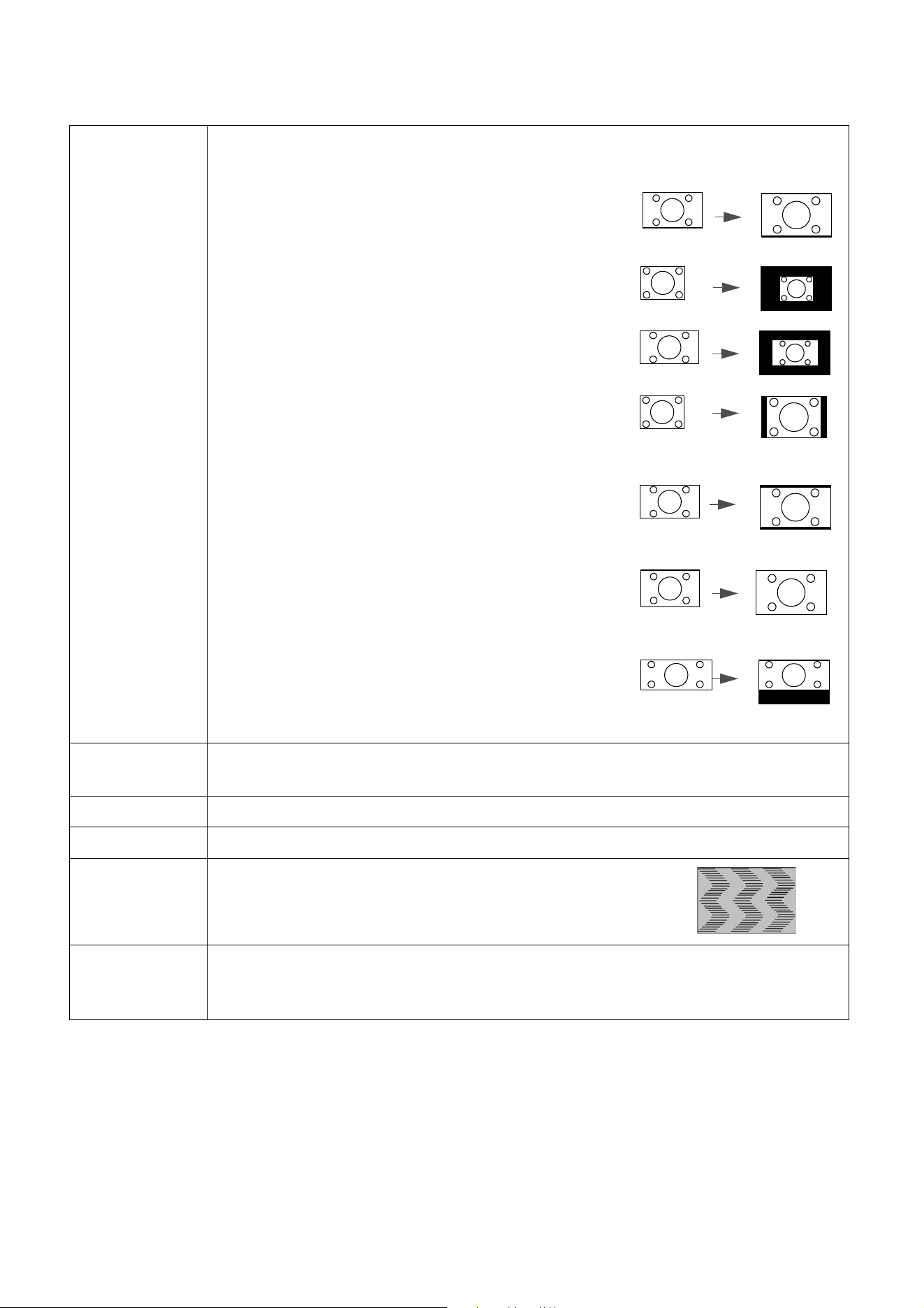

Aspect Ratio
There are several options to set the image's aspect ratio depending on your input
signal source.
• Auto: Scales an image proportionally to fit the
projector's native resolution in its horizontal or
vertical width.
• Real: Projects an image as its original resolution and
resizes it to fit within the display area. For input signals
with lower resolutions, the projected image will be
displayed in its original size.
• 4:3: Scales an image so that it is displayed in the center
of the screen with a 4:3 aspect ratio.
• 16:9: Scales an image so that it is displayed in the
center of the screen with a 16:9 aspect ratio.
• 16:10: Scales an image so that it is displayed in the
center of the screen with a 16:10 aspect ratio.
• 2.4:1: Scales an image so that it is displayed aligned
with the upper edge of the display region with a 2.4:1
aspect ratio.
2D Keystone
This function provides manual 2D keystone adjustment and auto vertical keystone
adjustment. See Correcting keystone on page 17.
Corner Fit See Adjusting Corner Fit on page 18.
Test Pattern Built-in images for checking if the projected image is free from distortion.
PC &
Component
YPbPr Tuning
• Phase: Adjusts the clock phase to reduce image
distortion.
• H. Size: Adjusts the horizontal width of the image.
Position
Displays the position adjustment page. To move the projected image, use the
directional arrow keys. This function is only available when a PC signal (analog RGB)
is selected.
15:9 picture
4:3 picture
16:9 picture
4:3 picture
16:9 picture
16:10 picture
2.4:1 picture
40 Menu operation
3D
This projector features a 3D function which enables you to enjoy the 3D movies,
videos, and sporting events in a more realistic way by presenting the depth of the
images. You need to wear a pair of 3D glasses to view the 3D images.
• 3D Sync Mode: Select a proper 3D sync mode.
• 3D Mode: The default setting is Off. If you want the projector to automatically
choose an appropriate 3D format when detecting 3D contents, select Auto. If the
projector cannot recognize the 3D format, press / to choose a 3D mode from
among Top Bottom, Frame Sequential, Frame Packing and Side by Side.
When 3D function is activated:
• The brightness level of the projected image will decrease.
• The following settings cannot be adjusted: Picture Mode, Reference Mode.
• The Keystone can only be adjusted within limited degrees.
• 3D Sync Invert: When you discover the inversion of the image depth, enable
this function to correct the problem.
• 3D Sync Out Delay: Adjusts the 3D sync out signal delay time.
• 3D Sync Out Reference: Decides the 3D sync out signal goes to a 3D VESA
emitter or is bypassed to another projector.
• Apply 3D Settings: After the 3D settings are saved, you can decide if you would
like to apply them by choosing a set of 3D settings that you have saved. Once
applied, the projector will automatically play the incoming 3D contents if it
matches the 3D settings saved.
Only the set(s) of 3D settings with memorized data is available.
• Save 3D Settings: When you have successfully displayed the 3D contents after
making the appropriate adjustments, you can enable this function and choose a set
of 3D settings to memorize current 3D settings.
HDMI Format
Selects a suitable color format to optimize display quality.
• Auto: Automatically selects a suitable color space and gray level for the incoming
HDMI signal.
• RGB Limited: Utilizes the Limited range RGB 16-235.
• RGB Full: Utilizes the Full range RGB 0-255.
• YUV Limited: Utilizes the Limited range YUV 16-235.
• YUV Full: Utilizes the Full range YUV 0-255.
41 Menu operation
Resizing
Digital Zoom
Magnifies or reduces the projected image size.
1. After the adjustment bar displays, press / on the projector or
ZOOM+/ZOOM- on the remote control repeatedly to reduce or magnify the
image to a desired size.
2. Press OK to enter panning mode.
3. Press the directional arrows ( , , , ) on the projector or remote control
to navigate the picture.
The picture can only be navigated after it is magnified. You can further magnify the picture while
searching for details.
Digital Shrink & Shift
Shrinks and/or shifts the projected image.
1. After the adjustment bar displays, press / repeatedly to shrink or magnify
the picture to a desired size.
2. Press OK to activate digital shift function.
3. After digital shift function is activated, press the directional arrows ( , , ,
) to shift the image.
4. Press AUTO to restore the picture to its original size.
The picture can only be shifted after it shrank.
Blanking
Blanks some parts of the projected image.
1. Select the Modes of Adjustment first by pressing / .
2. Press / to highlight the area you want to adjust and press / to adjust its
range.
Enacting the Reset All Blanking Settings function will return all items in the Blanking menu to
the factory preset values. Pressing AUTO clears the values of selected item (excluding Modes of
Adjustment).
Native
Resolution
• Display Resolution Switch: Select the native resolution of this projector
between WUXGA and 1080P.
• Digital Lens Shift: After the Digital Lens Shift page displays, press / to
shift the projected image.
This function is not available in the following situations: Picture Mode is 3D; Display Resolution
Switch is WUXGA.
Reset Display
Returns all of the adjustments you’ve made for the Display menu to the factory
preset values.
42 Menu operation
Network
Settings
Wired LAN See Controlling the projector through a Wired LAN environment on page 25.
AMX Device
Discovery
When this function is On, the projector can be detected by AMX controller.
MAC Address
(Wired)
Displays the mac address for this projector.
Projector
Installation
The projector can be installed on a ceiling or behind a screen, or with one or more
mirrors. See Choosing a location on page 11.
Remote
Receiver
Allows you to enable all the remote receivers or one specific remote receiver on
the projector.
Auto Source
Search
Allows the projector to automatically search for a signal.
Auto Sync
• On: Allows the projector to automatically determines the best picture timings for
the displayed image when PC signal (analog RGB) is selected and AUTO is
pressed.
• Off: The projector will not respond when AUTO is pressed.
Dynamic
Dimming
Allows the projector to automatically detect the video content and enhance
contrast during dark scenes.
Light Settings
• Light Mode: See Setting the Light Mode on page 48.
• Custom Brightness: Only available when Light Mode is Custom.
• Light Usage Time: Displays the number of hours the light source has been
used.
43 Menu operation
Operation
Settings
Blank Timer
Sets the image blank time when there is no action taken on the blank screen, once
elapsed the image will return to the screen. If the preset time spans are not suitable
for your need, select Disable. No matter Blank Timer is activated or not, you
can press most of the keys on the projector or remote control to restore the
picture.
Reminder Message
Sets the reminder messages on or off.
High Altitude Mode
We recommend you use the High Altitude Mode when your environment is
between 1500 m –3000 m above sea level, and ambient temperature is between
0°C–30°C.
Operation under "High Altitude Mode" may cause a higher decibel operating
noise level because of increased fan speed necessary to improve overall system
cooling and performance.
If you use this projector under other extreme conditions excluding the above, it
may display auto shut-down symptoms, which is designed to protect your projector
from over-heating. In cases like this, you should switch to High Altitude mode to
solve these symptoms. However, this is not to state that this projector can operate
under any and all harsh or extreme conditions.
Do not use the High Altitude Mode if your altitude is between 0 m and 1500 m and ambient
temperature is between 0°C and 35°C. The projector will be over cooled, if you turn the mode on
under such a condition.
Power On/Off Settings
• Direct Power On: Allows the projector to turn on automatically once the
power is fed through the power cord.
• Signal Power On: Sets whether to turn the projector directly on without
pressing POWER or ON when the projector is in standby mode and
detects a VGA signal or a HDMI signal with 5V power.
• Auto Power Off: Allows the projector to turn off automatically if no input signal
is detected after a set period of time to prevent unnecessary waste of light source
life.
• Power Off Timer: Sets the auto-shutdown timer.
12V Trigger
There is one 12V trigger that works independently according to your needs for
installation scenarios.
• Off: If this is selected, the projector will not send electronic signal out when it is
turned on.
• On: The projector will send a low to high electronic signal out when it is turned
on, a high to low signal out when it is turned off.
44 Menu operation
System
Serial Port
Setting
• Port Selection: Allows you to select a preferred control port: through the
RS-232C port (RS232 port on the projector) or the HDBaseT port (HDBaseT
input port on the projector).
• Baud Rate: Selects a baud rate that is identical with your computer’s so that you
can connect the projector using a suitable RS-232 cable. This function is intended
for qualified service personnel.
HDMI
Equalizer
Adjusts the equalizer gain settings for an HDMI signal. The higher the setting, the
stronger the gain value. If there are more than one HDMI port on the projector,
select the HDMI port first before adjusting the value.
Memory
• Save Image Memory: Allows you to save and apply several sets of image
settings for regularly used circumstances, including the following settings:
Projector Installation, Aspect Ratio, Picture Mode, Source, Resolution,
Light Source Mode, Digital Shrink & Shift, Blanking. You can choose one
set of memory to save the current settings.
• Apply Image Memory: After the image memories are saved, you can decide if
you would like to apply it by choosing a set of memory that you have saved.
• Rename: Renames the image memories.
Reset Settings
Returns all of the adjustments you’ve made for the Settings menu to the factory
preset values.
Language Sets the language for the On-Screen Display (OSD) menus.
Standby
Settings
• Standby Mode
• ECO: The projector maintains at normal standby mode with less than 0.5W
power consumption.
• Network: The projector maintains at network standby mode with less than
2W power consumption.
• Normal: Allows the projector to provide network, monitor out and audio
pass through functions in standby mode.
• Auto Disable Network Standby Mode: Allows the projector to disable the
network function after a set period of time after it enters standby mode. For
instance, if 20 min is selected, the projector is able to provide the network
function for 20 minutes after it enters standby mode. When 20 minutes is up, the
projector enters normal standby mode.
• Audio Pass Through: The projector can play sound when it is in standby mode
and the corresponding jacks are correctly connected to devices. Press / to
choose the source that you wish to use. See Connection on page 19 for how to
make the connection.
Background
Settings
• Background: Sets the background color for the projector.
• Splash Screen: Allows you to select which logo screen will be displayed during
projector start-up.
Menu Settings
• Menu Type: Switches to the Basic OSD menu.
• Menu Display Time: Sets the length of time the OSD will remain active after
your last key press.
45 Menu operation
Audio
Settings
• Mute: Temporarily turns off the sound.
• Volume: Adjusts the sound level.
• Power On/Off Ring Tone: Turns on or off the ring tone when the projector is
in startup and shutdown process.
The only way to change Power On/Off Ring Tone is setting On or Off here. Setting the sound
mute or changing the sound level will not affect the Power On/Off Ring Tone.
Security
Settings
Panel Key Lock
With the control keys on the projector locked, you can prevent your projector
settings from being changed accidentally (by children, for example). When the
Panel Key Lock is on, no control keys on the projector will operate except
POWER.
To release panel key lock, press and hold (the right key) for 3 seconds on the
projector or turn this function off using the remote control.
If you turn off the projector without disabling panel key lock, the projector will still be in locked
status the next time it is turned on.
Change Password
See Utilizing the password function on page 23.
Power On Lock
See Utilizing the password function on page 23.
Projector ID
Settings
Sets the projector ID for this projector (between 01~99). When multiple adjacent
projectors are in operation at the same time, switching the projector ID codes can
prevent interference from other remote controls. After the Projector ID is set,
switch to the same ID for the remote control to control this projector. See
Projector & Remote control on page 9.
Set the ID
1. Press and hold ID SET until the ID setting indicator lights up.
2. Enter the ID for the remote control (between 01~99). The remote control ID
should be the same as the corresponding projector ID.
3. The ID is saved successfully when you see the ID setting indicator starts
flickering and then blackout.
Clear the ID
1. Press and hold ID SET until the ID setting indicator lights up.
2. Press ALL to clear current ID setting of the remote control.
3. The ID is cleared successfully when you see the ID setting indicator starts
flickering and then blackout.
46 Menu operation
Information
Factory
Default
Returns all settings to the factory preset values.
The following settings will still remain: 2D Keystone, Auto Vertical Keystone, Corner Fit,
Projector Installation, Light Usage Time, High Altitude Mode, Security Settings, Baud
Rate, Corner Fit, Digital Shrink & Shift, Digital Lens Shift, Network, HDMI Equalizer,
Display Resolution Switch, Dynamic Dimming,Custom Brightness.
Reset System
Returns all of the adjustments you’ve made for the System menu to the factory
preset values.
Information
• Native Resolution: Shows the native resolution of the projector.
• Detected Resolution: Shows the native resolution of the input signal.
• Source: Shows the current signal source.
• Picture Mode: Shows the selected mode in the Picture menu.
• Light Mode: Shows the selected mode in the Light Settingsmenu.
• 3D Format: Shows the current 3D mode.
• Color System: Shows input system format.
• Light Usage Time: Shows the number of hours the light source has been used.
• Projector ID: Shows projector ID of the projector.
• Firmware Version: Shows the firmware version of your projector.
• Service Code: Shows the serial number of the projector.
47 Maintenance
Maintenance
Care of the projector
Cleaning the lens
Clean the lens whenever you notice dirt or dust on the surface. Please be sure to turn off the
projector and let it cool down completely before cleaning the lens.
• Use a canister of compressed air to remove dust.
• If there is dirt or smears, use lens-cleaning paper or moisten a soft cloth with lens cleaner and
gently wipe the lens surface.
• Never use any type of abrasive pad, alkaline/acid cleaner, scouring powder, or volatile solvent,
such as alcohol, benzene, thinner or insecticide. Using such materials or maintaining prolonged
contact with rubber or vinyl materials may result in damage to the projector surface and cabinet
material.
Cleaning the projector case
Before you clean the case, turn the projector off using the proper shutdown procedure as
described in Shutting down the projector on page 28 and unplug the power cord.
• To remove dirt or dust, wipe the case with a soft, lint-free cloth.
• To remove stubborn dirt or stains, moisten a soft cloth with water and a neutral pH detergent.
Then wipe the case.
Storing the projector
If you need to store the projector for an extended time, please follow the instructions below:
• Make sure the temperature and humidity of the storage area are within the recommended range
for the projector. Please refer to Specifications on page 51 or consult your dealer about the
range.
• Retract the adjuster feet.
• Remove the battery from the remote control.
• Pack the projector in its original packing or equivalent.
Transporting the projector
It is recommended that you ship the projector with its original packing or equivalent.
Never use wax, alcohol, benzene, thinner or other chemical detergents. These can damage the case.
48 Maintenance
Light source information
Getting to know the light source hour
When the projector is in operation, the duration (in hours) of light source usage is automatically
calculated by the built-in timer. The method of calculating the equivalent light source hour is as
follows:
Light source Usage Time = (hours used in Normal mode) + (hours used in ECO mode) +
(hours used in Dimming mode) + (hours used in Custom mode)
Total (equivalent) light source hour = 1.0 x (hours used in Normal mode) + 1.0 x (hours used in
ECO mode) + 1.0 x (hours used in Dimming mode) + 1.0 x (hours used in Custom mode)
To obtain the light source hour information:
1. Go to Advanced Menu - Settings > Light Settings and press OK. The Light Settings
page appears.
2. Press to select Light Usage Time and press OK. The Light Usage Time information
is displayed.
You can also get the light source hour information on the Information menu.
Extending light source life
• Setting the Light Mode
Go to Advanced Menu - Settings > Light Settings > Light Mode and select a suitable light
source power from among the provided modes.
Setting the projector in ECO, Dimming or Custom mode extends light source life.
• Setting Auto Power Off
This function allows the projector to turn off automatically if no input signal is detected after a set
period of time to prevent unnecessary waste of light source life.
To s e t Auto Power Off, go to Advanced Menu - Settings > Operation Settings > Power
On/Off Settings > Auto Power Off and press / .
Light Source mode Description
Normal Provides full light source brightness
ECO Lowers brightness to extend the light source life and decreases the fan noise
Dimming Lowers brightness to offer a longer light source life
Custom
Enables the light source brightness adjustment bar so that you can adjust the
setting to your liking
• The apparent brightness of the projected image will vary depending on the ambient lighting conditions, selected
input signal contrast/brightness settings, and is directly proportional to projection distance.
• The light source brightness will decline over time and may vary within the light source manufacturers
specifications. This is normal and expected behavior.
49 Maintenance

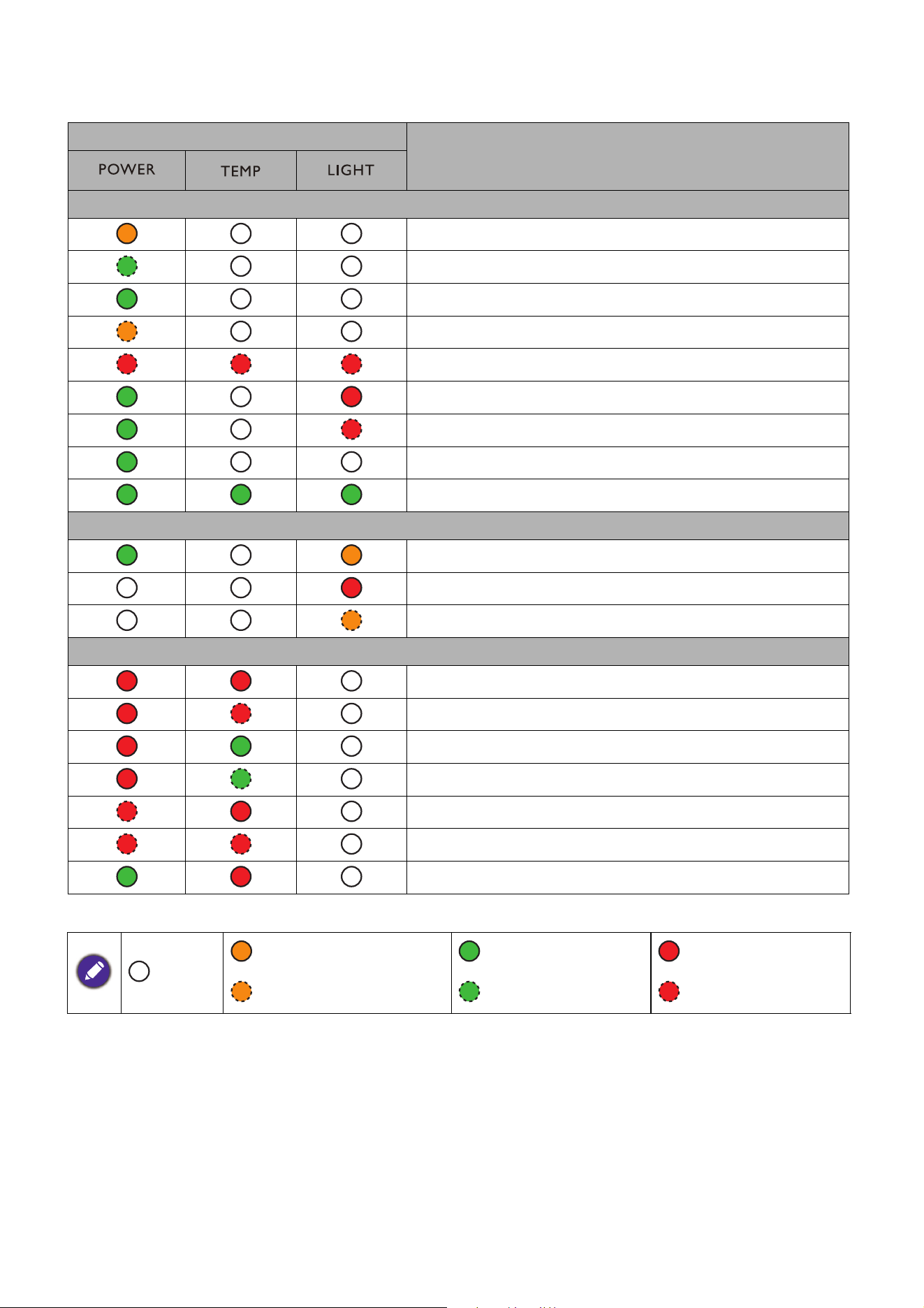

Indicators
Light
Status & Description
Power events
Stand-by mode
Powering up
Normal operation
Normal power-down cooling
Download
CW start fail
Phosphor wheel start fail
Burn-in ON
Burn-in OFF
Light source events
Light source life exhausted
Light source error in normal operation
Light source is not lit up
Thermal events
Fan 1 error (the actual fan speed is outside the desired speed)
Fan 2 error (the actual fan speed is outside the desired speed)
Fan 3 error (the actual fan speed is outside the desired speed)
Fan 4 error (the actual fan speed is outside the desired speed)
Fan 5 error (the actual fan speed is outside the desired speed)
Fan 6 error (the actual fan speed is outside the desired speed)
Temperature 1 error (over limited temperature)
: Off
: Orange On : Green On : Red On
: Orange Flashing : Green Flashing : Red Flashing
50 Troubleshooting
Tro u bl e s h o o t i n g
The projector does not turn on.
Cause Remedy
There is no power from the power cord.
Plug the power cord into the AC power jack on the
projector, and plug the power cord into the power outlet. If
the power outlet has a switch, make sure that it is switched
on.
Attempting to turn the projector on again during
the cooling process.
Wait until the cooling down process has completed.
No picture
Cause Remedy
The video source is not turned on or connected
correctly.
Turn the video source on and check that the signal cable is
connected correctly.
The projector is not correctly connected to the
input signal device.
Check the connection.
The input signal has not been correctly selected. Select the correct input signal with the SOURCE key.
The lens cover is still closed. Open the lens cover.
Blurred image
Cause Remedy
The projection lens is not correctly focused. Adjust the focus of the lens using the focus ring.
The projector and the screen are not aligned
properly.
Adjust the projection angle and direction as well as the
height of the projector if necessary.
The lens cover is still closed. Open the lens cover.
Remote control does not work.
Cause Remedy
The batteries are out of power. Replace both of the batteries with new ones.
There is an obstacle between the remote control
and the projector.
Remove the obstacle.
You are too far away from the projector. Stand within 8 meters (26 feet) of the projector.
The password is incorrect.
Cause Remedy
You do not remember the password. See Entering the password recall procedure on page 24.
51 Specifications
Specifications
Projector specifications
All specifications are subject to change without notice.
Optical
Resolution
1920 (H) x 1200 (V)
Display system
1-CHIP DMD
Lens
LU935: F = 1.81~2.1, f = 14.3~22.9 mm
LU935ST: F = 1.83~1.86, f = 8.6~9.4 mm
Clear focus range
LU935: 1.75 – 5.84 m@Wide, 2.8 – 5.61 m@Tele
LU935ST: 1.04 – 3.47 m@Wide, 1.15 – 2.29 m@Tele
Light source
Laser
Electrical
Power supply
AC100–240V, 5.3A, 50–60 Hz (Automatic)
Power consumption
495 W (Max); < 0.5 W (Standby); < 2 W (when the
Network function in the Standby
Settings is on)
Mechanical
Weight
7.0 Kg (15.4 lbs)
Output terminals
RGB output
D-Sub 15-pin (female) x 1
Speaker
10 watt x 2
Audio signal output
PC audio jack x 1
3D VESA
3D VESA OUT x 1
Control
USB
Type-A x 1 (5V/1.5A)
RS-232 serial control
9 pin x 1
LAN control
RJ45 x 1
12V trigger x 1
IR receiver x 2
Wired remote control x 1
Input terminals
Computer input
RGB input
D-Sub 15-pin (female) x 1
Video signal input
SD/HDTV signal input
Analog - Component (through RGB input)
Digital - HDMI x 2
HDBaseT x 1
Audio signal input
PC audio jack x 1
3D VESA
3D VESA IN x 1
Environmental Requirements
Operating temperature
0°C–40°C at sea level
Operating relative humidity
10%–90% (without condensation)
Operating altitude
0–1499 m at 0°C–35°C
1500–3000 m at 0°C–30°C (with
High Altitude Mode on)
Storage temperature
-20°C–60°C at sea level
Storage humidity
10%–90% RH (without condensation)
Storage altitude
30°C@ 0~12,200m above sea level
Transporting
Original packing or equivalent is recommended
Repairing
Please visit below website and choose your
country to find your service contact window.
http://www.benq.com/welcome
52 Specifications

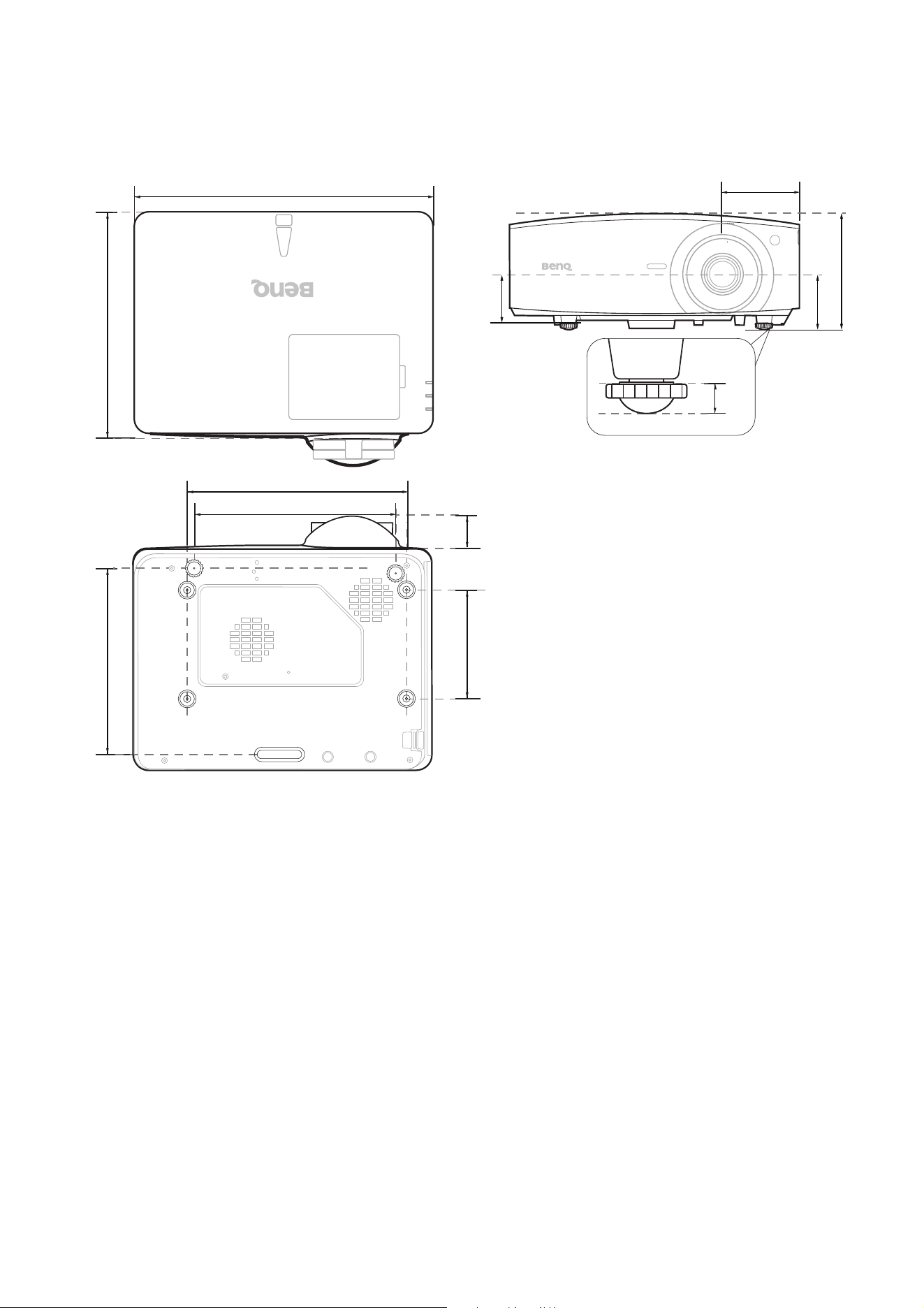

Dimensions
416 mm (W) x 166 mm (H) x 351 mm (D)
9
351
275
151 40
416
110
166
78
71
304
279
53 Specifications
Timing chart
Supported timing for PC input
Resolution Mode
Ver tic al
Frequency
(Hz)
Horizontal
Frequency
(kHz)
Pixel
Frequency
(MHz)
Supported 3D format
Frame
Sequential
Top
Bottom
Side by
Side
720 x 400 720 x 400_70 70.087 31.469 28.3221
640 x 480
VGA_60 59.940 31.469 25.175 Supported Supported Supported
VGA_72 72.809 37.861 31.500
VGA_75 75.000 37.500 31.500
VGA_85 85.008 43.269 36.000
800 x 600
SVGA_60 60.317 37.879 40.000 Supported Supported Supported
SVGA_72 72.188 48.077 50.000
SVGA_75 75.000 46.875 49.500
SVGA_85 85.061 53.674 56.250
SVGA_120
(Reduce Blanking)
119.854 77.425 83.000 Supported
1024 x 768
XGA_60 60.004 48.363 65.000 Supported Supported Supported
XGA_70 70.069 56.476 75.000
XGA_75 75.029 60.023 78.750
XGA_85 84.997 68.667 94.500
XGA_120 (Reduce
Blanking)
119.989 97.551 115.5 Supported
1152 x 864 1152 x 864_75 75 67.5 108
1024 x 576
BenQ
Notebook_timing
60.0 35.820 46.966
1024 x 600
BenQ
Notebook_timing
64.995 41.467 51.419
1280 x 720 1280 x 720_60 60 45.000 74.250 Supported Supported Supported
1280 x 768 1280 x 768_60 59.87 47.776 79.5 Supported Supported Supported
1280 x 800
WXGA_60 59.810 49.702 83.500 Supported Supported Supported
WXGA_75 74.934 62.795 106.500
WXGA_85 84.880 71.554 122.500
WXGA_120
(Reduce Blanking)
119.909 101.563 146.25 Supported
1280 x 1024
SXGA_60 60.020 63.981 108.000 Supported Supported
SXGA_75 75.025 79.976 135.000
SXGA_85 85.024 91.146 157.500
1280 x 960
1280 x 960_60 60.000 60.000 108.000 Supported Supported
1280 x 960_85 85.002 85.938 148.500
1360 x 768 1360 x 768_60 60.015 47.712 85.5 Supported Supported
1440 x 900 WXGA+_60 59.887 55.935 106.500 Supported Supported
1400 x 1050 SXGA+_60 59.978 65.317 121.750 Supported
1600 x 1200 UXGA 60.000 75.000 162.000 Supported Supported
1680 x 1050 1680 x 1050_60 59.954 65.290 146.250 Supported Supported
640 x 480@67Hz MAC13 66.667 35.000 30.240
832 x 624@75Hz MAC16 74.546 49.722 57.280
1024 x 768@75Hz MAC19 74.93 60.241 80.000
1152 x 870@75Hz MAC21 75.060 68.680 100.000
The timings showing above may not be supported due to EDID file and VGA graphic card limitations. It is possible
that some timings cannot be chosen.
54 Specifications
Supported timing for HDMI (HDCP) input
• PC timings
Resolution Mode
Ver t ica l
Frequency
(Hz)
Horizontal
Frequency
(kHz)
Pixel
Frequency
(MHz)
Supported 3D format
Frame
Sequential
Top
Bottom
Side by
Side
640 x 480
VGA_60 59.940 31.469 25.175 Supported Supported
VGA_72 72.809 37.861 31.500
VGA_75 75.000 37.500 31.500
VGA_85 85.008 43.269 36.000
720 x 400 720 x 400_70 70.087 31.469 28.3221
800 x 600
SVGA_60 60.317 37.879 40.000 Supported Supported
SVGA_72 72.188 48.077 50.000
SVGA_75 75.000 46.875 49.500
SVGA_85 85.061 53.674 56.250
SVGA_120 (Reduce
Blanking)
119.854 77.425 83.000 Supported
1024 x 768
XGA_60 60.004 48.363 65.000 Supported Supported
XGA_70 70.069 56.476 75.000
XGA_75 75.029 60.023 78.750
XGA_85 84.997 68.667 94.500
XGA_120 (Reduce
Blanking)
119.989 97.551 115.5 Supported
1152 x 864 1152 x 864_75 75 67.5 108
1024 x 576
BenQ Notebook
Timing
60.00 35.820 46.996
1024 x 600
BenQ Notebook
Timing
64.995 41.467 51.419
1280 x 720 1280 x 720_60 60 45.000 74.250 Supported Supported
1280 x 768 1280 x 768_60 59.870 47.776 79.5 Supported Supported
1280 x 800
WXGA_60 59.810 49.702 83.500 Supported Supported
WXGA_75 74.934 62.795 106.500
WXGA_85 84.880 71.554 122.500
WXGA_120
(Reduce Blanking)
119.909 101.563 146.25 Supported
1280 x 1024
SXGA_60 60.020 63.981 108.000 Supported Supported
SXGA_75 75.025 79.976 135.000
SXGA_85 85.024 91.146 157.500
1280 x 960
1280 x 960_60 60.000 60.000 108 Supported Supported
1280 x 960_85 85.002 85.938 148.500
1360 x 768 1360 x 768_60 60.015 47.712 85.500 Supported Supported
1440 x 900 WXGA+_60 59.887 55.935 106.500 Supported Supported
1400 x 1050 SXGA+_60 59.978 65.317 121.750 Supported Supported
1600 x 1200 UXGA 60.000 75.000 162.000 Supported Supported
1680 x 1050 1680 x 1050_60 59.954 65.290 146.250 Supported Supported
640 x 480@67Hz MAC13 66.667 35.000 30.240
832 x 624@75Hz MAC16 74.546 49.722 57.280
1024 x 768@75Hz MAC19 75.020 60.241 80.000
1152 x 870@75Hz MAC21 75.06 68.68 100.00
1920 x 1080@60Hz 1920 x 1080_60 60 67.5 148.5 Supported Supported Supported
1920 x 1200@60Hz
1920 x 1200_60
(Reduce Blanking)
59.950 74.038 154.0000 Supported Supported Supported
1920 x
1200@120Hz
1920 x 1200_120
(Reduce Blanking)
119.909 152.404 317.00
1920 x 1080 (VESA)
1920 x 1080_60
(for Auditorium
model)
59.963 67.158 137
1920 x
1080@120Hz
1920 x 1080_120
(Only HDMI 2.0
supports)
120.000 135.000 297
3840 x 2160
3840 x 2160_30
For 4K2K model
30 67.5 297
55 Specifications
• Video timings
3840 x 2160
3840 x 2160_60
For 4K2K model
(Only HDMI 2.0
supports)
60 135 594
The timings showing above may not be supported due to EDID file and VGA graphic card limitations. It is possible
that some timings cannot be chosen.
Timing Resolution
Ver ti cal
Frequency
(Hz)
Horizontal
Frequency
(kHz)
Pixel
Frequency
(MHz)
Supported 3D format
Frame
Sequential
Frame
Packing
Top
Bottom
Side by
Side
480i 720 x 480 59.94 15.73 27 Supported
480p 720 x 480 59.94 31.47 27 Supported
576i 720 x 576 50 15.63 27
576p 720 x 576 50 31.25 27
720/50p 1280 x 720 50 37.5 74.25 Supported Supported Supported
720/60p 1280 x 720 60 45.00 74.25 Supported Supported Supported Supported
1080/24P 1920 x 1080 24 27 74.25 Supported Supported Supported
1080/25P 1920 x 1080 25 28.13 74.25
1080/30P 1920 x 1080 30 33.75 74.25
1080/50i 1920 x 1080 50 28.13 74.25 Supported
1080/60i 1920 x 1080 60 33.75 74.25 Supported
1080/50P 1920 x 1080 50 56.25 148.5 Supported Supported
1080/60P 1920 x 1080 60 67.5 148.5 Supported Supported
1080/120P 1920 x 1080 120 135 297
2160/24P
3840 x 2160
(Only HDMI 2.0
supports)
24 54 297
2160/25P
3840 x 2160
(Only HDMI 2.0
supports)
25 56.25 297
2160/30P
3840 x 2160
(Only HDMI 2.0
supports)
30 67.5 297
2160/50P
3840 x 2160
(Only HDMI 2.0
supports
50 112.5 594
2160/60P
3840 x 2160
(Only HDMI 2.0
supports)
60 135 594
56 Specifications
Supported timing for Component-YPbPr input
Supported timing for Video input
Timing Resolution
Vertical Frequency
(Hz)
Horizontal Frequency
(kHz)
Pixel Frequency
(MHz)
Supported 3D
format
Frame
Sequential
480i 720 x 480 59.94 15.73 13.5 Supported
480p 720 x 480 59.94 31.47 27 Supported
576i 720 x 576 50 15.63 13.5
576p 720 x 576 50 31.25 27
720/50p 1280 x 720 50 37.5 74.25
720/60p 1280 x 720 60 45.00 74.25 Supported
1080/50i 1920 x 1080 50 28.13 74.25
1080/60i 1920 x 1080 60 33.75 74.25
1080/24P 1920 x 1080 24 27 74.25
1080/25P 1920 x 1080 25 28.13 74.25
1080/30P 1920 x 1080 30 33.75 74.25
1080/50P 1920 x 1080 50 56.25 148.5
1080/60P 1920 x 1080 60 67.5 148.5
Displaying a 1080i(1125i)@60Hz or 1080i(1125i)@50Hz signal may result in slight image vibration.
Video mode
Horizontal Frequency
(kHz)
Vertical Frequency
(Hz)
Color sub-carrier
Frequency (MHz)
Supported 3D
format
Frame Sequential
NTSC 15.73 60 3.58 Supported
PAL 15.63 50 4.43
SECAM 15.63 50 4.25 or 4.41
PAL-M 15.73 60 3.58
PAL-N 15.63 50 3.58
PAL-60 15.73 60 4.43
NTSC4.43 15.73 60 4.43
