APP
Download the soundcore app to check the battery level of the earbuds, customize controls, update firmware and explore more exciting features.
If your earbuds cannot connect with the soundcore app, re-install the app or update it to the latest version in your mobile app store.
Click this link to download: http://dl-soundcore.soundcore.com/qcdl?flow=soundcore

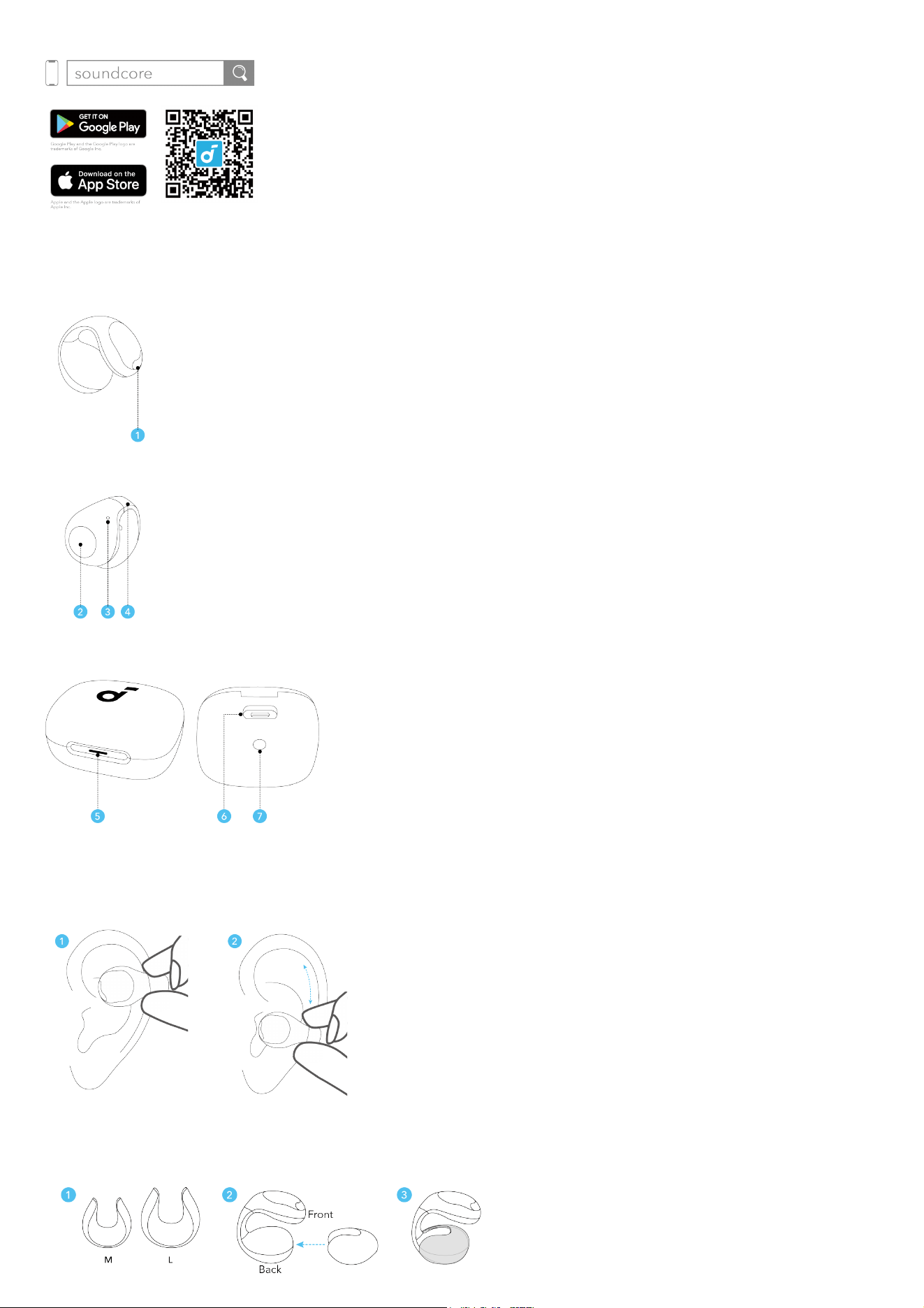

OVERVIEW
Front:
1. Sound Outlet
Back:
2. Intuitive Button
3. Microphone
4. C-Bridge
5. LED Indicator
6. USB-C Charging Port
7. Charging Case Button
WEARING
1. Hold your ears with one hand, and gently clamp the earbuds onto the upper part of your auricles. Make sure the
front side faces your ear canal and the back side with intuitive button rests behind your ear.
2. Move the earbuds upwards or downwards until the earbuds fit securely and you can hear the sound well.
If the fit feels loose, you can choose between M or L size ear grips to enhance stability.

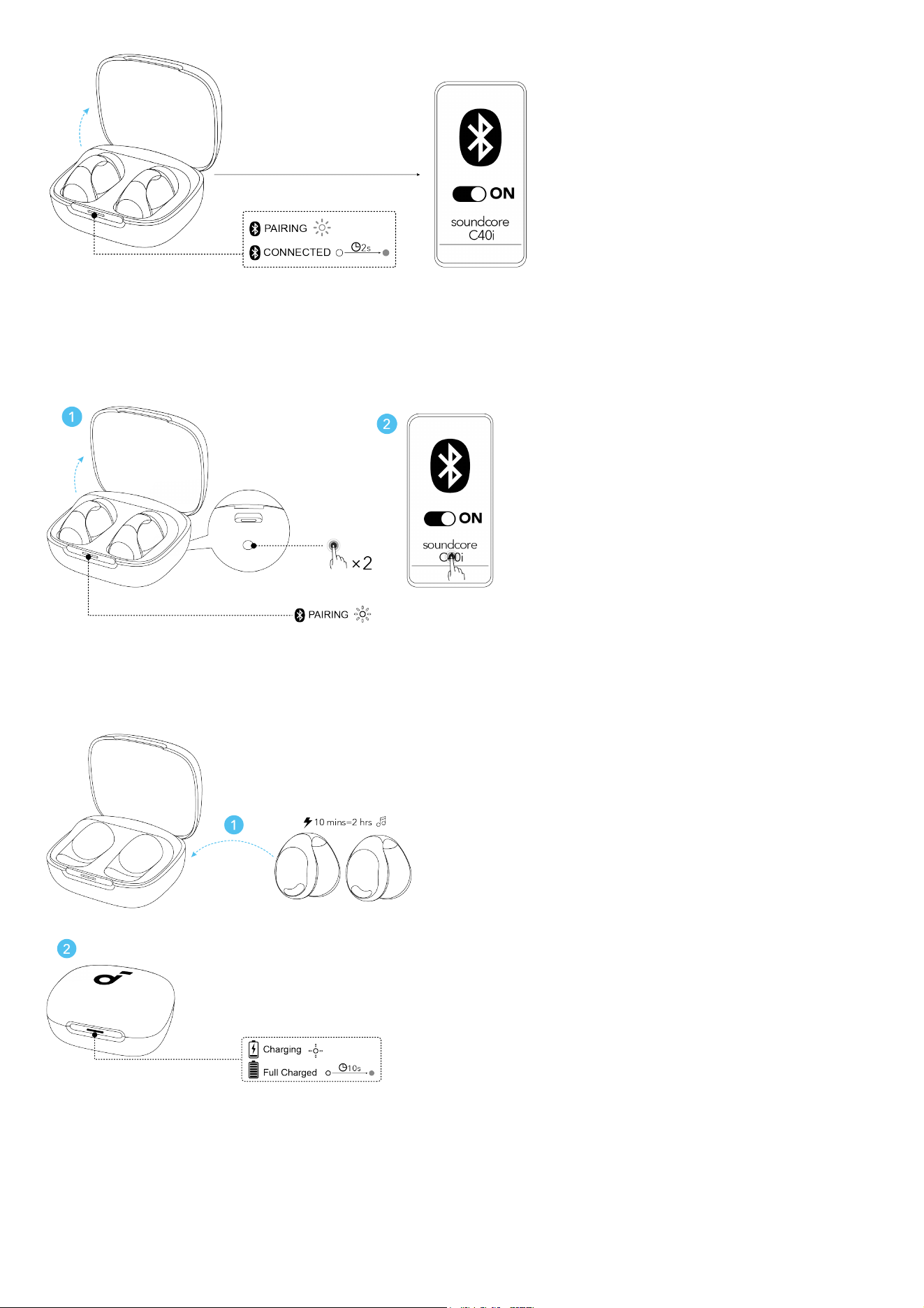

POWERING ON & PAIRING
Open the case to power on the earbuds and enter pairing mode. Select "soundcore C40i" from your device's Bluetooth list.
• When pairing, the LED indicator will start flashing white. After the pairing is successful, the LED indicator will stay
on for 2 seconds and then go off.
MANUAL PAIRING
To manually enter Bluetooth pairing mode:
1. Place the earbuds in the charging case and leave the case open. Double press the charging case button until the
LED indicator starts flashing white.
2. Proceed to pair with your device.
CHARGING
1. Place the earbuds in the charging case and close it.
• Fully dry off the earbuds and the USB-C charging port before charging.
2. Connect the charging case to a power supply by using the provided USB-C charging cable.
• 10 minutes of charging with the case offers 2 hours of playtime.
• Low Battery Indication: When the battery of earbuds fall below 20%, the LED indicator will flash for 3 seconds
once the earbuds are back in the case.
DUAL CONNECTIONS
To connect the earbuds with two Bluetooth devices at the same time, there are two methods:
Method 1: Manual Pairing with the Second Device
While wearing the earbuds, press and hold the intuitive button on both earbuds for 3 seconds until you hear a voice prompt of entering pairing mode. Then
you can proceed to pair with the second device.
Please note that if you attempt to connect a third device, the earbuds will automatically disconnect from the first device, as the earbuds can only connect to a
maximum of two devices simultaneously.
Method 2: Using the soundcore App
In the soundcore app, tap Dual Connections on the main interface, then proceed to Connect New Device.
Dual Connections feature is enabled by default.
CONTROLS
* You can also customize controls in the soundcore app.
Play / Pause Single Press (L/R)
Next Track Double Press (L/R)
Answer a Call Single Press (L/R)
Hang up / Reject a Call Double Press (L/R)
Activate Dual Connections
Press and Hold for 3 Seconds
(L&R)
POWERING OFF
To power off, return the earbuds to the charging case and close the case.
RESET
Place the earbuds in the charging case and leave the case open. Press and hold the charging case button for 5 seconds until the LED indicator flashes red
slowly three times.
FIRMWARE UPDATE
You will be informed once a new firmware version is detected when you connect the earbuds to the app. Ensure the earbuds are placed in the charging case
and the case remains open until the firmware update is complete. During the update, ensure the earbuds are being charged and avoid any usage.
SPECS
Specifications are subject to change without notice.
Input 5V 0.5A
Output 5V 0.28A (0.14A per port)
Battery capacity
Earbud: 70mAh
Charging Case: 460mAh
Playtime 7 hours / 21 hours
Charging time
Earbud: ≤1h(0%-100%)
Earbud+Charging Case: ≤2h15m(0%-100%)
Driver unit 12mm*17mm
Frequency response 20HZ-20KHZ
Impedance 22Ω± 15% at 1KHz, Input:0.148 V
Waterproof rating (earbuds) IPX4
Bluetooth version 5.4
Bluetooth range 10M
CUSTOMER SERVICE
support.mea@soundcore.com (For Middle East and Africa Only)
support@anker.com (⽇本)
support.kr@anker.com
+1 (800) 988 7973 (US/Canada)
+44 (0) 1604 936200 (UK)
+49 (0) 69 9579 7960 (DE)
03 4455 7823 (⽇本)
+86 400 0550 036 (中国)
+82 1666-8470 (한국)
+971 8000320817 (UAE)
+966 8008500030 (KSA)
+965 22069086 (Kuwait)
+20 8000000826 (Egypt)
+61 3 8331 4800 (Australia)
+90 (850) 460 14 14 (Türkiye)
+8 (800) 511-86-23 (Russia)
000-8000-504-414 (India)
Note: The 'x' of SN Code: xxxxxxxxxxxxxxxx is a variable, see below table.
Variable 'x' Range of variable Content
Eighth 8,9,A,B,C...
Denotes the year, 8 means 2018, 9 means
2019, A means 2020, B means 2021, C
means 2022, and so on.
Ninth and tenth 01,02,03...
Denotes weeks, 01 means the first week in
this year, 02 means the secondary week in
this year, and so on.
Eleventh 1-7
Denotes date, 1 means Monday, 2 means
Tuesday..., 7 means Sunday and so on.
The last five 00001-99999 Denotes serial No.
Hereby, Anker Innovations Limited declares that this device is in compliance with The Product Security and Telecommunications Infrastructure (Security
Requirements for Relevant Connectable Products) Regulations 2023. For the Statement of Compliance, visit the website:
https://uk.soundcore.com/pages/psti-related.
