Tailor-made
solutions
Crawler excavators
Equipment handbook
Liebherr-France SAS
Introduction
Founded in 1961, Liebherr-France SAS is responsible for development and produc-
tion of Liebherr Group crawler excavators in Colmar (France). Its current product
range includes approximately 30 crawler excavator models, from the R 914 Compact
to the R 998 SME, designed for use in earthmoving and quarrying. Since the 1980s,
Liebherr-France SAS has been designing and manufacturing crawler excavators
for special applications such as selective deconstruction and material handling
work, material transport, tunnelling and even maritime applications. Special designs
are in fact part of the DNA and history of the company.
To satisfy growing demand and meet
customers’ requirements, the Liebherr
Application Center was created in 2020
to develop the production of tailor-made
crawler excavators. Special requests
from customers are studied by a team
of experts with product-related
expertise and applications knowledge.
The aim is to offer the best solution,
most closely matched to the customer’s
needs.
By meeting customers’ special requests
with suitable solutions, sometimes ones
never before seen by our customers,
the Liebherr Application Center ensures
Liebherr quality out of the factory. The
feasibility and adaptability study for the
standard range comes with guaranteed
CE certification, manufacturer-level
quality and high spare part availability.

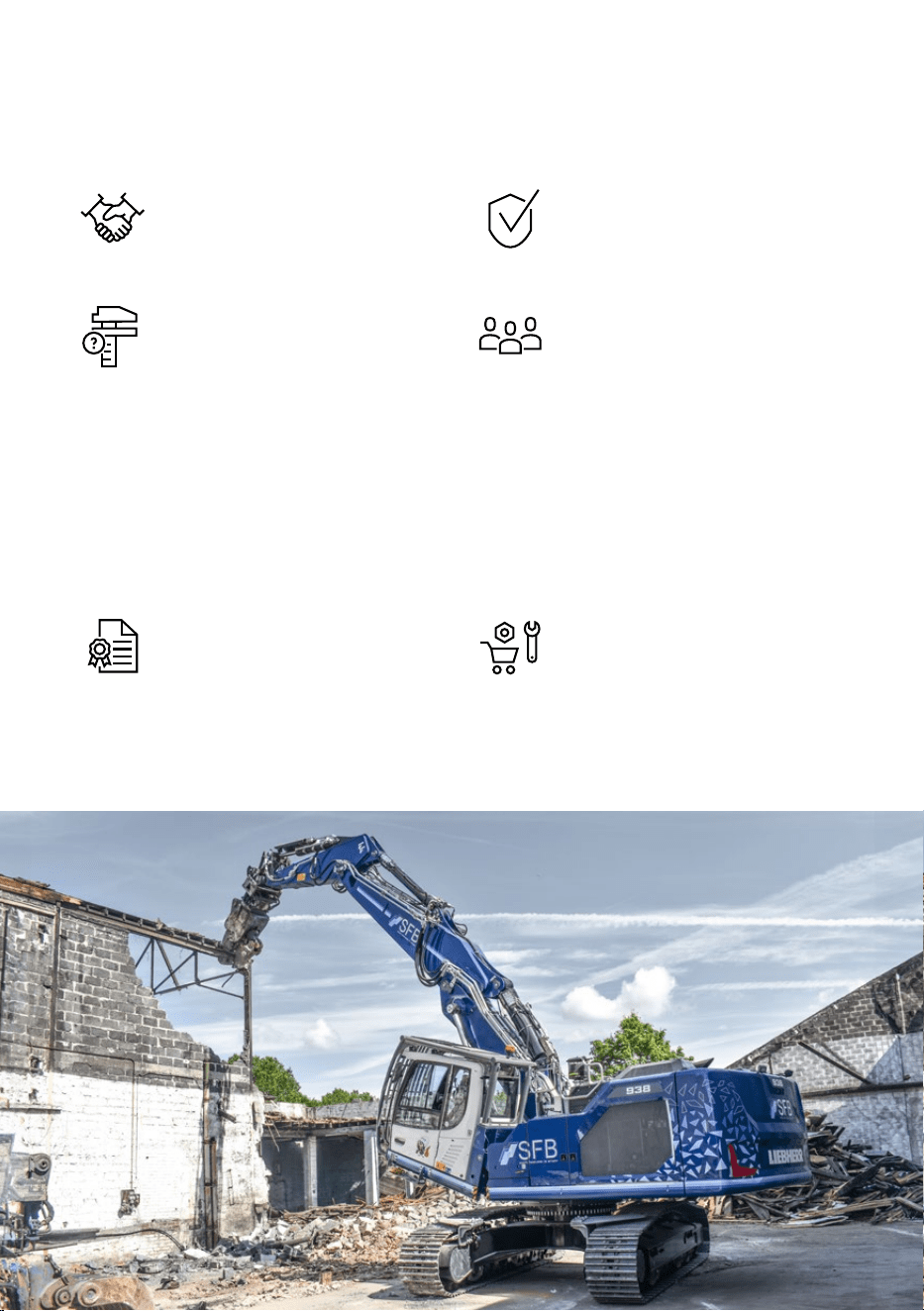

Advantages of tailor-made solutions
Personalized
support
Tailor-made
solutions
– Modifications included during
the assembly of the machine
– Transport restrictions are con-
sidered from the design stage
Expert
team
– In the manufacturer’s factory
– Sales technical support
– Dedicated engineering office
– After-sales support
– Specialised manufacturing and
assembly facilities
Manufacturer’s
warranty
Certification
manufacturer’s CE
Availability
of spare parts
Tailor-made solutions
4
1
Tailor-made solutions
5
Contents
1. Available excavator options
Cab with hydraulic elevation ............................................................................................6
Cab tiltable 30° ..................................................................................................................7
Dust suppression system ................................................................................................ 8
Hydraulic variable gauge VH-HD undercarriage ...........................................................9
2. Special equipment
Tailor-made two-piece boom .........................................................................................13
Tailor-made Multi-User mono boom .............................................................................15
Demolition boom and stick ............................................................................................. 17
Two-piece boom / quick coupler / multiple sticks ....................................................18
Basic boom / multiple equipments .............................................................................. 20
3. Preparing for tool mounting
Shears on boom end ....................................................................................................... 25
Shears on stick end ........................................................................................................ 26
4. Special applications
Dredging excavator on barge at maritime site ........................................................... 30
Sheet pile driving ............................................................................................................. 31

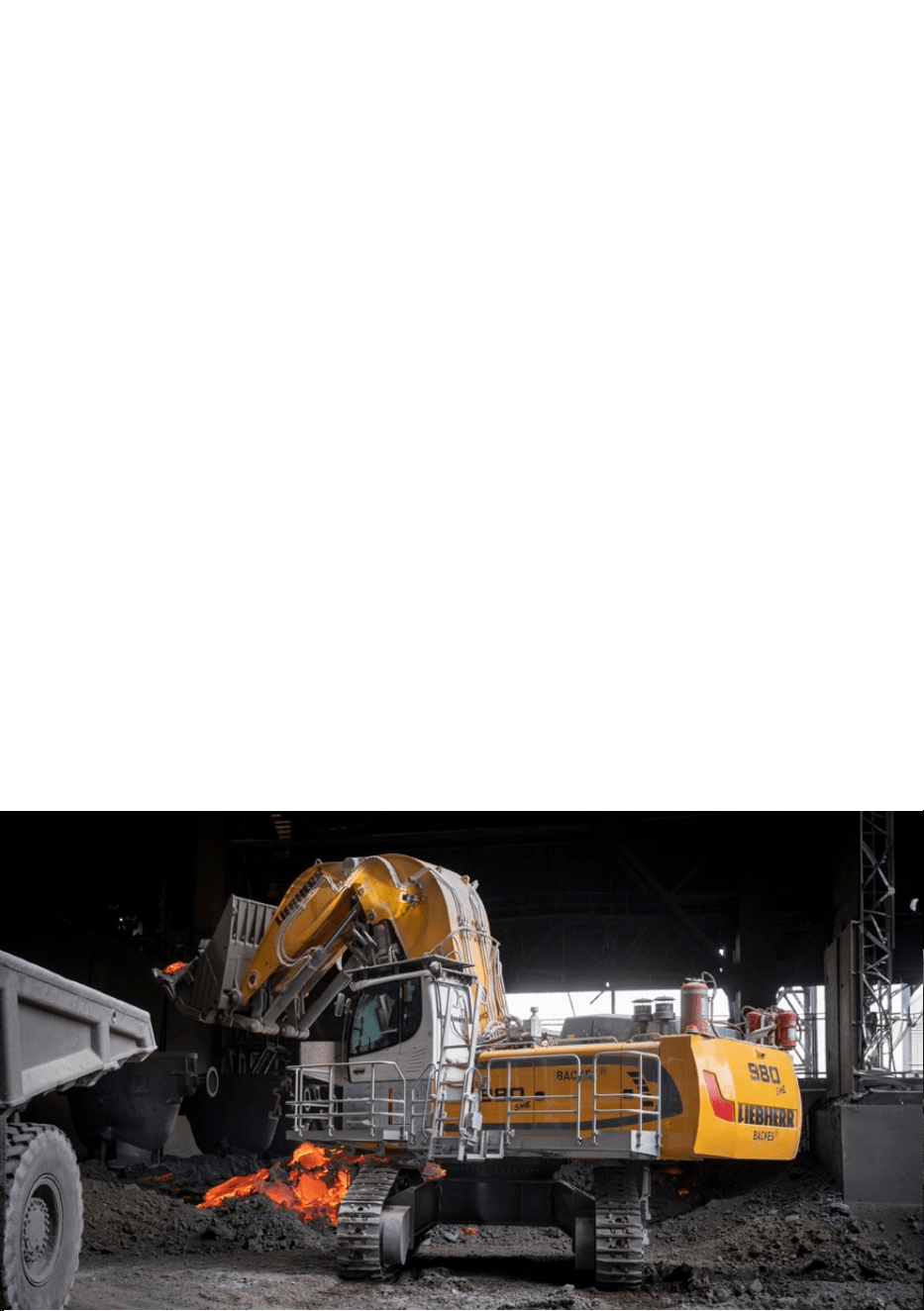

Slag processing ................................................................................................................32

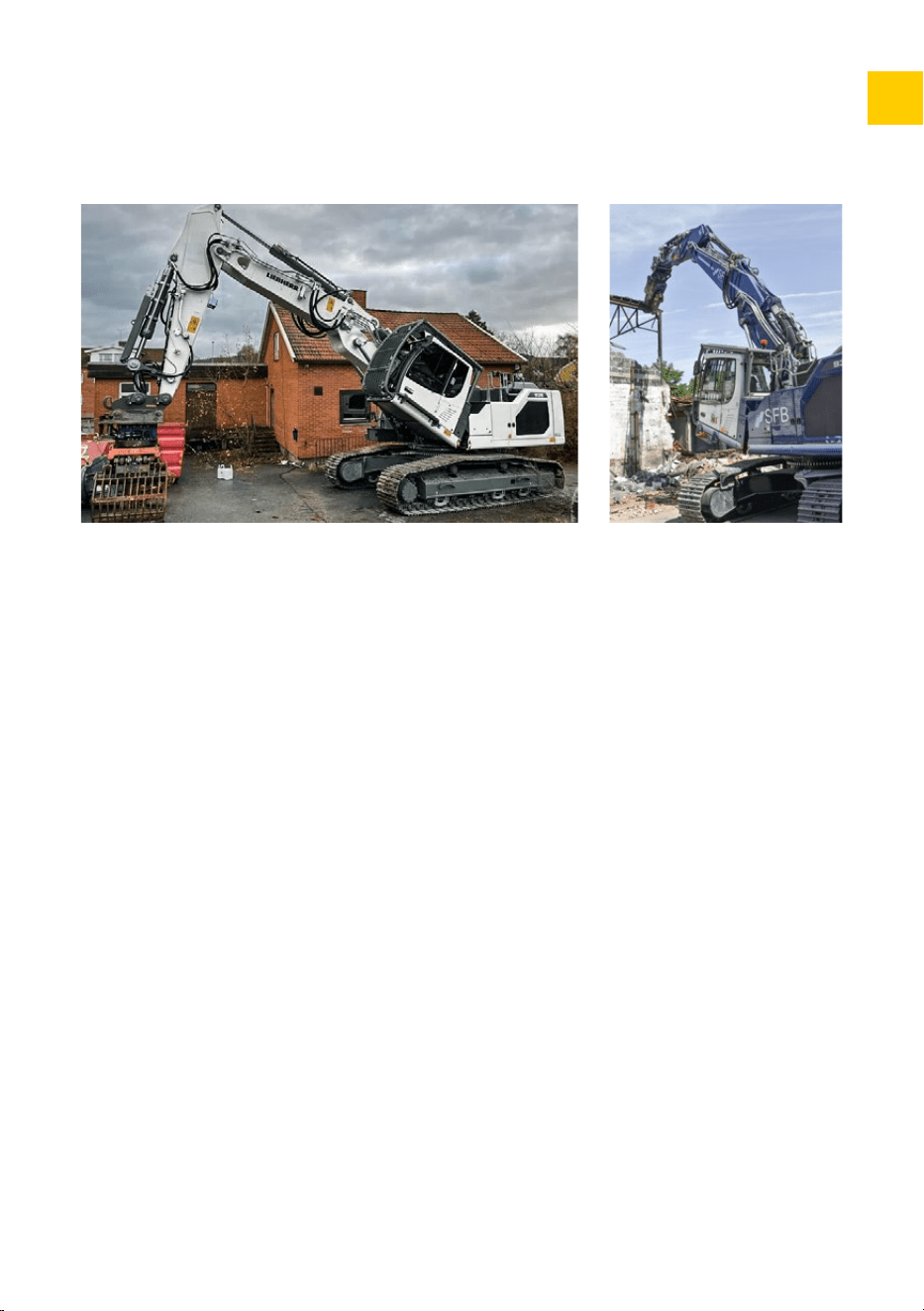

Selective deconstruction ................................................................................................33
1
Tailor-made solutions
6

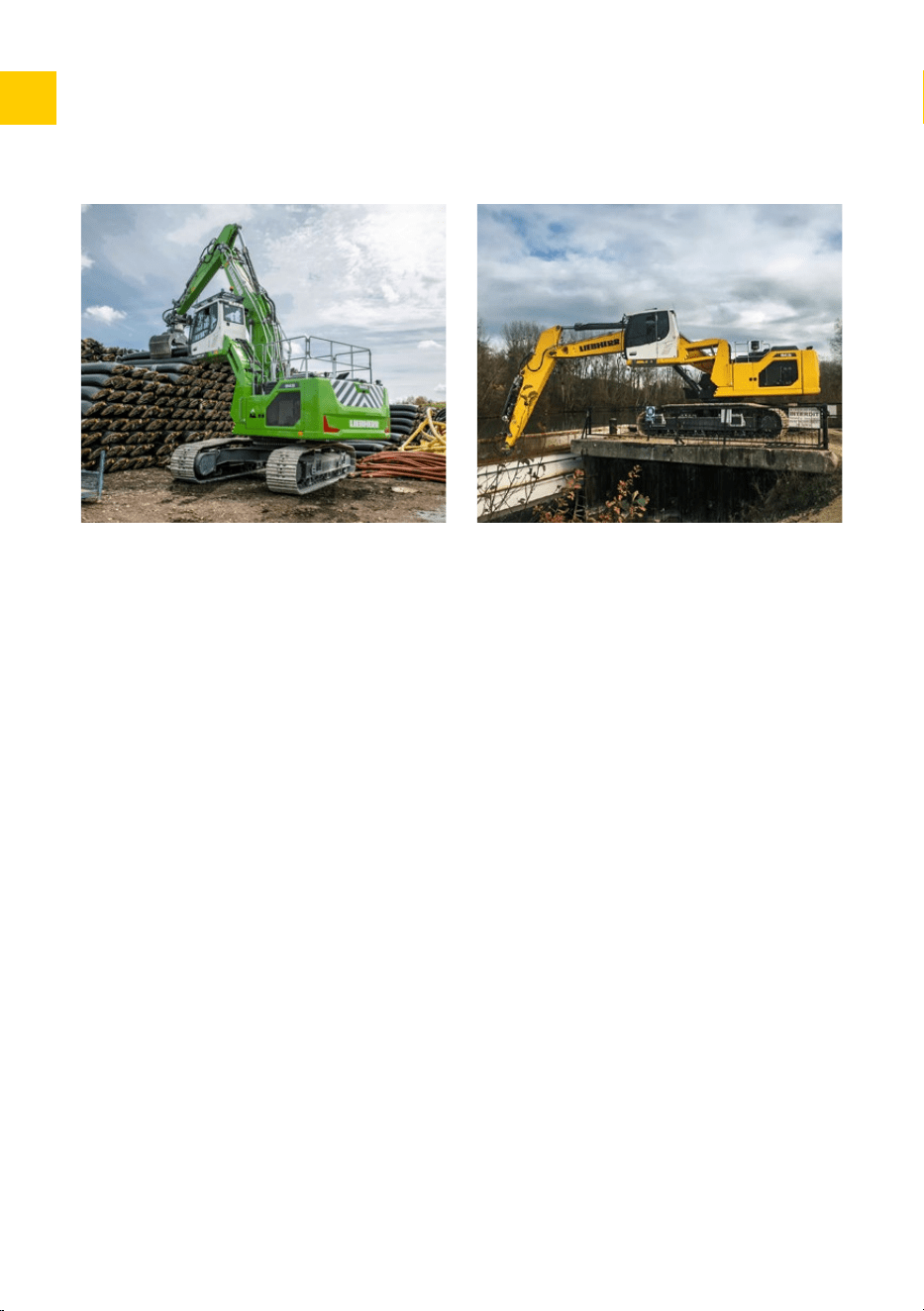

Cab with hydraulic elevation
Option already developed for R924 + R930 + R938 + R945 + R956
R 945 R 945
Customer benefits
– 8' 2" birds eye view
– Additional 6' 6" view in front of cab
– Better view vs standard cab
– Enhanced safety
– Comfort and versatility
– Precision work
– Time savings and productivity gains
Applications
– Selective deconstruction work,
recycling, emptying pits, special
earthmoving and a range of forestry
applications
Specifications
– TOPS or ROPS variants
– Uppercarriage and cab access
adapted
– Front and right hand side view
monitoring camera
– Hydraulic cab controlled by left
mini-joystick
– Emergency lowering of cab from
ground level
1
Tailor-made solutions
7
Cab tiltable 30°
R 930 R 938
Option already developed for R930 + R938 + R945 + R956
Customer benefits
– Cab tiltable 30° upwards for best
possible view of the work area
– Better view vs standard cab
– Enhanced safety
– Comfort and versatility
– Precision work
– Time savings and productivity gains
Applications
– Selective deconstruction work
and special earthmoving
Specifications
– ROPS demolition cab with full
protective grill
– Laminated safety glass
– Uppercarriage and cab access
adapted
– Front and right hand side view
monitoring camera
– Cab controlled by right mini-joystick
1
Tailor-made solutions
8

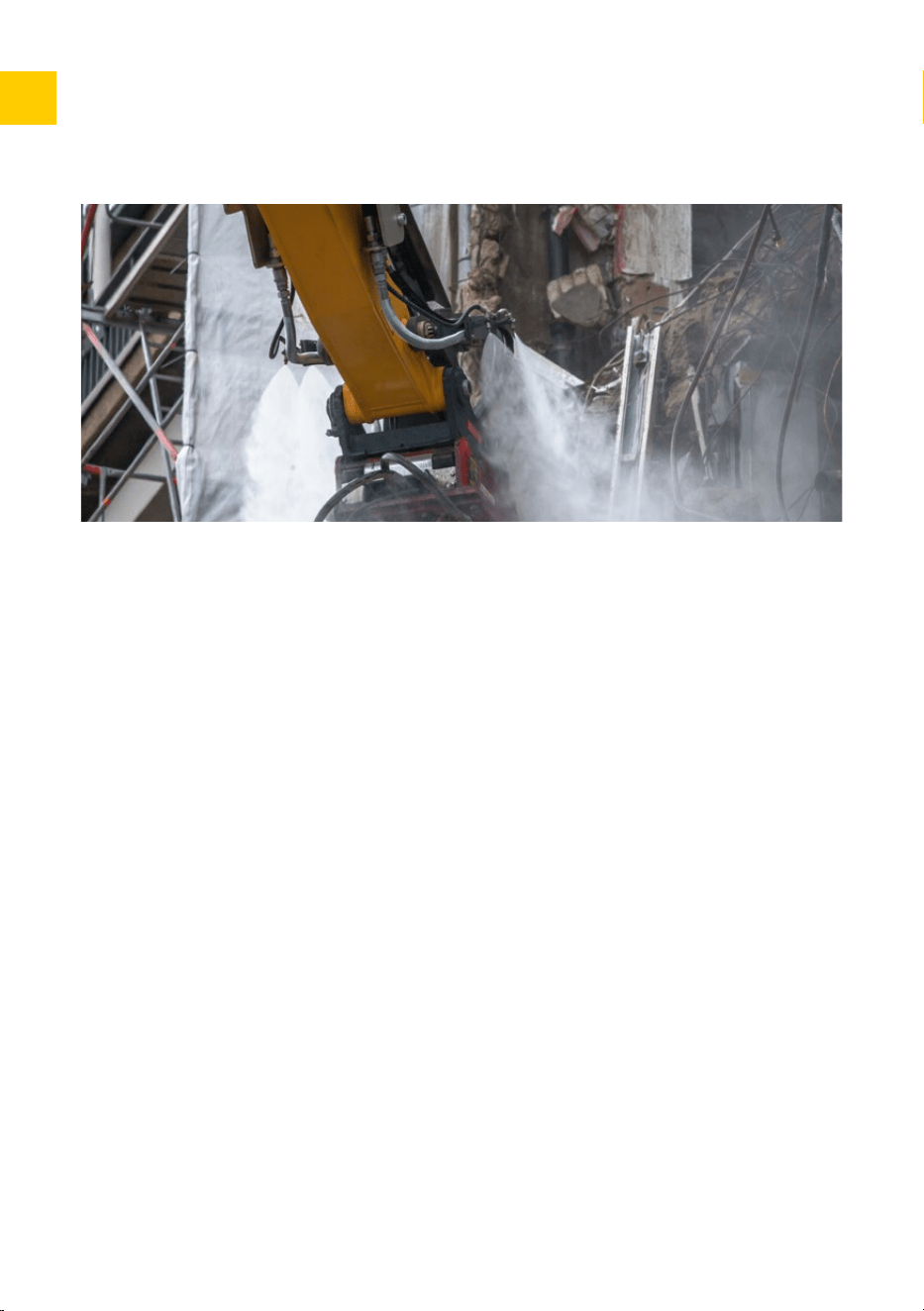

Dust suppression system
Option already developed for R920 Compact + R926 Compact + R924 + R926 + R930 + R934 + R938 +
R945 + R950 Tunnel + R956
Customer benefits
– Increased safety
– Comfort and versatility in use
– Time savings and productivity gains:
no more need to have an additional
machine on site for dust suppression
Applications
– Selective deconstruction work,
loading and special earthmoving
Specifications
– 4 water nozzles on stick end,
mounted on the change levers
– Maximum flow rate 7.9 gal/min,
maximum pressure 3,625 psi
– High-pressure rod included
938
D
J
K
G
H
R0515.02
I
1
Tailor-made solutions
9

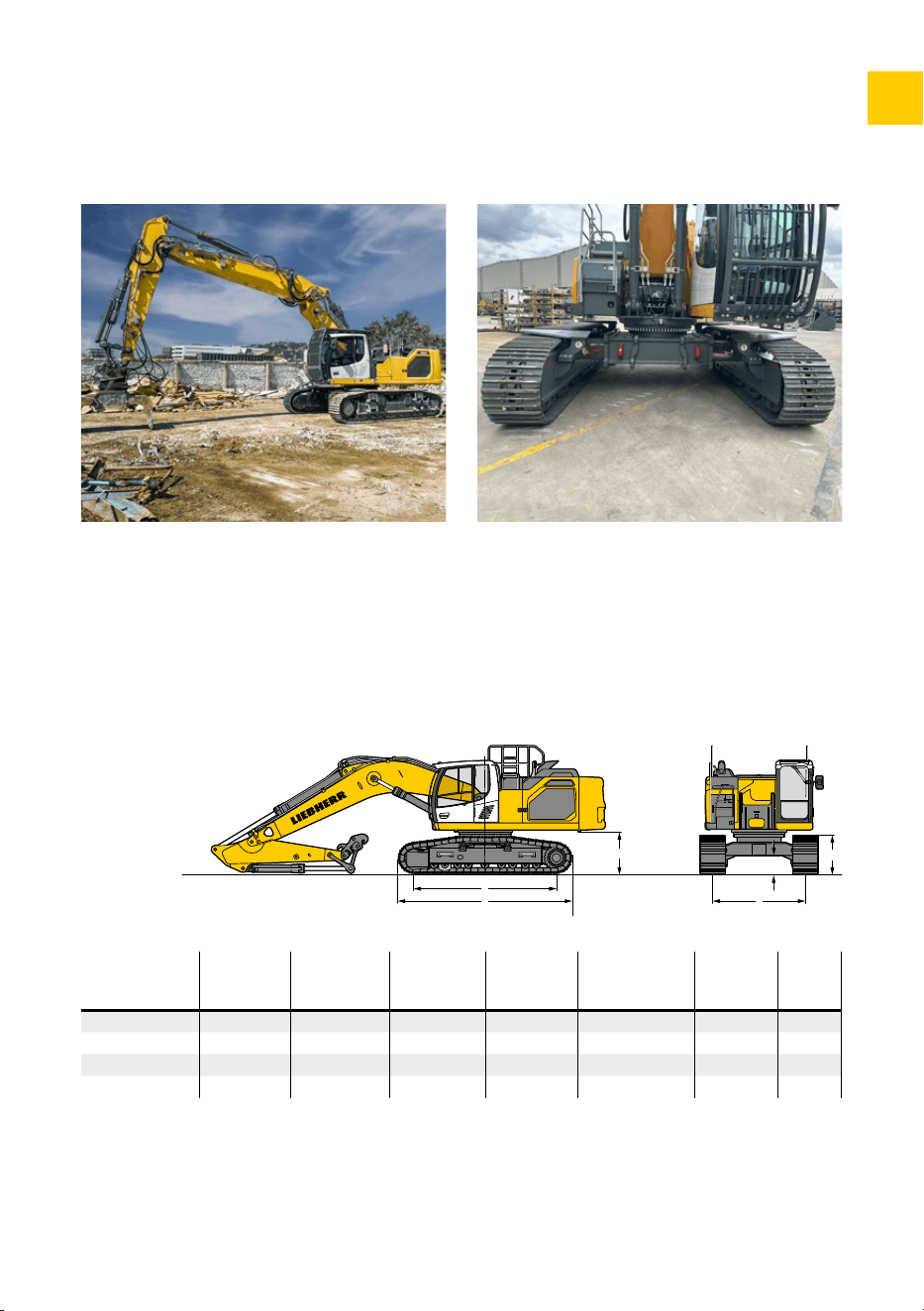

Hydraulic variable gauge
VH-HD undercarriage
Option already developed for R930 + R945 + R956
Customer benefits
– Easy to transport
– Increased stability
Applications
– Selective deconstruction work,
earthmoving, loading and special
earthmoving
Model
Gauge
(mm) (K)
Wheelbase
(mm) (G)
Undercar-
riage ground
clearance (I)
Track height
(J)
Counterweight
ground clear-
ance (D)
Undercar-
riage
length (H)
Track
compo-
nents
R 924 6' 7"–9' 2" 12' 6" 1' 4" 3' 6" 3' 8" 15' 5" D6C
R 930 7' 6"–10' 5" 13' 5" 1' 4" 3' 9" 4' 16' 6" D7
R 945
7'10"–10'11" 14' 5" 1' 5" 3' 9" 4' 3" 17' 7" D7G
R 956 7'10"–11' 3" 16' 4" 1' 2" 3' 9" 3' 6" 19'10" D8
Extra dimensions on request
R 945 R 945
Tailor-made solutions
10
2
Tailor-made solutions
11
Contents
1. Available excavator options
Cab with hydraulic elevation ............................................................................................6
Cab tiltable 30° ..................................................................................................................7
Dust suppression system ................................................................................................ 8
Hydraulic variable gauge VH-HD undercarriage ...........................................................9
2. Special equipment
Tailor-made two-piece boom .........................................................................................13
Tailor-made Multi-User mono boom .............................................................................15
Demolition boom and stick ............................................................................................. 17
Two-piece boom / quick coupler / multiple sticks ....................................................18
Basic boom / multiple equipments .............................................................................. 20
3. Preparing for tool mounting
Shears on boom end ....................................................................................................... 25
Shears on stick end ........................................................................................................ 26
4. Special applications
Dredging excavator on barge at maritime site ........................................................... 30
Sheet pile driving ............................................................................................................. 31
Slag processing ................................................................................................................32
Selective deconstruction ................................................................................................33
2

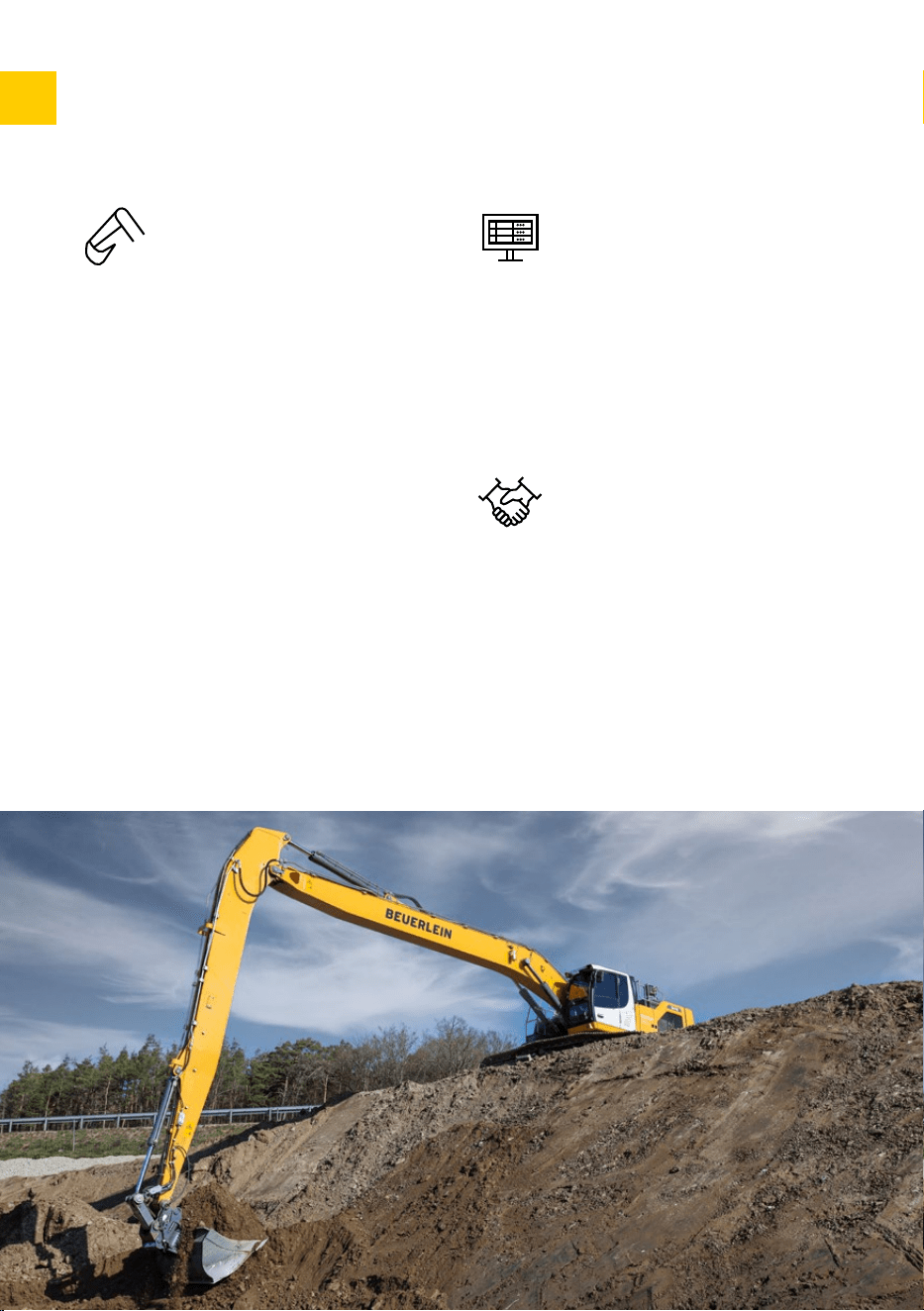

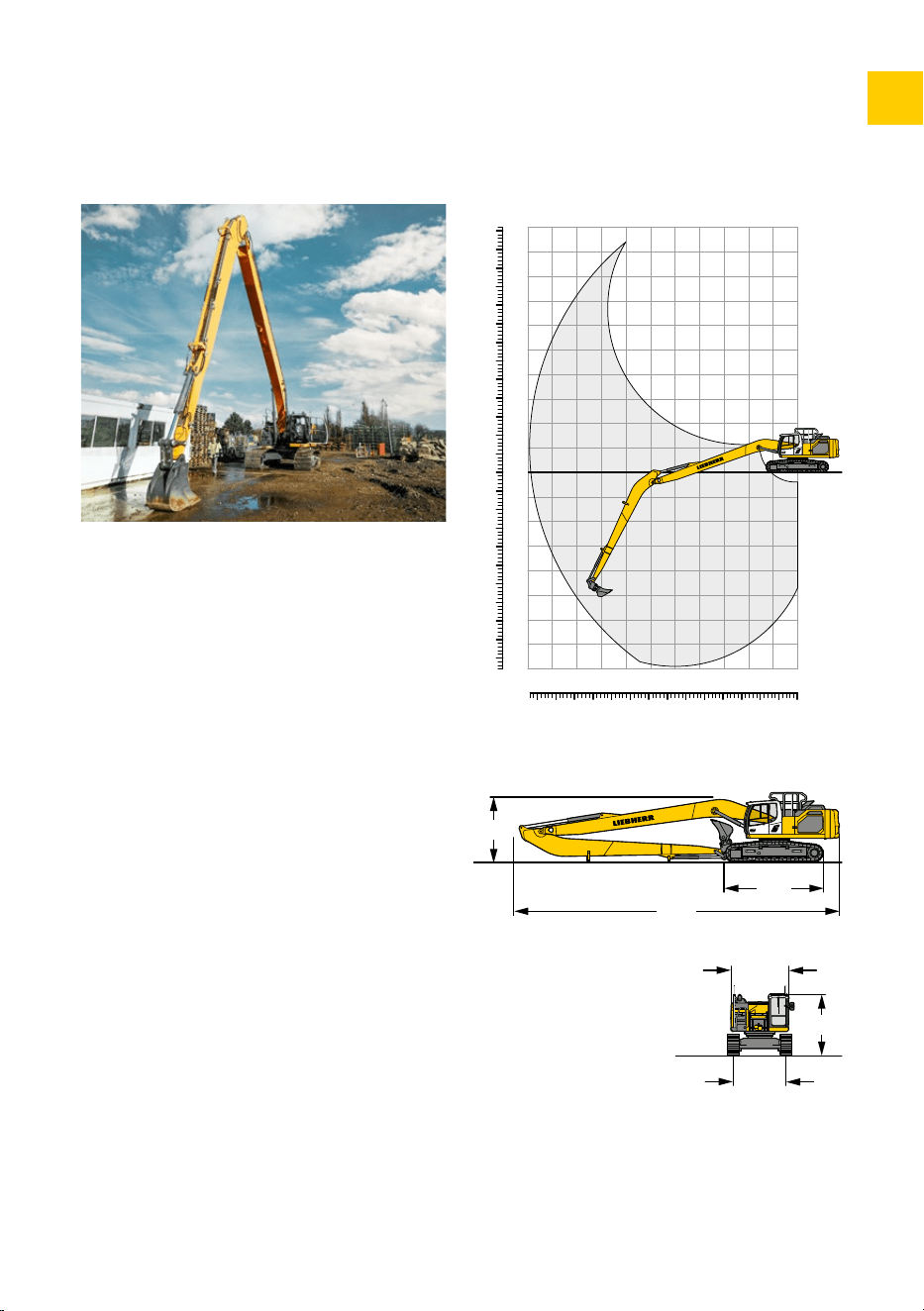

Examples of
applications
– Selective
deconstruction work
– Recycling
– Emptying pits
– Special earthmoving
Specifications
– Dedicated kinematic
and lift capacities
– Tailor-made storage
racks for associated
equipment
Customer benefits
– Comfort and versatility
in use
– Precision work
– Time savings and
productivity gains
– Extra reach
930
930
930
R0925
4 2 068101214 m
3040 20 10 0 ft
2
4
-2
-4
-6
-8
-10
6
8
10
12
14
0
m
0
10
-10
-20
30
20
30
40
ft
2
Tailor-made solutions
13

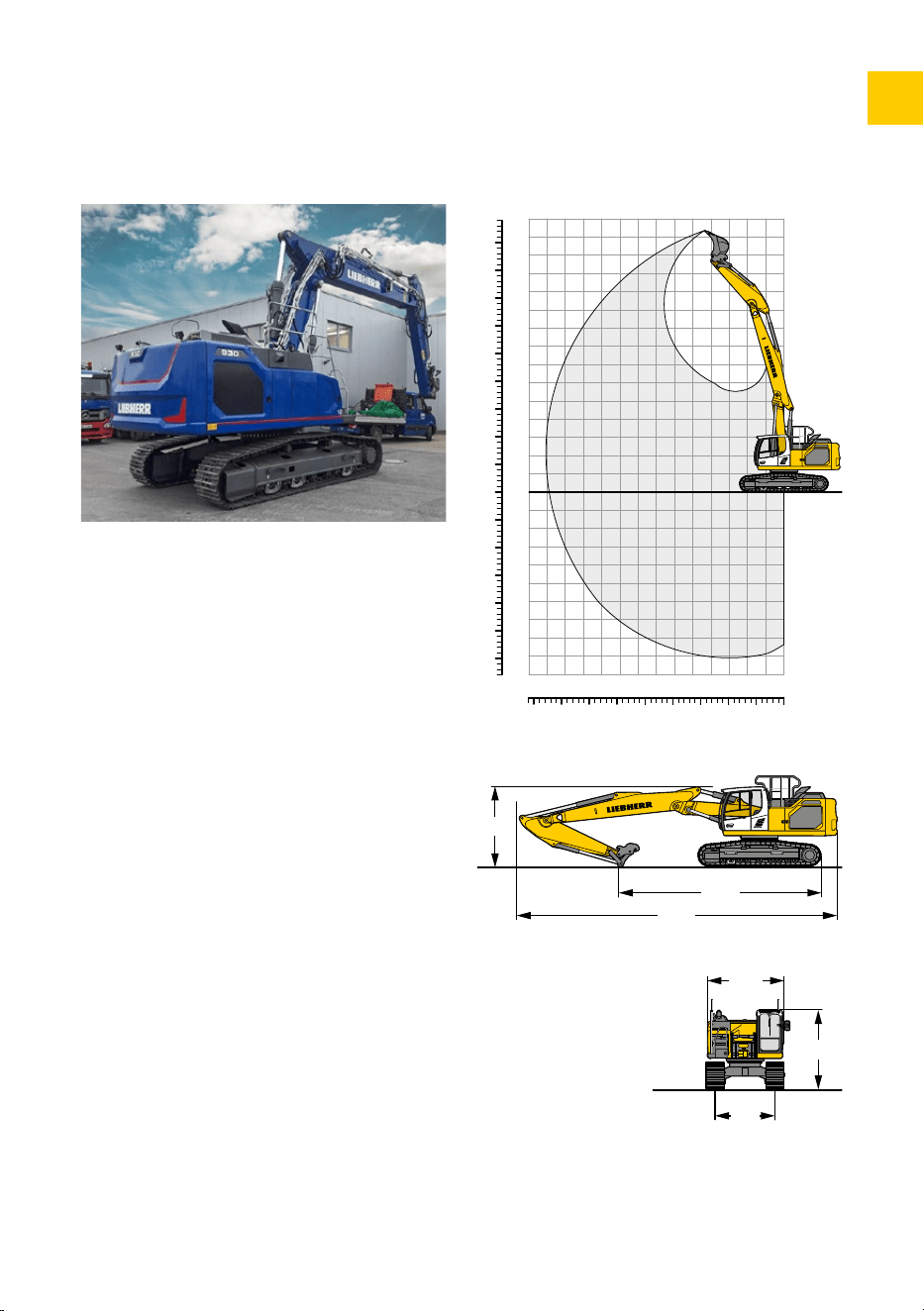

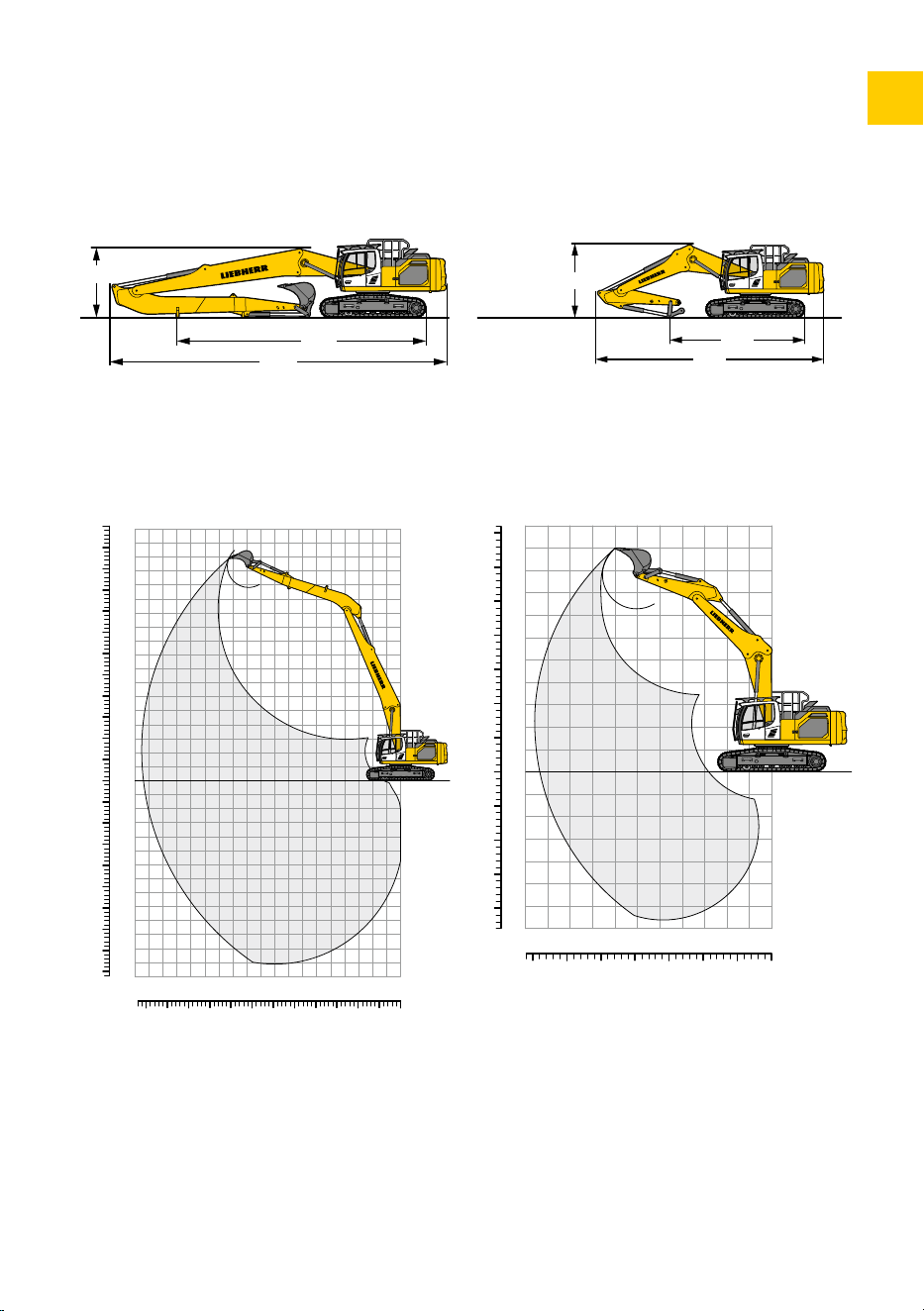

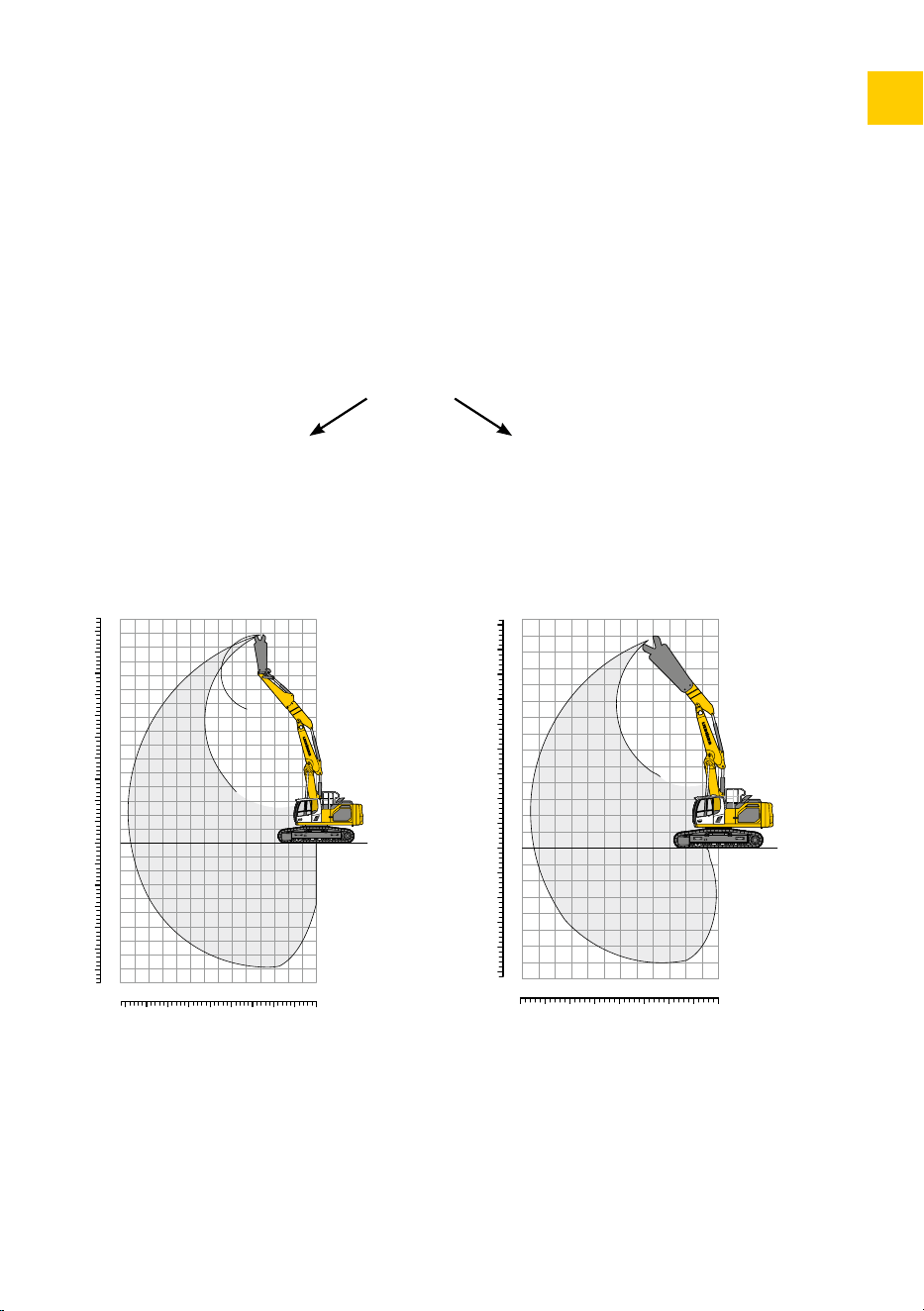

Tailor-made two-piece boom
Configuration
– NLC undercarriage
– 24 inch triple grouser track pads
– 13,668 lbs counterweight
– 27' 6" two-piece boom
– 10' 6" stick
– QC 48 quick coupler
– Excavator weight*: 75,089 lbs
– Tool weight*: 4,629 lbs at 360°
– Max. reach at ground level: 42' 4"
– Max. digging depth: 30'
– Max. cutting height: 46' 7"
– Max working height: 46' 6"
* depending on machine configuration
R 930
Option already developed for R 930
9'11"
26' 3"
41' 8"
7'10"
10' 4"
10' 4"
R0926
9'11"
26' 3"
41' 8"
7'10"
10' 4"
10' 4"
R0926
938
938
938
R0930
4 2 068101214 m
3040 20 10 0 ft
2
4
-2
-4
-6
-8
6
8
10
12
14
0
m
0
10
-10
-20
-30
20
30
40
50
ft
2
Tailor-made solutions
14

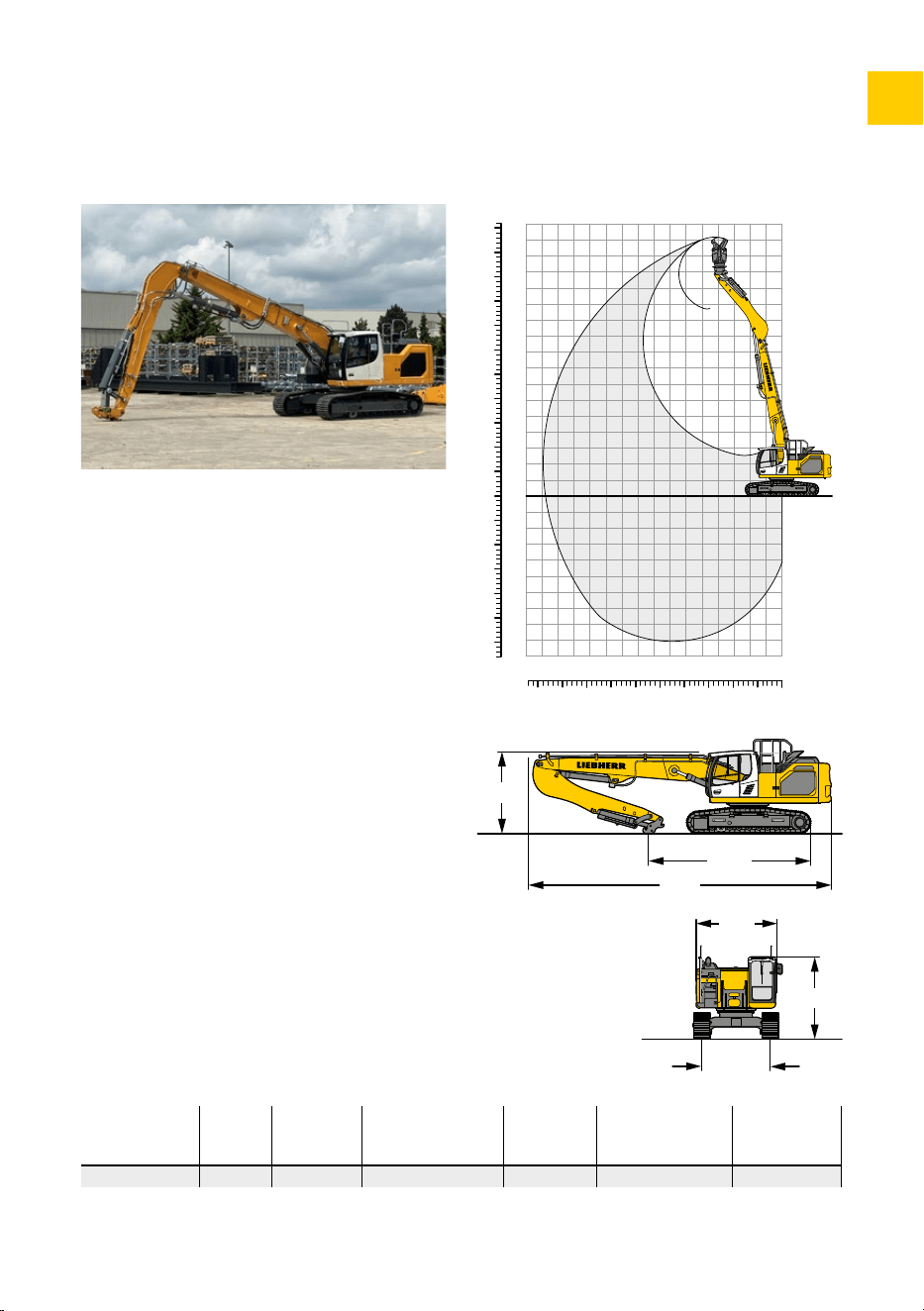

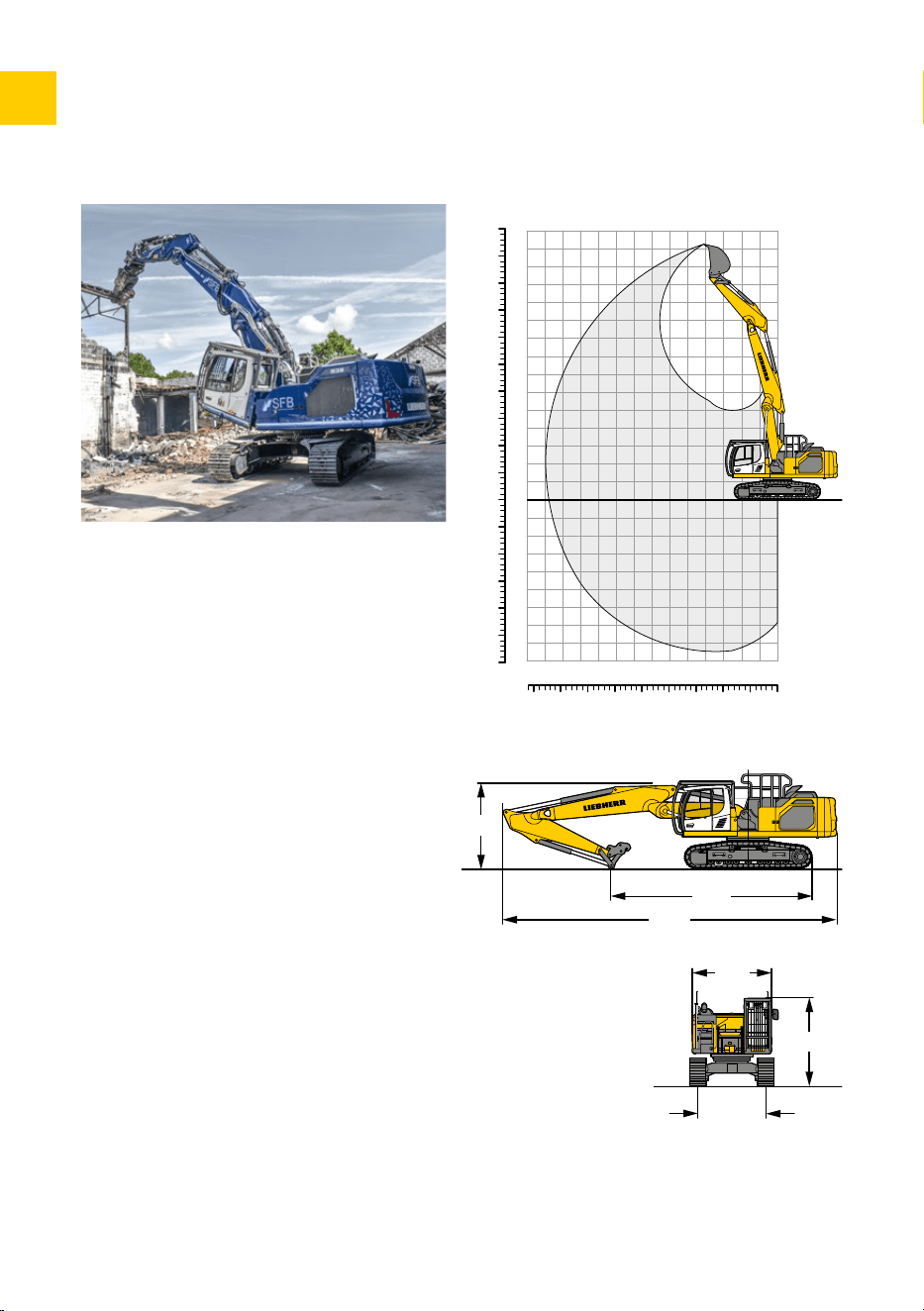

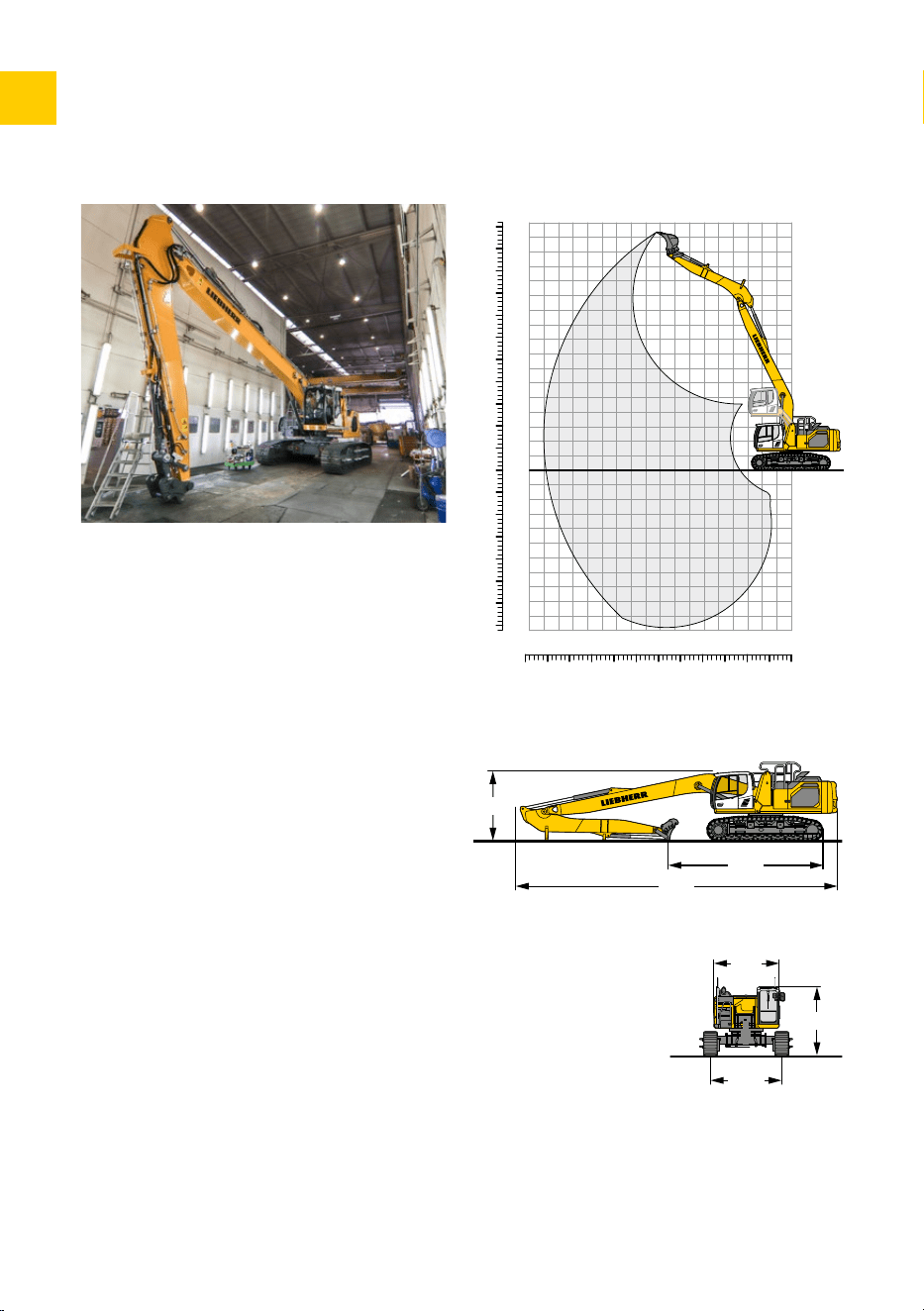

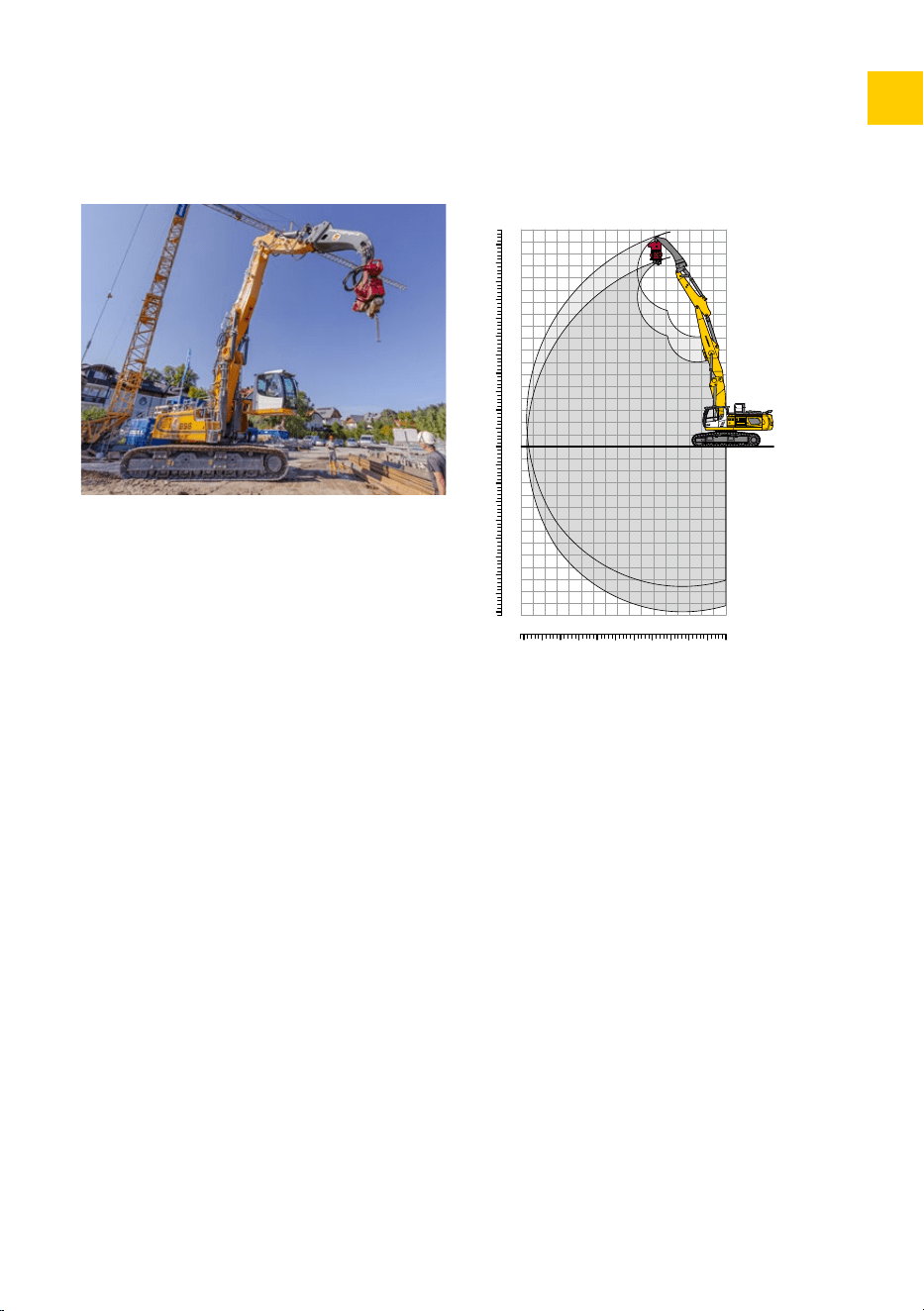

Tailor-made Multi-User mono boom
Configuration
– LC undercarriage
– 24 inch triple grouser track pads
– 20,723 lbs counterweight
– 26' 2" two-piece boom
– 10' 6" stick
– QC 66 quick coupler
– Cab tiltable 30°
– SF120 cab pressurisation system
– Excavator weight*: 97,333 lbs
– Tool weight*: 8,377 lbs
– Max. reach at ground level: 41' 10"
– Max. digging depth: 27' 6"
– Max. cutting height: 46' 7"
– Max piercing height: 46' 6"
* depending on machine configuration
R 938
Option already developed for R 938
9'11"
25' 1"
40' 4"
8' 6"
11'
10' 8"
R0929
9'11"
25' 1"
40' 4"
8' 6"
11'
10' 8"
R0929
938
R0927
938
R0927
938
R0928
4 2 06810121416182022 m
3040506070 20 10 0 ft
2
4
-2
-4
-6
-8
-10
-1 2
-14
-1 6
6
8
10
12
14
16
18
20
0
m
0
10
-10
-20
-30
-40
-50
20
30
40
50
60
ft
2
Tailor-made solutions
15
Tailor-made Multi-User mono boom
Configuration
– WLC undercarriage
– 35 inch triple grouser track pads
– 26,014 lbs counterweight
– 39' 4" Multi-User boom
– 31' 2" Multi-User stick
– Excavator weight*: 85,980 lbs
– 0.65 cuyd bucket
– Max. reach at ground level: 71'
– Max. digging depth: 52'
– Max. cutting height: 61' 4"
– Max working height: 61'
* depending on machine configuration
R 938
Option already developed for R938 + R945
Further available Multi-User equipment in our R922 – R992 Multi-User brochure
9'11"
17' 1"
56' 9"
9'
10' 4"
11'
9'11"
17' 1"
56' 9"
9'
10' 4"
11'
938
938
R0 924
4 2 06810121416 m
304050 20 10 0 ft
2
4
-2
-4
-6
-8
-10
6
8
10
12
14
16
0
m
0
10
-10
-20
30
20
30
40
50
ft
938
2
Tailor-made solutions
16
Tailor-made Multi-User mono boom
Configuration
– VH-HD undercarriage
– 36 inch triple grouser track pads
– 26,014 lbs counterweight
– 33' 4" Multi-User mono boom
– 18' 8" Multi-User stick
– Cab with hydraulic elevation
– Cab with sliding door
– Foaming for stick and boom for
underwater applications
– Excavator weight*: 131,946 lbs
– 1.89 cuyd bucket
– Max. reach at ground level: 55'
– Max. digging depth: 35' 4"
– Max. cutting height: 53' 2"
– Max working height: 53'
* depending on machine configuration
R 945
Option already developed for R938 + R945
Further available Multi-User equipment in our R922 – R992 Multi-User brochure
R0923
23' 7"
10'11"
9'11"
10' 8"
10' 8"
49' 3"
R0923
23' 7"
10'11"
9'11"
10' 8"
10' 8"
49' 3"
926
R0916
4 2 06810121416 m
304050 20 10 0 ft
2
4
-2
-4
-6
-8
-10
6
8
10
12
14
16
0
m
0
10
-10
-20
30
20
30
40
50
ft
926
926
2
Tailor-made solutions
17
Demolition boom and stick
Configuration
– NLC undercarriage
– 24 inch triple grouser track pads
– 16,534 lbs counterweight
– 25' 6" demolition boom
– 16' 6" demolition stick
– Max. reach at ground level
without tool: 42' 4"
– Max. cutting height without tool: 45' 3"
– Excavator weight*: 69,000 lbs
– Tool weight* – transversal position:
3,968 lbs
– Tool weight* – longitudinal position:
6,834 lbs
– Max working height with out tool: 45' 2"
* depending on machine configuration
Option already developed for R 926
R 926
Model
Gauge
(mm) (K)
Wheelbase
(mm) (G)
Undercarriage
ground clearance (I)
Track height
(J)
Counterweight
ground clearance
(D)
Undercarriage
length (H)
R 926 NLC 8' 6" 12' 7" 1' 7" 3' 2" 3' 8" 15' 2"
9'11"
19'10"
37' 9"
8' 6"
10' 2"
10' 2"
R0917
9'11"
19'10"
37' 9"
8' 6"
10' 2"
10' 2"
R0917
2
Tailor-made solutions
18

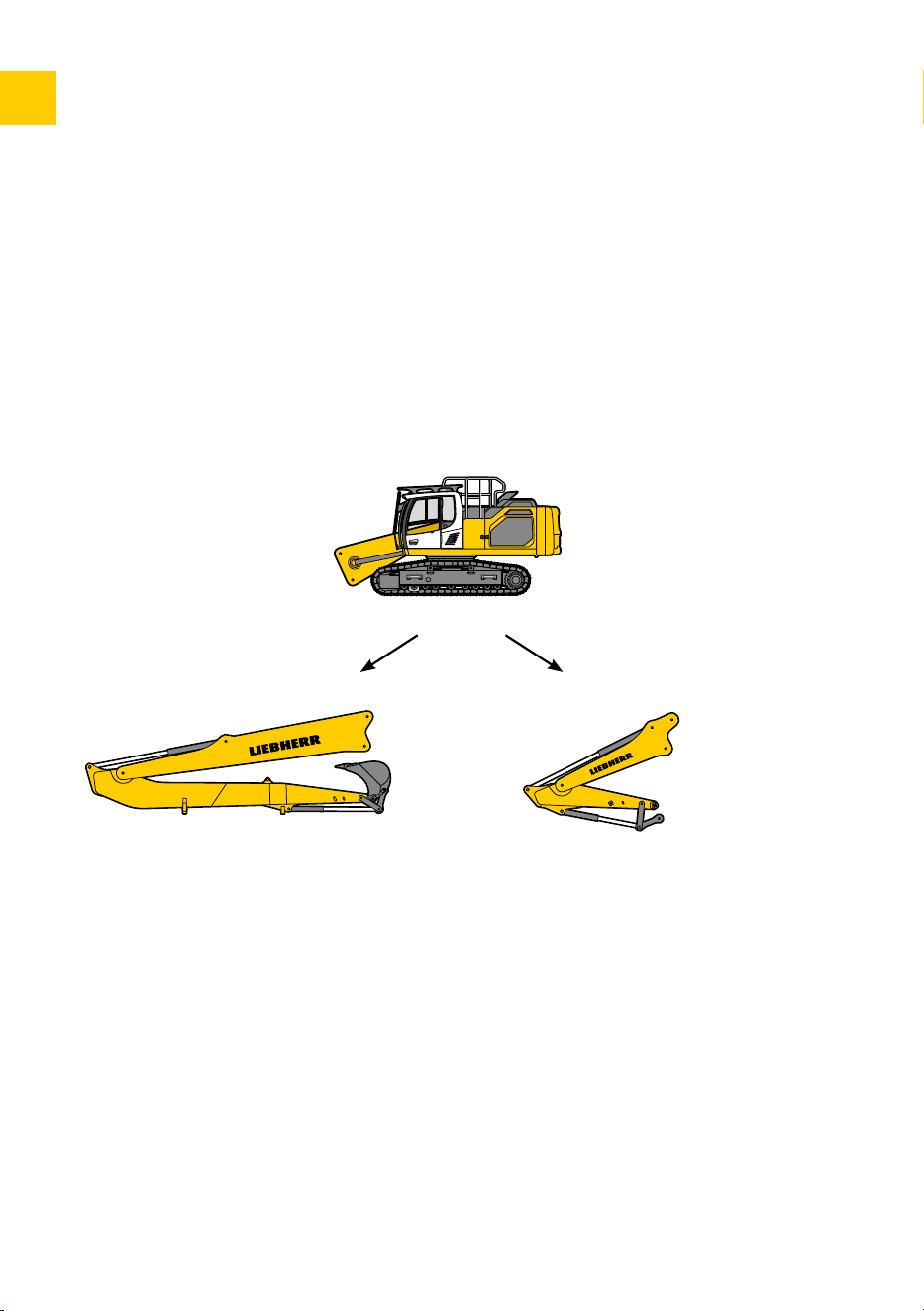

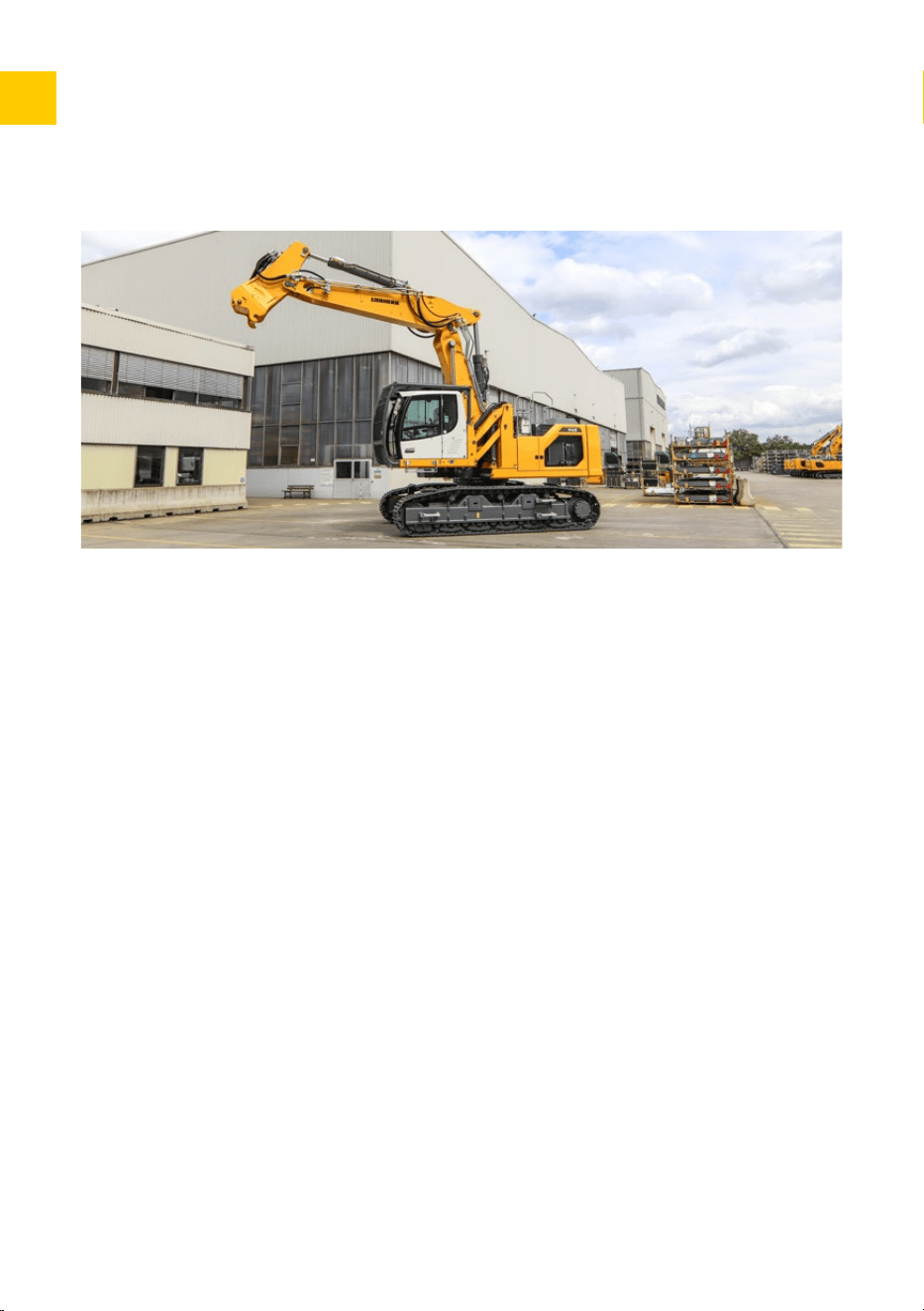

Two-piece boom / quick coupler /
multiple sticks
Specifications
– Kinematic and lift capacities study
– Quick coupler on two-piece boom
– Stick extension with quick coupler
– Solidlink on both quick couplers
– Hydraulic variable gauge VH-HD undercarriage (optional)
– Cab with hydraulic elevation (optional)
– SBL30 cab air filtration and pressurisation system (optional)
– GTS 13 kW generator kit
– Chain scrapers
Option already developed for R 945
R 945
26' 2" two-piece boom – Quick coupler – 11' 2" stick extension, or tool
945
R0914
4 2 068101214 m
3040 20 10 03545 25 15 5 ft
2
4
-2
-4
-6
-8
-10
6
8
10
12
14
16
0
m
0
10
-10
-20
-30
-5
-15
-25
20
30
40
5
15
25
35
45
50
ft
945
R0914
4 2 0681012 m
3040 20 10 035 25 15 5 ft
2
4
-2
-4
-6
-8
6
8
10
12
14
0
m
0
10
-10
-20
-5
-15
-25
20
30
40
5
15
25
35
45
ft
2
Tailor-made solutions
19
Two-piece boom / quick coupler /
multiple sticks
11' 2" stick extension
Tool: Weight depends on configuration
4,960 lbs shears
Working height 39' (without tool)
Excavator weight*: 119,049 lbs
Max. reach at ground level
without tool: 39'
Max. cutting height without tool: 33'10"
Tool weight*: 5,732 lbs
Max working height without tool: 33'
* depending on machine configuration
Tool: Weight depends on configuration
14,660 lbs shears
Working height 31' (without tool)
Excavator weight*: 119,049 lbs
Max. reach at ground level
without tool: 32'
Max. cutting height without tool: 23'11"
Tool weight*: 17,196 lbs
Max working height without tool: 23' 9"
* depending on machine configuration
R 945
VH-HD undercarriage
24 inch triple grouser track pads
18,518 lbs counterweight
26' 2" two-piece boom
3' 9" stick
QC 77 quick coupler
938
R0919
R0921
R0922
2
Tailor-made solutions
20
Basic boom / multiple equipments
R 938
– 10' 8" basic boom with quick coupler
– WLC undercarriage
– 24 inch triple grouser track pads
– 20,723 lbs counterweight
– 10' 8" basic boom
Specifications
– Kinematic and lift capacities study
– Basic boom with quick coupler
– Multi-User equipment
– Earthmoving equipment
– Removable counterweight
for Multi-User equipment
– 5,291 lbs extra counterweight
– 25' 2" Multi-User mono boom
– 25' 2" Multi-User stick
– 0.98 cuyd bucket*
– Max. reach at ground level: 60'
– Max. digging depth: 42' 9"
– Max. cutting height: 51'10"
– Excavator weight**: 101,412 lbs
– Max working height: 51' 8"
* depending on digging material density
** depending on excavator configuration
– 12' 9" mono boom
– 9' 6" stick
– QC 66 quick coupler
– 2.60 cuyd bucket*
– Max. reach at ground level: 34' 1"
– Max. digging depth: 21' 6"
– Max. cutting height: 32'10"
– Excavator weight**: 92,594 lbs
– Max working height: 32' 8"
938
R0911
4 2 0681012141618 m
30405060 20 10 0 ft
2
4
-2
-4
-6
-8
-10
-1 2
-14
6
8
10
12
14
16
18
0
m
0
10
-10
-20
-30
-40
20
30
40
50
60
ft
938
R0910
4 2 06810 m5 3 17911
3035 2025 1015 05 ft
2
4
-2
-4
-6
6
8
10
0
m
1
3
-3
-5
-7
5
7
9
-1
11
0
10
15
-10
-1 5
-20
-5
5
20
25
30
35
ft
938
938
2
Tailor-made solutions
21
Basic boom / multiple equipments
R0913
37' 5"
10' 6"
50' 8"
R0912
21' 8"
12'
36' 9"
Tailor-made solutions
22
3
Tailor-made solutions
23
Contents
1. Available excavator options
Cab with hydraulic elevation ............................................................................................6
Cab tiltable 30° ..................................................................................................................7
Dust suppression system ................................................................................................ 8
Hydraulic variable gauge VH-HD undercarriage ...........................................................9
2. Special equipment
Tailor-made two-piece boom .........................................................................................13
Tailor-made Multi-User mono boom .............................................................................15
Demolition boom and stick ............................................................................................. 17
Two-piece boom / quick coupler / multiple sticks ....................................................18
Basic boom / multiple equipments .............................................................................. 20
3. Preparing for tool mounting
Shears on boom end ....................................................................................................... 25
Shears on stick end ........................................................................................................ 26
4. Special applications
Dredging excavator on barge at maritime site ........................................................... 30
Sheet pile driving ............................................................................................................. 31
Slag processing ................................................................................................................32
Selective deconstruction ................................................................................................33
3

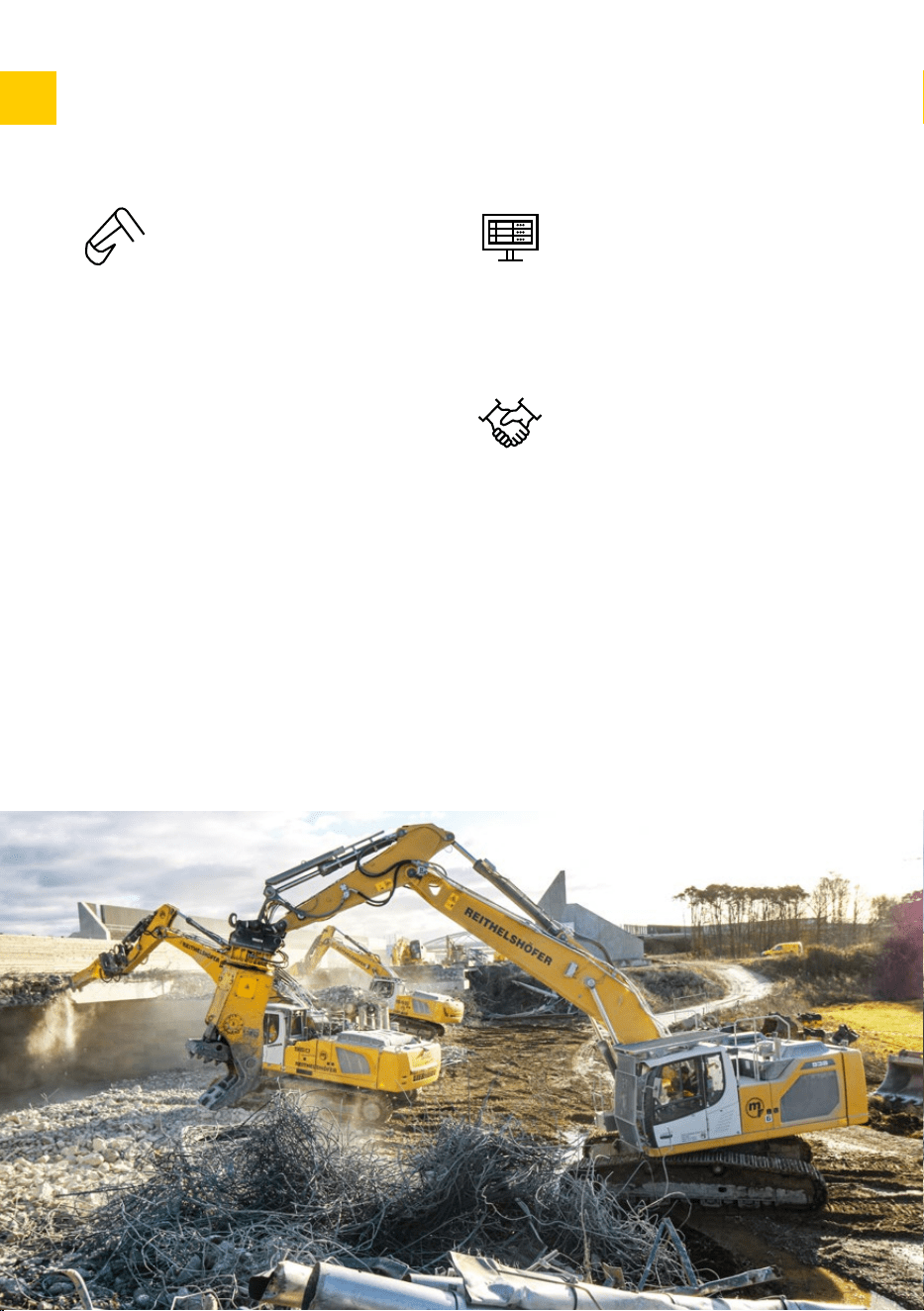

Examples of
Applications
– Selective
deconstruction work
– Recycling
Specifications
– Dedicated kinematic
and lift capacities
Customer benefits
– User comfort
– Precision work
– Time savings and
productivity gains
– Reduced fuel consump-
tion thanks to hydraulic
optimisation
3
Tailor-made solutions
25

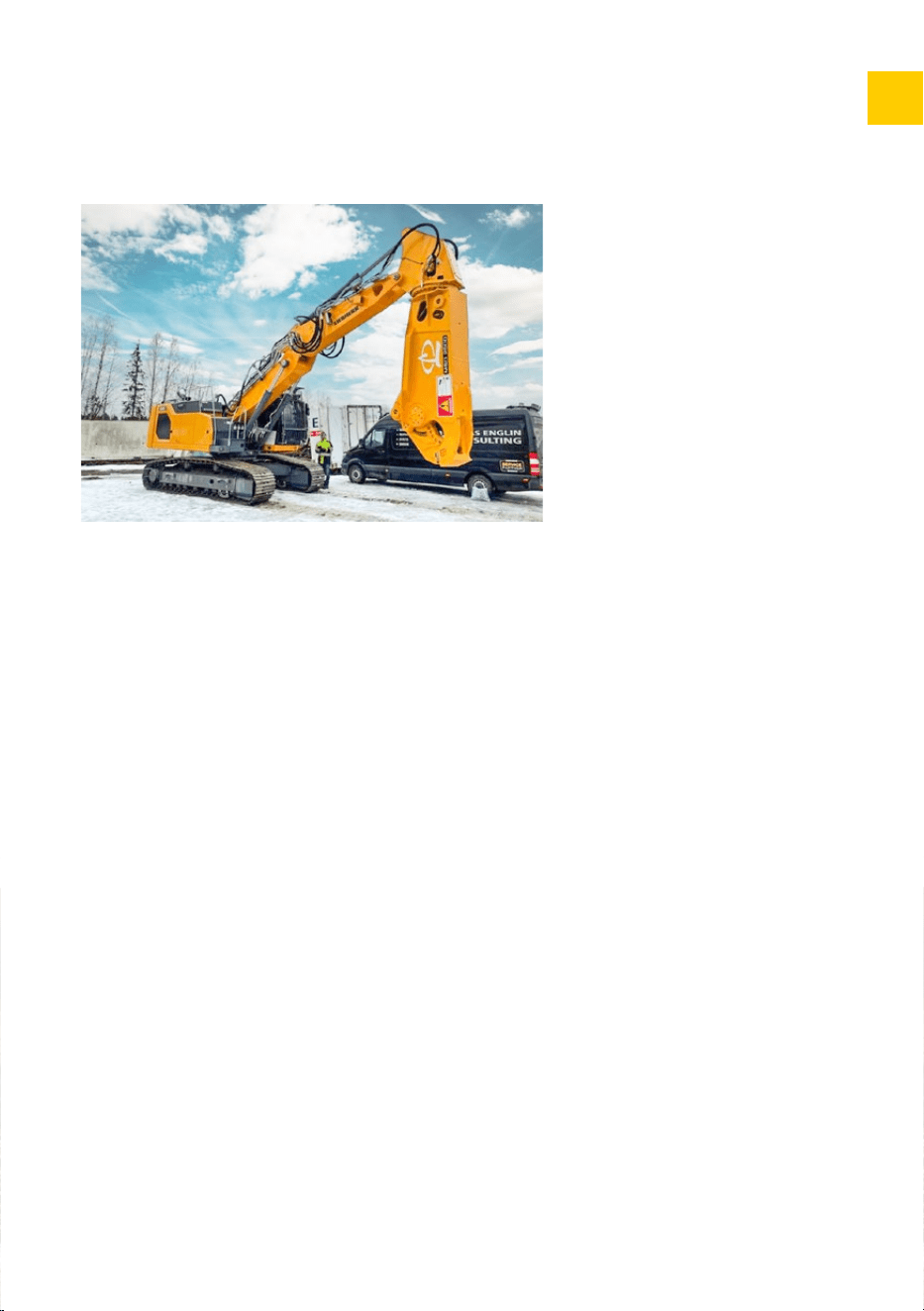

Shears on boom end
Specifications
– Adapting hydraulic system and
lubrication system
– Adapting equipment to facilitate
transport
– Tool adjustment and installation
at factory
Option already developed for R938 + R945
R 938
Configuration
– NLC undercarriage
– 24 inch triple grouser track pads
– 20,723 lbs counterweight
– 21' 9" two-piece boom
– Excavator weight: 79,366 lbs
– LaBounty MSD 2500R shears –
15,000 lbs
3
Tailor-made solutions
26
Shears on stick end
Option already developed for R998SME
R 998 SME
Specifications
– Adapting hydraulic system
– Adapting equipment to facilitate
transport
– Tool adjustment and installation
at factory
Configuration
– LC-V undercarriage
– 24 inch triple grouser track pads
– 39,683 lbs counterweight
– 23' 6" SME mono boom
– 9' 6" SME stick
– Quick coupler
– Excavator weight: 227,075 lbs
– MBI SH1500R shears – 33,069 lbs
Tailor-made solutions
27
Tailor-made solutions
28
4
Tailor-made solutions
29
Contents
1. Available excavator options
Cab with hydraulic elevation ............................................................................................6
Cab tiltable 30° ..................................................................................................................7
Dust suppression system ................................................................................................ 8
Hydraulic variable gauge VH-HD undercarriage ...........................................................9
2. Special equipment
Tailor-made two-piece boom .........................................................................................13
Tailor-made Multi-User mono boom .............................................................................15
Demolition boom and stick ............................................................................................. 17
Two-piece boom / quick coupler / multiple sticks ....................................................18
Basic boom / multiple equipments .............................................................................. 20
3. Preparing for tool mounting
Shears on boom end ....................................................................................................... 25
Shears on stick end ........................................................................................................ 26
4. Special applications
Dredging excavator on barge at maritime site ........................................................... 30
Sheet pile driving ............................................................................................................. 31
Slag processing ................................................................................................................32
Selective deconstruction ................................................................................................33
4
Tailor-made solutions
30
P 992
Preparing to install the excavator on a barge

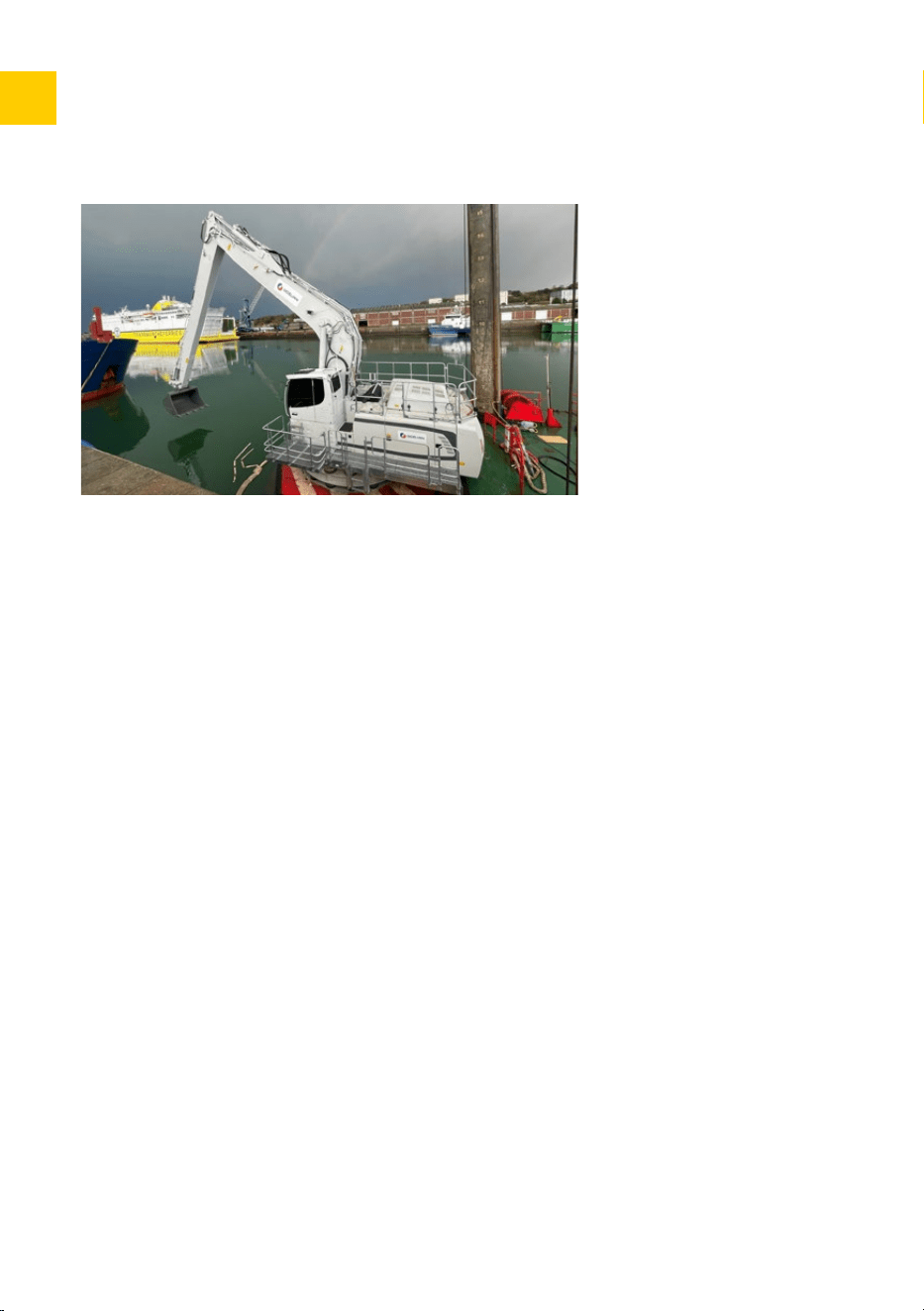

Dredging excavator on barge at maritime site
Customer benefits
– User comfort
– Time savings and productivity gains
– Improved reliability – machine
configured to its working environment
Applications
– Dredging work, port maintenance,
loading/unloading barges
– Additional protection for working in
a corrosive environment (sea water)
Specifications
Protection from corrosion:
– Hydraulic cylinders
– Equipment watertightness
– Radiator
– Wire harnesses
– Paint
– Others as required
– Screws, bolts and hinges in stainless
steel
Compressor for equipment
pressurisation
Preparing for underwater work
with a hydraulic hammer
Elastic base to limit vibration
Option already developed for P992
R0918
4 2 06810121416 m
304050 20 10 0354555 25 15 5 ft
2
4
-2
-4
-6
-8
-10
-12
-14
6
8
10
12
14
16
18
0
m
0
10
-10
-20
-30
-40
-5
-15
-25
-35
-45
20
30
40
50
5
15
25
35
45
55
ft
4
Tailor-made solutions
31
Sheet pile driving
Customer benefits
– User comfort thanks to better view
– Time savings and productivity gains
– Enhanced reliability – machine
configured to its working environment
Specifications
– Hydraulic variable gauge VH-HD
undercarriage
– Cab with hydraulic elevation
– Two-piece boom
– Extra hydraulic system for using
extension
– Preparing hydraulics for using
vibratory hammer
R 956
Preparing to mount a vibratory hammer
with a stick extension
Option already developed for R 956
Configuration
– VH-HD undercarriage
– 30 inch triple grouser track pads
– 24,250 lbs counterweight
– 20' 6" two-piece boom
– 10' 9" stick
– Quick coupler
– Excavator weight without tool
158,732 lbs
– Hook working height 49' 2"
Tool:
– 10' 2" stick extension (without
cylinder, with material handling
stick-type bucket kinematics)
– Vibratory hammer
– Total weight: 8,818 lbs
Sheet pile:
– Max weight: 7,054 lbs
– Height: 32' – 45' 9"
4
Tailor-made solutions
32
Applications
– Slag processing, work in
high- temperature environments
Customer benefits
– Safety during loading
– User comfort thanks to airtight cab
– Time savings and productivity gains
– Enhanced reliability – machine config-
ured to its working environment
Specifications
– Cab with windows suited to high
temperatures and air conditioning
with improved cooling
– Cab air filtration and pressurisation
system
– Automatic fire-extinguishing system
– Adapted central lubrication system
– Heat shielding for hoses and exposed
parts of the machine
Option already developed for R998SME

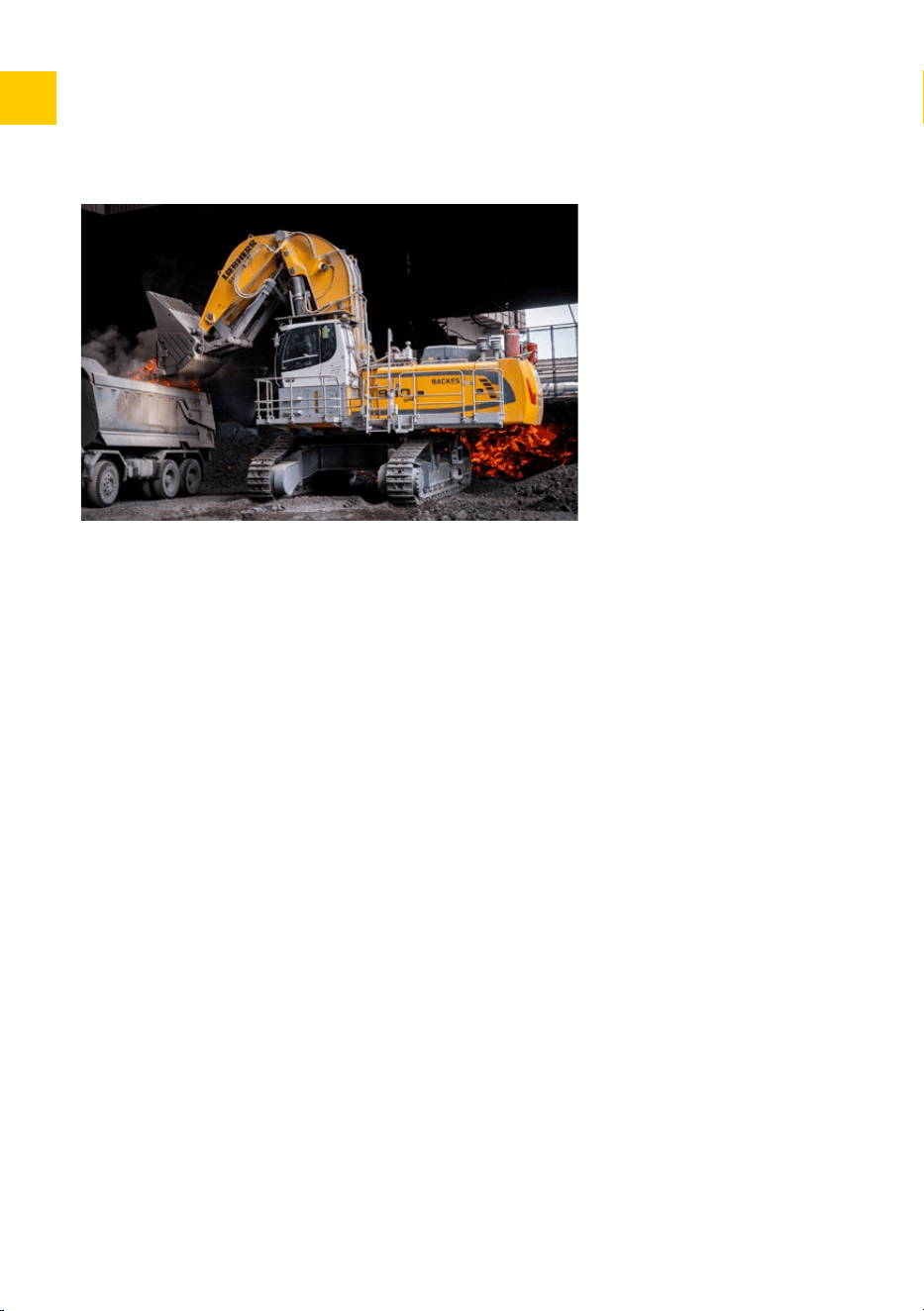

R 980 SME
Slag processing
4
Tailor-made solutions
33
R 938
Applications
Selective deconstruction, waste
sorting center
Customer benefits
– User comfort
– Time savings and productivity gains
– Enhanced reliability – machine
configured to its working environment
Specifications
– Cab tiltable 30° with full protective
grill independent of the cab
– Different undercarriages available
– Tailor-made two-piece boom
– Dust suppression system
– Cab pressurisation system
– Side protection for hoses
– Emergency stops with shut-off valve

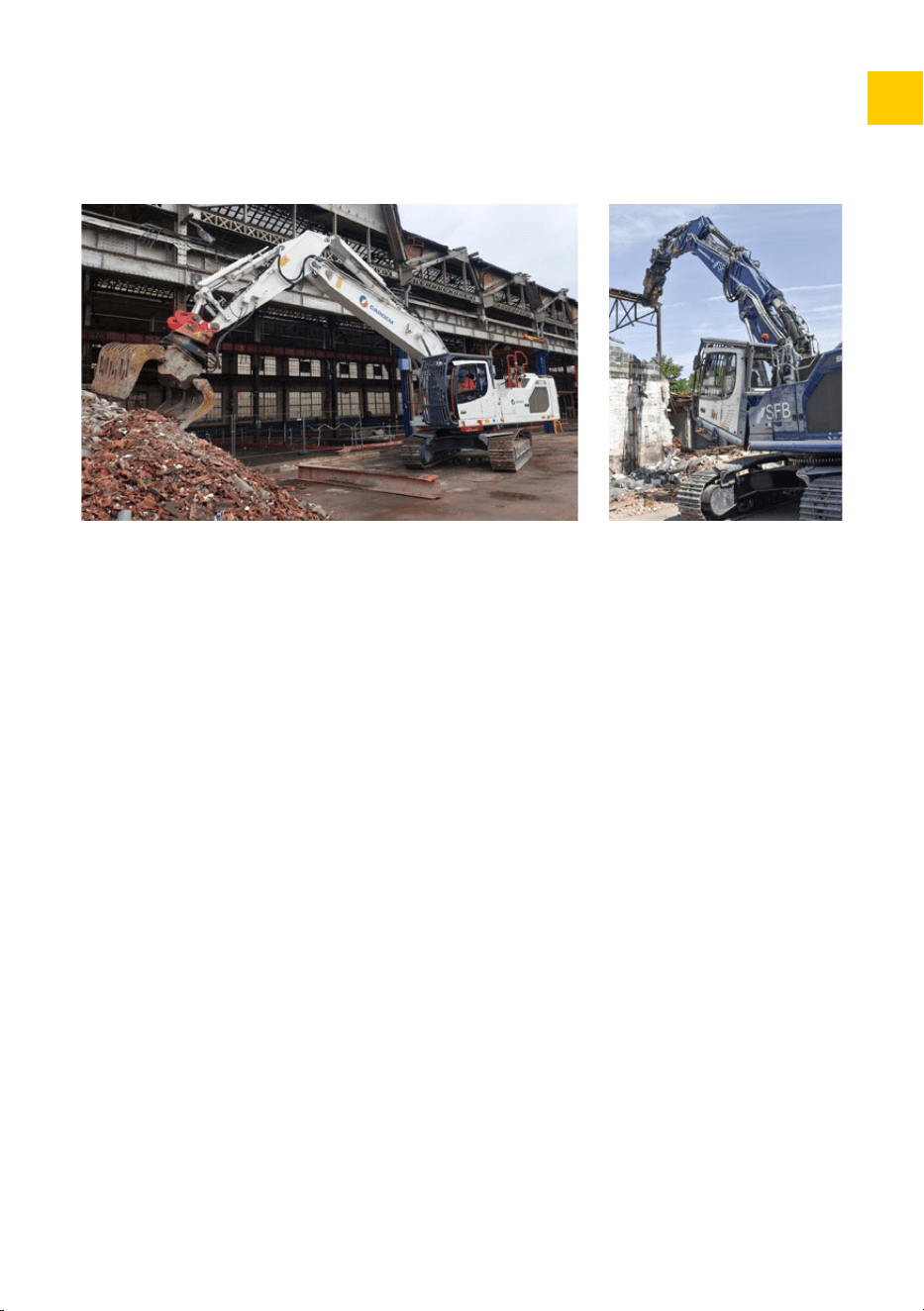

Selective deconstruction
R 938
© DB AG
Liebherr-France SAS • 2, avenue Joseph Rey • B.P. 90287 • FR – 68005 Colmar
Telephone +33 38 921-3030 • info.lfr@liebherr.com • www.liebherr.com
LFR-14503980-web-04.24_enUS Subject to change without notice.
The Liebherr Group
Global and independent:
more than 70 years of success
Liebherr was founded in 1949 when, with the
development of the world’s first mobile tower
crane, Hans Liebherr laid the foundations
for a family business now employing nearly
51,000 people and comprising over 140 com-
panies across every continent. The parent
company is Liebherr-International AG in
Bulle, Switzerland, whose associates are
exclusively members of the Liebherr family.
Leaders and pioneers
Liebherr is a pioneer and its forward-looking
approach has seen it make important contri-
butions to technology history over a wide
variety of industries. Employees throughout
the world continue to share the courage of
the founder, sharing a passion to produce
innovative products and a determination
to provide world-leading equipment and
machinery.
Diversified portfolio
The company is one of the world’s biggest
construction equipment manufacturers and
provides high-quality, user-oriented products
and services to sectors including: earthmov-
ing, material handling, deep foundations,
mining, mobile and crawler cranes, tower
cranes, concrete production and distribution,
maritime cranes, aerospace and transportation,
gear technology and automation, refrigera-
tion and freezing, components and hotels.
Customised care
Liebherr solutions are characterised by preci -
sion, implementation and longevity. The com-
pany is committed to technological excellence
and to providing customers with solutions
that match their needs exactly. That customer
focus does not end with delivery of a product
but continues through a comprehensive
range of back-up and support services.
