User Guide
Quality, Design and Innovation
home.liebherr.com/fridge-manuals
Contents
1 General safety instructions.......................... 2
2 The appliance at a glance............................. 4
2.1 Overview of appliances and equipment.......... 4
2.2 Range of appliance use...................................... 4
2.3 Conformity............................................................ 5
2.4 Spare parts........................................................... 5
3 Functionality of the Touch display............... 5
3.1 Navigation and symbol explanation................ 5
3.2 Menus.................................................................... 6
3.3 Sleep mode.......................................................... 6
4 Start-up......................................................... 6
4.1 Switching on appliance (first use)................... 6
5 Storage.......................................................... 7
5.1 Information regarding storage.......................... 7
5.2 Arranging your food properly............................ 7
5.3 Storage times...................................................... 7
6 Energy saving................................................ 7
7 Use................................................................. 7
7.1 Controls and displays......................................... 7
7.1.1 Status display.....................................................7
7.1.2 Display symbols.................................................8
7.2 Appliance functions............................................ 8
7.2.1 Notes on the appliance functions.................. 8
Switching appliance off and on..................... 8
WiFi..................................................................... 8
Temperature.......................................................9
Temperature unit.............................................10
SuperCool.........................................................10
PartyMode ........................................................11
HolidayMode.....................................................11
SabbathMode...................................................12
E-Saver .............................................................12
CleaningMode..................................................13
Lighting intensity............................................ 13
Display Brightness..........................................13
Door alarm........................................................14
Child lock..........................................................14
Appliance and software information........... 15
Demo mode...................................................... 15
Resetting to factory settings........................ 16
7.3 Messages.............................................................. 16
7.3.1 Overview of warnings......................................16
7.3.2 Ending warnings...............................................16
7.3.3 Overview of reminders.....................................17
7.3.4 Ending reminders..............................................17
8 Maintenance.................................................. 17
8.1 FreshAir carbon filter.......................................... 17
8.2 Defrosting the appliance................................... 18
8.3 Cleaning the appliance...................................... 18
9 Customer support......................................... 19
9.1 Technical specifications.................................... 19
9.2 Operating noises................................................. 19
9.3 Technical faults................................................... 19
9.4 Customer Service................................................ 20
9.5 Rating plate.......................................................... 21
10 Decommissioning.......................................... 21
11 Disposal......................................................... 21
11.1 Preparing the appliance for disposal............... 21
11.2 Disposing of the appliance in an
environmentally friendly manner..................... 21
Congratulations on the purchase of your new appli‐
ance. With this purchase, you have chosen all the
advantages of the latest refrigeration technology, guar‐
anteeing you a high-quality appliance with a long life
span and high operating safety.
The equipment of your appliance gives you the highest
level of day-to-day ease of operation.
Together we are making an active contribution to the
conservation of our environment by purchasing this
appliance which is manufactured in an environmentally
friendly process with the use of recyclable materials.
We hope you enjoy your new appliance.
These operating instructions apply to:
-
UBCgb3730
1 General safety instructions
Please keep these operating instructions in a safe
place so you can refer back to them at any time.
If you pass the appliance on, please hand these oper‐
ating instructions to the new owner.
Read and follow these instructions. They contain
safety information which is important for safe and
problem-free installation and operation. Always read
and follow the safety information.
General safety instructions
2 * Depending on model and options
Dangers for the user:
-
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety. Children should
be supervised to ensure that they do not play with
the appliance. Cleaning and user maintenance must
not be performed by children unless they are super‐
vised. Children between the ages of 3 and 8 may
load and unload the appliance. Children under the
age of 3 must be kept away from the appliance
unless they are constantly supervised.
-
IMPORTANT: The power plug must be easily acces‐
sible so that the appliance can be disconnected
from the mains quickly in an emergency. It must not
be behind the back of the appliance.
-
The socket must be easily accessible so that the
appliance can be disconnected quickly from the
electricity in an emergency. It must not be located in
the area behind the appliance.
-
Always hold the appliance at the plug when discon‐
necting it from the household power. Do not pull on
the cable.
-
Disconnect the power plug or fuse if there is a
malfunction.
-
Do not damage the power cable. Do not operate the
appliance with a faulty power cable. If the supply
cord is damaged, it must be replaced by the manu‐
facturer, its service agent or similarly qualified
persons in order to avoid a hazard. For Plug and Play
connections, the change may be carried out by the
customer.
-
Repairs and work on the appliance may only be
carried out by Customer Service or other specifically
trained qualified personnel.
-
Only install, connect and dispose of the appliance in
accordance with the instructions.
-
Only operate the appliance after it has been
installed.
Risk of fire:
-
The refrigerant contained within the appliance
(specifications on the identification plate) is environ‐
mentally friendly, but flammable. Leaking refrigerant
can ignite.
•
WARNING: Do not damage the refrigerant circuit.
•
Do not handle ignition sources inside the appli‐
ance.
•
WARNING: Do not use electrical appliances inside
the food storage compartments of the appliance,
unless they are of the type recommended by the
manufacturer (e.g. steam cleaning appliances,
heating appliances, ice cream makers).
•
If refrigerant leaks: Remove naked flames or igni‐
tion sources located near the area of the leak.
Ventilate the room well. Contact Customer
Service.
-
Do not operate the appliance near explosive gases.
-
Do not store or use gasoline or other flammable
gases and liquids near the appliance.
-
Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
You can recognize such spray cans by the printed list
of contents or by a flame symbol. Any leaking gases
can be ignited by electrical components.
-
Alcoholic beverages or other containers holding
alcohol must always be tightly sealed for storage
purposes. Any leaking alcohol can be ignited by elec‐
trical components.
Risk of falling or toppling over:
-
WARNING: To avoid a hazard due to instability of the
appliance, it must be fixed in accordance with the
instructions.
-
Do not stand on the base, drawers, doors etc. or use
them as improper supports. This applies in particular
to children.
Danger of poisoning:
-
Do not consume spoiled food.
Danger of frostbite, feeling of numbness and pain:
-
Avoid prolonged skin contact with cold surfaces or
chilled/frozen food or take protective measures, e.g.
wear gloves.
Risk of injury and damage:
-
Hot steam may cause injuries. Do not use any elec‐
trical heating or steam cleaning equipment, naked
flames or defrosting sprays for defrosting measures.
-
WARNING: Do not use mechanical devices or other
means to accelerate the defrosting process, other
than those recommended by the manufacturer.
-
Do not remove ice using sharp objects.
-
WARNING: Keep clear of obstruction all ventilation
openings in the appliance enclosure or in the struc‐
ture for building-in.
-
WARNING: Risk of child entrapment. Before you
throw away your old refrigerator or freezer:
•
Take off the doors.
•
Leave the shelves in place so that children may
not easily climb inside.
Risk of crushing:
-
Do not hold onto the hinge when opening and
closing the door. Fingers may become trapped.
California Proposition 65
-
WARNING: This product can expose you to chemi‐
cals including Diisononyl Phthalate (DINP), which is
known to the State of California to cause cancer,
and Di-isodecyl Phthalate (DIDP), which is known to
the State of California to cause birth defects or
other reproductive harm. For more information, go to
www.P65Warnings.ca.gov

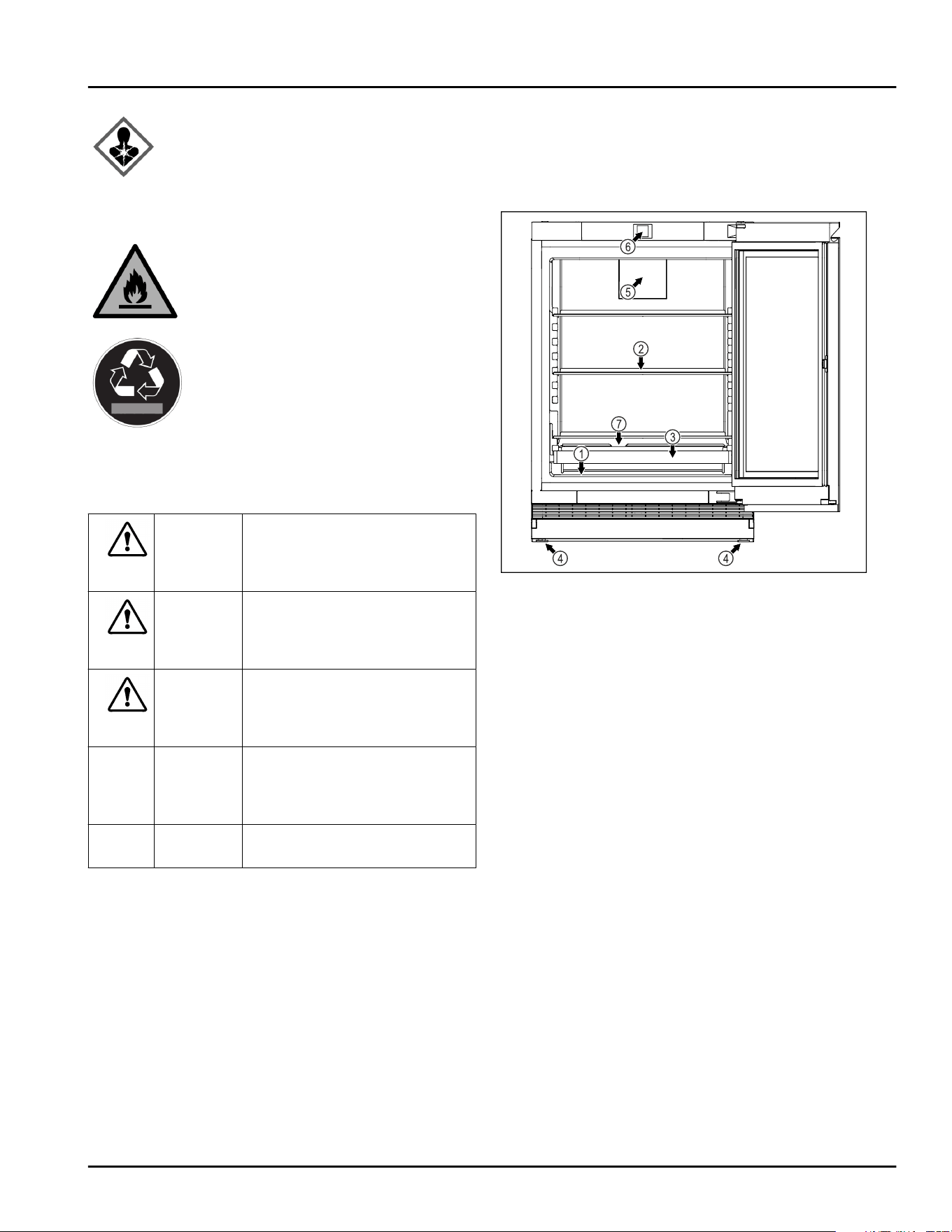

Symbols on the device:
General safety instructions
* Depending on model and options 3
The symbol may be located on the
compressor. It refers to the oil in the
compressor and refers to the following
danger: Can be fatal if swallowed or
inhaled. This notice only applies for
recycling. There is no danger during
normal operation.
WARNING: Risk of fire / flammable
materials. The symbol is located on the
compressor and indicates the danger
from flammable materials. Do not
remove the label.
This label or a similar one may be
located on the rear of the appliance.
This label indicates that there are
vacuum insulation panels (VIP) or perlite
panels in the door and/or housing. This
notice only applies for recycling. Do not
remove the label.
Observe the warning messages and other detailed
information in the other sections:
DANGER
Indicates an immediately
hazardous situation, which if
not avoided, will result in death
or serious injury.
WARNING Indicates a hazardous situa‐
tion, which if not avoided,
could result in death or serious
injury.
CAUTION Indicates a hazardous situa‐
tion, which if not avoided,
could result in minor or
moderate injury.
NOTICE Indicates a hazardous situa‐
tion, which if not avoided,
could result in damage to prop‐
erty.
Note Indicates useful advice and
tips.
2 The appliance at a glance
2.1 Overview of appliances and equip‐
ment
Fig. 1 Example illustration
Equipment
(1)
Type plate (5) Fan with FreshAir acti‐
vated charcoal filter
(2) Glass plate (6) Operating elements
and temperature
display
(3) Support rack (7) Defrost water drain
(4) Adjustable feet
2.2 Range of appliance use
Normal use
-
staff kitchen areas in shops, offices and other
working environments;
-
farm houses and by clients in hotels, motels and
other residential type environments;
-
bed and breakfast type environments;
-
catering and similar non-retail applications.
The appliance is suitable for integrated under worktop
use
All other types of uses are not permitted.
Foreseeable misuse
The following uses are specifically prohibited:
-
Storage and cooling of medication, blood plasma,
laboratory preparations or similar substances and
products in accordance with the CMDCAS and FDA
510(k)
-
Use outdoors
-
Use in moist areas exposed to the rain
-
Use in areas at risk of explosion
The appliance at a glance
4 * Depending on model and options

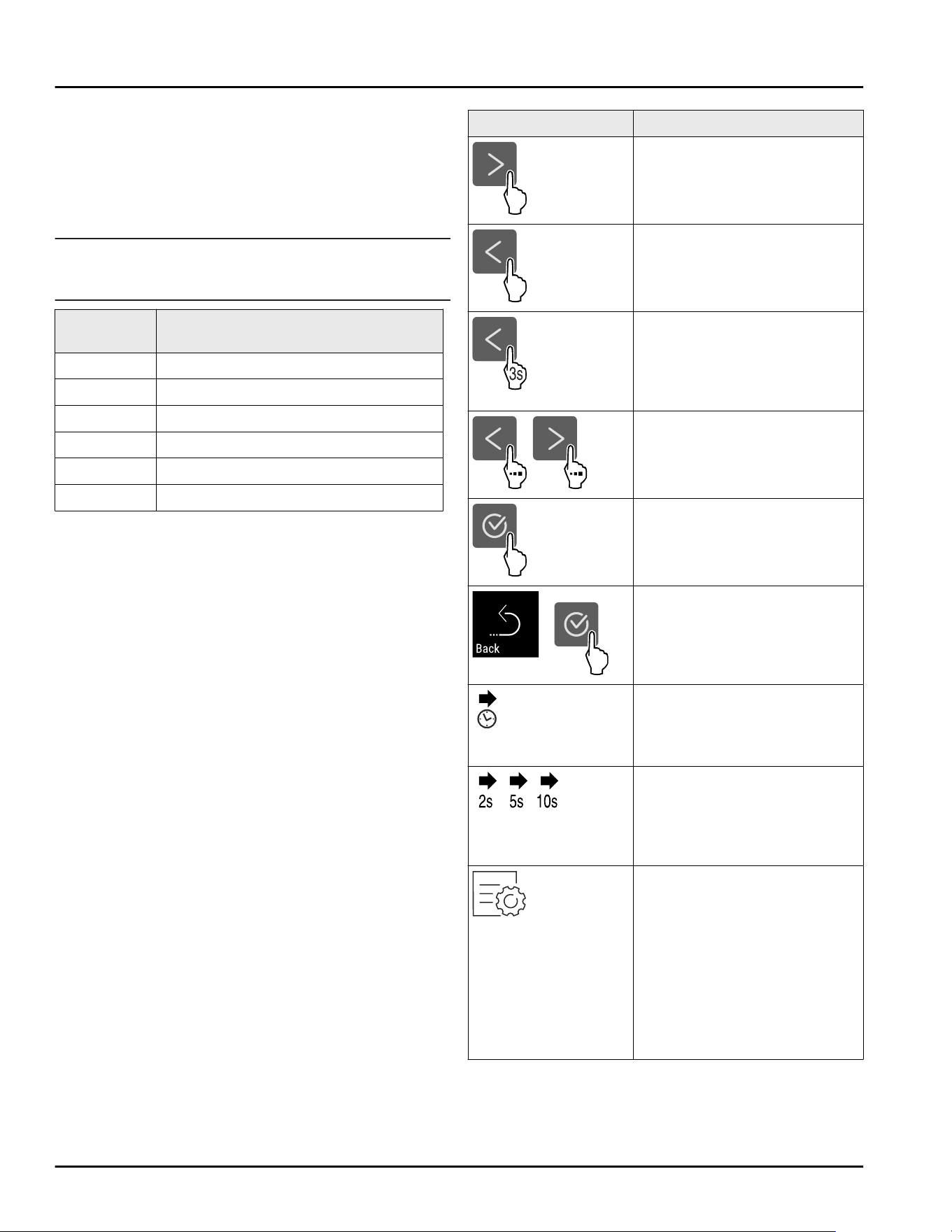

Incorrect appliance use can cause damage to the
stored products or cause them to spoil.
Climate ratings
The appliance is set to operate within specific ambient
temperature limits according to its climate rating The
climate rating for your appliance is printed on the
rating plate
Note
► To guarantee trouble-free operation, comply with the
indicated ambient temperatures.
Climate
rating
for ambient temperatures from
SN 10°C(50°F) to 32°C(90°F)
N 16°C(61°F) to 32°C(90°F)
ST 16°C(61°F) to 38°C(100°F)
T 16°C(61°F) to 43°C(109°F)
SN-ST 10°C(50°F) to 38°C(100°F)
SN-T 10°C(50°F) to 43°C(109°F)
2.3 Conformity
The refrigerant circuit has been tested for leaks. When
installed, the appliance complies with the applicable
safety regulations and with the corresponding direc‐
tives.
2.4 Spare parts
Spare parts for functional and storable parts of the
equipment are available for 15 years.
3 Functionality of the Touch
display
You operate your appliance using the Touch display.
You select appliance functions in the Touch display
(hereafter referred to as display) by tapping them. If
you do not perform any action on the display for
10 seconds, the display either jumps back to the
higher-level menu or directly to the status display.
3.1 Navigation and symbol explana‐
tion
In the illustrations, different symbols are used to navi‐
gate the display. The following table describes these
symbols.
Symbol
Description
Press the Next navigation
arrow:
Navigates to the next option in
the menu.
Press the Back navigation
arrow:
Jumps back one option in the
menu.
Press and hold the Back navi‐
gation arrow for 3seconds:
Jumps back to the status
display in the main menu or
from the Settings menu.
Press the navigation arrow
several times in succession:
Navigates in the menu to the
desired function.
Press the Confirm symbol:
Activates/deactivates func‐
tion.
Opens submenu.
Press the Confirm symbol
together with the back icon:
Jumps back one menu level.
Arrow with clock:
It takes more than 10 seconds
for the following message to
appear in the display.
Arrow with a time indication:
It takes the specified amount
of time until the following
message appears in the
display.
“Open Settings menu”
symbol:
Navigates to the Settings
menu and opens the settings
menu.
If necessary: Navigate to the
desired function in the
Settings menu.
(see 3.2.1 Opening the Settings
menu)
Functionality of the Touch display
* Depending on model and options 5

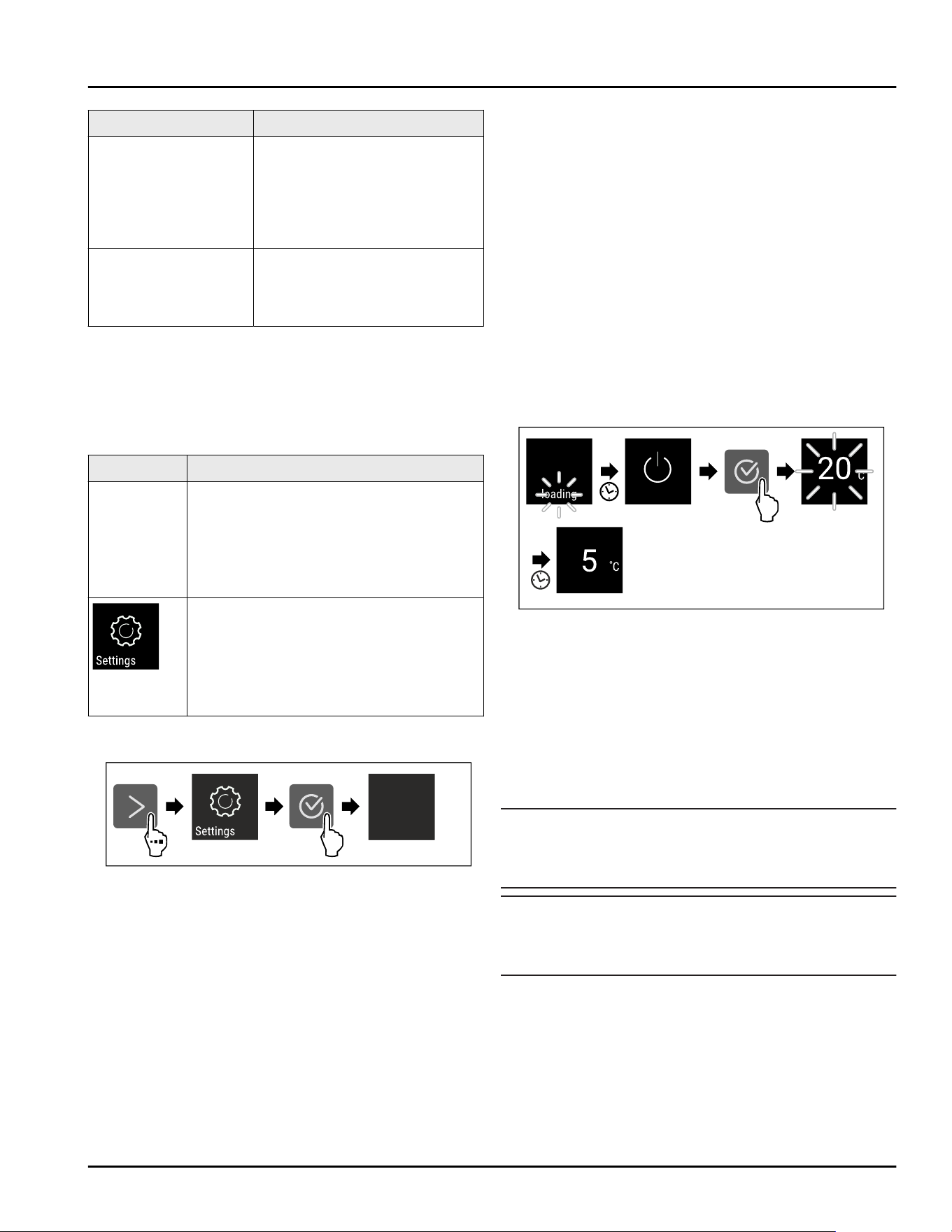

Symbol Description
No action for
10seconds
If you do not perform any
action on the display for
10 seconds, the display either
jumps back to the higher-level
menu or directly to the status
display.
Opening door and
closing it again
If you open the door and
immediately close it again, the
display jumps directly back to
the status display.
Note: Illustrations of the display are shown in the English
version.
3.2 Menus
The appliance functions can be found in various
menus.
Menu
Description
Main menu When you switch the appliance on, you
are automatically in the main menu.
From here you can navigate to the most
important appliance functions, to the
Settings menu and to the Advanced
menu.
Settings
menu
The Settings menu contains additional
appliance functions for setting up your
appliance.
(see 3.2.1 Opening the Settings menu)
3.2.1 Opening the Settings menu
Fig. 2 Example illustration
► Carry out action steps according to the illustration.
▷ Settings menu is open.
► If necessary: Navigate to the desired function.
3.3 Sleep mode
If you do not touch the display for 1 minute, the display
switches to sleep mode. In sleep mode, the display
brightness is dimmed.
3.3.1 Ending sleep mode
► Press any navigation key.
▷ Sleep mode is ended.
4 Start-up
4.1 Switching on appliance (first use)
Make sure that the following requirements are fulfilled:
❑
The appliance is properly installed and connected
according to the installation instructions.
❑
All adhesive strips, adhesive and protective films
and transport locks are removed from inside and on
the appliance.
❑
All marketing leaflets are removed from the drawers.
❑
You are familiar with the functionality of the Touch
display. (see3 Functionality of the Touch display)
Switch on the appliance using the Touch display.
► If the display is in sleep mode: Press the Confirm
symbol.
► Carry out action steps according to the illustration.
Fig. 3 Example illustration
▷ The appliance cools to the temperature set at the
factory.
▷ The appliance starts in demo mode (status display
with DEMO appears): If the appliance starts in demo
mode, you can deactivate demo mode within the
next 5 minutes. (seeDemo mode)
More information:
-
Start the SmartDevice for the first time. and
(seeWiFi)
Note
The manufacturer recommends:
► Observe the notes on storing food. (see 5.1 Informa‐
tion regarding storage)
Note
Accessories can be purchased from the Liebherr
Service Center. The address for your respective country
can be found on the back of the instructions.
Start-up
6 * Depending on model and options
5 Storage
5.1 Information regarding storage
WARNING
Risk of fire from electrical appliances!
If you use electrical devices in the food area of your
appliance, they may case a fire.
► Do not use electrical devices in the food area of the
appliance if they have not been recommended by the
manufacturer.
Note
Insufficient ventilation results in an increase in energy
consumption and reduction of the refrigerating
performance
► Always keep the air slots unobstructed.
Observe the following specifications for storage:
-
Keep the air vents on the fan free.
-
Package or cover foods that readily take on or give
off odors or taste in closed containers.
-
Package raw meat or fish in clean, closed
containers. This will prevent meat or fish from
touching or dripping onto other food.
-
Keep liquids in closed containers.
-
Leave space between goods to ensure good air
circulation.
-
Store food according to the instructions on the pack‐
aging.
-
Always observe the best-before date indicated on
the packaging.
Note
Failure to follow these guidelines can lead to food‐
stuffs spoiling.
5.2 Arranging your food properly

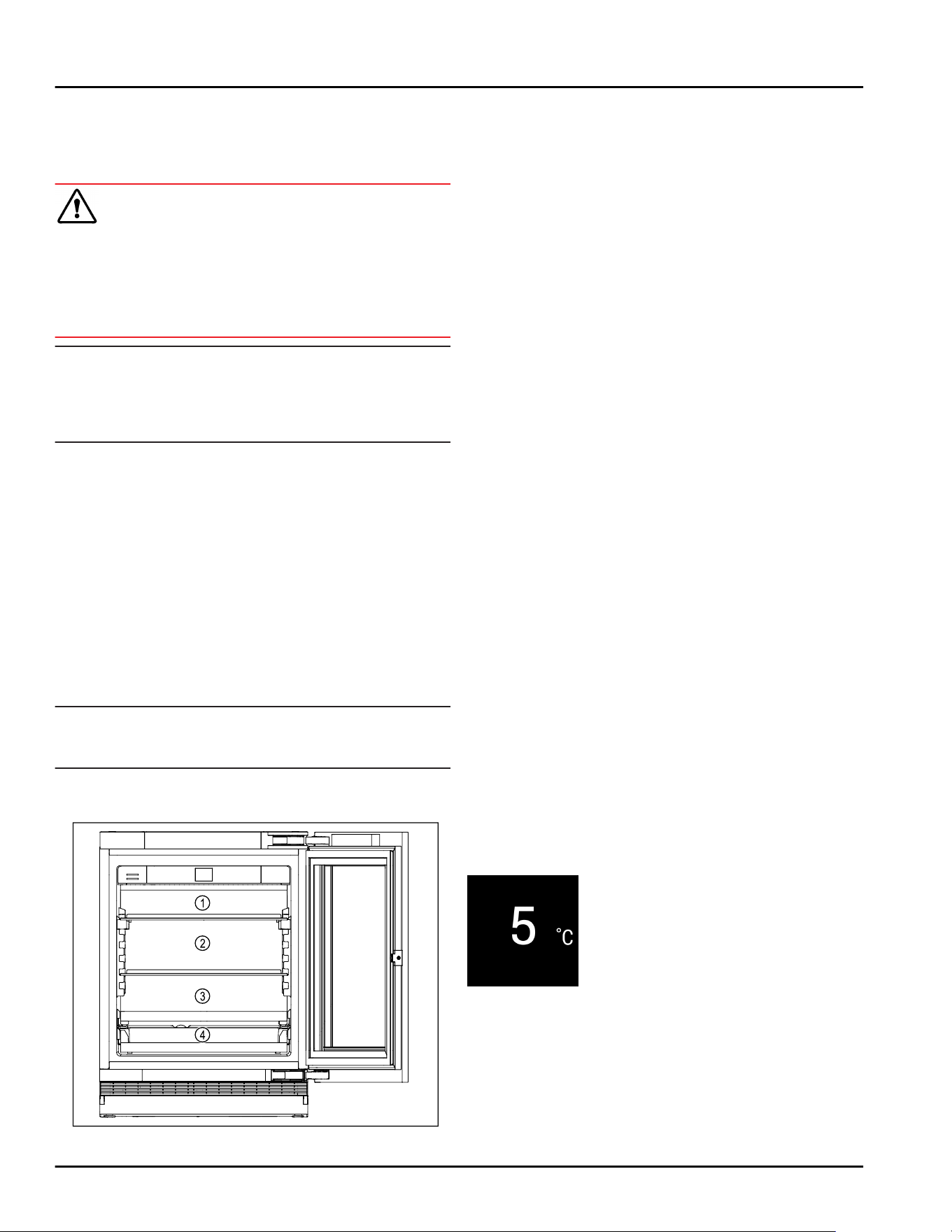

Fig. 4 Example illustration
►
Top area Fig. 4 (1): Store butter, cheese, canned food,
and tubes.
► Middle area Fig. 4 (2): Store packaged fruit and vege‐
tables, baked goods, and cakes.
► Bottom area Fig. 4 (3): Store perishable food, such as
pre-cooked meals, fish, fresh meat and lunch meat.
► Beverage shelf Fig.4(4): Store cans, smaller bottles.
5.3 Storage times
The storage times given are guidelines
Food with a “use by” date must still be consumed by
the date indicated on the package
6 Energy saving
-
Always ensure good ventilation. Keep clear of
obstruction all ventilation openings in the appliance
enclosure or in the structure for building-in.
-
Never block air slits in the fan.
-
Do no install the appliance in an area with direct
sunlight, next to a heating unit or similar.
-
If you install the appliance directly next to an oven,
its energy consumption may increase slightly. This
depends on the service life and how often the oven
is used.
-
Energy consumption depends on installation condi‐
tions such as the ambient temperature
(see 2.2 Range of appliance use) . A warmer ambient
temperature can increase the energy consumption.
-
Avoid opening the appliance door for any longer then
necessary
-
The lower the temperature is set the higher the
energy consumption.
-
For longer periods of absence, use HolidayMode
(seeHolidayMode) .
7 Use
7.1 Controls and displays
7.1.1 Status display
Fig.5
(1)
Fridge compartment
temperature display
The Status display shows the set temperatures and is
the home display. From there, you can navigate to the
options and settings.
Storage
* Depending on model and options 7
7.1.2 Display symbols
The display symbols provide information about the
current appliance status.
Symbol Appliance status
Standby
The appliance or temperature
zone is turned off.
Flashing number
Appliance is working. Tempera‐
ture flashes, until the set value
is reached.
Flashing symbol
Appliance is working. Setting is
made.
Bar grows steadily
Function is activated.
7.2 Appliance functions
7.2.1 Notes on the appliance functions
The appliance functions are set at the factory so that
your appliance is fully functional.
Before you alter, activate or deactivate the appliance
functions, make sure that the following requirements
are met:
❑
You have read and understood the descriptions of
how the display works. (see 3 Functionality of the
Touch display)
❑
You have familiarized yourself with the operating
and display elements of your appliance.
Switching appliance off and on
This function switches the entire appliance on and off.
Switching off the appliance
If you switch off the appliance, the settings that were
made before remain stored.
Make sure that the following requirements are fulfilled:
❑
Handling instructions (see 10 Decommissioning)
have been completed.

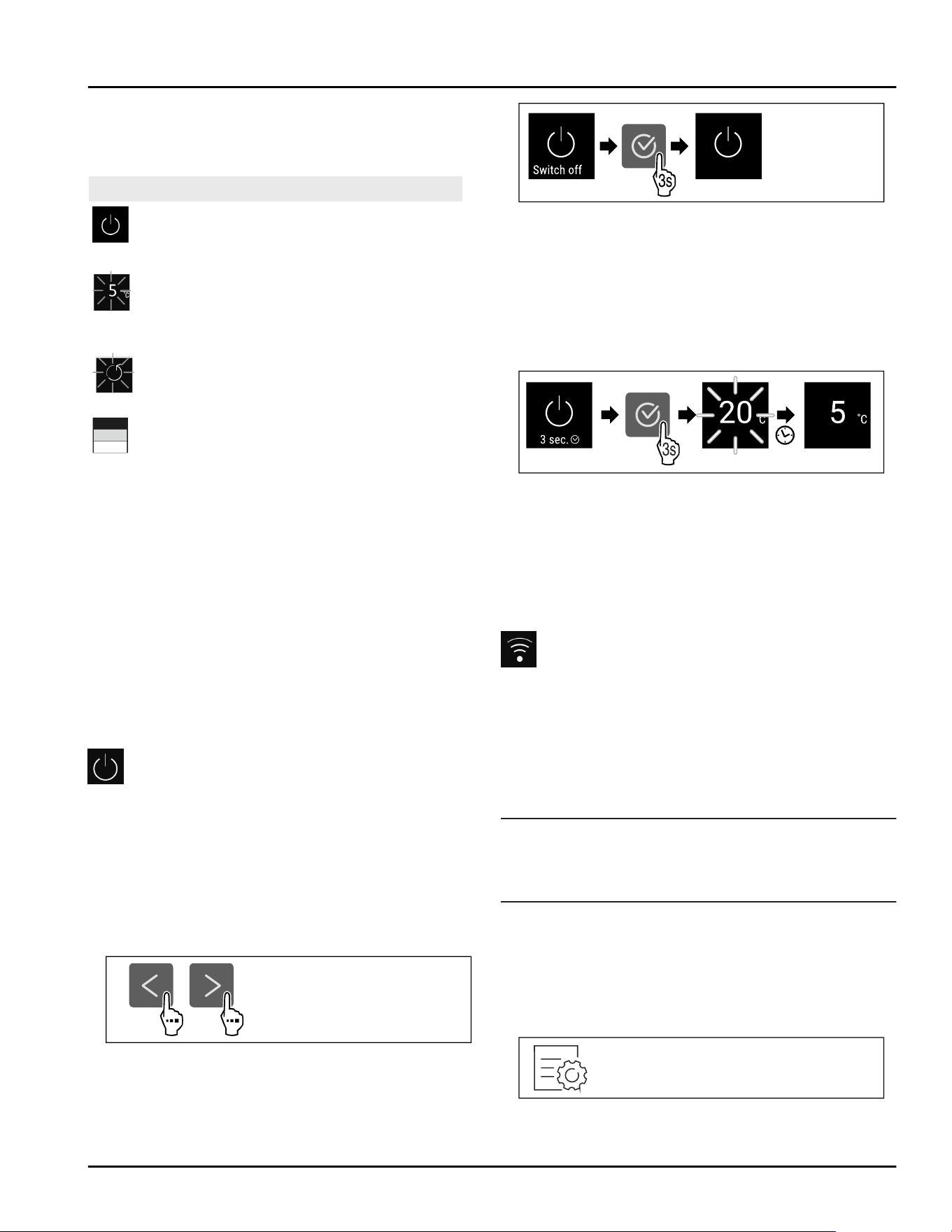

Fig.6
Fig.7
► Carry out action steps according to the illustration.
▷ Appliance is switched off.
▷ Standby symbol appears in the display.
▷ Display turns black.
Switching on the appliance
If the display is in sleep mode:
► Press any navigation key.
Fig. 8 Example illustration
► Carry out action steps according to the illustration.
If the appliance starts in demo mode:
► Deactivate demo mode. (see Deactivating demo
mode)
▷ Appliance is switched on.
▷ Previously made settings are re-established.
▷ The appliance cools to the set target temperature.

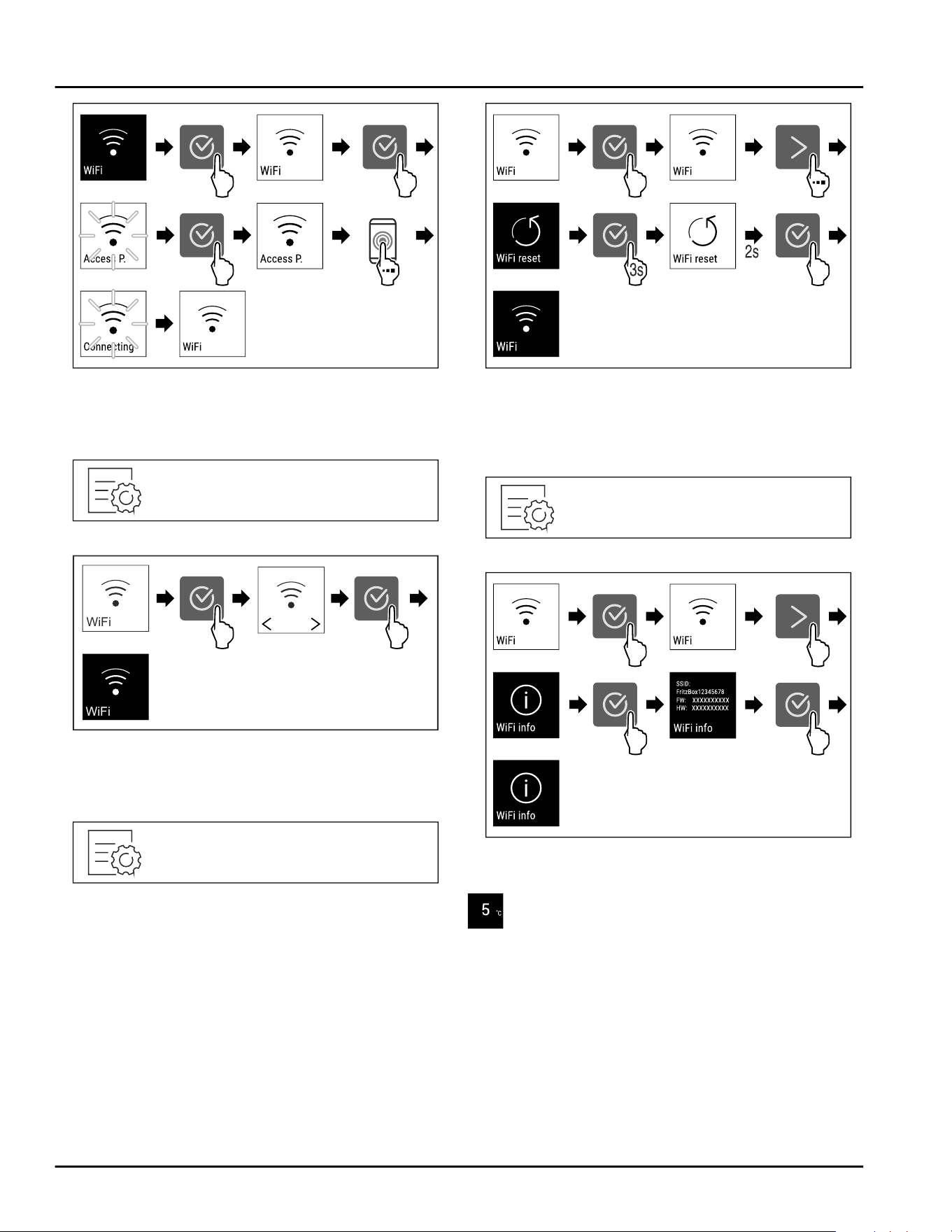

WiFi
Use this function to connect your appliance to WiFi.
You can then operate it via the SmartDevice app on a
mobile device. You can also use this function to
disconnect or reset the WiFi connection.
To connect your device to WiFi, you need the SmartDe‐
viceBox.
More information on the SmartDevice:
Note
The SmartDevice function is not available in the
following countries: Russia, Belarus, Kazakhstan.
You cannot use the SmartDeviceBox.
Establishing the WiFi connection for the first time
Make sure that the following requirements are fulfilled:
❑
You have purchased and inserted a SmartDeviceBox.
❑
You have installed the SmartDevice app (see
apps.home.liebherr.com).
❑
Registration in the SmartDevice app is completed.
Fig.9
Use
8 * Depending on model and options
Fig. 10
► Carry out action steps according to the illustration.
▷ Connection is established.
Disconnecting from the WiFi
Fig.11
WiFi
WiFi
Fig.12
► Carry out action steps according to the illustration.
▷ There is no connection.
Resetting the WiFi connection
Fig.13
Fig. 14
► Carry out action steps according to the illustration.
▷ WiFi connection and other WiFi settings are reset to
factory settings.
Showing information about the WiFi connection
Fig. 15
Fig. 16
► Carry out action steps according to the illustration.
Temperature
Use this function to set the temperature.
The temperature depends on the following factors:
-
How often the door is opened
-
How long the door is open
-
The room temperature of the installation site
-
Type, temperature and amount of food
Use
* Depending on model and options 9

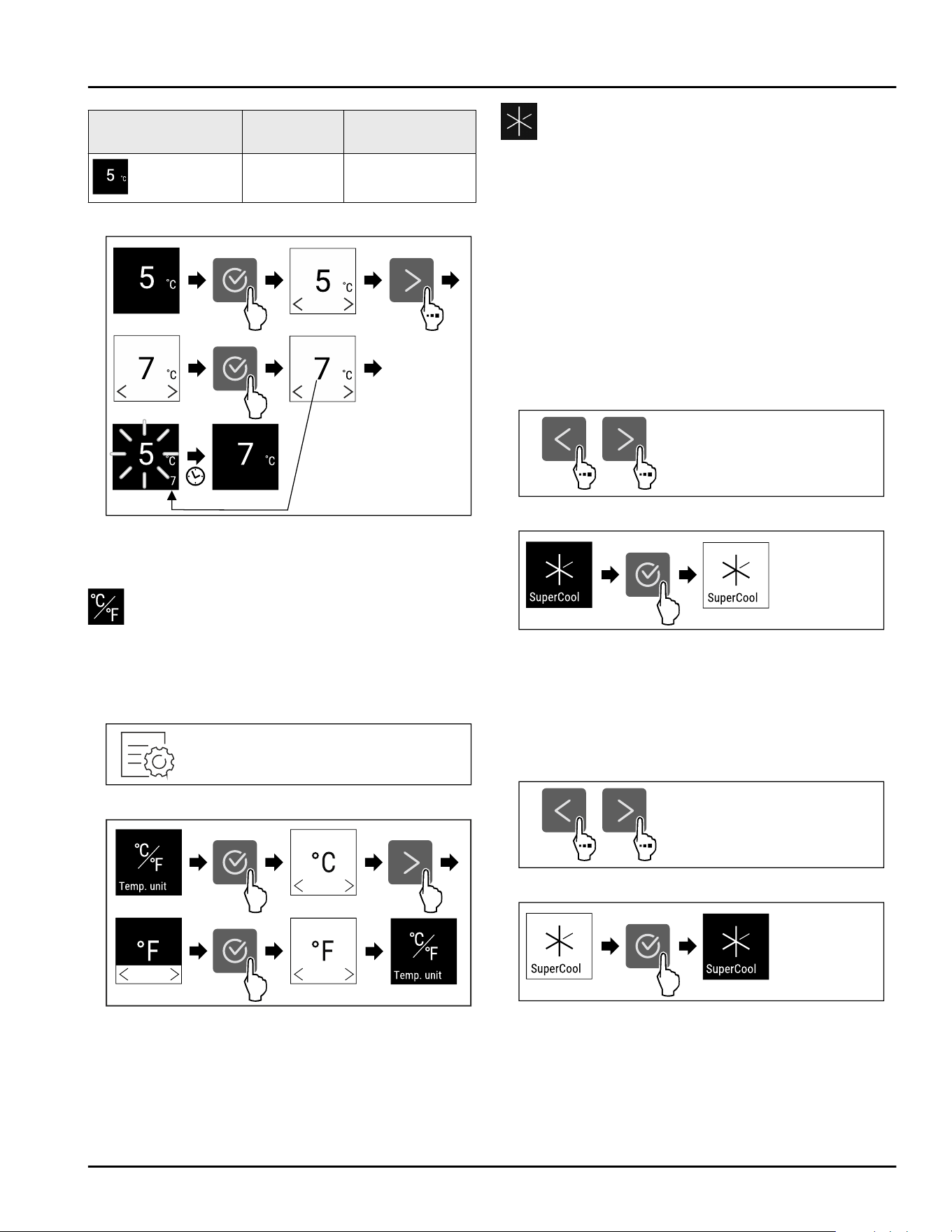

Factory-set
temperature
Recommended
setting
Fridge section
4°C(39°F) 4°C(39°F)
Setting the temperature
Fig. 17 Example illustration
► Carry out action steps according to the illustration.
▷ Temperature is set.
Temperature unit
Use this function to set the temperature unit. You can
set the temperature unit in either degrees Celsius or
degrees Fahrenheit.
Setting the temperature unit
Fig. 18
Fig. 19 Example illustration: Switching between
degrees Celsius or degrees Fahrenheit.
► Carry out action steps according to the illustration.
▷ Temperature unit is set.
SuperCool
This function activates or deactivates SuperCool. If you
activate SuperCool the appliance increases the cooling
capacity. This allows you to achieve lower cooling
temperatures. You can activate SuperCool if you want
to quickly cool large volumes of food.
If the function is active, the appliance operates at a
higher output. As a result, the operating noise of the
appliance may be temporarily louder, while energy
consumption increases.
Activating SuperCool
Time for activating the function:
-
If you want to store fresh food in the fridge section:
Activate the function when storing food.
Fig.20
Fig.21
► Carry out action steps according to the illustration.
▷ SuperCool is activated.
Deactivating SuperCool
SuperCool is automatically deactivated after 18 hours.
However, you can also manually deactivate SuperCool
at any time:
Fig.22
Fig.23
► Carry out action steps according to the illustration.
▷ SuperCool is deactivated.
▷ Appliance continues to run in normal operation.
▷ The appliance first cools to the set temperature.
Use
10 * Depending on model and options

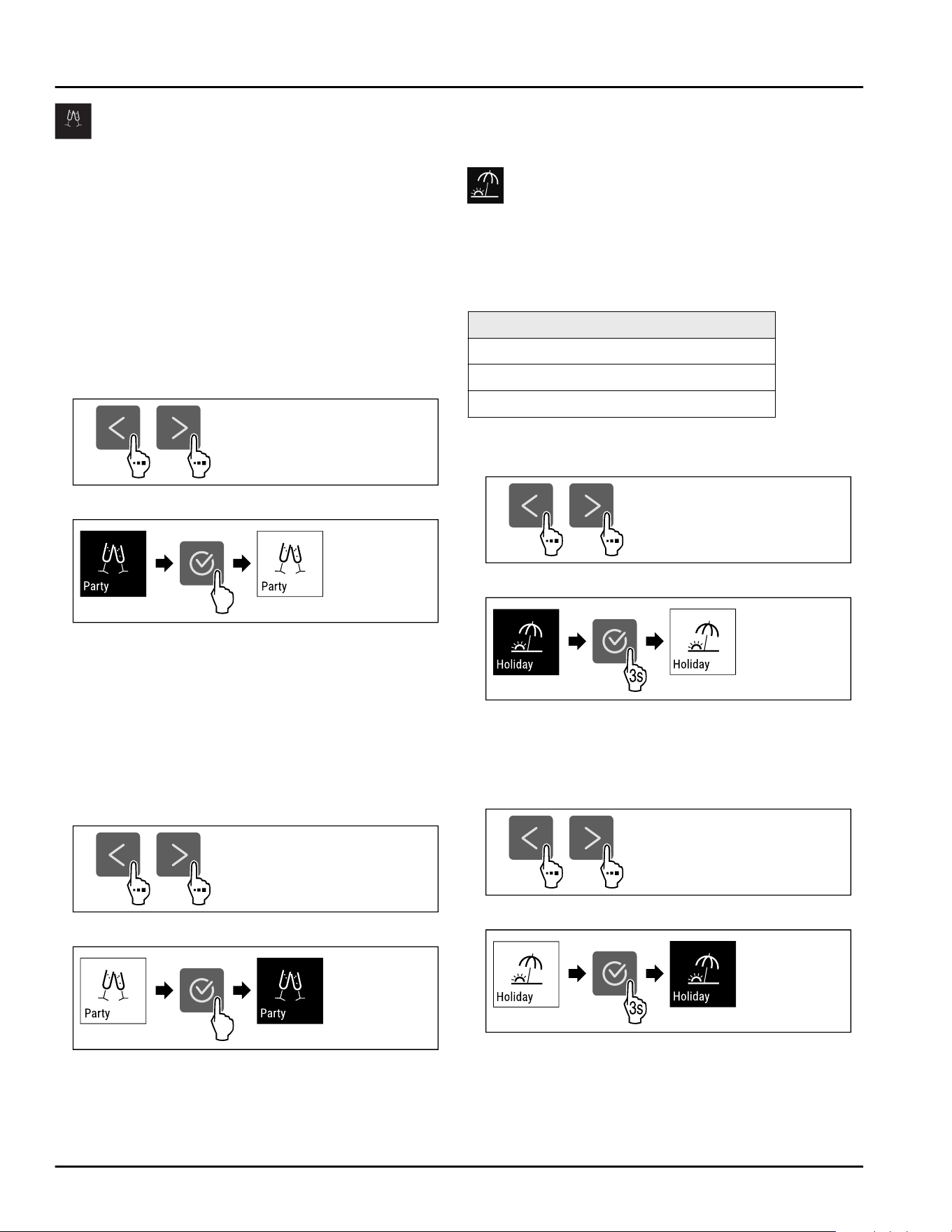

PartyMode
This function activates and deactivates PartyMode.
PartyMode activates different functions that are useful
for a party.
PartyMode activates the following functions:
-
SuperCool (seeSuperCool)
You can set all listed functions individually and flexibly.
By deactivating PartyMode all changes are discarded.
If the function is active, the appliance operates at a
higher output. As a result, the operating noise of the
appliance may be temporarily louder, while energy
consumption increases.
Activating PartyMode
Fig. 24
Fig.25
► Carry out action steps according to the illustration.
▷ PartyMode and the corresponding functions are acti‐
vated.
▷ The current temperature flashes until the target
temperature is reached.
Deactivating PartyMode
PartyMode is automatically deactivated after 24 hours.
However, you can also manually deactivate PartyMode
at any time:
Fig. 26
Fig.27
► Carry out action steps according to the illustration.
▷ PartyMode is deactivated.
▷
The appliance first cools to the set temperature: The
current temperature flashes until the target temper‐
ature is reached.
HolidayMode
Use this function to activate or deactivate Holiday‐
Mode. If you activate HolidayMode the fridge section is
set to 15 °C (59 °F). This helps you save energy if you
are away for a longer period of time and avoid bad
smells and mold formation.
Appliance status with active HolidayMode
Fridge section cools to 15°C(59°F).
PartyMode is deactivated.
SuperCool is deactivated.
Activating HolidayMode
► Empty the fridge section completely.
Fig.28
Fig.29
► Carry out action steps according to the illustration.
▷ HolidayMode is activated.
▷ Temperature display shows the HolidayMode symbol.
Deactivating HolidayMode
Fig.30
Fig.31
► Carry out action steps according to the illustration.
▷ HolidayMode is deactivated.
▷ The appliance first cools to the set temperature.
Use
* Depending on model and options 11

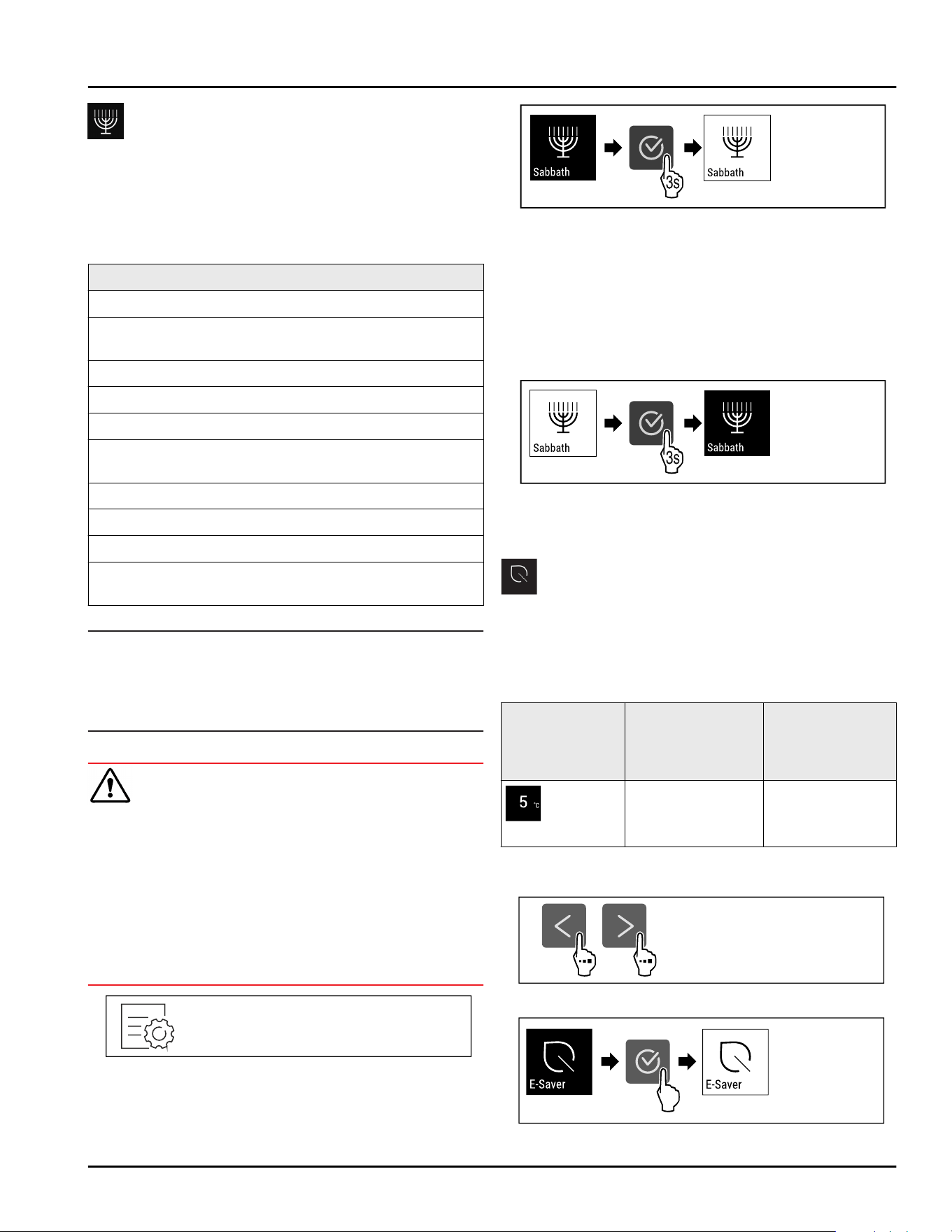

SabbathMode
This function activates and deactivates SabbathMode.
If you activate this function, some electronic functions
are switched off. Your appliance thereby meets the reli‐
gious requirements of Jewish holidays such as the
Sabbath and complies with STAR-K Kosher certifica‐
tion.
Appliance status with active SabbathMode
The status display continuously shows SabbathMode.
All functions in the display except the Deactivating
SabbathMode function are disabled.
Active functions remain active.
The display remains bright when you close the door.
The interior lighting is deactivated.
Memories are not listed. The set time interval is
stopped.
Memories and warnings are not displayed.
There is no door alarm.
There is no temperature alarm.
After a power failure, the device returns to
SabbathMode.
Appliance status
Note
This appliance has certification from the “Institute for
Science and Halacha”. (www.machonhalacha.co.il)
You can find a list of STAR-K-certified appliances at
www.star-k.org/appliances.
Activating SabbathMode
WARNING
Danger of poisoning from spoiled food!
If you have SabbathMode activated and a power failure
occurs, no message appears in the status display
about the power failure. Once the power is restored,
the appliance continues to operate in SabbathMode.
The power failure may mean that food spoils and the
consumption of this food could lead to food poisoning.
After a power failure:
► Do not consume food that has been frozen and
thawed.
Fig.32
Fig.33
► Carry out action steps according to the illustration.
▷ SabbathMode is activated.
▷ Status display continuously shows SabbathMode.
Deactivating SabbathMode
SabbathMode is automatically deactivated after
80 hours. However, you can also manually deactivate
SabbathMode at any time:
Fig.34
► Carry out action steps according to the illustration.
▷ SabbathMode is deactivated.
E-Saver
Use this function to activate or deactivate energy
saving mode. If you activate energy saving mode,
energy consumption drops and the temperature in the
appliance increases. Food remains fresh, but shelf life
is reduced.
Temperature
zone
Recommended
setting
(see Setting the
temperature)
Temperature
while E-Saver is
active
Fridge
section
4°C(39°F) 7°C(45°F)
Temperatures
Activating E-Saver
Fig.35
Fig.36
Use
12 * Depending on model and options

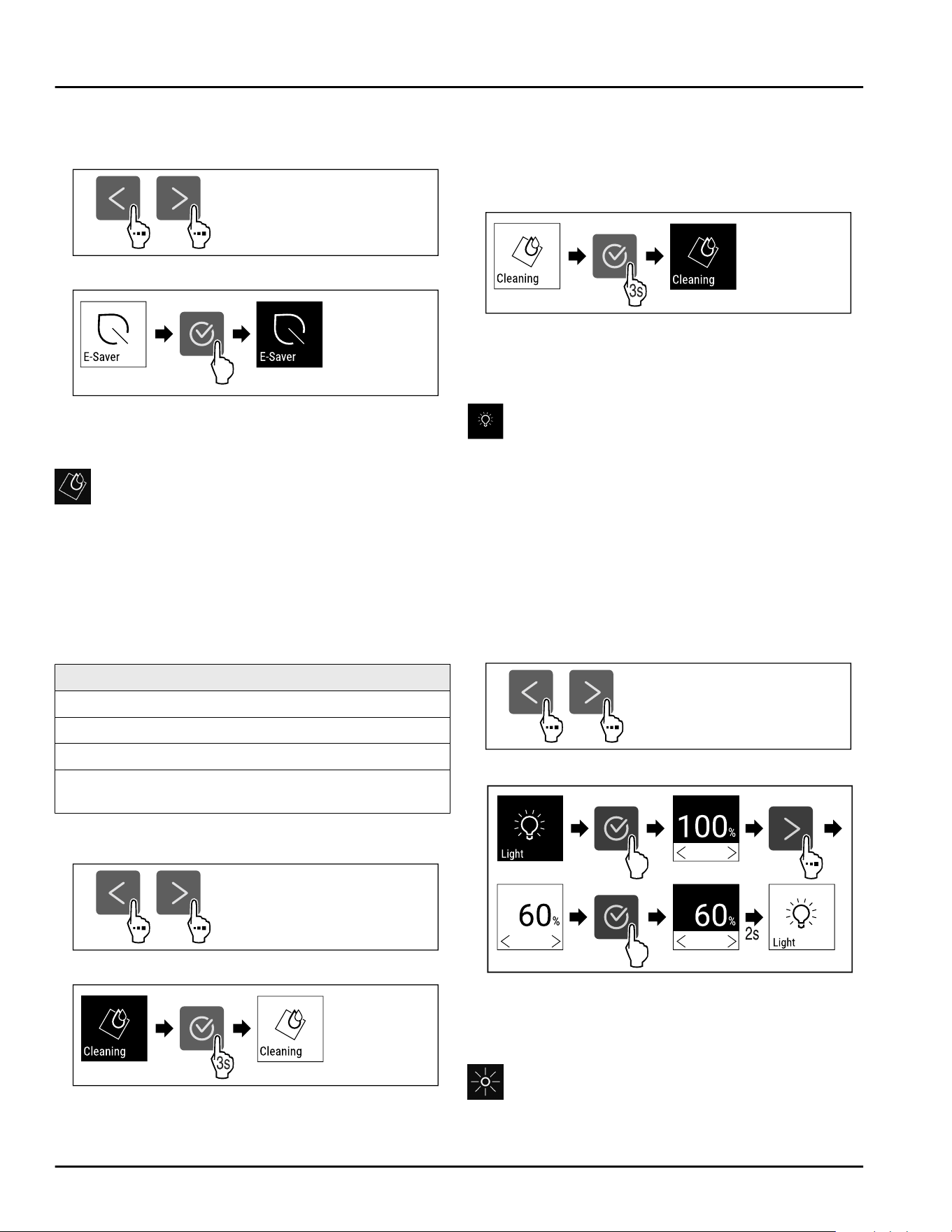

► Carry out action steps according to the illustration.
▷ Energy saving mode is activated.
Deactivating E-Saver
Fig.37
Fig.38
► Carry out action steps according to the illustration.
▷ Energy saving mode is deactivated.
CleaningMode
This function activates and deactivates CleaningMode.
CleaningMode enables you to comfortably clean the
appliance.
This setting relates to the fridge compartment.
Application:
-
Clean the fridge compartment. (see 8.3 Cleaning the
appliance)
Appliance status with active CleaningMode
The status display continuously shows CleaningMode.
The fridge section is switched off.
The interior lighting is activated.
Reminders and warnings are not displayed. No signal
tone is sounded.
Appliance status
Activating CleaningMode
Fig. 39
Fig.40
► Carry out action steps according to the illustration.
▷ CleaningMode is activated.
▷
Status display continuously shows CleaningMode.
Deactivating CleaningMode
CleaningMode is automatically deactivated after
60 minutes. However, you can also manually deactivate
CleaningMode at any time:
Fig. 41
► Carry out action steps according to the illustration.
▷ CleaningMode is deactivated.
▷ The appliance first cools to the set temperature.
Lighting intensity
This setting allows the interior brightness to be
adjusted incrementally.
The following brightness values can be set:
-
Off
-
20%
-
40%
-
60%
-
80%
-
100% (default)
Setting lighting intensity
Fig. 42
Fig.43
► Carry out action steps according to the illustration.
▷ The lighting intensity increases or decreases accord‐
ingly.

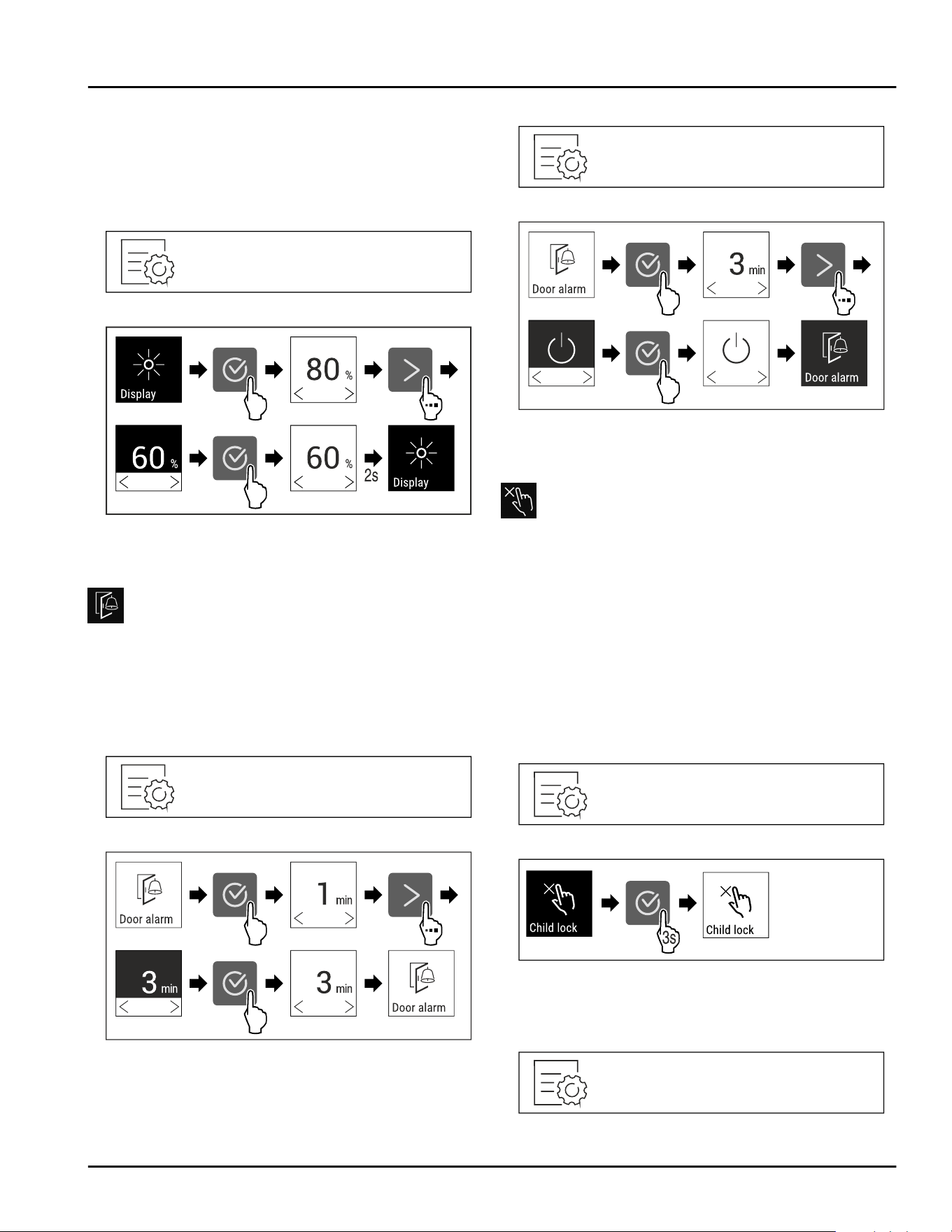

Display Brightness
Use this function to set the brightness of the display
gradually.
Use
* Depending on model and options 13
You can set the following brightness levels:
-
40%
-
60%
-
80%
-
100% (default setting)
Setting the brightness
Fig.44
Fig. 45 Example illustration: Switching from 80% to 60%.
► Carry out action steps according to the illustration.
▷ Brightness is set.
Door alarm
Use this function to activate or deactivate the door
alarm. The door alarm sounds if the door is open for
too long. The door alarm is activated upon delivery. You
can set how long to door can remain open until the
door alarm sounds.
Setting the door alarm
Fig.46
Fig. 47 Example illustration: Changing the door alarm from
1 minute to 3 minutes.
► Carry out action steps according to the illustration.
▷ Door alarm is set.
Deactivating door alarm
Fig.48
Fig. 49
► Carry out action steps according to the illustration.
▷ Door alarm is deactivated.
Child lock
Use this function to activate and deactivate the child
lock. The child lock prevents the appliance from being
operated accidentally, e. g. by children.
Application:
-
Prevent unintentional changes of functions.
-
Prevent switching off of the appliance.
-
Prevent unintentional temperature setting.
Activating child lock
If you activate the child lock, you can continue to navi‐
gate in the menus, however you cannot select or
modify other functions.
Fig.50
Fig.51
► Carry out action steps according to the illustration.
▷ Child lock is activated.
Deactivating child lock
Fig.52
Use
14 * Depending on model and options
Fig.53
► Carry out action steps according to the illustration.
▷ Child lock is deactivated.
Appliance and software information
Use this function to display the model name, index,
serial number and service number of your appliance.
You will need the appliance information when you
contact customer service. (see 9.4 Customer Service)
You also use this function to open the expanded menu.
(see3 Functionality of the Touch display)
Display appliance information
Fig.54
Fig.55
► Carry out action steps according to the illustration.
▷ Display shows the appliance information.

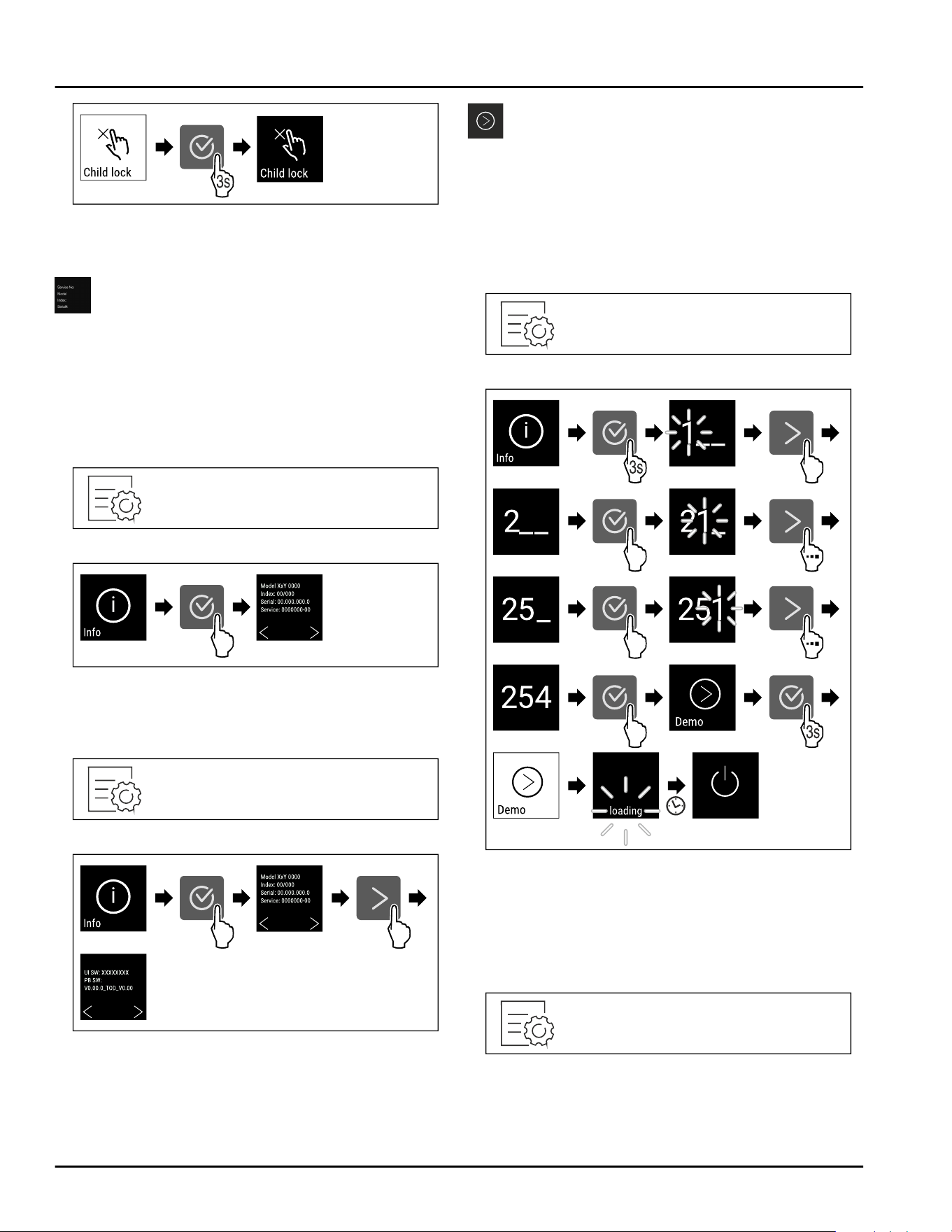

Display software information
Fig.56
Fig.57
► Carry out action steps according to the illustration.
▷ Display shows the software information.
Demo mode
Demo mode is a special feature for dealers who want
to demonstrate appliance features. If you activate
demo mode, all refrigeration functions are deactivated.
If you activate and then deactivate demo mode, the
appliance will be reset to factory defaults. (see Reset‐
ting to factory settings)
Activating demo mode
Fig.58
Fig. 59
► Carry out action steps according to the illustration.
▷ Demo mode is activated.
▷ Appliance is switched off.
► Switch on the appliance. (see4.1 Switching on appli‐
ance (first use))
Deactivating demo mode
Fig.60
Use
* Depending on model and options 15
Fig.61
► Carry out action steps according to the illustration.
▷ Demo mode is deactivated.
▷ Appliance is switched off.
► Switch on the appliance. (see4.1 Switching on appli‐
ance (first use))
▷ Appliance is reset to factory settings.

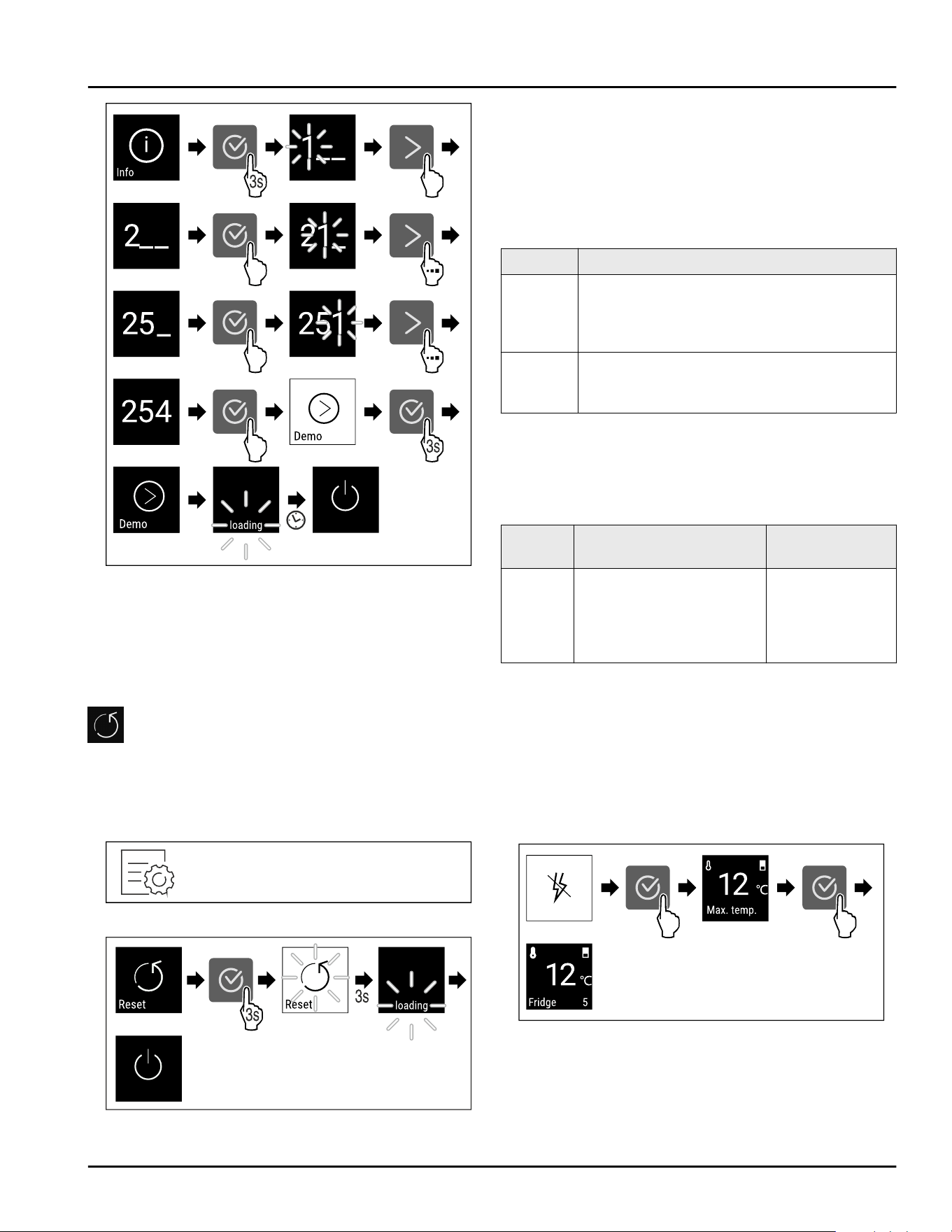

Resetting to factory settings
Use this function to reset all settings to factory
settings. All settings you have made so far are reset to
their original settings.
Performing a reset
Fig. 62
Fig.63
► Carry out action steps according to the illustration.
▷
Appliance is reset.
▷ Appliance is switched off.
► Restart the appliance. (see 4.1 Switching on appli‐
ance (first use))
7.3 Messages
There are two categories of messages:
Category Meaning
Warning You can easily end warnings yourself. For
any major malfunction, you must contact
Customer Service. (see 9.4 Customer
Service)
Reminder Reminders remind you of general
processes. You can perform these
processes and end the message doing so.
7.3.1 Overview of warnings
The appliance’s behavior in the event of a warning:
-
Alarm sounds in increasing volume.
-
For some warnings the interior lighting pulses.
Message
Cause Ending the
message
Error This message appears if
there is an appliance
error. An appliance
module indicates an
error.
Carry out action
steps
(see Error) .
7.3.2 Ending warnings
Power failure alarm
This message is displayed for each temperature zone
of your appliance. Once the power failure has ended,
the appliance automatically cools to the target temper‐
ature set earlier without you having to confirm the
message. You must confirm it in order for the message
to disappear on the display.

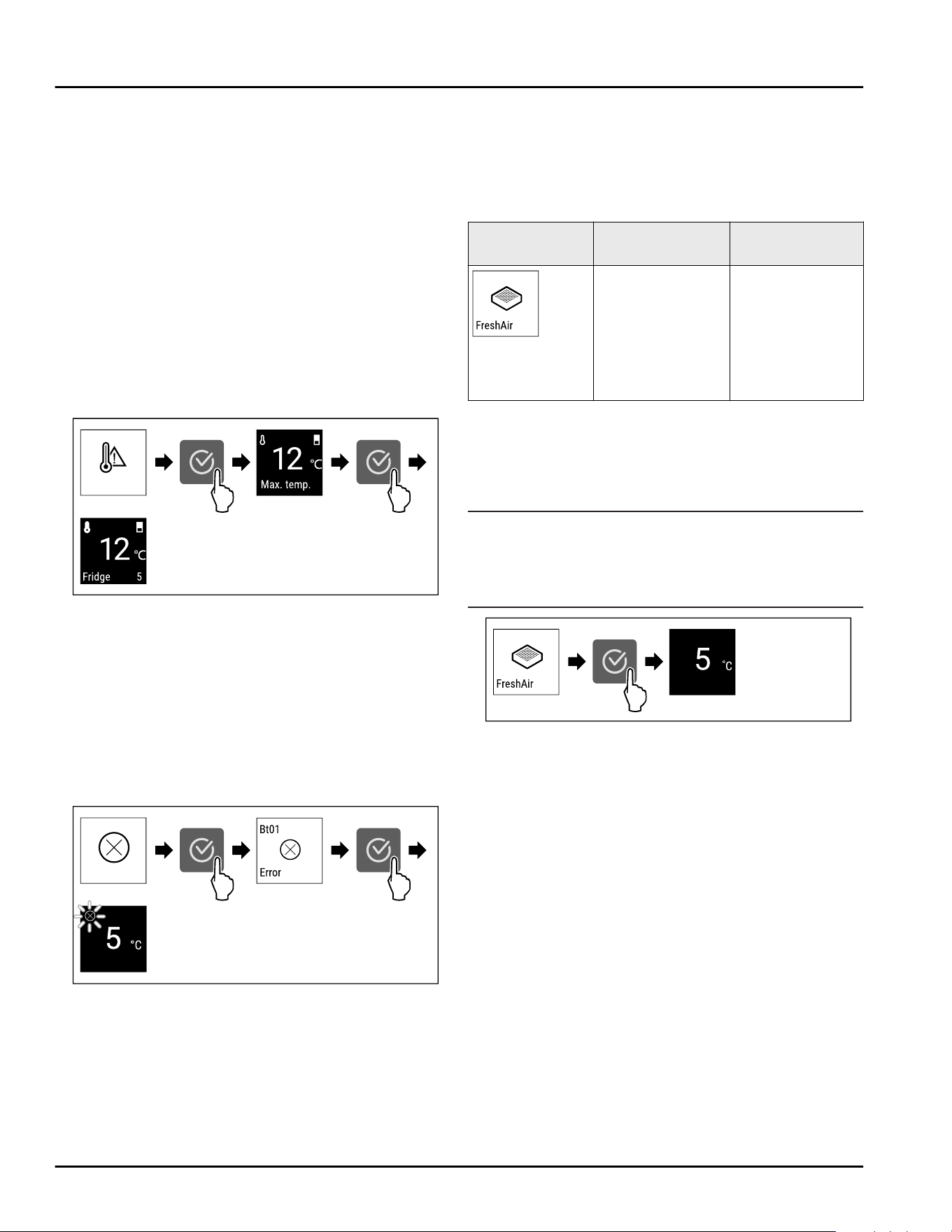

Fig. 64 Example illustration
► Press the Confirm symbol.
▷ The warmest freezing temperature is displayed.
▷ If the freezing temperature was below -9 °C (16 °F):
Food can still be eaten.
If the freezing temperature exceeded -9°C(16°F):
► Check the food.
Use
16 * Depending on model and options
► Press the Confirm symbol.
▷ Display skips to status display: The current tempera‐
ture and target temperature are displayed.
Temperature alarm
This message is displayed for each temperature zone
of your appliance. You must confirm it in order for the
message to disappear on the display.
Causes for the temperature differences may be:
-
You have put in warm, fresh food.
-
Too much warm room air has flowed in during the
rearrangement and removal of food.
-
The power has been out for a longer period of time.
-
The appliance is defective.
► Remedy the cause.
▷ The appliance cools to the target temperature set
earlier.
Fig. 65 Example illustration
► Press the Confirm symbol.
▷ The warmest freezing temperature is displayed.
▷ If the freezing temperature was below -9 °C (16 °F):
Food can still be eaten.
If the freezing temperature exceeded -9°C(16°F):
► Check the food.
► Press the Confirm symbol.
▷ Display skips to status display: The current tempera‐
ture and target temperature are displayed.
Error
Fig. 66 Example illustration
► Press the Confirm symbol.
▷ Error code is displayed.
► Make a note of the error code.
► Press the Confirm symbol.
▷ Display skips to status display.
► Contact Customer Service. (see 9.4 Customer
Service)
7.3.3 Overview of reminders
The appliance’s behavior in the event of a reminders:
-
Alarm tone sounds.
-
For some reminders the interior lighting pulses.
You can deactivate the following reminders :
Message Cause Ending the
message
Replace Fres‐
hAir activated
charcoal filter
This message
appears if you
have to replace
the FreshAir acti‐
vated charcoal
filter.
Carry out action
steps
(see Replace
FreshAir acti‐
vated charcoal
filter) .
7.3.4 Ending reminders
Replace FreshAir activated charcoal filter
Liebherr recommends: Replace the FreshAir activated
charcoal filter every 6 months.
Note
FreshAir activated charcoal filters can be purchased
from the Liebherr Service Center. The address for your
respective country can be found on the back of the
instructions.
Fig. 67 Example illustration
► Replace activated charcoal filter. (see 8.1 FreshAir
carbon filter)
▷ The activated charcoal filter ensures optimum air
quality in the refrigerator.
▷ Reminder appears again after 6 months.
If you no longer want to keep this reminder, you can
deactivate the reminder.
8 Maintenance
8.1 FreshAir carbon filter
The FreshAir carbon filter is located in the compart‐
ment above the fan.
It guarantees the best air quality.
❑
Change the carbon filter every 6 months.
When the reminder is set, a message on the display
prompts you to change it.
❑
You can dispose of the carbon filter with the regular
household waste.
Maintenance
* Depending on model and options 17
Note
FreshAir activated charcoal filters can be purchased
from the Liebherr Service Center. The address for your
respective country can be found on the back of the
instructions.
8.1.1 Removing the FreshAir carbon filter

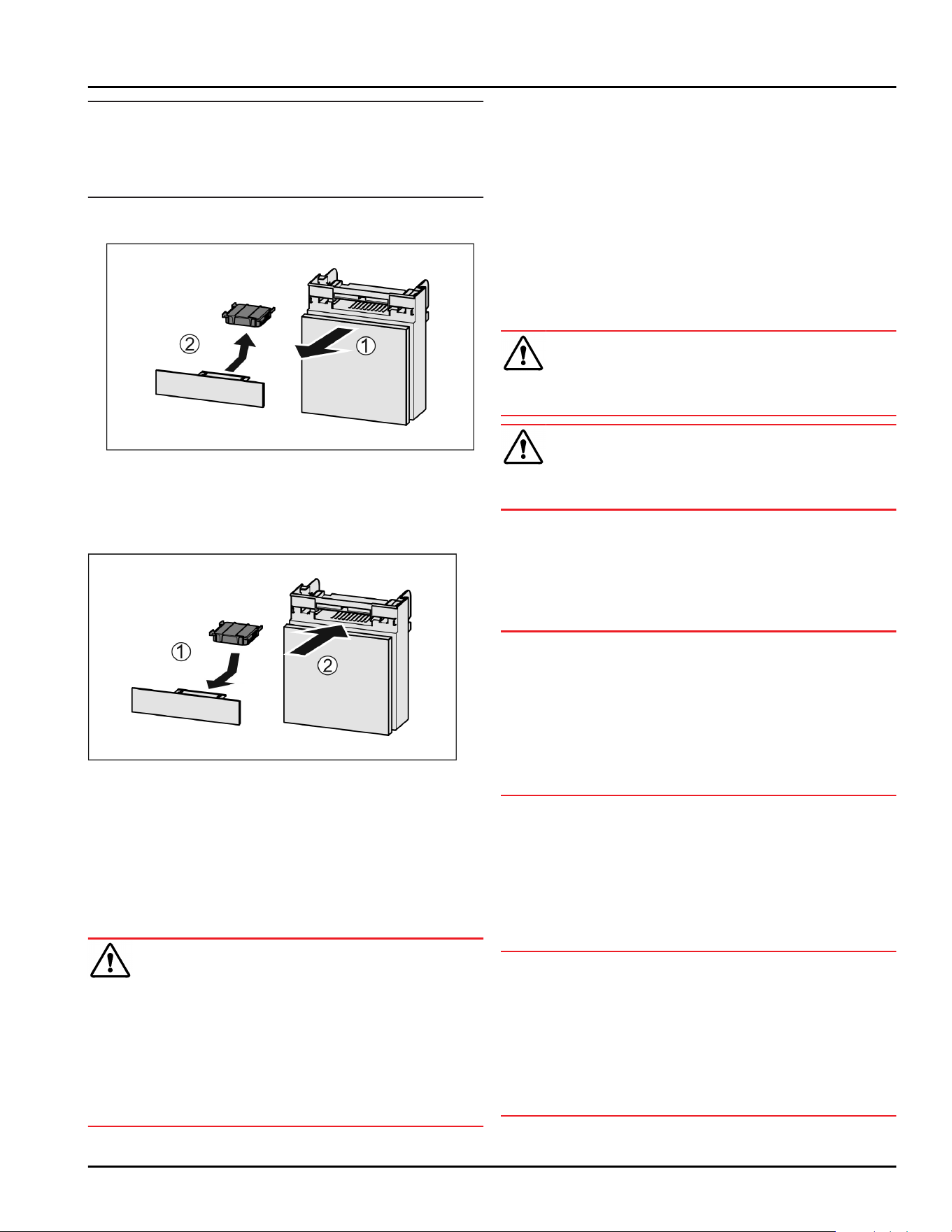

Fig.68
► Pull out the compartment Fig.68(1).
► Remove the carbon filter Fig.68(2).
8.1.2 Inserting the FreshAir carbon filter
Fig. 69
► Insert the carbon filter as shown in the diagram
Fig. 69(1).
▷ The carbon filter clicks into place.
If the carbon filter is pointing downwards:
► Push the compartment in Fig. 69(2).
▷ The carbon filter is now ready for use.
8.2 Defrosting the appliance
WARNING
Appliance incorrectly defrosted!
Injuries and damage.
► Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
► Do not use any electrical heating or steam cleaning
equipment, naked flames or defrosting sprays.
► Do not remove ice with sharp objects.
Defrosting is performed automatically. The water from
the thawing process runs out via the drain opening and
is evaporated.
Water droplets or a thin layer of frost or ice can form
on the rear wall; this is a completely normal part of the
appliance’s function. You do not have to remove them.
► Clean the drain hole regularly. (see 8.3 Cleaning the
appliance)
8.3 Cleaning the appliance
8.3.1 Preparation
WARNING
Danger of electric shock.
► Unplug refrigerator or disconnect power.
WARNING
Danger of fire
► Do not damage the refrigerant circuit.
► Empty appliance.
► Pull out the power plug.
-or-
► Activate CleaningMode. (seeCleaningMode)
8.3.2 Cleaning the interior
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-
purpose cleaners.
► Do not use steel wool or sponges that scour or
scratch.
► Do not use caustic or abrasive cleaning materials or
those containing sand, chloride, or acids.
► Plastic surfaces: clean by hand with a soft clean
cloth, lukewarm water and a little detergent.
► Metal surfaces: clean by hand with a soft clean
cloth, lukewarm water and a little detergent.
► Drain hole: remove any deposits with a thin item
such as a cotton bud.
8.3.3 Cleaning the equipment
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-
purpose cleaners.
► Do not use steel wool or sponges that scour or
scratch.
► Do not use caustic or abrasive cleaning materials or
those containing sand, chloride, or acids.
Maintenance
18 * Depending on model and options
Clean with a soft, clean cloth, lukewarm water and a
little washing up liquid:
- Shelf
► Disassemble the equipment: see the relevant
section.
► Clean the equipment.
8.3.4 After cleaning
► Wipe dry the appliance and items of equipment
► Connect and switch on the appliance.
► Repeat cleaning regularly.
9 Customer support
9.1 Technical specifications
Temperature zone
Cool: 2°C(36°F) to 10°C(50°F)
Equipment Maximum loading weight
Top area (per shelf) 15 kg
33.07lb
Middle area 40 kg(88.18lb)
Bottom area 40 kg(88.18lb)
Beverage shelf 30 kg(66.14lb)
Usable content
See usable content on the type plate. (see 2.1 Over‐
view of appliances and equipment)
9.2 Operating noises
The appliance makes noises while in operation.
-
At less cooling output the appliance saves energy
but takes longer to cool items. The volume is lower.
-
At a higher cooling output the food cools more
quickly. The volume is higher.
Examples:
•
Activated functions (see 7.2Appliance functions)
•
Running fan
•
Freshly sorted food
•
High ambient temperature
•
Door opened for long periods
Noise
Possible cause Type of noise
Bubbling and
splashing
Coolant is
flowing into the
cooling circuit.
Normal noise
Spitting and
hissing
Coolant is
spraying into the
cooling circuit.
Normal noise
Humming The appliance
cools. The
volume depends
on the cooling
output.
Normal noise
Whirring and
murmuring
The fan is
running.
Normal oper‐
ating noise
Clicking Components are
being switched
on and off.
Normal
switching noise
Rattling or
humming
Valves are
active.
Normal
switching noise
Noise Possible
cause
Type of
noise
How to
resolve
Vibration Unsuitable
installation
Error noise Check
installation.
Set up the
appliance.
Clattering Equipment,
Objects
inside the
appliance
Error noise Secure
equipment
parts.
Leave a gap
between
items.
9.3 Technical faults
Your appliance is designed and manufactured for reli‐
able operation and a long service life. If a malfunction
nonetheless occurs during operation, please check
whether the malfunction is due to an operating error. In
this case, you will have to be charged for the costs
incurred, even during the warranty period.
You may be able to rectify the following faults yourself.
9.3.1 Appliance function
Defect
Cause Remedy
The appliance
does not work.
The appliance is not switched on. ► Switch on the appliance.
The power plug is not properly
inserted in the wall socket.
► Check the power plug.
Customer support
* Depending on model and options 19
Defect Cause Remedy
The powerfuse in the wall socket
is not OK.
► Check the fuse.
Power failure. ► Keep the appliance closed.
The IEC socket is not correctly
plugged into the appliance.
► Check the IEC socket.
The temperature
is not cold
enough
This means that the door of the
appliance is not closed properly
► Close the appliance door
Insufficient ventilation ► Clear and clean the ventilation grille.
The ambient temperature is too
high
► Problem solution: (see2.2 Range of appliance use)
The appliance was opened too
frequently or for too long
► Wait to see if the required temperature corrects
itself. If not, contact Customer Service.
(see 9.4 Customer Service)
The appliance is too near to a heat
source (stove, heater etc).
► Change location of appliance or the heat source.
The appliance was not properly
installed in the recess.
► Make sure the appliance was installed correctly
and the door closes properly.
The door seal is
defective or
should be
replaced for
other reasons.
The door seal is interchangeable.
You can replace it without the use
of any special tools.
► Contact Customer Service. (see 9.4 Customer
Service)
The appliance is
iced up or
condensation is
building.
The door seal may have slipped
out of its groove.
► Check the door seal is well placed in the groove.
9.3.2 Equipment
Defect Cause Remedy
The interior light
does not turn on.
The appliance is not switched on. ► Switch on the appliance.
The LED interior light is faulty or
the lid is damaged.
► Contact Customer Service. (see 9.4 Customer
Service)
9.4 Customer Service
First check whether you can rectify the fault yourself
(see 9 Customer support) . If you cannot rectify the
problem, contact Customer Service.
You can find the address in the enclosed brochure
“Liebherr-Service” or at home.liebherr.com/service.
WARNING
Unprofessional repair!
Injuries.
► A damaged power cable may only be replaced by the
manufacturer, the manufacturer’s Customer Service
or a similarly qualified person.
► For appliances with plug and play connection cables,
the change can be made by the customer.
Customer support
20 * Depending on model and options
9.4.1 Contacting Customer Service
Make sure that the following appliance information is
available:
❑
Appliance name (model and index)
❑
Service no. (service)
❑
Serial no. (S no.)
► Take note of the appliance information.
► Notify customer service: Report errors and the appli‐
ance information.
▷ This will help us give you fast and accurate support.
► Follow further instructions from Customer Service.
9.5 Rating plate

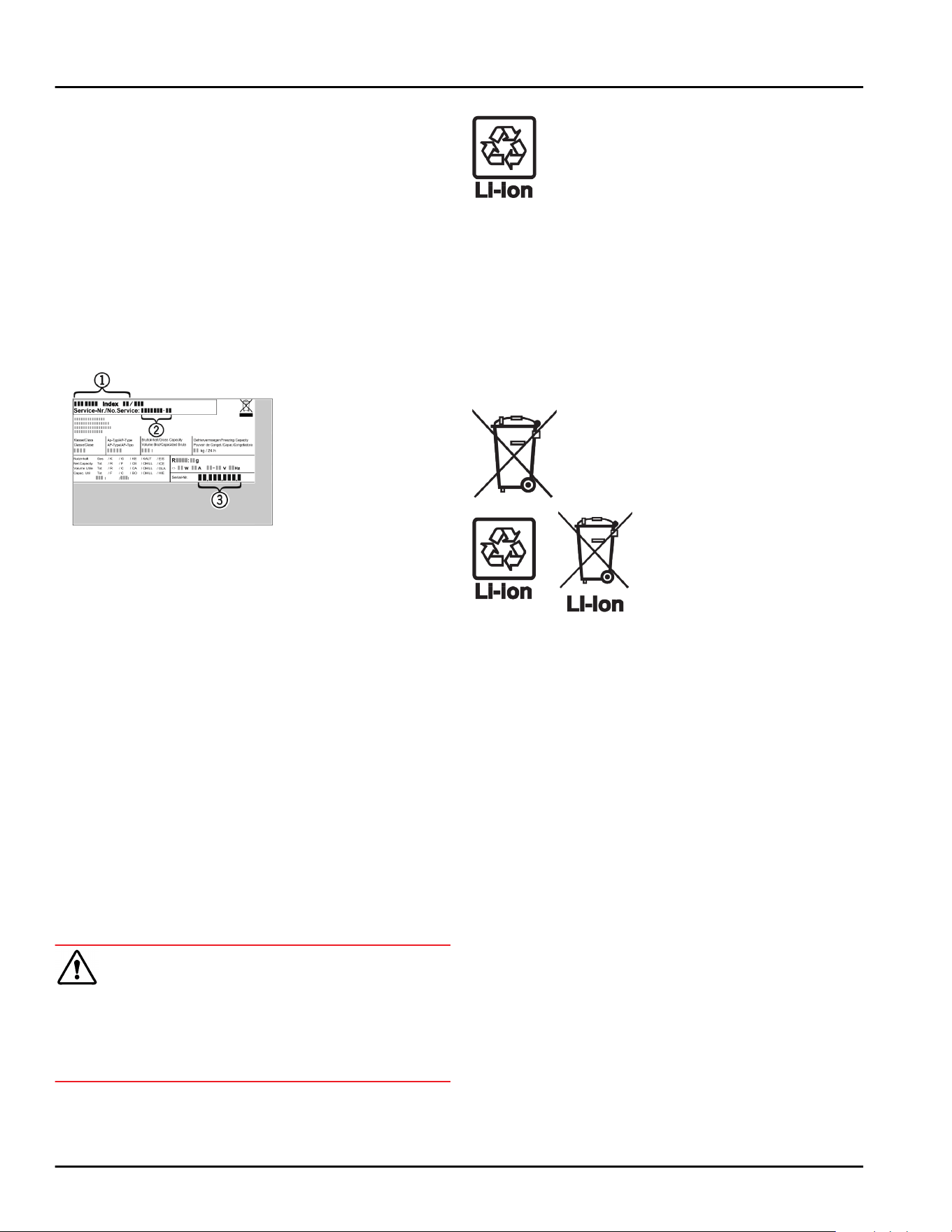

Fig.70
(1)
Appliance name (3) Serial no.
(2) Service no.
► Information from the nameplate.
10 Decommissioning
► Empty appliance.
► Switch off appliance. (see Switching appliance off
and on)
► Pull the power plug from the outlet.
► If necessary, remove the IEC socket: Pull the IEC
socket out of the appliance plug while turning it to
the left and right at the same time.
► Clean appliance. (see 8.3Cleaning the appliance)
► Leave the door open to prevent unpleasant odors.
11 Disposal
11.1 Preparing the appliance for
disposal
WARNING
Risk of child entrapment!
Before you throw away your old refrigerator or freezer:
► Take off the doors.
► Leave the shelves in place so that children may not
easily climb inside.
Liebherr uses batteries in some of its appli‐
ances. You should remove these before
disposal of the old appliance for environ‐
mental reasons. If your appliance contains
batteries, a corresponding notice is
attached to the appliance.
Lamps If you can remove the lamps yourself
without destroying them, also remove these
before disposal.
► Take the appliance out of operation.
► If possible: Remove lamps without destroying them.
11.2 Disposing of the appliance in an
environmentally friendly manner
The appliance still contains
valuable materials and must
be collected separately from
unsorted municipal waste so
it can be recycled.
Dispose of batteries sepa‐
rately from the old appliance.
Certain batteries should NOT
go in household garbage or
recycling bins. Waste
batteries can always be recy‐
cled or taken to household
hazardous waste collection
points. To prevent fires from
lithium-ion batteries, tape
battery terminals and/or
place batteries in separate
plastic bags and never put
these batteries in household
garbage or recycling bins.
Lamps
Dispose of removed lamps via
the respective collection
systems.
For USA: Check the Responsible Appli‐
ance Disposal (RAD) program
to find a RAD partner near
you.
For Canada: Follow your local guidance
about recycling and disposal
capabilities near you.
Decommissioning
* Depending on model and options 21
WARNING
Leaking refrigerant and oil!
Fire. The refrigerant contained within the appliance is
environmentally friendly, but flammable. The oil
contained within the appliance is flammable. Escaping
refrigerant and oil can ignite if they are of high enough
concentration and are exposed to an external heat
source.
► Do not damage the pipelines of the coolant circuit
and the compressor.
► Observe the notes on appliance transport.
► Transport the appliance away without damaging it.
► Dispose of batteries, lamps, and the appliance
according to the above specifications.
Disposal
22 * Depending on model and options
Disposal
* Depending on model and options 23
home.liebherr.com/fridge-manuals
Under-worktop beverage cooler
Issue date:20250707
Part number index: 7083770-00
For Service in the U.S.: Liebherr Service Center
Toll Free: 1-866-LIEBHER or 1-866-543-2437
Service-appliances.us@liebherr.com
PlusOne Solutions, Inc.
3501 Quadrangle Blvd, Suite 120
Orlando, FL 32817
For Service in Canada: Liebherr Service Center
Toll Free: 1-888-LIEBHER or 1-888-543-2437
www.euro-parts.ca
EURO-PARTS CANADA
39822 Belgrave Road, Belgrave, Ontario, N0G 1E0
Phone: (519) 357-3320 | Fax: (519) 357-1326
