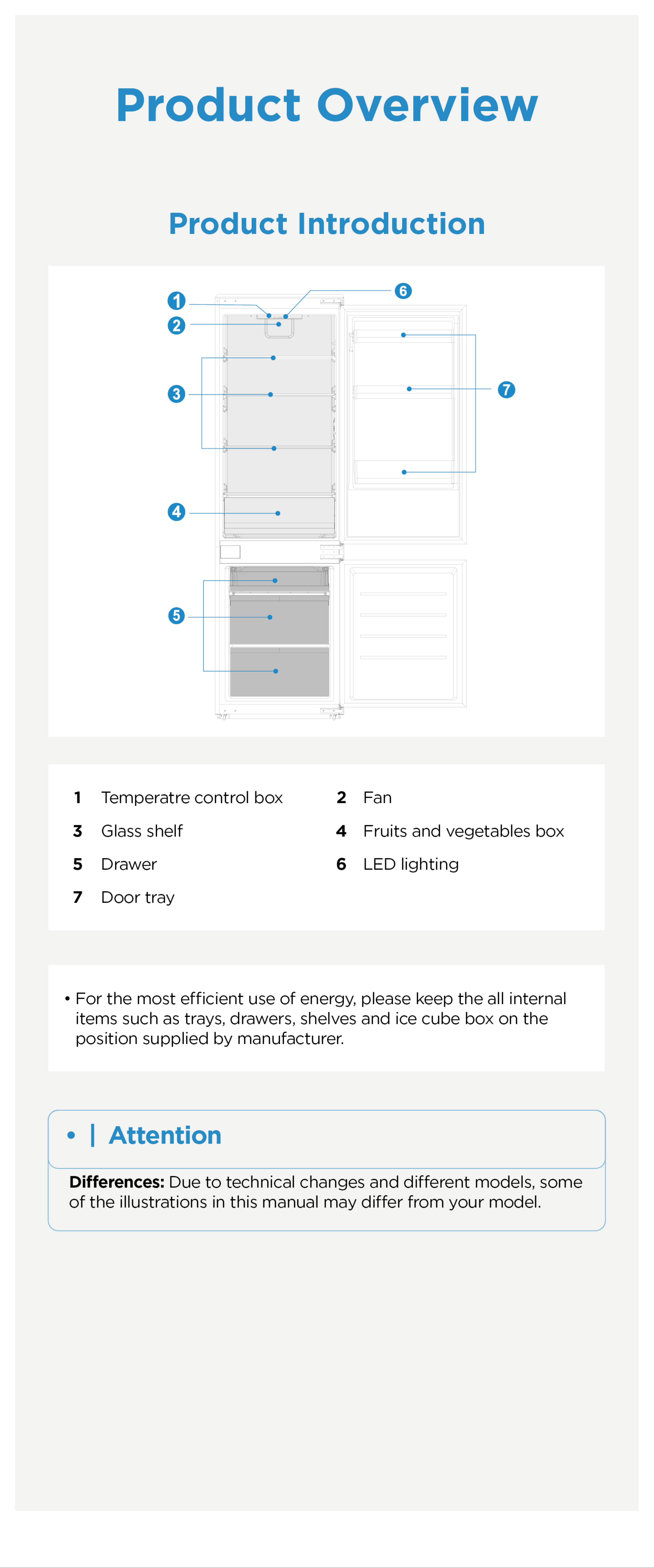

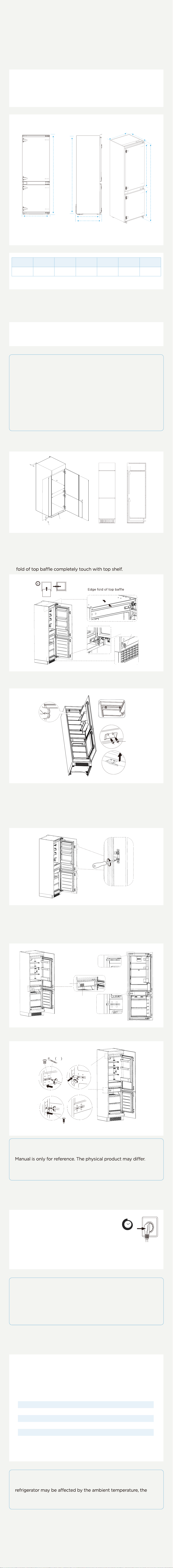

Product Installation
Space requirement diagram
This refrigerating appliance is intended to be used as a built-in
appliance.
When installing the unit into the cabinet, make sure that air can
circulate freely around the back of the cabinet.
B
A
E
C
D
B
FG
A
D
A B C D E F G
540 1785 510 550 1770 1007 620.5
Notice: All dimensions in mm
Installing into cabinet
Tools required: Long reach screwdriver / Bradawl / Small
hammer / Tape measure / Pencil / a spirit level
• | CAUTION
When installing the unit into the cabinet, make sure that air can
circulate freely around the back of the cabinet.
The plug must be easily accessible from the mains power supply
after installation. The appliance must be possible to easily connect
to and disconnect from the mains power supply after installation.
Wear anti-cut safety gloves whilst performing the installation.
We recommend that at least 2 people handle the installation.
Check thoroughly to ensure the doors are fully closed/sealed after
the installation.
Steps:
1. Cabinet size requirement.
≥
546
m
in
5
0
H≥
6
96
+
A
17
8
5
+
A
H
+
4
71
7
3
+ 01
0
4
2
C
a
b
in
e
t
v
e
n
t
≥2
0
0
c
m
A
564
+
4
0
5
6
0
A
-
Thinckness of cabinet plank
2. Tilt the fridge forward and push it into the cabinet. Leave no gap
between fridge door opening side and cabinet side panel. Make sure
your hands do not get pinched during the process.
3. Push the fridge until the limit hook of supporting leg completely
touch the bottom edge of the cabinet. Also please ensure the edge
limit hook
4.
Hold tight the fridge body and cabinet side panel, fix the top
bae to the top of the cabinet inner with screws, then install the
screw caps.
Screw
Screw

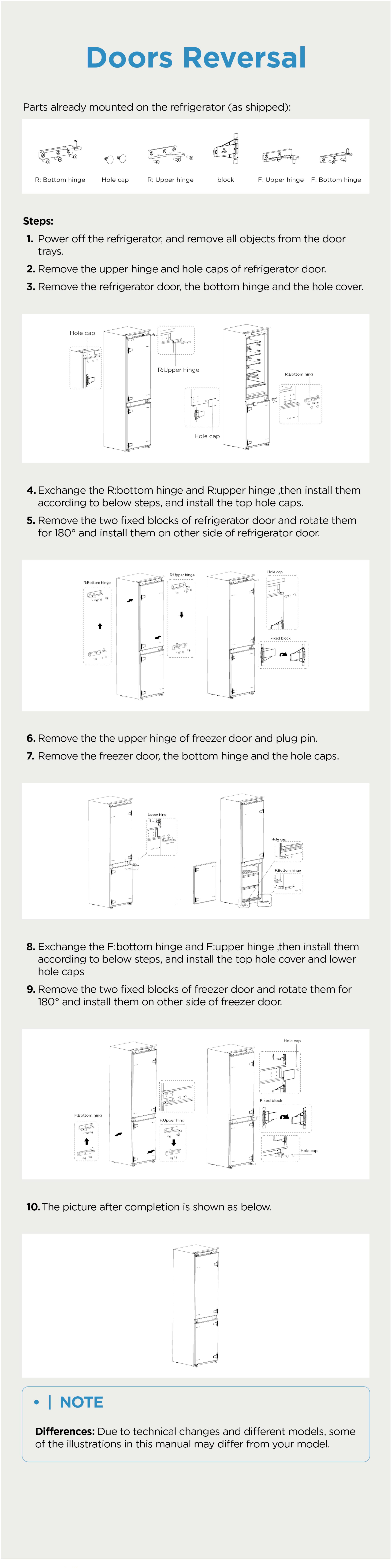

5. Open the lower door of cabinet the maximum angle, and open the
lower door of the refrigerator to the corresponding position. Sliding
the block to make sure inner edge align with the lower door edge
of refrigerator, then fix the block to the door of cabinet with screw
and install screw caps. Fix the upper refrigerator door to the cabinet
door in the same way.Exchange the fixed position of the adjustable
foot and the bottom hinge , then fix them again.
6. Take out the sealing strip from accessory bag, and press it in the gap
between the cabinet and the refrigerator. Installation is completed.
(Optional L Bracket)
7. Remove the hole cover and hole caps of refrigerator and insert the
caps on the other side.
hole cover
hole cap
8. Install the L Bracket as below.
1X
(
2X
)
(1X)
1
2
3
4
• | Tips
Precautions before installation: Information in the Instruction
Before installation and adjusting of accessories, it shall be ensured
that the refrigerator is disconnected from power.
Connecting the appliance
After installing the product, please let it stay
for more than 2 hours before turning on the
power, otherwise it will lead to a decrease
in cooling capacity or a damage to the
product.
Allow the appliance to run empty for 24
hours so the compartment can cool to the
appropriate temperature.
2 h
• | CAUTION
The refrigerator should always be plugged into its own individual
electrical outlet which has a voltage rating that matches the rating
plate.
When positioning the appliance, ensure the supply cord is not
trapped or damaged.
Ambient Temperature
Depending on the climate class, this refrigerator is intended to
be used at an ambient temperature range as specified in the
following table.
The product may not operate properly at temperatures outside
of the specific range.
You can find the climate class on the product label.
Climate Class Ambient Temperature
SN +10 °C to +32 °C
N +16 °C to +32 °C
ST +16 °C to +38 °C
T +16 °C to +43 °C

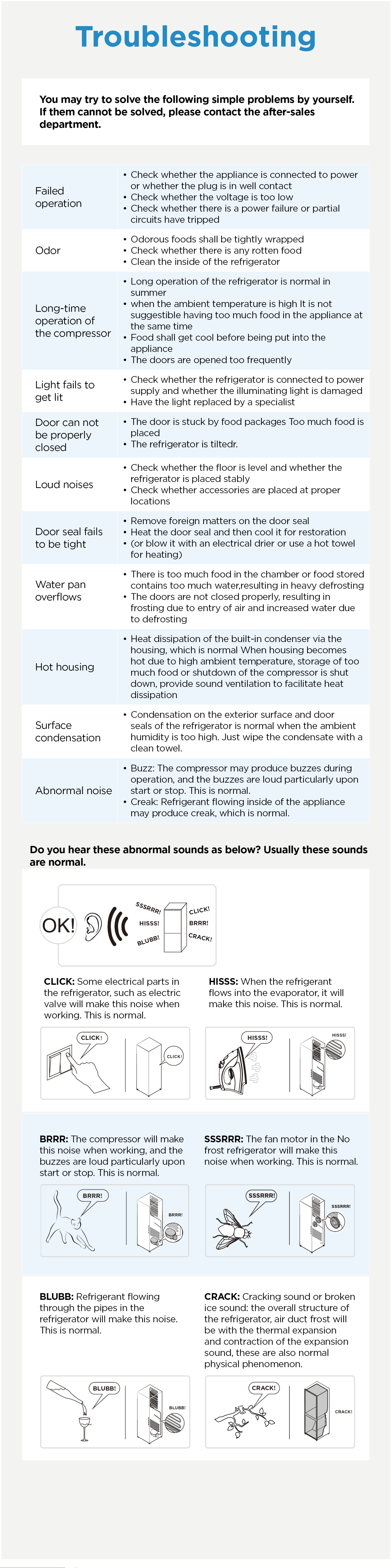

If you have any doubts regarding installation, please turn
to the vendor, to our customer service or to the nearest
Authorised Service Centre.

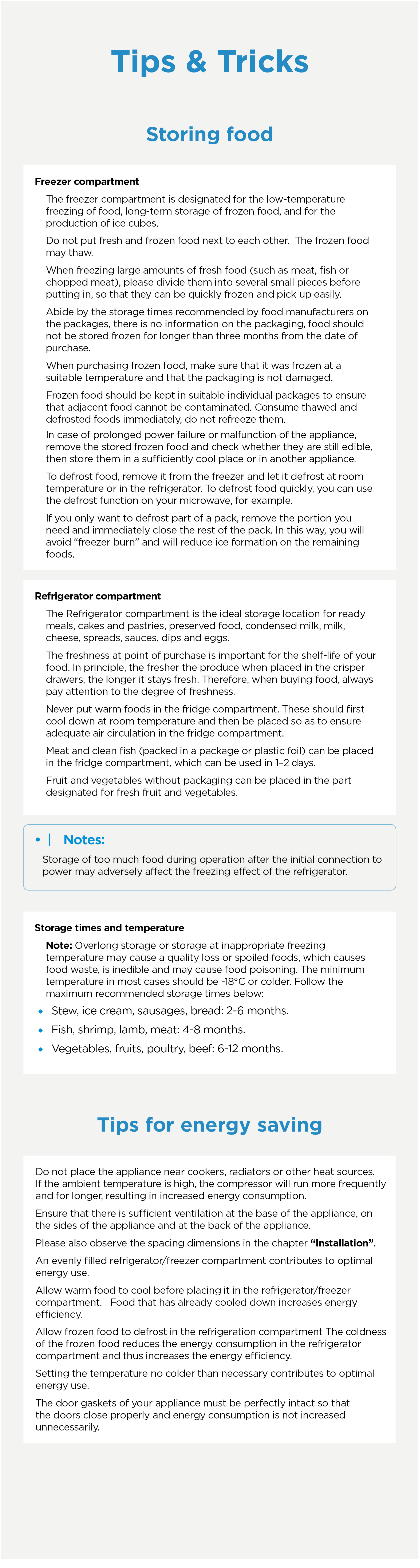

• | Tips

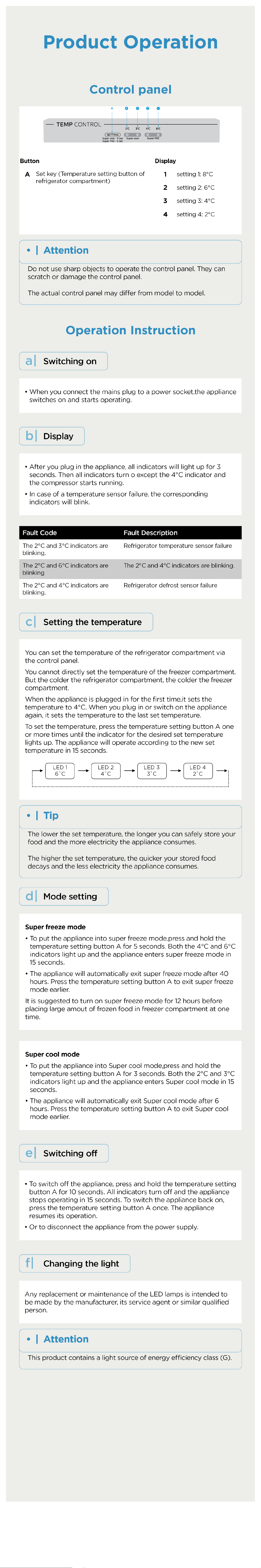

The cooling performance and power consumption of the
door-opening frequency, and the location of the refrigerator. We
recommend adjusting the temperature settings as appropriate.
1
