WIF02
Page1 of 3

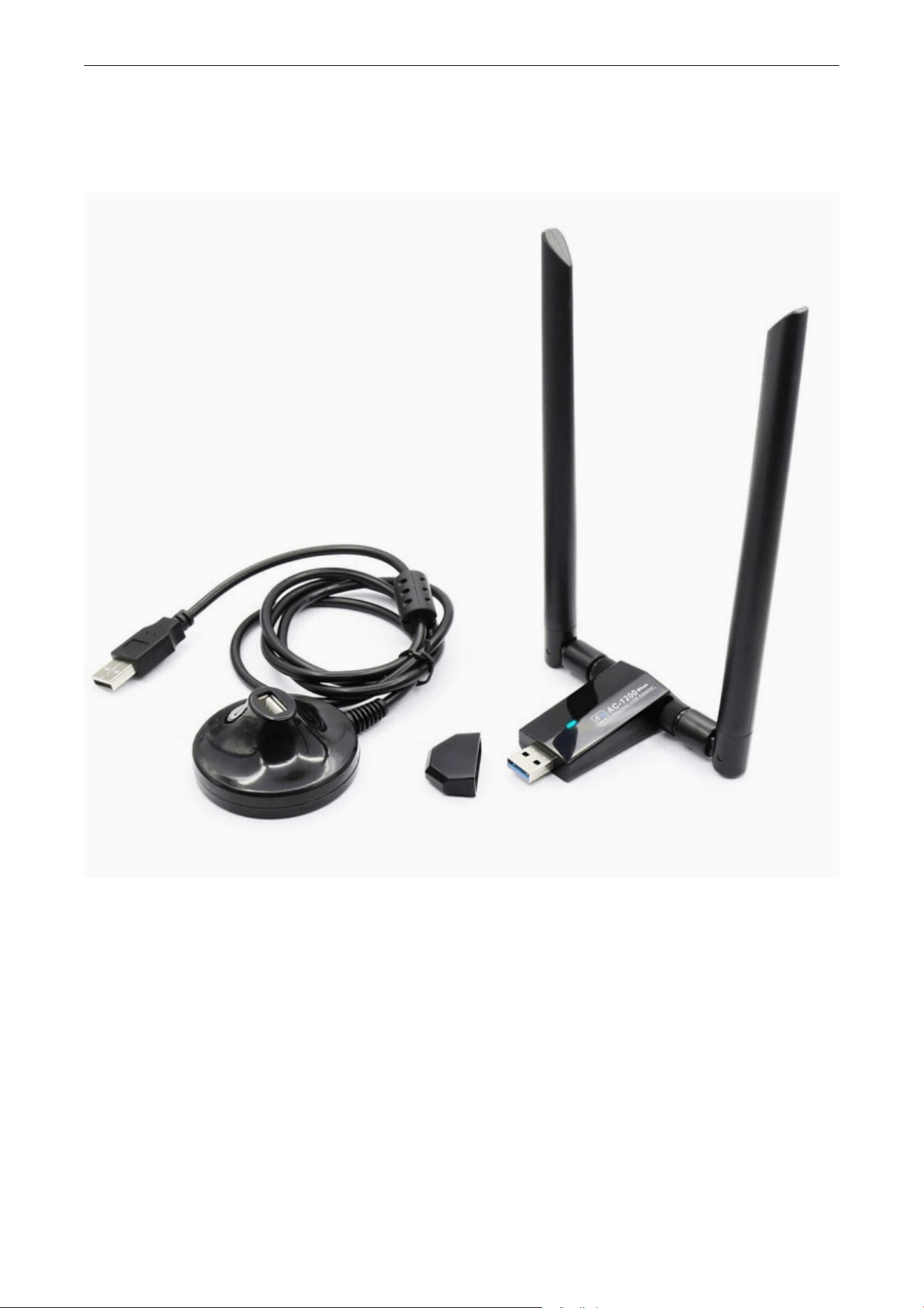

AC1300M Dual Band
Wireless USB Adapter
V 1.
WIF02
0
WIF02
Page2 of 3
1. Introduction
WIF02 Wireless AC1300M Dual Band Adapter based on 802.11ac technology delivers next
generation WiFi speeds. The device enables multiple HD video streams throughout and on-line
gaming. With speed up to 867Mbps(5G)+ 400Mbps(2.4G) and dual band technology, the WIF02
effectively avoid interference, ensuring blistering wifi speeds and reliable network performance.
2. Main Features
Compliant with IEEE 802.11b/g/n/a/ac standards
Support 2.4G/5G dual band connection, data rate of up to 867Mbps at 5GHz band, 400Mbps at
2.4GHz band, ideal for HD video streaming, on-line gaming,music download,etc.
Compatible with Windows XP/WIN7/8/10 /11/LINUX/MAC operation systems
Capable of up to 128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, 802.1x encryption
With CCA technology, channel interference is effectively avoided
With MIMO technology, data throughput and range are highly improved
Smart AP switch function, easily share network resource
Support Ad-Hoc and Infrastructure working modes
User-friendly setup and hassle-free configuration
3. Applications
Tablet TV
Android TV
Drones
Laptops/Desktops
MID Tablet PC
Smart Phones
Network Cameras
STB
GPS
Car DVR
Other device
WIF02
Page3 of 3
4.Specifications
Chipset RTL8812AU
Wireless Standards
IEEE 802.11ac/a/n/g/b
Interface
USB3.0/2.0
RF Frequency
2.4～2.4835GHz/5.15-5.25GHz,5.47~5.825GHz
Data Rate
11ac: up to 867Mbps(5G); 400Mbps(2.4G)
11n
：
up to 300Mbps
11g：54/48/36/24/18/12/9/6Mbps auto fallback
11b：11/5.5/2/1Mbps auto fallback
Radio Channels
14
TR 2T2R
Modulation
802.11ac: MU-MIMO
802.11a: 5G OFDM
802.11n: MIMO-OFDM/CCK/DSSS
802.11g: CCK/DSSS/OFDM
802.11b: CCK/DSSS
RF Output Power
2.4G: 6dBm(Max.)
5G:
4.5
dBm(Max.)
Antenna Type
Two External
A
n
t
e
nn
a
LED Indicator
Link/Active
Operating
Environment
Operating Temperature：0℃~40℃
Storage Temperature
：
-40
℃
~70
℃
Operating Humidity
：
10%~90%RH (Non Condensing)
Storage Humidity：5%~90%RH (Non Condensing)
Operating System
windowsXP/win7/vista/win8/win10/win11
MacOS:10.6~10.14
Linux: (kernel 2.6.18 ~ 4.15)
Android 1.6 ~ 2.3, 4.0 ~ 7.0
FCC Warnning:
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio
frequency
energy
and,
if
not
installed
and
used
in
accordance
with
the
instructions,
may cause
harmful
interference
to
radio
communications.
However,
there
is
no
guarantee
that interference
will
not
occur
in
a
particular
installation.
If
this
equipment
does
cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off
and
on,
the
user
is
encouraged
to
try
to
correct
the interference
by
one
or
more
of
the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution:
Any
changes
or
modifications
to
this
device
not
explicitly
approved
by
manufacturer
could void your authority to operate this equipment.
This
device
complies
with
part
15
of
the
FCC
Rules.
Operation
is
subject
to
the
following
two
conditions:
(1)This
device
may
not
cause
harmful
interference,
and
(2)
this
device
must
accept
any
interference received, including interference that may cause undesired operation.
This
equipment
complies
with
FCC
radiation
exposure
limits
set
forth
for
an
uncontrolled
environment.
This
equipment
should
be
installed
and
operated
with
minimum
distance
0cm
between the radiator and your body.
