Operation Instructions for Control Panel

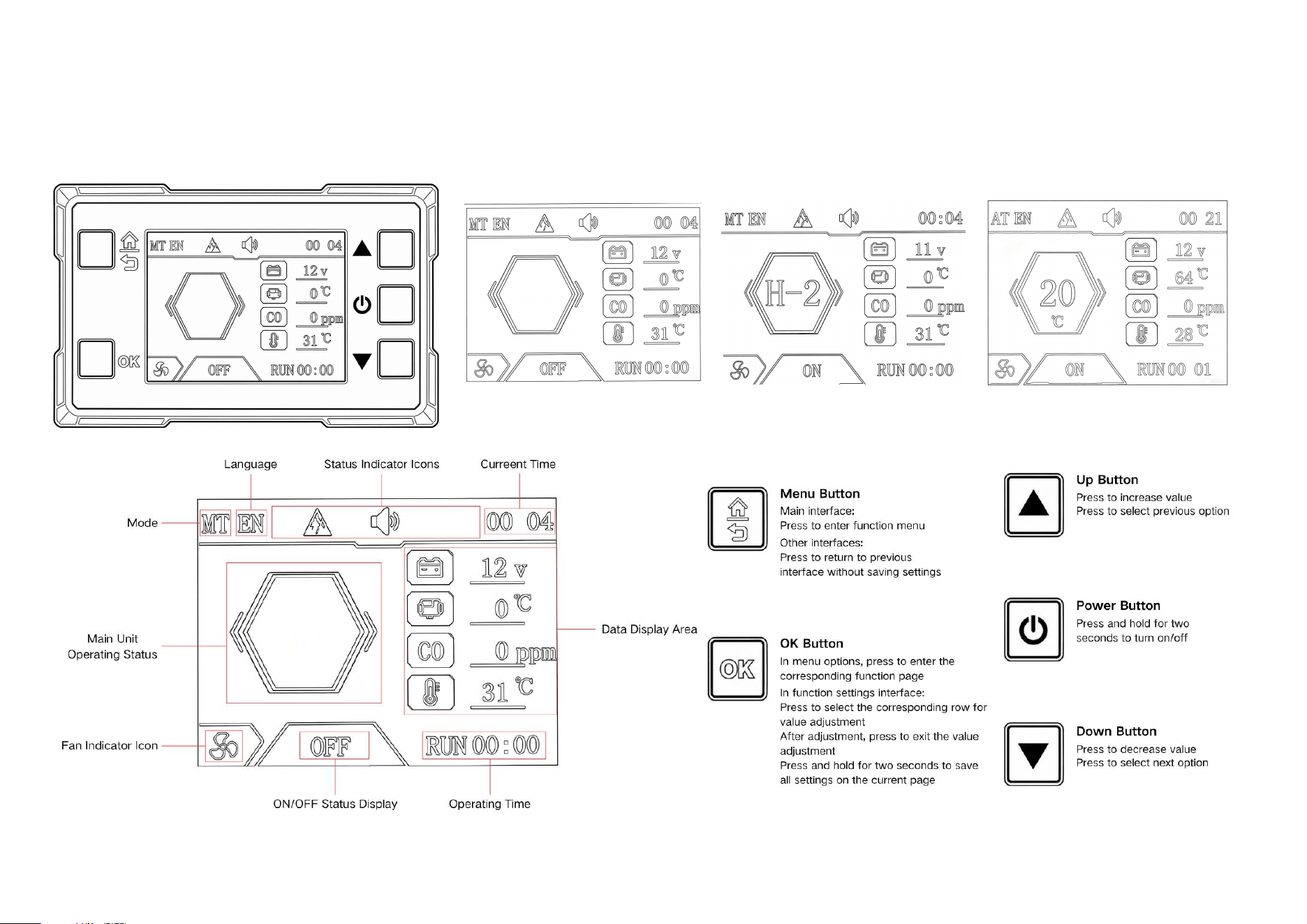

1.Control Panel as shown below 2.Operation Procedures
Power Off State
Manual Mode
Constant Temperature Mode
Usage Rules
1. Do not use in environments with high humidity, conductive dust, flammable and explosive gases/dust/materials, corrosive media,
strong light, or near equipment with strong magnetism, high voltage, or large current.
2. Power supply voltage range: DC 24V controller is applicable (18～32) V; DC 12V controller is applicable (9～16) V; controllers
with different voltages are not universal. Do not use beyond the applicable voltage range.
3. 5kW controller can only be used on 5kW main unit; 2kW controller can only be used on 2kW main unit.
4.Ifthecontrollerorexternaldevicesaredamaged,mustusedevicesofthesamemodelandparameters,andreplacebyprofessionals.
5. Do not open the controller case without permission.
6. The equipment must be installed strictly according to requirements and used under safe conditions.
7.Ourcompanyisnotresponsibleforlossesandliabilitiescausedbywrongconnection,shortcircuit,ordamageofexternaldevices
or lines.
8.Whenthemainunitisoverheatedandthefancannotoperatenormally,mustquicklycoolthemainunit.Blowcoldairintothecombustion
air inlet to cool it down to below 80
℃.
Prevent high temperature from damaging components or causing fire.
9. When heating, ensure all air ducts are unobstructed (no folding, pressing, or blocking of pipes) to effectively ensure heating
efficiency and normaloperation.Blockedductswill cause overheating of the main unit, reduce heating efficiency, shorten service
life, or damage the equipment. Use qualified fuel to ensure normal use and service life of the equipment.
*Our company is not responsible for losses and liabilities caused by failure to install and use according to the above rules.
*Ignitionpointofcottonandsponge:150℃;ignitionpointofpaper:130℃;ignitionpointofcloth:270℃;ignitionpointofdiesel:
220℃. Hot air outlet temperature can be higher than 150℃, and exhaust pipe outlet temperature can be higher than 270℃.
Fault Table
Fault
Code
Fault Cause
Troubleshooting
Fault
Code
Fault
Cause
Troubleshooting
E-2
Power Supply
Voltage Range
Normal range: 24V (18-32V), 12V (9-16V),
Checkifthebatteryorgeneratorisnormal,check
if the fuse is aged
E-9
Sensor
Fault
Check ifthetemperaturesensorconnection wires
and connectors are damaged or loose, and if the
sensor is damaged
E-3
Spark Plug Fault
1)Checkifthesparkplugconnectorislooseorthe
wire is short-circuited with the case
2) Check if the spark plug is damaged
E10
Failed
to
Start
1）Thecasetemperatureistoohigh,andthecase
cannotbecooleddownwithin3minutesofstartup
2) A large amount of white smoke in the exhaust
2.1)Checkifthefilterscreennexttothespark
plug is clean; if not, clean or replace it
2.2) Check if the oil pump sprays oil strongly
2.3) Check if the spark plug is aged
3)Asmallamountofwhitesmokeornosmokeinthe
exhaust
3.1) Check if there is lack of oil, oil circuit
frozen or blocked
3.2)Checkiftheoilpumpisstuckordamagedand
has weak oil pumping
3.3)Checkifthecombustionairinletandexhaust
channels are unobstructed
3.4) Check if the spark plug is damaged
3.5)Checkifthegapoftheinnerfanwheelistoo
large
4) Ignitionis normal but stillreports ignition
failure fault
Check if thecase temperature sensor is fully in
contact withthe case, if the pressure spring is
strong enough, and if the sensor is normal.
E-4
Oil Pump Fault
Check if the oil pump connection wires and
connectors are damaged, loose, oxidized,
short-circuited, or open-circuited.
E-5
High Temperature
Alarm (Inlet Air >
50℃;Case>230℃)
1）Check if the heating air duct is unobstructed
2）Check if the fan is operating normally
3）Check if the temperature sensor is normal
E-6
Fan Fault
1）Check if the impeller is stuck
2）Check if the connector is loose
3）Thegapbetweenthemagnetonthefanwheeland
the Hall sensor on the controller is too large
4）Check if the line is short-circuited or
open-circuited; motor leakage
E-7
Communication
Fault
Check the connection wires
E-8
Flameout
1）Checkifthereislackofoil,oilsolidification
at low temperature, oil circuit blockage, or oil
pump stuck
2）Checkiftheoxygeninletandexhaustairducts
are unobstructed
3）Checkifthecasetemperaturesensorisfullyin
contactwiththecaseandifthepressurespringis
strong enough.
E11
C0
alarm
1）Inspect the sealing of the heater body
2）Ventilation
