NISSAN LIGHTING System
Owner’s Manual
Accent Lighting Reference Guide
Product Name: PANORAMIC HEADLINER ILLUMINATION /
INTERIOR ACCENT LIGHTING
Model Number: T99F3 7VA1C / T99F3 7VA2C

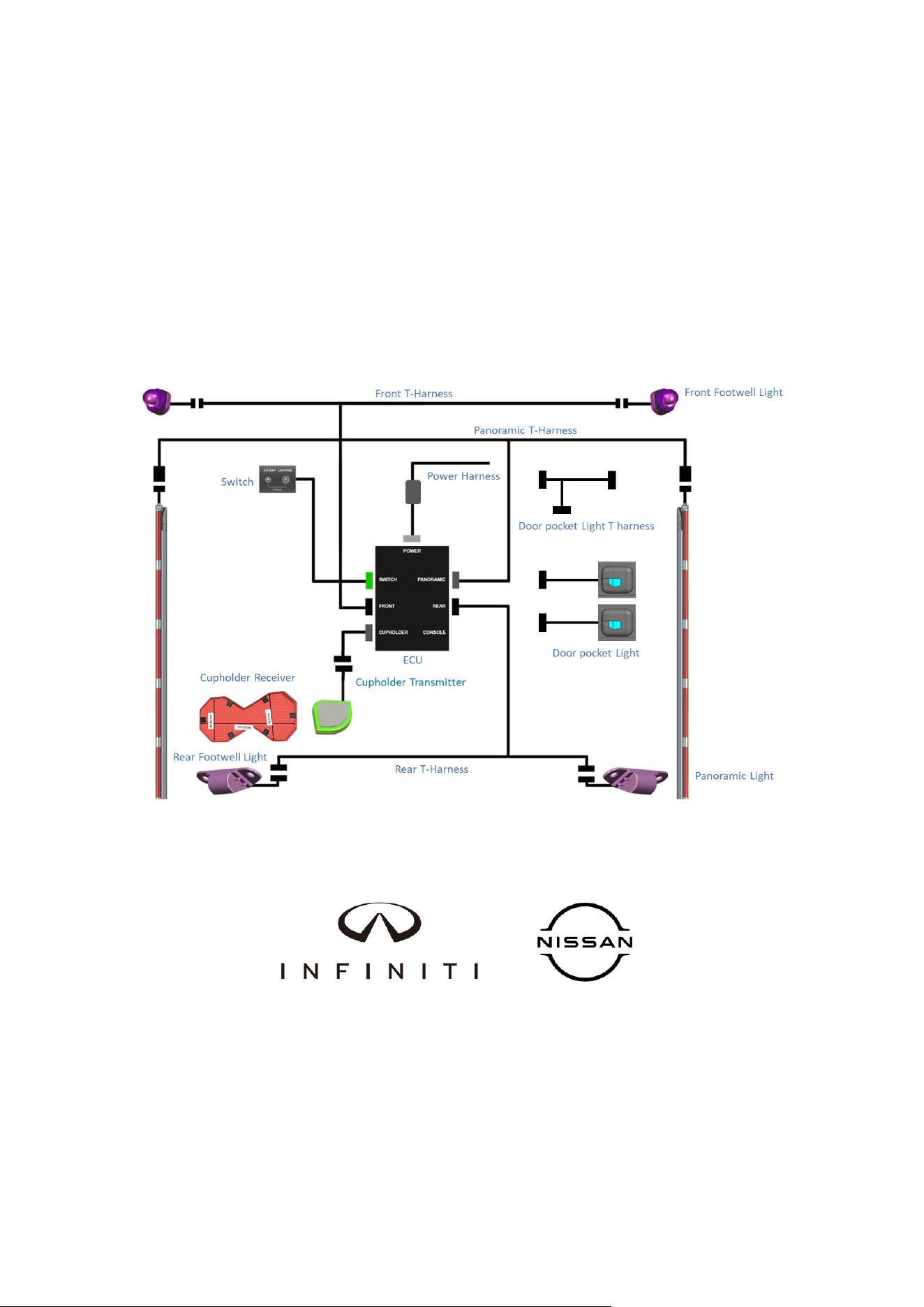

Indoor accent lighting (if only a lighting system is installed)

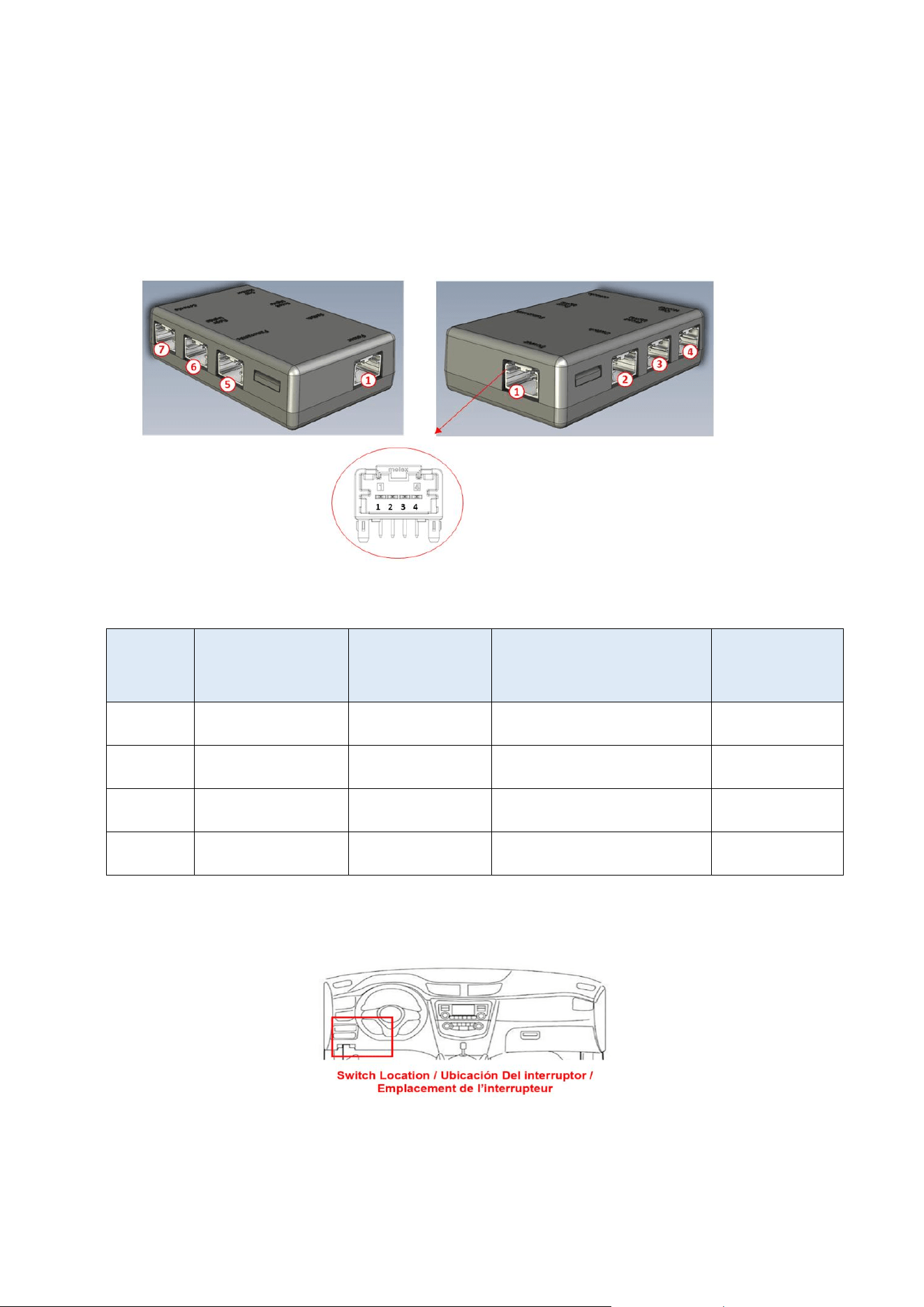

1. Control Module (ECU)
Power Connector
Pin
Number
Name and type
of signal
Input / Output
Electrical
Characteristics
Cable type
1
GND
N/A
GND
Single wire
2
Ignition
Signal Input
0V (LOW) - 9 to16V (High)
Single wire
3
Room Lamp
Signal Input
4-16V PWM
Single wire
4
BAT_ Saver
Power Input
9 – 16 Volt input
Single wire
2. Switch Location
• The switch is located on the panel left of the steering wheel shown below.
Note: Adjustment of the lighting should be done while parked, not while moving to prevent
distraction.
3. Control Switch :
This compact and intuitive control switch features two responsive buttons for easy
operation and a built-in backlight for enhanced visibility in any environment. The "Accent"
button allows you to seamlessly toggle between different systems, streamlining your
control experience.

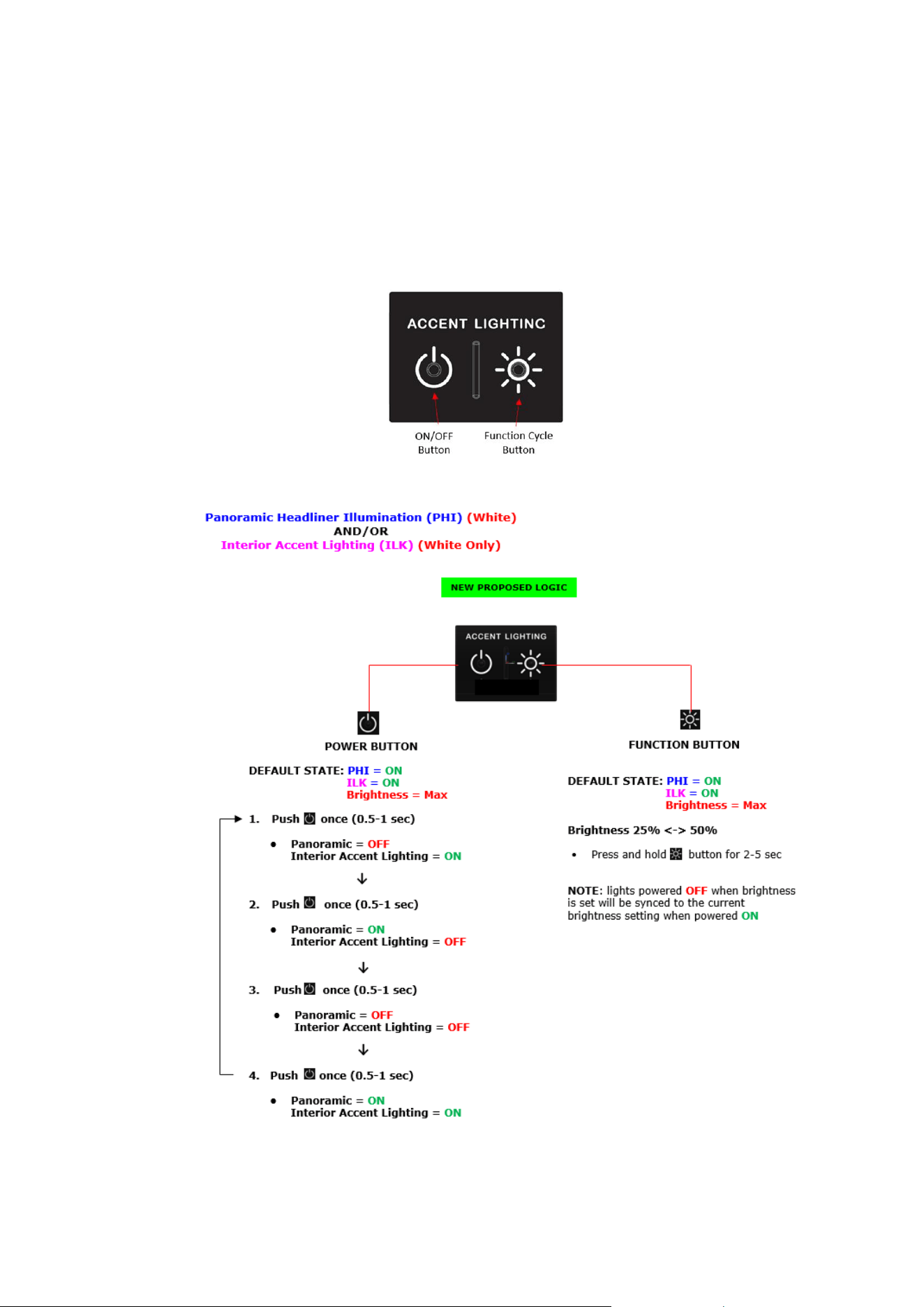

4. Switch Logic
•
5. Front and Rear Footwell Lights
Each footwell light is equipped with an independent white LED, with a maximum
current of 20mA per light. These footwell lights are seamlessly managed by a main control
box, which is meticulously designed to blend perfectly with any desired ambiance. By
interpreting vehicle signals, the control box can seamlessly switch between two brightness
levels, ensuring adjustable brightness to meet different preferences.
6. Panoramic Headliner Illumination (If only system equipped)
Lightbar strip parameters for reference:
• Of the shelf lightbars
• Max LED Strip Length: 900 mm
• LED: 6500k LEDs
• 240 LEDs per meter
• IP67
• Typical dissipation of ~6w/meter at max current.
7. Door Pocket Light :
• Left and Right Door Pocket white LED Light.

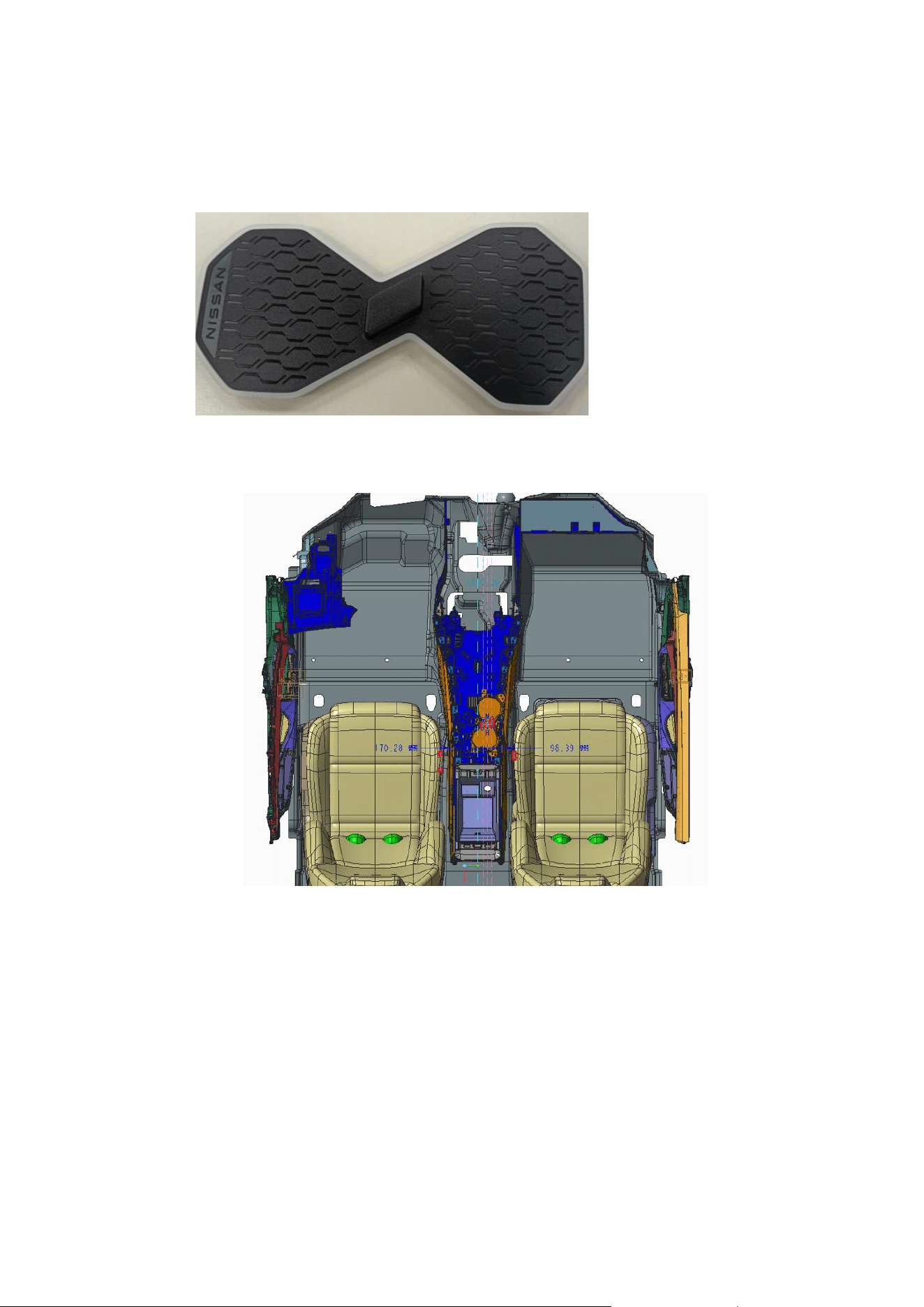

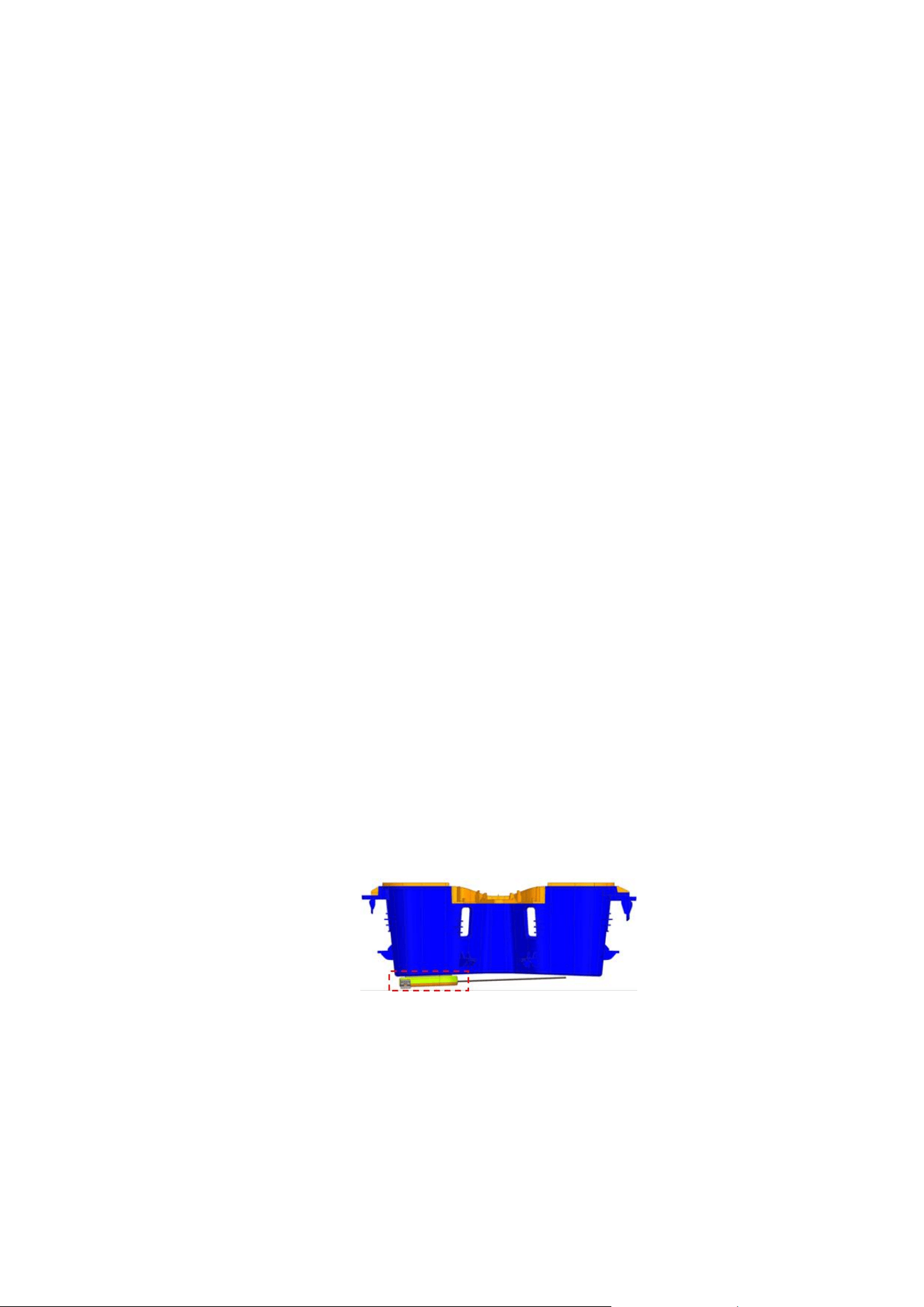

8. Cupholder Transmitter :
• The Cupholder Transmitter is securely attached to the cupholder using double-sided
adhesive. Its primary function is to wirelessly power the LEDs located at the base of
the cupholder, eliminating the necessity for complex wiring.
9. Cupholder Receiver
• IP67
• White LED Light
FCC certification of this device refers to RF exposure testing under typical operating
conditions, taking into account that this device can only be installed in designated
vehicles.
To demonstrate compliance with RF exposure 2.1093- Portable category, it is
acceptable for the passenger to be no more than 9.5 cm from the equipment surface
and the driver no more than 17 cm from the equipment surface, according to KDB
951290 Section 3.3.
This device is certified as fully compliant with FCC Wireless Power Transmission KDB
680106 requirements only under specified conditions.
The FCC certification of this device refers to RF exposure testing performed in typical
operating conditions, where a person is no closer than 17cm centimeters from the
device surface at all times, except for non-repetitive patterns with transient time
intervals in the order of a second. Only in the stated conditions, the device is shown to
fully comply with the FCC RF Exposure requirements of KDB 447498.
Compliance
Information
FCC ID: Z3K-CTX
IC: 9930A-CTX
FCC Notice
This device has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
device generates, uses, and can radiate radio frequency energy, and if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there
is no guarantee that interference will not occur in a particular installation. If this
device does cause unacceptable interference to radio or television reception, which
can be determined by turning the device off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the device and receiver.
• Connect the device into an outlet on a circuit different from that to which
the receiver is connected.
• Consult your dealer or an experienced radio/TV technician for help.
FCC Warning:
To assure continued FCC compliance, the user must use the provided grounded power
supply cord and the shielded video interface cable with bonded ferrite cores. Also, any
unauthorized change or modifications to this device would void the user’s authority to
operate this device.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
ISED Notice:
This Class B digital apparatus complies with Canadian ICES-003.
Cet Appareil numérique de la classe B est conforme à la narme NMB-003 du Canada.
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes : (1) l’appareil ne doit pas produire de rouillage, et (2) l’utilisateur de
l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d’en compromettre le fonctionnement.
This equipment complies with IC RSS-102 radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 17cm between the radiator & your body.
Cet équipement est conforme aux limites d'exposition aux rayonnements IC RSS-102
définies pour un environnement non contrôlé. Cet équipement doit être installé et
utilisé avec une distance minimale de 17 cm entre le radiateur et votre corps.
Compliance
Information
WEEE Notice
Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union
and other European countries with separate collection systems)
This symbol on the product or on its packaging indicates that device shall not be
treated as household waste. Instead, it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment. By ensuring
this device is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be
caused by inappropriate waste handling of this
device. The recycling of materials will help to conserve natural resources. For more
detailed information about recycling of this device, please contact your local city office,
your household waste disposal service, or the shop where you purchased the device.
Applicable accessory: remote control.
Macrovision Notice
This product incorporates copyright protection technology that is protected by
method claims of certain U.S. patents and other intellectual property rights owned by
Macrovision Corporation and other rights owners. Use of this copyright protection
technology must be authorized by Macrovision Corporation and is intended for home
and other limited viewing uses only unless otherwise authorized by Macrovision
Corporation. Reverse engineering or disassembly is prohibited.
All Information, specifications, and illustrations in this manual are those in effect at the
time of printing. Nissan reserves the right to change specifications or design without
notice and without obligation.
Nissan, the Nissan Bran Symbol, “SHIFT_” tagline, Z and Nissan models names are Nissan
trademarks. 2007 Nissan North America, Inc.
Toutes les informations, spécifications et illustrations continues dans ce manuel sont
considérées comme exactes au moment de la mise sous presse. Nissan se reserve le
droit de modifier les specifications ou la conception sans avis préalable et sans
obligation.
Nissan, le symbole de la marque Nissan, le slogan <<SHIFT_>>. Z et le nom des modéles
Nissan sont les mrques de commerce de Nissan. 2007 Nissan North America, Inc.
Toda la información, las especificaciones y las ilustraciones contenidas en este manual
entran en plena vigencia en el momento de la impresión del manual. Nissan se reserve
el derecho de cambiar las especificaciones o diseňos sin previo aviso u obligación de
ningűn tipo.
Nissan, el símbolo de la marca Nissan, el slogan publicitario <<SHIFT_>>. Z y Nissan
nombres de los mdelos son marcas comerciales dr Nissan. 2007 Nissan North America,
Inc.
This product is only intended for installation in: Brand ：Nissan, Rogue
