Soda Gun Jetter Installation Guide
1 to 4 gun unit
Installation of Soda Gun Jetter LLC products must meet all applicable codes and regulations
Included in this kit:
1. Mount control unit under the bar in close proximity of GFCI protected
outlet and near center of soda guns.
2. Replace soda gun holsters and drain tubing with the new supplied Soda
Gun Jetter Tri Mount Holsters.
3. Install supplied 3/8” drain tubing allow for ¼ inch fall for every foot of
drain tubing. Use tie wraps to secure drain minimum 3” above the floor
drain. Use water from soda gun to test drainage.
*Without proper drainage the system will not function as designed.
4. Connect supplied ¼ inch blue tubing to the fitting on the bottom of the
box. You must insure the tubing is firmly pushed into the connector to
avoid possible leakage.
5. Install the tubing to the first soda gun holster area, (Preferably alongside
the soda lines) if you are only installing 1 soda gun cut tubing and
install to connector on bottom of holster (insure tubing is firmly pushed
into connector) and proceed to step 7.
6. If two guns are used, install the supplied tee and cut a piece of tubing
long enough to reach first holster from tee and connect tee to holster.
(insure tubing is firmly pushed into connector)
7. Connect tubing to tee and run the tubing alongside the soda lines to the
next holster and connect. Insure tubing is firmly pushed into connector.
8. Secure the tubing and drain hose using cable ties. Cable wall mounts
may be used however they are not provided.
9. For 3 to 4 gun systems repeat steps 2 through 7 using the second fitting
on the bottom of the box.
Page 1 of 3 Rev 3.20
(1) Soda Gun Jetter control box
(2) Soda Gun Jetter Tri-Mount holsters (4) for SGT-200
(25') Blue Water Supply Tubing (50') for SGT-200
(20') Anti-Microbial Drain Tubing (40') for SGT-200
(1) 3/8” Water Supply Shut Off Valve
(1) Push to Connect Tee (2) for SGT-200
(1) Beverage Tubing Adapter
(2) Splash Guards (4) for SGT-200
10. Connect beverage tubing from the filtered soda gun water supply.
For best results we recommend 3/8 beverage tubing.
11. Install supplied water shutoff valve in close proximity of the control box.
12. Install beverage tubing to stem adapter and plug into supply quick
connect fitting located on the bottom left of the control box. Insure the
adapter is firmly pressed into the connector.
13. Turn on water supply and check for any leaks in the control box and all
the connection points.
14. Test system (see operation guide)
15. This unit comes preprogrammed with time set. (see operation guide to
change)
Page 2 of 3
Rev 3.20

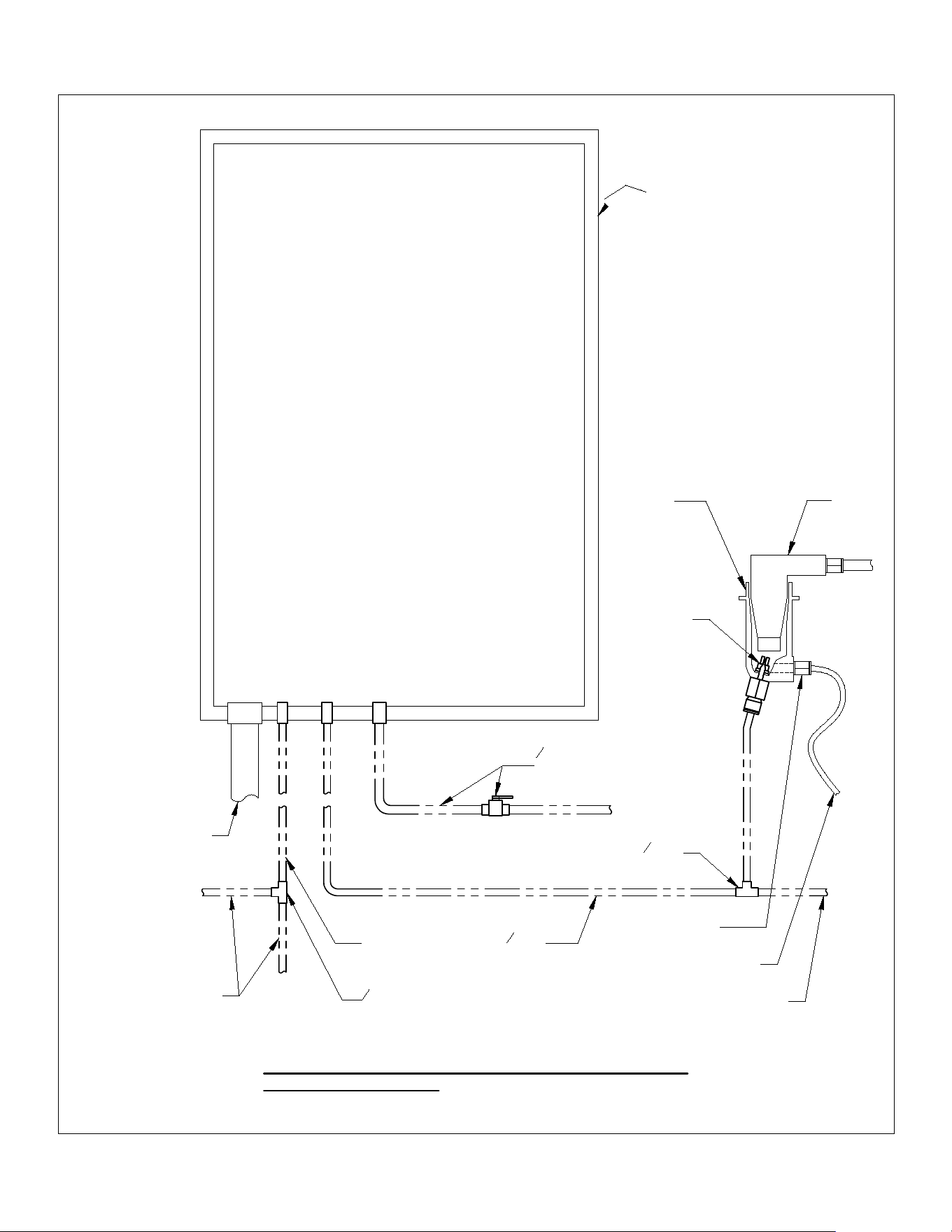

PLUMBING SCHEMATIC DIAGRAM - SODA/BAR GUN CLEANER
(TYP FOR 4 SODA GUNS)
NO SCALE
NEMA RATED
WATERPROOF
PANEL ENCLOSURE
SODA
GUN
WATER
DISCHARGE
OULTET
TO DRAIN
SODA GUN
HOLDER
3/8" Beverage Tubing
VALVE FOR INCOMING Cold
WATER SUPPLY from the
existing soda gun water line.
1
4
" TEE
FITTING
EXTEND FOR SECOND
SODA GUN
Cold WATER SUPPLY IN
1
4
" OD
LLDPE POLYETHYLENE TUBING
1
4
" TEE
FITTING
EXTEND TUBINGS
FOR THIRD AND
FOURTH SODA GUN
POWER
SUPPLY
Soda Gun Jetter LLC
137 Gaither Drive
Suite C
Mt. Laurel, NJ 08054
Page 3 of 3
Rev 3.20
