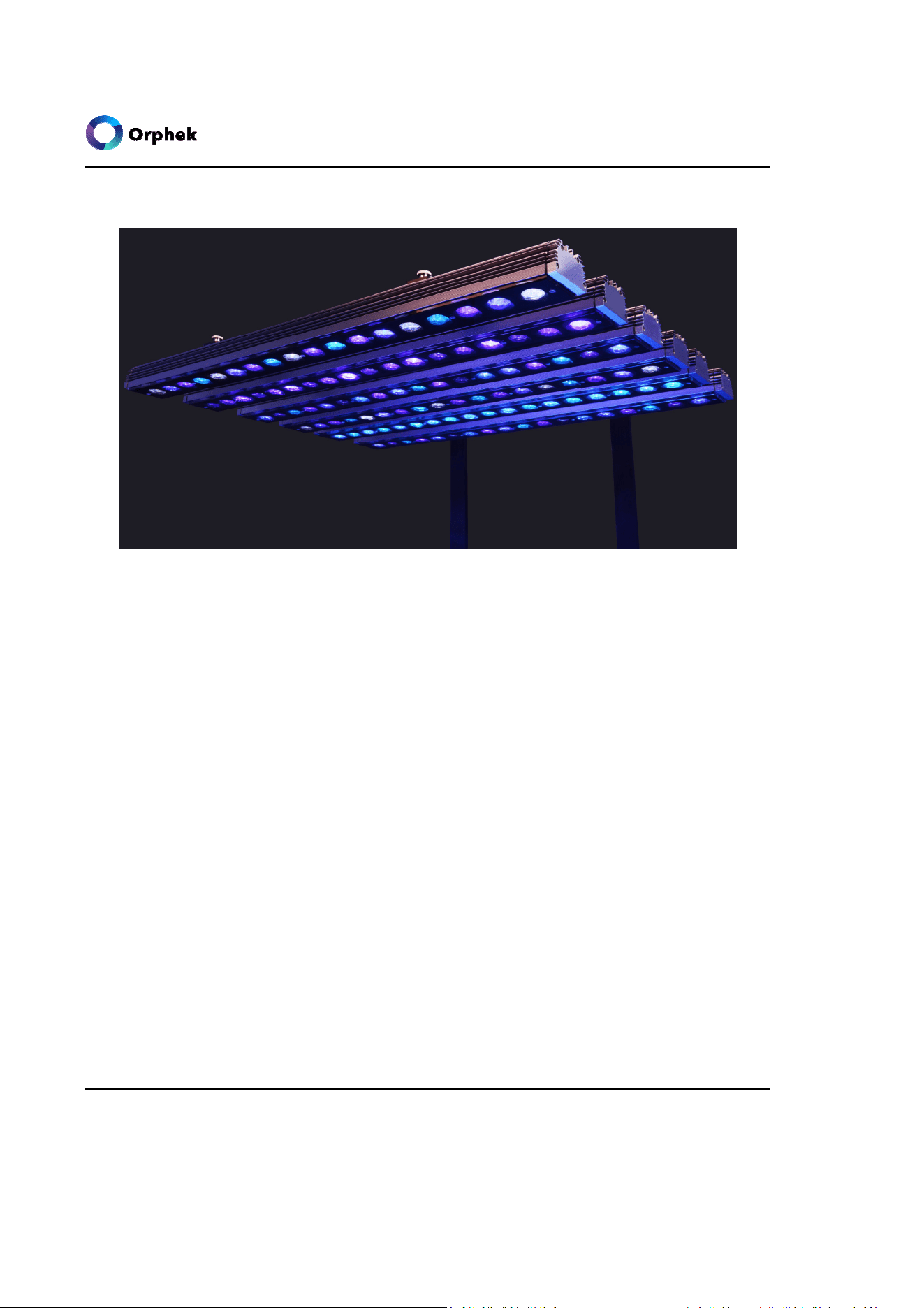

Orphek OR4 iCon Product Brief
OR4 iCon LED Bars Proprietary Technologies & Features:
● New! Groundbreaking Sun & Moon Synchronization.
● New! iCon technology that allows you to program, control, monitor and dim your OR4 Reef Aquarium
LED Bars and integrate them with all other Orphek iCon LED solutions.
● New! Unmatched 10,000% dimming control technology.
● New! Game-changing Orphek 6 watt Mixed Colors Dual-Chip Power LEDs. /New proprietary 70° reflectors.
● New! The all-in-one groundbreaking Orphek power supply - Orphek customized dim power supply
(most advanced technology /best electricity transfer & stability).
● New! Incredible new Orphek App compatible with IOS & Android/ iCloud support, free of charge.
● Exceptional Easy setup & Plug and Play technology.
● Full customization: Compatible with Osix Smart Device - With Osix you can combine up to 6 OR4 LED Bars
of your choice to create your own fixture.
● The jaw-dropping spectrums ever achieved.
● Maximum photochemical efficiency & blending perfection.
● Safe maintenance: Top opening capacity for lens adjustment and LEDs substitution,
without loosing its waterproof protection.
● Exceptional durability – An IP67 certificated LED BAR made of high quality aluminum alloy, 8mm acrylic
top cover and silicon gasket, excelling in performance even in extreme humid environments, salinity,
and complete protection against ingress of dust and airborne particles.
Applications
■ SPS/LPS coral coral growth, color and illumination.
■ Reef salted water tanks/ Planted freshwater aquariums.
■ Designed to enhance beauty of both natural and synthetic compositions.
■ Replace T5/T8 lighting technology for aquariums.
■ Public venues / Private aquariums.
■ Indoors/ opened or closed areas or canopies, such as gallery displays.
■ Perfect for coral shops, coral farming, educational facilities, research centers, nurseries, refugium.
Best for:
● Achievement of your desired light spectrum.
● Customization - Create your own light fixture by choosing up to 6 LED Bars.
● Supplemental light coverage.
● Boost of coral color pop, health & growth.
● Boost fluorescent color.
● Boost photosynthesis.
● Perfect for coral spawning; micro/macro-biology and biological clock correction; and stabilization.
OR4 iCon LED Bars Series - LED Configuration for Each Model:
OR4 30 iCon: Featuring 9 LEDs / offering 15 watts of power for each LED.
OR4 60 iCon: Featuring 18 LEDs / offering 30 watts of power for each LED.
OR4 90 iCon: Featuring 24 LEDs / offering 40 watts of power for each LED.
OR4 120 iCon: Featuring 36 LEDs / offering 60 watts of power for each LED.
OR4 150 iCon: Featuring 42 LEDs / offering 75 watts of power for each LED.
OR4 180 iCon: Featuring 48 LEDs / offering 80 watts of power for each LED.

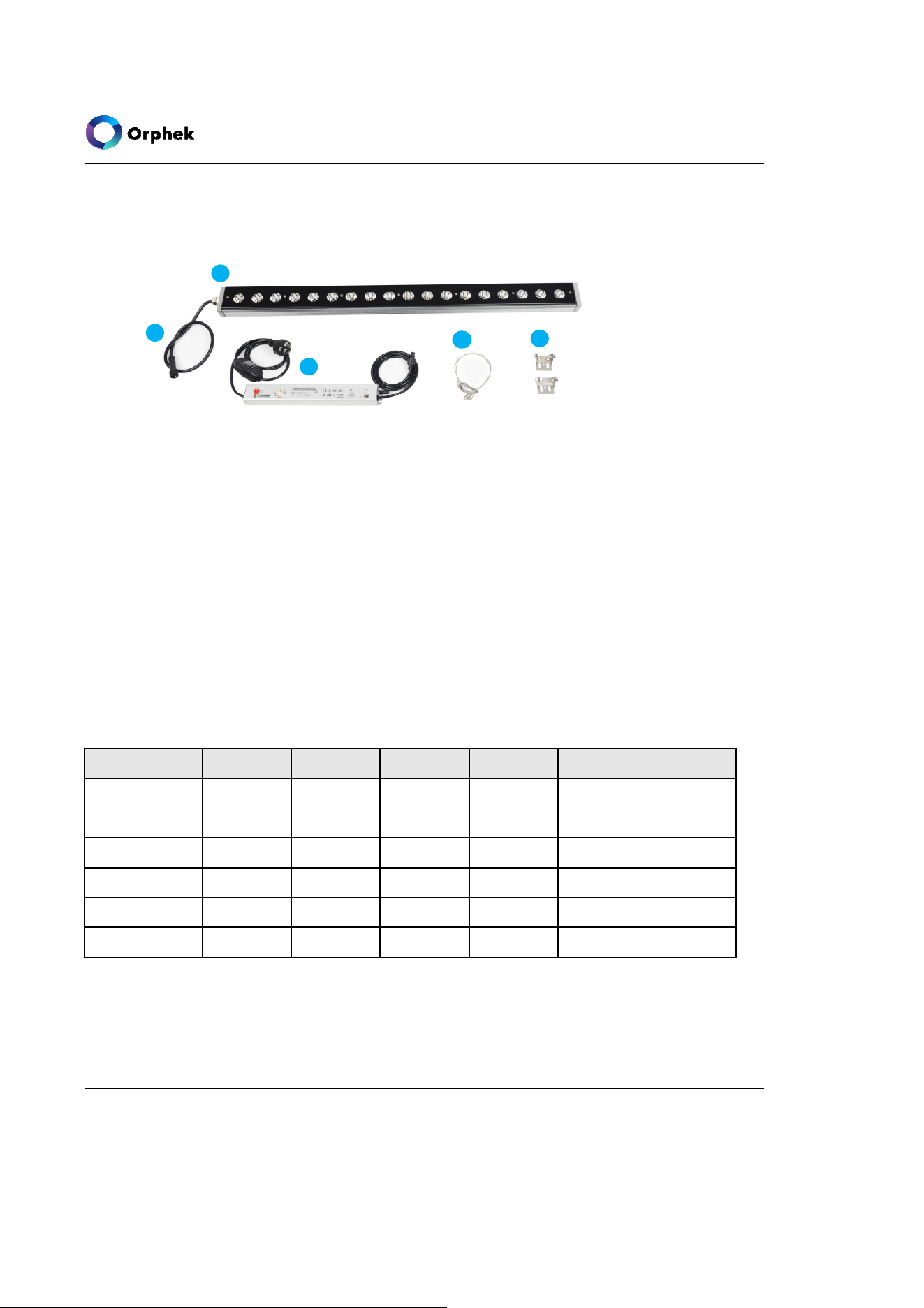

What‘s in the box
1. OR4 60 iCON light unit
2. Power cable from light unit to power supply featuring waterproof connectors
3. Fanless IP65-rated Power Supply with power cords featuring waterproof connectors
4. Hanging Kit
5. Mounting Brackets
* The displayed photograph serves as a reference for the OR4 60, but all models of the OR4 series are equipped with
identical components.
Specifications
Color /Materials
Light Unit Body Material: Black acrylic front panel/ Silver Aluminum back cover.
Electrical Information
Model OR4 30 iCon OR4 60 iCon OR4 90 iCon OR4 120 iCon OR4 150 iCon OR4 180 iCon
Power Consumption 15W 30W 40W 60W 75W 80W
Input Voltage AC 100V-230V AC 100V-230V AC 100V-230V AC 100V-230V AC 100V-230V AC 100V-230V
Frequency 50-60Hz 50-60Hz 50-60Hz 50-60Hz 50-60Hz 50-60Hz
Power Factor 95% 95% 95% 95% 95% 95%
Input Voltage/Current
AC 110V/0.2A
AC 220V/0.1A
AC 110V/0.28A
AC 220V/0.14A
AC 110V/0.37A
AC 220V/0.18A
AC 110V/0.56A
AC 220V/0.27A
AC 110V/0.64A
AC 220V/0.32A
AC 110V/0.73A
AC 220V/0.37A
Output Voltage/Current DC 20-30V/0.5A DC 40-58V/0.5A DC 20-40V/1A DC 40-58V/1A DC 26-50V/1.5A DC 24-40V/2A
Cords
● Power Extension Cord with waterproof connector from light unit to Power Box: total 98.43˝ (2.5m)
● Power Cord: 59˝(1.5m)
1
2
3
4
5

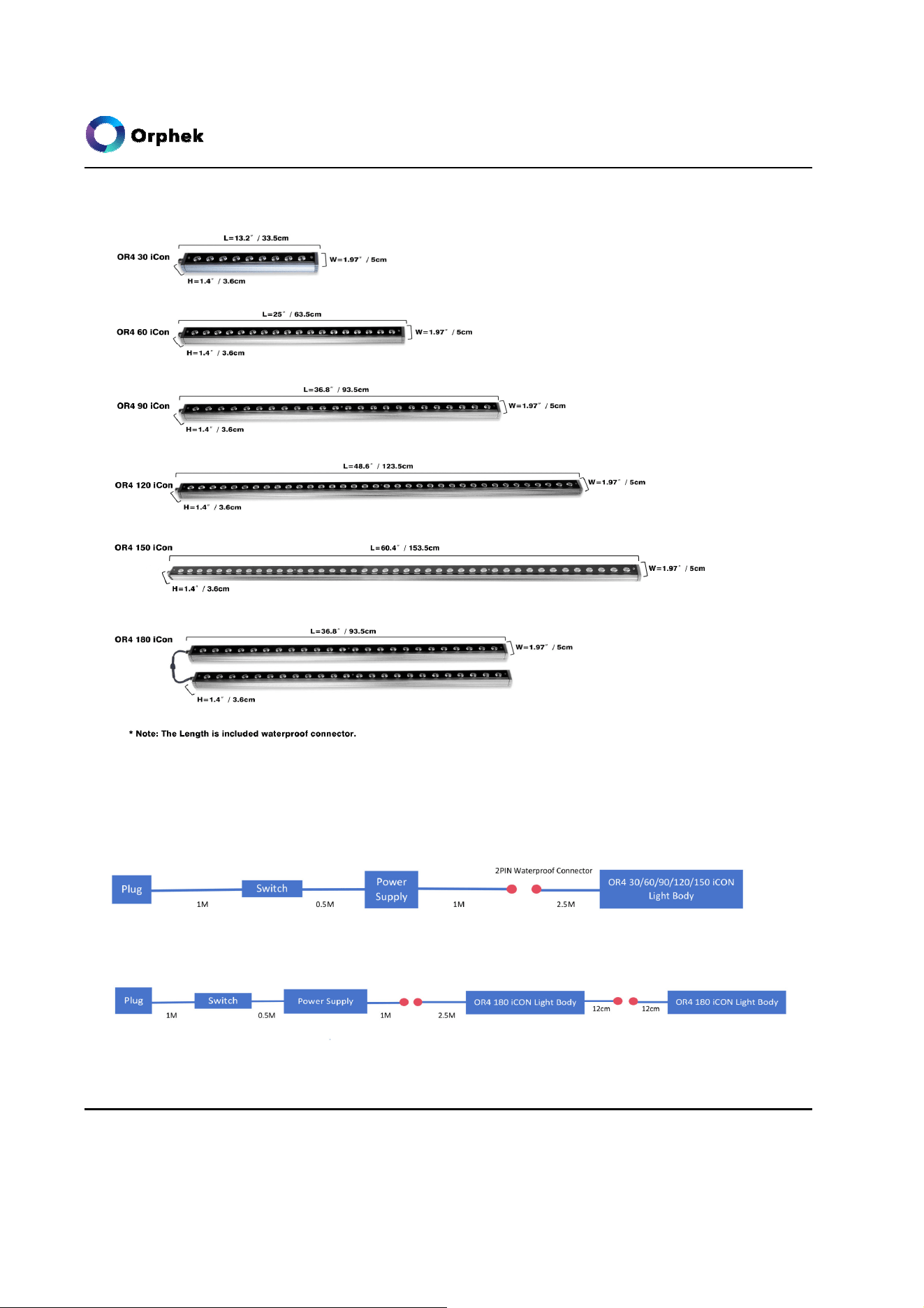

OR4 iCON Dimensions Draw
OR4 iCON Wires Map

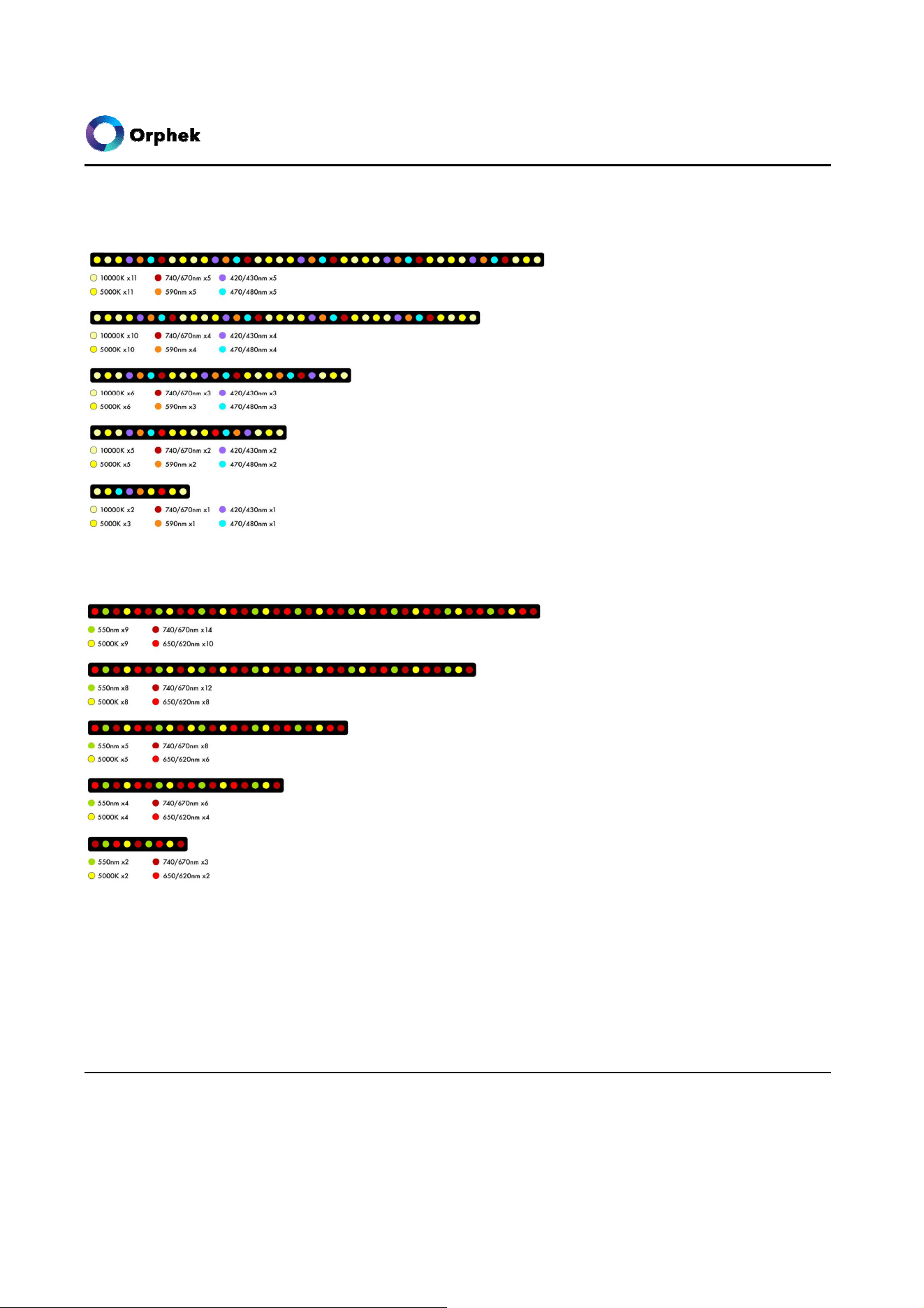

Ratio Maps
OR4 - Reef Day Plus
OR4 - Blue Sky
Note: OR4 180 iCON and OR4 90 iCON share the same ratio map.

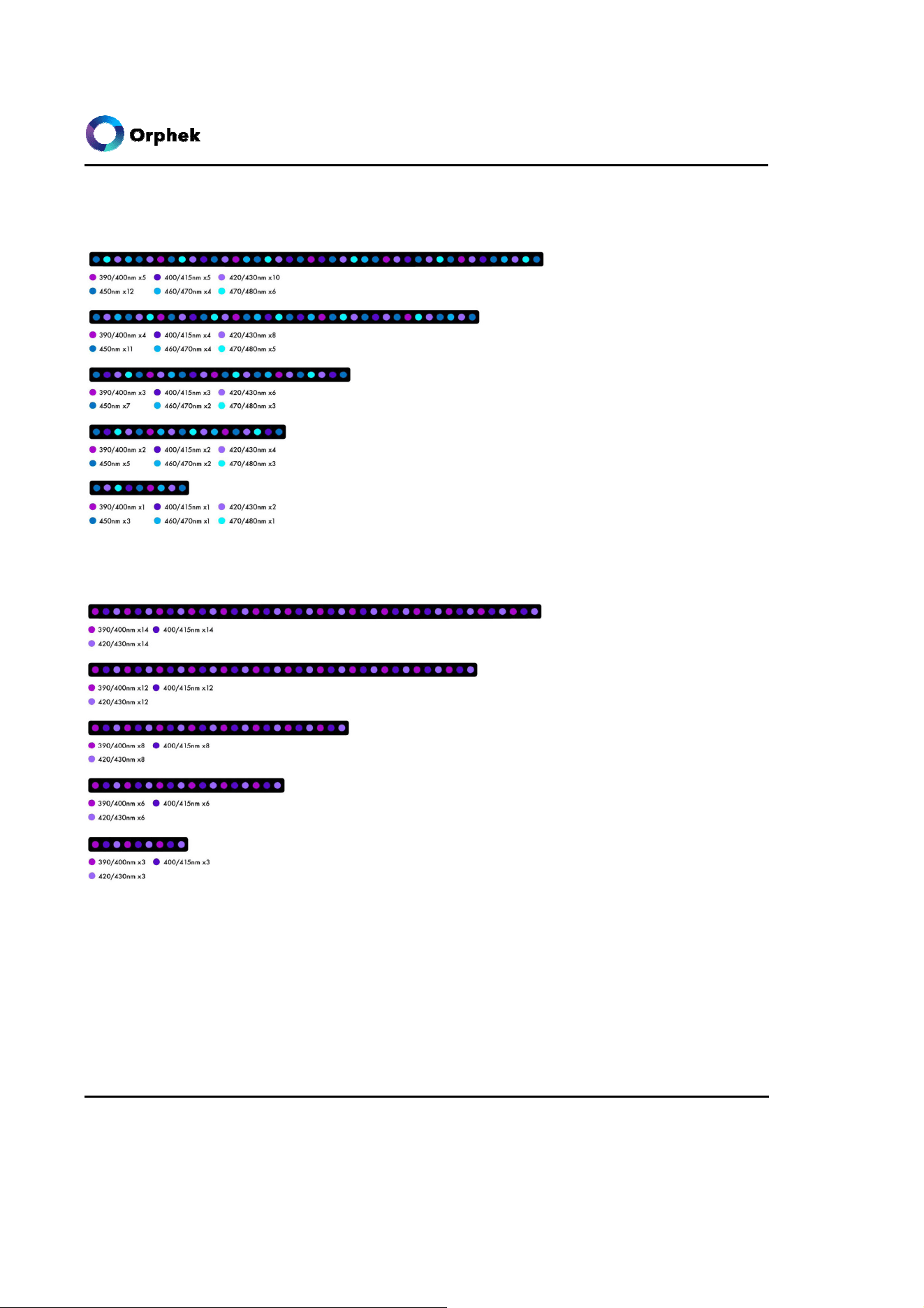

Ratio Maps
OR4 - Blue Plus
OR4 - UV Violet
Note: OR4 180 iCON and OR4 90 iCON share the same ratio map.

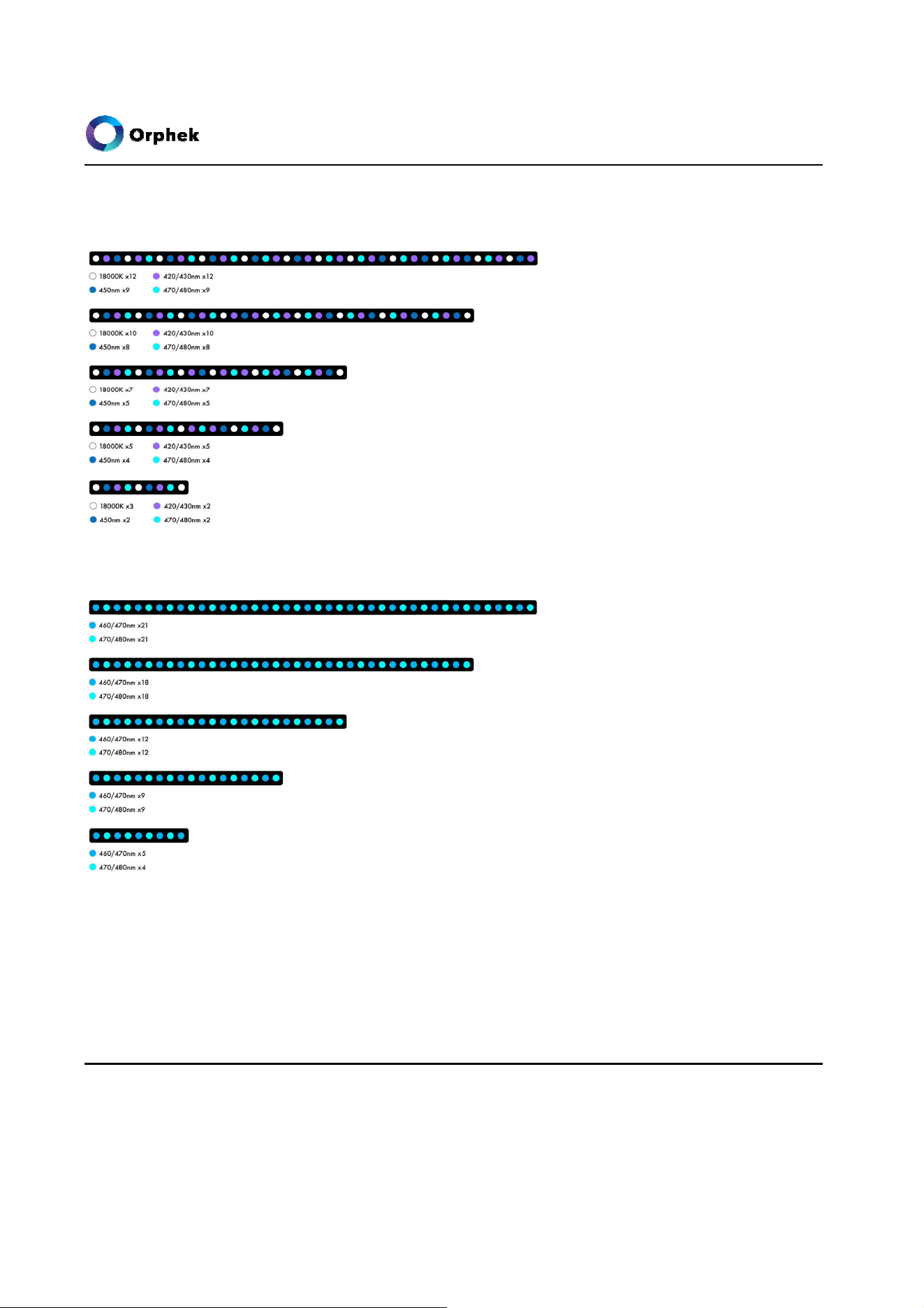

Ratio Maps
OR4 - Freshwater Planted
OR4 - Red Plus
Note: OR4 180 iCON and OR4 90 iCON share the same ratio map.

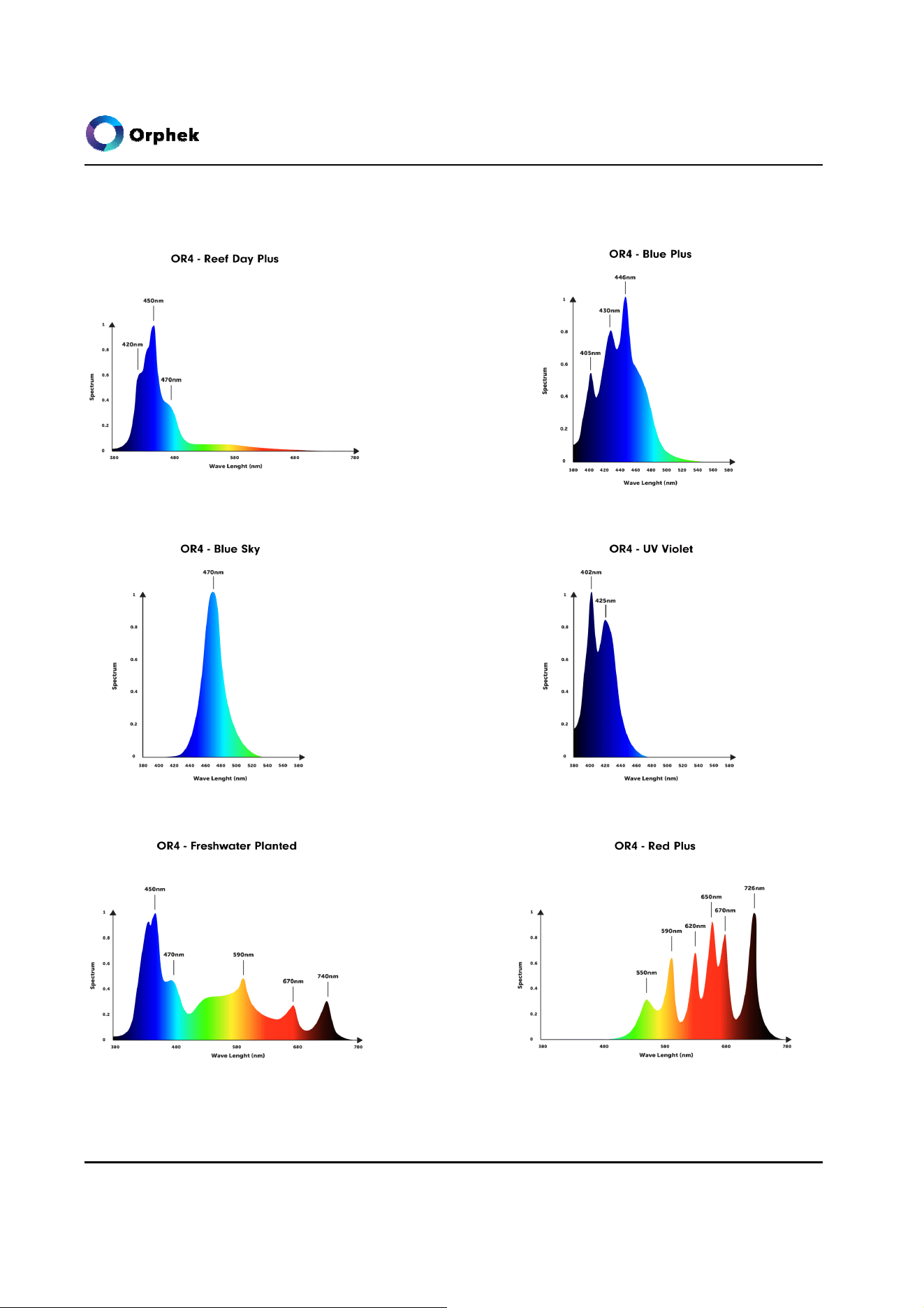

Spectrum Graph

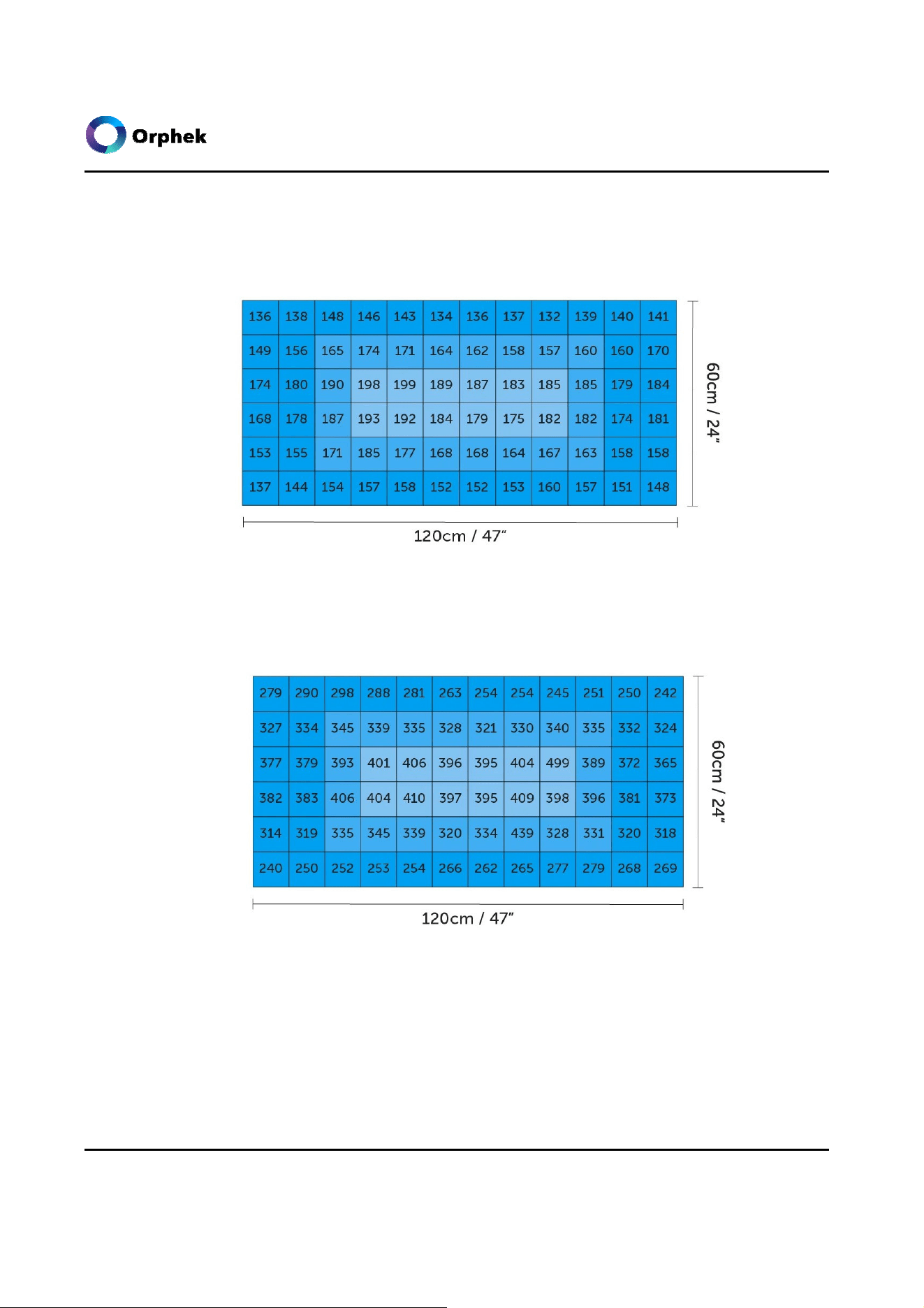

PAR Map
3x OR4 120 Blue Plus - 22cm / 6.6" from the water surface
6x OR4 120 Blue Plus - 22cm / 6.6" from the water surface
