REMOVAL/INSTALL OF WINDOW REGULATOR (741-430)
Ford F-150 Super Cab 2005–08, Lincoln LT 2006,
Ford F-150 Super Cab Except Heritage 2004
General Tech Tips:
• Use painter’s tape rather than duct tape to secure window. It will not damage paint or leave sticky residue.
• A plastic pry tool is useful. It will not easily damage delicate trim like a screwdriver or metal pry bar.
• The replacement regulator should have a liberal amount of grease on slide area. If there is not much grease
present, white lithium grease works well to lubricate the slide area.
• Aftermarket window tinting can cause the window to travel slower and put additional strain on the window
regulator assembly.
• Window run channels should be cleaned and lubricated before installation of a new window regulator
assembly. Silicone spray works well.
PLEASE WEAR SAFETY
GLASSES!

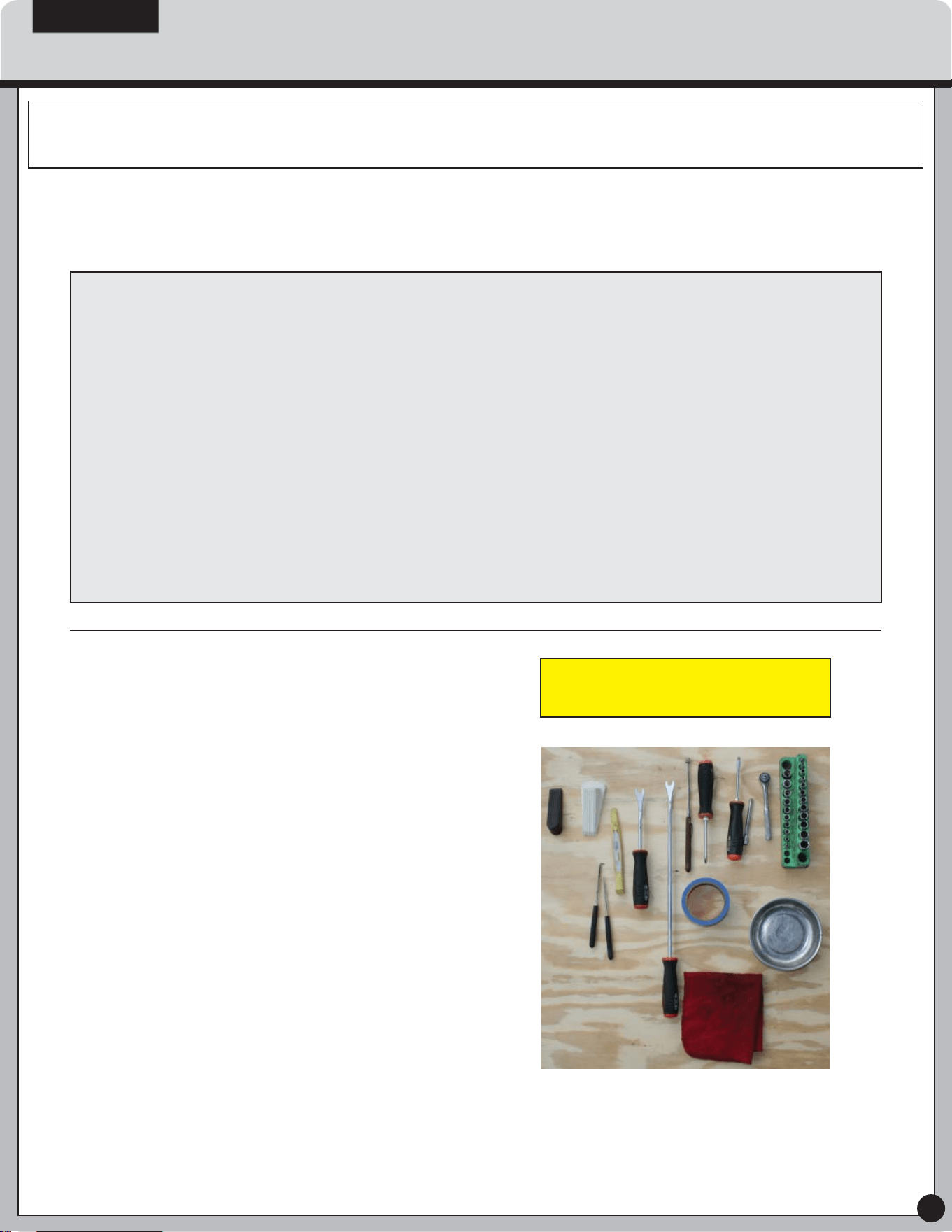

Tools required for removal
and installation of window regulator
and motor assembly:
• Silicone spray lubricant
• Trim panel removal tool
• Pick
• Saddle cup assembly, tape, or wedge
to hold window in place
• Flat-blade screwdriver or plastic
pry tool
• 10mm socket or driver
• Phillips screwdriver
• Grease pencil or marker
INSTALL/REMOVAL INSTRUCTIONS: WINDOW REGULATOR
741-430
Disclaimer:
Even though every attempt is made to ensure this information is complete and accurate, it is impossible to account for all possible circumstances or situations. Please consult with a quali ed auto technician
before attempting to perform any work you are not quali ed to do. Automobiles can be hazardous to work on; be sure to take all necessary safety precautions. Failure to do so may result in property damage
or personal injury. Certain motor vehicle standards and performance requirements may apply to your motor vehicle (such as Federal Motor Vehicle Safety Standards by the National Highway Tra c Safety
Administration). Be sure that your work is performed in accordance with such standards and that you do not disable any motor vehicle safety feature.
ATTENTION: Refer to the appropriate shop manual for your vehicle to obtain speci c service procedures for this part. If you do not have
a service manual or lack the skill to install this part, it is recommended that you seek the services of a quali ed technician. Pay special
attention to all cautions and warnings included in the shop manual. Read and follow all instructions carefully.
2
©2013 Dorman Products, Inc.
No reproductions in whole or in part without prior written approval.
Removal Instructions

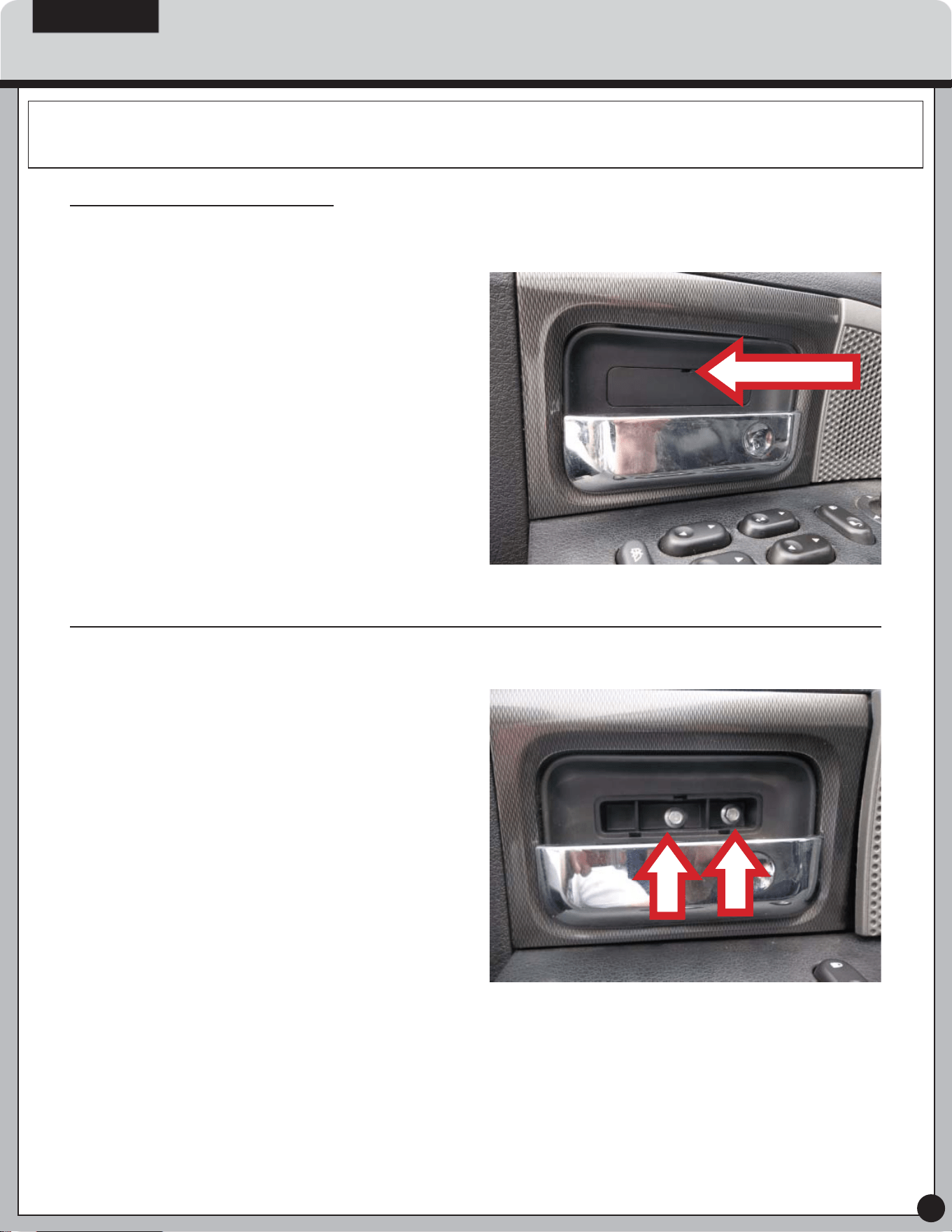

STEP 1: Using a pick or small at-blade
screwdriver, remove the interior door trim
panel retaining screw cover.
STEP 2: Using a 10mm socket and ratchet
assembly, remove the interior door trim
panel retaining screws.
INSTALL/REMOVAL INSTRUCTIONS: WINDOW REGULATOR
741-430
Disclaimer:
Even though every attempt is made to ensure this information is complete and accurate, it is impossible to account for all possible circumstances or situations. Please consult with a quali ed auto technician
before attempting to perform any work you are not quali ed to do. Automobiles can be hazardous to work on; be sure to take all necessary safety precautions. Failure to do so may result in property damage
or personal injury. Certain motor vehicle standards and performance requirements may apply to your motor vehicle (such as Federal Motor Vehicle Safety Standards by the National Highway Tra c Safety
Administration). Be sure that your work is performed in accordance with such standards and that you do not disable any motor vehicle safety feature.
ATTENTION: Refer to the appropriate shop manual for your vehicle to obtain speci c service procedures for this part. If you do not have
a service manual or lack the skill to install this part, it is recommended that you seek the services of a quali ed technician. Pay special
attention to all cautions and warnings included in the shop manual. Read and follow all instructions carefully.
3
©2013 Dorman Products, Inc.
No reproductions in whole or in part without prior written approval.
STEP 3: Using a 7mm socket and ratchet
assembly, remove the two (2) lower interior
door trim panel retaining screws.
STEP 4: Using a trim panel removal tool,
release the speaker grille assembly.
INSTALL/REMOVAL INSTRUCTIONS: WINDOW REGULATOR
741-430
Disclaimer:
Even though every attempt is made to ensure this information is complete and accurate, it is impossible to account for all possible circumstances or situations. Please consult with a quali ed auto technician
before attempting to perform any work you are not quali ed to do. Automobiles can be hazardous to work on; be sure to take all necessary safety precautions. Failure to do so may result in property damage
or personal injury. Certain motor vehicle standards and performance requirements may apply to your motor vehicle (such as Federal Motor Vehicle Safety Standards by the National Highway Tra c Safety
Administration). Be sure that your work is performed in accordance with such standards and that you do not disable any motor vehicle safety feature.
ATTENTION: Refer to the appropriate shop manual for your vehicle to obtain speci c service procedures for this part. If you do not have
a service manual or lack the skill to install this part, it is recommended that you seek the services of a quali ed technician. Pay special
attention to all cautions and warnings included in the shop manual. Read and follow all instructions carefully.
4
©2013 Dorman Products, Inc.
No reproductions in whole or in part without prior written approval.

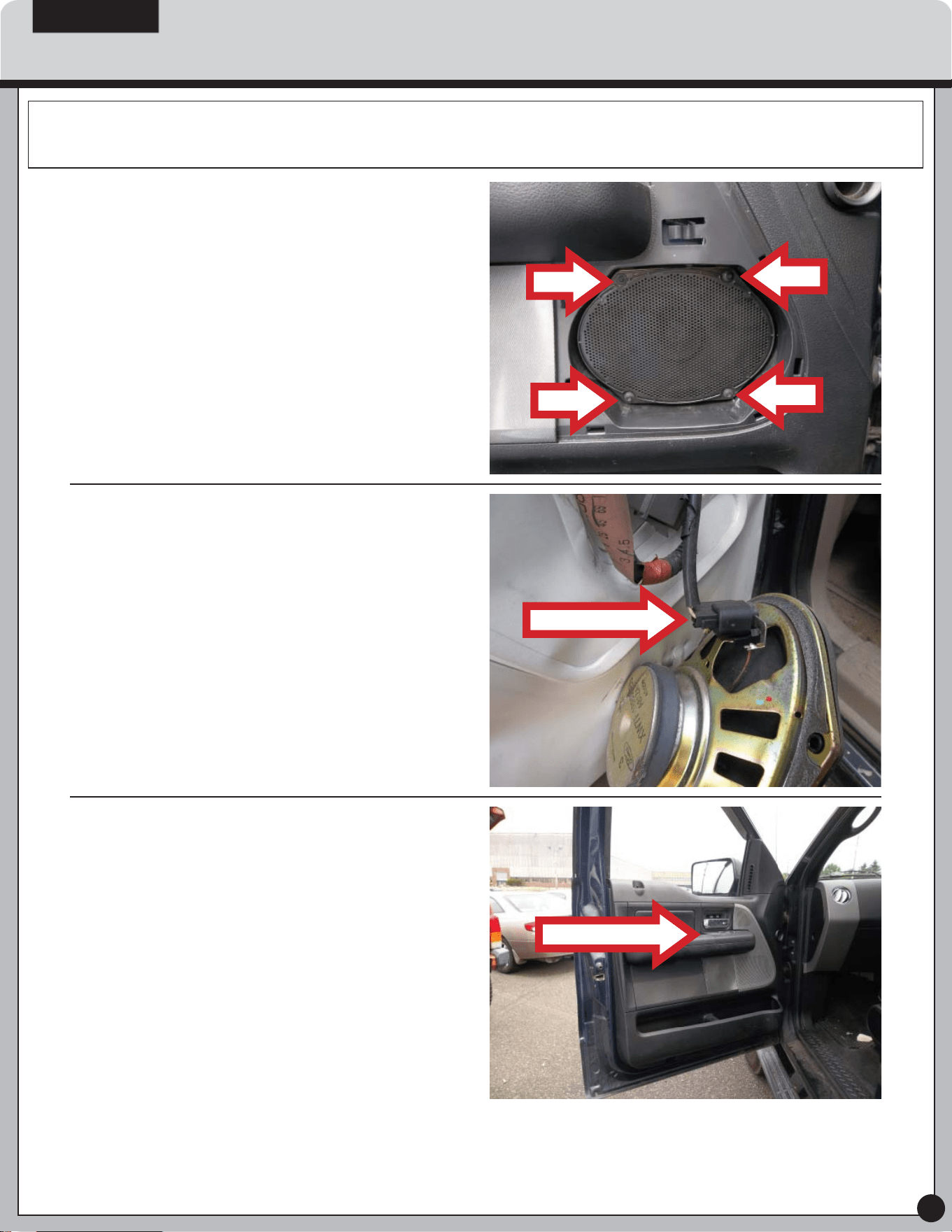

STEP 5: Using a 7mm socket and ratchet
assembly, remove the four (4) door speaker
retaining screws.
STEP 6: Once the speaker retaining screws
have been removed, disconnect
the door speaker.
STEP 7: Using a trim panel removal tool,
remove the power switch assembly.
INSTALL/REMOVAL INSTRUCTIONS: WINDOW REGULATOR
741-430
Disclaimer:
Even though every attempt is made to ensure this information is complete and accurate, it is impossible to account for all possible circumstances or situations. Please consult with a quali ed auto technician
before attempting to perform any work you are not quali ed to do. Automobiles can be hazardous to work on; be sure to take all necessary safety precautions. Failure to do so may result in property damage
or personal injury. Certain motor vehicle standards and performance requirements may apply to your motor vehicle (such as Federal Motor Vehicle Safety Standards by the National Highway Tra c Safety
Administration). Be sure that your work is performed in accordance with such standards and that you do not disable any motor vehicle safety feature.
ATTENTION: Refer to the appropriate shop manual for your vehicle to obtain speci c service procedures for this part. If you do not have
a service manual or lack the skill to install this part, it is recommended that you seek the services of a quali ed technician. Pay special
attention to all cautions and warnings included in the shop manual. Read and follow all instructions carefully.
5
©2013 Dorman Products, Inc.
No reproductions in whole or in part without prior written approval.

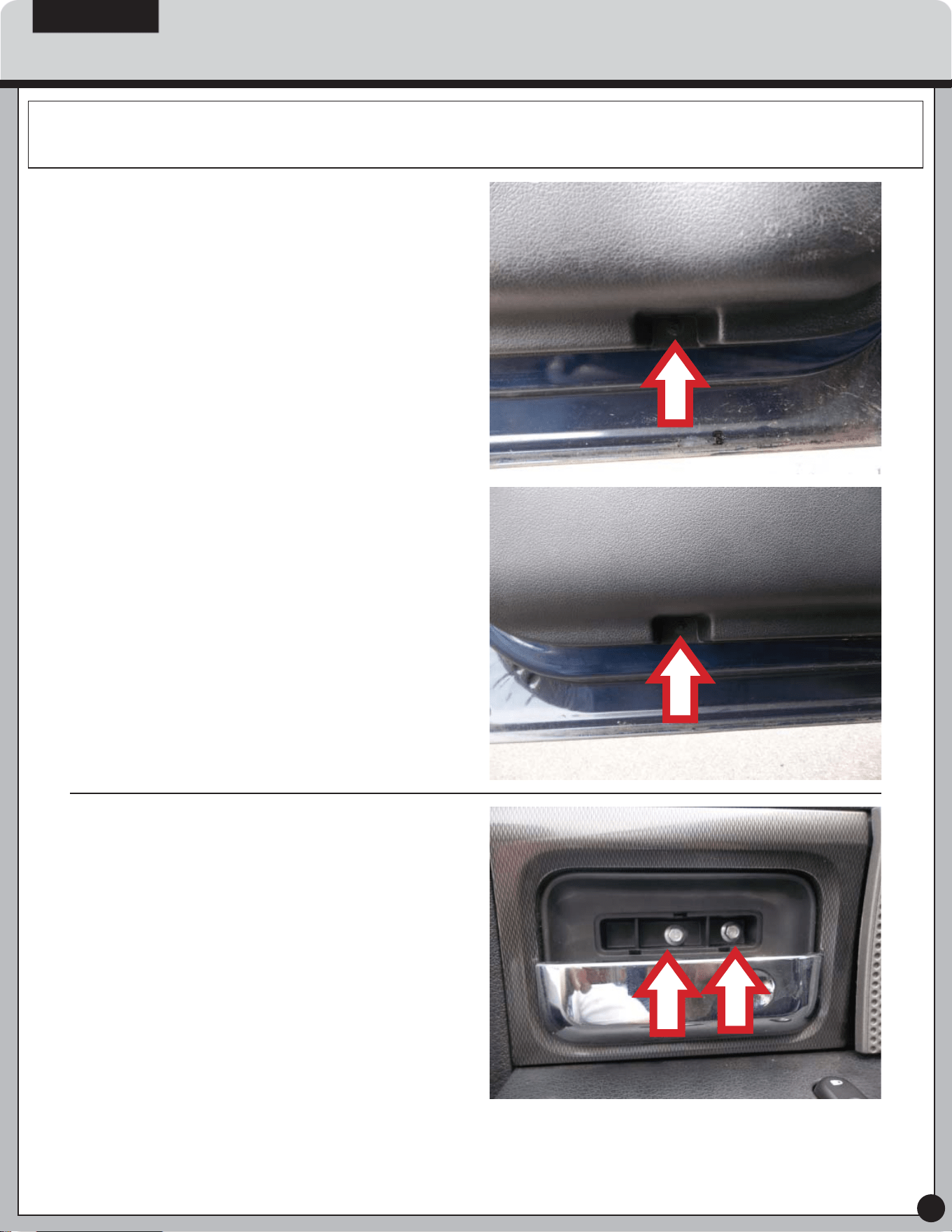

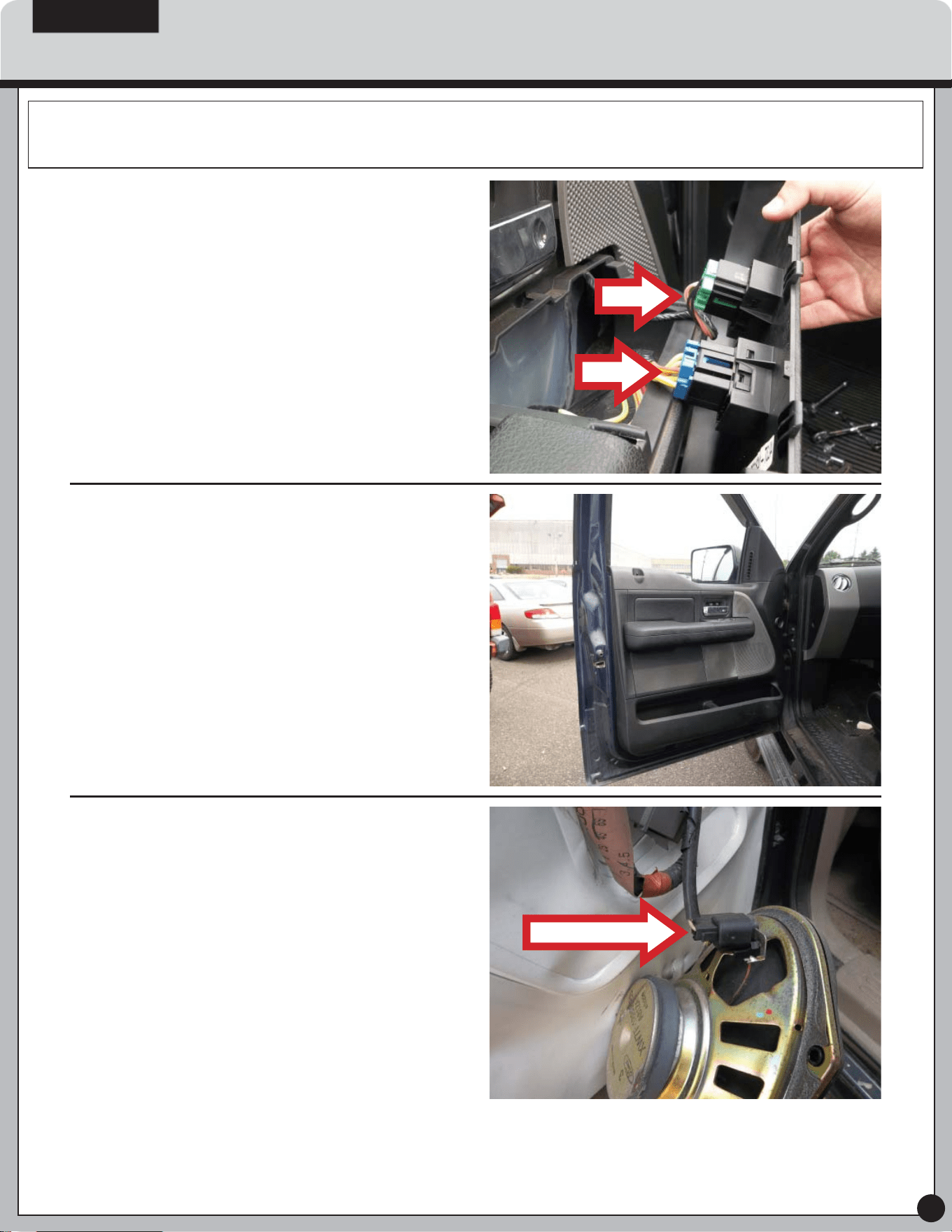

STEP 9: Once you have veri ed that the interior door trim panel retainers have been
removed, lift the interior door trim panel in an upward motion to release the pre-molded
retainers on the backside of the interior door trim panel. NOTE: This vehicle does not use
a traditional interior trim retainer. Failure to lift the interior door trim panel completely
from the door will result in damage to the interior door trim panel.
STEP 10: Once the interior door trim panel has been removed from the door, disconnect
the interior door handle cable assembly.
STEP 8: Once the power switch assembly
has been removed from the interior door
trim panel, disconnect the power
switch assembly.
STEP 11: Remove the water vapor barrier.
INSTALL/REMOVAL INSTRUCTIONS: WINDOW REGULATOR
741-430
Disclaimer:
Even though every attempt is made to ensure this information is complete and accurate, it is impossible to account for all possible circumstances or situations. Please consult with a quali ed auto technician
before attempting to perform any work you are not quali ed to do. Automobiles can be hazardous to work on; be sure to take all necessary safety precautions. Failure to do so may result in property damage
or personal injury. Certain motor vehicle standards and performance requirements may apply to your motor vehicle (such as Federal Motor Vehicle Safety Standards by the National Highway Tra c Safety
Administration). Be sure that your work is performed in accordance with such standards and that you do not disable any motor vehicle safety feature.
ATTENTION: Refer to the appropriate shop manual for your vehicle to obtain speci c service procedures for this part. If you do not have
a service manual or lack the skill to install this part, it is recommended that you seek the services of a quali ed technician. Pay special
attention to all cautions and warnings included in the shop manual. Read and follow all instructions carefully.
6
©2013 Dorman Products, Inc.
No reproductions in whole or in part without prior written approval.

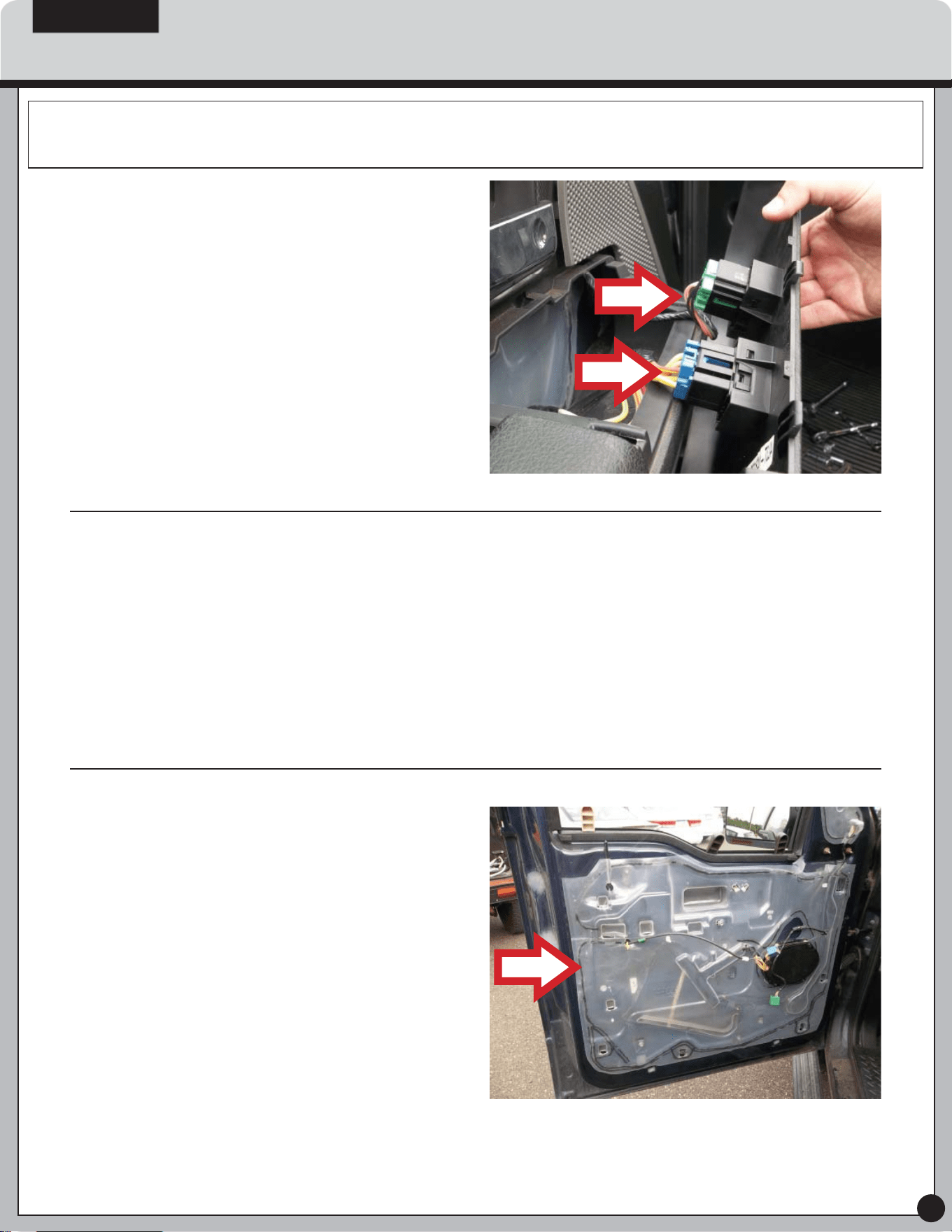

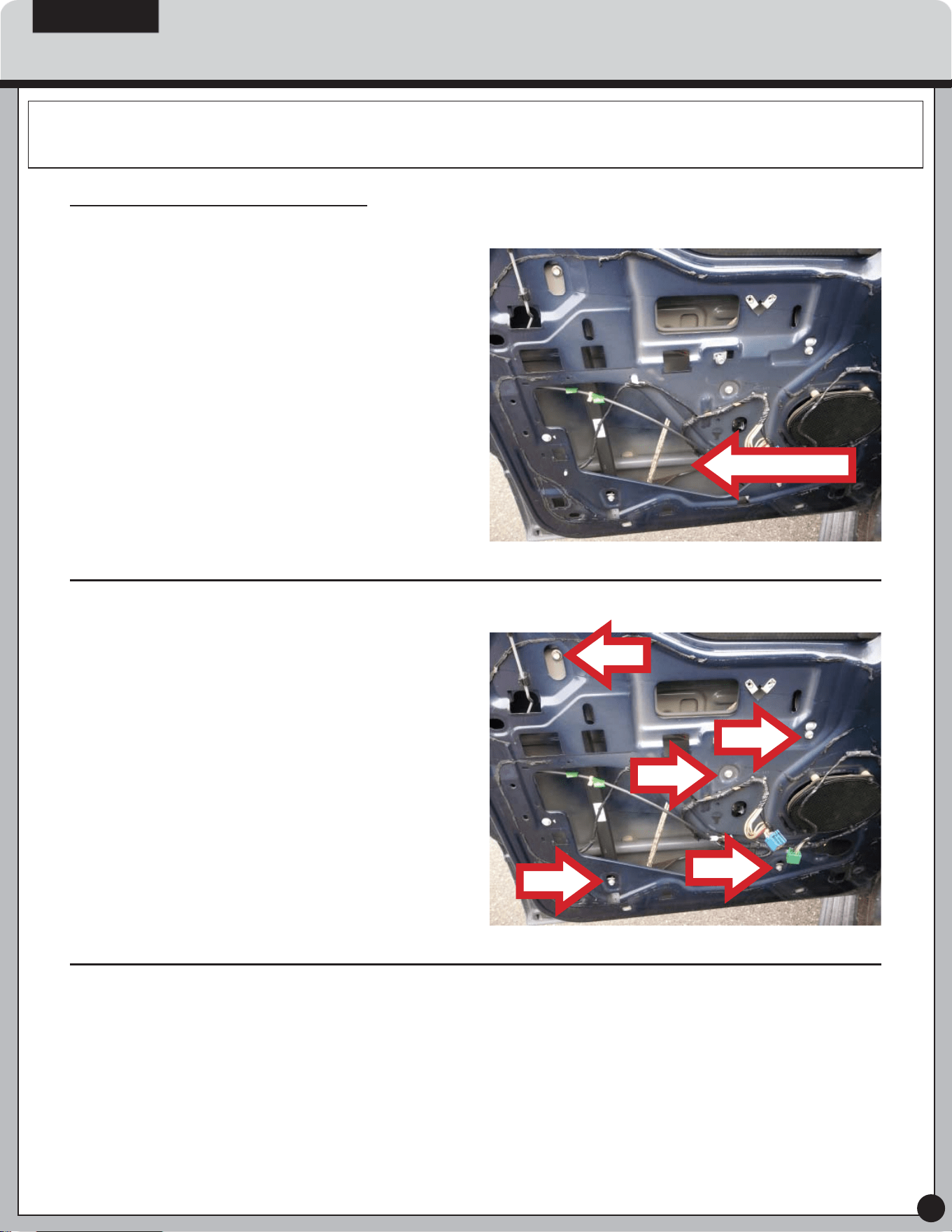

STEP 12: Temporarily connect the power switch assembly and lower the window glass,
exposing the hardware attaching the window glass to the window regulator.
STEP 12a: Using a 10mm socket and ratchet assembly, remove the screws attaching the
window glass to the window regulator. Once the window glass has been disconnected,
manually slide the window glass into the closed position and hold in place with either a
saddle cup assembly, painter’s tape, or a wedge.

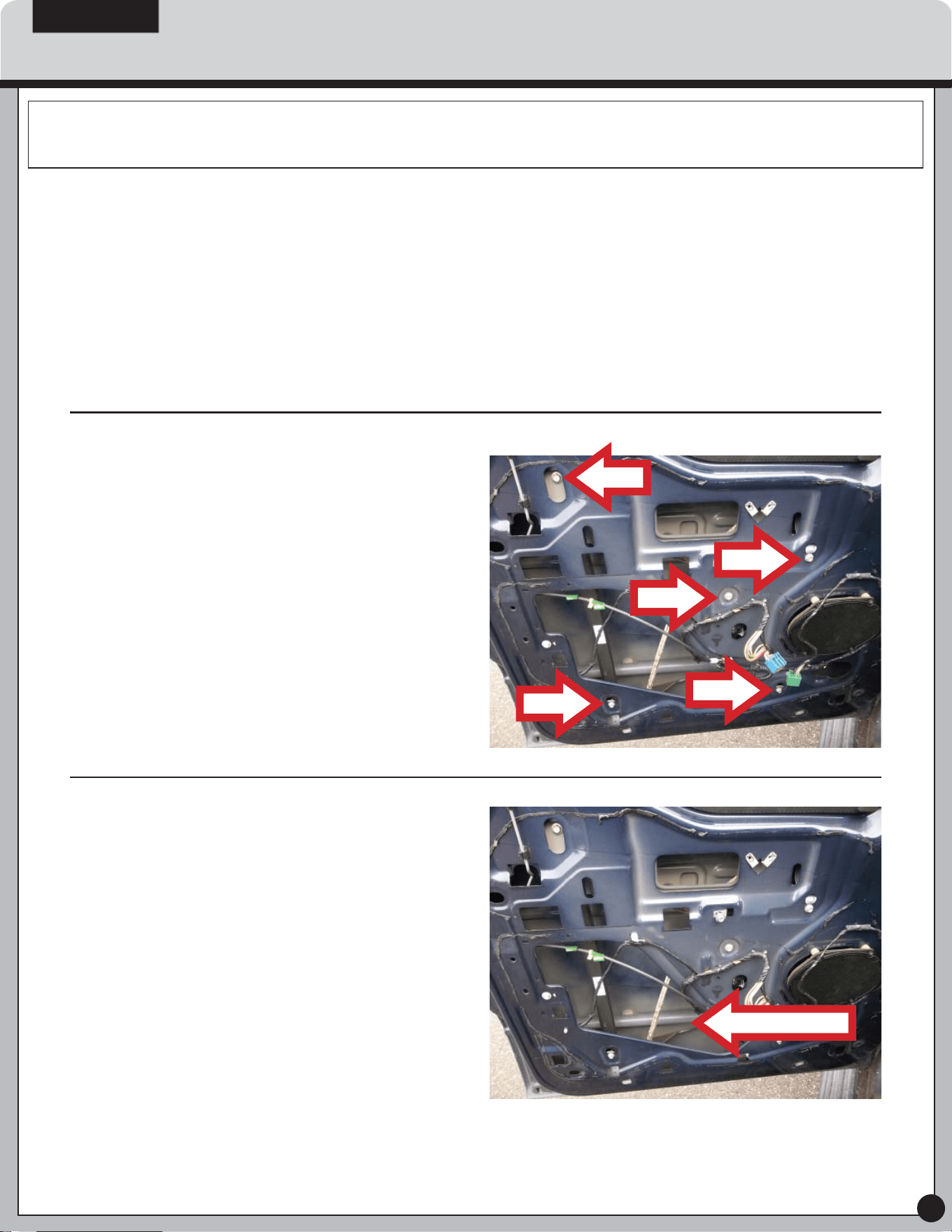

STEP 13: Disconnect the power window motor.
STEP 14: Using a 10mm socket and ratchet
assembly, remove the ve (5) window
regulator attaching screws.
STEP 15: Once the window regulator
attaching screws have been removed,
remove the window regulator through the
main access hole.
INSTALL/REMOVAL INSTRUCTIONS: WINDOW REGULATOR
741-430
Disclaimer:
Even though every attempt is made to ensure this information is complete and accurate, it is impossible to account for all possible circumstances or situations. Please consult with a quali ed auto technician
before attempting to perform any work you are not quali ed to do. Automobiles can be hazardous to work on; be sure to take all necessary safety precautions. Failure to do so may result in property damage
or personal injury. Certain motor vehicle standards and performance requirements may apply to your motor vehicle (such as Federal Motor Vehicle Safety Standards by the National Highway Tra c Safety
Administration). Be sure that your work is performed in accordance with such standards and that you do not disable any motor vehicle safety feature.
ATTENTION: Refer to the appropriate shop manual for your vehicle to obtain speci c service procedures for this part. If you do not have
a service manual or lack the skill to install this part, it is recommended that you seek the services of a quali ed technician. Pay special
attention to all cautions and warnings included in the shop manual. Read and follow all instructions carefully.
7
©2013 Dorman Products, Inc.
No reproductions in whole or in part without prior written approval.
Installation Instructions
STEP 3: Connect the window lift motor.
STEP 1: Install the window regulator
assembly through the main access hole.
STEP 2: Using a 10mm socket and ratchet
assembly, attach the ve (5) window
regulator attaching screws.
INSTALL/REMOVAL INSTRUCTIONS: WINDOW REGULATOR
741-430
Disclaimer:
Even though every attempt is made to ensure this information is complete and accurate, it is impossible to account for all possible circumstances or situations. Please consult with a quali ed auto technician
before attempting to perform any work you are not quali ed to do. Automobiles can be hazardous to work on; be sure to take all necessary safety precautions. Failure to do so may result in property damage
or personal injury. Certain motor vehicle standards and performance requirements may apply to your motor vehicle (such as Federal Motor Vehicle Safety Standards by the National Highway Tra c Safety
Administration). Be sure that your work is performed in accordance with such standards and that you do not disable any motor vehicle safety feature.
ATTENTION: Refer to the appropriate shop manual for your vehicle to obtain speci c service procedures for this part. If you do not have
a service manual or lack the skill to install this part, it is recommended that you seek the services of a quali ed technician. Pay special
attention to all cautions and warnings included in the shop manual. Read and follow all instructions carefully.
8
©2013 Dorman Products, Inc.
No reproductions in whole or in part without prior written approval.

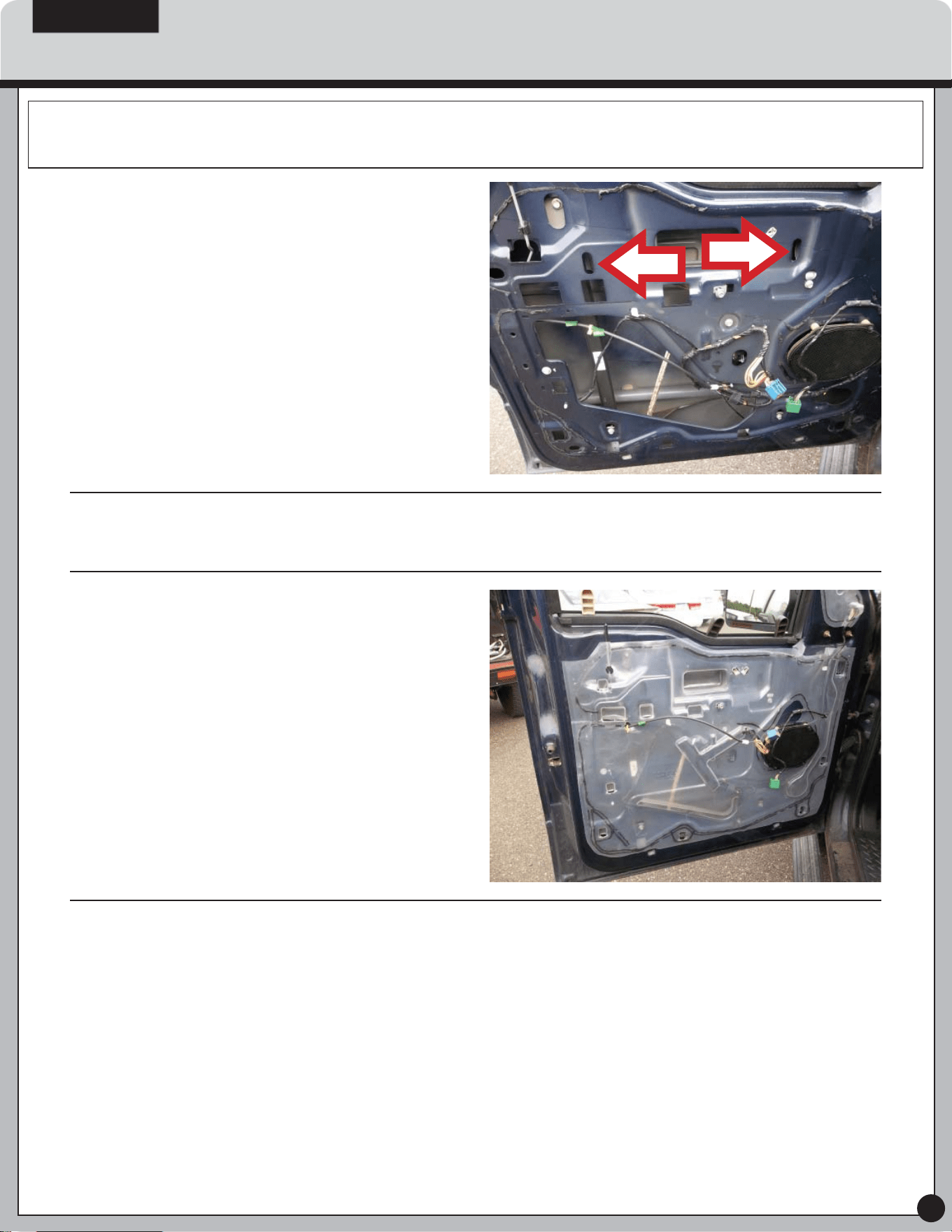

STEP 5: Manually slide the window glass to align the screws attaching the window glass
to the window regulator.
STEP 7: Connect the interior door handle cable to the interior door handle.

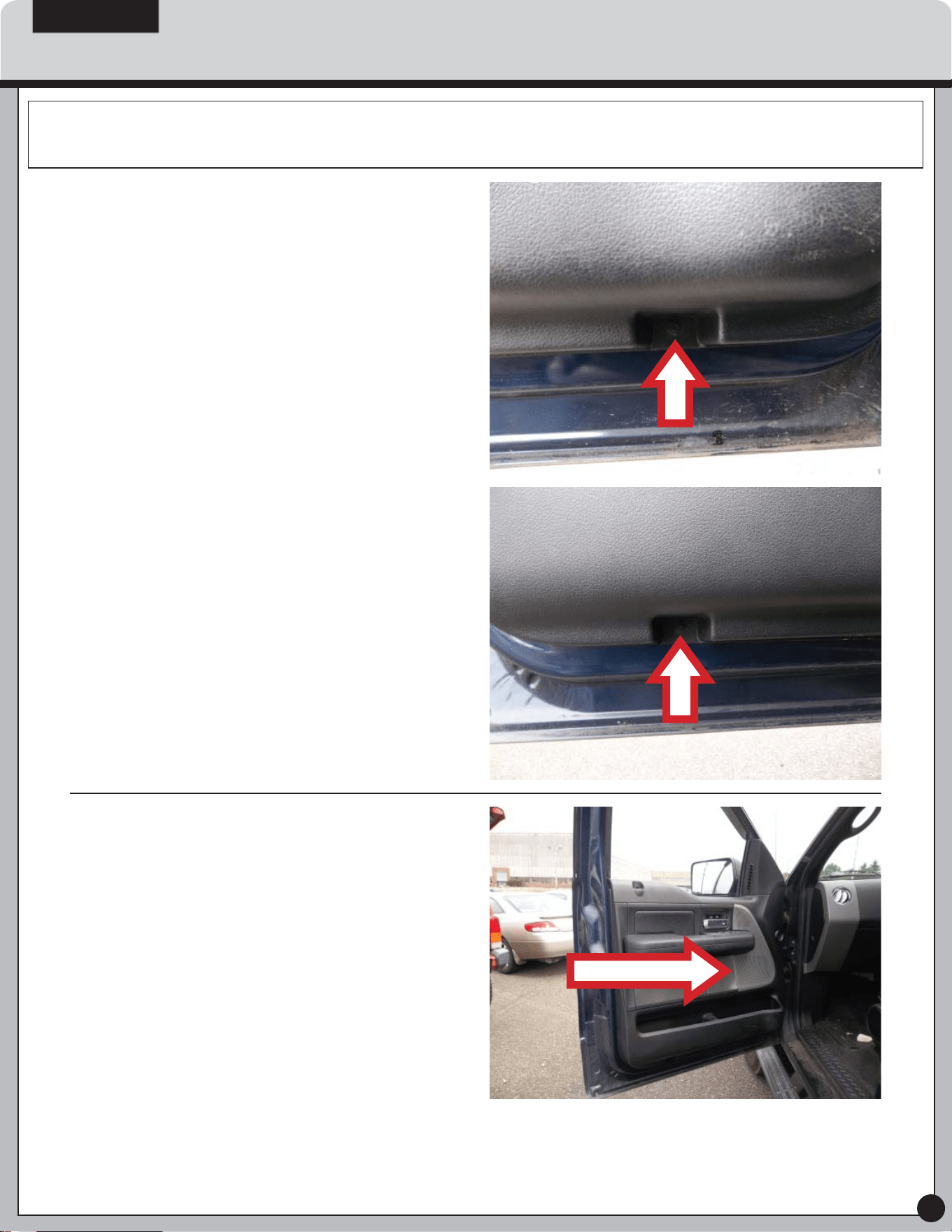

STEP 8: Align the interior door trim panel attaching points to the door. Once the
attaching points are aligned, push and slide the interior door trim panel in a downward
motion. NOTE: Be sure to slide the door lock rod through the opening in the interior door
trim panel. Failure to do so will cause the door lock rod to become trapped inside of the
interior door trim panel.
STEP 4: Temporarily connect the power
switch to raise or lower the regulator,
exposing the bolts attaching the window
glass to the window regulator.
STEP 6: Install the water vapor barrier.
INSTALL/REMOVAL INSTRUCTIONS: WINDOW REGULATOR
741-430
Disclaimer:
Even though every attempt is made to ensure this information is complete and accurate, it is impossible to account for all possible circumstances or situations. Please consult with a quali ed auto technician
before attempting to perform any work you are not quali ed to do. Automobiles can be hazardous to work on; be sure to take all necessary safety precautions. Failure to do so may result in property damage
or personal injury. Certain motor vehicle standards and performance requirements may apply to your motor vehicle (such as Federal Motor Vehicle Safety Standards by the National Highway Tra c Safety
Administration). Be sure that your work is performed in accordance with such standards and that you do not disable any motor vehicle safety feature.
ATTENTION: Refer to the appropriate shop manual for your vehicle to obtain speci c service procedures for this part. If you do not have
a service manual or lack the skill to install this part, it is recommended that you seek the services of a quali ed technician. Pay special
attention to all cautions and warnings included in the shop manual. Read and follow all instructions carefully.
9
©2013 Dorman Products, Inc.
No reproductions in whole or in part without prior written approval.
STEP 9: Pull the power switch wiring harness
through the interior door trim panel and
attach to the power switch assembly.
STEP 10: Attach the power switch assembly
onto the interior door trim panel.
STEP 11: Connect the door speaker.
INSTALL/REMOVAL INSTRUCTIONS: WINDOW REGULATOR
741-430
Disclaimer:
Even though every attempt is made to ensure this information is complete and accurate, it is impossible to account for all possible circumstances or situations. Please consult with a quali ed auto technician
before attempting to perform any work you are not quali ed to do. Automobiles can be hazardous to work on; be sure to take all necessary safety precautions. Failure to do so may result in property damage
or personal injury. Certain motor vehicle standards and performance requirements may apply to your motor vehicle (such as Federal Motor Vehicle Safety Standards by the National Highway Tra c Safety
Administration). Be sure that your work is performed in accordance with such standards and that you do not disable any motor vehicle safety feature.
ATTENTION: Refer to the appropriate shop manual for your vehicle to obtain speci c service procedures for this part. If you do not have
a service manual or lack the skill to install this part, it is recommended that you seek the services of a quali ed technician. Pay special
attention to all cautions and warnings included in the shop manual. Read and follow all instructions carefully.
10
©2013 Dorman Products, Inc.
No reproductions in whole or in part without prior written approval.

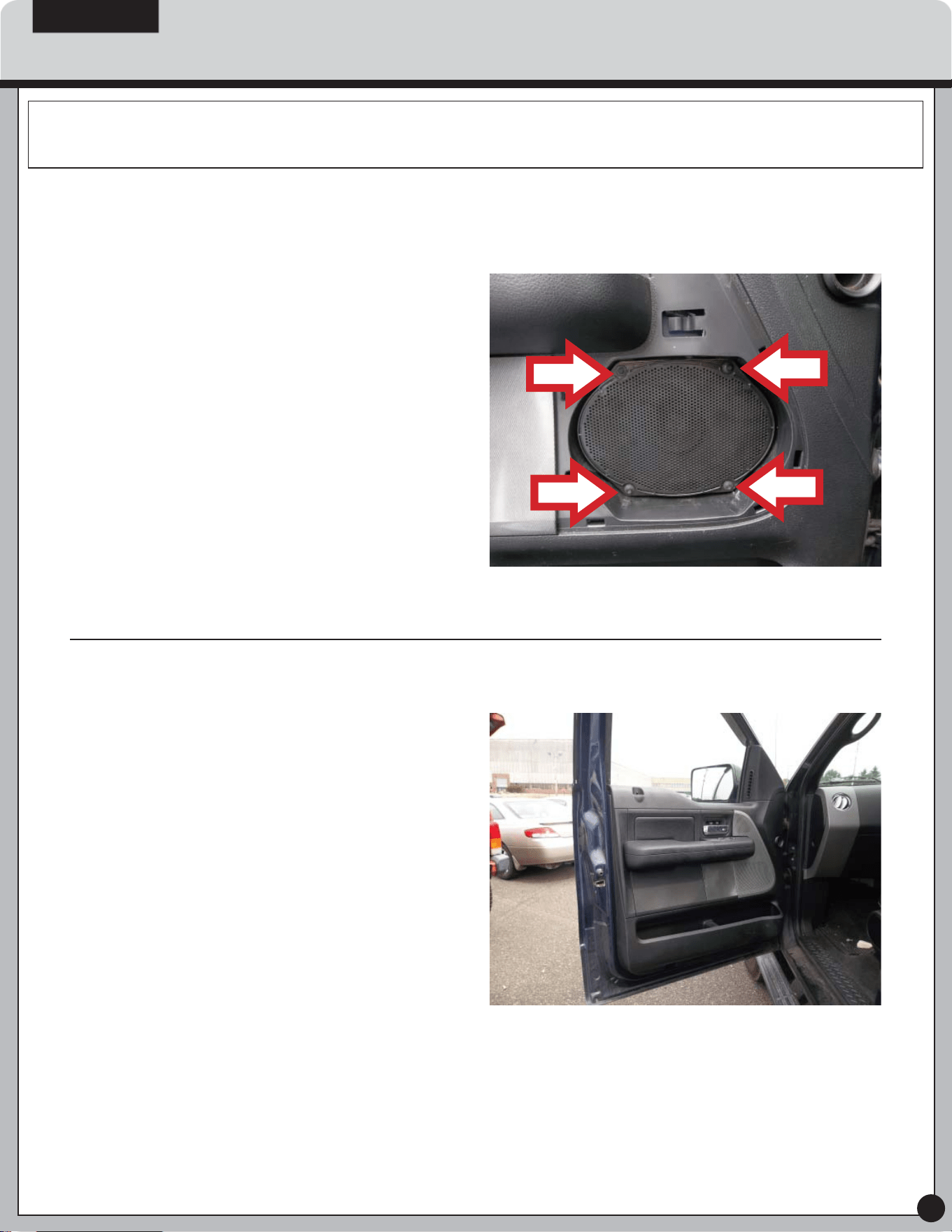

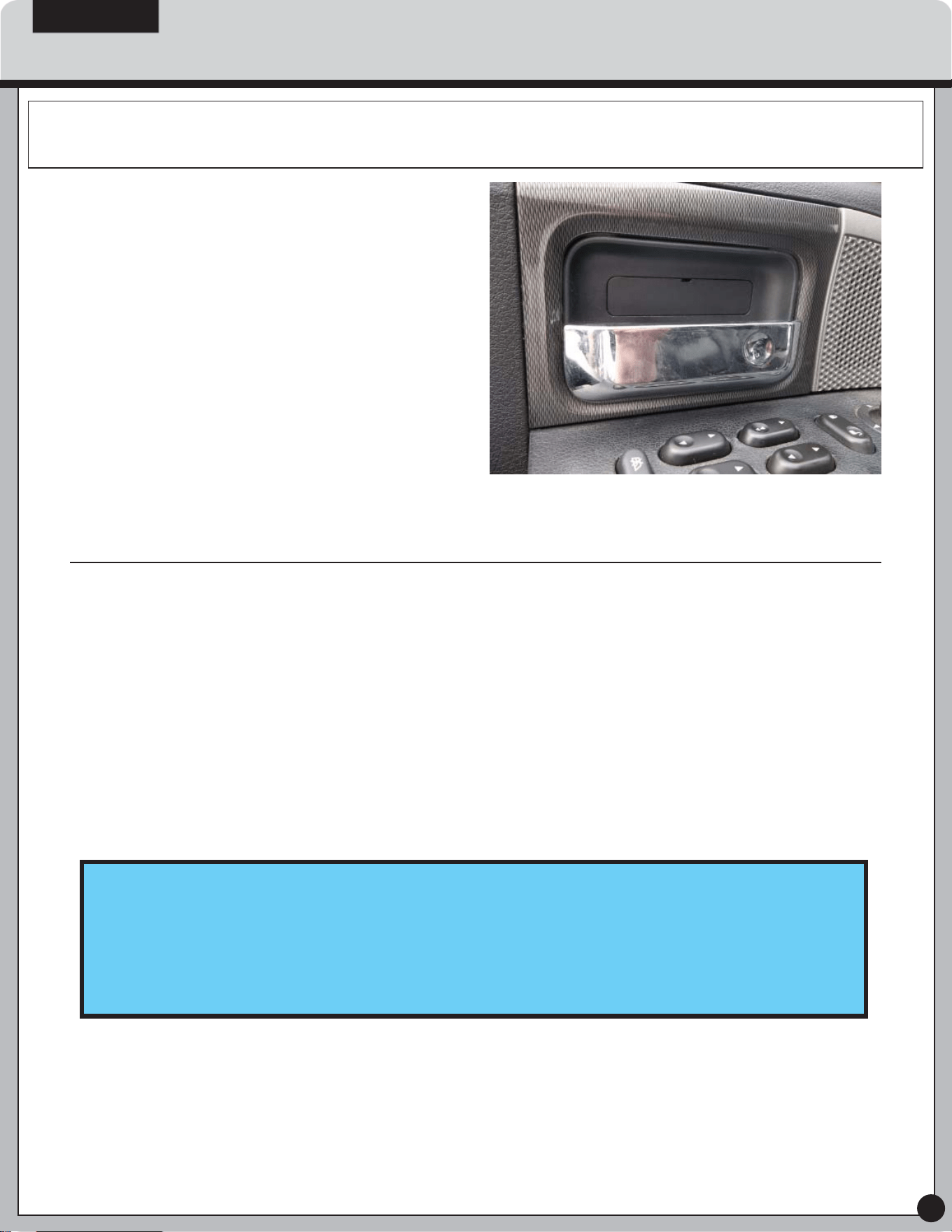

STEP 12: Using a 7mm socket and ratchet
assembly, attach the four (4) door speaker
retaining screws to the interior door
trim panel.
STEP 13: Install the speaker bezel assembly.
NOTE: Be sure to align the bezel assembly
retainers with their corresponding holes.
Failure to do so will cause damage to the
speaker bezel assembly.
INSTALL/REMOVAL INSTRUCTIONS: WINDOW REGULATOR
741-430
Disclaimer:
Even though every attempt is made to ensure this information is complete and accurate, it is impossible to account for all possible circumstances or situations. Please consult with a quali ed auto technician
before attempting to perform any work you are not quali ed to do. Automobiles can be hazardous to work on; be sure to take all necessary safety precautions. Failure to do so may result in property damage
or personal injury. Certain motor vehicle standards and performance requirements may apply to your motor vehicle (such as Federal Motor Vehicle Safety Standards by the National Highway Tra c Safety
Administration). Be sure that your work is performed in accordance with such standards and that you do not disable any motor vehicle safety feature.
ATTENTION: Refer to the appropriate shop manual for your vehicle to obtain speci c service procedures for this part. If you do not have
a service manual or lack the skill to install this part, it is recommended that you seek the services of a quali ed technician. Pay special
attention to all cautions and warnings included in the shop manual. Read and follow all instructions carefully.
11
©2013 Dorman Products, Inc.
No reproductions in whole or in part without prior written approval.
STEP 14: Using a 7mm socket and ratchet
assembly, attach the two (2) interior door
trim panel retaining screws. NOTE: Be sure
to align the interior door trim panel with
the original mounting holes. Failure to do
so could result in a misaligned interior door
trim panel.
STEP 15: Using a 10mm socket and ratchet
assembly, install the two (2) interior door
trim panel retaining screws.
INSTALL/REMOVAL INSTRUCTIONS: WINDOW REGULATOR
741-430
Disclaimer:
Even though every attempt is made to ensure this information is complete and accurate, it is impossible to account for all possible circumstances or situations. Please consult with a quali ed auto technician
before attempting to perform any work you are not quali ed to do. Automobiles can be hazardous to work on; be sure to take all necessary safety precautions. Failure to do so may result in property damage
or personal injury. Certain motor vehicle standards and performance requirements may apply to your motor vehicle (such as Federal Motor Vehicle Safety Standards by the National Highway Tra c Safety
Administration). Be sure that your work is performed in accordance with such standards and that you do not disable any motor vehicle safety feature.
ATTENTION: Refer to the appropriate shop manual for your vehicle to obtain speci c service procedures for this part. If you do not have
a service manual or lack the skill to install this part, it is recommended that you seek the services of a quali ed technician. Pay special
attention to all cautions and warnings included in the shop manual. Read and follow all instructions carefully.
12
©2013 Dorman Products, Inc.
No reproductions in whole or in part without prior written approval.
STEP 16: Verify that all of the interior door trim panel retaining screws are secure and that
the window regulator is operating properly.
STEP 15a: Install the interior door trim panel
retaining screw cover plate.
We appreciate your opinions regarding this product!
Please call our Technical Assistant with any challenges or suggestions
regarding the installation or operation of this product.
1-800-523-2492
