24" CONTEMPORARY OVENS AND
COMPANIONS
PLANNING GUIDE
SERIES 9 SELF-CLEANING OVEN | OB24SACPUDX5
SERIES 9 COMPACT COMBI-STEAM OVEN | OS24NACVUDX5
SERIES 9 COMPACT CONVECTION-SPEED OVEN | OM24NCUDX5
SERIES 9 WARMING DRAWER | WB24SCX3
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 290005573B US-CA PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 2026
CONCEPT DESIGN PAGE
DEVELOPED AND DETAILED DESIGN PAGE DEVELOPED AND DETAILED DESIGN PAGE
DESIGN CHOICE
Styles 4
Contemporary Style 5
Installation Options 6
Overview 7
SPECIFICATION GUIDE
Self-Cleaning Oven 9
Compact Combi-Steam Oven 10
Compact Convection-Speed Oven 11
Warming Drawer 12
Dimensions 13
Services 14
DATA SHEETS

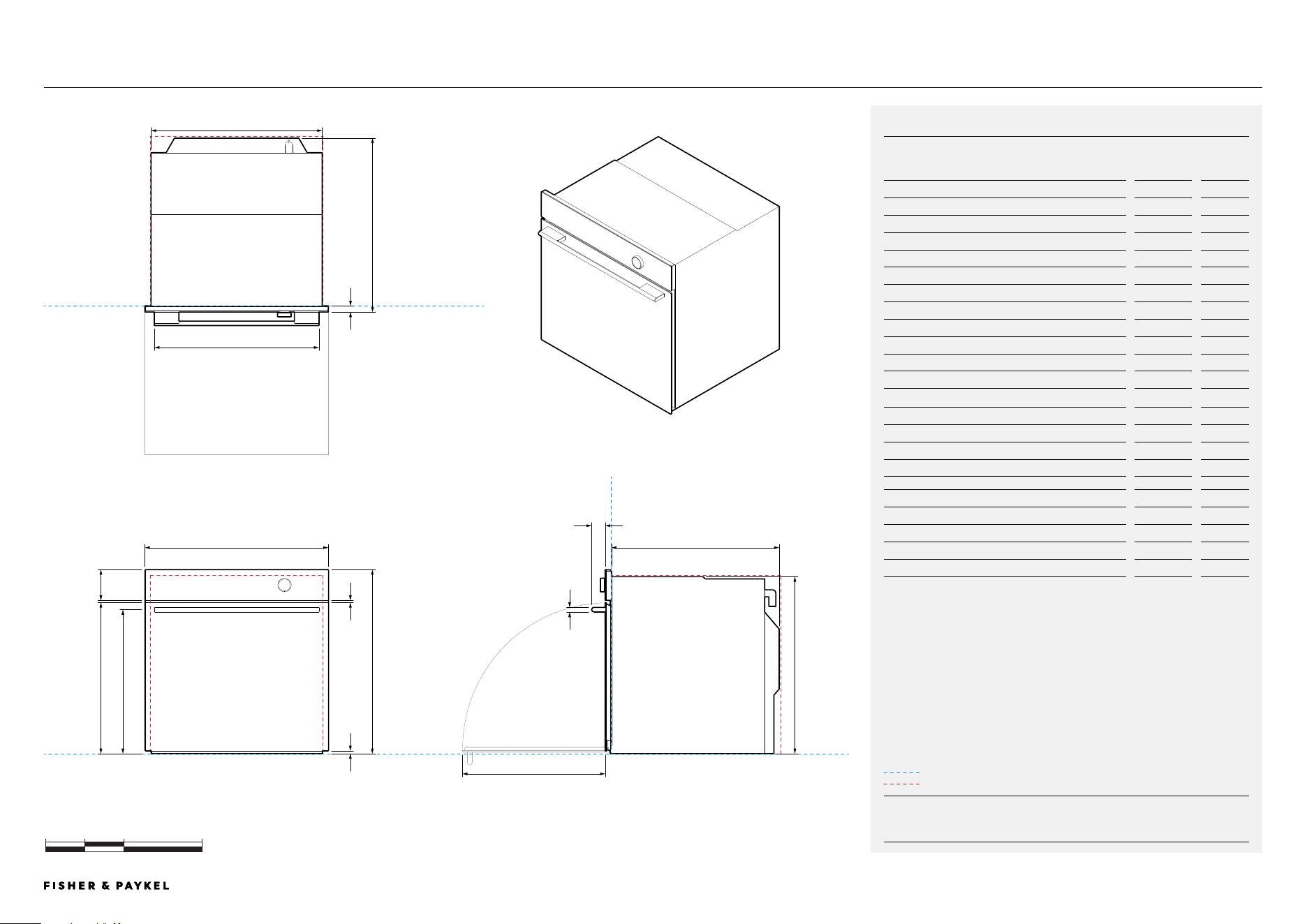

Self-Cleaning Oven 16

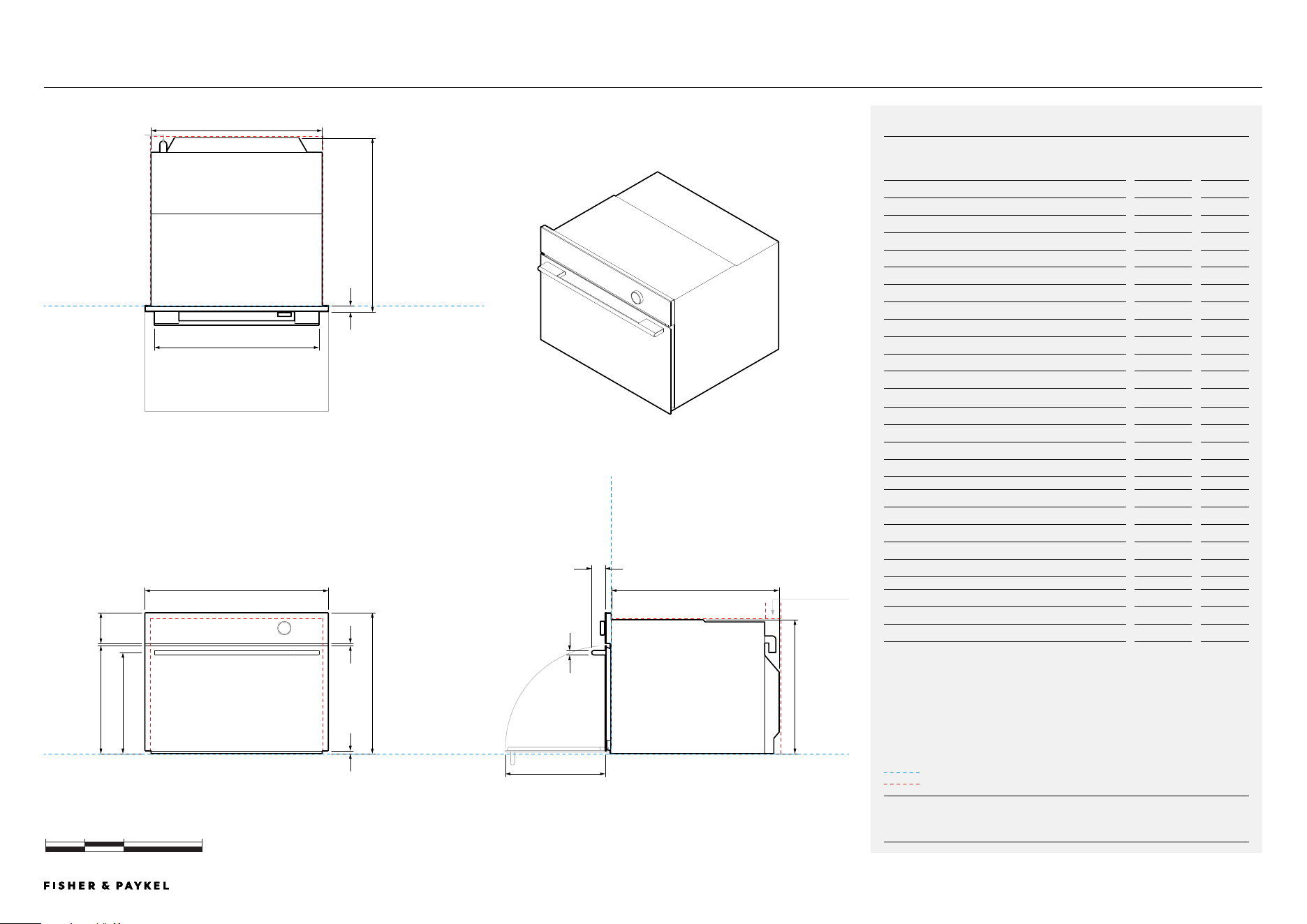

Compact Combi-Steam Oven 17
Compact Convection-Speed Oven 18
Warming Drawer 19
SUPPORT
For additional design planning and installation support please
contact the Fisher & Paykel design support team.
designsupport@fisherpaykel.com
CONTENTS | 24" OVENS AND COMPANIONS
PLANNING CONSIDERATIONS
Cabinetry Preparation 21
Ventilation 22
Stack Height 23
SERVICES
Power Connection and Electrical 25
INTRODUCTION
This comprehensive planning guide provides you with the
framework and tools to achieve your desired design outcome with
Fisher & Paykel appliances. In this guide, you will find a range of
conceptual, detailed, and dimensional product information to bring
your ideas to life and create spaces that truly reflect your vision.
NOTES
The models shown in this Planning Guide may not be available in all
markets and are subject to change at any time. Refer to our website
fisherpaykel.com for the latest document version. Product
specifications may vary from those shown.
This Planning Guide should not be used as installation guidance for
any product. Specific installation guidance will be available with the
product on delivery and on our website.
<< CONTENTS
CONTENTS
PAGE 3© FISHER & PAYKEL APPLIANCES LIMITED 2026PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 202690005573B US-CA
DESIGN CHOICE
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 490005573B US-CA PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
DESIGN CHOICE | 24" OVENS AND COMPANIONS STYLES
This Planning Guide is for the Contemporary Style featuring 24"
Ovens and Companions. For information on other styles, please visit
the Fisher and Paykel website. To see what models are available,
head to the 'Overview' section in this Planning Guide.
MINIMAL STYLE MINIMAL STYLE - HANDLELESS CONTEMPORARY STYLE
Celebrating a singular aesthetic to blend seamlessly into the kitchen, Minimal style ovens feature subtle textural and tonal contrasts for a sense of
refinement and purity.
Defined by clean lines and timeless design cues, Contemporary style
ovens bring a sense of balance and refinement. A versatile aesthetic
that complements a range of kitchen styles.
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 590005573B US-CA PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

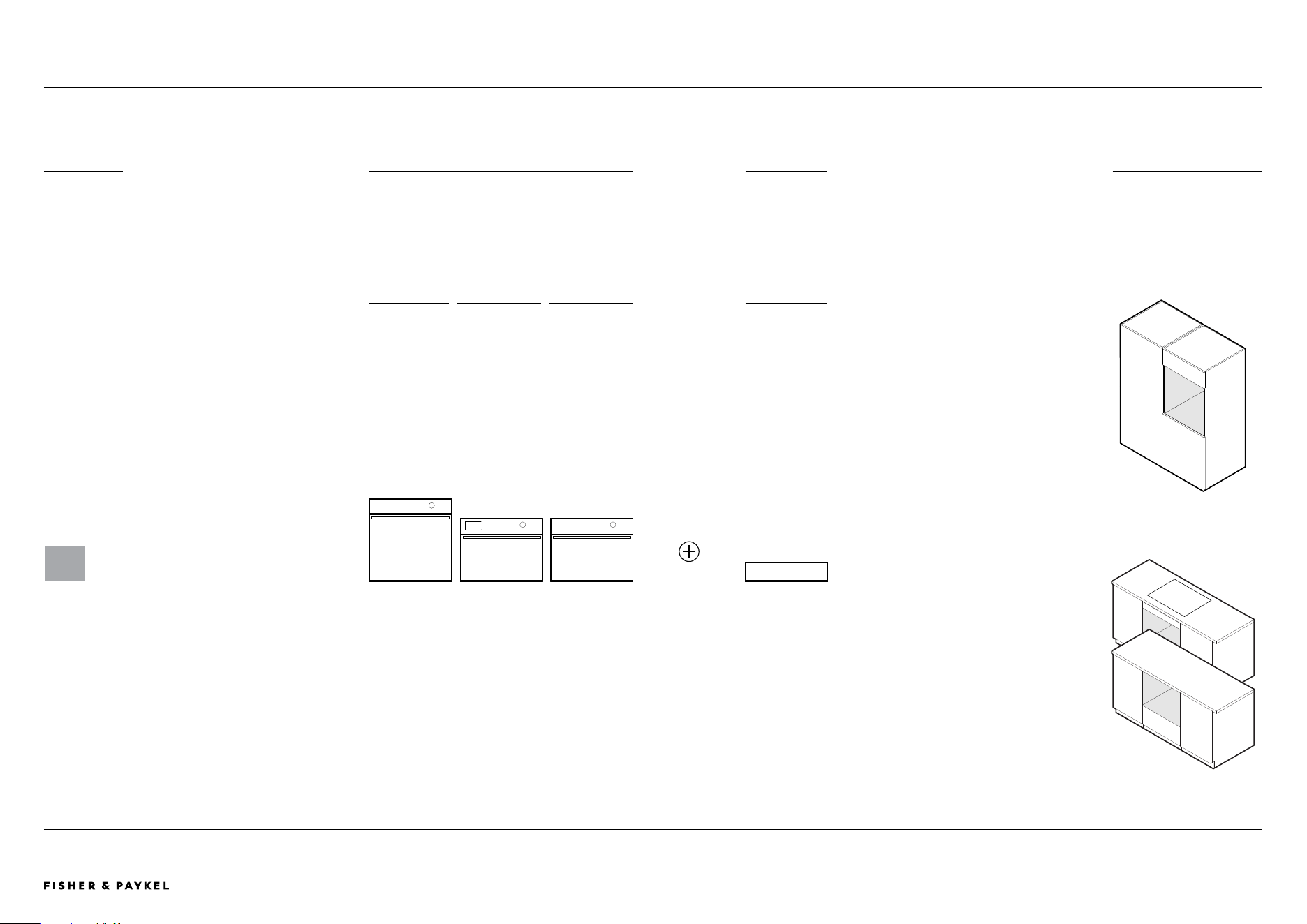

CONTEMPORARY STYLEDESIGN CHOICE | 24" OVENS AND COMPANIONS
Brushed
Silver Glass
Installation in wall
Installation under-bench
FINISH OVENS COMPANIONS INSTALLATION OPTIONS
SELF-
CLEANING COMBI-STEAM
CONVECTION-
SPEED
WARMING
DRAWER
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 690005573B US-CA PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
INSTALLATION OPTIONSDESIGN CHOICE | 24" OVENS AND COMPANIONS
CONSIDERATIONS
Different configurations possible, consider
heights for grid and row installations.
STACK HEIGHT
Stack Height is overall product height with
minimum clearance above appliance front panel
to upper cabinetry front panel or appliance.
STACKED INSTALLATION GRID INSTALLATION ROW INSTALLATION
Stack Height
36 7/32" (920mm)
Stack Height
23 5/8" (600mm)
Stack Height
23 5/8" (600mm)
Stack Height
47 1/4" (1200mm)
Stack Height
41 3/4" (1060mm)
Stack Height
23 5/8" (600mm)
Stack Height
23 5/8" (600mm)
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 790005573B US-CA PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

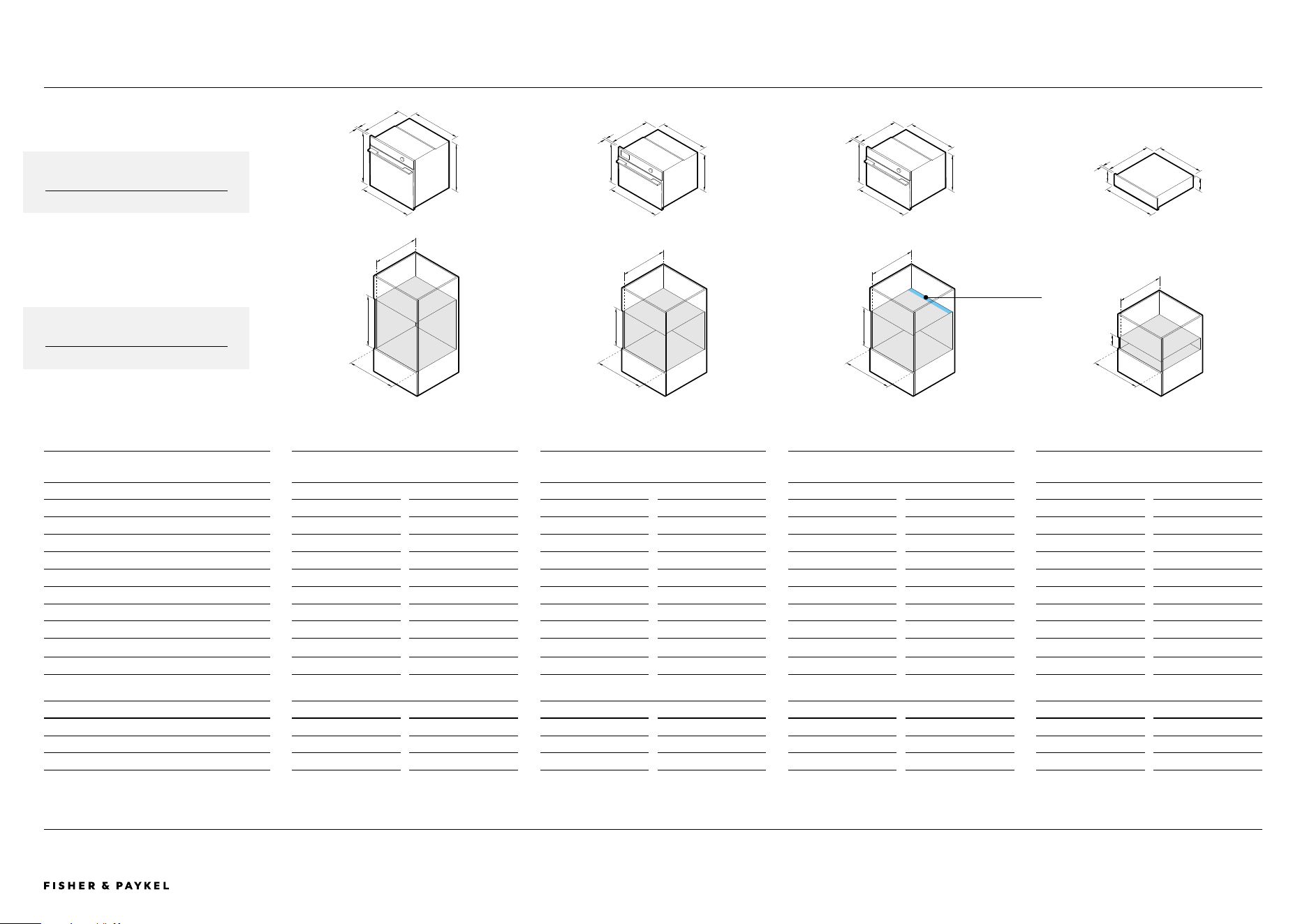

OVERVIEWDESIGN CHOICE | 24" OVENS AND COMPANIONS
SIDE ELEVATION
FRONT ELEVATION
SELF-CLEANING OVEN COMPACT COMBI-STEAM OVEN COMPACT CONVECTION-SPEED OVEN WARMING DRAWER
Series Series 9 Series 9 Series 9 Series 9
Brushed Silver Glass Models OB24SACPUDX5 OS24NACVUDX5 OM24NCUDX5 WB24SCX3
Interface 6.8" Touchscreen 6.8" Touchscreen 6.8" Touchscreen -
Overall Height 23 9/16" (598mm) 18" (458mm) 18" (458mm) 5 1/2" (140mm)
Overall Width 23 7/16" (596mm) 23 7/16" (596mm) 23 7/16" (596mm) 23 7/16" (596mm)
Control Panel/Front Panel Thickness 13/16" (20mm) 13/16" (20mm) 13/16" (20mm) 13/16" (20mm)
<< CONTENTS
PAGE 8© FISHER & PAYKEL APPLIANCES LIMITED 2026PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 202690005573B US-CA
SPECIFICATION GUIDE
SERIES 9
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 990005573B US-CA PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
OB24SACPUDX5SPECIFICATION GUIDE | SELF-CLEANING OVEN, 24"
OVERVIEW
Designed to be distinctive and timeless, this Contemporary oven
matches with our Contemporary style family of appliances. The
pyrolytic self-cleaning function breaks down food residue for an
easy clean, while precise cooking methods with temperature and
heat type recommendations for a wide range of food types are
easily accessed via the large touch screen and SmartHQ™.
PRODUCTS
OB24SACPUDX5
24" Series 9 Contemporary Self-Cleaning Oven
SERIES & STYLE
Series 9
Contemporary
FEATURES
1 Contemporary style is distinctive and timeless. Designed to
match with our Contemporary style family of appliances
2 Self-cleaning pyrolytic function breaks down food residue for an
easy clean
3 Premium soft open and close door
4 Generous 2.5 cu ft useable capacity
5 Large 6.8" touchscreen is intuitive and easy to use
6 Create perfect results with precise cooking methods, with
temperature and heat type recommendations for your food type
7 Moisture control and even heat distribution thanks to
ActiveVent™ and AeroTech™ technology
8 Includes a wired temperature sensor for real-time monitoring of
cooking temperatures
9 Connected capability via the SmartHQ™ app gives control &
visibility from anywhere at anytime
ACCESSORIES
1 Self-cleaning Proof Side Ladders
2 Full Extension Sliding Shelf (x2)
3 Multi-functional Air Fry Tray
4 Roasting Dish
5 Wired Temperature Sensor
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1090005573B US-CA PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

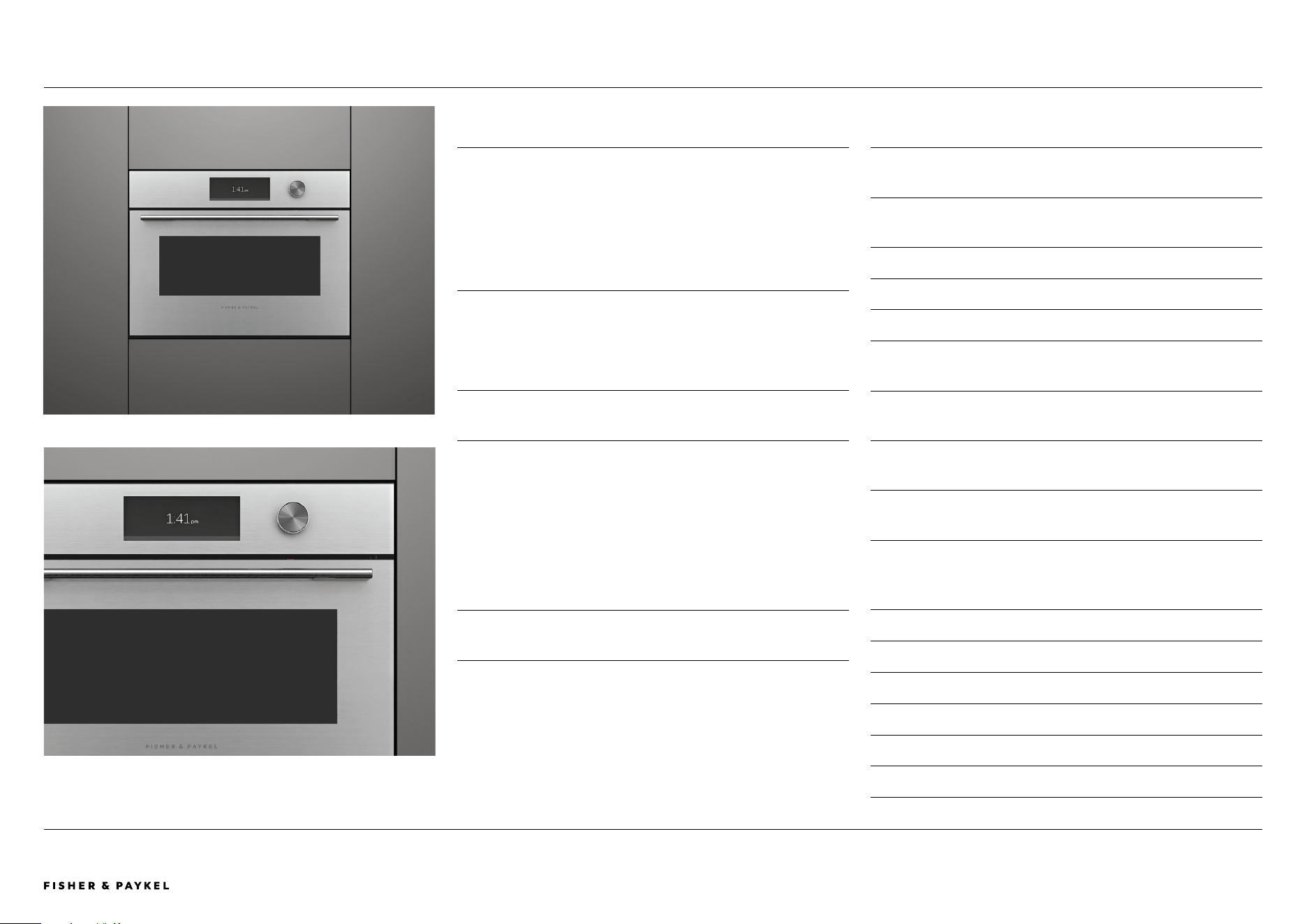

OS24NACVUDX5SPECIFICATION GUIDE | COMPACT COMBI-STEAM OVEN, 24"
OVERVIEW
Designed to be distinctive and timeless, this Combi-Steam oven
matches with our Contemporary style family of appliances. With
versatile cooking options including steam or convection, plus a
Steam Clean function for easy maintenance. Precise cooking
methods with temperature and heat type recommendations for a
wide range of food types are easily accessed via the large touch
screen and SmartHQ™.
PRODUCTS
OS24NACVUDX5
24" Series 9 Contemporary Compact Combi-Steam Oven
SERIES & STYLE
Series 9
Contemporary
FEATURES
1 Contemporary style is distinctive and timeless. Designed to
match with our Contemporary style family of appliances
2 Versatile cooking options with steam or convection heat for
optimal results
3 Premium soft open and close door
4 Compact 1.6 cu ft useable capacity
5 Large 6.8" touchscreen is intuitive and easy to use
6 Create perfect results with precise cooking methods, with
temperature and heat type recommendations for your food type
7 Moisture control and even heat distribution thanks to
ActiveVent™ and AeroTech™ technology
8 Steam Clean function ensures a spotless oven with minimal
effort
9 Includes a wired temperature sensor for real-time monitoring of
cooking temperatures
10 Connected capability via the SmartHQ™ app gives control &
visibility from anywhere at anytime
ACCESSORIES
1 Chrome Side Ladders
2 Full Extension Sliding Shelf
3 Wire Shelf
4 Multi-functional Air Fry Tray
5 Roasting Dish
ACCESSORIES
6 Large Perforated Steam Dish
7 Small Perforated Steam Dish
8 Large Steam Dish
9 Wired Temperature Sensor
10 Descale Solution x2 sachets (Part 580295)
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1190005573B US-CA PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
OM24NCUDX5SPECIFICATION GUIDE | COMPACT CONVECTION-SPEED OVEN, 24"
OVERVIEW
Designed to be distinctive and timeless, this Convection-Speed
oven matches with our Contemporary style family of appliances.
Versatile cooking options including microwave or convection offer
efficient heating across a variety of dishes. Precise cooking
methods with temperature and heat type recommendations for a
wide range of food types are easily accessed via the large touch
screen and SmartHQ™.
PRODUCTS
OM24NCUDX5
24" Series 9 Contemporary Compact Convection-Speed Oven
SERIES & STYLE
Series 9
Contemporary
FEATURES
1 Contemporary style is distinctive and timeless. Designed to
match with our Contemporary style family of appliances
2 Combines fast microwave cooking with even convection heat for
versatile, efficient heating across a variety of dishes
3 Premium soft open and close door
4 Compact 1.3 cu ft useable capacity
5 Large 6.8" touchscreen is intuitive and easy to use
6 Create perfect results with precise cooking methods, with
temperature and heat type recommendations for your food type
7 Versatile microwave only, convection only or combi-microwave
functions to suit a range of cooking styles
8 Includes a wired temperature sensor for real-time monitoring of
cooking temperatures
9 Connected capability via the SmartHQ™ app gives control &
visibility from anywhere at anytime
ACCESSORIES
1 Chrome Side Ladders
2 Wire Shelf
3 Step Down Wire Shelf
4 Glass Tray
5 Broil Rack
6 Wired Temperature Sensor
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1290005573B US-CA PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

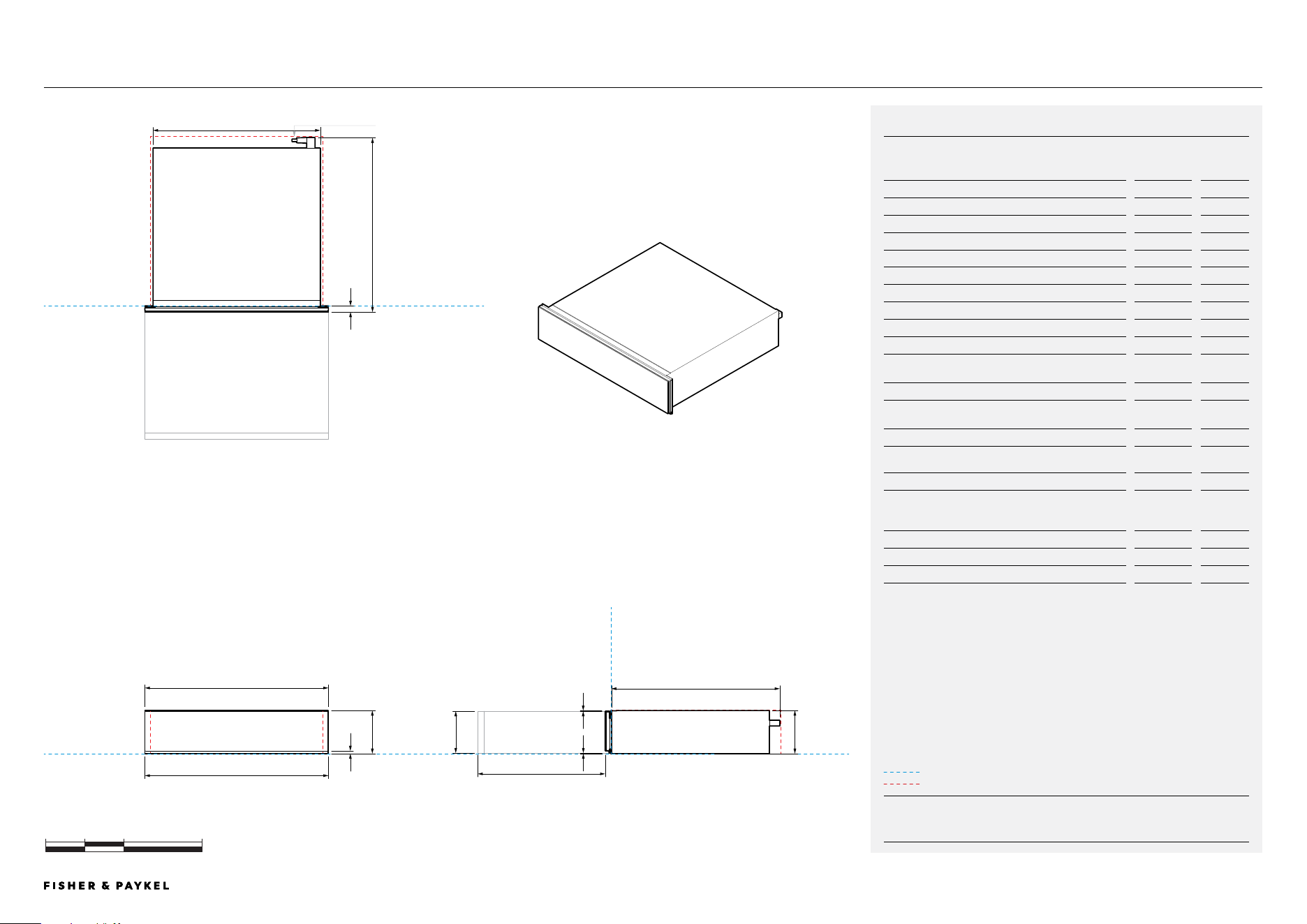

WB24SCX3SPECIFICATION GUIDE | WARMING DRAWER, 24"
FEATURES
1 Contemporary style is distinctive and timeless. Designed to
match with our Contemporary style family of appliances
2 Push-to-open drawer, designed for added convenience
3 Simple and intuitive touch controls for effortless operation
4 Easy-to-clean glass base
5 Automatic switch-off and delayed start functionality to help
keep dishes warm until it is time to serve
6 Room for 6 standard-sized place settings
7 Six tailored programmes including Warming, Proofing,
Dehydrating, and Slow Cooking offer convenience and flexibility
OVERVIEW
Designed to be distinctive and timeless, this Warming Drawer
matches with our Contemporary style family of appliances.
Featuring a push-to-open mechanism, intuitive touch controls, and
a smooth glass base for easy cleaning. With six tailored
programmes and space for 6 place settings, it keeps meals ready to
serve.
PRODUCTS
WB24SCX3
24" Series 9 Contemporary Warming Drawer
SERIES & STYLE
Series 9
Contemporary
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1390005573B US-CA PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
SPECIFICATION GUIDE | 24" OVENS AND COMPANIONS
SELF-CLEANING OVEN
OB24SACPUDX5
COMPACT COMBI-STEAM OVEN
OS24NACVUDX5
COMPACT CONVECTION-SPEED OVEN
OM24NCUDX5
WARMING DRAWER
WB24SCX3
PRODUCT DIMENSIONS inch mm inch mm inch mm inch mm
A Overall product height
23 9/16 598 18 458 18 458 5 1/2 140
B Overall product width
23 7/16 596 23 7/16 596 23 7/16 596 23 7/16 596
C Chassis height
22 5/8 575 17 1/8 435 17 1/8 435 5 1/2 140
D Chassis width
21 7/8 556 21 7/8 556 21 7/8 556 21 3/8 543
E Chassis depth
21 7/16 545 21 7/16 545 21 7/16 545 21 9/17* 547*
F Front frame depth (excludes handle)
13/16 20 13/16 20 13/16 20 13/16 20
Front panel height - - - - - - 5 3/8 136
Front panel width - - - - - - 23 7/16 596
Door open depth at 90º (from product front)
18 1/4 463 12 3/4 324 12 3/4 324 - -
Drawer extension - - - - - - max 16 5/16 max 414
*Including power plug.
CAVITY DIMENSIONS inch mm inch mm inch mm inch mm
G Cavity height
min 22 13/16 min 580 min 17 5/16 min 440 min 17 5/16 min 440
min 5 9/16 min 142
H Cavity width
min 22 1/16 min 560 min 22 1/16 min 560 min 22 1/16 min 560
min 22 1/16 min 560
I Cavity depth (from chassis front datum)
min 21 5/8 min 550 min 21 5/8 min 550 min 21 5/8* min 550*
min 21 5/8 min 550
*Minimum total ventilation area of 43.4in (280cm
2
) is required. The ventilation opening must be located at the rear of the cavity and may be positioned at the base, sides, or top of the cavity.
Note: 24" Fisher & Paykel ovens can be installed directly onto the drawer. An intermediate shelf is not required.
CAVITY DIMENSIONS
PRODUCT DIMENSIONS
A
B
C
D
E
F
G
H
I
Ventilation
required
A
B
C
D
E
F
G
H
I
A
B
C
D
E
F
G
H
I
ALL MODELS
A
B
C
D
E
F
G
H
I
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1490005573B US-CA PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
ALL MODELS
SELF-CLEANING OVEN
OB24SACPUDX5
COMPACT COMBI-STEAM OVEN
OS24NACVUDX5
COMPACT CONVECTION-SPEED OVEN
OM24NCUDX5
WARMING DRAWER
WB24SCX3
PRODUCT REQUIREMENTS
Dedicated Circuit (A) 20 20 20 15
Rated Power (W) 4200 / 3200 4200 / 3200 3300 / 3900 930
Supply (Hz) 60 60 60 60
Voltage (V) 208 / 240 208 / 240 208 / 240 120
Connection
Hard-wired
48" (1220mm)*
Hard-wired
48" (1220mm)*
Hard-wired
70 7/8" (1800mm)*
Flex cord
70 7/8" (1800mm)*
*Supplied with product.
Note: For multi-residential installations, use the Rated Power to calculate the demand.
CAPACITY
Total Oven capacity 3cu ft (85L) 1.94cu ft (55L) 1.7cu ft (49L) -
Total water tank capacity - 23 fl oz (0.67L) - -
Note: All Coffee Makers have internal water tanks which need to be filled manually. No external water supply is required.
WEIGHTS
Packaged 115lb (52kg) 106lb (48kg) 106lb (48kg) 40lb (18kg)
Unpackaged 99lb (45kg) 82lb (37kg) 84lb (38kg) 37lb (17kg)
SERVICES | 24" OVENS AND COMPANIONS
ISOMETRIC VIEW
<< CONTENTS
PAGE 15© FISHER & PAYKEL APPLIANCES LIMITED 2026PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 202690005573B US-CA
DATA SHEETS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1690005573B US-CA PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 2026
INDICATES PRODUCT DATUM
INDICATES CABINETRY CLEARANCES
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16''). Please read
the installation manual for detailed information on installing the product. For full installation
instructions & specifications visit fisherpaykel.com
OB24SACPUDX5DATA SHEET | SELF-CLEANING OVEN, 24"
Model no:
OB24SACPUDX5 24" Series 9 Contemporary Self-Cleaning Oven
Product Dimensions inch mm
A Overall product height 23 9/16 598
B Overall product width 23 7/16 596
C Overall product depth (excludes handle)
22 1/4
565
D Front frame depth (excludes handle)
13/16
20
E Chassis height 22 5/8 575
F Chassis width 21 7/8 556
G Chassis depth 21 7/16 545
H Control panel height
3 15/16
100
I Door-to-control panel gap
9/32
7
J Door upper edge height (from chassis base datum)
19 5/16
491
K Door lower edge height (from chassis base datum)
3/8
9
L Door open depth at 90° (from product front)
8 1/4
463
M Handle centreline height (from chassis base datum)
18 7/16
468
N Handle width
21 1/16
535
O Handle depth (projection)
1 3/4
44
P Handle thickness
5/8
15
Minimum Clearances inch mm
Cavity height min 22 13/16
min 580
Cavity width min 22 1/16
min 560
Cavity depth (from chassis front datum) min 21 5/8
min 550
Front frame clearance - top & sides
min 1/16
min 2
0 5 10 20
Inches
POWER OUTLET LOCATION
PROFILE VIEWFRONT VIEW
DATUM: BOTTOM OF CHASSIS
DATUM: FRONT OF CHASSIS
DATUM: FRONT OF CHASSIS
PLAN VIEW
A
B
E
F
G
D
H
I
J
K
M
P
N
O
L
C
23 7/16" (596mm)
23 9/16" (598mm)
22 1/4" (565mm)
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1790005573B US-CA PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 2026
INDICATES PRODUCT DATUM
INDICATES CABINETRY CLEARANCES
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16''). Please read
the installation manual for detailed information on installing the product. For full installation
instructions & specifications visit fisherpaykel.com
PLAN VIEW
POWER OUTLET LOCATION
PROFILE VIEWFRONT VIEW
DATUM: BOTTOM OF CHASSIS
DATUM: FRONT OF CHASSIS
DATUM: FRONT OF CHASSIS
A
B
E
F
G
D
H
I
J
K
M
P
N
O
L
C
23 7/16" (596mm)
18" (458mm)
22 1/4" (565mm)
0 5 10 20
Inches

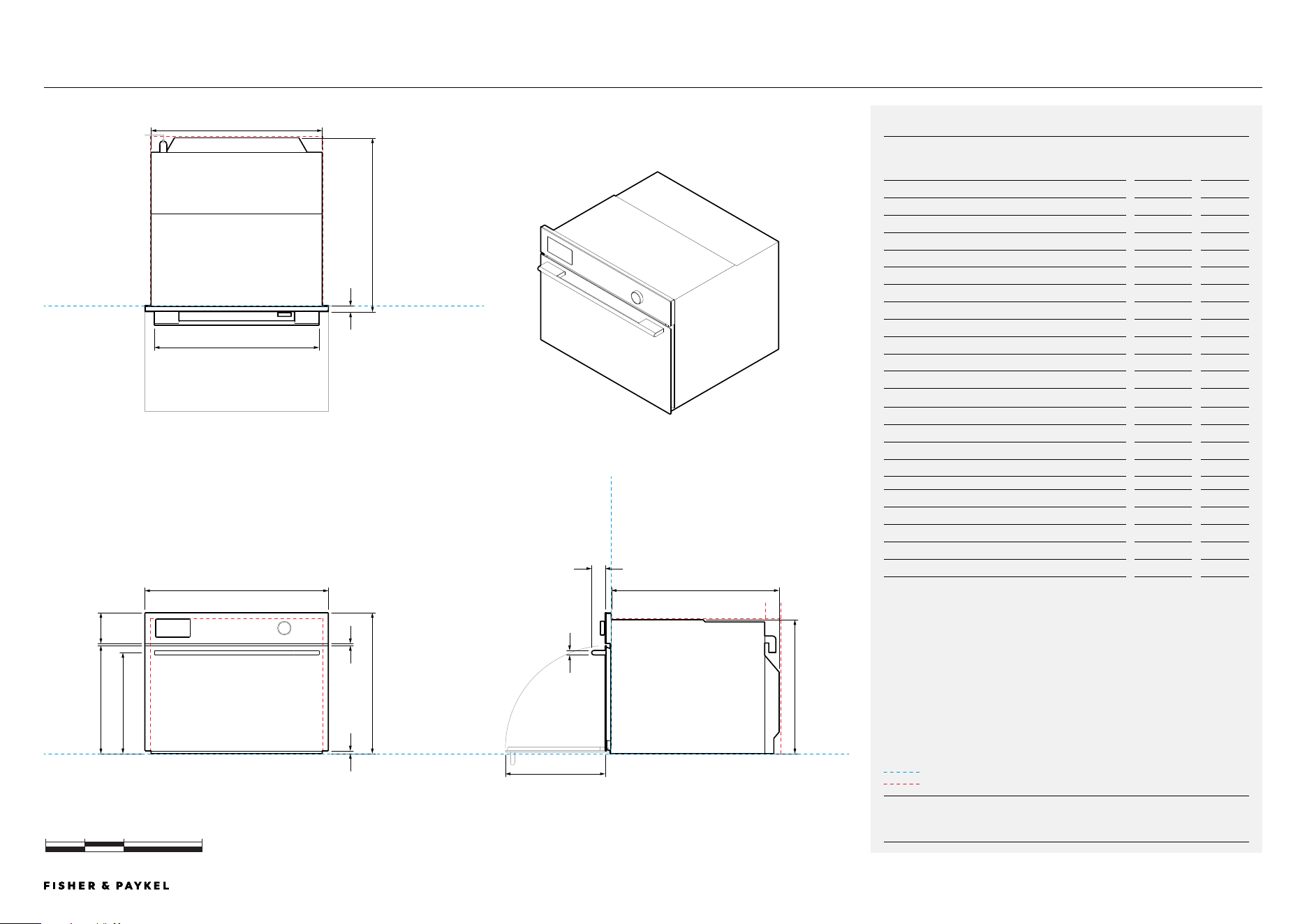

OS24NACVUDX5DATA SHEET | COMPACT COMBI-STEAM OVEN, 24"
Model no:
OS24NACVUDX5 24" Series 9 Contemporary Compact Combi-Steam Oven
Product Dimensions inch mm
A Overall product height 18 458
B Overall product width 23 7/16 596
C Overall product depth (excludes handle)
22 1/4
565
D Front frame depth (excludes handle)
13/16
20
E Chassis height 17 1/8 435
F Chassis width 21 7/8 556
G Chassis depth 21 7/16 545
H Control panel height
3 15/16
100
I Door-to-control panel gap
9/32
7
J Door upper edge height (from chassis base datum)
13 13/16
351
K Door lower edge height (from chassis base datum)
3/8
9
L Door open depth at 90° (from product front)
12 3/4
324
M Handle centreline height (from chassis base datum)
12 29/32
328
N Handle width
21 1/16
535
O Handle depth (projection)
1 3/4
44
P Handle thickness
5/8
15
Minimum Clearances inch mm
Cavity height min 17 5/16
min 440
Cavity width min 22 1/16
min 560
Cavity depth (from chassis front datum) min 21 5/8
min 550
Front frame clearance - top & sides min 1/16
min 2
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1890005573B US-CA PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 2026
INDICATES PRODUCT DATUM
INDICATES CABINETRY CLEARANCES
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16''). Please read
the installation manual for detailed information on installing the product. For full installation
instructions & specifications visit fisherpaykel.com
OM24NCUDX5DATA SHEET | COMPACT CONVECTION-SPEED OVEN, 24"
VENTILATION
PLAN VIEW
POWER OUTLET LOCATION
PROFILE VIEWFRONT VIEW
DATUM: BOTTOM OF CHASSIS
DATUM: FRONT OF CHASSIS
18" (458mm)
DATUM: FRONT OF CHASSIS
A
B
E
F
G
D
H
I
J
K
M
P
N
O
L
C
Model no:
OM24NCUDX5 24" Series 9 Contemporary Compact Convection-Speed
Oven
Product Dimensions inch mm
A Overall product height 18 458
B Overall product width 23 7/16 596
C Overall product depth (excludes handle)
22 1/4
565
D Front frame depth (excludes handle)
13/16
20
E Chassis height 17 1/8 435
F Chassis width 21 7/8 556
G Chassis depth 21 7/16 545
H Control panel height
3 15/16
100
I Door-to-control panel gap
9/32
7
J Door upper edge height (from chassis base datum)
13 13/16
351
K Door lower edge height (from chassis base datum)
3/8
9
L Door open depth at 90° (from product front)
12 3/4
324
M Handle centreline height (from chassis base datum)
12 29/32
328
N Handle width
21 1/16
535
O Handle depth (projection)
1 3/4
44
P Handle thickness
5/8
15
Minimum Clearances inch mm
Cavity height min 17 5/16
min 440
Cavity width min 22 1/16
min 560
Cavity depth (from chassis front datum) min 21 5/8
min 550
Front frame clearance - top & sides min 1/16
min 2
Ventilation Requirements inch mm
Rear ventilation opening height*
min 2
min 50
Rear ventilation opening width*
min 22 1/16
min 560
*Minimum total ventilation area of 43.4in (280cm
2
) is required. The ventilation opening
must be located at the rear of the cavity and may be positioned at the base, sides, or
top of the cavity.
0 5 10 20
Inches
23 7/16" (596mm)
22 1/4" (565mm)
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1990005573B US-CA PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 2026
INDICATES PRODUCT DATUM
INDICATES CABINETRY CLEARANCES
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16''). Please read
the installation manual for detailed information on installing the product. For full installation
instructions & specifications visit fisherpaykel.com
WB24SCX3DATA SHEET | WARMING DRAWER, 24"
PROFILE VIEWFRONT VIEW
DATUM: BOTTOM OF CHASSIS
PLAN VIEW
DATUM: FRONT OF CHASSIS
POWER OUTLET LOCATION
5 1/2"
(140mm)
A
23 7/16" (596mm)
B
C
22 5/16" (567mm)
D
E
F
G
M
H
I
J
K
L
Model no:
WB24SCX3 24" Series 9 Contemporary Warming Drawer
Product Dimensions inch mm
A Overall product height 5 1/2 140
B Overall product width 23 7/16 596
C Overall product depth (includes power plug)
22 5/16
567
D Chassis height
5 1/2
140
E Chassis width 21 3/8 543
F Chassis depth 21 9/17 547
G Front frame depth (includes flange and front panel) 13/16 20
H Front panel height 5 3/8 136
I Front panel width
23 7/16
596
J Front panel lower visual edge height (from chassis
base datum)
3/8
9
K Front panel upper edge to top of chassis
1/16
2
L Front panel lower true edge height (from chassis
base datum)
1/16
2
M Drawer extension
max 16 5/16
max 414
Minimum Clearances inch mm
Cavity height
- standalone installation
- stack installation
min 5 9/16
5 1/2
min 142
140
Cavity width min 22 1/16
min 560
Cavity depth (from chassis front datum) min 21 5/8
min 550
Front frame clearance - top & sides
min 1/16
min 2
Note: 24" Fisher & Paykel ovens can be installed directly onto the drawer. An
intermediate shelf is not required.
DATUM: FRONT OF CHASSIS
0 5 10 20
Inches
<< CONTENTS
PAGE 20© FISHER & PAYKEL APPLIANCES LIMITED 2026PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 202690005573B US-CA
PLANNING CONSIDERATIONS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 2190005573B US-CA PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

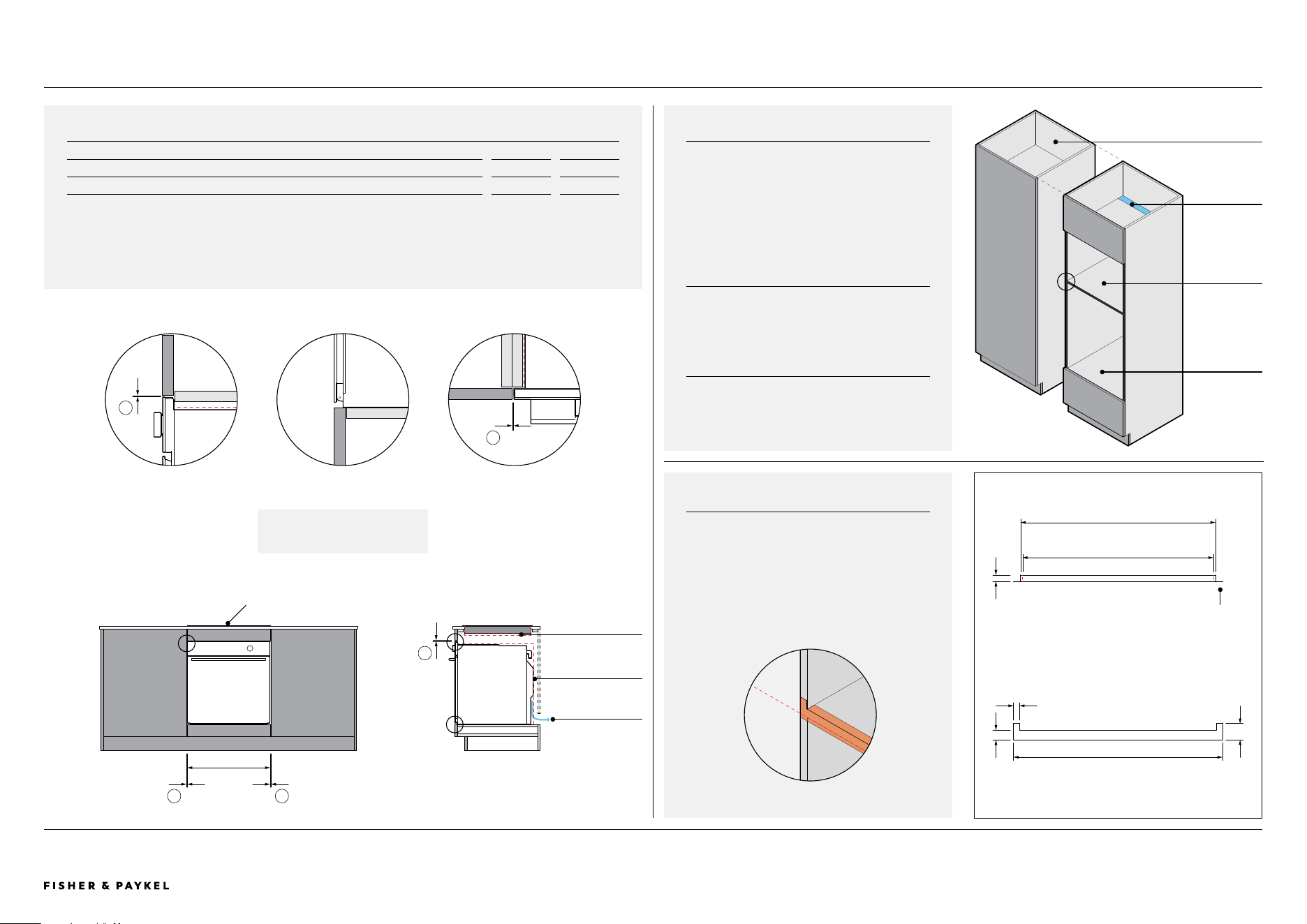

ALL MODELSPLANNING CONSIDERATIONS | CABINETRY PREPARATION
INSTALLATION
SINGLE
Head to the 'Data Sheets' section in this Planning Guide
for details.
STACKED OR GRID
Head to the 'Stack Height' section in this Planning Guide
for details.
BLACK CLASHING
Black edge clashing is recommended on all front facing
panels and openings at product locations, and on side
cabinet panels where a rebated exists.
DIVIDING SHELF
If the appliance front panel is thicker than the cabinetry
front panel, adjust the dividing shelf depth to ensure the
oven sits flush with the front of the cabinetry.
DETAIL 3
PLAN VIEW
Products require no bottom clearance
between product to cabinetry front
panel or appliance.
DETAIL 2
PROFILE VIEW
DETAIL 1
PROFILE VIEW
A
B
CABINETRY CLEARANCES
CLEARANCES inch mm
A Front/custom panel clearance - sides min 1/16 min 2
B Front/custom panel clearance - top
min 1/16 min 2
UNDERBENCH
If installing a cooktop above the oven, ensure adequate clearance is provided for the cooktop as per the cooktop manufacturer’s
instructions.
1:10 then 40% then 80%
Dividing shelf
Supporting shelf
Ventilation gap
Adjacent cabinet
4
OVEN CABINETRY TRIM (OPTIONAL)
An optional black cabinetry trim is supplied with all
ovens.
Prior to installation, check the trim height against
dividing or supporting shelves. If required, score and cut
the trim to the appropriate height to prevent
interference.
Note: Microwave ovens has a different trim width. Ensure
the correct trim is used for each appliance.
DETAIL 4
ISOMETRIC VIEW
1:10 then 70% then 45%
PROFILE VIEW
1
Cooktop clearance
Product clearance
Some products
require ventilation
B
2
FRONT VIEW
23 9/16" (596mm)
Cooktop
AA
3
1 7/8" (47mm)
23 3/8" (594mm)
Thickness
1/32" (0.3mm)
3/4" (19.5mm)
13/16" (20.5mm)
Ovens 21 13/16" (554mm)
PLAN VIEW
FRONT VIEW
11/16" (17mm)
Microwave Oven 21 3/8" (543mm)
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 2290005573B US-CA PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

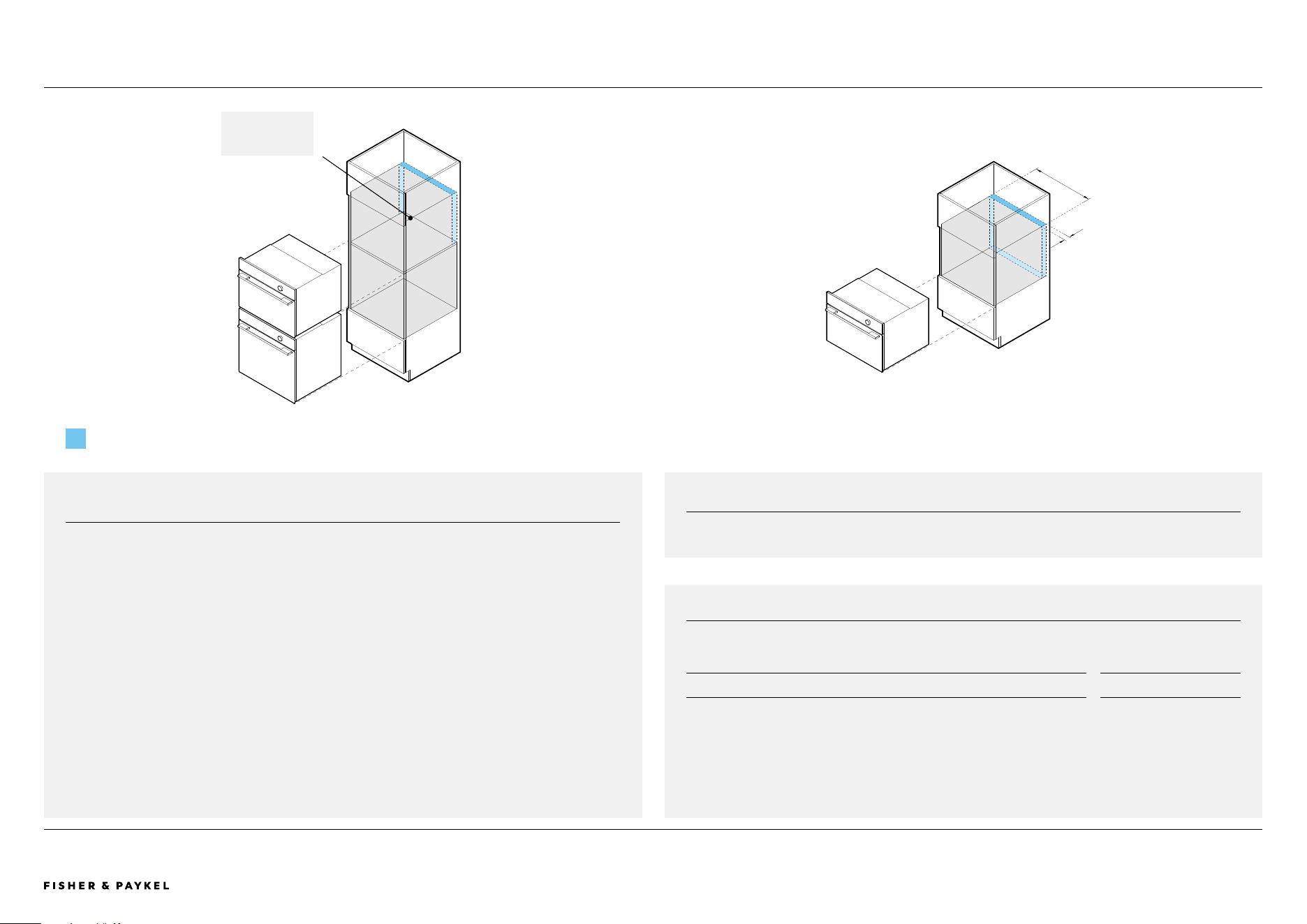

OM24NCUDX5PLANNING CONSIDERATIONS | VENTILATION
VENTILATION PLACEMENT
Total minimum ventilation area
43.4in (280cm²)
or
2" x 22 1/16" (50mm x 560mm)
Cavity venting options base, sides, top or back
COMPACT CONVECTION-SPEED OVEN
OM24NCUDX5
VENTILATION
Ventilation is required to ensure proper performance of certain products.
Possible Venting Locations:
• Space behind the cabinet
• Upper cavity (not a product cavity)
• Toe kick cavity
• Adjacent cabinetry (not a product cavity)
Cabinet with back panel or installed against a wall:
Select one of the venting locations listed above, providing the required minimum ventilation area.
Cabinet without back panel:
If the cabinet is manufactured without a back panel and is not positioned directly against a wall, the open back will provide
sufficient ventilation.
Do not vent directly into another appliance’s cavity.
Options for total minimum ventilation area
Minimum
22 1/16" (560mm)
Minimum
2" (50mm)
Do not vent directly
into another
appliance’s cavity
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 2390005573B US-CA PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
ALL MODELSPLANNING CONSIDERATIONS | STACK HEIGHT
STACK HEIGHT
Stack height is overall product height with minimum clearance above
appliance control panel or front panel.
A Overall product height
+
B Minimum top clearance above appliance front/custom panel to upper
appliance
=
C Stack Height
Ventilation air vent is required at rear of
cabinetry for some products.
Dividing shelves are required to support
stacked appliances and to achieve correct
clearance.
Dividing shelves must be constructed
from material that will support the weight
of the appliances.
Ensure the product is not bearing any
weight from cabinetry or products
installed above.
Drawers can fully support a 24" Fisher &
Paykel ovens. An intermediate shelf is not
required.
EXAMPLE
PROFILE VIEW
PROFILE VIEW
MINIMUM INSIDE HEIGHT OF CAVITY
DETAIL 1
PROFILE VIEW
A
BACKFRONT
C
B
1
1
Dividing shelf
location, shelf
must be above
minimum inside
height of cavity.
D
Minimum inside height of cavity
Stack Height
D
D
D
C
B
47 1/4" (1200mm)
SELF-CLEANING OVEN
OB24SACPUDX5
COMPACT COMBI-STEAM OVEN
OS24NACVUDX5
COMPACT CONVECTION-SPEED OVEN
OM24NCUDX5
WARMING DRAWER
WB24SCX3
DIMENSIONS inch mm inch mm inch mm inch mm
A Overall product height 23 9/16 598 18 458 18 458 5 1/2 140
B Minimum top clearance above appliance front/
custom panel
1/16 2 1/16 2 1/16 2 - -
C Stack height 23 5/8 600 18 1/8 460 18 1/8 460 5 1/2 140*
D Minimum cavity height 22 13/16 580 17 5/16 440 17 5/16 440 5 1/2 140
*24" Fisher & Paykel ovens can be installed directly onto the drawer. An intermediate shelf is not required. Note: Standalone installation of drawers require minimum clearance above, head to 'Data Sheets' section of this Planning Guide for more details.
C
C
<< CONTENTS
PAGE 24© FISHER & PAYKEL APPLIANCES LIMITED 2026PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 202690005573B US-CA
SERVICES
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 2590005573B US-CA PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
ALL MODELSSERVICES | POWER CONNECTION AND ELECTRICAL
CONNECTION
Connections may be located in an adjacent cabinet to either side of the appliance. Ensure power will remain accessible following
installation to allow access for any future product maintenance.
POWER CONNECTION
WATER TANK LOCATION
SELF-CLEANING OVEN COMPACT COMBI-STEAM OVEN COMPACT CONVECTION-SPEED OVEN WARMING DRAWERS
SERIES 9 1 OB24SACPUDX5 2 OS24NACVUDX5 3 OM24NCUDX5 4 WB24SCX3
POWER CONNECTION
Connection
Hard-wired
48" (1220mm)
Hard-wired
48" (1220mm)
Hard-wired
70 7/8" (1800mm)
Flex cord
70 7/8" (1800mm)
Location upper right upper left upper left upper right
ELECTRICAL
Dedicated Circuit (A) 20 20 20 15
Rated Power (W) 4200 / 3200 4200 / 3200 3300 / 3900 930
Supply (Hz) 60 60 60 60
Voltage (V) 208 / 240 208 / 240 208 / 240 120
Note: Multiple product installation requires the design of power outlets according to local regulations.
1 2 3 4
FRONT VIEW
70 7/8" (1800mm)
PROFILE VIEW
HARD-WIRED
For more information on electrical requirements, refer to the Installation Guide.
70 7/8" (1800mm)
48" (1220mm)
<< CONTENTS
