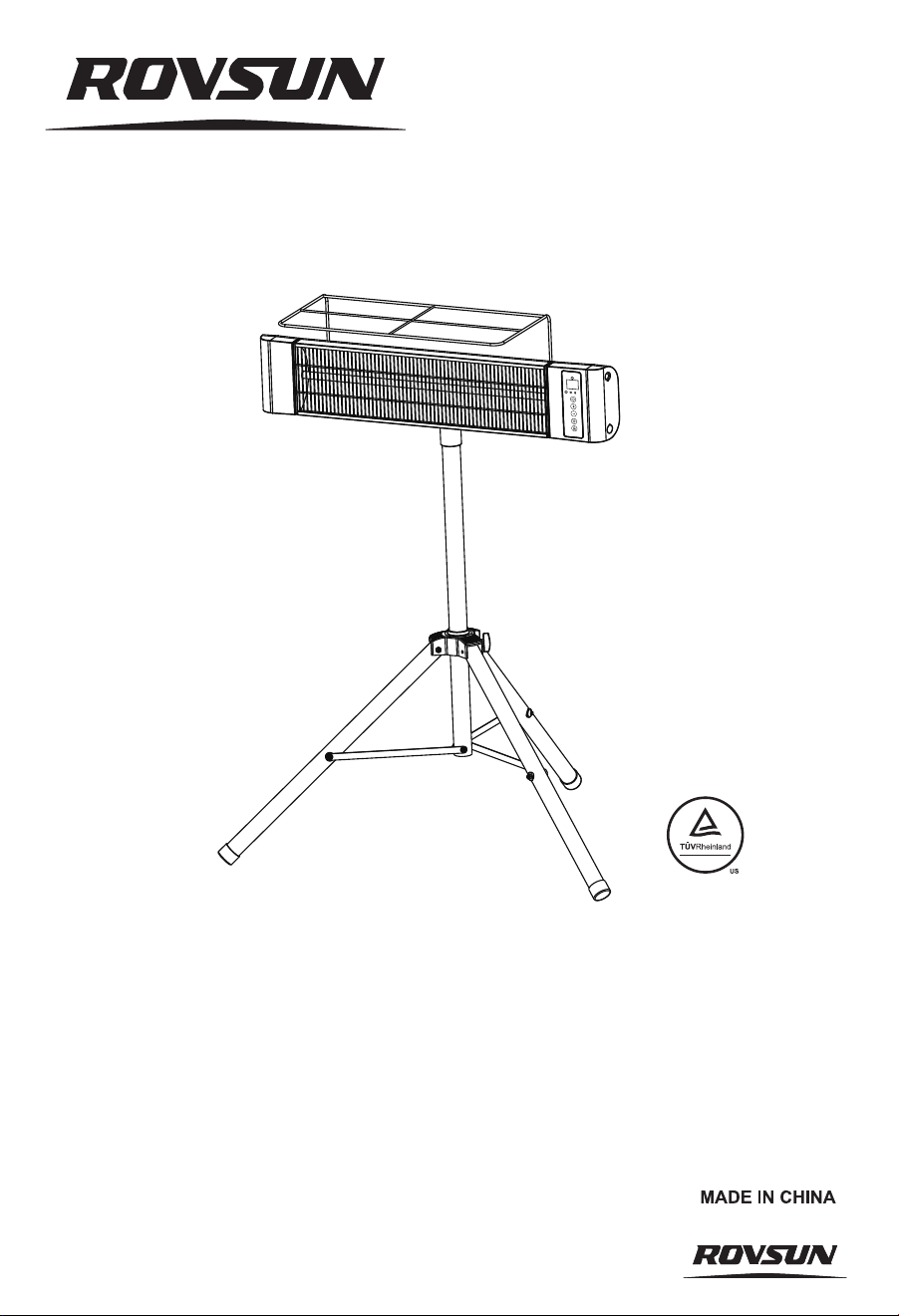

1
INDOOR & OUTDOOR
HEATER
Model No.: HT8006NB
2
A
C
D
F
E
G
H
B
P
ART
DESCRIPTION QUANTITY
A Infrared Heater 1
B Remote Control 1
C Control Panel (preassembled to Infrared Heater [A]) 1
D Protection Grill (preassembled to Infrared Heater [A])
E Fire Safety Rack (not preassembled to Infrared Heater [A])
F Wall Bracket (not preassembled to Infrared Heater [A])
1
1
1
G Brack
et of Infrared Heater [A] (not preassembled to Infrared Heater [A])
H Tripod (not preassembled to Infrared Heater [A])
1
1
T
ABLE OF CONTENTS
P
ACKAGE CONTENTS
P
ackage Contents.................................................................................................................................... 2
Safety Information.................................................................................................................................... 3
Frequently Asked Questions.................................................................................................................... 4
Preparation................................................................................................................................................ 6
Assembly Instructions............................................................................................................................. 6
Control Panel........................................................................................................................................... 8
Remote Control........................................................................................................................................ 9
Operating Instructions.............................................................................................................................. 9
Care and Maintenance........................................................................................................................... 11
Troubleshooting....................................................................................................................................... 11
One-Year Limited Warranty................................................................................................................... 12
Replacement Parts List.......................................................................................................................... 12
3
SAFETY IN
FORMATION
IMPOR
TANT SAFETY INSTRUCTIONS
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
S
AVE THESE INSTRUCTIONS
P
lease read and understand this entire manual before attempting to assemble, operate, or install the product.
WARNING: POTENTIAL ELECTRICAL HAZARD IF NOT ADHERED TO. When using electrical
appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury
to persons, including the following:
This heater must be plugged into a 120V,15 amp (or more) circuit of its own. Do not plug anything else into
the same circuit. If unsure if your home meets this specification, consult a certified electrician prior to use.
Risk of fire, overheating, malfunction, property damage, injury, or even death may result if not
adhered to!
Connect to a proper outlet only . Do not connect the heater to extension cords, surge protectors, timers,
direct breakers, or an outlet with other appliances connected to the same outlet. Risk of fire, overheating,
malfunction, property damage, injury, or even death may result if not adhered to!
This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Use handles
(certain models) or wheels to move this heater.
Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 ft.
(0.9 m) from the front of the heater and keep them away from the sides and rear of the heater.
Extreme caution is necessary when any heater is used by or near children, invalids, pets, or when the
heater is left operating unattended.
Always unplug the heater when not in use.
Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been
dropped, or damaged in any manner. Contact the manufacturer for resolution options.
This heater is not intended for use in bathrooms, laundry areas, and similar indoor locations, nor any
locations that use GFCI outlets.
Never place the heater where it may fall into a bathtub or other water receptacles.
Do not run the cord under carpet. Do not cover the cord with throw rugs, runners, or similar coverings.
Arrange the cord away from traffic areas and where it will not be tripped over.
The heater must be plugged into a wall outlet that is a dedicated circuit with a minimum 15 amp rating on
that individual circuit.
To disconnect the heater, first turn the power button to the OFF position and then remove the plug from
the wall outlet.
Do not allow foreign objects to enter or block any ventilation or exhaust opening as this may cause electric
shock, fire, or damage the heater.
Allow at least 3 ft. of unobstructed space to the front and rear of the heater to allow for maximum heat, air,
and ventilation flow.
A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or
flammable liquids are used or stored, nor use flammable solvents to clean the heater. Keep the heater
dry at all times .
Use this heater only as described in this manual. Any other use not recommended by the manufacturer
may cause fire, electric shock, or injury to persons.
Do not use abrasive solvents to clean the heater as it may cause damage to the finish or casing.
To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces,
like a bed, where opening may become blocked.
Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or relocatable
power tap (outlet/power strip).
Hyperthermia can result in death. Symptoms of hyperthermia include high body temperature, headache,
nausea, vomiting, tiredness, dizziness, fainting, and rapid pulse. If you begin to experience symptoms
related to hyperthermia, turn off the heater and seek medical attention.
To avoid excessive room temperatures which can cause hyperthermia: DO NOT leave product running
unattended in a confined space around infants, or individuals with reduced physical, sensory, or mental
capabilities.
WARNING: This heater has a voltage rating of
120 volts. The cord has a three-blade, ground-
ing-type plug. An adapter is available for connecting
three-blade grounding-type plugs to two-slot
receptacles. The grounding plug extending from the
adapter must be connected to a permanent ground
such as a properly grounded outlet box. The adapter
should not be used if a three-slot grounded
receptacle is available.
4
700W/1,000 W/1,500 W
32.28 in. (W) x 2.76 in. (D) x 6.30 in. (H)
SAFETY IN
FORMATION
Child Lock Sa
fety Feature
Tip-O
ver Safety Feature
O
verheat Safety Feature
Specifi
cations
V
oltage Rating
120 V (60 Hz)
P
ower Consumption
Unit Size
This heater is equipped with a tip- over safety feature. Once the heater is tipped over,
an internal switch will automatically shut the heater off. Once the heater is restored to
an upright position, the heater will reset. To continue operation, turn on the heater
using the control panel or supplied remote control (if provided) on the heater.
This heater is equipped with an overheat safety feature. When the internal components of the heater reach a
certain temperature that could cause overheating or possible fire, the heater will automatically shut off.
DO NOT DEFEAT THE SAFETY PURPOSE OF THE
GROUNDED PLUG.
FREQUENT
LY ASKED QUESTIONS
Please review these frequently asked questions on the next few pages prior to using your heater.
Q. My heater emits a strange odor when I first open the box and when I turn the heater on for the first
time. Why is this happening?
A. This is normal. This heater is treated with a special heat safe/resistant coating. This odor will sometimes
be present when the box is opened. When the coating is exposed to heat, it produces this particular odor
during the first few hours of operation. This will dissipate after the break-in period. If you are sensitive to
odors, you may want to pre-burn the unit in a garage with the door open until the initial odor dissipates.
WARNING: It is normal for the power cord to feel warm to the touch. However, a loose fit between the
outlet and the plug may cause overheating of the plug. If this occurs, try inserting the plug into a different
outlet. Contact a qualified electrician to inspect the original outlet for damage.
Press and hold the child lock button located on the control panel or remote control for 2
seconds. Locking is confirmed when a buzzer rings and the control panel displays “CL”.
When locked, the control panel and remote control (if provided) will not function.
To unlock the control panel or remote (if provided), repeat this procedure. Unlocking
is confirmed when a buzzer rings and the lock indication disappears.
Metal Screw
Cover of Grounded
Outlet Box
Grounding Pin
Grounding PinGrounding Means
5
FREQUENT
LY ASKED QUESTIONS
W
ATTAGE
BTUS
1,500 5,118
1,000 3,412
750 2,559
500 1,706
Q. Can the heating e
lements be replaced?
Q. On
ce I plug the unit in and turn it on, how long will it take to heat my room?
Q. I do not have a grounded outlet. Can I use adapters, a 2-prong power strip, or remove the ground
prong from the cord?
W
ARNING:
Risk of fi
re, damage to property, or injury may result if requirements are not met.
A. Yes, but make sure they are not plugged into the same circuit. Each heater requires its own minimum
15-amp circuit with no other items plugged into that circuit or outlet. This is because heaters are
considered appliances and draw out high amperage. If you are unsure your circuit meets these require-
ments, verify with a certified electrician.
A. A warm power cord is normal. These power cords are rated safe for up to 105°C/ 221°F by the UL,
CSA, or TUV. The exception is, if you detect heat, smoke, or signs of melting at the contact point of the
wall outlet, it may be due to loose or worn wall contacts (or arcing). Please stop using the heater
immediately, contact warranty support for a replacement power cord, and have a certified electrician
replace the wall outlet as soon as possible.
Q. Can I use more than one heater at a time? Can I use the heater and another appliance at the same
time?
Q. My heater’s power cord gets warm. My cord is showing signs of heat or melting at the outlet.
Is this normal?
Q. If my heater runs on its max wattage setting, how many BTUs is that?
A. This heater is intended to be used as supplemental heat in areas most needed. It may take several
minutes to several hours to heat your area, depending on various factors. The below chart provides BTU
translations for different wattages.
A. Replacement heating elements can be obtained from the manufacturer. All parts may be purchased
through the manufacturer if your product is out of warranty. If you feel that the elements are definitely faulty
right out of the box, contact Customer Support. A representative can then direct you to the next step.
A. The heating process in the heater begins immediately upon powering on and setting the desired
temperature above the ambient temperature. A noticeable change in the ambient temperature of the room
will vary due to variables such as the location of the heater (in the home), floor plan and size of the room,
how well the room is insulated, how many doors/windows, how much bare concrete (acts as a heat sink with
any type of heating), the opening and closing of an exterior door, long hallways, high ceilings, etc. Customers
with smaller rooms experience quick heat changes. Rooms with larger and open floor plans can expect up to
24 hours to completely heat up.
A. NO! If you do not have a grounded outlet, contact a certified electrician for advice. Removing or altering any
part of the heater’s original design or intent (including the power cord) will void the warranty and make you
liable for any unexpected or hazardous results.
6
ASSEMBLY INSTRUCTIONS
Indoor/outdoor heater Standing Assembling Instruction
1. Insert the safety rack ① into the two holes in the back of the heater, then tighten 2 screws ②.
1
2
Screw M3mm*4mm
3
U shape
4
Fire Safety Rack —
—
5 Bracket B T shape
6
7
Bolt Pin
Nut
M8mm*60mm
M8mm
Bracket A
Nut
2 PCS
1 PC
1 PC
1 PC
1 PC
1 PC
8
9
Expansion Bolt
Socket Wrench
M8mm*60mm 2 PCS
1 PC
4 PCSM4mm
2
3
4
5
7
6 8
9
1
PRE
PARATION
1
2
Estimated Assembly Time: 30 minutes
Tools Required for Assembly (not included):
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. lf any part is missing or damaged, do not attempt to assemble-
he product.
1/2. Step 1 and Step 2 are the same as the Standing Assembling Instruction.
Indoor/outdoor heater Wall-mounting Assembling Instruction
7
ASSEMBLY INSTRUCTIONS
5
8
3
5
7
6
3. Insert the latch to secure the metal rod. Align the holes on bracket A ③, bracket B ⑤ and the
tripod, then insert the bolt pin ⑥ and screw the nut ⑦. Make sure all the holes are aligned before
inserting the bolt pin ⑥.
4. After tightening the bolts on the tripod, the whole outdoor heater is completely assembled and you
can chose the height you want through adjusting the tripod. For stability, please open the tripod to its
maximum.
3. Install bracket B ⑤ with two expansion bolts ⑧ (M8mm*60mm) in the appropriate position on the
wall (at least 1.8 m above the floor).
2. Move the four bolts on the back of the unit to the center, then align the holes on bracket A ③
with the bolts and screw 4 nuts ④ with socket wrench ⑨.
3
4
9
CONTROL
PANEL
P
ART
NAME DESCRIPTION
1
2
Power Indicator Light Indicates when the unit is receiving power from the wall outlet
3
Indicates when timer or lock function is engaged
4
Digital Display Readouts the heat mode(P1/P2/P3) or timer value
5
Mode Button Cycles throgh P1(Low),P2(Med),P3(High)
6 Timer Button
Timer and Lock indicator Lights
Power Button Powers the heater ON or OFF
2
3
4
5
6
7
1
8
Engages the timer on/off function
7 Safety Lock Button
Press and hold for 2s to lock/unlock all other buttons
ASSEMBLY INSTRUCTIONS
Note:
4. Align bracket A ③ and bracket B ⑤, insert the bolt pin ⑥ and screw the nut ⑦. Then the whole
indoor heater is completely assembled.
The heater must be installed at least 1.8 m above the floor.
Please keep the heater vertical after installation and do not install it on the ceiling.
3
5
7
6
9
REM
OTE CONTROL
OPERATING INSTRUCTIONS
P
ART
NAME DESCRIPTION
4
Safety Lock Button
Hold to Lock/Unlock heater's control panel
3 Timer Button Engages the timer on/off function
1
Mode Button Toggles between
Low/Med/High mode
2
Power Button Powers the heater on or off
3
1
4
2
High
Med Low
1
B
C
1
.
Turn the heater on or off by pressing the Power
button on the control panel (C) or by pressing
the ON/OFF button on the remote control (B).
2
B
C
2
.
Select a heat setting by pressing the Mode
button on either the control panel (C) or the
remote control (B) to toggle between the three
heat settings.
The power of P3, P2, P1 (High, Med, Low)
mode is 1500W, 1000W and 700W in
sequence.
10
TIMER
OPERATING INSTRUCTIONS
3
B
C
3
.
N
ote:
The timer-power-off function can only be
set when the heater is in power-on mode.
To set the timer to power off the heater, start
the unit and press the Timer button on the
control panel (C) or remote control (B).
The digital display on the control panel (C)changes
from the set temperature readout to a time value
for the timer. Press the Timer button repeatedly to
change the number value between a range of 0 to
12 hours (in 1-hour intervals).
The Timer light turns on when the timer is set.
5
.
TIMER
4
B
C
4
.
N
ote:
The timer-power-off function can only be
set when the heater is in power-off mode.
To set the timer power on the heater, first
ensure the unit is powered off, then press the
timer button on the control panel (C) or remote
control (B).
The digital display on the control panel (C) will
indicate time value for the timer. Press the Timer
button repeatedly to change the number value
between a range of 0 to 12 hours (in 1-hour
intervals).
The Timer light turns on when the timer is set.
Press and hold the Safety Lock Button located
on the control panel (C) or remote control (B) for
2 seconds. Locking is confirmed when a buzzer
rings and the control panel displays“CL”. When
locked, the control panel and remote control will
not function.
Repeat above procedure to unlock the control panel or remote control, . Unlocking is confirmed when
a buzzer rings and the control panel displays“OL”.
6
6
.
1 2
B
To replace the batteries, remove the battery
cover (1) from the remote (B) by applying
pressure to the battery cover (1) and sliding it
away from the remote (B). Insert two AAA
batteries (not included) (2) and close the remote
by placing the battery cover (1) back on the
remote (B).
N
ote:
Do not mix old and new batteries. Do not
mix alkaline, standard (carbon-zinc), or
rechargeable (NiCad, Ni-Nh, etc.) batteries.
Non-rechargeable batteries are not to be
recharged. Batteries are to be inserted with
the correct polarity.
Exhausted batteries are to be removed from
the product.
Remote control range: 6 meters.
5
B
C
11
TROUBLESHO
OTING
PROBLEM PO
SSIBLE CAUSE
CORRE
CTIVE ACTION
1
.
T
he power cord is not plugged in.
2
.
3
.
1
.
2
.
3
.
1
.
Insufficient p
ower to the unit.
1
.
C
ARE AND MAINTENANCE
1
.
C
AUTION: DO NOT let liquid enter the heater.
2
.
3
.
DO N
OT immerse the heater in water.
4
.
W
ait until the unit is completely dry before use.
5
.
6
.
7
. Clean the air intake or inside the unit after three months or if it appears to be blocking airflow. With
the heater unplugged, use a vacuum hose attachment or compressed air to blow out or clean out
any dirt, hair, or debris that may have built up around and inside the unit.
To keep the heater clean, clean the outer shell with a soft, damp cloth. Use a mild detergent if
necessary. After cleaning, dry the unit with a soft cloth.
DO NOT use alcohol, gasoline, abrasive powders, furniture polish, or rough brushes to clean the
heater. This may cause damage or deterioration to the surface of the heater.
If you will not be using the heater for a while, take the batteries out of the remote control and store
for future use.
Store the heater in a cool, dry location when not in use. To prevent dust and dirt build-up, use the
original packaging to repack the unit.
The heater does
not turn on.
The heater shut
off unexpectedly.
The e
lectricity at the main fuse
box is not working.
The bat
tery in the remote control
is dead.
Plug the p
ower cord into an
electrical outlet.
Check the e
lectricity at the main fuse
box.
Repla
ce the batteries in the remote
control.
Make sure the unit is plugged into a
dedicated outlet, without extension
cords or surge protectors.
WARNING: Before performing any maintenance task, turn off the unit, unplug the unit, and allow it to cool
completely.
12
Prin
ted in China
ONE-YEAR LIMITED
WARRANTY
REPL
ACEMENT PARTS LIST
P
ART
DESCRIPTION P
ART #
A
Remo
te Control 1102006046
A
You should first read all instructions before attempting to use this product.
This unit is guaranteed to the original retail purchaser against defects in quality or workmanship for a
period of one year from the date of original purchase. If this unit fails because of a manufacturing defect,
contact the customers service for technical support, or return it to the place of purchase for repair or
replacement. This warranty does not cover damage caused by misuse, abuse alteration. Repairs made
by anyone other than manufacturer are not covered in this warranty. Stores will not be held liable for any
losses due to neglectful operation.
Please retain your proof of purchase as well as the BOX to validate the guarantee.
You will need to provide the unit’s model number, serial number (located on the heater), date of
purchase, a daytime phone number or email, and a copy of your receipt.
