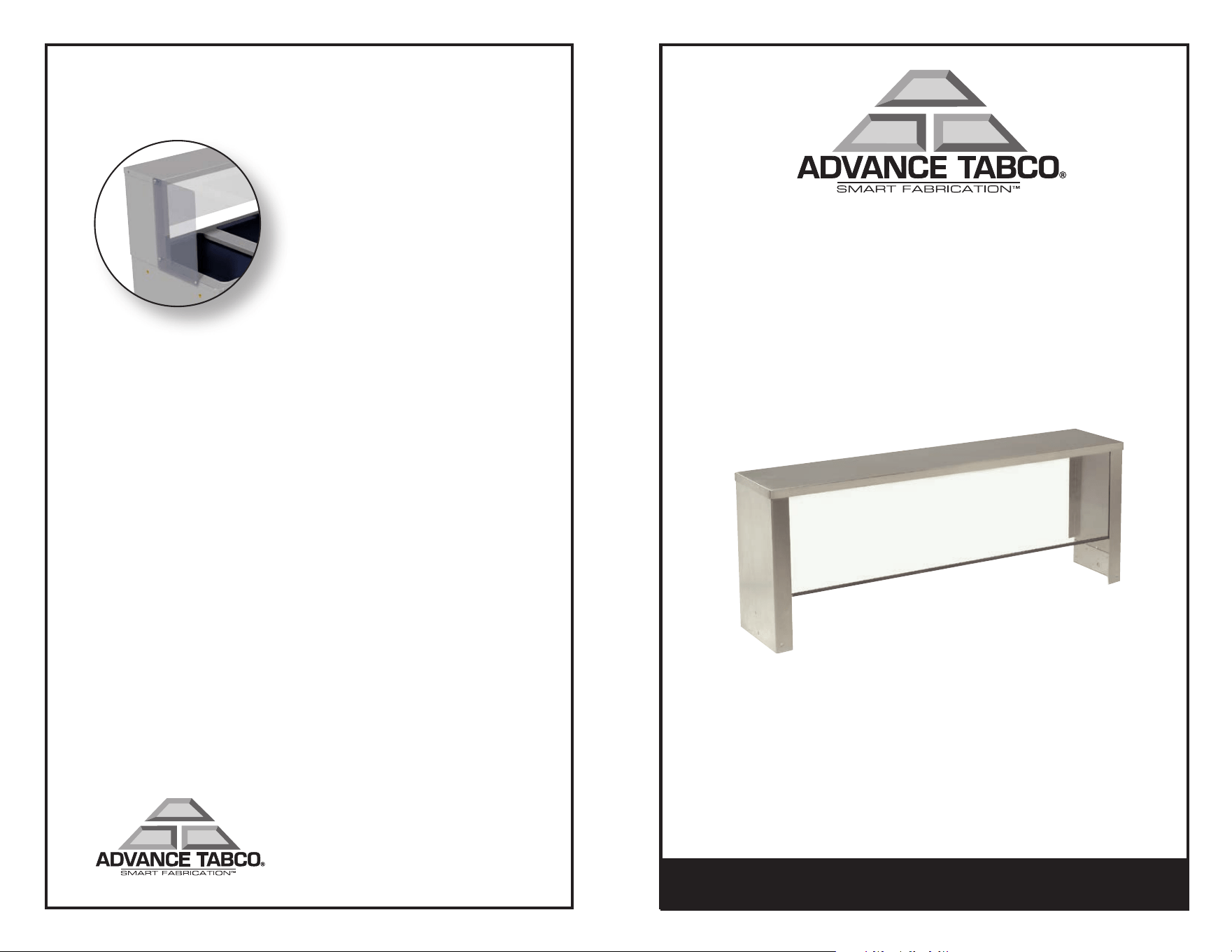

Installation Instructions For
TSS SERIES SINGLE SIDED
CAFETERIA SHELF
For Further Assistance
Contact Customer Service at:
800-645-3166
or
Acrylic Side Panels
for Serving Shelf
Add side panels to meet
additional NSF requirements
(1 panel per end)
TSP-1 (One End)
TSP-2 (Two Ends)
OPTIONAL ACCESSORIES
B
A
C
D
Contents:
(4) 1/4” - 20 x 1/2” PHP Machine Screws
(6) #10 x 1/2” - PHP Sheet Metal Screws
(10) Dome Cap Nuts
(3) Glass Clips
Tools Required:
Philip’s Head Screw Driver
Pliers

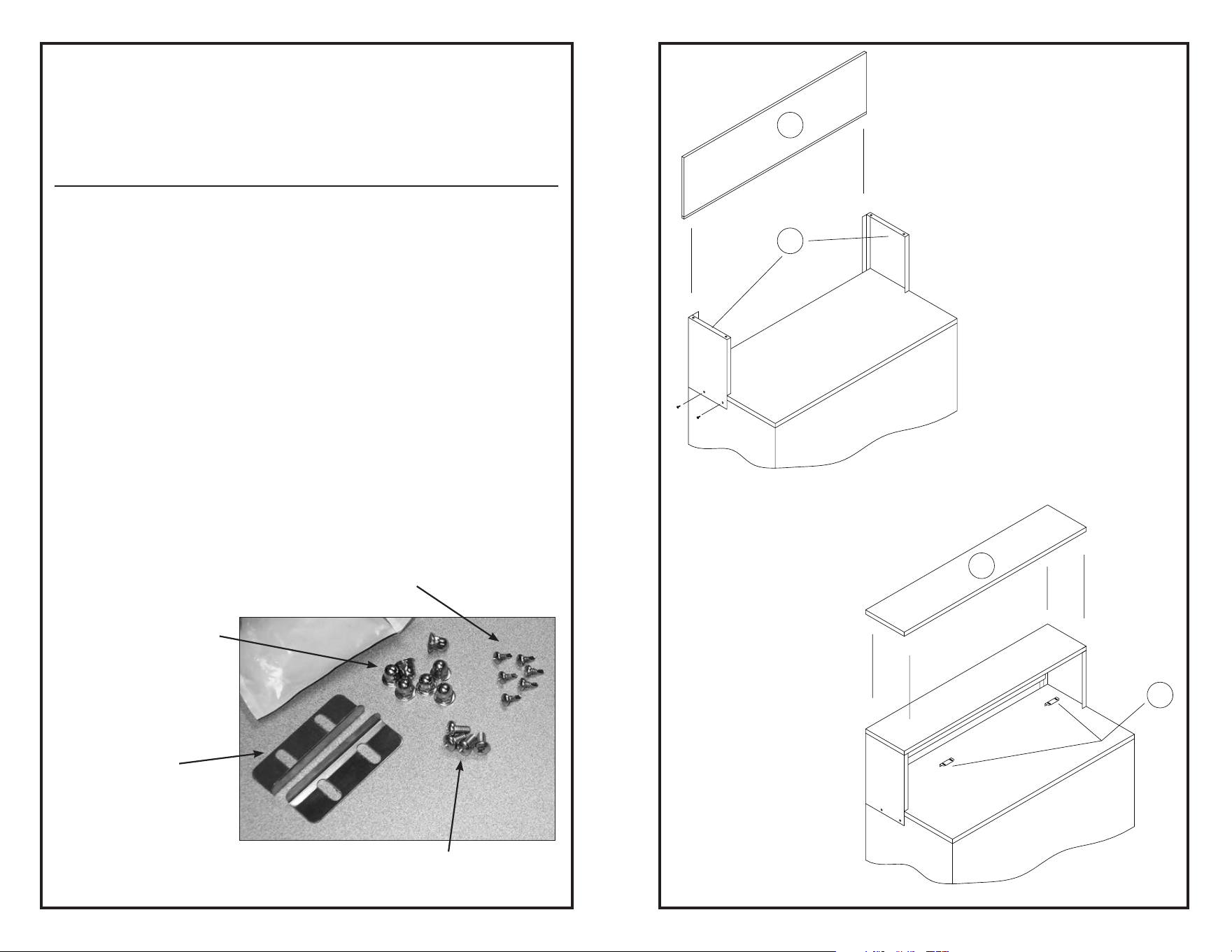

STEP 1: Remove existing screws on the hot food table side and
line up the shelf sides with these holes. Mount the sides using the
existing sheet metal screws (E). See Figure 1.
STEP 2: Slide the plexiglass (B) with stainless steel edging facing
down into the slots in the front of the side panels. See Figure 1.
STEP 3: Place the stainless steel top (C) down on to the supports
and secure the top to the sides using the insert screws (F). Make
sure that the threaded studs on the underside of the top (C) are on
the same side as the plexiglass (B). See Figure 2.
STEP 4: Attach the two glass clips (D) using the dome cap screws
(G) to the underside of the top, this will hold the plexiglass in place.
See Figure 2.
2
3
(G) Dome Cap Screws
(E) Sheet Metal Screws
(F) Machine Screws
(D) Glass Clips
Figure 1
B
A
C
D
Figure 2
