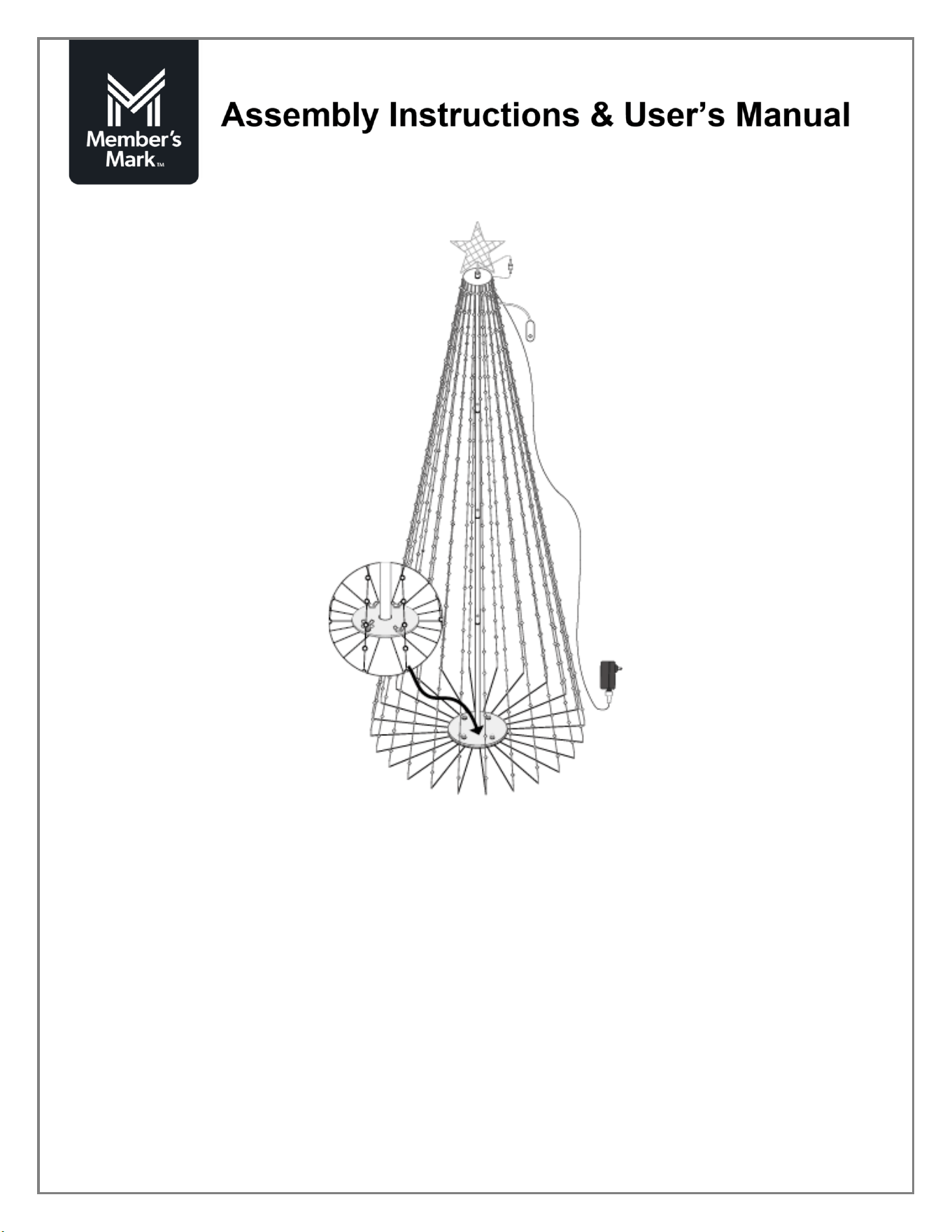

Member’s Mark 12Ft Pre-Lit Multicolor Lightshow Tree
Item Number: 990500773/990500774
Model Number: 67-560SM
For Inquiries, Spare parts, or Replacementparts
Sam's Club Customer Assistance: 1-888-746-7726
Supplier Customer Assistance: 1-800-833-3390
THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
2
Table of Contents
Quality Statement ............................................................................................................................................................... 3
Important Safety Information .......................................................................................................................................... 3
Before Assembly ................................................................................................................................................................ 3
Care & Use ........................................................................................................................................................................... 4
Product Information .......................................................................................................................................................... 4
Tools ...................................................................................................................................................................................... 6
Step 1 – Step 5 .................................................................................................................................................................... 6
Warning ..................................................................................................................................................................... 13
Danger ....................................................................................................................................................................... 14
Troubleshooting ............................................................................................................................................................... 14
Care & Use Instructions ................................................................................................................................................. 14
Installation ......................................................................................................................................................................... 15
Storage Instructions ........................................................................................................................................................ 15
Technical Data .................................................................................................................................................................. 16
Limited Warranty .............................................................................................................................................................. 16
3
Quality Statement
Questions or Comments? We would love to hear about your Member’s Mark experience!
Visit us at: samsclub.com
Important Safety Information
Please read all instructions carefully before assembling this product.
Where applicable, and for your safety, assembly by an adult is strongly recommended.
Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could
jeopardize the structural integrity of the item.
Hardware may loosen overtime. Periodically check that all connections are tight.
Do not use seasonal products outdoors unless marked suitable for indoor and outdoor use. When
products are used in outdoor applications, connect the product to a Ground Fault Circuit Interrupting
(GFCI) outlet. If one is not provided, contact a qualified electrician for proper installation.
This seasonal product is not intended for permanent installation or use.
Do not mount or place near gas or electric heaters, fireplaces, candles or other similar source of
heat.
Do not secure the wiring of the product with staples or nails, or place on sharp hooks or nails.
Do not let lamps rest on the supply cord or any wire.
Unplug the product when leaving the house, when retiring for the night, or if left unattended.
This is not a toy. This is an electric product. For decorative use only. To avoid risk of fire, burns,
personal injury and electric shock it should not be played with or placed where small children can
reach it.
Do not use this product for other than its intended use.
Do not hang ornaments or other objects from the cord, wire, or light string.
Do not close doors or windows on the product or extension cords as this may damage wire
insulation.
Do not cover the product with cloth, paper or any material not part of the product when in use.
Read and follow all instructions that are on the product or provided with the product.
SAVE THESE INSTRUCTIONS
Before Assembly
Remove all parts and hardware from the box. Place all items on a carpeted or scratch-free work
surface, as this will avoid damaging parts during assembly.
The shipping box can provide an ideal work surface if none is available.
Use the components and hardware lists below to identify, inventory and separate each of the
hardware and components included.
To avoid accidentally discarding small components or hardware, do not dispose of any packaging
or contents of the shipping carton until assembly is complete.
4
DO NOT USE power tools unless explicitly identified in this manual as required for use during
assembly. Power tools can damage fasteners, hardware, and/or components.
Do not fully tighten all fasteners / screws until all parts are in place. Failure to follow these
instructions may cause the fasteners / screws to misalign during assembly.
Care & Use
Use a soft, clean cloth that will not scratch the surface when cleaning.
Before using or reusing, inspect product carefully. Discard any products that have cut, damaged,
or frayed wire insulation or cords, cracks in enclosures, loose connections, or exposed copper wire.
When storing the product, carefully remove the product from wherever it is placed to avoid any
undue strain or stress on the product conductors, connections, and wires.
When not in use, store in a cool, dry location protected from sunlight. Exposing your tree to
excessive heat or humidity may damage your tree.

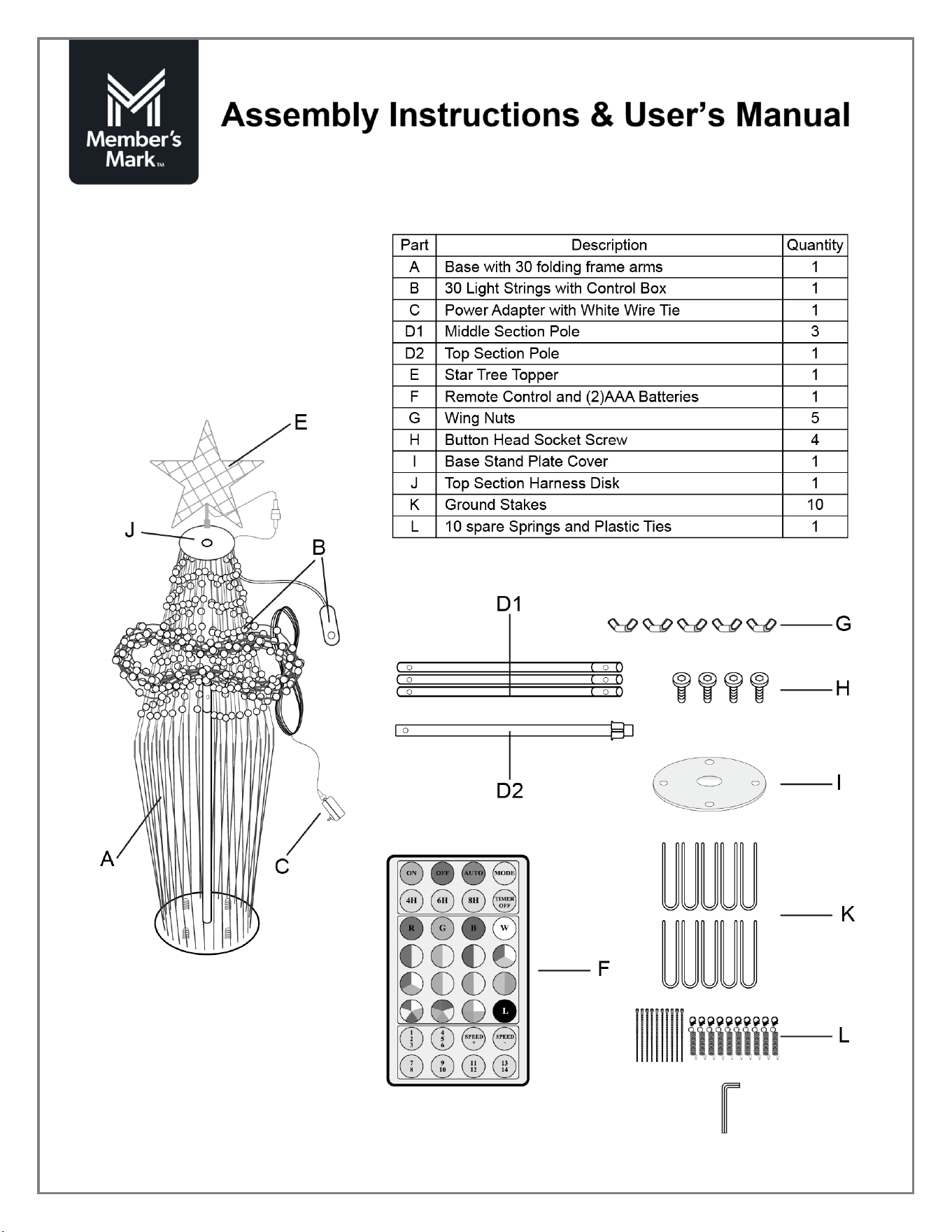

Product Information

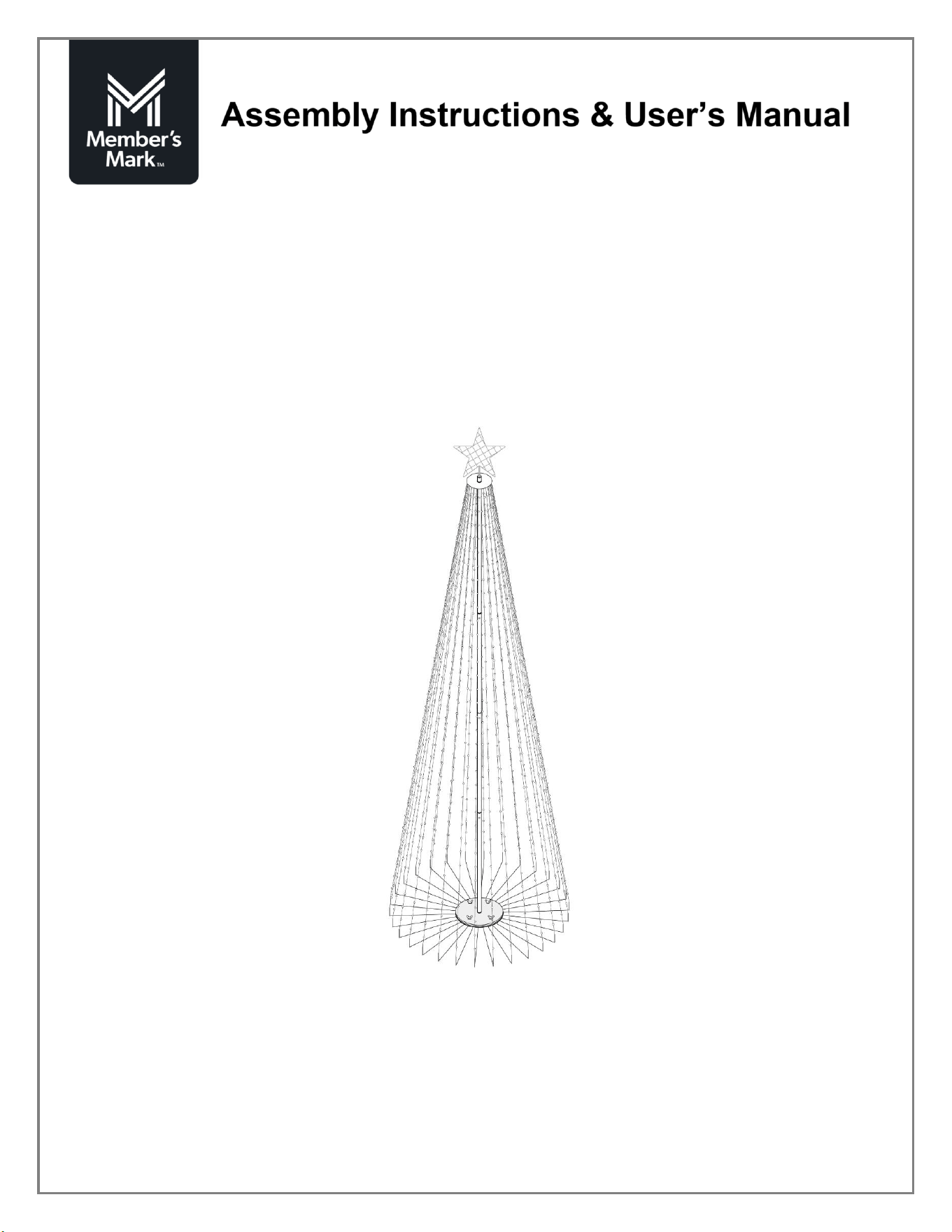

Product Dimensions - Height: 12' ; Diameter: 60"
5
6
Tools
Hex wrench (Included)
Qty: 1

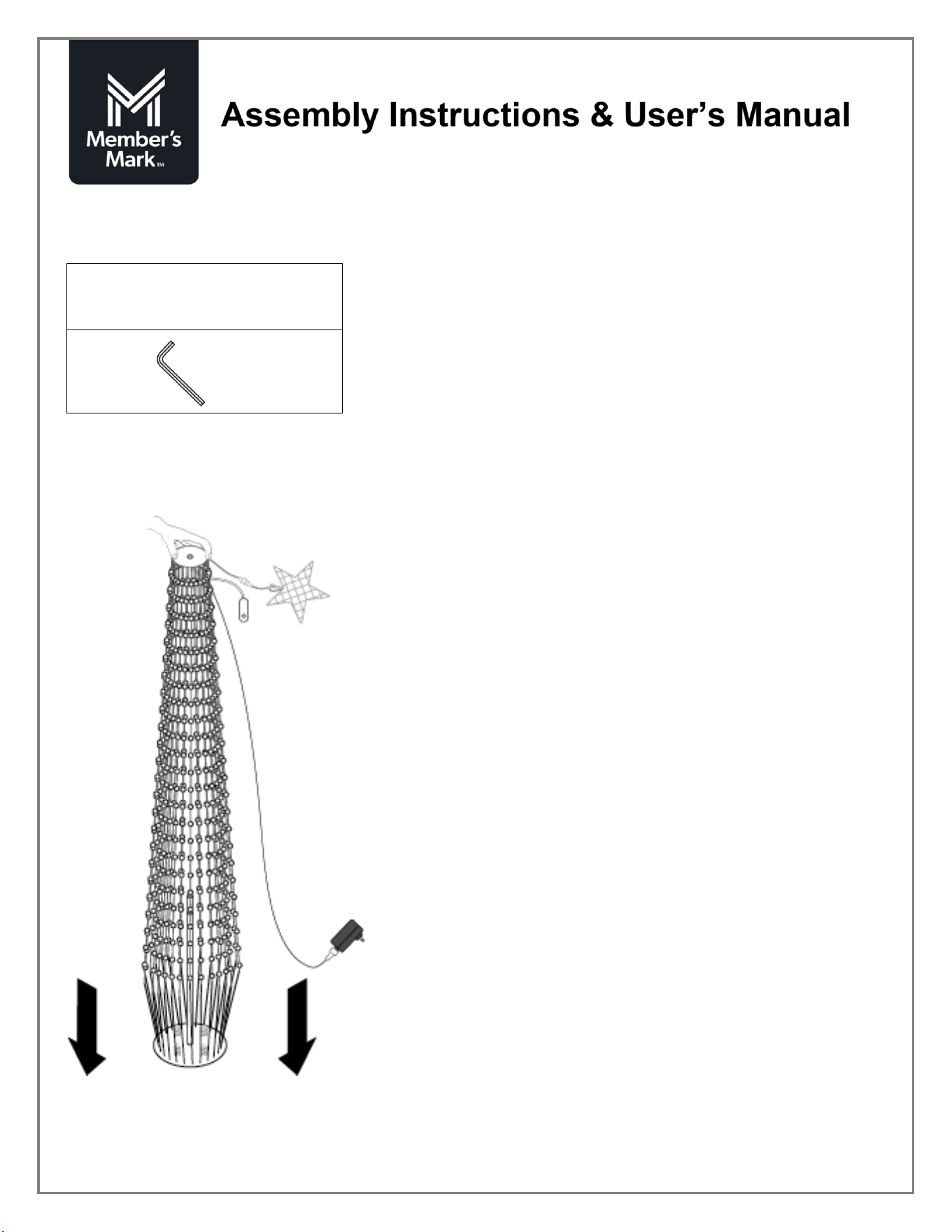

Step 1 – Step 5
Step 1:
Select a suitable location for the tree sculpture.
Using a tape measure, the area should be flat
and able to support a 12 ft. high by 5 ft. diameter
tree. IMPORTANT: Ensure there are no
overhead power lines within a 12-foot radius of
the surrounding area to prevent any potential
hazards.
Carefully unwrap all parts from packaging.
Untie the twisted ties on the 30 Light Strings (B).
Grasp the wire Harness Disk (J) and lift.
Unfold the 30 folding frame arms of Base (A).
7

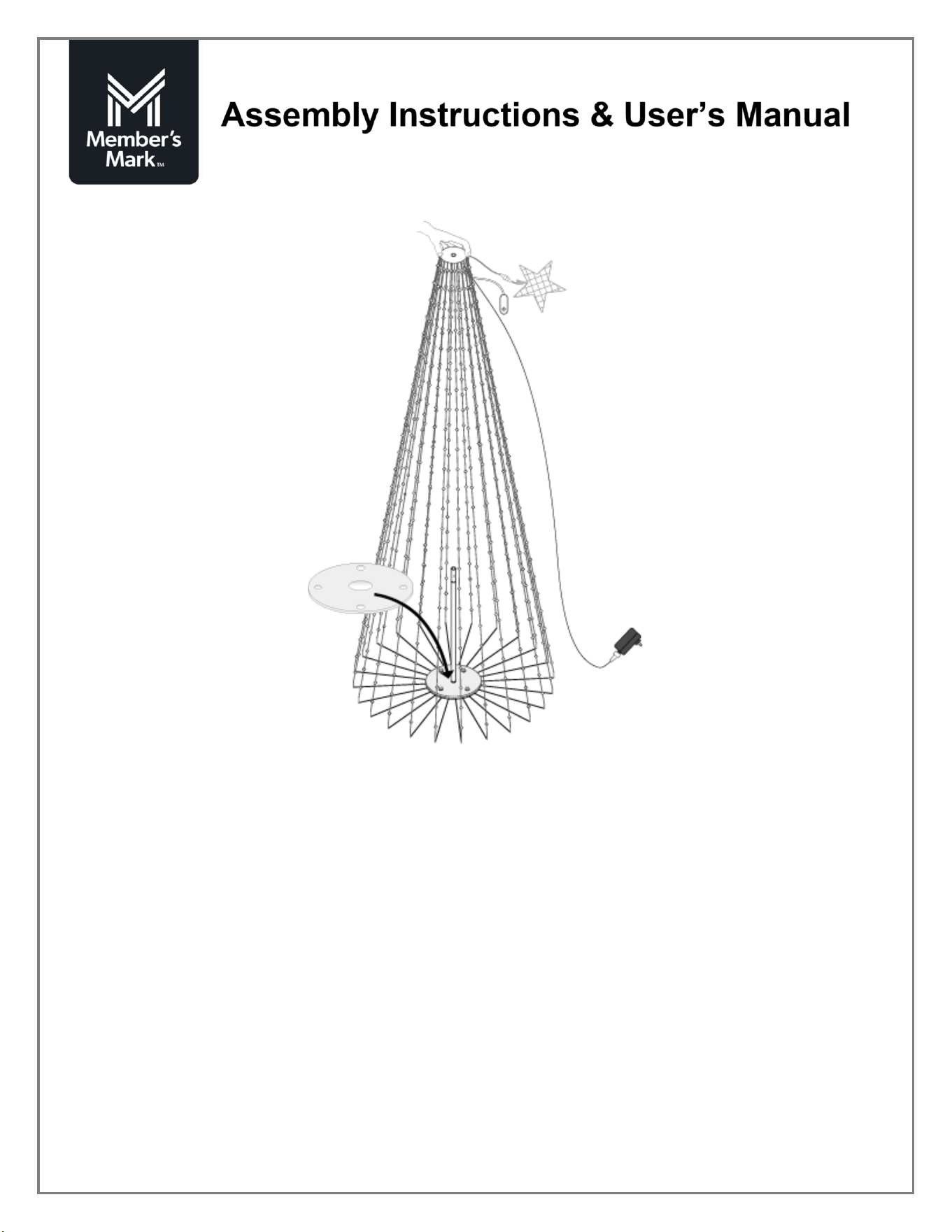

Step 2: Insert the Base Stand Plate Cover (I) onto bottom rod of Base (A) as shown (Do not
install hardware at this step).
8
Step3:

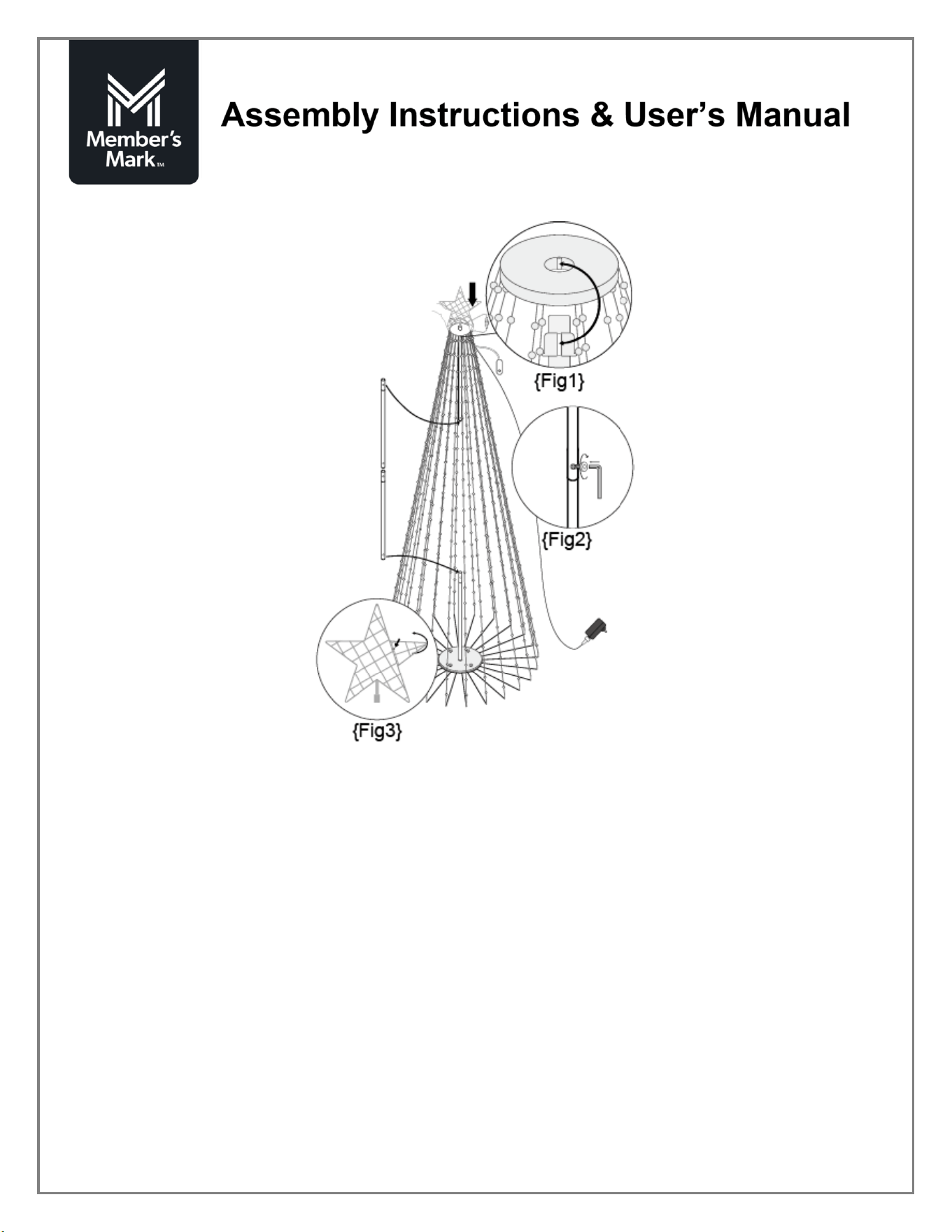

Insert the Top Section Pole (D‑2) into the Harness Disk (J). Align the matching marks on
the pole and the harness disk before fully seating the pole (see {Fig1}).
Connect the three Middle Section Poles (D-1) together. Attach the top end of Middle Pole
assembly into the bottom of the Top Pole (D-2), then attach the bottom end of Middle Pole
assembly onto the bottom pole of Base (A).
Secure the pole sections together using the Button Head Socket Screw (H)(see {Fig2}).
Unfold and lock the star frame of Star Topper (E) (see {Fig3}), then attach it to the top of
Top Pole (D2).
9
Step 4:
Align the four holes on the Base Stand Plate Cover (I) with the bolts on the Tree Base (A),
then press down on the plate cover and secure it using the four Wing Nuts (G).
10
Step 5:

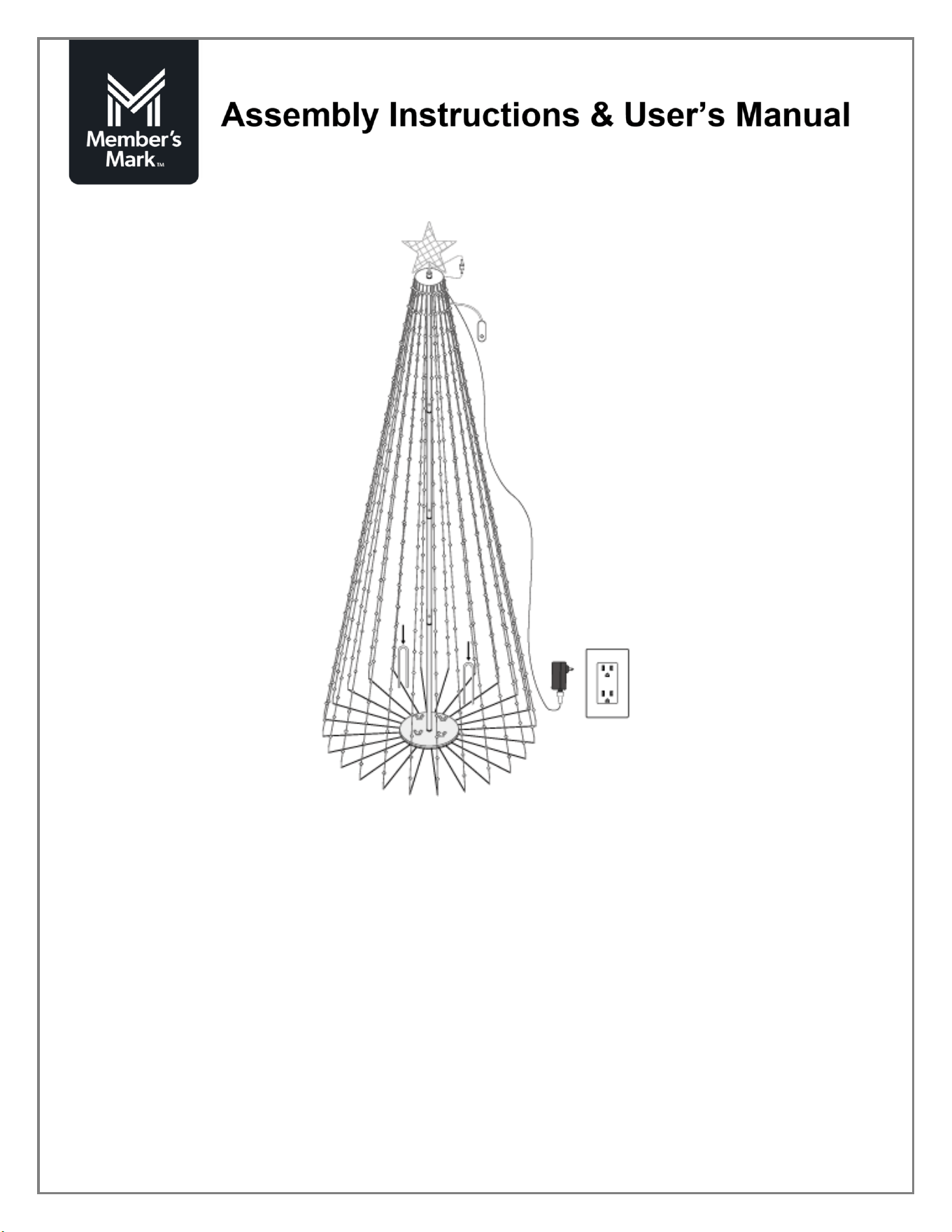

Use the Ground Stakes (K) to secure the base frame arms to the ground.
Plug the Power Adapter (C) into a GFCI outlet.
Note:
To ensure the best appearance of tree string lights, use spare springs to replace any
worn out springs (L).
11

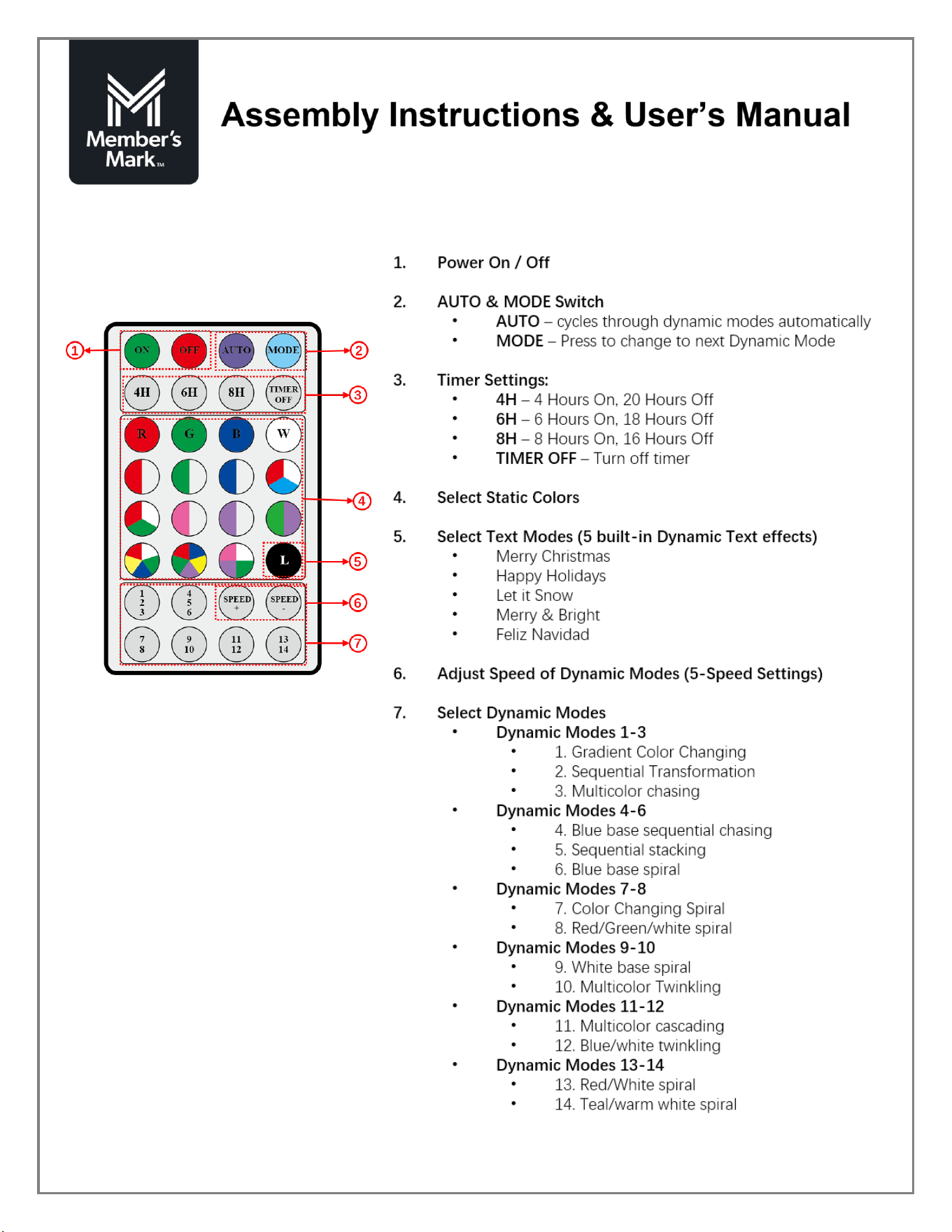

Remote Control Use
1.
This remote control adopts
Radio Frequency (RF)
technology for operation. INDOOR USE ONLY.
2.
Timer settings are not affected by switching functions;
press
"TIMER OFF" to cancel the timer at any time.
3.
All color and dynamic effects are pre-programmed;
press "AUTO" to activate automatic circulation of all
functions (Cycles through Functions 1-14 + 5 text functions).
FCC Statement:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following
two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digitaldevice, pursuant to part 15 of the FCC Rules. These limits are
designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energyand, if not installed and used in accordance with the instructions, may cause
harmfulinterference to radio communications. However, there is no guarant ee that
interference will not occur in a particular installation. If this equipment does
causeharmful interference to radio or television reception, which can be determined
byturning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the party
responsible
for compliance could void the user's authority to operate the equipment.
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environm ent. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
12

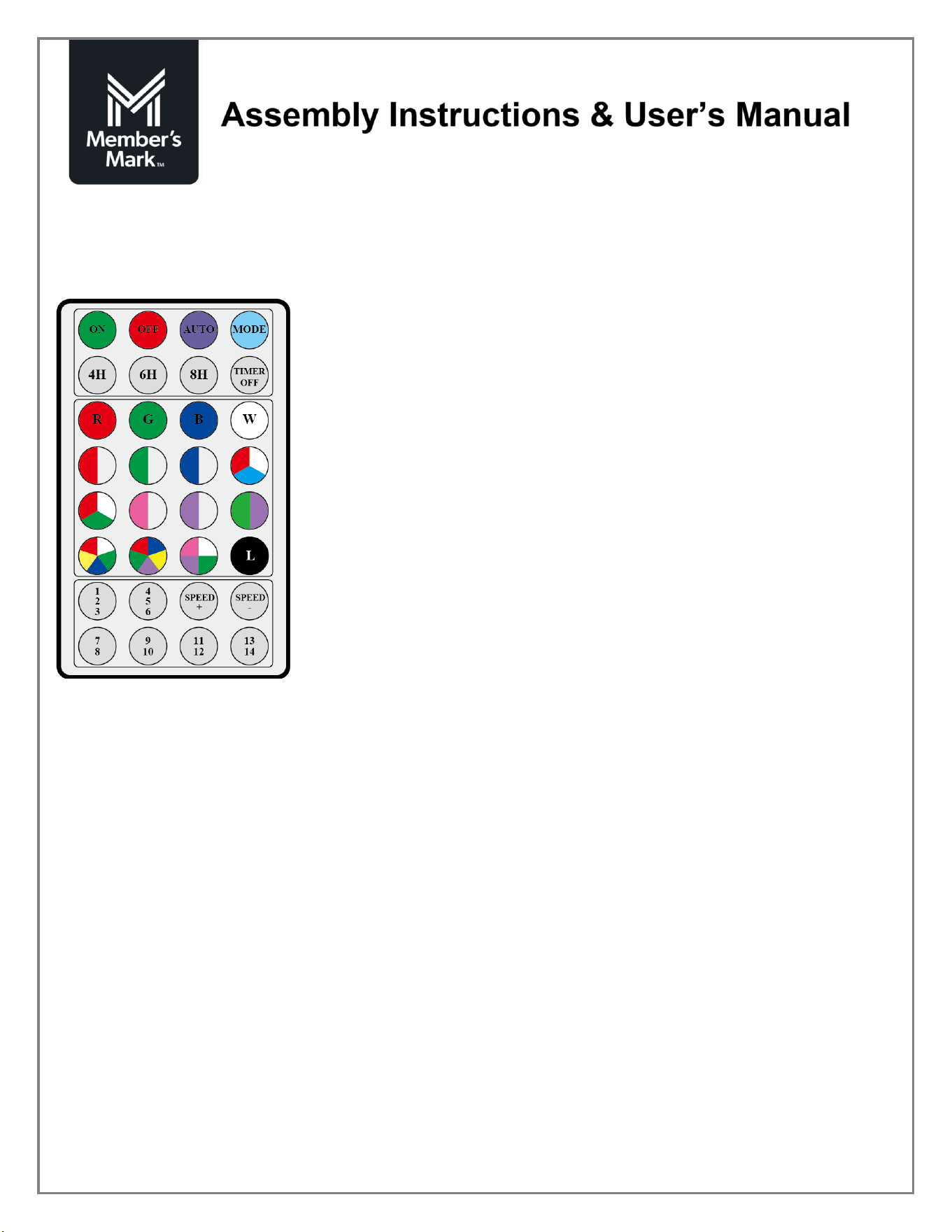

Remote Controller
Introduction
13
Warning
1. Please note that changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
2. This is not a toy. This is an electric product. For decorative use only. To avoid risk of fire,
burns, personal injury and electric shock it should not be played with or placed where small
children can reach it.
3. Small parts, keep batteries out of reach of children.

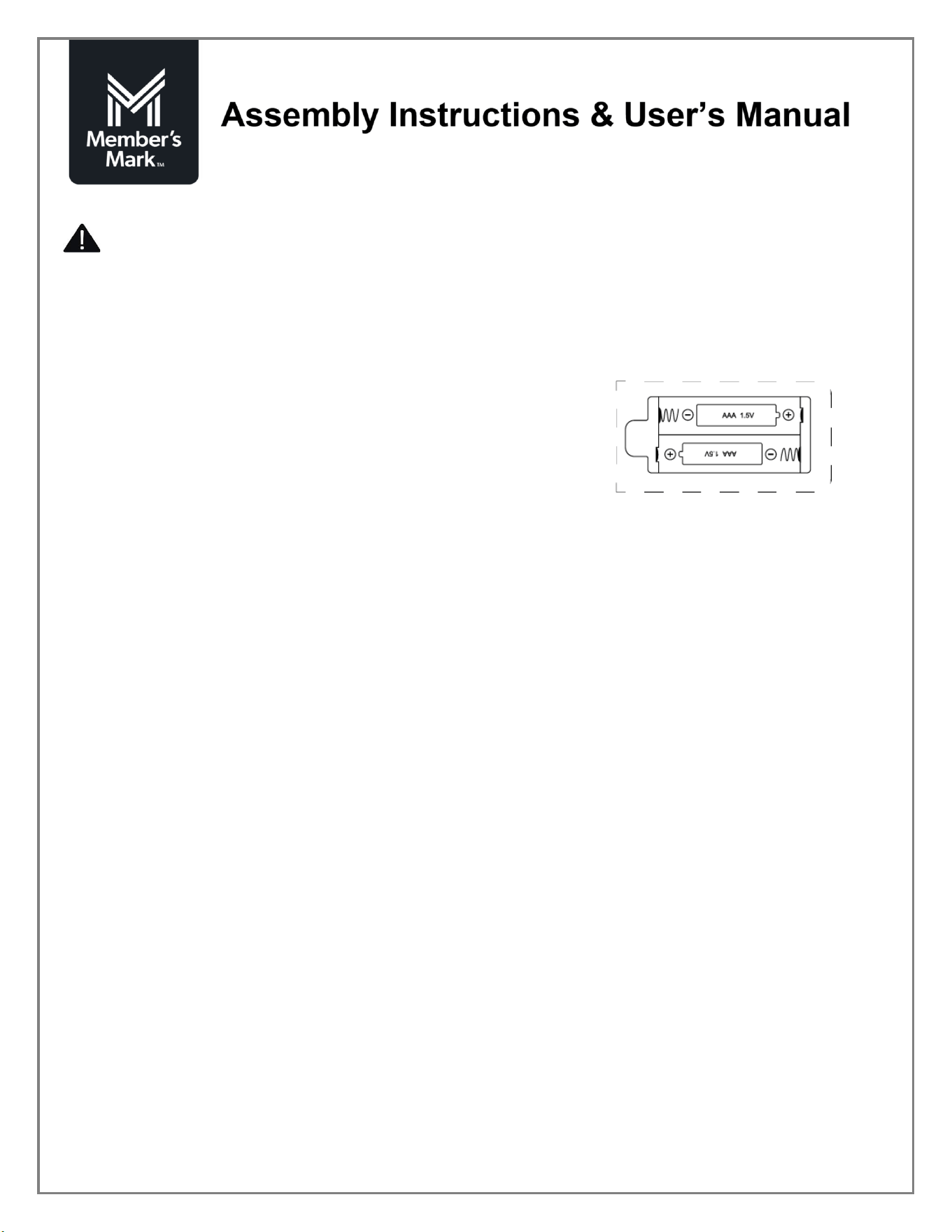

4. Use only 2 pcs of AAA batteries for remote controller.
5. Do not dispose of the battery in fire as the battery may
leak and explode.
6. Do not expose the remote controller to moisture.
7. Batteries must be recycled or disposed of properly. Replace only with 2 pcs of AAA batteries.
Dispose of as per the requirements of your local municipality.
8.. The controller and remote controller (if included) can only be used with this product.
9. If the supply cord or wires are damaged, the product should be discarded.
10. Risk of Electric Shock. When used outdoors, install only to a covered Class-A GFCI
protected receptacle that is waterproof with the power unit connected to the receptacle. If one is
not provided, contact a qualified electrician for proper installation. Ensure that the power unit and
cord do not interfere with completely closing the receptacle cover.
11. Risk of Fire. Installation involves special wiring methods to run wiring through a building
structure, consult a qualified electrician.
12. When used outdoors, install only to a Class-A GFCI protected receptacle where the
transformer is protected from water or rain while plugged in (completely covered by the outlet
box while plugged in. Do not use where only part of the transformer is protected from rain or
water (outlet boxes where there is only a partial cover shall not be used for outdoor installations).
This power unit is intended to be correctly oriented in a vertical or floor mount position.
14
Danger
1. Always unplug your tree from its power source before assembling or disassembling.
2. The Product consists of non-replaceable LED lamps. To reduce the risk of fire or electric
shock, do not attempt to replace lamps or modify string.
3. For the replacement, please directly contact our customer service.
4. Use only the size and type of battery specified.
5. Be sure to follow the correct polarity when installing the battery as indicated in the battery
compartment, a reverse battery may cause damage to the device.
6. If the battery in the device is consumed or the device is not to be used for a long period of
time, remove the batteries to prevent damage or injury from possible leakage.
7. Do not try to recharge the battery as it is not intended to be recharged, it can overheat and
rupture. (follow the battery manufacturer's instructions)
8. The batteries should not be exposed to excessive heat such as sunshine or fire.
9. Clean the battery contacts and those of the device prior to battery installation.
Troubleshooting
Ensure the product is disconnected from the power source before attempting to service.
If Tree does not illuminate properly
1. Ensure that all tree sections are properly connected into each other, and the cord is plugged firmly
into the wall outlet. (if the tree comes with a foot pedal, try stepping on the On/Off button).
2. Check for loose connection between light string plugs and extension cord.
Care & Use Instructions
15
NOTE: Use only adapter model: JT-DC300V1600-G3. Do not use this adapter with any other
product.
NOTE: LEDs in this set are non-replaceable. Tampering with this set will void the warranty.
Installation
1. This product can be installed in either indoor or outdoor locations, but avoid splashing water from
falling onto, or reaching the transformer.
2. General information -
2.1 Damage may occur to this product if used in extreme temperatures.
2.2 Do not change the wiring on the end product.
2.3 Please use correct voltage for your product by checking the nameplate information on the
transformer.
3. After finishing the installation, please plug into a 120V AC/60Hz electrical outlet.
CAUTION: This lighting string is rated 99.6 Watts (0.83Amps), do not overload.
Storage Instructions
1. Unplug adapter/Power cord from wall outlet first.
2. Disassemble the tree from the top to the bottom. Start with tree top and gently lift straight up to
remove from section below, reversing assembly procedure.
3. Continue by gently re-grouping light strings in groups of five (5) using wire ties and place them
back inside the long clear plastic bag in which it was originally packed. Simply reverse steps during
assembly process for easier assembly next holiday season.
4. Carefully place all tree section into the original packing box.
5. When not in use, please store your tree in a cool, dry place away from sunlight. Exposing your
tree to excessive heat or humidity may damage your tree.
16
Technical Data
Rated Voltage: 120 V ~ 60 Hz Rated Power Input: 48 W
Rated Current: 30VDC 1.6 A
Limited Warranty
This product is covered by the Sam's Club Member Satisfaction Guarantee.
Please visit samsclub.com for more information.
NOTE: Please consider recycling all applicable packaging material.
Distributed by Sam’s West Inc.
2101 SE Simple Savings Dr.
Bentonville, Arkansas 72716-0745
Made in China
