OPERATOR’S MANUAL
33 TON GASOLINE LOG SPLITTER
Record product information to reference when ordering parts or
obtaining warranty coverage.
GS3301
Rev:00
1
Table of Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Features Controls and on Product Hazard Labels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Maintenance - Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

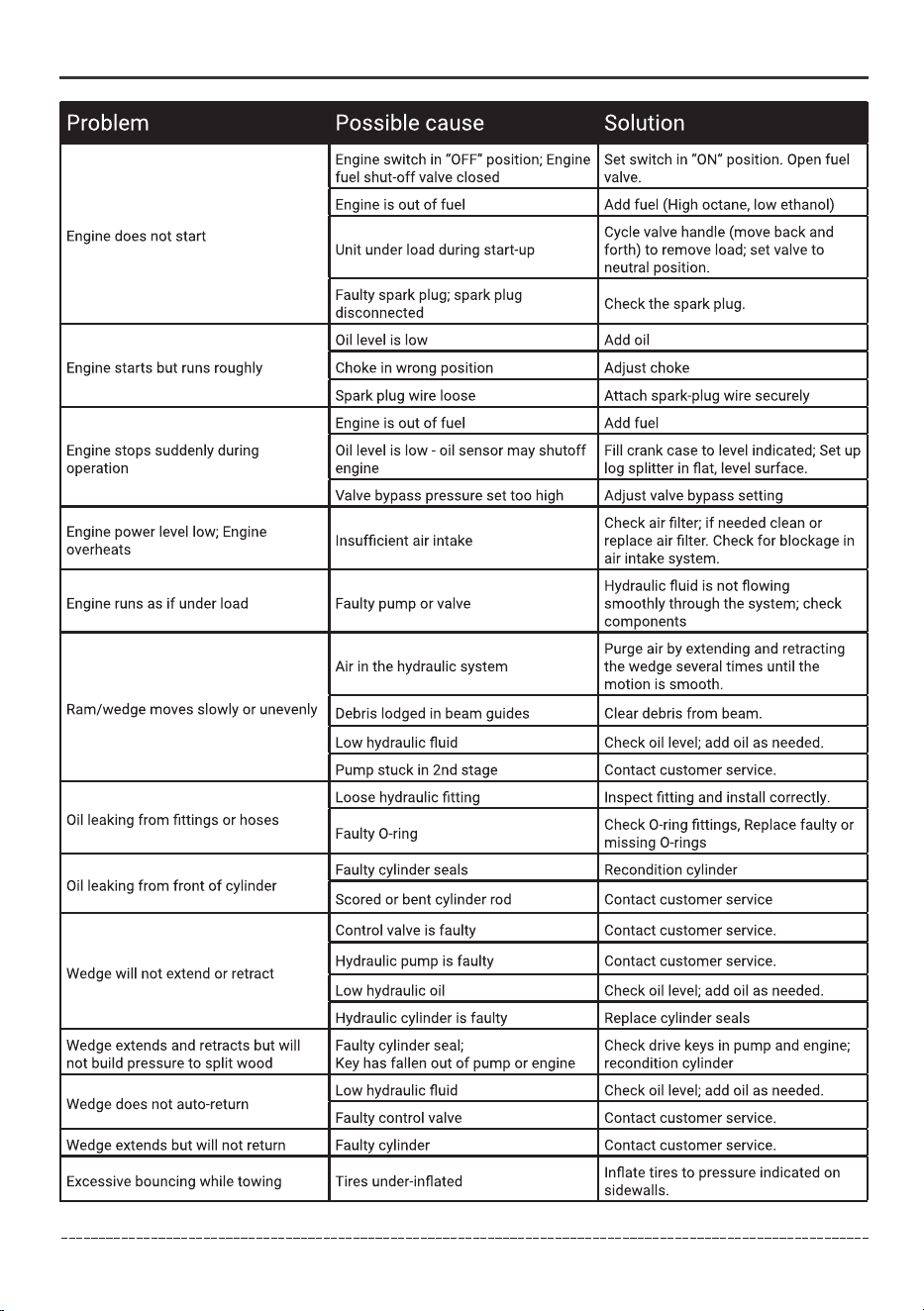

Troubleshooting- Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

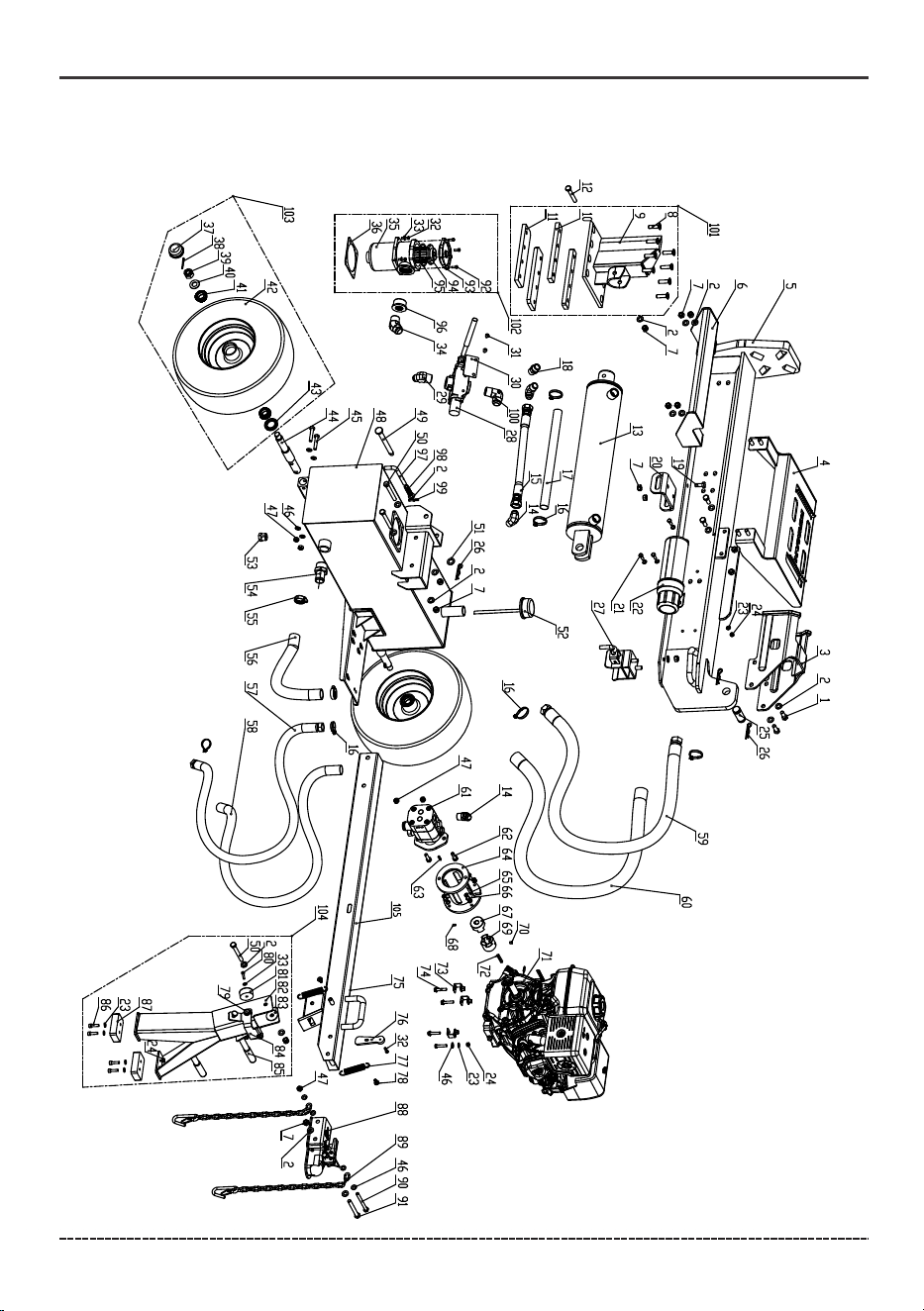

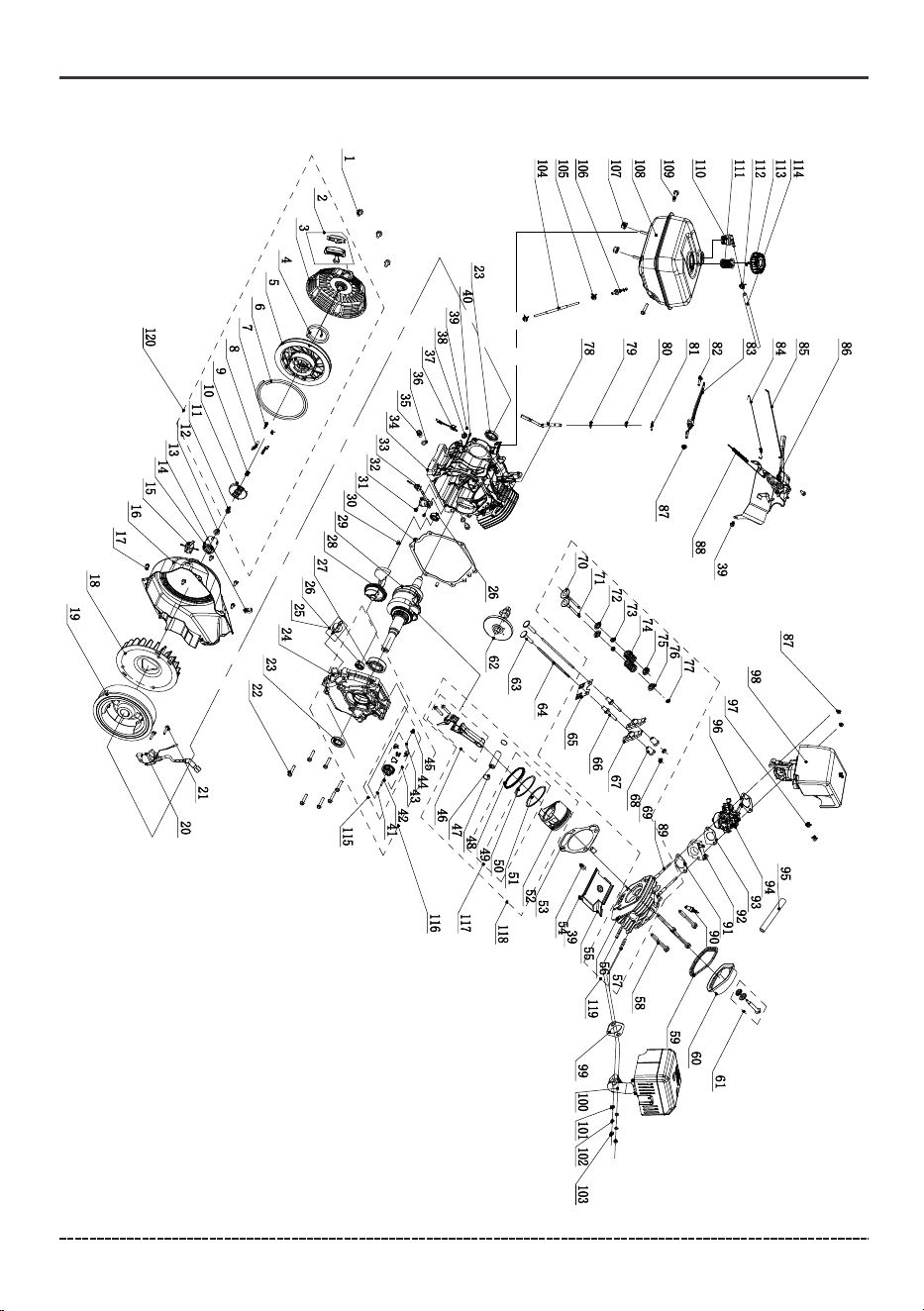

Parts Diagrams - Parts Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 8
Service - Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
REGISTER YOUR PRODUCT
Register your product using the QR code provided or at
www.firmanpowerequipment.com .
INTRODUCTION
Thank you for purchasing a FIRMAN log splitter. You have selected a high-quality, precision engineered
log splitter designed and tested to give you years of satisfactory service.
This manual contains safety information to make you aware of the hazards and risks associated
with log splitter products and how to avoid them. It is important that you read and understand
these instructions thoroughly before attempting to start or operate log splitter. Save these
original instructions for future reference.
All information in this publication is based on the latest production information available at the
time of approval for printing. The manufacturer reserves the right to change, alter or otherwise
improve the log splitter and this documentation at any time without prior notice.
INTRODUCTION
2

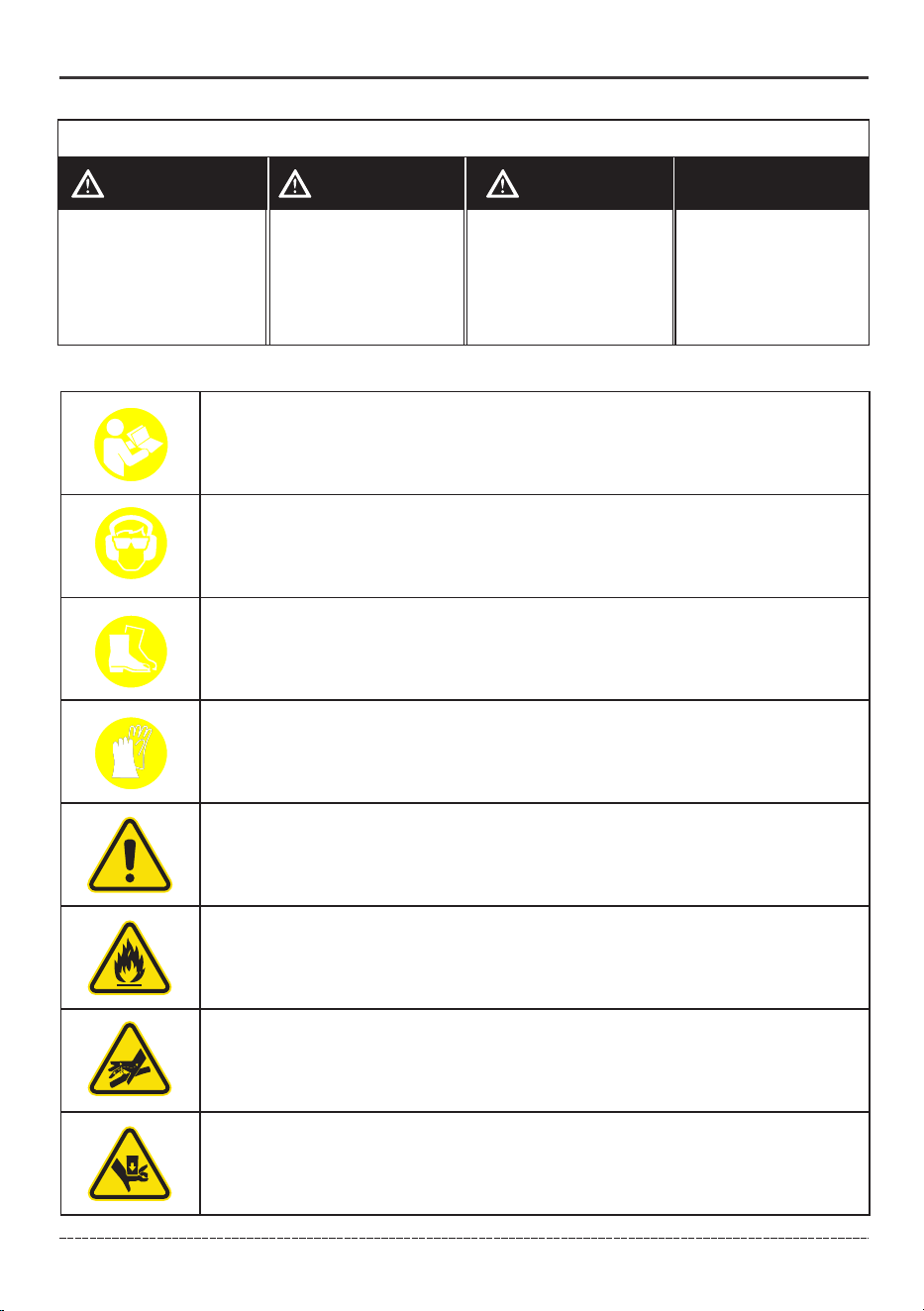

SIGNAL WORDS
DANGERWARNINGCAUTION
Indicates a hazard
which, if not avoided,
will result in death or
serious injury.
Indicates a hazard
which, if not avoided,
could result in death
or serious injury.
Indicates a hazard
which, if not avoided,
could result in minor or
moderate injury.
Fire- Fuel and its vapors are extremely flammable which could
cause burns or fire resulting in death or serious injury.Engine
exhaust could cause fire resulting in death or serious injury.
Hot Surface- Muffler could cause burns resulting in serious injury.
Water contact with a power source could cause electrical shock
resulting in death or serious injury.
Safety Alert Symbol - Indicates a potential personal injury hazard.
Operator's Manual- Failure to follow warnings, instructions and
operator's manual could result in death or serious injury.
English Customer Service: 1-844-FIRMAN1
NOTICE
Indicates information
considered Important,
but not hazard-related.
INTRODUCTION

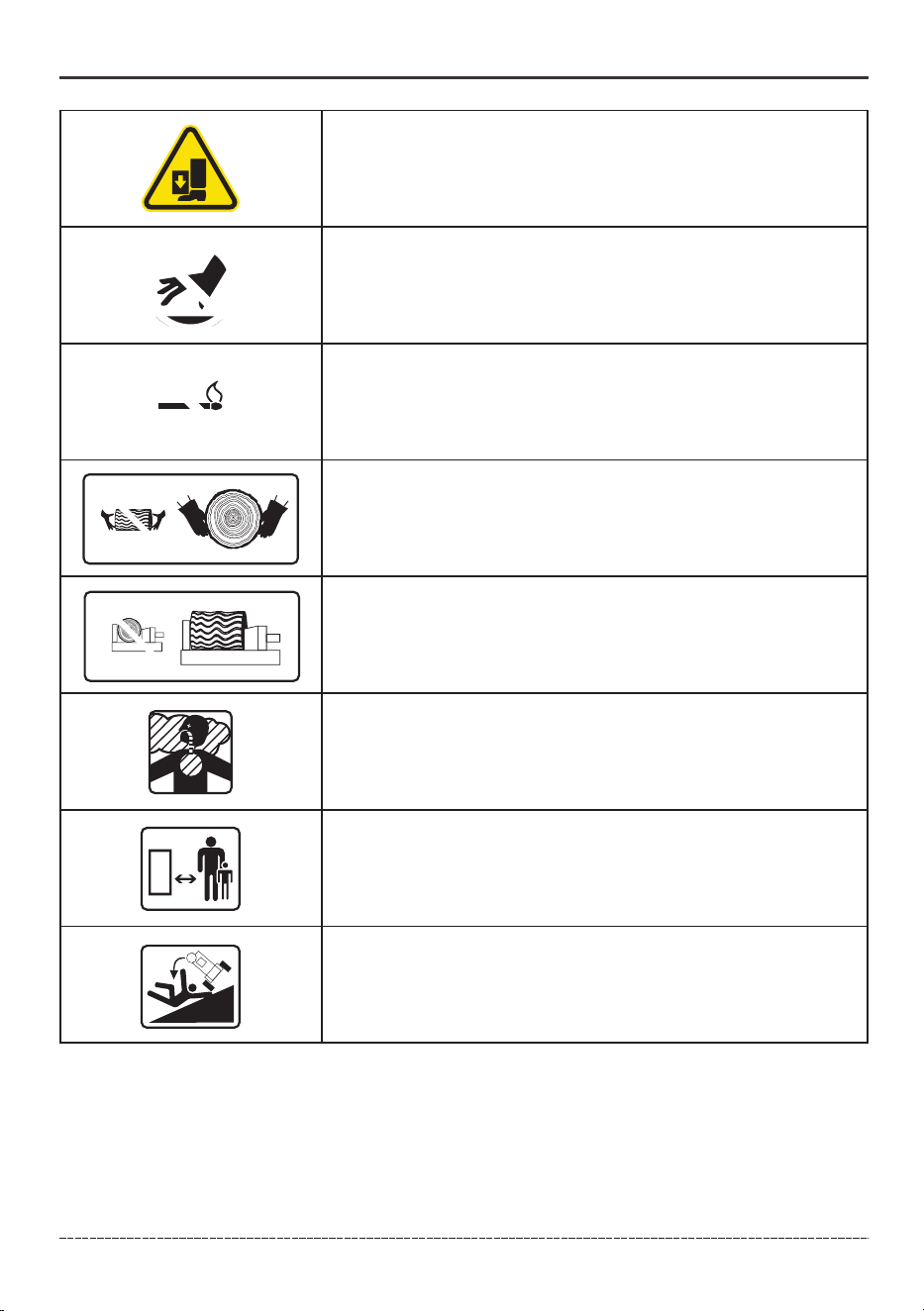

Eye and Ear Protection - Always wear safety goggles or safety
glasses with side shields, and as necessary a full face-shield as well
as full ear protection when operating this product.
Footwear - Always wear safety shoes or heavy boots when
operating the machine.
Gloves - Always wear nonslip, heavy-duty protective gloves when operating
this product.
Skin Injection Hazard - High pressure hydraulic oil can inject under your skin.
Make sure all fittings are tightly secure before applying pressure. Relieve
system pressure before servicing.
Always keep hands away from the wedge and the hydraulic cylinder.
Moving parts can crush or cut.
3
English Customer Service: 1-844-FIRMAN1
INTRODUCTION
Always keep feet away from the wedge slide and the hydraulic
cylinder. Moving parts can crush or cut.
Hot Surface- Muffler could cause burns resulting in serious
injury.
Open Flame alert - Fuel and its vapors are extremely flammable
and explosive. Keep fuel away from smoking, open flames,
sparks, pilot lights, heat, and other ignition sources.
Hold logs on sides when loading. Keep hands and feet away
from cylinder, wedge, and partially split logs.
Never place hands or any part of the body between a log and
any part of the log splitter.Do not split logs against the grain.
Split logs end to end in the direction of the grain only.

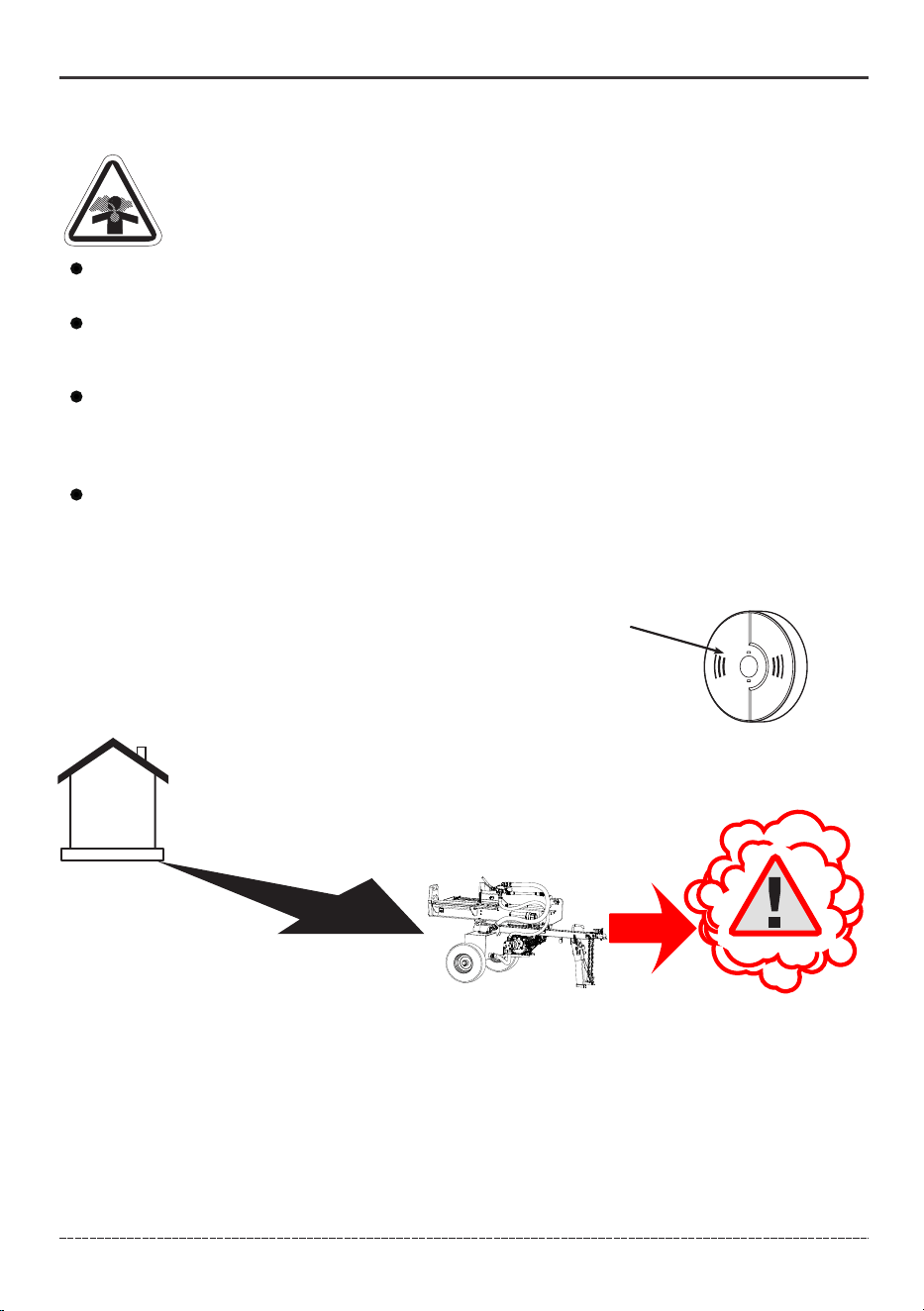

Toxic Fumes- Engine exhaust contains carbon monoxide,
a poisonous gas that will kill you in minutes. You cannot
smell it or see it.

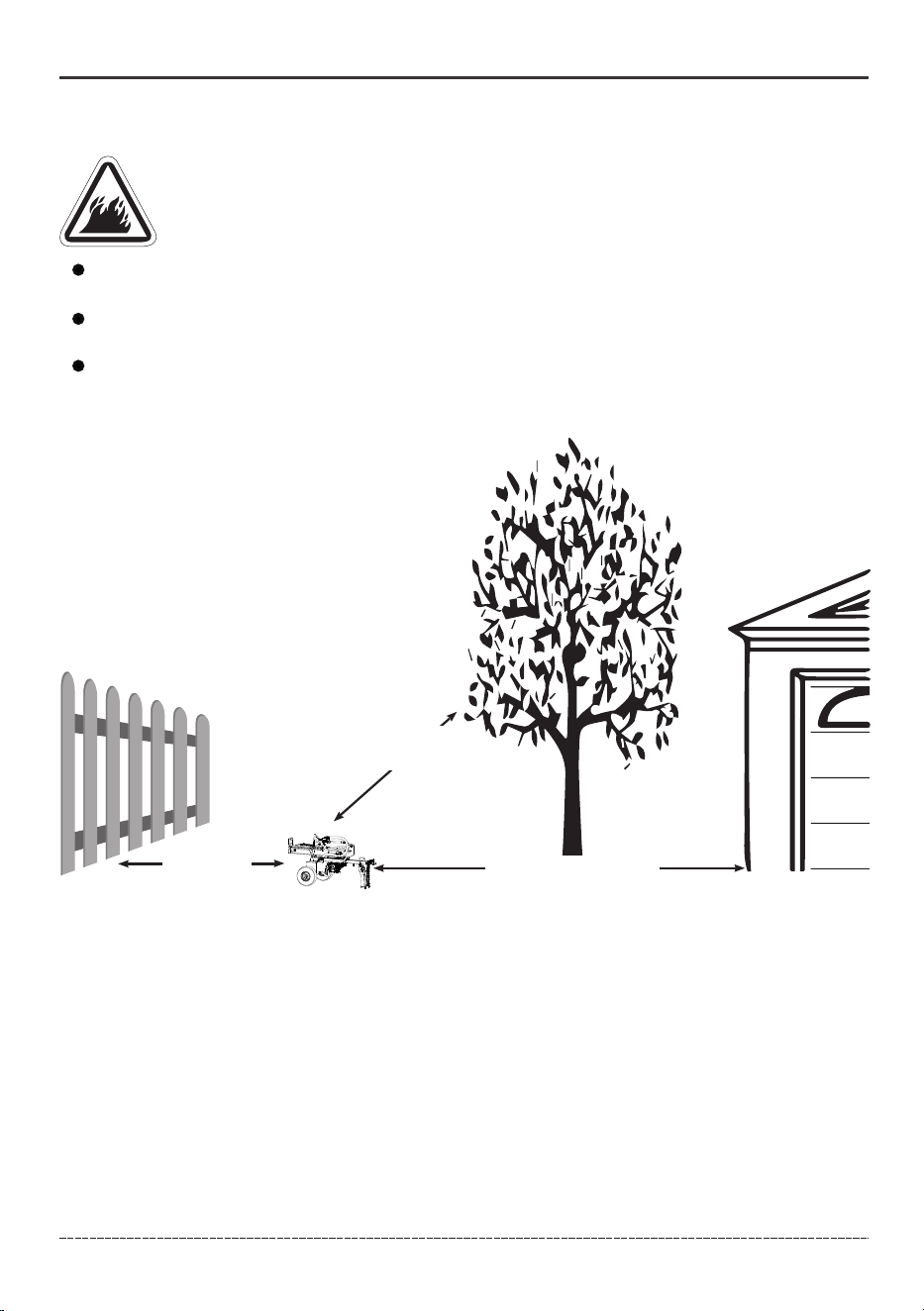

Clearance - Keep all objects including others at least 10 feet
(3m) from this machine. Only one person should operate the
log splitter and load the logs.
Never operate on an incline. Make sure the log splitter is on a level
surface. Block tires and ensure support leg is secure to prevent
unintended movement of the log splitter during operation.
4
English Customer Service: 1-844-FIRMAN1
WARNING! This product can expose you to chemicals including gasoline engine
exhaust and lead and lead compounds, which are known to the state of California to
cause cancer, and carbon monoxide, which is known to the State of California to
cause birth defects or other reproductive harm. For more information go to
www.P65Warning.ca.gov.
INTRODUCTION
Training
1. Read the Operator’s Manual completely before attempting to use this log splitter.
2. Do not allow anyone to operate your log splitter who has not read the Operator’s Manual or has
not been instructed on the safe use of the log splitter.
3. Never allow children or untrained adults to operate this machine.
4. Many accidents occur when more than one (1) person operates the log splitter. If a helper is
assisting in loading logs to be split, never actuate controls until helper is clear of the area.
5. Never allow anyone to ride on the machine.
6. Never transport cargo on the log splitter.
7. High fluid pressures are developed in hydraulic log splitters. Pressurized hydraulic fluid
escaping through a pin hole opening can puncture skin and cause sever blood poisoning.
Therefore, the following instructions should be heeded at all times.
7a. Do not operate the unit with frayed, kinked, cracked or damaged hoses, fittings, or tubing.
7b. Stop the engine and relieve hydraulic system pressure before changing or adjusting fittings,
hoses, tubing, or other system components.
7c. Do not adjust the pressure settings of the pump or valve.
7d. Do not check for leaks with your hand. Leaks can be detected by passing cardboard or wood
over the suspected area. Look for discoloration. If injured by escaping fluid, see a doctor at once.
Serious infection or reaction can develop if proper medical treatment is not administered
immediately.
8. Keep the operator zone and adjacent area clear for safe, secure footing.
9. The log splitter is equipped with a spark arrestor for use near unimproved forest, brush, or grass
covered land. Make sure you comply with local, state, and federal codes. Take appropriate
fire-fighting equipment with you.
10. Log splitters should be used only for splitting wood. Do not use for other purposes unless the
manufacturer provides attachments and instructions.
11. Only split wood with the grain. NEVER split perpendicular to the grain.
12. Keep the area of operation clear of all persons, particularly small children.
Preparation
1. Be thoroughly familiar with all controls and with proper use of the equipment.
2. Safety Gear:
2a. Always wear safety shoes or heavy boots when operating the machine.
2b. Always wear safety goggles or safety glasses with side shields, and as necessary a full
face-shield when operating or servicing the machine.
2c. Never wear jewelry or loose-fitting clothing that might become entangled in moving or
rotating parts of the machine.
2d. Always wear full ear protection when operating the machine.
3. Make sure the log splitter is on a level surface. Block tires and ensure support leg is secure to
prevent unintended movement of the log splitter during operation.
3a. Always operate the log splitter from the manufacturer’s indicated operator zone.
4. Logs should be cut as squarely as possible.
5
5. Fuel:
5a. Use an approved fuel container.
5b. Never add fuel to a running or hot engine.
5c. Fill fuel tank outdoors with extreme care. Never fill fuel tank indoors.
5d. Replace gasoline cap securely and clean up any spilled fuel. If fuel is spilled on clothing, change
clothing immediately.
5e. Never fill fuel containers inside a vehicle or on a truck or trailer bed with a plastic liner. Always
place container on the ground away from your vehicle before filling.
5f. Keep the fuel nozzle in contact with the rim of the fuel tank or container opening at all times
until fueling is complete. Do not use a nozzle lock open device.
English Customer Service: 1-844-FIRMAN1
INTRODUCTION
Operation
1. Be sure to confirm all hose connections and hose clamps are tight before each use. It is possible
for connections to vibrate loose over time.
2. Never leave the machine unattended with the engine operating.
3. Never operate the machine when under the influence of alcohol, drugs or medication.
4. The machine owner shall instruct all operators to read and understand the operators manual to
ensure safe log splitter operation.
5. Always operate the log splitter with all safety equipment in place and all controls properly
adjusted for safe operation.
6. Always operate the log splitter at manufacturer’s recommended speed.
7. Always keep hands and feet clear of moving parts and partially split logs during the splitting
operation.
8. When loading a ram-type log splitter, place your hands on the sides of the log, not the ends.
Never place your hands or any part of your body between a log and any part of the log splitter.
9. On ram-type log splitters, never attempt to split more than one (1) log at a time unless the ram
has been fully extended and a second log is needed to complete the separation of the first log.
10. On ram-type log splitters on which the logs are not cut square, the longest portion of the log
should be rotated down and the most square end placed against the foot plate.
11. Only split logs with the grain of the wood.
12. Use only your hand to operate the log splitter controls.
13. Do not refuel until the engine has been turned off and cooled for at least 2 minutes.
Maintenance and Storage
1. Always shut off the engine while repairing or adjusting the log splitter except as recommended
by the manufacturer.
2. Clean debris and chaff from the engine cylinder, cylinder head fins, recoil starter cover, and muffler

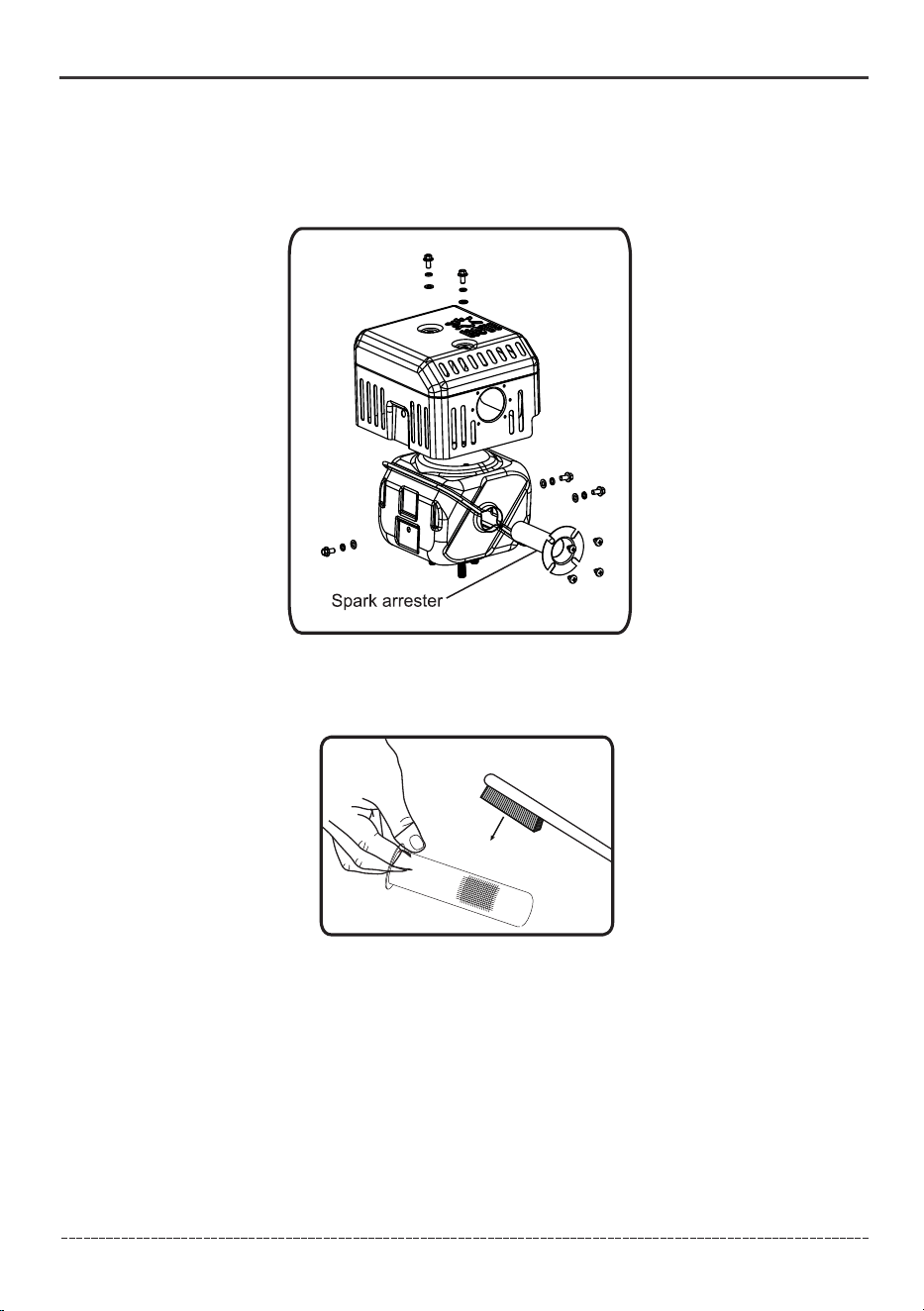

areas. Clean engine muffler spark arrestor and inspect it regularly (follow manufacturer’s service
instructions). Replace, if damaged.
3. Never store the unit indoors with fuel in the tank. Fumes might reach an open flame spark. Allow
the engine to cool before storing in any enclosure.
4. Clear debris from movable parts, but only when the engine is shut off.
5. Check to be sure all nuts and bolts are tight to ensure the equipment is in safe working condition.
WARNING! Before starting and using this log splitter, read and follow all the on product labels and
safety information contained in the Operator's manual. Failure to follow all on product labels and
Operator's manual could result in death or serious injury to the operator or bystanders.
6
English Customer Service: 1-844-FIRMAN1
*We are always working to improve our products. Therefore, the enclosed product
may differ slightly from the image on this page.
FEATURES, CONTROLS AND ON -PRODUCT HAZARD LABELS
⑯
⑮
⑭

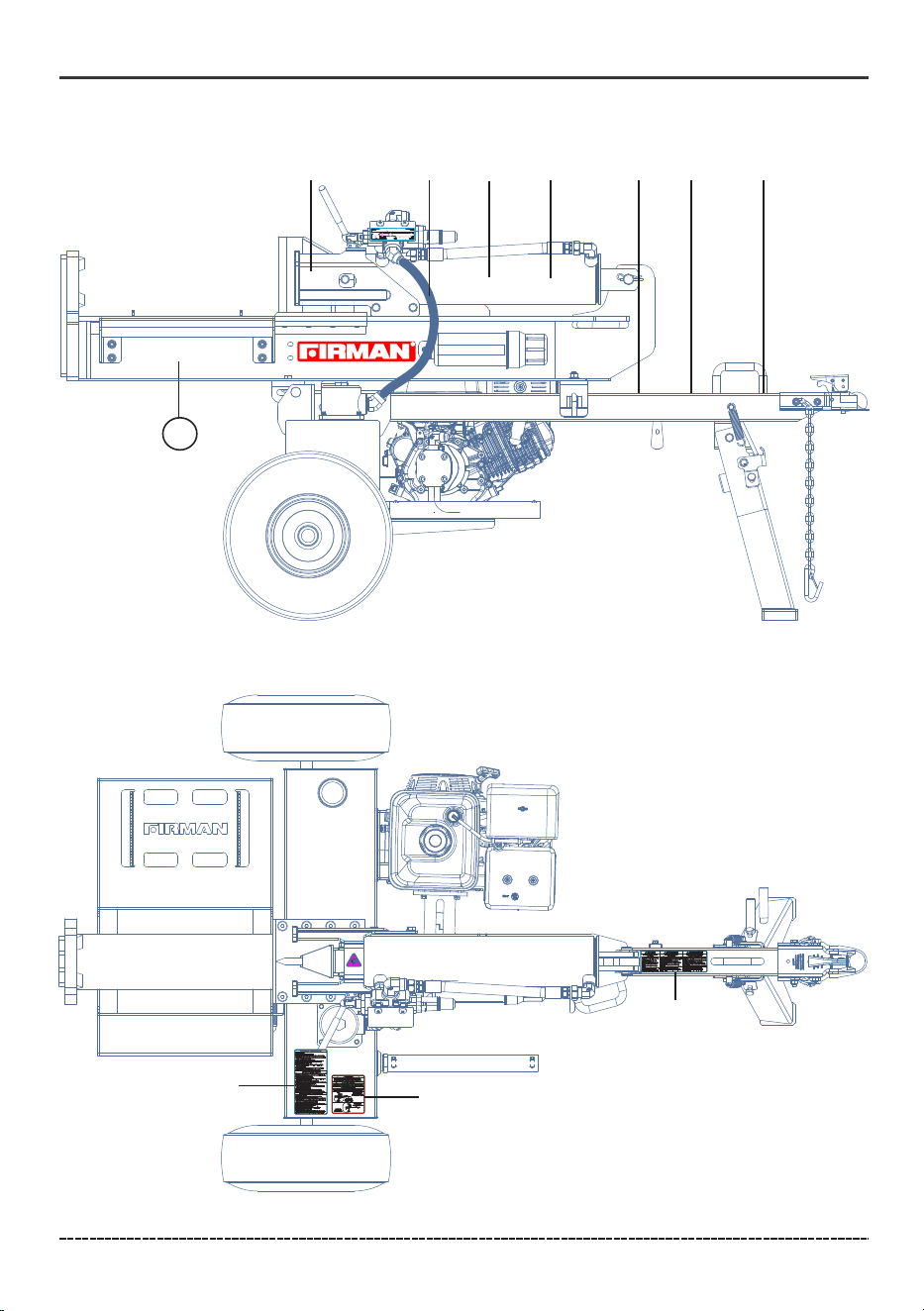

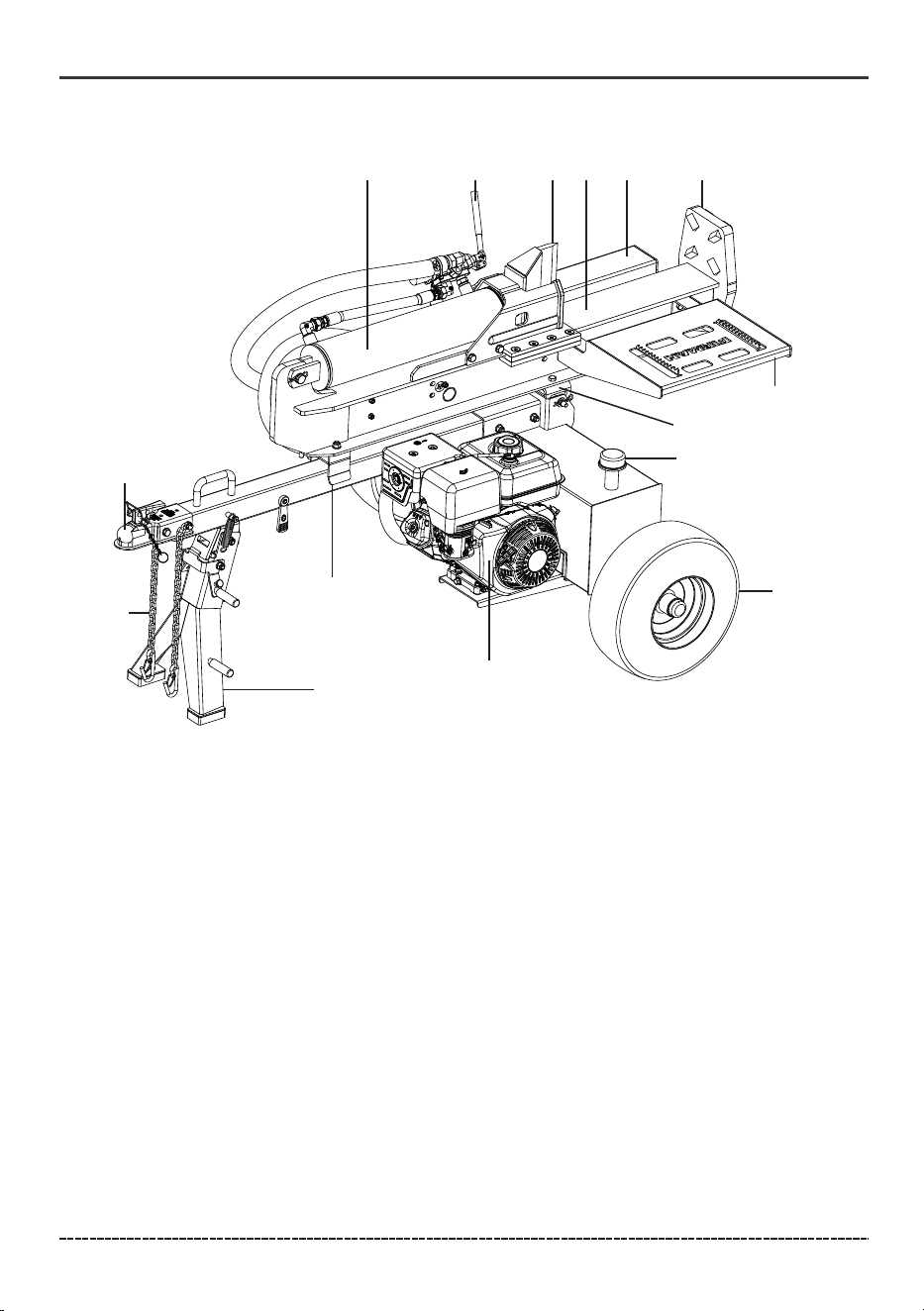

Log Splitter
1. 2 in. (5.1 cm) Ball Coupler
2. Foot Plate
3. Hydraulic Cylinder
4. Control Valve Handle
5. Wedge
6. Beam
7. Log Cradle
8. Tires
9. 389cc FIRMAN Engine
10. Vent Cap
11. Beam Pivot
12. Beam Lock Assembly
13. Tongue Stand
14. Safety Chains with Hooks
15. Log Table
Splitting control The machine shall have an operator-presence control (OPC) for its splitting function.
For controls that move in the same direction as the ram or wedge, they shall move forward on
horizontal machines and down wardon vertical machines for the splitting action. Hand-operated
splitting controls (excludes power source controls) shall provide a minimum of 70 mm (2.75 in) of
clearance in all directions from the control and through out the operating range. The control’s
function and direction shall be identified by a durable label.
8
9
14
1
2
3
4
56
7
15
10
11
12
13
7
English Customer Service: 1-844-FIRMAN1
1
6
7
8
9
10

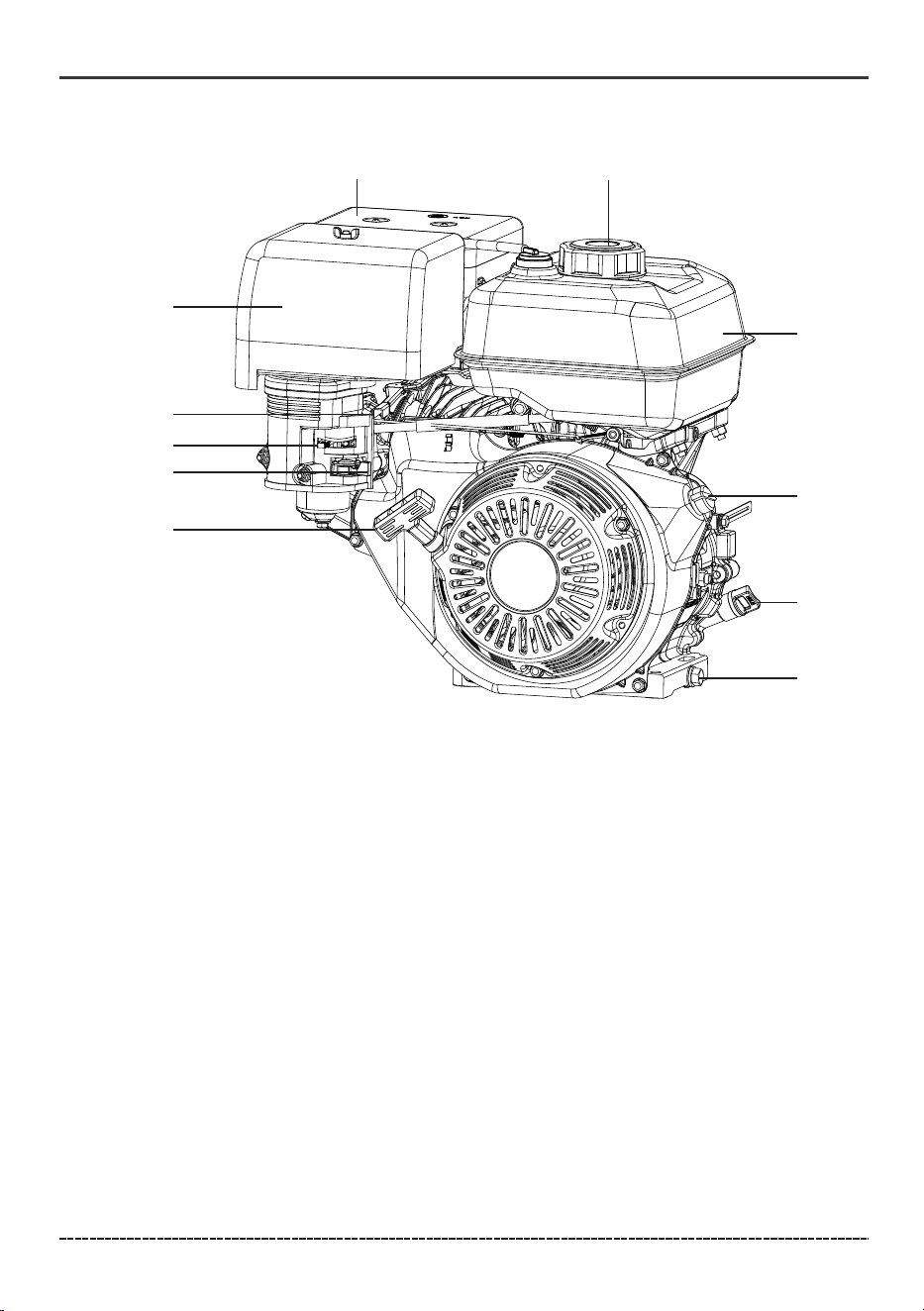

1. Fuel Cap
2. 1.1 Gal (4.2L) Fuel Tank
3. Engine Switch
4. Oil Fill Cap/Dipstick
5. Oil Drain Bolt
6. Recoil Starter
7. Fuel Valve
8. Choke Lever
9. Throttle
10. Air Filter
11. Muffler
FEATURES, CONTROLS AND ON -PRODUCT HAZARD LABELS
2
5
3
4
11
8
English Customer Service: 1-844-FIRMAN1

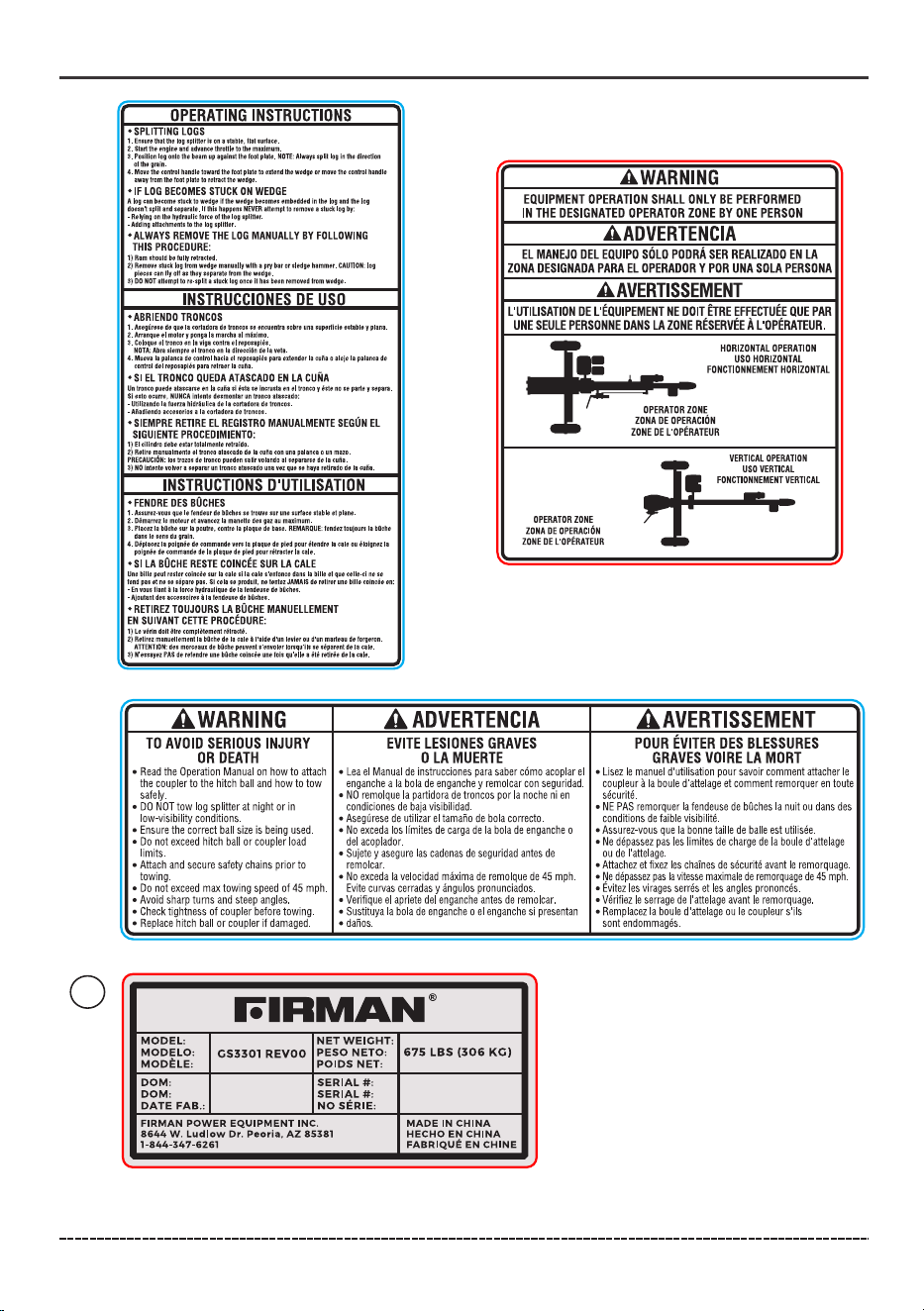

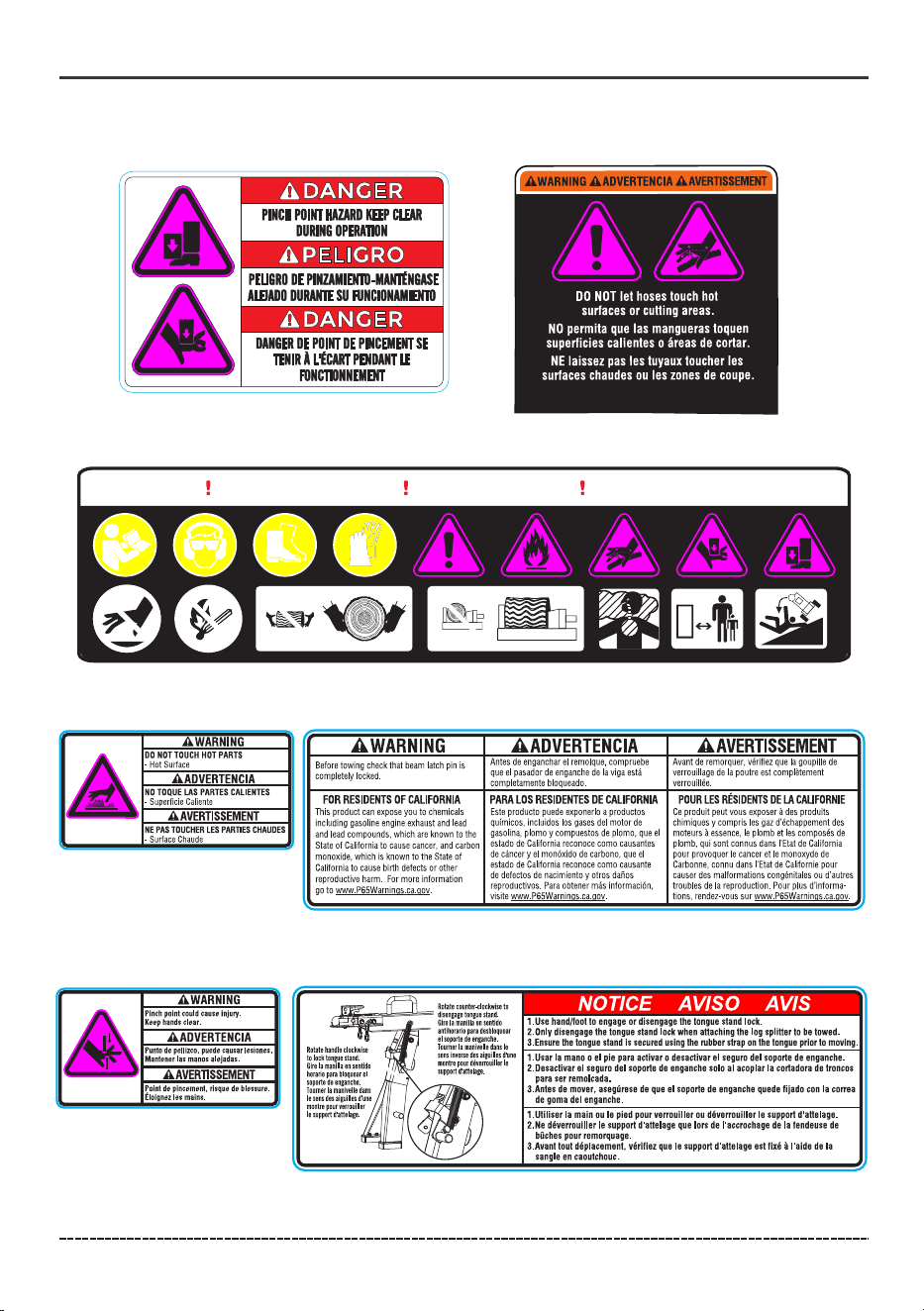

FEATURES, CONTROLS AND ON -PRODUCT HAZARD LABELS
①
②
③
④
⑤
⑨
⑧
⑦
⑥
⑩
11
9
English Customer Service: 1-844-FIRMAN1
FEATURES, CONTROLS AND ON -PRODUCT HAZARD LABELS
①
②
③
④
⑤
⑦
⑥
10
English Customer Service: 1-844-FIRMAN1
FEATURES, CONTROLS AND ON -PRODUCT HAZARD LABELS
⑧
⑨
11
⑩
11
English Customer Service: 1-844-FIRMAN1
ASSEMBLY
Your log splitter requires some assembly. If you have any questions regarding the assembly of
your log splitter, call our help line at 1-844-347-6261. Please have your serial number and model
number available.
ASSEMBLY

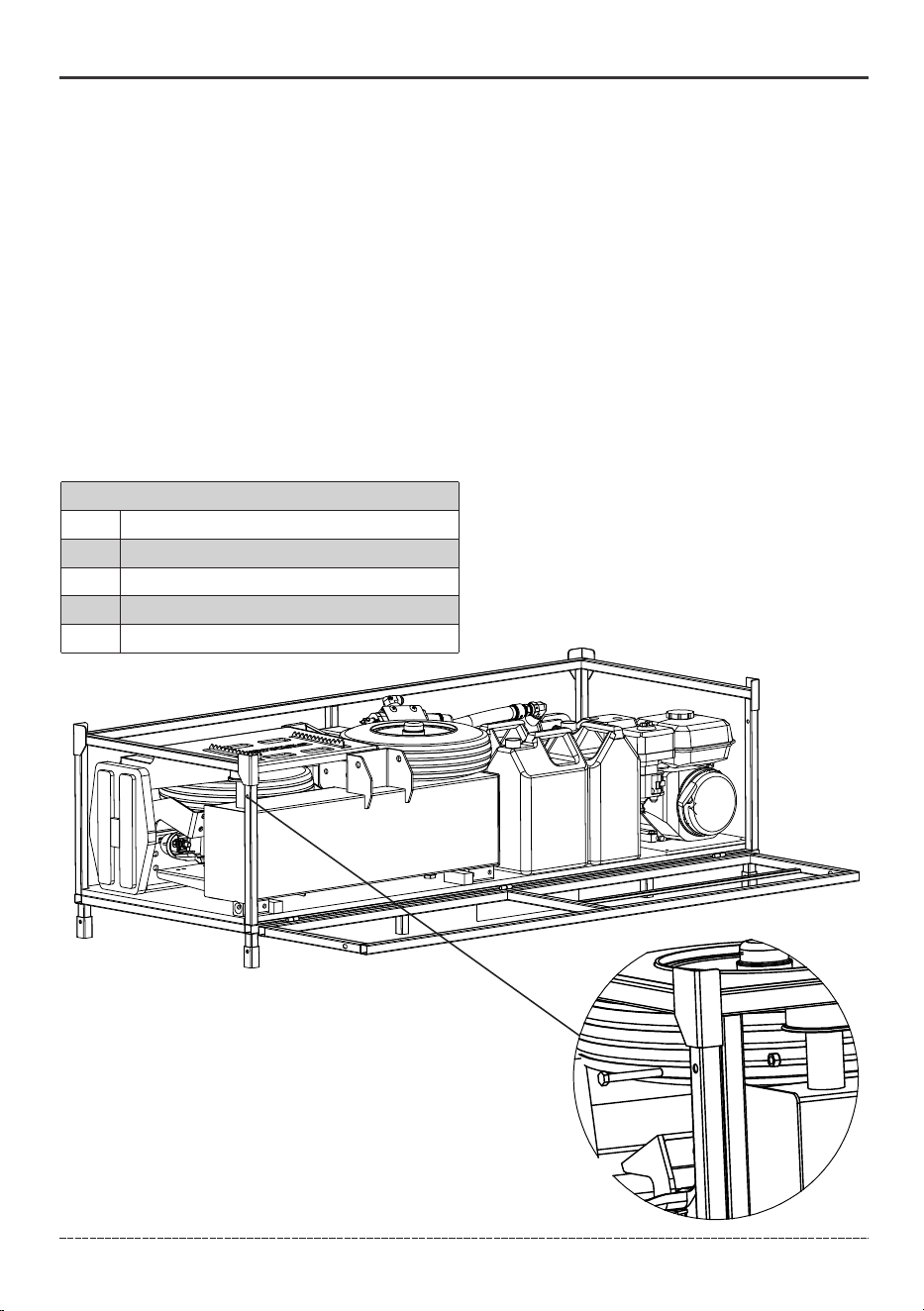

STEP 1: Unpack Unit
Tools
• Large Philips Screw Driver
• Hammer or Crowbar
• Band Cutter
• 10mm, 13mm,14mm, 17mm,18mm, 19mm, 32mm and 41mm Wrenches
• Torque Wrench
1.1 Set the shipping crate on a solid, flat surface.
1.2 Carefully cut the shipping bands and remove the bolted side of the shipping crate.
1.3 Locate all hardware and components on GS3301 Parts Diagram and Parts List before beginning
assembly.
Band Cutter
10mm wrenches and/or socket ratchet
13mm wrenches and/or socket ratchet
17mm wrenches and/or socket ratchet
1
2
3
4
Tool
Ref. #
Description
12

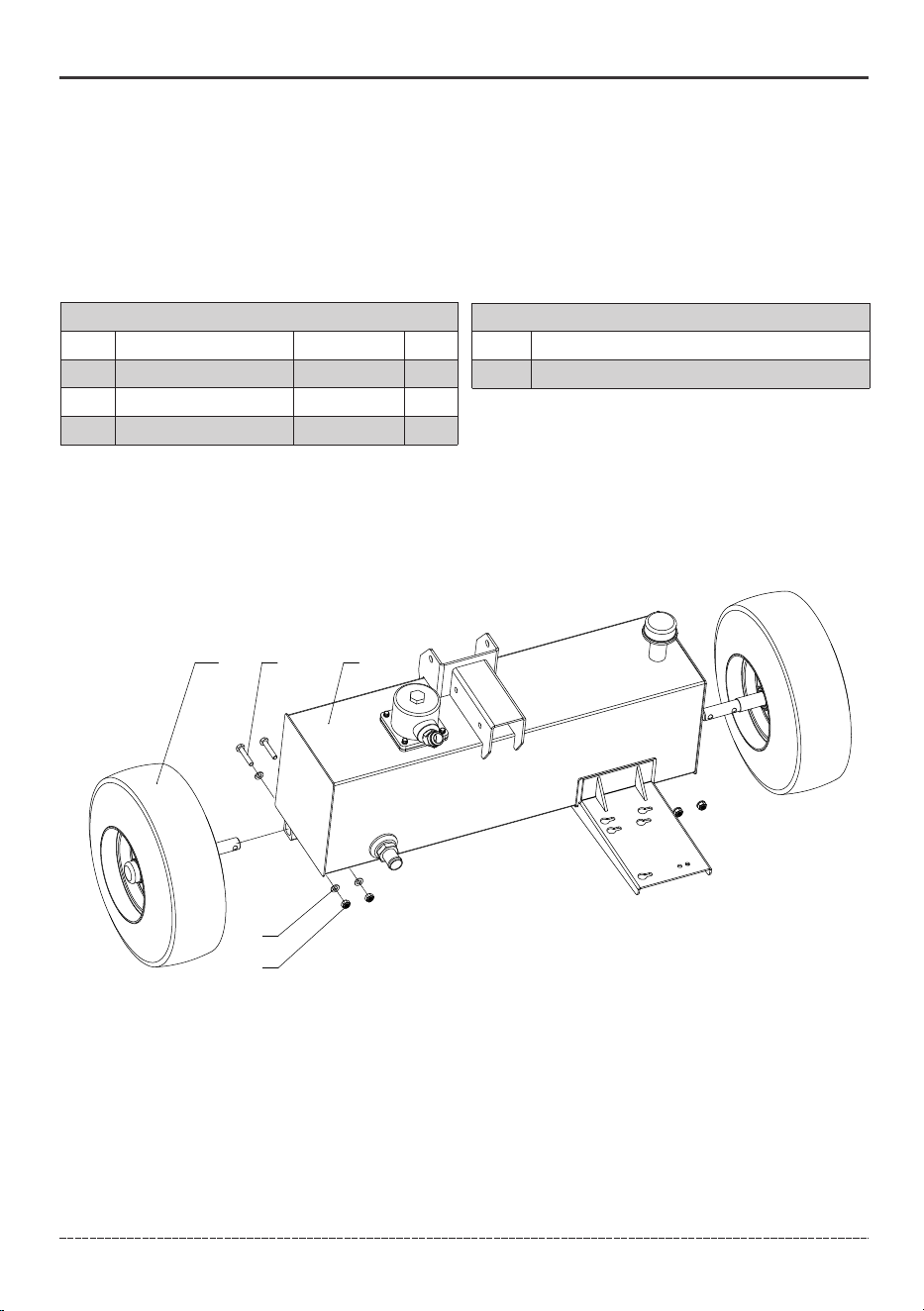

Step 2: Install the Wheels
2.1
2.2
2.3
2.4
English Customer Service: 1-844-FIRMAN1
ASSEMBLY
Remove the oil tank (48) and wheel assembly (103) from the steel pallet and place them on a
horizontal surface.
Install the wheel axle of the wheel into the bushing at the bottom of the oil tank, aligning it
with the mounting holes.
Secure the wheel with the M10*55 bolts(45) (Torque to 35.4 lbf-ft (48 N·m)), flat washers Ø10
(46), and M10 nylock nuts (47).
Complete the installation of the wheel on the other side by following the above operations.
Parts List
Ref. #
Description
Part #
Bolt M10*55
Washer Ø10
Lock Nut M10
45
46
47
710718008
710717003
710717075
Tool
Ref. #
Description
2*17mm wrenches and/or socket ratchet
1
QTY.
4
8
4
103
45
48
46
47
13

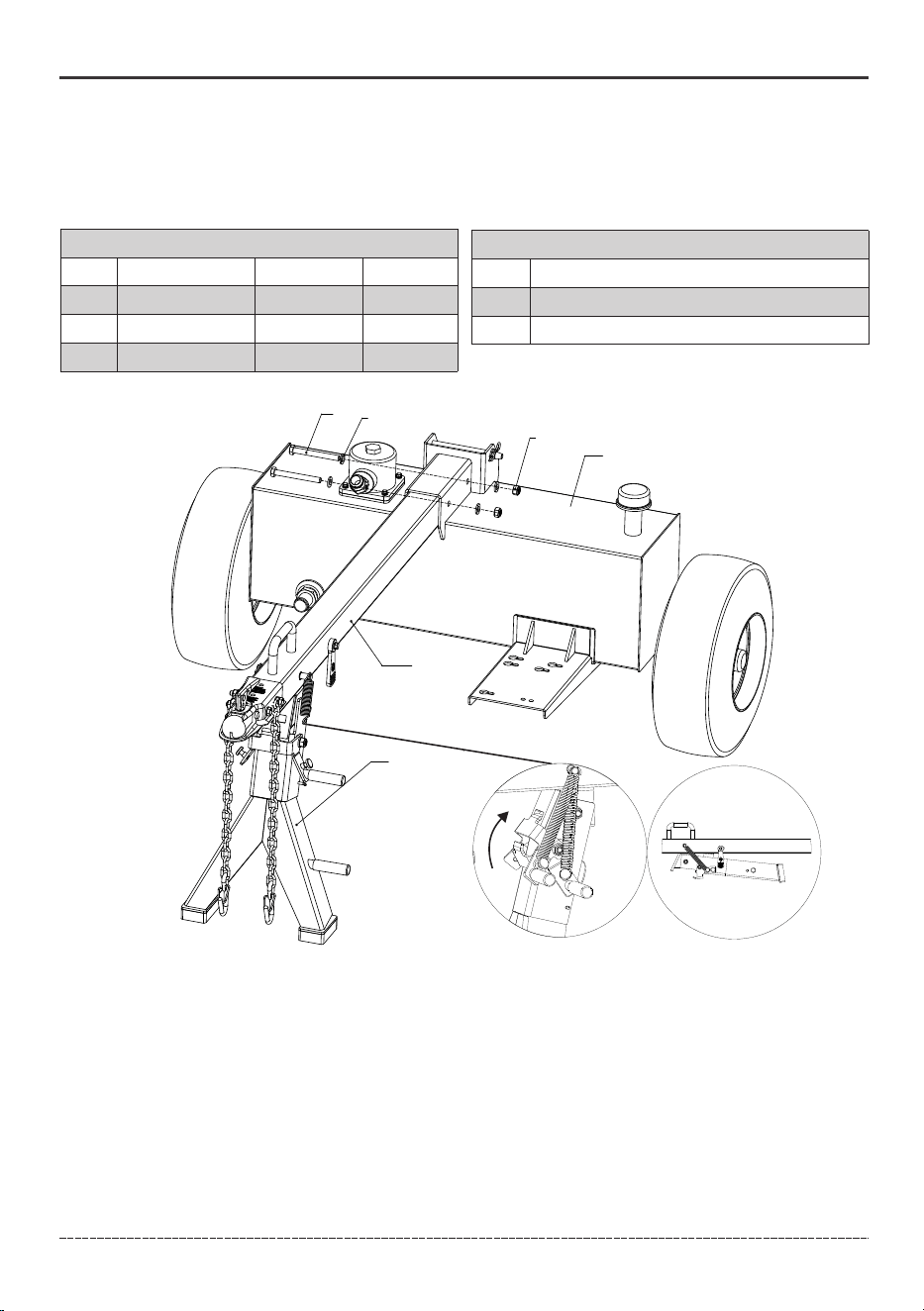

Step 3: Install The Tongue
Rotate the tongue stand (104) down and lock into the extended position following the steps
listed below. Secure the tongue assembly(105) to the hydraulic tank (48) using M12*110
screws (50)(Torque to 61.2 lbf-ft (83 N·m)), M12 flat washers (2) and M12 nylock nuts (7).
English Customer Service: 1-844-FIRMAN1
ASSEMBLY
3.1
Parts List
Ref. #
Description
Part #
Bolt M12 * 110
Washer Ø12
Lock Nut M12
50
2
7
710717133
710717007
710717008
Tools
Ref. #
Description
18mm wrenches and/or socket ratchet
1
2
19mm wrenches and/or socket ratchet
Rotate the tongue stand clockwise as far as it will go using the fixed handle on the stand.
Rotate the stand lock attached to the tongue stand clockwise. Verify that the tongue stand is
locked and will not inadvertently rotate.
3.2
3.3
To lock the tongue stand
Use your foot or hand to rotate the tongue stand lock counter clockwise.
Lift the tongue from the handle to unweight the tongue stand.
Gentle push the tongue stand allowing the springs to pull the stand under the tongue stopping
with the rubber bumper.
Attach the rubber strap from the tongue main tube to the hook on the stand to prevent unwanted
movement and bouncing during towing.
To unlock the tongue stand
3.4
3.5
QTY.
2
4
2
104
105
50
2
7
48
14
English Customer Service: 1-844-FIRMAN1
ASSEMBLY

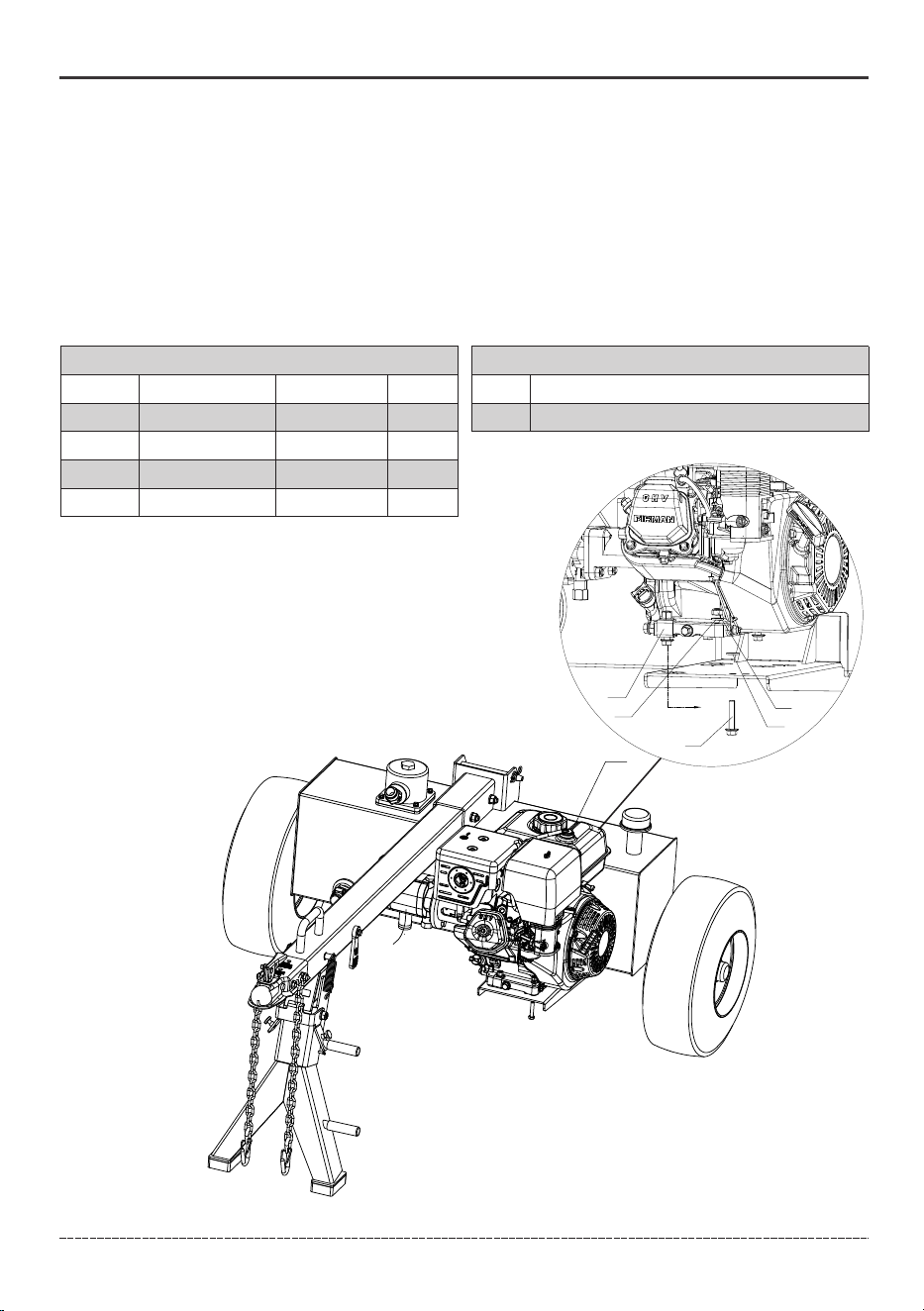

Step 4: Install The Engine
Remove the Engine (71) from the wooden board by removing the red color bracket and red
colored bolt.
Set the engine on the platform, dropping the bolt heads through the tear drop hole.
Slide the engine to align the 4th hole.
At this point the user can place a single washer under the engine to ensure equal pressure on
the base of the engine.
Tighten all the hardware.
Parts List
Ref. #
Description
Part #
Bolt M8 * 40
Washer Ø8
Lock Nut M8
Washer Ø10
74
23
24
46
4.1
4.2
4.3
4.4
4.5
710718006
710717045
710717044
710717003
Tools
Ref. #
Description
13mm wrenches and/or socket ratchet
1
71
73
23
74
46
24
QTY.
4
1
1
1
15
English Customer Service: 1-844-FIRMAN1
ASSEMBLY

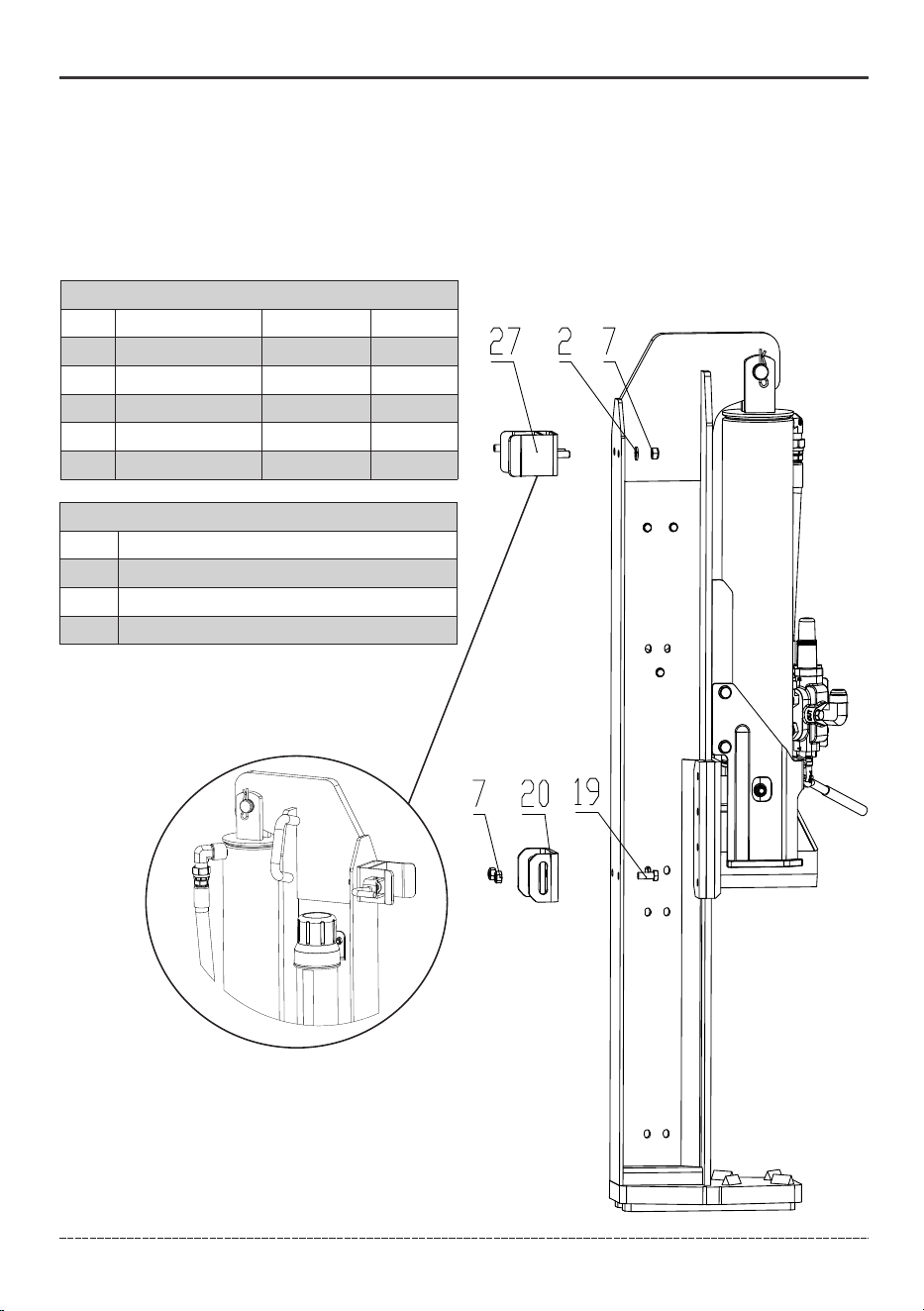

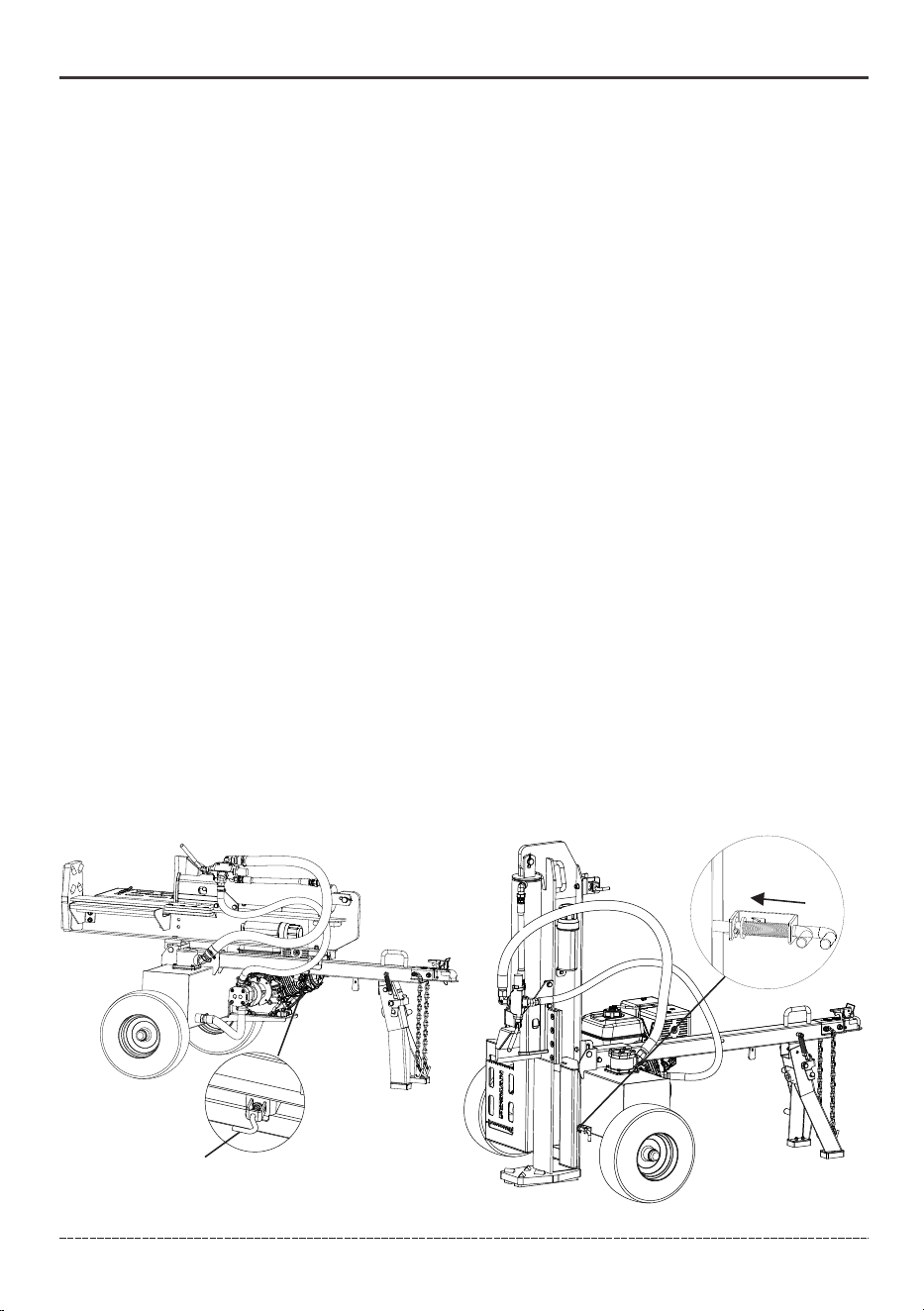

Step 5: Install Beam Pivot/Beam Lock
Remove the beam from the pallet by removing two red colored bolts. This step requires
multiple people to ensure safety and avoid injury. Use a hammer or crowbar to remove the
wooden block attached to the base of the pallet so that the beam can be slid out.
5.1
Parts List
Ref. #
Description
Part #
Washer Ø12
Lock Nut M12
Bolt M12*30
Beam Pivot
Assy, Beam Lock
2
7
19
20
27
710717007
710717008
710718002
710718252
710418026
Tools
Ref. #
Description
18mm wrench and/or socket ratchet
1
2
3
19mm wrench and/or socket ratchet
NOTICE Stand the beam up vertically using 2 or more people.
5.2
Stand the beam upright.
Hammer or crowbar
QTY.
2
4
2
1
1
NOTICE When fully assembled, the pull pin of the
beam lock must be positioned on the same side
as the slot in the tongue.
16
English Customer Service: 1-844-FIRMAN1
ASSEMBLY

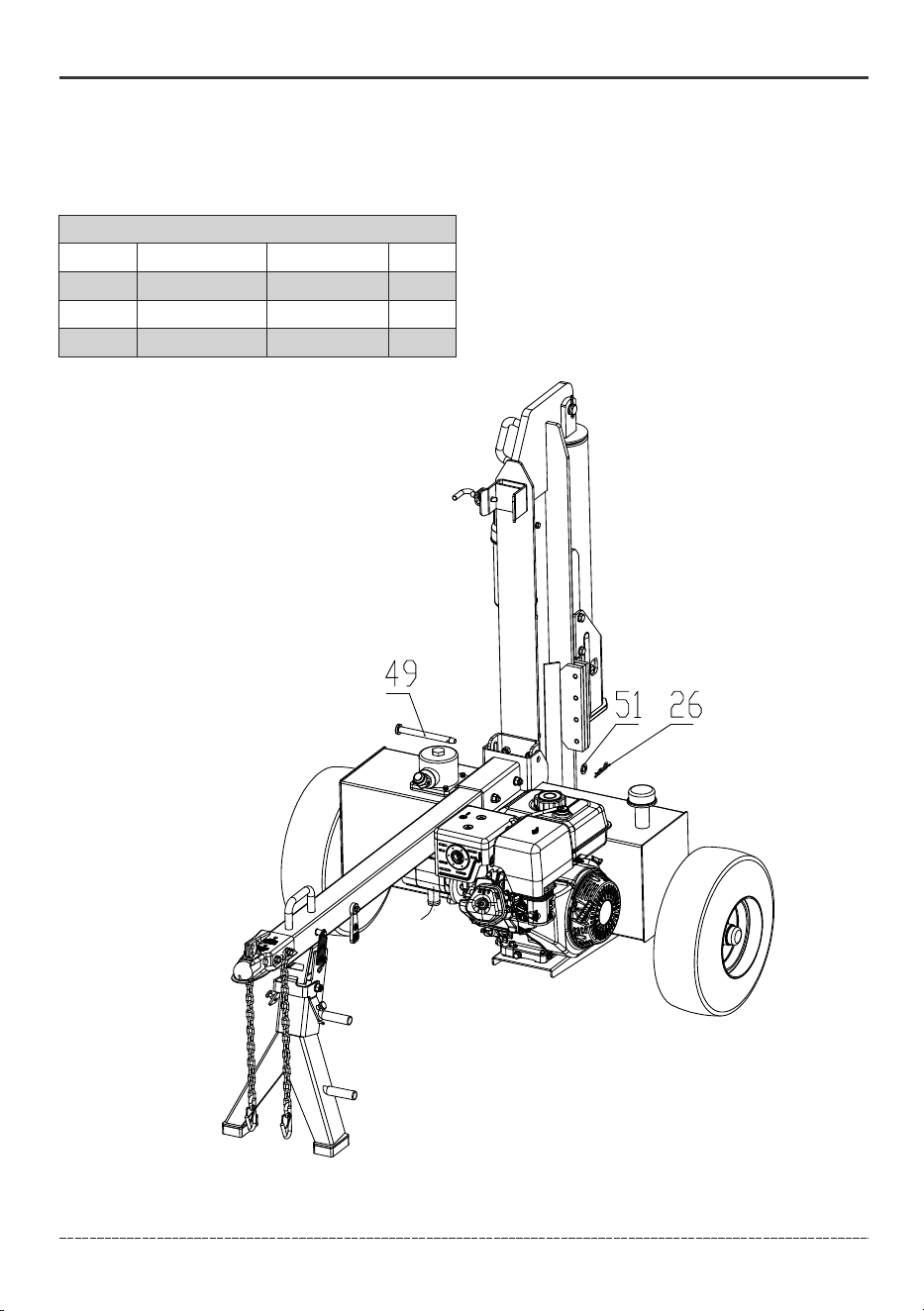

Step 6: Install the Beam
WARNING! The beam is extremely heavy and shall only be handled with 2 or more people.
To avoid muscle strain or back injury DO NOT try and lift or handle the beam without assistance.
Roll the tank into position so the pivot holes of the tank and beam are aligned.
Insert the beam pin (49) and secure with Ø16 washer (51) and R-pin (26).
6.1
6.2
Parts List
Ref. #
Description
Part #
Beam Pin
Washer Ø16
R-Pin
49
51
26
710718317
710718032
710717113
1
1
1
QTY.
17
English Customer Service: 1-844-FIRMAN1
ASSEMBLY
NOTICE Red shipping plugs must be removed from hydraulic pump prior to installing hoses.
The operating handle of the hydraulic valve may be tied during transportation, and the straps need
to be removed before installing the handle with the clevis pin.
NOTICE The Pump-Valve Hydraulic Hose(High Pressure) and Valve-Tank Hydraulic Hose(Low
Pressure) may be preassembled by the factory, check your hoses per below instructions to
ensure proper assembly.

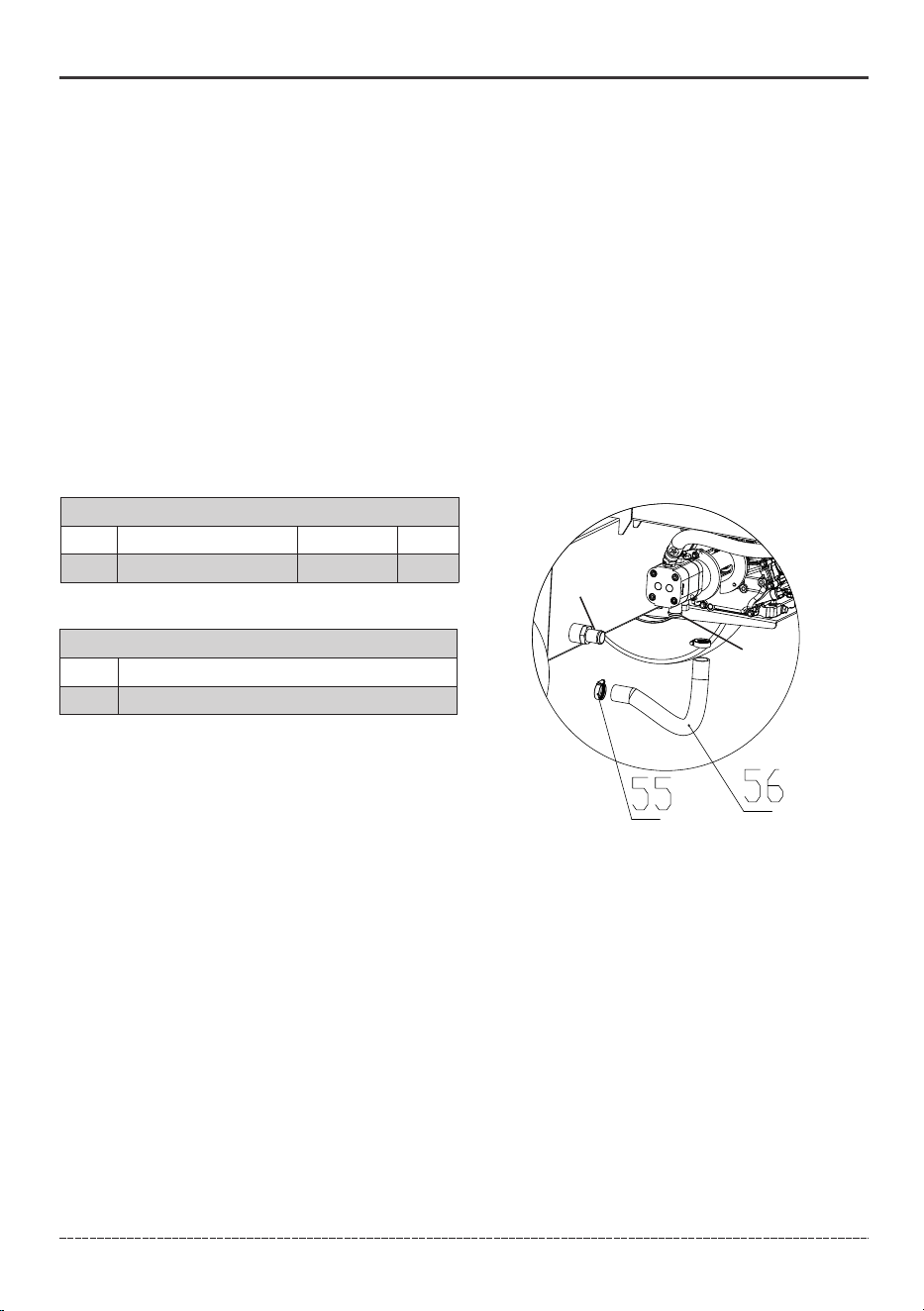

Step 7: Install the Hoses
Using the provided hose clamps, connect one end of the clear suction hose (56) to the suction
fitting port (A) and the other end to the pump inlet (B).Securely tighten the clamps on both ends
of the suction hose with 14mm wrench/socket . Torque to 2.9 lbf-ft - 4.4 lbf-ft (4-6 N.m).
Oil Inlet Hose
NOTICE After running the log splitter and the fluid has heated up the user should verify that the
hose clamps are secure and remain tight.
7.1
Parts List
Ref. #
Description
Part #
Worm Gear Hose Clamp
55
710728035
Tool
Ref. #
Description
14mm wrench/socket
1
A
B
QTY.
2
18
English Customer Service: 1-844-FIRMAN1
ASSEMBLY

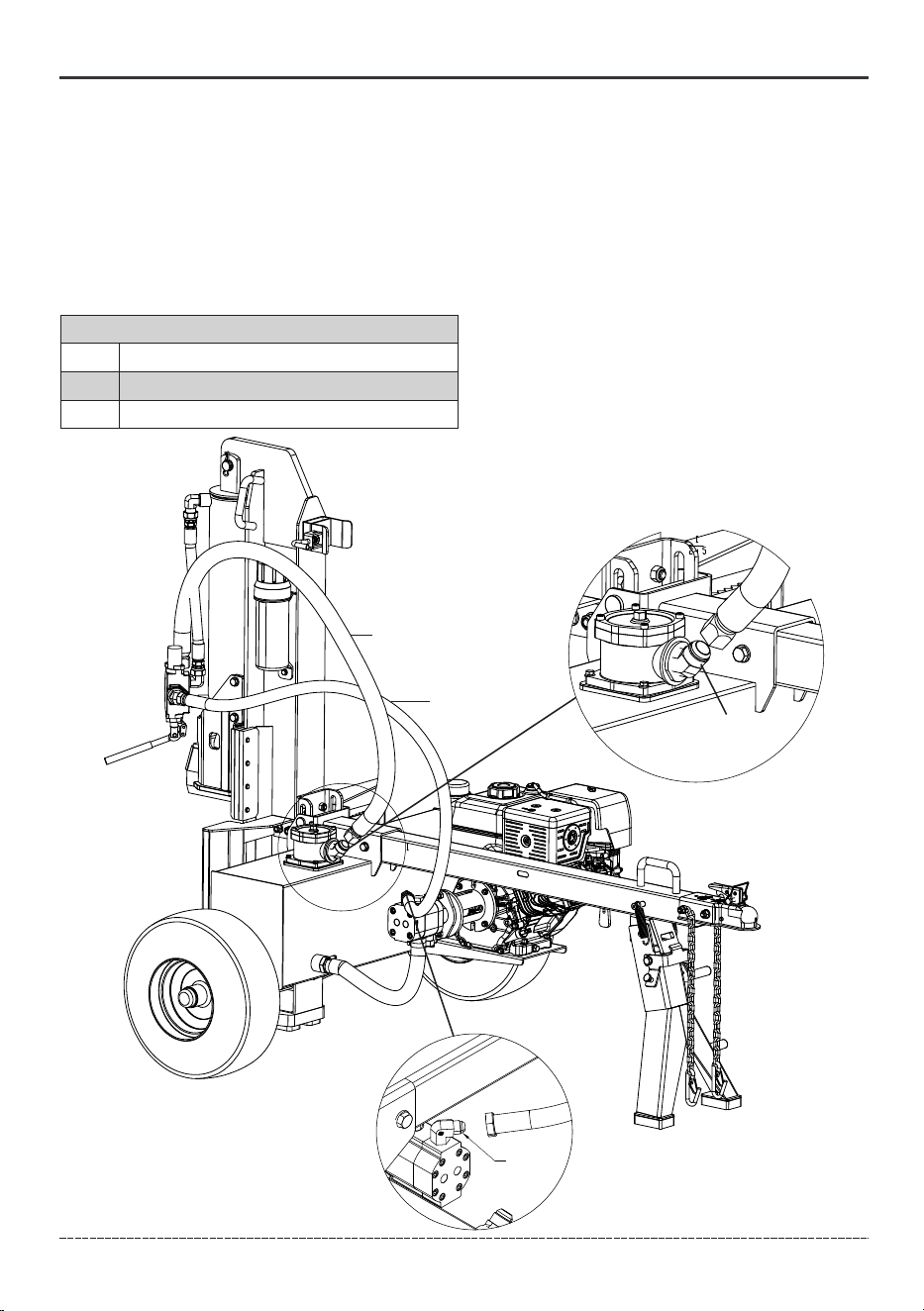

Hydraulic Hose (Valve-Tank)
Connect the loose end of the valve-tank hydraulic hose (E) to the tapered hydraulic fitting (F).
The valve-tank hydraulic hose will only fit on this fitting to ensure correct connection. Securely
tighten the hydraulic hose with a 41 mm wrench. Tighten to 52 lbf-ft - 66 lbf-ft (71-90 N.m).
7.3
Connect the loose end of the pump-valve hydraulic hose (C) to the pump outlet (D). Securely
tighten the high pressure hydraulic hose with a 32mm wrench. Tighten to 44 lbf-ft – 52 lbf-ft
(60-71 N.m).
Hydraulic Hose (Pump-Valve)
D
7.2
Tool
Ref. #
Description
32mm wrench
1
2
C
E
41mm wrench
F
NOTICE
Assemble the hoses with the log splitter beam
in the vertical position as shown in the diagram
below.
After tightening, ensure the hoses are not twisted
or kinked.
19
English Customer Service: 1-844-FIRMAN1
ASSEMBLY
19

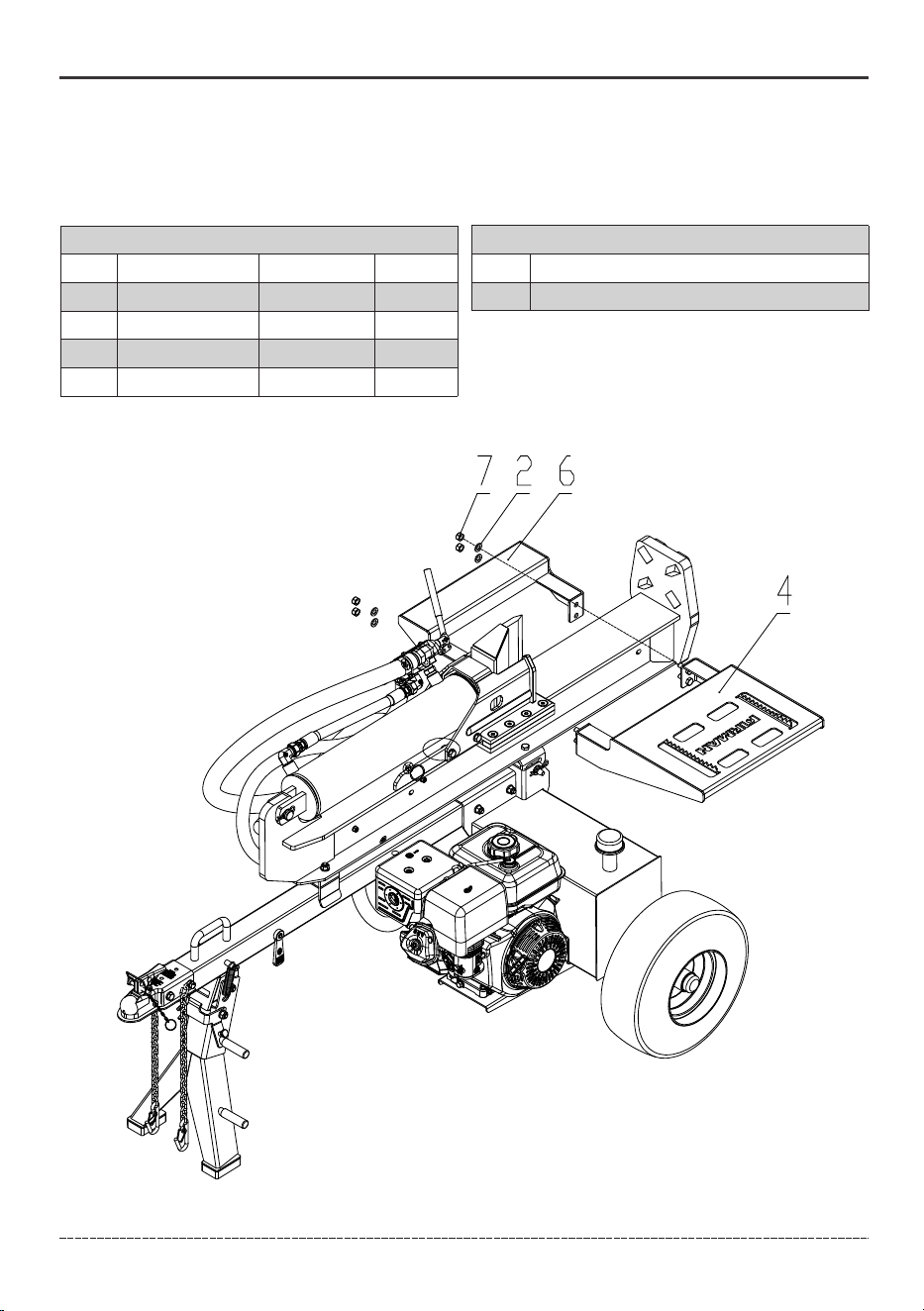

Step 8: Install the Log Cradle and Log Table
Parts List
Ref. #
Description
Part #
Washer Ø12
Lock Nut M12
Log Cradle
Log Table
2
7
6
4
710717007
710717008
710718286
710718464
Tools
Ref. #
Description
1 19mm wrench and/or socket ratchet
Attach the Log Cradle (6) and Log Table(4) to the beam, secure using M12 lock nuts (7)and 12mm
flat washers (2) (torque to 51.6lbf-ft (70 N.m)).
NOTICE The bolts used in this assembly step are welded to the log table.
QTY.
4
4
1
1
20
English Customer Service: 1-844-FIRMAN1
1. Location
DANGER! Engine exhaust contains carbon monoxide, a poisonous gas that could kill
you in minutes. You CANNOT smell it, see it, or taste it. Even if you do not smell exhaust
fumes, you could still be exposed to carbon monoxide gas.
Carbon Monoxide Alarm(s)
Install carbon monoxide alarms inside your home. Without working
carbon monoxide alarms, you will not realize you are getting sick and
dying from carbon monoxide poisoning.
20 ft. (6 m) min.
OPERATION
Install battery-operated carbon monoxide alarms or plug-in carbon monoxide alarms with
battery back-up according to the manufacturer's instructions. Smoke alarms cannot detect
carbon monoxide gas.
Do not run this log splitter inside homes, garages, basements, crawlspaces, sheds, or other
partially enclosed spaces even if using fans or opening doors and windows for ventilation.
Carbon monoxide can quickly build up in these spaces and can linger for hours, even after this
product has shut off.
If you start to feel sick, dizzy, weak or your home’s carbon monoxide alarm sounds, get to fresh air
right away. Call emergency services. You may have carbon monoxide poisoning.
Prevent Carbon Monoxide (CO) Poisoning
Use outdoors and downwind at least 20 ft. (6 m) from any home.
Point exhaust away from all homes and occupied spaces.
Install CO alarms inside your home.
Operate log splitter only outdoors and downwind at least 20 ft.(6 m) from occupied spaces with
exhaust pointed away to reduce the risk of carbon monoxide accumulating.
21
English Customer Service: 1-844-FIRMAN1
Reduce Risk of Fire
WARNING! Exhaust heat/gases could ignite combustibles, structures or damage fuel
tank causing a fire, resulting in death or serious injury.
OPERATION
5 ft.(1.5 m)
min.
5 ft.(1.5 m)
min.
20 ft.(6 m) min.
Keep log splitter at least 5 ft. (1.5 m) from any structure, trees or vegetation over 12 in. (30 cm)
in height.
Select an outdoor site that is dry and protected from the weather. Do not move log splitter
indoors to protect it from the weather.
Do not locate the log splitter under a deck or other similar structure that may confine heat and
airflow.
22
English Customer Service: 1-844-FIRMAN1
2. Oil and Gasoline

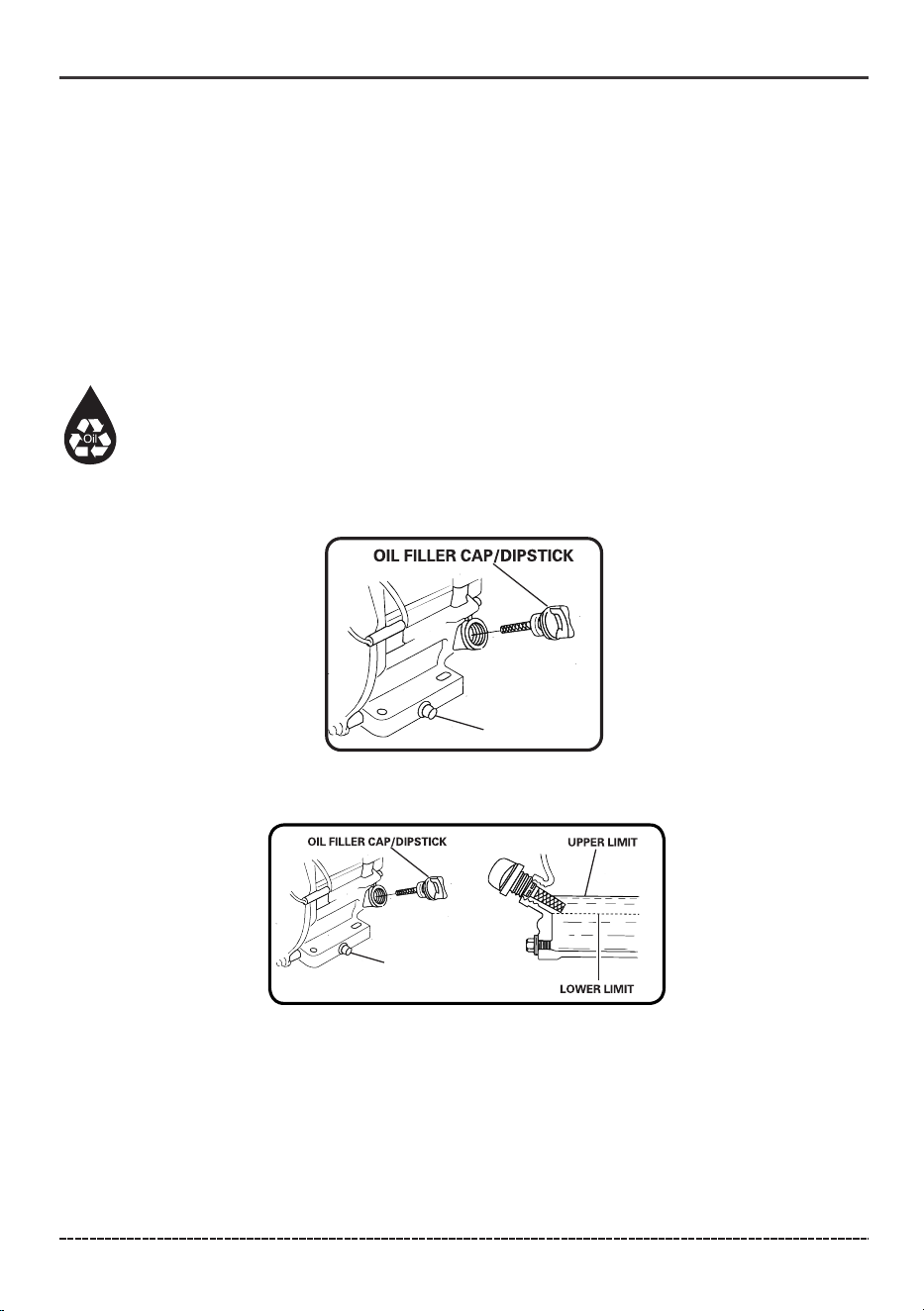

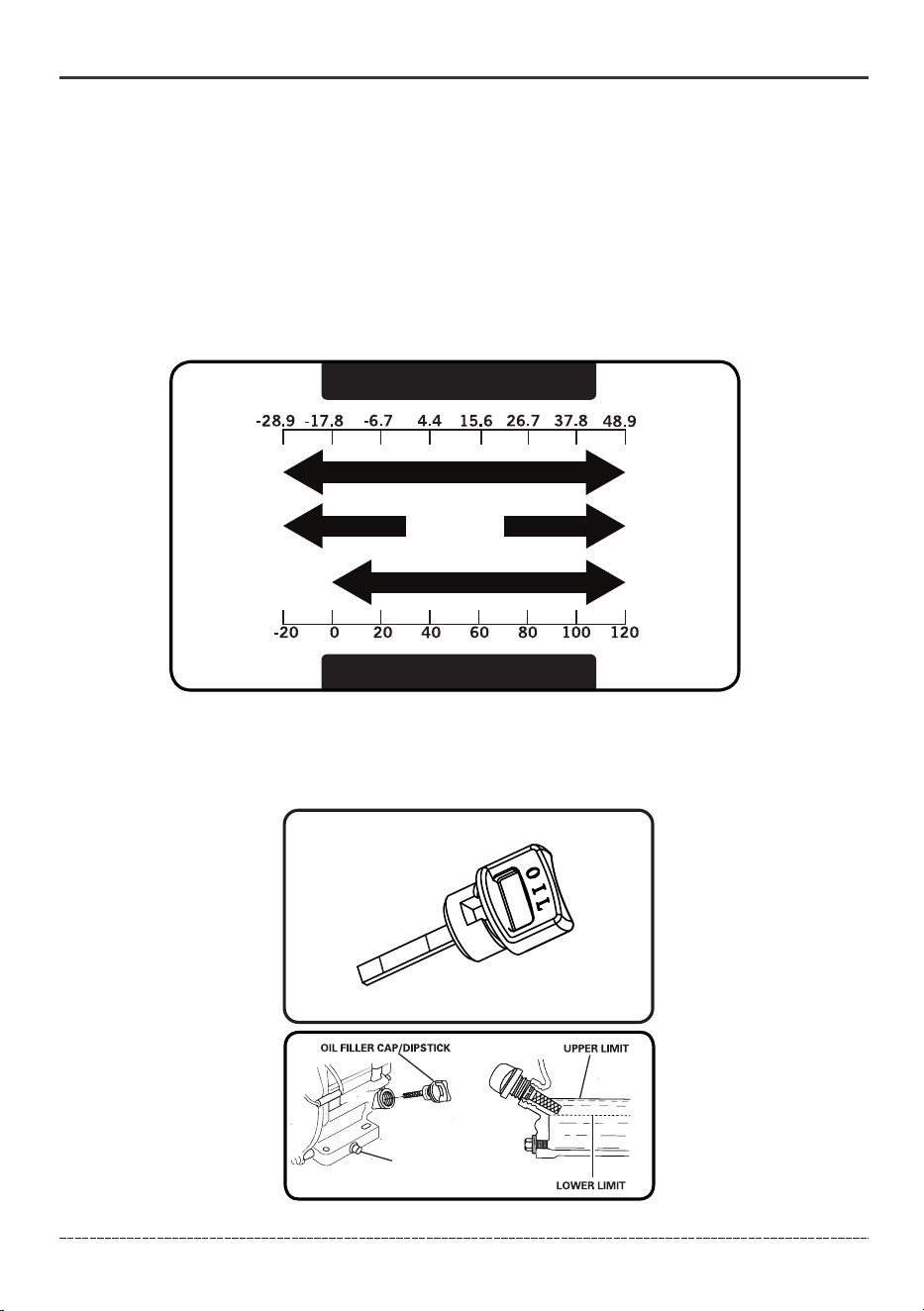

Add Engine Oil
NOTICE Do not attempt to crank or start the engine before it has been properly filled with the
recommended type and amount of oil. Damage due to operation with no oil will void your warranty.
Degrees Celsiusº(Outside)
Full Synthetic 5W-30
Degrees Fahrenheitº(Outside)
5W-3010W-40
10W-30
1.Place log splitter on a flat, level surface.
2.Clean area around oil fill and remove yellow oil fill cap/dipstick.
3.Wipe dipstick clean.
OPERATION
(H)
DRAIN PLUG
(L)
H
L
We recommend using SAE 10W-30 API SJ or higher oil for best performance. Do not use special
additives. Ambient temperature determines the proper oil viscosity for the engine. Use the chart
to select the proper oil for the outdoor temperature range expected.
23
English Customer Service: 1-844-FIRMAN1
4. Using oil funnel, slowly pour contents of provided oil bottle into oil fill opening until oil reaches
upper limit "H" mark on the dipstick. Be careful not to overfill. Overfilling could cause engine
starting problems or engine damage.
5.Replace oil fill cap/dipstick and fully tighten.
6.Oil level should be checked prior to each use or at least every 8 hours of operation. Keep oil
level maintained.
The log splitter is equipped with a low oil shutdown. If the oil level drops below the minimum
required level, a sensor will activate an internal switch stopping the engine. If the engine shuts off
and the oil level is within specifications, check to see if log splitter is sitting at an angle. Place log
splitter on an even surface to correct this. If engine fails to start, the oil level may not be high enough
to deactivate the internal low oil level switch. Make sure the sump is completely full of oil to the
upper limit (H). Do not operate engine until oil level issue is corrected. Contact FIRMAN customer
service.
Low Oil Shutdown
Add Gasoline
WARNING! Fuel and its vapors are extremely flammable which could cause burns or fire
resulting in death or serious injury.
Turn engine OFF and let it cool at least 2 minutes before removing fuel cap.
Do Not refuel or move log splitter when engine is running.
Move log splitter outdoors prior to adding or draining fuel.
Keep fuel away from any ignition sources.
Do not overfill tank, allow space for fuel expansion.
If any fuel spills, wait until it evaporates before starting engine.
Check and replace fuel lines, tank, cap, and fittings prior to each use if any damage or leaks
are found.
Fuel must meet these requirements:
Clean, fresh, unleaded gasoline with a minimum of 87 octane.
For high altitude use, see Operation at High Altitude.
Gasoline with no more than 10% ethanol is acceptable.
E10
E15
OPERATION
24
English Customer Service: 1-844-FIRMAN1
NOTICE Do not mix oil in gasoline or modify engine to run on alternate fuels not described in this
manual. Use of unapproved fuels could damage engine and will not be covered under warranty.
1. Clean area around fuel fill cap, remove cap.
2. Slowly add unleaded fuel to fuel tank. Be careful not to fill above the RED fuel level indicator.
This allows adequate space for fuel expansion.
Red Line Indicator
3. Install fuel cap and let any spilled fuel evaporate before starting engine.
Operation at High Altitude
At altitudes over 5,000 feet (1524 meters), a minimum 85 octane gasoline is acceptable. Engine power
will be reduced approximately 3.5% for every 1000 feet (305 m) of elevation above sea level. High
altitude may cause hard starting, increased fuel consumption and spark plug fouling. To operate at
high altitudes FIRMAN can provide a high altitude carburetor main jet. The alternative main jet and
installation instructions can be obtained by contacting Customer Support.
NOTICE Operation using an alternative main jet at elevations lower than the recommended
minimum altitude can damage the engine. For operation at lower elevations, the standard main
jet supplied must be used. Operating the engine with the wrong main jet may increase exhaust
emissions, fuel consumption and reduce performance.
Altitude main jet 1
Altitude main jet 2
389cc
Altitude
3000-6000Feet
6000-8000Feet
Operation at High Ambient conditions
OPERATION
Your FIRMAN Power Equipment product is designed and rated for continuous operation at ambient
temperatures up to 104°F (40°C). The log splitter may be operated at temperatures ranging from
5°F(-15°C) to 122°F(50°C) for short periods. If the log splitter is exposed to temperatures outside
this range during storage, the log splitter should be brought back within this range before operation.
When operated above 77°F(25°C) there may be a decrease in power. Log splitter cycle time and ram
force are subject to and limited by such factors as ambient temperature, altitude, engine conditions
etc.
(914-1828 m)
(1828 - 2438 m)
346713004
346713005
346713001
346713002
25
English Customer Service: 1-844-FIRMAN1
OPERATION

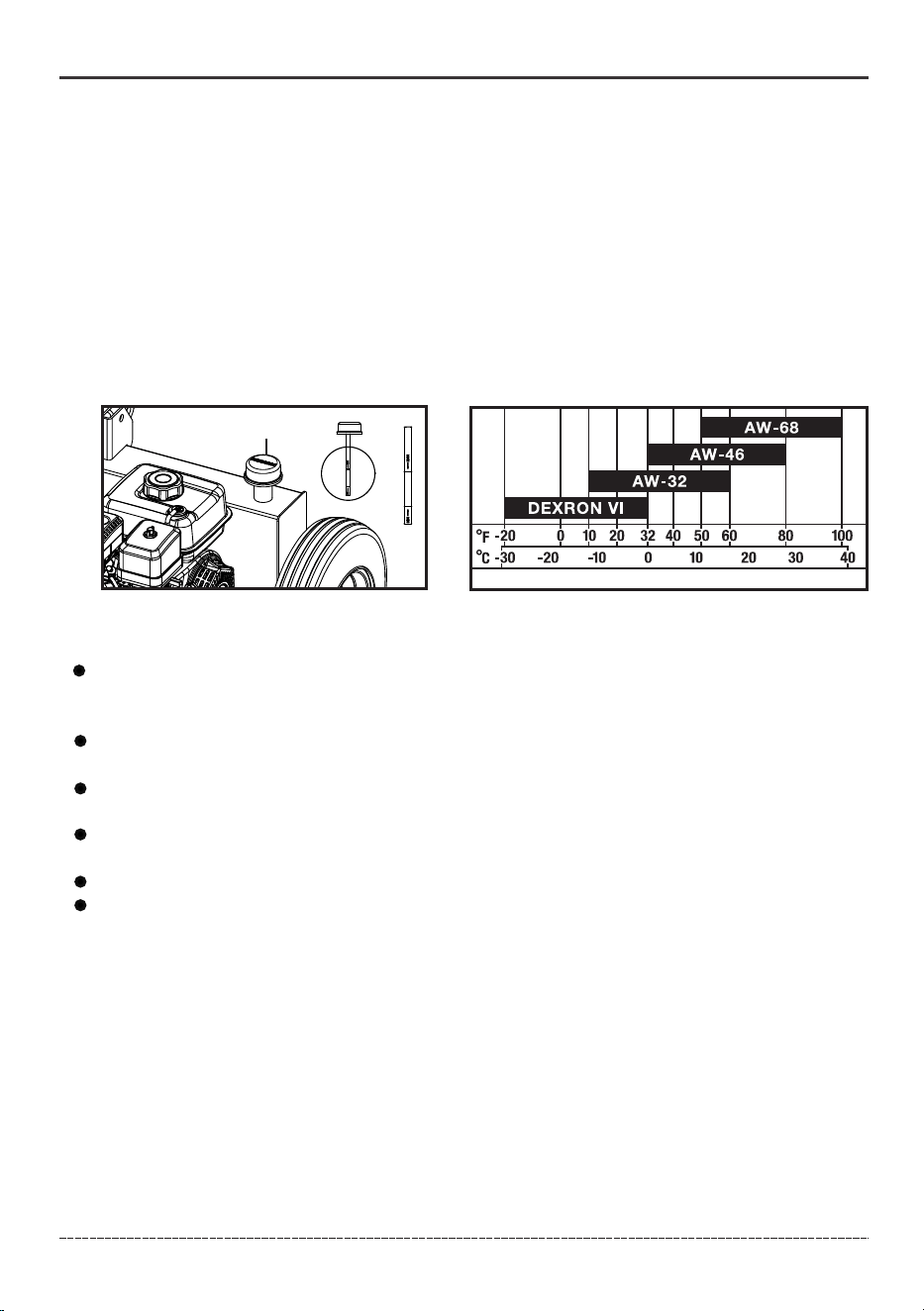

Add Hydraulic Oil
1.Make sure the log splitter is on a flat, level surface.
2.Remove vent cap (52) from the hydraulic oil tank.
3. Add 15 gal. (56 L) of hydraulic oil. AW32, AW46 & universal hydraulic oil are all acceptable types of
fluid. Automatic transmission fluid can be used when operating in temperatures below 32°F (0°C).
4. Reinstall vent cap (52) after confirming oil level is at the upper-middle position on the dipstick.
Do Not overfill.
5.Start engine and use the control valve handle to extend and retract wedge several times to
remove air from the lines.
6. Reconfirm oil level is at the upper-middle position on the dipstick. Do Not overfill.
7.Check oil level daily and add as needed.
High fluid pressure and temperatures are created in the hydraulic log splitter. Hydraulic fluid will
escape through a pin-size hole opening and can puncture skin and cause severe blood poisoning.
Inspect hydraulic system regularly for possible leaks. Never check for leaks with your hand while
the system is pressurized. Seek medical attention immediately if injured by escaping fluid.
Make sure all fittings are tight and secure before applying pressure. Relieve system pressure
before servicing.
Make sure the hydraulic hoses do not touch any hot surfaces or cutting areas.
Hoses need to be positioned were they are clear from the engine and cutting wedge. To avoid
death or serious injury always inspect the hoses before operating the log splitter.
WARNING! Failure to follow these instructions could result in death or serious injury.
DO NOT remove the hydraulic oil vent cap (52) when the engine is running or oil is hot. Hot oil can
escape causing severe burns. Always allow the log splitter to cool completely before removing the
hydraulic oil vent cap.
52
26
English Customer Service: 1-844-FIRMAN1
OPERATION
Before Each Use Inspect the Log Splitter
WARNING! Before operating or using the log splitter, read and follow the instructions below
and all safety information. Failure to follow these instructions could result in death or serious
injury.
ALWAYS use the log splitter for its intended use.
ONLY use the log splitter to split wood logs, length wise with the grain.
NEVER modify, alter or change the log splitter in any way, modifications will void the warranty.
NEVER attach a rope, cable or other device to the control lever on the log splitter.
Only operate the log splitter in daylight or good artificial light.
NEVER leave the log splitter unattended while the engine is running.
DO NOT change the splitting position with the engine running. Contact with the muffler can
cause serious burns.
1. Check the hydraulic oil level and visually inspect all hoses, attachments and cylinder for loose
fittings, leaks, cracks, fraying or other damage.
2. DO NOT operate the log splitter if there is any indication of damage.
3. Inspect the engine and make sure the oil level is correct before operating. Clean and Inspect the
spark arrestor regularly (follow spark arrestor maintenance schedule).
4. The tires need to be fully inflated and in good condition. Reference the tire sidewall for
recommended tire pressure.
WARNING! Before towing the log splitter, read and follow the instructions below and all safety
information. Failure to follow these instructions could result in death or serious injury.
Making sure the Log Splitter is securely attached to the vehicle is the responsibility of the
owner/operator.
Failure to securely attach the Log Splitter can cause loss of control of the vehicle or the log
splitter being separated from the towing vehicle.
Move the fuel shutoff to “OFF” before towing the log splitter.
DO NOT over inflate tires. Serious injury can result if tires fail.
DO NOT tow the log splitter if the tires are worn or will not hold air.
DO NOT exceed the maximum 45 MPH (72 KM/H) towing speed and check local, state, and
federal requirements before towing on any public road.
Always use safety chains. Secure and lock the log splitter to the vehicle hitch before moving.
Drive safely. Be aware of the added length of the log splitter. When backing up, using a spotter
outside the vehicle is recommended.
Never ride or transport cargo on the log splitter.
Turn off the vehicle before leaving the log splitter unattended.
Block the log splitter wheels to prevent unintended movement.
ALWAYS disconnect your log splitter from the towing vehicle before operating it.
Do not tow the log splitter at night or in low visibility.
ALWAYS make sure the beam is in the locked position when splitting in the horizontal or vertical
orientation.
DO NOT let the beam drop as it could crush fingers or cause damage to the log splitter.
NEVER operate or let anyone else operate, the log splitter while under the influence of alcohol,
drugs, or medication.
27
English Customer Service: 1-844-FIRMAN1
OPERATION
Changing Beam from Horizontal to Vertical Orientation
When logs are too heavy to lift, the log splitter beam can be changed to the vertical orientation.
Always allow the log splitter to cool completely before changing from horizontal to vertical
orientation.
To change from horizontal to vertical orientation:
To change from vertical to horizontal orientation, reverse steps.
Pin
Figure A
Figure B
NOTICE When attaching the Safety Chains, Attach the left chain to the right anchor of the tow
vehicle and the right chain to the left anchor of the tow vehicle so that that the Safety Chains cross
each other under the Ball Hitch.
When you place the receiver onto the ball and lock into place, the receiver should not have vertical
movement. There should be resistance to the latch assembly when locking.
5. Insert a receiver Locking Pin, not provided, into the hole in the Latch Assembly.
1. Lower the beam to its horizontal position. Make certain the beam is locked securely with the horizontal
beam pin.
2. Rotate the tongue stand to the horizontal position for transportation.
a) Use your hand or foot and rotate the tongue lock counterclockwise. The stand is free to rotate under
the tongue.
b) With the help of another person, support the tongue and pivot the tongue stand up to the transporting
position.
c) Use the the rubber strap to prevent the stand from inadvertently dropping during towing.
3. Pull the Latch Assembly on the Receiver up and into the open position. Position the Receiver of the Log
Splitter over and onto the tow vehicle’s 2" (51 mm) tow ball.
4. Close the Latch Assembly on the Receiver to lock it onto the Tow Ball. Attach the towing Safety
Chains (81) to the tow vehicle ensuring there is enough slack for turning.
Transporting the Log Splitter
WARNING! The beam is extremely heavy and shall only be handled with 2 or more people. To avoid
muscle strain or back injury, DO NOT try and lift or handle the beam without assistance.
Figure B
NOTICE The beam should only be in the vertical position on flat ground. Uneven ground can cause
the beam to be unstable.
1. Disengage horizontal beam pin that locks the beam to the tongue (figure A).
2. Standing alongside the hydraulic cylinder, (opposite side from the engine) firmly grasp the
handle on the beam and lift upward while pushing the beam back until upright. Once the beam
is upright, lock the beam (figure B).
28
1. Before using the log splitter, check for loose or missing parts and for any damage which may
have occurred during shipment. Ensure spark plug, muffler, fuel cap, and air cleaner are all in place.
2. Move log splitter outdoors to safe operating location downwind and at least 20 feet from any
occupied spaces.
3. Rotate engine switch (A) to “ON”(I) position.
4. Move the fuel valve (B) to the “ON” position.
5. Move the choke lever (C) to the “Choke” position.
6. Move the throttle lever (D) to the “Fast” position.
7. Pull the starter cord slowly until resistance is felt and then pull rapidly.
8. As engine warms up, move the choke lever (C) to “Run” position.
English Customer Service: 1-844-FIRMAN1
OPERATION
A
B
C
D

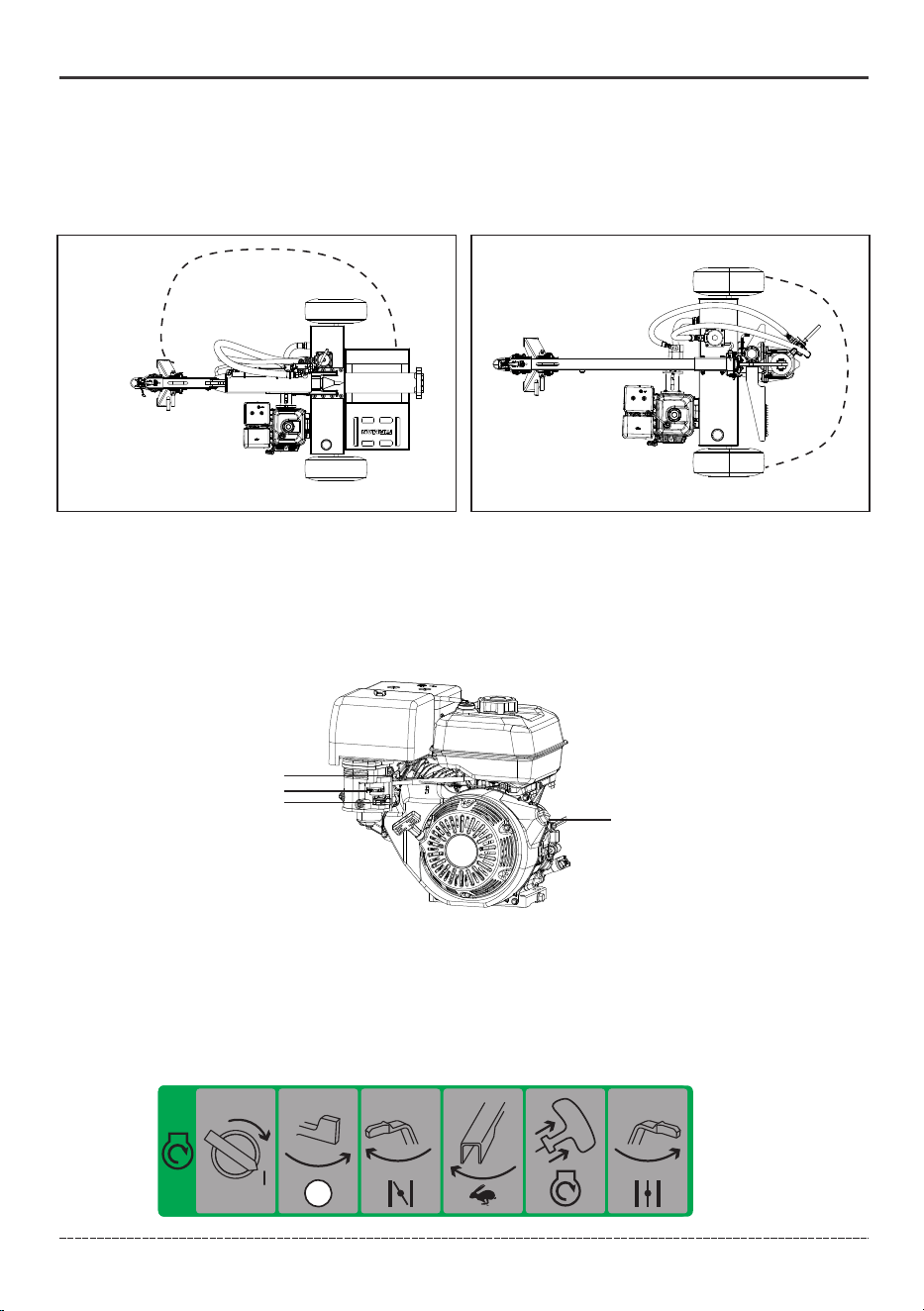

Starting the Engine
The log splitter must have at least 5 feet of clearance from combustible material. The log splitter
needs to be on a dry and level surface with good footing. Do not work in mud, ice, brush or snow.
When using the log splitter the operator zone must be maintained at all times.
Only operate log splitter from operator zone shown below.
Horizontal
Vertical
OPERATOR
ZONE
OPERATOR
ZONE
29
English Customer Service: 1-844-FIRMAN1
Stopping the Engine
1. Rotate the engine switch(A) to the"OFF" position.
2. Move the fuel valve(B) to the "OFF" position.
Always ensure that the Fuel Valve and the Engine Switch are in the “OFF” position when the
engine is not in use.
OPERATION
After pump has cooled, remove the priming plug and pump drain plug and allow the pump to
drain thoroughly.
NOTICE Drain water from pump after use. Trapped water could freeze and damage pump. Pump
damage caused by freezing is not covered by warranty.
After each use:
1. Drain pump housing.
2. Disconnect and drain hoses.
3. Clean pump with dry cloth.
4. Store pump in clean, dry area.
5. If storing for more than 30 days, see long term storage.
AFTER EACH USE
Flush the pump with clean water after each used is advised. This will help to extend the life of the
pump as some materials pumped may leave residue that could corrode parts, build up over time,
or cause harm to any plants, animals or humans. Flushing the pump will help to reduce any damage
and dangers caused by pumping chemicals and pesticides.
Log Splitter Operation
1. ALWAYS wear eye and ear protection, safety shoes or heavy boots, gloves, and protective clothing.
2. Block tires and ensure support leg is secure to prevent unintended movement of the log splitter
during operation.
3. Set log splitter in either the horizontal or vertical position.
NOTICE HORIZONTAL position is used for lighter logs that can easily be loaded onto the beam.
VERTICAL position is used for light logs as well as heavy logs that are difficult to load onto the beam.
Back injury can result from lifting logs onto the log splitter if proper lifting techniques are not used.
If the oil is foamy that means there is air mixed in with the oil. Not enough fluid in the tank and
the splitting will not be consistent, loss of splitting power can result.
If a log gets stuck, embedded or will not split completely, push the control handle in the
reverse direction and allow the log splitter to strip the log from the wedge.
ALWAYS keep hands clear of the log and wedge while it is retracting.
The hydraulic cylinder stroke is designed so the wedge stops approximately 1.2 in.(3.0 cm)
from the foot plate.
4. Before use, verify that the beam is locked in the horizontal or vertical position. The pin on the
beam lock must be engaged with the tongue to prevent the beam from inadvertently rotating.
5. Load a log onto the beam against the foot plate (MAX LOG LENGTH – 20.5 in.[52 cm]).
6. Make sure all limbs are clear of crush zones.
7. Push the control valve handle forward (towards the foot plate) to split the log.
8. Push the auto control valve handle backward to return the wedge to its original position.
9. Clear the split wood from the operator zone.
30
English Customer Service: 1-844-FIRMAN1
Maintenance - Storage
General Recommendations
Regular maintenance will improve the performance and extend the life of the log splitter. See any
authorized dealer for service.
The log splitter's warranty does not cover items that have been subjected to operator abuse or
negligence. To receive full value from the warranty, the operator must maintain the log splitter as
instructed in this manual.
Some adjustments will need to be made periodically to properly maintain your log splitter.
All service and adjustments should be made at least once every year. Follow the requirements
in the maintenance schedule above.
NOTICE Once a year you should clean or replace the spark plug and replace the air filter. New
spark plug and clean air filter assure proper fuel-air mixture and help your engine run at peak
performance and last longer.
To be performed by knowledgeable/experienced owner or by authorized service center.
*
MAINTENANCE SCHEDULE
ITEMNOTES
Daily(Before
operation)
Initial
25 hours
Every
50 hours
Every
100 hours
(or annual)
Fittings/
Fasteners
Spark Plug
Engine Oil
Air Filter
Fuel Line
Exhaust
System
Engine
Check condition. Adjust gap
and clean. Replace if necessary.
Check oil level.
Clean, replace if necessary.
Check for leakage. Retighten or
replace gasket if necessary.
Check adjust valve clearance.
Clean combustion chamber.
Check. Replace if necessary.
Check fuel hose for cracks or other
damage. Replace if necessary.
Replace.
Check spark arrester screen.
Clean/Replace if necessary.
Every
250 hours
*
*
Fuel
Clean fuel tank strainer.
Replace if necessary.
Follow the service intervals indicated in the following maintenance schedule.
Service your log splitter more frequently when operating in adverse conditions.
Contact our Technical Support Team at 1-844-347-6261 to locate the nearest FIRMAN service
dealer for your log splitter or engine maintenance needs.
EVERY 8 HOURS OR DAILY
Check engine and hydraulic oil levels
Clean around air intake and muffler
Remove debris from the beam surface. Apply a thin layer of grease or oil to the beam surface
to improve wedge movement and reduce surface rusting.
FIRST 25 HOURS
EVERY 50 HOURS OR EVERY YEAR
Change engine oil
Clean air filter foam element
Change engine oil if operating under heavy load or in hot environments
EVERY 100 HOURS OR EVERY YEAR
Replace air filter
Change engine oil
Clean/adjust spark plug
Check/adjust valve clearance*
Clean spark arrestor
Clean fuel tank and filter*
Change hydraulic oil
Change hydraulic oil filter
EVERY 250 HOURS
Clean combustion chamber*
Inspect wheel bearings and repack bearing grease as needed.
EVERY 3 YEARS
Replace fuel line*
FIRST 50 HOURS
Change the hydraulic oil and oil filter
31
English Customer Service: 1-844-FIRMAN1
ENGINE MAINTENANCE
To prevent accidental starting, remove and ground spark plug wire before performing any service.
Change Engine Oil
Change engine oil every 100 hours. (for a new engine, change oil after 25 hours.)
If you are using your log splitter under extremely dirty or dusty conditions, or in extremely hot
weather change the oil more often.
CAUTION! Avoid prolonged or repeated skin contact with used motor oil. Used motor oil has been
shown to cause skin cancer in certain laboratory animals. Thoroughly wash exposed areas with
soap and water.
KEEP OUT OF REACH OF CHILDREN. DON’T POLLUTE. CONSERVE RESOURCES. RETURN USED OIL
TO COLLECTION CENTERS.
NOTICE We recommend using SAE 10W-30 API SJ oil for best performance. Other high-
quality detergent oils (API SJ or higher) are acceptable. See Oil and Gasoline
Maintenance - Storage
DRAIN PLUG
(a) On a level surface drain oil into a suitable container by removing the drain plug and the oil
filler cap while the engine is warm.
(b) Reinstall the drain plug and fill the engine with oil until it reaches the HIGH(H) level on the
oil filler dipstick.
(H)
DRAIN PLUG
(L)
32
English Customer Service: 1-844-FIRMAN1

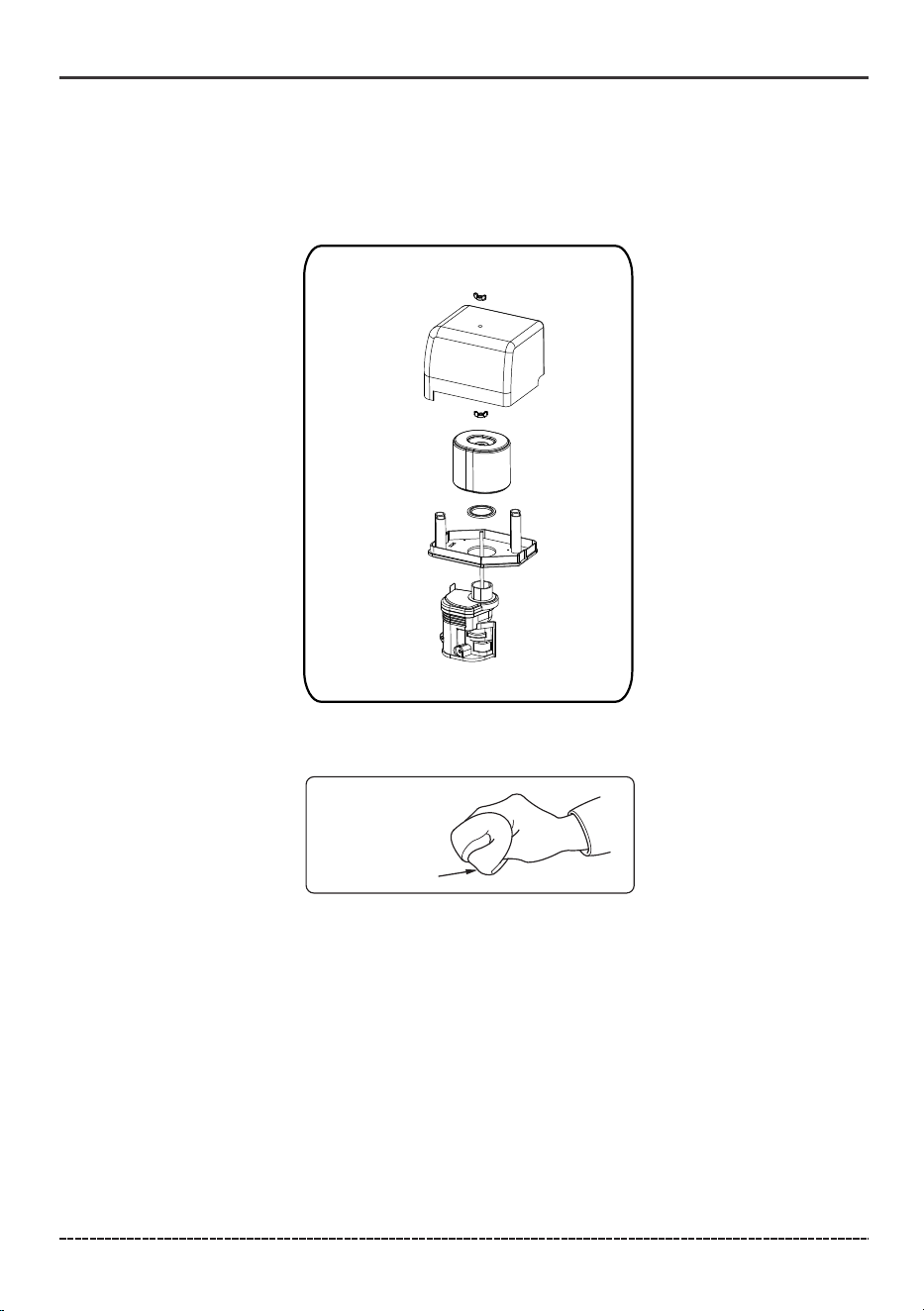

Air Filter Maintenance
( c) Saturate foam element with clean engine oil and squeeze in a clean cloth to remove excess oil.

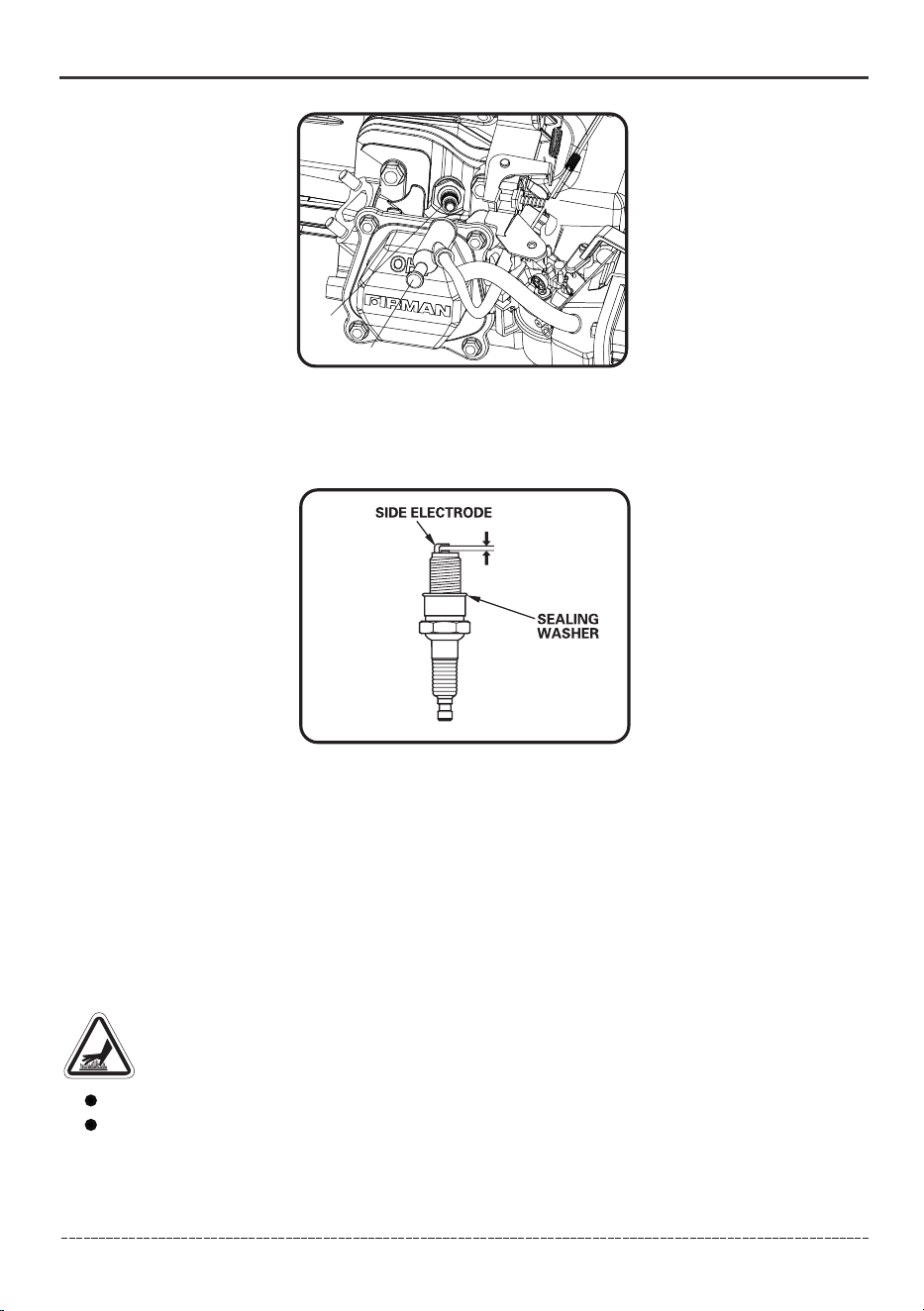

Spark Plug Maintenance
Changing the spark plug will help your engine start easier and run at peak performance.
(a) Remove the spark plug boot.
(b) Remove spark plug using provided wrench.
(d) Reassemble the element. Reattach the air filter cover and tighten wing nut.
Maintenance - Storage
(a) Unscrew wing nut to remove the air filter cover.
(b)Remove the foam element from the air filter and wash in liquid detergent and water.
Squeeze dry in a clean cloth.
FOAM ELEMENT
33
English Customer Service: 1-844-FIRMAN1
Maintenance Valve Clearance
Intake: 0.004 – 0.006 in. (0.10 – 0.15 mm)
Exhaust: 0.004 – 0.006 in. (0.10 – 0.15 mm)
Muffler and Spark Arrester
WARNING! Contact with muffler area could cause burns resulting in serious injury.
Do not touch hot parts.
It is a violation of California Public Resource Code, Section 4442, to use or operate the engine
on any forest-covered, brush-covered, or grass-covered land unless the exhaust system is
equipped with a spark arrester, as defined in Section 4442, maintained in effective working
order. Other states or federal jurisdictions may have similar laws, reference Federal
Regulation 36 CFR Part 261.52.
Maintenance - Storage
A- Spark plug
B- Spark plug boot
A
B
( c) Inspect spark plug for damage and clean with a wire brush before reinstalling. Replace if
damaged.
(d) Adjust the electrode gap to 0.028 - 0.031 in. ( 0.7 - 0.8 mm).
(e) Seat spark plug in position and thread by hand to prevent cross threading.
(f) Tighten plug with provided wrench and put the spark plug boot back on spark plug.
0.028-0.031 in.
(0.7-0.8mm)
SPARK PLUG: TORCH F6RTC or equivalent
34
English Customer Service: 1-844-FIRMAN1
Inspect Muffler and Spark Arrester
1. Inspect the muffler for cracks, corrosion, or other damage.
2. Remove the screws securing the spark arrester in place and the remove it from muffler.
3. Carefully remove the carbon deposits from the spark arrester screen with a wire brush.
4. Replace the spark arrester if it is damaged. If replacement parts are required, make sure to use
only FIRMAN original equipment replacement parts.
5. Position the spark arrester in the muffler and attach with the screws.
NOTICE Failure to clean or replace spark arrester may result in decreased engine performance.
Maintenance - Storage
35
Changing the Hydraulic Oil and Oil Filter
English Customer Service: 1-844-FIRMAN1
Maintenance - Storage
1. Confirm that the piston rod of the hydraulic cylinder is fully retracted into the cylinder and the
engine is in the "off" state; close the fuel valve to prevent fuel leakage or accidental startup; move
the control valve handle back and forth several times to release the accumulated pressure in the
system; place a container with a capacity of not less than 15 gallons (56 L) under the hydraulic oil
tank.
2. Locate the oil drain plug at the bottom of the hydraulic oil tank, unscrew and remove it
slowly, and wait for the oil to drain completely into the container. During the drainage process,
observe the oil flow to avoid any spillage.
3. Unscrew the M6 screw (92) that fixes the filter gap (93), carefully remove the old hydraulic oil
filter (94) and O-ring (95) , and properly dispose of the old parts in accordance with regulations to
avoid pollution.
4. Install the new filter and new O-ring on the filter flange in the correct direction; use a 13mm
wrench to tighten the M6 screw (92) to a torque of 7.38 lbf·ft (10 N.m), avoiding component damage
due to improper torque.
5. Wrap 2-3 turns of new Teflon tape around oil tank drain plug and reinstall. See OPERATION
add hydraulic oil for hydraulic oil specifications and filling instructions.
WARNING! Always shut off the engine, disconnect the spark plug, and relieve system pressure
before cleaning, adjusting, or servicing the log splitter. Relieve system pressure by moving control
valve handle back and forth several times.
Change the oil and filter after the first 50 hours of use. Then every 100 hours or annually.
WARNING! Always shut off the engine, disconnect the spark plug, and relieve system pressure
before cleaning, adjusting, or servicing the log splitter. Relieve system pressure by moving the
control valve handle back and forth several times.
Change the oil and filter after the first 50 hours of use. Then every 100 hours or annually.
1. Confirm that the piston rod of the hydraulic cylinder is fully retracted into the cylinder and the
engine is in the "off" state; close the fuel valve to prevent fuel leakage or accidental startup; move
the control valve handle back and forth several times to release the accumulated pressure in the
system; place a container with a capacity of not less than 15 gallons (57 L) under the hydraulic oil tank.
2. Locate the oil drain plug at the bottom of the hydraulic oil tank, unscrew and remove it slowly,
and wait for the oil to drain completely into the container. During the drainage process, observe
the oil flow to avoid any spillage.
3. After the fluid has completely drained from the tank, wrap 2-3 turns of new Teflon tape around
oil tank drain plug and reinstall.
4. Locate the return filter at the top of the tank. Clean and wipe all debris near the filter to ensure
that debris will not enter the system. It’s best to perform the filter change and maintenance inside
a sheltered area to prevent unintentional introduction of debris from entering the system.
5. Unscrew the 4xM8 screws (92) that fixes the filter top cap (93) to the filter housing. Remove the
filter top cap and inspect it for any damage. Clean the top cap of the filter with isopropyl alcohol
and a lint free rag and set it aside.
6. Using the handle, pull the filter element (94) out of the housing of the return filter. Discard the
filter element in accordance with regulations to avoid pollution.
7. Carefully remove the filter o-ring (95) ensuring not to damage the o-ring in the process. Inspect
the o-ring for tears or damage. Wipe the o-ring clean with a lint free rag.
8. If the fluid from the tank is drained and the filter housing is empty of fluid, it would be a good
time to wipe the inside of the housing, cleaning it from any debris. Be sure to use a lint free rag
and be cautious not to introduce contaminants.
9. Apply clean hydraulic fluid to the rubber areas of the new filter element (94) and firmly insert it
into the filter housing. Make sure the filter element is fully seated.
10. Apply clean hydraulic fluid to the o-ring (95) and replace it within the housing.
11. Place the filter top cap (93) back onto the filter housing and retighten the M
8 fixing screws. Do
not over tighten the screws as it can crack the filter housing.
12. See OPERATION add hydraulic oil for hydraulic oil specifications and filling instructions.
92
93
94
95
35
36
36
English Customer Service: 1-844-FIRMAN1
Maintenance - Storage
Long Term Storage
Do not store fuel near any ignition sources.
When draining fuel move pump outdoors and use a commercially available non-conductive
vacuum siphon. Fuel must be drained into an approved container.
WARNING! Fuel and its vapors are extremely flammable which could cause burns
or fire resulting in death or serious injury.
If the log splitter will not be used for more than 30 days, prepare it for long term storage as follows:
1. Retract the wedge to protect the rod from corrosion.The rod should be retracted after every use.
2. Never store the machine with fuel in the fuel tank inside a building where ignition sources are
present.
3. Drain all fuel completely from the tank, fuel line and carburetor to prevent gum from forming.
If log splitter is stored with fuel in the fuel tank, we recommend using a gas stabilizer to prevent
sediment from gumming up the carburetor. If there is dirt or moisture in the fuel, drain the fuel
tank. Completely fill the tank with fresh, unleaded gas and add the appropriate amount of fuel
stabilizer. Run the engine for a short time to allow the stabilizer to circulate.
4. Before storing the log splitter, stop the engine, wait at least five minutes to allow all parts to cool.
5. Change the engine oil.
6. Remove the spark plug and pour about ½ ounce (14.8 ml) of oil into the cylinder. Pull the engine
recoil slowly to distribute the oil and lubricate the cylinder. Reinstall the spark plug.
NOTICE The use of a pressure washer or a garden hose to clean the log splitter is not recommended.
The use of water will result in corrosion, shortening life and reducing serviceability.
7. Check the wedge slide for nicks and wear. Sharpen if needed.
8. Apply a rust preventative (oil film or equivalent) to any bare metal areas on the wedge slide and
on top of the beam.
9. Using a soft bristle brush, clean the exterior of the unit removing all dirt, grease, or other foreign
material. Remove dirt and debris from the cylinder head cooling fins and muffler area.
10. To prevent rust, touch up painted surfaces if scratched or chipped.
11. Be sure all hoses, nuts, bolts, and screws are securely fastened.
12. Store the log splitter in a dry, protected place. If it is necessary to store outside, cover it with a
tarp of similar protective material (especially the Engine). Avoid storage near corrosive materials.
37
Troubleshooting – Specifications
English Customer Service: 1-844-FIRMAN1
For all other issues, contact authorized dealer or Firman customer service.
38
SPECIFICATIONS
English Customer Service: 1-844-FIRMAN1
Troubleshooting – Specifications
Model
GS3301
Ram Force
Cycle Time
Hydraulic Tank Capacity
Max Log Length
Coupler Ball Size
Tire Size
Max towing speed
Cylinder size
Gear Pump
Control Valve
Net Weight
Height
Width
Length
33 Ton
6 seconds
15 gal (56 L)
20.5 in. (52 cm)
2 in. (5.1 cm)
18 in. (45.7 cm)
45 MPH (72 KM/H)
4.75 in. (12 cm )
2-stage
Detent (auto-return)
675 lb. (306 kg)
43.3 in. (110.0 cm)
51.9 in. (131.8 cm)
87.0 in. (221.0 cm)
Engine
Model
Displacement
Type
Start Type
Oil Capacity
Gasoline Capacity
SPE390
389 cc
4-Stroke OHV
Recoil
38.3 fl. oz (1.1 L)
1.1 gal (4.2L)
39
PARTS DIAGRAM AND PART LIST
GS3301 PARTS DIAGRAM
English Customer Service: 1-844-FIRMAN1
Parts Diagrams - Parts Lists
40
389cc ENGINE PARTS DIAGRAM
Parts Diagrams - Parts Lists
41
GS3301 LOG SPLITTER
English Customer Service: 1-844-FIRMAN1
Parts Diagrams - Parts Lists
NO.
Part Number
Description
Qty.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
710717103
710717007
710718290
710718464
710718422
710718286
710717008
710718118
710718337
710718392
710718111
710718009
710418006
710718201
710728001
710728016
710728020
710717059
710718002
710718252
710718003
710728043
710717045
710717044
710718284
710717113
710418026
710418007
710718213
710717094
710718041
710718040
710717068
710718211
710718115
710728036
710717024
710717023
710718097
710717032
710717025
710728018
710717026
710718452
710718008
710717003
710717075
710718434
710718317
710717133
710718032
710418032
710718013
710718094
Bolt M12×35
Washer Ø12
Weldment, Stripper Cradle
Log Table
Beam
Log Cradle
Lock Nut M12
Bolt M12×45
Weldment, Wedge, Medium
Plate, Wedge Spacer
Plate, Wedge Lower Mount
Bolt M12×90
Hydraulic Cylinder
Hydraulic Pressure Hose
Cable Tie
Hydraulic Hose Sheath
Bolt M12×30
Beam Pivot
Bolt M8×25
Manual Canister
Washer Ø8
Lock Nut M8
Hydraulic Cylinder Pin
R-clip Pin
Beam Locking Assy
Control Valve
Valve Instruction Plate
Bolt M8×12
Bolt M6×25
Washer Ø6
Hydraulic Fitting (1NPT-1JIC)
Return Oil Filter, Housing
Gasket, Oil Filter
Axle Cap
Cotter Pin 4 x 36
Castle Nut M20 x 2.5
Washer Ø20
Wheel Bearing
Wheel
Grease Seal
Axle
Bolt M10×55
Washer Ø10
Lock Nut M10
Hydraulic Oil Tank
Beam Pin
Bolt M12×110,G8.8
Washer Ø16
Vent Cap
Tank Drain Plug
4
23
1
1
1
1
12
4
1
2
2
1
1
3
1
6
1
1
2
1
3
1
15
8
1
3
1
1
1
1
2
5
5
1
1
1
2
2
2
2
4
2
2
2
4
13
7
1
1
3
1
1
1
1
NO.
Part Number
Description
Qty.
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
Clamp
Hydraulic Pressure Hose
Hydraulic Hose Sheath
Hydraulic Return Hose
Hydraulic Hose Sheath
Pump
Bolt M10×35
Flat Key 4.76 x 4.76 x 25
Pump Mount
Bolt 5/16".-24×1".
Lock Washer Ø8
Pump Coupler
Set Screw M6 x 10
Engine Coupler
Set Screw M8 × 10
Engine
Flat Key 6.3 × 6.3 × 49
Engine Mounting Bracket
Bolt M8×40
Weldment, Sd Tongue
Spring
Spring Retaining Screw
Washer φ8
Bolt M6×25
Washer, Plastic Spacer
Weldment, Stand Lock
Rubber Grip
Bolt M8×30
2-in. Ball Coupler
Safety Chain with Hook
Bolt M10×115
Bolt M12×105
Bolt M8×20
Filter Cap
Filter Element
O-ring, Filter
Spring Pin, 6×35
Wedge Assy.
Return Oil Filter, Assy
Wheel Assy.
Tongue Stand Assy.
710718093
710728035
710728021
710728019
710728022
710728041
710418052
710718012
710718106
710718098
710717041
710717048
710718414
710717053
710718413
710718107
710467012
710718105
710718475
710718017
710718449
710728029
710718312
710718038
710718076
710718053
710728033
710718318
710728032
710718373
710728030
710718054
710728015
710418001
710717137
710718077
710718078
710718112
710718113
710718114
710728042
710718116
710718471
710718472
710717064
710718212
710418046
710418051
710418043
710418050
710418047
2
1
1
1
1
1
1
2
1
1
4
4
1
1
1
1
1
1
3
4
1
9
4
4
1
1
1
1
2
1
2
4
2
1
2
1
1
4
1
1
1
1
1
1
1
2
1
1
2
1
1
Hydraulic Fitting (3/4"NPT-3/4"JIC)
Hydraulic Fitting (3/4NPT-3/4NPT)
Hydraulic Fitting,(1" NPT - 1-1/4")
Suction Hose, 1.25" × 450mm
Rubber Strap, Tongue Stand
Rubber Bumper, Tongue Stand
Weldment, Y-Ground Stand
Rubber Foot, Tongue Stand
Hydraulic Fitting, (M48 - 1"NPT)
Pull Pin, Vertical Beam Lock
Compression Spring, Vertical Pull Pin
Hydraulic Fitting (1NPT-1JIC)
Hydraulic Fitting (1NPT-3/4JIC)
Assy, Tongue, Complete
42
NO.
Part Number
Description
Qty.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
336723522
302423001
710467022
357723580
357723582
393723006
336723589
336723590
336723592
336723591
336723593
357723571
710767004
357723572
302767004
710467013
336718301
357723573
357723589
710467014
336723609
357723516
357723515
710767005
710467015
393713037
357723506
357723507
710467016
317723516
357723512
336723526
355728351
357723587
380717007
357723502
312715031
336728303
336718301
330723528
336723595
357723586
357723585
336723597
357723584
357723517
357723519
357723518
357723522
357723523
Flange Bolt M6 x 8
Recoil Handle
Recoil Case
Spring, Starter Return
Pulley, Recoil Starter
Rope, Recoil Starter
Ratchet Spring
Recoil Spring
Spring, Pawl Guide
Pawl Guide
Screw, Pawl Guide
Nut M16
Wire Clip
Pulley, Starter
Switch, Engine
Engine Cover Assy.
Flange Bolt M6 x 12
Cooling Fan
Flywheel
Ignition Coil
Flange Bolt M6 x 29
Flange Bolt M8 x 40
Seal, Oil
Crankcase Cover
Oil Dipstick
Balance Shaft
Crankshaft
Dowel Pin 8 x 14
Gasket, Crankcase
Flange Bolt M6 x 15
Sensor, Engine Oil
Crankcase Subassembly
Drain Plug M12 x 1.25 x 15
Diode
Sheath, Wire
Flange Bolt M6 x 12
Wire Clip
Inner Washer, Gear
Governor Gear Shaft
Gear, Governor
Clip, Govorner Gear
Bushing, Govorner Gear
Rod, Connecting
Pin, Piston
Piston Pin Clip
Ring Set, Oil
Ring, Second
3
1
1
1
1
1
2
2
1
1
1
1
1
1
2
1
5
1
1
1
2
7
2
1
1
2
1
1
1
2
1
2
1
1
2
2
1
1
4
1
1
1
1
1
1
1
1
2
1
1
English Customer Service: 1-844-FIRMAN1
Parts Diagrams - Parts Lists
NO.
Part Number
Description
Qty.
357723524
357723520
710767006
357723544
710767014
357723539
336723539
357723530
357723525
357723526
357723527
357723508
355718342
360713037
357723538
336723537
355718411
336723529
336723528
357723540
357723541
357723537
357723536
357723535
357723533
357723534
357723531
357723567
336713591
336718312
357723565
336723567
357723564
357723562
357723563
710467017
336723555
357723561
357723548
336723556
357723549
357723550
357723551
710467018
710767007
710767008
710767009
710467019
710767010
710467020
FIRMAN 389cc Engine
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
Ring, First
Piston
Gasket, Cylinder Head
Dowel Pins Ø12 x 20
Air Guide, Lower
Head Subassembly, Cylinder
Flange Bolt M10 x 80
Gasket, OHV Cover
Cover, OHV
Bolt
Camshaft Assy.
Valve, Lifter
Push Rod
Guide Plate, Push Rod
Bolt, Valve Adjusting
Arm, Valve Rocker
Nut, Valve Adjusting
Nut, Valve Lock
Valve, Intake
Valve, Exhaust
Retainer, Valve
Oil Seal, Valve
Spring, Valve
Retainer, Intake Valve
Retainer, Exhaust Valve
Rotator, Exhaust Valve
Shaft, Governor Arm
Flat Washer Ø8.2 x Ø17 x 0.8
Seal, Oil
Shaft Pin
Bolt, Governor Arm
Governor Arm
Rod, Governor
Muffler Protector, Upper
Nut M6
Spring, Governor
Intake Stud Bolt
Spark Plug (F6RTC)
Gasket, Insulator
Carburetor Insulator
Gasket, Carburetor
Carburetor
Breather Hose
Gasket, Air Cleaner
Wire Clip
Air Cleaner Set
Gasket, Muffler
Muffler Assy.
1
1
1
2
1
1
2
4
1
1
1
1
2
2
1
2
2
2
2
1
1
2
2
2
1
1
1
1
1
1
1
1
1
1
1
1
3
1
2
1
1
1
1
1
1
1
2
1
1
1
Radial Ball Bearing6202/P6
Radial Ball Bearing 6207/C3
Exhaust Valve Stud Bolt M8 x 35
Spring, Throttle Valve Returning
Oil Drain Bolt Washer 12 x 20 x 2
43
English Customer Service: 1-844-FIRMAN1
Parts Diagrams - Parts Lists
NO.
Part Number
Description
Qty.
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
336713533
336713509
336713534
710767011
710767012
336713807
302717030
710467021
336723514
710467009
360725512
317713553
302467029
710767013
360413009
375418303
360415502
360413011
360415503
710467023
Flat Washer Ø8
Lock Washer Ø8
Nut M8
Fuel Hose
Clamp
Tank Fitting With Filter
Nut M8
Fuel Tank
Flange Bolt M8 x 32
Rollover Valve Assy.
Fuel Filter, Wire Mesh
Clamp Ø8 x 6
Fuel Cap
Hose
Governing Gear Set
Crankcase Cover
Ring Set
Piston Assy.
Cylinder Head Assy.
Recoil Starting Assy.
2
2
2
1
1
1
2
1
2
1
1
1
1
1
1
1
1
1
1
1
44
English Customer Service: 1-844-FIRMAN1
Service – Warranty
FIRMAN 3 Years Limited Warranty
Do Not Return the Unit to the Place of Purchase
Contact the FIRMAN Service Center and FIRMAN will troubleshoot any issue via phone or e-mail.
If the problem is not corrected by this method, FIRMAN will, at its option, authorize evaluation,
repair or replacement of the defective part or component at a FIRMAN Service Center. FIRMAN
will provide you with a case number for warranty service. Please keep it for future reference.
Repairs or replacements without prior authorization, or at an unauthorized repair facility, will
not be covered by this warranty.
Normal Wear
Your product needs periodic parts and service to perform well. This warranty does not cover
repair when normal use has exhausted the life of a part or the equipment as a whole.
FIRMAN warrants to the original purchaser that the mechanical and electrical components will be free of
defects in material and workmanship for a period of one (1) year(parts and labor) and 3 years (parts
and technical support) from the original date of purchase 90 days [parts and labor] and 180 days [parts]
for commercial & industrial use. Transportation charges on product submitted for repair or replacement
under this warranty are the sole responsibility of the purchaser . This warranty only applies to the original
purchaser and is not transferable.
Repair/Replacement Warranty
Warranty Exclusions
This warranty does not cover the following repairs and equipment.
Warranty Qualifications
Register your product using the QR code provided or at www.firmanpowerequipment.com.
FIRMAN will also register the warranty upon receipt of your Warranty Registration Card and a
copy of your sales receipt from one of FIRMAN’s retail locations as proof of purchase. Please
submit your warranty registration and your proof of purchase within ten(10) days of the date of
purchase.
SERVICE INFORMATION CONTACT FIRMAN PRODUCT SERVICE DEPARTMENT AT 1-844-347-6261
or at www.firmanpowerequipment.com to obtain warranty service information or to order
replacement parts or accessories.
HOW TO ORDER REPLACEMENT PARTS
Even quality-built equipment such as this log splitter may need occasional replacement parts to
maintain it in good condition over the years. To order replacement parts, please give the
following information:
Model No. Rev. Level and Serial No. found on the Data Decal.
Parts number or numbers as shown in the Parts List section.
A brief description of the trouble with the log splitter.
45
English Customer Service: 1-844-FIRMAN1
Service – Warranty
Limits of Implied Warranty and Consequential Damage
FIRMAN disclaims any obligation to cover any loss of time, use of this product, freight, or any
incidental or consequential claim by anyone from using this product. THIS WARRANTY IS IN
LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF
MERCHANTABLILITY OR FITNESS FOR A PARTICULAR PURPOSE.
A unit provided as an exchange will be subject to the warranty of the original unit. The length of
the warranty governing the exchanged unit will remain calculated by reference to the purchase
date of the original unit.
This warranty gives you certain legal rights which may change from state to state. Your state may
also have other rights you may be entitled to that are not listed within this warranty.
Contact Information
You may contact FIRMAN at:
Address
Firman Power Equipment Inc.
Attn: Customer Service
8644 W. Ludlow Dr.
Peoria, AZ 85381
www.firmanpowerequipment.com
We are FIRMAN POWER - And we are here for you.
Installation, Use and Maintenance
This warranty will not apply to parts and/or labor if your product is deemed to have been misused,
neglected, involved in an accident, abused, modified, installed improperly or connected incorrectly.
Normal maintenance is not covered by this warranty.
Other Exclusions
This warranty excludes:
– Cosmetic defects such as paint, decals, etc.
– Wear items such as filter elements, seals, etc.
– Accessory parts such as hoses, hose fittings, etc.
– Failures due to acts of God and other force majeure events beyond the manufacturer’s control.
– Problems caused by parts that are not original FIRMAN parts.
46
English Customer Service: 1-844-FIRMAN1
Service – Warranty
FIRMAN POWER EQUIPMENT INC.
EMISSION CONTROL WARRANTY STATEMENT
MANUFACTURER'S WARRANTY COVERAGE:
OWNER'S WARRANTY RESPONSIBILITIES:
This emission Control System is warranted for two years. If any emission-related part on your
engine/equipment is defective, the part will be repaired or replaced by FIRMAN.
As the small off-road engine/equipment owner, you are responsible for the performance of the
required maintenance listed in your owner's manual. FIRMAN recommends that you retain all
receipts covering maintenance on your small off-road engine/equipment, but FIRMAN cannot
deny warranty coverage solely for the lack of receipts or for your failure to ensure the performance
of all scheduled maintenance. As the small off-road engine/equipment owner, you should
however be aware that FIRMAN may deny you warranty coverage if your small off-road
engine/equipment or a part has failed due to abuse, neglect, improper maintenance or
unapproved modifications. You are responsible for presenting your small off-road
engine/equipment to FIRMAN distribution center as soon as a problem exists. The warranty
repairs shall be completed in a reasonable amount of time, not to exceed 30 days. If you have any
questions regarding your warranty rights and responsibilities, you should contact FIRMAN at
1-844-347-6261 or www.firmanpowerequipment.com .
DEFECTS WARRANTY REQUIREMENTS:
(a) The warranty period begins on the date the engine/equipment is delivered to an ultimate
purchaser.
(b) General Emissions Warranty Coverage. FIRMAN warrants to the ultimate purchaser and each
subsequent owner that the engine/equipment is:
(1) Designed, built, and equipped so as to conform with all applicable regulations adopted by the
Environmental Protection Agency; and
(2) Free from defects in materials and workmanship that causes the failure of a warranted part for
a period of two years.
(c) The warranty on emissions-related parts will be interpreted as follows:
(1) Any warranted part that is not scheduled for replacement as required maintenance in the
written instructions required by subsection (d) must be warranted for the warranty period
defined in Subsection (b)(2). If any such part fails during the period of warranty coverage, it
must be repaired or replaced by FIRMAN according to Subsection (4) below. Any such part
repaired or replaced under the warranty must be warranted for the remaining warranty period.
(2) Any warranted part that is scheduled only for regular inspection in the written instructions
required by subsection (d) must be warranted for the warranty period defined in Subsection (b)(2).
A statement in such written instructions to the effect of “repair or replace as necessary” will
not reduce the period of warranty coverage. Any such part repaired or replaced under warranty
must be warranted for the remaining warranty period.
YOUR WARRANTY RIGHTS AND OBLIGATIONS
The United States Environmental Protection Agency (EPA) and FIRMAN POWER EQUIPMENT INC.
(FIRMAN) are pleased to explain the emission control system warranty on your [2026-2027] model
year small off-road engine/equipment. In the United States, new small off-road engine/equipment
must be designed, built and equipped to meet the State's stringent anti smog standards. FIRMAN
must warrant the emission control system on your small off-road engine/equipment for the period
listed below provided there has been no abuse, neglect or improper maintenance of your small
off-road engine/equipment leading to the failure of the emission control system. Your emissions
control system may include parts such as the carburetor or fuel-injection system, the ignition
system, catalytic converter, fuel tanks, fuel lines (for liquid fuel and fuel vapors), fuel caps, valves,
canisters, filters, clamps and other associated components. Also included may be hoses, belts,
connectors, and other emission-related assemblies. Where a warrantable condition exists, FIRMAN
will repair your small off-road engine/equipment at no cost to you including diagnosis, parts and labor.
47
English Customer Service: 1-844-FIRMAN1
Service – Warranty
This Emission Control System Warranty shall not cover any of the following:
(a) Consequential damages such as loss of time, inconvenience, loss of use of the engine or
equipment, etc.
(b) Diagnosis and inspection fees that do not result in eligible warranty service being performed.
1. Ignition system including:
- Spark plug
- Ignition coil
2. Fuel metering system:
- Fuel tank
- Fuel cap
- Fuel lines(for liquid fuel and fuel vapors) and
related fittings/clamps
- Fuel regulator, carburetor and internal parts.
3. Catalytic muffler assembly including:
- Exhaust manifold
- Catalytic converter
- Muffler gasket
-pulse valve
4. Air induction system including:
- Intake pipe/manifold
- Air cleaner
5. Crankcase breather assembly including:
- Breather connection tube
6. Fuel tank evaporative emission control system
including:
- Purge valves
- Carbon canister
- Vapor hoses and fitting/clamps
(3) Any warranted part that is scheduled for replacement as required maintenance in the
written instructions required by subsection (d) must be warranted for the period of time prior
to the first scheduled replacement point for that part. If the part fails prior to the first scheduled
replacement, the part must be repaired or replaced by FIRMAN according to Subsection (4)
below. Any such part repaired or replaced under warranty must be warranted for the remainder
of the period prior to the first scheduled replacement point for the part.
(4) Repair or replacement of any warranted part under the warranty must be performed at no
charge to the owner at a warranty station.
(5) Notwithstanding the provisions of Subsection (4) above, warranty services or repairs must be
provided at all FIRMAN distribution centers that are franchised to service the subject engine/
equipment.
(d) Emission Warranty Parts List for exhaust (for all displacements).
FIRMAN will furnish with each new engine/equipment written instructions for the maintenance
and use of the engine/equipment by the owner.
Limitations
(6) The owner must not be charged for diagnostic labor that leads to the determination that a
warranted part is in fact defective, provided that such diagnostic work is performed at a
warranty station.
(7) FIRMAN is liable for damages to other engine/equipment components proximately
caused by a failure under warranty of any warranted part.
(8) Throughout the emissions warranty period defined in Subsection (b)(2), FIRMAN must
maintain a supply of warranted parts sufficient to meet the expected demand for such parts.
(9) Any replacement part may be used in the performance of any warranty maintenance or
repairs and must be provided without charge to the owner. Such use will not reduce the
warranty obligations of FIRMAN.
(10) Add-on or modified parts that are not exempted by the Environmental Protection Agency
may not be used. The use of any non-exempted add-on or modified parts will be grounds for
disallowing a warranty claim. FIRMAN will not be liable to warrant failures of warranted parts
caused by the use of a non-exempted add-on or modified part.
(11) FIRMAN issuing the warranty shall provide any documents that describe that manufacturer's
warranty procedures or policies within five working days of request by the Environmental
Protection Agency.
48
P/N:710745458 Rev:00
All rights reserved. Any reprinting or unauthorized use
without the written permission is expressly prohibited.
FIRMAN POWER EQUIPMENT
8644 W. LUDLOW DR.
PEORIA, AZ 85381
1-844-347-6261
WWW.FIRMANPOWEREQUIPMENT.COM
