Model:SQDBT-PTT
FCC ID: 2ATVZ-SQDBT-PTT
IC: 25245-SQDBTPTT
Model:SQDBT
FCC ID: 2ATVZ-SQDBT
IC: 25245-SQDBT

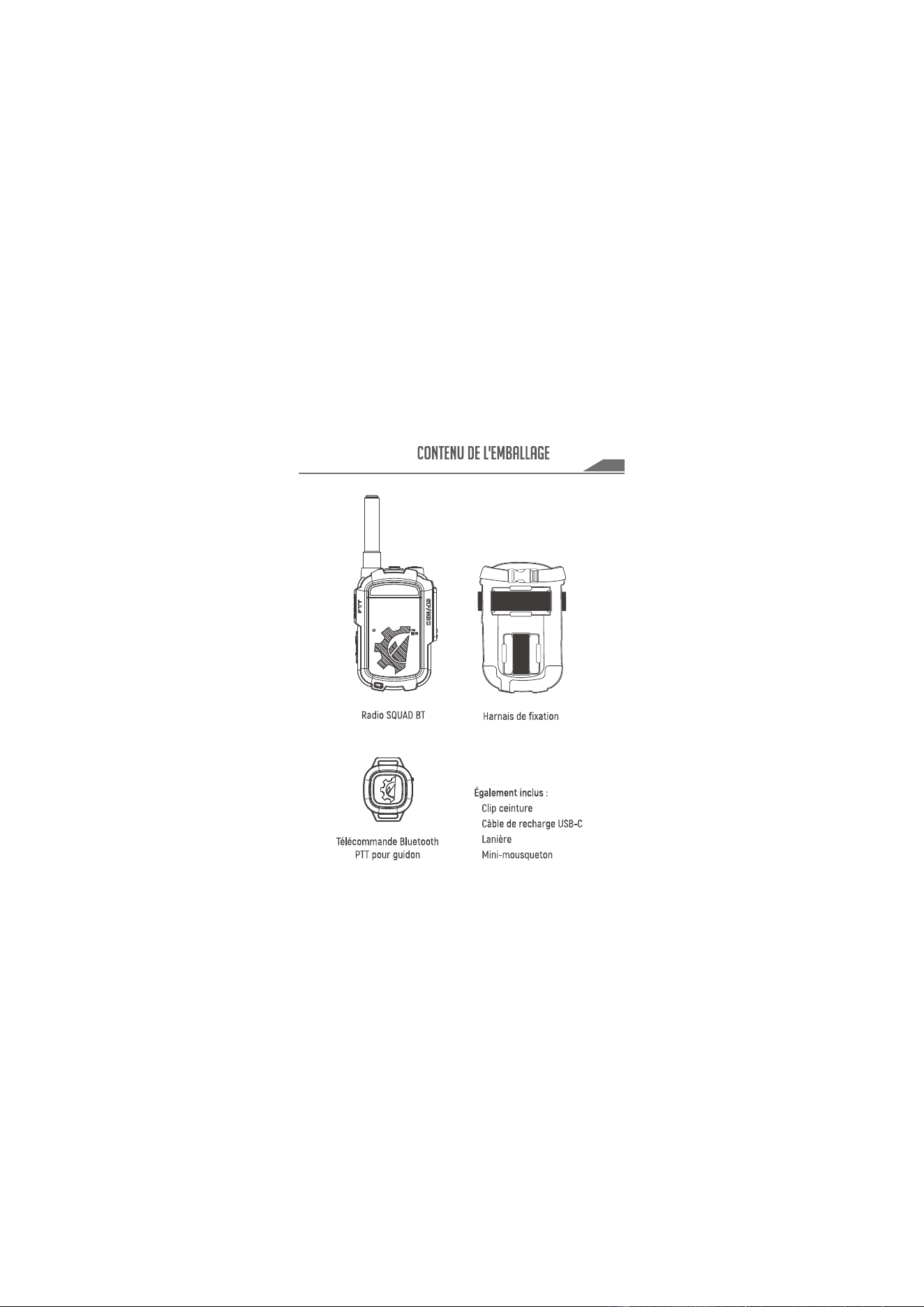

IN THIS PRCKRGE

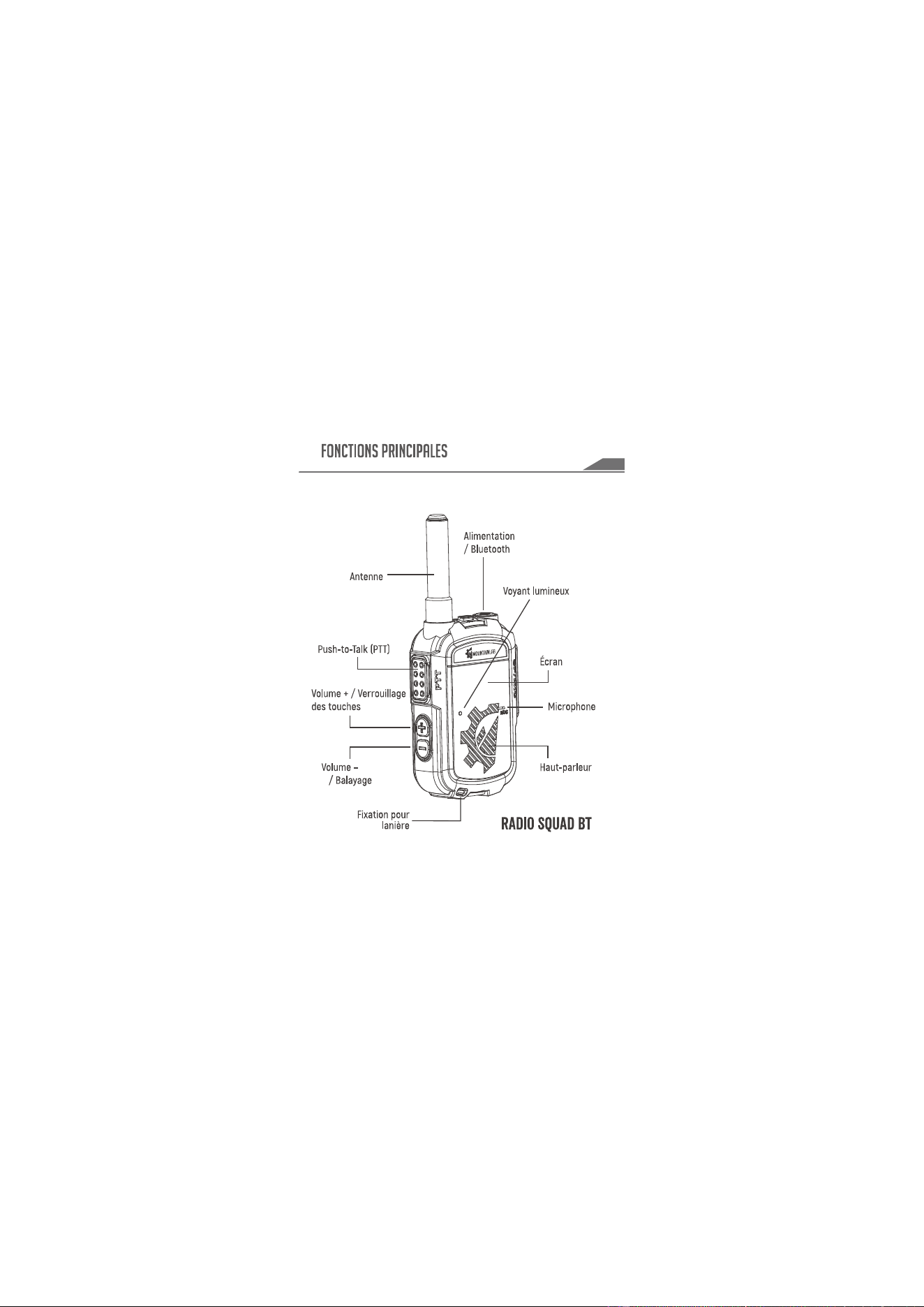

SQUAD BT Radio
SQUAD BT PTT HA
N
DL
E
BAR R
E
M
O
T
E

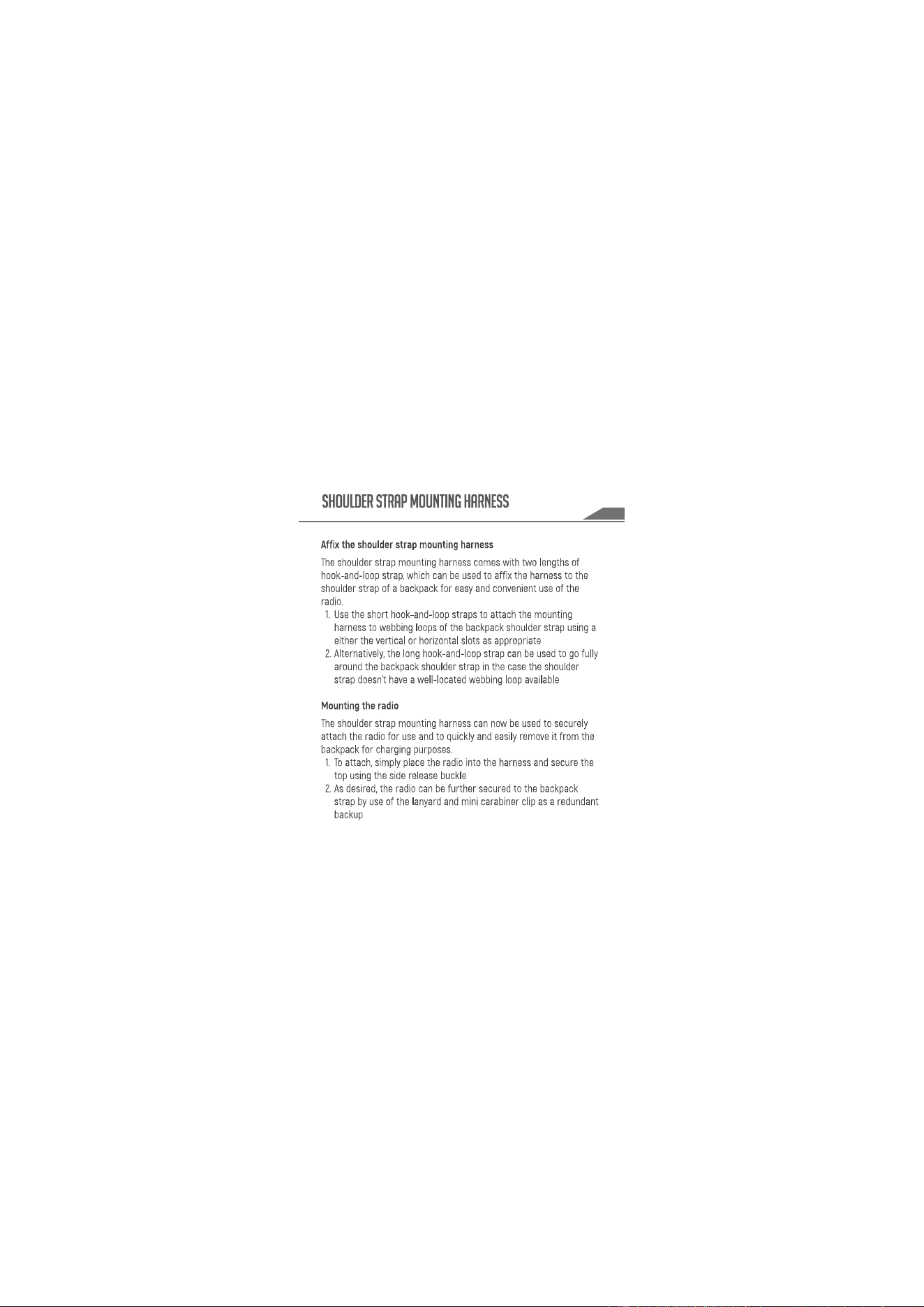

Shoulder Strap

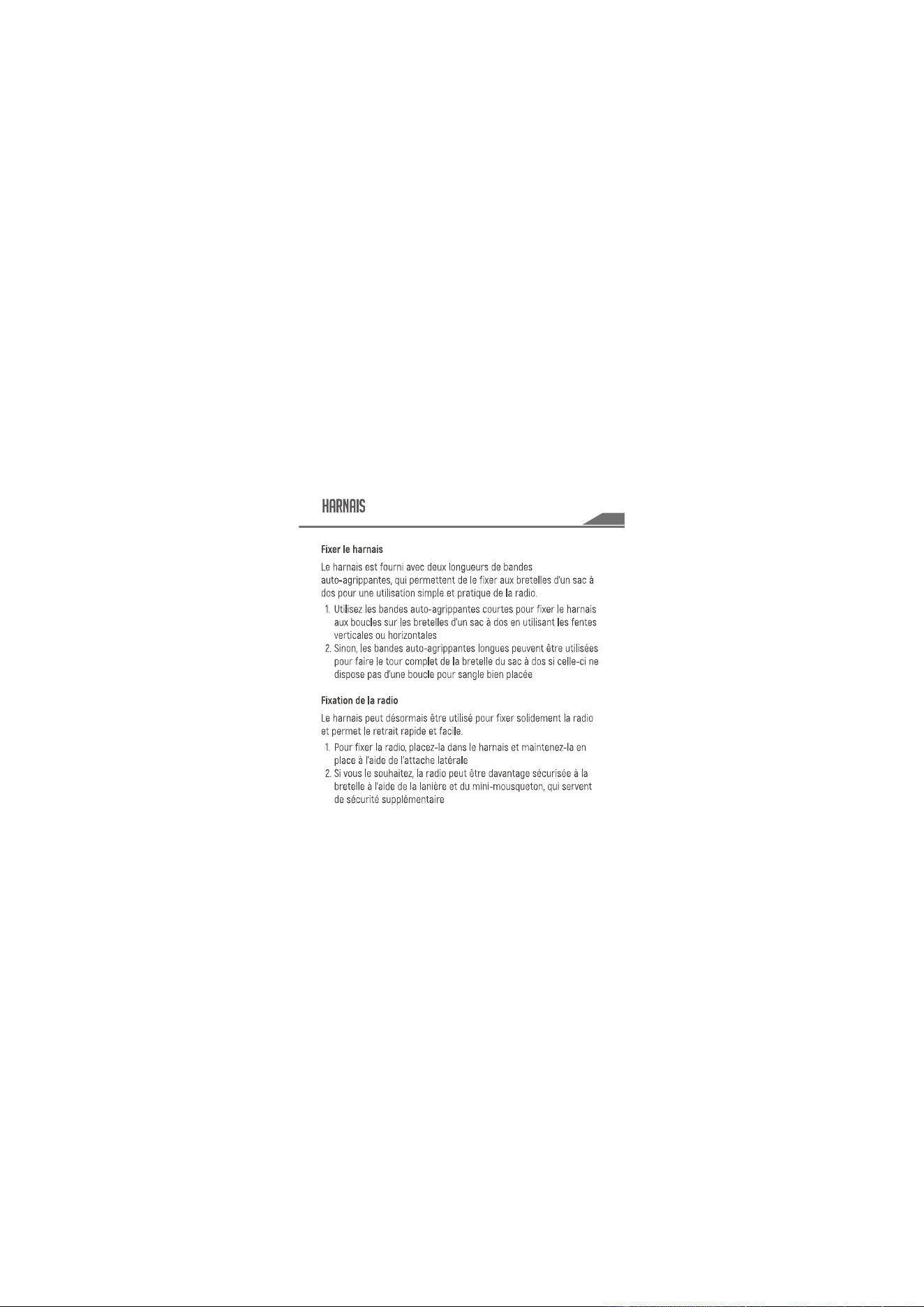

Mounting Harness
Also Included:
Belt Clip
USB-C Charging Cable
Lanyard
Mini-Carabiner

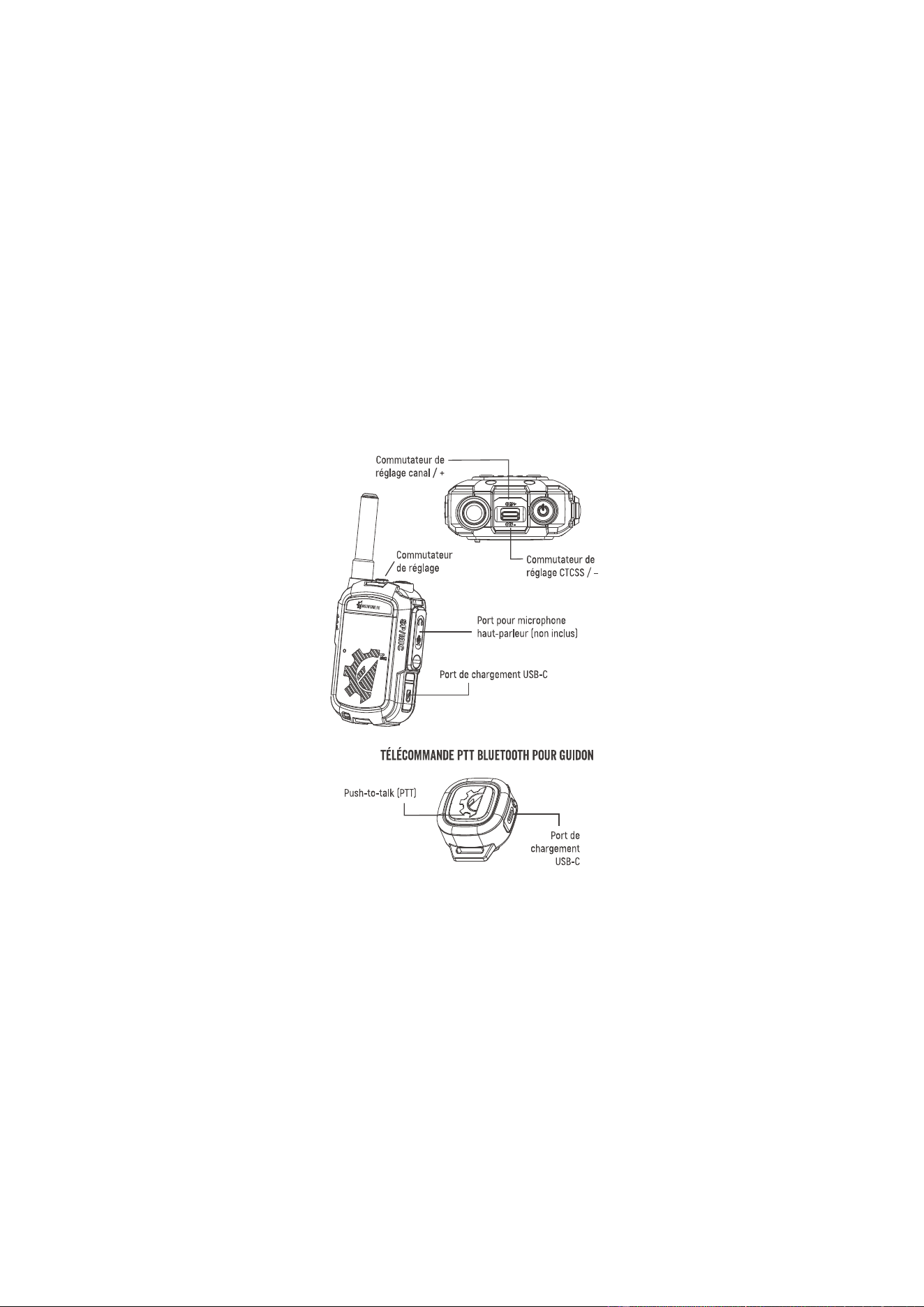

Adjustment toggle ---
Channel/+
Accessory speaker
11 --- microphone port
(not included)
USB-C charging po
SQ
UAD BT PTT HANDLEBAR REMOTE
USB-C charging port
Push-to-talk (PTT)

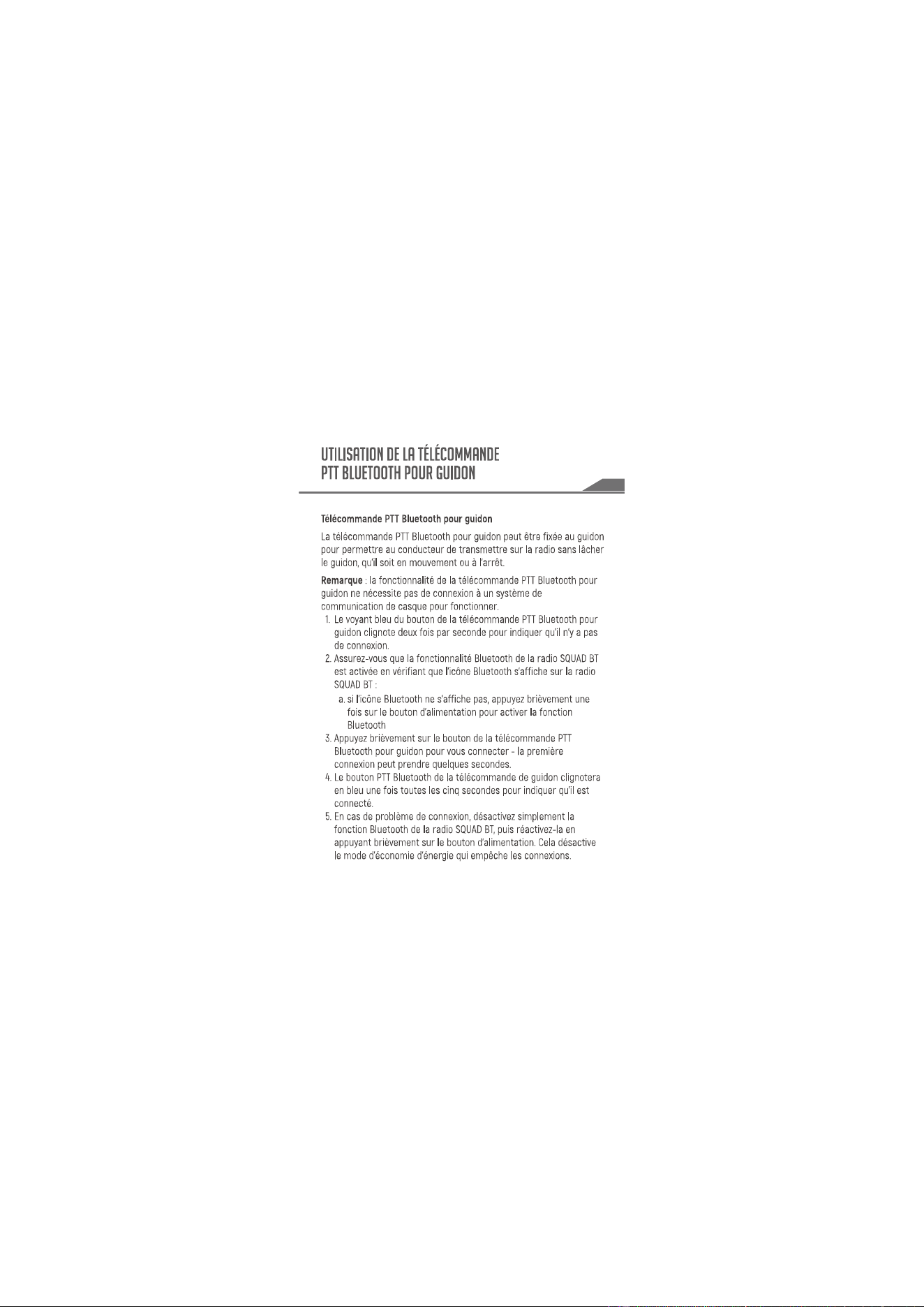

BLUETOOTH PTT HRNOLEBRR REMOTE USE
SQUAD
BT PTT
HA
N
DLE
B
AR
REMO
T
E

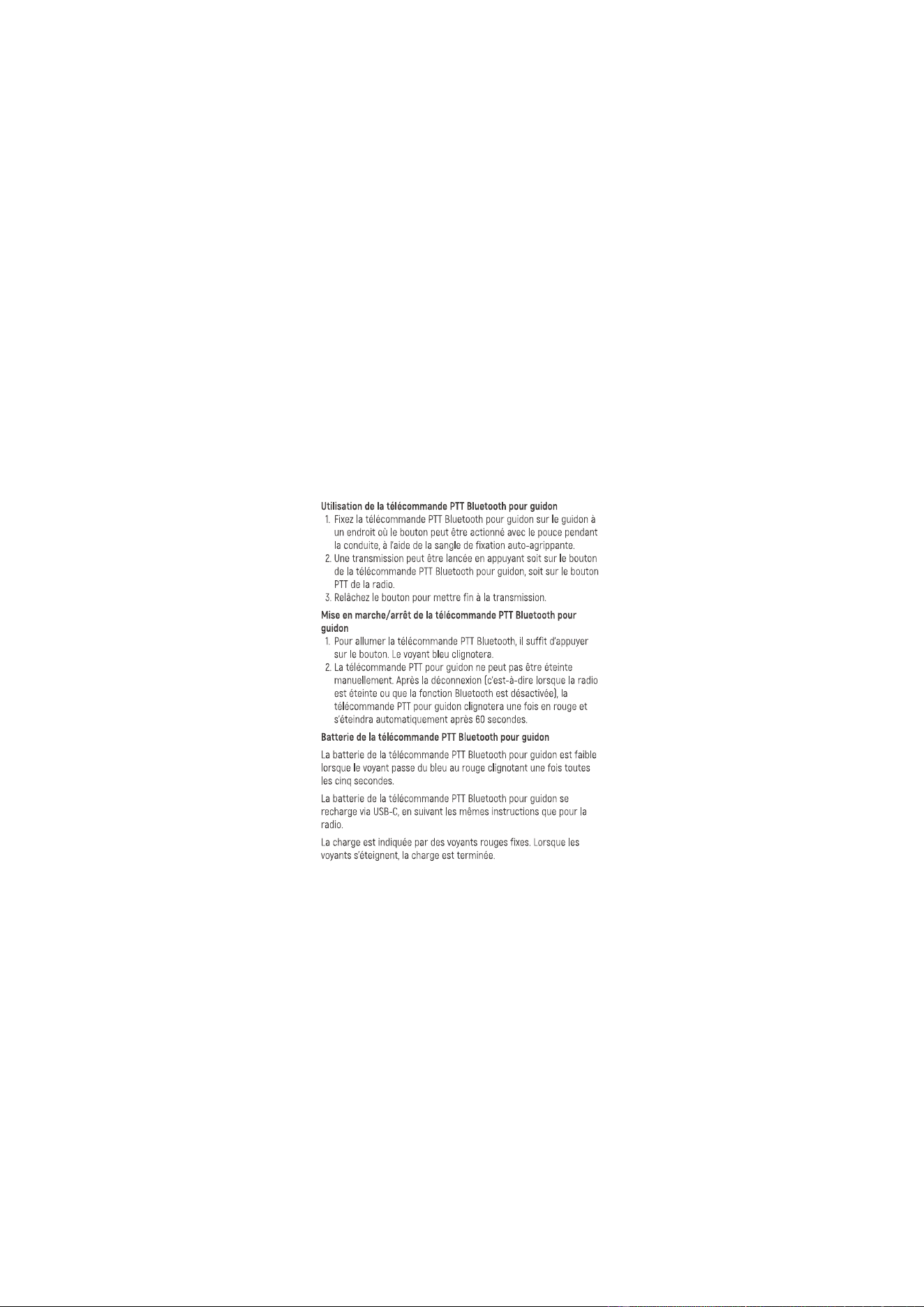

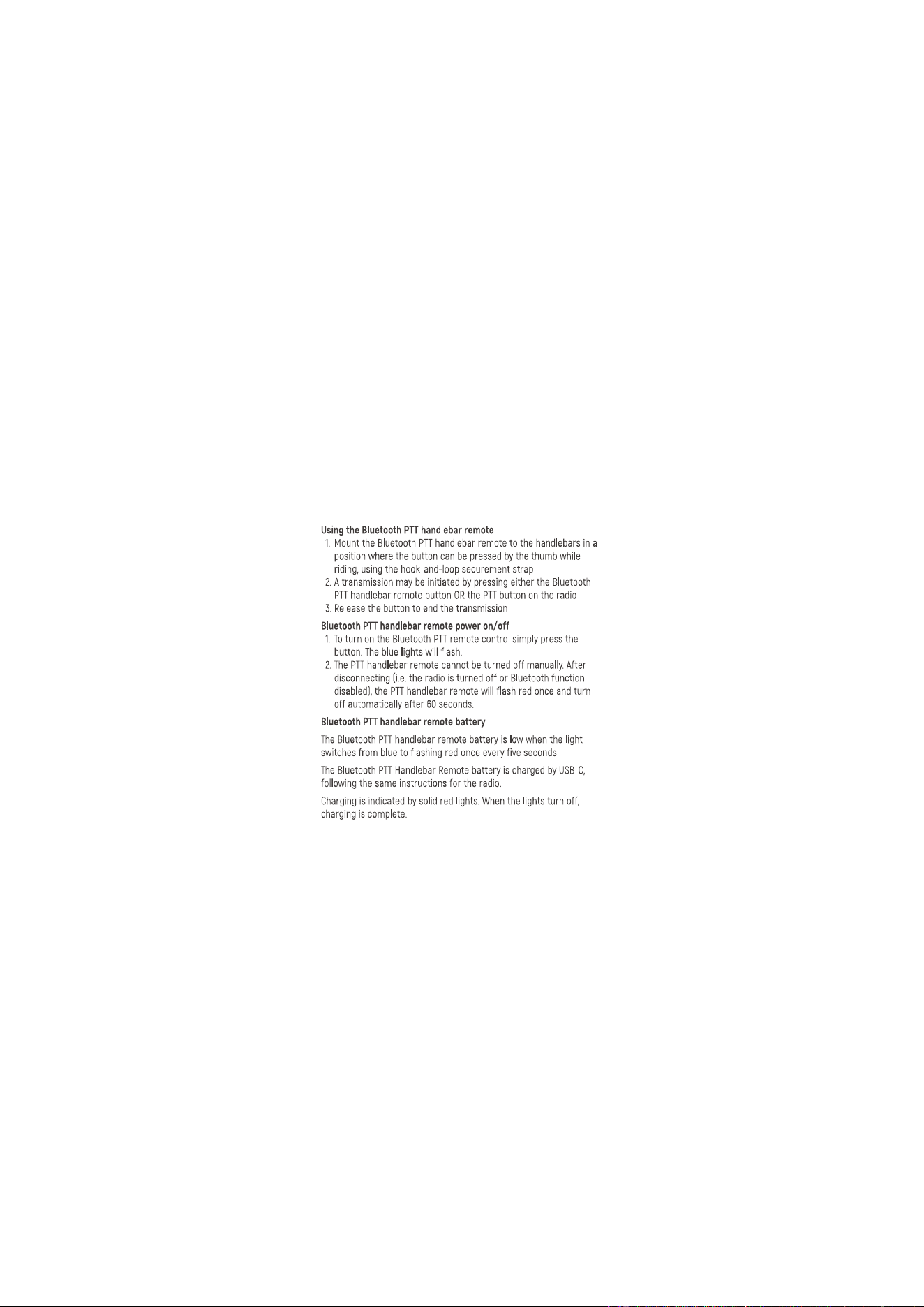

The Bluetooth PTT handlebar remote can be mounted to handlebars to
allow a rider to initiate a radio transmission without taking their hands
off the handlebars while riding or stopped.
Note: The Bluetooth PTT handlebar remote functionality does not
require a helmet communication systems connection to work.
1. The blue light on the Bluetooth PTT handlebar remote button will
flash twice a second to indicate there is no connection
2. Essure the SQUAD BT radio Bluetooth functionality is enabled by
confirming the Bluetooth icon on the SQUAD BT radio is displayed:
a. if the Bluetooth icon is not displayed. short press the power
button once to turn on the Bluetooth function
3. Short press the Bluetooth PTT handlebar remote button to
connect-the first connection may take a few seconds
4. The PTT handlebar remote button will switch to flashing blue once
every five seconds to indicate it is connected
5. If there is any trouble connecting, simply turn the SQUAD BT radio
Bluetooth function off and then back on again by short pressing
the power button. This disables power saving mode which prevents
connections.
COMPLIANCE 6 SAFETY INFORMATION
FCC Compliance Statements (USA)
This device complies with Part 15 and Part 95 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference
2. This device must accept any interference received, including
interference that may cause undesired operation
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
Any changes or modifications not expressly approved by the party
responsible for compliance could void the users authority to operate
the equipment.
ISED Canada Compliance Statement
This device contains licence-exempt transmitterls)/receiver[s) that
comply with Innovation, Science and Economic Development Canada's
licence-exempt RSS(s). Operation is subject to the following two
conditions:
1. This device may not cause interference
2. This device must accept any interference, including interference
that may cause undesired operation of the device
Any changes or modifications not expressly approved by the party
responsible for compliance could void the users authority to operate
the equipment.
INFORMATIONS DE CONFORMITE DE SECURITE
Avis de conformite d'lnnovation, Sciences et Developpement
economique Canada (ISDE)
cemetteur/recepteur exempt de licence cantenu dans le present
appareil est canfarme aux CNR d'lnnavatian, Sciences et
Develappement ecanamique Canada applicables aux appareils radio
exempts de licence. cexplaitatian est autorisee aux deux conditions
suivantes:
1. cappareil ne dait pas produire de brouillage
2. cappareil doit accepter tout brouillage radioelectrique subi, meme
si le brouillage est susceptible d'en compromettre le fanctionne
ment
ute modification nan expressement approuvee par la partie
respansable de la confarmite pourrait entrainer la perte du droit de
l'utilisateur a utiliser l'equipement.

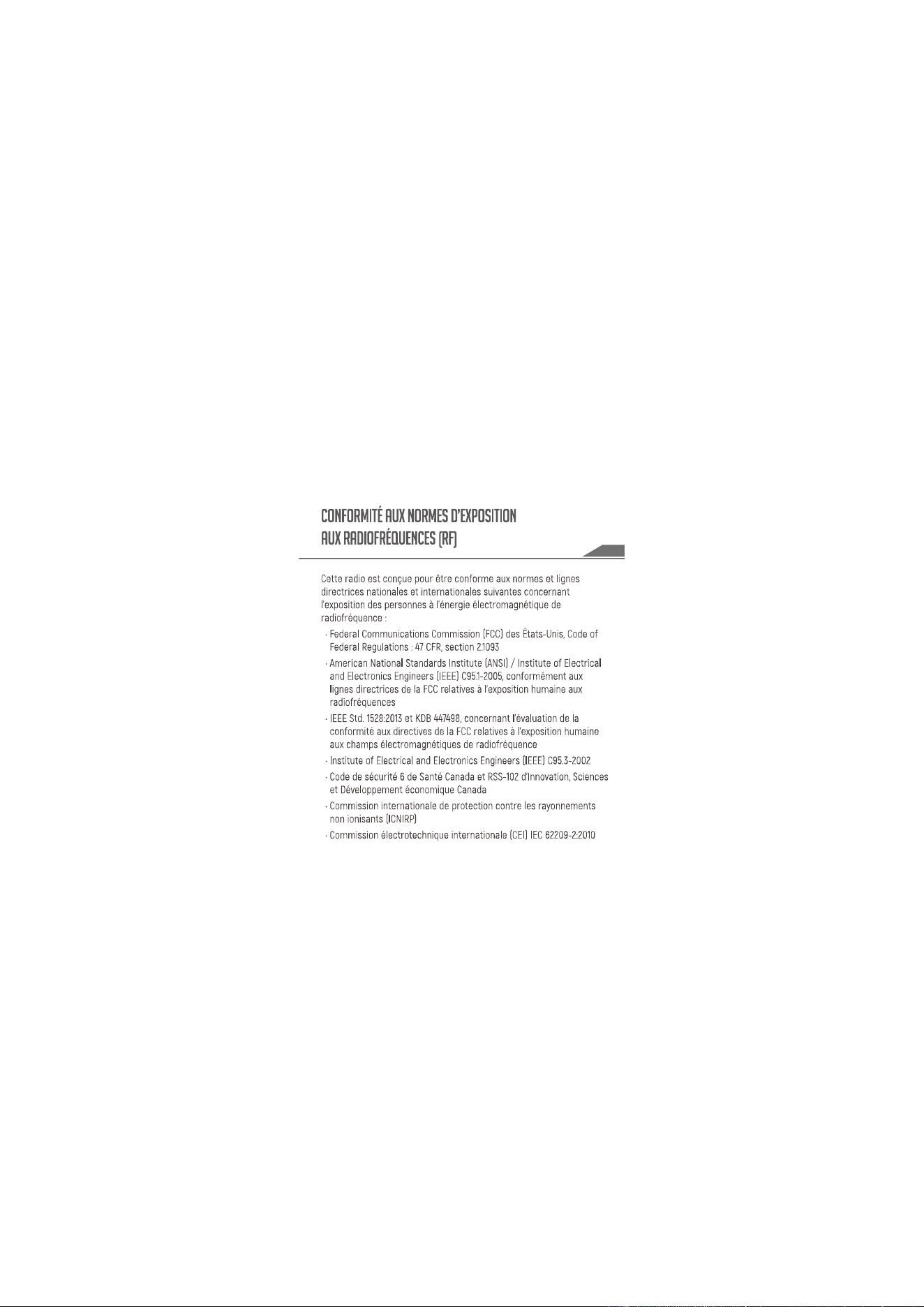

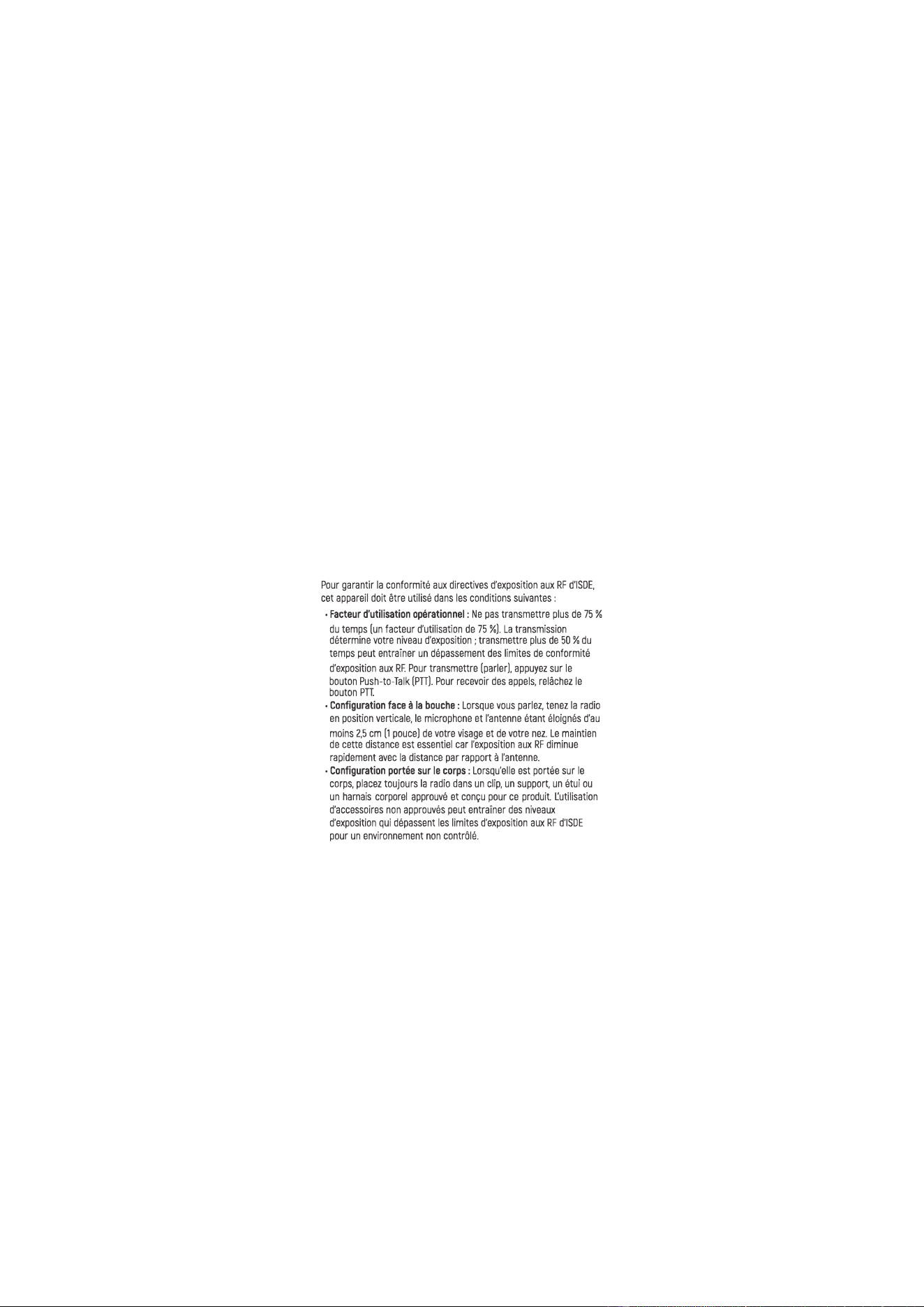

Conformite d'exposition aux RF et consignes de securite d'ISDE
Cette radio bidirectionnelle est confarme aux limites d'exposition aux
rayonnements CNR-102 d'lnnovation, Sciences et Develappement
economique Canada etablies pour un environnement non controle.
