User's Manual
8F-10/8F-10W
/8F-10(Dual Flow)
Oxygen Concentrator
Please read the user's manual closely before using!
www.yuwell.com
JIANGSU YUYUE MEDICAL EQUIPMENT & SUPPLY CO., LTD.
NO.1Baisheng Road Development Zone,Danyang,
Jiangsu 212300 CHINA
131839-0A
Safety Notes-----------------------------------1-4
Features-------------------------------------5-8
Handling-------------------------------------9-9
Operating＆Installation--------------------------10-17
Maintenance---------------------------------18-20
Trouble Shooting Guide -------------------------21-23
Other Attention Items---------------------------24-25
Table Of Contents
WARNING: For avoiding power outage or oxygen concentrator
operating failure, exigent oxygen user and serious patient must
equip with reserve oxygen supply (for example: oxygen cylinder,
oxygen bag). This device is to be used as an oxygen supplement
and is not considered for life supporting or life sustaining.
The concentrator should always be kept in the upright to prevent
cabinet damage when transporting.
When the electrical source power voltage is beyond the normal
range. Please add voltage stabilizer.
Use eligible, safe power set and junction box.
Only the qualified techncian can open the oxygen concentrator's
cabinet.
Ⅰ. Before Installation
Ⅱ. STORAGE PLACE
1
You may select the most suitable room when using your oxygen
concentrator. Use the casters to transfer the concentrator from
room to room.
Place the unit away from all sides for at least 10cm (4inches) from
walls, draperies, furniture, or other obstruction. DO NOT place the
unit in a confined area.
Oxygen concentrator must avoid from heat, fire, moisture, exorbitant
or over-low extream condition.
Sundries and vessel should not be placed on top of the
concentrator.
NEVER block the air inlet of the unit or place it on a soft surface,
such as a bed or couch, where the air inlet may be blocked. Keep
the inlet free from lint, hair, etc.
SAFETY NOTES
SAFETY NOTES SAFETY NOTES
Ⅲ. USING
Only the authorized or trained technician can perform the
maintenance or adjustments to the oxygen concentrator.
The manufacturer recommands each operation time shoud
not be less than 30 mininutes, do not frequently press the
switch in order to extend the operation life to the machine.
Avoid using while bathing. If continuous usage is required by
the doctor's prescription:
The concentrator must be located in another room at least
2.5m away from the bath.
A product should never be left unattended when plugged in.
This device is to be used only in accordance with the
prescription of a doctor and this user's manual. If at any time
the patient or attendant conclude that the patient is receiving
an insufficient amount of oxygen, the supplier and/or doctor
should be contacted immediately. No adjustments should be
made to the flowrate unless prescribed by a doctor.
Ⅳ. MAINTENANCE
Ⅴ. RADIO FREQUENCY INTERFERENCE
Ⅵ. TO REDUCE THE RISK OF BURNS, ELECTR
-OCUTION, FIRE OR INJURY TO PERSONS
The use of oxygen therapy requires that special attention to
reduce the risk of fire. Users while MUST NOT SMOKE
using this device. Keep all matches, lighted cigarettes or
other sources of ignition out of the room in which this product
is located. signs should be prominently NO SMOKING
displayed. Textiles and other materials that normally would
not burn are easily ignited and burn with great intensity in
oxygen enriched air. Failure to observe this warning can
result in severe fire, property damage and cause physical
injury or DEATH.
For optimum performance, do not open or turn off the
concentrator frequently, reset after 3 5 minutes. Shorter ~
periods of operation may reduce maximum product life.
A spontaneous and violent ignition may occur if oil, grease or
greasy substances come in contact with oxygen under
pressure. These substances MUST be kept away from the
oxygen concentrator, tubing and connections, and all other
oxygen equipment. use any lubricants unless DO NOT
recommended by manufacturer.
3
2
WARNING:
DO NOT come in contact with the concentrator while
wet.
DO NOT place or store product where it can drop into
water or other liquid.
DO NOT contact the product that has fallen into water.
Unplug immediately.
WARNING:
WARNING:
Most electronic equipment is influenced by Radio Frequency
Interference (RFI). CAUTION should be exercised with
regard to the use of portable communications equipment in
the area around such equipment.
Close supervision is necessary when this product is used
near children or individuals with disablity.
Use this product for only intended use as described in this
manual.
Use of some administration accessories or certain
humidifiers not specified for use with oxygen concentrator
may impair the performance.
WARNING:
DO NOT use parts, accessories or adapters other
than those authorized by manufacturer.
DO NOT connect the concentrator with other oxygen
concentrators or oxygen therapy devices.
WARNING:
In certain circumstances oxygen therapy can be hazardous.
Manufacturer recommends that you seek medical advice
before using this product.
Avoid creation of any spark near medical oxygen equipment.
This includes sparks from static electricity created by any
type of friction.
Ⅲ. STRUCTURE
Ⅰ. SUMMARY
The function of oxygen
For hospital and homecare to supply oxygen to patients.
Supplying oxygen to patients can assist in the treatment of
heart head blood-vessel, respiratory system, such as
chronic obstructive pneumonia disease, rehabilitation and
hypoxia conditions.
Oxygen could improve body function, especially suit for
elderly, pregnant women, physique, students etc. who got
physiological hypoxia. It may also reduce fatigue after heavy
manual or mental consumption.
Ⅱ. THE SCOPE OF PRODUCTS
5
4
Complete plastic out shell, safe and reliable.
Timing accumulates function, show total operating hours
through the display screen.
Compressor pressure relief valve help the device safer.
Power interruption alarm function.
Device failure alarm function (including pressure failure,
compressor failure, low oxygen concentration).
Compressor with over heat protect function to gain in
safety of the compressor and the concentrator.
* Nebulizer function. (8F-10W)
SAFETY NOTES
FEATURES
76
1.Maximum recommended flow: 10L/min.
2.Flow Range: 1L/min~10L/min.
3.Change in maximum recommended flow when back
pressure of 7kPa is applied: ±10%.
4.Oxygen Concentration: 95.5%~87%.
5.Maximun limited pressure :100kPa.(14.5psi)
6.Graph showing values of oxygen concentration as a
function of flowrate at a nominal outlet pressure of zero
(Figure 1):
Oxygen Concentration: %
FEATURES FEATURES
□AC127V±10% □AC220V±10% □AC230V±10%
□50Hz □60Hz
11.Input Power: 700VA.
12 W. eight: 23.5kg.
13.Dimension: 41cm (16.1") x D37.5cm (14.8") x H66.8cm W
(26.3").
14.Altitude: Up to 1828 meters (6000 ft) above sea level
without degradation of concentration levels. From 1828
meters (6000 ft) to 4000meters (13129 ft) below 90%
efficiency.
15. Safety system:
●Over Current or Connection Loosen (Loss of Power):
Alarming and Shut Down
●Compressor Over Hot: Unit Shut Down
●Pressure Failure: Alarming and Shut Down
●Compressor Failure: Alarming and Shut Down
●Low Oxygen Concentration Alarm
●Low Flowrate Alarm
16.Minimum operating time: 30minutes.
17.Electric classification: Class II, type BF applied part.
18.Work system: work continuously.
19.Normal operation conditions：
●Temperature range: 5℃~32℃ (41℉~89.6℉);
●Relative humidity: 15%~90%;
●Atmosphere pressure: 860hPa~1060hPa (12.47psi ~
15.37psi);
7.Trigger Pressure Of Pressure Relief Valve:
280kPa±30kPa (40.61psi±4.35psi)
8.Sound Level: ≤55dB(A)
9.Maximum Nebulizing Rate: ≥0.15mL/min(8F-10W).
10.Power Supply:
□AC100V±10% □AC110V±10% □AC120V±10%
Flow:L/min
Ⅳ. SPECIFICATIONS
Figure 1
100
70
1 2 3 4 5 6 7 8 9 10
75
80
85
90
95
NOTE: Unless the oxygen concentrator is to be used
immediately, otherwise it should be stored in the containers
until it's being used again.
Check for any obvious damage to the carton or its contents.
If damage is evident, please notify the carrier or local dealer.
Remove all loose packing from the carton.
Carefully remove all the components from the carton.
Examine exterior of the oxygen concentrator for nicks, dents,
scratches or other damages. Inspect all components.
Store the repackaged oxygen concentrator in a dry area.
DO NOT place other objects on top of the repackaged
concentrator.
Ⅰ. UNPACKING
Ⅲ. STORAGE
9
8
Ⅱ. INSPECTION
HANDLING
FEATURES
NOTE: When storage temperature is below 5℃ , please
keep the equipment in normal working condition for at least 4
hours before using.
20.Temperature at oxygen outlet: ≤46℃
21.Suggestion: The length of nasal oxygen cannula should
be less than 15.2 meters and should not be pinched.
22.Transportation and storage conditions：
●Temperature range: -20℃~+60℃(-4℉～+140℉),
●Relative humidity: 10%~93%, no condensation,
●Atmosphere pressure: 700hPa~1060hPa (10.15psi ~
15.37psi).
NOTE: Oxygen concentrator should be stored with out
intense sunlight, no corrosive gas and ina well ventilated
room, avoid jolt and inverted recumbent transport.
1110
OPERATING ＆ INSTALLATION OPERATING ＆ INSTALLATION

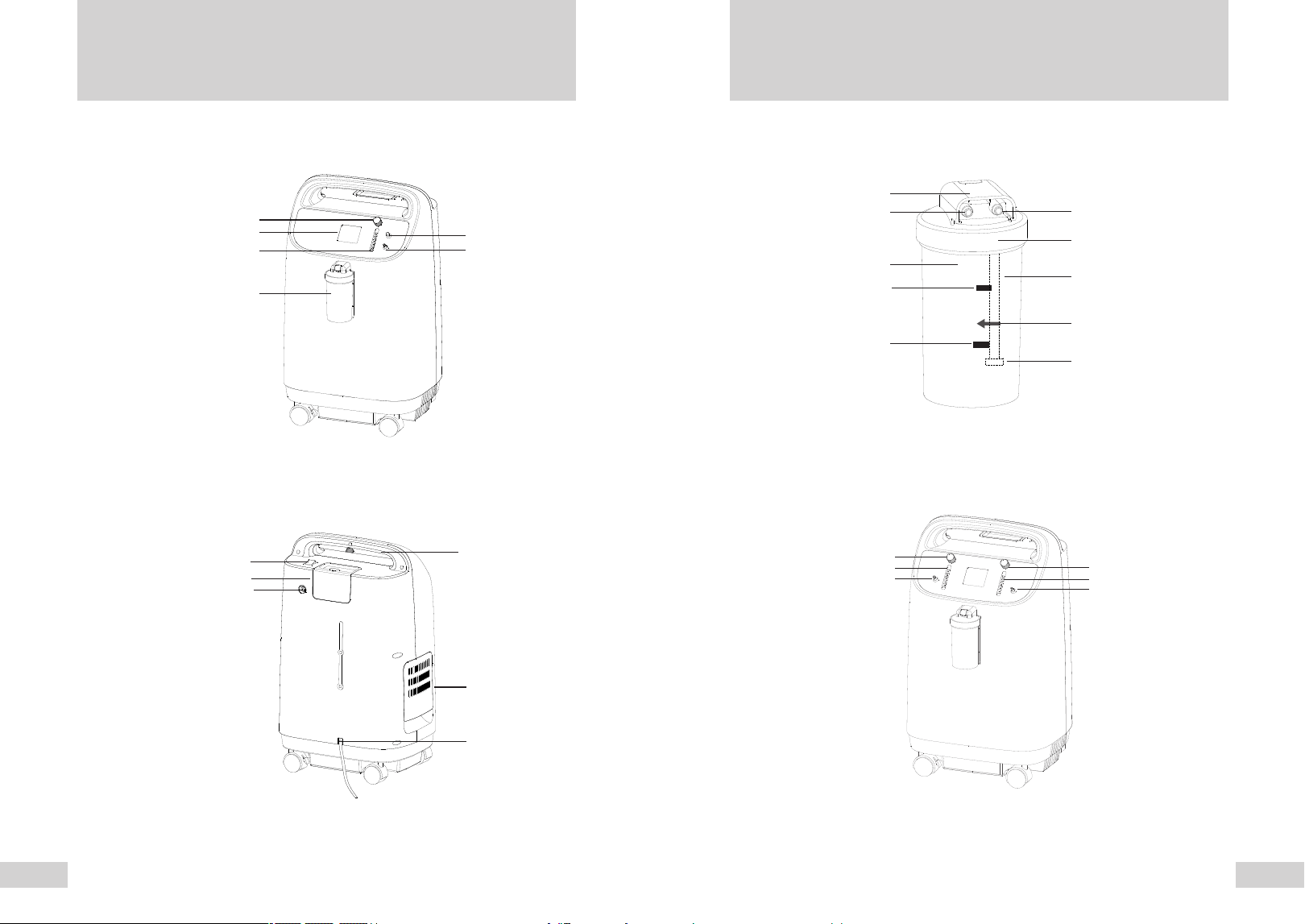

Figure 2: Front View
Ⅰ. FEATURE VIEW
Display panel
Humidifier bottle
Handle
Flowmeter
Flowmeter Knob
Oxygen Outlet
Figure 3: Rear View
Filter Cover
Power Switch
Power Cord
Figure 4: Humidifier Schematic Diagram
Humidifier
Filter Element
Cap
Humidifier Tube
Maximum Level
Outlet
Inlet
Safety Valve
Minimum Level
Bottle
Anticlockwise
*Nebulizing O utlet
(only f or 8 F-10W)
Filter Cover
Circuit Breaker
* Figure 5: Front View of 8F-10 Dual Flow
Flowmeter
Flowmeter Knob
Oxygen Outlet
Flowmeter
Flowmeter Knob
Oxygen Outlet
12 13
OPERATING ＆ INSTALLATION OPERATING ＆ INSTALLATION
Ⅱ. PREPARE WORK
Take out the humidifier and remove the humidifier cap, then
add pure water(or distilled water) untill the water line is
between the MAXIMUM eve and the MINIMUM eve L l L l
(figure 4).
Note: The humidifier is located on the optimal installation
location in the oxygen concentrator(Figure 2).
Install the humidifier cap on the humidifier bottle, fasten it with
the humidifier bottle, and place the humidifier in the
installation slot of the oxygen concentrator.
Plug in the power cord: Make sure the oxygen concentrator
power switch is OFF, and then connect the power plug to a
safety grounded outlet with power output.
CAUTION:
DO NOT use extended power cord.
When pressing the power switch to "│" position, "HELLO"
will be shown on the display screen, and the blue, green and
yellow indicators will be turned on at the same time,
indicating that the machine is functioned properly. A few
seconds later, total time will be shown on the display screen.
When the oxygen concentrator is operated, it will send
"Clicks" sounds every few seconds, which is the normal
reversing and exhaust sound.
Adjust the flowmeter knob to the desired flow (the readings
should be based on the black float center). Rotate the
flowmeter knob upward to increase the flow and rotate it
downward to reduce the flow (Figure 6). At the same time,
there should be oxygen output at the humidifier oxygen outlet.
III. OXYGEN INHALING OPERATION
Connect one end of the
nasal oxygen cannula to the
oxygen outlet of the
humidifier, and place the
other end (oxygen suction
tip or nasal tip) on the patient,
for the oxygen supply.
NOTE: For the oxygen
inhalation time and the
oxygen flow adjustment,
please follow the doctor's
advices.
CAUTION:
If the flow rate shown on the flowmeter is less than
1L/min, check for tubings or attachments that are
clogged, kinked, or wet flasks defective.
Flowrate Indicator
Float Ball
Flowmeter Knob

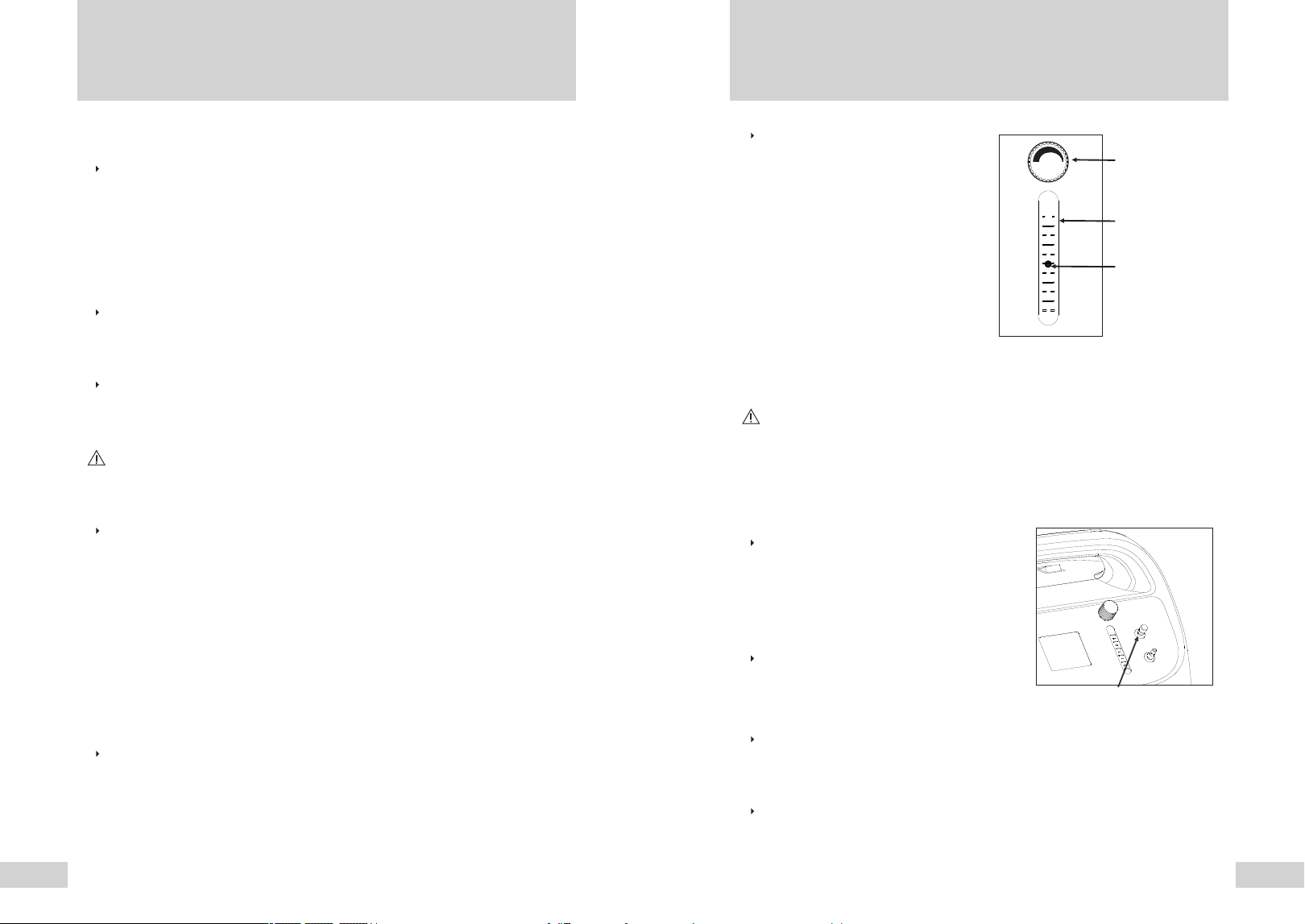

Figure 6：Setting Flowrate
*IV. NEBULIZING OPERATION (only for 8F-10W)
Fill proper medicinal liquid in the
nebulizing cup (Please follow the
doctor's advices or don't exceed
the maximum reticle of the
nebulizing cup).
Upward pull out the nebulizing
cover on the nebulizing outlet.
(Figure 7)
Nebulizing Outlet plug
Connect the air hose to nebulizing cup and nebulizing outlet,
then turn on the power of the oxygen concentrator,
nebulizing therapy begin immediately.
NOTE: the time for nebulizing should follow the doctor's
advices.
Figure 7
10
8
6
4
2
0
1514
OPERATING ＆ INSTALLATION OPERATING ＆ INSTALLATION
Push the Nebulizing Outlet Plug in as deep as possible as
the machine powered off.
When nebulizing finished, please turn the nebulizing cover
right to nebulizing outlet for tightening. When the treatment
finishes, please turn off the oxygen concentrator.
Ⅴ. ALARM SIGNALS
CHECK
Initial startup of the concentrator
After 5 minutes of the oxygen concentration start-up, the
0xygen sensor will work normally, and the indicator lights
will be controlled according to the oxygen concentration
value.
The machine has detection function as :
(1)Pressure failure
(5)Low flowrate
Note:All the alarms of the device are low priority.
(4)Low oxygen concentration
(3)Over temperature
(2)Compressor failure
Yellow
Blue
Green
OK
O2 concentration is less than 82%
System failure
3)Over temperature alarm
1)Pressure failure alarm
4)Power loss alarm
5)Low flowrate alarm
2)Compressor failure alarm
Explanation of the indicator light
Symbol
Status
Indicator lights
SYSTEM OKAY
(O2 concentration is greater than 82%)
The alarm signal
1. When the oxygen concentration is greater than 82% , the
green indicator will be turned on, and the total time will be
shown on the display screen, indicating normal operation.
2. When the oxygen concentration is less than 82% , the
yellow indicators will be turned on, an alarm will be sent,at
the same time and the total time will be shown on the display
screen; please contact the supplier immediately. The user
can continue to use the device, and please ensure that there
is reserve oxygen nearby.
Note: After 30minutes from oxygen concentrator start-up, the
oxygen concentration will be under the steady state.
3. In case of pressure or cycle failure alarm, the yellow
indicator will be turned on, an alarm will be sent, "E1" or "E2"
will be shown on the display screen, and the device shutdown.
Please shut down the device immediately, use the reserve
oxygen, and contact your supplier immediately.
4. In case of compressor failure alarm, the yellow indicator will
be turned on, an alarm will be sent, "E3" or "E4" will be shown
on the display screen, and the device must be shutdown.
Please shut down the device immediately, use the reserve
oxygen, and contact your supplier immediately.
Yellow
Audio alarm paused
1716
OPERATING ＆ INSTALLATION OPERATING ＆ INSTALLATION
Take off nasal oxygen cannula from oxygen outlet first, turn
off power switch, and then cut off power source.
VII. SYMBOLS
Symbol
Description
Alternating current
Symbol
Description
Caution
Class Ⅱ Equipment
Type BF Applied part
No Smoking
Keep Up
OFF(power)
ON(power)
Fragile
Keep Up
Keep Dry
No Smoking
Stacking Limitation
No open flame:Fire,open ignition source and smoking prohibited
IP21
Audio alarm paused
5. In case of over temperature alarm, the yellow indicator
will be turned on, an alarm will be sent, "E5" will be shown
on the display screen, and the device must be shutdown.
Please shut down the machine immediately, use the
standby oxygen, and contact your supplier immediately.
6. In case of low flowrate alarm, the yellow indicator will
be turned on, an alarm will be sent, "LL" will be shown on
the display screen, and the device must be shutdown.
Please shut down the machine immediately, use the
standby oxygen, and contact your supplier immediately.
7. In case of power loss alarm, the yellow indicator will be
turned on, an alarm will be sent, display off, and the
device must be shutdown. Please check the power input.
4
Enclosures Protection classification
The first characteristic number“2”: Protected against
access to hazardous parts with a finger
The second characteristic number“1”: Protected
against vertically falling water drops.
Manufacturer
VI. TURNNING OFF
Alarm status
(Low priority)
1918
MAINTENANCE
WARNING:
Before the maintenance of the oxygen concentrator,
first cut off the power supply; in order to avoid
electric shock, do not demantle the housing.
Ⅰ. CLEAN THE HOUSING
Must clean the housing at least once a month: first, turn off
the power supply and wipe it with a clean, soft, and damp
cloth or sponge. Do not allow the liquid to enter the gaps in
the housing.
Ⅱ. CLEANING OR REPLACING FILTERS
Please clean and replace the filters in time, it's very
important to protect compressor and extend device life.
DO NOT operate the oxygen concentrator when
the filter is not installed or wet; otherwise it may
permanently damage the device.
Generally, clean or replace the Foam filter once per month.
replace the Compressor intake filter per 1800 hours.
Removal: Foam filter is located on the side of the machine, it
should be removed from the bottom on the filter cover
directly. Compressor intake filter is located on the rear of
the machine; it should be removed from the bottom of the
filter cover directly. (Figure 8)
WARNING:

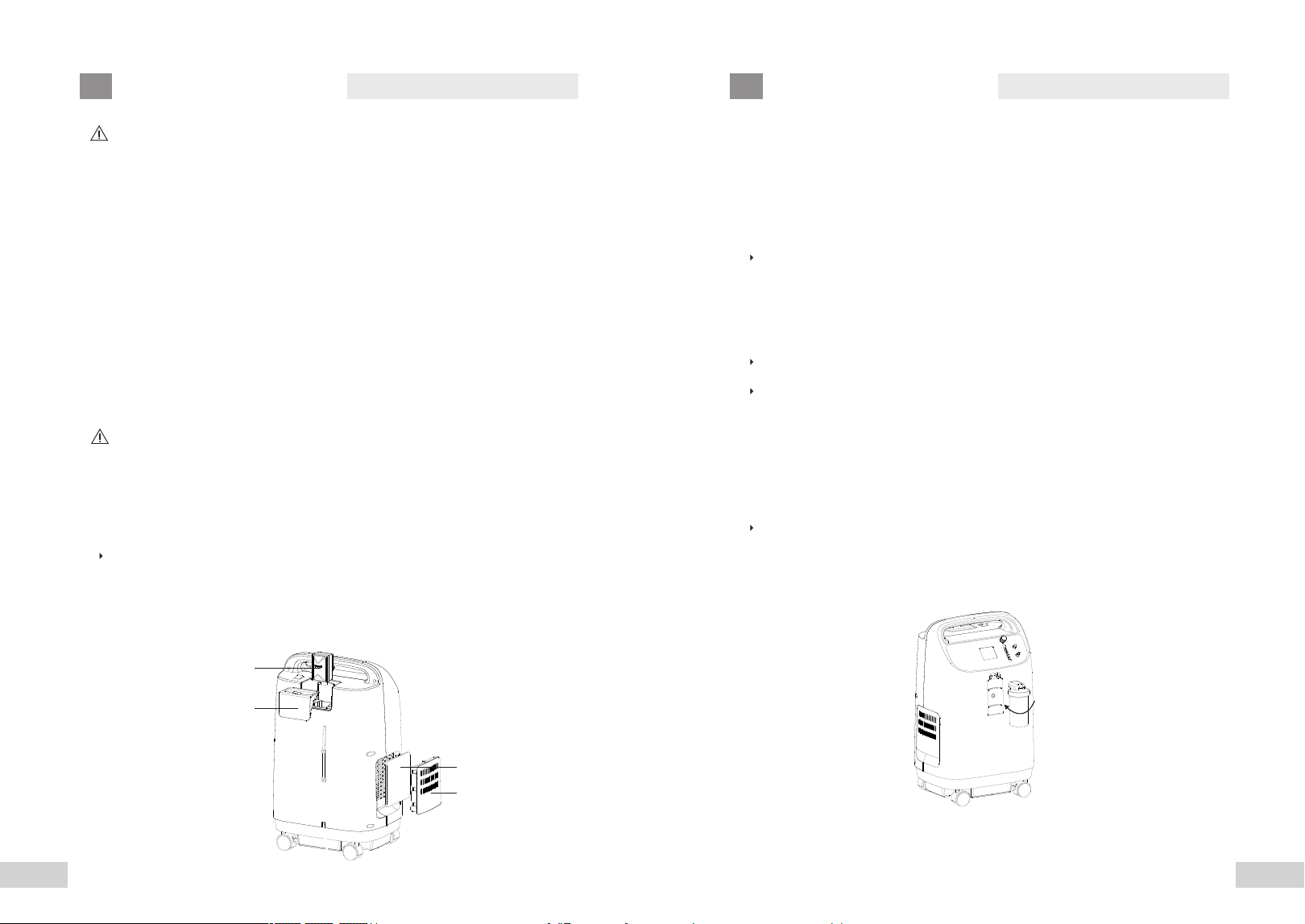

Figure 8
Filter Cover
Compressor
Intake Filter
Foam filter
Filter Cover
●The actual cleaning time of filter should be determined on
base of the actual use time and environmental impact.
● If the filter is dirty, it should be immediately cleaned or
replaced regardless of the use time.( Compressor intake
filter can only be replaced)
Cleaning: Clean the filter with mild cleaner and then rinse it
with clean water, dry it and then install it on the machine.
Must replace the water in the humidifier bottle once a day .
Must clean the humidifier bottle once a week at last with mild
cleaner and then clean with water, to get the clean oxygen.
When cleaning the humidifier, pay attention to clean the
humidifier tube and the humidifier filter element in the low end
of the humidifier to ensure the smooth flow of oxygen.
Remove the humidifier
(1)Turn the humidifier bottle counterclockwise. (Figure 9).
(2)Pull out the humidifier tube and the humidifier filter element.
Ⅲ. CLEAN THE HUMIDIFIER
Figure 9
MAINTENANCE
2120
MAINTENANCE
* IV. CLEAN NEBULIZER (only for 8F-10W)
Clean the nebulizer components after using every time.
Pull out the air hose, pull the mouthpiece, downward pull the
cap, empty remained medicinal liquid in the nebulizing cup,
then wash the air hose, mouthpiece, cap, baffle, cup, ripple
tube, T-piece, etc. , with pure water or immerge them in
warm water for about 15 minutes (Figure 10). In order to
wash them properly, you may add some vinegar in water.
NOTE: DO NOT cook the accessories above for wash or
wash them with boiled water, in case they'll distort when
heating.
After finishing washing you must dry all the accessories
before storing.
Ripple tube
Cup
Baffle
Cap
T-piece
Mouthpiece
Air hose

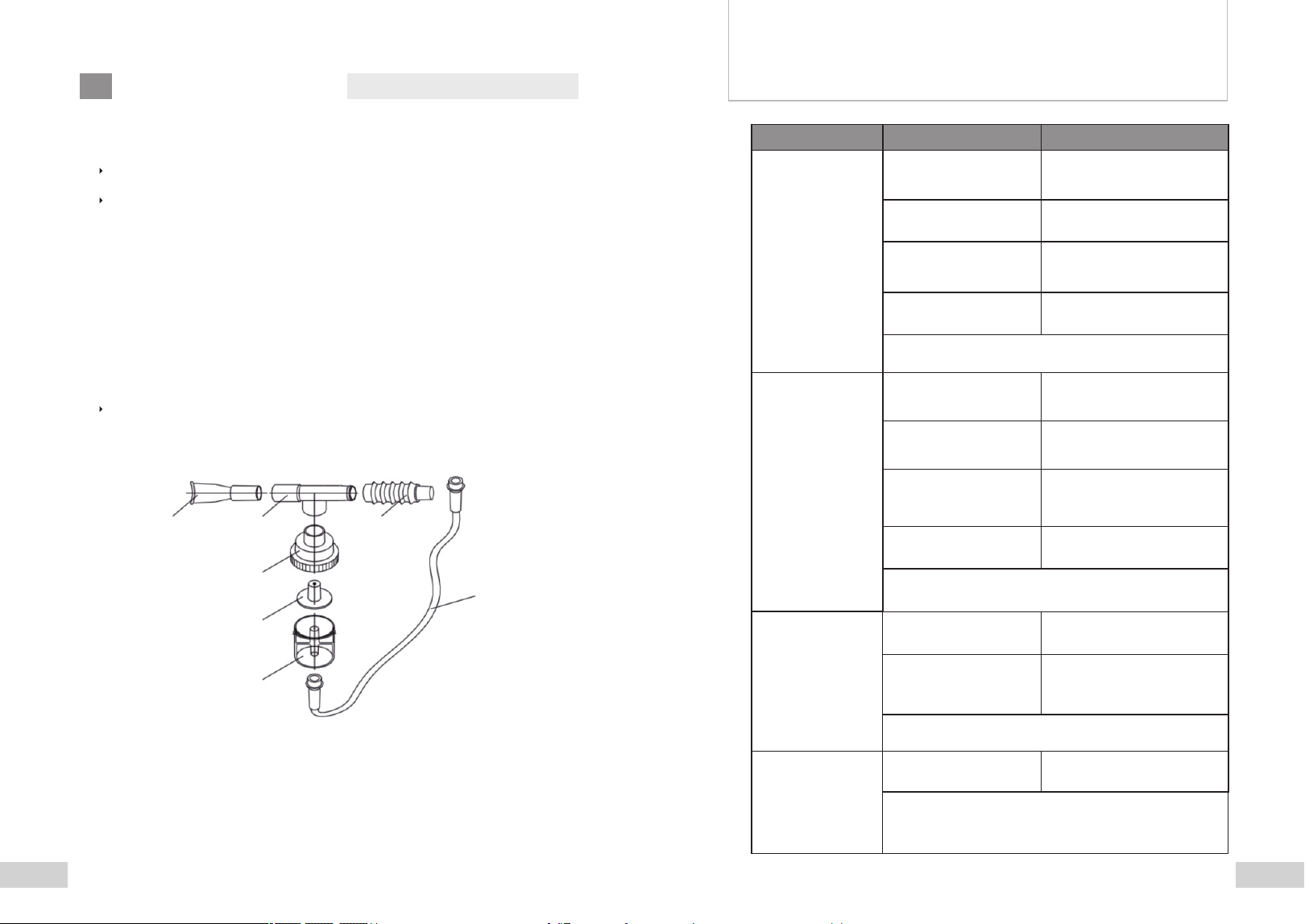

Figure 10: Nebulizer Components
TROUBLESHOOTING
故障现象
Solution
Probable cause
Symptom
Power Interruption
Alarm:
Press the power on
switch on the
control panel, alarm,
display not lit,
device not work.
1) Power cord and wall
o u t l e t h a v e p o o r
contact.
1) Re-insert the power
cord into wall outlet securely.
2) Wall outlet no power
output.
2) Change to another wall
outlet.
3) Low power of wall
outlet.
3) Change to another wall
outlet. Do not use any
extension cord.
4)Breaker reset button
raised.
4)Press down the breaker
reset button.
5) If the device is still not working, please contact the
supplier.
Concentrator is
working, the
operating sound
is normal, the
flowmeter knob
can be adjusted
but no oxygen
output or weak
output.
1) Leakage between
humidifier bottle and
cap.
1) Re-install and tighten the
humidifier cap
2) The safety valve of
humidifier is opened.
2)Shake the humidifier
slightly to close the safety
valve.
3 )T h e c o n ne c t i on
between oxygen output
and humidifier is leaking.
3)Re-install the humidifier
tubing.
4) The accessory is
leaking.
4)Replace the leaked
accessory.
5) If the phenomenon is still appeared, please contact
the supplier.
Concentrator is
working, but
yellow light
illuminate alarm
1)Oxygen concentration
<82%
1) Clean or replace the filter.
2)Oxygen flow rate over
the maximum recommend
flow rate: 10L/min
2) Adjust the flow rate
only under the advice of
a physician.
3) If the phenomenon is still appeared, the device can
be used and please contact the supplier.
Concentrator is
not working, the
yellow light
illuminate, alarm,
the display show
"E1"
1) System cycle
pressure is too low.
1) Clean or replace the filter .
2) If the phenomenon is still appeared, stop using the
device, please contact the supplier immediately.
2322
TROUBLESHOOTING
TROUBLESHOOTING
故障现象
Solution
Probable cause
Symptom
1)System cycle
pressure is too high.
1)Stop using the device,
please contact the supplier
immediately.
1)Compressor circuit is
opened.
1)Stop using the device,
please contact the supplier
immediately.
故障现象
Solution
Probable cause
Symptom
*During nebulizing
operating, the
amount of
nebulization is
small or cannot be
nebulized. (Only
for 8F-10W)
1) Nebulizer components
are not installed in place
or incorrect.
1) Install nebulizer
components correctly.
2) Nebulizer components
are deformed after
cleaning or disinfection.
2) Replace nebulizer
components.
3)Nozzle of nebulizer
components is blocked.
3) Clean or replace
nebulizer components.
5) If the phenomenon is still appeared, stop using
the nebulization components, please contact the
supplier immediately.
Compressor circuit is
short.
System temperature is
over.
Stop using the device,
please contact the supplier
immediately.
Stop using the device,
please contact the supplier
immediately.
4) Excessive liquid
added
4) Add an appropriate
amount of liquid into the
nebulizer cup, which shall
not exceed the maximum
level.
Concentrator is
not working, the
yellow light
illuminate, alarm,
the display show
"E3"
Concentrator is
not working, the
yellow light
illuminate, alarm,
the display show
"E4"
Concentrator is
not working, the
yellow light
illuminate, alarm,
the display show
"E5"
Concentrator is
not working, the
yellow light
illuminate, alarm,
the display show
"E2"
Concentrator is
not working, the
yellow light
illuminate, alarm,
the display show
"LL"
1) oxygen flowrate
is too low
1) oxygen outlet or tubing
accessories is blocked or
kinked; or flowrate knob is
turn down.
2) If the phenomenon is still appeared, stop using the
device, please contact the supplier immediately.
The nasal cannula
is fogged with
vapor or full of
liquid drops.
(Remove the
vapor or liquid
drops method:
Turn on the
device and
connect the tubing
to the oxygen
outlet. Use your
finger to block and
release the end of
the tubing several
times to remove
the moisture and
liquid.)
1) Poor ventilation
around the around the
device, so operating
temperature is too high.
1) Make sure the device is
at least 10 cm away from
the walls, other jam or
heater.
2) The water which
added to humidifier is
too hot.
2) Add cold water to
humidifier.
3)Add too many water
into humidifier.
3) Water added should
between the maximum and
minimum levels in humidifier.
4) The device stops
s u d d e n l y d u r i n g
operating.
5) Accessory is
connected to the device.
The tubing is kinked and
the device stops
suddenly.
6) Cooling fan which
mounted inside the
device stop running or
rotate slowly, make the
operating temperature
is too hot.
4) Turn off the device
immediately. Restart the
device to remove the
moisture and liquid.
5) Smooth the nasal cannula
and tubing.
6)Replace the cooling fan.
Note: Cut off the power first.
And perform by qualified
personnel only.
7)If the phenomenon is still appeared, the device can
be used and please contact the supplier.
CAUTION:
If you have any other problems, TURN OFF the
concentrator first, use your reserve oxygen supply,
and contact the supplier immediately.
2524
Heat Exchanger
Valve Assembly
Check Valve
Flowmeter
Muffler
Ⅰ. GAS PASS OPERATION SKETCH MAP:
OTHER ATTENTION ITEMS
Humidifier
HEPA Filter
Commute Valve
Compressor
Molecular
Sieve
Pressure
Regulation Valve
Oxygen Outlet
Nitrogen
Filter
Oxygen/Nitrogen
Separation
Product
Oxygen
Tank
Air
Contact the local city or town offices for proper disposal
instructions for oxygen concentrator.
1. 1setNasal cannula
3. ilter 1set Foam f
*4.Nebulizer(only for 8F-10W) 1 set
Exchange
Valve Ⅱ
2. ' 1pieceUser s manual
OTHER ATTENTION ITEMS
Exchange
Valve Ⅰ
Oxygen Sensor
II. ELECTRICAL RATIONALE
Main Board
Compressor
Display Board
III. ACCESSORIES LIST
IV. DEVICE DISPOSAL
Fan
Breaker
~
