User manual
RED LIGHT THERAPY BW-RJ-Y01
1. Product appearance
2. Technical Specifications
Technical Specifications
Model
YG60
YG300
LED Type
3W LED
3W LED
LED QTY
60pcs
300pcs
LED power
180w
900w
Wavelength(nm)
660/850
630/660/810/830/850
Beam Angle
30 degree
30 degree
Timer Control
1-30mins
1-30mins
Technical Specifications
Model
YG60
YG300
Cooling Fans Quantity
2 pc
4 pcs
Product size
400*170*60mm
910*298*60mm
EMF Emission
0μT @ 3inches
0μT @ 3inches
Sound(dB)@15cm
52 DB
52 DB
Flicker
No Flicker
No Flicker
Input voltage
AC 110-240V
50/60Hz
AC 110-240V
50/60Hz
Working Temperature
–20℃ to 6 0 ℃
–20℃ to 6 0 ℃
Life Span
50000 hours
50000 hours
Warranty
2 Years
2 Years
3.Operation Instructions
3.1 Control Panel Operation（YG60）
Rock the switch labeled RED or NIR to the "I" position to activate the
respective light; rock to the "O" position to deactivate it.
The RED and NIR light modules may be used individually or in combination.

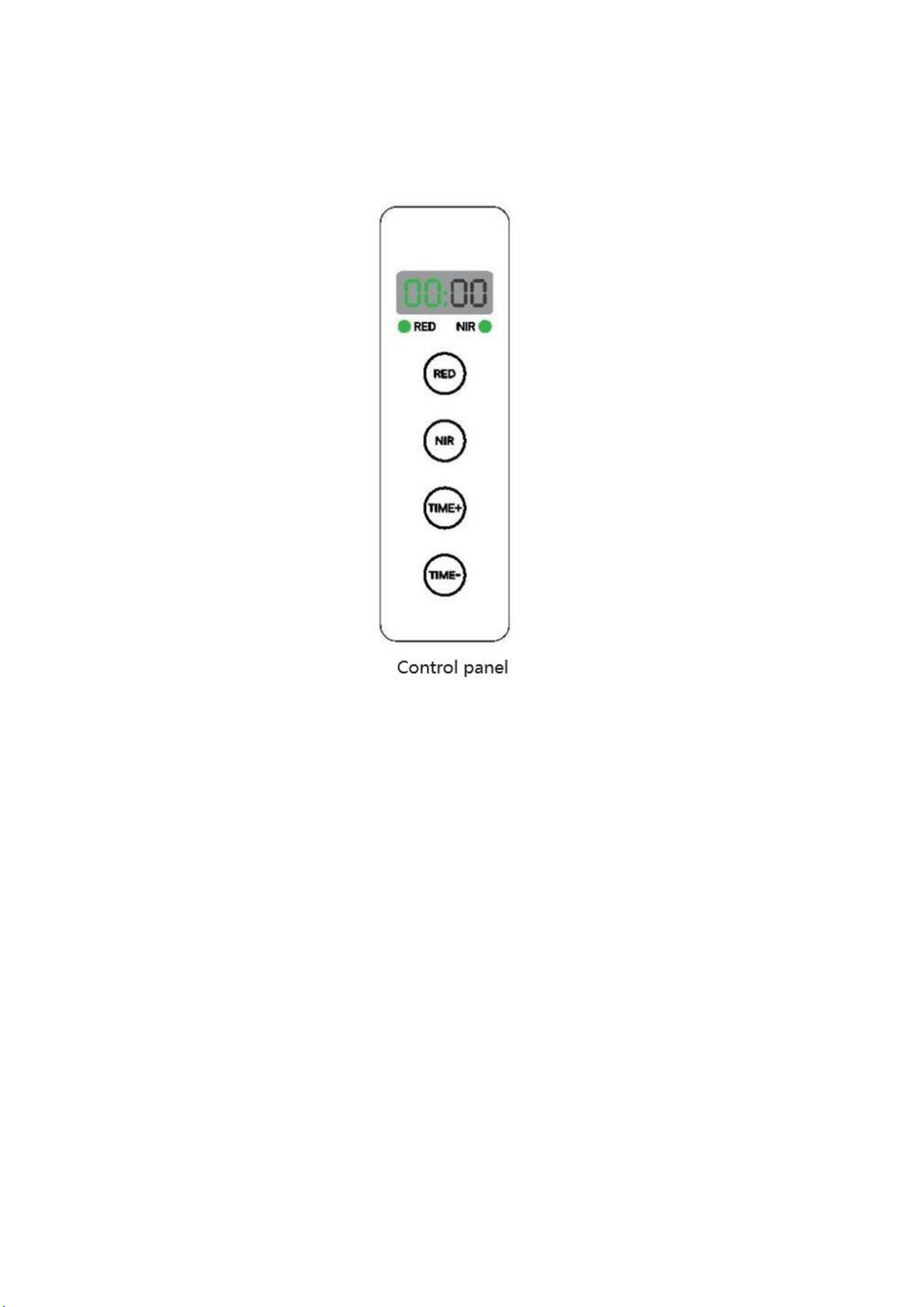

3.2 Control Panel Operation（YG300）
Press the touch screen icon "RED" to start red light, press again to turn it off;
Press the touch screen icon "NIR" to start near infrared light, press again to
turn it off;
Press the "TIME+" to increase time;
Press the "TIME-" to reduce time;
3.3 Remote Control Note（YG300）
Press the ON/OFF button to turn the device on or off;
Press the ALL area of the top-left button to start both the RED and NIR lights
simultaneously;
Press the cycle icon area of the top-left button to toggle between the individual
RED light and NIR light;
Press the TIME+ button to increase time;
Press the TIME- button to reduce time;
The remote control is rechargeable via USB Type-C interface. No batteries are
required; simply connect it to a USB Type-C charger for charging.

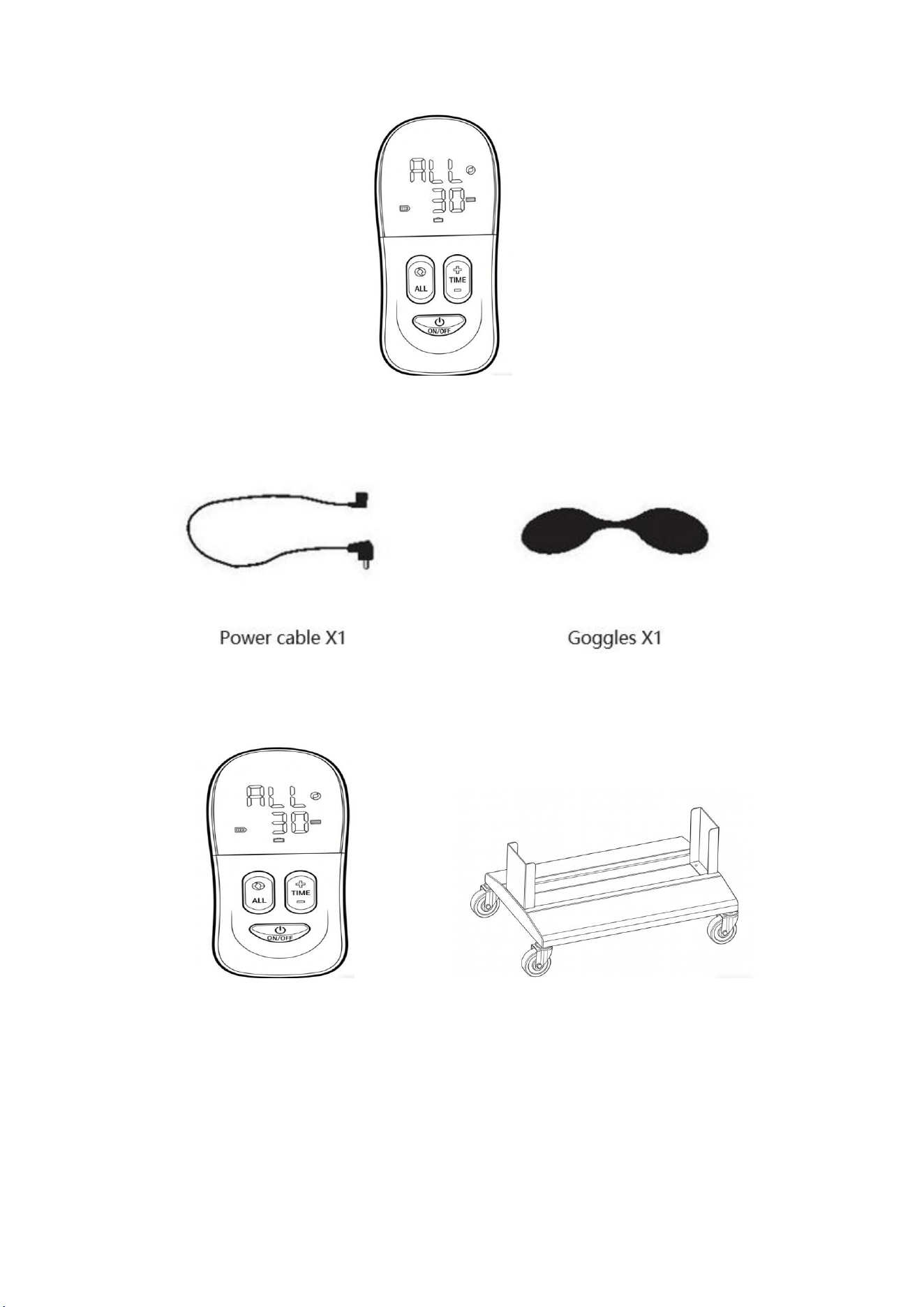

4.Accessories included
Rolling Base X1
(YG60 model not include)
Remote controller X1
(YG60 model not include)

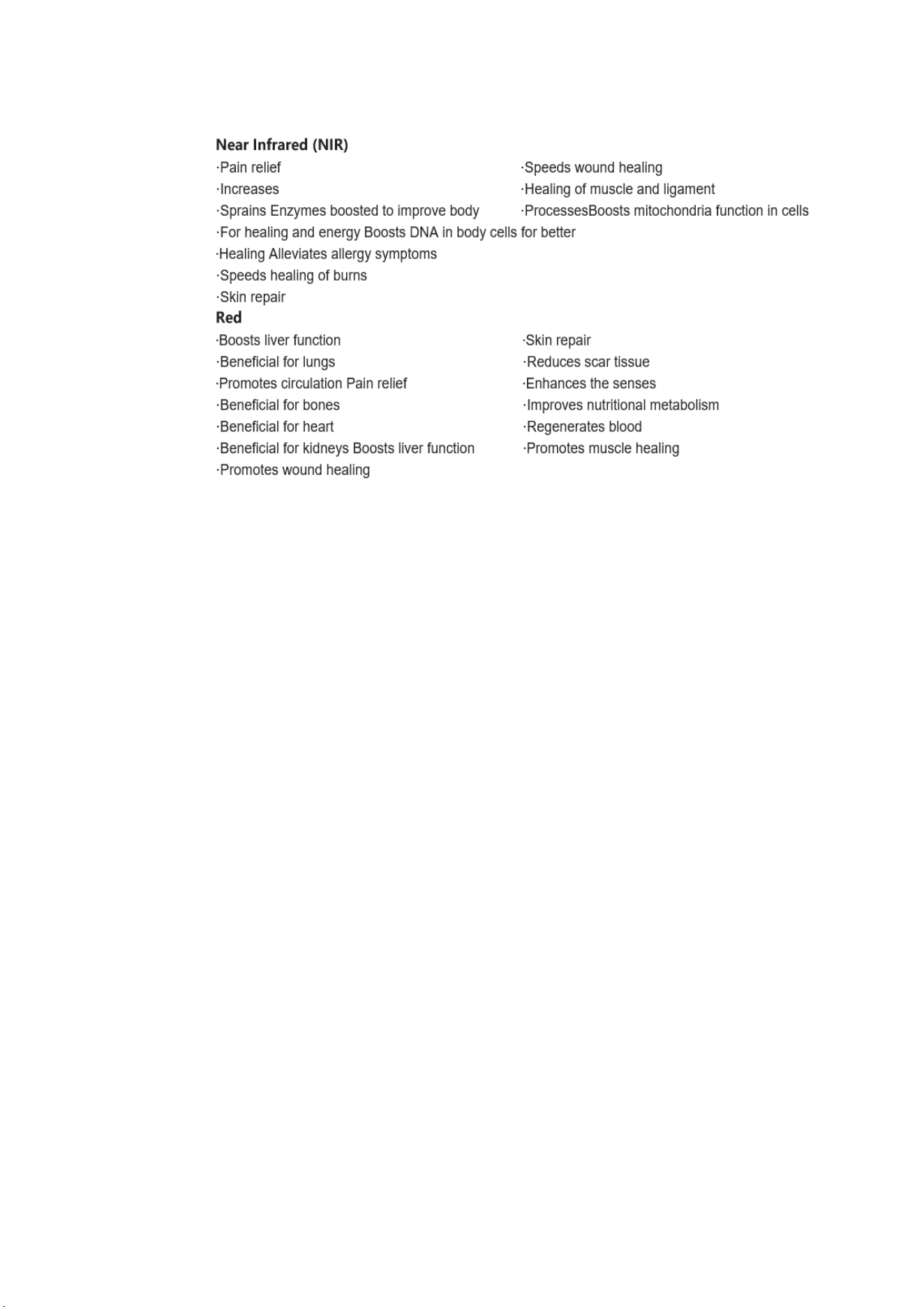

5. Product features
This kind of light penetrates deep into your skin, working wonders on
improving the clarity and tone. It's not just surface-level – it goes deep into the
bones and muscles, making it excellent for boosting elastin and collagen
production.

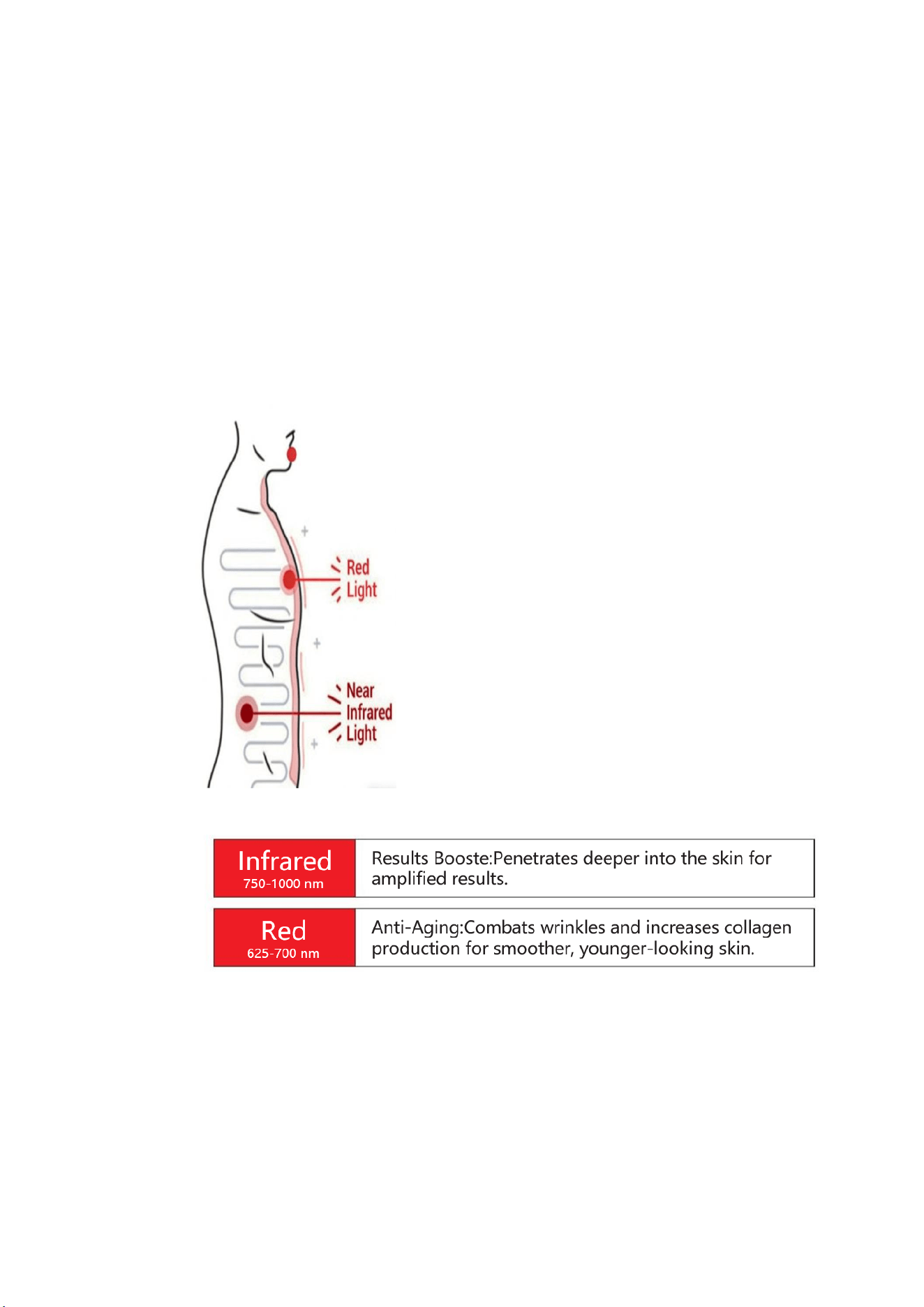

Red Light at 630 nm 660 nm
Most of red light absorbed by your
skin,leading to increase collagen production
and optimal skin health
Near Infrared light at 810 nm 830 nm 850 nm
Near Infrared light penetrates deeper within
your body-enhancing muscle recovery and
reducing joint pain
6. How to use it
1.Distance: Apply the light from 3-60 CM to the body.
2.Session Time: Exposure each area for 5-30 minutes, depending on distance, Repeat
on other areas if desired
3.Frequency: Do this 2 times to 14 times a week until results are felt.
4,Maintenance: Continue using several times a week.
7. Tips
This light is for indoor use only. and please do not use in the wet environment.
Please cut off the power when stop working.
Please do not place it near any heat source.
8. Can this hurt my eyes?
The typical human eye responds to wavelengths 400nm to 700nm. The light coming
from this device is either visible red/blue or invisible infrared.
Infrared light is beneficial to the eyes, just as it is elsewhere on the body.
Safety goggles are not necessary to use with infrared.
Red light is bright and can be uncomfortable to use directly on the eyes.
Closing your eyes is usually enough to use red light directly on the face.
8. CAUTION AND WARNING
Avoid prolonged exposure of the product to high temperatures and high humidity.
Ensure that lamps are used at the specified voltage and frequency.
Refrain from polishing the metal parts of the lamps with a powder polisher.
Instead, use a dry cloth or duster to clean any dust accumulated behind the lamps.
This cleaning routine is recommended once a week.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure statement
The device has been evaluated to meet general RF exposure requirement. The
device can be used in portable exposure condition without restriction.
