1000W / 1200W
SilverStone HELA Series
HELA 1000Rz / HELA 1200Rz Axis
SST-HA1000R-PM / SST-HA1200R-PMA
ATX Switching Power Supply
80 PLUS Platinum efficiency certified.
1.INPUT
1.1 VOLTAGE
1.2 FREQUENCY
47Hz ~ 63Hz
1.3 CURRENT
115Vac/14.0A max. 230Vac/7.0A max.
1.4 INRUSH CURRENT
150A max. when ac input 230Vac and 250C cold start.
1.5 POWER EFFICIENCY
Meet 80 Plus Platimum at 115Vac input
2% load efficiency>60%
01
MINIMUM NOMINAL MAXIMUM UNITS
90 100-240 264 Vrms
Loading +12V +5V +3.3V -12V +5Vsb
Required minimum
efficiency
20% 14.77A 2.35A 2.35A 0.05A 0.53A 90%
50% 36.92A 5.87A 5.87A 0.13A 1.33A 92%
100% 73.83A 11.75A 11.75A 0.27A 2.66A 89%
2.OUTPUT:
1000W
1.6 LEAKAGE CURRENT
3.5mA max.
1.7 POWER FACTOR
PF > 0.95 at 50% load
1.8 ErP REQUIREMENT
Meet ASM and ErP Lot 3 2014
02
＊1 The continuous total output power is 1000W max.
• The combined power of +5V and +3.3V is 110W max.
• Peak currents may last up to 12 seconds with not more than one
occurrence per minute.
＊2 Add 0.1uF and 10uF capacitors across output terminal during ripple &
noise test.
＊3 LOAD REGULATION TEST TABLE:
Voltage
+5V +3.3V +12V -12V +5Vsb
＊
Max load
20.0A 20.0A 83.3A 0.3A 3.0A
Min load
0.0A 0.0A 0.0A 0.0A 0.0A
Peak load
-- -- -- -- --
＊
Combined power
110W -- -- --
＊
Regulation
+3,-3% +3,-3% +3,-3% +5,-5% +3,-3%
＊
Ripple & Noise
30mV 30mV 40mV 50mV 30mV
1
1
3
2
+5V +12V +3.3V -12V +5Vsb
LOAD1
0.0A 0.0A 0.0A 0.0A 0.0A
LOAD2
5.0A 0.0A 5.0A 0.1A 0.1A
LOAD3
10.0A 1.0A 10.0A 0.1A 0.5A
LOAD4
20.0A 4.0A 3.0A 0.2A 1.0A
LOAD5
8.8A 10.0A 20.0A 0.2A 3.0A
LOAD6
0.0A 83.3A 0.0A 0.0A 0.5A
LOAD7
11.75A 73.83A 11.75A 0.3A 0.0A
03
1200W
2.1 REMOTE ON/OFF
Voltage
+5V +3.3V +12V -12V +5Vsb
＊
Max load
20.0A 20.0A 100A 0.3A 3.0A
Min load
0.0A 0.0A 0.0A 0.0A 0.0A
Peak load
-- -- -- -- --
＊
Combined power
110W -- -- --
＊
Regulation
+3,-3% +3,-3% +3,-3% +5,-5% +3,-3%
＊
Ripple & Noise
30mV 30mV 40mV 50mV 30mV
＊1 The continuous total output power is 1200W max.
• The combined power of +5V and +3.3V is 110W max.
• Peak currents may last up to 12 seconds with not more than one
occurrence per minute.
＊2 Add 0.1uF and 10uF capacitors across output terminal during ripple &
noise test.
＊3 LOAD REGULATION TEST TABLE:
TTL High/PS-OFF; TTL Low/PS-ON
VIL=0.8Vmax, IIL=-1.6mAmax @Vin=0.4V
VIH=2.0Vmin @Iin=-200uA, VIH=5.25Vmax @open ckt.
1
1
3
2
+5V +12V +3.3V -12V +5Vsb
LOAD1
0.0A 0.0A 0.0A 0.0A 0.0A
LOAD2
5.0A 0.0A 5.0A 0.1A 0.1A
LOAD3
10.0A 1.0A 10.0A 0.1A 0.5A
LOAD4
20.0A 4.0A 3.0A 0.2A 1.0A
LOAD5
8.8A 10.0A 20.0A 0.2A 3.0A
LOAD6
0.0A 100.0A 0.0A 0.0A 0.5A
LOAD7
11.97A 90.32A 11.97A 0.3A 0.0A
2.2 HOLD-UP TIME
2.3 POWER GOOD DELAY
1.17msec (minimum) at 80% load 115Vac/230Vac input.
2.12msec (minimum) at 100% load 115Vac/230Vac input.
100-150 msec.
2.4 POWER FAIL DELAY
＞1 msec.
2.5 TURN-ON DELAY TIME
2000 msec max.At nominal line full load.
2.6 TRANSIENT OVERSHOOT
DC output transient step sizes as below table:
Load-changing repetition rate of 10m seconds.
Load slew rated 1.0A/uS and capacitive load as below :
PCI-E CEM5 100% to 200% for power excursion
04
Output voltage +5V +3.3V +12V
Max. step size 30% 30% 60%
+5V +3.3V +12V -12V +5Vsb
10000uF 10000uF 10000uF 470uF 3300uF
Power Excursion
% of PSU
Time for Power
Excursion (TE)
Time
Constant (TC)
Duty Cycle
100%
Infinite
--- ---
120% 100ms 300ms 25%
160% 10ms 70ms 12.5%
180% 1ms
11.5ms
8%
200% 100us 1900us 5%
+3.3V and +5V: 35% of full load
● Other loads remain constant within the rating.
● Load waveform
05
2.7 RISE TIME
● DC output voltage will stay within regulation of +5/- 8% during the step load
changes(+12VCapacitive Load 6600uF)
20ms max at full load.
3.1 OVER VOLTAGE PROTECTION
+3.3V output 4.5 Vmax.
+5.0V output 7.0 Vmax.
+12.0V output 15.6 Vmax.
3.2 SHORT PROTECTION
All output to GND.
3.3 OVER POWER PROTECTION
125%~160% full load
3.4 OVER CURRENT PROTECTION
+3.3V output： 24A-34A
+5.0V output： 24A-34A.
+12.0V output： 99.96A-116.62A
3.5 OVER TEMPERATURE PROTECTION
Protection temperature is 45℃ to 55℃ at 115V and full load
3.PROTECTION:
When OVP ,OPP ,OCP,OTP or short protection is triggered, the main outputs
will be latched off. The main outputs can be reset by cycling the DC remote
on/off or AC power. +5Vsb output is auto recovery when fault condition removed.
○ Square wave.
○ Slope of rise and fall at 5.0A/μS.
○ Frequency from 50Hz to 10KHz.
4.ENVIRONMENT:
5.HI-POT:
6.SAFETY AND EMC REQUIREMENTS
4.1 OPERATING TEMP. 0℃ to +40 ℃
4.2 STORAGE TEMP. -20 ℃ to +70 ℃
4.3 OPERATING HUMIDITY 20% to 90%,non-condensing
4.4 STORAGE HUMIDITY 5% to 95%, non-condensing
4.5 OPERATING ALTITUDE 0 to 10,000 feet
4.6 STORAGE ALTITUDE 0 to 50,000 feet
5.1 PRIMARY TO SECONDARY
1800Vac for 1 minute
7.MTBF at 25℃(demonstrated)
100K hrs minimum
8.DIMENSIONS
6.1 CONDUCTED EMI
1. MEET FCC:Class B
6.2 SAFETY STANDARDS
1. MEET CE
2. MEET TUV (EN60950/62368-1)
3. MEET CB (IEC 950/62368-1 )
6.3 HARMONIC
MEET IEC61000-3-2,Class D
150X86X140mm 135mm FAN x1 ON CASE TOP
06
07

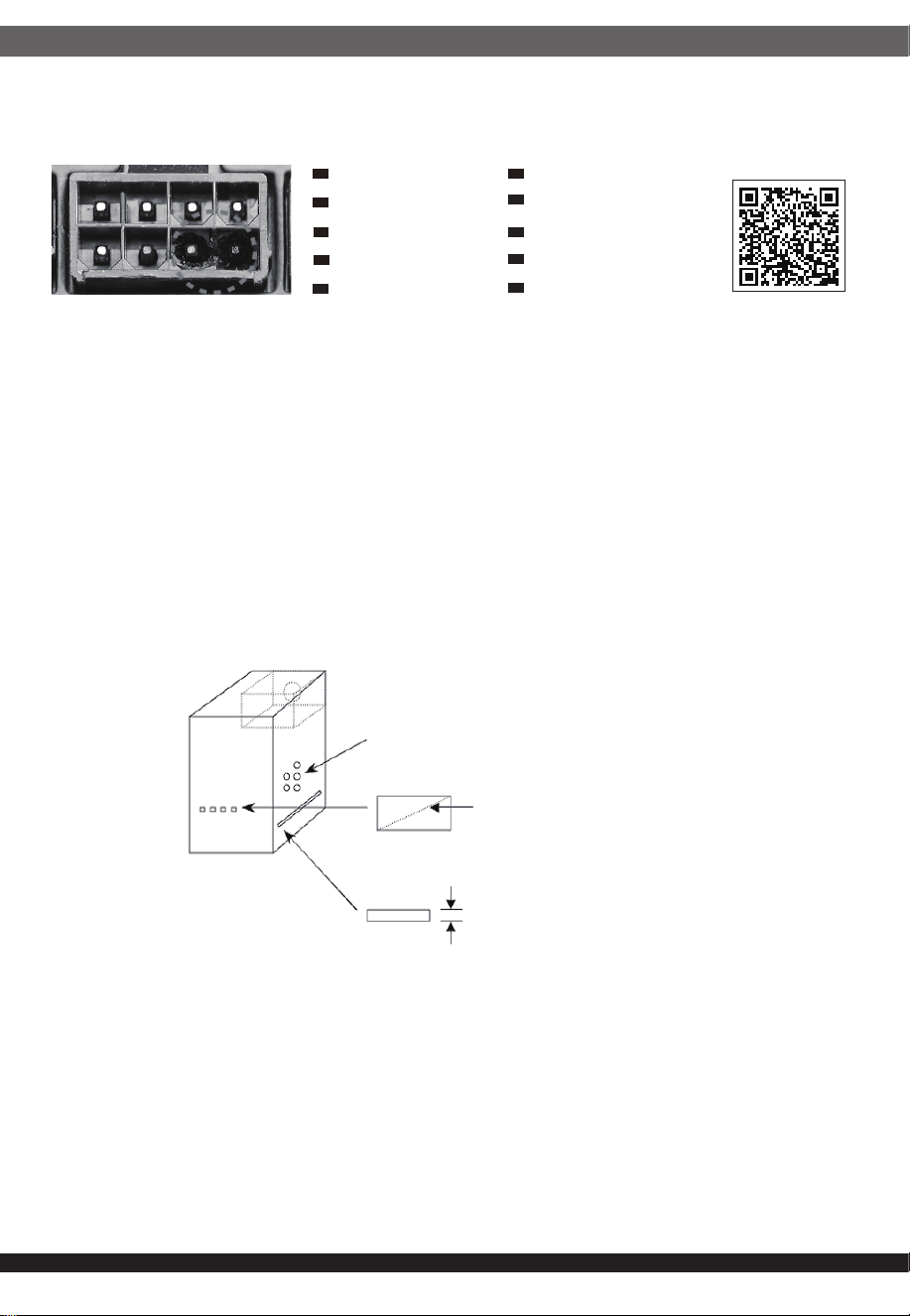

9. Power Supply Connector Overuse Definition
Definition einer Überlastung des
Netzanschlusses
DE
Définition de l'utilisation excessive du
connecteur d'alimentation électrique
FR
Definizione di uso eccessivo del connettore
di alimentazione
IT
Definición de uso excesivo del conector de
la Fuente de alimentación
ES
Определение чрезмерной нагрузки на
коннектор блока питания
RU
電力供給コネクタの使用限度超過に関する説明
JP
⬉⑤կᑨ఼༈䖛ᑺՓ⫼ᅮН
CN
䳏⑤կឝ఼丁䘢ᑺՓ⫼ᅮ㕽
TW
ขีดจำกัดการรองรับการใช้งานของขั้วต่อจากพาวเวอร์ซัพพลาย
TH
전원 공급 커넥터 과용 정의
KR
⚎њֱ䅋Փ⫼㗙ঞ䰆☿ⱘⳂⱘˈᅝ㺱ℸѸᓣ䳏⑤կឝ఼ᰖˈᖙ䷜ᅝ㺱ᮐヺড়ϟ߫䷙㽕∖ⱘ←Ёˈ
ϺϨᅝ㺱ཹᕠˈᠡৃϞ䳏⑤DŽ
←ᴤ䊾䷜⚎䰆☿←DŽᴤ䋼乏Ў䰆☿DŽ
←ⱘϞᮍঞو䙞П೧ᔶ䭟ᄨˈ᳔ܻᕥϡৃᮐPPDŽ
←ⱘϞᮍঞو䙞П䭋ṱൟ䭟ᄨˈᇡ㾦㎮䎱䲶ϡৃᮐPP˗㢹ᇀᑺᇣᮐPPˈࠛ䭋ᑺϡফ䰤ࠊDŽ
←ᑩ䚼ϡৃ᳝䭟ᄨDŽᑩ䚼ϡৃ᳝ᓔᄨDŽ
ⳈᕥϡᮐPP
ᇡ㾦㎮ϡᮐPP
ᇀᑺᇣᮐPPࠛ䭋ᑺϡ䰤
Openings that do not exceed 1mm in width regardless of length
Openings that do not exceed 5mm in any dimension
ᴀ⫶ક䔌ߎ᳝䱾㛑䞣ˈ⚎䙓ܡ᪡ᰖⱐ⫳䱾ˈ䷜ᮐ㺱ܹ㋏㍅″←Ϻᇛ᠔᳝䀁٭ᅝ㺱ཹ⭊ᕠᠡৃ䭟ଳ䳏⑤DŽ
ᴀ⫶કП䳏⑤䔌ߎ䴲ቀ䳏䰤ࠊൟ䳏⑤ˈ䂟䗷Փ⫼䰆☿←П䙞ˈҹ䙓ܡ☿♑䱾ⱐ⫳DŽ
%60,52+6䊛㿞
KWWSZZZVLOYHUVWRQHWHNFRPGRZQORDGV36856'SGI
08

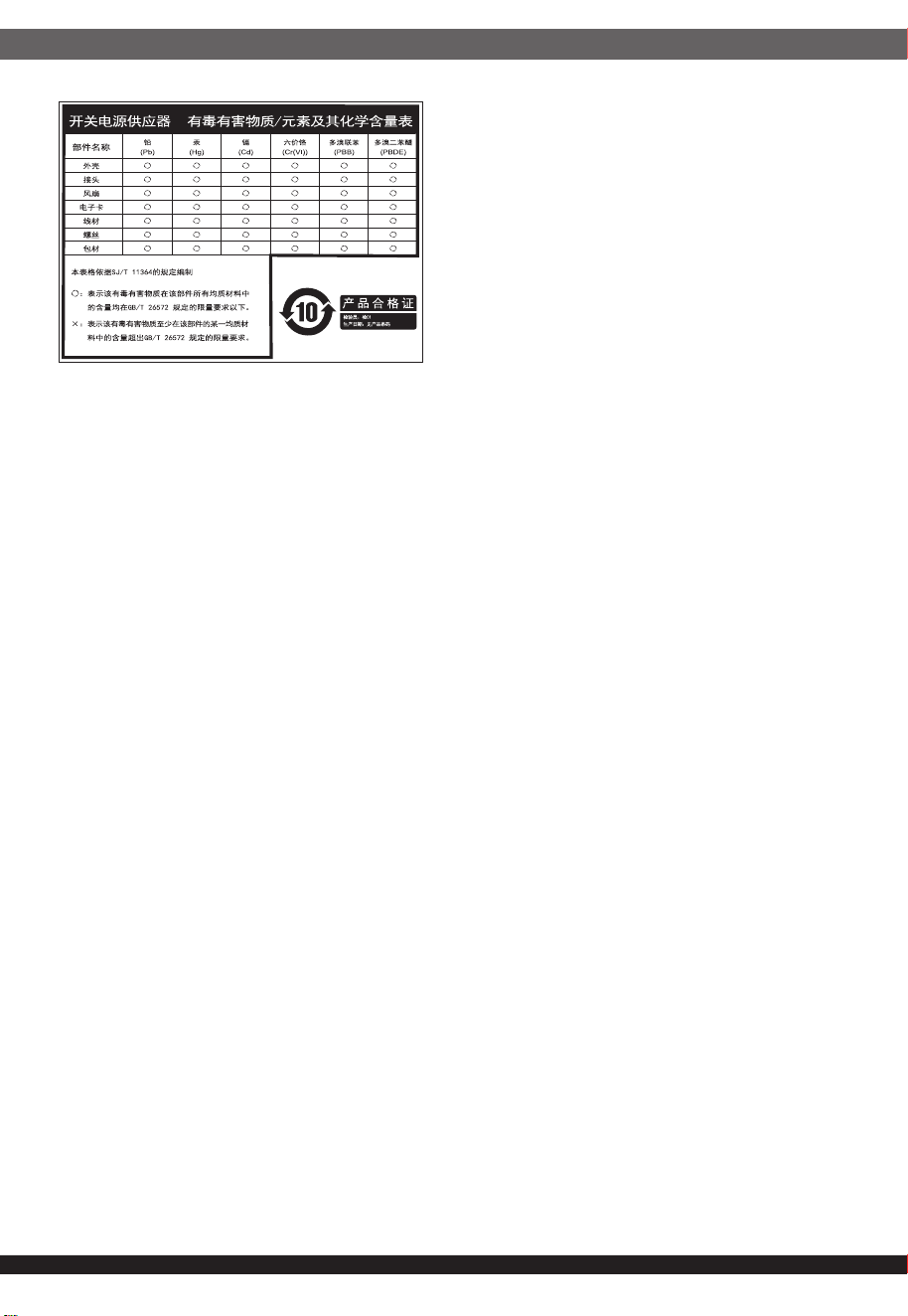

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
Please refer to SilverStone website for latest specifications updates.
The equipment a Class | Switching Power Supply intended to use
for information technology equipment or Audio and Video equipment.
※付属の電源コードは当該製品専用です。他の機器に使用しないでください。
Model (safety certification):SST-AX1000MCPT-B
SST-AX1200MCPT-C
SST-HA1000R-PM / SST-HA1200R-PMA
