MAGNET FISHING KIT
USER MANUAL
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You are
kindly reminded to verify carefully when you are placing an order with us if you are actually
saving half in comparison with the top major brands.
- 1 -
Model:MGL-75A-700LBS/MGL-90A-1000LBS/MGL-D116A-1300LBS
MGL-136A-2000LBS/MGL75-2B/MGL-94D-1400LBS/MGL75-2A/
MGL-94DR-1700LBS/MGL-116D-2000LBS
(The picture is for reference only; please refer to the actual object)
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instructions carefully before
operating. VEVOR reserves a clear interpretation of our user manual. The
appearance of the product shall be subject to the product you received. Please
forgive us that we won't inform you again if there are any technology or software
updates on our product.
Magnets Fishing Kit
- 2 -
1. Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating.
2. Failure to follow the safety rules and other basic safety precautions may result
in serious personal injury.
GENERAL SAFETY RULES
1.This type of fishing magnet has an extremely strong magnet force. Please
don’t put fishing magnet near any iron objects.
2.Keep away from electronic products, especially computers, mobile phones
3. Please put the fishing magnets far away from one another to avoid
sticking together and making it difficult to separate .
4. Please be careful of your hands whenever handling the fishing magnet so
as not to be caught when it stick to items .
5. Children and minors are not allowed to use this product to avoid causing
personal injury.
6. The safety precautions and instructions given in this manual are unable to
cover in detail all the conditions and situations that may arise.
7.The operator and/or user must use common sense and caution when
operating the product especially for any matters that are not referred in the
above.
8.Finally, always remember that it is very dangerous. Avoid placing your
body between two products or the product and iron object, as getting caught
may result in personal injury such as fractures.
SAVE THESE INSTRUCTIONS
- 3 -
MODEL AND PARAMETERS
Model
Magnetic
Direction
Pulling
Force
Magnet
Dimensions
Magnet
Material
Color
Rope
MGL-75A-700LBS
One-sided
700lb/
318kg
φ75mm x
H18mm
NdFeB
(N35)/
Carbon
Steel
Silver
/
MGL-90A-1000LBS
One-sided
1000lb/
454kg
φ90mm x
H18mm
MGL-D116A-1300LBS
One-sided
1300lb/
590kg
φ116mm x
H18mm
Polyester
Φ6mm*L
20000mm
MGL-136A-2000LBS
One-sided
2000lb
/907kg
φ136mm x
H18mm
MGL75-2B
Two-sided
1000lb/
454kg
φ75mm x
H25mm
MGL-94D-1400LBS
Two-sided
1400lb/
635kg
φ94mm x
H28mm
MGL-94DR-1700LBS
Two-sided
1700lb/
771kg
φ94mm x
H28mm
MGL-116D-2000LBS
Two-sided
2000lb/
907kg
φ116mm x
H28mm
MGL75-2A
Two-sided
1200lb/
544kg
Φ75mm x
H25mm
Note:The pulling force of the two-sided magnetic direction of the model is the
whole force of the two sides.
- 4 -
STRUCTURE DIAGRAM
1. Magnet
2. Outer Steel Covering
3. Eye Bolt
4. Safety Buckle
5. Rope
6. Hook
7. Thread Locker
8. Spade
9. Case
10.Gloves
(The picture is for reference only; please refer to the actual object)
- 5 -
COMPONENTS
Model
Magnet
Rope
Hook
Gloves
Thread
Locker
Spade
Case
User
Manual
MGL-75A-700LBS
1
1
MGL-90A-1000LBS
1
1
MGL-D116A-1300LBS
1
1
1
1
1
MGL-136A-2000LBS
1
1
1
1
1
1
MGL75-2B
1
1
1
1
1
MGL-94D-1400LBS
1
1
1
1
1
1
1
MGL-94DR-1700LBS
1
1
1
1
1
1
1
MGL-116D-2000LBS
1
1
1
1
MGL75-2A
1
1
1
1
1
1
1
OPERATING INSTRUCTION
Installation Preparation:
1. Please prepare a mat and you need to spread out all the accessories.
2. Please open all the boxes to check that the accessories are complete and in
good condition.
INSTALLATION
Step1: Put the gasket on the eye bolt, apply the thread locker, and then screw on
the magnet, as shown below.
Note: Depending on the use, only an eye bolt is needed at a time. The magnet of
one-sided magnetic direction only can be screwed on the top.
- 6 -

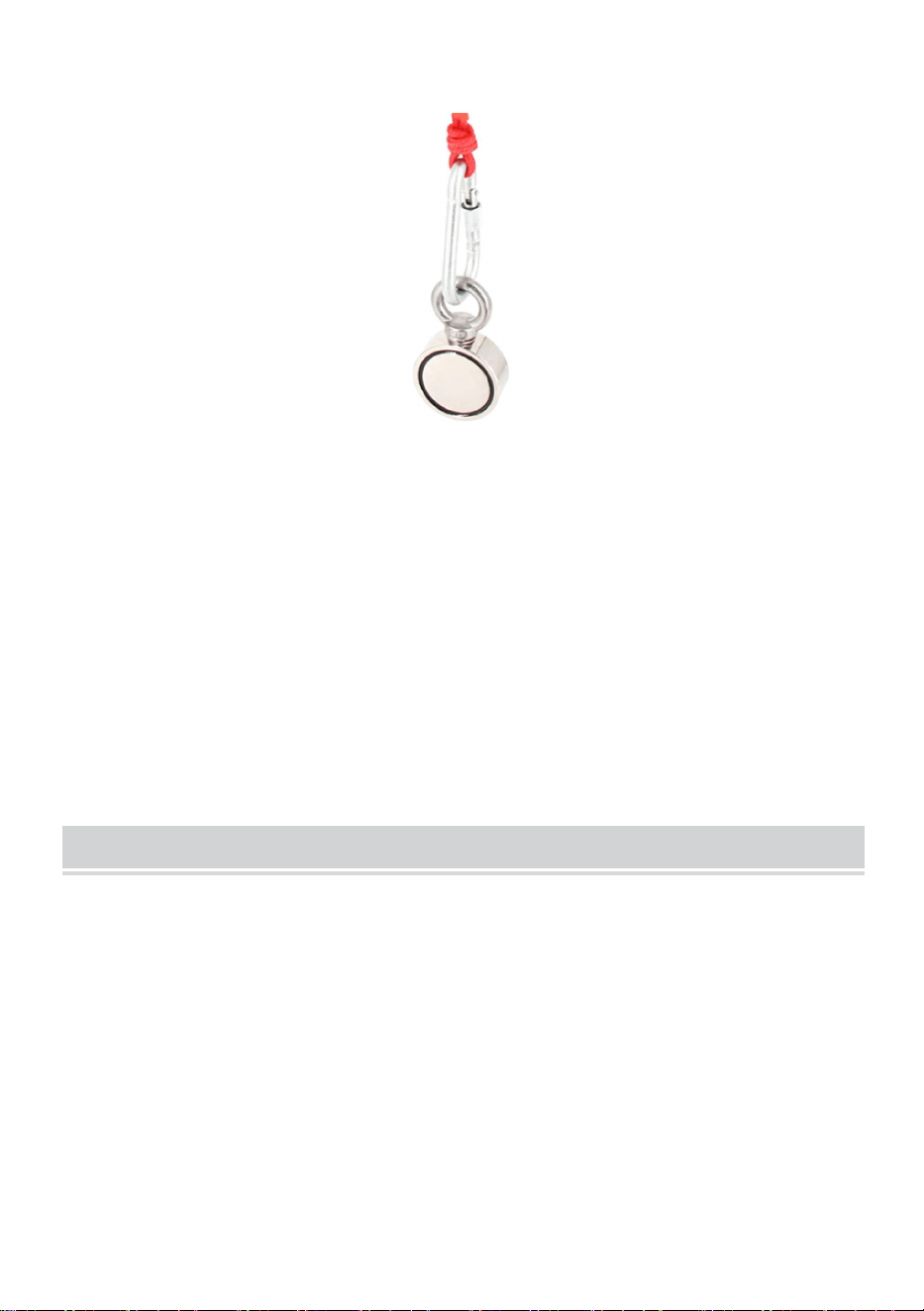

Step2: Lock the safety buckle on the rope to the eye bolt.
Step3: Put on gloves and put the fishing magnet into water slowly, and at the same
time, hold rope tightly by hand.
Step4: Then you may enjoy your fishing.
Note:
1) If the hook is used, the operation method is the same as above.
2) Do not exceed the pulling force of the magnet. Otherwise the magnet will be
damaged .
MAINTENANCE
1. After using the fishing magnet, clean it with a dry towel and lay it under
sunshine to ensure it is dry completely. Then, put it back into the case in dry cool
environment.
2. Dry the towel and rope. Put them back in the case, too.
3. Each time before using the fishing magnet, please check whether the eye bolt
on the fishing magnet is loose or not. Please apply the thread locker if it is loose.
Make sure the rope is in good condition to guarantee your safe fishing journey.
- 7 -
CAUTIONS
The magnetic force is concentrated
vertically on the bottom. Therefore,
please pull the fishing magnet
vertically to achieve the greatest force;
pulling horizontally will result in no
force.
Magnets can only attract alloys such as
iron and nickel. Stainless steel, copper,
silver, gold, etc., cannot be attracted.
Attach the magnet to the center of
gravity of the item as much as possible
to avoid it shedding towards the heavier
side and to obtain the greatest force.
Please avoid temperatures above 80°C,
as this will significantly decrease the
magnetic force.
Please attach the magnet to the surface
of the item as closely as possible to
obtain the strongest force. Being too far
away will result in no force.
Please keep the surface of the item as
smooth as possible to obtain the
strongest force.
- 8 -
