Instruction Manual
Refrigerator
No frost
Model
Thank you very much for purchasing the Hitachi refrigerator.
Before installation and usage, please read the user’s guide carefully
for the correct usage.
Maintenance work must only be carried out at workshop
by well-trained maintenance work.
R-WB640VT0X
Content
Swing Partition Suggestion.........................
Preparation for Use
Warning and Caution for Safety..........
Preparations before Use......................
Installation.......................................................
Beginning........................................................
Food Storage..................................................
Location of Food Storage....................
Operation
How to use the Control panel..............
Name and Function of the Control Panel....
Temperature Control.......................................
Refrigerator / Selectable Zone /
Freezer Compartment.......................
How to use Auto Ice Maker.........................
How to use Vacuum Compartment..............
How to remove part....................................
Maintenance
Care and Maintenance..........................
Cleaning..........................................................
Troubleshooting.................................
Dew or Frost is generated....................
2
4
4
4
4
5
5
6
6
11
10
11
12
16
13
14
14
19
6
7
ECO Monitoring Sensor........................
How to use Auto Door..........................
Other functions..................................
R600a
Refrigerant
Service Center....................................
20
For household use only
7
Refrigerator Installation
(English Version)
R-WB640VT0X-1

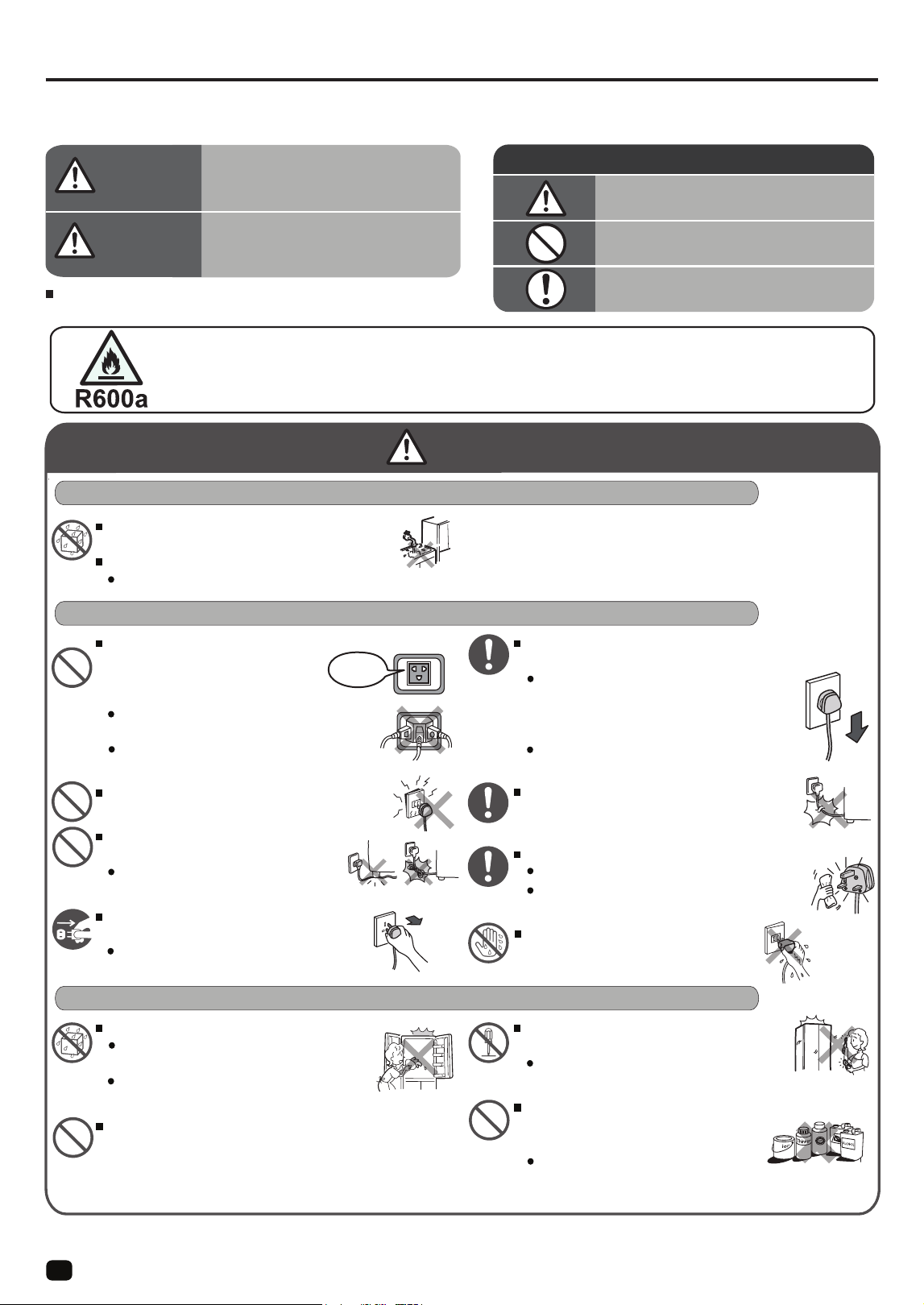

Warning and Caution for Safety
The following warnings and cautions are categorized by the level of
possible harm or damage that may occur from ignoring directions.
This symbols are shown as below clearly showing
the significance of directions.
This refrigerator use flammable refrigerants.
The symbol column below states
This symbol denotes the precautions on flammable
refrigerators.
The symbols below are examples.
This symbols is an alert mark.
This symbols indicates “prohibited”.
This symbols indicates “necessary”.
This pictograph indicates “There is a
high possibillity of serious injury or
death, if ignored”.
This pictograph indicates “There is a
high possibillity of sinjury or damage
to property, if ignored”
To avoid harm to the user, other persons or damage to property, please
read and follow the warnings and cautions below and those given
throughout this manual.
2
result
Connect the power plug firmly to a power outlet with
the cord running down.
Connection of the power plug with the cord
running up could apply stress on the cord
and cause electrical short or overheat, which
could result in electrical shock or fire.
Incomplete connection of the power plug could
in electrical shock or fire due to heat.
If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
Clean the dust on the power plug frequently with dry cloth.
Unplug the power plug and wipe it with dry cloth.
An insulation failure due to moisture or when dust
collects on the power plug may cause fire.
Do not connect the wall outlet whose
power capacity is less than the
refrigerator's. Also, do not use power
sources that are not a rated voltage.
If a power source is shared with other appliances
using double or multipoint adapters, the adapter
Do not use a damaged or loose power plug or power
outlet. This may cause fire or electric shock.
Be sure to unplug the power plug before
maintaining the refrigerator.
Be sure to hold the power plug to unplug.
Do not cut, bend, fold the power cord
to avoid fire and electric shock.
Do not insert or remove the power plug
with wet hands.
Do not install the refrigerator in a place where it
may come in contact with water.
Do not install the refrigerator in a place exposed
to rain.
This may impair electricity insulation and
cause electric shock or fire.
Rated
Voltage
Do not locate multiple portable socket-outlets
or portable power supplies at the rear of the appliance.
WARNING
CAUTION
the precautions on flammable refrigerants.
WARNING
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Ether, liquid propane gas, solvent, aerosol cans, etc.
which is volatile cannot be stored in this
refrigerator.
Do not store anything that are generate
Do not disassemble, repair, or modify the
refrigerator by yourselves.
Please consult with a retailer or
Hitachi Service Center if any repair is required.
Do not splash water on or inside the refrigerator.
This may impair electricity insulation causing
electric shock or fire.
This may also cause gas leakage because
of pipe rust.
heat or fire spark inside the refrigerator.
When positioning the appliance, ensure
the supply cord is not trapped or damaged.
When you install ... To avoid fire, electric shock, and injury.
Power Cord and Power Plug ... To avoid fire, electric shock.
During daily use ... To avoid fire, electric shock.
Ŷ
Medicines, chemicals, research and
experimental substances should not be
stored in the refrigerator.
Ɣ
Substances that require precise conditions
for storage cannot be stored in a domestic refrigerator.
Ŷ
Do not damage the refrigerant circuit.
Ɣ
If there the damage of refrigerant pipe
happened, stay away from the refrigerator and
avoid using fire and electrical appliances.
Ɣ
And, open windows to ventilate and contact
retailers or Hitachi Service Center.
Ŷ
Children should be supervised to ensure that
they do not play with the appliance.
Ɣ
Children getting inside may not be able to get out.
Ŷ
In an event of a flammable gas leak, do not touch the
refrigerator and open windows for ventilation.
Ɣ
Sparks from points of electrical
contacts such as door switches may
ignite explosions causing fire or a burn.
Ŷ
Do not make an impact on the glass-made doors or shelves.
Ɣ
They are made of tempered glass, however, an excess
impact may be result in breakage and is dangerous.
Ŷ
Do not use mechanical devices or other
means to accelelate the defrosting process, other
than those recommended by the manufacturer.
Ŷ
Follow the instructions of your region when discarding.
Ɣ
This refrigerator uses R-600a for the refrigerant and cyclopentane
for the blowing agent of the urethane heat insulation.
Ŷ
When discarding the refrigerator, remove the door gaskets.
Ɣ
To avoid a risk of an infant or child
to be entrapped inside.
Ŷ
Do not use electrical appliances inside the food
storage compartments of the appliance, unless they
are of the type recommended by the manufacturer.
Ŷ
Cleaning and user maintenance shall not be made
by children without supervisor.
Ŷ
Do not use the refrigerator in the atmosphere of flammable gas.
CAUTION

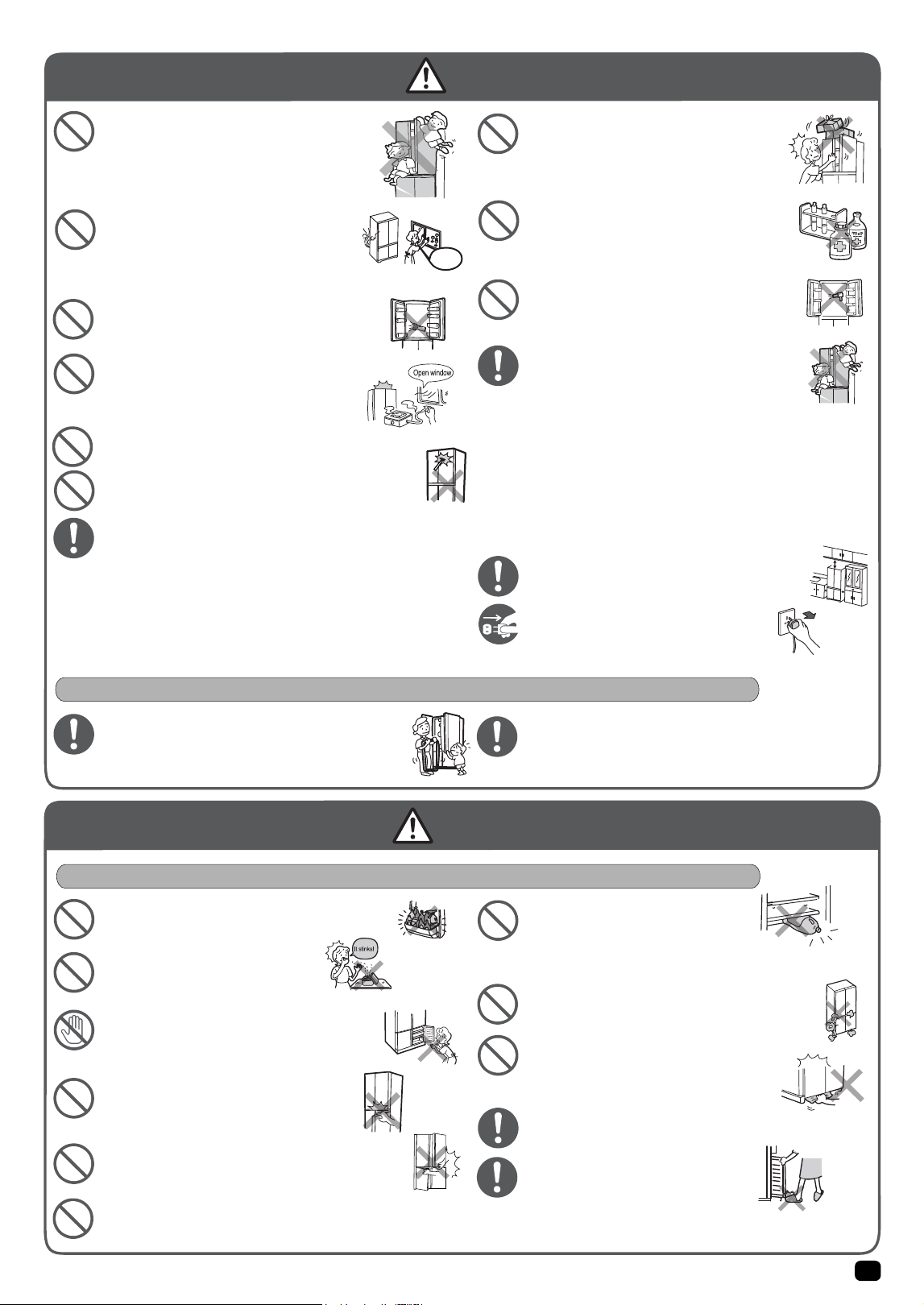

Ŷ Do not put bottles, etc. forcibly in the door pockets.
Ɣ
This may cause bottles to drop down or
door pockets to come off.
Ŷ Do not have food items protruding
over the front edge of each shelf.
Ɣ Doors may not be closed properly or
the door pockets may drop down. Injury may be
caused from items like bottles getting knocked over your feet.
Ŷ Do not store food which smells or food
whose color is changed abnormal.
Ɣ
Such an action may cause diseases.
Ŷ Be sure to hold the handle firmly to open or close the door.
Ŷ Do not put your hands into the base surface
of the refrigerator cabinet.
Ɣ
When cleaning, putting your hands near
the base surface of the frigerator may
result in injury by thin metal sheets.
Ŷ
Food and containers inside the freezer
compartment should not be touched with wet hands.
Ɣ
This may cause frost injury.
(Especially in case of metal items.)
Ŷ Do not store glass bottles in the freezer compartment.
Ɣ
Bottles may break by the contents freezing
and cause injury.
Ŷ
Do not hold the top, bottom and side of
the doors when closing them.
Ɣ This may result in your fingers being caught by
the door edge.
Ŷ If someone else is using the refrigerator,do not open the door.
Ɣ
Fingers may get caught in the spaces
between the doors and may cause injury.
Ŷ
Do not have your feet too close when
opening the door of the refrigerator.
Ɣ
When opening the door, your feet
may be hit, resulting in injury.
3
Window
Open
Ŷ7KLVDSSOLDQFHFDQEHXVHGE\FKLOGUHQDJHGIURP\HDUVDQGabove
and persons with reduced physical,sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
understand the hazards involved.
Ŷ&KLOGUHQVKDOOQRWSOD\ZLWKWKHDSSOLDQFH
Ŷ
If you find something wrong with the refrigerator,
immediately unplug and consult with the
retailers or Hitachi Service Center.
Ŷ
Keep ventilation openings in the appliance enclosure
or in the built-in structure clear of obstruction.
or instruction concerning use of the appliance in a safe way and
Ŷ&KLOGUHQDJHGIURPWR\HDUVDUHDOORZHGWRORDGDQGXQORDG
refrigerating appliance.
Ŷ
Do not put water containers or foreign articles
on the top of the refrigerator.
Ɣ
Opening and closing doors etc. may cause
the articles on the top of the refrigerator to
fall down, resulting in injury.
Ŷ
Do not hang on the doors or step up on the
various compartments.
Ɣ
Injury may be caused by the refrigerator
tipping over or hands getting caught in door.
Do not enter in the refrigerator.
Ŷ
When discarding the refrigerator.
During daily use ...To avoid illness and injury.
Ŷ
When an infant child may use the Auto Door to make mischief,
Please stop the Auto Door function.
Be careful not to operate the Auto Door when another
person is in front of the refrigerator, which may lead to
personal injury unexpectedly caused by the opening door.
Ŷ
WARNING
This appliance is intended to be used in household and
Ŷ
similar applications such as
Ɣ
Staff kitchen areas in shop, offices and other working environments.
Ɣ
Farm houses and by clients in hotels, motels and other residential
type environments.
Ɣ
Bed and breakfast type environments.
Ɣ
Catering and similar non-retail applications.

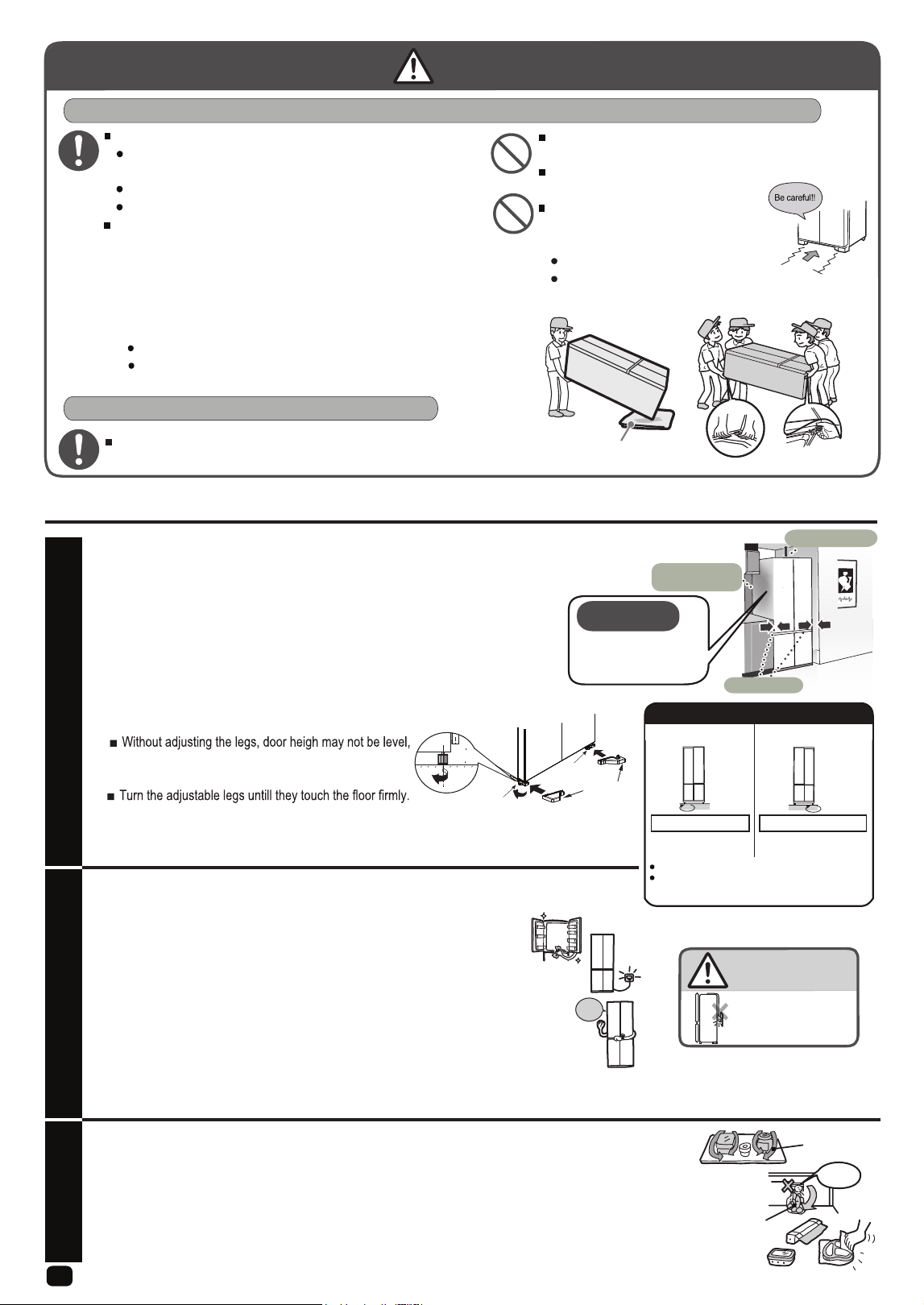

Preparations before Use
Installation
Beginning
4 hrs.
2) Cleaning inside the refrigerator. Wipe the surface gently with soft cloth.
1) Install on a rigid and level floor.
2) Please use this refrigerator between the room temperature of 10°C to 43°C Sufficient
Food storage
1) Keep enough space between food. Several food placed too close together may obstruct the flow of cold air.
2) Make food cool enough before putting it in the refrigerator.Putting warm food in the refrigerator raises the
inside temperature and wastes electricity.
3) Do not block the cold air vent. This will adversely affect the cold air flow and may not keep the temperature inside even.
Moreover, it could result in food near the vent freezing.
4) Using plastic wrap or sealed containers prevent the food from drying or transition of smells.
1
Rear side
more than 100 mm
Back & both sides of
fridge is hot proceed from
hot gas pipe inside.
2
3
4
1) After transporting : If Refrigerator has been kept horizontal position for more
than 10 minutes for transportation or any other reasons,it should stand
upright for more than 1 hour before plugging it in.
More than 100 mm
More than 70 mm
Air vent
Cool air flow
Food
5) Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
CUATION
CAUTION
Do not use door handles and ECO monitoring sensor
Never use the carrying handles to hang
up with a chain hoist or similar machines.
On a floor that is easily scratched,
do not move the refrigerator with
the wheels of refrigerator.
The wheels may scratch the floor.
For a floor that may be easily scratched,
lay a protective mat, etc..
When lamps (LED) need to be replaced, please contact Hitachi Service Center.
Use the carrying handle when carrying the refrigerator.
Hold the carrying handles only. If hold door handles,
Carry the refrigerator by at least 4 persons for safety reasons.
Carry it with the doors facing upward.
Before carrying the refrigerator:
1. Take out all food items and ice cubes.
4. Finally carry the refrigerator with the doors facing upward.
Secure the doors well with adhesive tapes so they do not open.
If transporting in a vehicle, do not load the refrigerator on its side.
This could damage the compressor.
2. Lay a protective sheet or cloth to protect the floor from damage
and catch remaining water spilled from the refrigerator.
3. With a large piece of old cloth underneath, tilt the refrigerator
hands may slip and may cause injury.
Such as old cloth
When moving or carrying ... To avoid damaging, wetting, soiling the floor, or to avoid injury.
CAUTION
When installing,
do not press the
power plug with the
refrigerator back.
Left door has fallen Right door has fallen
Adjustable left leg. Adjustable right leg.
Please turn the right leg in
Please turn the left leg in
the direction of the arrow. the direction of the arrow.
1 rotation of adjustable leg is about 1mm in difference.
1-5 days might take for the main body of the
refrigerator becomes familiar with the floor, and until
the door is reconciled in parallel.
Parallel adjustment of the door.
When replacing lamps (LED) is required.
when carrying the refrigerator.
backward to drain water.
Front cover
performance may not be obtained, if room temperature is too low or too high.
4) Install in an atmosphere which is dry or has air ventilation.
efficient cooling performance.Space of at least 100 mm over the top, 100 mm at rear
6) Adjusting the adjustable legs to keep the left/right
3) Do not install where the refrigerator is exposed to direct sunlight or other heat source.
5) The refrigerator requires enough air ventilation space around the cabinet to have
and 70 mm at both sides for proper air circulation is needed.
refrigerator door level,
or there may be abnormal vibration or noises depending
on floor conditions. Follow the instructions below.
Adjustable leg
Adjustable leg
can be connected to an outlet soon after it is installed. Surely use with the rated
voltage and exclusive power outlet.
4) The compressor will start running in approximately 30 seconds, if inside is not cold.
5) Allow enough duration for sufficient cooling before storing food. It may take about 4 hours
to fully cool down and could even take about 24 hours when the ambient temperature is high.
3) Connect the refrigerator to an exclusive wall power outlet.The refrigerator
6) Opening the door for long periods can cause a significant increase of the temperature in the
compartments of the appliance.
5

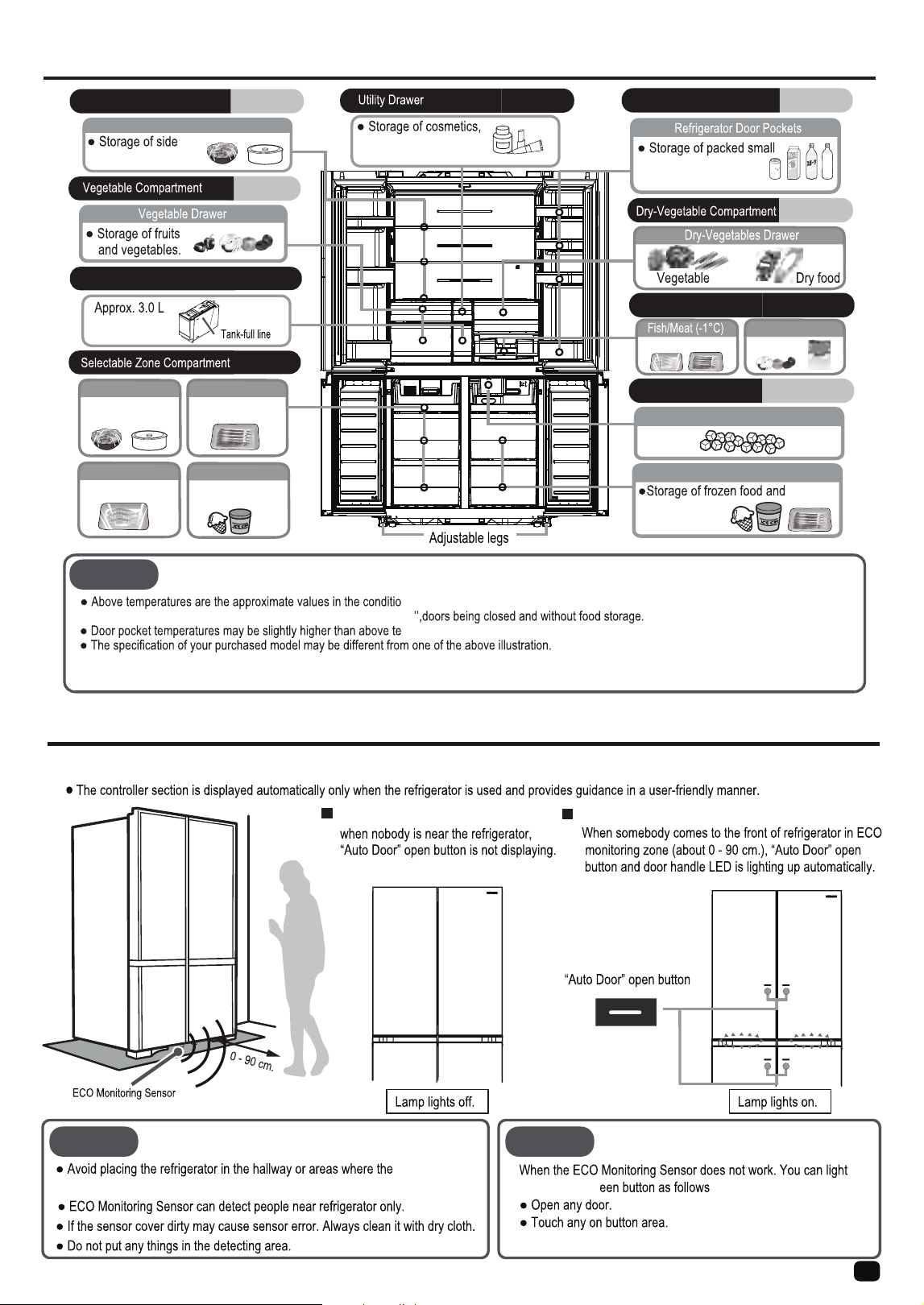

Location of Food Storage
ns of outside temperature 32°C, the temperature setting of the
mperatures.
NOTICE
Refrigerator Compartment
2°C~5°C
dish,desert,etc.
Refrigerator Shelves
2°C~5°C
l
Refrigerator Compartment
Freezer Compartment -20°C~-18°C
Freezer Compartment
Auto Ice Maker
3°C~7°C
Refrigerator
Chill/Meat
1°C~5°C
-1°C~3°C
Soft Freeze
(-1°C~-5°C)
Freezer
(-20°C~-18°C)
Water Tank
food and drinks such
as juice, milk, etc.
Vacuum Compartment
refrigerator compartment “Normal’’, freezer compartment “Normal
Cheese/Fruits (1°C)
-3°C~1°C
-1°C~3°C
Cheese
medicine,packed small
ice cream, etc.
Tea
COFFEE
COFFEE
3°C~7°C
food, etc.
ECO Monitoring Sensor
ECO Monitoring Sensor
Nobody else
When somebody approach
up the touch scr
NOTICECAUTION
most peoples walk through it.
sound is heard, and then it will open automatically.
When closing it, use
6
NOTICE
Ɣ$XWRGRRULVWKHIXQFWLRQWRUHGXFHWKHORDGZKHQRSHQLQJWKHUHIULJHUDWRUGRRU
2SHQLQJDQJOHRIWKHGRRUPD\YDU\RUWKHGRRUPD\JREDFNDOLWWOHDIWHULWLVRSHQHGDXWRPDWLFDOO\GHSHQGLQJRQLQVWDOODWLRQ
FRQGLWLRQVRIWKHUHIULJHUDWRUKRZEHYHUDJHVRUIRRGVDUHVWRUHGLQWKHGRRUSRFNHWEXWWKLVLVQRWPDOIXQFWLRQ
Ɣ$XWR'RRURIWKH5HIULJHUDWRU&RPSDUWPHQWZLOOQRWEHRSHQHG:KHQGRRURIYHJHWDEOHFRPSDUWPHQWRSHQHG
Ɣ$IWHUWRXFKLQJWKHRSHQEXWWRQIRUWKH$XWR'RRUWKHRSHUDWLRQVRXQGPD\EHKHDUGZKHQRSHQLQJWKHGRRUEXWWKLVLVQRWPDOIXQFWLRQ
Ɣ,IRSHQEXWWRQIRUWKH$XWRGRRULVZHWRUGLUW\LWPD\QRWUHVSRQG8VHZHWFORWKWRZLSHRIIGLUWDQGWKHQZLSHLWZLWKDGU\FORWK
Ɣ,I\RXWRXFKWKHRSHQEXWWRQIRUWKH$XWR'RRUDQGLWVQHLJKERXULQJSDUWDWWKHVDPHWLPHRU\RXWRXFKLWIRUDERXW
RQHVHFRQGRUPRUHWKH$XWR'RRUPD\QRWEHRSHQHGDXWRPDWLFDOO\

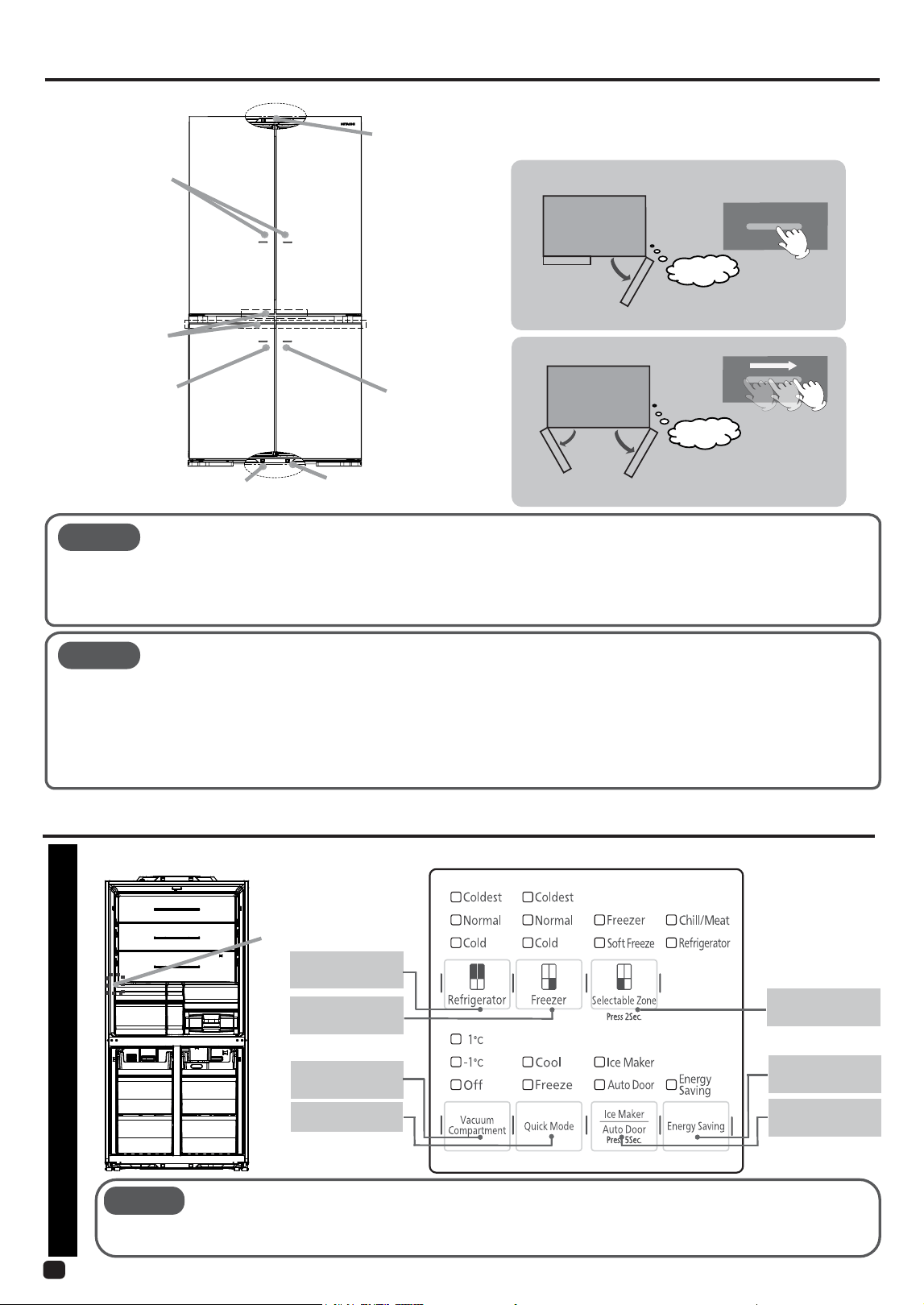

How to use Auto Door
How to use the Control Panel
NOTICE
Ɣ
,I\RXXQSOXJWKHSRZHUSOXJRUDSRZHUIDLOXUHRFFXUVWKHQWKHUHIULJHUDWRUUHVWDUWWKHWHPSHUDWXUHGLVSOD\DQGHDFKVHWWLQJ
ZLOOEHDXWRPDWLFDOO\UHVXPHG+RZHYHU³4XLFN)UHH]LQJ´DQG³4XLFN&RROLQJ´RSHUDWLRQZLOOEHFDQFHOOHG
Ɣ
7KHUHPXVWVHWPRUHWKDQVHFRQGVEHIRUHXQSOXJWKHSRZHURUSRZHUIDLOXUHRWKHUZLVHWKHWHPSHUDWXUHGLVSOD\VKRZQDV
EHIRUHVHWWLQJ
Name and Function of the Control Panel
1
&RQWURO3DQHO
Setting Vacuum
7HPSHUDWXUHEXWWRQ
³,FH0DNHU´DQG
³$XWR'RRU´%XWWRQ
³(QHUJ\6DYLQJ´%XWWRQ
³4XLFN0RGH´%XWWRQ
6HWWLQJ5HIULJHUDWRU
7HPSHUDWXUHEXWWRQ
6HWWLQJ)UHH]HU
7HPSHUDWXUHEXWWRQ
6HWWLQJ6HOHFWDEOH=RQH
&RPSDUWPHQWEXWWRQ
CAUTION
<RXFDQRSHQWKHGRRUHDVLO\E\WRXFKLQJWKHGRRUOLJKWO\ZLWK\RXUWKDQNVWRWKH$XWR'RRUIXQFWLRQ
5HIULJHUDWRU'RRU
open assist unit
Ɣ:KHQDQLQIDQWFKLOGPD\XVHWKH$XWR'RRURIPDNHPLVFKLHISOHDVHVWRSWKH$XWR'RRUIXQFWLRQ3
Ɣ8VHILQJHUVWRRSHUDWHWKHFRQWUROSDQHO
Ɣ'RQRWRSHUDWHWKH$XWR'RRUZKHQDQRWKHUSHUVRQLVLQIURQWRIWKHUHIULJHUDWRURURSHQLQJGRRUZKLFKPD\OHDGWRSHUVRQDOLQMXU\
XQH[SHFWHGO\E\WKHRSHQLQJGRRU
Ɣ%HVXUHWRXQSOXJWKHSRZHUEHIRUHFOHDQLQJWKH$XWR'RRU
Ɣ'RQRWSXWDQ\LWHPRQWKHUHIULJHUDWRU
)UHH]HU'RRURSHQ
assist unit
+DQGOH
PDQXDORSHUDWLRQ
&RQWURO3DQHOIRUWKH$XWR
5HIULJHUDWRU'RRU
$XWRPDWHG
&RQWURO3DQHOIRUWKH$XWR
)UHH]HU'RRU$XWRPDWHG
&RQWURO3DQHOIRUWKH$XWR
6HOHFWDEOH=RQH'RRU
$XWRPDWHG
6HOHFWDEOH=RQH'RRURSHQ
assist unit
:KHQWRXFKLQJ³$XWR'RRU´EXWWRQWKHRSHUDWLRQ
1
2
\RXUKDQGWRFORVHWKHGRRUQRWHOHFWULFDOO\RSHUDWH
Opening one door on either side.
Pi!
7RXFK³$XWR'RRU´RSHQEXWWRQ
RIWKHGRRUWREHRSHQHG
2SHQLQJERWKGRRUVDWDWLPH
Peep!
6OLGH\RXUILQJHUIURPRQHHGJHRIWKH
RSHQEXWWRQWRWKHHQGRIEXWWRQ
.'RRUVZLOORSHQLQWXUQIURPWKHVLGH\RXUWRXFK
7

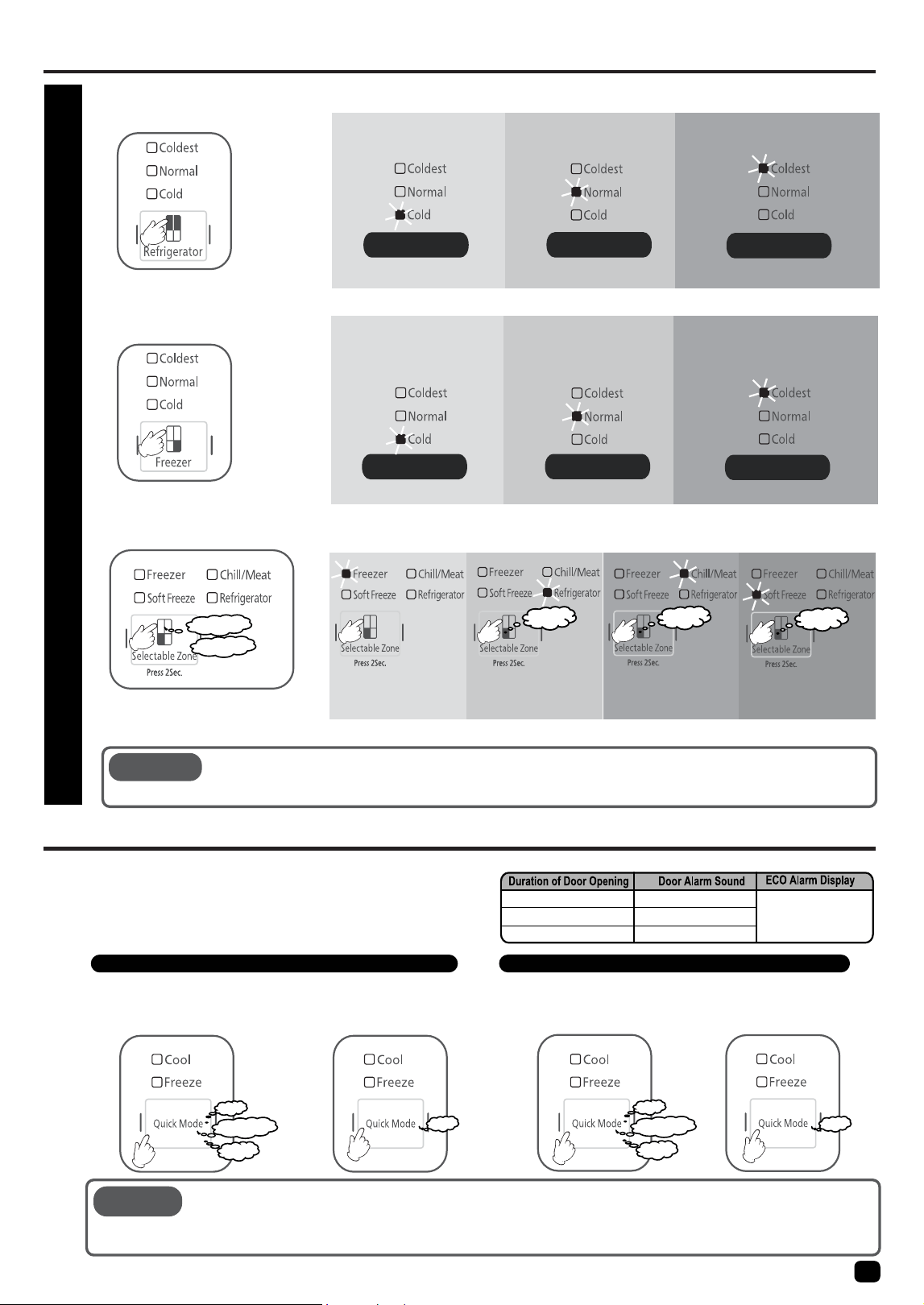

How to use the Control Panel
Temperature Control
Ŷ
Freezer Compartment
ŶRefrigerator Compartment
Press “Refrigerator” button,
To setting a temperature.
Coldest
( Sound “ Pi ” )
Cold
( Sound “ Pi ” )
Normal
( Sound “ Pi Pi ” )
For foods that doesn’t need For normal use. When cooling food more
coldly or quickly
( Sound “ Pi ” )( Sound “ Pi ” )
( Sound “ Pi Pi ” )
For normal use.When storing neither
frozen food or ice cream.
When making ice quickly or making
frozen food quickly. Or, a surrounding
temperature is high and the Freezer
compartment is not cold enough.
Press “Freezer” button,
To setting a temperature.
2
ŶSelectable Zone Compartment
Press “Selectable Zone” button, 2 seconds
for unlock. To select Selectable Zone
Compartment mode
When in Freezer
Press “Selectable Zone”
operation, lamp light is on.
operation, lamp light is on.
operation, lamp light is on.
Press “Selectable Zone”
Press “Selectable Zone”
button Refrigerator
button Chill/Meat
button Soft Freeze
a lot of coldness.
operation,lamp light is on.
The display is indicating the status of temperature setting.
The display is indicating the status of temperature setting.
The display is indicating the status of temperature setting.
NOTICE
ColdestCold
Normal
Other Functions
1. Keep pressing "Quick Mode"
button for 5 seconds until
"Peep!" sound is heard.
2. There is not sound when
pressing
any button
(deactive door alarm sound).
1. Keep
pressing
"
Quick Mode
"
button for 5 seconds until
"PiPi!" sound is heard.
2. There is sound when
pressing
any button
(active door alarm sound).
Door Alarm and ECO Alarm Function
If the door is left open for more than 1 minute, the alarm system
will inform the user by the sound and digital display.
Ɣ
Door Alarm: Informs by PeepPeepPeep sound.
Ɣ
Eco Alarm Display: Indicates the door opening state on the control panel.
After 1 minute
After 2 minute
After 3 minute
PeepPeepPeepPeepPeep
Peep continuously
PeepPeepPeep
All LED on display-
are Flashing
To Disactivate Alarm and Sound
To re-activate Alarm and Sound
There must set more than 45 seconds before unplug the power or power failure. otherwise the temperature display shown as before setting.
Ɣ
Factory setting, the alarm and sound are set “ON”
Ɣ
If the Door Alarm, Eco Alarm Display and each button operation sound have been deactivated, The refrigerator will still set
the alarm and sound to “OFF” even though a power failure or when unplugging and reconnecting the power plug.
NOTICE
Ɣ
1,2 Second
Peep!
Pi!
Pi!
Pi!
Peep!
Pi!
1,2,..5 Second
Pi!
....
....
PiPi!
1,2,..5 Second
Ŷ
Ɣ
"Refrigerator" mode : Storing of Vegetable or fruits are required to be wrapped (Poly bag or Vacuum bag), to prevent
Ɣ
By using Poly bag or Vacuum bag require extra attention to avoid humidity (Depends on Weather, Area etc.) accumulation.
from drying or freezing.
8

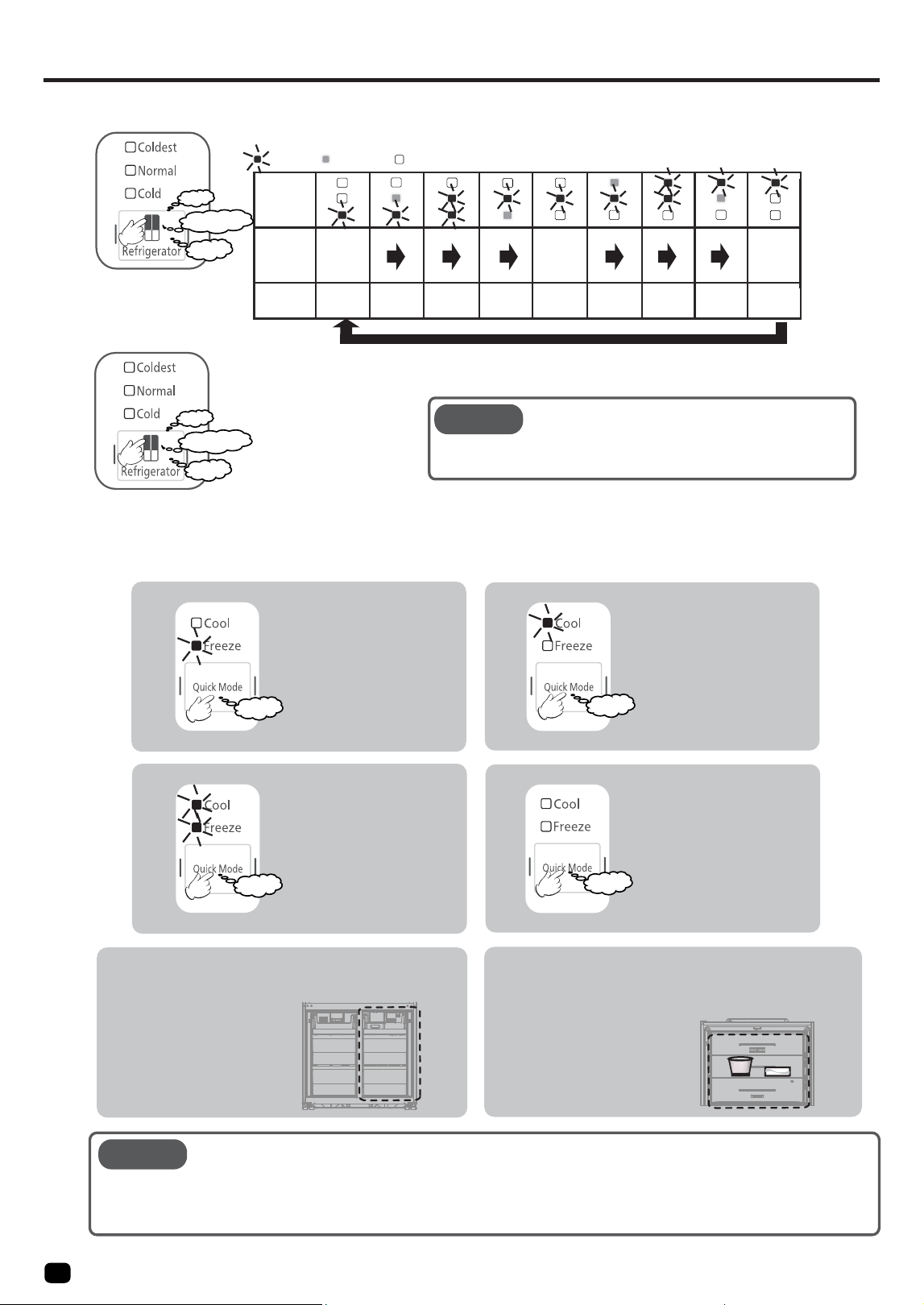

Other Functions
Quick Mode
and closing the doors not to have a temperature rise of the refrigerator compartment.
Ɣ'XULQJGHIURVWSHULRG´4XLFN)UHH]LQJ´DQG4uLFNFRROLnJRSHUDWLRQZLOOVWRSHYHQWKRXJKWKHODPSLVRQ$IWHUILQLVKLQJ
GHIURVWSHULRGWKHRSHUDWLRQZLOOUHVWDUWDXWRPatically.
Quick Cooling :
:KHQ\RXZDQWWRFRROIRRGRUGULQNVTXLFNO\XVHWKLVIXQFWLRQ
Ɣ3OHDVHQRWH³4XLFN)UHH]LQJ´DQG4XLFN&RROLQgPRGHZLOOEHUHOHDVHGDIWHUSRZHUFXWRIIRUXQSOXJ
:KHQ\RXZDQWWRIUHH]HIRRGRUPDNHLFHTXLFNO\XVHWKLVIXQFWLRQ
Ɣ'XULQJ4XLFN)UHH]LQJSULRULW\FRROLQJRIWKH IUHH]HUFoPSDUWPHQWZLOOEHGRQH7KXVWU\WRDYRLGXQQHVHVVDU\RSHQLQJ
Quick Freezing :
NOTICE
2
³4XLFN&RROLQJ´ZLOO
EHILQLVKHGDXWRPDLFDOO\
in approximately 90 minutes.
³4XLFN)UHH]LQJ´ZLOO
EHILQLVKHGDXWRPDLFDOO\
in approximately 2 hours.
1
RSHUDWLRQODPSOLJKWLVRQ
3UHVV³4XLFN0RGH´
EXWWRQ
IRU6WDUW4XLFN)UHH]LQJ
RSHUDWLRQODPSOLJKWLVRQ
3UHVV³4XLFN0RGH´
EXWWRQ
IRU6WDUW4XLFN&RROLQJ
43
IRUVWDUWWZR
IXQFWLRQRSHUDWLRQ
3UHVV
³
4XLFN0RGH
´EXWWRQ
ERWKODPSOLJKWDUHRQ
3UHVV
³
4XLFN0RGH
´EXWWRQ
IRUVWRSWZRIXQFWLRQ
RSHUDWLRQ
ERWKODPS
light are off.
Pi!
PiPi!
Pi!
Pi!
Cancel
\RXFDQVHWWHPSHUDWXUHE\QRUPDOVWHS3 steps)
Ɣ
7KLVIXQFWLRQLVVXEMHFWHGWRFKDQJHDFFRUGLQJPRGHOW\SH
3UHVV
³5HIULJHUDWRU´EXWWRQ
IRUVHFRQGVXQWLO³3L3L´
sound is heard.
Ɣ
)DFWRU\VHWWLQJWKHDGMXVWPHQWWHPSHUDWXUHE\QRUPDOVWHS 3 steps).
NOTICE
Setting
5HIULJHUDWRUFRPSDUWPHQW)UHH]HU&RPSDUWPHQW
3UHVV³5HIULJHUDWRU´EXWWRQ
for 5 seconds until
³3HHS´VRXQGLVKHDUG
(DFKWLPH\RXSUHVVWKHEXWWRQWKHFRUUHspoQGLQJLQGLFDWRUODPSFKDQJHVLQRUGHUVKRZQEHORZVWHSV
Indication
lamp
Setting
&ROG
&ROGHVW
/LJKWLQJ%OLQNLQJ7XUQHGRIf )
Open the Refrigerator door before press “Refrigerator” button to setting.
Normal
Sound
3L 3L 3L 3L 3L3L 3L 3L 3L
3L
How to use temperature control 9 step
Open the Refrigerator door before press “Refrigerator” button to cancel.
3HHS
6HFRQGV
3L
3L3L
6HFRQGV
3L
3XWIRRGRQWKHTXLFNIUHH]LQJ³4XLFN)UHH]LQJ´FRUQHULVlocated
located on the upper part of
WKHIUHH]HUFRPSDUWPHQW
³4XLFN)UHH]LQJ´LVPRUH
effective if food is place near
WKHEDFNZDOORIWKH
IUHH]HUFRPSDUWPHQW
Quick Freezing
3XWIRRGRQWKHTXLFNFRROLQJ³4XLFN&RROLQJ´FRUQHULVOocated
on the upper part of the refrigerator compartment.
³4XLFN&RROLQJ´LVPRUH
effective if food is place near
WKHEDFNZDOORIWKH
refrigerator compartment.
Quick Cooling
Ŷ
Ŷ
9

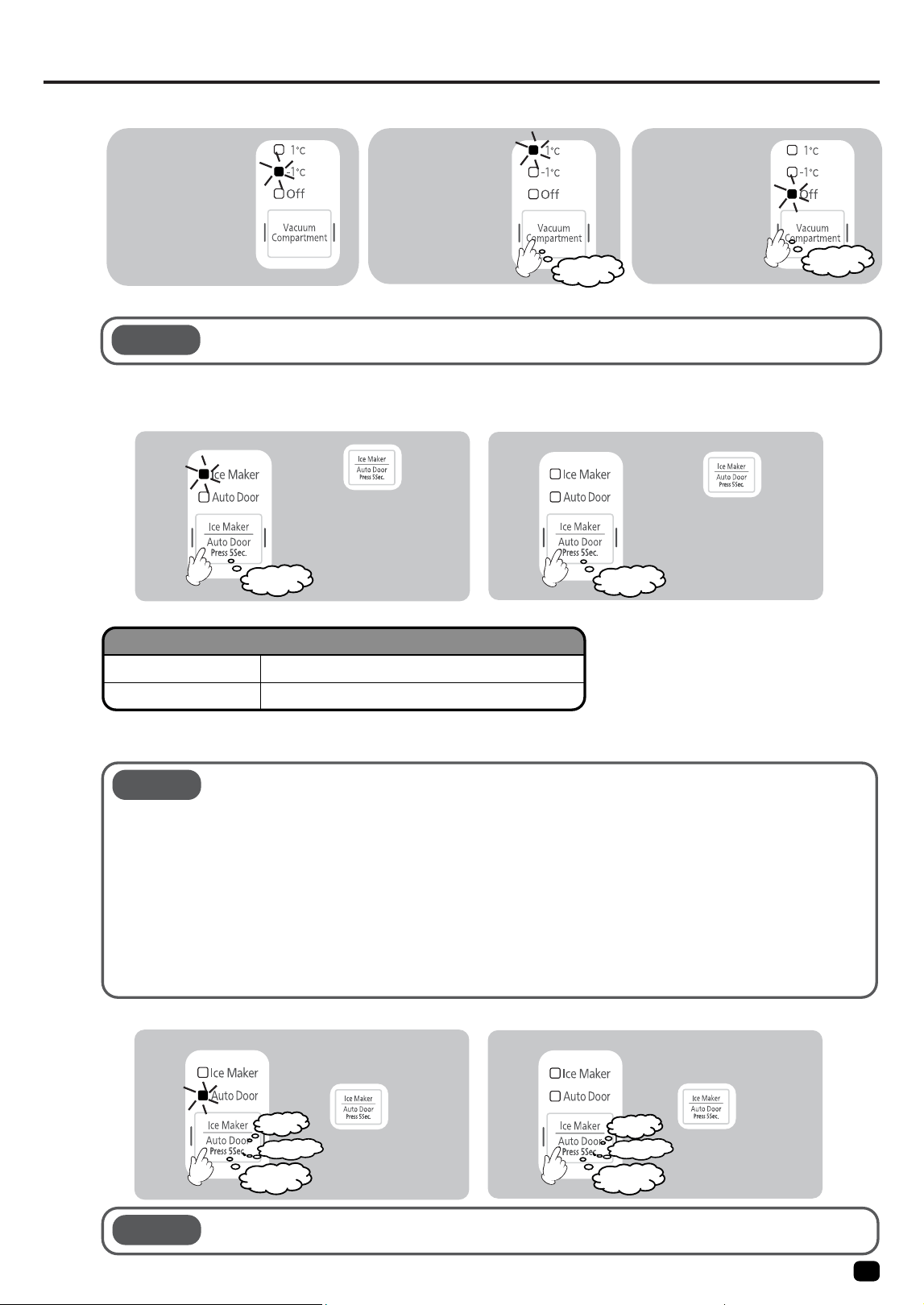

Other Functions
First, check whether the Automatic Ice Maker is in operation.
Ice Maker / Auto Door
Ice Maker :
1. When the door is frequently opened and closed
2. When a large amount of food is placed inside the refrigerator at the same time
3. After "Ice Tray Cleaning" has been run
4. When there is a power outage
5. During winter, or when the surrounding temperature is low
Ɣ
Ice cannot be made until the interior of the refrigerator is sufficiently cool. It may take 24 hours or longer to make ice for the first time after
installation. Normally, it only takes 2 to 3 hours to make 8(eight) ice cubes.
The Ice Preparation Time shown is the average time to make ice when the ambient temperature is 32°C and the door is not opened and closed and
temperature setting “normal”.
When you wish to make ice especially quickly, use the "Quick Freezing" function.
Approx. 70 to 90 minutes
Ɣ
The Ice Making Time will be longer in the following situations.
Ice Preparation Time ( 8 (eight) cubes / ice making cycle)
NOTICE
Approx. 90 to 110 minutes
Quick Freezing
Normal Operation
Ɣ,I\RXGRQRWLQWHQGWRXVHWKH$XWRPDWLF,FH0DNHUPDQXDOO\FDQFHOLWVRSHUDWLRQ
Ɣ:KHQXVLQJWKH³$XWR,FH0DNHU´IRUWKHILUVWWLPHGLVFDUGWKHILUVWRILFHFXEHVIRUFOHDQLQJ
Ɣ:KHQDQLQIDQWFKLOGPD\XVHWKH$XWR'RRUWRPDNHPLVFKLHISOHDVHVWRSWKH$XWR'RRUIXQFWLRQ
2
1
PiPi!
Pi!
for start Ice Maker
operation,
Press button
lamp light is on.
again for stop Ice Maker
operation,
Press button
lamp light is off.
Vacuum
CAUTION
The “Off” indicator lamp continues to be lit during the “Off”operation.
After off vacuum function,the temperature will be autometically to default ( -1
°C )
The display switches in sequence as shown below everytime the button is touched. The temperature is set to “-1
°C
” at default.
1
2 3
When in
“Vacuum Compartment”
Lamp lights on.
Press
button for stop Vacuum
operation. “off”
Press
button for start Vacuum
lamp light is on.
PiPi!
Auto Door :
You can prevent mischief of all the buttons on the control panel by children.
2
1
Peep!
PiPi!
1,2,..5 Second 1,2,..5 Second
To activate this function,
press button
To stop this function,
5 seconds again.
Ɣ:KHQDQLQIDQWFKLOGPD\XVHWKH$XWR'RRUWRPDNHPLVFKLHISOHDVHVWRSWKH$XWR'RRUIXQFWLRQ
NOTICE
“Vacuum Compartment”
“Vacuum Compartment”
button “-1 °C” operation.
1°C operation.
“1°C” lamp light is on.
Pi!
5 seconds.
press button
Pi!
Pi!
Ŷ
Ŷ
Middle Freezer Drawer
10

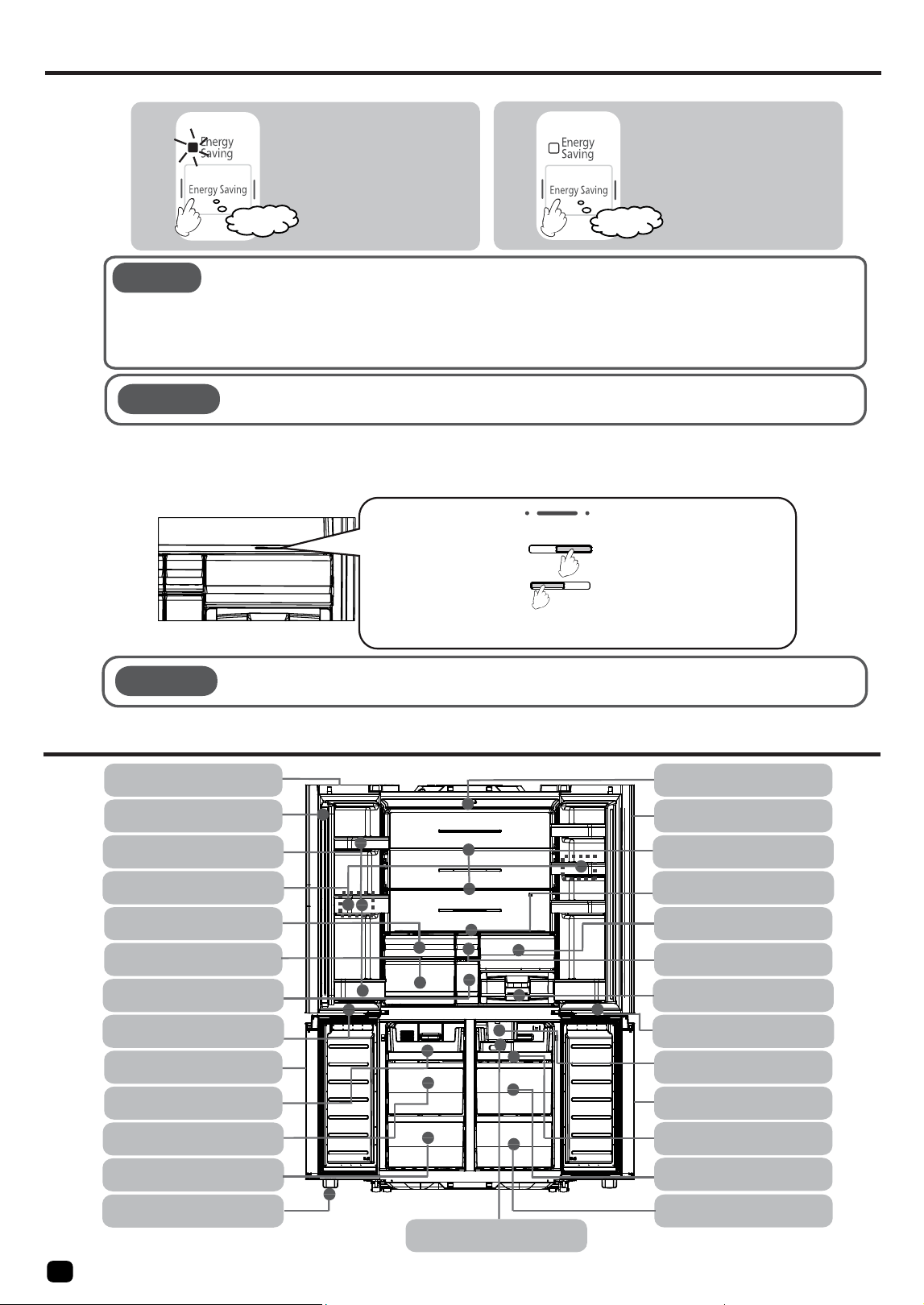

Refrigerator/Selectable Zone/Freezer Compartment
Egg Tray
Refrigerator Door-Left
Door Pockets
Swing Partition
Upper Vegetable Drawer
Water Tank
Lower Vegetable Drawer
Fixed shelf
LED Lamp
Adjustable-height Shelves
Dry-Vegetable Drawer
Vacuum compartment
Refrigerator Door-Right
Utility Drawer
Lower Freezer Drawer
Selectable Zone Door
ECO monitoring sensor
Upper Selectable Zone Drawer
Middle Selectable Zone Drawer
Lower Selectable Zone Drawer
Handle LED Lamp
Auto Ice Maker
Middle Freezer Drawer
Upper Freezer Drawer
Freezer Door
Handle LED Lamp
Other Functions
How to use Dry-Vegetable Drawer
If you keep the refrigerator in a hot and humid place, frequently open the door or store a lot of vegetables, it may cause dew forming which has no
effect on its performance. Wipe the dew with dry cloth.
into the drawer.
CAUTION
Slide the lever to
for coffee bean/
“Dry food”
Slide the lever to
“Vegetable” to provide
temperature for vegetable
and fruit 3°C
~7°C
ƔThere is a humidity control which can adjust the amount of dry air flowing
tea leaf 3°C~7°C
VegetableDry Food
Ɣ
Do not store dry food and vegetable together. Vegetable moisture may transfer to dry food and may not be able
to keep food dry.
Ɣ,QFDVHWKHFRPSDUWPHQWWHPSHUDWXUHULVHVXp, the operation will be back to a normal setting temporarily.
Ɣ$IWHUDORQJWLPHRSHUDWLRQRI³(QHUJ\6DYLQJ”, in some cases, fatty ice cream, etc, may become soft. Please stop
Ɣ,I\RX7RXFK³4XLFN)HH]LQJ´RU³4XLFN&RROLng” button
during "Energy Saving " operation, “Energy Saving” operation will
EHGRQHDIWHU³4XLFN)UHH]LQJ´RU³4XLFN&RRling” operation finished.
NOTICE
“Energy Saving” operation in this case.
Energy Saving
2
1
operation, lamp light is on.
Press “Energy Saving” button
for Start Energy Saving
operation, lamp light is off.
Press “Energy Saving” button
again for stop Energy Saving
Recommend to use this function in case of low storage volume, or a long vacation when the doors are not opened for long time.
PiPi!
Pi!
Ɣ1R(&20RQLWRULQJVHQVRUGHWHFWLon.
Ɣ1RGRRURSHQ
Ɣ1RFRQWUROSDQHORSHUDWLRQ
CAUTION
Ɣ
If “Energy Saving” operation is working in high humidity environment, dew may appear on refrigerator surface.
Ice Bank
Ŷ
Ŷ
11
Refrigerator/Selectable Zone/Freezer Compartment
1
How to use the Auto Ice Maker
Lid
Tank-full line
1. Remove the water tank.
3. Carry the water tank by the handle with care. 4. Insert the water tank until it stops.
2. Slide the Lid and fill the water.
Ɣ
Hold the handle and pull the water tank towards yourself.
Ɣ:KHQFDUU\LQJWKHZDWHUWDQNSODFHRQHKDQG
below the tank for horizontal stability.
Ɣ)LOOWKHZDWHUQRWRYHUWKHIXOOOLQH
Ɣ
,IWKHZDWHUWDQNLVQRWLQVHUWHGDOOWKHZD\ZDWHUZLOOQRW
be supplied to the Automatic Ice Maker.
7KLVZLOOSUHYHQWWKHVHIHDWXUHVIURPIXQFWLRQLQJSURSHUO\
Process complete.
NOTICE
Ɣ)RUDILUVWLQVWDOOHGDOORZKRXUVIRUWKHUHIULJHUDWRUWRFRROGRZQDQGPDNHLFH
Ɣ,FHPDNHUZLOOVWRSDXWRPDWLFDOO\ZKHQLFHEDQNLVIXOODQGVWDUWDJDLQDXWRPDWLFDOO\
ZKHQLFHFXEHVLQWKHLFHEDQNLVUHGXFLQJRUHPSW\
Ɣ,WLVQRUPDOWKDWDQRLVHLVJHQHUDWHGZKHQLFHPDGHRULFHGURSSHGLQWRWKHLFHEDQN
Ice detection level.
Ice Bank
Tea
JUICE
MINERAL
WATER
Mineral water Juice
drink
Sports
drink
Carbonated
drink
Tea)LOWHUHGZDWHU :HOOZDWHU
CAUTION
Ɣ 'RQRWILOOWKH:DWHU7DQNZLWKDQ\WKLQJRWKHUWKDQZDWHU)LOOLQJWKH:DWHU7DQNZLWKIOXLGVVXFKDVMXLFHVSRUWVGULQNVWHDRUKRWZDWHU
FDQGDPDJH\RXUUHIULJHUDWRU7KH:DWHU7DQNFDQZLWKVWDQGWHPSHUDWXUHVXSWR&
Swing Partition Suggestion
Ɣ'RQRWKROGWKHVZLQJSDUWLWLRQZKLOHRSHQLQJRUFORVLQJWKHOHWIGRRU2WKHUZLVHRWKHUSDUWVPD\FROODSVH
Ɣ:KHQHYHUWKHGRRULVRSHQHGWKHVZLQJSDUWLWLRQZLOOFORVHDXWRPDWLFDOO\:KLOHWKHGRRULVFORVHGWKHVZLQJSDUWLWLRQZLOORSHQ
3OHDVHIROORZDVXVXDO7KHVZLQJSDUWLWLRQDQGWKHVZLQJVWRSSHUKLWHDFKRWKHUWKHGRRUZLOOQRWFORVH
Ɣ,QRUGHUWRSUHYHQWWKHGHZWKHUHLVDKHDWHULQVWDOOHGLQVLGHWRKHDWXSWKHVZLQJSDUWLWLRQ'XHWRWKLVKHDWHUWKHWHPSHUDWXUHRI
WKHVZLQJSDUWLWLRQLVKRWWKHVZLQJSDUWLWLRQLVQRWGHIHFWLYHWKRXJKLWLVKRW
Ɣ7KLVLVQRWDEQRUPDOZKHQ\RXIHHOKHDY\ZKLOHRSHQLQJRUFORVLQJWKHOHIWGRRUZKLFKLVLQVWDOOHGZLWKWKHVZLQJSDUWLWLRQ
:KLOHRSHQLQJWKHGRRU
:KLOHFORVLQJWKHGRRU
6ZLQJ3DUWLWLRQ 6ZLQJ3DUWLWLRQ
6ZLQJ3DUWLWLRQ
6ZLQJ3DUWLWLRQ
2
Ɣ*HUPVFDQPXOWLSO\TXLFNO\ZKHQILOWHUHGZDWHUGHFKORULQDWHGZDWHUPLQHUDOZDWHURUERLOHGZDWHULVXVHGLQWKH:DWHU7DQN
Ɣ
&KDQJHWKHZDWHULQWKH:DWHU7DQNRQFHDZHHN
Ɣ:KHQQRWXVLQJWKH:DWHU7DQNIRUH[WHQGHGSHULRGVRIWLPHWKRURXJKO\FOHDQDQGGU\WKHZDWHUWDQNDQGUHLQVWDOOLWWRLWVSODFHLQ
Ɣ
7KHFDSDFLW\RIWKH:DWHU7DQNLVDSSUR[OLWHUV
%HVXUHWRWKRURXJKO\FOHDQWKH:DWHU7DQNUHJXODUO\
WKHUHIULJHUDWRU
12
3

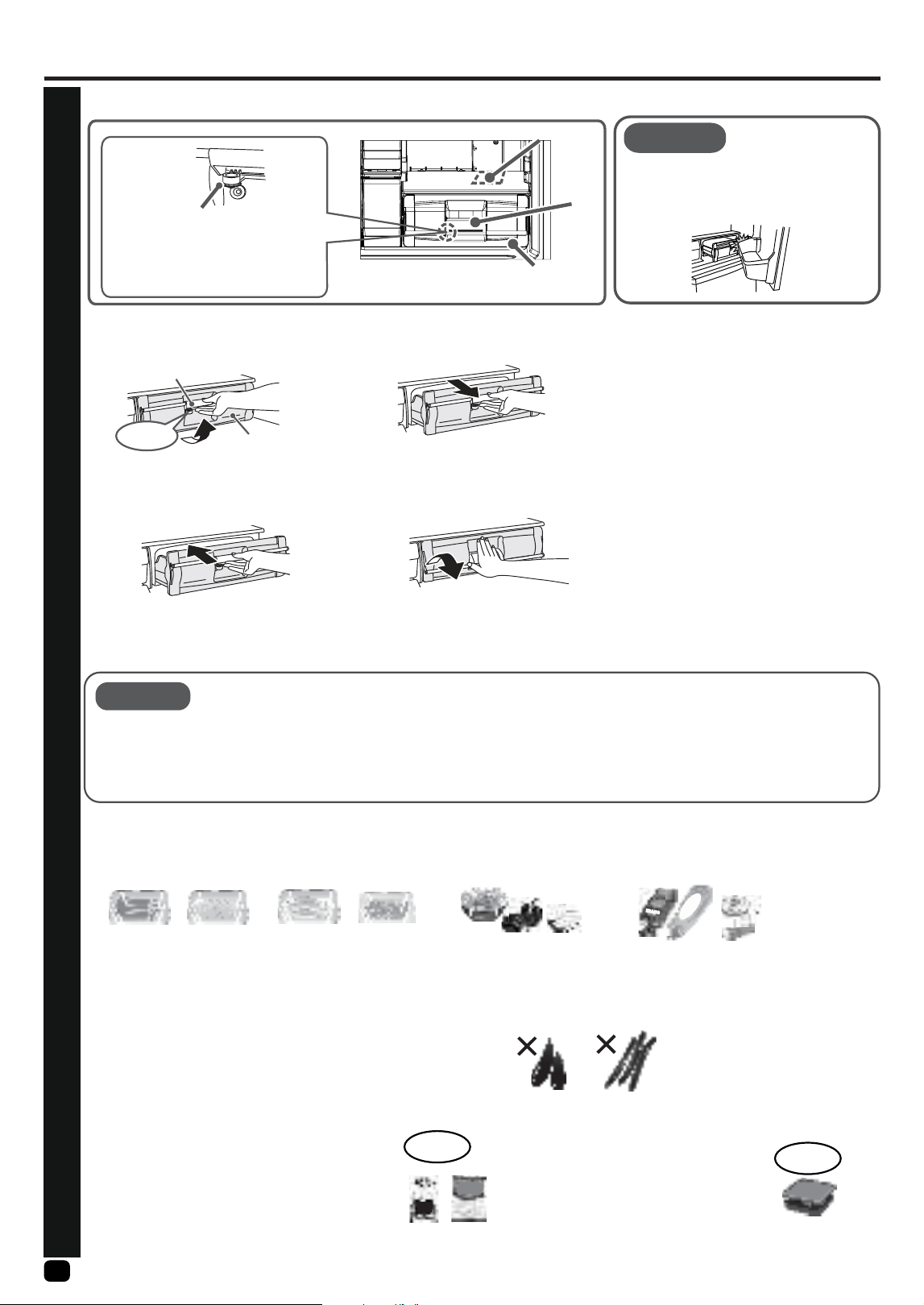

How to use the Vacuum Compartment
1. Lift the handle to unlock.
Handle
Door
“ Whoosh... ”
2. Pull the door out.
While there is the “ Whoosh... ”
sound, it’s still vacuum; thus,
Please remove the door after
1. Push the vacuum case to the end of the inside.
Push the handle down to the end.
If not, the case might not be vacuumed.
2. Push the handle down to lock the door.
Do not put too much food or too many
containers into the vacuum case. if you do, you
may not be able to pull the vacuum case out.
Open Vacuum Compartment
Close Vacuum Compartment
CAUTION
Vacuum pump will work when the handle of the vacuum compartment and the door of refrigerator are closed only. When the vacuum pump starts
working,there will be loud noise which is not unusual at all. From the vacuum pump stats working until the case becomes vacuumed, it akes around
2 minites. If the door of the vacuum case opened before 2 minutes, You may not hear the “Whoosh...” sound.Thus, please check the vacuum system
after waiting for longer than 2 minutes. Since the vacuum case generates coolness indirectly, it need more time to cool food than other cases.
If the lid of the refrigerator is closed but the
door of the vacuum case is not closed, there
may be some parts will be broken.
the door can not be removed.
the “Whoosh” sound stops.
Ŷ
Ŷ
Refrigerator/Selectable Zone/Freezer Compartment
WARNING
Vacuum pump
Vacuum Box
(With Aluminum Tray)
Handle
Vacuum cutting valve (blue)
The machine is unlocked by lifting
the handle and the vacuum cutting valve
will cut the vacuum system with the
“Whoosh...” sound.
Meats/processed meats
Fishes and seafood
Beef/pork/chicken/ham/
Salmon/mackerel fish/
Vegetables and fruits
Salad vegetables/bell
Coffee bean/tea
sausage/etc...
pepper/apple/orange/
kiwi/etc...
seafood/boiled fish
paste/etc...
leaf/dairy products/
nuggets/etc...
Tea
COFFEE
COFFEE
With the ability to prevent oxidation, the product can preserve the nutrients and tastes of food longer than conventional food conservation techniques.
ƔFoods to be stored
Ɣ Food not recommended to be stored
Vegetables vulnerable to low temperature. Skin of the vegetables that are
vulnerable to low temperature will sink or change the colors, please store
Egg plant/cucumber/roselle fruit/
them in vegetable compartment.
asparagus/ginger/sweet pepper/etc...
Food should be kept in a closed plastic bag.
Store the food carefully because the bag will be swollen
and press on other food.
Such as sausage and
cheese in bags
Closed and sealed plastic containers.
Please pick containers out carefully because
the doors of the containers may be detached.
Ɣ Food and containers should be stored with care
Be careful
Be careful
Cheese
sausage
13
4
Refrigerator/Selectable Zone/Freezer Compartment
CAUTION
Ɣ3OHDVHUHPRYHSODFHGIRRGIURPWKHYDFXXPER[EHIRUHGLVDVVHPEOHG
Ɣ
3OHDVHGRQRWGHWDFKDQ\SDUWRWKHUWKDQWKHRQHGHVFULEHGLQWKHLQVWUXFWLRQ
Ɣ,I\RXZDQWWRGLVVVHPEOHDQ\SDUWQRWGHVFULEHGLQWKHLQVWUXFWLRQIRUFOHDQLQJSOHDVHFRQVXOWWKH6HUYLFH&HQWHUWKURXJKWKHFRQVXOWDQF\FKDQQHOV
Ɣ$VIRUWKHGLVDVVHPEO\RULQVWDOODWLRQRIDQ\SDUWSOHDVHRSHQWKHGRRURIWKHUHIULJHUDWRUZLGHUWKDQGHJUHHV
Instructions for disassembly or assembly
6ORZO\OLIWWKHIURQWRIWKHYDFXXPFDVHWRGHWDFKWKHFRUH
RIWKHGRRURIWKHYDFXXPFDVH
9DFXXPFDVH
&RUH
$OXPLQXP7UD\
/LIWWKHYDFXXPFDVHKLJKHU
,QVWDOODOOSDUWVE\IROORZLQJWKHUHYHUVHVWHSVRIWKHGLVDVVHPEO\SURFHGXUH
How to remove part
Rail Stops
1
2
Shelf Trim
CAUTION
Shelf trims are removable, Holding the
shelf with both hands. DO NOT holding
trim or holding shelf with only one
hand otherwise it may drop or injury.
Ŷ*HQWO\WDSWKHOHIWDQGULJKWRIWKHERWWRPVXUIDFHZKLOH
SXOOLQJDSRFNHWXSWRUHPRYHLW:KHQLQVWDOOLQJWKH
SRFNHWVSXVKLWDOOWKHZD\GRZQLQDVPRRWK
FRQWUROOHGPDQQHU
Ŷ
7KHKHLJKWRIWKHVHVKHOYHVFDQEHDGMXVWHGWRPDWFKWKHKHLJKWRI\RXUIRRGDQGWKH
ZD\LQZKLFKWKH\DUHWREHXVHG
Ɣ5HPRYHDOOIRRGVWRUHGRQWKHVKHOI
Ɣ/LIWWKHEDFNRIWKHVKHOIXSZDUGVOLJKWO\WKeQSXOOWKHVKHOIRXWWRZDUGVWR\RX
Ɣ$GMXVWWKHVKHOIWRWKHGHVLUHGKHLJKWWKHQSXVKWKHVKHOILQXQWLOLWUHDFKHVWKH
EDFNRIWKHVORW
Adjustable-height the Shelves
Door Pocket
Ice Bank
Utility Drawer
Ŷ
7RUHPRYH,FH%DQNSXOO8SSHU)UHH]HU'UDZHUDOOWKHZD\RXW
Ŷ
7RUHPRYH9HJHWDEOH'UDZHUDQG'U\9HJHWDEOH'UDZHUSXOOLWDOO
WKHZD\RXWWKHQOLIWLWXSZDUG
8SSHU)UHH]HU'UDZHU
,FH%DQN
Vegetable Drawer/Dry-Vegetable Drawer
Ŷ
7RUHPRYH8WLOLW\'UDZHUSXOOLWDOOWKHZD\RXWWKHQ
OLIWLWXSZDUG
WKHQOLIW,FH%DQNXSZDUG
14

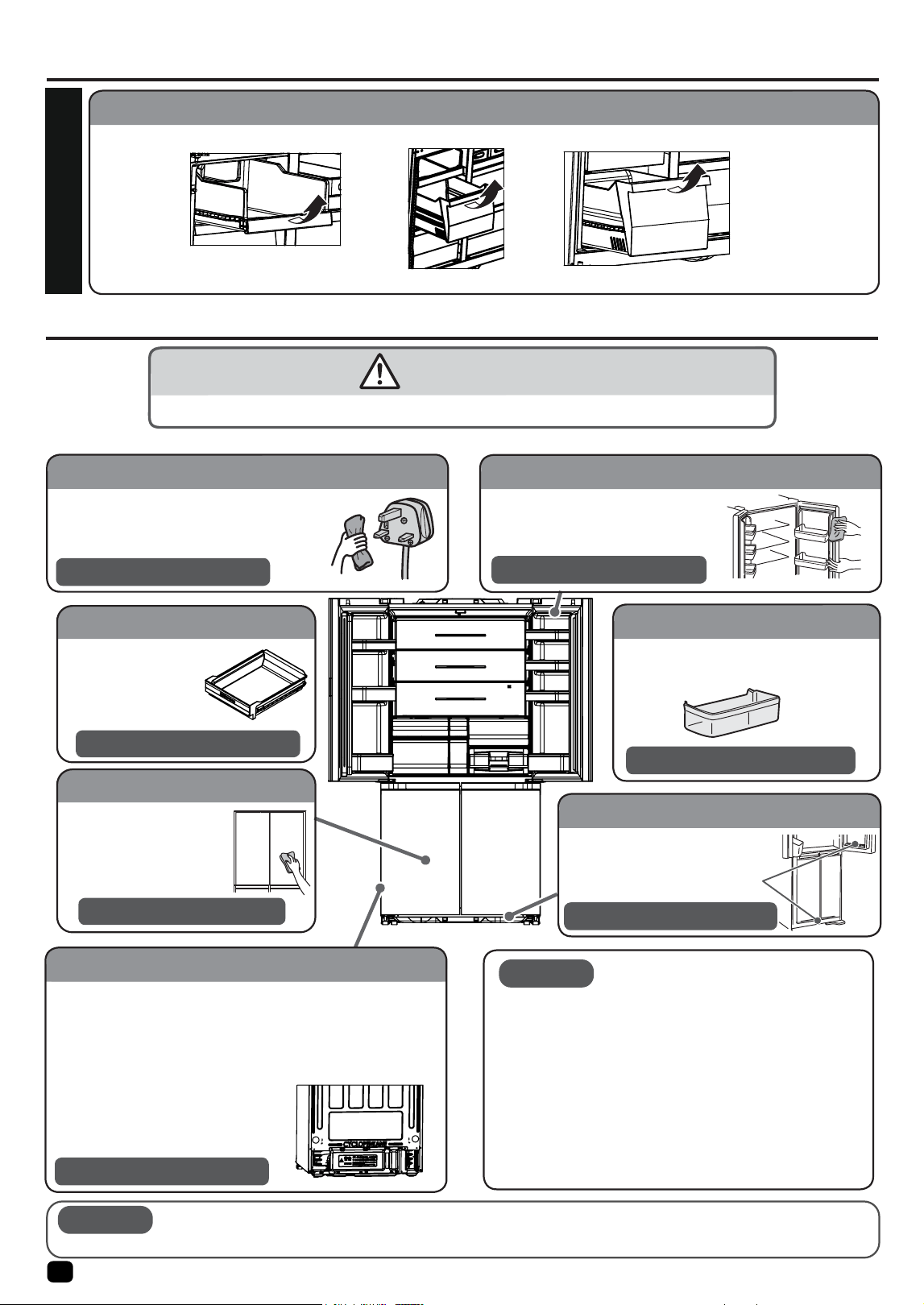

Care and Maintenance
Make sure to unplug the power plug when maintaining the refrigerator.
When dirt is found
Wipe off it immediately. It is recommended to clean the hidden places once a year.
Cleaning
WARNING

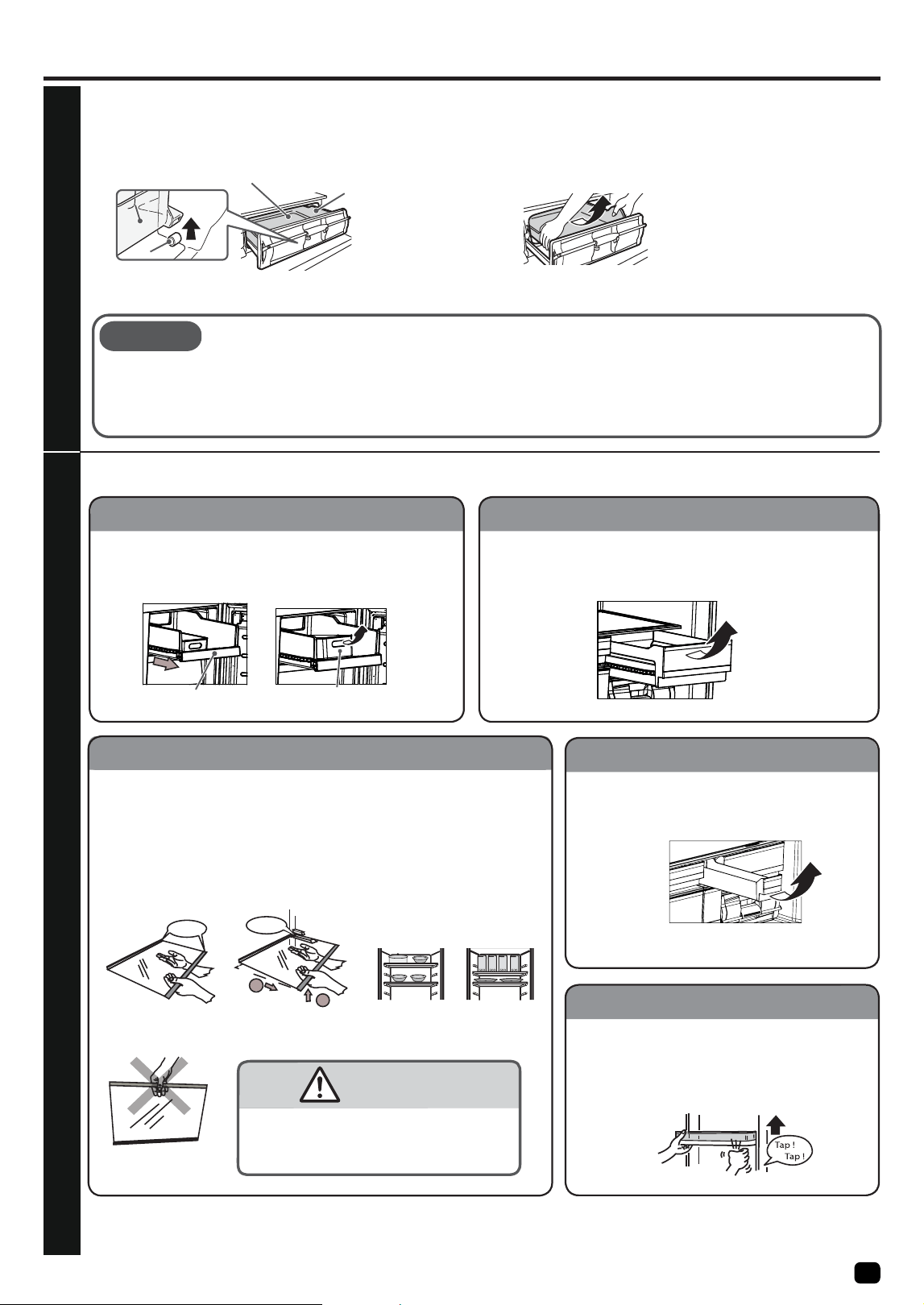

Upper Drawer, Middle Drawer, Lower Drawer (Selectable Zone / Freezer Compartment)
Ŷ
To remove Upper Drawer, Middle Drawer, Lower Drawer,pull it all the way out, then lift it upward.
Middle Drawer
Upper Drawer
Lower Drawer
Refrigerator/Selectable Zone/Freezer Compartment
NOTICE
Ɣ&OHDQUHJXUDO\VXUIDFHVWKDWFDQFRPHLQFRQWDFWZLWKIRRGDQGDFFHVVLEOHGUDLQDJHV\VWHPV
Ɣ,IWKHUHIULJHUDWLQJDSSOLDQFHLVOHIWHPSW\IRUORQJSHULRGVVZLWFKRIIGHIURVWGU\DQGOHDYHWKHGRRURSHQWRSUHYHQWPRXOG
GHYHORSLQJZLWKLQWKHDSSOLDQFH
Power plug
Cleaning once or twice a year
Ŷ,IWKHSRZHUSOXJLVSOXJJHGLQZLWKGXVWRQ
the power cord, it can result in fire.
Ɣ5HPRYHDOOGXVWRQFHD\HDUDQGZLSHZLWK
a dry cloth.
Door gaskets
Cleaning once a month
Ŷ 7KLVDUHDLVSURQHWRVPXGJHV
VREHVXUHWRZLSHLWWKRURXJKOy.
Back Panel, Foor of Refrigerator
Cleaning once or twice a year
1. TXUQWKHOHJDGMXVWHUWRUDLVHWKHUHIULJHUDWRUXSRff the floor.
Ɣ,IWKHDGMXVWHUGRHVQRWWXUQHDVLOy, use a screwdriver to turn it.
,ILWVWLOOZLOOQRWWXUQWKHQUHPRYHWKHOHJFRYHUDQGWU\DJDLQ
3XOOWKHUHIULJHUDWRUVWUDLJKWRXWWRZDUG\RX
Ɣ)RUIORRUVWKDWDUHHDVLO\GDPDJHGOD\RXWDSURWHFWLYHPDWRU
other protective material.
3. Wipe ofIWKHVPXGJHVRQWKHEDFNSDQHO
Ɣ'XHWRWKHFRQYHFWLRQRIDLr, this is a
SODFHZKHUHILQHGXVWLVOLNHO\WRDGKHUH
ZDOOVDQGIORRURIWKHUHIULJHUDWRr.
Each shelf/pocket
Cleaning once per three months
Use a soft cloth wet by lukewarm
water to wipe off.
Drip Catcher
Cleaning once a month
Drip catcher
Ŷ/LTXLGWKDWKDVDFFXPXODWHG
KHUHVKRXOGEHZLSHGDZD\
Door Surface
Cleaning once a month
Ŷ
To clean the door surface,
wipe with a soft cloth wetted
ZLWKOXNHZDUPZDWHU
Drawer
Cleaning once per three months
Ŷ8VHDVRIWFORWK
ZHWE\OXNHZDUP
water to wipe off.
CAUTION
Ɣ'RQRWXVHWKHIROORZLQJ$QDONDOLQHRUZHDNDONDOLQHNLWFKHQ
GHWHUJHQWVFRXULQJSRZGHUVRDSSHWUROHXPERLOLQJZDWHU
VFRXULQJSDGVDFLGEHQ]LQHDOFRKRORUEOHDFK
IRUGHWDLOVVHHWKH&DXWLRQRQWKHGHWHUJHQWSDFNDJH
Ɣ:KHQDQ\FRRNLQJRLOFLWUXVIUXLWMXLFHRUMXLFHIURPDQ\IRRGSRXUV
RQWKLVUHIULJHUDWRUZLSHLWRII
Ɣ:KHQXVLQJDFKHPLFDOUDJEHVXUHWRKHHGWKHZDUQLQJVIRUUDJXVH
Ŷ7KHGRRUVSDLQWHGVXUIDFHVDQGSODVWLFSDUWVPD\EHVFUDWFKHG
RUGLVFRORUHGE\WKHFKHPLFDOUDJ
15
Care and Maintenance

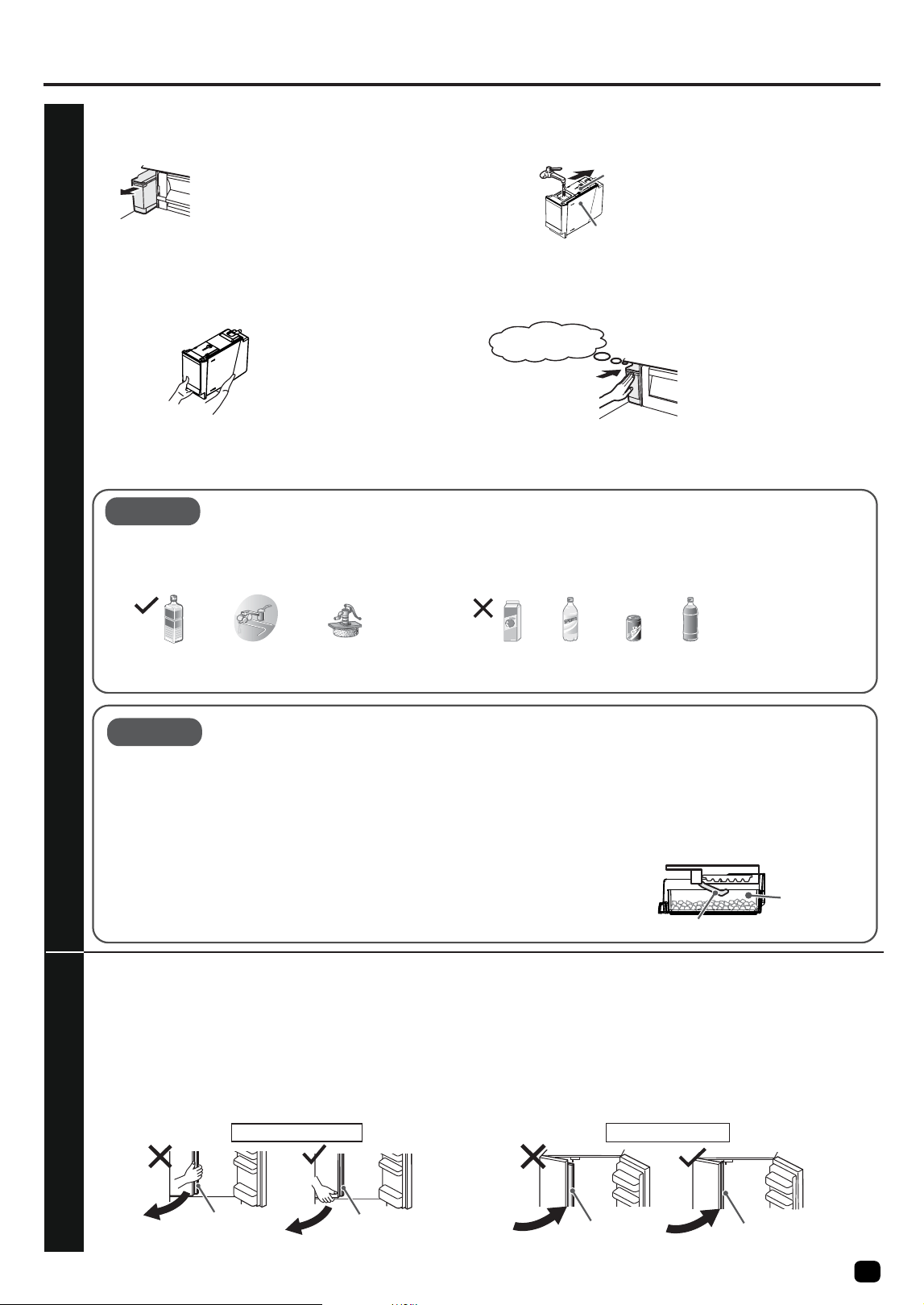

Ice maker
WARNING
WARNING Do not touch the mechanical
(Touching these parts might result in injury.)
parts of the automatic ice maker.

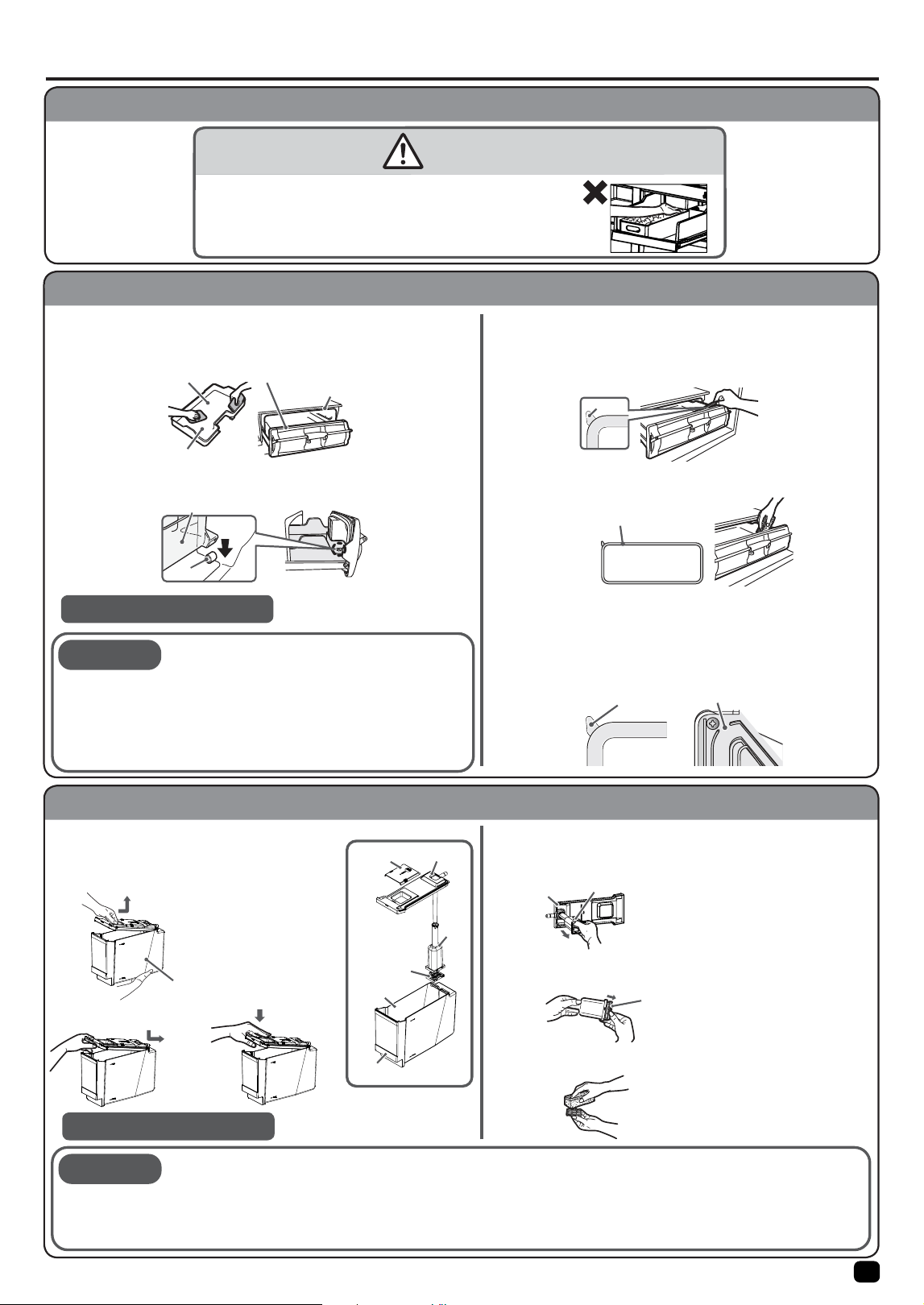

Vacuum Compartment
1. Pull the vacuum box out In order to take the products stored
in vacuum box.
2. For the following part, clean it with a piece of cloth soaked in warm water.
Aluminum tray
Vaccum box gasket
Vaccum box Case
Packing Receiver
3. Assembly the Vacuum Box case attach with the core of Vacuum Box Door.
Ɣ
If the detergent or any product other than warm water is
used for cleaning Vacuum Box gasket, there may be
effects in terms of deformation, color change or loss
ƔIf Vacuum Box gasket is dropping or Vacuum Box Door
not well aligned, there may be the loss of vacuum property.
CAUTION
Cleaning once a month
vacuum property.
Vaccum box Case
Core
Vaccum box gasket
When Vacuum Box gasket is dirty.
1. Disassembly of Vacuum Box gasket out off Vacuum Box Case. Facing
the Vacuum Box, twist the knob of the Vacuum Box gasket on top right
Knob
2. Wipe gently with sponge on the stain with plain water.
Don’t use any detergent.
Please clean gasket track also.
gasket track
3. Wipe water out with dry cloth and leave the part until it is naturally dried.
4. Assemble Vacuum Box gasket, twist the knob to align with the gasket
track, deliberately assemble.
Knob
Packing track
and carefully remove.
Water tank
NOTICE
Ɣ
If the Automatic Ice Maker is not set to "Stop," the water pump may make sounds occasionally. This is not a malfunction.
Ɣ
Slide the lid in back-end first in the direction of the arrows to close the lid.
Ɣ
Replace the Water Filter when it wears out. Water Filters need replacing every 3 to 4 years.
Ɣ
Clean water tanks if they have not been used for 48 h;flush the water system connected to a water supply if water has not been
drawn for 5 days.
Cleaning once a week
To remove the lid, use your
finger to insert pull the cover up.
In order to prevent grime and hard water stains
from building up, make sure to clean the Water Tank
1. How to open the cover.
2. How to close the cover.
Tank
Do not use cleansers as this
may damage the filter.
In order to prevent grime and hard water stains from building up,
2. Pull the tab to remove the Water
Filter from the case.
Case
Cover
3. Use a soft sponge to clean the Water Filter.
Cover
Case
Water filter
Tank
Handle
Lid
once a week.
make sure to clean the Water Filter once per week.
1. Pull the case to remove it from the cover.
Tap
16
Before you call for service, please check the following items:

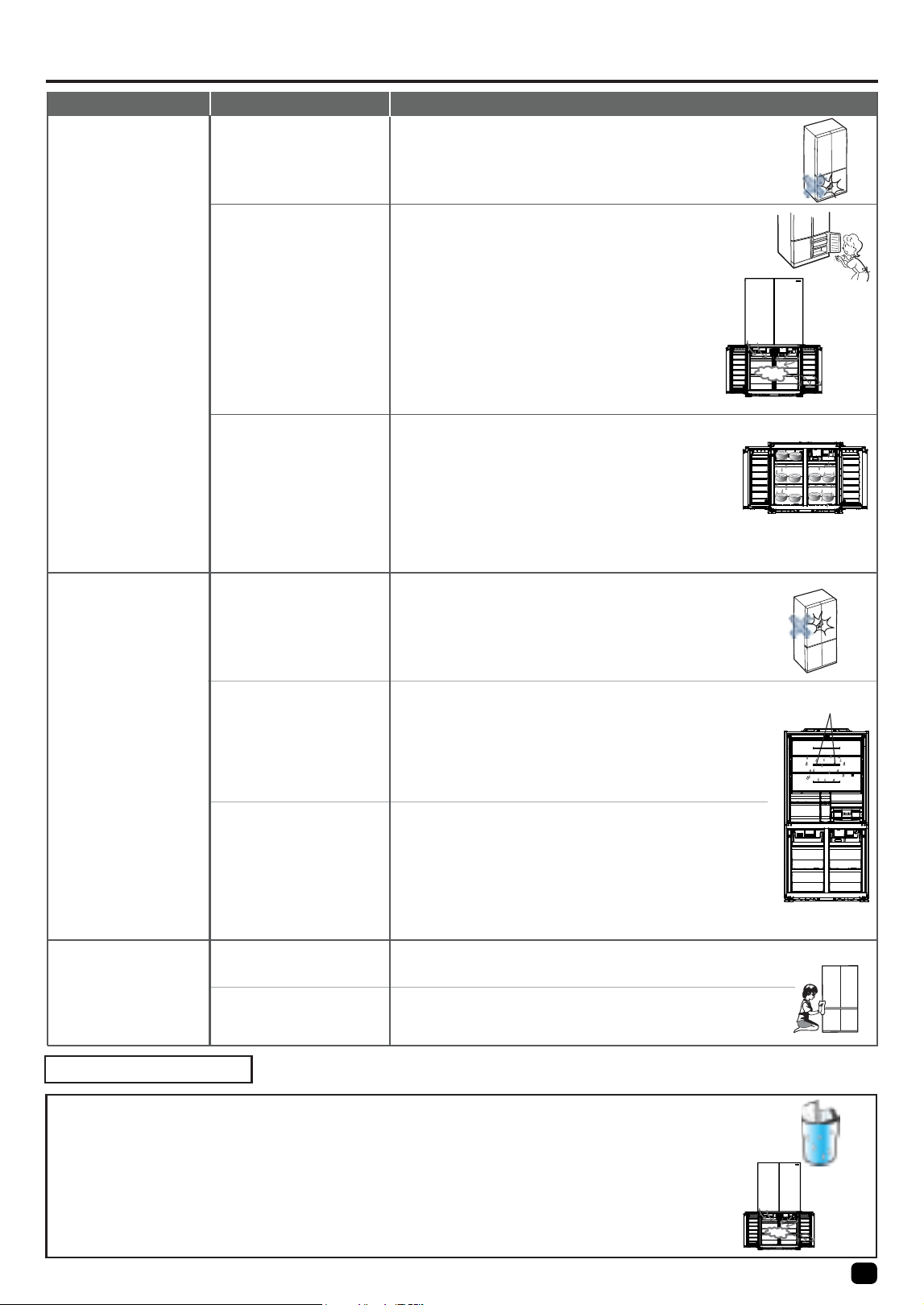

Troubleshooting
The inside is smelling.
Dew appears Outside
Dew appears Inside
Ɣ:KHQWKHDPELHQWKXPLGLW\LVWRRKLJKWKHGRRU
FKHFNWKHGHWDLOVEHORZ
Ɣ,VWKHGRRUFORVHGILUPO\"
RURSHQHGIRUDORQJWLPH"
Ɣ,VLWWRRKXPLGRXWVLGH"
Ɣ,VWKHWHPSHUDWXUHVHWWR³&ROGHVW´"
QHDUE\WKHFROGDLUYHQW",WZLOOEHIUR]HQLILWLV
LVSODFHGQHDUE\WKHFROGDLUYHQW
Ɣ+DVDQ\WKLQJKRWEHHQSODFHGLQWKHUeIULJHUDWRU"
Ɣ,VWKHGRRURSHQHGDQGFORVHGWRRIUHTXHQWO\"
2
Problem Things to check Instructions Page
The refrigerator is noisy
Ɣ,VWKHUHIULJHUDWRUWRXFKLQJWKHZDOO"
4-5
19
19
4-5
7KH&RQWURO3DQHOGRHVQRWUHVSRQG
Problem Things to check Instructions Page
6-7
at all.
Ɣ,VWKHUHIULJHUDWRUSOXJJHGLQSURSHUO\"
Ɣ&KHFNWKHIXVHER[IRUEORZQIXVH
Ɣ,VWKHWHPSHUDWXUHVHWWR³&ROG´"
Ɣ,VWKHIRRGVWRUHGWRRPXFK"
The refrigerator does not get cold
Food in the refrigerator
compartment freezes.
The refrigerator does not get cold
enough.
Ɣ'RQRWLQVWDOOWKHUHIULJHUDWRULQDSODFHZKHUHLW
PD\FRPHLQFRQWDFWZLWKVXQOLJKW
Ɣ3UHVV³5HIULJHUDWRU´EXWWRQWRQRUPDORUFROGHVW
Ɣ.HHSHQRXJKVSDFHEHWZHHQIRRG
Ɣ6KRXOGFORVHWKHGRRUILUPO\FORVHG
Ɣ'RQRWLQVWDOOWKHUHIULJHUDWRULQDSODFHZKHUHLW
PD\FRPHLQFRQWDFWZLWKKHDWVRXUFHV
Ɣ0DNHIRRGFRROHQRXJKEHIRUHSXWWLQJLQ
Ɣ'RQRWRSHQFORVHWKHGRRUWRRIUHTXHQWO\
Ɣ6KRXOGEHLQVWDOOWKHUHIULJHUDWRUE\IROORZLQJWKH
SUHSDULQJLQVWUXFWLRQPDQXDO
Ɣ8VLQJIRRGZUDSRUVHDOHGFRQWDLQHUV
Ɣ6HHFRQWHQW³'HZRUIURVWLVJHQHUDWHG´
Ɣ6HHFRQWHQW³'HZRUIURVWLVJHQHUDWHG´
RUWULSSHGFLUFXLWEUHDNHU
Ɣ,VWKHUHIULJHUDWRUSODFHGLQWKHGLUHFWVXQOLJKW"
Ɣ,VWKHUHIULJHUDWRUSODFHGQHDUKHDWVRuUFHV"
Ɣ'R\RXSODFHIRRGZLWKPRLVWXUHRUYHJHWDEOHV
JDVNHWPD\KDYHGHZ3OHDVHZLSHLWXSZLWKGU\FORWK
3OHDVHZLSHLWRIIZLWKGU\FORWKDQGSOHDVH
Ɣ,VWKHGRRURSHQHGDQGFORVHGWRRIUHTXHQWO\
Ɣ'R\RXVWRUHIRRGZLWKRGRUZLWKRXWZDUSSLQJLW"
Ɣ0DNHVXUHWKHUHIULJHUDWRULVLQVWDOOHGIULPO\
Ɣ,VWKHGRRUVOLJKWO\RSHQHG"
Ɣ3UHVV³5HIULJHUDWRU´EXWWRQWRQDUPDORUFROG
Ɣ.HHSHQRXJKVSDFHEHWZHHQIRRG'RQRWEORFNWKH
6-7
4-5
4-5
The Control Panel display keeps
changing
VWRUHGLVSOD\PRGH
Ɣ7KLVLQGLFDWHVWKDWWKHUHIULJHUDWRULVUXQQLQJLV
Ɣ7KHUHIULJHUDWRUZLOOQRWFRROZKLOHUXQ
ning in
Ɣ7XUQRIIWKHVWRUHGLVSOD\PRGHE\
VWRUHGLVSOD\PRGH
3RZHURIIDQG3RZHURQWKHUHIULJHUDWRUDJDLQ
2) After that the refrigerator will return to normal
PRGH
-
-
4
4
-
4-5
FROGDLUYHQW
-
-
-
If a door is shut, other doors
may open.
Ɣ
7KHWZRFRPSDUWPHQWVDUHFRQQHFWHG
with an air
GXFW:KHQFORVLQJRQHRIWKHGRRUVWKHRWKHU
GRRUPD\EHRSHQHGE\WKHDLUSUHVVXUHWKURXJK
WKHGXFW7KLVLVDQRUPDOSKHQRPHQRQ
Does the refrigerator make any
abnormal noises (sound)?
Ɣ 7KHVRXQGOLNHZDWHUIORZLQJDQGERiling water is
WKHVRXQGRIWKHFRROLQJOLTXLGUHIULJHUDQWr
Ɣ $FUHDNLQJVRXQGFRPHVIURPWKe storage
FRPSDUWPHQW,WLVWKHVRXQGFDXVHG
E
y friction of
WKHSDUWVGXHWRWHPSHUDWXUHFKDQJH
-
There are waving and / or
distortions on the door surface,
the side and the top surface of
Ɣ 6OLJKWZDYLQJDQGRUGLVWRUWLRQVDUHJeQHUDWHGLQ
WKHPDQXIDFWXULQJSURFHVVRIWKHUHIULJHUDWRU
7KH\PD\EHFRQVSLFXRXVDFFRUGLQJWRWKHSRVLWLRQ
RIWKHOLJKWVRXUFHDQGRUWKHEULJKWQHVVHWF
EXWWKHUHLVQRSUREOHPZLWKWKHSHUIRrPDQFH
the refrigerator.
This is not a malfunction of the refrigerator:
Problem Things to check
Instructions
Page
-
The surface of the refrigerator
Ɣ 7KHUHIULJHUDWRULVHTXLSSHGZLWKWKHGHZ
SUHYHQWLRQDQGKHDWUDGLDWLRQWXEHV
DQGFORVHG
is hot.
-
-
-
-
7KHEDFNDQGVLGHSODWHVPD\EHKHDWHGHVSHFLDOO\
ZKHQVWDUWLQJXSRULIWKHGRRULVIUHTXHQWO\RSHQHG
WKHUHIULJHUDWRU

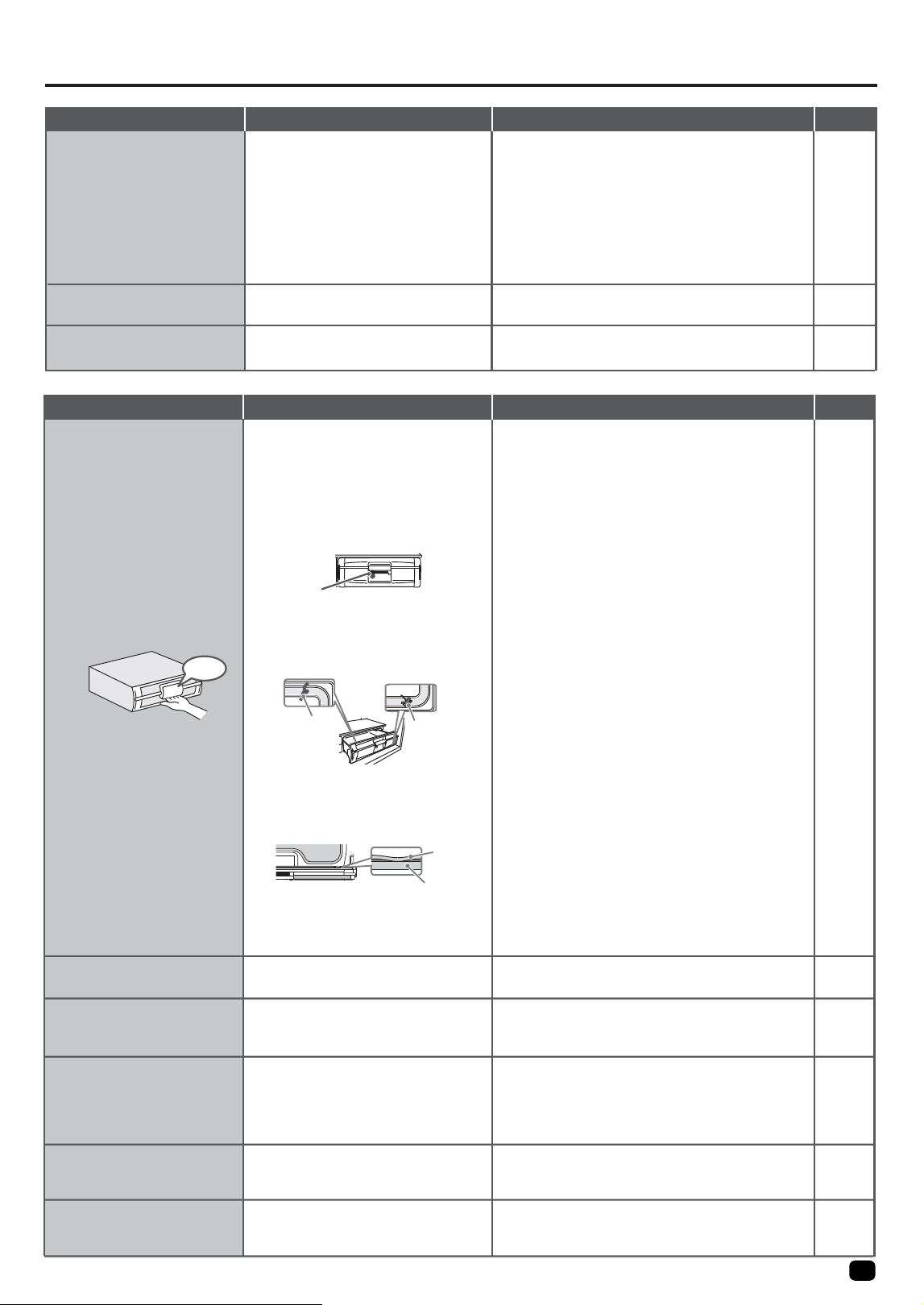

Troubleshooting
17
-
Operation sound lasts long.
Ɣ
-
Ɣ
-
Annoying sound is generated
by the refrigerator.
Ɣ You may feel that the operation sound is loud because the
compressor operates in high-speed under the
following conditions: the refrigerator does not cool fully
on the occasion such as using it for the first time,
opening/closing the door frequently, the surrounding
temperature is high.
The sound becomes more quiet after cooling fully.
The compressor operates at low speed at night, or during
long vacations or absence.
It is because the compressor operates in low-speed for
conserving energy
It is because the system changes the
operating power of
he refrigerator according to the temperature change.
Operation sound sometimes
becomes louder.
Problem Things to check
Instructions
Page
-
-
-
This is not a malfunction of the refrigerator:
There is something strange with the Vacuum Compartment.
Problem Things to check Instructions Page
・・・
In case of occurred these event,
Ɣ
Is the Handle up?
ƔPush Handle down to the proper position.
Ɣ
Has the Handle been pushed down to the
ƔIf not, there is no vacuum. Push the Vacuum Box Case
ƔIf they are, clean them by wiping the stain out.
ƔIs Vacuum Compartment gasket or Vacuum
Vacuum valve
(blue)
ƔDeliberately attach Vacuum
Compartment
gasket and
ƔIs there any bag that contains food or stain
Thread
Trash
ƔIs the gaskets adhered together, gently
Adhering
Gasket
ƔHas the Vacuum Compartment or R door ƔSince the Vacuum Pump is in the status of readiness for
ƔIf there is any plastic bag that contains things inside,
ƔIf the sides of Packing stick to each other, put them apart.
end already?
inside to the end and push the handle down to the proper
Packing receiver dirty?
valve (blue) detached or loose.
debris, trash in or around Vacuum
Compartment gasket and Packing receiver?
remove it. If the packings are attached to each other,
the Vacuum property will be lost.
If packing is dirty, clean it.
been opened/closed? work, the absence of the “Whoosh...” sound is not
It is not known whether it is in
ƔIf the is the “Whoosh...”sound during the
The Handle cannot be locked.
Ɣ
Is there anything stored in the Packing or ƔIf there is, remove that thing.
the vacuum state or not.
ƔThe sound of Pump creating the vacuum
ƔIf the sound or the shaking happens often,
There is shaking “Bu Bu”
sound from around
Vacuum Compartment.
ƔThere is nothing wrong.
ƔIf there is plastic bag, remove it and clean the dirty
There are dews or water
around the door or
inside Vacuum Compartment.
Ɣ Water in food and air can cause diets
inside because Vacuum Compartment is
completely closed.
ƔAnything that contains a lot of water should be wrapped
or covered. If there are dews or water, wipe them with a
piece of cloth soaked in warm water.
Things stored in Vacuum
Compartment are frozen.
Ɣ
Is there any vegetable that is vulnerable to
low temperature such as cucumber or
tomato inside?
ƔCheck the vegetables that are vulnerable to low
temperature and move them to vegetable compartment.
opening, it is normal.
the inmost side of the
there may be something at the door or the
packing may be dirty.
-
-
15
15
15
15
15
12-13
-
-
-
-
-
vacuum valve.
position.
Ɣ$UH9DFXXP&RPSDUWPHQWJDVNHWDQG
unusual.
Vacuum Compartment?
state.
Packing.
Vacuum Compartment might not
be operate.
stretch it part before using
the Vacuum Compartment?
Troubleshooting
18
-
Problem Things to check
Instructions
Page
Auto Door
Noise loud.
There is an abnormal
noise.
Ɣ Hitting sound (thumping sound).
Ɣ This is operating sound of the Aut Door.
Ɣ This is not malfunction.
Ɣ
Buzzing sound (whir) (whir).
Ɣ
This is operating sound of Electric Refrigerator Unit.
Ɣ
This is not malfunction.
Ɣ The operation sound of the Auto Door
differs depending on door (left or right).
Ɣ This may vary depending on installation conditions of the
refrigerator or volume of foods stored in the door pocket.
Ɣ This is not malfunction.
The Auto Door
dose not close.
Ɣ Is any food or food bag caught on
Ɣ Remove food and others that are caught in.
Ɣ Did a power failure occur or did
the compartment knock against any
Auto Door function stops on the way, so push in the door
with hand.
Auto Door dose
not open widely.
Ɣ
Installation site may not be levelled out.
Ɣ Don’t stored foods and others make
contact with the wall in
Ɣ Remove food and others make contact with the wall.
Opening angle of the Auto Door may vary or the door
may go back a little after it is opened automatically
depending on installation conditions of the refrigerator,
but this is not malfunction.
Lamp of open
button is off or
Auto Door won’t
open even if touching.
Ɣ,VODPSQRWOLW"
Ɣ Press button for 5 second or more until lamp on.
-
-
9
WKHFRPSDUWPHQW"
REVWDFOHGXULQJHOHFWULFDORSHUDWLRQ"
Ɣ
the Refrigerator Compartment.
Ɣ
Dew or Frost is generated
When the door is opened frequently or if the door is opened
when the humidity around the refrigerator is high, moisture
in the air may be turned into some dew on the inner wall or
chilled air blow-off port. This is not failure . Please try not to
component of the refrigerator compartment, or around the
open the door too many times or for long time. Also, please
wipe off the dew in the refrigerator compartment with adry cloth.
The humidity of the vegetable compartment is higher than other
compartments. Accordingly, depending on the amount or type of
the vegetable, dew condensation may be generated on the plastic
case of vegetable compartment. However, this is not a failure.
When you do not want to have this kind of dew, please warp your
happens many times, water may be accumulated
in the vegetable compartment. Please wipe the water off with a dry cloth.
When the humidity rises such as in rainy day, some dew many be generated on
the outer surface of the refrigerator. Please wipe the dew off with a dry cloth.
When the temperature setting is set as “Coldest”, some dew may be
generated on the outer surface of the refrigerator. Please set the
setting as “Normal”. Also, please wipe dew off with use of a dry cloth.
The door of the refrigerator
compartment was not
opened frequently or longer
time than necessary?
Storing many vegetables
containing much water?
The volume of humidity around
the refrigerator is not high?
The temperature setting is
not set as “Coldest”?
Dew is generated in
the refrigerator
compartment
Dew is generated on
outer surface of the
refrigerator
vegetables in a plastic flim. Also,when the dew condensation
Why frost and dew are generated?
When warm and humid air contacts something cold, dew is generated. For example, if you put some ice in the glass in your room,
air around the glass will be cold down and some dew may be generated on the outer surface of the glass.
In the same way, when warm and humid air enters into the refrigerator at the door opening, the warm and humid air contacts cold
inner wall and little dew may be generated.
Accordingly, if the door opening is too frequent or too long, dew will be accumulated at every door opening. In some cases,
dew may be frozen to generate some frost or ice flakes in the freezer compartment.
19
The door of the refrigerator
compartment was not left
open temporarily?
Please check not to pinch the food or plastic bag between
the door and door frame when you close the door.
Dew condensation
The door of the freezer
compartment was not left
open temporarily?
Check that the wrapping paper of the food is not getting
caught in order not to make gap between door and
door gasket when you close the door.
When the door is opened frequently or if the door
is opened when the humidity around the refrigerator
is high, moisture in the air may be turned into some
frost or ice on the inner wall or component of the
freezer compartment, or around the air chanels.
This is not a failure. Please try not to open the door
too many times or for a long time. Also, please wipe
frost or ice generated in the freezer compartment off
The door of the freezer
compartment was not
opened frequently or longer
time than necessary?
Making extra ice by using
an additional ice-tray which
was not originally installed
in the refrigerator?
When the many containers in which water or liquid is stored
are put in the same time, water or liquid may be evaporated
and turned into frost or ice on the wall or component of the
freezer compartment, or around the air channels. You can
suppress these frost and ice by putting lid to avoid evaporation
Please wipe frost and ice off with use of a dry cloth.
Frost or ice is generated in
the freezer compartment
with use of a dry cloth.
Possible causes and / or Recommened solutionsPlease check hereGeneral operation

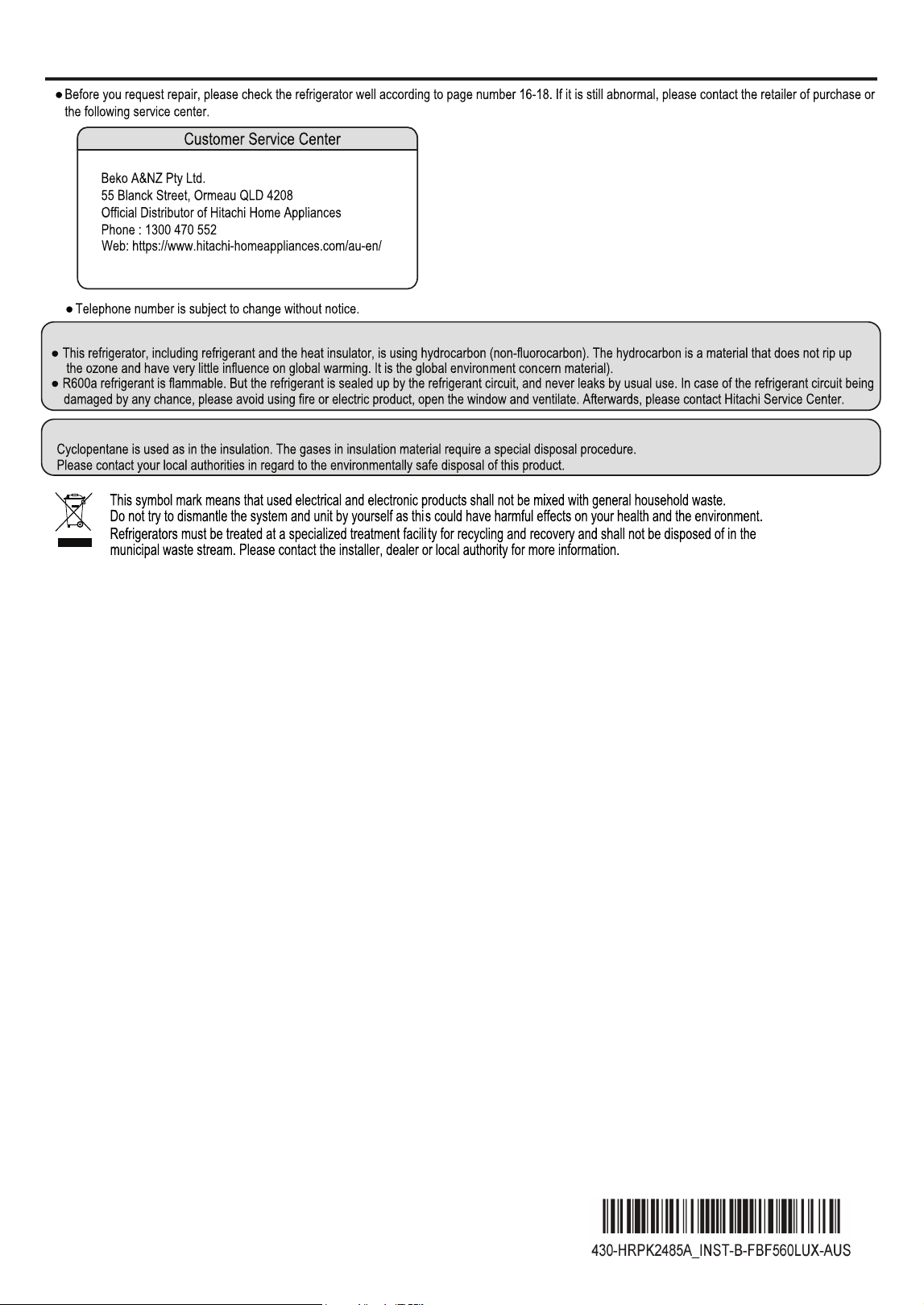

Service Center
About Non-fluorocarbon refrigerator
Sever warning signs for Disposal
(AD)
Manufactured by Arcelik Hitachi Home Appliances (Thailand) Ltd.
610/1 Moo 9 Tambol Nongki, Amphur Kabinburi,Prachinburi 25110 Thailand
