MTX.COM
MUD65PL

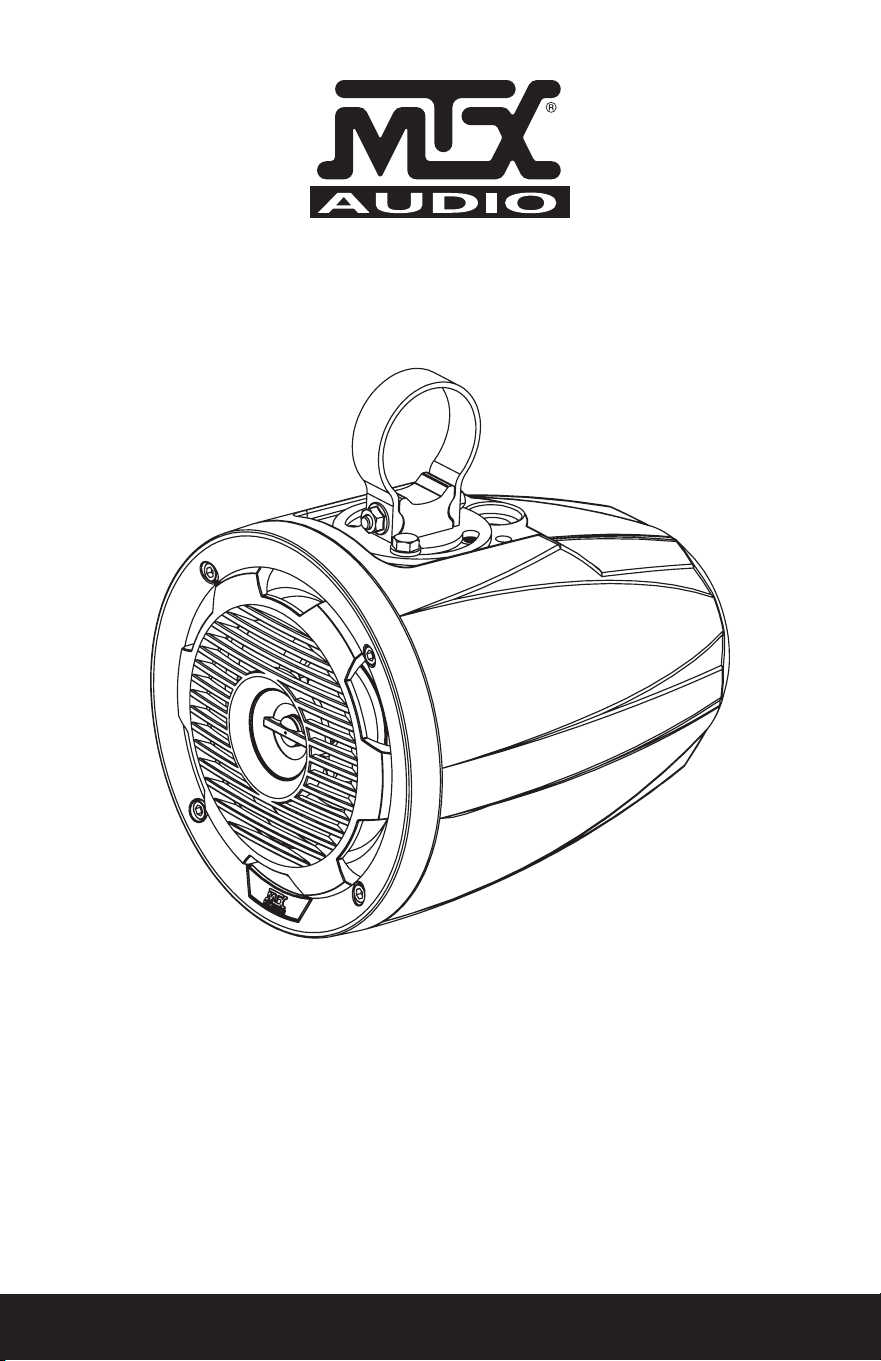

CAGE MOUNT SPEAKER WITH RGB LEDS
OWNER’S MANUAL
MTX.COM
2
THANK YOU
Thank you for making the AWESOME decision to purchase our MTX Audio cage mount speaker
pod. This high performance speaker features all-weather construction designed to deliver exceptional
sound quality and volume for high output systems for those that love to hear their music wherever they
are. Additionally, each speaker enclosure includes a RGB LED light kit that enables customization of the
speaker lighting color on the grille. So, what are you waiting for? It’s time to get the rumble in your ride
and go hit the trails! Oh, and congratulations on your purchase, thanks for your support and most
importantly, enjoy the ultimate audio experience with MTX!
WE’RE HERE TO HELP
We’re here to help with any installation or technical support. Visit mtx.com to chat, call
1-800-225-5689 to speak with an MTX Technical Support representative, or visit
youtube.com/user/MTXAudioUSA to view product videos.
DON’T FORGET TO REGISTER YOUR PRODUCT
Don’t forget to register your new MTX Audio product. Visit mtx.com/productregistration or scan the
QR code to the right.
Model #
Serial #
Dealer’s Name
Date of Purchase
IMPORTANT NOTICE
Whenever working on the vehicle, it is recommended to disconnect the battery prior to starting work.
Failure to do so may lead to a risk of electric shock or equipment damage.
When connecting power and ground wires ensure that the red power wire is fused at the point
where it is connected to the vehicle’s battery. Failure to do so can result in damage to the vehicle if a
short circuit develops between the vehicle connection point and the product.
MTX.COM
3
FEATURES
• Integrated RGB LED Lighting
• Includes Rotating Brackets for 1.75", 1.85", and 2" Bars
• ABS Impact Resistant Enclosure and Grille with UV Inhibitor
• Polypropylene Woofer and Mylar Dome Tweeter
SPECIFICATIONS
• RMS Power Handling: 50-Watts
• Peak Power Handling: 100-Watts
• Sensitivity (2.83V/1m): 89.9dB
• Sensitivity (1W/1m): 85.6dB
• Frequency Response: 70Hz - 20kHz
• Impedance: 4Ω
• Fits Bars 1.75", 1.85", and 2"
WIRE COLOR
• Grey / Black: +/- speaker wire
• Black / Red / Green / Blue: +/ground speaker illumination
IN THE BOX
• Speaker and Enclosure
• Brackets
• For Mounting the Bracket Base to the Enclosure
(8) M6-1.0x14mm Stainless Steel Hex Bolt
(8) M6 Stainless Steel Flat Washer
(8) M6 Stainless Steel Split Lock Washer
• For Tightening the Bracket Strap to the Base
(2) M6-1.0x50mm Stainless Steel Hex Bolt
(2) M6 Stainless Steel Serrated Flange Lock Nut
MTX.COM
4
INSTALLATION
1. Choose appropriate bracket clamp, 1.75", 1.85", and 2", for the application. If using the MUD65PL
withaProFitorProlestyleenclosure,useoptionalbracketMUDPFC,toattachspeaker
enclosure to cage.

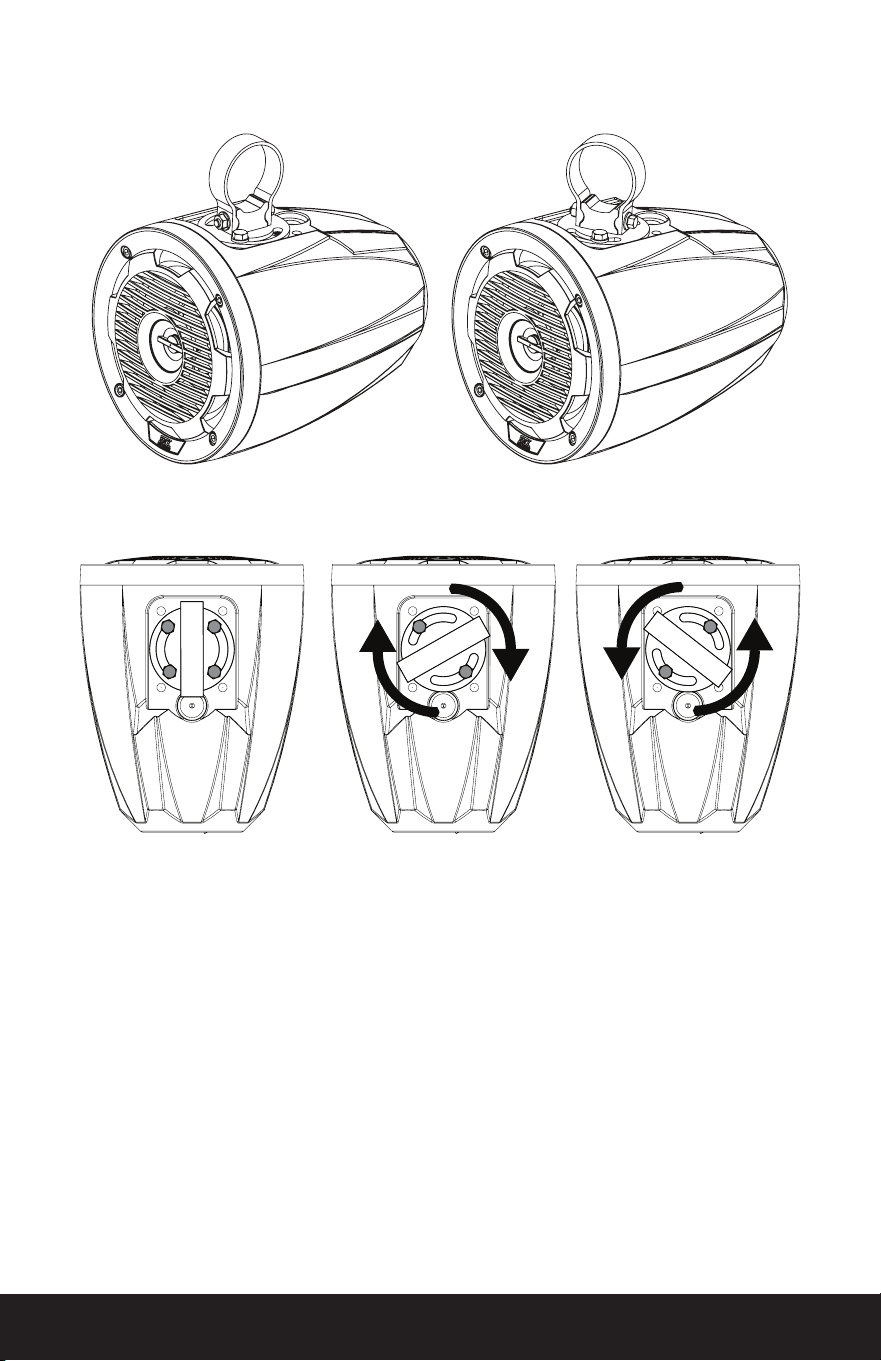

2. Attach bracket base to enclosure at desired angle using a minimum of two (2) M6-1.0x14mm Hex
bolts and M6 lock washers. If only two (2) bolts are used, ensure there is a bolt on each side of
the round base for secure mounting.
3. Slide bracket clamp over pipe or bar at desired mounting location.

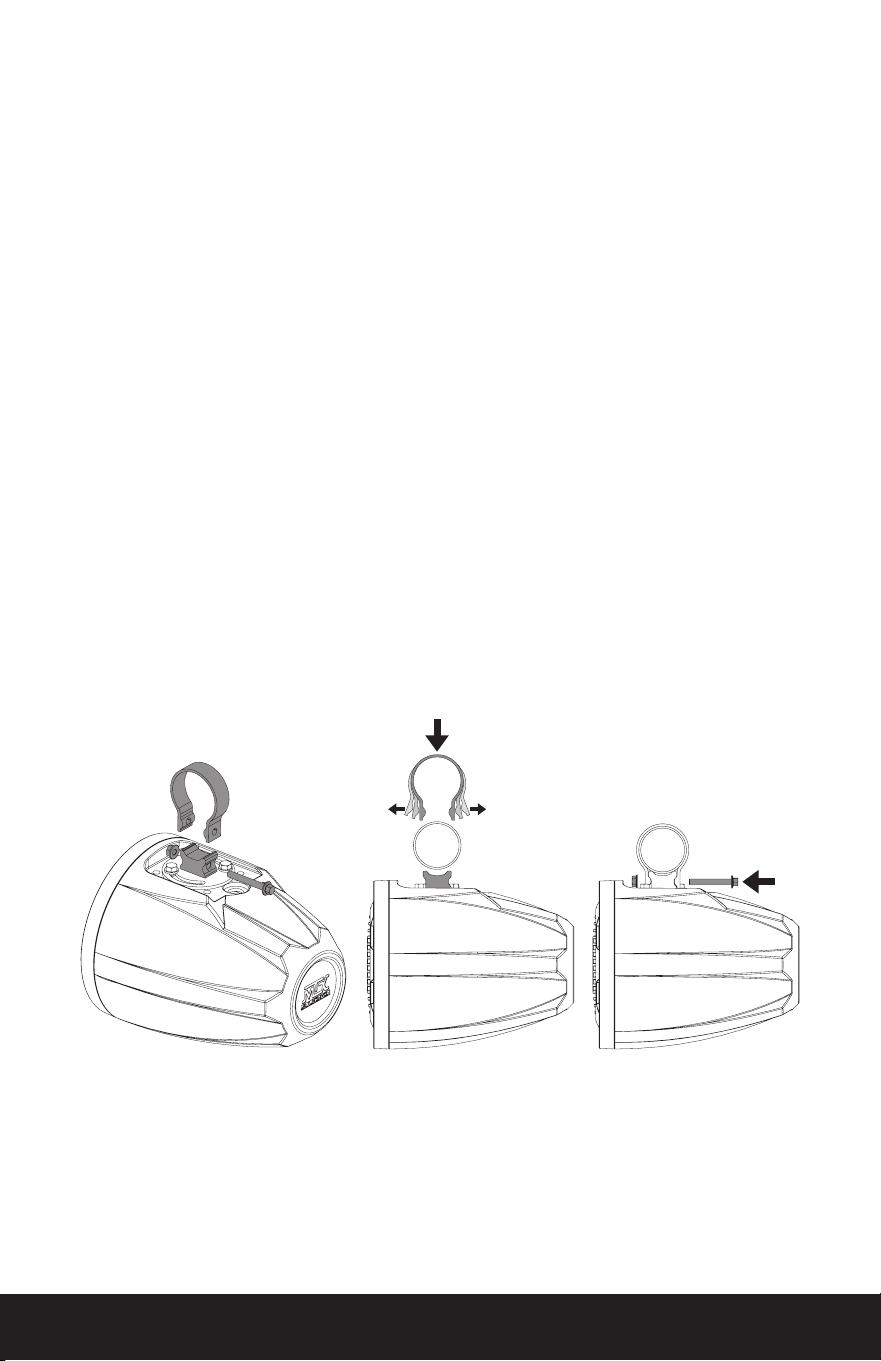

4. Holdtheenclosureinplacewherethebasetsintheopensectionoftheclamp.Thenplacethe
M6-1.0x50mm Hex bolt through making sure the threads are towards the front of the enclosure.
See Figure 1.
5. Tighten the M6 serrated nut onto the bolt until the bracket is tight. The nut is serrated and will lock
in place. The speaker will not rotate on the bar if it is mounted when these are fully tightened.
6. Adjust and tighten the bolts to the desired position making sure to use a minimum of two bolts.
Depending on the position of the speaker, only two (2) insertion points will be usable.
7. Attach the MTX badge to the rear recess of the enclosure with the included double stick tape.
8. ConnectthespeakerwirestoyouramplierensuringcorrectpolarityGreytopositiveand
Black to negative. The MUD65PL includes speaker illumination. When hard-wiring the RGB
lighting, the Black lead is +12V and the Red, Green, and Blue leads are ground. There are seven
colorsavailable,dependingonthewiringconguration.MTXrecommendsusingtheMUDLEDC
remote control (sold separately) for more colors, patterns and special effects. See Figure 2.
Figure 1
MTX.COM
5
Figure 2

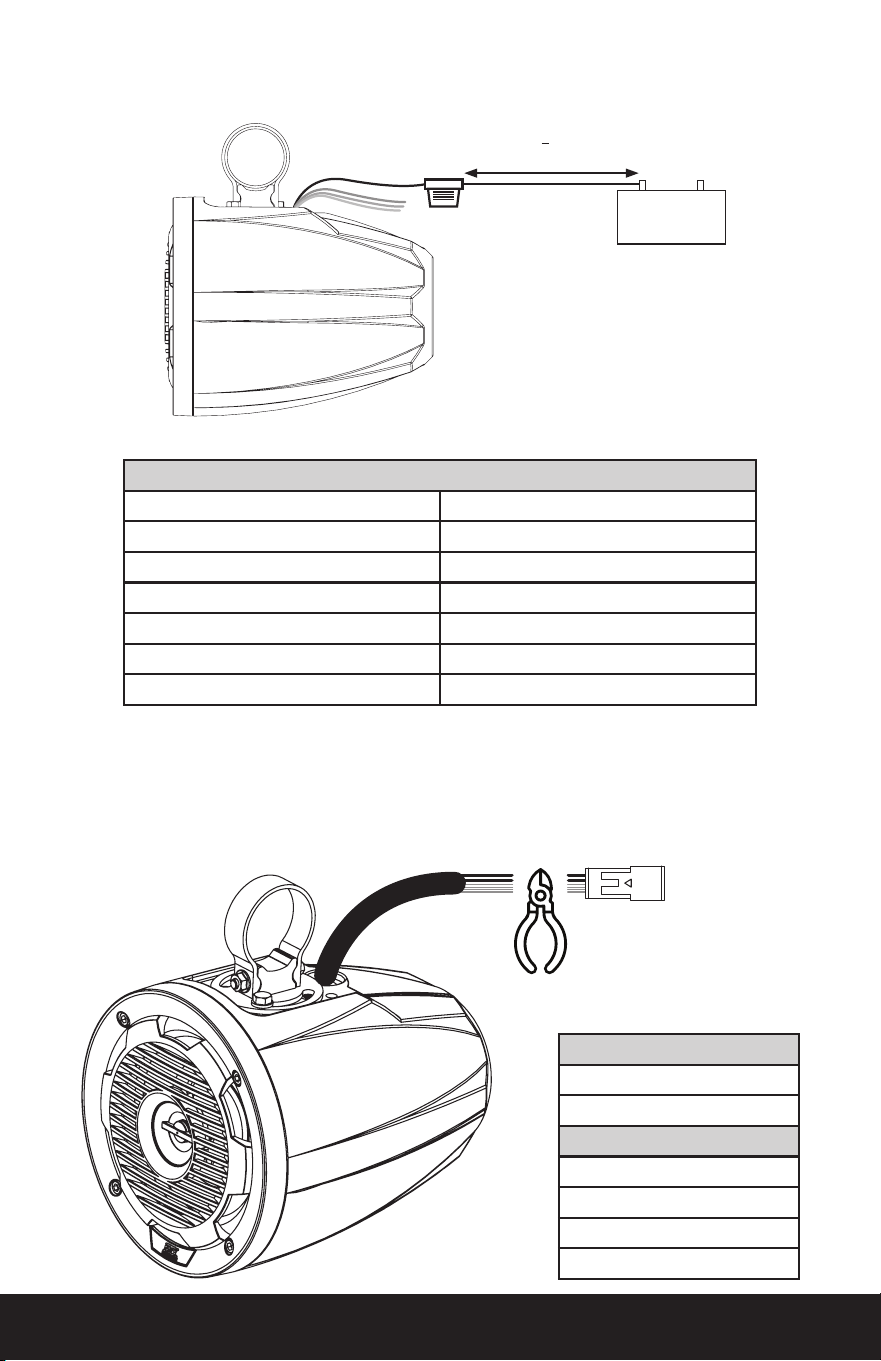

MUD65PL UNIVERSAL UTV AUDIO KIT INSTALLATION
The MTX Audio MUD65PL coaxial speaker pods come factory equipped with a wiring plug that is
specicallydesignedtopairwithourVehicleSpecicThunderAudioKits.IfusingtheMUD65PLina
UniversalKitorindividually,thewiringplugmustberemovedfromtheMUD65PLandthespeaker
simply hardwired into the system.
RGB Ground
+12V –
2A Fuse (max)
(sold separately)
<
7"
(17.5cm)
+12V
Color Combinations: Splice and combine the ground wires to yeild a different color.
Red Red
Green Green
Blue Blue
Red / Green Lime Green
Red / Blue Magenta
Green / Blue Aquamarine
Red / Green / Blue Blue-White
Speaker Wire
Gray (+)
Black (–)
LED Wire
Red
Green
Blue
Black
MTX.COM
6
The bracket base can rotate in any direction desired, a minimum of 2 bolts must be used, 1 on each side.
MTX.COM
7
WARRANTY PERIOD
At MTX Audio we engineer products that will stand up to the test of time. We also realize that from
time to time a problem may occur. That’s why our products carry a 2-year limited warranty that begins
at the time of sale to the end user.
Of course, we’re here to help. If you experience an issue with any of our products within the warranty
period, please contact our customer service technical line at 1-800-CALL-MTX to help troubleshoot
your issue. If, after speaking with our technical experts it is determined that a problem lies with the
product, the technician will provide you with a Return Authorization number and all relevant details
you’ll need to get the product taken care of.
MITEK WARRANTY
MiTek Mobile products (including, but not limited to: MTX, Coustic, Streetwires, Xtant, BassSlammer,
andThunderMarine)purchasedintheUSAfromanAUTHORIZEDMITEKDEALERareguaranteed
againstdefectsinmaterialandworkmanshipfortheperiodoftimespecied.Thewarrantyperiod
begins the day the product is purchased by the end user, and this warranty is limited to the original
retail purchaser of product. Products found to be defective during the warranty period will be
repaired or replaced with equivalent product by MiTek at no charge. This warranty is void if it is
determined that unauthorized parties have attempted repairs or alterations of any nature, and the
warrantydoesnotextendtocosmeticsornish.MiTekdisclaimsanyliabilityforotherincurredor
consequential damages resulting from product defects. MiTek’s total liability will not exceed the
purchase price of the product.
MTX.COM
8
© 2020 MiTek Corporation. All rights reserved. MTX is a trademark of MiTek Corporation. All other trademarks
are property of their respective owners. Designed and Engineered in the U.S.A.
Due to continual product development, all specications are subject to change without notice.
MTX Audio, 4545 East Baseline Rd. Phoenix, AZ 85042 U.S.A. 1-800-225-5689
MTX005835 RevB 11/20 • 21A10844 • AW0015909
