HFW-2S
BUILT-IN WELL HOT FOOD WELLS
WITH INFINITE THERMOSTAT
MODELS:
HFW-1S, HFW-1DS, HFW-2S, HFW-2DS, HFW-3S,
HFW-3DS, HFW-4S, HFW-4DS, HFW-5S, HFW-5DS
OWNERS MANUAL
2M-Z24235 Rev. - 05/21
is a registered trademark of APW Wyott®, A Middleby Company. All rights reserved.
This manual includes material related to installation, use , cleaning, and care. Exploded view[s], as well as any available
parts list[s] and wiring diagram[s] pertaining to the unit[s] covered by this manual are also included.
This manual must be read and understood by all persons using or installing this appliance. Contact your APW Wyott
dealer if you have any questions concerning installation, use, or maintenance of this equipment.
DO NOT DISCARD THIS MANUAL.
HFW-1S
2M-Z24235 Owners Manual for Built-In Hot Food Well Warmers
LIMITED EQUIPMENT WARRANTY
APW warrants to the original purchaser of new APW's products to be
free from defects in material or workmanship, under normal and proper
use and maintenance service as specified by APW and upon proper
installation and start-up in accordance with the instructions
supplied with each APW unit. APWs’ obligation under this warranty is
limited to a period of one [1] year from the date of original installation, or
eighteen [18] months from original invoice date, whichever occurs first.
Defects that occur as a result of normal use, within the time period and
limitations defined in this warranty, will at APWs’ discretion have the parts
replaced or repaired by APW or a APWs-authorized service agency.
THIS WARRANTY IS SUBJECT TO ALL LISTED CONDITIONS
Repairs performed under this warranty are to be performed by an
APW authorized service agency. APW will not be responsible for
charges incurred or service performed by non-authorized repair
agencies. In all cases, the nearest APW-authorized service agency must be
used. APW will be responsible for normal labor charges incurred in
the repair or replacement of a warrantied product within 50 miles
(80.5 km) of an authorized service agency. Time and expense charges
for anything beyond that distance will be the responsibility of the owner.
All labor will need to be performed during regular service hours. Any
overtime premium will be charged to the owner. For all shipments
outside the U.S.A. and Canada, please see the International Warranty
for specific details. It is t
he responsibility of the owner to inspect
and report any shipping damage claims, hidden or otherwise, promptly
following delivery. No mileage or travel charges will be honored on any
equipment that is deemed portable. In general, equipment with a cord
and plug weighing less than 50 lb. (22.7 kg) is considered portable and
should be taken or shipped to the closest authorized service agency,
transportation prepaid.
CONTACT
Should you require any assistance regarding the operation or maintenance
of any APW Manufacturing; phone or email our service department. In all
correspondence provide the model number and serial number of the unit
needing service; include the voltage or gas type.
Normal Business Hours: 8:00 a.m. to 4:30 p.m. Central
Telephone: 800-264-7827 Tech Service Option 2
Email: [email protected]
www.apwwyott.com
WARRANTY EXCLUSIONS
THE FOLLOWING WILL NOT BE COVERED UNDER WARRANTY.
APWs’ sole obligation under this warranty is limited to either repair
or replacement parts, subject to the additional limitations
detailed below. This warranty neither assumes nor authorizes any
person to assume obligations other than those expressly
covered by this warranty.
• Any product which has not been used, maintained, or installed in
accordance with the directions published in the appropriate
installation sheet and/or owner’s manual, including incorrect gas or
electrical connection. APW is not liable for any unit which has been
mishandled, abused, misapplied, subjected to harsh chemicals,
modified by unauthorized personnel, damaged by flood, fire, or other
acts of nature [or God], or which have an altered or missing serial
number.
• Installation, labor, and job checkouts, ca
libration of heat controls,
air and gas burner/bypass/pilot adjustments, gas or electrical system
checks, voltage and phase conversions, cleaning of equipment, or
seasoning of griddle surface.
• Replacement of fuses or resetting of circuit breakers, safety
controls, or reset buttons.
• Replacement of broken or damaged glass components, quartz
heating elements, and light bulbs.
• Labor charges for all removable and consumable parts in gas
charbroilers and hotplates, including but not limited to burners,
grates, and radiants.
• Any labor charges incurred by delays, waiting time, or operating
restrictions that hinder a service technician’s ability to perform
service.
• Replacement of parts that fail or are damaged due to normal wear
or labor for replacement of parts that can be replaced during a daily
cleaning routine, such as but not limited to silicone belts, PTFE non-
stick sheets, control labels, knobs, bulbs, fuses, quartz heating
elements, baskets, racks, and grease drawers.
• Any economic loss of business or profits.
• Non-OEM parts. Use of non-OEM parts without APWs’ approval
will void the warranty.
• Units exceeding one [1] year from original installation date, or more
than eighteen [18] months from original invoice date, whichever
comes first.
ADDITIONAL WARRANTIES
• Specific/chain-specific equipment may have additional and/or
extended warranties.
The foregoing warranty is in lieu of any and all other warran�es
expressed or implied and cons�tutes the en�re warranty.
xi
2M-Z24235 Owners Manual for Built-In Hot Food Well Warmers
WARRANTY xi
SPECIFICATIONS 1
FEATURES & OPERATING CONTROLS 2
PRECAUTIONS & GENERAL INFORMATION 3
AGENCY LISTING INFORMATION 3
INSTALLATION 4
OPERATION 6
CLEANING INSTRUCTIONS 8
TROUBLESHOOTING SUGGESTIONS 10
MAINTENANCE INSTRUCTIONS 11

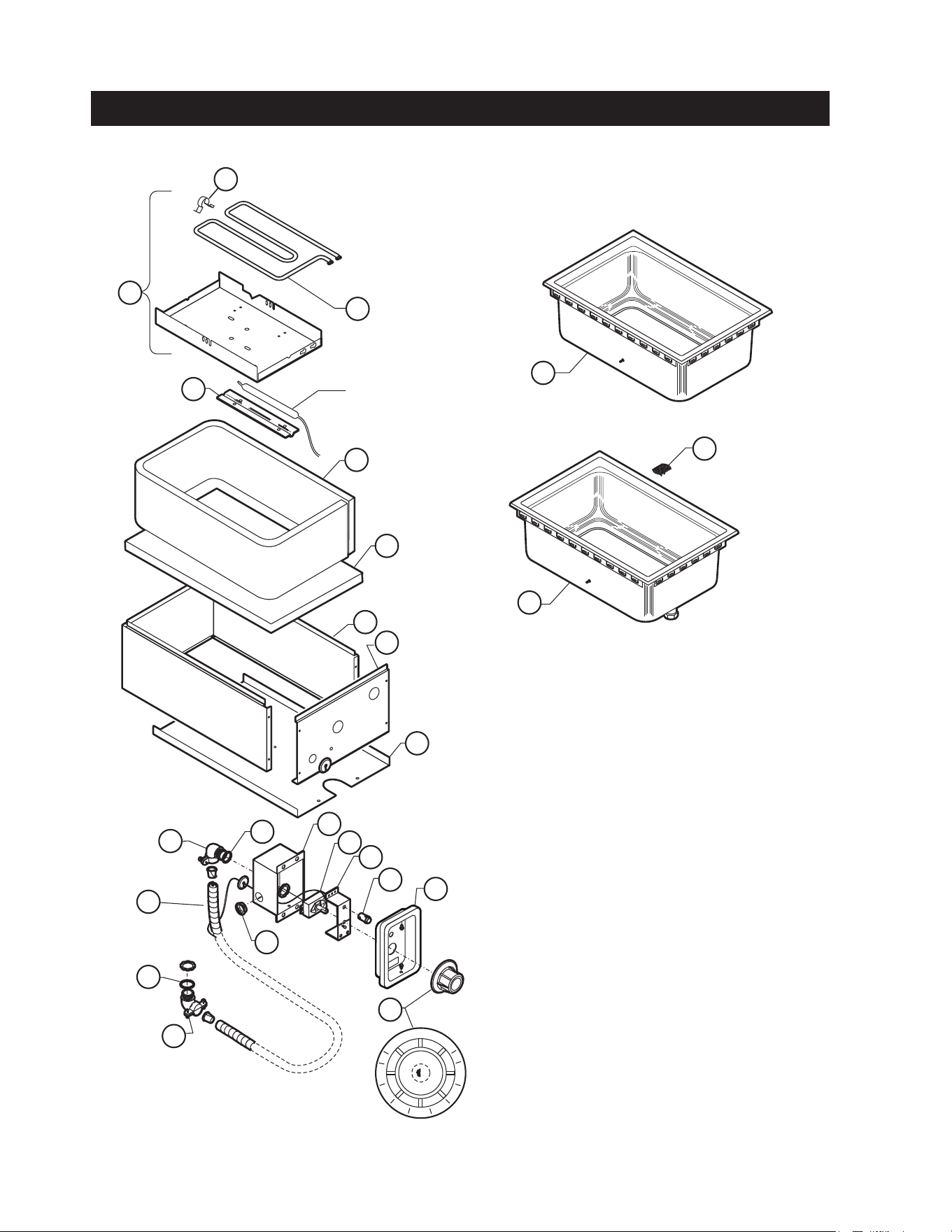

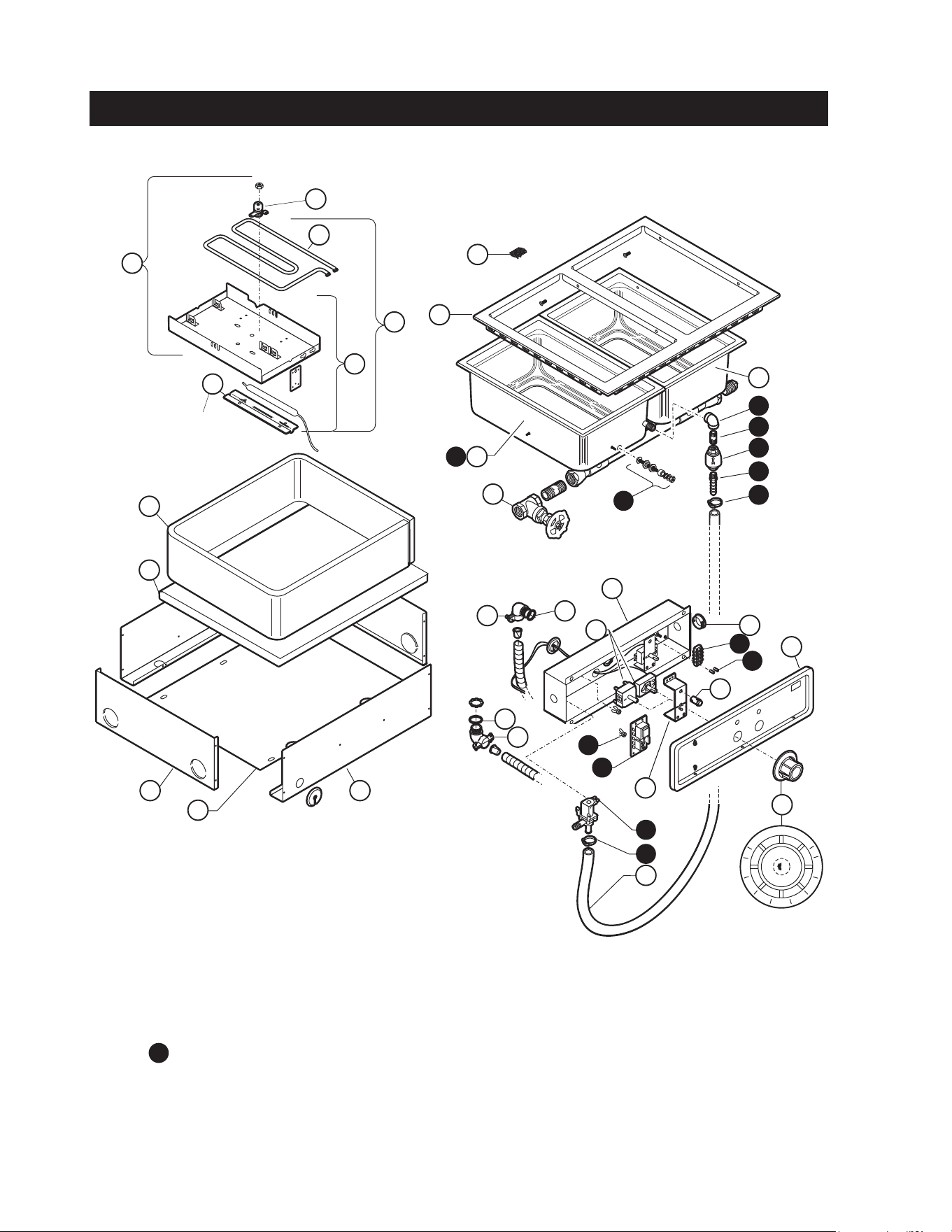

EXPLODED VIEW & PARTS LIST 12 - 20

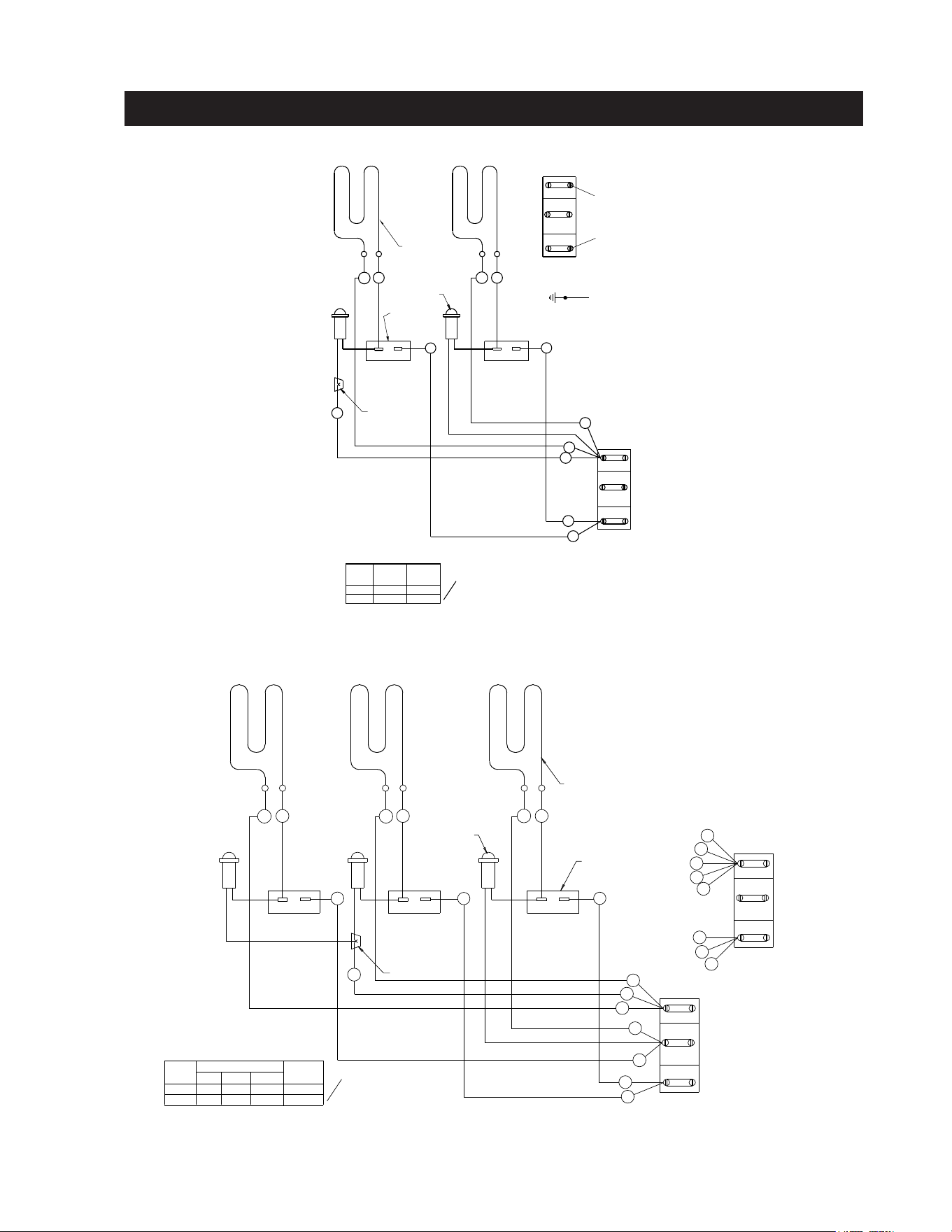

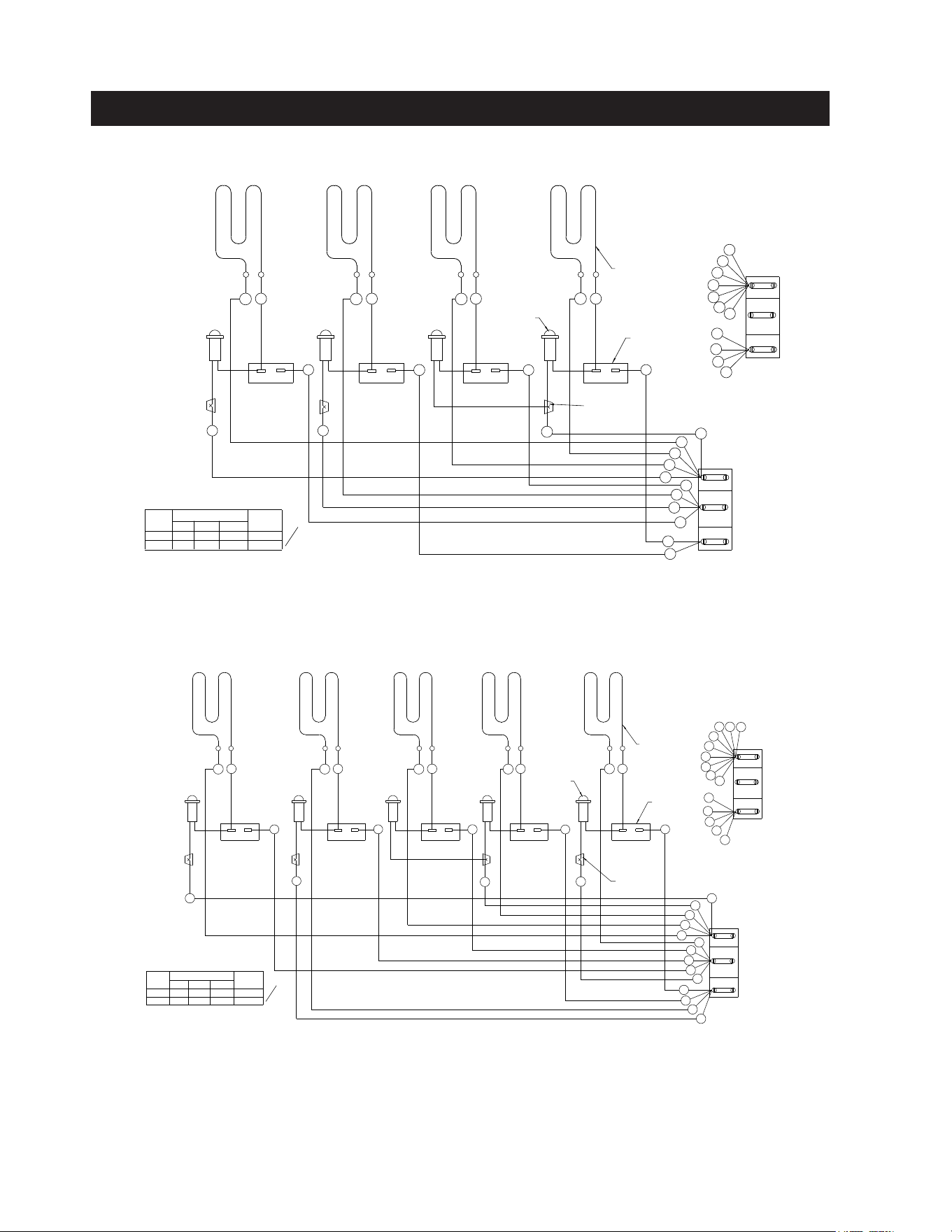

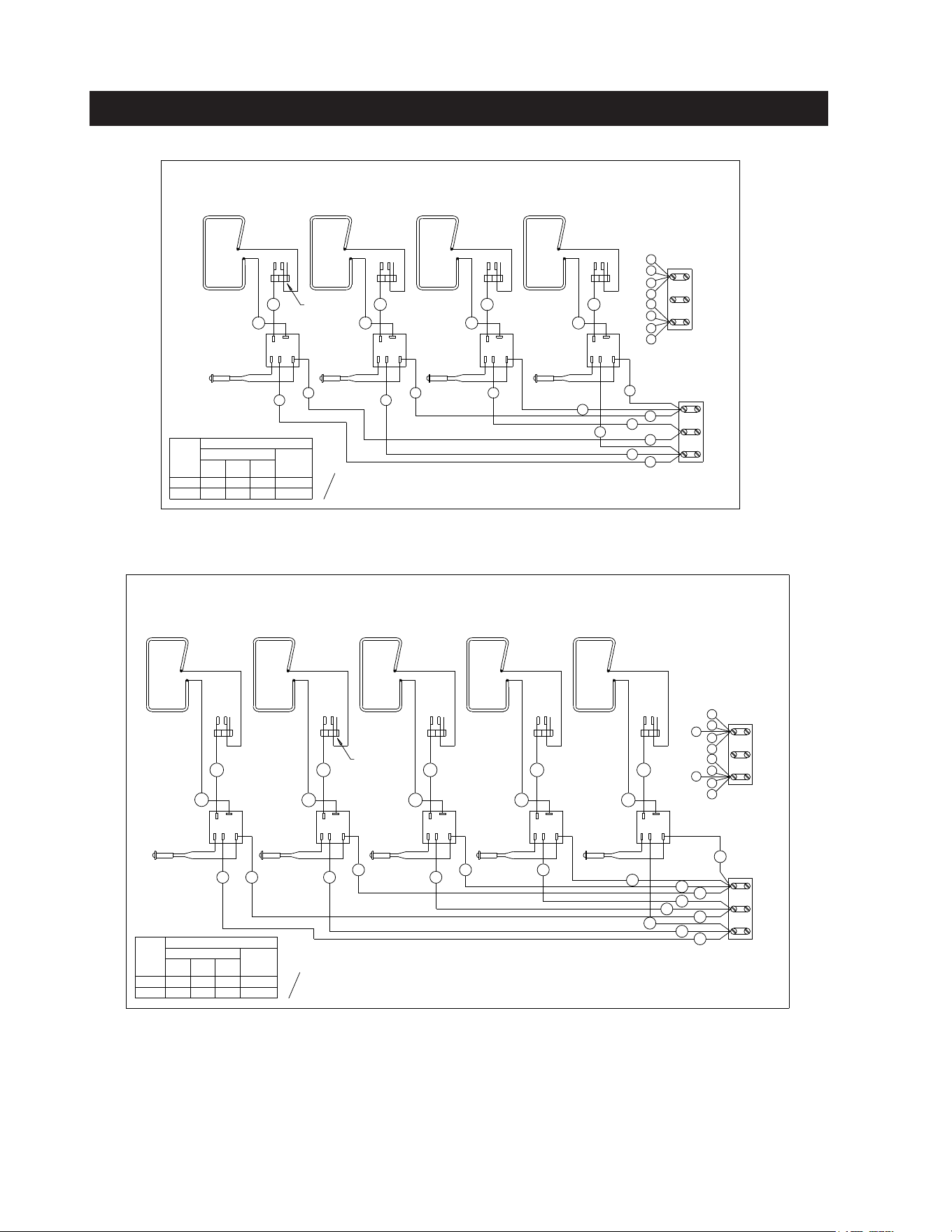

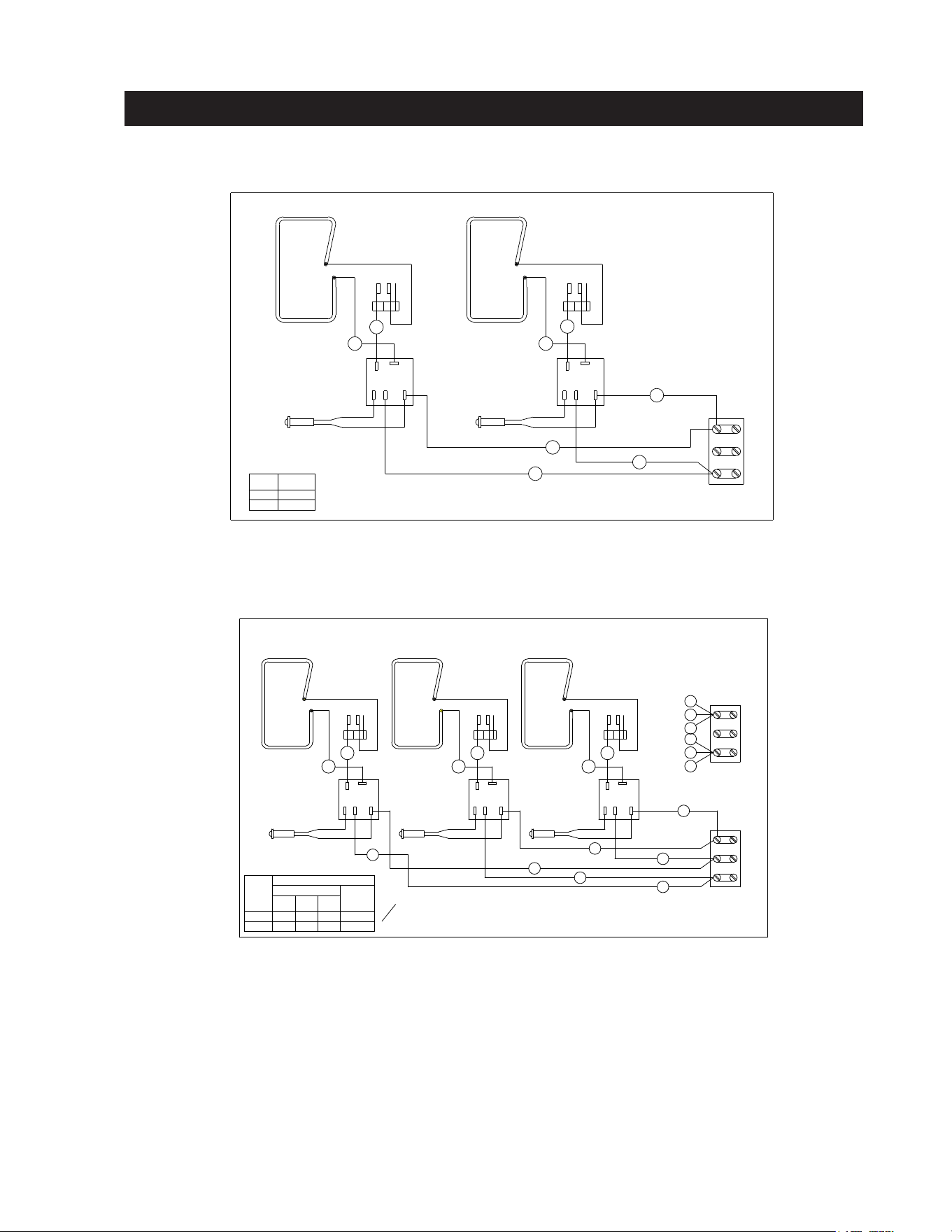

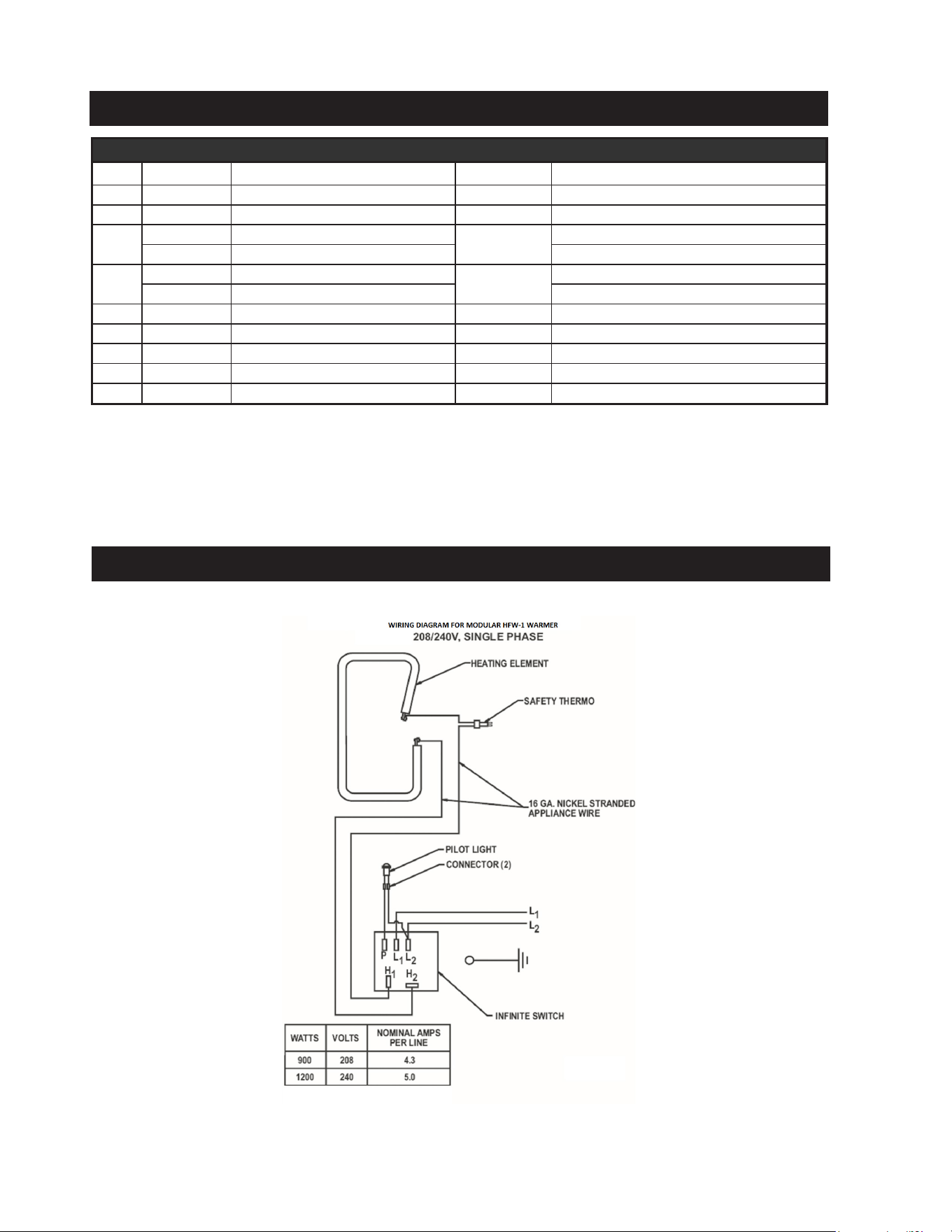

WIRING DIAGRAM 20 - 24
PARTS & SERVICE 25
CUSTOMER SERVICE DATA 26
Thank You for purchasing this APW Wyott Manufacturing appliance.
Proper installation, professional operation and consistent maintenance of this appliance will ensure that it
gives you the very best performance and a long, economical service life.
This manual contains the information needed to properly install this appliance, and to use and care for the
appliance in a manner which will ensure its optimum performance.
TABLE OF CONTENTS
INTRODUCTION
SPECIFICATIONS (Innite)
MODEL VOLTS WATTS
AMPS 3ø
AMPS1ø
L1 L2 L3
HFW-1S
HFW-1DS
120V 1600W
- - -
13.8A
208V 1240W
- - -
6.0A
240V 1600W
- - -
6.9A
HFW-2S
HFW-2DS
208V
1800W -
- - 8.7A
240V
2400W - - - 10.0A
HFW-3S
HFW-3DS
208V 2700W 7.5A 7.5A 7.5A 13.0A
240V 3600W 8.7A 8.7A 8.7A 15.0A
HFW-4S
HFW-4DS
208V 3600W 11.2A 11.2A 7.5A 17.3A
240V 4800W 13.0A 13.0A 8.7A 20.0A
HFW-5S
HFW-5DS
208V 4500W 15.0A 11.2A 11.2A 21.6A
240V 6000W 17.0A 13.0A 13.0A 25.0A
SPECIFICATIONS (Thermostat)
MODEL VOLTS WATTS
AMPS 3ø
AMPS1ø
L1 L2 L3
HFW-2DTS 208 VAC 2480W 6.0A 6.0A 10.3A 11.9A
HFW-3DTS 208 VAC 3725W 10.3A 10.3A 10.3A 17.9A
HFW-4DTS 208 VAC 4960W 14.5A 14.5A 9.8A 23.8A
1
2M-Z24235 Owners Manual for Built-In Hot Food Well Warmers

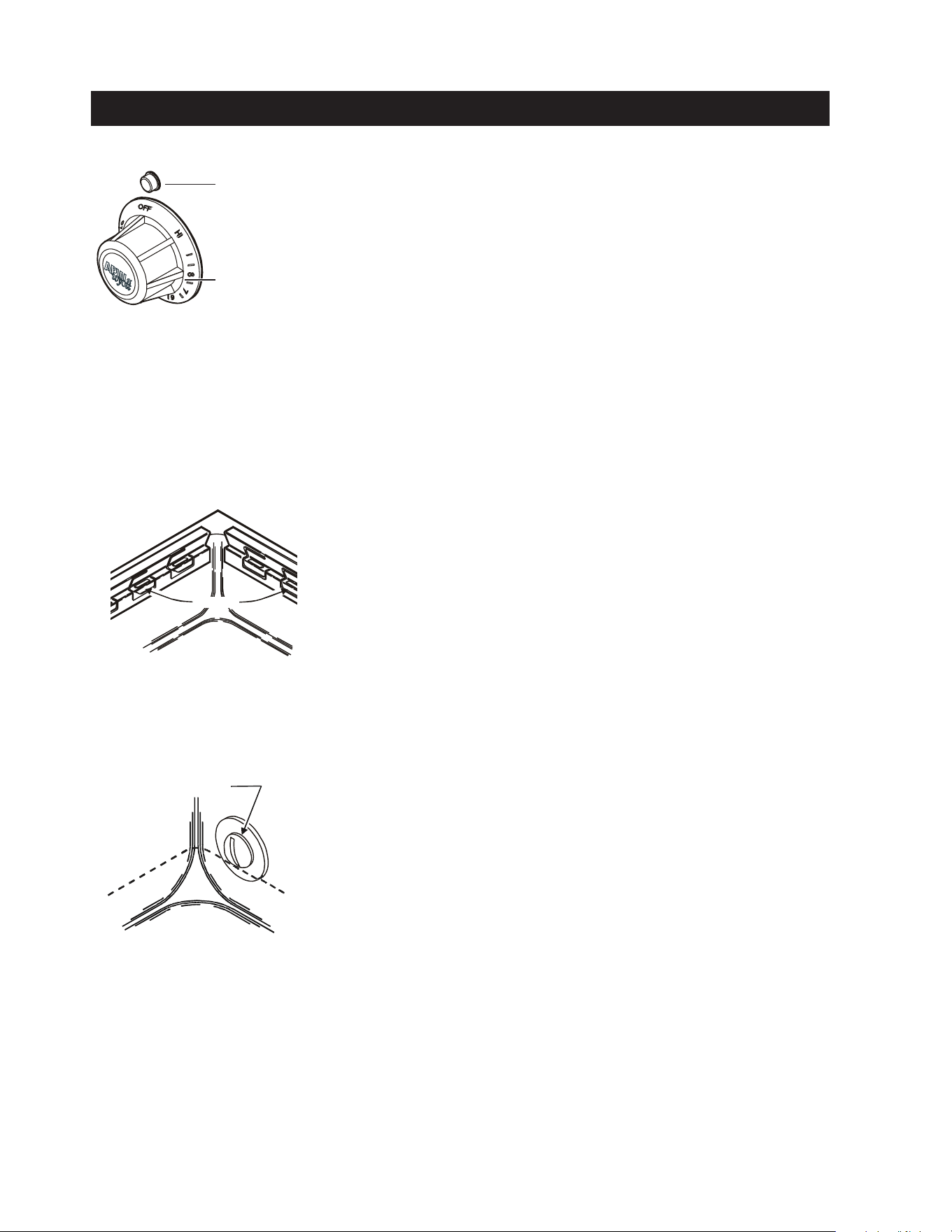

FEATURES & OPERATING CONTROLS
A. THERMOSTAT
1. On thermostatically controlled warmers, power is applied to the
heating element according to the control knob position and the actual
temperature at the temperature sensing thermobulb.
2. The desired temperature is controlled by rotating the temperature
control knob. The knob has a numeric scale, where higher numbers
correspond to higher temperature.
3. On warmers equipped with an indicator light, the light will glow when
the thermostat is calling for heat (i.e. the element is energized).
4. The TEMPERATURE CONTROL KNOB will rotate approximately 300º,
and will reach a “stop” at both ends.
The OFF position is marked.
NOTE: The dial position is an indication of the temperature setting. Actual
temperature will vary depending upon the type of product and food
consistency.
A. INFINITE SWITCH
1. On INFINITE SWITCH CONTROLLED warmers, power is applied to
the heating element based on the control knob position, which varies
the duty cycle of the heating element.
2. The desired temperature is controlled by rotating the TEMPERATURE
CONTROL KNOB. The knob may have a numeric scale, where
higher numbers correspond to higher temperature. LO is the lowest
temperature setting; PREHEAT is a “continuous on” setting. Innite
switch controlled warmers are equipped with a hi-limit device to prevent
overheating. The hi-limit will self-reset after the warmer has cooled.
3. On warmers equipped with an INDICATOR LIGHT, the light will glow
when the innite switch is in any position other than OFF.
4. The TEMPERATURE CONTROL KNOB will rotate without stopping,
with PREHEAT and OFF having obvious detents. The OFF position is a
“positive” OFF (i.e. the switch is positively held in the open position).
NOTE: An innite switch controls temperature by varying the ratio of “on”
time to “o” time. Thus, no temperature sensing devise is required.
B. MOUNTING

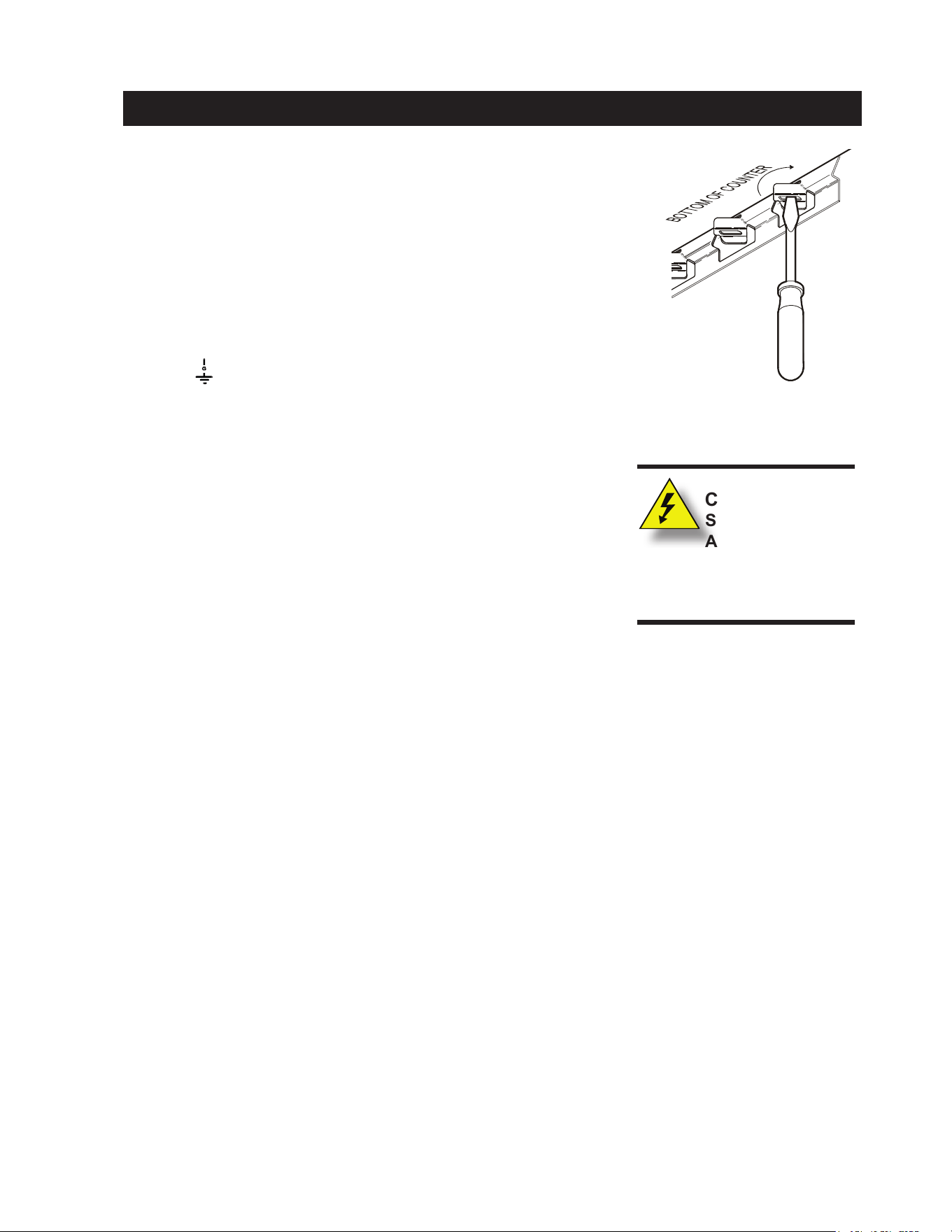

1. Built-in warmers are equipped with E-Z Lock, uniquely designed turnout
tabs which help secure the warmer top ange to the countertop.
2. See the Installation Instructions, supplied with the particular appliance.
C. DRAINS
1. Models with a “D” have drains for each pan, with each pan having an
individual drain valve.
D. AUTOFILL
1. On AUTOFILL units, water level is automatically fed into the
“master” pan whenever that pan’s thermostat is ON .
2. Water level is sensed by a WATER LEVEL PROBE in the “master” pan.
INDICATOR
LIGHT
TEMPERATURE
CONTROL
KNOB
IL2468-011B-2
IL2524
WATER LEVEL
SENSOR
WATER LEVEL
IMPORTANT:
DO NOT LEAVE ON
“PREHEAT”
Unit may cycle on hi-limit
control, leading to premature
failure of the hi-limit controls
device.
E-Z LOCK
2
2M-Z24235 Owners Manual for Built-In Hot Food Well Warmers
PRECAUTIONS AND GENERAL INFORMATION
E6070
AGENCY LISTING INFORMATION
Refer to the product nameplate for the specic appliance for agency
listings. In general:
This appliance conforms to NSF Standard 4 for sanitation only if
installed in accordance with the supplied Installation Instructions.
UL Listed warmers are U Listed under UL File E6070.
STD 4
UL Listed Warmers
WARNING:
SHOCK HAZARD
All servicing requiring
access to non-insulated
electrical components must
be performed by a factory
authorized technician.
DO NOT open any access
panel which requires the use
of tools. Failure to follow this
warning can result in severe
electrical shock.
CAUTION:
RISK OF
DAMAGE
DO NOT connect or energize
this appliance until all
installation instructions are
read and followed. Damage
to the appliance may result
if these instructions are not
followed.
CAUTION:
HOT SURFACE
Exposed surfaces
can be hot to the touch and
may cause burns.
This appliance is intended for use in commercial establishments only.
This appliance is intended to hold pre-heated food for human
consumption. No other use is recommended or authorized by the
manufacturer or its agents.
Operators of this appliance must be familiar with the appliance use,
limitations and associated restrictions. Operating instructions must be
read and understood by all persons using or installing this appliance.
Cleanliness of this appliance is essential to good sanitation. Read and
follow all included cleaning instructions and schedules to ensure the
safety of the food product.
Disconnect this appliance from electrical power before performing any
maintenance or servicing.
This appliance is not jet stream approved. Do not direct water jet
or steam jet at this appliance, or at any control panel or wiring. Do
not splash or pour water on, in or over any controls, control panel or
wiring.
Exposed surfaces of this appliance can be hot to the touch and may
cause burns.
Do not operate this appliance if the control panel is damaged. Call
your Authorized APW Wyott Service Agent for service.
The technical content of this manual, including any wiring diagrams,
schematics, parts breakdown illustrations and/or adjustment
procedures, is intended for use by qualied technical personnel.
Any procedure which requires the use of tools must be performed by a
qualied technician.
This manual is considered to be a permanent part of the appliance.
This manual and all supplied instructions, diagrams, schematics,
parts breakdown illustrations, notices and labels must remain with the
appliance if it is sold or moved to another location.
This appliance is made in the USA. Unless otherwise noted, this
appliance has American sizes on all hardware.
3
2M-Z24235 Owners Manual for Built-In Hot Food Well Warmers
NOTE: DO NOT discard
the carton or other packing
materials until you have
inspected the appliance for
hidden damage and tested it
for proper operation. Refer to
SHIPPING DAMAGE CLAIM
PROCEDURE on the inside
front cover of this manual.
WARNING:
RISK OF INJURY
Installation procedures must
be performed by a qualied
technician with full knowledge
of all applicable electrical and
plumbing codes. Failure can
result in personal injury and
property damage.
CAUTION
FIRE HAZARD
Avoid storing ammable or
combustible materials in, on or
near the appliance.
IMPORTANT: For warmers
installed in plastic counter
tops, the counter material
must be protected from the
heat of the warmer in order
to prevent discoloration and/
or deterioration. E-Z Lock are
not suitable for this purpose.
The installer should contact
the manufacturer or distributor
of the countertop material for
specic instructions.
IMPORTANT: E-Z Lock
Extension Kits must be
used ONLY with UL Listed
warmers approved for
installation in wood counter
tops. Refer to the Installation
Instructions provided with the
warmer.
UNPACKING & INSPECTION
Carefully remove the appliance from the carton. Remove all protective
plastic lm, packing materials and accessories from the Appliance
before connecting electrical power or otherwise performing any
installation procedure.
Carefully read all instructions in this manual and the Installation
Instruction Sheet packed with the appliance before starting any
installation.
Read and understand all labels and diagrams attached to the unit.
Carefully account for all components and accessories before discarding
packing materials. Store all accessories in a place for later use.
INSTALLATION NOTES
1. Installation and start up of built-in warmers MUST be performed
by an authorized installation company.
2. It is the responsibility of the installer to verify that this warmer
installation is in compliance with the specications listed in this
manual and on the specication sheet provided.
3. It is the RESPONSIBILITY OF THE INSTALLER to check with
the authority having jurisdiction, in order to verify that this warmer
installation is in compliance with local code requirements.
4. Water supply and drain installation must meet all applicable
local, state and federal plumbing codes and ordinances.
5. Refer to Installation Instructions included with the warmer for
Underwriters Laboratories conditions of acceptability, electrical
requirements and other installation concerns.
BUILT-IN WARMERS
1. This is a GENERAL GUIDE. For specic cutout dimensions
and other installation details, refer to the Installation Instructions
supplied with the warmer.
2. Cutout dimensions for warmer units and control panels are listed
on the Installation Instructions provided with the warmer.
NOTE: Cutout dimensions are dierent for auto-ll and non auto-ll
units, control panels, and for wood and metal counters. Verify the
dimensions are correct for the installation before making the cutout.
Specic cutout specications are list on the installation sheet included
with the unit.
3. For “top-mounted” warmers (i.e. warmers mounted from above the
counter top):
a. Verify that provided sealants are applied to the underside of the
warmer top ange prior to setting the unit into the cutout.
b. After installation, verify that the tabs on the E-Z Lock are turned
out to lock the warmer into the counter.
c. Apply a thin bead of food-grade silicone sealant around the ange
to seal it to the counter.
d. E-Z Lock extension kits are available for installing warmers in
counter tops where the standard E-Z Lock would not normally
reach. The extension kit will adapt to counter tops up to 1¾” thick.
INSTALLATION
4
2M-Z24235 Owners Manual for Built-In Hot Food Well Warmers
INSTALLATION
ELECTRICAL INSTALLATION
1. Refer to the product nameplate. Verify the electrical service
power. Voltage and phase must match the nameplate
specications. Wiring the warmer to the wrong voltage can
severely damage the unit or cause noticeably decreased
performance.
2. Available electrical service amperage must meet or exceed the
specications listed on the specication sheet provided with the
warmer.
3. Warmer and control unit must be connected to an appropriate
building ground. Ground connection will be marked “GND” or
” “ .
NOTE: Wire gauge, insulation type and temperature rating , as
well as type, size and construction of conduit, must meet or exceed
applicable specications of local codes and of the National Electrical
Code.
PLUMBING INSTALLATION
For use in the State of Massachusetts, this appliance must be
installed in compliance with Massachusetts Fuel Gas and
Plumbing Code CMR 248.
1. IMPORTANT: All plumbing installations must be performed by
a qualied plumber.
2. For units equipped with a DRAIN LINE: Some jurisdictions may
require an approved air gap or other back-ow prevention device
in the drain. It is the responsibility of the plumber to determine
such requirement, to provide and properly install the required
device.
3. AUTOFILL units are equipped with a DRAIN LINE: Some
jurisdictions may require an approved air gap or other back-
ow prevention device in the drain. It is the responsibility of the
plumber to determine such requirement, to provide and properly
install the required device.
4. For AUTOFILL units: Some jurisdictions may require an
approved back-ow preventer in the water supply line. It is the
responsibility of the plumber to determine such requirement, and
to provide and properly install the required device.
Autoll supply must be connected to a COLD WATER line only.
IMPORTANT:
While local plumbing codes may allow the use of pcv, cpvc, abs or
other plastic pipe for drain connections. DO NOT attach a plastic
drain to the bottom of the food warmer. These units will contain water
with temperatures in excess of 180°F (82°C) and localized metal
temperatures in excess of 275°F (135°C). Failure to follow these
directions may result in personal injury and property damage.
NOTE: Damage caused
by leaks due to improper
installation is NOT covered by
warranty.
CAUTION:
SHOCK HAZ-
ARD
The ground lug of this
appliance must be connected
to a suitable building ground.
IMPORTANT: Contact a
licensed electrician to install
and connect electrical power
to the appliance.
IMPORTANT: Damage due to
being connected to the wrong
voltage or phase is NOT
covered by warranty.
IMPORTANT: Electrical
installation other than as
specied on the specication
sheet will void the UL listing,
and may void the warranty.
NOTE: Plumb connections
must be made in compliance
with all Federal, State and
Local Plumbing Codes and
Ordinances.
5
2M-Z24235 Owners Manual for Built-In Hot Food Well Warmers

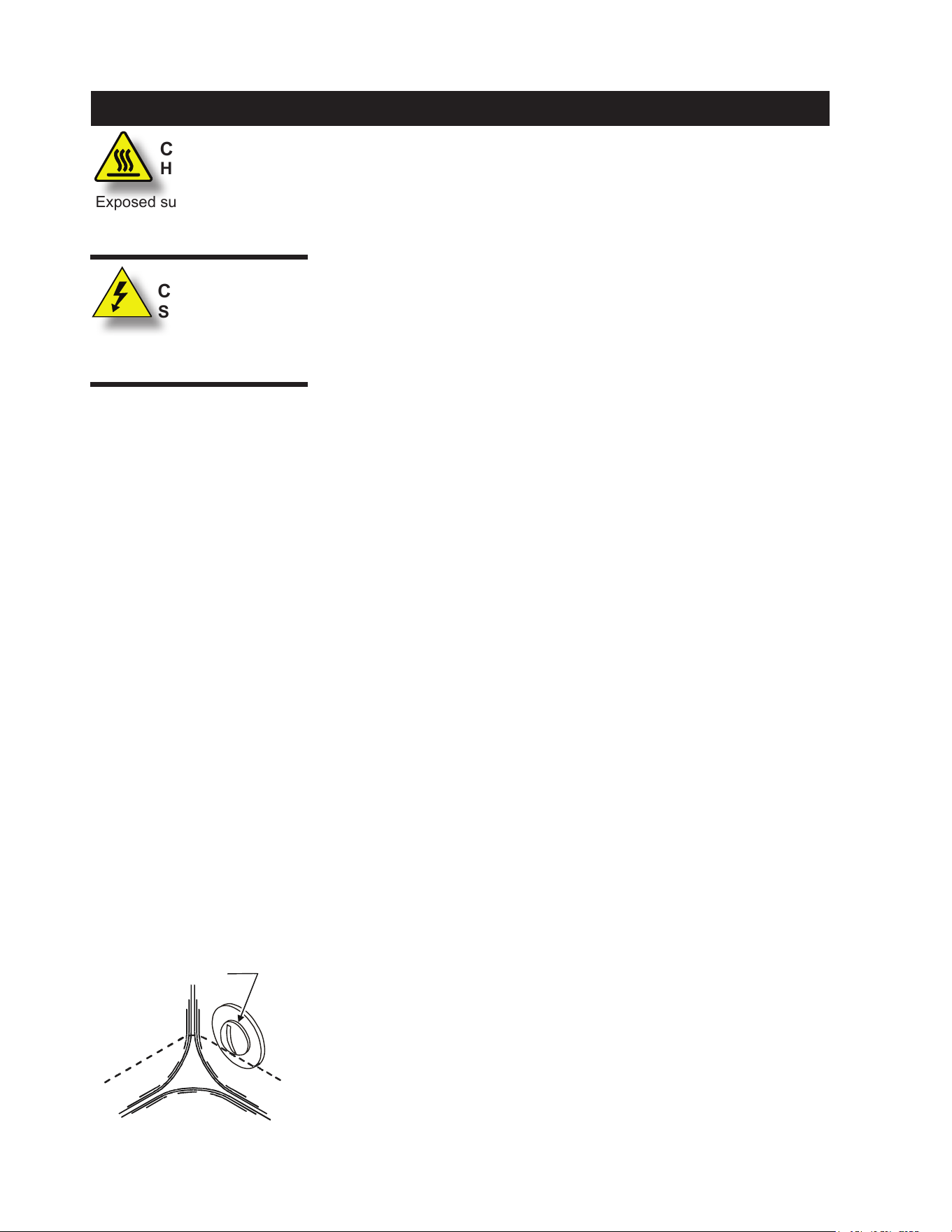

OPERATION
WET OR DRY OPERATION for WARMERS
1. Carefully read the description of the warmer operation on the
specication sheet.
2. a. Most warmers are designed for WET OR DRY operation.
b. Warmers may be used wet, or may be used dry. However
warmers may NOT be used wet-to-dry or dry-to-wet unless
they have been allowed to cool to room temperature between the
change in wet or dry operation.
c. APW Wyott Manufacturing recommends operating WET for
consistent food heating.
d. If your wet-operation warmer is allowed to run dry, turn it
OFF and allow to cool to room temperature before adding water.
3. If the warmer is to be used for WET operation, add approximately 1” of
hot tap water before turning the warmer on. Use of hot water will allow
a faster preheat.
a. Check the water level frequently and add hot water as necessary
to prevent the warmer from running dry. Do not add water to the
warmer if it has run dry.
b. If your wet-operation warmer is allowed to run dry, turn it OFF and
allow to cool to room temperature before adding water.
4. Damage caused by allowing a wet-operation warmer to run dry,
is NOT covered by warranty. Damage caused by adding water
to a dry warmer when hot is NOT covered by warranty.
PRE-HEATING THE WARMER
1. Place desired pan(s) or inset(s) with appropriate adapter top on warmer.
a. Insets are available as accessories in 2½ qt., 4qt., 7 qt., and 11 qt.
sizes with lids and adapter tops.
b. For dry operation, a 6” deep pan or inset is recommended.
2. Turn temperature control to HI or highest temperature setting.
3. Allow warmer to preheat for approximately 30 minutes, then set
the control for the desired temperature. Be sure to keep the warmer
covered during preheat and operation.
AUTOFILL WARMERS
1. Autoll warmers sense water level by a sensor placed at the proper
level. For manifolded autoll warmers, the water level sensor / ll tube
is in one pan only, normally in the far left pan.
2. Water lls the pan through an inlet tube. For manifolded autoll
warmers, the ll tube is normally in the far left pan. All other sections ll
at the same time through the drain manifold.
3. The autoll function is active only when the thermostat for the pan with
the water level sensor is turned ON .
4. Make sure the drain valve is fully closed before turning any t-stats ON.
5. The autoll function is only activated when the far left thermostat is
turned ON. For manifolded autoll warmers, be sure to turn far left
thermostats ON before turning any other control ON, to avoid heating a
dry pan.
CAUTION:
HOT SURFACE
Exposed surfaces can be hot
to the touch and may cause
burns.
CAUTION:
SHOCK HAZARD
DO NOT splash or pour water
onto control panel or wiring.
Always use an inset.
DO NOT place food directly
into the warmer.
Always pour hot water into the
warmer before it is preheated.
DO NOT pour water into a
dry, heated warmer. This may
damage the unit.
DO NOT put ice into a
warmer pan. This will cause
condensation on the inside of
the warmer. Damage caused
by condensation is NOT
covered by warranty.
Stir thick food items frequently
to keep food heated uniformly.
Keep insets covered to
maintain food quality and
temperature.
DO NOT use AUTOFILL
warmers in the dry mode.
This may damage the water
level sensor. NEVER turn the
thermostat ON for the pan
with the sensor and ll tube
unless the entire warmer unit
is to be used in the wet mode.
IL2524
WATER LEVEL
SENSOR
WATER LEVEL
6
2M-Z24235 Owners Manual for Built-In Hot Food Well Warmers
7
OPERATION (continued)
AUTOFILL WARMERS continued
6. DO NOT use autoll warmers in the dry mode. This may damage the water
level sensor probe. NEVER turn the thermostat ON for the pan with the
probe and ll tube unless the entire warmer unit is to be used in the wet
mode.
7. Clean water level sensor daily to maintain water level in warmer.
OPERATION
1. Always use an inset. DO NOT place food directly into the warmer.
2. Check water level in wet-operation warmer frequently during use. Running
warmers dry will lower the temperature of the food in the insert pan, and may
damage the warmer.
3. Alternating between wet and dry operation in any individual warmer is NOT
recommended.
4. DO NOT use metal tools, steel wool, or caustic or abrasive cleanser to clean
warmer pan.
WARMERS WITH MANIFOLDED DRAIN
1. Manifolded warmers have a single drain valve.
2. Water poured into any one section will seek the same water level with all
sections on the manifold.
3. Make sure the drain valve is fully closed before lling warmer.
2M-Z24235 Owners Manual for Built-In Hot Food Well Warmers
OPERATION - HFW-1
OPERATION
1. Always use an inset. DO NOT place food directly into the warmer.
2. Check water level in wet-operation warmer frequently during use. Running warmers dry will lower the
temperature of the food in the insert pan, and may damage the warmer.
3. Alternating between wet and dry operation in any individual warmer is not recommended.
4. DO NOT use metal tools, steel wool, or caustic or abrasive cleanser to clean warmer pan.
8
2M-Z24235 Owners Manual for Built-In Hot Food Well Warmers
MAINTENANCE INSTRUCTIONS
CARE OF STAINLESS STEEL
Stainless steel is a marvelous material: strong, lustrous and low maintenance. With
a minimum of care, it will normally retain its beauty and durability for the life of the
equipment. In some applications, however, special care is required in order to maintain
stainless steel’s special properties.
External components, such as cabinets and control panels, are nished with a grain
pattern. This pleasing nish is best maintained by cleaning with a non-abrasive
cleanser applied with a soft cloth. Rub only in the direction of the grain. In the absence
of visible grain, rub only along the longest axis of the appliance.
Restore stainless steel’s luster by applying a polish specically made for stainless steel.
Spray on, wipe o with a soft cloth, rubbing in the direction of the grain.
Never use metal implements, wire brushes, abrasive scratch pads or steel wool
to clean stainless steel.
Warmer pans, insets and other vessels are subject to a harsher environment. APW
Wyott Manufacturing uses an very high quality stainless steel (#304DDQ) for our food
warmer pans. Even the highest quality stainless steel, however, is mostly iron, and will
rust, pit and corrode under the following conditions:
• Poor Water Quality: Hard water (water with a high content of dissolved minerals)
will leave mineral deposits when allowed to dry. Calcium (lime) can buildup on
heated surfaces, even under water. If left unattended, hard water spots and lime
buildup can lead to rusting, corrosion and pitting.
• Contact with Chlorides: Chlorides (specic compounds of chlorine) are found in
food, table salt and many cleansers. Chlorides can attack the surface of stainless
steel, resulting in corrosion and pitting.
Keep your stainless steel warmers clean and free from calcium buildup.
Use alkaline, alkaline chlorinated or non-chloride cleanser.
Use citric acid-based cleaners to remove calcium deposits.
For additional information, please read the NAFEM Stainless Steel Equipment and
Cleaning Guide. Contact NAFEM at :
North American Association of Food Equipment Manufacturers
401 N. Michigan Avenue
Chicago, Illinois 60611-4267
(312) 644-6610
9
2M-Z24235 Owners Manual for Built-In Hot Food Well Warmers
DAILY CLEANING INSTRUCTIONS
PREPARATIONS: Turn control knob(s) to OFF. Allow warmer to cool
before proceeding.
Remove any insets, pans and/or adapter tops.
Drain or remove water from well if used for
wet operation.
FREQUENCY: Minimum - daily.
TOOLS: Mild Detergent
Solution: 10 Parts Warm Water to 4 Parts Vinegar
Plastic Scouring Pad
Clean Cloth or Sponge
Food-Grade Silicone Sealant
1. Wipe entire unit down using a clean cloth or sponge and mild
detergent.
2. Use a plastic scouring pad to remove any hardened food particles
or mineral deposits.
IMPORTANT: DO NOT use steel wool for cleaning.
3. Rinse warmer thoroughly with a vinegar and water solution to neutralize
all detergent cleanser residue.
4. Inspect warmer ange-to-counter seal. Reseal with food-grade silicone
sealant if necessary. Failure to do so may allow grease and water to
leak into insulation and heating element, causing a potential re and/or
electric shock hazard.
5. Inspect warmer tank for damage. Damage to the outer body may allow
grease and water to leak into insulation and heating element, causing
a potential re and/or electric shock hazard. Contact your Authorized
APW Wyott Service Agency to inspect warmer if water or grease
contamination is suspected.
6. Close drain valve. Add proper amount of warm water. Turn control
knob(s) ON and check for proper operation.
CLEANING INSTRUCTIONS
10
CAUTION:
SHOCK HAZARD
DO NOT splash or pour water
into or over any control panel
or wiring.
CAUTION:
SHOCK HAZARD
Disconnect warmer from
electric power before cleaning
CAUTION:
BURN HAZARD
Allow warmer to cool
completely before cleaning.
2M-Z24235 Owners Manual for Built-In Hot Food Well Warmers
CLEANING INSTRUCTIONS
11
WEEKLY CLEANING INSTRUCTIONS
PREPARATIONS: Remove any insets, pans and/or adapter tops.
Drain or remove water from well if used for wet
operation.
FREQUENCY: Weekly, or whenever lime or scale is seen
accumulating on the sides of the warmer pans.
TOOLS: Commercial Delime Cleaner
Plastic Scouring Pad
Clean Cloth or Sponge
1. Add water to pans until water is at normal operating level
(1” - 1 1/2” deep) or covers accumulated scale.
2. Heat water to maximum temperature (190ºF or higher).
3. Pour contents of one package of commercial delime cleaner
into each warmer pan. Stir to dissolve cleaner. Turn heat
control OFF. Cover pans.
4. Allow solution to soak at least one hour, or overnight for heavy
scale buildup.
5. Drain hot water from pans. Scrub with a plastic scouring pad.
Rinse thoroughly with hot water, then dry.
6. Rell pans with hot tap water and resume operation.
7. Heavy scale buildup may require additional treatments.
CAUTION:
CHEMICAL BURN
HAZARD
Deilimng chemicals may be
caustic. Wear appropriate
personal protective equipment.
Follow cleaner manufacturer’s
instructions for safest use.
2M-Z24235 Owners Manual for Built-In Hot Food Well Warmers
TROUBLESHOOTING SUGGESTIONS
12
There are no user-serviceable components in this appliance.
In all instances of damage or malfunction, contact your Authorized APW Wyott Service Agency for
repairs.
SYMPTOM POSSIBLE CAUSE SUGGESTED REMEDY
No power to warmer Circuit breaker off or tripped Reset circuit breaker
Warmer will not heat Temperature control not set Set control to desired temperature
Warmer trips circuit breaker
Wet insulation
Verify ange-to counter seal is sound, or
reseal with food-grade silicone sealant
Pan leaking or other internal damage
Contact your Authorized APW Wyott Service
Agency for repairs
Internal damage
Contact your Authorized APW Wyott Service
Agency for repairs
Warmer slow to heat
Mineral deposits on pan acting as a
insulator
Clean pan(s) with delime cleaner
Wired to wrong voltage
Verify supply voltage - must match voltage on
warmer nameplate
Drain-equipped unit will not hold
water
Drain valve not fully closed Check drain valve for debris and close fully
Drain valve damaged or pan(s) leaking
Contact your Authorized APW Wyott Service
Agency for repairs
Auto-ll unit overows
Water level sensor dirty Clean water level sensor
Internal damage
Contact your Authorized APW Wyott Service
Agency for repairs
Auto-ll unit does not ll
Water supply turned off or restricted
Be sure water supply is turned on and water
supply hose is not pinched or twisted
Bad Probe or other Internal Damage
Contact your Authorized APW Wyott Service
Agency for repairs
One or more pans of an auto-ll
unit do not ll
Blocked drain manifold Clean drain manifold
2M-Z24235 Owners Manual for Built-In Hot Food Well Warmers
MAINTENANCE INSTRUCTIONS
CARE OF STAINLESS STEEL
Stainless steel is a marvelous material: strong, lustrous and low maintenance. With
a minimum of care, it will normally retain its beauty and durability for the life of the
equipment. In some applications, however, special care is required in order to maintain
stainless steel’s special properties.
External components, such as cabinets and control panels, are nished with a grain
pattern. This pleasing nish is best maintained by cleaning with a non-abrasive
cleanser applied with a soft cloth. Rub only in the direction of the grain. In the absence
of visible grain, rub only along the longest axis of the appliance.
Restore stainless steel’s luster by applying a polish specically made for stainless steel.
Spray on, wipe o with a soft cloth, rubbing in the direction of the grain.
Never use metal implements, wire brushes, abrasive scratch pads or steel wool to
clean stainless steel.
Warmer pans, insets and other vessels are subject to a harsher environment. APW
Wyott Manufacturing uses an very high quality stainless steel (#304DDQ) for our food
warmer pans. Even the highest quality stainless steel, however, is mostly iron, and will
rust, pit and corrode under the following conditions:
• Poor Water Quality: Hard water (water with a high content of dissolved minerals)
will leave mineral deposits when allowed to dry. Calcium (lime) can buildup on
heated surfaces, even under water. If left unattended, hard water spots and lime
buildup can lead to rusting, corrosion and pitting.
• Contact with Chlorides: Chlorides (specic compounds of chlorine) are found in
food, table salt and many cleansers. Chlorides can attack the surface of stainless
steel, resulting in corrosion and pitting.
Keep your stainless steel warmers clean and free from calcium buildup.
Use alkaline, alkaline chlorinated or non-chloride cleanser.
Use citric acid-based cleaners to remove calcium deposits.
For additional information, please read the NAFEM Stainless Steel Equipment and
Cleaning Guide. Contact NAFEM at :
North American Association of Food Equipment Manufacturers
401 N. Michigan Avenue
Chicago, Illinois 60611-4267
(312) 644-6610
13
2M-Z24235 Owners Manual for Built-In Hot Food Well Warmers
EXPLODED VIEW
HFW-1S, HFW-1DS
IL1905e 05/21
1
THERMOBULB
5
21
6
7
8
9
11
11
10
18
19
17
16
15
14
13
20
12
13
22
12
3
2
14
2M-Z24235 Owners Manual for Built-In Hot Food Well Warmers
PARTS LIST
HFW-1S, HFW-1DS
Fig No Part No Qty Description Application
1
2N-303375UL
1
ELEM HEATING 208/240V 1650W
(Dual Voltage)
HFW-1S, HFW-1DS, HFW-1S-72, HFW-1DS-72
2N-46681UL ELEM 120V 1650W HFW-1S-120, HFW-1DS-120
2
P2-WL0071
1
PAN ELEM ASSY HFW-1S, HFW-1S-72, HFW-1DS, HFW-1DS-72
P2-WL0080 PAN ELEM ASSY HFW-1S-120, HFW-1DS-120
3 D8-303352 1 BRKT THERMO BULB ALL
5 2H-36196 4.25 INSUL FG .6 MICRO 1X 45 ALL
6 2H-36050 1.75 INSUL FG .6 MICRO 1X36 ALL
7 P2-45066 1 SHROUD WRAP ROHS HFW-1S
8 P2-45067 1 SHROUD FR ROHS HFW-1S
9 P2-45186 1 SHROUD BOT ROHS
10 5P-21709 1 SCREEN DRAIN WARMERS ALL
11
P2-30401
1
PAN W/O DRAIN HFW-1S
P2-30402 PAN W/ DRAIN HFW-1DS, HFW-1DS-120, HFW-1DS-72
12 2K-33996X 3 FTG FLEX CONDUIT 90X3/8 HFW-1S-120
13 2I-Z12311 2 GASKET-FIBER WASHER HFW-1S
14 P2-Z16805 1 BOX, CONTROL ALL
15
2T-38968
1
THERMO K TYPE R HFW-1S, HFW-1DS
2T-46551 THERMO CTRL 96IN CAP RO HFW-1S-72
16 P2-40843 1 BRKT MTG THERMO INFINITE HFW-1S
17 2J-35687 1 LIGHT SIGNAL GLO DOT W#8 ALL
18 I7-Z12221 1 PANEL, FRONT HFW-1S
19 2R-Z24182 1 KNOB ASSY HFW-1S, HFW-1S-120
20 2K-31040 1 BUSHING HEYCO 7/8 O.D. ALL
21 2C-30397 4 CLIP ELEM M P ALL
22 P2-45183 1 CONDUIT FLEX 3/8 X 28”
15
2M-Z24235 Owners Manual for Built-In Hot Food Well Warmers
EXPLODED VIEW & PARTS LIST
16
3
6
7
8
9
10
5
1
37
32
4
16
15
21
24
25
17
25
24
23
22
11
12
13
14
18
20
10
19
= AutoFill Units Only
26
29
27 28
30
34
36
35
“T” units only
33
31
32
SK3020 Rev. -, 05/21
2M-Z24235 Owners Manual for Built-In Hot Food Well Warmers
PARTS LIST: HFW-2S, HFW-2DS
Model: Hot Food Wells HFW-2S, HFW-2DS
Fig No Part No Description Qty Application
1
P2-31869 SCREEN DRAIN ASSY WARMER
2
DRAIN UNITS
2
P2-WL0064 PAN ASSY W/ELBOW
1
T-STAT NARROW
WS-503893 PAN ASSY T-STAT & INFINITE
3
P2-WL0063 PAN ASSY AF
1
HFW-2S T-STAT, AUTOFILL
WS-55742 PAN W/DRAIN
HFW-2S T-STAT & INFINITE, DRAIN,
MANIFOLD
WS-55741 PAN W/O DRAIN
2
HFW-2S T-STAT & INFINITE
WS-53201 PAN W/DRAIN HFW-2S T-STAT & INFINITE, DRAIN
4
2V-35609 VALVE 1 IN GATE BRONZE 1 MANIFOLD UNITS
5 WS-503713 PROBE ASSY, SS AUTOFILL WRMR 1 AUTOFILL UNITS
6 2K-48198 ELBOW 3/8 X 90DEG BRASS 1 AUTOFILL UNITS
7 2K-48197 NIPPLE 3/8 NPT X 2 BRASS 1 AUTOFILL UNITS
8 2V-47650 VALVE ANTISYPHON 3/8 1 AUTOFILL UNITS
9 2K-47662 FTG STR BRS 3/8NPT X3/8IN 1 AUTOFILL UNITS
10 2C-46591 CLAMP HOSE 5/8 2 AUTOFILL UNITS
11 2K-31040 BUSHING HEYCO 7/8 OD 1 THERMOSTAT UNITS
12 WS-50131 TERM BLOCK KIT (RETRO 30131) 1 INFINITE & AUTOFILL UNITS
13 2C-41974 NUT 8-32 HEX 7/8 LONG ALU 2 AUTOFILL UNITS
14
2J-30385 LIGHT SIGNAL GLO DOT RED
2
INFINITE UNITS
2J-35687 LIGHT SIGNAL GLO DOT T-STAT UNITS
15
P2-Z12288 PANEL, CONTROL 1 T-STAT & INFINITE UNITS NON-AF
P2-Z12589 PANEL, CONTROL 1 AUTOFILL UNITS
16
E7-49046 BOX OUTLET
1
T-STAT & INFINITE UNITS NON-AF
P2-48175 BOX OUTLET AUTOFILL UNITS
17
2T-38968 THERMO K TYPE
2
T-STAT UNITS
2T-46551 THERMO CTRL 96IN CAP T-STAT UNITS w/ 96IN CAPILLARY
2T-45917 THERMO CTRL W/AUX WARMERS T-STAT UNITS, AUTOFILL
2E-30570 SWITCH INFINITE, 120V
2
INFINITE UNITS, 120V
2E-30562 SWITCH INFINITE, 240V INFINITE UNITS, 240V
18
2R-Z24182 KNOB CONTROL ASSY WARMERS
2
INFINITE UNITS
2R-Z24181 KNOB ASSY T-STAT UNITS
20 2E-46529 SOLENOID VALVE 1/4NPT 240 1 AUTOFILL UNITS
21
P2-40843 BRKT MTG THERMO INFINITE
2
T-STAT & INFINITE UNITS
P2-48176 BRKT THERMO AUT T-STAT AUTOFILL
22 2E-306865 CONTROL LIQ LEVEL 208/240 1 AUTOFILL UNITS
23 2I-40034 GROMMET SCREW T4 4 AUTOFILL UNITS
24 2K-33996X FTG FLEX CONDUIT 90X3/8 2
25 2I-Z12311 GASKET-FIBER WASHER 2
26 P2-35004 COVER BOTTOM 1 HFW-2S
27
P2-303359 SHROUD SIDE ROHS
2
HFW-2S
P2-300593 SHROUD SIDE HFW-2S NARROW
28
P2-Z15948 SHROUD, FRONT UNIVERSAL
1 HFW-2S
P2-33909 SHROUD FRONT/REAR
P2-300592 SHROUD FRT/RR 2 HFW-2S NARROW
29 2H-36050 INSUL FG .6 MICRO 1/36
SOLD
BY
FOOT
17
2M-Z24235 Owners Manual for Built-In Hot Food Well Warmers
PARTS LIST: HFW-2S, HFW-2DS
Model: Hot Food Wells HFW-2S, HFW-2DS
Fig No Part No Description Qty Application
30 2H-36196 INSUL FG .6 MICRO 1X45
SOLD
BY
FOOT
WS-503843 KIT PAN ELEM W/ELEMENT 208/240 HFW-2S T-STAT
WS-503701 KIT ELEM PAN W/ELEMENT HFW-2S T-STAT NARROW
WS-503840 KIT ELEM PAN W/ELEMENT M227 T-STAT
32
WS-50396 ELEM 120V 1200W
2
HFW-2S INFINITE, 120V
WS-50398 ELEM 240V 1200W M P HFW-2S INFINITE, 240V
2N-46681UL ELEM 120V 1650W HFW-2S T-STAT, 120V
2N-303375UL ELEM HEATING 240V 1650W HFW-2S T-STAT, 240V
33
WS-55707 COVER ELEM WARMER
2
INFINITE UNITS
WS-503370 PAN, ELEMENT HFW-2S NARROW
34 D8-303352 BRKT THERMO BULB 2 THERMOSTAT UNITS
35 P2-WL0081 PAN ELEM ASSY 2 INFINITE 208/240V
36 WS-50374 THERMO, HI-LIMIT, SFTY, 550F 2 INFINITE UNITS
37 WS-53762 TOP W/E-Z Lock 1 HFW-2S
NI 2C-30397 CLIP ELEM WRMRS SML 18 VARIOUS OLDER UNITS
18
2M-Z24235 Owners Manual for Built-In Hot Food Well Warmers
PARTS LIST: HFW-3S, HFW-3DS
19
Model: Hot Food Wells HFW-3S, HFW-3DS
Fig No Part No Description Qty Application
1 P2-31869 SCREEN DRAIN ASSY WARMER 3 DRAIN UNITS
2
P2-WL0066 PAN ASSY W/ELBOW
1
HFW-3S T-STAT NARROW
WS-503893 PAN ASSY HFW-3S T-STAT & INFINITE
3
P2-WL0064 PAN ASSY W/ELBOW 2
HFW-3S T-STAT, NARROW, AUTOFILL
HFW-3S T-STAT & NARROW
P2-WL0065 PAN ASSY MID 1 HFW-3S T-STAT, NARROW, 2-ELBOWS
WS-55741 PAN W/O DRAIN
3
HFW-3S T-STAT & INFINITE
WS-53201 PAN W/DRAIN HFW-3S T-STAT & INFINITE, DRAIN
WS-55742 PAN W/DRAIN
HFW-3S T-STAT & INFINITE, DRAIN, MANIFOLD
2 HFW-3S T-STAT DRAIN, AUTOFILL
4 2V-35609 VALVE 1 IN GATE BRONZE 1 MANIFOLD UNITS
5 WS-503713 PROBE ASSY, SS AUTOFILL WRMR 1 AUTOFILL UNITS
6 2K-48198 ELBOW 3/8 X 90DEG BRASS 1 AUTOFILL UNITS
7 2K-48197 NIPPLE 3/8 NPT X 2 BRASS 1 AUTOFILL UNITS
8 2V-47650 VALVE ANTISYPHON 3/8 1 AUTOFILL UNITS
9 2K-47662 FTG STR BRS 3/8NPT X3/8IN 1 AUTOFILL UNITS
10 2C-46591 CLAMP HOSE 5/8 2 AUTOFILL UNITS
11 2K-31040 BUSHING 7/8 OD 1 THERMOSTAT UNITS
12 WS-50131 TERM BLOCK KIT (RETRO 30131) 1 INFINITE & AUTOFILL UNITS
13 2C-41974 NUT 8-32 HEX 7/8 LONG ALU 2 AUTOFILL UNITS
14
2J-30385 LIGHT SIGNAL GLO DOT RED
3
INFINITE UNITS
2J-35687 LIGHT SIGNAL GLO DOT T-STAT UNITS
15
P2-Z12592 PANEL, CONTROL
1
INFINITE UNITS NON-AF
P2-Z12586 PANEL, CONTROL T-STAT UNITS
15 P2-Z12588 PANEL, CONTROL 1 HFW-3S T-STAT, DRAIN, MANIFOLD
16 P2-46685 BOX OUTLET
1
T-STAT & INFINITE UNITS NON-AF
16 P2-48178 BOX OUTLET AUTOFILL UNITS
17
2T-38968 THERMO K TYPE
3
T-STAT UNITS
2T-46551 THERMO CTRL 96IN CAP T-STAT UNITS w/ 96IN CAPILLARY
2T-45917 THERMO CTRL W/AUX WARMERS T-STAT UNITS, AUTOFILL
2E-30570 SWITCH INFINITE, 120V
3
INFINITE UNITS, 120V
2E-30562 SWITCH INFINITE, 240V INFINITE UNITS, 240V
18
2R-Z24182 KNOB CONTROL ASSY WARMERS
3
INFINITE UNITS
2R-Z24181 KNOB ASSY T-STAT UNITS
19 P2-46587 HOSE AUTOFILL 36” 1 AUTOFILL UNITS
20 2E-46529 SOLENOID VALVE 1/4NPT 240 1 AUTOFILL UNITS
21
P2-37809 BRKT CONT MTG
1
INFINITE UNITS
P2-48586 BRKT THERMO T-STAT
P2-47863 BRKT THERMO BMW ROHS T-STAT AUTOFILL
22 2E-306865 CONTROL LIQ LEVEL 208/240 1 AUTOFILL UNITS
23 2I-40034 GROMMET SCREW T4 4 AUTOFILL UNITS
24 2K-33996X FTG FLEX CONDUIT 90X3/8 2
25 2I-Z12311 GASKET-FIBER WASHER 2
26 P2-307110 COVER BOTTOM 1 HFW-3S
Fig No Part No Description Qty Application
2M-Z24235 Owners Manual for Built-In Hot Food Well Warmers
PARTS LIST: HFW-3S, HFW-3DS
20
Model: Hot Food Wells HFW-3S, HFW-3DS
27
P2-303359 SHROUD SIDE 2 HFW-3S
P2-300593 SHROUD SIDE 2 HFW-3S NARROW
28
P2-303357 SHROUD FRONT 1 HFW-3S
P2-48193 SHROUD REAR 1 HFW-3S
P2-307128 SHROUD FT/RR 2 HFW-3S NARROW
29 2H-36050 INSUL FG .6 MICRO 1/36
sold by
foot
30 2H-36196 INSUL FG .6 MICRO 1X45
sold by
foot
31
WS-503843 KIT PAN ELEM W/ELEMENT 208/240
3
HFW-3S T-STAT
WS-503701 KIT ELEM PAN W/ELEMENT 2
HFW-3S T-STAT NARROW
P2-WL0072 PAN ELEM ASSY MID 1
32
WS-50396 ELEM 120V 1200W
3
HFW-3S INFINITE, 120V
2N-46681UL ELEM 120V 1650W HFW-3S T-STAT, 120V
33
WS-55707 COVER ELEM WARMER 3 INFINITE UNITS
WS-503842 KIT ELEM PAN W/O ELEMENT 2 HFW-3S, NARROW, OUTSIDE
WS-WL0332 KIT ELEM PAN W/O ELEMENT / INSIDE 1 HFW-3S, NARROW, INSIDE
WS-503370 PAN, ELEMENT 2
HFW-3S NARROW
67-307041 ASSY-MID-ELEM PAN M300TN 1
34 D8-303352 BRKT THERMO BULB 3 THERMOSTAT UNITS
35 P2-WL0081 PAN ELEM ASSY 3
INFINITE 208/240V
36 WS-50374 THERMO, HI-LIMIT, SFTY, 550F 3 INFINITE UNITS
37 WS-53070 TOP W/E-Z Lock 1 HFW-3S
NI 2C-30397 CLIP ELEM WRMRS SML 18 VARIOUS OLDER UNITS
2M-Z24235 Owners Manual for Built-In Hot Food Well Warmers
PARTS LIST: HFW-4S, HFW-4DS
21
Model: Hot Food Wells HFW-4S, HFW-4DS
Fig No Part No Description Qty Application
1 P2-31869 SCREEN DRAIN ASSY WARMER 4 DRAIN UNITS
2 WS-503893 PAN ASSY 1 HFW-4S T-STAT & INFINITE
3
WS-55741 PAN W/O DRAIN
4
HFW-4S T-STAT & INFINITE
WS-53201 PAN W/DRAIN HFW-4S T-STAT & INFINITE, DRAIN
WS-55742 PAN W/DRAIN
HFW-4S T-STAT & INFINITE, DRAIN, MANIFOLD
3 HFW-4S T-STAT & INFINITE, DRAIN, MANIFOLD, AF
4 2V-35609 VALVE 1 IN GATE BRONZE 1 MANIFOLD UNITS
5 WS-503713 PROBE ASSY, SS AUTOFILL WRMR 1 AUTOFILL UNITS
6 2K-48198 ELBOW 3/8 X 90DEG BRASS 1 AUTOFILL UNITS
7 2K-48197 NIPPLE 3/8 NPT X 2 BRASS 1 AUTOFILL UNITS
8 2V-47650 VALVE ANTISYPHON 3/8 1 AUTOFILL UNITS
9 2K-47662 FTG STR BRS 3/8NPT X3/8IN 1 AUTOFILL UNITS
10 2C-46591 CLAMP HOSE 5/8 2 AUTOFILL UNITS
11 2K-31040 BUSHING HEYCO 7/8 OD 1 THERMOSTAT UNITS
12 WS-50131 TERM BLOCK KIT (RETRO 30131) 1 INFINITE & AUTOFILL UNITS
13 2C-41974 NUT 8-32 HEX 7/8 LONG ALU 2 AUTOFILL UNITS
14
2J-30385 LIGHT SIGNAL GLO DOT RED
2
INFINITE UNITS
2J-35687 LIGHT SIGNAL GLO DOT T-STAT UNITS
15
P2-Z12591 PANEL, CONTROL
1
INFINITE UNITS NON-AF
P2-Z12584 PANEL, CONTROL HFW-4S, T-STAT, DRAIN, MANIFOLD, AUTOFILL
16
P2-48290 BOX OUTLET
1
HFW-4S, T-STAT, DRAIN, MANIFOLD
P2-46685 BOX OUTLET HFW-4S INFINITE, DRAIN, MANIFOLD
17
2T-38968 THERMO K TYPE
4
T-STAT UNITS
2T-46551 THERMO CTRL 96IN CAP T-STAT UNITS w/ 96IN CAPILLARY
2T-45917 THERMO CTRL W/AUX WARMERS T-STAT UNITS, AUTOFILL
2T-46551 THERMO CTRL 96IN CAP T-STAT UNITS, AUTOFILL 96IN CAPILLARY
2E-30570 SWITCH INFINITE, 120V
4
INFINITE UNITS, 120V
2E-30562 SWITCH INFINITE, 240V INFINITE UNITS, 240V
18
2R-Z24182 KNOB CONTROL ASSY WARMERS
4
INFINITE UNITS
2R-Z24181 KNOB ASSY T-STAT UNITS
20 2E-46529 SOLENOID VALVE 1/4NPT 240 1 AUTOFILL UNITS
21
P2-40843 BRKT MTG THERMO INFINITE 2 T-STAT (SPLIT CONTROL)
P2-48285 BRKT THERMO 1 HFW-4S T-STAT, DRAIN, MANIFOLD, AUTOFILL
22 2E-306865 CONTROL LIQ LEVEL 208/240 1 AUTOFILL UNITS
23 2I-40034 GROMMET SCREW T4 4 AUTOFILL UNITS
24 2K-33996X FTG FLEX CONDUIT 90X3/8 2
25 2I-Z12311 GASKET-FIBER WASHER 2
26 P2-35004 COVER BOTTOM 2 HFW-4S
27 P2-303359 SHROUD SIDE 2 HFW-4S
28
P2-48192 SHROUD REAR
1
HFW-4S
P2-303358 SHROUD FRONT HFW-4S INFINITE & T-STAT
2M-Z24235 Owners Manual for Built-In Hot Food Well Warmers
PARTS LIST: HFW-4S, HFW-4DS
22
Model: Hot Food Wells HFW-4S, HFW-4DS
Fig No Part No Description Qty Application
29 2H-36050 INSUL FG .6 MICRO 1/36
SOLD
BY
FOOT
30 2H-36196 INSUL FG .6 MICRO 1X45
SOLD
BY
FOOT
31 WS-503843 KIT PAN ELEM W/ELEMENT 208/240
4
HFW-4S T-STAT
32
WS-50398 ELEM 240V 1200W M P
4
HFW-4S INFINITE, 240V
2N-303375UL ELEM HEATING 240V 1650W HFW-4S T-STAT, 240V
33
WS-55707 COVER ELEM WARMER
4
HFW-4S, INFINITE UNITS
WS-503842 KIT ELEM PAN W/O ELEMENT HFW-4S, T-STAT
34 D8-303352 BRKT THERMO BULB 4 THERMOSTAT UNITS
35 P2-WL0081 PAN ELEM ASSY 4 INFINITE 208/240V
36 WS-50374 THERMO, HI-LIMIT, SFTY, 550F 4 INFINITE UNITS
37 WS-53087 TOP DRWN W/E-Z Lock HFW-4S 1 HFW-4S
NI 2C-30397 CLIP ELEM WRMRS SML 36 VARIOUS OLDER UNITS
2M-Z24235 Owners Manual for Built-In Hot Food Well Warmers
PARTS LIST: HFW-5S, HFW-5DS
23
Model: Hot Food Wells HFW-5S, HFW-5DS
Fig No Part No Description Qty Application
1 P2-31869 SCREEN DRAIN ASSY WARMER 5 DRAIN UNITS
2
WS-503893 PAN ASSY
1
HFW-5S T-STAT & INFINITE
WS-504101 PAN ASSY 12X27 AF HFW-5S T-STAT
3
WS-55741 PAN W/O DRAIN
5
HFW-5S T-STAT & INFINITE
WS-53201 PAN W/DRAIN HFW-5S T-STAT & INFINITE, DRAIN
WS-55742 PAN W/DRAIN
HFW-5S T-STAT & INFINITE, DRAIN, MANIFOLD
4
HFW-5S T-STAT & INFINITE, DRAIN, MANIFOLD,
AUTOFILL
WS-500700 PAN ASSY 12X27
5 HFW-5S T-STAT, DRAIN, MANIFOLD
4 HFW-5S T-STAT, DRAIN, MANIFOLD, AUTOFILL
4 2V-35609 VALVE 1 IN GATE BRONZE 1 MANIFOLD UNITS
5 WS-503713 PROBE ASSY, SS AUTOFILL WRMR 1 AUTOFILL UNITS
6 2K-48198 ELBOW 3/8 X 90DEG BRASS 1 AUTOFILL UNITS
7 2K-48197 NIPPLE 3/8 NPT X 2 BRASS 1 AUTOFILL UNITS
8 2V-47650 VALVE ANTISYPHON 3/8 1 AUTOFILL UNITS
9 2K-47662 FTG STR BRS 3/8NPT X3/8IN 1 AUTOFILL UNITS
10 2C-46591 CLAMP HOSE 5/8 2 AUTOFILL UNITS
11 2K-31040 BUSHING HEYCO 7/8 OD 1 THERMOSTAT UNITS
12 WS-50131 TERM BLOCK KIT (RETRO 30131) 1 INFINITE & AUTOFILL UNITS
13 2C-41974 NUT 8-32 HEX 7/8 LONG ALU 2 AUTOFILL UNITS
14
2J-30385 LIGHT SIGNAL GLO DOT RED
2
INFINITE UNITS
2J-35687 LIGHT SIGNAL GLO DOT T-STAT UNITS
15
P2-Z12594 PANEL, CONTROL
1
HFW-5S T-STAT
P2-Z12590 PANEL, CONTROL HFW-5S, INFINITE UNITS
16
P2-48290 BOX OUTLET
1
HFW-5S T-STAT
P2-46685 BOX OUTLET HFW-5S, INFINITE UNITS
17
2T-38968 THERMO K TYPE
5
T-STAT UNITS
2T-46551 THERMO CTRL 96IN CAP T-STAT UNITS w/ 96IN CAPILLARY
2T-45917 THERMO CTRL W/AUX WARMERS T-STAT UNITS, AUTOFILL
2E-30570 SWITCH INFINITE, 120V
5
INFINITE UNITS, 120V
2E-30562 SWITCH INFINITE, 240V INFINITE UNITS, 240V
18
2R-Z24182 KNOB CONTROL ASSY WARMERS
5
INFINITE UNITS
2R-Z24181 KNOB ASSY T-STAT UNITS
19 P2-46587 HOSE AUTOFILL 36IN 1 AUTOFILL UNITS
20 2E-46529 SOLENOID VALVE 1/4NPT 240 1 AUTOFILL UNITS
21
P2-48285 BRKT THERMO 1 HFW-5S T-STAT
P2-37809 BRKT CONT MTG 1 HFW-5S INFINITE
22 2E-306865 CONTROL LIQ LEVEL 208/240 1 AUTOFILL UNITS
23 2I-40034 GROMMET SCREW T4 4 AUTOFILL UNITS
24 2K-33996X FTG FLEX CONDUIT 90X3/8 2
25 2I-Z12311 GASKET-FIBER WASHER 2
26
P2-35004 COVER BOTTOM
1 HFW-5S
P2-307110 COVER BOTTOM
27 P2-303359 SHROUD SIDE 2 HFW-5S
28
P2-48191 SHROUD REAR
1
HFW-5S
P2-303376 SHROUD FRONT HFW-5S INFINITE & T-STAT
29 2H-36050 INSUL FG .6 MICRO 1/36 SOLD BY FOOT
2M-Z24235 Owners Manual for Built-In Hot Food Well Warmers
PARTS LIST: HFW-5S, HFW-5DS
24
Model: Hot Food Wells HFW-5S, HFW-5DS
Fig No Part No Description Qty Application
30 2H-36196 INSUL FG .6 MICRO 1X45 SOLD BY FOOT
31 WS-503843 KIT PAN ELEM W/ELEMENT 208/240 5 HFW-5S T-STAT
32
WS-50398 ELEM 240V 1200W M P
5
HFW-5S INFINITE, 240V
2N-303375UL ELEM HEATING 240V 1650W HFW-5S T-STAT, 240V
33
WS-55707 COVER ELEM WARMER
5
HFW-5S, INFINITE UNITS
WS-503842 KIT ELEM PAN W/O ELEMENT HFW-5S, T-STAT
34 D8-303352 BRKT THERMO BULB 4 THERMOSTAT UNITS
35 P2-WL0081 PAN ELEM ASSY 4
INFINITE 208/240V
36 WS-50374 THERMO, HI-LIMIT, SFTY, 550F 4 INFINITE UNITS
37 WS-53096 TOP W/E-Z Lock HFW-5S 1 HFW-5S
NI 2C-30397 CLIP ELEM WRMRS SML 36 VARIOUS OLDER UNITS
WIRING DIAGRAM: Innite Control Units
2M-Z24235 Owners Manual for Built-In Hot Food Well Warmers
WIRING DIAGRAM: Innite Control Units
25
L
2
L
3
1
L
5
TERM. BLOCK
SINGLE PHASE
240
10.0
86
7
1
3
2
4
8.7
208
SK3021
WIRING DIAGRAM FOR MODULAR HFW-2 WARMER
P L L
1
2
2
H
H
1
INFINITE
SWITCH (2)
PILOT
LIGHT (2)
2
1
LLP
2
1
H
H
AMPS
VOLTS
208/240V SINGLE PHASE
SAFETY
THERMO (2)
ELEMENT
(2)
DVP
H
SEE ECN-12847
DTL 05-12-05
.000 =.005
-
+
.00 =.020
-
+
.0 =.030
+
-
35758
DTL
MOD-300
DIAGRAM WIRING
.1-16-95
BWC
ENG. REL. ECN-8553
G
WELLS
BY APP
UNLESS NOTED
-
+
ANG.
DEC.
TOL.
PART NO.
VERDI, NV.
PART NAME
USED ON
SCALE DWN. ENG.
CKD.
DO NOT SCALE DWG.
MATERIAL
REVISIONS
ISSUE
WAS
DATE
1
O
*
NONE
W/#467 PERMANENT ADHESIVE BACK
H
35758
ISSUE
SH. OF
1 1
BLOOMFIELD
D.C
. G.C
3 X 5 LABEL ON WHT STOCK
L.M
Z
H
60
50
SINGLE PHASE
15.0
13.0
8.7
7.5
8.7
7.5
4
2
1
3
1
1614
1513
12
11
TERM. BLOCK
THREE PHASE
240
8.7
7.5
208
SK3022
WIRING DIAGRAM FOR MODULAR HFW-3 WARMER
1
L
1
3
L
2
L
L
2
1
L
NOM. AMPS PER LINE
THREE PHASE
L3L2
VOLTS
6
5
ELEMENT
(3)
2
H
2
P L L
1
2
H
1
P L L
1
2
2
H
H
1
INFINITE
SWITCH (3)
PILOT
LIGHT (3)
3
5
4
2
1
LLP
2
1
H
H
6
L1
SINGLE
PHASE
208/240V SINGLE PHASE OR THREE PHASE
SAFETY
THERMO (3)
HFW-2S Series
HFW-3S Series
2M-Z24235 Owners Manual for Built-In Hot Food Well Warmers
26
Z
H
60
50
SINGLE PHASE
20.0
17.3
8.7
7.5
13.0
11.2
4
3
2
1
THREE PHASE
240
13.0
5
4
8
11.2
208
SK3023
WIRING DIAGRAM FOR MODULAR HFW-4 WARMER
3
1
3
7
4
2
6
2
1
5
3
L
L
1
2
L
L
2
1
L
NOM. AMPS PER LINE
THREE PHASE
L3L2
VOLTS
6
5
ELEMENT
(4)
1816
1715
P
L
L
1
2
H
1
13
INFINITE
SWITCH (4)
TERM. BLOCK
L1
SINGLE
PHASE
208/240V SINGLE PHASE OR THREE PHASE
SAFETY
THERMO (4)
PILOT
LIGHT (4)
11
7
8
12 14
2
H
2
1
L
L
P
H
1
H
2
P
L
L
1
2
1
H
H
2
P
2
1
L
L
H
1
H
2
3
1
2
2
1
Z
H
60
50
SINGLE PHASE
25.0
21.6
13.0
11.2
13.0
11.2
4
3
2
1
20
THREE PHASE
240
17.0
7
4
10
15.0
208
SK3024
WIRING DIAGRAM FOR MODULAR HFW-5 WARMER
5
3
3
9
6
4
8
2
1
7
12
1
6
5
2
L
L
L
L
L
NOM. AMPS PER LINE
THREE PHASE
L3L2
VOLTS
8
7
ELEMENT
(5)
18
1917
P
L
L
1
2
H
1
15
INFINITE
SWITCH (5)
TERM. BLOCK
L1
SINGLE
PHASE
208/240V SINGLE PHASE OR THREE PHASE
SAFETY
THERMO (5)
13
9
10
14 16
2
H
2
1
L
L
P
H
1
H
2
P
L
L
1
2
1
H
H
2
P
2
1
L
L
H
1
H
2
H
2
11
PILOT
LIGHT (5)
1
H
2
1
L
L
P
6
5
HFW-4S Series
HFW-5S Series
WIRING DIAGRAM: Innite Control Units
2M-Z24235 Owners Manual for Built-In Hot Food Well Warmers
WIRING DIAGRAM: Thermostat Control Units
27
3300
2480
WATTS
TERM. BLOCK
THERMOSTAT (2)
PILOT LIGHT (2)
3
1
2
3
4
5
6
7
L1
L2
L3
REV. D
P/N 40844
WIRING DIAGRAM FOR MOD 200T, 227T WARMER
208/240V, SINGLE PHASE
240
208
VOLTS
PHASE
SINGLE
50
60
HZ
11.9
13.8
HEATING ELEMENT (2)
7
1
4
WIRE CONNECTOR
6
TERM. BLOCK
L1
L2
L3
OPTIONAL CORD
WHITE FROM CORD
BLACK FROM CORD
GREEN FROM CORD
PILOT LIGHT
TERM. BLOCK
THERMOSTAT (3)
PILOT LIGHT (3)
L1
L2
L3
REV. E
P/N 2M-48589
240
208
VOLTS
L1 L2 L3
THREE PHASE
PHASE
SINGLE
50
60
HZ
10.3
10.3
10.3
11.9
11.9
11.9
17.9
20.6
HEATING ELEMENT (3)
SINGLE PHASE
PL
L1
L2
L3
6
WIRE CONNECTOR
12
7
3
6
1
2
3
4
5
6
7
8
9
WIRING DIAGRAM FOR MOD 300T, 327T WARMER
208/240V, SINGLE & THREE PHASE
TERMINAL
BOARD
12
9
1
4
3
1
4
7
9
12
HFW-2S Series
HFW-3S Series
2M-Z24235 Owners Manual for Built-In Hot Food Well Warmers
28
TERM. BLOCK
THERMOSTAT (4)
PILOT LIGHT (4)
L1
L2
L3
REV. F
P/N 2M-48599
HEATING ELEMENT (4)
SINGLE PHASE
L1
L2
L3
WIRE CONNECTOR
14
10
9
4
15
3
1
2
3
4
5
6
7
8
9
10
11
12
WIRING DIAGRAM FOR MOD 400T, 427T WARMER
208/240V, SINGLE & THREE PHASE
TERMINAL
BOARD
12
6
13
1
7
6
14
3
13
1
4
7
10
15
9
12
13 14
15
240
208
VOLTS
L1 L2 L3
THREE PHASE
PHASE
SINGLE
50
60
HZ
14.5
14.5
9.8
17.8
17.8
11.3
23.8
27.5
WIRING DIAGRAM: Thermostat Control Units
TERM. BLOCK
THERMOSTAT (5)
PILOT LIGHT (5)
L1
L2
L3
REV. D
P/N 2M-48604
HEATING ELEMENT (5)
SINGLE PHASE
L1
L2
L3
WIRE CONNECTOR
20
10
20
7
13
3
16
6
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
WIRING DIAGRAM FOR MOD 500T, 527T WARMER
208/240V, SINGLE & THREE PHASE
240
208
VOLTS
L1 L2 L3
THREE PHASE
PHASE
SINGLE
50
60
HZ
14.6
14.6
19.5
16.9
16.9
22.1
29.8
34.4
TERMINAL
BOARD
18
18
9
15
1
4
12
17
16
20
6
18
3
16
1
4
13
7
10
15
17
9
12
17
HFW-4S Series
HFW-5S Series
2M-Z24235 Owners Manual for Built-In Hot Food Well Warmers
PARTS & SERVICE
DESCRIPTION PART NO.
ADAPTERS & INSETS
ADAPTER TOP, convert 12” x 20” warmer to
hold four 2½ qt. insets 21623
4 QT. ROUND INSET w/ lid 20774
11 QT. ROUND INSET w/ lid 20908
11 QT. ROUND INSET w/ hinged lid 21057
Always use an inset.
DO NOT place food directly
into the warmer pan.
29
2M-Z24235 Owners Manual for Built-In Hot Food Well Warmers
CUSTOMER SERVICE DATA
Please have this information available if calling for service
RESTAURANT _____________________________ LOCATION _____________
INSTALLATION DATE ________________________ TECHNICIAN ___________
SERVICE COMPANY ________________________________________________
ADDRESS ___________________________ STATE ______ ZIP__________
TELEPHONE NUMBER (_____)_____-_________
EQUIPMENT MODEL NO. _______________
EQUIPMENT SERIAL NO. _______________
VOLTAGE: (check one) 120 208 240
DESCRIPTION PART NO.
ACCESSORIES
E-Z Lock EXTENSION KIT, for UL LISTED
circular warmers only, adapt to wood counter
up to 1¾” thick 22592*
E-Z Lock EXTENSION KIT, for UL LISTED
12” x 20” warmers only, adapt to wood counter
up to 1¾” thick 22593*
*E-Z Lock Extension Kits for UL Listed units approved for
installation in wood counter tops
One well units require one kit / Two and three well units require
two kits / four and ve well units require three kits
DRAIN VALVE EXTENSION KIT, extension from
drain to counter front with remote handle, for use
with “D” models only, excluding “DM” models 20385
DRAIN SCREEN 21709
OPTIONAL 72” WIRING, thermostatically controlled warmers **
** Contact factory customer service for availability
PARTS & SERVICE
IMPORTANT: Use only factory
authorized service parts and
replacement lters.
For factory authorized service,
or to order factory authorized
replacement parts, contact your
APW Wyott authorized service
agency, or call:
APW Wyott
265 Hobson St.
Smithville, TN 37166
Service Dept.
Phone: (800) 733-2203
Service Parts Department
can supply you with the name
and telephone number of the
APW Wyott AUTHORIZED
SERVICE AGENCY nearest you.
30
2M-Z24235 Owners Manual for Built-In Hot Food Well Warmers
NOTES
APW Wyott • www.apwwyott.com/
265 Hobson St. • Smithville, TN 37166
Telephone: (800) 527-2100
Printed in the U.S.A. • 2M-Z24235 • Rev - (05/21)
Specications are subject to change without notice.
is a registered trademark of APW Wyott®, A Middleby Company. All rights reserved.
