SUMMERSET GRIDDLE PRO INSTALLATION
INSTRUCTIONS & OWNERS MANUAL
NAME: SUMMERSET Griddle Pro
PART #: GRIDPRO-LP / GRIDPRO-NG
Liquid propane & natural gas configurations
THANK YOU
Thank you for your purchase. We’d like to welcome you to the Summerset family of luxury outdoor
kitchen products and look forward to being a part your home for years to come. As a family business
with over 30 years of industry experience, we aim to deliver exceptional quality and personal service.
Welcome to the Summerset family and we hope you love your new Griddle Pro!
FOR YOUR RECORDS
Please record the following information and refer to it when contacting Summerset Professional Grills
or an authorized dealer. The serial number is located on the rating plate. The rating plate is located on
the exterior basin of the Griddle Pro and on the underneath side of the drip tray (select models only).
INSTALLER:
Please leave this manual for the owner
Serial Number:
Model:
Date of Purchase:
Place of Purchase:
For warranty information and to register your Griddle Pro visit,
amddirect.com/register
To view on your phone, scan the QR code on your smart
phone's camera app. (For Android devices, use Google Lens.)
Safety
Warnings
& Codes
5
IF YOU SMELL GAS
1. Shut off the gas to the appliance.
2. Extinguish any open flame.
3. Open lid to vent.
4. If odor continues, keep away from the appliance, and immediately call your gas supplier or
fire department.
INSTALLATION
CODE AND SUPPLY REQUIREMENTS
This Griddle Pro must be installed in accordance with local codes and ordinances,
or, in the absence of local codes, with either the latest National Fuel Gas Code (ANSI
Z223.1/NFPA 54), and Natural Gas and Propane Storage and Handling Installation Code
(CSA-B149.1).
This appliance and its individual shutoff valves must be disconnected from the gas supply
piping system when testing the system at pressures in excess of ½ psig (3.5 kPa).
This appliance must be isolated from the gas supply piping system by closing its individual
manual shut-off valves during any pressure testing of the gas supply system at pressures up
to and including ½ psig (3.5 kPa).
All electrical outlets in the vicinity of the Griddle Pro must be properly grounded in Accordance with
local codes or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the
Canadian Electrical Code, CSA C22.1, whichever is applicable. Keep all electrical supply cords and fuel
supply hoses away from any heated surface at all times.
1. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance.
2. A propane cylinder not connected for use shall not be stored in the vicinity of this or
any other appliance with flame.
WARNING!
Improper installation, adjustment, alteration, service, or maintenance can cause injury or
property damage. Refer to this manual. For assistance or additional information consult a
qualified professional installer, service agency, or the gas supplier.
WARNING!
Safety &
Installation
Instructions
7
To Reduce the risk of fire, electrical shock, or
injury, read and follow these basic precautions
before operating your gas Griddle Pro.
WHEN USING YOUR GRIDDLE PRO,
PLEASE READ AND FOLLOW THESE BASIC
PRECAUTIONS:
GRIDDLE PRO INSTALLATION
This Outdoor-cooking appliance (Griddle Pro) must be
installed in accordance with all local and state codes
INSPECTED by your local CITY & Fire department. If
installation is planned in an area with no local codes, the
gas burner must be installed in accord with the National
Fuel Gas Code ANSI Z223.1 and storage and handling of
liquefied petroleum gases, ANSI/NFPA 58 or CSA B149.1
natural gas and propane installation code. ALWAYS USE
PROFESSIONAL BUILDERS & INSTALLERS. For Safety –
have inspected by your local city, Gas Company and Fire
Department before use. This is NOT an indoor appliance
– for outdoor use only.
CALIFORNIA PROPOSITION
65 WARNING
The burning of gas cooking fuel generates some
by-products, which are on the list of substances, which
are known by the State of California to cause cancer or
reproductive harm. California law requires businesses
to warn customers of potential exposure to such
substances. To minimize exposure to these substances,
always operate the unit according to the use and care
manual, ensuring you provide good ventilation
when cooking.
Failure to read and follow the "USE AND CARE"
Instructions could result in a FIRE or EXPLOSION
that could cause serious bodily injury, death or
property damage.
Always have your appliance vented correctly,
installed by a professional and inspected by the
local city building department.
NOTE!
DO NOT USE THIS APPLIANCE UNDER
OVERHEAD COMBUSTIBLE SURFACES
GENERAL SAFETY
REQUIREMENTS
1. The installation of this appliance must conform with local codes
or, in the absence of local codes, Either the National Fuel Gas
Code, ANZI Z223.1/NFPA 54, or CAN/CGAB149.1, Natural Gas
Installation Code or CAN CGA-B149.2, Propane Installation
Code.
2. This outdoor cooking gas appliance is not intended to be
installed in or on recreational vehicles and /or boats
3. This outdoor cooking gas appliance is intended for use
outdoors and shall not be used in a building, garage or any
other enclosed area.
4. Minimum clearance of 16” – 18” inches from the back and sides
of the Griddle Pro to adjacent combustible construction must
be maintained. This outdoor cooking gas appliance shall not be
located under overhead unprotected combustible construction.
5. If the use of an external electrical source is required when
installed, this outdoor cooking gas appliance must be
electrically grounded in accordance with the local codes or, in
the absence of local codes, with the National Electrical Code,
ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1. Keep
any electrical supply cord, or the fuel supply hose away from any
heated surfaces.
6. Keep your Griddle Pro in an area clear and free from
combustible materials, gasoline and other flammable vapors
and liquids.
7. DO NOT obstruct the flow of combustion and ventilation air to
this appliance. Keep the ventilation openings of the cylinder
enclosure free and clear from debris.

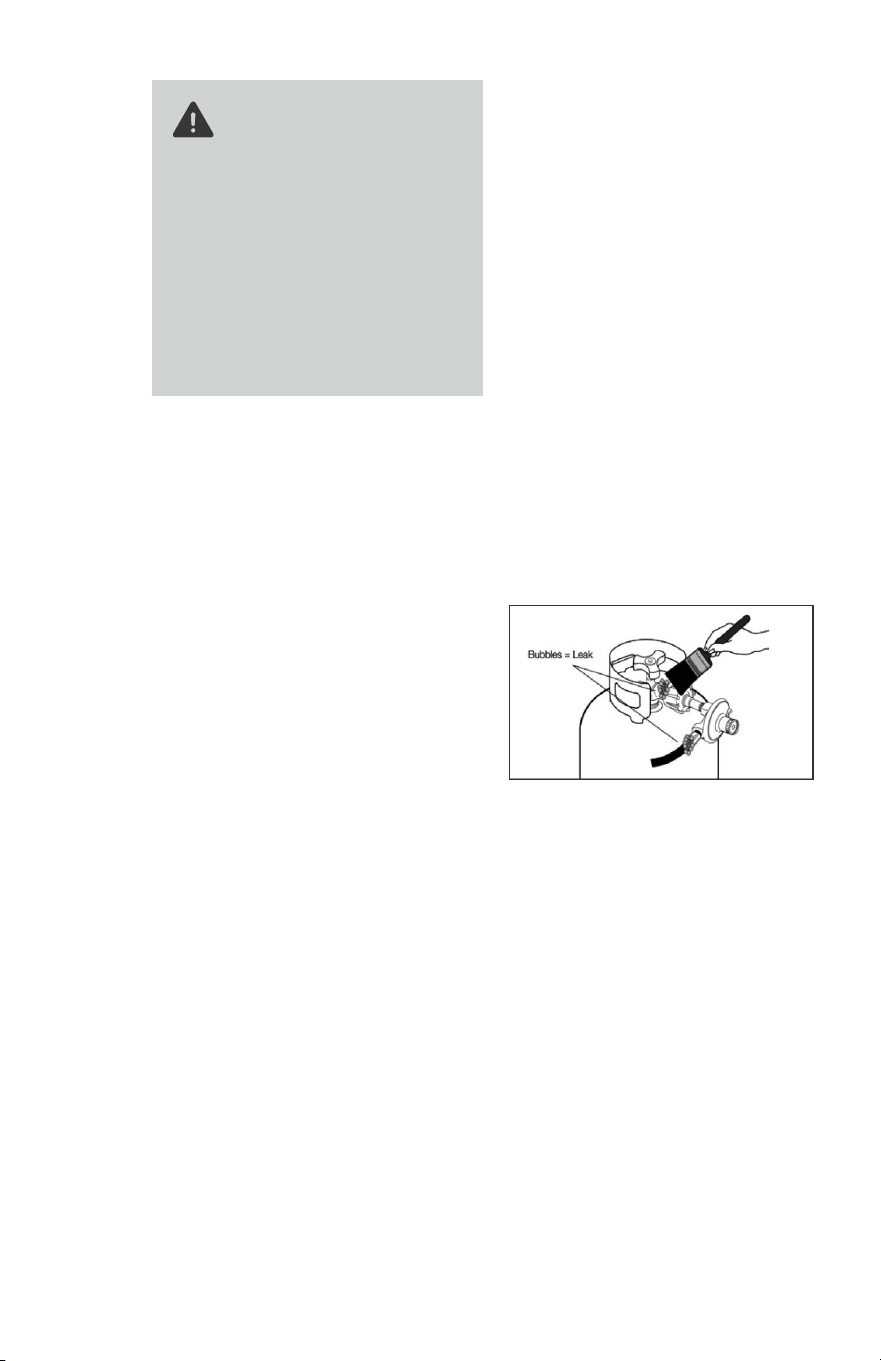

8. Check all gas connections for leaks with soapy water solution
and brush. Never use an open flame to test for gas leaks.
9. Check flexible hoses for cuts and wear that may affect the safety
before each use.
10. Never use the Griddle Pro in a windy area.
11. Never use the Griddle Pro without the drip pan installed and
pushed all the way to the back of the Griddle Pro. Without the
drip pan, hot liquid and debris could leak downward and could
produce a fire hazard.
12. Have an ABC Fire Extinguisher readily accessible. Never aempt
to extinguish a grease fire with water or other liquids.
13. Keep electrical supply cords and fuel supply hoses away from
heated surfaces.
14. Do not heat unopened food containers as they may explode.
15. Never store additional or empty fuel cylinders in the Griddle Pro
cabinet or near the Griddle Pro. Do not store cylinders indoors
or on their sides. Never use dented, rusty or damaged cylinders.
16. Close supervision is necessary when this or any appliance is
used near children. Keep children away from the Griddle Pro
during operation and until the Griddle Pro has cooled off.
17. Never place your fingers inside the observation openings in the
Griddle Pro at any time as injury could occur.
18. Aer the Griddle Pro is installed by a professional technician
be sure they show you where your gas supply shut-off valve
is located. All gas lines must have a shut-off that is easily
accessible. If you ever smell gas, check for leaks IMMEDIATELY.
Never check for gas leaks with an open flame.
WARNING!
WARNING!
8
SAFETY & INSTALLATION INSTRUCTIONS
19. Never operate the Griddle Pro in a windy area. If windy
conditions exist, install a suitable wind guard.
20. Damage caused by leaving operating burner unaended is
not covered under the terms and conditions of the AMD Direct
Warranty. Never leave open flame unaended.
21. Never use the Griddle Pro without drip pan in place. Make
sure drip pan is properly and fully inserted. Failure to do
so may allow hot grease or boil-overs to become a fire or
explosion hazard.
22. Do not repair or replace any part of the Griddle Pro unless
specifically recommended by this manual. A qualified
technician should perform all other necessary service.
23. The Summerset Griddle Pro is not designed/certified for and
cannot be installed in or on recreational vehicles, portable
trailers, boats or any other mobile vehicle.
24. Children should never be le alone or unaended in an area
where the Griddle Pro is located. Install the Griddle Pro well
away from areas where children play. Do not store items that
may draw the interest of children in or around the Griddle Pro,
island or masonry enclosure. When in use and immediately
aer, areas of the Griddle Pro is hot enough to cause severe
burns!
25. Avoid wearing loose-fiing, long sleeves or flammable
garments when using the Griddle Pro. Never touch cooking
grates on top or surrounding metal surfaces with your bare
hands as these areas become extremely hot during use and
could cause severe burns. Use an insulated glove or mi when
aempting to handle parts of the Griddle Pro.
26. Never lean over or look directly over the cooking surface when
aempting to light.
27. The Griddle Pro lid must be completely removed before
lighting and during operation.
28. Do not cover the Griddle Pro with the lid until the cooking
surface has cooled down.
29. Never connect any unregulated gas supply to the Griddle Pro.
Supplied regulator must be used in order to validate warranty.
NOTE: In Massachuses: All gas products must be
installed using a “Massachuses” licensed plumber
or gas fier. A “T” Handle type manual gas valve must
be installed in the gas supply line to this appliance.
This applies to permanently installed natural gas and
propane installations. This does not apply to propane
portable installations using a 20-pound tank.
SHIPMENT ARRIVING DAMAGED:
VISIBLE DAMAGE
If your shipment arrives with visible damage to the
box/carton, be sure the damage is noted on the
bill of freight or express receipt and signed by the
person making the delivery. File claim for damages
immediately, regardless of the extent of damage.
CONCEALED DAMAGES
If damages are unnoticed until the Griddle Pro is
unpacked, notify the transportation company or carrier
immediately and file a concealed damage claim with
them. This should be done within (5) days of the
delivery date. Be sure to hold on to the box/carton
for inspection. We cannot assume responsibility for
damage or loss incurred in transit.
IMPORTANT NOTES

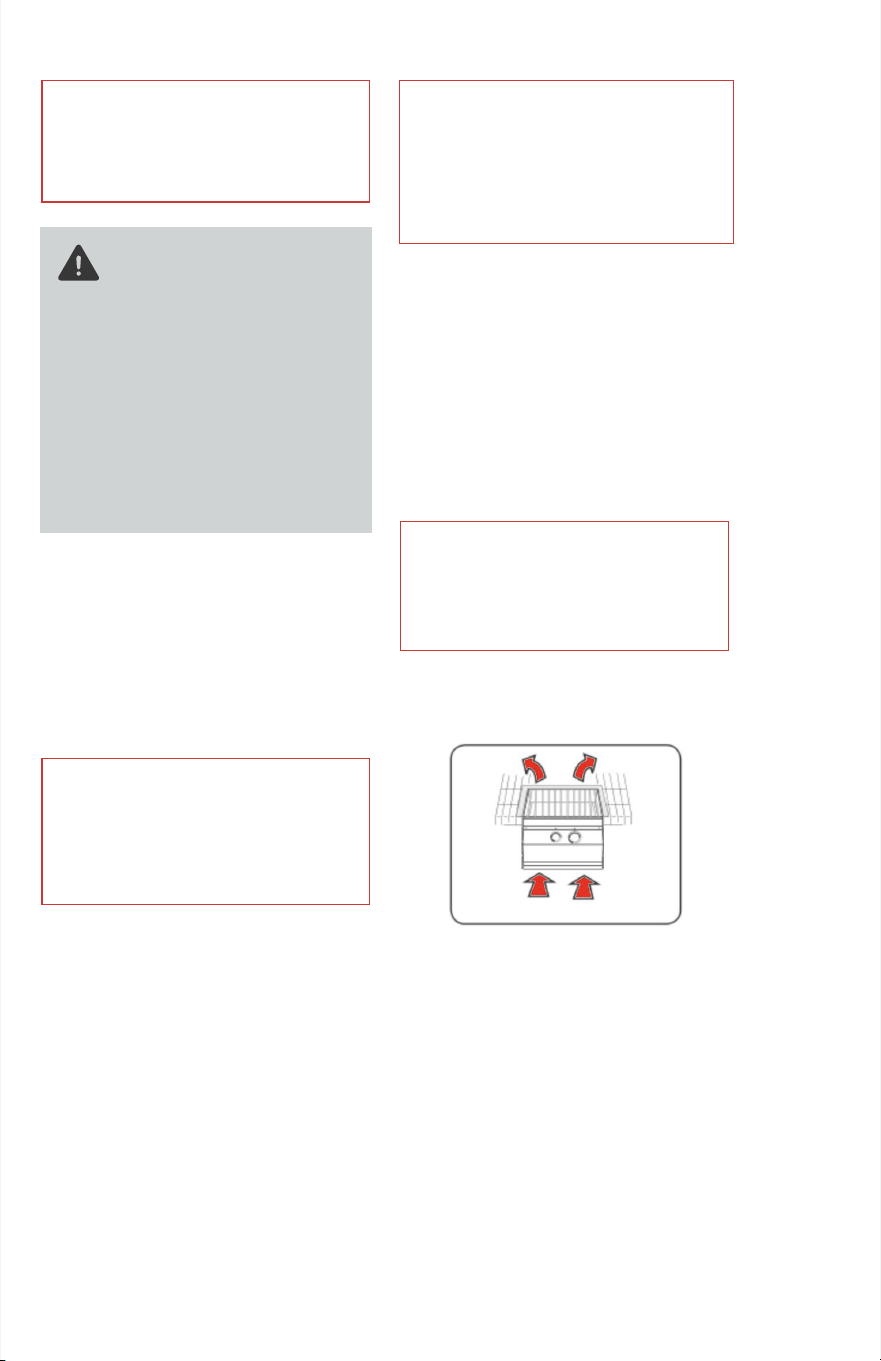

BE MINDFUL OF WIND
DIRECTION
When selecting a suitable location, consider
important factors such as exposure to the wind and
foot traffic paerns. Position your Griddle Pro so the
prevailing wind blows into the front control panel
(at your back when operating), allowing for proper
front to rear airflow. Griddle Pros located in areas
with prevailing winds should be protected by a wind
barrier, wind deflector, or wind guard. The Griddle Pro
is designed to pull in air from the front and exhaust
through the rear of the unit. Winds hiing the back of
the Griddle Pro directly may cause problems.
GAS LINE LENGTH
Keep all gas supply lines as short as possible. Gas
lines lose pressure over distance and with each elbow
or “t” fiing added. This drop in pressure affects
Griddle Pro performance.
PROPER LEVELING
PROPER LEVELING DURING INSTALLATION IS
CRITICAL. A Griddle Pro THAT IS OUT OF LEVEL
WILL CAUSE ERRATIC BURNER COMBUSTION
AND INEFFICIENT, UNEVEN HEATING. THE Griddle
Pro SHOULD BE LEVEL IN ALL DIRECTIONS.
ADJUSTMENTS MAY NEED TO BE MADE EACH TIME
WHEN MOVING A FREESTANDING UNIT.
CONSTRUCTION ZONES
Keep all stainless steel products away from
construction zones. Construction debris such as (but
not limited to) stone dust, stucco, and lime dust
could damage or permanently discolor stainless
steel products. Keep all caustic chemicals including
chlorine and pool cleaning products away from
stainless steel at all times.
9
IMPORTANT: THIS GRIDDLE PRO
IS FOR OUTDOORS
USE ONLY.
The Griddle Pro must be installed in masonry
or other type of fireproof surround. The unit is
not insulated and therefore must be installed or
placed with 16” – 18” of side and back clearance
from unprotected combustible materials such
as wood, Plastic, or stucco with wood framing.
PLEASE NOTE: if this is not done the combustible
material will catch on fire and potentially damage
your house / structure and may cause bodily
harm due to the fire.
Do not install this unit under unprotected
flammable surfaces. Do not install or use this
appliance inside a building, garage, or any
other enclosed area. It must not be used in
or on recreational vehicles or boats.
This is a slide-in unit designed to fit into open-
front enclosures. Control panel of the unit is
removable for gas hookup, servicing and
burner adjustment. Control panel must remain
removable aer you install the unit. Do not have
this panel sealed for any reason.
Important: The lip on the side requires 1”
( 2.5 cm)of counter top on each side and back to
support the unit.
Note: This unit should be installed so that it can
be removed at a later date if factory service is
required.
WA RNING!
SAFETY & INSTALLATION INSTRUCTIONS
10

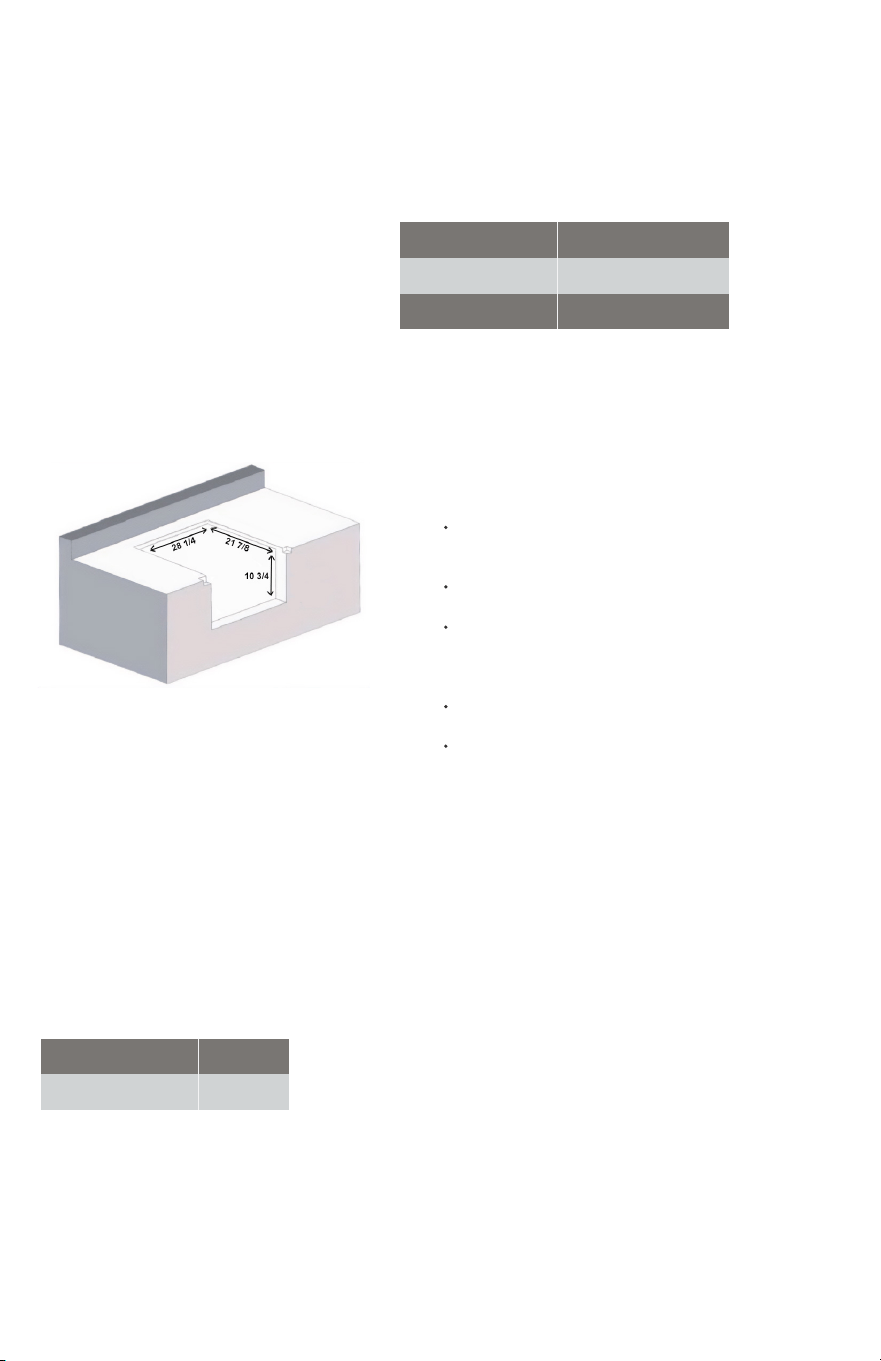

ENSURING PROPER
COMBUSTION AIR AND
COOLING AIR FLOW
You must maintain proper air flow for your Griddle Pro
to perform as it was designed (diagram below) If airflow
is blocked, overheating and poor combustion will result.
Make sure not to block the 1” (2.5 cm) front air inlet
along the boom of the control panel or more than 75%
of the support grid surface with pans or cooking utensils.
Note: The 1” (2.5 cm) front air space allows
access to the drip tray.
EXHAUST REMOVAL
MINIMUM PRESSURE
REQUIREMENTS
Ensure the gas supplied meets the minimum pressure
requirements. See below table for gas requirements
measured in water column (w.c.) pressure:
Both the regulator and burner orifices have been
tuned for the type of gas specified on the rating
plate. Converting to a different type of gas requires a
conversion kit. Conversion kits are included with this
Griddle Pro and located with the manual. Converting
gases may require additional parts not included with this
Griddle Pro. (See Gas Conversion section for details).
GAS SAFETY REQUIREMENTS
Each appliance is set and tested at the factory for the
type of gas supply to be used. Identify the type of gas,
either natural gas or LP (Liquid Propane) gas and make
sure that the marking on the rating plate located on the
side of the unit matches the gas being supplied to the
Griddle Pro. The rating plate is located on the side of the
Griddle Pro.
All gas hook up connections should be made by a
qualified technician and in accordance with local codes
and ordinances. The installation must conform with local
codes or, in the absence of local codes, with either the
latest National Fuel Gas Code (ANSIZ223.1/NFPA 54),
and Natural Gas and Propane Storage and Handling
Installation Code (CSA-B149.1).
If installed under a patio roof, the cooking grid area
should be fully covered by a chimney and exhaust hood.
An exhaust fan with a rating of up to 1,000 CFM (472
liters per second) may be necessary to efficiently remove
smoke and other cooking by-products from the covered
area. Installation in fully enclosed patio areas is not
recommended.
BURNER BTU
Burner BTU TOTAL BTU
36,000
GAS TYPE
Natural Gas
Liquid Propane
MAX MIN
7” w.c. 4” w.c.
14” w.c. 11” w.c.
Do not store or use gasoline or other
flammable liquids or vapors near this or any
other appliance.
Do not store spare LP cylinders under or
near this appliance.
Never fill cylinder more than 80% capacity.
If these instructions are not followed, fire
causing serious injury or even death may
occur.
For installation in non-combustible
locations only.
Do not locate under unprotected, overhead
combustible surfaces.
SAFETY & INSTALLATION INSTRUCTIONS
GRIDPRO
18,000
11
Where to
Install the
Griddle Pro
12
The Griddle Pro must be installed in a masonry
or other type of fireproof surround. The unit is
not insulated and therefore must be installed or
placed with 16" – 18” of side and back clearance
from unprotected combustible materials such
as wood, plastic, or stucco with wood framing.
PLEASE NOTE: if this is not done, the combustible
material will catch on fire and potentially damage
your house / structure and may cause bodily
harm due to the fire. Optional insulating liners
are available.
WARNING!
WHERE TO INSTALL THE GRIDDLE PRO
Do not install this unit under unprotected flammable
surfaces. Do not install or use this appliance inside a
building, garage, or any other enclosed area. It must not
be used in or on recreational vehicles or boats. This is a
slide in unit designed to fit into open-front enclosures.
Control panel of the unit is removable for gas hookup,
servicing and burner adjustment. Control panel must
remain removable aer you install the unit. Do not have
this panel sealed for any reason.
IMPORTANT!
THE Griddle Pro IS FOR OUTDOOR USE
ONLY.
IMPORTANT!
The lip on the side requires 1" ( 2.5 cm) of counter
top on each side and back to support the unit.
NOTE!
The 1" (2.5 cm) front air space allows access to
the drip tray.
ENSURING PROPER
COMBUSTION AIR AND
COOLING AIR FLOW
You must maintain proper air flow for your Griddle Pro
to perform as it was designed (diagram below). If airflow
is blocked, overheating and poor combustion will result.
Make sure not to block the 1" (2.5 cm) front air inlet
along the boom of the control panel or more than 75%
of the support grid surface with pans or cooking utensils.
EXHAUST REMOVAL
If installed under a patio roof, the cooking surface area
should be fully covered by a chimney and exhaust
hood. An exhaust fan with a rating of up to 1,000 CFM
(472 liters per second) may be necessary to efficiently
remove smoke and other cooking byproducts from the
covered area. Installation in fully enclosed patio areas is
not allowed.
NOTE!
This unit should be installed so that it can be
removed at a later date if factory service is
required.
13
Gas Safety
Requirements
14
CHECK TO ENSURE THAT THE GAS SUPPLY
HOSE DOES NOT COME IN CONTACT WITH ANY
HOT SURFACE OF THE Griddle Pro.
GAS SAFETY REQUIREMENTS
WARNING!
Each appliance is set and tested at the factory for the
type of gas supply to be used. Identify the Type of gas,
either natural gas or LP ( Liquid Propane) gas and make
sure that the marking on the rating plate located on the
side of the unit matches the gas being supplied to the
Griddle Pro. The rating plate is located on the side of the
Griddle Pro.
All gas hook up connections should be made by a
qualified technician and in accordance with local codes
and ordinances. The installation must conform with
local codes or, in the absence of local codes, with either
the national Fuel Gas Code, ANSI Z223.1/NFPA 54, or
CAN/CGAB149.1, Natural Gas Installation Code or CAN
CGA-B149.2, Propane Installation Code.
L.P. GAS
(
LIQUEFIED
PETROLEUM/PROPANE
)
If your Griddle Pro is factory built for L.P., the regulator
required is set for 10” water column and is for use with
L.P. gas only. If unit is NOT supplied with regulator
please make sure that all requirements are met for the
type of regulator required.
L.P. GAS SAFETY REQUIREMENT
The LP-gas supply cylinder must be constructed and
marked in accordance with the Specifications for LP-gas
Cylinders of the U.S. Department of Transportation
(D.O.T.) or the National Standards of Canada CAN/
CSA-B339, Cylinders, Spheres and Tubes for the
Transportation of Dangerous Goods, and Commission,
as applicable; and
1. Provided with a listed overfilling prevention device.
2. Provided with a cylinder connection device
compatible with the connection for outdoor cooking
appliances.
It must be provided with a shut-off valve terminating in
gas tank valve outlet. It must include a collar to protect the
cylinder valve. The cylinder supply system must be arranged
for vapor withdrawal.
Do not operate the gas Griddle Pro indoors or in any
enclosed area. If the gas Griddle Pro is not in use, the gas
must be turned off at the supply cylinder. If the Griddle Pro
is to be stored indoors, disconnect the gas supply cylinder
and leave the cylinder outdoors.
LP GAS HOOK-UP
Do not use any replacement regulator other than that
specified by the manufacturer. Use only pipe sealants
that are approved for use with natural and LP gases. An
installer-supplied gas shutoff valve must be installed in an
accessible location. (Reference: leak test procedure).
ALTHOUGH AN LP GAS CYLINDER MAY
BE USED, IT IS NOT RECOMMENDED
DUE TO THE LARGE AMOUNT OF GAS
CONSUMPTION AND MAY FREEZE UP
THE GAS CYLINDER AS WELL AS A
SAFETY RISK.

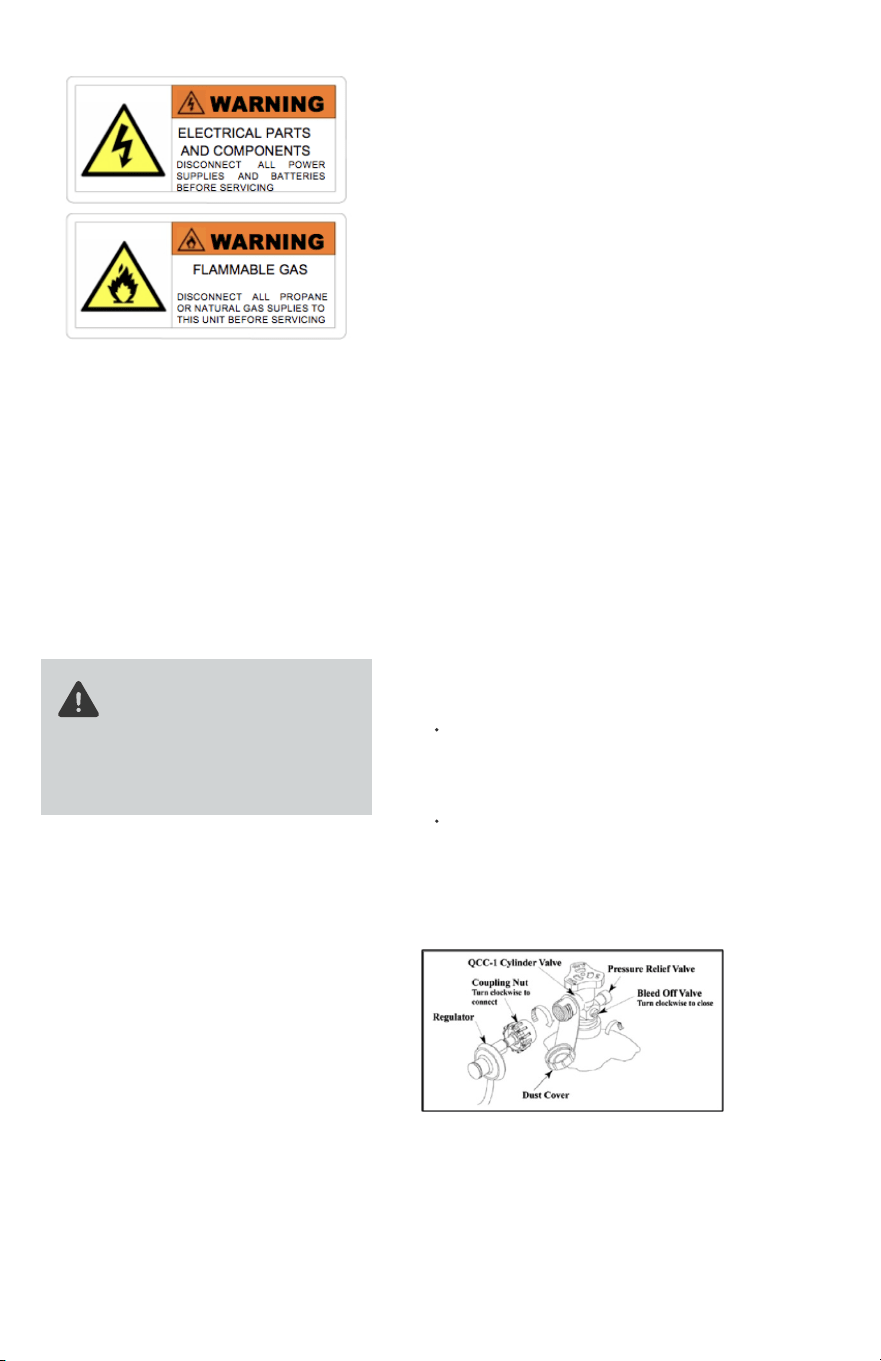

CONNECTING TO THE LP TANK
The hose and regulator are connected in the
following manner:
To disconnect the coupling nut, first make sure
the main cylinder valve is turned off. Grasp the
coupling nut and turn counterclockwise. The inlet
will then disengage.
Insert the regulator inlet into the cylinder valve
and turn the black coupling nut clockwise until
the coupling nut is hand tight. DO NOT over-
tighten this connection.
15
FILLING AND REFILLING LP GAS
CYLINDERS
All purging and refilling of LP gas cylinders must be
performed by qualified personnel in the LP gas industry.
Never store a spare LP gas cylinder under or near this
appliance.
Never fill the LP gas cylinder beyond 80 percent full.
Failure to follow these instructions may result in
explosion, personal injury or death.
ALWAYS WAIT 5 MINUTES
BEFORE RE-LIGHTING A HOT
BURNER!
NOTE:
Improper lighting procedures can cause the flow control
to activate, resulting in reduced heat output. If this is
suspected, shut off all burner controls and cylinder valve.
Wait 30 seconds, then very slowly re-open cylinder valve.
Wait an additional 5 seconds before turning burner control
knob and aempting to light.
VENTING YOUR ENCLOSURE
An enclosure or Island for LP gas cylinder must be vented
on the level of the cylinder valve and at floor level. The
effectiveness of the opening(s) for purposes of ventilation
shall be determined with the LP gas supply cylinder in
place. This shall be accomplished by one of the following:
A. One side of the enclosure shall be fully open; or
B. For an enclosure having four sides, a top and a boom:
At least two ventilation openings at cylinder valve level shall
be provided in the sidewall, equally sized, spaced at 180
degrees (3.14 rad), and unobstructed. Each opening shall
have a total free area of not less than 1/2 square inch per
pound (7.1 cm2/kg) of stored fuel capacity and not less than
a total free area of 10 square inches (64.5 cm2).
Ventilation opening(s) shall be provided at floor level and
shall have a total free area of not less than ½" square inch
per pound (7.1 cm2/kg) of stored fuel capacity and not
less than a total free area of 10 square inches (64.5 cm2). If
ventilation openings at floor level are in a sidewall, there
shall be at least two openings. The boom of the openings
shall be at floor level and the upper edge no more than
5 inches (127 mm) above the floor. The openings shall
be equally sized, spaced at 180 degrees (3.14 rad) and
unobstructed.
GAS SAFETY REQUIREMENTS
16
LIQUID PROPANE
INSTALLATION NOTE:
Ventilation is required in the enclosure on opposite sides
to create cross-ventilation. Liquid propane is heavier than
natural gas and vents should be located near the boom
of the enclosure.
LP gas Griddle Pro models are designed for use with a
standard 20 lb. liquid propane gas (LP) tank with type (1)
valve connections. (Not included)
Never connect your gas Griddle Pro to an LP tank that
exceeds this capacity. A tank of approximately 12 inches
in diameter by 18-1/2 inches high is the maximum size
LP gas tank to use. A propane tank with an OPD (Overfill
Prevention Device) must be used. This safety feature
prevents the tank from being over-filled which can
cause malfunction of the LP gas tank, regulator and/
or Griddle Pro. The LP cylinder must be constructed
and marked in accordance with the specifications for LP
gas cylinders of the U.S. Department of Transportation
(DOT) and designed for use with a Type 1 system only. Be
sure to read and follow all LP connection instructions.
A dented or rusty LP cylinder may be hazardous and
should be avoided. If in doubt, have it checked by your
LP supplier. Always check for leaks aer every LP cylinder
change. (See Checking For Leaks)
Cylinders must be stored outdoors in a well-ventilated
area out of the reach of children. If your Griddle Pro
is stored in an enclosed space, the LP cylinder must
be stored outside, in upright position and away from
excessive heat.

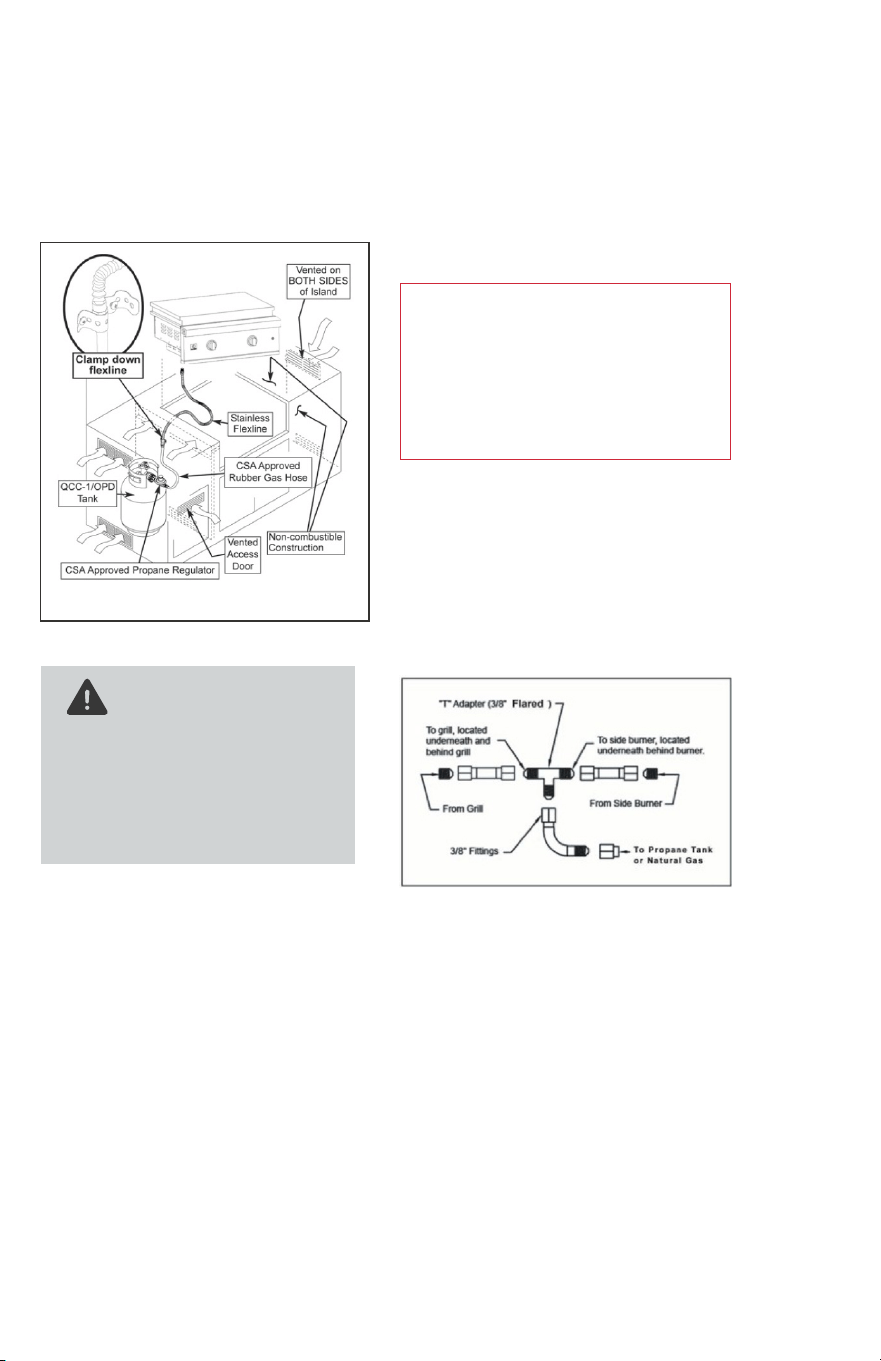

CONNECTING TO A
SIDE BURNER
You will need a ‘T’ adapter fiing (not provided) or
similar connection to connect a single gas line to both
a side burner and a Griddle Pro. We recommend a
licensed gas technician install all gas lines. See below
figure for installation of a ‘T’ adapter.
GAS SAFETY REQUIREMENTS
WARNING!
Before lighting the burners, inspect the gas
supply piping or hose. If there is evidence of
cuts, wear, or abrasion, it must be replaced prior
to use. Always keep your face and body as far
away from the Griddle Pro as possible when
lighting.
All installation and all installation parts must
conform to local codes with the National
Electrical Code, ANSI Z223.1/ NFPA 70 latest
edition and the National Fuel Gas Code ANSI
Z223.1/NFPA 54 in the U.S. and CGA-B149.1/.2
in Canada
IMPORTANT
17
IF YOU SMELL GAS:
1. SHUT OFF GAS TO THE APPLIANCE
RIGHT AWAY
2. EXTINGUISH ANY OPEN FLAME
3. MAKE SURE THE COVER IS NOT
PLACED OVER THE BURNER
4. IF GAS SMELL CONTINUES, KEEP
AWAY FROM THE APPLIANCE AND
IMMEDIATELY CALL YOUR GAS
SUPPLIER OR FIRE DEPARTMENT.
WARNING!
NATURAL GAS INSTALLATION
The installation must conform with local codes or, in the
absence of local codes, with either The national Fuel Gas
Code, ANSI Z223.1/NFPA 54, or CAN/CGA-B149.1, Natural
Gas Installation Code or CAN/CGA-B149.2, Propane
Installation Code.
1. This gas appliance and its individual shutoff valve
must be disconnected from the gas supply piping
system during any pressure testing of that system at
the test pressures in excess of 1/2 psi (3.5 kPa).
2. This appliance must be isolated from the gas supply
piping system by closing its individual manual
shutoff valve during any pressure testing of the gas
supply piping system at test pressures equal to or
less than 1/2 psi (3.5 kPa).
If the gas Griddle Pro is factory built for natural gas,
the regulator (If included) needs to be set for 4” water
column. The regulator is convertible later to 10” water
column for system LP application. Do not use with a 20-
lb LP cylinder unless the Griddle Pro is converted. Make
sure that the regulator is set for natural gas. To check,
remove the top cap. You will find the conversion plastic
pin aached to the cap on the underside of the cap. If
the disc (1/2 in. diameter) of the pin is close to the cap,
then the regulator is set for natural gas. If the disc is at
the tip of the pin, away from the brass cap, the regulator
is set for system LP application. To convert to natural gas,
remove the plastic conversion pin and invert and replace
it back in a manner such that the disc is close to the
brass cap. For both natural and LP, the maximum inlet
pressure is 14” water column.
Do not use any replacement regulator other than
that specified by RCS. Use only pipe sealants that are
approved for use with natural and LP gases. An installer-
supplied gas Shutoff valve must be installed in an
accessible location.
LEAK TEST
CAUTION BEFORE TESTING
NEVER USE THE Griddle Pro WITHOUT FIRST LEAK
TESTING THE GAS CONNECTIONS.
WARNING: DO NOT USE OPEN FLAME TO CHECK
FOR LEAKS. USE OF AN OPEN FLAME COULD
RESULT IN A FIRE, EXPLOSION AND BODILY HARM.
DO NOT SMOKE WHILE PERFORMING THE
LEAK TEST!
IF AT ANYTIME YOU SMELL GAS – SWITCH OFF ALL
OF YOUR EQUIPMENT AND CALL A PROFESSIONAL
TO DETECT THE GAS LEAK. ALWAYS INFORM
ALL MEMBERS OF YOUR FAMILY ABOUT THIS
IMPORTANT FACT – SMELL GAS = DO NOT USE
THE EQUIPMENT.
To prevent fire or explosion hazard, DO NOT use or
permit sources of ignition in the area while performing
a leak test. Perform leak test outdoors only. Check to
ensure that flexible hoses do not have any cuts and wear
that may affect the safety before each use. Use only
replacement regulator specified by the manufacturer.
1. Prepare a leak testing solution of soap and water in a
spray bole (50% solution)
2. Confirm that all control knobs are in the off position
3. Turn the main gas supply valve ON
4. Apply the leak test solution by spraying on all of the
pipe joints, fiings and hose
5. A gas leak is detected when:
a. There is a faint smell of gas and/or
b. There are bubbles around the connections
18

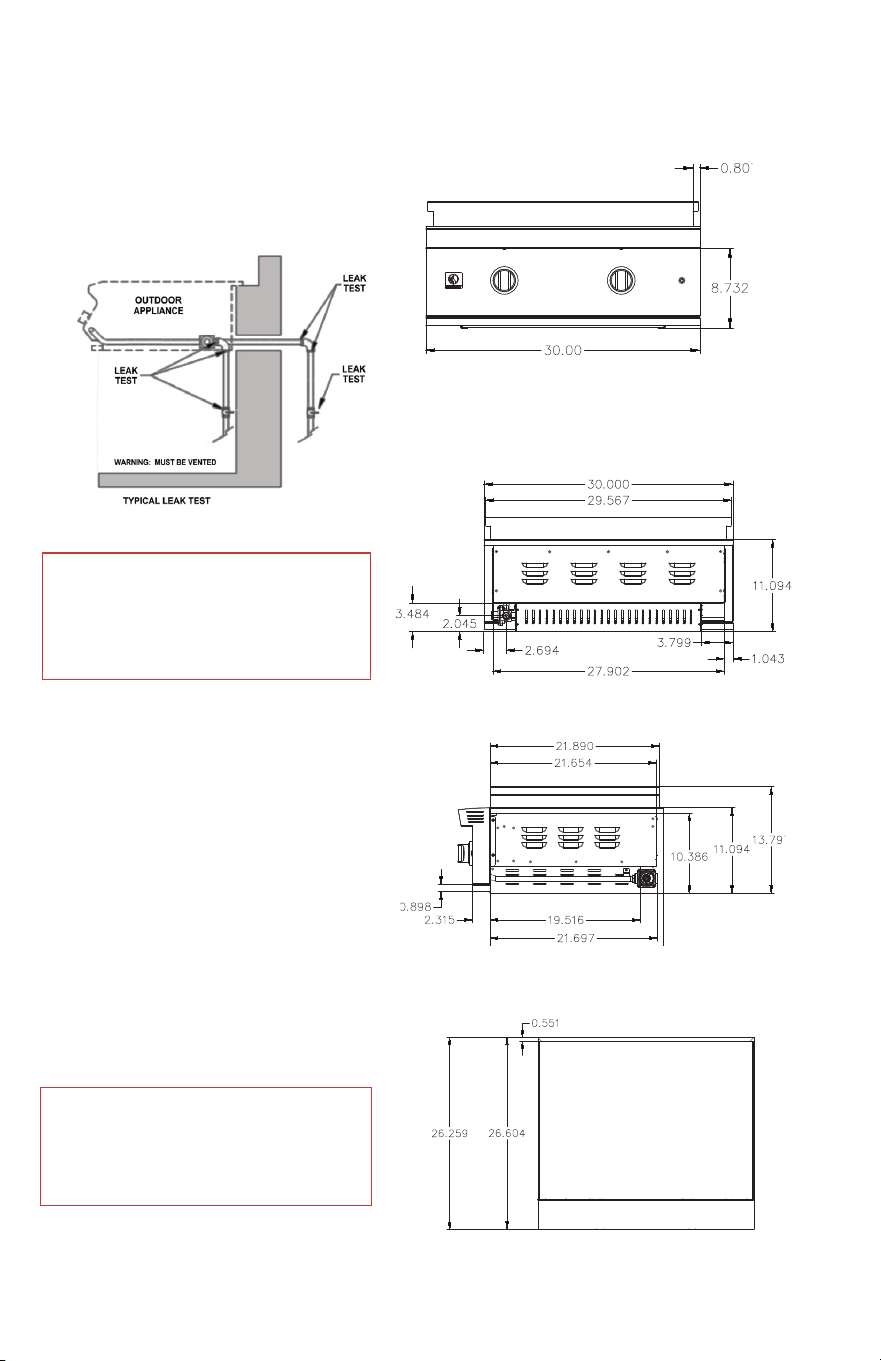

TYPICAL BUILDING DIMENSIONS
TYPICAL BUILDING
DIMENSIONS
CLEARANCE TO COMBUSTIBLE
CONSTRUCTION:
A minimum clearance of 18” from the sides and
back of the Griddle Pro to adjacent Vertical
combustible construction must be maintained.
CLEARANCE TO NONCOMBUSTIBLE
CONSTRUCTION:
A minimum clearance of 1” from the back of
the Griddle Pro above cooking surface to non-
combustible construction is required.
A minimum of 1” clearance to the sides of
the Griddle Pro above cooking surface to
noncombustible construction is recommended.
LINE DRAWINGS
FOR GRIDPRO
NOTE!
Its is recommended to build the Griddle Pro
at least 6”-12” lower than the counter top
NOTE!
DO NOT USE THIS APPLIANCE UNDER
OVERHEAD COMBUSTIBLE SURFACES
6. DO NOT ATTEMPT TO IGNITE THE BURNER
7. Turn off the main Gas Supply
8. Call a certified/qualified professional to repair the
GAS LEAK
9. DO NOT aempt to use the Griddle Pro until the
leak is fixed
19
Cleaning &
Maintenance
20
CLEANING & MAINTENANCE
SPIDER AND INSECT WARNING
Spiders and other insects can nest in the burner of this
and any other Griddle Pro, which causes the gas to flow
from the front of the burner. This dangerous “condition”
can cause a fire behind the valve panel, damaging
the Griddle Pro and making the Griddle Pro unsafe to
operate. Inspect the burners once a year or if the Griddle
Pro has not been used for more than one month or if
any of the following conditions occur:
1. The smell of gas in conjunction with the burner
flames appearing yellow.
2. The Griddle Pro does not reach temperature.
3. The Griddle Pro heats unevenly.
4. The Griddle Pro makes popping noises.
STAINLESS STEEL
MAINTENANCE
The Griddle Pro is made of stainless steel construction.
Never clean the stainless steel when it is hot. Aer the
initial cooking use, certain areas of the Griddle Pro may
discolor. This is a normal discoloration caused by the
internal heat given off by the burner. Specks of grease
can gather on the surface of the stainless steel and
get baked-on. These can be removed by using a mild
abrasive pad (like Scotch Brite) with a stainless steel
cleaner. Use the mildest cleaner and always scrub in the
direction of the grain.
Do not use steel wool to clean the Griddle Pro.
Do not use abrasives on the polished highlights.
Be extra careful when cleaning around the highlights.
Metal polisher or mild chrome cleaner can be used to
bring back the luster on highlights. To touch-up minor
scratches in the stainless steel, sand the affected surface
very lightly, with 100-dry grit emery sandpaper in the
direction of the grain.
GRIDDLE PRO COOKING
SURFACE MAINTENANCE
The easiest way to clean the cooking surface is to scrub
it with a barbecue brush immediately aer cooking is
completed and the flame is turned off.
Wear a heat protective barbecue mi to protect your
hands from the heat and steam. Dip a brass bristle
barbecue brush in tap water and scrub the hot cooking
surface. Dip the brush frequently in tap water. Steam,
created as water comes in contact with the hot Griddle
Pro, helps loosen food particles stuck in the Griddle Pro.
Cleaning of the Griddle Pro would be longer and more
difficult if the Griddle Pro cooking surface is allowed to
cool before cleaning.
BURNERS CLEANING &
MAINTENANCE
Burners are made of heavy gauge stainless steel and can
be cleaned using a bristle brush, warm water and soap.
Check every port hole for clogs. Use a wire pin to clean
out clogged ports. Make sure the burner is dry before
installing it back to the Griddle Pro.
DRIP PAN
The drip pan collects grease, liquid and fallen food
particles. Allow the pan and its contents to cool before
cleaning. Slide the pan out and wipe it clean. Make sure
the drip pan is fully inserted back into the Griddle Pro. It
is highly recommended to clean the pan aer every use
to avoid any possibility of a grease fire. DO NOT use the
Griddle Pro without the drip pan pushed all the way to
the back of the Griddle Pro unit.
21
Operating
Instructions
22
OPERATING INSTRUCTIONS
BEFORE LIGHTING THE
GRIDDLE PRO
1. DO NOT ATTEMPT TO LIGHT THE Griddle Pro IF YOU
SMELL GAS.
2. WARNING!
IT IS CRITICAL THAT THE GAS BURNERS ARE
PROPERLY INSTALLED WITH THEIR ORIFICES
INSIDE THE BURNERS AIR SHUTTERS.
If not properly installed, gas may leak outside of the
burner that could lead to fire, potential damage to
your Griddle Pro and bodily injury.
Inspect the gas supply piping or hose prior to
turning the gas ON. If there is evidence of cuts, wear,
or abrasion, it must be replaced prior to use. The
replacement pressure regulator and hose assembly
must be the type specified by the manufacturer. Do not
use the Griddle Pro if the odor of gas is present.
If the unit is LP, screw the regulator and hand tighten
to the valve of the cylinder and leak check the hose and
regulator connections with a soap and water solution
before operating the Griddle Pro. Make sure you always
read about LEAK PREVENTION.
Always keep your face and body as far away as possible
when lighting.
Refer to spiders and insects warning and procedure
under the cleaning and maintenance page of this
manual.
LIGHTING THE GRIDDLE PRO
1. Open the gas supply shut-off valve.
2. Push in the knob to the le wait a few seconds and
then click the sure-strike ignition system to ignite. If
the igniter does not light turn to the right and OFF
position, verify that the gas is on and then try again.
3. Once you see or hear a flame you can adjust the
burner to the desired position.
CAUTION: If ignition does not take place within a
few clicks, turn knob to the OFF Position, wait for two
minutes and repeat step 2.
MATCH/BBQ LIGHTER
LIGHTING INSTRUCTIONS:
1. Push and turn the knob counter-clock-wise past the
“CLICK” position. Hold the knob pushed in for 2-3
seconds.
2. Insert a lit match or BBQ lighter through the Griddle
Pro burner access opening and near the top of
the burner. Once you see or hear a flame you may
release the knob.
NOTE!
If the burner does not ignite for the first time
use – there may be “AIR” in the line. Contact
your gas professional to bleed out the line.
IMPORTANT: If burner fails to light within 5
seconds, turn off gas and wait 2 minutes before
repeating the process.
• If you smell gas with the valves off, shut off the
gas supply and immediately checks for leaks
using the soapy water technique.
WARNING!
23
Griddle Pro
Parts List
24

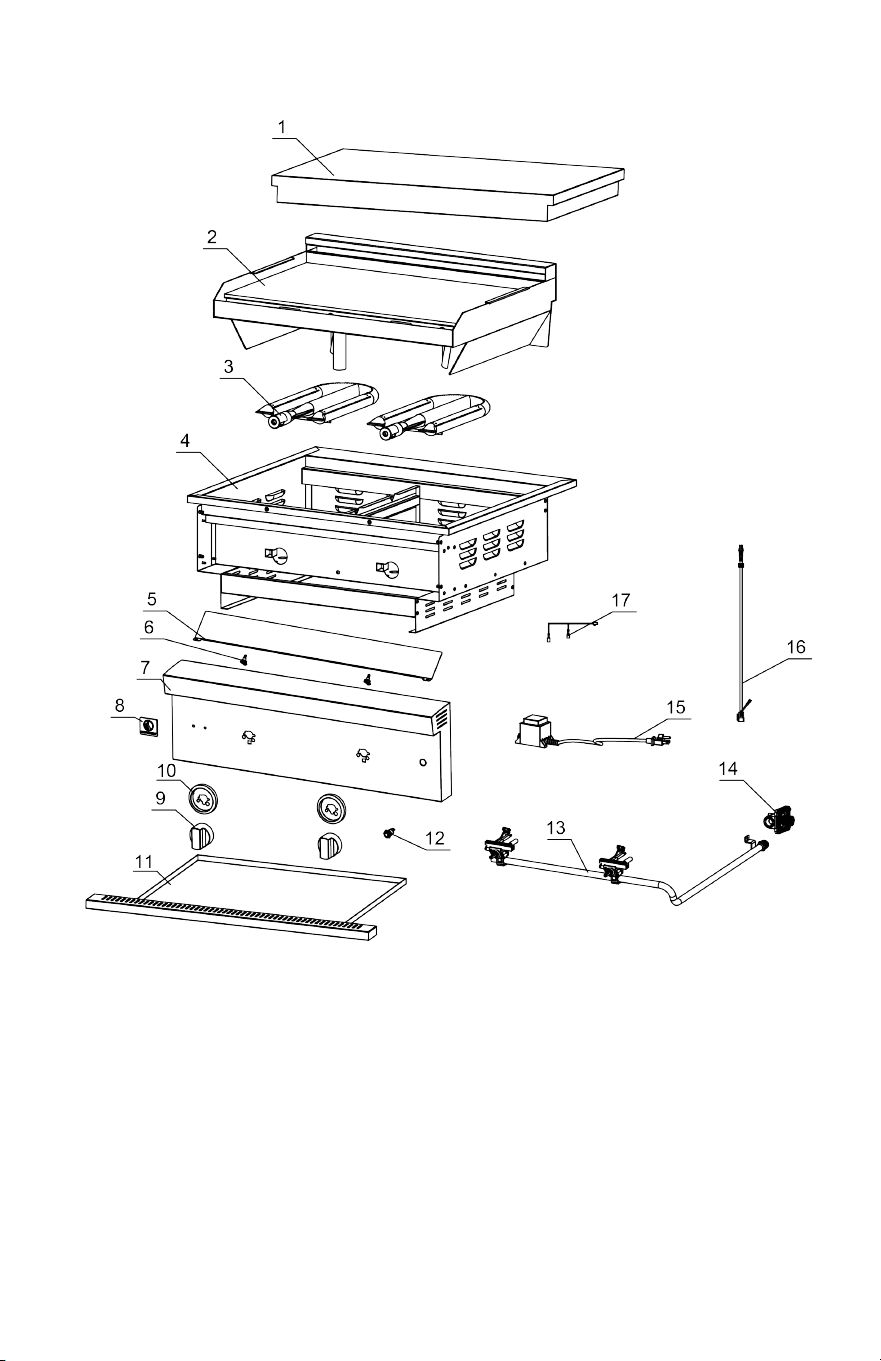

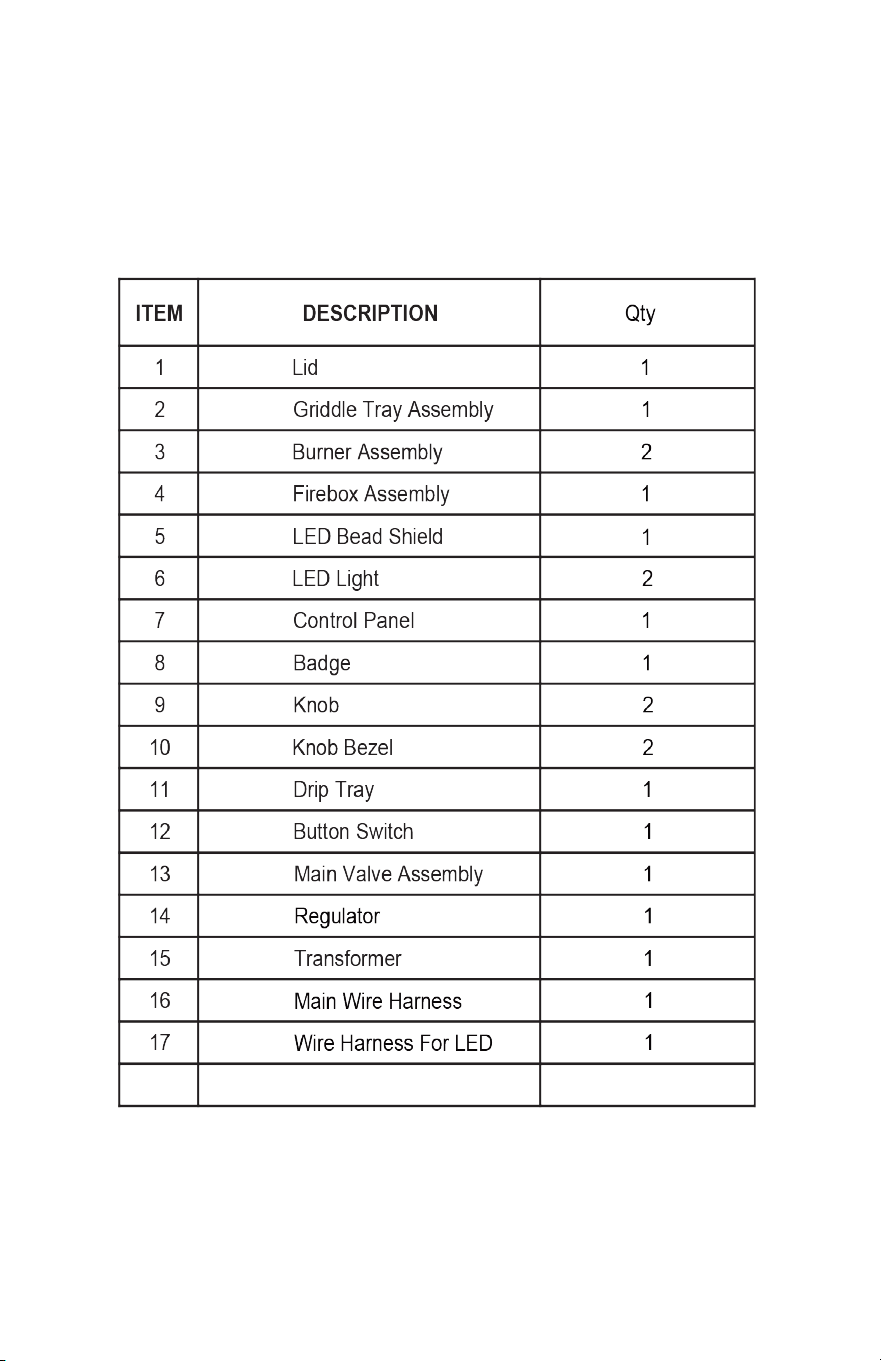

GRIDDLE PRO PARTS LIST
(
GRIDPRO
)
GRIDPRO Parts List
GRIDPRO Parts
25
26

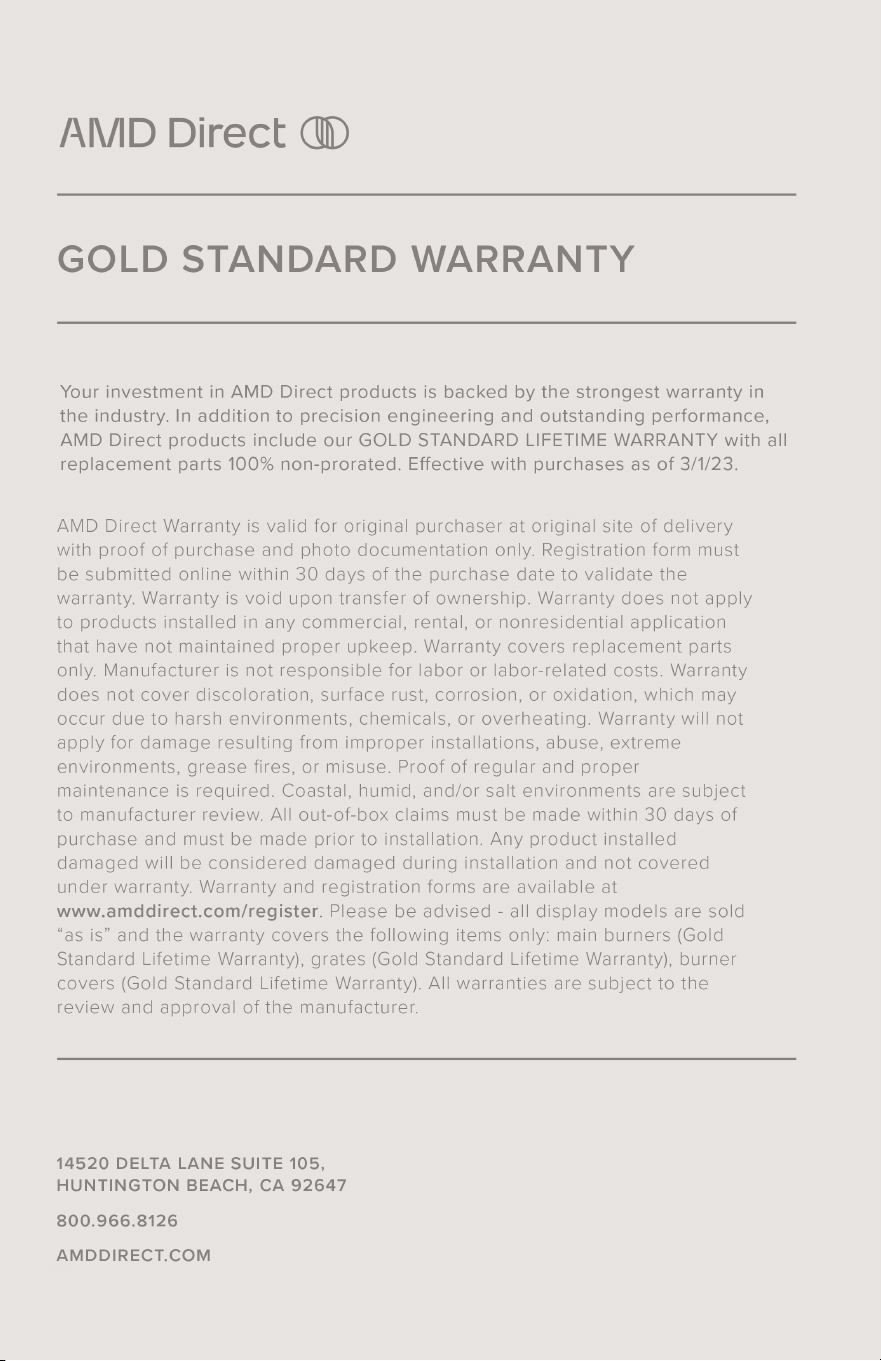

Scan this QR code to view warranty details
VER. 120123
14520 Delta Ln
Suite 105
Huntington Beach, CA 92647
(
800
)
966-8126
AMDDIRECT.COM
