Parts in the box ..............................................4
Required tools ................................................5
Installation ........................................................7
Download the app ......................................16
Reference guide ............................................18
Table of contents
3
Parts in the box

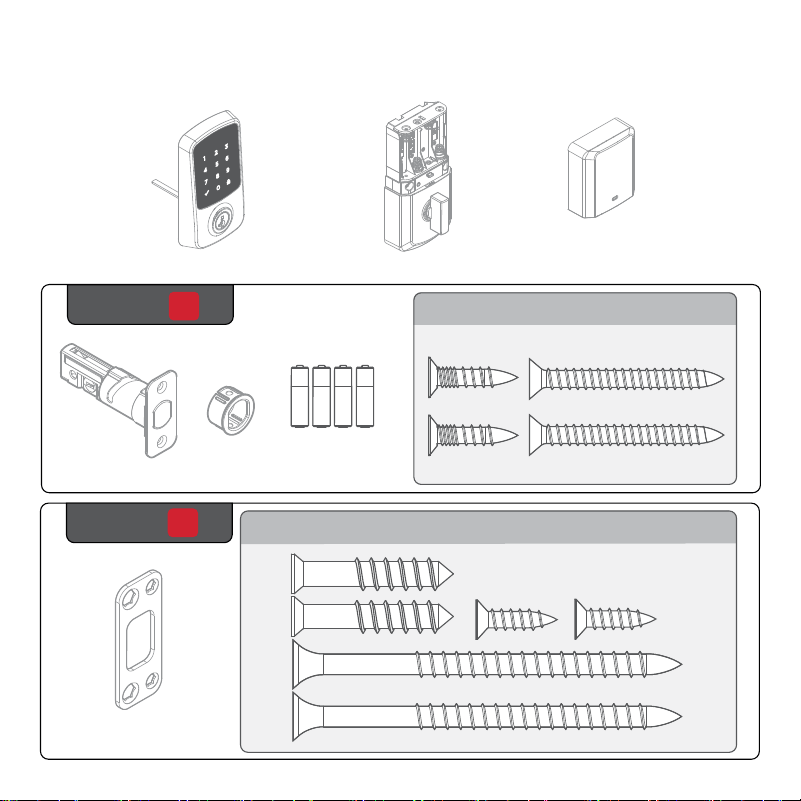

Exterior assembly Interior assembly
Interior cover
4
Latch
Collar
Strike
1
Box
03809
52531
Batteries
2
Box

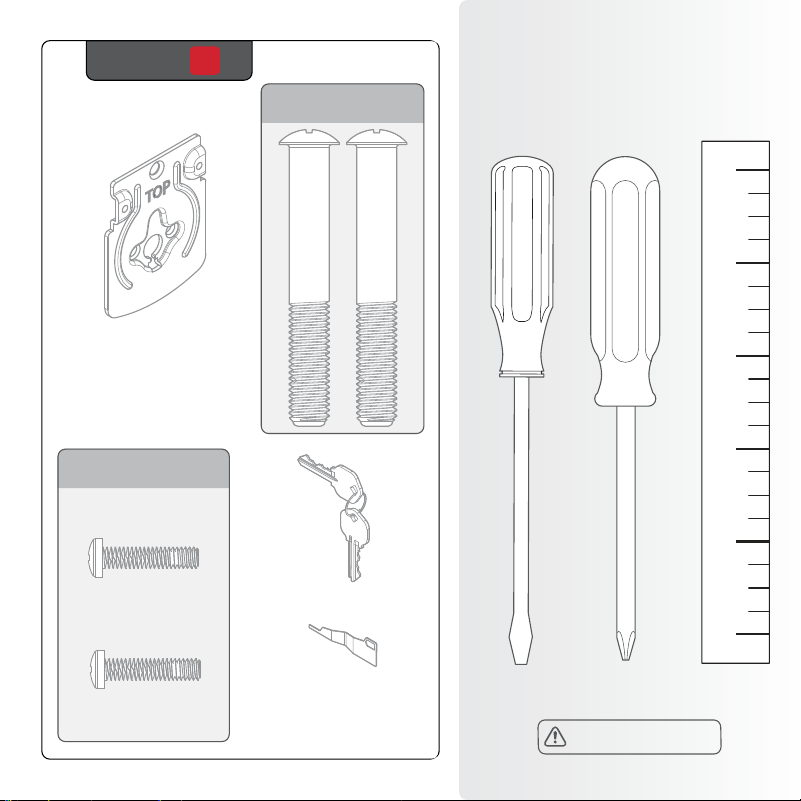

Required
tools
Phillips head
screwdriver
No electric drills
5
Ruler
Flat head
screwdriver
Mounting
plate
Keys
3
Box
52367
SmartKey™
tool
52502
Installation
7
If drilling a new door, use
the supplied template and
instructions available at:
kwikset.com/doorprep

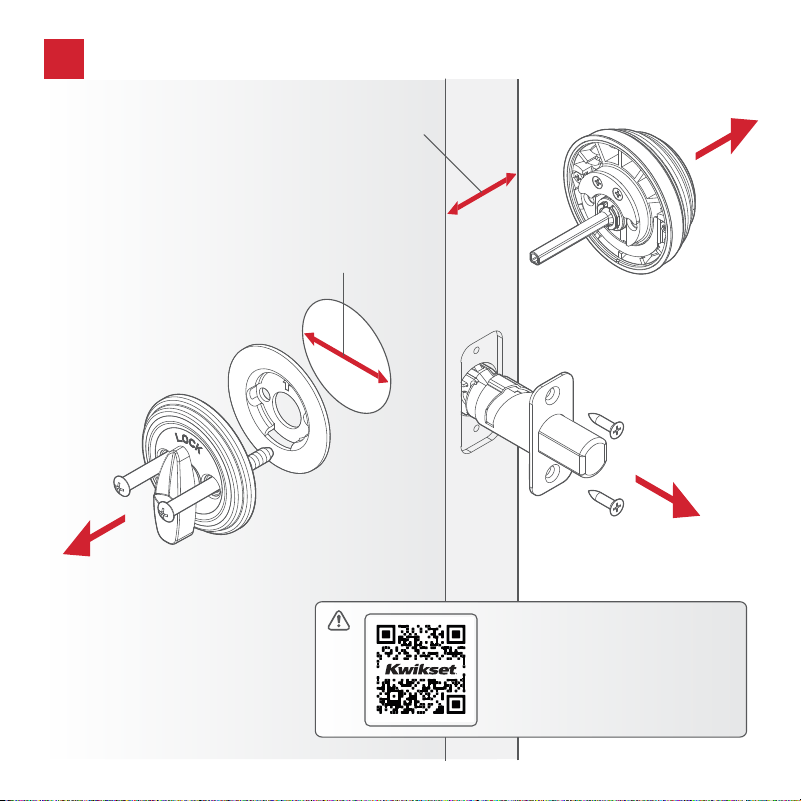

Remove your existing deadbolt
!
1-3/8” to 2-1/4”
(35mm - 57mm)
1-1/2 or 2-1/8”
(38mm to 54mm)
Your new lock will
only support a door
thickness of 1-3/8”
to 2-1/4” (35mm to
57mm) and a door
bore hole diameter
of 1-1/2“ or 2-1/8”
(38mm or 54mm).
8
1

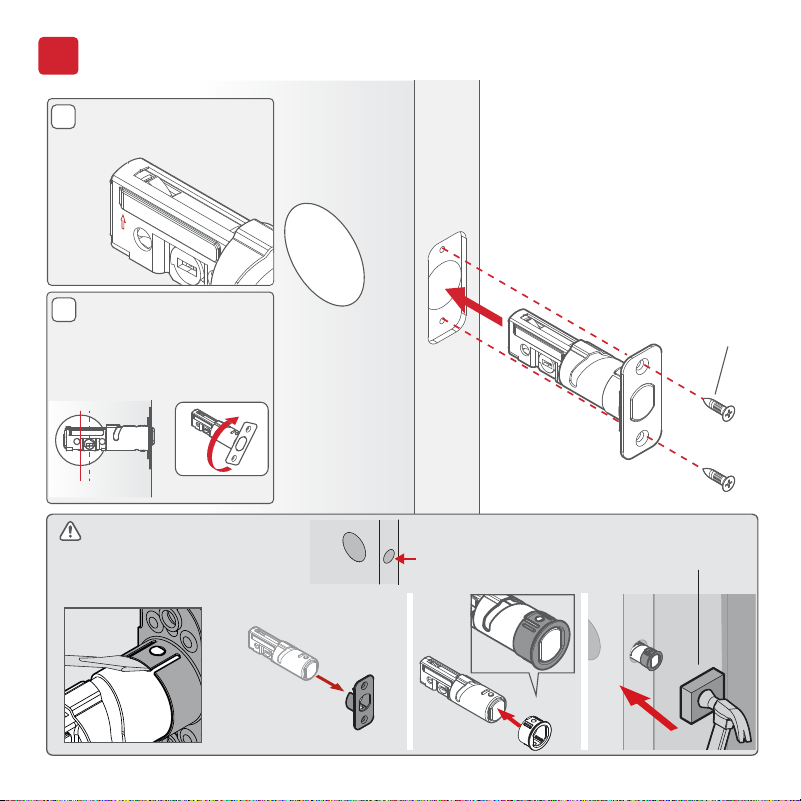

Install the latch
B
UP
A
*Use the longer
screws if the holes
are worn out.
You will have two
extra screws.
If the rectangle shaped
hole is not centered in
the door hole, rotate
the latch face to extend
the latch.
03809*
(2X)
If your door is not chiseled,
install the drive-in collar.
[OUTSIDE]
UP is on top.
wood block
Loosen faceplate with
flathead screwdriver.
DOOR
JAMB
*Install the longer
screws closest to
the door jamb.
52531*
(4X)
2

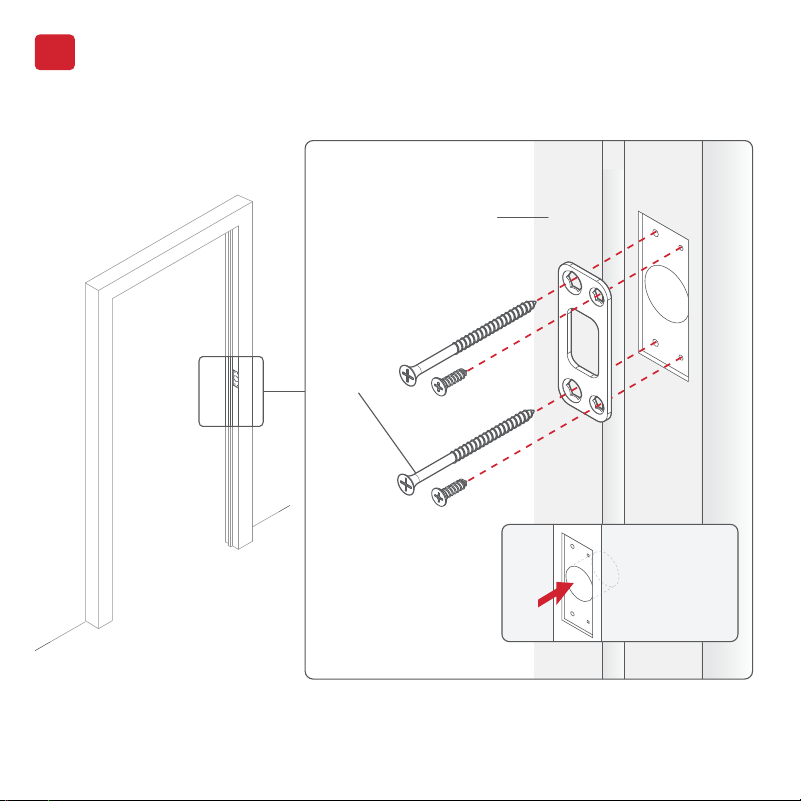

Install the strike
1" (25 mm)
hole depth
9
10

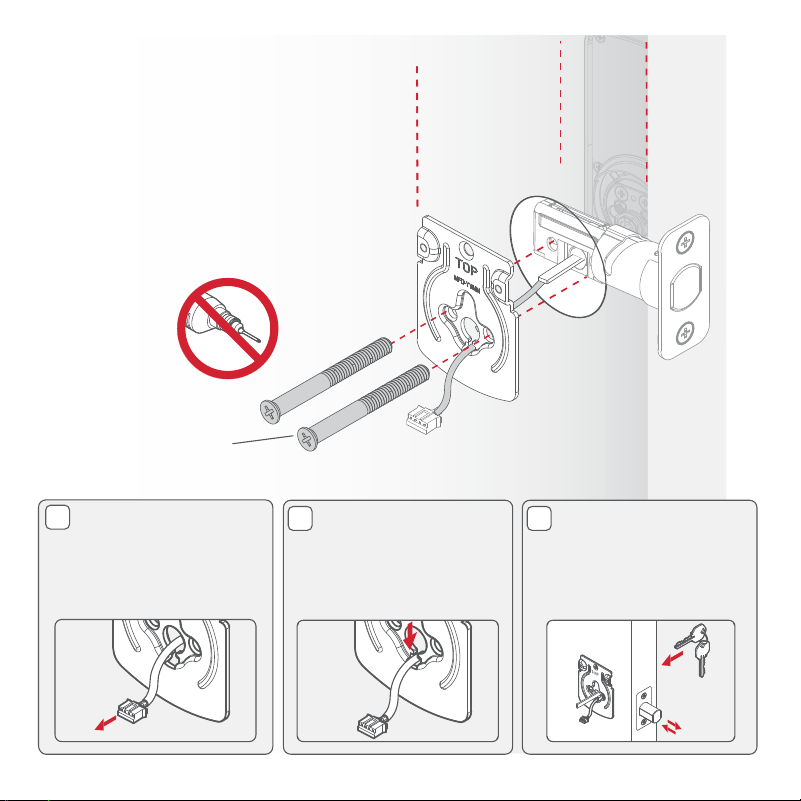

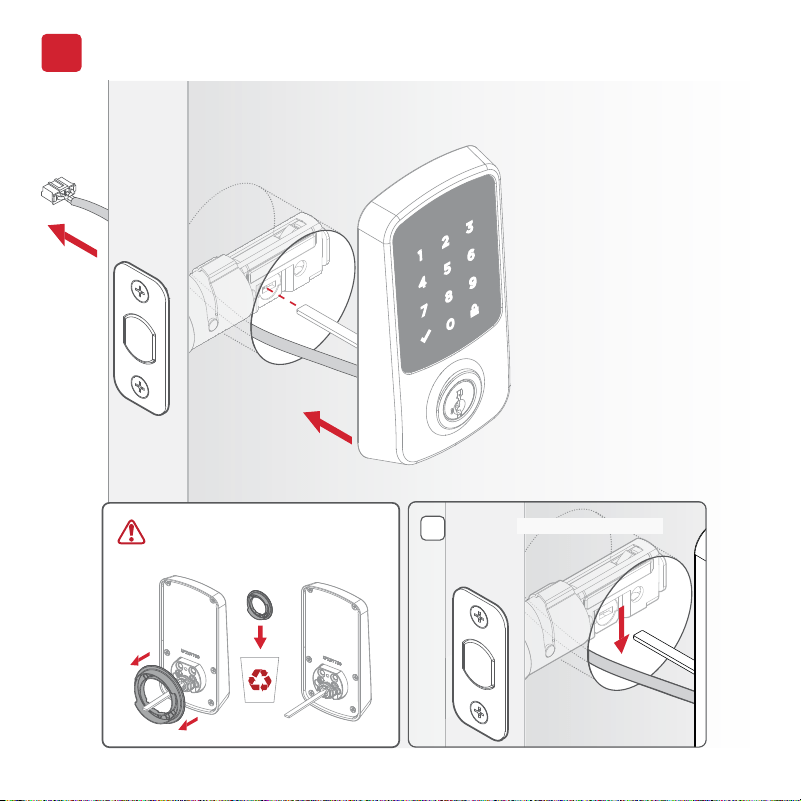

Install the exterior assembly
3
[OUTSIDE]
Cable goes under the latch.
A
Remove adapter ring if bore
hole measures 1-1/2” (38mm)
diameter.
11
[INSIDE]
Tighten the screws evenly.
(2X)
[INSIDE]
Tighten the screws evenly.
DO NOT over-tighten.
Keep parallel to
the door edge
52367
B
C D
Route the cable
through the
center hole of the
mounting plate.
Push the cable into
the bottom hole of
the mounting plate.

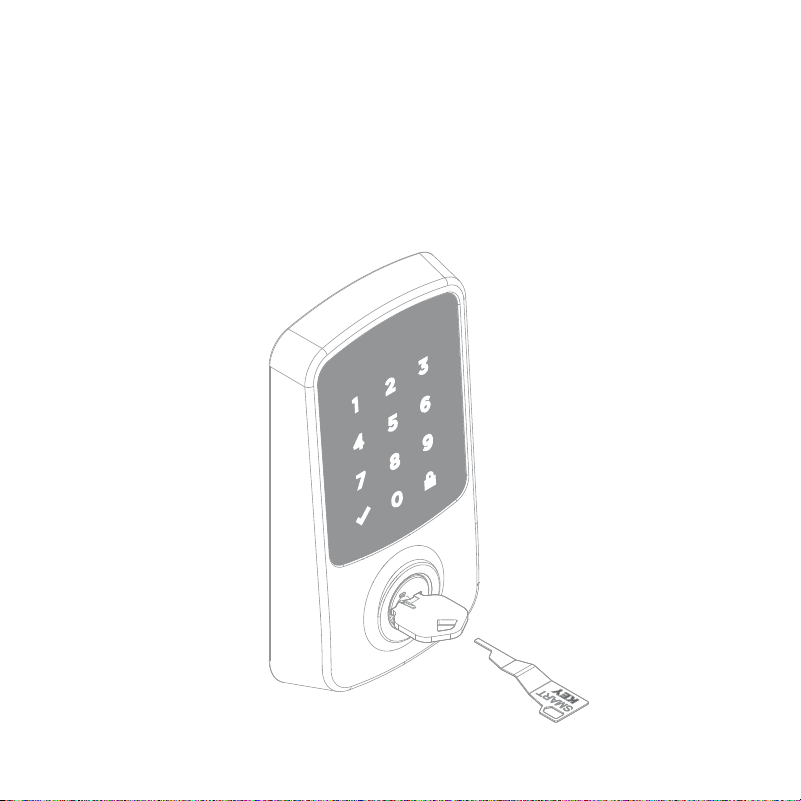

Insert the key and test
the latch. If the latch
does not extend or
retract smoothly, adjust
the screws. Leave bolt
LOCKED/EXTENDED.
12
A
Install the interior assembly
4

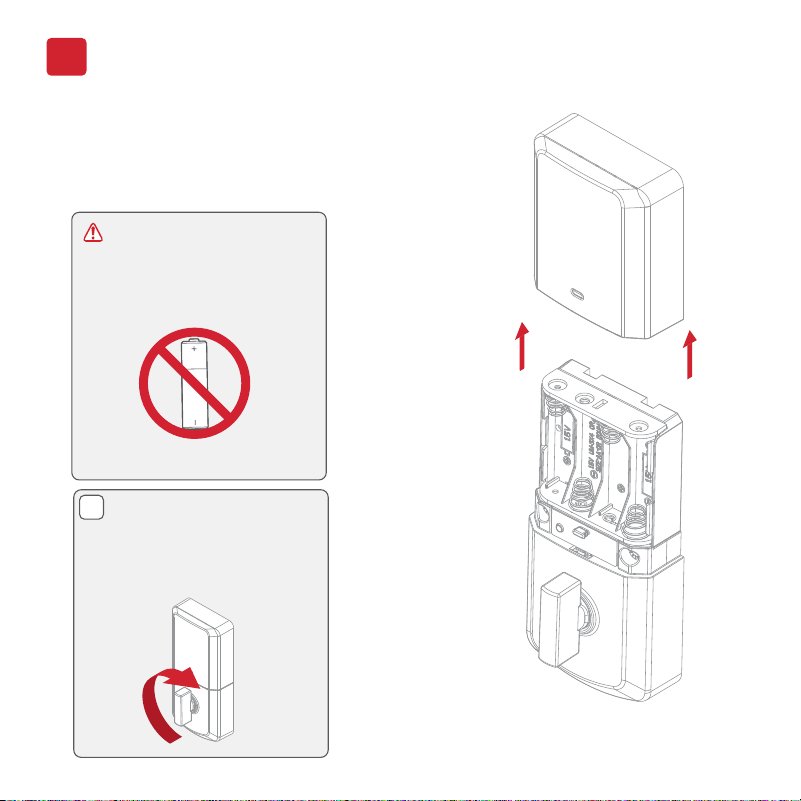

Remove the interior
cover from the
interior assembly.
DO NOT install the
batteries. Wait until Step
5.
If the turnpiece is not
pointing up, rotate the
turnpiece until it’s in a
vertical position.
13

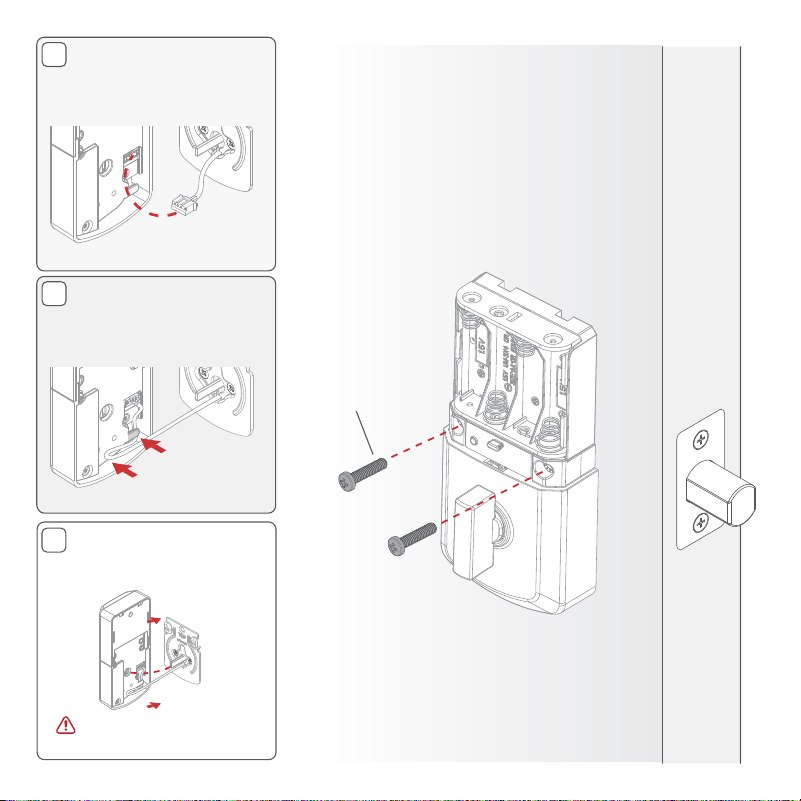

Secure the interior
assembly onto the
mounting plate.
[INSIDE]
D
Ensure the flat blade
fully engages with the
turnpiece shaft.
C
B
Connect the cable.
Ensure a tight cable
connection.
Excess cable will sit
inside the bottom of the
interior housing.
(2X)
52502
Ensure cable remains
connected.
14
Install batteries
5

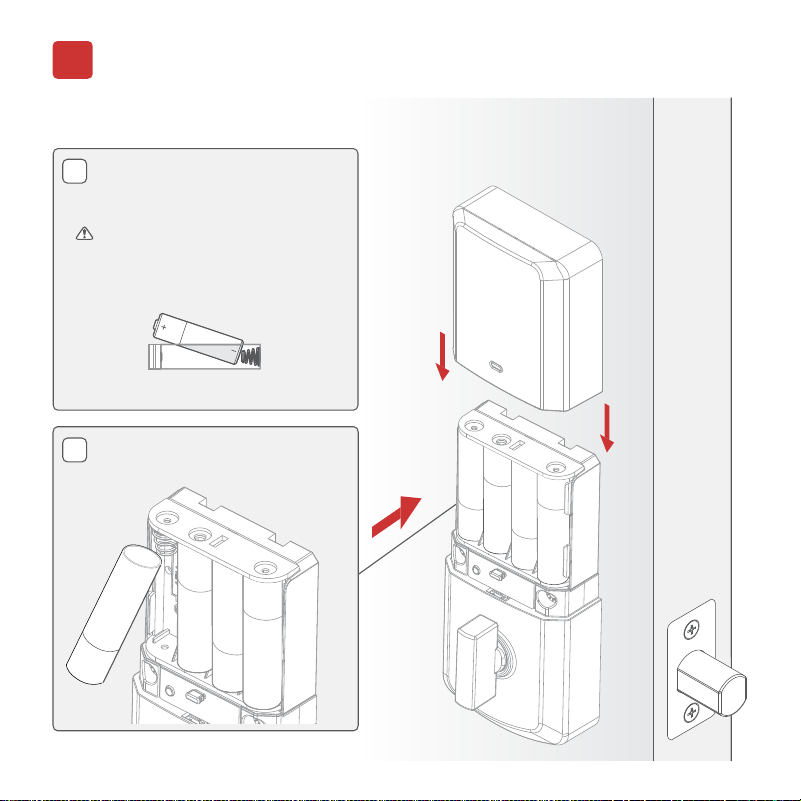

With the door open, install
the batteries. NOTE: Lock
must be installed on the door
before inserting the batteries.
Insert (4) AA batteries (included)
into the battery pack.
[INSIDE]
Ensure correct polarity. Use new,
non-rechargeable alkaline
batteries only.
A
B
Insert the (4) AA batteries.
Download the Kwikset
app & create an account
to complete set up
16
Complete your lock set up
If this lock was professionally
installed (or installed by
someone other than the
homeowner), make sure this
step is performed by the
homeowner.
Full Setup in Kwikset app
kwikset.com/app
Direct Setup in Matter
Smart Home Platform
See Matter
Commissioning
instructions on
page 22.
Follow the instructions
in the Kwikset app to
complete lock setup.

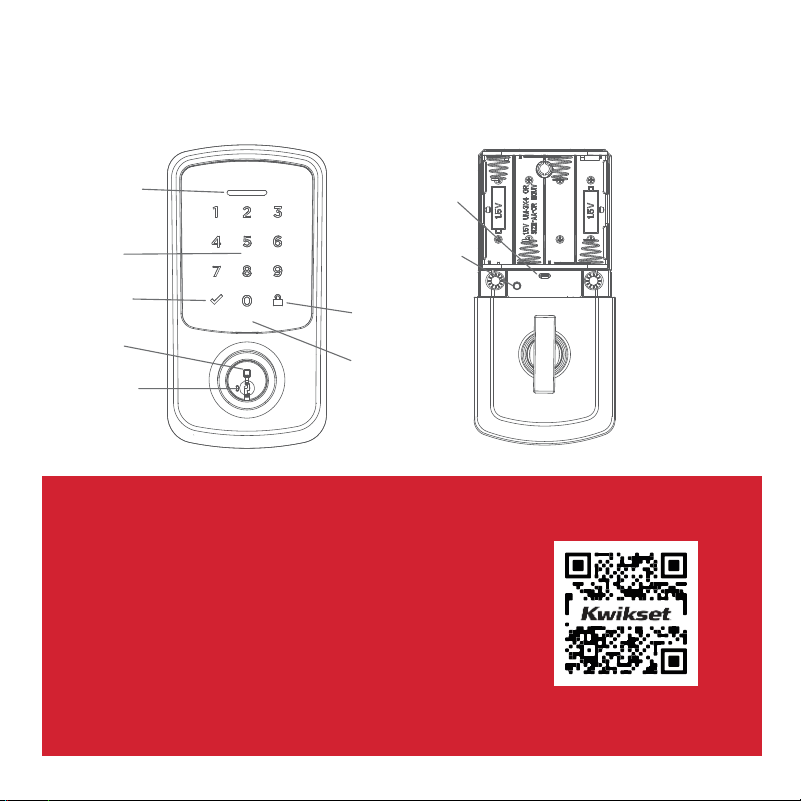

Reference Guide
18

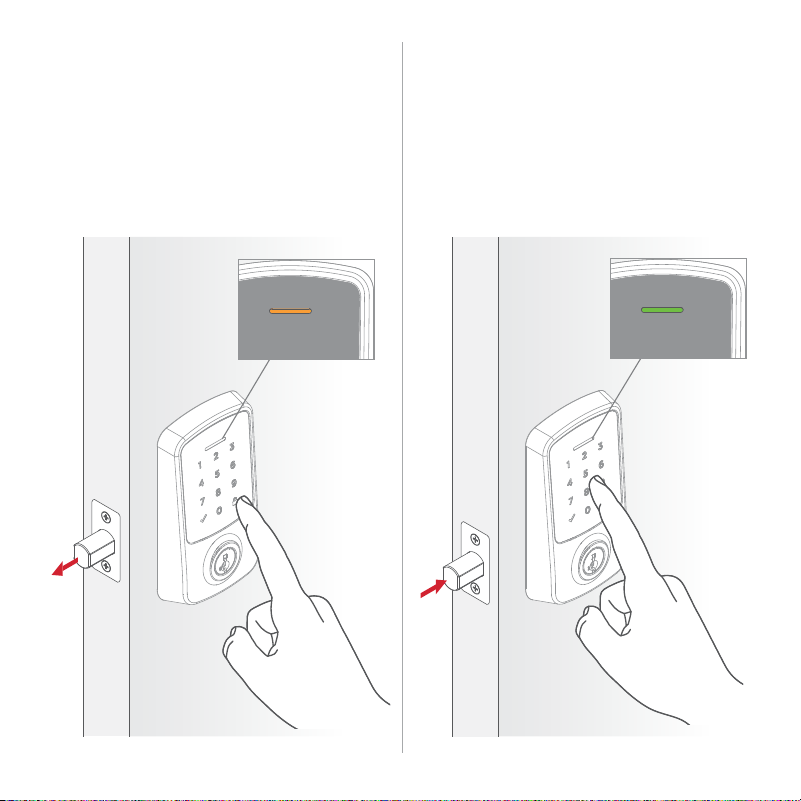

To lock your door, press the lock
icon. The bolt will extend, then the
screen will display the Locked LED
Indicator and play the locked tone.
To unlock your door, enter your
access code. The bolt will retract, then
the screen will display the Unlocked
LED Indicator and play the unlocked
tone.
Locking Unlocking
Amber status LED
will remain on
for 1.5 seconds.
Green status LED
will remain on
for 1.5 seconds.
20
Amber:
Locked
Flashes
Red 2x:
Low Battery
Flashes
Red once:
Invalid Credentials
Green:
Unlocked

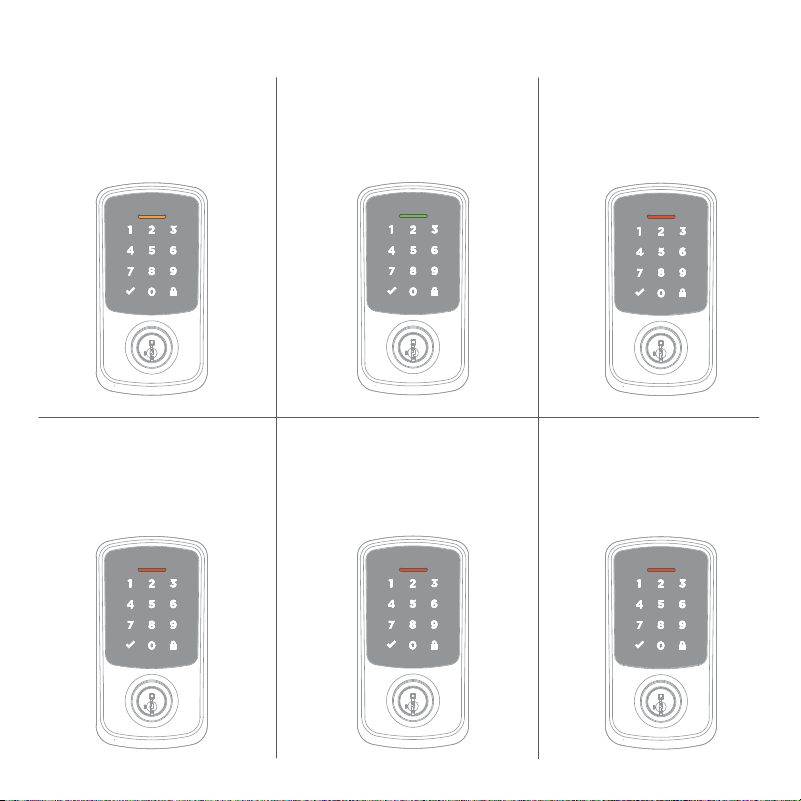

Exterior LED Indicators
Flashes
Red 15x:
Lockout
Red and
Keypad flashes
alternatively:
Lock Jammed
21
Green
Amber
Slow Blinking:
Unlocked
Blinking:
Low Battery
Slow Blinking:
Locked
Red
Interior Status LED Indicators
22
Matter Commissioning

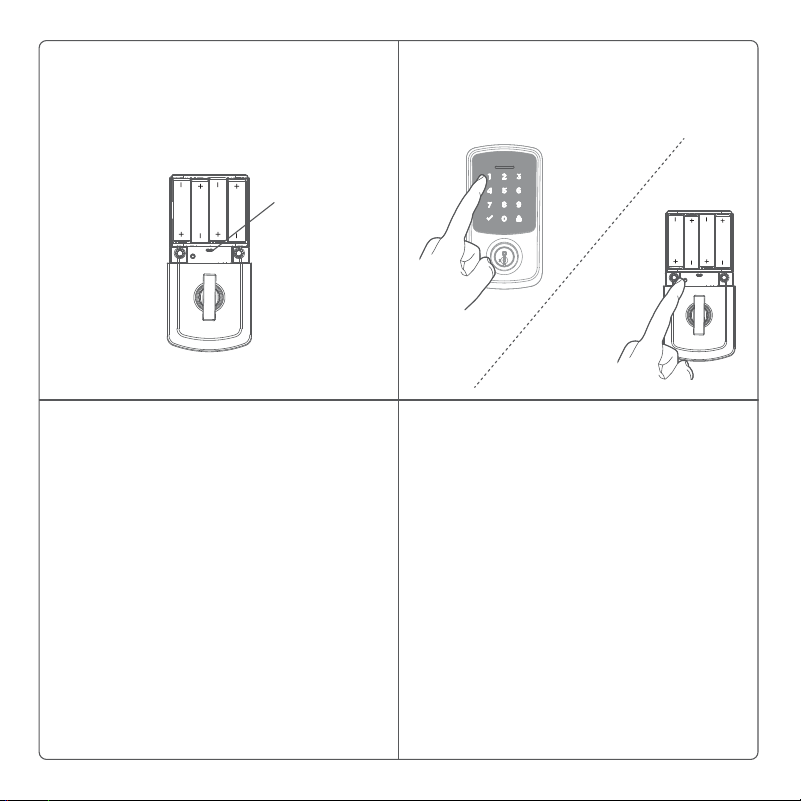

1. Press and hold the Programming
Button for 3 seconds.
2. Interior Status LED will display
CYAN and then beep.
3. Press “0” on the exterior keypad.
4. Interior Status LED will flash
MAGENTA and play a tone if
successful.
If Matter Commissioning mode
timeout after 15 minutes or
failed, interior Status LED will
flash RED and play a sound.
23
Factory Reset will:
• delete all access codes and
associated schedule
• reset lock settings to default
• lock will show as offline in the
Kwikset App
• lock will be deactivated and
will need to be set up as new
Factory Reset should be
used when:
• you want to change the
lock owner
• you have lost your phone
• you are troubleshooting the
lock
Factory Reset

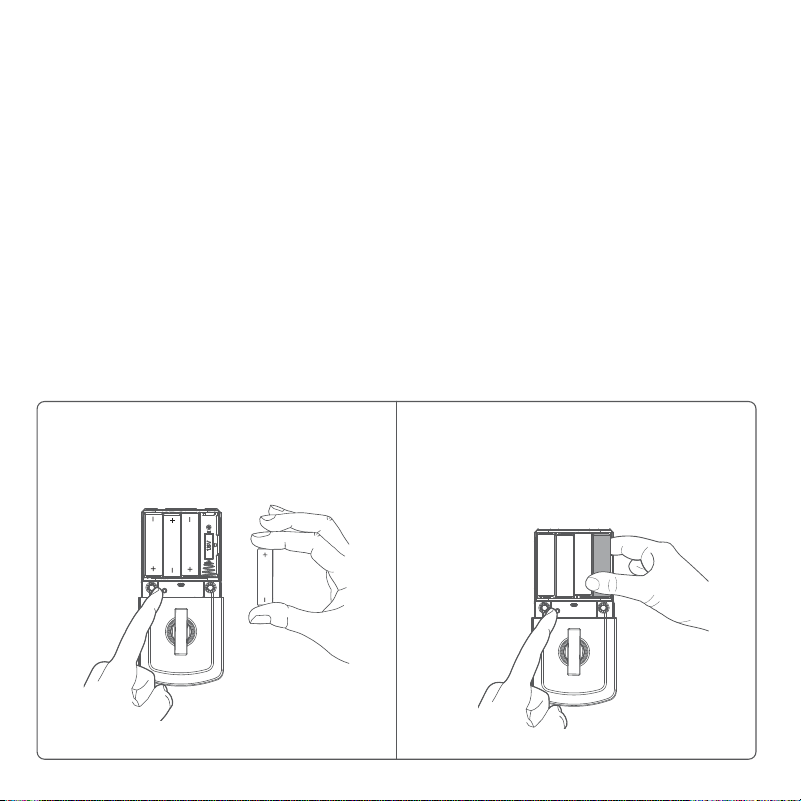

1. Press and hold the Programming
Button.
2. While still holding the Programming
Button, insert the batteries.
Continue holding the Programming
Button for 30 seconds.
Continue to the next page for additional steps.
24
3. After 30 seconds, the Status LED
light will flash RED and lock will
beep. Release the Programming
Button.
5. SUCCESS: Lock will play a series of
beeps, Status LED will flash GREEN,
then pulsing BLUE.
UNSUCCESSFUL: Lock will play a
single-tone sound, Status LED light
will flash RED.
4. Press “1” on the exterior keypad.
Press the Programming Button
again within 5 seconds.
Status
LED
exterior
interior
26
