User Guide
Quality, Design and Innovation
home.liebherr.com/fridge-manuals
Contents
1 General safety instructions.................................. 3
2 Appliance at a glance............................................ 4
2.1 Scope of delivery.......................................................... 4
2.2 Overview of the appliance and equipment.............. 4
2.3 SmartDevice.................................................................. 4
2.4 Appliance range of use............................................... 4
2.5 Conformity..................................................................... 5
2.6 SVHC substances according to REACH regulation. 5
2.7 EPREL database........................................................... 5
2.8 Spare parts.................................................................... 5
3 Functionality of the Touch&Swipe display......... 5
3.1 Navigation and symbol explanation......................... 5
3.2 Menus............................................................................. 5
3.3 Sleep mode................................................................... 6
4 Putting into operation........................................... 6
4.1 Switching on appliance (first use)............................ 6
5 Storage.................................................................. 7
5.1 Information regarding storage................................... 7
5.2 Fridge section with telescopic unit........................... 7
5.3 Storage times............................................................... 7
6 Saving energy........................................................ 7
7 Controls................................................................. 8
7.1 Controls and displays.................................................. 8
7.1.1 Status display............................................................. 8
7.1.2 Display symbols..........................................................8
7.2 Appliance functions..................................................... 8
7.2.1 Notes on the appliance functions........................... 8
Switching the appliance off and on....................... 8
WiFi.............................................................................. 8
Temperature................................................................9
Temperature unit......................................................10
SuperCool..................................................................10
HolidayMode..............................................................11
SabbathMode............................................................11
EnergySaver .............................................................12
CleaningMode...........................................................12
Display brightness................................................... 12
Door alarm.................................................................13
Child lock...................................................................13
Language...................................................................14
Demo mode............................................................... 14
Resetting to factory settings.................................15
7.3 Messages...................................................................... 15
7.3.1 Overview of warnings...............................................15
7.3.2 Ending warnings........................................................16
7.3.3 Overview of reminders............................................. 16
7.3.4 Ending reminders...................................................... 16
8 Features................................................................. 16

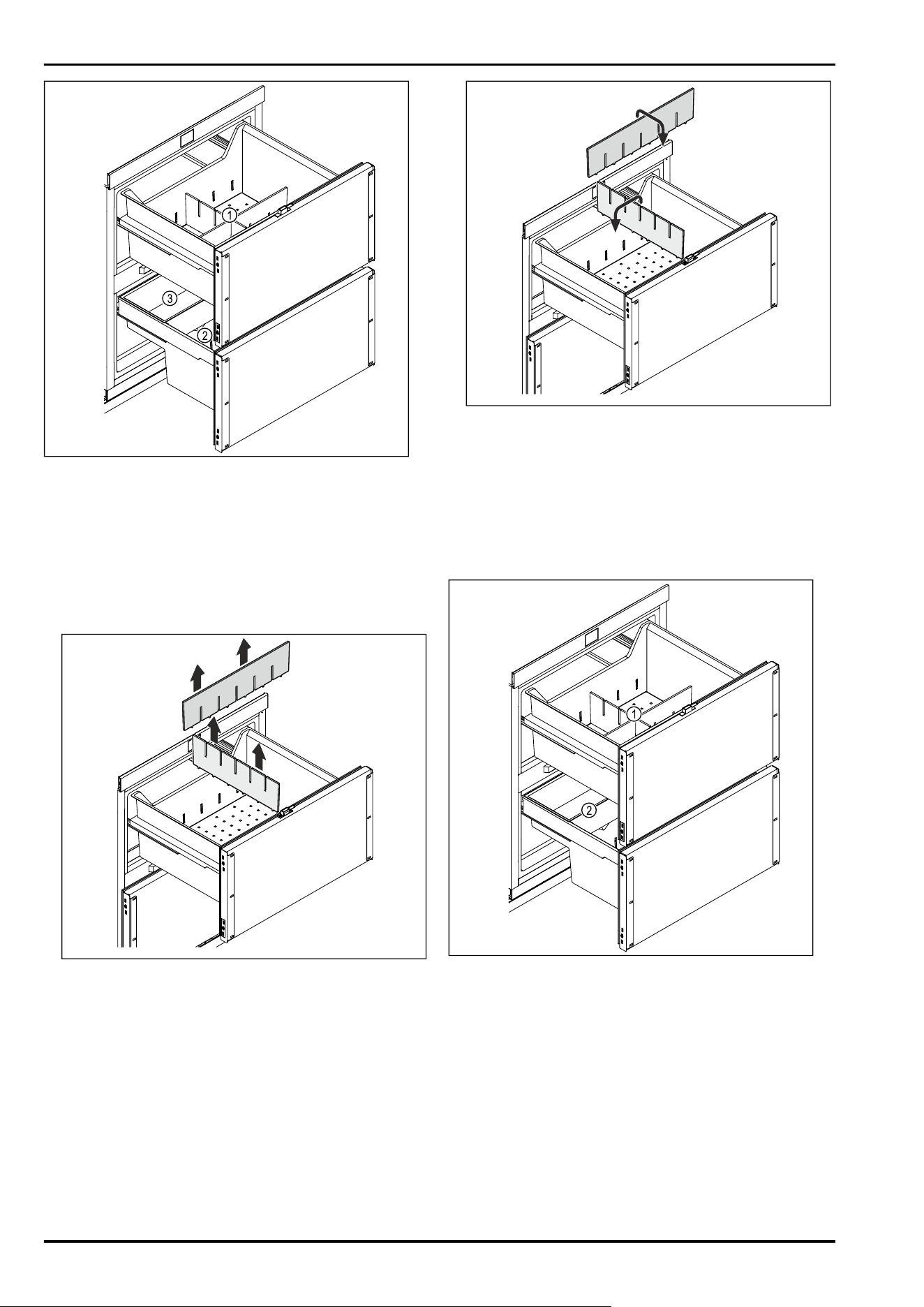

8.1 Telescopic unit............................................................. 16
9 Maintenance.......................................................... 17
9 Telescopic unit...................................................... 17
9 Removing the container........................................ 17
9 Inserting the container......................................... 18
9.1 Defrosting the appliance............................................ 18
9.2 Cleaning the appliance............................................... 18
10 Customer help....................................................... 19
10.1 Technical specifications............................................. 19
10.2 Operating noises.......................................................... 19
10.3 Technical fault.............................................................. 20
10.4 Customer Service......................................................... 20
10.5 Model plate................................................................... 20
11 Shutting down....................................................... 21
12 Disposal................................................................. 21
12.1 Preparing appliance for disposal.............................. 21
12.2 Disposing of the appliance in an environmentally
friendly manner............................................................ 21
The manufacturer is continually working on the further
development of all types and models. Please be aware that
we reserve the right to make changes to the shape, equip‐
ment and technology.
Symbol
Explanation
Read instructions
Please read the information in these instruc‐
tions carefully to understand all of the benefits
of your new appliance.
Additional information on the Internet
The digital manual with additional informa‐
tion and in other languages can be found
via the QR code on the front of the
manual or by entering the service number at
home.liebherr.com/fridge-manuals.
The service number can be found on the serial
tag:
Fig.Example illustration
Check appliance
Check all parts for transport damage. If you
have any complaints, please contact your
agent or customer service.
Differences
These instructions apply to a range of models,
so differences are possible. Sections that
apply to certain models only are marked with
an asterisk (*).
Instructions and results
Instructions are marked with a .
Results are marked with a .
2 * Depending on model and options
Symbol Explanation
Videos
Videos about the appliances are available on
the YouTube channels of Liebherr-Hausgeräte.
Open source licences:
The appliance contains software components that use
open source licences. Information on the open source
licences used can be found here: home.liebherr.com/
open-source-licences
These operating instructions apply to:
URDd 375i
1 General safety instructions
Please keep these operating instructions in a safe place so
you can refer back to them at any time.
If you pass the appliance on, please hand these operating
instructions to the next user.
Read these operating instructions carefully before use to
ensure safe and correct use of the appliance. Follow the
instructions, safety instructions and warning messages
included at all times. They are important for ensuring you
can operate and install the appliance safely and without any
problems.
Danger for the user:
-
This device can be used by children and people with
impaired physical, sensory or mental abilities or with a
lack of experience and knowledge provided that they are
supervised or have received instruction in the safe use of
this device, and about the resulting hazards.
Children must not play with this appliance. Cleaning and
user maintenance work must not be carried out by chil‐
dren without adult supervision. Children aged between
3 and 8 are allowed to load and unload the appliance.
Children below the age of 3 must be kept away from the
appliance unless they are under continuous adult super‐
vision.
-
The socket must be easily accessible so that the appli‐
ance can be disconnected quickly from the electricity in
an emergency. It must not be located in the area behind
the appliance.
-
When disconnecting the appliance from the supply,
always take hold of the plug. Do not pull the cable.
-
In the event of a fault pull out the mains plug or deacti‐
vate the fuse.
-
Do not damage the mains power cable. Do not operate
the appliance with a defective mains power cable.
-
Only customer service or other specially trained staff
may repair or perform other operations on the appliance.
-
Only install, connect and dispose of the appliance
according to the instructions.
-
Only use the appliance when is installed.
Fire hazard:
-
The coolant used (information on the model plate) is
ecofriendly but also flammable. Any leaking coolant may
ignite.
•
Do not damage the refrigerant circuit pipes.
•
Do not handle ignition sources inside the appliance.
•
Do not use electrical appliances inside the appliance
(e.g. steam cleaners, heaters, ice cream makers, etc.).
•
If the refrigerant leaks: remove any naked flames or
ignition sources from the vicinity of the leakage point.
Properly air the room. Inform customer services.
-
Do not store explosives or sprays using combustible
propellants such as butane, propane, pentane, etc. in the
appliance. To identify these spray cans, look for the list of
contents printed on the can, or a flame symbol. Gases
possibly escaping may ignite due to electrical compo‐
nents.
-
Keep burning candles, lamps and other items with naked
flames away from the appliance so that they do not set
the appliance on fire.
-
Please be sure to store alcoholic drinks or other pack‐
aging containing alcohol in tightly closed containers.
Any alcohol that leaks out may be ignited by electrical
components.
Danger of tipping and falling:
-
Do not misuse the plinth, drawers, doors etc. as a step or
for support. This applies particularly to children.
Danger of food poisoning:
-
Do not consume food which has been stored too long.
Danger of frostbite, numbness and pain:
-
Avoid prolonged skin contact with cold surfaces or refri‐
gerated/frozen goods or take protective measures, e.g
wear gloves.
Danger of injury and damage:
-
Hot steam can lead to injury. Do not use electrical
heating or steam cleaning equipment, open flames or
defrosting sprays to defrost.
-
Do not use sharp implements to remove the ice.
Risk of crushing:
-
Do not hold the hinge when opening and closing the door.
Fingers may get caught.
Symbols on the appliance:
This symbol may be located on the
compressor. It relates to the oil in the
compressor and makes reference to the
risk that: Swallowing or inhaling can be
fatal. This advice is only relevant to recy‐
cling. There is no danger in normal opera‐
tion.
This symbol is located on the compressor
and indicates the danger of flammable
materials. Do not remove the sticker.
This or a similar sticker may be located
on the rear of the appliance. This sticker
indicates that there are vacuum insulation
panels (VIP) or perlite panels in the door
and/or housing. This advice is only relevant
to recycling. Do not remove the sticker.
Please note the warning messages and other specific
advice in the other chapters:
DANGER
indicates an immediately
hazardous situation which will
lead to death or serious injuries if
it is not avoided.
WARNING indicates a hazardous situation
which may lead to death or serious
injuries if it is not avoided.
CAUTION indicates a hazardous situation
which may lead to minor or
moderate injuries if it is not
avoided.
NOTICE indicates a hazardous situation
which may lead to damage to
property if it is not avoided.
General safety instructions
* Depending on model and options 3
Note indicates useful instructions and
tips.
2 Appliance at a glance
2.1 Scope of delivery
Check all parts for transport damage. Contact your
dealer or customer service in the event of complaints.
(see 10.4 Customer Service)
Your new appliance comes with the following parts:
-
Built-in appliance
-
Features (depending on the model)
-
Installation materials (depending on the model)
-
“Quick Start Guide”
-
“Installation Guide”
-
Service Brochure
2.2 Overview of the appliance and
equipment
Fig. 1 Example illustration, front end
Equipment
(1)
Type plate (5) Drawer
(2) Adjustable feet (6) Fruit and vegetable box
(3) Controls and tempera‐
ture display
(7) Defrost water drain
(4) Interior lighting
2.3 SmartDevice
SmartDevice is the networking solution for your refrigerator.
If your appliance SmartDevice-enabled or compatible, you
can quickly and easily connect your appliance to your
WiFi. With the SmartDevice app, you can operate your appli‐
ance from a mobile device. Additional functions and setting
options are available in the SmartDevice SmartDevice app.
SmartDevice-
enabled appliance:
Your appliance is capable of being a
SmartDevice. To be able to connect
your device to WiFi, you need to
download the SmartDevice app.
More information
about SmartDe‐
vice:
smartdevice.liebherr.com
Downloading the
SmartDevice app:
After installing and configuring
the SmartDevice app, you can
connect your appliance to your Wi-Fi
(see WiFi) using the SmartDevice app
and the appliance's Wi-Fi function.
Note
The SmartDevice function is not available in the following
countries: Russia, Belarus, Kazakhstan.
2.4 Appliance range of use
Intended use
The appliance is only suitable for cooling food products in
a domestic or household-like environment. This includes, for
example, use:
-
in staff kitchens, bed and breakfast establishments,
-
by guests in country houses, hotels, motels and other
accommodation,
-
for catering and similar services in the wholesale trade.
The appliance is not suitable for freezing food;
The appliance is suitable for integrating under counters.
All other types of use are not permitted.
Foreseeable misuse
The following applications are expressly forbidden:
-
Storing and refrigerating medicines, blood plasma, labo‐
ratory preparations or similar substances and products
based on the Medical Device Directive 2007/47/EC
-
Use in areas at risk of explosions
Misusing the appliance may lead to damage to the goods
stored or they may spoil.
Climate classifications
Depending on the climate classification the appliance is
designed to operate in restricted ambient temperatures. The
climate classification applying to your appliance is printed
on the rating plate.
Note
► Keep to the specified ambient temperatures in order to
guarantee that the appliance works properly.
Climate clas‐
sification
for ambient temperatures of
SN 10°C to 32°C
N 16°C to 32°C
Appliance at a glance
4 * Depending on model and options
Climate clas‐
sification
for ambient temperatures of
ST 16°C to 38°C
T 16°C to 43°C
SN-ST 10°C to 38°C
SN-T 10°C to 43°C
2.5 Conformity
The refrigerant circuit has been tested for leaks. When
installed, the appliance complies with the applicable safety
regulations and with the corresponding directives.
For the EU
market:
The appliance complies with directive
2014/53/EU.
For the GB
market:
The appliance complies with Radio
Equipment Regulations 2017 SI 2017 No.
1206.
The full text of the EU Declaration of Conformity is available
on the following website: www.Liebherr.com
2.6 SVHC substances according to
REACH regulation
You can check whether your appliance contains SVHC
substances according to REACH regulation at the following
link: home.liebherr.com/de/deu/de/liebherr-erleben/nach‐
haltigkeit/umwelt/scip/scip.html
2.7 EPREL database
Details about energy labelling and ecodesign requirements
will be available on the European product database (EPREL)
from 1st March 2021. You can access the product database
at the following link: https://eprel.ec.europa.eu/ You will be
asked to enter the model ID. You can find the model ID on
the nameplate.
2.8 Spare parts
The spare parts availability for functional parts and stock‐
able parts of the equipment is 15 years.
3 Functionality of the
Touch&Swipe display
You operate your appliance using the Touch & Swipe display.
You select appliance functions in the Touch & Swipe display
(hereafter referred to as display) by tapping them. If you
do not perform any action on the display for 10 seconds,
the display either jumps back to the higher-level menu or
directly to the status display.
3.1 Navigation and symbol explanation
In the illustrations, different symbols are used to navigate
the display. The following table describes these symbols.
Symbol
Description
Briefly touch the display:
Activates/deactivates function.
Confirms selection.
Opens submenu.
Symbol Description
Touch the display for a specified time
(e.g. 3seconds):
Activates/deactivates function or
value.
Swipe left or right:
Navigate in the menu.
Briefly touch the Back symbol:
Jumps back one menu level.
Press and hold the Back symbol for
3seconds:
Jumps back to the status display.
Arrow with clock:
It takes more than 10 seconds for the
following message to appear in the
display.
Arrow with a time indication:
It takes the specified amount of time
until the following message appears in
the display.
“Open Settings menu” symbol:
Navigates to the Settings menu and
opens the settings menu.
If necessary: Navigate to the desired
function in the Settings menu.
(see 3.2.1 Opening the Settings menu)
“Open Advanced menu” symbol:
Navigates to the Advanced menu and
opens the advanced menu.
If necessary: Navigate to the desired
function in the Advanced menu.
(see 3.2.2 Opening the expanded
menu)
No action for
10seconds
If you do not perform any action on
the display for 10 seconds, the display
either jumps back to the higher-level
menu or directly to the status display.
Open door and
close it again.
If you open the door and immedi‐
ately close it again, the display jumps
directly back to the status display.
Note: Illustrations of the display are shown in the English
version.
3.2 Menus
The appliance functions are distributed over various menus:
Functionality of the Touch&Swipe display
* Depending on model and options 5
Menu Description
Main menu When you switch the appliance on, you
are automatically in the main menu.
From here you can navigate to the most
important appliance functions, to the
Settings menu and to the Advanced
menu.
Settings menu
The Settings menu contains additional
appliance functions for setting up your
appliance.
Advanced menu The advanced menu contains special
appliance functions for setting up your
appliance. Access to the Advanced menu
is protected by the numerical code 151.
3.2.1 Opening the Settings menu
Fig. 2 Example illustration
► Carry out action steps according to the illustration.
▷ Settings menu is open.
► If necessary: Navigate to the desired function.
3.2.2 Opening the expanded menu
Fig.3
Fig. 4 Example illustration, access with numerical code 151
► Carry out action steps according to the illustration.
▷ The expanded menu is open.
► If necessary: Navigate to the desired function.
3.3 Sleep mode
If you do not touch the display for 1 minute, the display
switches to sleep mode. In sleep mode, the display bright‐
ness is dimmed.
3.3.1 Ending sleep mode
► Touch the display briefly with your finger.
▷ Sleep mode is ended.
4 Putting into operation
4.1 Switching on appliance (first use)
Make sure that the following requirements are fulfilled:
❑
The appliance is properly installed and connected
according to the installation instructions.
❑
All adhesive strips, adhesive and protective films and
transport locks are removed from inside and on the appli‐
ance.
❑
All marketing leaflets are removed from the drawers.
❑
You are familiar with the functionality of the
Touch & Swipe display. (see 3 Functionality of the
Touch&Swipe display)
Switch on the appliance using the Touch&Swipe display:
► If the display is in sleep mode: Briefly touch the display.
► Carry out action steps according to the illustration.
Fig. 6 Example illustration
▷ Status display appears.
▷ The appliance cools to the temperature set at the factory.
▷ The appliance starts in demo mode (status display with
DEMO appears): If the appliance starts in demo mode,
you can deactivate demo mode within the next 5 minutes.
(seeDemo mode)
More information:
-
Start the SmartDevice for the first time. (see 2.3 Smart‐
Device) and (seeWiFi)
Note
The manufacturer recommends:
► Stock with food: Wait for around 6 hours until the set
temperature is reached.
► Observe the notes on storing food. (see 5.1 Information
regarding storage)
Note
Accessories can be purchased from the Liebherr-
Hausgeräte store at home.liebherr.com/shop/de/deu/
zubehor.html.
Putting into operation
6 * Depending on model and options
5 Storage
5.1 Information regarding storage
WARNING
Fire hazard from electrical appliances!
If you use electrical appliances in the food area of your
appliance, they can cause a fire.
► Do not use electrical appliances in the food area of the
appliance unless recommended by the manufacturer.
Note
The energy consumption increases and the cooling power
goes down if ventilation is not sufficient.
► Always keep air slots clear.
Observe the following specifications for storage:
-
Package or cover foods that readily take on or give off
odours or taste in closed containers.
-
Package raw meat or fish in clean, closed containers.
This will prevent meat or fish from touching or dripping
onto other food.
-
Keep liquids in closed containers.
-
Leave space between goods to ensure good air circula‐
tion.
-
Store food according to the instructions on the pack‐
aging.
-
Always observe the best-before date indicated on the
packaging.
Note
Failure to follow these guidelines can lead to foodstuffs
spoiling.
Temperature zone Food
VarioTempZone
Store food according to the set temper‐
ature. Liebherr recommends storing
food in the VarioTempZone:
Temperature
range
Food
4°C to 5°C ready prepared
food, cheese, tinned
food
0°C packaged fruit and
vegetables
VarioTempZone overview
5.2 Fridge section with telescopic unit
5.2.1 Arranging your food properly
Fig. 7 Example illustration
With a temperature setting of 6 °C to 14 °C in the upper
telescopic unit and 0°C to 2°C in the lower telescopic unit:
► Upper telescopic unit Fig. 7 (1): Store cold-sensitive
foods, butter, cheese, tinned food.
► Lower telescopic unit Fig. 7 (2): Store particularly perish‐
able foods such as ready meals, fish, meat and sausage
products fresh dairy products.
5.3 Storage times
Refer to the specified storage times as a guide.
In the case of foods with a minimum shelf life, the date
indicated on the packaging still applies.
5.3.1 Fridge section
Always follow the best-before date stated on the packaging.
6 Saving energy
-
Pay attention to good ventilation. Do not cover ventilation
holes or grids.
-
Do not install the appliance in direct sunlight or near
radiators or similar sources of heat.
-
If the appliance is installed directly next to an oven,
the energy consumption may increase slightly. This is
dependent on the service life and usage intensity of the
oven.
-
Energy consumption depends on the installation condi‐
tions, e.g. the ambient temperature (see 2.4 Appliance
range of use) . A warmer ambient temperature can
increase the energy consumption.
-
Open the appliance for as short a time as possible.
-
The lower the temperature is set the higher the energy
consumption.
-
Only take food out for as long as necessary so that it
doesn’t warm up too much.
-
Inserting warm food: allow to cool down to room temper‐
ature first.
-
For longer periods of absence, use HolidayMode
(seeHolidayMode) .
Storage
* Depending on model and options 7
7 Controls
7.1 Controls and displays
7.1.1 Status display
Fig. 8 The status display shows the actual temperature.
(1)
Temperature display
for upper telescopic
unit
(2) Temperature display for
lower telescopic unit
7.1.2 Display symbols
Display symbols provide information on the current appli‐
ance status:
Symbol
Appliance status
Standby
The appliance or temperature zone
is switched off.
Flashing number
Appliance is working. Temperature
flashes until the set temperature is
reached.
Flashing symbol
Appliance is working. Setting is
made.
"D" on the status display
Demo mode is active.
WLAN symbol on the status display
WLAN is active.
7.2 Appliance functions
7.2.1 Notes on the appliance functions
The appliance functions are set at the factory so that your
appliance is fully functional.
Before you alter, activate or deactivate the device functions,
make sure that the following requirements are met:
❑
You have read and understood the descriptions of
how the display works. (see 3 Functionality of the
Touch&Swipe display)
❑
You have familiarised yourself with the operating and
display elements of your appliance.
Switching the appliance off and on
Use this function to switch the entire appliance off and on.
Switching off the appliance
When you switch the appliance off, then the previously
saved settings are saved.
Make sure that the following requirements are fulfilled:
❑
Handling instructions (see 11 Shutting down) are carried
out.
Fig.9
Fig. 10
► Carry out action steps according to the illustration.
▷ Appliance is switched off.
▷ The standby symbol appears in the display.
▷ Display turns black.
Switching on the appliance
If the display is in sleep mode:
► Briefly touch the display.
Fig. 11 Example illustration
► Carry out action steps according to the illustration.
When the appliance starts in demo mode:
► Deactivating demo mode. (see Deactivating demo mode)
▷ The appliance is switched on.
▷ Previous settings are restored.
▷ The appliance cools to the target temperature set.
WiFi
Use this function to connect your appliance to WiFi. You can
then operate it via the SmartDevice app on a mobile device.
You can also use this function to disconnect or reset the
WiFi connection.
More information on the SmartDevice: (see 2.3 SmartDevice)
Note
The SmartDevice function is not available in the following
countries: Russia, Belarus, Kazakhstan.
Controls
8 * Depending on model and options
Establishing the WiFi connection for the first time
Make sure that the following requirements are fulfilled:
❑
You have installed the SmartDevice app (see
apps.home.liebherr.com).
❑
Registration in the SmartDevice app is completed.
Fig.12
Fig.13
► Carry out action steps according to the illustration.
▷ Connection is established.
Disconnecting from the WiFi
Fig. 14
Fig. 15
► Carry out action steps according to the illustration.
▷ There is no connection.
Resetting the WiFi connection
Fig. 16
Fig.17
► Carry out action steps according to the illustration.
▷ WiFi connection and other WiFi settings are reset to
factory settings.
Showing information about the WiFi connection
Fig. 18
Fig. 19
► Carry out action steps according to the illustration.
Temperature
Use this function to set the temperature.
The temperature depends on the following factors:
-
Frequency of door opening
-
Duration of door opening
-
Room temperature of the installation site
-
Type, temperature and quantity of food
Temperature zone
Factory-set
temperature
Recommended
setting
Fridge section
5°C 4°C
Controls
* Depending on model and options 9
Setting the temperature in the upper telescopic unit
Fig. 20 Example illustration
► Carry out action steps according to the illustration.
▷ Temperature in the upper telescopic unit is set.
Setting the temperature in the lower telescopic unit
Fig. 21 Example illustration
► Carry out action steps according to the illustration.
▷ Temperature in the lower telescopic unit is set.
Temperature unit
Use this function to set the temperature unit. You can set
degrees Celsius or degrees Fahrenheit as the temperature
unit.
Setting the temperature unit
Fig.22
Fig. 24 Example illustration: Switch from degreesCelsius
to degrees Fahrenheit.
► Carry out action steps according to the illustration.
▷ The temperature unit is set.
SuperCool
You can use this function to activate or deactivate Super‐
Cool. If SuperCool is activated, then the appliance increases
the cooling capacity. It allows you to achieve lower cooling
temperatures. You can activate SuperCool when you would
like to cool a large quantity of food quickly.
The function can be used independently in the upper and
lower pull-out trolley.
If the function is active, the appliance operates at higher
power. As a result, the appliance's operating noise may be
temporarily louder and energy consumption will increase.
Activating SuperCool
Time for activation of the function:
-
When you would like to store fresh food in the fridge
section: Activate the function when inserting food.
Fig.25
Fig. 26 Upper telescopic unit
Fig. 27 Lower telescopic unit
► Carry out action steps according to the illustration.
-or-
► Activate with the SmartDevice app.
▷ SuperCool is activated.
▷ The temperature display turns blue.
Deactivating SuperCool
SuperCool is deactivated automatically after 18 hours.
However, you can also deactivate SuperCool manually at
any time:
Fig. 28 Upper telescopic unit
Controls
10 * Depending on model and options
Fig. 29 Lower telescopic unit
► Carry out action steps according to the illustration.
-or-
► Deactivate with the SmartDevice app.
▷ SuperCool is deactivated.
▷ The appliance continues to run in normal mode.
▷ The appliance cools to the temperature set previously.
HolidayMode
You can use this function to activate or deactivate Holiday‐
Mode. If you activate HolidayMode, the fridge section is set
to 15 °C. This saves you energy during longer periods of
absence and prevents bad odours and growth of mould.
Appliance status when HolidayMode is active
Fridge section cools to 15°C.
SuperCool is deactivated.
Activating HolidayMode
► Empty the fridge section completely.
Fig.30
Fig.31
► Carry out action steps according to the illustration.
▷ HolidayMode is activated.
▷ Temperature display turns blue and shows HolidayMode
symbol.
Deactivating HolidayMode
Fig.32
► Carry out action steps according to the illustration.
▷ HolidayMode is deactivated.
▷ The appliance cools to the temperature set previously.
SabbathMode
You can use this function to activate or deactivate
SabbathMode. If you activate this function, some electronic
functions are switched off. As a result, your device meets
the religious requirements for Jewish holidays such as
Sabbath and complies with STAR-K Kosher certification.
Device status when SabbathMode is active
The status display shows SabbathMode permanently.
All functions on the display are locked except for the
Deactivate SabbathMode function.
Active functions remain active.
The display remains bright when you close the door.
The interior lighting is deactivated.
Reminders are not implemented. The set time interval
stops.
Reminders and warnings are not displayed.
There is no door alarm.
There is no temperature alarm.
After a power failure, the appliance returns to
SabbathMode.
Device status
Note
This appliance has certification from the “Institute for
Science and Halacha”. (www.machonhalacha.co.il)
You can find a list of STAR-K-certified appliances at
www.star-k.org/appliances.
Activating SabbathMode
WARNING
Danger of food poisoning from spoiled food!
If you have SabbathMode activated and a power failure
occurs, no message appears in the status display about the
power failure. Once the power is restored, the appliance
continues to operate in SabbathMode. The power failure
may mean that food spoils and the consumption of this food
could lead to food poisoning.
After a power failure:
► Do not consume food that was frozen and has thawed
out.
Fig.33
Fig.34
► Carry out action steps according to the illustration.
Controls
* Depending on model and options 11
▷ SabbathMode is activated.
▷ The status display shows SabbathMode permanently.
Deactivating SabbathMode
The SabbathMode is automatically deactivated after
80 hours. However, you can also deactivate SabbathMode
manually at any time:
Fig.35
► Carry out action steps according to the illustration.
▷ SabbathMode is deactivated.
EnergySaver
You can use this function to activate or deactivate Energy
saving mode. If energy saving mode is activated, the energy
consumption decreases and the temperature in the device
increases. The food remains fresh, but the shelf life is short‐
ened.
Temperature zone
Recommended setting
(see Setting the
temperature in the
upper telescopic unit)
Temperature
with active
EnergySaver
Fridge
section
4°C 7°C
Temperatures
Activating EnergySaver
Fig.36
Fig.37
► Carry out action steps according to the illustration.
▷ Energy saving mode is activated.
Deactivating EnergySaver
Fig. 38 Example illustration
► Carry out action steps according to the illustration.
▷ Energy saving mode is deactivated.
CleaningMode
You can use this function to activate or deactivate Cleaning‐
Mode. CleaningMode enables the appliance to be cleaned
conveniently.
This setting applies to the fridge section.
Application:
-
Clean the fridge section. (see 9.2Cleaning the appliance)
Device status when CleaningMode is active
The status display shows CleaningMode permanently.
The fridge section is switched off.
Interior lighting is activated.
The reminders and warnings are not displayed. No signal
tone sounds.
Device status
Activating CleaningMode
Fig. 39
Fig.40
► Carry out action steps according to the illustration.
▷ CleaningMode is activated.
▷ The status display shows CleaningMode permanently.
Deactivating CleaningMode
CleaningMode is deactivated automatically after
60 minutes. However, you can also deactivate Cleaning‐
Mode manually at any time:
Fig. 41
► Carry out action steps according to the illustration.
▷ CleaningMode is deactivated.
▷ The appliance cools to the temperature set previously.
Display brightness
Use this function to set the display brightness in stages.
You can select the following brightness levels:
-
40%
-
60%
Controls
12 * Depending on model and options
-
80%
-
100 % (pre-setting)
Setting the brightness
Fig. 42
Fig. 43 Example illustration: Switch from 80 % to 60%.
► Carry out action steps according to the illustration.
▷ The brightness is set.
Door alarm
Use this function to activate or deactivate the door alarm.
The door alarm sounds if the door is open for too long. The
door alarm is activated on delivery. You can set how long
the door may be open before the door alarm sounds.
The following values can be set:
-
1 minute
-
2 minutes
-
3 minutes
-
Off
Setting the door alarm
Fig.44
Fig. 45 Example illustration: Change door alarm from
1 minute to 3 minutes.
► Carry out action steps according to the illustration.
▷ The door alarm is set.
Deactivating the door alarm
Fig.46
Fig. 47
► Carry out action steps according to the illustration.
▷ The door alarm is deactivated.
Child lock
You can use this function to activate or deactivate the child
lock. The child lock prevents the appliance being operated
accidentally, e. g. by children.
Application:
-
Avoid unintentional modification of functions.
-
Avoid unintentional switching off of the device.
-
Avoid unintentional temperature setting.
Activating the child lock
If you activate the child lock, you can continue to navigate
in the menus but you cannot select or change other func‐
tions.
Fig.48
Fig. 49
► Carry out action steps according to the illustration.
▷ Child lock is activated.
Deactivating the child lock
Fig.50
Fig.51
► Carry out action steps according to the illustration.
▷ Child lock is deactivated.
Controls
* Depending on model and options 13
Language
Use this function to set the display language.
You can select the following languages:
-
Deutsch
-
English
-
Français
-
Español
-
Italiano
-
Nederlands
-
Čeština
-
Polski
-
Português
-
Bulgarian
-
Русский
-
温度单位
Setting the language
Fig.52
Fig. 53 Example illustration depending on the language
and temperature
► Carry out action steps according to the illustration.
▷ The language is set.
▷ The display returns to the status display.
Use this function to indicate the model name, index, serial
number and service number of your device. You will need
the device information when you contact customer service.
(see 10.4 Customer Service)
This function also opens the Advanced menu. (see 3 Func‐
tionality of the Touch&Swipe display)
Indicating the device information
Fig.54
Fig.55
►
Carry out action steps according to the illustration.
▷ Display indicates device information.
Displaying software information
Fig.56
Fig.57
► Carry out action steps according to the illustration.
▷ Display shows software information.
Demo mode
Demo mode is a special feature for dealers who want to
demonstrate appliance features. If you activate demo mode,
all refrigeration functions are deactivated.
If you switch on your appliance and “Demo” appears in the
status display, then demo mode is already activated.
If you activate and then deactivate demo mode, the appli‐
ance will be reset to factory defaults. (see Resetting to
factory settings)
Activating demo mode
Fig.58
Fig. 59
► Carry out action steps according to the illustration.
▷ Demo mode is activated.
▷ Appliance is switched off.
Controls
14 * Depending on model and options
► Switch on the appliance. (see 4.1 Switching on appliance
(first use))
▷ “DEMO” appears in the status display.
Deactivating demo mode
Fig.60
Fig.61
► Carry out action steps according to the illustration.
▷ Demo mode is deactivated.
▷ Appliance is switched off.
► Switch on the appliance. (see 4.1 Switching on appliance
(first use))
▷ Appliance is reset to factory settings.
Resetting to factory settings
Use this function to reset all settings to factory defaults.
All settings you have made so far are reset to their original
settings.
Performing a reset
Fig. 62
Fig.63
► Carry out action steps according to the illustration.
▷ Device is reset.
▷ Device is switched off.
►
Restart the device. (see 4.1 Switching on appliance (first
use))
7.3 Messages
There are two categories of messages:
Category Importance
Warning Warnings appear in the event of malfunctions.
Simple warnings can be cancelled by yourself.
In the event of serious malfunctions, you must
contact customer service. (see 10.4 Customer
Service)
Reminder Reminders remind you of general processes.
You can carry out these operations to end the
message.
7.3.1 Overview of warnings
Behaviour of the appliance in the event of warnings:
-
Warning appears in red on the display.
-
The alarm tone sounds at an ever-increasing volume.
-
The interior lighting pulsates for some warnings.
Message
Cause Exit the
message
Power outage
alarm
The message appears
if the temperature has
risen due to a power
failure.
Carry out
action
steps .
Temperature
alarm
The message appears
if the temperature in
the appliance does not
correspond to the set
temperature.
Carry out
action
steps .
Error
The message appears if
there is an appliance
error. A component of
the appliance has a
fault.
Carry out
action steps
(see Error) .
WLAN error
The message appears
if the appliance could
not be connected to the
WLAN. (see Establishing
the WiFi connection
for the first time) The
message only appears
during the initial setup.
Carry out
action steps
(see WLAN
error) .
Connection error
The message appears if
the connection to the
home network is inter‐
rupted. The message
only appears during the
initial setup.
Carry out
action
steps .
Controls
* Depending on model and options 15
7.3.2 Ending warnings
Power outage alarm
This message is displayed for each temperature zone of
your appliance. When the power failure has ended, the
appliance will automatically cool down to the previously
set target temperature without you having to confirm the
message. You must confirm the message for it to disappear
from the display.
Fig. 64 Example illustration
► Briefly touch the display.
▷ Display shows information about the warning.
► Briefly touch the display.
▷ Warmest freezing temperature is displayed.
▷ If the freezing temperature was below -9 °C: Food can
still be consumed.
If the freezing temperature has risen above -9°C:
► Check the food.
► Briefly touch the display.
▷ The display returns to the status indicator: Current
temperature and target temperature are displayed.
Temperature alarm
This message is displayed for each temperature zone of
your appliance. You must confirm the message for it to
disappear from the display.
Temperature differences can be caused by:
-
You have put in warm, fresh food.
-
Too much warm air has got in while you were sorting out
the freezer or removing items.
-
There has been a longer power failure.
-
The appliance is faulty.
► Eliminate causes.
▷ The appliance cools to the target temperature set previ‐
ously.
Fig. 65 Example illustration
► Briefly touch the display.
▷ Display shows information about the warning.
► Briefly touch the display.
▷ Warmest freezing temperature is displayed.
▷ If the freezing temperature was below -9 °C: Food can
still be consumed.
If the freezing temperature has risen above -9°C:
► Check the food.
► Briefly touch the display.
▷ The display returns to the status indicator: Current
temperature and target temperature are displayed.
Error
Fig. 66 Example illustration
► Briefly touch the display.
▷ Error code is displayed.
► Note the error code.
► Briefly touch the display.
▷ The display returns to the status indicator.
► Contact Customer Service. (see 10.4 Customer Service)
WLAN error
► Check WLAN connection.
► Reconnect the appliance to the WLAN. (seeWiFi)
7.3.3 Overview of reminders
Behaviour of the appliance during reminders:
-
Reminder appears yellow on the display.
-
Alarm tone sounds.
-
The interior lighting pulsates for some reminders.
The following reminders can be deactivated :
Message
Cause Exit the message
The message appears
if the door is open for
too long.
Carry out action
steps (see Door
alarm) .
7.3.4 Ending reminders
Door alarm
Fig. 67
► Carry out action steps according to the illustration.
-or-
► Close the door.
▷ The display returns to the status indicator.
You can set how long the door may be open before the door
alarm sounds. (see Setting the door alarm)
8 Features
8.1 Telescopic unit
The equipment can be moved in the telescopic unit or
removed for cleaning. (see9 Telescopic unit)
Note
Please note the information on categorising food.
(see 5.2 Fridge section with telescopic unit)
Features
16 * Depending on model and options
Fig. 68 Example illustration
(1)
Upper telescopic unit:
Compartment divider
(3) Lower telescopic unit:
Fruit and vegetable box
(2) Lower telescopic unit:
Bottle rack
8.1.1 Moving the compartment dividers
Ensure that the following requirements are met:
❑
Telescopic unit is pulled out as far as it will go.
Fig. 69 Example illustration
► Remove the compartment divider upwards.
Fig. 70 Example illustration
► Insert the compartment divider at the desired position.
9 Maintenance
9 Telescopic unit
You can remove the rear container for cleaning.
Fig. 71 Example illustration
(1)
Upper container (2) Lower container
9 Removing the container
You can move the individual containers in the telescopic
unit in the same way.
Ensure that the following requirements are met:
❑
The container has been emptied.
Maintenance
* Depending on model and options 17
Fig. 72 Example illustration
► Pull the telescopic unit out as far as it will go.
Fig. 73 Example illustration
► Pull the front and rear of the container upwards.
► Tilt the container slightly.
► Pull the container out forwards at an angle.
▷ The container has been removed.
9 Inserting the container
Insert the individual containers in the same way.
Ensure that the following requirements are met:
❑
Telescopic unit is pulled out as far as it will go.
Fig. 74 Example illustration
► Insert the container at an angle from above.
► Push the container slightly backwards.
► Lower the container at the front and rear.
▷ The container has been inserted.
9.1 Defrosting the appliance
WARNING
Improper defrosting of the appliance!
Injuries and damage.
► Do not use mechanical equipment or other methods to
speed up the defrosting process other than those recom‐
mended by the manufacturer.
► Do not use electrical heating or steam-cleaning appli‐
ances, naked flames or defroster sprays to defrost.
► Do not use sharp objects to remove ice.
Defrosting is performed automatically. The water from the
thawing process drains through the outlet and evaporates.
Water drops or a thin layer of frost or ice can form on the
back wall; this is a completely normal part of the applian‐
ce’s function. This must not be removed.
► Clean the drain opening at regular intervals.
(see 9.2Cleaning the appliance)
9.2 Cleaning the appliance
9.2.1 Ready
WARNING
Danger of electric shock!
► Remove the refrigerator connector or interrupt the power
supply.
WARNING
Risk of fire
► Do not damage the refrigeration circuit.
► Empty the appliance.
Inserting the container
18 * Depending on model and options
► Remove mains connector.
-or-
► Activate CleaningMode. (seeCleaningMode)
9.2.2 Cleaning the interior
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
► Do not uses abrasive sponges or steel wool which may
cause scratches.
► Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
► Plastic surfaces: clean by hand with a soft clean cloth,
lukewarm water and a little detergent.
► Metal surfaces: clean by hand with a soft clean cloth,
lukewarm water and a little detergent.
► Drain hole: remove deposits using a thin item (for
example a cotton bud).
9.2.3 Clean the components
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
► Do not uses abrasive sponges or steel wool which may
cause scratches.
► Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
Clean with a damp cloth:
- Retractable rails
Please note: The grease in the tracks is used for lubrica‐
tion and must not be removed!
► To disassemble components: see the relevant section.
► Clean the components.
9.2.4 After cleaning
► Wipe the appliance and the components dry.
► Connect and switch on the appliance.
The temperature is cold enough:
► Place the food inside.
► Repeat cleaning regularly.
10 Customer help
10.1 Technical specifications
Temperature range
Fridge
section with
variable
fridge
section
control
0°C to 14°C
Equipment Maximum loading weight
Top drawer 20 kg
Bottom drawer 14.5 kg
Lighting
Class
1
Light source
This product contains one or more energy
efficiency class G light sources.
LED
1
The appliance may contain light sources with different
energy efficiency classes. The lowest energy efficiency class
is indicated.
For appliances with a WiFi connection:
Frequency specification
Frequency band 2.4GHz
Maximum radiated
power
< 100 mW
Purpose of the
wireless equipment
Integration in the local WiFi network
for data communication
10.2 Operating noises
The appliance makes different noises when it is on.
-
At higher temperatures the appliance uses less energy
but works for longer. It is quieter.
-
At lower temperatures the food is cooled faster. It is
louder.
Examples:
•
Functions on (see 7.2Appliance functions)
•
Food recently added
•
High ambient temperature
•
Door open for a while
Noise
Possible cause Type of noise
Bubbling and
splashing
Coolant flowing
into the cooling
circuit.
Normal operating
noise
Hissing Coolant sprays
into the cooling
circuit.
Normal operating
noise
Humming The appliance
is cooling. The
volume depends
on the cooling
output.
Normal operating
noise
Clicking Components are
switched on and
off.
Normal switching
noise
Rattling or
humming
Valves or flaps are
working.
Normal switching
noise
Noise Possible
cause
Type of noise Lifting
Vibration Improper
installation
Defective
noise
Check the
installation.
Level the
appliance.
Rattling Components,
items inside
the appliance
Defective
noise
Secure
components.
Leave
enough
space
between the
items.
Customer help
* Depending on model and options 19
10.3 Technical fault
Your appliance is designed and built to ensure it works reli‐
ably and has a long service life. In the unlikely event that
a fault occurs during operation, please check whether it is
due to an operating error. If so, you will be charged for the
callout and repair costs even if it falls within the warranty
period.
You can fix the following faults yourself.
10.3.1 Appliance function
Defect Cause Remedy
The appliance is
not working.
→ The appliance is not switched on. ► Switch the appliance on.
→ The power plug is not properly
plugged into the socket.
► Check the power plug.
→ There is something wrong with the
power outlet fuse.
► Check the fuse.
→ Power cut ► Keep the appliance closed.
→ The IEC socket is not plugged into
the appliance correctly.
► Check the IEC socket.
Temperature is not
cold enough.
→ The appliance door is not closed
properly.
► Close the appliance door.
→ Not enough ventilation. ► Keep ventilation grille clear, and clean it.
→ The ambient temperature is too
high.
► Problem solution: (see2.4 Appliance range of use)
→ The appliance was opened too
many times or for too long.
► Wait to see if the required temperature corrects itself.
If not, contact Customer Service. (see 10.4 Customer
Service)
→ The appliance is too close to a heat
source (oven, radiator, etc).
► Move the appliance or the heat source.
→ The appliance was not correctly
installed in the recess.
► Check if the appliance was installed correctly and that
the door closes properly.
10.3.2 Features
Defect Cause Remedy
The internal light
does not come on.
→ The appliance is not switched on. ► Switch the appliance on.
→ The door was open for longer than
15 minutes.
► Interior lighting switches off automatically after
about 15 minutes when the door is open.
→ The LED interior light is faulty or
the lid is damaged.
► Contact Customer Service. (see 10.4 Customer Service)
10.4 Customer Service
First check whether you can rectify the fault yourself
(see 10 Customer help) . If you cannot rectify the problem,
contact Customer Service.
You can find the address in the enclosed brochure “Liebherr-
Service” or at home.liebherr.com/service.
WARNING
Unprofessional repair!
Injuries.
► Have any repairs and action - not expressly specified -
on the appliance and mains cable carried out by service
personnel only. (see9 Maintenance)
► A damaged mains cable may only be replaced by the
manufacturer, the manufacturer’s Customer Service or a
similarly qualified person.
► In the case of appliances with an IEC connector, the
change may be made by the customer.
10.4.1 Contacting Customer Service
Make sure that the following appliance information is avail‐
able:
❑
Appliance name (model and index)
❑
Service no. (Service)
❑
Serial no. (S no.)
► Note down the appliance information.
► Notify customer service: Report errors and the appliance
information.
▷ This will help us to provide you with a faster, more accu‐
rate service.
► Follow further instructions from Customer Service.
10.5 Model plate
The type plate is located on the bottom inside of the
machine.
Customer help
20 * Depending on model and options
Fig.75
(1) Appliance description (3) Serial no.
(2) Service no.
► Note the data on the model plate.
11 Shutting down
► Empty the appliance.
► Switch off appliance. (see Switching the appliance off
and on)
► Pull the mains plug out of the socket.
► Remove the IEC socket if required: Pull the IEC socket out
of the appliance plug and move it to the left and right at
the same time.
► Clean appliance. (see 9.2Cleaning the appliance)
► Leave the door open, so that no unpleasant odours arise.
12 Disposal
12.1 Preparing appliance for disposal
Liebherr uses batteries in some of its appli‐
ances. In the EU, for environmental reasons,
legislation obliges the end user to remove
these batteries before disposing of old appli‐
ances. If your appliance contains batteries, a
corresponding notice is attached.
Lamps If you can remove the lamps yourself without
destroying them, also remove these before
disposal.
► Take the appliance out of operation.
► If possible: remove lamps without destroying them.
12.2 Disposing of the appliance in an
environmentally friendly manner
The appliance still contains
valuable materials and must
be disposed of separately from
unsorted municipal waste.
Dispose of batteries separately
from the old appliance. To do
this, you can return the batteries
free of charge to retailers as
well as recycling centres and
collection centres for recyclable
materials.
Lamps Dispose of removed lamps
via the respective collection
systems.
For Germany: You can dispose of the appli‐
ance free of charge via the
class 1 collection containers
at the local recycling and
recyclable material collection
centres. When purchasing a new
fridge/freezer, if the sales area
> 400 m
2
, retailers will also take
back the old appliance free of
charge.
WARNING
Leaking coolant and oil!
Fire. The coolant contained in the appliance is eco-friendly,
but also flammable. The oil contained in the appliance
is flammable. Escaping coolant and oil can ignite if the
concentration is high enough and in contact with an
external heat source.
► Do not damage the pipelines of the coolant circuit and
the compressor.
►
Observe the notes on transporting the appliance.
► Transport the appliance without damaging it.
► Dispose of batteries, lamps and the appliance according
to the above specifications.
Shutting down
* Depending on model and options 21
home.liebherr.com/fridge-manuals
base unit fridge
Issue date:20250902
Part number index: 7083891-00
Liebherr-Hausgeräte GmbH
Memminger Straße 77-79
88416Ochsenhausen
Deutschland
