GNSS Receiver BE-50U Datasheet
Shenzhen Beitian Communication Co., Ltd. www.beitian.com
1 / 12
BE-50U
GNSS Receiver
Datasheet
Revision: 5.12
Date:2025.7
GNSS Receiver BE-50U Datasheet
Shenzhen Beitian Communication Co., Ltd. www.beitian.com
2 / 12
Features：
Item
Description
Electrical
Characteristic
Chip
M10050
Receiver type
GPS L1 C/A, QZSS L1 C/A/S,BDS B1I/B1C, Galileo
E1B/C,SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
Default position system
GPS, BDS, GALILEO
Augmentation system
SBAS, QZSS
Channel
N/A
Sensitivity
Tracking & Navigation
-166dBm
Reacquisition
-160dBm
Cold start
-148dBm
Hot Start
-160dBm
Accuracy
Horizontal position
2.0m CEP
Velocity
0.05m/s
Dynamic heading
0.3 deg
Time pulse
RMS 30ns
99% 60ns
Acquisition
Cold start
27s
Hot start
1s
Aided start
1s
Data Output
Baud rate
4800bps - 921600bps, default 115200bps
Level
PL2303SA chip TTL to USB driver, USB level
Protocol
NMEA,UBX
NMEA messages
RMC,VTG,GGA,GSA,GSV,GLL
Update rate
0.25Hz-18Hz,default 1Hz
FLASH
With FLASH, the configuration can be changed, and the
power will not be lost
Frequency of time pulse
signal
Configurable from 0.25 Hz to 10 MHz, the default period is 1s,
and the high level lasts for 100ms
Operational
Limits
Altitude
80,000m
Velocity
500m/s
Dynamics
<4g
Power
Consumption
Voltage
DC 3.6V-5.5V, typical: 5.0V
Current
30mA/5.0V
Mechanical
Specifications
Dimension
Φ56.7mm*18mm
Weight
70g
Connector
USB 2.0 Male interface
Cable Length
2m
Fixed
Magnetic bottom
Temperature
Operating
-40 °C ~ +85°C
GNSS Receiver BE-50U Datasheet
Shenzhen Beitian Communication Co., Ltd. www.beitian.com
3 / 12
Storage
-40°C ~ +105°C

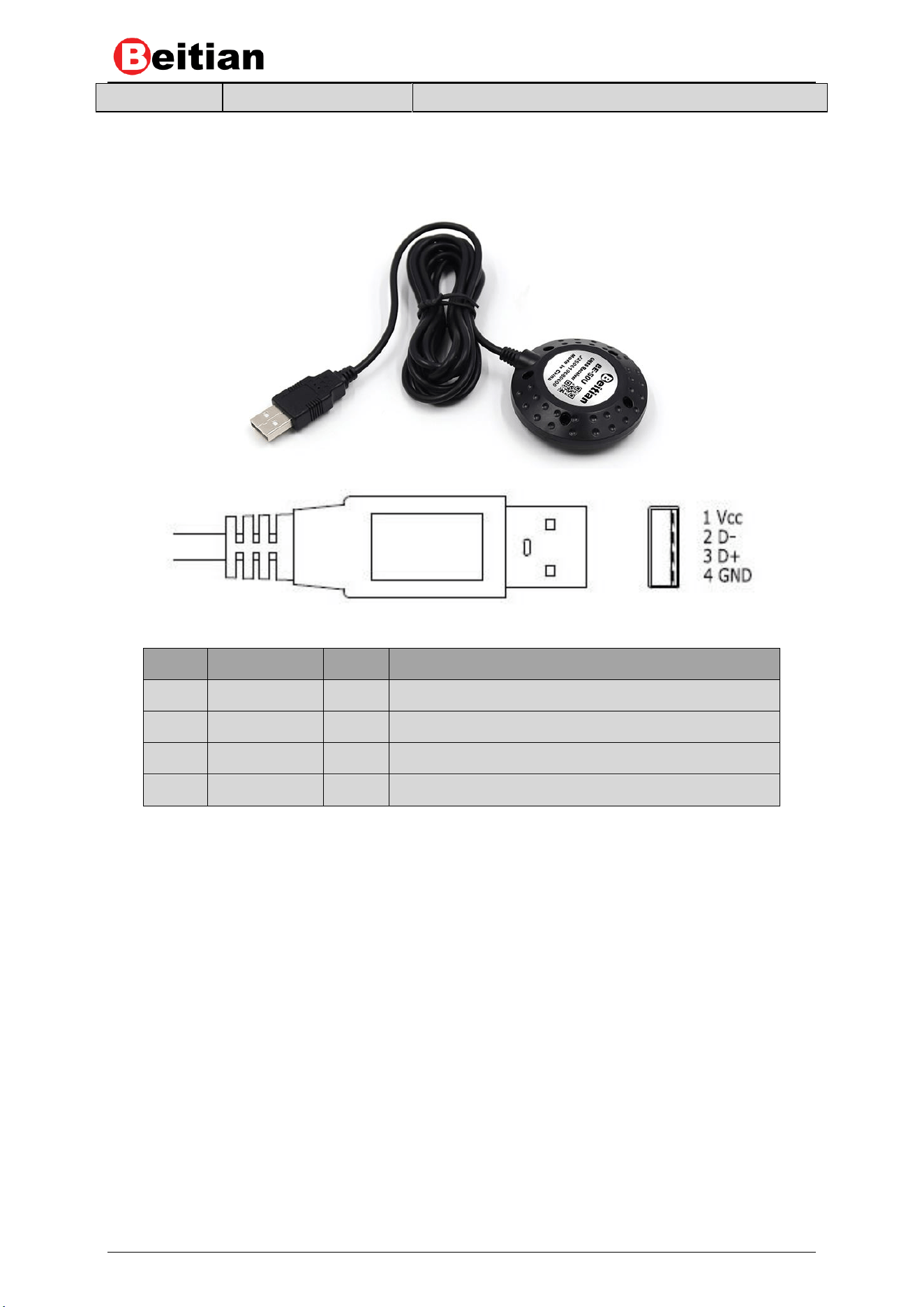

Pin Description：
PIN
Name
I/O
Description
1
VCC
I
DC 3.6 V-5.5V supply input,Typical: 5.0V
2
D-
O
USB D-
3
D+
I
USB D+
4
GND
G
Ground
GNSS Receiver BE-50U Datasheet
Shenzhen Beitian Communication Co., Ltd. www.beitian.com
4 / 12

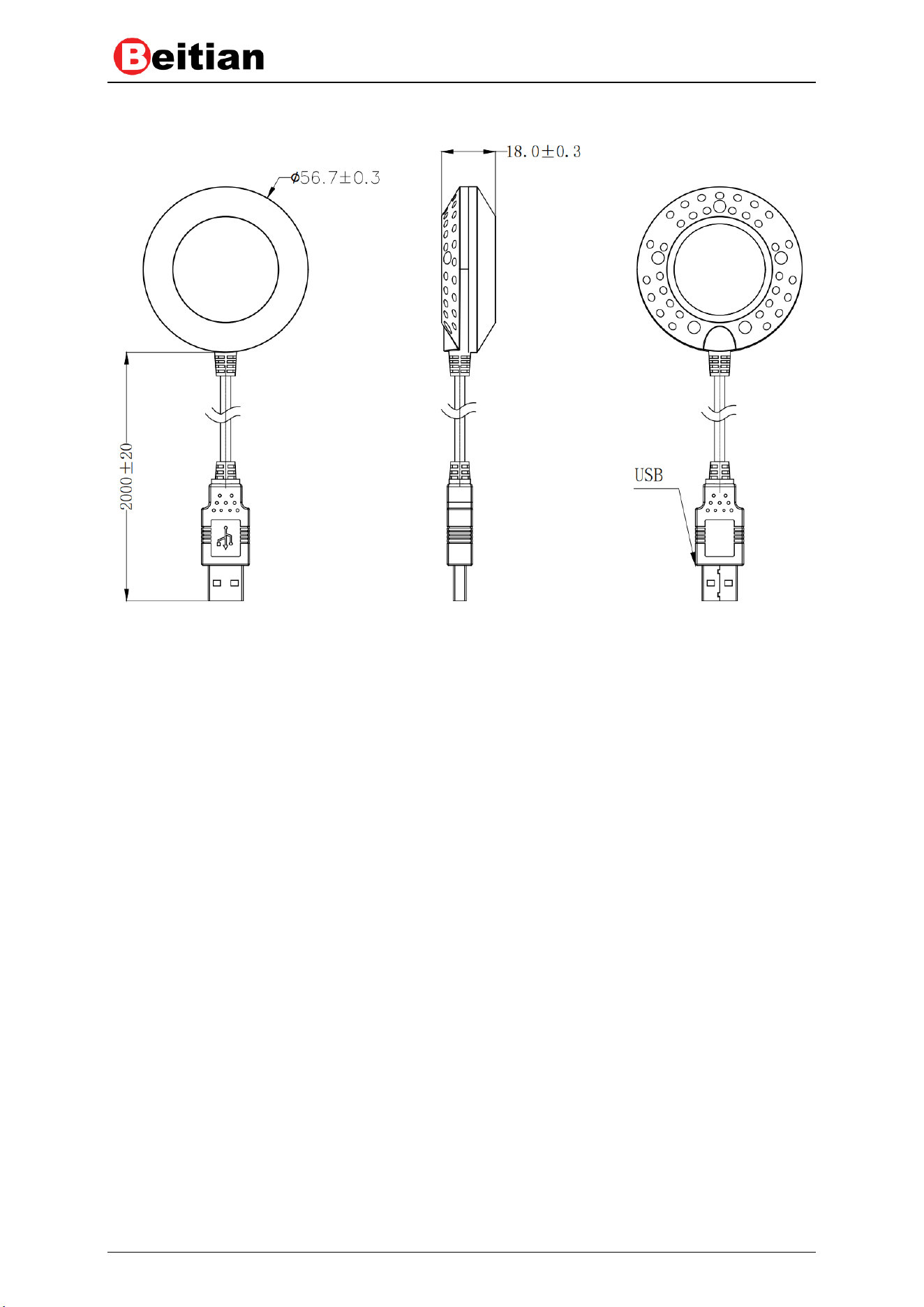

Structural diagram:
GNSS Receiver BE-50U Datasheet
Shenzhen Beitian Communication Co., Ltd. www.beitian.com
5 / 12

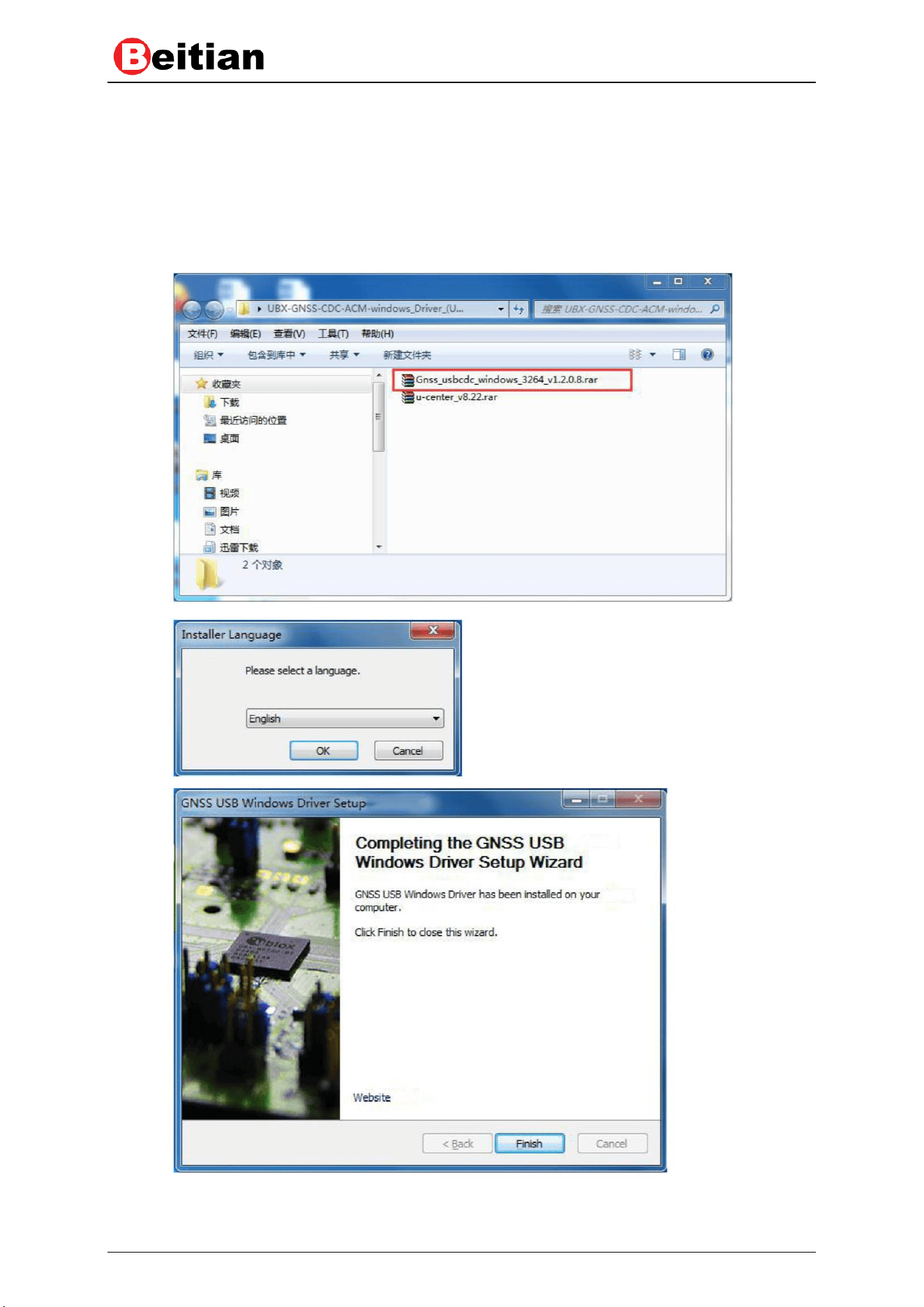

Driver installation:
The GPS receiver need to install the driver, in order to connect to the data communications.
Support Windows, Linux, CE and many other systems. The following is the Windows driver
installation:
GNSS Receiver BE-50U Datasheet
Shenzhen Beitian Communication Co., Ltd. www.beitian.com
6 / 12
Data output protocol
Joint Mode Protocol Header - GN
GPS Mode Protocol Header-GP
GLONASS Mode Protocol Header-GL
Beidou mode protocol header - GB or BD
Unlocated
：
$GNRMC,,V,,,,,,,,,,N,V*37
$GNVTG,,,,,,,,,N*2E
$GNGGA,,,,,,0,00,99.99,,,,,,*56
$GNGSA,A,1,,,,,,,,,,,,,99.99,99.99,99.99,1*33
$GNGSA,A,1,,,,,,,,,,,,,99.99,99.99,99.99,3*31
$GNGSA,A,1,,,,,,,,,,,,,99.99,99.99,99.99,4*36
$GNGSA,A,1,,,,,,,,,,,,,99.99,99.99,99.99,5*37
$GPGSV,1,1,00,0*65
$GAGSV,1,1,00,0*74
$GBGSV,1,1,00,0*77
$GQGSV,1,1,00,0*64
$GNGLL,,,,,,V,N*7A
Positioned
：
$GNRMC,054411.00,A,2243.08151,N,11401.10827,E,0.008,,230423,,,A,V*1E
$GNVTG,,T,,M,0.008,N,0.016,K,A*32
$GNGGA,054411.00,2243.08151,N,11401.10827,E,1,12,0.56,93.2,M,-2.7,M,,*64
$GNGSA,A,3,30,03,14,06,07,17,01,19,,,,,1.15,0.56,1.00,1*0D
$GNGSA,A,3,30,13,15,34,27,02,,,,,,,1.15,0.56,1.00,3*01
$GNGSA,A,3,27,28,30,01,02,03,37,38,40,,,,1.15,0.56,1.00,4*04
$GNGSA,A,3,02,07,03,04,,,,,,,,,1.15,0.56,1.00,5*00
$GPGSV,3,1,12,01,27,034,37,03,44,087,39,06,38,241,42,07,15,180,35,1*64
$GPGSV,3,2,12,14,78,359,45,17,43,333,38,19,28,303,39,30,34,212,39,1*6C
$GPGSV,3,3,12,39,29,252,33,40,20,257,40,41,46,237,44,50,60,149,39,1*65
$GPGSV,1,1,01,11,00,228,,0*5C
$GAGSV,2,1,06,02,30,136,38,13,23,238,40,15,68,289,42,27,37,324,30,7*7E
$GAGSV,2,2,06,30,83,091,42,34,41,026,41,7*70
$GBGSV,3,1,11,01,47,123,36,02,46,234,37,03,63,189,38,04,,,31,1*49
$GBGSV,3,2,11,05,,,34,27,52,351,44,28,24,046,37,30,31,283,40,1*46
$GBGSV,3,3,11,37,43,178,40,38,70,172,40,40,57,034,39,1*48
$GQGSV,1,1,04,02,63,125,42,03,59,044,39,04,38,131,38,07,60,149,36,1*6C
$GNGLL,2243.08151,N,11401.10827,E,054411.00,A,A*71
$xxGGA,time,lat,NS,lon,EW,quality,numSV,HDOP,alt,altUnit,sep,sepUnit,diffAge,diffStation*c
s<CR><LF>
Example:
$GPGGA,092725.00,4717.11399,N,00833.91590,E,1,08,1.01,499.6,M,48.0,M,,*5B
GNSS Receiver BE-50U Datasheet
Shenzhen Beitian Communication Co., Ltd. www.beitian.com
7 / 12
Field
No.
Name
Unit
Format
Example
Description
0
xxGGA
-
string
$GPGGA
GGA Message ID (xx = current Talker ID, see
NMEA Talker IDs table)
1
time
-
hhmmss.ss
092725.00
UTC time, see note on UTC representation
2
lat
-
ddmm.
mmmmm
4717.11399
Latitude (degrees & minutes), see format
description
3
NS
-
character
N
North/South indicator
4
lon
-
dddmm.
mmmmm
00833.91590
Longitude (degrees & minutes), see format
description
5
EW
-
character
E
East/West indicator
6
quality
-
digit
1
Quality indicator for position fix, see position
fix flags description Flags in NMEA 4.10 and
above
7
numSV
-
numeric
08
Number of satellites used (range: 0-12)
8
HDOP
-
numeric
1.01
Horizontal Dilution of Precision
9
alt
m
numeric
499.6
Altitude above mean sea level
Field
No.
Name
Unit
Format
Example
Description
10
altUnit
-
character
M
Altitude units: M (meters, fixed field)
11
sep
m
numeric
48.0
Geoid separation: difference between
ellipsoid
and mean sea level
12
sepUnit
-
character
M
Geoid separation units: M (meters, fixed
field)
13
diffAge
s
numeric
-
Age of differential corrections (null when
DGPS is not used)
14
diffStat
ion
-
numeric
-
ID of station providing differential corrections
(null when DGPS is not used)
15
cs
-
hexadecim
al
*5B
Checksum
16
<CR><LF>
-
character
-
Carriage return and line feed
$xxGLL,lat,NS,lon,EW,time,status,posMode*cs<CR><LF>
Example:
$GPGLL,4717.11364,N,00833.91565,E,092321.00,A,A*60
Field
No.
Name
Unit
Format
Example
Description
0
xxGLL
-
string
$GPGLL
GLL Message ID (xx = current Talker ID, see
NMEA Talker IDs table)
1
lat
-
ddmm.
mmmmm
4717.11364
Latitude (degrees & minutes), see format
description
2
NS
-
character
N
North/South indicator
GNSS Receiver BE-50U Datasheet
Shenzhen Beitian Communication Co., Ltd. www.beitian.com
8 / 12
3
lon
-
dddmm.
mmmmm
00833.91565
Longitude (degrees & minutes), see format
description
4
EW
-
character
E
East/West indicator
5
time
-
hhmmss.ss
092321.00
UTC time, see note on UTC representation
6
status
-
character
A
Data validity status, see position fix flags
description
7
posMode
-
character
A
Positioning mode, see position fix flags
description (only available in NMEA 2.3 and
later)
Field
No.
Name
Unit
Format
Example
Description
8
cs
-
hexadecimal
*60
Checksum
9
<CR><LF>
-
character
-
Carriage return and line feed
$xxGSA,opMode,navMode{,svid},PDOP,HDOP,VDOP,systemId*cs<CR><LF>
Example:
$GPGSA,A,3,23,29,07,08,09,18,26,28,,,,,1.94,1.18,1.54,1*0D
Field
No.
Name
Unit
Format
Example
Description
0
xxGSA
-
string
$GPGSA
GSA Message ID (xx = current Talker ID, see
NMEA Talker IDs table)
1
opMode
-
character
A
Operation mode:
M = Manually set to operate in 2D or 3D mode
A = Automatically switching between 2D or 3D
mode
2
navMode
-
digit
3
Navigation mode, see position fix flags
description
Start of repeated block (12 times)
3 +
1*N
svid
-
numeric
29
Satellite number
End of repeated block
15
PDOP
-
numeric
1.94
Position dilution of precision
16
HDOP
-
numeric
1.18
Horizontal dilution of precision
17
VDOP
-
numeric
1.54
Vertical dilution of precision
18
systemId
-
numeric
1
NMEA defined GNSS System ID, see Signal
Identifiers table (only available in NMEA 4.10
and later)
19
cs
-
hexadecimal
*0D
Checksum
20
<CR><LF>
-
character
-
Carriage return and line feed
$xxGSV,numMsg,msgNum,numSV{,svid,elv,az,cno},signalId*cs<CR><LF>
Example:
GNSS Receiver BE-50U Datasheet
Shenzhen Beitian Communication Co., Ltd. www.beitian.com
9 / 12
$GPGSV,3,1,09,09,,,17,10,,,40,12,,,49,13,,,35,1*6F
$GPGSV,3,2,09,15,,,44,17,,,45,19,,,44,24,,,50,1*64
$GPGSV,3,3,09,25,,,40,1*6E
$GPGSV,1,1,03,12,,,42,24,,,47,32,,,37,5*66
$GAGSV,1,1,00,2*76
Field
No.
Name
Unit
Format
Example
Description
0
xxGSV
-
string
$GPGSV
GSV Message ID (xx = GSV Talker ID, see
NMEA Talker IDs table). Talker ID GN shall not
be used
1
numMsg
-
digit
3
Number of messages, total number of GSV
messages being output (range: 1-9)
2
msgNum
-
digit
1
Number of this message (range: 1-numMsg)
3
numSV
-
numeric
10
Number of known satellites in view regarding
both the talker ID and the signalId
Start of repeated block (1..4 times)
4 +
4*N
svid
-
numeric
23
Satellite ID
5 +
4*N
elv
deg
numeric
38
Elevation (range: 0-90)
6 +
4*N
az
deg
numeric
230
Azimuth (range: 0-359)
7 +
4*N
cno
dB
Hz
numeric
44
Signal strength (C/N0, range: 0-99), null when
not tracking
End of repeated block
Field
No.
Name
Unit
Format
Example
Description
5..
16
signalId
-
numeric
0
NMEA defined GNSS Signal ID, see Signal
Identifiers table (only available in NMEA 4.10
and later)
6..
16
cs
-
hexadecimal
*7F
Checksum
7..
16
<CR><LF>
-
character
-
Carriage return and line feed
$xxRMC,time,status,lat,NS,lon,EW,spd,cog,date,mv,mvEW,posMode,navStatus*cs<CR><LF>
Example:
$GPRMC,083559.00,A,4717.11437,N,00833.91522,E,0.004,77.52,091202,,,A,V*57
Field
No.
Name
Unit
Format
Example
Description
0
xxRMC
-
string
$GPRMC
RMC Message ID (xx = current Talker ID, see
NMEA Talker IDs table)
1
time
-
hhmmss.ss
083559.00
UTC time, see note on UTC representation
GNSS Receiver BE-50U Datasheet
Shenzhen Beitian Communication Co., Ltd. www.beitian.com
10 / 12
2
status
-
character
A
Data validity status, see position fix flags
description
3
lat
-
ddmm.
mmmmm
4717.11437
Latitude (degrees & minutes), see format
description
4
NS
-
character
N
North/South indicator
5
lon
-
dddmm.
mmmmm
00833.91522
Longitude (degrees & minutes), see format
description
6
EW
-
character
E
East/West indicator
7
spd
kno
ts
numeric
0.004
Speed over ground
8
cog
deg
ree s
numeric
77.52
Course over ground
Field
No.
Name
Unit
Format
Example
Description
9
date
-
ddmmyy
091202
Date in day, month, year format, see note on
UTC representation
10
mv
deg
ree s
numeric
-
Magnetic variation value. Only supported in
ADR 4.10 and later
11
mvEW
-
character
-
Magnetic variation E/W indicator. Only
supported in ADR 4.10 and later
12
posMode
-
character
A
Mode Indicator, see position fix flags
description (only available in NMEA 2.3 and
later)
13
navStatu
s
-
character
V
Navigational status indicator: V (Equipment is
not providing navigational status information,
fixed field, only available in NMEA 4.10 and
later)
14
cs
-
hexadecimal
*57
Checksum
15
<CR><L
F>
-
character
-
Carriage return and line feed
$xxVTG,cogt,cogtUnit,cogm,cogmUnit,sogn,sognUnit,sogk,sogkUnit,posMode*cs<CR><LF>
Example:
$GPVTG,77.52,T,,M,0.004,N,0.008,K,A*06
Field
No.
Name
Unit
Format
Example
Description
0
xxVTG
-
string
$GPVTG
VTG Message ID (xx = current Talker ID, see
NMEA Talker IDs table)
1
cogt
deg
ree
s
numeric
77.52
Course over ground (true)
2
cogtUnit
-
character
T
Course over ground units: T (degrees true,
fixed field)
GNSS Receiver BE-50U Datasheet
Shenzhen Beitian Communication Co., Ltd. www.beitian.com
11 / 12
3
cogm
deg
ree
s
numeric
-
Course over ground (magnetic). Only
supported in ADR 4.10 and above
4
cogmUnit
-
character
M
Course over ground units: M (degrees
magnetic, fixed field)
5
sogn
kno
ts
numeric
0.004
Speed over ground
6
sognUnit
-
character
N
Speed over ground units: N (knots, fixed field)
Field
No.
Name
Unit
Format
Example
Description
7
sogk
km/
h
numeric
0.008
Speed over ground
8
sogkUnit
-
character
K
Speed over ground units: K (kilometers per
hour, fixed field)
9
posMode
-
character
A
Mode Indicator, see position fix flags
description (only available in NMEA 2.3 and
later)
10
cs
-
hexadecimal
*06
Checksum
11
<CR><LF>
-
character
-
Carriage return and line feed
Flags in NMEA 4.10 and above
NMEA Message
Field
GLL, RMC
status
GGA
quality
GLL, VTG
posMode
RMC, GNS
posMode
No position fix (at power-up, after losing satellite lock)
V
0
N
N
GNSS fix, but user limits exceeded
V
0
N
N
Dead reckoning fix, but user limits exceeded
V
6
E
E
Dead reckoning fix
A
6
E
E
RTK float
A
5
D
F
RTK fixed
A
4
D
R
2D GNSS fix
A
1
/ 2
A / D
A / D
3D GNSS fix
A
1
/ 2
A / D
A / D
Combined GNSS/dead reckoning fix
A
1
/ 2
A / D
A / D
See below (1)
See below(2)
See below
(3)
See below
(3)
(1)
Possible values for status: V = Data invalid, A = Data valid
(2)
Possible values for quality: 0 = No fix, 1 = Autonomous GNSS fix, 2 = Differential
GNSS fix, 4 =RTK fixed, 5 = RTK float, 6 = Estimated/Dead reckoning fix
(3)
Possible values for posMode: N = No fix, E = Estimated/Dead reckoning fix, A =
Autonomous GNSS fix, D = Differential GNSS fix, F = RTK float, R = RTK fixed
GNSS Receiver BE-50U Datasheet
Shenzhen Beitian Communication Co., Ltd. www.beitian.com
12 / 12
FCC Warning Statement
This product has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This product generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this product does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
‐‐ Reorient or relocate the receiving antenna of the radio/TV.
‐‐ Increase the separation between the equipment and receiver(radio/TV).
‐‐ Connect the equipment into an outlet on a circuit different from that to which the
receiver(radio/TV) is connected.
‐‐ Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1)This device may not cause harmful interference.
(2)This device must accept any interference received, including interference that may cause
undesired operation.
