433MHZ remote control
Model: FBD-X8-4S

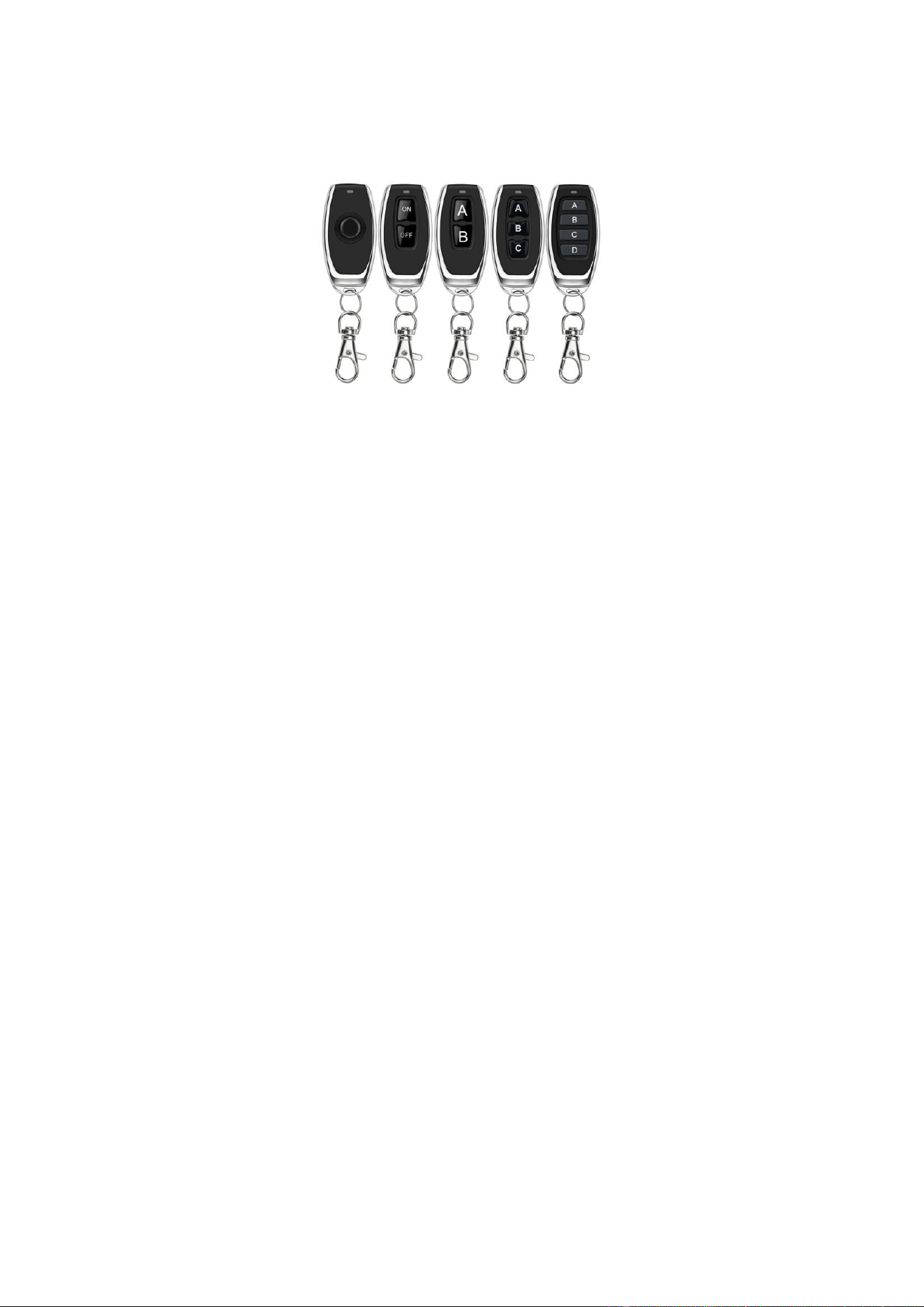

* Available with one-button, two-button, three-button and four-button
options
* size: 61*29*12mm
* Existing color: black
Technical parameters:
Voltage: DC3/6V (2026, 3V twist-button battery 2 cells)
Voltage range: Minimum 1.5V Max. 5V
Operating temperature: minimum-30 degrees and maximum 85 degrees
Working current: 10mA@6V
Radiated power: 10mw@6V
Modulation method: ASK (amplitude modulation)
Transmission frequency: 433MHZ (sound meter stable frequency, other
frequencies can be optional)
Transmission distance: 60-100m (open and wide ground, receiving device
sensitivity is minus 100dbm)
Antenna gain: 0-10DBM
Carrier absolute frequency accuracy: typical value 250KHZ(3V 25 degrees)
Encoder type: Fixed code learning code optional (fixed code 2260 learning
code 1527)
Purpose: motorcycles, car anti-theft products, home anti-theft products, LED
controllers, short-range wireless remote control products
FCC Warnning:
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio
frequency
energy
and,
if
not
installed
and
used
in
accordance
with
the
instructions,
may cause
harmful
interference
to
radio
communications.
However,
there
is
no
guarantee
that interference
will
not
occur
in
a
particular
installation.
If
this
equipment
does
cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off
and
on,
the
user
is
encouraged
to
try
to
correct
the interference
by
one
or
more
of
the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution:
Any
changes
or
modifications
to
this
device
not
explicitly
approved
by
manufacturer
could void your authority to operate this equipment.
This
device
complies
with
part
15
of
the
FCC
Rules.
Operation
is
subject
to
the
following
two
conditions:
(1)This
device
may
not
cause
harmful
interference,
and
(2)
this
device
must
accept
any
interference received, including interference that may cause undesired operation.
This
equipment
complies
with
FCC
radiation
exposure
limits
set
forth
for
an
uncontrolled
environment.
This
equipment
should
be
installed
and
operated
with
minimum
distance
0cm
between the radiator and your body.
