FQE80U/FQE100U FilterQuick
™
easyTouch
®
Electric Fryer
Installation, Operation and Maintenance
Manual
This manual is updated as new information and models are released. Visit our website for the latest
manual.
Part Number: FRY_IOM_8197782 07/2024
*8197782*
Original Instructions
CAUTION
READ THE INSTRUCTIONS BEFORE USING THE FRYER.
Keep these instructions for future reference.
We Fit the Way You Fry™
FOR YOUR SAFETY
Do Not Store or use gasoline
or other flammable vapors
and liquids in the vicinity of
this or any other appliance.
NOTICE
IF, DURING THE WARRANTY PERIOD, THE CUSTOMER USES A PART FOR THIS FRYMASTER DEAN EQUIPMENT OTHER
THAN AN UNMODIFIED NEW OR RECYCLED PART PURCHASED DIRECTLY FROM FRYMASTER DEAN, OR ANY OF ITS
FACTORY AUTHORIZED SERVICERS, AND/OR THE PART BEING USED IS MODIFIED FROM ITS ORIGINAL
CONFIGURATION, THIS WARRANTY WILL BE VOID. FURTHER, FRYMASTER DEAN AND ITS AFFILIATES WILL NOT BE
LIABLE FOR ANY CLAIMS, DAMAGES OR EXPENSES INCURRED BY THE CUSTOMER WHICH ARISE DIRECTLY OR
INDIRECTLY, IN WHOLE OR IN PART, DUE TO THE INSTALLATION OF ANY MODIFIED PART AND/OR PART RECEIVED
FROM AN UNAUTHORIZED SERVICER.
NOTICE
This appliance is intended for professional use only and is to be operated by qualified personnel only. A
Frymaster Authorized Servicer (FAS) or other qualified professional should perform installation, maintenance,
and repairs. Installation, maintenance, or repairs by unqualified personnel may void the manufacturer’s
warranty. See Chapter 1 of this manual for definitions of qualified personnel.
NOTICE
This equipment must be installed in accordance with the appropriate national and local codes of the country
and/or region in which the appliance is installed. See NATIONAL CODE REQUIREMENTS in Chapter 2 of this
manual for specifics.
NOTICE TO U.S. CUSTOMERS
This equipment is to be installed in compliance with the basic plumbing code of the Building Officials and Code
Administrators International, Inc. (BOCA) and the Food Service Sanitation Manual of the U.S. Food and Drug
Administration.
WARNING
Improper installation, adjustment, maintenance or service, and unauthorized alterations or modifications can
cause property damage, injury, or death. Read the installation, operating, and service instructions thoroughly
before installing or servicing this equipment.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance.
NOTICE TO OWNERS OF UNITS EQUIPPED WITH TOUCH SCREEN CONTROLLERS
U.S.
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) This
device may not cause harmful interference, and 2) This device must accept any interference received, including
interference that may cause undesired operation. While this device is a verified Class A device, it has been
shown to meet the Class B limits.
CANADA
This digital apparatus does not exceed the Class A or B limits for radio noise emissions as set out by the ICES-003
standard of the Canadian Department of Communications.
Cet appareil numerique n’emet pas de bruits radioelectriques depassany les limites de classe A et B prescrites
dans la norme NMB-003 edictee par le Ministre des Communcations du Canada.
DANGER
When installed, this appliance must be electrically grounded in accordance with local codes, or in the absence of
local codes, with the National Electrical Code, ANSI/NFPA 70, the Canadian Electrical Code, CSA C22.2, or the
appropriate national code of the country in which installed.
WARNING
The appliance must be installed and used in such a way that any water cannot contact the fat or oil.
ii
NOTICE
This appliance is intended to be used for commercial applications, for example in kitchens of restaurants,
canteens, hospitals and in commercial enterprises such as bakeries, butcheries, etc., but not for continuous
mass production of food.
DANGER
The front ledge of this appliance is not a step! Do not stand on the appliance. Serious injury can result from
slips or contact with the hot oil.
NOTICE
Drawings and photos used in this manual are intended to illustrate operational, cleaning and technical
procedures and may not conform to onsite management operational procedures.
DANGER
The crumb tray in fryers equipped with a filter system must be emptied into a fireproof container at the end of
frying operations each day. Some food particles can spontaneously combust if left soaking in certain shortening
material.
WARNING
Do not bang fry baskets or other utensils on the fryer’s joiner strip. The strip is present to seal the joint
between the fry vessels. Banging fry baskets on the strip to dislodge shortening will distort the strip, adversely
affecting its fit. It is designed for a tight fit and should only be removed for cleaning.
DANGER
Adequate means must be provided to limit the movement of this appliance without depending on or
transmitting stress to the electrical conduit. A restraint kit is provided with the fryer. If the restraint kit is
missing contact your local KES.
DANGER
This fryer has a power cord (three-phase) for each frypot. Prior to movement, testing, maintenance and any
repair on your Frymaster fryer; disconnect ALL electrical power cords from the electrical power supply.
DANGER
Keep all items out of drains. Closing actuators may cause damage or injury.
WARNING
This appliance is not intended for use by children under the age of 16 or persons with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
concerning use of the appliance by a person responsible for their safety. Do not allow children to play with this
appliance.
DANGER
This appliance must be connected to a power supply having the same voltage and phase as specified on the
rating plate located on the inside of the appliance door.
WARNING
Use caution and wear appropriate safety equipment to avoid contact with hot oil or surfaces that may cause
severe burns or injury.
iii
DANGER
Do not spray aerosols in the vicinity of this appliance while it is in operation.
DANGER
No structural material on the fryer should be altered or removed to accommodate placement of the fryer under
a hood. Questions? Call the Frymaster Dean Service Hotline at 1-800-551-8633.
WARNING
NEVER drain boil out or cleaning solution into a shortening disposal unit (SDU), a built-in filtration unit, a
portable filter unit. These units are not intended for this purpose and will be damaged by the solution and void
the warranty.
DANGER
Prior to movement, testing, maintenance and any repair on your Frymaster fryer; disconnect ALL electrical
power cords from the electrical power supply.
NOTICE
No warranty is provided for any Frymaster fryer used in a mobile or marine installation or concession.
Warranty protection is only offered for fryers installed in accordance with the procedures described in this
manual. Mobile, marine or concession conditions of this fryer should be avoided to ensure optimum
performance.
WARNING
Do not block the area around the base or under the fryers.
WARNING
This equipment is intended for indoor use only. Do not install or operate this equipment in outdoor areas.
WARNING
Do not use water jets to clean this equipment.
WARNING
If the electrical power supply cord is damaged, it must be replaced by a Frymaster Factory Authorized Servicer
or a similarly qualified person in order to avoid a hazard.
WARNING
All wiring connections for this appliance must be made in accordance with the wiring diagram(s) furnished with
the appliance. Refer to the wiring diagram(s) supplied with the fryer when installing or servicing this
equipment.
WARNING
Do not operate this equipment unless all covers and access panels are in place and properly secured.
DANGER
Building codes prohibit a fryer with its open tank of hot oil being installed beside an open flame of any type,
including those of broilers and ranges.
iv
DANGER
Under all circumstances, oil must be removed from the fryer before attempting to move it to avoid spills, falls,
and severe burns. Never attempt to transfer hot oil from one container to another. Fryers may tip and cause
personal injury if not secured in a stationary position.
DANGER
Never operate the appliance with an empty frypot. The frypot must be filled to the fill line with water or
cooking oil before energizing the elements. Failure to do so will result in irreparable damage to the elements
and may cause a fire.
NOTICE
If this equipment is wired directly into the electrical power supply, a means for disconnection from the supply
having a contact separation of at least 3-mm in all poles must be incorporated in the fixed wiring.
NOTICE
This equipment must be positioned so that the plug is accessible unless other means for disconnection from the
power supply (e.g., a circuit breaker) is provided.
NOTICE
If this appliance is permanently connected to fixed wiring, it must be connected by means of copper wires
having a temperature rating of not less than 167°F (75°C).
DANGER
NEVER set a complete block of solid shortening on top of heating elements. To do so will damage the elements
and increase the potential for flash-point shortening temperatures and subsequent fire.
WARNING
Operation, installation, and servicing of this product may expose you to chemicals/products including
[Bisphenol A (BPA), glass wool or ceramic fibers, and crystalline silica], which is [are] known to the State of
California to cause cancer, birth defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov.
WARNING
Do not leave the fryer unattended during use.
WARNING
Use caution when dropping wet food or water into the hot oil. It may cause spattering of the oil, which may
cause severe burns
WARNING
Do not overfill the frypot to avoid overflow of hot oil that may cause severe burns, slipping and falling.
v
WARNING
Use caution and wear appropriate safety equipment when adding oil to the fryer, to prevent splashing of
hot oil, which may cause severe burns.
WARNING
Use caution when dropping large amounts of food into the hot oil. It may cause large amounts of foaming,
which can overflow and may cause burns.
WARNING
Opening the drain valve will lead to the outflow of the hot contents of the fryer that can cause injury.
WARNING
The OQS (Oil Quality Sensor) may be damaged by the following:
1. Incorrect assembly of the filter pan allowing Magnesol or other filter powders under the filter paper.
2. Failure to use filter paper or pads.
3. Torn filter paper or pads.
4. Pumping water, boil out solution or other cleaners through the OQS sensor.
5. Using high pressure to clear the sensor.
Failure to follow these guidelines may result in high replacement costs and void the warranty.
iv
FQE80U/FQE100U FilterQuick
™
easyTouch
®
Series Electric Fryers
Installation and Operation Manual
TABLE OF CONTENTS
CHAPTER 1: Introduction
1.1 General.............................................................................................................................. 1-1
1.2 Safety Information ........................................................................................................... 1-1
1.3 Controller Information .................................................................................................... 1-2
1.4 European Community (CE) Specific Information ........................................................... 1-2
1.5 Installation, Operating, and Service Personnel ............................................................. 1-2
1.6 Definitions ........................................................................................................................ 1-3
1.7 Shipping Damage Claim Procedure ................................................................................ 1-3
1.8 Reading Model Numbers ................................................................................................. 1-4
1.9 Service Information .......................................................................................................... 1-4
CHAPTER 2: Installation Instructions
2.1 General Installation Requirements ................................................................................. 2-1
2.1.1 Clearance and Ventilation ................................................................................... 2-2
2.1.2 Electrical Grounding Requirements ................................................................... 2-2
2.1.3 Australian Requirements ..................................................................................... 2-2
2.2 Power Requirements ....................................................................................................... 2-3
2.3 Positioning the Fryer ........................................................................................................ 2-4
CHAPTER 3: Operating Instructions
3.1 Equipment Setup and Shutdown Procedures ............................................................... 3-2
3.2 Operation .......................................................................................................................... 3-3
CHAPTER 4: Filtration Instructions
4.1 Introduction ...................................................................................................................... 4-1
4.2 Preparing Filtration System for Use with Filter Paper or Filter Pad ............................. 4-1
4.3 Preparing Filtration System for Use with Filter Leaf Envelope Assembly.................... 4-3
4.3.1 Disassembly and Reassembly of the Leaf Screen Filter Assembly ................... 4-4
4.3.2 Preparing the Filtration System for MasterFil Envelope Assy. .......................... 4-4
4.3.2.1 Disassembly of the MasterFil Filter Assembly. .................................... 4-8
4.3.2.2 Reassembly of the MasterFil Filter Assembly. ..................................... 4-9
4.4 Daily Topping Off (If Applicable) ................................................................................... 4-10
CHAPTER 5: Preventive Maintenance
5.1 Cleaning the Fryer ............................................................................................................ 5-1
5.2 Daily Checks and Service ................................................................................................. 5-1
5.2.1 Inspect Fryer and Accessories for Damage ........................................................ 5-1
5.2.2 Clean Inside and Outside Fryer Cabinet ............................................................. 5-1
5.2.3 Clean Built-In Filtration System ............................................................................ 5-1
5.2.4 Clean Filter Pan, Detachable Parts and Accessories .......................................... 5-2
5.2.5 Clean Around AIF Sensors .................................................................................... 5-2
v
5.2.6 Clean Basket Lift Rods .......................................................................................... 5-2
5.3 Weekly Checks and Service ............................................................................................. 5-2
5.3.1 Clean Behind Fryers .............................................................................................. 5-2
5.4 Monthly Checks and Service ........................................................................................... 5-2
5.4.1 Drain, Clean Frypot and Heating Elements ......................................................... 5-2
5.4.2 Deep Cleaning (Boiling Out/Cold Clean) the Frypot ........................................... 5-3
5.4.3 Pre-Filter Maintenance ......................................................................................... 5-4
5.4.4 Check FilterQuick™ easyTouch
®
Controller Setpoint Accuracy ......................... 5-4
5.5 Quarterly Checks and Service ......................................................................................... 5-4
5.5.1 Replace O-rings ..................................................................................................... 5-4
5.6 Annual/Periodic System Inspection ................................................................................ 5-4
5.6.1 Fryer ....................................................................................................................... 5-4
5.6.2 Built-In Filtration System ...................................................................................... 5-5
CHAPTER 6: Operator Troubleshooting
6.1 Introduction ...................................................................................................................... 6-1
6.2 Troubleshooting ............................................................................................................... 6-2
6.2.1 Controller and Heating Problems ........................................................................ 6-2
6.2.2 Error Message and Display Problems ................................................................. 6-3
6.2.3 Filtration Problems ............................................................................................... 6-4
6.2.3.1 Incomplete Filtration .............................................................................. 6-5
6.2.3.2 Clogged Drain Error ............................................................................... 6-6
6.2.3.3 Filter Busy ............................................................................................... 6-6
6.2.4 Basket Lift Problems ............................................................................................. 6-6
6.2.5 Error Log Codes ..................................................................................................... 6-7
6.2.6 OQS (Oil Quality Sensor) ...................................................................................... 6-9
1-1
FQE80U/FQE100U FILTERQUICK
™
easyTouch
®
SERIES ELECTRIC FRYER
CHAPTER 1: INTRODUCTION
1.1 General
Read the instructions in this manual thoroughly before attempting to operate this equipment. This
manual covers all configurations of FQE80U/FQE100U FilterQuick
™
easyTouch
®
electric models. The
fryers in this model family have most parts in common, and when discussed as a group, will be referred
to as FQE80U/FQE100U FilterQuick
™
easyTouch
®
electric fryers.
The FQE80U/FQE100U FilterQuick™ easyTouch® electric fryers feature an open frypot with rotating
elements, automatic oil top off and semi-automatic fingertip filtration unit. The Euro-Look design
incorporates a rounded topcap and a large round drain, which ensures that fries and other debris, will
be washed into the filter pan. The FQE80U/FQE100U FilterQuick™ easyTouch® electric fryers are
controlled with a FilterQuick™ controller. Fryers in this series come in full arrangements and can be
purchased as single units or in batteries of up to four fryers.
1.2 Safety Information
Before attempting to operate your unit, read the instructions in this manual thoroughly.
Throughout this manual, you will find notations enclosed in double-bordered boxes similar to the one
below.
DANGER
Hot oil causes severe burns. Never attempt to move a fryer containing hot oil or to transfer hot
oil from one container to another.
CAUTION boxes contain information about actions or conditions that may cause or result in a
malfunction of your system.
WARNING boxes contain information about actions or conditions that may cause or result in
damage to your system, and which may cause your system to malfunction.
DANGER boxes contain information about actions or conditions that may cause or result in injury
to personnel, and which may cause damage to your system and/or cause your system to malfunction.
The FQE80U FilterQuick™ easyTouch® electric fryers incorporate a high-temperature detection feature
which shuts off power to the elements should the temperature controls fail.
NOTE: The Frymaster FQE80U/FQE100U FilterQuick
™
easyTouch
®
fryer requires a
start-up, demonstration and training before normal restaurant operations can begin.
1-2
1.3 Controller Information
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC rules. While this device is a verified Class A device, it has been shown to
meet the Class B limits. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of the
equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at their own expense.
The user is cautioned that any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
If necessary, the user should consult the dealer or an experienced radio and television technician for
additional suggestions.
The user may find the following booklet prepared by the Federal Communications Commission helpful:
"How to Identify and Resolve Radio-TV Interference Problems". This booklet is available from the U.S.
Government Printing Office, Washington, DC 20402, Stock No. 004-000-00345-4.
1.4 European Community (CE) Specific Information
The European Community (CE) has established certain specific standards regarding equipment of this
type. Whenever a difference exists between CE and non-CE standards, the information or instructions
concerned are identified by means of shadowed boxes similar to the one below.
CE Standard
Example of box used to distinguish CE and
Non-CE specific information.
1.5 Installation, Operating, and Service Personnel
Operating information for Frymaster equipment has been prepared for use by qualified and/or
authorized personnel only, as defined in Section 1.6. All installation and service on Frymaster
equipment must be performed by qualified, certified, licensed, and/or authorized installation or
service personnel, as defined in Section 1.6.
1-3
1.6 Definitions
QUALIFIED AND/OR AUTHORIZED OPERATING PERSONNEL
Qualified/authorized operating personnel are those who have carefully read the information in this
manual and have familiarized themselves with the equipment functions, or who have had previous
experience with the operation of the equipment covered in this manual.
QUALIFIED INSTALLATION PERSONNEL
Qualified installation personnel are individuals, firms, corporations, and/or companies which, either in
person or through a representative, are engaged in and are responsible for the installation of electrical
appliances. Qualified personnel must be experienced in such work, be familiar with all electrical
precautions involved, and have complied with all requirements of applicable national and local codes.
QUALIFIED SERVICE PERSONNEL
Qualified service personnel are those who are familiar with Frymaster equipment and who have been
authorized by Frymaster, L.L.C. to perform service on the equipment. All authorized service personnel
are required to be equipped with a complete set of service and parts manuals, and to stock a minimum
amount of parts for Frymaster equipment. A list of Frymaster Factory Authorized Servicers (FAS’s) is
located on the Frymaster website at www.frymaster.com
. Failure to use qualified service personnel will
void the Frymaster warranty on your equipment
1.7 Shipping Damage Claim Procedure
What to do if your equipment arrives damaged:
Please note that this equipment was carefully inspected and packed by skilled personnel before leaving
the factory. The freight company assumes full responsibility for safe delivery upon acceptance of the
equipment.
1. File Claim for Damages Immediately - regardless of extent of damage.
2. Inspect for and Record All Visible Loss or Damage and ensure that this information is noted on
the freight bill or express receipt and is signed by the person making the delivery.
3. Concealed Loss or Damage- If damage is unnoticed until equipment is unpacked, notify the freight
company or carrier immediately upon discovery and file a concealed damage claim. This must be
submitted within 5 days of date of delivery. Be sure to retain container for inspection.
Frymaster DOES NOT ASSUME RESPONSIBILITY FOR DAMAGE OR LOSS
INCURRED IN TRANSIT.
1-4
1.8 Reading Model Numbers
1FQE80U0ZQTZB17
Number
of vats
Model
Family
Energy
Type
1
Touch
Screen
Controller
Spreader
5
1 = E-Electric, G-Gas
2 = 30, 40, 50, 60, 80,100lb frypot capacity
3 = U-Open Fryer, T
-Tube Fryer
4 = L
-Left Side, R-Right Side, M-Middle, X-Mixed Positions, Z-All or
None if # of Split Vats = 0
5 = S
-Spreader; Z-none
6 = B-Basket Lift; Z-none
7 = kW 14,17,22 or NG
-Natural Gas, PG
-Propane Gas, BG-Butane
Gas, LG
-LP Mix Gas
Basketlift
6
Quick
Filtration
Fryer
Vat
Capacity
2
Fryer
Type
3
kW or Gas
Type
7
# of
Splits
Position
of
Splits
4
1.9 Service Information
For non-routine maintenance or repairs, or for service information, contact your local Frymaster
Authorized Servicer (FAS). In order to assist you quickly, the Frymaster Authorized Servicer (FAS) or
Service Department representative requires certain information about your equipment. Most of this
information is printed on a data plate affixed to the inside of the fryer door. Part numbers are found in
the Service and Parts Manual. Parts orders may be placed directly with your local FAS or distributor. A
list of Frymaster Factory Authorized Servicers (FAS’s) is located on the Frymaster website at
www.frymaster.com
. If you do not have access to this list, contact the Frymaster Service Department at
1-800-551-8633 or 1-318-865-1711 or by email at fryservice@welbilt.com.
The following information will be needed in order to assist you efficiently:
Model Number ________________________________________
Serial Number _________________________________________
Voltage ________________________________________________
Nature of the Problem ________________________________
________________________________________________________
________________________________________________________
RETAIN AND STORE THIS MANUAL IN A SAFE PLACE FOR FUTURE USE.
2-1
FQE80U/FQE100U FILTERQUICK
™
easyTouch
®
SERIES ELECTRIC FRYER
CHAPTER 2: INSTALLATION INSTRUCTIONS
2.1 General Installation Requirements
Proper installation is essential for the safe, efficient, trouble-free operation of this appliance.
Qualified, licensed, and/or authorized installation or service personnel, as defined in Section 1.6
of this manual, should perform all installation and service on Frymaster equipment.
Failure to use qualified, licensed, and/or authorized installation or service personnel (as defined
in Section 1.6 of this manual) to install or otherwise service this equipment will void the
Frymaster warranty and may result in damage to the equipment or injury to personnel.
Where conflicts exist between instructions and information in this manual and local or national
codes or regulations, installation and operation shall comply with the codes or regulations in
force in the country in which the equipment is installed.
Service may be obtained by contacting your local Frymaster Authorized Servicer.
NOTICE
All fryers shipped without factory supplied cords and plug assemblies must be hardwired using
flexible conduit to the terminal block located on the rear of the fryer. These fryers should be
wired to NEC specifications. Hardwired units must include installation of restraint devices.
DANGER
Adequate means must be provided to limit the movement of this appliance without depending
on or transmitting stress to the electrical conduit. A restraint kit is provided with the fryer. If
the restraint kit is missing contact your local Frymaster Authorized Servicer (FAS).
NOTICE
If this equipment is wired directly into the electrical power supply, a means for disconnection
from the supply having a contact separation of at least 3-mm in all poles must be incorporated in
the fixed wiring.
NOTICE
This equipment must be positioned so that the plug is accessible unless other means for
disconnection from the power supply (e.g., a circuit breaker) is provided.
NOTICE
If this appliance is permanently connected to fixed wiring, it must be connected by means of
copper wires having a temperature rating of not less than 167°F (75°C).
NOTICE
If the electrical power supply cord is damaged, it must be replaced by a Frymaster Authorized
Servicer or a similarly qualified person in order to avoid a hazard.
2-2
DANGER
This appliance must be connected to a power supply having the same voltage and phase as
specified on the rating plate located on the inside of the appliance door.
DANGER
All wiring connections for this appliance must be made in accordance with the wiring diagram(s)
furnished with the appliance. Refer to the wiring diagram(s) affixed to the inside of the
appliance door when installing or servicing this equipment.
DANGER
Do not attach an apron drainboard to a single fryer. The fryer may become unstable, tip over,
and cause injury. The appliance area must be kept free and clear of combustible material at all
times.
DANGER
Building codes prohibit a fryer with its open tank of hot oil being installed beside an open flame
of any type, including those of broilers and ranges.
In the event of a power failure, the fryer(s) will automatically shut down. If this occurs, turn the power
switch OFF. Do not attempt to start the fryer(s) until power is restored.
2.1.1 Clearance and Ventilation
This appliance must be kept free and clear of combustible material, except that it may be installed on
combustible floors.
A clearance of 6 inches (15cm) must be provided at both sides and back adjacent to combustible
construction. A minimum of 24 inches (61cm) should be provided at the front of the equipment for
servicing and proper operation.
WARNING
Do not block the area around the base or under the fryers.
Added When installing any type of fryer, Standard No. 96 of the National Fire Protection Association
must be followed implicitly.
The duct system, the hood and filter bank must be cleaned on a regular basis and kept free of grease
according to the NFPA Standard No. 96.
A copy of the standard may be obtained from the National Fire Protection Association, Battery March
Park, Quincy, MA 02269 or at www.NFPA.org
.
2.1.2 Electrical Grounding Requirements
All electrically operated appliances must be grounded in accordance with all applicable national and
local codes, and, where applicable, CE codes. All units (cord connected or permanently connected)
should be connected to a grounded power supply system. A wiring diagram is located on the inside of
the fryer door. Refer to the rating plate on the inside of the fryer door for proper voltages.
2-3
The equipotential grounding lug indicated by illustration (right) allows all the
equipment in the same location to be electrically connected to ensure there is no
electrical potential difference between the units, which could be hazardous.
2.1.3 Australian Requirements
To be installed in accordance with AS 5601 and AS/NZS 3000:2007 local authorities, gas, electricity, and
any other relevant statutory regulations.
If casters are fitted, the installation must comply with AS5601 and AS1869 requirements.
2.2 Power Requirements
The optional three phase supply plug for 208v and 240v delta configuration fryers are rated at 60 amps,
250 VAC and is NEMA configuration 15-60P.
Three (3) Phase Requirements
MODEL VOLTAGE
WIRE
SERVICE
MINIMUM WIRE
SIZE
AWG (mm)
AMPS
(per leg)
FQE80U/100U 17kW
208
3
6
(4.11)
48
FQE80U/100U 17kW
240
3
6
(4.11)
41
FQE80U/100U 17kW
480
3
6
(4.11)
21
FQE80U/100U 17kW
220/380
4
6
(4.11)
26
FQE80U/100U 17kW
240/415
4
6
(4.11)
24
FQE80U/100U 17kW
230/400
4
6
(4.11)
25
FQE80U/100U 22kW
208
3
4
(5.19)
61
FQE80U/100U 22kW
240
3
4
(5.19)
53
FQE80U/100U 22kW
480
3
6
(4.11)
27
FQE80U/100U 22kW
220/380
4
6
(4.11)
34
FQE80U/100U 22kW
240/415
4
6
(4.11)
31
FQE80U/100U 22kW
230/400
4
6
(4.11)
32
NOTICE
If this appliance is permanently connected to fixed wiring, it must be connected by means of
copper wires having a temperature rating of not less than 167°F (75°C).
DANGER
This appliance must be connected to a power supply having the same voltage and phase as
specified on the rating plate located on the inside of the appliance door.
DANGER
All wiring connections for this appliance must be made in accordance with the wiring diagram(s)
furnished with the appliance. Refer to the wiring diagram(s) affixed to the inside of the
appliance door when installing or servicing this equipment.
2.3 Positioning the Fryer
DANGER
No structural material on the fryer should be altered or removed to accommodate placement of
the fryer under a hood. Questions? Call the Frymaster Dean Service Hotline at 1-800-551-8633.
1. Once the fryer has been positioned at the frying station, use a carpenter’s level placed across the top
of the frypot to verify that the unit is level, both side-to-side and front-to-back.
2-4
To level fryers, adjust the casters being careful to ensure the fryer(s) are at the proper height in the
frying station.
When the fryer is leveled in its final position, install the restraints provided by the KES to limit its
movement so that it does not depend on or transmit stress to the electrical conduit or connection.
Install the restraints in accordance with the provided instructions. If the restraints are disconnected
for service or other reasons, they must be reconnected before the fryer is used.
DANGER
Adequate means must be provided to limit the movement of this appliance without depending
on or transmitting stress to the electrical conduit. A restraint kit is provided with the fryer. If
the restraint kit is missing contact your local KES.
DANGER
Hot oil can cause severe burns. Avoid contact. Under all circumstances, oil must be removed
from the fryer before attempting to move it to avoid oil spills, falls and severe burns. This fryer
may tip and cause personal injury if not secured in a stationary position.
2. Close fryer drain-valve(s).
3. Clean and fill frypot(s) to the bottom oil level line with cooking oil. (See Equipment Setup and
Shutdown Procedures in Chapter 3.)
3–1
FQE80U/FQE100U FILTERQUICK™ easyTouch
®
SERIES ELECTRIC FRYER
CHAPTER 3: OPERATING INSTRUCTIONS

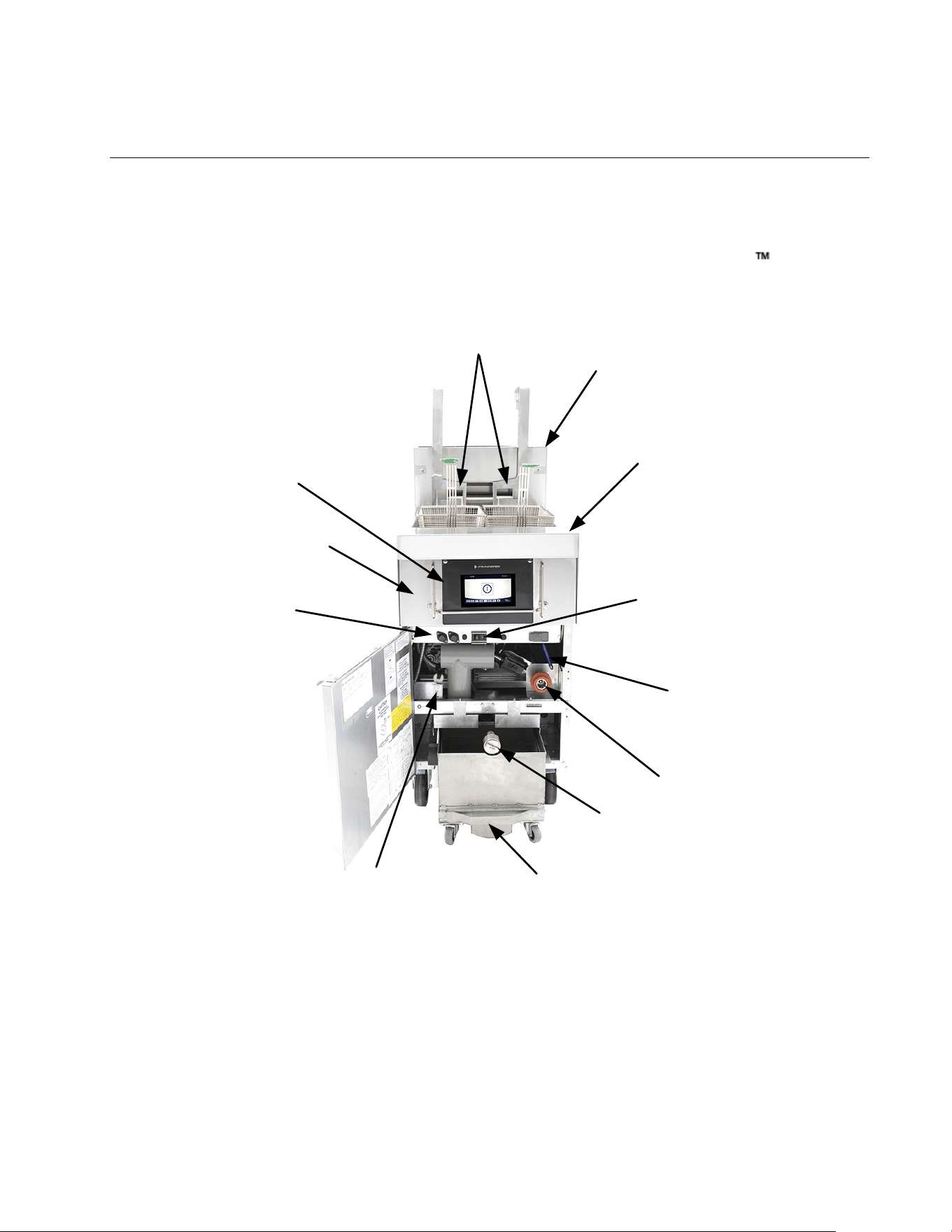

FINDING YOUR WAY AROUND THE FQE80U/FQE100U FILTERQUICK
easyTouch
®
SERIES ELECTRIC FRYER
Tilt Housing
Top Cap
Bezel
Fuse
FilterQuick
easyTouch
®
Segmented
Controller
Filter Pan
Power
Switch
Basket LIft
Pre-
Screen
Filter
Pre-Screen
Filter Wrenc h
Bulk
Dispose/
Washdown
Handle
Bulk Dispose/
Washdo wn
Handle
TYPICAL CONFIGURATION (1FQE80U FILTERQUICK™ easyTouch
®
ELECTRIC SHOWN)
NOTE: The appearance of your fryer may differ slightly from that
shown depending upon configuration and date of manufacture.
3–2
3.1 Equipment Setup and Shutdown Procedures
Setup
DANGER
Never operate the appliance with an empty frypot. The frypot must be filled to the fill line with water or oil
before energizing the elements. Failure to do so will result in irreparable damage to the elements and may
cause a fire.
DANGER
Remove all drops of water from the frypot before filling with oil. Failure to do so will cause spattering of hot
liquid when the oil is heated to cooking temperature.
WARNING
The FilterQuick™ FQE80U/FQE100U fryer is not intended to use solid shortening without a solid shortening
kit installed. Use only liquid shortening with this fryer if a solid shortening kit is not installed. The use of
solid shortening without a solid shortening kit will clog the oil lines. The oil capacity of the FQE80U fryer is
78.5 lbs. (11.7 gallons/44.3 liters) at 70°F (21°C). The oil capacity of the FQE100U fryer is 101.8 lbs. (13.9
gallons/52.5 liters) at 70°F (21°C).
1. Fill the frypot with cooking oil or shortening to the
bottom OIL LEVEL line located on the rear of the
frypot. When using solid shortening, cut it into small
pieces and pack it below the elements, be-tween the
elements and on top of the elements, leaving no air
spaces around the elements. Do not disturb or bend
the probe sensing bulbs. This will allow for oil
expansion as heat is applied. Do not fill cold oil or
shortening any higher than the bottom line; overflow may occur as heat expands the oil/shortening.
2. Ensure that the power cord(s) is/are plugged and locked (if applicable) into the appropriate
receptacle(s). Verify that the face of the plug is flush with the outlet plate, with no portion of the
prongs visible.
3. Ensure that the power is switched on with the master switch, located behind the fryer door cabinet
on the front panel of the component box, next to the fuse.
4. Ensure that the controller is switched ON. The fryer will automatically enter the melt cycle mode if
the frypot temperature is below 180ºF (82ºC) and will display MELT CYCLE IN PROGRESS. (NOTE:
During the melt cycle, the elements will energize for a few seconds, then go out for a longer period.)
The shortening must be stirred occasionally during the heating process to ensure all the shortening
in the vat is liquefied. When the frypot temperature reaches 180ºF (82ºC), the unit will automatically
switch to the heating mode and PREHEAT is displayed until within 15°F (9°C) of setpoint. The
elements will remain energized until the frypot temperature reaches the programmed cooking
temperature. Once the fryer reaches setpoint, the controller display changes to START and the fryer
is ready for use. DO NOT DISABLE OR CANCEL THE MELT CYCLE IF USING SOLID SHORTENING.
5. Ensure that the oil/shortening level is at the top OIL LEVEL line when the oil is at its cooking
temperature.
6. The maximum batch load for French Fries in oil or fat shall be no more than 1½ pounds or 0.7
kilograms.
Shutdown
1. Place the controller ON/OFF switch in the OFF position to turn the fryer off.
2. Filter the oil and clean the fryer (See Chapters 1 and 2 of the FILTERQUICK™ easyTouch
®
Controller
Operation Manual that shipped with the fryer).

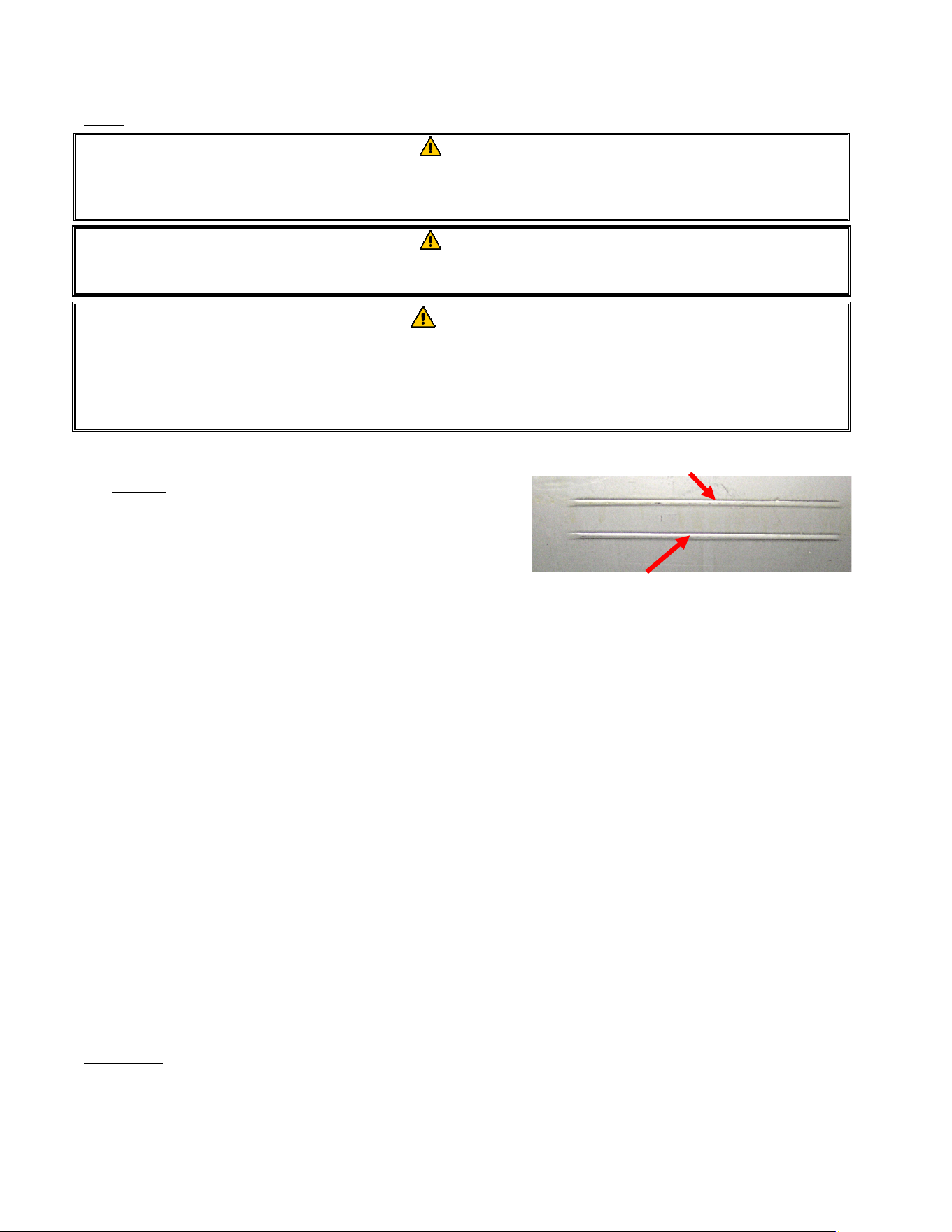

Top (Hot) OIL LEVEL line
Bottom (Cold) OIL LEVEL line
FQE80 Fryers
3–3
Figure 23
Figure 25
3. Clean the filter pan and replace the filter paper or pad. Do not leave solid shortening in the filter
pan over night.
4. Place the frypot covers on the frypots.
3.2 Operation

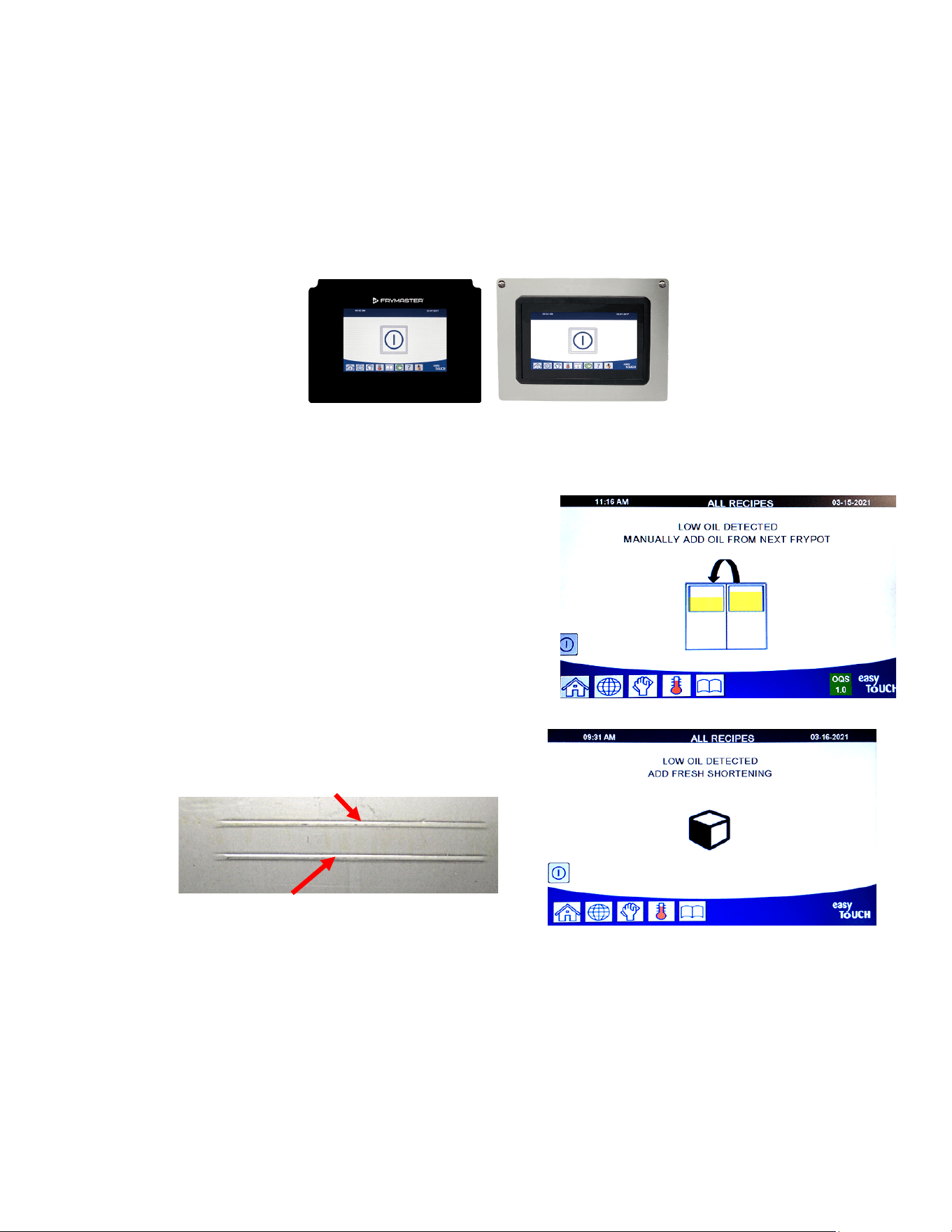

This fryer is equipped with FilterQuick
™
easyTouch
®
controller(s) (illustrated below). Refer to the
FilterQuick easyTouch
®
Operation Manual shipped with your fryer for programming and operating
procedures and for operating instructions for the built-in filtration system.
FILTERQUICK
™
easyTouch
®
CONTROLLER
Refer to Chapter 5 of this manual for operating instructions for the built-in filtration system.

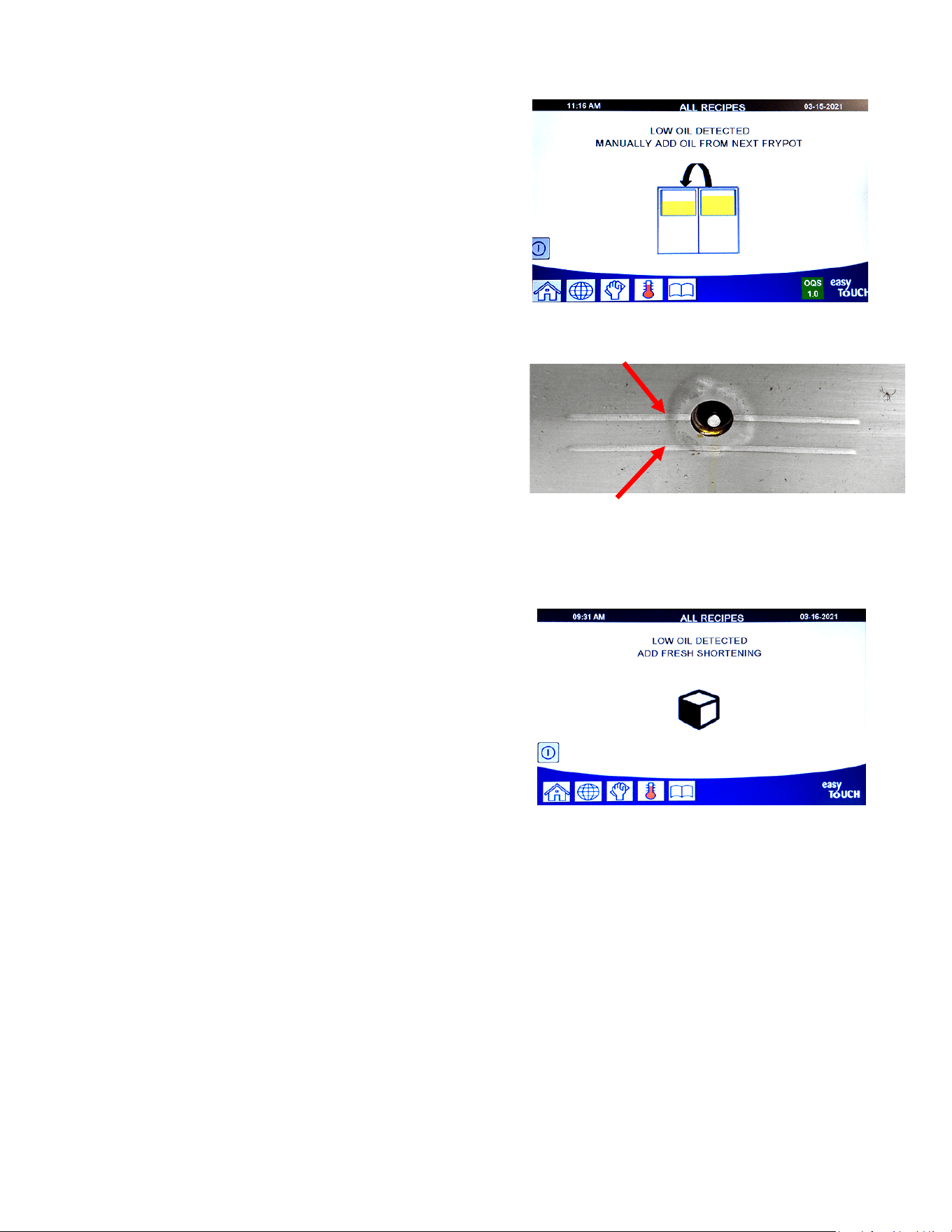

3.3 Daily Topping Off
Some fryers prompt twice daily to top off the vats. When
the filter timer expires and the oil level is below the top off
probe, the display may prompt LOW OIL DETECTED
MANUALLY ADD OIL FROM NEXT FRYPOT (see Figure 23).
Following the arrows, use a pan to move oil from the next
vat to the vat that is low on oil.
Add oil until the level is at the top (hot) oil level line (see
Figures 24). Repeat on adjacent vats when prompted. On
the last vat to be topped off, it prompts LOW OIL
DETECTED ADD FRESH SHORTENING (see Figure 25). Add
enough fresh shortening to raise the oil level to the top
fill line (see Figure 24).
Top (Hot) OIL LEVEL line
Bottom (Cold) OIL LEVEL line
Figure 24
FQE80 Vat Fill Line
4-1
FQE80U/FQE100U FILTERQUICK™ easyTouch
®
SERIES ELECTRIC FRYERS
CHAPTER 4: FILTRATION INSTRUCTIONS
4.1 Introduction
The FQE80U/FQE100U FilterQuick™ easyTouch
®
filtration system allows the oil in one frypot to be safely
and efficiently filtered while the other frypots in a battery remain in operation.
Section 4.2 covers preparation of the filter system for use. Operation of the system is covered in the
FilterQuick™ easyTouch
®
Controller Manual that shipped with the fryer.
WARNING
The on-site supervisor is responsible for ensuring that operators are made aware of the inherent
hazards of operating a hot oil filtering system, particularly the aspects of oil filtration, draining
and cleaning procedures.
WARNING
The filter pad or paper MUST be replaced daily or when the sediment level exceeds the height of
the hold down ring.

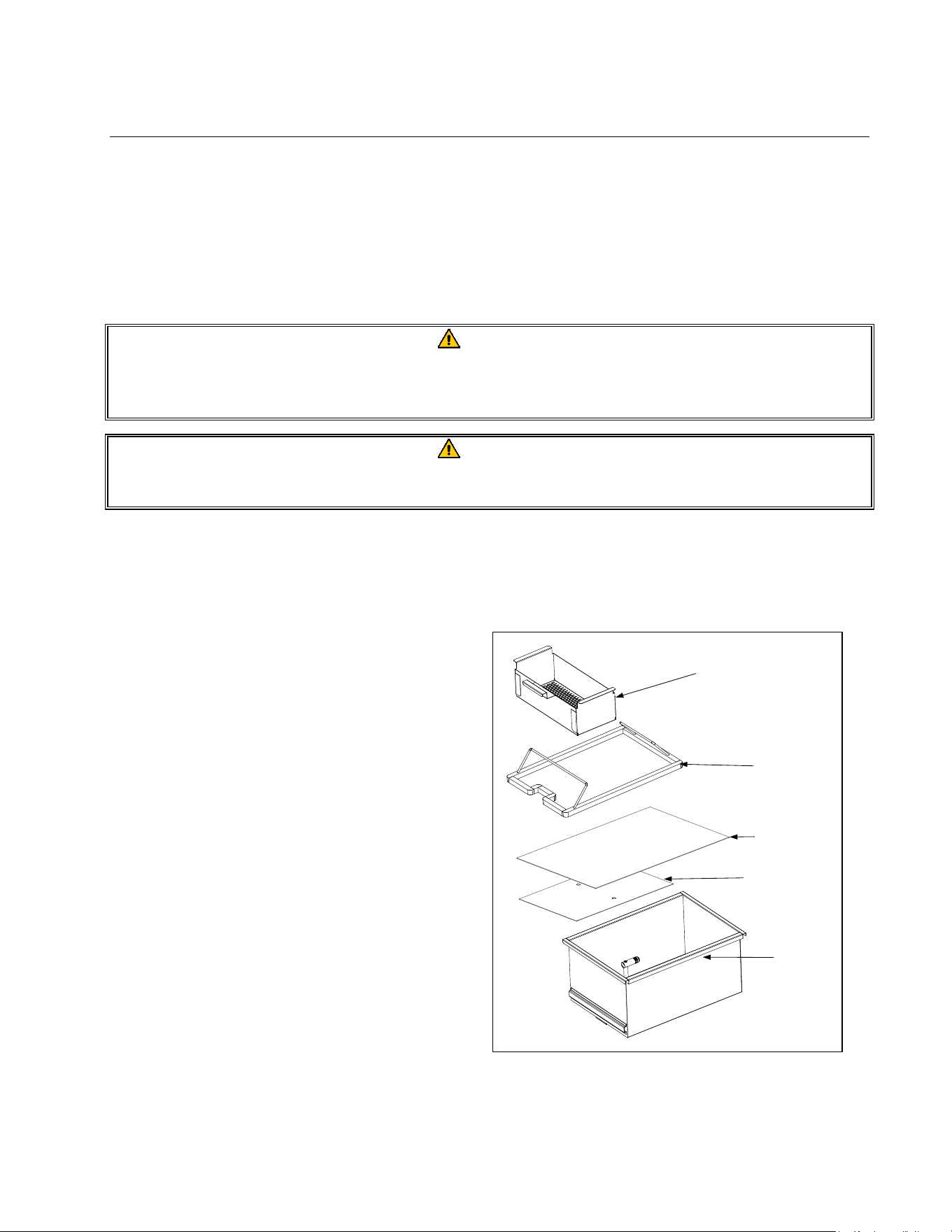

4.2 Preparing Filtration System for Use with Filter Paper or Filter Pad
The FQE80U/FQE100U with FilterQuick™ filtration system uses a filter paper configuration which
includes a crumb tray, large hold-down ring, and metal filter screen.
1. Pull the filter pan out from the cabinet and
remove the crumb tray, hold-down ring, filter
paper and filter screen (see Figure 1). Clean all
components with a solution of detergent and
hot water then dry thoroughly.
Disposal instructions are in the FilterQuick™
FQ4000 easyTouch
®
Controller Manual that
shipped with the fryer.
Crumb
Tray
Hold-Down
Ring
Filter
Paper
Screen
Filter
Pan
Figure 1
4-2

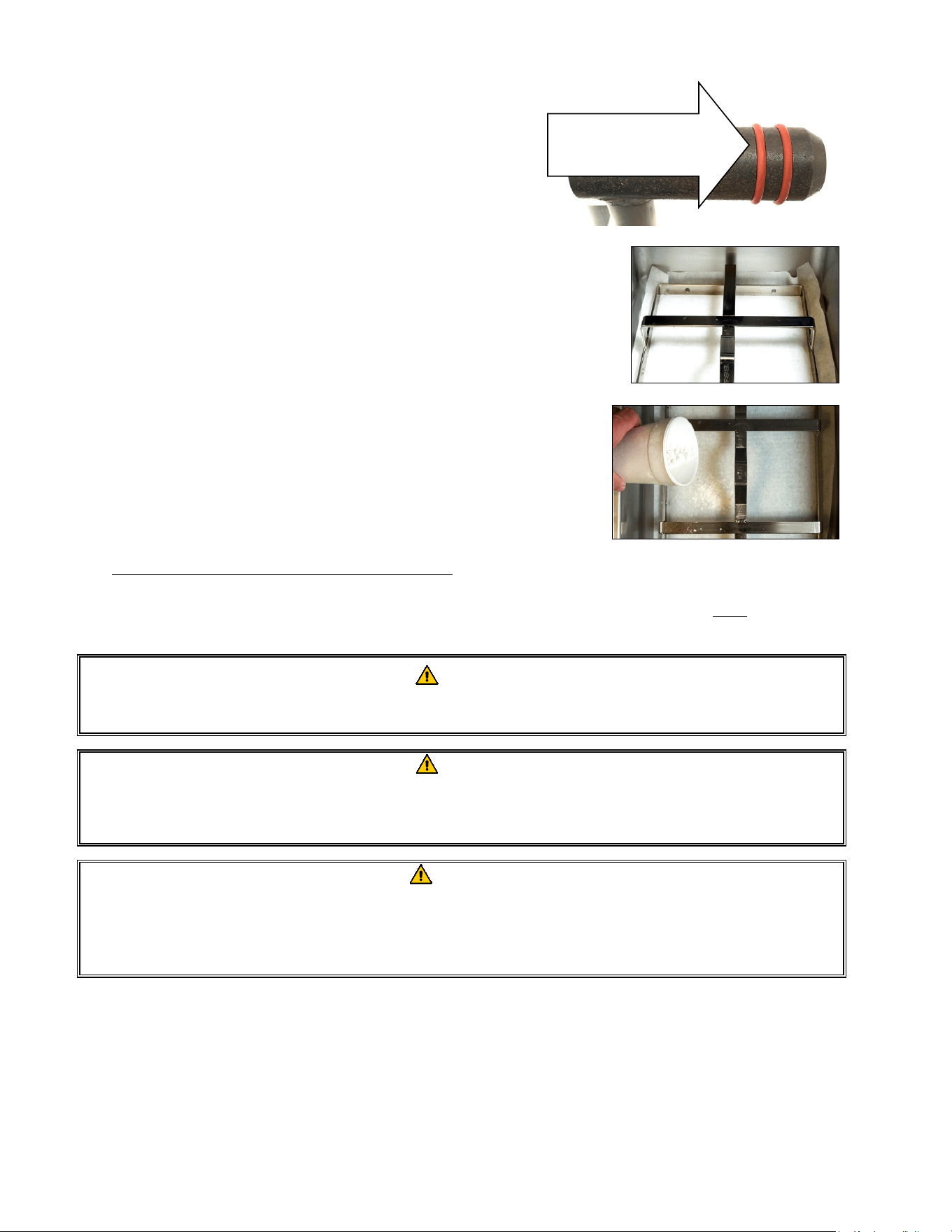

2. Inspect the filter pan connection fitting to ensure that
both O-rings are in good condition (see Figure 2).
3. Then in reverse order, place the metal filter screen in
the center of the bottom of the pan, then lay a sheet of
filter paper on top of the screen, overlapping on all
sides (see Figure1). If using a filter pad, ensure the
rough side of the pad is up and lay the pad over the
screen, making sure that the pad is in between the
embossed ridges of the filter pan.
4. Position the hold-down ring over the filter paper and
lower the ring into the pan, allowing the paper to rest
on the sides of the filter pan (see Figure 3).
5. When the hold-down ring is in position, if using filter
paper, sprinkle one packet of filter powder evenly over
the paper. (See Figure 4)
6. Replace the crumb tray in the filter pan, then push the
filter pan back into the fryer, positioning it under the
drain.
Figure 2
Figure 3
Figure 4
DO NOT USE FILTER POWDER WITH THE PAD!
7. Push the filter pan back into the fryer, positioning it under the fryer. Ensure “P” is NOT displayed in
the upper right corner of the controller. The filtration system is now ready for use.
DANGER
Do not drain more than one frypot at a time into the built-in filtration unit to avoid overflow and
spillage of hot oil that may cause severe burns, slipping and falling.
DANGER
The crumb tray in fryers equipped with a filter system must be emptied into a fireproof
container at the end of frying operations each day. Some food particles can spontaneously
combust if left soaking in certain shortening material.
WARNING
Do not bang fry baskets or other utensils on the fryer’s joiner strip. The strip is present to seal
the joint between the fry vessels. Banging fry baskets on the strip to dislodge shortening will
distort the strip, adversely affecting its fit. It is designed for a tight fit and should only be
removed for cleaning.
Inspect the filter
connection fitting
O-rings.
4-3
Figure 8
4.3 Preparing the Filtration System for Use with Filter Leaf
Envelope Assembly
This section addresses a filtration system that uses a leaf filter screen configuration with a Magnesol
filter envelope.
1. Pull the filter pan out from the cabinet
and remove the filter leaf assembly by
lifting on the pick-up tube assembly (see
Figure 5).
2. Clean as directed in section 4.3.1.
NOTE: Refer to Section 4.3.1 for
instructions on how to disassemble and
reassemble the filter leaf screen
assembly.
Disposal instructions are in the FQ4000
easyTouch Controller Operation Manual that
shipped with the fryer.
3. Inspect the filter pan connection fitting to
ensure that both O-rings are present and
in good condition. (See Figure 6).
4. Replace the filter leaf assembly in the filter pan, ensuring
that the filter pick up tube is lowered and securely
mounted into the brackets in the filter pan (see Figure 7).
5. Push the filter pan back into the fryer, positioning it all the
way to the back of the cabinet. Ensure “P” is NOT
displayed on the controller. The filtration system is now
ready for use
DANGER
Do not drain more than one frypot at a time into the built-in filtration unit to avoid overflow and
spillage of hot oil that may cause severe burns, slipping and falling.
Pick Up
Tube
Filter
Pan
Filter Leaf
Screen
Magnesol
Filter Envelope
Figure 5
Figure 6
Inspect the filter
connection fitting
O-rings.
Figure 7
4-4
DANGER
The filter pan must be emptied and cleaned at the end of frying operations each day. Some food
particles can spontaneously combust if left soaking in certain shortening material.
WARNING
Do not bang fry baskets or other utensils on the fryer’s joiner strip. The strip is present to seal
the joint between the fry vessels. Banging fry baskets on the strip to dislodge shortening will
distort the strip, adversely affecting its fit. It is designed for a tight fit and should only be
removed for cleaning.
WARNING
The filter pump is equipped with a manual reset switch in case the filter motor overheats, or an
electrical fault occurs. If this switch trips, turn off power to the filter system and allow the pump
motor to cool 20 minutes before attempting to reset the switch (see Figure 8).
WARNING
Use caution and wear appropriate safety equipment when resetting the filter pump reset switch.
Resetting the switch must be accomplished with care to avoid the possibility of a burn.
4.3.1 Disassembly and Reassembly of the Leaf Screen Filter Assembly
Disassembly

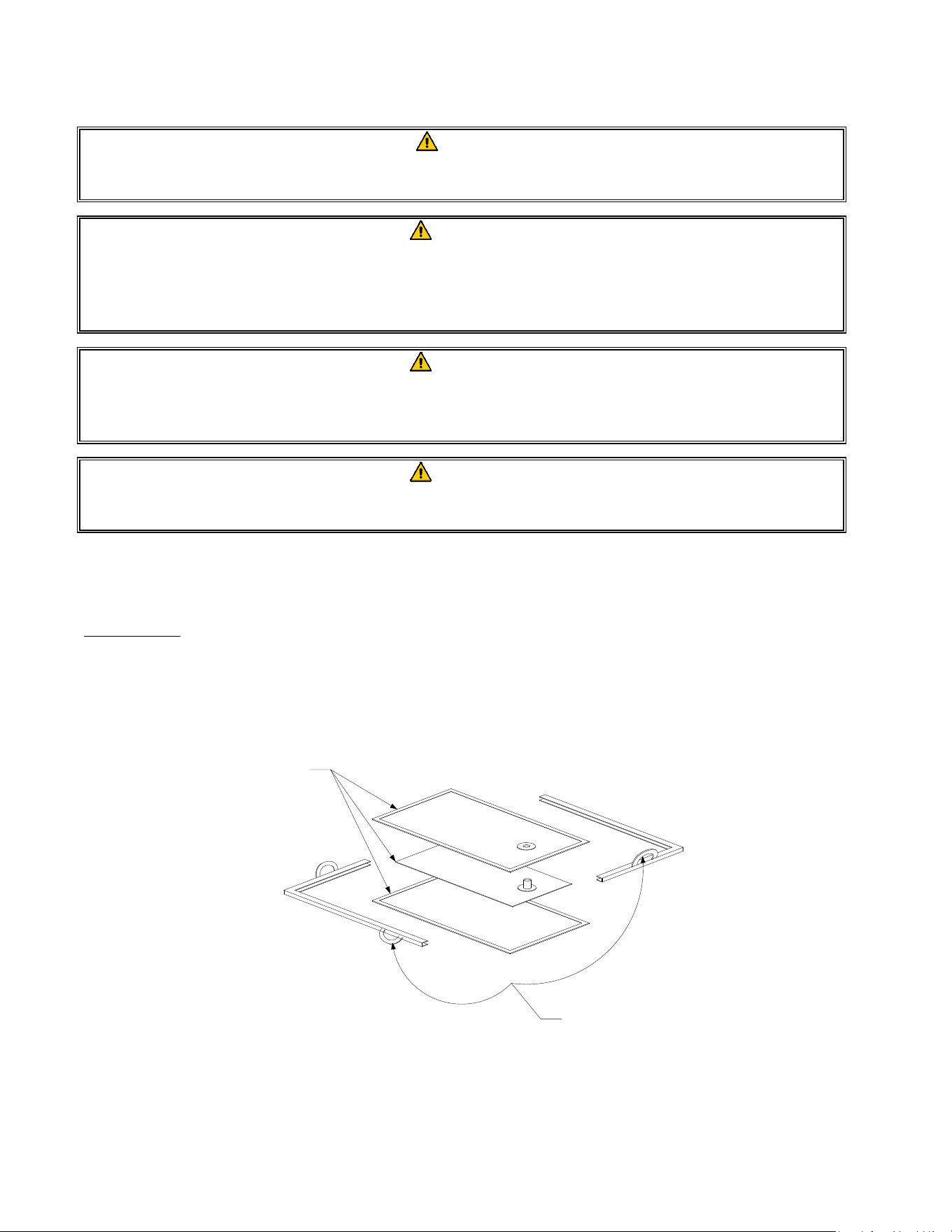

1. Using Figure 9 as a guide, grasp the frame with your thumbs on the handles at the corner of the
assembly and pull outward in opposite directions to separate the frame at the corner. Continue to
open the frame (it will pivot at the opposite corner) until the outer screens and grid can be removed
from the frame.
Ste p 1 - Gra sp frame wit h
thumb s o n the se handl es and
pul l fra me ap art at c o rner .
Ste p 2 - Separate
the outer screens
and grid.
Figure 9
2. Separate the outer screens and grid.
4-5
Figure 12
Figure 13
Cleaning
1. Clean the two frame pieces, outer screens, and grid using a good quality degreaser and hot water
from a spray nozzle. The groove in the seal frame pieces can be cleaned with the edge of a Scotch-
Brite™ or similar cleaning pad.
2. At each scheduled boil-out, disassemble the leaf filter assembly and place in the frypot being boiled
out. Follow the boil-out procedure in Section 5.4.2 of this manual.
3. Allow all filter assembly components to air dry or thoroughly dry with clean towels before
reassembling.
Reassembly
1. Using Figure 10 as a guide, place the inner insert screen between the filter screens and place either
stainless steel channel onto the screens by placing the small corner with the pin and hinged channel
over the other side (see Figure 11). Repeat with second channel. NOTE: Channel must be put back
starting with the comer pin.
2. Insert the assembly into the filter
envelope. The rough side of the
envelope should face up (see Figure
12).
3. Ensure the fitting is lined up with the
opening and fold over the envelope
tab (see Figure 13).
Figure 10
Figure 11
4-6
Figure 14
Figure 15
Figure 6

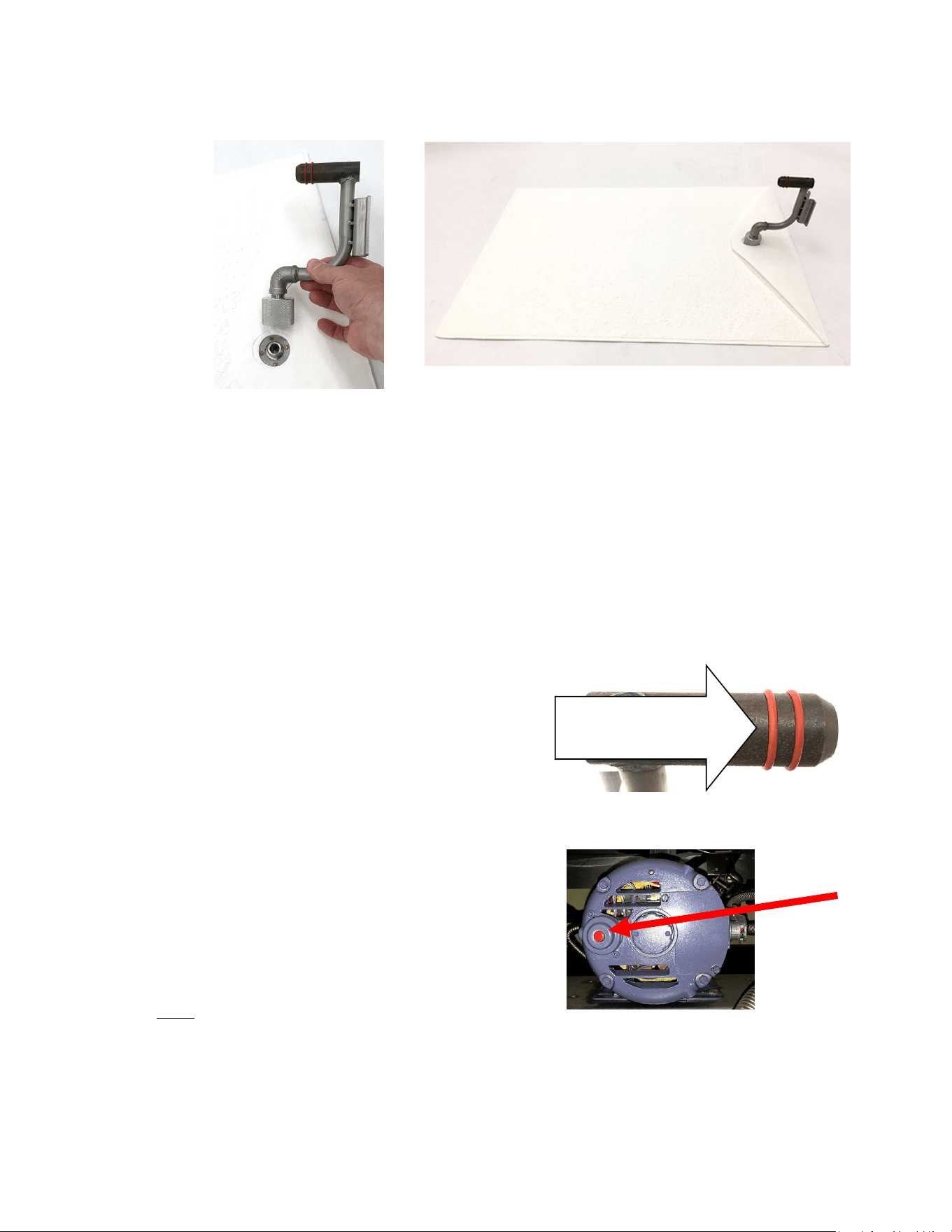

4. Carefully screw the pickup tube assembly onto the filter leaf assembly (see Figures 14 and 15).
4.3.2 Preparing the FQE80T/FQE100U with Filtration System for Use with MasterFil
Envelope Assembly
The FQE80T with fingertip filtration system allows the oil in one frypot to be safely and
efficiently filtered while the other frypots in a battery remain in operation. The
FQE80T/FQE100U filtration system uses an envelope filter screen configuration with a Masterfil
filter envelope.
1. Pull the filter pan out from the cabinet and remove the filter envelope assembly by
lifting on the pick-up tube assembly.
2. Clean as directed in section 4.3.2.1 for the
MasterFil assembly.
NOTE: Refer to Section 4.3.2.1 or 4.3.2.2 for
instructions on how to disassemble and
reassemble the filter envelope screen
assembly.
Disposal instructions are in the FQ4000 easyTouch
Controller Operation Manual.
3. Inspect the filter pan connection fitting to ensure
that both O-rings are present and in good
condition. (See Figure 5).
4. Push the filter pan back into the fryer, positioning
it all the way to the back of the cabinet. Ensure “P”
is NOT displayed on the controller. The filtration
system is now ready for use.
Figure 5
Inspect the filter
connection fitting
O-rings.
4-7
DANGER
Do not drain more than one frypot at a time into the built-in filtration unit to avoid
overflow and spillage of hot oil that may cause severe burns, slipping and falling.
DANGER
The filter pan must be emptied and cleaned at the end of frying operations each day.
Some food particles can spontaneously combust if left soaking in certain shortening
material.
WARNING
Do not bang fry baskets or other utensils on the fryer’s joiner strip. The strip is present
to seal the joint between the fry vessels. Banging fry baskets on the strip to dislodge
shortening will distort the strip, adversely affecting its fit. It is designed for a tight fit
and should only be removed for cleaning.
WARNING
The filter pump is equipped with a manual reset switch in case the filter motor
overheats, or an electrical fault occurs. If this switch trips, turn off power to the filter
system and allow the pump motor to cool 20 minutes before attempting to reset the
switch (see Figure 6).
WARNING
Use caution and wear appropriate safety equipment when resetting the filter pump
reset switch. Resetting the switch must be accomplished with care to avoid the
possibility of a burn.
4-8
Figure 7
Figure 8
Figure 9
Figure 10
Figure 11
4.3.2.1 Disassembly and Reassembly of the Masterfil Filter Assembly
Disassembly
1. Using Figure 7 as a guide,
grasp the pickup tube and
handles securing the filter
screen and lift upward out of
the filter pan.
2. Remove the outer clips (see
Figure 8).
3. Lift the pickup tube off of the
fitting (see Figure 9).
4. Unscrew the fitting from the
screen (see Figure 10)
5. Remove the filter envelope
from the sana grid screen
(see
Figure 11).
Cleaning
1. Clean the filter pan,
sana grid, pick up
tube, pickup tube base
and clips using a good
quality degreaser and
hot water from a spray
nozzle.
2. At each scheduled
boil-out, disassemble
the filter assembly and
place in the frypot
being boiled out.
Follow the boil-out
procedure in the controller manual.
3. Allow all filter assembly components to air dry or thoroughly dry with clean towels before
reassembling.
4-9
Figure 12
Figure 13
Figure 14
Figure 15
Figure 16
Figure 17
Figure 18
4.3.2.2. Reassembly
1. Reassemble by placing
the sana grid inside the
filter envelope (see
Figure 12).
2. Fold the opening of the
envelope under the
screen (see Figure 13).
3. Slide the large clip over
the folded end (see
Figure 14).
4. Slide the small clip over
the other end (see
Figure 15).
5. Securely screw the fitting to
the screen (see Figure 16).
6. Slide pick up tube over fitting
(see Figure 17).
7. Insert the filter into the pan.
Ensure the pick-up tube is in
the pan bracket (see Figure
18).
8. Insert filter pan into fryer.
Ensure the “P” IS
NOT visible on
the display in
upper right
corner of the
controller. The
filtration system
is now ready for
use.
4-10
Figure 16
Figure 18
4.4 Daily Topping Off (If applicable)
The fryers prompt twice daily to top off the vats. When the
filter timer expires and the oil level is below the top off
probe, the display prompts LOW OIL DETECTED
MANUALLY ADD OIL FROM NEXT FRYPOT (see Figure 16).
Following the arrows, use a pan to move oil from the next
vat to the vat that is low on oil.
Add oil until the level is at the top (hot) oil level line (see
Figure 17). Repeat on adjacent vats when prompted. On
the last vat to be topped off, it prompts LOW OIL
DETECTED ADD FRESH SHORTENING (see Figure 18). Add
enough fresh shortening to raise the oil level to the top fill
line (see Figure 17).
Top (Hot) OIL LEVEL line
Bottom (Cold) OIL LEVEL Line
Figure 17
5–1
FQE80U/FQE100U FILTERQUICK™ easyTouch
®
SERIES ELECTRIC FRYER
CHAPTER 5: PREVENTATIVE MAINTENANCE
5.1 Cleaning the Fryer
DANGER
The crumb tray and filter pan in fryers equipped with a filter system must be emptied into a
fireproof container at the end of frying operations each day. Some food particles can
spontaneously combust if left soaking in certain shortening material.
DANGER
Never attempt to clean the fryer during the frying process or when the frypot is filled with hot
oil. If water comes in contact with oil heated to frying temperature, it will cause spattering of
the oil, which can result in severe burns to nearby personnel.
WARNING
Use a commercial-grade cleaner formulated to effectively clean and sanitize food-contact
surfaces. Read the directions for use and precautionary statements before use. Particular
attention must be paid to the concentration of cleaner and the length of time the cleaner
remains on the food-contact surfaces.
5.2 DAILY CHECKS AND SERVICE
5.2.1 Inspect Fryer and Accessories for Damage- Daily
Look for loose or frayed wires and cords, leaks, foreign material in frypot or inside cabinet, and any
other indications that the fryer and accessories are not ready and safe for operation.
5.2.2 Clean Inside and Outside of the Fryer Cabinet – Daily
Clean inside the fryer cabinet with a dry, clean cloth. Wipe all accessible metal surfaces and components
to remove accumulated oil and dust.
Clean outside the fryer cabinet with a clean, damp cloth soaked with detergent. Wipe with a clean,
damp cloth
.
5.2.3 Clean the Built-In
Filtration System Daily
WARNING
Never operate the filter system without oil in the system.
WARNING
Never use the filter pan to transport old oil to the disposal area.
WARNING
Never drain water into the filter pan. Water will damage the filter pump.
5–2
1. Daily perform a clean and filter of each frypot (see Clean and Filter procedure instructions in the
FQ4000 easyTouch Controller manual that shipped with the fryer).
2. Daily clean the filter pan and associated components with a solution of hot water and detergent.
If you notice that the system is pumping slowly or not at all, verify that the filter pan screen is on the
bottom of the filter pan, with the paper on top of the screen. Verify that the two O-ring(s) on the fitting
at the right front of the filter pan are present and in good condition.

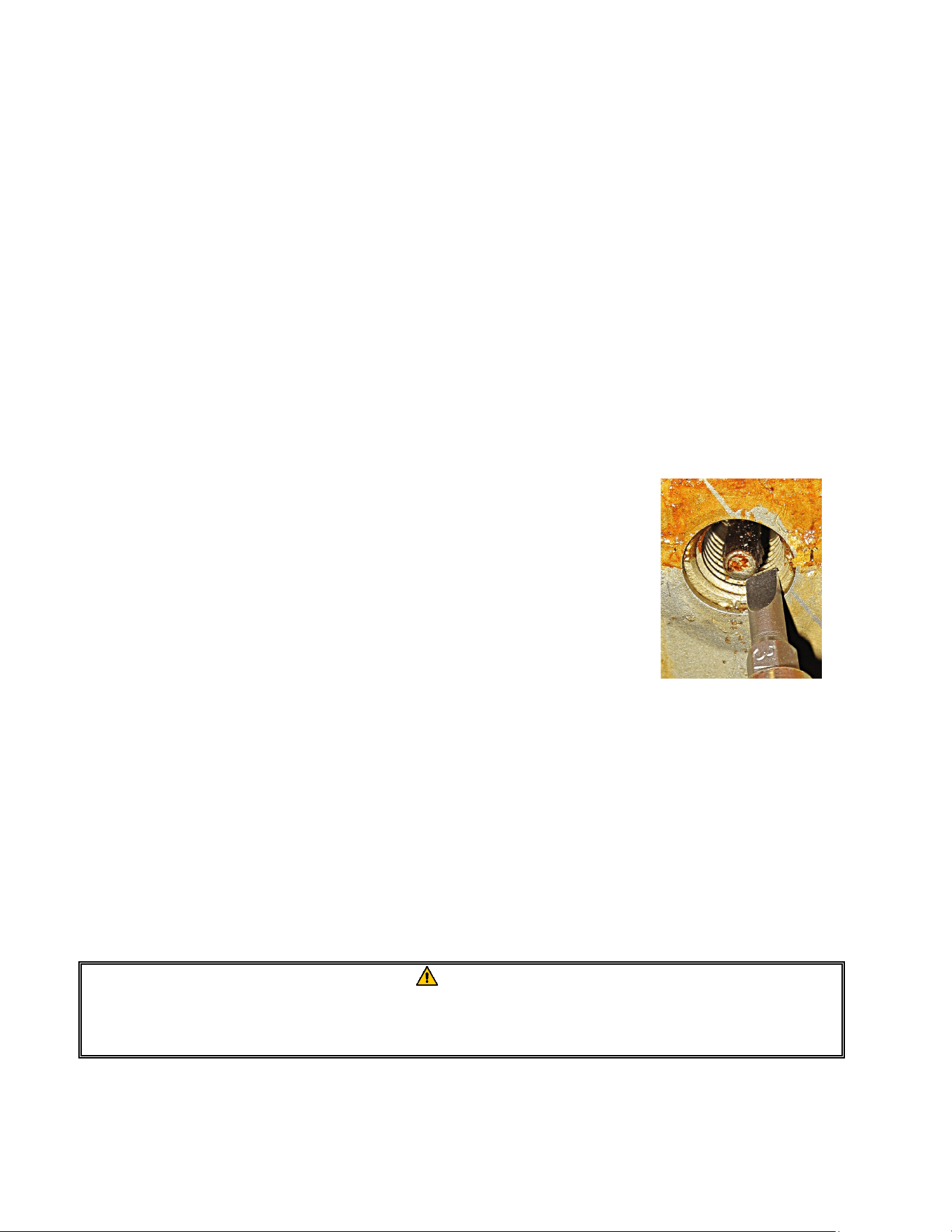

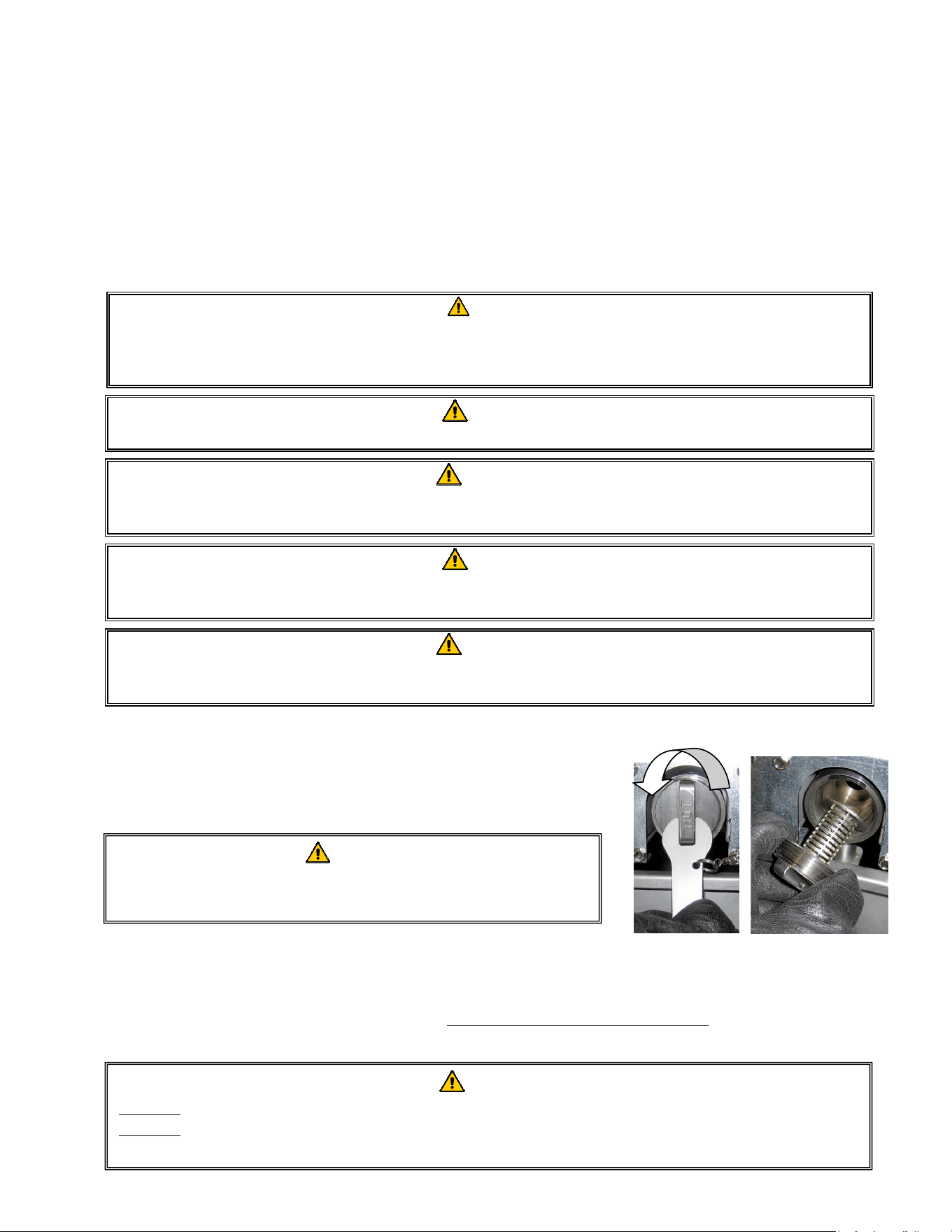

Verify that the pre-filter is clean
and tightened with the wrench.
5.2.4 Clean Filter Pan, Detachable Parts and Accessories
Carbonized oil will accumulate on the filter pan and detachable parts and accessories such as baskets,
sediment trays, or fish plates.
Wipe the filter pan and all detachable parts and accessories with a clean cloth dampened with a
detergent solution (or the parts can be run through a dishwasher). Rinse and thoroughly dry each part.
DO NOT use steel wool or abrasive pads to clean these parts. The scratches that result from such
scrubbing make subsequent cleanings more difficult.
5.2.5 Clean around AIF and ATO sensors – Daily
1. Clean the sediment from around the AIF and ATO sensors during clean
and filter when the oil is drained from the frypot.
2. Use a screwdriver or other similar object which allows access around
the probe (see Figure 1). Use caution to ensure that the probe is not
damaged.
3. Return the oil once the clean and filter is complete.
5.2.6 Clean Basket Lift Rods - Daily
On fryers equipped with basket lifts, wipe down the rods with dry, clean
cloth to remove accumulations of oil and dust.
5.3 WEEKLY CHECKS AND SERVICE
5.3.1 Clean Behind Fryers - Weekly
Clean behind fryers in accordance with store procedures. Shut the fryer off and disconnect power.
5.4 MONTHLY CHECKS AND SERVICE
5.4.1 Drain, Clean Frypot and Heating Elements
DANGER
Never operate the appliance with an empty frypot. The frypot must be filled to the fill line with
water or oil before energizing the elements. Failure to do so will result in irreparable damage to
the elements and may cause a fire.
After the fryer has been in use for a period of time, a hard film of caramelized oil will form on the inside
of the frypot. This deposit must be periodically removed to maintain your fryer’s efficiency.
Figure 1
5-3
See the Clean and Filter procedure instructions in the FilterQuick
™
easyTouch
®
controller manual that
shipped with the fryer to clean the frypot.
5.4.2 Deep Cleaning (Boiling Out/Cold Clean) the Frypot – Minimally Monthly
During normal usage of your fryer, a deposit of carbonized oil will gradually form on the inside of the
frypot. This film should be periodically removed by following the Clean (boil-out) procedure. Refer to the
FilterQuick
™
easyTouch
®
Controller Operation Manual that shipped with the fryer) for specific details on setting
up the controller for clean (boil-out) operation.
DANGER
Never operate the appliance with an empty frypot. The frypot must be filled to the fill line with
water or cooking oil before energizing the elements. Failure to do so will result in irreparable
damage to the elements and may cause a fire.
DANGER
Allow oil to cool to 100ºF (38ºC) or lower before draining to an appropriate container for disposal.
WARNING
Never leave the fryer unattended during this process. If the solution overflows, press the
ON/OFF switch to the OFF position immediately.
DANGER
Ensure that the frypot is completely free of water before filling with oil. When the oil is heated to
cooking temperature, water in the frypot will cause splattering.
WARNING
To prevent injury, ensure adjacent vats that contain oil are OFF and covered prior to performing
a Hot Clean (Boil Out) or Cold Clean (Cold Soak).
5.4.3 Pre-filter Maintenance - Monthly
The pre-filter requires regular maintenance. Every 30 days, or more
frequently if the flow of oil slows, remove the cap and clean the
attached screen.
1. Wearing protective gloves use the supplied wrench to remove
the cap from the pre-filter (Figure 2).
2. Use a small brush to clear debris from the attached screen (Figure 3).
3. Clean under a water tap and thoroughly dry.
4. Return the cap to the pre-filter housing and tighten with the attached wrench, ensuring the pre-
filter is tight. If the cap is not tight, air will leak around the pre-filter and slow the return.
Figure 3
WARNING
DO NOT remove the pre-filter cap when a filter cycle is under way.
DO NOT operate the filter system with the cap removed. Wear protective gloves when handling
the cap. The metal and the exposed oil are hot.
Figure 2
DANGER
Wear protective gloves when removing the pre-filter. The
filter may be hot and cause severe burns.
5–4
5.4.4 Check FilterQuick
™
easyTouch
®
Controller Set Point Accuracy - Monthly
1. Insert a good-grade thermometer or pyrometer probe into the oil, with the end touching the fryer
temperature-sensing probe.
2. When the controller product icons are visible (indicating that the frypot contents are within the
cooking range), press the
button once to display the temperature and setpoint of the oil as
sensed by the temperature probe.
3. Note the temperature on the thermometer or pyrometer. Actual temperature and pyrometer
readings should be within ± 5ºF (3ºC) of each other after allowing the heat to cycle on and off three (3)
times. If the temperature is still out of tolerance, contact a Factory Authorized Servicer for assistance.
5.5 QUARTERLY CHECKS AND SERVICE
5.5.1 Replace the O-rings
Refer to page 4-2 for inspection of O-rings.
5.6 ANNUAL/PERIODIC SYSTEM INSPECTION
This appliance should be inspected and adjusted periodically by qualified service personnel as
part of a regular kitchen maintenance program.
Frymaster recommends that this appliance be inspected at least annually by a Factory
Authorized Servicer as follows:
5.6.1 Fryer
• Inspect the cabinet inside and out, front and rear for excess oil.
• Verify that the heating element wires are in good condition and that leads have no visible fraying or
insulation damage and that they are free of oil.
• Verify that heating elements are in good condition with no carbon/caramelized oil build-up. Inspect
the elements for signs of extensive dry-firing.
• Verify that the tilt mechanism is working properly when lifting and lowering elements, and that the
element wires are not binding and/or chafing.
• Verify the heating-element amp-draw is within the allowed range as indicated on the appliance’s
rating plate.
• Verify that the temperature and high-limit probes are properly connected, tightened and functioning
properly, and that mounting hardware and probe guards are present and properly installed.
• Verify that component box and contactor box components (i.e. controller, relays, interface boards,
transformers, contactors, etc.) are in good condition and free from oil and other debris.
• Verify that component box and contactor box wiring connections are tight, and that wiring is in good
condition.
• Verify that all safety features (i.e. contactor shields, drain safety switches, reset switches, etc.) are
present and functioning properly.
• Verify that the frypot is in good condition and free of leaks and that the frypot insulation is in
serviceable condition.
• Verify that all wiring harnesses and connections are tight and in good condition.
5-5
5.6.2 Built-In Filtration System- Annual
• Inspect all oil-return and drain lines for leaks and verify that all connections are tight.
• Inspect the filter pan for leaks and cleanliness. If there is a large accumulation of crumbs in the
crumb basket, advise the owner/operator that the crumb basket should be emptied into a fireproof
container and cleaned daily.
• Verify that all O-rings and seals (including those on the quick-disconnect fittings) are present and in
good condition. Replace O-rings and seals if worn or damaged.
• Check filtration system integrity as follows:
− Verify that filter pan cover is present and properly installed.
− With the filter pan empty, place each vat into fill vat from filter pan selection (see section 2.1.7 of
the FilterQuick
™
easyTouch
®
Controller Operation Manual that shipped with the fryer), one at a time.
Verify proper functioning of each oil return valve by activating the filter pump using the fill vat
from drain pan selection. Verify that the pump activates and that bubbles appear in the cooking
oil of the associated frypot.
− Verify that the filter pan is properly prepared for filtering, then drain a frypot of oil heated to
350°F (177°C) into the filter pan by using the drain to pan selection (see section 2.1.10 of the
FilterQuick
™
easyTouch
®
Controller Operation Manual that shipped with the fryer). Now using the fill
vat from pan drain pan selection (see section 2.1.7 of the FilterQuick
™
easyTouch
®
Controller
Operation Manual that shipped with the fryer), allow all oil to return to the frypot (indicated by
bubbles in the cooking oil). Press the check button when all oil is returned. The frypot should
have refilled in approximately 5 minutes.
5.6.3 Stainless Steel Care
DANGER
DO NOT let water splash into the tank of hot oil. It will splatter and can cause severe
burns.
All stainless-steel fryer cabinet parts should be wiped regularly with hot, soapy water during the day,
and with a liquid cleanser designed for stainless steel at the end of each day.
1. Do not use steel wool, abrasive cloths, cleansers or powders.
2. Do not use a metal knife, spatula or any other metal tool to scrape stainless steel! Scratches are
almost impossible to remove.
3. If it is necessary to scrape the stainless steel to remove any encrusted materials, soak the area first
to soften the deposit, then use a wood or nylon scraper only.
6-1
FQE80U/FQE100U FILTERQUICK
™
easyTouch
®
SERIES ELECTRIC FRYER
CHAPTER 6: OPERATOR TROUBLESHOOTING
6.1 Introduction
This section provides an easy reference guide to some of the common problems that may occur during
the operation of this equipment. The troubleshooting guides that follow are intended to help correct, or
at least accurately diagnose, problems with this equipment. Although the chapter covers the most
common problems reported, you may encounter problems that are not covered. In such instances, the
Frymaster Technical Services staff will make every effort to help you identify and resolve the problem.
When troubleshooting a problem, always use a process of elimination starting with the simplest solution
and working through to the most complex. Never overlook the obvious – anyone can forget to plug in a
cord or fail to close a valve completely. Most importantly, always try to establish a clear idea of why a
problem has occurred. Part of any corrective action involves taking steps to ensure that it doesn’t
happen again. If a controller malfunctions because of a poor connection, check all other connections,
too. If a fuse continues to blow, find out why. Always keep in mind that failure of a small component
may often be indicative of potential failure or incorrect functioning of a more important component or
system.
Before calling a service agent or the Frymaster HOTLINE (1-800-24-FRYER):
• Verify that electrical cords are plugged in and that circuit breakers are on.
• Have your fryer’s model and serial numbers ready to give to the technician assisting you.
DANGER
Hot oil will cause severe burns. Never attempt to move this appliance when filled with hot oil or
to transfer hot oil from one container to another.
DANGER
This equipment should be unplugged when servicing, except when electrical circuit tests are
required. Use extreme care when performing such tests.
This appliance may have more than one electrical power supply connection point. Disconnect all
power cords before servicing.
Inspection, testing, and repair of electrical components should be performed by an authorized
service agent only.
6-2
6.2 Troubleshooting
6.2.1 Controller and Heating Problems
Problem
Probable Causes
Corrective Action
No display on the
controller.
A. No power to fryer.
B. Failed controller or another
component
A. Verify that the fryer is plugged in
and that the circuit breaker is not
tripped.
B. Call your FAS for assistance.
CONTROLLER
displays IS VAT
FULL? YES NO
after a filtration.
A. Normal operation during most at
the beginning or end of most
filtration functions.
B. If the display appears many times
during a filter it could be an
indication of slow oil return.
A. Ensure the vat is full of oil and
press the √ button.
B. See section 5.3 troubleshooting –
Filter Pump runs, but oil return is
very slow.
CONTROLLER
displays IS DRAIN
CLEAR?
Drain is clogged, and oil failed to drain.
Clear drain with Fryers Friend and
press √ button. Filtration will
resume.
CONTROLLER
displays CHANGE
FILTER PAD?
Filter error has occurred
, filter pad
clogged, 25-
hour filter pad change
prompt has occurred or change filter
pad was ignored on a prior prompt.
Change the filter pad and ensure
the filter pan has been removed
from the fryer for a minimum of 30
seconds. Do NOT ignore CHANGE
FILTER PAD prompts.
Fryer does not heat.
A. Power cord(s) not plugged in.
A. Verify that all the power cord(s)
are fully seated in their
receptacle(s), locked into place
and that circuit breaker is not
tripped
B. Controller or other components
have failed.
B. Call your FAS for assistance.
Fryer heats until
high-limit trips with
heat indicator ON.
Temperature probe or controller has
failed.
Call your FAS for assistance.
Fryer heats until
high-limit trips
without heat
indicator ON.
Contactor or controller has failed Call your FAS for assistance.
CONTROLLER
displays
MISCONFIGURED
ENERGY TYPE
Energy type in fryer setup is incorrect.
Ensure that the fryer is configured
properly for the correct energy type.
CONTROLLER
displays VAT ID
CONNECTOR NOT
CONNECTED
Controller locator missing or
disconnected.
Ensure the 6-
pin locator is connected
to rear of controller and it properly
grounded in control box.
Controller locks up. Controller error.
Remove and restore power to the
controller. If problem persists, call
your FAS for assistance.
6-3
6.2.2 Error Messages and Display Problems
Problem
Probable Causes
Corrective Action
CONTROLLER
displays E19 HEATING
FAILURE.
Failed controller, failed transformer,
failed SIB board, open high-limit
thermostat.
Call your FAS for assistance.
CONTROLLER display
is in wrong
temperature scale
(Fahrenheit or
Celsius).
Incorrect display option programmed.
Toggle between F° to C° by entering
Manager settings, temperature and
toggling the temperature scale. Turn
the controller on to check
temperature. If the desired scale is
not displayed, repeat.
CONTROLLER
displays HOT-HI-1.
Frypot temperature is more than
410ºF (210ºC) or, in CE countries,
395ºF (202ºC).
Shut the fryer down immediately and
call your FAS for assistance.
CONTROLLER
displays HELP HI-2 or
HIGH LIMIT FAILURE
DISCONNECT POWER.
Failed high limit
Disconnect power from the entire
fryer immediately and call your FAS
for assistance.
CONTROLLER
displays
TEMPERATURE PROBE
FAILURE.
Problem with the temperature
measuring circuitry including the
probe or damaged controller wiring
harness or connector.
Shut the fryer down and call your FAS
for assistance.
Heating indicator is
on, but fryer is not
heating.
Three phase power cord unplugged, or
circuit breaker is tripped.
Verify that all power cord(s) are fully
seated in their receptacle(s), locked
into place and that circuit breaker is
not tripped If the problem continues
call your FAS for assistance.
CONTROLLER
displays RECOVERY
FAULT and alarm
sounds.
Recovery time exceeded maximum
time limit.
Clear error and silence the alarm by
pressing the √ button. Maximum
recovery time for electric is 4:00
minutes
. If this error continues call your
FAS for assistance.
CONTROLLER
displays NO MENU
GROUP AVAILABLE
FOR SELECTION
All menu groups have been deleted.
Create a new MENU group. Once a
new menu i
s created, add recipes to
the group (see section 1.10 of the
CONTROLLER manual).
CONTROLLER
displays SERVICE
REQUIRED followed by
an error message.
An error has occurred which requires
a service technician.
Press X to continue cooking and call
your FAS for assistance. In some cases,
cooking may not be available.
6-4
6.2.3 Filtration Problems
Problem
Probable Causes
Corrective Action
Fryer filters after
each cook cycle.
Filter after setting incorrect.
Change or overwrite the filter after
setting by re-entering the filter after
value in Manager Settings, Filter
Attributes in section 1.8 of the
CONTROLLER manual.
Clean and Filter
won’t start.
Temperature too low.
Ensure fryer is at setpoint before
starting a Clean and Filter.
CONTROLLER display
shows FILTER BUSY.
A.
Another filtration cycle or filter pad
change is still in process.
B. Filter interface board has not
cleared checking system.
A. Wait until the previous filtration
cycle ends to start another
filtration cycle. Change filter pad
if prompted.
B. Wait 15 minutes and try again.
Filter pump won’t
start, or pump stops
during filtering.
A. Power cord is not plugged in or
circuit breaker is tripped.
B. Pump motor has overheated
causing the thermal overload switch
to trip.
C. Blockage in filter pump.
A. Verify that the power cord is fully
plugged in and the circuit
breaker is not tripped.
B.
If the motor is too hot to touch
for more than a few seconds, the
thermal overload switch has
probably tripped. Allow the
motor to cool at least 45 minutes
then press the Pump Reset
Switch (see section 2.1.2 of the
CONTROLLER manual).
C. Call your FAS for assistance.
Drain valve or return
valve stays open.
A. VIB board has failed.
B. Actuator has failed.
Call your FAS for assistance.
CONTROLLER display
shows INSERT pan.
A. Filter pan is not fully set into fryer.
B. Missing filter pan magnet.
C. Defective filter pan switch.
A. Pull filter pan out and fully
reinsert into fryer. Ensure
controller does not display P.
B.
Ensure the filter pan magnet is
in place and replace if missing.
C.
If the filter pan magnet is fully
against the switch and controller
continues to display INSERT
PAN, switch is possibly defective.
Auto filtration, OQS
filter won’t start.
A. Oil level too low.
B. Oil temperature is too low.
C. Filter Pan out.
D. Filtration in recipe settings is set to
OFF.
E. Filter relay has failed.
A. Ensure oil level is at the top oil
fill line (at the top oil level
sensor).
B.
Ensure the oil temperature is at
setpoint.
C.
Ensure controller does not
display P. Ensure the filter pan
is fully seated into fryer. Power
cycle the fryer.
D. Set filtration in recipes to ON.
E. Call your FAS for assistance.
6-5
Problem
Probable Causes
Corrective Action
Filter Pump runs, but
oil return is very
slow.
A. Clogged filter pad/paper.
B. Improperly installed or prepared
filter pan components.
C. Pre-filter screen may be clogged or
not fully tightened.
A. Ensure the filter is not clogged.
If so replace the filter.
B. Remove the oil from the filter
pan and replace the filter
pad/paper, ensuring that the
filter screen is in place under
the pad/paper.
Verify, if using a pad, that the
rough side is facing up.
Verify that O-
rings are present
and in good condition on filter
pan connection fitting.
C. Clean pre-filter (see section 4.5.4)
and ensure it is tightened with
the attached wrench.
6.2.3.1 Incomplete Filtration
Should the auto filtration procedure fail an error message is generated. Follow the instructions on the
screen to return the oil and clear the error.
DISPLAY
ACTION
IS VAT FULL?
1. Press the √ (check) button if the vat is full to continue. The
controller returns to idle cook mode or
. Press X if vat is
not filled completely.
FILLING IN PROGRESS
2. No action required as the pump runs.
IS VAT FULL?
3. Press the √ (check) button if the vat is full to continue. The
controller returns to idle cook mode or
. Press X if vat is
not filled completely.
FILLING IN PROGRESS
4. No action required as the pump runs.
IS VAT FULL?
5. Press the √ (check) button if the vat is full to continue. The
controller returns to idle cook mode or . Press X if vat is
not filled completely. If this is the sixth consecutive
sequence of incomplete filtration skip to step 10.
CHANGE FILTER PAPER?
6. Press the √ (check) button to continue. Pressing X advances
to .
REMOVE PAN
7. Remove the filter pan.
CHANGE FILTER PAPER
8. Change the filter paper/pad and ensure the filter pan has
been pulled forward, out of the cabinet for at least 30
seconds. Once the pan has been out for 30 seconds the
controller returns to idle cook mode. Ensure the pan is dry
and assembled correctly. Push the filter pan back into the
fryer. Ensure “P” is not displayed on the controller.
IS VAT FULL?
9. Press the √ (check) button if the vat is full to continue. The
controller returns to idle cook mode. Press X if vat is not full
and the controller advances to .
6-6
SERVICE REQUIRED
10. If a filtration error occurs six consecutive times, the return
valve closes. Press the √ (check) button to silence alarm
and continue.
ERROR PUMP NOT FILLING
11. The system detects oil is not returning to the vat and
service is required. Call your FAS.
SYSTEM ERROR FIXED?
12. Press the X button to continue cooking if possible. Call your
FAS to repair and reset the fryer. The error will be re-
displaying every 15 minutes until the issue is repaired.
Auto filtration and auto top off are disabled until the fryer
is reset.
ENTER CODE
13. FAS tech enters tech code to reset fryer.
FILL VAT FROM DRAIN PAN?
14. Press the √ (check) button to fill the vat from filter pan to
continue. Follow prompts once the vat is full. Press X to
skip filling from drain pan.
REMOVE PAN
15. Remove the filter pan.
IS PAN EMPTY?
16.
Press the √ (check) button if the filter pan is empty and
continue to next step. Press X to continue filling the vat.
Follow the prompts once the vat is full.
17. The controller switches off.
6.2.3.2 Clogged Drain Error
The clogged drain error occurs during auto filtration when the oil level sensor detects that oil has not
completely drained from the frypot. This may be due to a clogged drain or an oil sensor failure. Follow the
instructions on the controller display to clear the error.
When this occurs the controller displays CLEAR DRAIN for 15 seconds changing to IS DRAIN CLEAR?.
1. Clear debris from the drain using the fryer’s friend and press the √ button to continue.
2. The controller displays DRAINING. Once the oil level sensor detects the oil has drained, normal auto
filtration operation resumes.
6.2.3.3 Filter Busy
When FILTER BUSY is displayed the filter interface board is waiting on another vat to be filtered or
waiting on another function to finish. Wait 15 minutes to see if problem is corrected. If not, call your
local FAS.
6.2.4 Basket Lift Problems
Problem
Probable Causes
Corrective Action
Basket lift movement
is jerky and/or noisy.
Basket lift rods need
lubrication.
Apply a light coating of Lubriplate
™
or similar
lightweight white grease to the rod and
bushings.
6-7
6.2.5 Error Log Codes
See section 1.12.2.1 in the FilterQuick™ easyTouch
®
Segmented Controller Manual for instructions to
access the Error Log.
Code
ERROR MESSAGE
EXPLANATION
E13
TEMPERATURE PROBE FAILURE
TEMP Probe reading out of range
E16
HIGH LIMIT 1 EXCEEDED
High limit temperature is past more than 410°F (210°C),
or in CE countries, 395°F (202°C)
E17
HIGH LIMIT 2 EXCEEDED
High limit switch has opened.
E18
HIGH LIMIT PROBLEM
DISCONNECT POWER
Vat temperature exceeds 460°F (238°C) and the high limit
has failed to open. Immediately disconnect power to the
fryer and call service.
E19
HEATING FAILURE – XXX F or XXX C
Heating Control latch circuit failed.
Heat Contactor failed to latch.
E25
HEATING FAILURE - BLOWER
The air pressure switch(s) failed to close.
E27
HEATING FAILURE - PRESSURE SWITCH - CALL SERVICE
The air pressure switch has failed closed.
E28
HEATING FAILURE – XXX F or XXX C
The fryer has failed to ignite and has locked out the
ignition module.
E29
TOP OFF PROBE FAILURE - CALL SERVICE
ATO RTD reading out of range
E32 DRAIN VALVE NOT OPEN -
FILTRATION AND TOP OFF
DISABLED - CALL SERVICE
Drain valve was trying to open and confirmation is
missing
E33
DRAIN VALVE NOT CLOSED - FILTRATION AND TOP OFF
DISABLED - CALL SERVICE
Drain valve was trying to close and confirmation is
missing
E34
RETURN VALVE NOT OPEN - FILTRATION AND TOP OFF
DISABLED - CALL SERVICE or RIGHT VALVE NOT OPEN for
multi- return valve systems.
Return valve or Right valve (multi-return valve systems)
was trying to open and confirmation is missing
E35
RETURN VALVE NOT CLOSED - FILTRATION AND TOP OFF
DISABLED - CALL SERVICE or RIGHT VALVE NOT CLOSED for
multi- return valve systems.
Return valve or Right valve (multi-return valve systems)
was trying to close and confirmation is missing
E36 VALVE INTERFACE BOARD FAILURE - FILTRATION AND TOP
OFF DISABLED - CALL SERVICE
Valve Interface Board connections lost or board failure.
E37
AUTOMATIC INTERMITTENT FILTRATION PROBE FAILURE -
FILTRATION DISABLED - CALL SERVICE
AIF RTD reading out of range.
E39 CHANGE FILTER PAD 25-
hour timer has expired or dirty filter logic has
activated.
E41
OIL IN PAN ERROR
The system detects that oil may be present in the filter
pan.
E42
CLOGGED DRAIN (Gas)
Vat did not empty during filtration
E43
OIL SENSOR FAILURE - CALL SERVICE
Oil level sensor may have failed.
E44
RECOVERY FAULT
Recovery time exceeded maximum time limit.
E45
RECOVERY FAULT – CALL SERVICE
Recovery time exceeded maximum time limit for two or
more cycles.
E46
SYSTEM INTERFACE BOARD 1 MISSING - CALL SERVICE
SIB board 1 connection lost or board failure.
E51
DUPLICATE BOARD ID - CALL SERVICE
Two or more controllers have the same location ID.
E52
USER INTERFACE CONTROLLER ERROR - CALL SERVICE
The controller has an unknown error.
E53
CAN BUS ERROR - CALL SERVICE
Communications are lost between boards.
E54
USB ERROR
USB connection lost during an update.
E55
SYSTEM INTERFACE BOARD 2 MISSING - CALL SERVICE
SIB board 2 connection lost or board failure.
E61
MISCONFIGURED ENERGY TYPE
The fryer is configured for the incorrect energy type.
E62
VAT NOT HEATING – CHECK ENERGY SOURCE – XXXF OR XXXC
The vat is not heating properly.
E63
RATE OF RISE
Rate of rise error occurred during a recovery test.
E64
FILTRATION INTERFACE BOARD FAILURE - FILTRATION AND
TOP OFF DISABLED - CALL SERVICE
Filtration Interface Board connections lost or board
failure.
E65
CLEAN OIB SENSOR – XXX F OR XXX C - CALL SERVICE
Gas Only -The oil is back sensor does not detect oil.
Clean oil sensor.
E66
DRAIN VALVE OPEN – XXXF OR XXXC
Drain valve is opened during cooking.
E67
SYSTEM INTERFACE BOARD NOT CONFIGURED - CALL SERVICE
Controller is turned on when the SIB board is not
configured.
E68
OIB FUSE TRIPPED – CALL SERVICE
The VIB board OIB fuse has tripped and didn’t reset.
6-8
Code
ERROR MESSAGE
EXPLANATION
E69
RECIPES NOT AVAILABLE – CALL SERVICE
The controller has not been programmed with product
recipes. Replace controller with factory programmed
controller.
E70
OQS TEMP HIGH
Oil temperature is too high for a valid OQS reading. Filter
at a temperature between
300ºF (149ºC) and 375ºF
(191ºC).
E71
OQS TEMP LOW
Oil temperature is too low for a valid OQS reading. Filter
at a temperature between 300ºF (149ºC) and 375ºF
(191ºC).
E72
TPM RANGE LOW
The TPM is too low for a valid OQS reading. This may
also be seen with fresh new oil. The incorrect oil type
may be selected in the setup menu. The sensor may not
be calibrated for the oil type. See oil type chart in
instruction document 8197316. If issue continues
contact a FAS.
E73
TPM RANGE HIGH
The TPM reading is too high for a valid OQS reading.
Dispose the oil.
E74
OQS ERROR
The OQS has an internal error. If issue continues contact
a FAS.
E75
OQS AIR ERROR
The OQS is detecting air in the oil. Check the O-rings and
check/tighten prescreen filter to ensure no air is entering
the OQS sensor. If issue continues contact a FAS.
E76
OQS ERROR
The OQS sensor has a communication error. Check
connections to the OQS sensor. Power cycle the entire
fryer battery. If issue continues contact a FAS.
E82
LOW OIL DETECTED
This is only visible in the cloud. It’s not visible on the UI.
The vat doesn’t have enough oil to cover the AIF/ATO
probes. Fill the vat with oil.
E83
TOP OFF EMPTY
This is only visible in the cloud. It’s not visible on the UI.
The JIB is out of oil. Replace the JIB and top off the vat.
E85
LEFT RETURN VALVE or LEFT VALVE NOT OPEN - FILTRATION
AND TOP OFF DISABLED - CALL SERVICE
Left return valve was trying to open, and confirmation is
missing
E86
LEFT RETURN VALVE or LEFT VALVE NOT CLOSED -
FILTRATION AND TOP OFF DISABLED - CALL SERVICE
Left Return valve was trying to close, and confirmation is
missing
E87
CENTRAL VALVE NOT OPEN - FILTRATION AND TOP OFF
DISABLED - CALL SERVICE
Central Valve was trying to open, and confirmation is
missing
E88
CENTRAL VALVE NOT CLOSED - FILTRATION AND TOP OFF
DISABLED - CALL SERVICE
Central Valve was trying to close, and confirmation is
missing
E89
RIGHT RETURN VALVE NOT OPEN - FILTRATION AND TOP OFF
DISABLED - CALL SERVICE
Right return valve was trying to open, and confirmation is
missing
E90
RIGHT RETURN VALVE NOT CLOSED - FILTRATION AND TOP
OFF DISABLED - CALL SERVICE
Right return valve was trying to close, and confirmation is
missing
6.2.6 OQS (Oil Quality Sensor) Problems
Problem
Corrective Action
No TPM results
displayed.
Check the following items and perform another OQS filter.
• Ensure the vat is at setpoint temperature.
• Inspect the pre-screen filter and ensure it is screwed in tightly.
• Inspect the O-rings on the filter pan and ensure they are both present and
that they are not missing, cracked or worn. If so replace them.
•
Ensure the filter paper is not clogged and clean filter paper is used. Did
the vat refill the first time for the previous filter? If not change the filter
paper.
THIS PAGE INTENTIONALLY LEFT BLANK
FRYMASTER
8700 LINE AVENUE, SHREVEPORT, LA 71106-6800
800-551-8633
318-865-1711
WWW.FRYMASTER.COM
