Warranty Registration and Inquiry
For product warranty registration, TOTO U.S.A. Inc. recommends online warranty registration. Please visit
our web site http://www.totousa.com. If you have questions regarding warranty policy or coverage, please con-
tact TOTO U.S.A. Inc., Customer Service Department, 1155 Southern Road, Morrow, GA 30260
(888) 295-8134 or (678) 466-1300 when calling from outside of U.S.A.
Installation Manual
Manual de Instrucciones
Manuel D’Installation
Pedestal Lavatory
Lavabo Bajo el Mostrador
Lavabo Sur Colonne

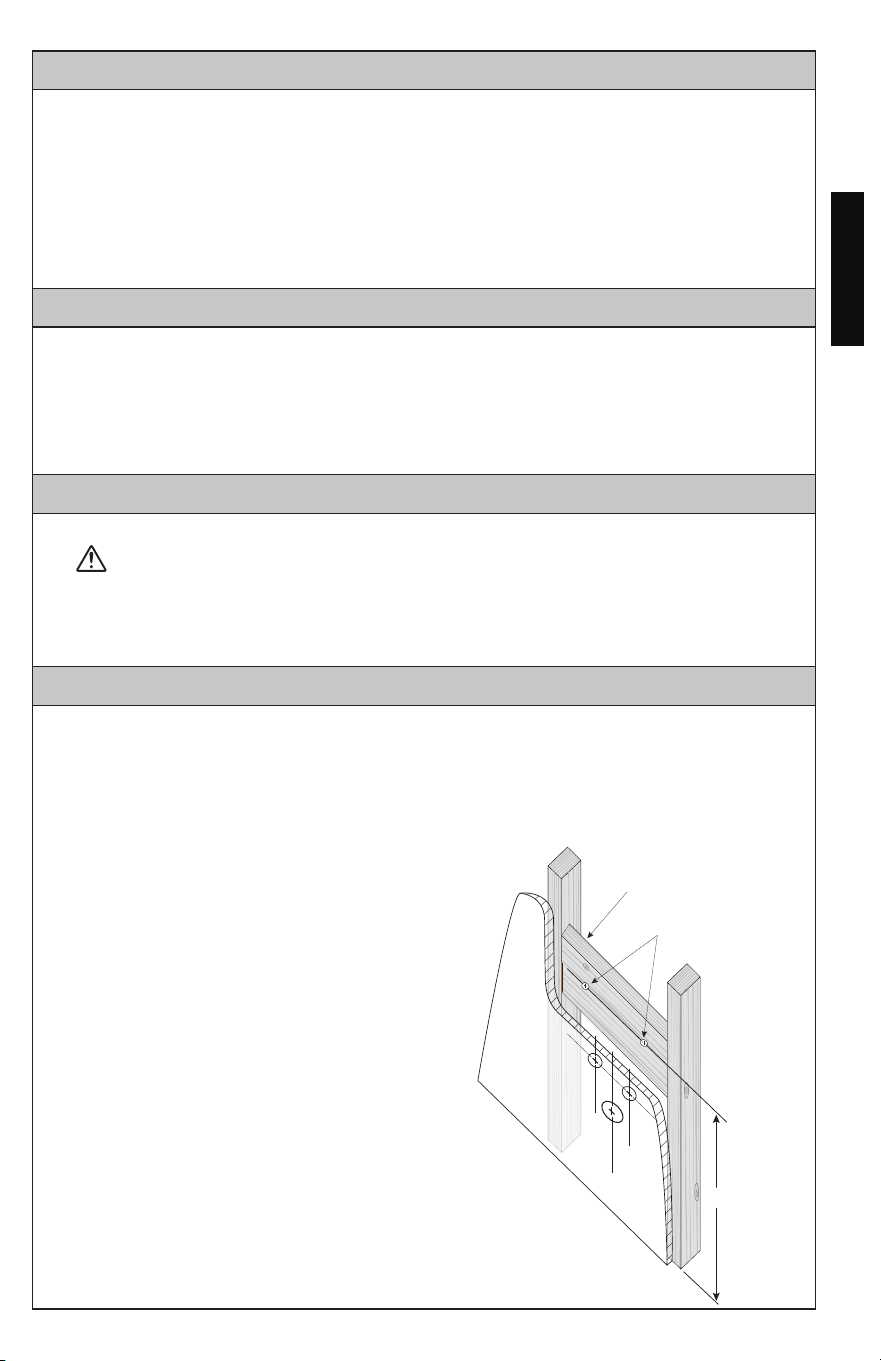

Provide proper reinforcement,
such as a brace, between the studs
of the wall to help support the
lavatory.
Install the brace at the proper
height (H), which corresponds to
the lavatory mounting hole loca-
tions.
For best results, the oor must be
level and the wall must be square
with the oor.
3
ENGLISH
TABLE OF CONTENTS
THANKS FOR CHOOSING TOTO!
The mission of TOTO is to provide the world with healthy, hygienic and more
comfortable lifestyles. We design every product with the balance of form and
function as a guiding principle. Congratulations on your choice.
Thanks for Choosing TOTO
®
! ............................................................................. 3
Warnings ............................................................................................................... 3
Before Installation ................................................................................................ 3
Installation Procedure .......................................................................................... 4
CEFIONTECT
®
Cleaning Instructions ................................................................ 5
Warranty................................................................................................................ 6
BEFORE INSTALLATION
If you are installing this product in a new construction or remodel, please
make sure you are following all local plumbing and building codes. Carefully
unpack and examine your new xture for damage. To help ensure that the
installation process will proceed smoothly and correctly, please read these
instructions carefully before you begin.
WARNINGS
When this symbol appears in the manual, it is alerting you of
potential misoperations that may cause personal injury and/or
property damage.
Provide proper reinforcement,
such as a brace, between the studs
of the wall to help support the
lavatory.
Install the brace at the proper
height (H), which corresponds to
the lavatory mounting hole loca-
tions.
For best results, the oor must be
level and the wall must be square
with the oor.
Reinforcement
Mounting Hole Location
WARNING
H
Cut-away Shown
4
ENGLISH

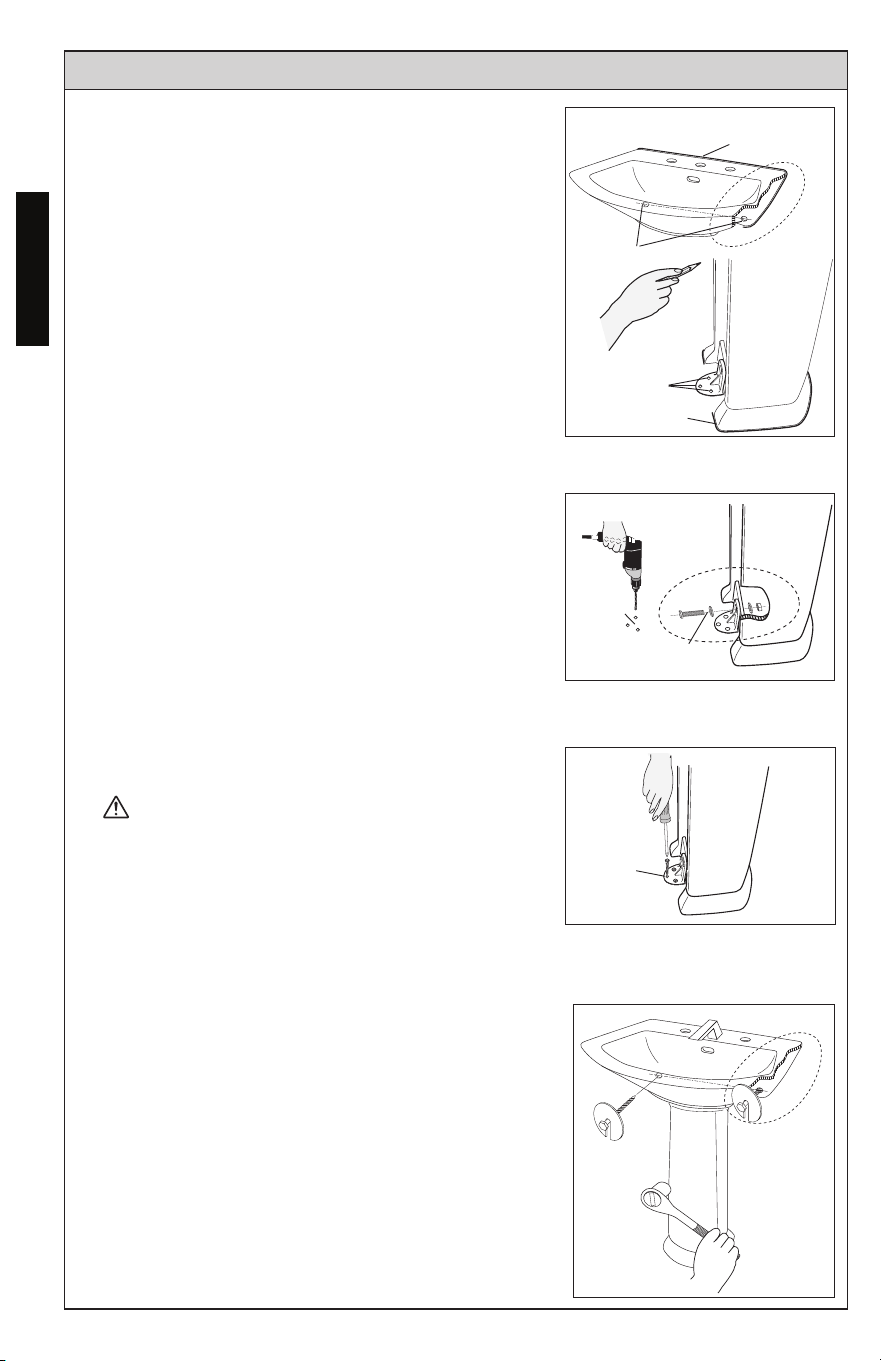

INSTALLATION PROCEDURE
1) Place the lavatory and pedestal into the
installed position. Make sure the product is
level when placed against the wall. Carefully
mark the mounting hole locations for the lava-
tory and pedestal (see Illustration 1).
NO TE: To help recall the lavatory and pedes-
tal positions, trace a line along the sides
and top edge of the lavatory and along
the base of the pedestal (see Illustration
1).
Carefully remove the lavatory and then the
pedestal.
2) Drill the pilot holes for the lavatory and ped-
estal screw locations (see Illustration 2).
Install the pedestal mounting hardware. Place
a metal washer onto the bolt and insert the
bolt through the mounting bracket and the
pedestal brace. Install the other metal washer
onto the bolt and then the nut. Tighten this
connection securely.
Return the pedestal to the position marked
on the oor. Install the pedestal bracket to
the oor using the three supplied screws (see
Illustration 3).
DO NOT OVERTIGHTEN. Overtight-
ening may damage the products and
cause personal injury and/or property
damage.
WARNING
C
u
t
-
A
w
a
y
S
h
o
w
n
Mounting Holes
Top & Side Edge
of Lavatory
Mounting Holes
Base of Pedestal
Ill. 1
C
u
t
-
A
w
a
y
S
h
o
w
n
Ill. 2
Pilot
Holes
Pedestal Mounting
Hardware
Ill. 3
Pedestal
Bracket
3) Install the faucet and drains (not supplied) per
the manufacturer’s installation instructions.
NO TE: For 8” widespread faucet xtures, only
install the spout assembly at this time. The
hot & cold faucet valves can be installed
at a later time.
Screw the bolts to the pre-drilled holes in
the wall (see Illustration 4). Leave 1-1/4” of
the bolts protruding from the wall. Place the
lavatory into position on the pedestal with
the mounting holes sitting on the protruding
bolts, matching the marks on the wall. Place
a slotted at metal washer onto the bolts and
tighten the bolts to secure the lavatory to the
wall.
C
u
t
-
A
w
a
y
S
h
o
w
n
Ill. 4
WHAT IS CEFIONTECT®?
5
ENGLISH
DO NOT OVERTIGHTEN. Overtightening may damage the products
and cause personal injury and/or property damage.
NO TE: You may install the 8” widespread hot and cold facuet valves at
this time.
INSTALLATION PROCEDURE
WARNING
4) Connect the water supply to the faucet according to the faucet instruc-
tions. Connect and tighten the trap to the drain.
Turn on the water supplies to the faucet. Purge the air from the hot and
cold water by running the water for a few seconds.
Fill the lavatory with water. Check the leaks at the water supply and drain
connections.
No CEFIONTECT®
With
CEFIONTECT®
WHAT IS CEFIONTECT®?
CEFIONTECT® is TOTO’s super-smooth permanent glaze that prevents
debris from sticking to surfaces. Products with the letter “G” in the
number have the CEFIONTECT® glaze. This glaze, along with regular
cleaning, will help keep your TOTO product in pristine condition.
NOTE:
For best results to keep your TOTO product with CEFIONTECT® clean:
• Lavatory: Use a mild dish detergent with a clean, soft cloth.
• Toilet: Use a gel based cleaner with a soft bristled-plastic brush.
• Don’t use cleaners, polishing powders or detergents that have gritty
or coarse particles.
• Don’t use bleach, chemical thinners or products that have acid or
alkaline detergents listed as ingredients.
• Don’t use metal scrub brushes or steel wool.
Following these instructions will ensure that your TOTO product with
the CEFIONTECT® glaze will always stay intact, keeping your product
like new for years to come!
CEFIONTECT® CLEANING INSTRUCTIONS
6
ENGLISH
WARRANTY
1. TOTO
®
warrants its vitreous china products (“Product”) to be free from defects in materials
and workmanship during normal use when properly installed and serviced, for a period of one
(1) year from date of purchase. This limited warranty is extended only to the ORIGINAL PUR-
CHASER of the Product and is not transferable to any third party, including but not limited to
any subsequent purchaser or owner of the Product. This warranty applies only to TOTO Product
purchased and installed in North, Central and South America.
2. TOTO’s obligations under this warranty are limited to repair, replacement or other appropri-
ate adjustment, at TOTO’s option, of the Product or parts found to be defective in normal use,
provided that such Product was properly installed, used and serviced in accordance with in-
structions. TOTO reserves the right to make such inspections as may be necessary in order to
determine the cause of the defect. TOTO will not charge for labor or parts in connection with
warranty repairs or replacements. TOTO is not responsible for the cost of removal, return and/
or reinstallation of the Product.
3. This warranty does not apply to the following items:
a. Damage or loss sustained in a natural calamity such as re, earthquake, ood, thunder,
electrical storm, etc.
b. Damage or loss resulting from any accident, unreasonable use, misuse, abuse, negli-
gence, or improper care, cleaning, or maintenance of the Product.
c. Damage or loss resulting from sediments or foreign matter contained in a water system.
d. Damage or loss resulting from improper installation or from installation of the Product in
a harsh and/or hazardous environment, or improper removal, repair or modication of the
Product. (NOTE: Product model codes allow a maximum of 80 PSI. Check local codes or
standards for requirements).
e. Damage or loss resulting from electrical surges or lightning strikes or other acts which are
not the fault of TOTO or which the Product is not specied to tolerate.
f. Damage or loss resulting from normal and customary wear and tear, such as gloss reduc-
tion, scratching or fading over time due to use, cleaning practices or water or atmospher-
ic conditions.
g. Tank ushing mechanisms of plastic or rubber moving parts.
h. Toilet seats of plastic, wood or metal.
4. In order for this limited warranty to be valid, proof of purchase is required. TOTO encourages
warranty registration upon purchase to create a record of Product ownership at http://www.
totousa.com. Product registration is completely voluntary and failure to register will not diminish
your limited warranty rights.
5. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS
WHICH VARY FROM STATE TO STATE, PROVINCE TO PROVINCE OR COUNTRY TO COUNTRY.
6. To obtain warranty repair service under this warranty, you must take the Product or deliver it
prepaid to a TOTO service facility together with proof of purchase (original sales receipt) and a
letter stating the problem, or contact a TOTO distributor or products service contractor, or write
directly to TOTO U.S.A., INC., 1155 Southern Road, Morrow, GA 30260 (678) 466-1300 or (888)
295-8134, if outside the U.S.A. If, because of the size of the Product or nature of the defect, the
Product cannot be returned to TOTO, receipt by TOTO of written notice of the defect together
with proof of purchase (original sales receipt) shall constitute delivery. In such case, TOTO may
choose to repair the Product at the purchaser’s location or pay to transport the Product to a
service facility.
THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY TOTO. REPAIR, REPLACEMENT
OR OTHER APPROPRIATE ADJUSTMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE
THE EXCLUSIVE REMEDY AVAILABLE TO THE ORIGINAL PURCHASER. TOTO SHALL NOT BE
RESPONSIBLE FOR LOSS OF THE PRODUCT OR FOR OTHER INCIDENTAL, SPECIAL OR CON-
SEQUENTIAL DAMAGES OR EXPENSES INCURRED BY THE ORIGINAL PURCHASER, OR FOR
LABOR OR OTHER COSTS DUE TO INSTALLATION OR REMOVAL, OR COSTS OF REPAIRS BY
OTHERS, OR FOR ANY OTHER EXPENSE NOT SPECIFICALLY STATED ABOVE. IN NO EVENT
WILL TOTO’S RESPONSIBILITY EXCEED THE PURCHASE PRICE OF THE PRODUCT. EXCEPT TO
THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTIES, INCLUDING THAT
OF MERCHANTABILITY OR FITNESS FOR USE OR FOR A PARTICULAR PURPOSE, ARE EXPRESS-
LY DISCLAIMED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED
WARRANTY LASTS, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUEN-
TIAL DAMAGES, SO THE ABOVE LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU.
WARNING! TOTO shall not be responsible or liable for any failure of, or damage to, this Prod-
uct caused by either chloramines in the treatment of public water supply or cleaners containing
chlorine (calcium hypochlorite). NOTE: The use of a high concentrate chlorine or chlorine related
products can seriously damage the ttings. This damage can cause leakage and serious property
damage. For information, please call TOTO at: (888) 295-8134.
