Sachgemäße Installation unter Beachtung dieser Einbauanleitung erfor-
derlich. Achten Sie auf korrekte Anschlüsse. Verlegen Sie die Kabel so, dass
sie weder geknickt, gequetscht noch beschädigt werden können. Sorgen
Sie dafür, dass sich die Kabel nicht in Gegenständen verfangen können.
Wir können keine Haftung für Schäden übernehmen, welche durch un-
sachgemäße Installation oder Nutzung verursacht wurden.
Verwenden Sie darum ausschließlich das mitgelieferte Montagematerial.
Technische Änderungen vorbehalten, alle Angaben ohne Gewähr.
Das „Qi“-Logo ist ein Warenzeichen des „Wireless Power Consortiums“.
An appropriate installation in accordance with these operating instruc-
tions is required. Please ensure that the wiring is arranged so that it is not
bent or crimped, in order to avoid the risk of cable breakage.
Make sure that all connections are correct. Route the cable away from
moving parts and ensure that it cannot become entangled, pinched or
damaged in any way.
We accept no liability for damage caused by improper installation or use.
Only use the specified accessory parts to prevent product failure.
Subject to technical modifications; no responsibility is accepted for the
accuracy of this information.
The “Qi” symbol is a trademark of the Wireless Power Consortium.
www.inbay.systems

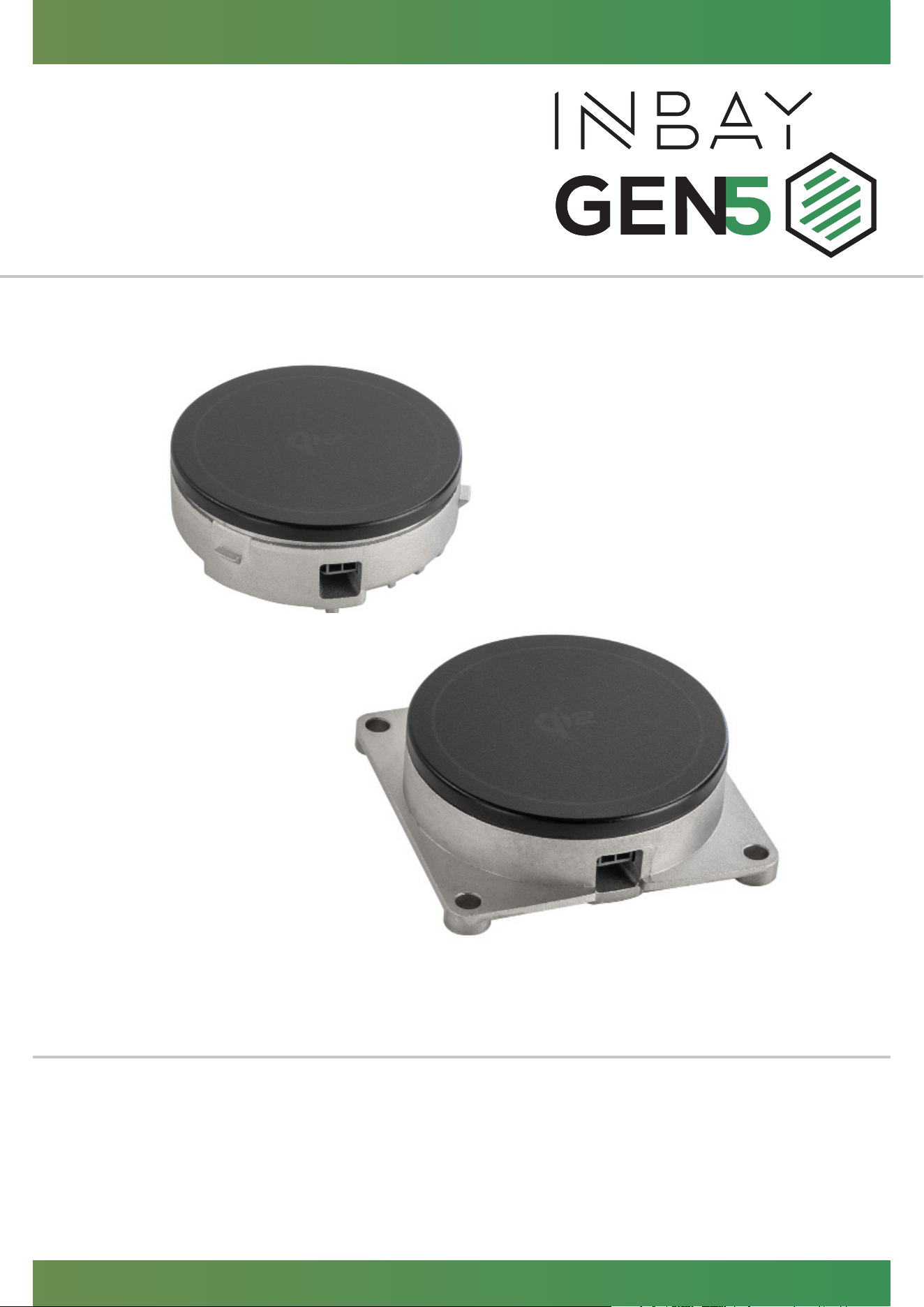

INBAY Gen5 universal 24V
240000-01-301
240000-01-301-1
240000-01-301-2
240000-01-303
Manual
2
!
Input Voltage 24V (DC)
Output Voltage 11V
Output Current 1.4A
Output Power 15W
2 Pol Microfit
Power Cable
www.inbay.systems
3
+24V
5A max
ACHTUNG! WICHTIGER SICHERHEITSHINWEIS
Nach der Installation dürfen keine Verbraucher mit mehr als 5A an der +12V
Buchse betrieben werden, da sonst die Gefahr einer Überspannung besteht.
ATTENTION! IMPORTANT SECURITY INFORMATION
After installation, consumers with more than 5A must not be operated
on the +12V socket. Otherwise there is a risk of overvoltage.
!
Magnetringhalterung
Magnetic Docking Ring
Manual
4
