WASHING MACHINE
MODEL:
MFA06W80BA10/W-UK
MFA06W90BA/W-UK
Thank you for choosing Midea! Before using your new Midea product,
please read this manual thoroughly to ensure that you know how to
operate the features and functions that your new appliance offers in a safe
way.
THANK YOU LETTER
CONTENTS
01
Read all instructions and explanations before use. Follow the instructions carefully.
Keep the operation instructions handy for later use. If the appliance is sold or
passed on then ensure that the new owner always receives these operation
instructions.
THANK YOU LETTER
SAFETY INSTRUCTIONS
SPECIFICATIONS
PRODUCT OVERVIEW
QUICK START GUIDE
PRODUCT INSTALLATION
OPERATION INSTRUCTIONS
CLEANING AND MAINTENANCE
TROUBLE SHOOTING
TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT
DISPOSAL AND RECYCLING
DATA PROTECTION NOTICE
BUILT-IN INSTALLATION
01
02
06
07
08
11
15
30
34
35
36
37
38
02
SAFETY INSTRUCTIONS
Safety Instructions
• Children should be supervised that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in order
to avoid a hazard.
• Max. Inlet water pressure 1 MPa. Min. inlet water pressure 0.05 MPa.
• The new hose-sets supplied with the appliance are to be used and
that old hose-sets should not be reused.
• This appliance is intended to be used in household and similar
applications such as:
-Staff kitchen areas in shops, offices and other
working environments;
-Farm houses;
-By clients in hotels, motels and other
residential type environments;
-Bed and breakfast type environments;
• Do not install the machine on a carpet floor.
• The obstruction of the openings by a carpet can damage the
machine.
Please read the following safety information thoroughly and follow it strictly to
minimize the risk of fire or explosion, electric shock and to prevent property
damage, personal injury or loss of life. Failing to follow these instructions shall
void any warranty.
For countries other than EU:
• The appliance is not to be used by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction.
• Children being supervised not to play with the appliance.
For use in EU countries:
•This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved.
• Children does not play with the appliance.
• Cleaning and user maintenance are not made by children without
supervision.
• Children of less than 3 years are kept away unless continuously supervised.
-Areas for communal use in blocks of flats.
Model Washing Capacity
9.0kg
8.0kg
MFA06W80BA10/W-UK
MFA06W90BA/W-UK
03
DANGER
This symbol indicates that there are dangers to the life and health of
persons due to extremely flammable gas.
WARNING OF ELECTRICAL VOLTAGE
This symbol indicates that there is a danger to life and health of
persons due to voltage.
WARNING
The signal word indicates a hazard with a medium level of risk which, if
not avoided, may result in death or serious injury.
CAUTION
The signal word indicates a hazard with a low degree of risk which, if
not avoided, may result in minor or moderate injury.
NOTE
The signal word indicates important information (e.g. damage to
property), but not danger.
OBSERVE INSTRUCTIONS
This symbol indicates that a service technician should only operate and
maintain this appliance in accordance with the operating instructions.
Explanation of Symbols
Electric Shock Hazard
• If the machine is damaged, it must not be operated unless repaired by the
manufacturer, its service agent or similarly qualified persons.
• Risk of electric shock!
• Animals and children may climb into the machine. Check the machine before every
operation.
• Do not climb or sit on the appliance.
WARNING:
04
• All washing and additional substances are to be kept in a safe place out of the reach
of children.
• Keep the appliance clear from heating sources and direct sunlight to avoid plastic and
rubber parts to corrode.
• Do not use the appliance in humid environments or rooms containing explosive or
caustic gas. In case of water leakage or water splashes, let the appliance dry in the
open air.
• The appliance must not be installed behind a lockable door, a sliding door or a door
with a hinge on the opposite side to that of the machine .
• Do not operate the machine in rooms with a temperature of below 5°C. This can cause
damages to parts of it. If it is unavoidable, make sure to drain the water completely
from the appliance after every use (see“Maintenance - Cleaning of drain pump filter”)
to avoid damages caused by frost.
• Never use flammable sprays or substances in the immediate proximity of the
appliance.
Installation Location and Surrounding

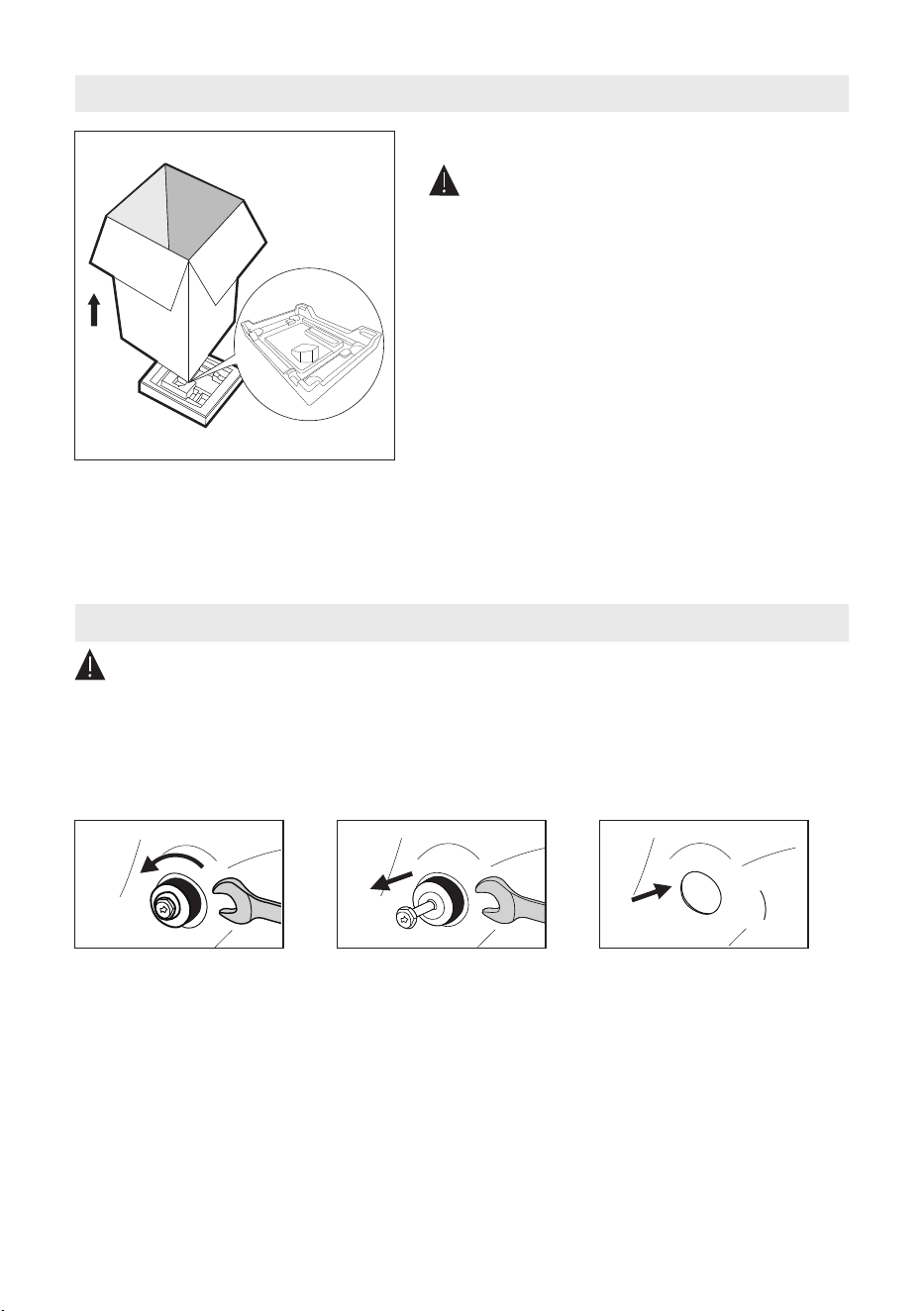

• Remove all packaging material and transport bolts before using the appliance.
Otherwise, serious damage may result.
• This appliance is equipped with a single inlet valve and can be connected to the cold
water supply only.
• Mains plug must be accessible after installation.
• Before washing clothes for the first time, the product shall be operated once
throughout all the procedures without any clothes inside.
• Before using the machine, the product shall be calibrated.
• Do not put any excessively heavy objects on the appliance, like water containers or
heating devices.
Installation
• Make sure the supply cable is not trapped by the machine, or it can get damaged.
• Connect the product to a grounded outlet protected by a fuse complying with the
values in the "Technical specifications” table. The grounding installation has to be
made by a qualified electrician. Ensure that the machine is installed in accordance
with the local regulations.
• Water and electrical connections must be carried out by a qualified technician in
accordance with the manufacturer's instructions and local safety regulations.
Electrical Connection
• Don´t use multiple plugs or extension cords.
• The appliance must not have an external switching device such as a timer or
connected to a circuit that is regularly switched on and off.
• Do not pull the plug out of the mains outlet if there is flammable gas around.
• Never pull out power plug with wet hands.
• Always pull at the plug, not at the cable.
• Always unplug the appliance if it is not being used.
WARNING:
05
• Check the connections of the water inlet tubes, the water tap and the outlet hose for
possible problems due to changes of water pressure. If the connections loosen or leak,
close the water tap and get it repaired.
• Do not use the appliance before the pipes and hoses are installed properly by
qualified persons.
• Glass door may become very hot during the operation. Keep children and pets far
away from the machine while it is operating.
• The water inlet and outlet hoses have to be safely installed and remain undamaged.
• Otherwise, water leakage can occur.
• Do not remove the drain pump filter while there is still water in the appliance. Big
quantities of water can leak out, and there is a risk of scalding due to hot water.
Water Connections
• Never use any flammable, explosive or toxic solvents. Do not use gasoline and alcohol
etc. as detergents. Only select detergents that are suitable for machine washing.
• Make sure that all pockets are emptied. Sharp and rigid items such as coins, brooches,
nails, screws, stones etc. may cause serious damages to this machine.
• Remove all objects from pockets such as lighters and matches before use the
appliance. Thoroughly rinse items that have been washed by hand.
Operation and Maintenance
• Items that have been soiled with substances such as cooking oil, acetone, alcohol,
petrol, kerosene, spot removers, turpentine, wax and wax removers should be washed
in hot with an extra amount of detergent before being dried in the appliance.
• Items containing foam rubber (latex foam), shower caps, water proof textiles, rubber
backed articles and clothes or pillows fitted with foam rubber pads should not be
washed in the machine.
• Fabric softeners or similar products should be used are recommended in their
instructions.
• Never try to open the door forcefully.
• The door will unlock shortly after the end of a cycle.
• Please do not close the door with excessive force. If it is found difficult to close the
door, please check if the clothes are properly inserted and distributed.
• Always unplug the appliance and close the water tap before cleaning and
maintenance and after each use.
• Never pour water over the appliance for cleaning purpose. Risk of electric shock!
• Repairs shall only be carried out by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
• The producer will not be responsible for damages caused by the intervention of not
authorized persons.
Transport
• Before Transport:
-Bolts shall be reinstalled to the machine by a specialized person;
-Accumulated water shall be drained out of the machine.
• This appliance is heavy. Transport with care. Never hold any protruding part of the
machine when lifting. The machine door can not be used as a handle.
SPECIFICATIONS
06

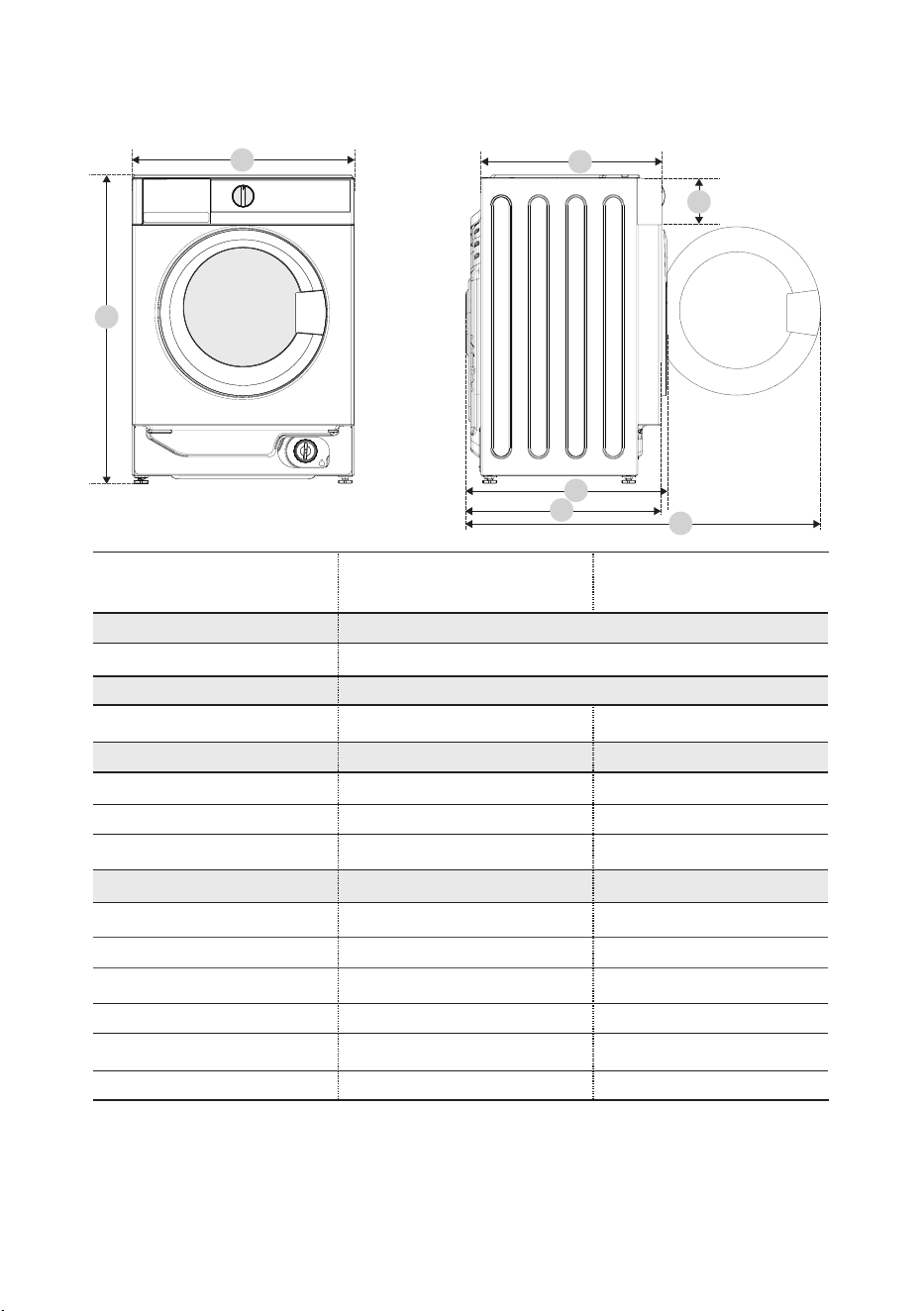

Model
Washing Capacity
Dimension
A
B
C
Weight
Rated Power
Reference Dimension
D
E
F
G
MFA06W80BA10/W-UK
A
B
E
F
D
G
C
8.0kg
595mm
825mm
535mm
60kg
1950W
540mm
521mm
985mm
135mm
MFA06W90BA/W-UK
9.0kg
595mm
825mm
560mm
60kg
1950W
565mm
546mm
1010mm
135mm
MAX. Current
Standard Water Pressure
Power Supply
220-240V~,50Hz
0.05MPa~1MPa
10A

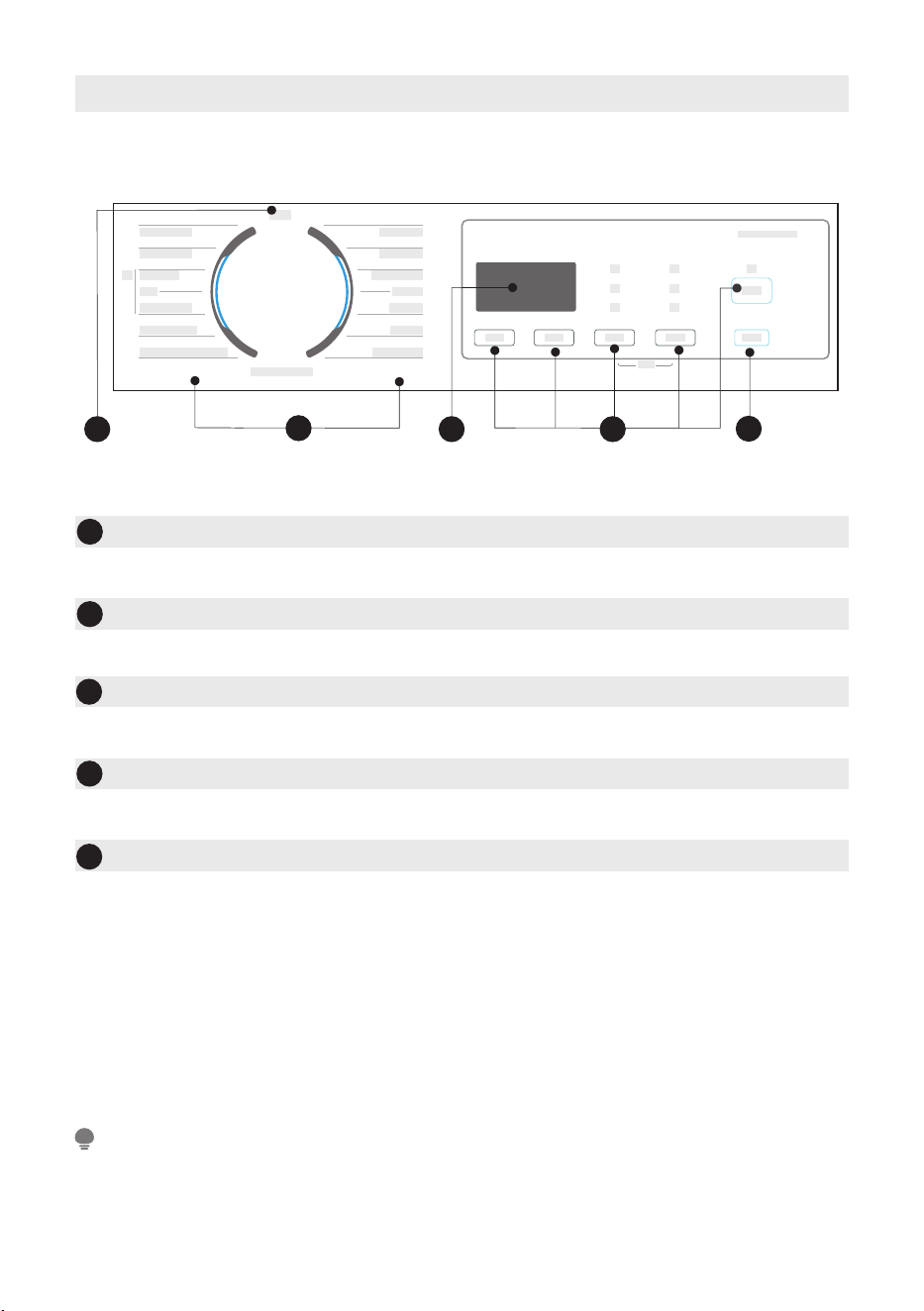

PRODUCT OVERVIEW
The product picture is for illustration only, please refer to real product as reference.
NOTE
07
1
2
4
5
1
2
3
4
5

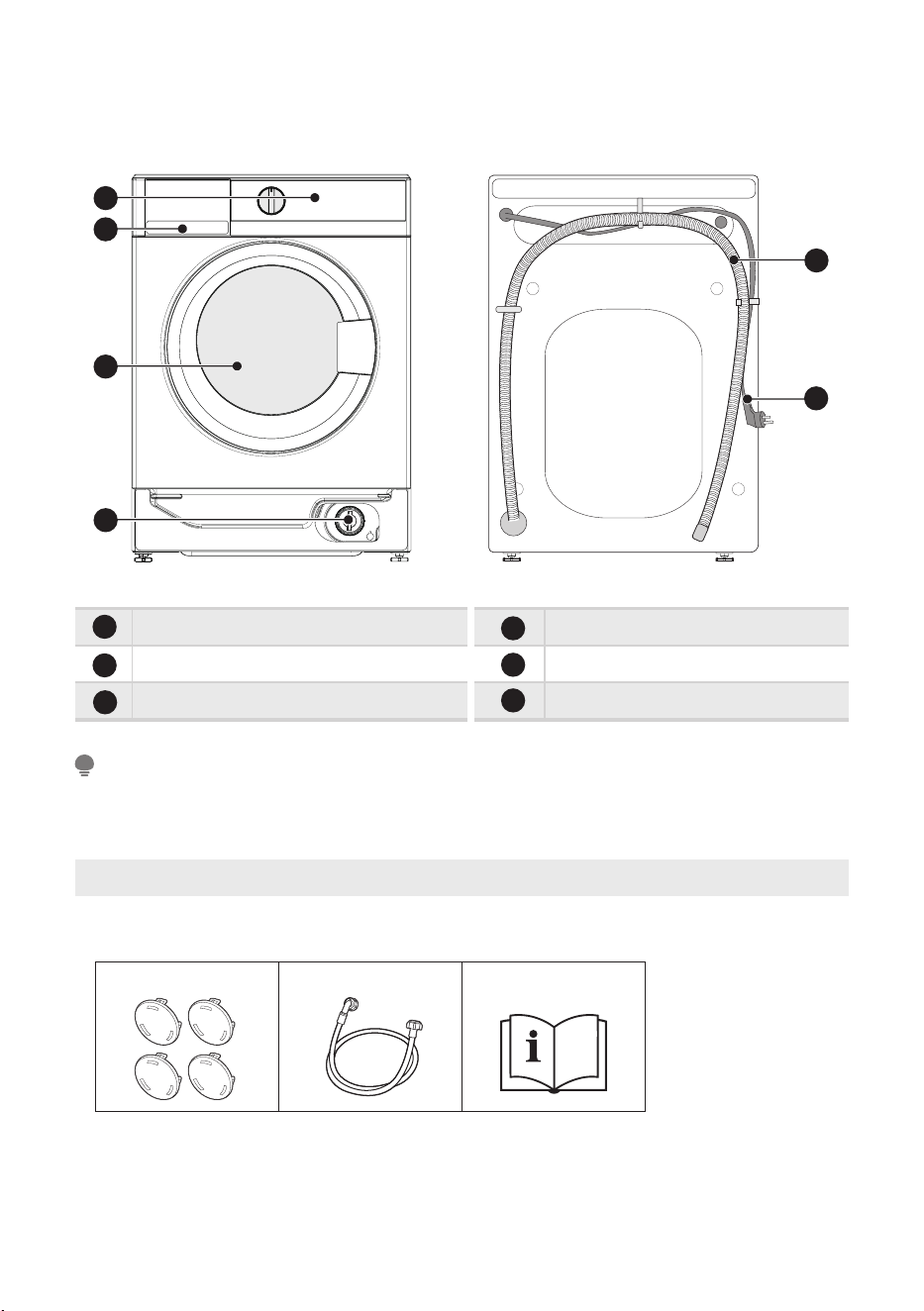

Door
Detergent dispenser
Control panel
Drain hose
Power supply cord
Service flap
6
6
Accessories
4 x Cover
caps
1 x Supply hose
cold water
1 x Owner’s
manual
3
08
QUICK START GUIDE
• Before washing, please make sure the machine is installed properly.
• Your appliance was thoroughly checked before it left the factory. To remove any
residual water and to neutralize potential odors, it’s recommended to clean your
appliance before first use. For this reason, recommended to clean the inner drum by
running the "DRUM CLEAN" or other program with the optional temperature of 90°C.
Be careful not to put laundry and detergent in the machine.
CAUTION
It’s recommended to calibrate the machine, so that provide the best performance.
The appliance is able to detect the amount of laundry loaded. This function is
optimizing the product performance by minimizing energy and water
consumption, saving you money and time. For this reason it’s recommended to
calibrate the appliance for best use.
1- Remove all accessories from the drum and close the door;
2- Insert the mains plug to the socket;

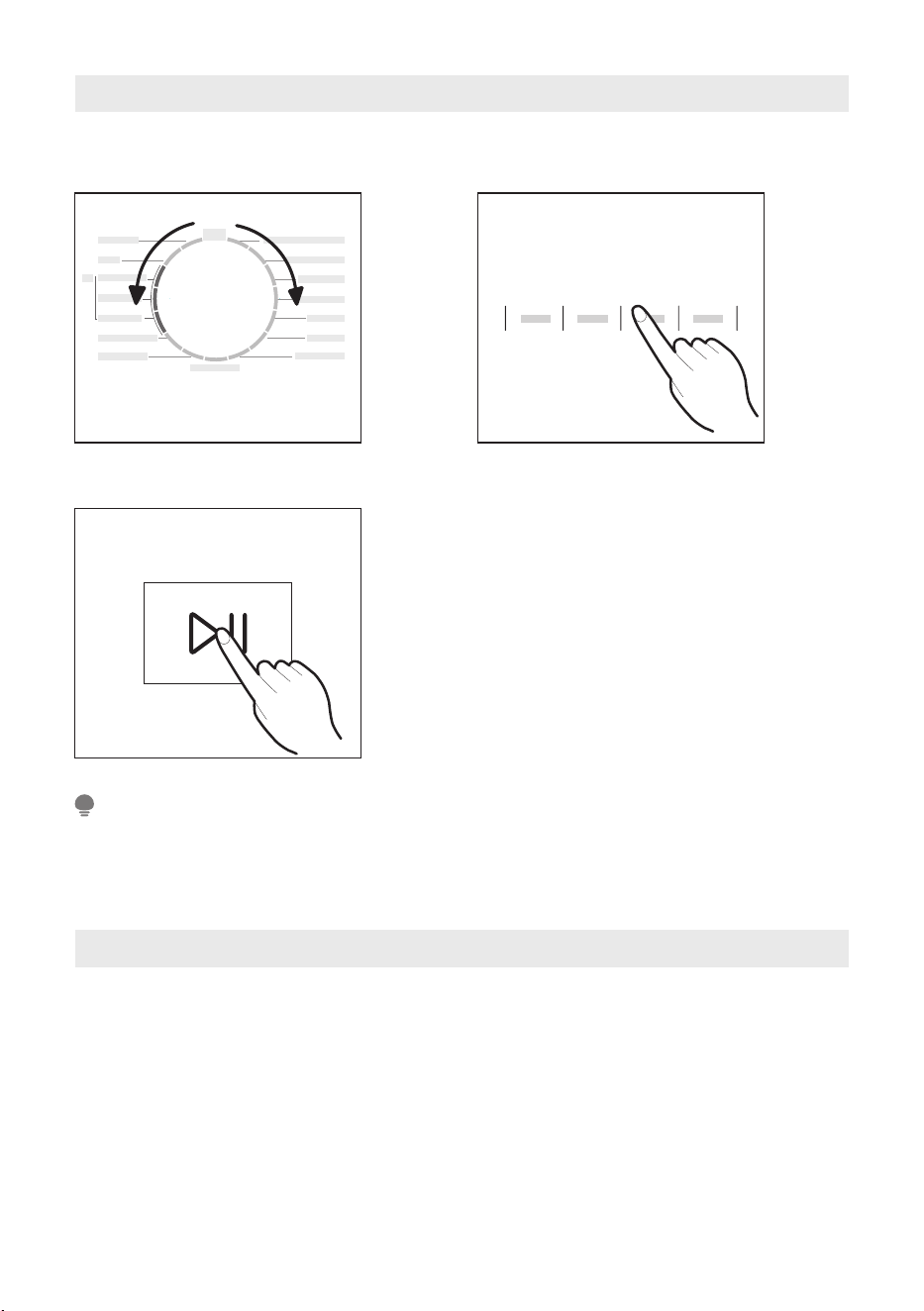

3- Switch on the washing machine, and within 10 seconds, press “Temp.” and “Steam”
simultaneously and continuously (normally 3 seconds) until “t19” is displayed.
4- Press to start the appliance, initially“***” is displayed, and then “***”
(such as “126”) is displayed to indicate the real time drum speed.
If the machine is successfully calibrated, “PAS” will be displayed,
otherwise, “FAL” will be displayed.
Calibration
09
4. Close door

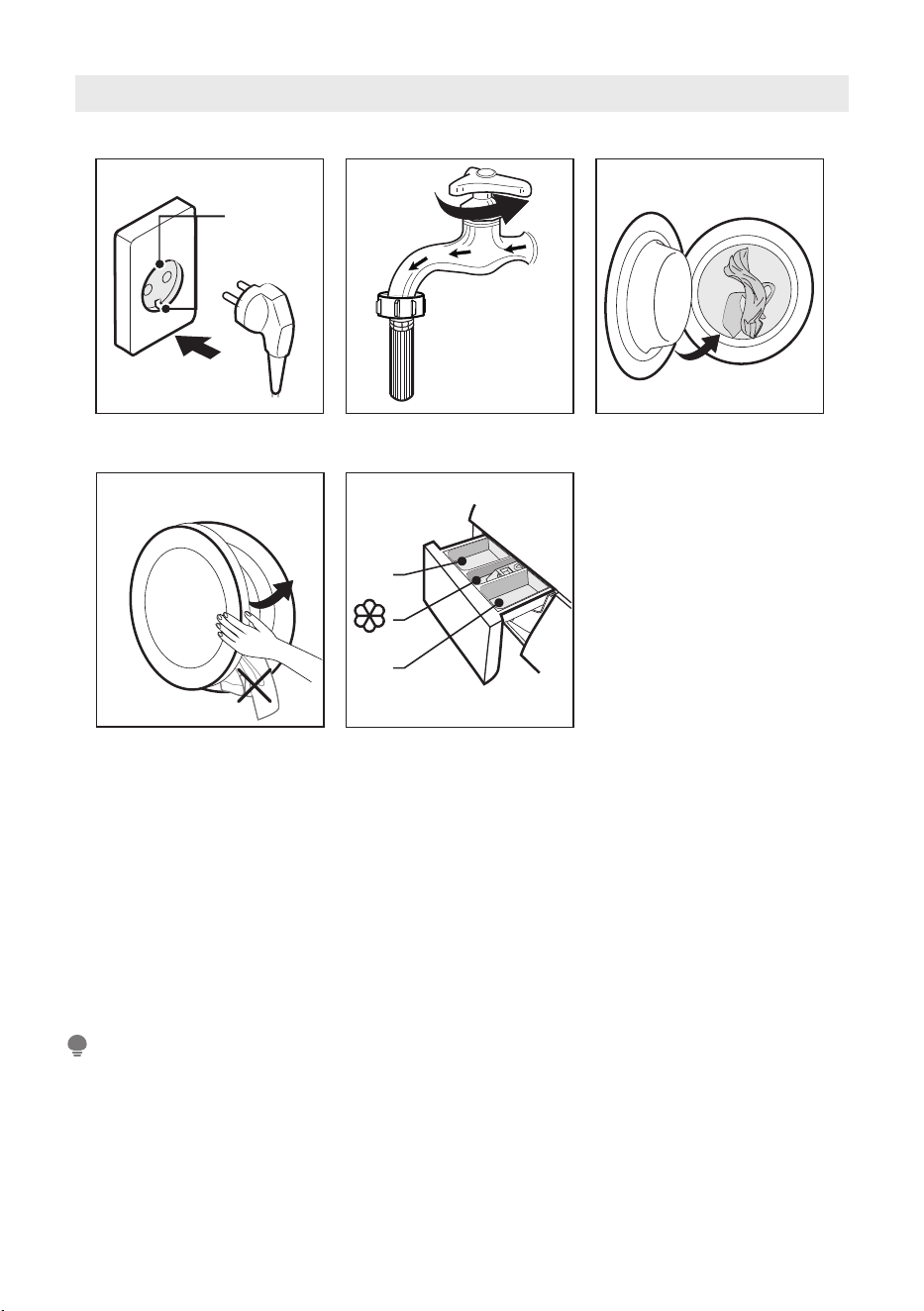

1. Before Washing
1. Plug in 2. Open tap 3. Load
•
•

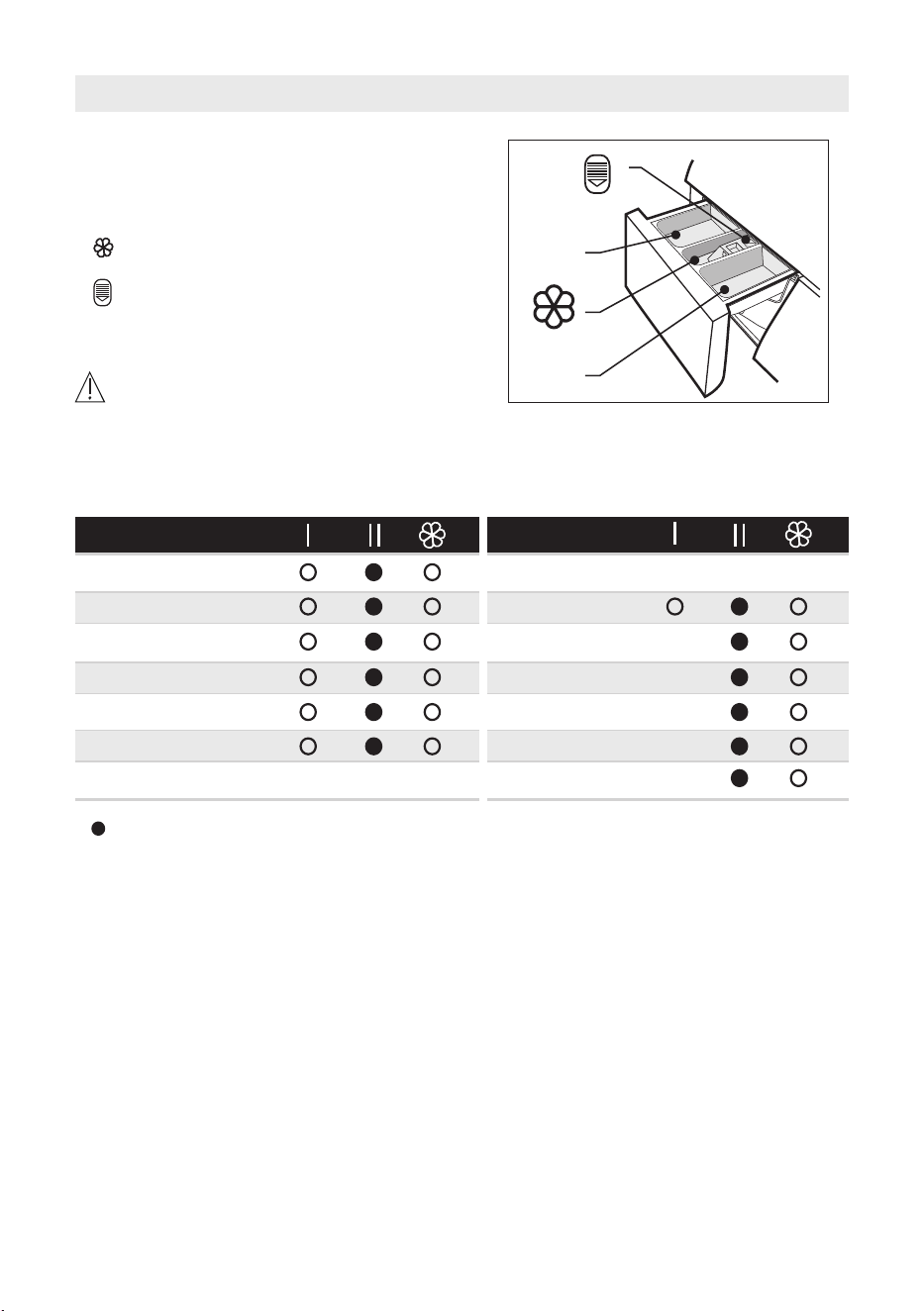

Detergent need to be added in compartment I if the pre-wash function is selected.
When closing the door, please make sure that your clothes are not caught
between the sealing ring and the machine door to prevent water leakage
caused by pulling and damaging the sealing ring during operation.
NOTE
5. Add detergent
Earth
terminal
Ⅱ
I
Main
wash
Prewash
Softener
• The picture is reference only, please refer to real product as standard.
10
3. After Washing
Buzzer beep and “End” on display.
1. Select programme
2. Select function or remain
default settings
2. Washing
3. Press Start/Pause to start
the program
1 : If default is selected, step 2 can be skipped.
2: The function button line chart is for reference only, please refer to real
product as standard.
NOTE
PRODUCT INSTALLATION
•
•
•
•

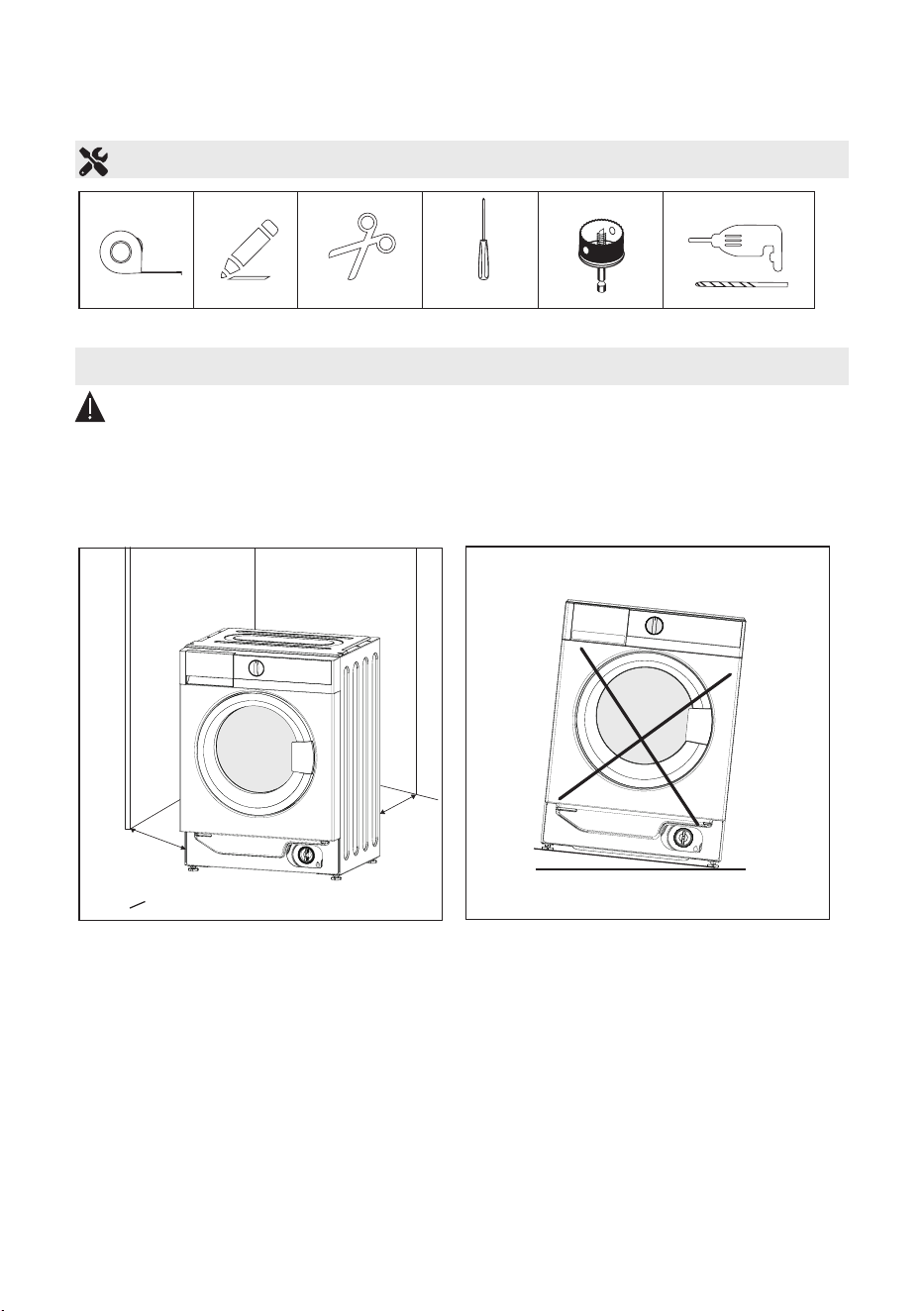

Stability is important to prevent the product from wandering!
Make sure the machine is standing leveled and stable.
Make sure that the product does not stand onto the power cord.
Make sure to maintain the minimum distances from the walls as shown in the picture.
Installation Area
WARNING
Tools Needed If Installation By Yourself (not include)
11
Before installing the machine, the location characterized as follows shall be selected:
1. Rigid, dry, and level surface.
2.Avoid direct sunlight.
3.Sufficient ventilation.
4.Room temperature is above 5 °C .
5.Keep far away from the heat sources such as coal or gas burning appliances.
w
w
W> 20mm
• Packaging material (e.g. Films, Styrofoam)
can be dangerous for children.
• There is a risk of suffocation ! Keep all
packaging well away from children.
1. Remove the cardboard box and styrofoam packing.
2. Lift the machine and remove the base packaging.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.
You must remove the transport bolts from the backside before using the product.
1. Loosen the 4
transport bolts with
a spanner.
3. Close the holes
using the cover caps.
2. Remove the bolts
including the rubber
parts and keep them
for future use.
Unpacking the Machine
Remove Transport Bolts
12
WARNING
WARNING
Levelling the Machine
The lock nuts on all four feet must be screwed tightly against the housing.
1. Loosen the lock nut.
2. Turn the foot until it reaches the floor.
3. Adjust the legs and lock the nuts with a spanner.
Make sure the machine is level using a spirit level.

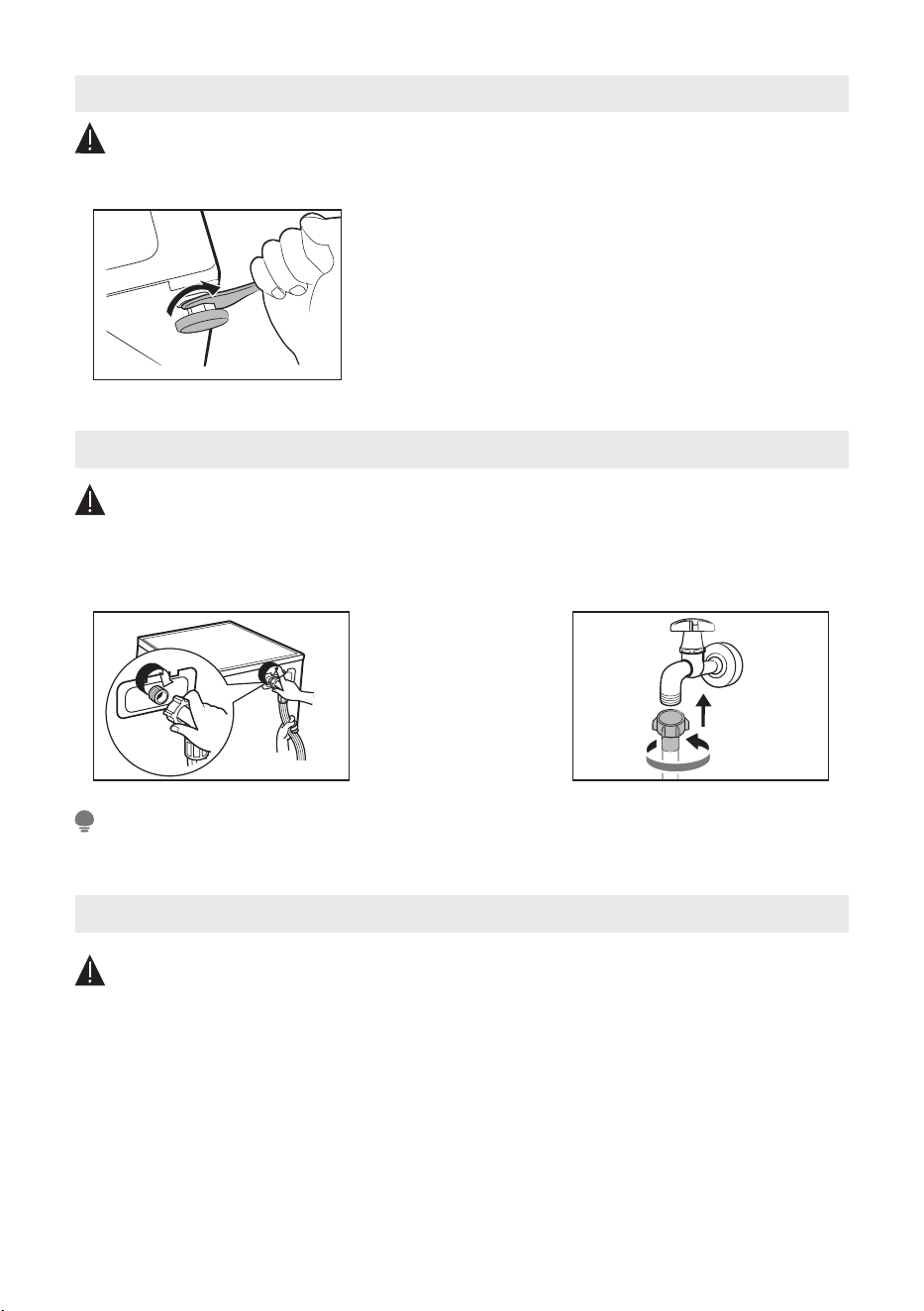

Connect the Water Supply Hose
To prevent leakage or water damage, follow the instructions in this chapter.
• Do not kink, crush or modify water inlet hose.
Connect the water
supply hose to the
water inlet valve and a
water tap with cold
water as indicated.
• Connect manually, do not use tools. Check if the connections are tight.
•
•
•
Do not kink or protract the drain hose.
Position drain hose properly ,otherwise damage might result in water leakage.
It is not allowed to remove the buckle of drain pipe.
NOTE
Drain Hose
13
WARNING
WARNING
WARNING

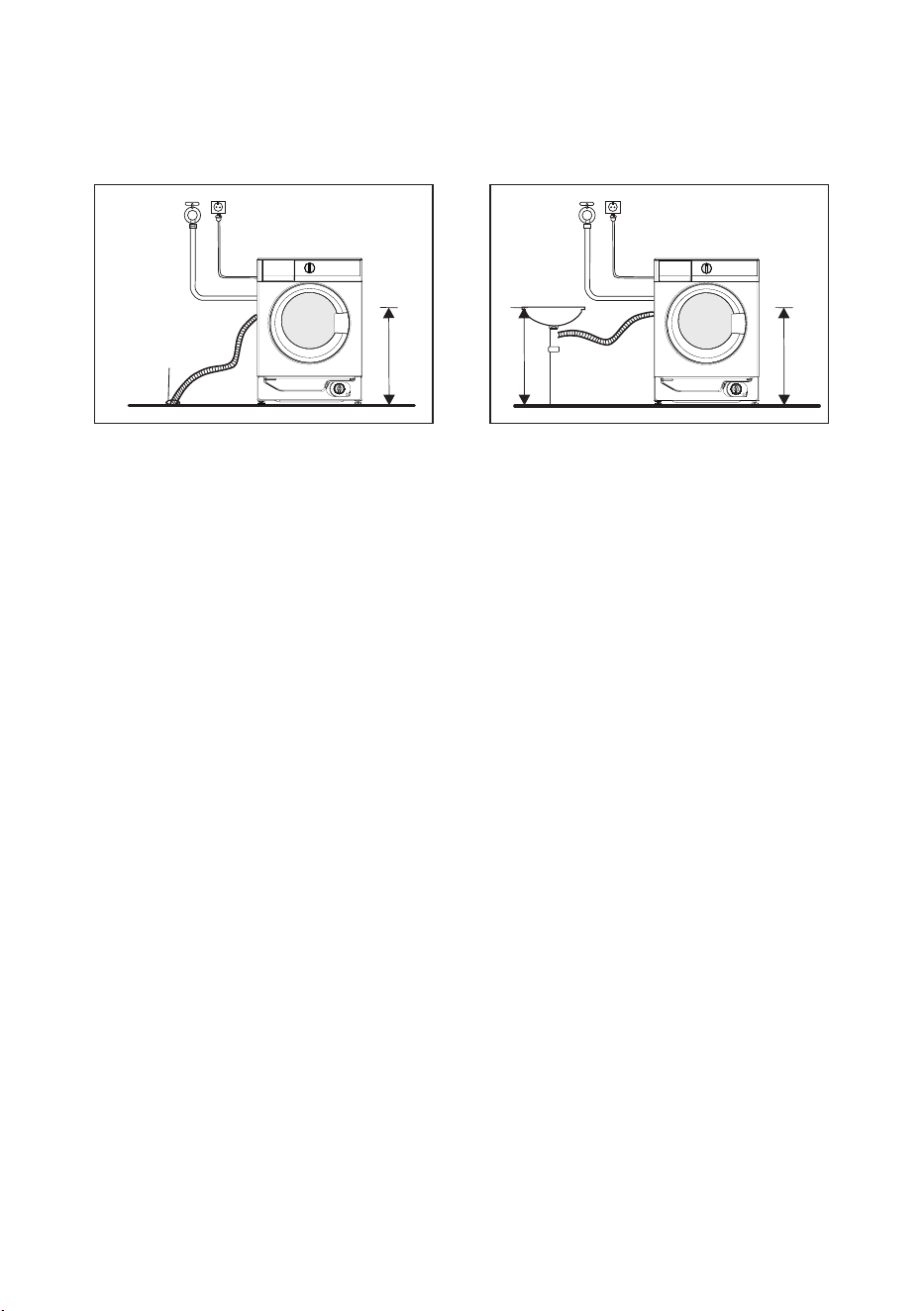

There are two ways to place the end of drain hose:
2.Connect it to the branch drain
pipe of the trough.
M
a
x
.
1
00
cm
Mi
n. 60
cm
Ma
x.
100
c
m
Water
trough
Max
.
10
0cm
Mi
n.
6
0
cm
1.Put it into the water trough.
14
OPERATION INSTRUCTIONS
• The ambient temperature of the machine should be 5 -40°C. If used under 0°C,
the inlet valve and draining system may be damaged. If the machine is installed
under freezing conditions, it should be transferred to normal ambient temperature
to ensure the water supply hose and drain hose can unfreeze before use.
• Please check your laundry care labels and the detergent use instructions before
wash. Use non-foaming or less-foaming detergent suitable for machine properly.
°C
3. Tie together long textile
strips and belts, close
zips and button

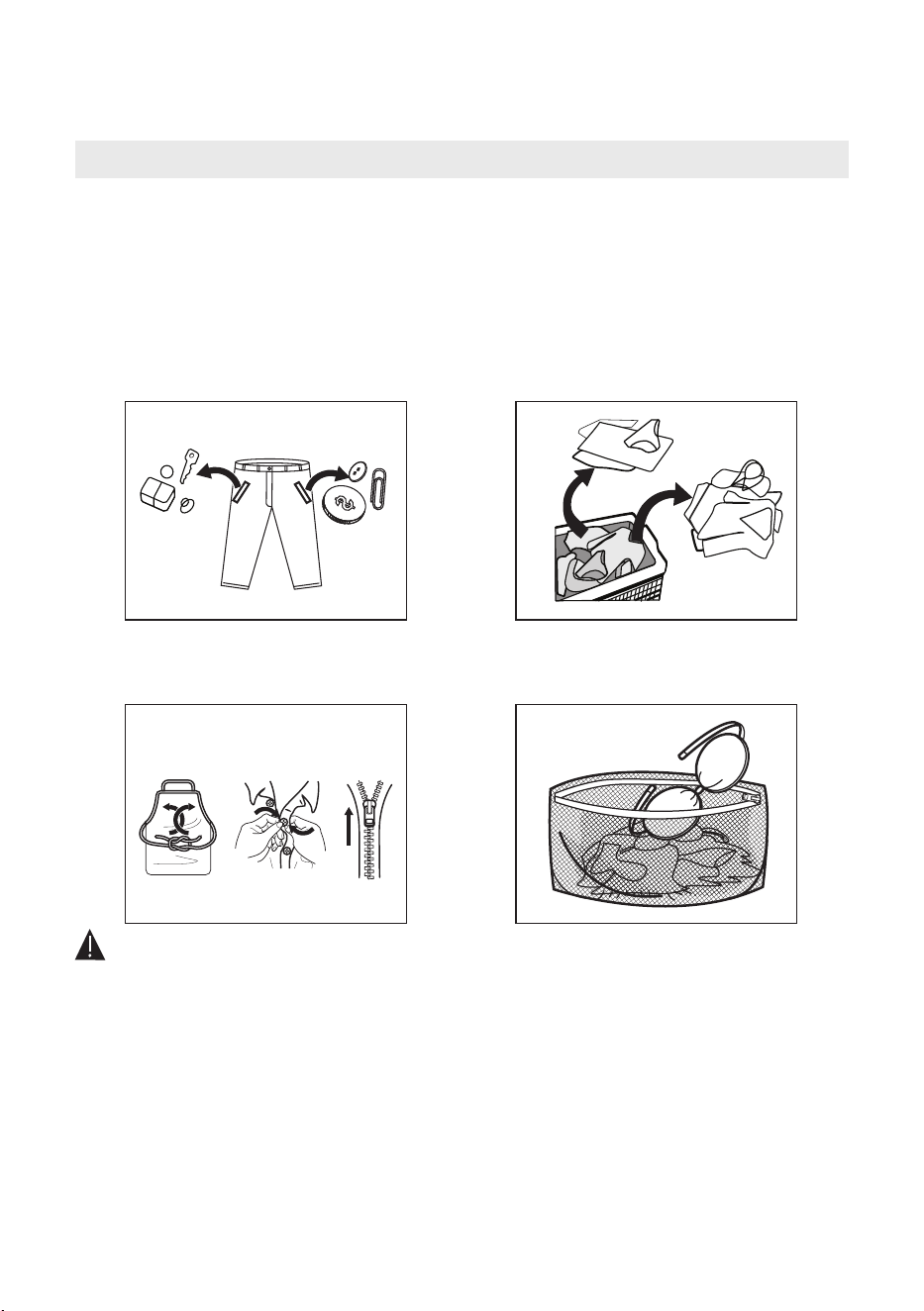

1. Take all items out of the
pockets
4. Put small items into a
laundry bag
Before Each Washing
2. Sort laundry according to
color and textile type
15
WARNING
• It is prohibited to wash clothes that adhere to any volatile or flammable substance
such as cleaning agent, dry cleaning agent, spot remover, acetone, gasoline, kerosene,
beauty oil, massage oil, animal oil, machinery oil, dry cleaning oil, volatile agent,
alcohol, turpentine, wax, wax remover, banana water, disinfectant tablets, resin, etc.
• Washing single clothes items may easily create big eccentricity. Therefore it is
suggested to add one or two more laundry items to the wash so that spin can be done
smoothly.
Do not wash, spin water-proof seats, mats ,or clothing. •
16
Pre wash
Main wash
Softener
I
Release button to
pull out the dispenser
CAUTION
Detergent Dispenser
Ⅱ
• Detergent only need to be added in “case I” after selecting pre-washing
for machines with this function.
• Do not put laundry beads into the detergent dispenser.
Means must ○ Means optional
Programme
COTTON
MIX
BABY CARE
20°C CARE+
PET HAIR REMOVAL
DRUM CLEAN
SYNTHETIC
Programme
SPIN ONLY
JEANS
DUVET
WOOL
ECO 40-60
RAPID 59'
QUICK 15'
Ⅱ
I
• The picture is reference only, please refer to real product as standard.
Detergent Recommendation
Agglomerating or ropy detergent or additive can be diluted in some water before
pouring it into the detergent dispenser, to avoid its inlet to get blocked and thus cause
a water overflow.
• Please choose the suitable type of detergent to get a maximum of washing
performance and a minimum of water and energy consumption.
• To achieve the best cleaning result a proper detergent dosing is important.
• Use a reduced detergent amount if the drum is not filled completely.
• Always adjust the amount of detergent to the water hardness, if your tap water is soft,
use less detergent.
• Dose according to how dirty your laundry is, less dirty clothes require less detergent.
• Highly concentrated (compact detergent) requires particularly accurate dosing.
Following symptoms are a sign of detergent overdosing:
- heavy foam formation
- poor washing and rinsing result
Following symptoms are a sign of detergent under dosing:
- laundry turns grey
- built-up of limescale deposits on the drum, the heating element and/or the laundry
•
Heavy-duty detergent
with bleaching agents
and optical brighteners
Colour detergent without
bleaching agent and
optical brighteners
Color or mild
detergent without
optical brighteners
Mild washing detergent
Special wool detergent
COTTON, ECO 40-60
COTTON
COTTON, SYNTHETIC
SYNTHETIC
WOOL
40 60/
20
20/40
Washing
temp. °C
Wash cycles
Recommended washing
detergent
Type of laundry
and textile
White laundry made
from boil-proof
cotton or linen
Coloured laundry
made from cotton
or linen
Coloured laundry
made from easy
care fibres or
synthetic materials
Delicate textiles,
silk, viscose
Wool
20/40
20/40
NOTE
17
Control Panel
18
NOTE
• The Chart is reference only, please refer to real product as standard.
1
1
2
1
4
5
3
OFF
Turn the appliance off.
Start/Pause
Start or pause your programme.
Programmes
Available according to the laundry type.
Option
This allows you to select additional functions.
Display
The display shows settings, estimated remaining time, options and status messages.
4
5
1 3
2
19

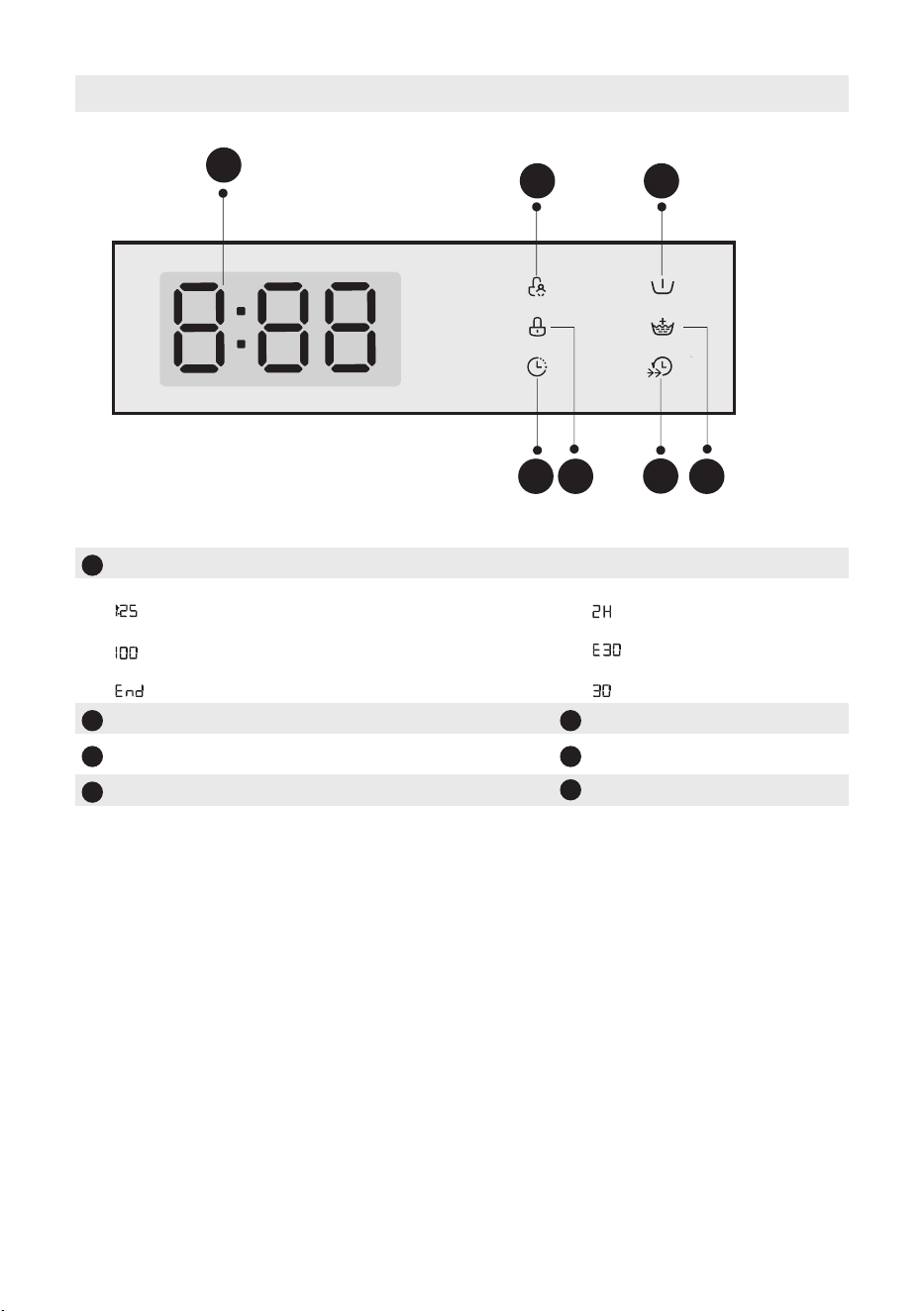

Display
A
B
C
D
E
G
F
Child Lock
B
Pre Wash
D
Display
A
Wash Time Delay Time
Speed Error
End Temp.
Door Lock
C
Extra Rinse
E
Speed Wash
F
Delay
G
20
maybe different with the parameters in above mentioned table.
• The parameters in this table are only for user's reference. The actual parameters
Programmes
Programme
Load (kg) Default Time (h:min)
NOTE
COTTON
MIX
BABY CARE
20°C CARE+
PET HAIR REMOVAL
DRUM CLEAN
SPIN ONLY
JEANS
DUVET
WOOL
ECO 40-60
RAPID 59'
QUICK 15'
SYNTHETIC
8.0
4.0
8.0
8.0
8.0
4.0
4.0
--
8.0
8.0
2.5
2.0
8.0
4.0
2.0
3:18
3:39
1:20
2:01
1:08
2:04
1:18
0:12
1:35
1:27
1:07
3:38
0:59
0:15
8.09.0
4.5
9.0
9.0
9.0
4.5
4.5
--
9.0
9.0
2.5
2.0
9.0
4.5
2.0
3:18
3:39
1:20
2:01
1:08
2:04
1:18
0:12
1:35
1:27
1:07
3:48
0:59
0:15
9.0
Programmes
21
actual use conditions.
• The values given for programmes other than the ECO 40-60 programme are
indicative only.
• 20°C CARE+ is able to clean lightly soiled cotton laundry, at a nominal temperature of
20 °C, which complies with the regulation (EU) 2019/2023.
• Concerning to EN 60456:2016/A11:2020 With(EU) 2019/2014, (EU) 2019/2023,
(EU) 2021/340, (EU) 2021/341,
The EU energy efficiency class is: A
Energy test program: ECO 40-60. Other as the default.
Half load for 8.0kg machine:4.0kg.
Quarter load for 8.0kg machine:2.0kg.
• The above data is for reference only, and the data may change due to different
Cycle
Nominal capacity in
kg
Temperature setting
℃
Cycle duration in
hours and minutes
Energy consumption
in kWh/operalling
cycle
Water consumption
in liter/operalling
cycle
Highest temperature
1)
℃
Residual moisture in
2)
% /spin speed
COTTON
3)
ECO 40-60
8.0
8.0
4.0
2.0
8.0
4.0
2.0
--
--
--
3:39
1:20
1:08
0:15
2:48
3:38
2:48
0.998
0.754
0.195
0.030
0.699
0.348
0.186
35
29
24
71
71
44
31
61.0
45.0
36.0
60%/1400
65%/1000
70%/800
53.9%/1351
65%/1000
40
40
20
Cold
20°C CARE+
MIX
QUICK 15'
MFA06W80BA10/W-UK
8.0
2:01 1.317
71
65%/1000
60
BABY CARE
53.9%/1351
53.9%/1351
40
40
20
Cold
60
Programmes
22
actual use conditions.
• The values given for programmes other than the ECO 40-60 programme are
indicative only.
• 20°C CARE+ is able to clean lightly soiled cotton laundry, at a nominal temperature of
20 °C, which complies with the regulation (EU) 2019/2023.
• Concerning to EN 60456:2016/A11:2020 With(EU) 2019/2014, (EU) 2019/2023,
(EU) 2021/340, (EU) 2021/341,
The EU energy efficiency class is: A
Energy test program: ECO 40-60. Other as the default.
Half load for 9.0kg machine:4.5kg.
Quarter load for 9.0kg machine:2.5kg.
• The above data is for reference only, and the data may change due to different
Cycle
Nominal capacity in
kg
Temperature setting
℃
Cycle duration in
hours and minutes
Energy consumption
in kWh/operalling
cycle
Water consumption
in liter/operalling
cycle
Highest temperature
1)
℃
Residual moisture in
2)
% /spin speed
COTTON
3)
ECO 40-60
9.0
9.0
2.0
9.0
4.5
2.5
--
--
--
3:44
1:20
0:15
2:54
3:48
2:54
1.603
0.813
0.030
0.805
0.495
0.230
38
30
24
78
78
31
68.0
47.0
36.0
53%/1400
70%/800
70%/800
53.9%/1351
60
40
Cold
MIX
QUICK 15'
MFA06W90BA/W-UK
9.0
2:01 1.423
78
65%/1000
60
BABY CARE
53.9%/1351
53.9%/1351
60
40
Cold
60
4.5
1:08 0.201
48
65%/1000
20
20°C CARE+
20
Programmes
23
1) The highest temperature reached by the laundry in the wash cycle for at least 5
minutes.
2) Residual moisture after the wash cycle in water content percent and the spin
speed at which this was achieved.
3) The ECO 40-60 programme is able to clean normally soiled cotton laundry
declared to be washable at 40°C or 60°C, together in the same cycle. This
programme is used to assess the compliance with the regulation (EU) 2019/2023.
The most efficient programmes in terms of energy consumption are generally
those that perform at lower temperatures and longer duration.
Loading the household washing machine up to the capacity indicated for the
respective programmes will contribute to energy and water savings.
Noise and remaining moisture content are influenced by the spinning speed: the
higher the spinning speed in the spinning phase, the higher the noise and the
lower the remaining moisture content.
• If there is any break in the power supply while the machine is operating, a special
memory stores the selected programme. The machine will continue the programme
when the power supply is re-established.
CAUTION
24
Programmes are available according to the laundry type.
Programmes
QUICK 15'
WOOL
MIX
RAPID 59'
Hard-wearing textiles, heat-resistant textiles made of cotton or linen.
Washing few and not very dirty clothes quickly.
Wash synthetic articles, for example: shirts, coats, blending. While
washing the knitting textiles, detergent quantity shall be reduced
due to its loose string construction and easily forming bubbles.
Washing the baby’s clothes, it can make the baby's wear cleaner.
and make the rinse performance better to protect the baby skin.
Specially for jeans.
Mixed load consisting of textiles made of cotton and synthetics.
Able to clean lightly soiled cotton laundry, at a nominal temperature
of 20 °C.
Clean the pet hair and fur from clothing deeply, restrain growth of
germ.
Extra short programme approx, suitable for lightly soiled washing as
a small amounts of laundry.
This program is specially designed for washing duvet coats.
Hand or machine-washable wool or richwool textiles.Especially
gentle wash programme to prevent shrinkage, longer programme
pauses (textiles rest in wash liquor).
Spins and drains the water.
SPIN ONLY
BABY CARE
PET HAIR
REMOVAL
SYNTHETIC
JEANS
DUVET
20°C CARE+
COTTON
ECO 40-60
Able to clean normally soiled cotton laundry declared to be washable
at 40 °C or 60 °C, together in the same cycle.
DRUM CLEAN Specially set in this machine to clean the drum and tube. It applys
90 °C high temperature sterilization to make the clothes washing more
green. When this programme is performed, the clothes or other
washing cannot be added. The customer can use this programme
regularly according to the need.
NOTE
•
• When the programme is finished , “End” will appear on the display, please select the
knob to the Off position.
The Chart is reference only, please refer to real product as standard.
Option
25
Default spin
speed (rpm)
Cycle
Default
Temp.(℃)
Additional
functions
40
40
40
60
20
40
90
--
30
40
40
--
30
Cold
1200
1400
1000
1000
1000
1200
--
1000
800
800
600
--
1000
800
COTTON
MIX
BABY CARE
20°C CARE+
PET HAIR REMOVAL
DRUM CLEAN
SPIN ONLY
JEANS
DUVET
WOOL
ECO 40-60
RAPID 59'
QUICK 15'
SYNTHETIC
•
program, please refer to the content on the Product Fiche page.
• The table shows which cycle offers which options for adjustment.
For the maximum spin speed, program time, and other details of the ECO 40-60
NOTE
26
Temp.
When needed, the washing temperature can be adjusted by pressing the
temperature button in the following steps: Cold - 20°C - 30°C- 40°C - 60°C - 90°C.
Speed
Delay End
1. Select a programme.
2.Press the Delay End button to choose the delaying time 0-24H.
3.Press [Start/Pause] to start the delay end operation.
Pre Wash
Note: Detergent needs to be added to the compartment I.
Extra Rinse
The laundry will undergo an extra rinse after selecting this function.
Choose programme
To cancel the function, press the “Delay End” button before starting
the program until the display shows 0 H. If the program has already started,
switch the appliance off and afterwards on and select a new programme.
Delay End
Setting time Start
Extra washing function before the main washing cycle starts to increase the
washing performance.
Speed
When needed, the spinning speed can be adjusted pressing the Speed
button in the following steps: 1400:0-400-600-800-1000-1200-1400
Delay End
Delay End
Speed Wash
The function can decrease the washing time.
My Cycle
To memory the frequently used programme. After choosing the programme and
setting the option, press [Temp.] button 3 sec. before start to wash.
The default setting course is COTTON.
Steam
Steam is applicable for daily laundries.
The steam can deeply penetrate the fiber, which effectively eliminate bacterias
and germs, preventing odors and protecting your health.
Usage counter
NOTE
Function
Press [Funct.] to select “Pre Wash”, “Speed Wash” or “Extra Rinse”.
Funct.
1:Please press on control panel simultaneously and continuously
for around 5sec. under power-on status, the device display shows digits--the value can
indicate the times of equipment usage.
2.Press " Speed " and "Steam" on control panel simultaneously and continuously for
around 5sec. and customer can resume to normal operation.
" Speed " and "Steam"
27
CAUTION
Child Lock
To avoid mis operation by children.
Mute the buzzer
To act the buzzer function, press the button again for 3 seconds. The setting
until the next reset.will be kept
• MuAfter ting the buzzer function, the sounds will not be activated any more.
CAUTION
Funct.
DelayEnd
When the Child Lock is activated, the display will alternately show “CL” and the
remaining time.
Pressing any other button will cause the Child Lock indicator to flash.
When the program ends, “CL” and “End” will alternate on the display.
The Child Lock deactivates the function of all buttons except the Child lock button!
Only the simultaneous pressing of the two buttons can deactivate the Child Lock!
Please deactivate the Child Lock before selecting a new program!
Press [Delay End] and [Funct.] simultaneously for 3 sec
until the buzzer beep. The child lock indicator switches on.
Speed
Choose the Programme
Press the [Speed]button for 3sec.,
the buzzer is mute.
Product Fiche
b
Rated capacity( )(kg)
a , c
Dimensions in cm( )( )
Height
Width
Depth
b
Energy efficiency index( )
(EEI )
w
b
Energy efficiency class( )
b
Washing efficiency index( )
b
Rinsing effectiveness (g/kg)( )
Energy consumption in kWh per
cyele, based on the eco 40-60
programme. Actual energy
consumption will depend on how
the appliance is used.
Water consumption in litre per cycle,
based on the eco 40-60 programme.
Actual water consumption will depend
on how the appliance is used and on
the hardness of the water.
Maximum temperature inside the
b
treated textile ( )(℃)
Rated
capacity
Half
Quarter
Weighted remaining moisture
b
content ( )(%)
b
Spin speed( )(rpm)
b
Spin-drying efficiency class ( )
b
Programme duration( )(h:min)
Type
Airborne acoustical noise
a
emissions in the spinning phase( )
(dB(A) re l pW)
Airborne acoustical noise
b
emission class ( )(spinning phase)
Off-mode (W) (if applicable)
Delay start (W) (if applicable)
Standby mode (W)(if applicable)
Networked standby (W)(if applicable)
a , c
Minimum duration of the guarantee offered by the supplier ( ) ( ):
This product has been designed to release silver
ions during the washing cycle
Additional information:
Weblink to the supplier's website, where the information in point 9 of Annex ll to Commission Regulation
(EU)2019/2023(1) is found:
a
( )
b
( ) for the eco 40-60 programme.
c
( ) changes to this item shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation
(EU)2017/1369.
d
( ) it the product database automatically generates the definitive content of this cell, the supplier shall not enter
these data.
this item shall not be considered relevant for the purposes of Article 2(6) of Regulation (EU) 2017/1369,
a , c
Supplier's name or trade mark( )( ):
a , c
Supplier's address( )( ):
a
Model identifier( ):
General product parameters:
MFA06W80BA10/W-UK
Parameter Value Parameter Value
Rated
capacity
Half
Quarter
Rated
capacity
Half
Quarter
8.0
46.6
1.031
0.424
35
29
24
1351
1351
1351
3:38
2:48
2:48
72
0.50
4.00
NO
N/A
0.50
A
d
( )
built-in
B
d
( )
53.9
48
5.0
A
d
( )
83
60
54
1) The actual energy consumption will depend on how the appliance is used.
2) The actual water consumption will depend on how the appliance is used and on the
hardness of the water.
3) Delivery of the spare parts within 15 working days after having received the order.
Product Data Sheet concerning (EU) 2019/2014
The product data sheet for your appliance can be found online.
Go to https://eprel.ec.europe.eu and enter the model identifier for your appliance to
download the data sheet.
The model identifier for your appliance can be found in the technical specifications
section.
28
b
Rated capacity( )(kg)
a , c
Dimensions in cm( )( )
Height
Width
Depth
b
Energy efficiency index( )
(EEI )
w
b
Energy efficiency class( )
b
Washing efficiency index( )
b
Rinsing effectiveness (g/kg)( )
Maximum temperature inside the
b
treated textile ( )(℃)
Rated
capacity
Half
Quarter
Weighted remaining moisture
b
content ( )(%)
b
Spin speed( )(rpm)
b
Spin-drying efficiency class ( )
b
Programme duration( )(h:min)
Type
Airborne acoustical noise
b
emissions in the spinning phase( )
(dB(A) re l pW)
Airborne acoustical noise
b
emission class ( )(spinning phase)
Off-mode (W) (if applicable)
Delay start (W) (if applicable)
Standby mode (W)(if applicable)
Networked standby (W)(if applicable)
a , c
Minimum duration of the guarantee offered by the supplier ( ) ( ):
This product has been designed to release silver
ions during the washing cycle
Additional information:
Weblink to the supplier's website, where the information in point 9 of Annex ll to Commission Regulation
1
(EU)2019/2023( ) is found:
a
( )
b
( ) for the eco 40-60 programme.
c
( ) changes to this item shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation
(EU)2017/1369.
d
( ) it the product database automatically generates the definitive content of this cell, the supplier shall not enter
these data.
this item shall not be considered relevant for the purposes of Article 2(6) of Regulation (EU) 2017/1369,
a , c
Supplier's name or trade mark( )( ):
a , c
Supplier's address( )( ):
a
Model identifier( ):MFA06W90BA/W-UK
General product parameters:
Parameter Value Parameter Value
Rated
capacity
Half
Quarter
Rated
capacity
Half
Quarter
9.0
72
0.50
4.00
NO
N/A
A
d
( )
d
( )
5.0
A
d
( )
83
60
56
Energy consumption in kWh per
cycle, based on the eco 40-60
programme at a combination of
full and partial loads. Actual
energy consumption will depend
on how the appliance is used.
Water consumption in litre per cycle,
based on the eco 40-60 programme at
a combination of full and partial loads.
Actual water consumption will depend
on how the appliance is used and on
the hardness of the water.
Product Fiche
38
30
24
1351
1351
1351
3:48
2:54
2:54
1) The actual energy consumption will depend on how the appliance is used.
2) The actual water consumption will depend on how the appliance is used and on the
hardness of the water.
3) Delivery of the spare parts within 15 working days after having received the order.
Product Data Sheet concerning (EU) 2019/2014
The product data sheet for your appliance can be found online.
Go to https://eprel.ec.europe.eu and enter the model identifier for your appliance to
download the data sheet.
The model identifier for your appliance can be found in the technical specifications
section.
51.9
1.031
0.494
50
5.0
A
B
53.9
29
built-in
N/A
CLEANING AND MAINTENANCE
• Always unplug the appliance and close the water tap before cleaning and maintenance.

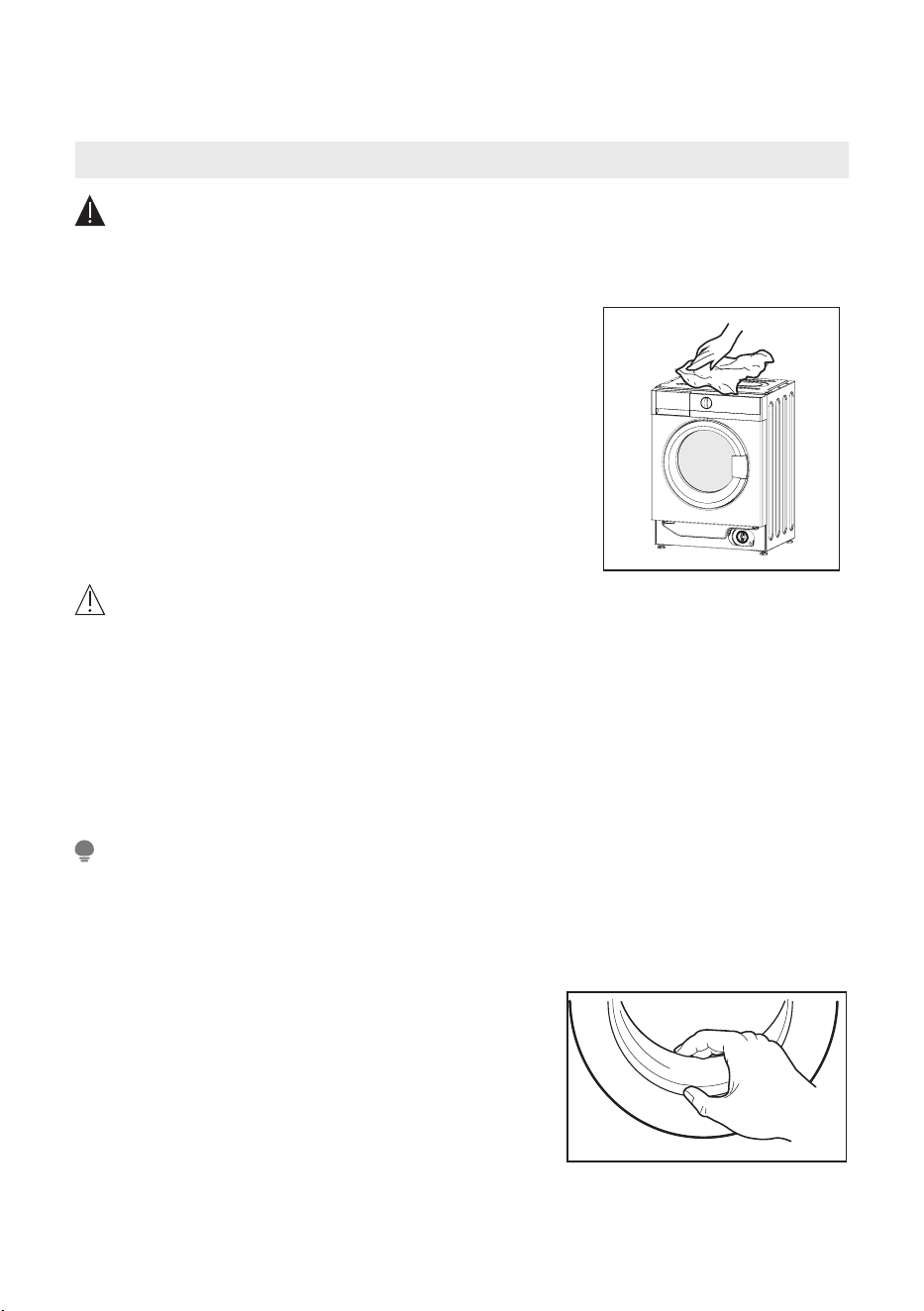

Cleaning the Cabinet
Cleaning the Drum
• Keep any laundry away from the machine while cleaning the drum.
Cleaning the Door Seal and Glass
Cleaning and Care
Any rust stains left inside the drum by metal articles must be removed immediately using
chlorine-free detergents. Never use steel wool for cleaning the drum!
Proper maintenance on the machine can extend its
working life. The surface can be cleaned with diluted non-
abrasive neutral detergents when necessary. If there is
any water overflow, use a towel to wipe it off immediately.
Never use sharp items to clean the appliance.
• Never use abrasive or caustic agents. Such as formic acids or its diluted solvents or
similar substances, like alcohol or chemical products.
Wipe the glass and seal after each wash to
remove lint and stains. If lint builds up it can
cause leakages.
Remove any coins, buttons and other objects
from the seal after each wash.
Clean the Door Seal and Glass every the machine
runs 60 times (appear C2 on control panel) to
ensure the normal operation of the appliance.
NOTE
WARNING
30
CAUTION

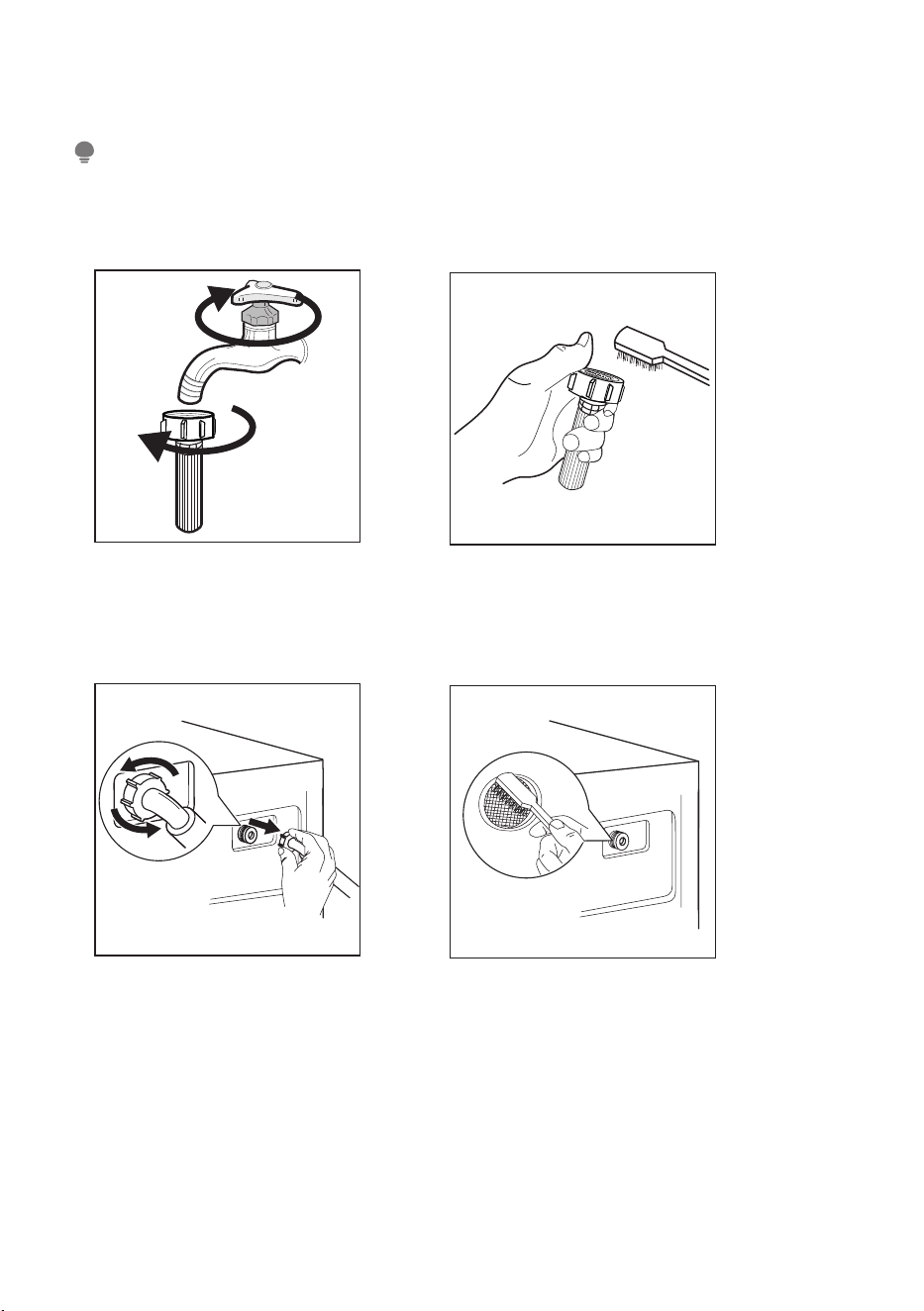

Cleaning the Inlet Filter
• Diminishing water flow is a sign that the filter needs to be cleaned.
1. Close the tap and remove
the water supply hose from it.
2. Clean the filter with a brush.
5. Reinstall the filter to the water inlet and reconnect the water supply hose.
6. Clean the Inlet filter every the machine runs 60 times (appear C2 on control panel) to
ensure the normal operation of the appliance.
3. Unscrew the water supply
hose from the backside of
the machine.
Pull out the filter with
long nose pliers.
4. Use a brush to clean the
filter.
NOTE
31
• Do not use abrasive or caustic agents to clean plastic parts.
•
panel) to ensure the normal operation of the appliance.
Clean the detergent dispenser every the machine runs 60 times (appear C2 on control
NOTE
32

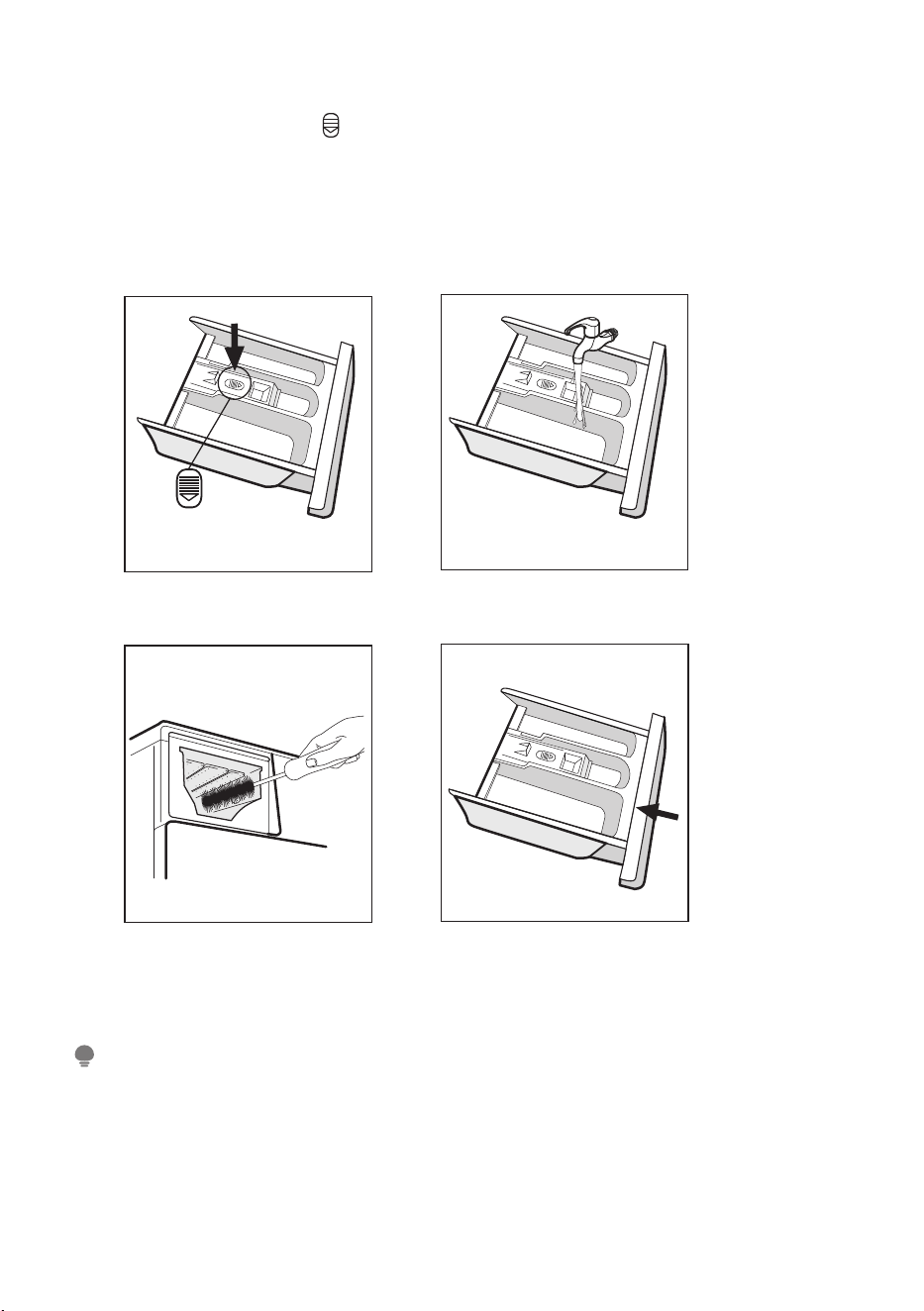

Cleaning the Detergent Dispenser
•
•
• Clean the inside of the recess with a brush.
•
Press down the release [ ] on the softener cover and pull the dispenser drawer out
of the recess.
Lift the softener cover off the dispenser drawer and wash both items with water.
Restore the softener cover and push the drawer back into the recess.
1. Press the release and
remove the dispenser
drawer
2. Clean the dispenser
drawer and the softener
cover under water
3. Clean the recess with
a soft brush
4. Insert the dispenser
drawer
• The picture is reference only, please refer to real product as standard.
33
Cleaning the Drain Pump Filter
•
and unplug it before cleaning the drain pump filter.
• Be careful of hot water. Wait for water cooling down. Risk of scalding!
• Clean the filter periodically every the machine runs 50 times (appear C1 on control
panel) to ensure the normal operation of the appliance.
Make sure that the machine has finished the washing cycle and is empty. Switch it off
WARNING
CAUTION

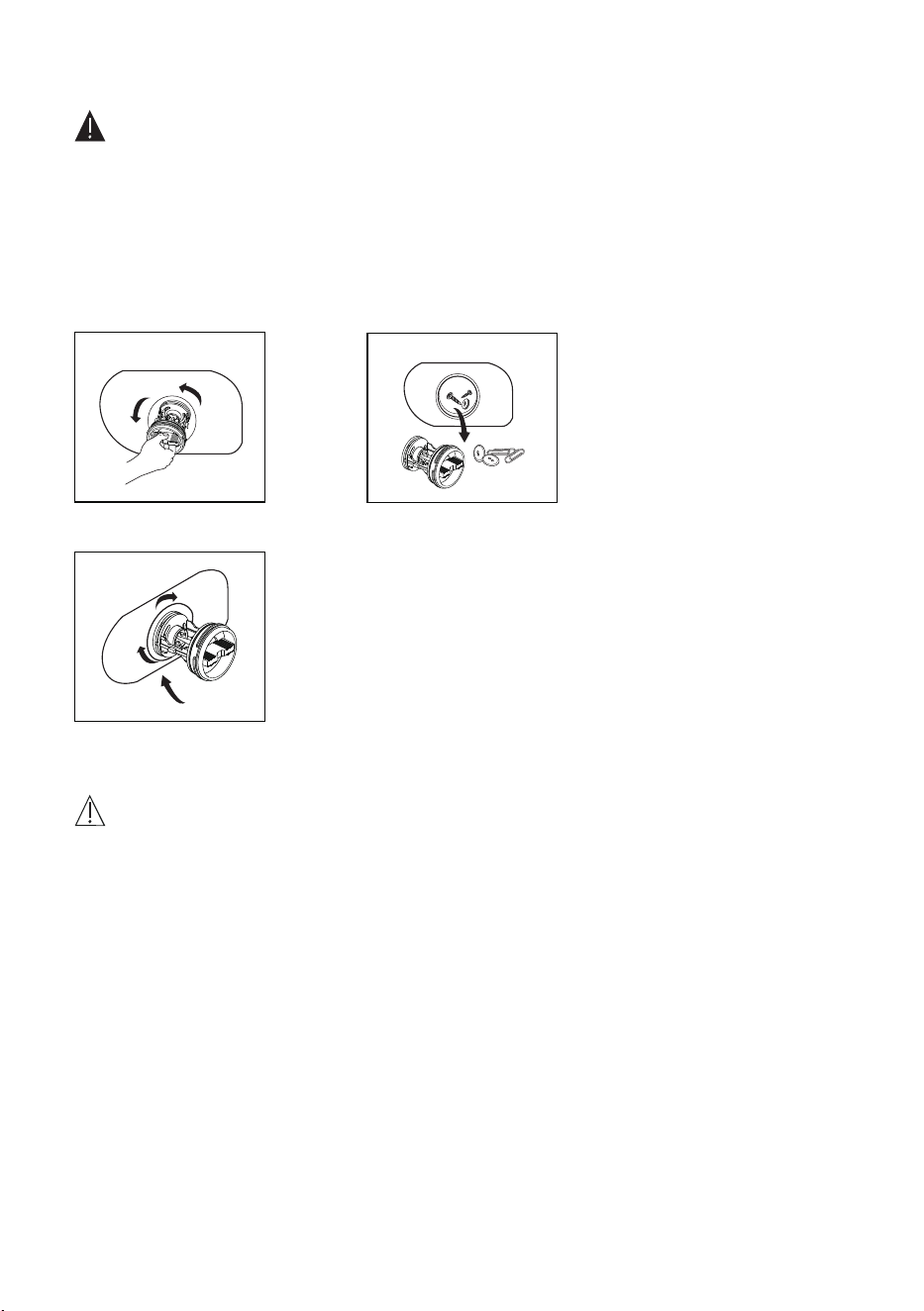

1.Open the filter by turning
to the counter clockwise
2.Remove extraneous matter
3.Close the lower cover cap
• When the appliance is in use and depending on the programme selected there can
be hot water in the pump. Never remove the pump cover during a wash cycle, always
wait until the appliance has finished the cycle, and is empty. When replacing the
cover, ensure it is securely re-tightened.
Whenever there is a problem with the appliance, check if you can solve it following the
tables below. If the problem persists, please contact the customer service.
Description
Possible Cause
Solution
Check if the water pressure
is high enough.
Straighten the water pipe.
Clean the inlet valve filter.
Check the drain hose for
blockage.
Water injecting
problem during
wash cycle.
Overtime water
draining
Restart the appliance. If
problem persists, please
contact the customer service.
Others
Water overflow
Restart the appliance.
Close the door properly
and restart.
Door is not closed
properly.
Description
Possible Cause
Solution
Close the door properly
and restart.
Check the laundry.
Door is not closed
properly.Clothes are
stuck.
Safety protection
is activated.
Disconnect the power and
restart.
Water leakage
Connections are
not tight enough.
Check and fasten the water
inlet pipe.
Check and clean the outlet hose.
Clean and wipe the
detergent dispenser dry.
Abnormal noise
Check if the fixing bolts
have been removed.
Make sure the appliance is
installed on a solid and
level floor.
Indicator or display
does not work
PC board or harness
have connection
problems.
Switch off the power and
check if the mains plug
is connected properly.
Appliance does
not start
Detergent residues
in the detergent
dispenser
Detergent is damp
and/or clotted.
Door can´t be
opened
Fixing bolts are still in
place.
Floor is not solid or level.
Error Codes
TROUBLE SHOOTING
34
TRADEMARKS, COPYRIGHTS
AND LEGAL STATEMENT
logo, word marks, trade name, trade dress and all versions thereof are valuable
assets of Midea Group and/or its affiliates (“Midea”), to which Midea owns trademarks,
copyrights and other intellectual property rights, and all good will derived from using
any part of an Midea trademark. Use of Midea trademark for commercial purposes
without the prior written consent of Midea may constitute trademark infringement or
unfair competition in violation of relevant laws.
This manual is created by Midea and Midea reserves all copyrights thereof. No entity or
individual may use, duplicate, modify, distribute in whole or in part this manual, or
bundle or sell with other products without the prior written consent of Midea.
All the described functions and instructions were up to date at the time of printing this
manual. However, the actual product may vary due to improved functions and designs.
35
DISPOSAL AND RECYCLING
Important Instructions for Environment
This symbol indicates that this product shall not be disposed with
other household wastes at the end of its service life. Used device
must be returned to offcial collection point for recycling of
electrical electronic devices. To find these collection systems
please contact to your local authorities or retailer where the
product was purchased. Each household performs important role
in recovering and recycling of old appliance. Appropriate disposal
of used appliance helps prevent potential negative consequences
for the environment and human health.
Compliance with RoHS Directive
The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does
not contain harmful and prohibited materials specified in the Directive.
Package Information
Packaging materials of the product are manufactured from recyclable
materials in accordance with our National Environment Regulations. Do not
dispose of the packaging materials together with the domestic or other
wastes. Take them to the packaging material collection points designated
by the local authorities.
Compliance with the WEEE Directive and Disposing of the Waster Product:
This product complies with EU WEEE Directive (2012/19/EU). This product bears a
classification symbol for waster electrical and electronic equipment (WEEE).
36
DATA PROTECTION NOTICE
For the provision of the services agreed with the customer,
we agree to comply without restriction with all stipulations of applicable data protection
law, in line with agreed countries within which services to the customer will be delivered,
as well as, where applicable, the EU General Data Protection Regulation (GDPR).
Generally, our data processing is to fulfil our obligation under contract with you and for
product safety reasons, to safeguard your rights in connection with warranty and
product registration questions. In some cases, but only if appropriate data protection is
ensured, personal data might be transferred to recipients located outside of the
European Economic Area.
Further information are provided on request. You can contact our Data Protection
Officer via MideaDPO@midea.com. To exercise your rights such as right to object your
personal date being processed for direct marketing purposes, please contact us via
[email protected]om. To find further information, please follow the QR Code.
37

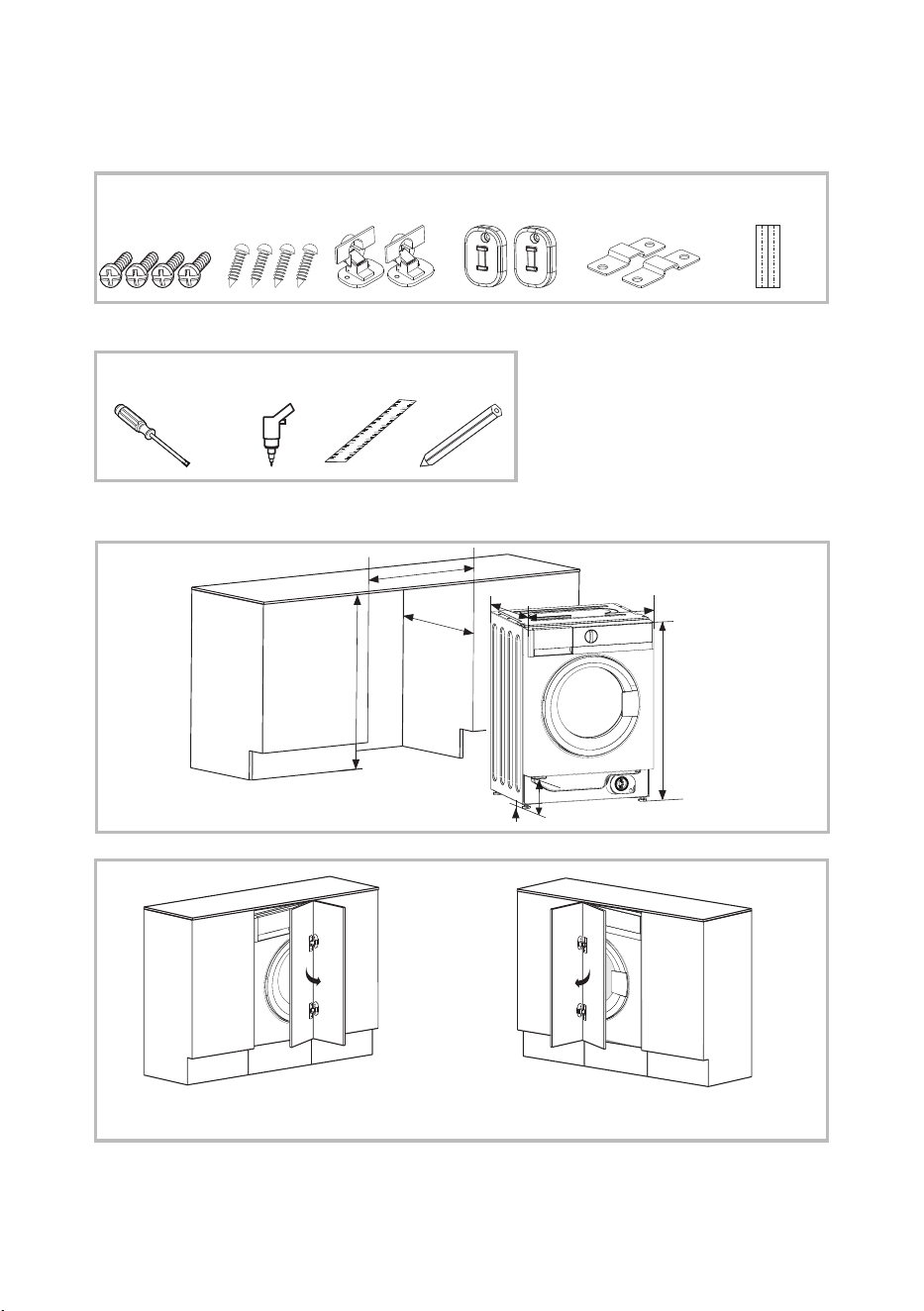

Appendix
Self-tapping
screws(ST4*12)
Self-tapping
screws(M5*12)
Hinges
Counter magnet Spacer
Fixed position
paper
Tool
Screw driver
Automatic driver Ruler Pencil
Built-in installation
Install Steps
Overview
1
8
2
5
mm
600mm
5
40
m
m
17.5mm
58 0mm
825mm

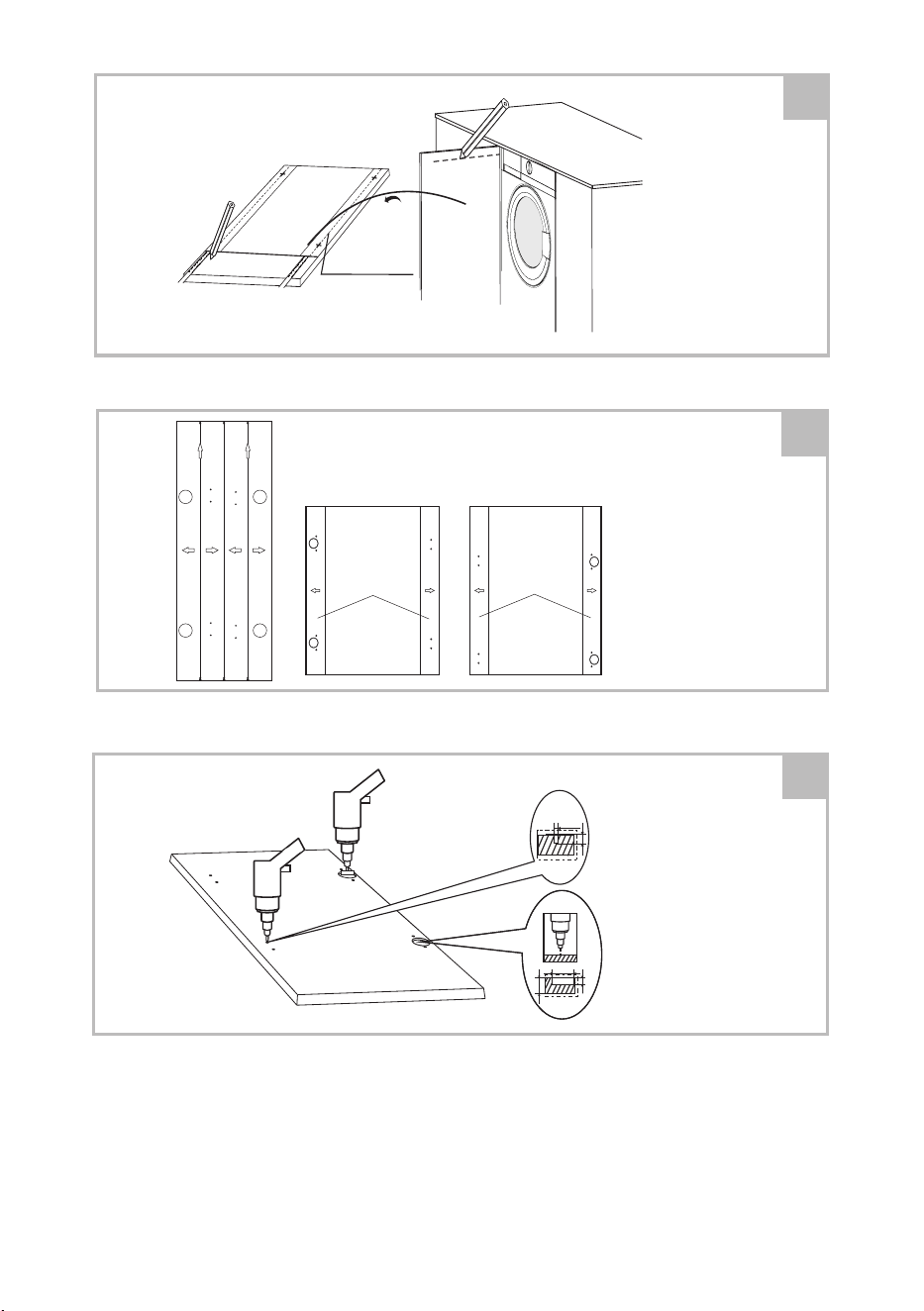

Preparation and assembly of the door
The door is open from right to leftThe door is open from left to right
38
152.5mm
595mm
Position Paper
Make the mark on the door
1
Position Paper Position Paper
Fixed position paper on the door.
2
16- 22mm
12m m
35m m
12m m
2mm
Drill hole on the door
3
Top Top
Lef t Open
Rig ht Open
39
Installation the hinges and spacer
Installation the counter magnet
5
Installation the door
6
4
• When installing the appliance into the kitchen ensure furniture ,if possible, the hoses are
placed in either of the two recesses on the back of the appliance. This will help to prevent
the hoses from becoming kinked or trapped.
40
WARNING
16138100A42240
