User's Guide
EF-30
Notations Used in This Guide 5
Using the Manual to Search for Information..................................... 7
Sear
ching by Keyword......................................................................................7
Jumping Directly from Bookmarks.....................................................................7
Printing Only the Pages You Need......................................................................7
Getting the Latest Version of the Documents................................... 8
Introduction to Your Projector 9
Projector Parts and Functions.......................................................... 10
Pr
ojector Parts - Front/Side..............................................................................10
Projector Parts - Rear/Side...............................................................................10
Projector Parts - Base...................................................................................... 11
Projector Parts - Remote Control......................................................................12
Setting Up the Projector 15
Projector Placement.......................................................................... 16
Pr
ojector Setup and Installation Options.......................................................... 17
Precautions on Installation........................................................................... 18
Projection Distance.........................................................................................19
Mounting the Projector on a Tripod or Projector Stand (Floor-stand or Ceiling-
mount) ......................................................................................................... 19
Projector Connections.......................................................................22
Connecting to an HDMI Video Source...............................................................22
Connecting to a Computer for HDMI Video and Audio.......................................22
Connecting to External USB Devices.................................................................23
Connecting Headphones................................................................................ 24
Connecting to an eARC/ARC Compatible AV System..........................................24
Installing Batteries in the Remote Control...................................... 25
Remote Control Operation.............................................................................. 25
Setting Up the Projector OS..............................................................27
Projector's Home Screen................................................................................. 28
About Epson Projector Update.........................................................29
Installing Epson Projector Update....................................................................29
Using Basic Projector Features 30
Turning On the Projector.................................................................. 31
AC A
dapter Safety Instructions........................................................................ 31
Turning O the Projector (Suspended Mode)................................. 33
Turning O the Projector (Deep Standby Mode)................................................33
Projection Modes...............................................................................34
Changing the Projection Mode Using the Menus...............................................34
Adjusting the Image Height..............................................................35
Image Shape.......................................................................................36
Correcting the Image Shape and Focus Automatically....................................... 36
Adjusting the Size and Position of the Image.................................................... 37
Automatically Correcting the Image Shape with Screen Fit.................................37
Correcting the Image Shape with Quick Corner.................................................38
Focusing the Image Using the Projector Menus............................. 40
Selecting an Image Source................................................................41
Image Aspect Ratio............................................................................42
Changing the Image Aspect Ratio....................................................................42
Available Image Aspect Ratios.........................................................................42
Adjusting Image Quality (Color Mode)............................................ 43
Changing the Color Mode............................................................................... 43
Available Color Modes.................................................................................... 43
Adjusting Image Quality in Detail....................................................44
Turning On Automatic Luminance Adjustment.............................. 45
Adjusting the Light Source Brightness............................................ 46
Contents
2
Controlling the Volume with the Volume Buttons..........................47
Changing the S
ound Mode............................................................... 48
Available Sound Modes...................................................................................48
Adjusting Projector Features 49
Using the Projector as a Bluetooth
®
Speak
er.................................. 50
Shutting O the Image Temporarily................................................ 51
Using Google Cast
™
............................................................................52
HDMI CEC Features............................................................................ 53
Operating Connected Devices Using the HDMI CEC Features............................. 53
Updating Projector Firmware Using Epson Projector Update....... 54
Initializing the Projector................................................................... 55
Adjusting the Menu Settings 56
Using the Projector's Menus............................................................. 57
Pr
ojector Feature Settings - Channels & Inputs Menu....................58
Projector Feature Settings - Projector Menu...................................59
Image Quality Settings - Display & Sound Menu............................ 60
Other Menus...................................................................................... 62
Network & Internet Menu................................................................................62
Accounts & Proles Menu................................................................................62
Privacy Menu................................................................................................. 62
Apps Menu.................................................................................................... 62
System Menu................................................................................................. 62
Accessibility Menu..........................................................................................62
Remotes & Accessories Menu.......................................................................... 63
Help & Feedback Menu................................................................................... 63
Maintaining the Projector 64
Projector Maintenance......................................................................65
Cleaning the L
ens.............................................................................. 66
Cleaning the Projector Case..............................................................67
Air Filter and Vent Maintenance.......................................................68
Cleaning the Air Filters and Intake Vents .......................................................... 68
Solving Problems 69
Projection Problems..........................................................................70
Pr
ojector Indicator Status.................................................................71
Solving Projector Power-On or Power-O Problems......................72
Solving Projector Power Problems....................................................................72
Solving Projector Shutdown Problems............................................................. 72
Solving Image Problems................................................................... 73
Solving Missing Image Problems......................................................................73
Adjusting an Image that is not Rectangular.......................................................74
Adjusting a Fuzzy or Blurry Image....................................................................74
Fixing Partial Image Problems..........................................................................75
Adjusting an Image that Contains Noise or Static.............................................. 75
Adjusting an Image with Incorrect Brightness or Colors.....................................75
Adjusting an Upside-down Image....................................................................76
Solving Auto Shape Correction Problems..........................................................76
Solving Sound Problems...................................................................78
Solving Missing or Low Audio Problems........................................................... 78
Solving Bluetooth Speaker Mode Problems...................................................... 78
Solving Remote Control Operation Problems.................................80
Solving HDMI CEC Problems.............................................................81
Solving Wi-Fi Network Problems......................................................82
Contents
3
Solving Projector's OS Problems...................................................... 83
App
endix 84
Optional Accessories......................................................................... 85
Moun
ts..........................................................................................................85
Microphone................................................................................................... 85
Screen Size and Projection Distance................................................86
Supported Monitor Display Resolutions......................................... 88
Projector Specications.................................................................... 89
AC Adapter Specications............................................................................... 89
Connector Specications.................................................................................90
Bluetooth Specications................................................................................. 90
External Dimensions......................................................................... 91
List of Safety Symbols and Instructions...........................................92
Warning Labels.................................................................................. 94
Glossary..............................................................................................95
Notices................................................................................................96
FCC Compliance Statement.............................................................................96
Innovation, Science and Economic Development Canada (ISED) Notices.............96
Wireless LAN with Bluetooth Safety and Specications...................................... 97
Restriction of Use............................................................................................97
Trademarks....................................................................................................97
Copyright Notice............................................................................................98
Copyright Attribution..................................................................................... 98
Contents
4
Notations Used in This Guide
Saf
ety Symbols
e projector and its manuals use graphical symbols and labels to indicate content that tells you how to use the projector safely.
Read and carefully follow the instructions that are marked with these symbols and labels to avoid injury to persons or damage to property.
Warning
is symbol indicates information that, if ignored, could possibly result in personal injury or even death.
Caution
is symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling.
General Information Notations
Attention
is label indicates procedures that may result in damage or injury if sucient care is not taken.
is label indicates additional information that may be useful to know.
button
Indicates the buttons on the remote control or the control panel.
E
xam
ple:
button
Menu/Setting name Indicates projector menu and setting names.
Exam
ple:
Select the Projector menu.
s Projector > Keystone > Auto Shape Correction
is label indicates links to the related pages.
s
i
s label indicates the projector's current menu level.
g
Related Links
•
"Using the Manual to Search for Information" p.7
e PDF manual allows you to search for information you are looking for by
k
eyword, or jump directly to specic sections using the bookmarks. You can
also print only the pages you need. is section explains how to use a PDF
manual that has been opened in Adobe Reader X on your computer.
g
Related Links
•
"Searching by Keyword" p.7
•
"Jumping Directly from Bookmarks" p.7
•
"Printing Only the Pages You Need" p.7

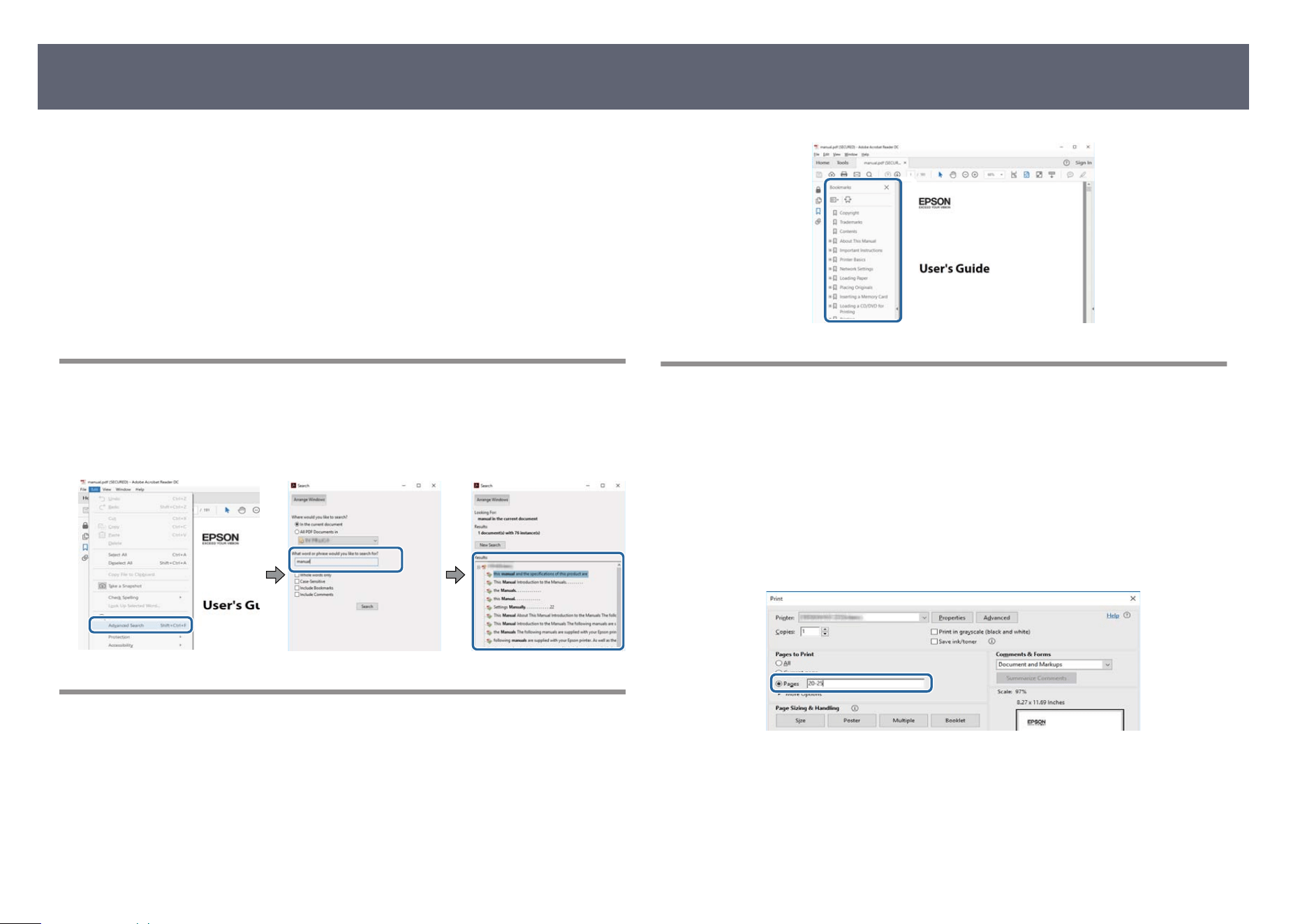

Searching by Keyword
Click Edit > Advanced Search. Enter the keyword (text) for information you
want to nd in the search window, and then click Search. Hits are displayed as a
list. Click one of the displayed hits to jump to that page.
Jumping Directly from Bookmarks
Click a title to jump to that page. Click + or > to view the lower level titles in
t
h
at section. To return to the previous page, perform the following operation on
your keyboard.
•
Windows: Hold down Alt, and then press ←.
•
Mac OS: Hold down the command key, and then press ←.
Printing Only the Pages You Need
You can extract and print only the pages you need. Click Prin
t in the File menu,
and then specify the pages you want to print in Pages in Pages to Print.
•
To specify a series of pages, enter a hyphen between the start page and the
end page.
Example: 20-25
•
To specify pages that are not in series, divide the pages with commas.
Example: 5, 10, 15
Using the Manual to Search for Information
7
e following sections explain the projector parts and their functions.
i
s product may use sensors, such as a camera and a microphone. ese
sensors may collect information related to privacy (such as locations, sounds,
videos, or images).
g
Related Links
•
"Projector Parts - Front/Side" p.10
•
"Projector Parts - Rear/Side" p.10
•
"Projector Parts - Base" p.11
•
"Projector Parts - Remote Control" p.12

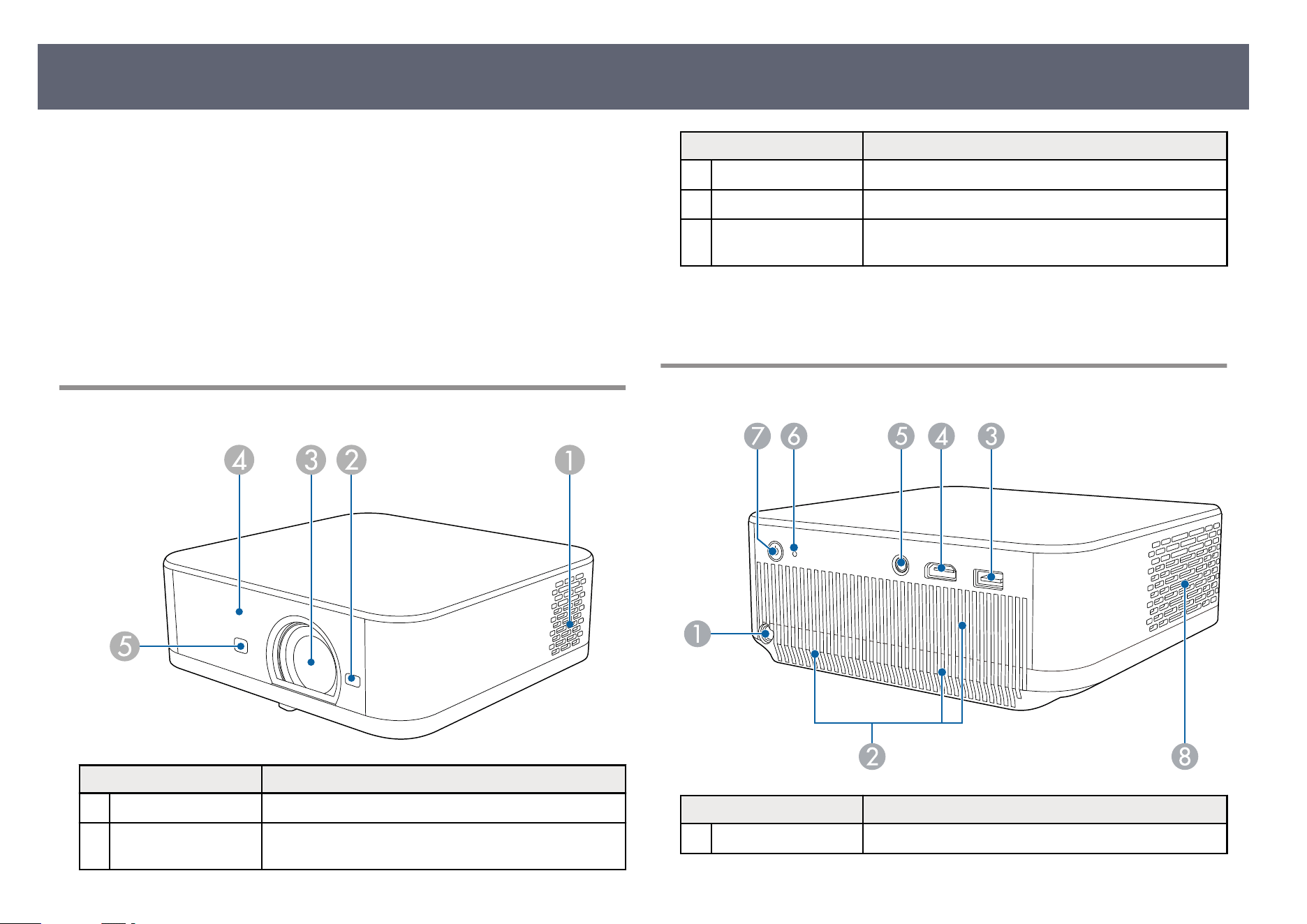

Projector Parts - Front/Side
Name Function
A
Speaker Outputs audio.
B
Sensor Measures the distance to the projection surface and
cor
rects the shape of the projected image.
Name Function
C
Lens Images are projected from here.
D
Remote receiver Receives signals from the remote control.
E
Camera Automatically adjusts the shape and focus of the
pr
ojected image.
g
Related Links
•
"R
emote Control Operation" p.25
Projector Parts - Rear/Side
Name Function
A
AC adapter port Connects the AC adapter.
Projector Parts and Functions
10
Name Function
B
Air exhaust vents Exhaust vents for air used to cool the projector
int
ernally.
Caution
Whi
le projecting, do not put your face or hands
near the air exhaust vent, and do not place
objects that may become warped or damaged
by heat near the vent. Hot air from the air
exhaust vent could cause burns, warping, or
accidents to occur.
C
USB-A port Connects a commercially available USB device such as a
we
bcam, external HDD, or keyboard.
is port is not guaranteed to
o
perate for all devices that support
USB.
D
HDMI port Inputs video signals from HDMI compatible video
e
q
uipment and computers.
is port is compatible with HDMI eARC and ARC.
is projector is compatible with HDCP 1.4.
E
Audio Out port Outputs audio from the current input source to
he
adphones.
F
Status indicator Indicates the projector's status.
G
Power button Turns the projector on or o.
H
S
peaker Outputs audio.
g
Related Links
•
"P
rojector Connections" p.22
•
"Projector Indicator Status" p.71

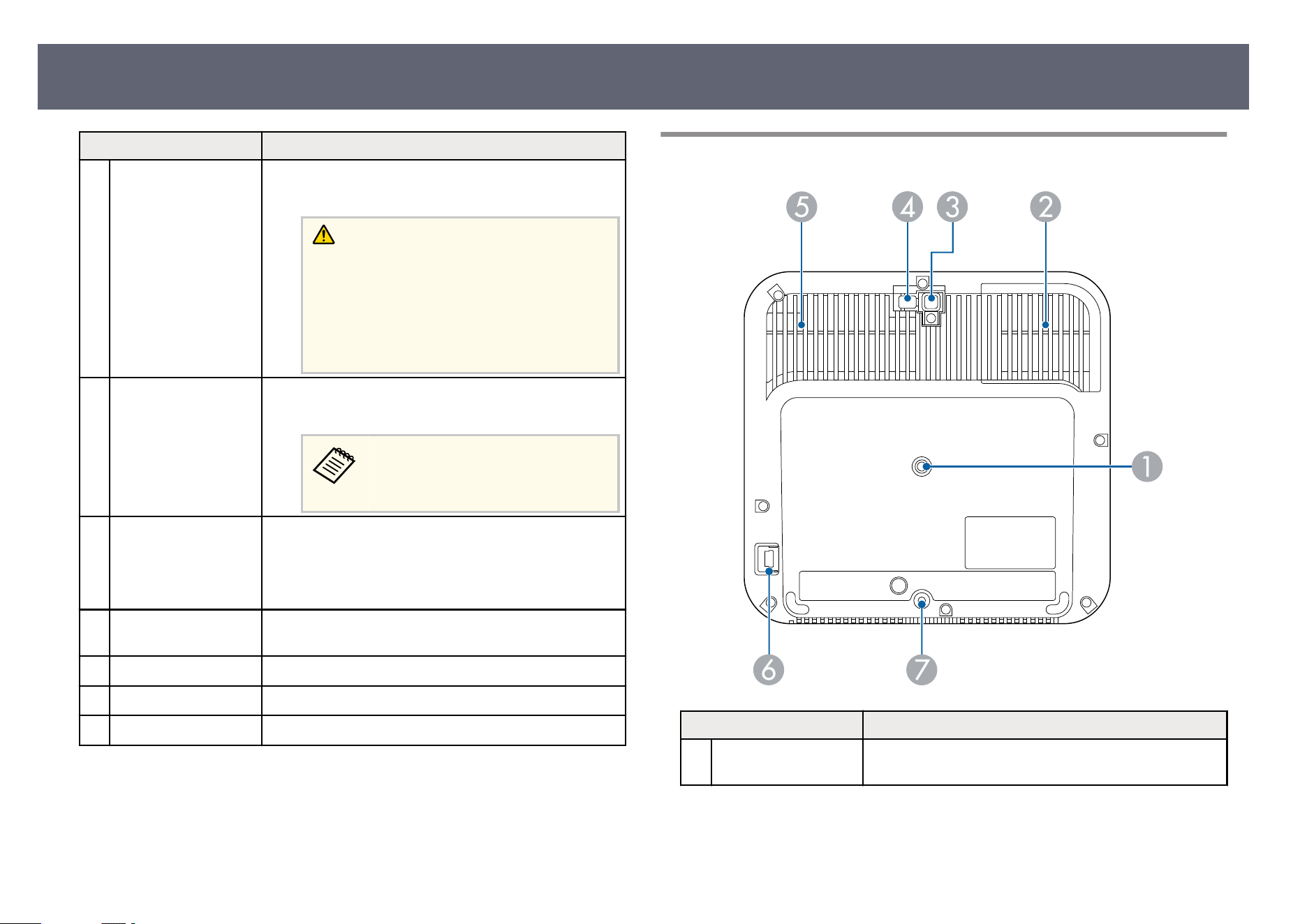

Projector Parts - Base
Name Function
A
Mounting hole for
tr
ipod
Use when mounting the projector on a commercially
available tripod.
Projector Parts and Functions
11
Name Function
B
Air intake vent (air
lt
er)
Takes in air to cool the projector internally.
Attention
Do n
ot apply strong pressure to this part. e
non-replaceable internal lter may come o.
C
Front adjustable foot When set up on a surface such as a desk, extend the foot
to ad
just the position of the image.
D
Foot release lever Press the foot release lever to extend or retract the front
adj
ustable foot.
E
Air intake vent Takes in air to cool the projector internally.
F
Service port is port is not normally used.
G
Saf
ety wire
att
achment point
Attach the optional safety wire here to prevent the
projector from falling from the ceiling or wall.
g
Related Links
•
"M
ounting the Projector on a Tripod or Projector Stand (Floor-stand or
Ceiling-mount) " p.19
•
"Adjusting the Image Height" p.35
•
"Air Filter and Vent Maintenance" p.68

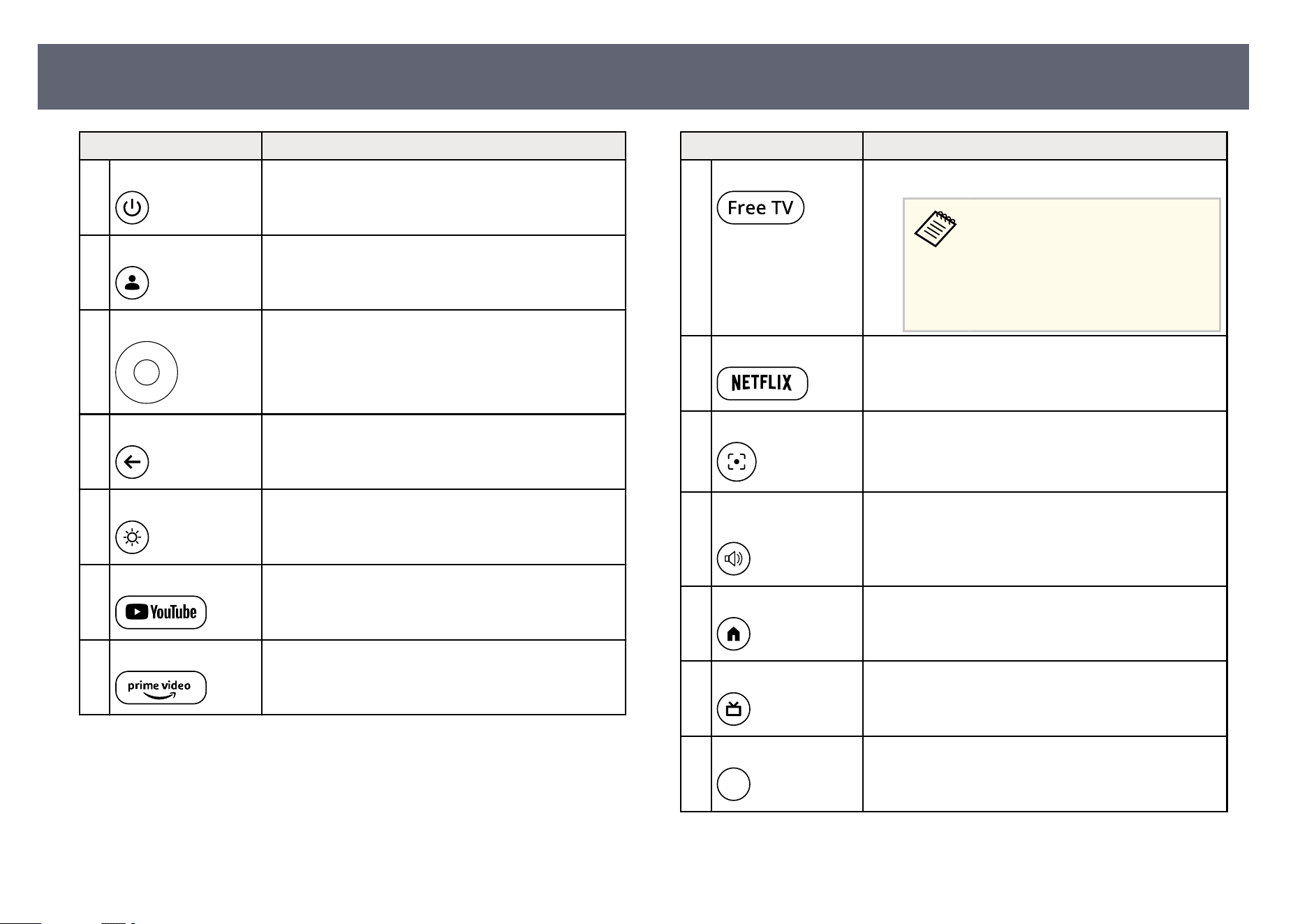

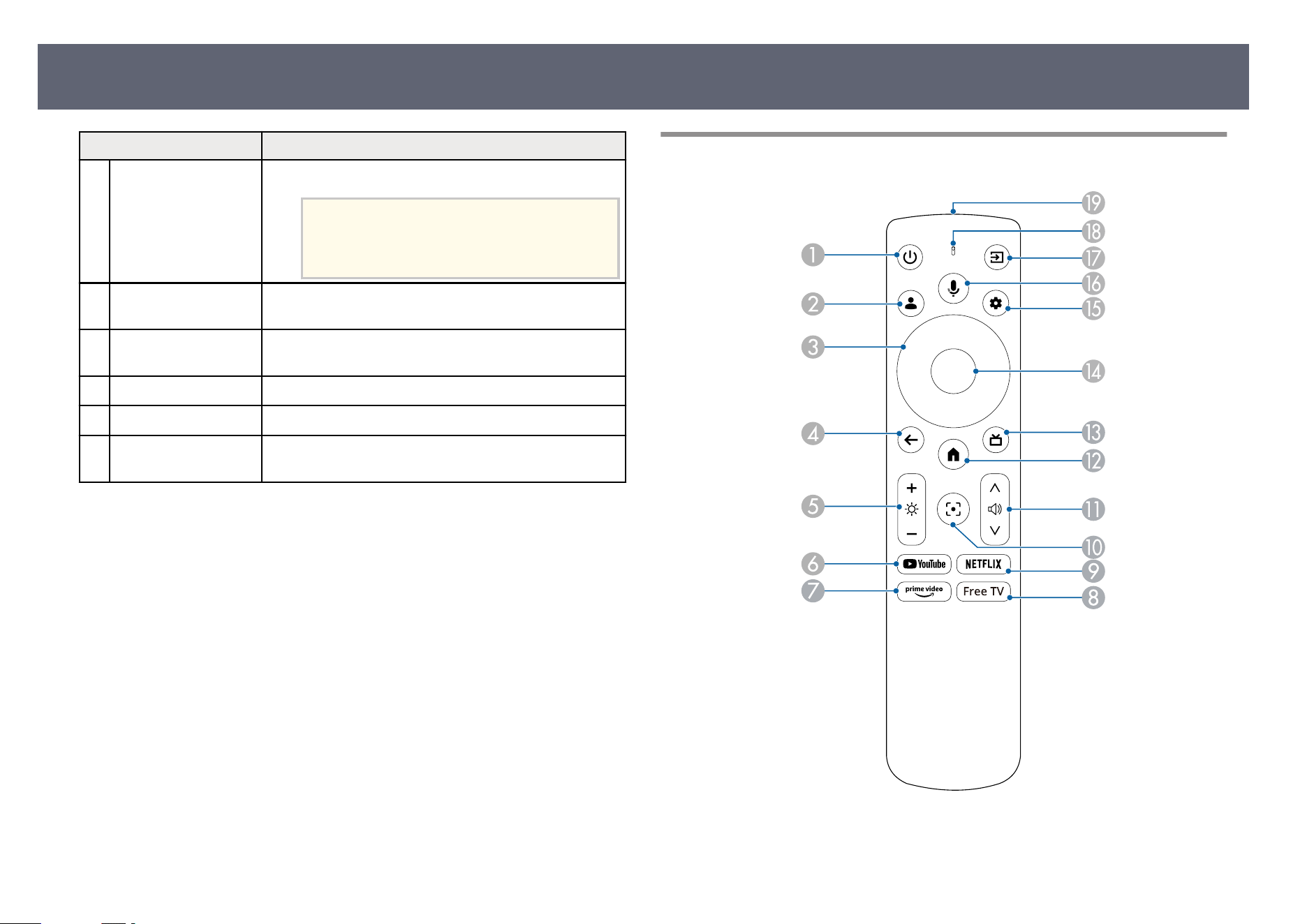

Projector Parts - Remote Control
Projector Parts and Functions
12
Name Function
A
Power button Turns the projector on or o.
B
U
ser Prole button
Displays the user p
r
ole.
C
Arrow buttons
Selects items on the home screen to play online content.
Se
lects menu items while displaying the projector's
menu.
D
Esc button
Stops the current function.
Moves back to the previous menu level while displaying
the projector's menu.
E
Brightness button Lightens or darkens the projected image.
F
YouTube button
Starts the YouTube application.
G
Prime Video button Starts the Amazon Prime Video application.
Name Function
H
Free TV button Starts the Free TV application.
Depending on your region, this
bu
tton may appear as the Live TV
button. Live TV is not available
in certain languages and countries.
Availability of services varies by
country and language.
I
Netix button Starts the Netix application.
J
F
ocus button
Displays the focus adjustment screen. Press the le and
right arrow buttons to adjust the focus setting.
K
Volume up/down
bu
ttons
Adjusts the volume for the speaker and headphones.
L
Home button
Displays the home screen.
M
HDMI button Switches to the HDMI source.
N
[Enter] button Enters the current selection and moves to the next level
w
hi
le displaying the projector's menu.
Projector Parts and Functions
13
Name Function
O
Settings button Opens the dashboard.
P
Google Assistant
b
u
tton
Press the Google Assistant button on the remote, and
s
ay
, "Hey Google" to get started.
Google Assistant is not available
in cert
ain languages and countries.
Availability of services varies by
country and language.
Q
Source Search button Displays a list of available input sources.
R
Indicator/Microphone Turns on when outputting signals from the remote
con
trol.
Detects your voice when you press the Google Assistant
button.
S
Remote control light
emit
ting area
Outputs remote control signals.
g
Related Links
•
"T
urning On the Projector" p.31
•
"Adjusting the Light Source Brightness" p.46
•
"Controlling the Volume with the Volume Buttons" p.47
•
"Focusing the Image Using the Projector Menus" p.40
•
"Using the Projector's Menus" p.57
•
"Selecting an Image Source" p.41
Projector Parts and Functions
14
You can place the projector on almost any at sur
face to project an image.
You can also mount the projector on a commercially available tripod or on a
commercially available projector stand.
e projector can be installed at various angles. ere is no vertical or
horizontal limit to how the projector can be installed.
Note the following points when selecting a projector location:
•
Pl
ace the projector on a sturdy, level surface or install it using a compatible
mount.
•
L
e
ave plenty of space around and under the projector for ventilation, and do
not place it on top of or next to anything that could block the vents.
•
Place the projector so it squarely faces the screen, not at an angle.
If you cannot install the projector squarely facing the screen, correct
any r
esulting keystone distortion using the projector controls. For the
best quality images, we recommend adjusting the installation position
of the projector to achieve the correct image size and shape.
Projector Placement
16
Warning
•
Yo
u must install a ceiling mount when suspending the projector from a ceiling. If
you do not install the projector correctly, it could fall and cause damage or injury.
•
Do not use adhesives on the mounting hole to prevent the screws from loosening,
or use lubricants, oils, or similar substances on the projector; the projector case
may crack causing it to fall. is could cause serious injury to anyone under the
ceiling mount and could damage the projector.
•
Do not install the projector in a location subject to high levels of dust or humidity,
or in a location subject to smoke or steam. Otherwise, it could cause a re
or electric shock to occur. e projector's case could also deteriorate and be
damaged causing the projector to fall from the mount.
Examples of environments that could cause the projector to fall due to case
deterioration
•
Locations subject to excessive smoke or airborne oil particles, such as factories
or kitchens
•
Locations containing volatile solvents or chemicals, such as factories or
laboratories
•
Locations where the projector could be subjected to detergents or chemicals,
such as factories or kitchens
•
Locations in which aroma oils are oen used, such as relaxation rooms
•
Near devices that produce excessive smoke, airborne oil particles, or foam at
events
•
Locations near humidiers
Warning
•
Do n
ot cover the projector's air intake or air exhaust vents. If the vents are
covered, the internal temperature could rise and cause a re.
•
Do not use or store the projector in locations where it will be subject to dust or
dirt. Otherwise, the quality of the projected image may decline, or the air lter
may become clogged, resulting in a malfunction or re.
•
Do not install the projector on an unstable surface or in a location beyond the
weight specications of the projector. Otherwise, it could fall or topple causing an
accident and injury.
•
When installing the projector in a high position, take measures to prevent falling
by using wires to ensure safety in an emergency, such as an earthquake, and to
prevent accidents. If it is not installed correctly, it could fall causing an accident
and injury.
•
Do not install in locations where salt damage could occur, or in locations subject
to corrosive gas such as sulphuric gas from hot springs. Otherwise, corrosion
could cause the projector to fall. It could also cause the projector to malfunction.
g
Related Links
•
"P
rojector Setup and Installation Options" p.17
•
"Projection Distance" p.19
•
"Mounting the Projector on a Tripod or Projector Stand (Floor-stand or
Ceiling-mount) " p.19
•
"Adjusting the Image Height" p.35
•
"Focusing the Image Using the Projector Menus" p.40
•
"Image Shape" p.36
•
"Focusing the Image Using the Projector Menus" p.40

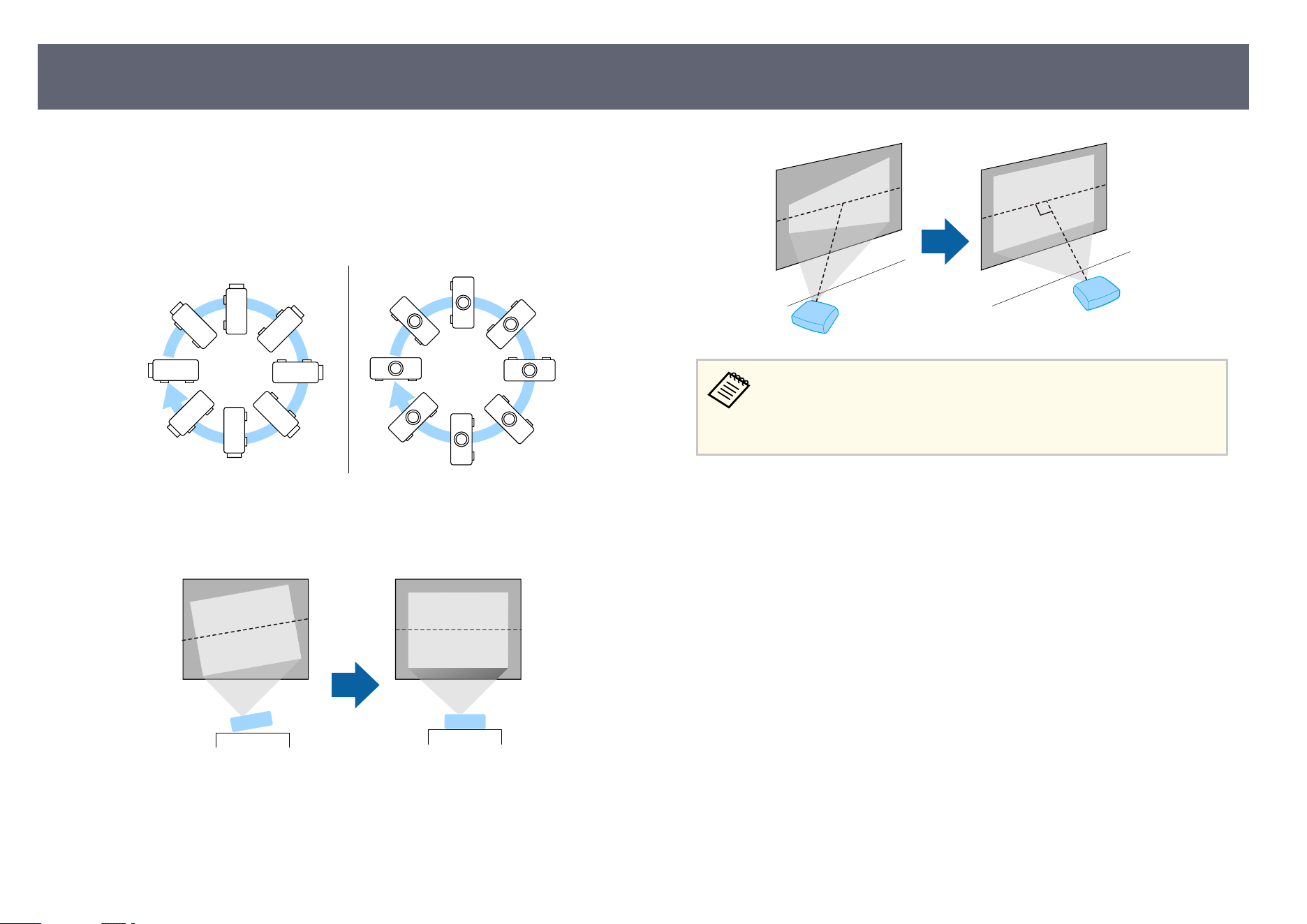

Projector Setup and Installation Options
You can set up or install your projector in the following ways:
Mak
e sure you select the correct Projection option in the projector's menu
according to the installation method being used.
Front/Rear
Projector Placement
17

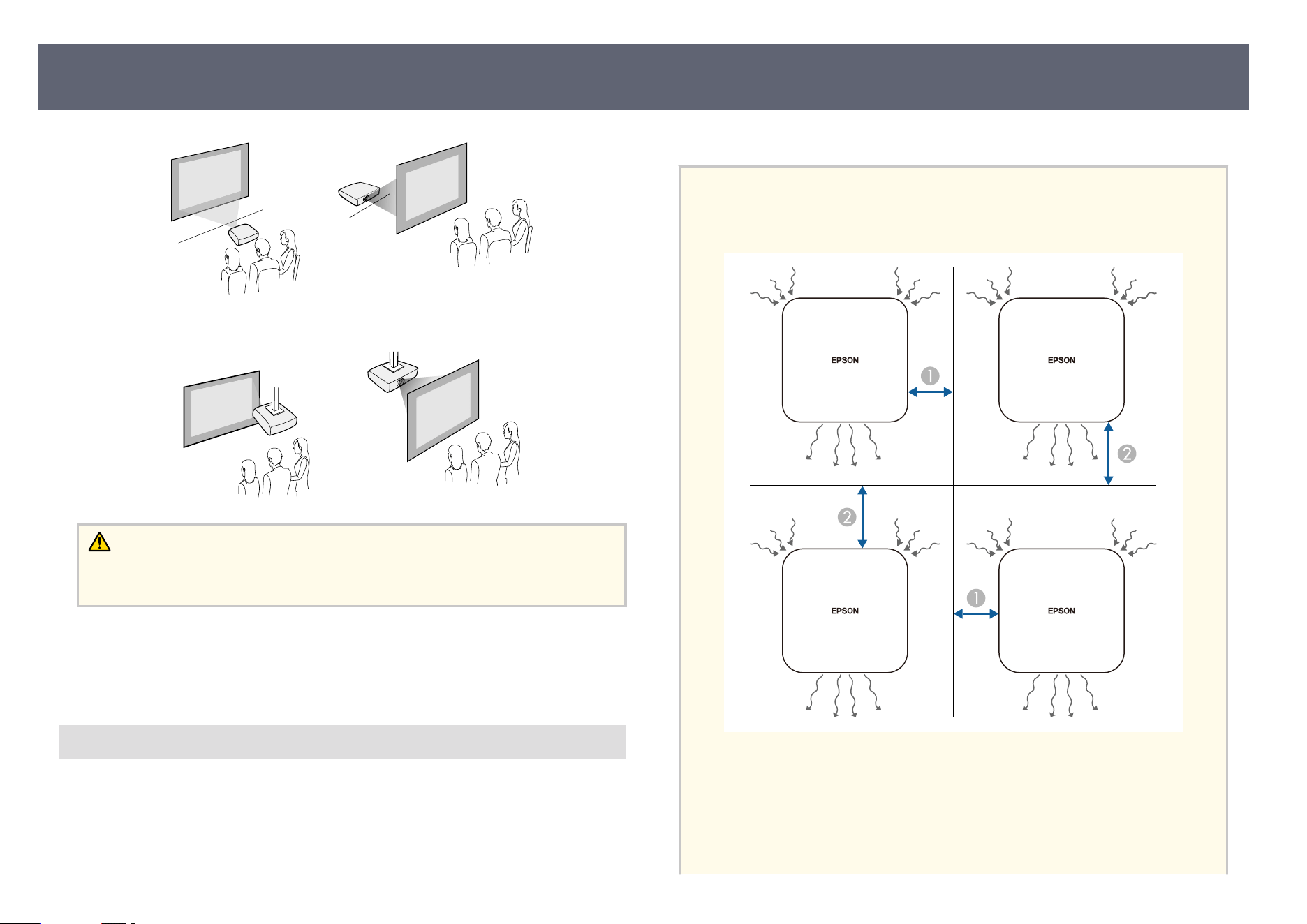

Front Ceiling/Rear Ceiling
Caution
Do n
ot cover the projector's lens. If the lens is covered, the internal temperature
could rise and it could result in a malfunction.
g
Related Links
•
"P
recautions on Installation" p.18
•
"Projection Modes" p.34
Precautions on Installation
No
te the following precautions when installing the projector.
Installation space
Attention
•
Be s
ure to leave the following amount of space around the projector so as not to
block the air exhaust and intake vents.
A
4" (10 cm)
B
8" (20 cm)
•
Do not install the projector in a location that does not allow air to circulate, such
as on a shelf or in a box. If you want to install the projector on a shelf or in an
enclosure, contact Epson for more details.
Projector Placement
18
•
If t
here is not enough space around the projector and the internal temperature of
the projector increases, the brightness of the light source may decrease.
•
Remove any obstacles around the projector so that hot air from the exhaust vents
can escape and not be drawn into the air intake vents.
Caution
In
stall the supplied AC adapter more than 11.8" (30 cm) away from the projector. If
the temperature of the AC adapter rises due to heat from the projector, the projector
may not operate properly.

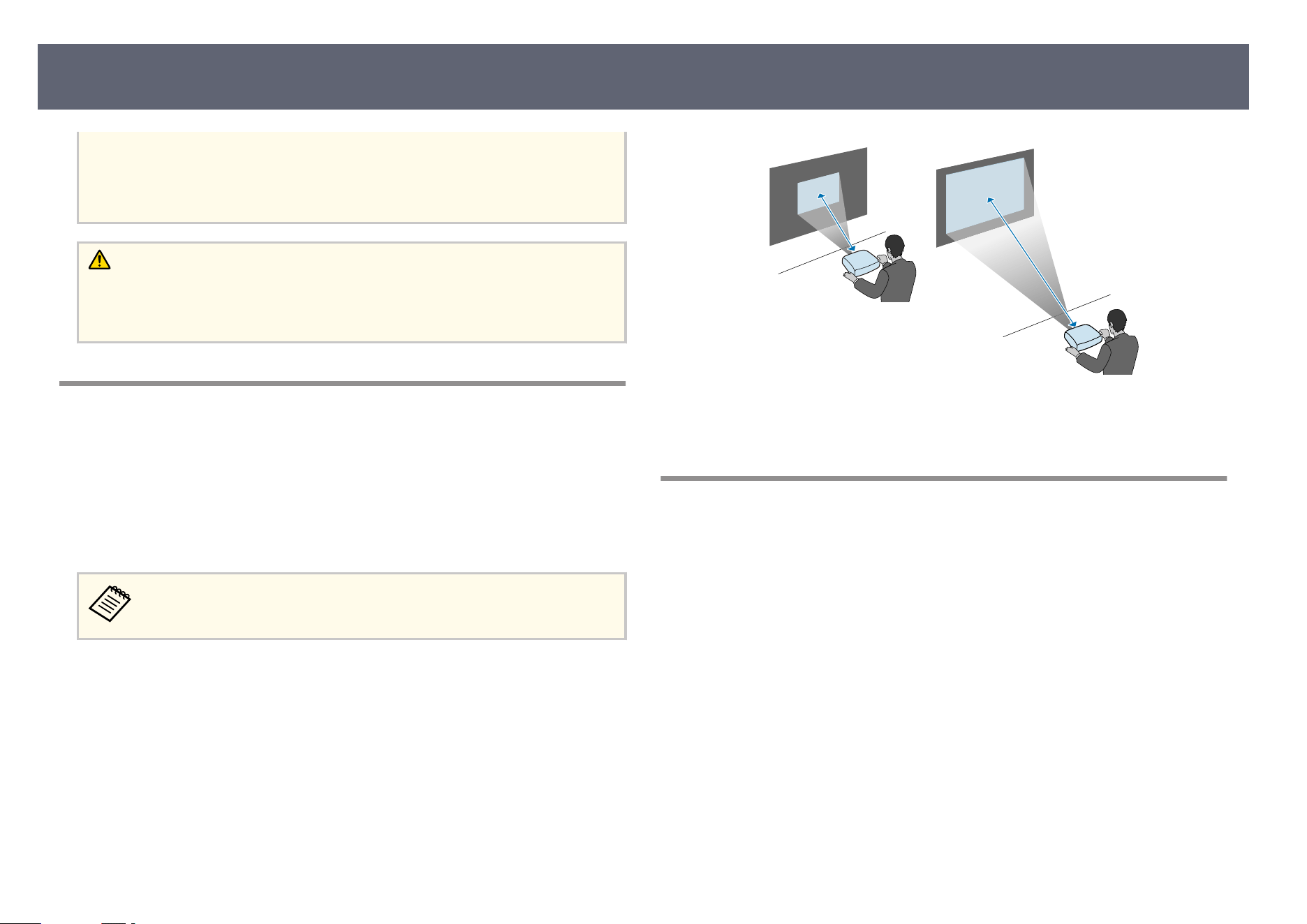

Projection Distance
e distance at which you place the projector from the screen determines the
ap
proximate size of the image. e image size increases the farther the projector
is from the screen, but can vary depending on the aspect ratio and other
settings.
See the Appendix for details about how far to place the projector from the
screen based on the size of the projected image.
When correcting keystone distortion, your image is slightly smaller.
g
Related Links
•
"S
creen Size and Projection Distance" p.86
Mounting the Projector on a Tripod or Projector Stand
(Floor-stand or Ceiling-mount)
You can mount the projector on a commercially available tripod or projector
st
and.
Projector Placement
19
•
Us
e 1/4-20 UNC size (6.35 mm outer diameter) xing screws
(minimum depth 8.4 mm) to x the projector's mounting hole for the
tripod to the mounting hardware at one point.
•
Wh

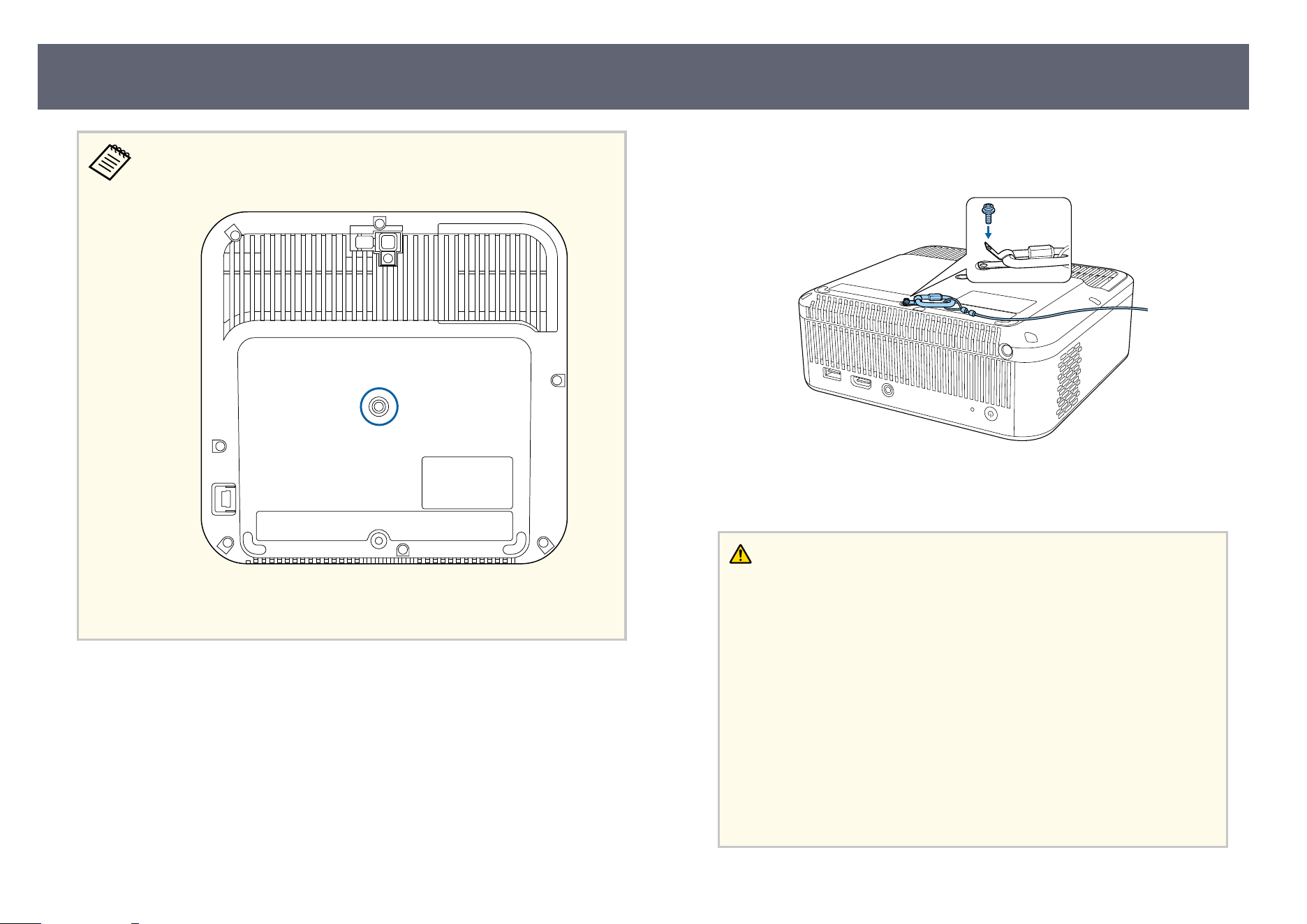

en installing the projector in a high place, be sure to attach the
optional safety wire set (ELPWR01) for safety purposes.
a
Turn the projector upside down.
b
When installing the projector in a high place, attach the optional safety
w
ir
e set (ELPWR01) to the safety wire attachment point.
c
Mount the projector on a tripod or a projector stand. For details, see the
doc
umentation supplied with the tripod or projector stand.
Warning
Wh
en mounting the projector on the tripod, note the following points:
•
Use a tripod that is strong enough to support the weight of the projector.
•
Securely tighten the tripod's screw into the projector's mounting hole. If the
screw loosens, the projector could fall or topple causing an accident and
injury.
•
Do not carry the projector while it is mounted on a tripod. Doing so will
put too much pressure on the tripod xing point and the projector could
fall or topple causing an accident and injury.
•
Place the tripod on a at and stable surface. Otherwise, the tripod could
topple causing an accident and injury.
•
For details on how to use the tripod, see the documentation supplied with
the tripod.
Projector Placement
20
When installing the projector in a high place such as a ceiling,
mak
e sure you hook the carabiner of the optional safety wire set
(ELPWR01) to a point that is strong enough to hold the weight of
the projector and the mounting hardware.
Projector Placement
21
See these sections to connect the projector to a variety of projection sources.
Attention
•
Ch
eck the shape and orientation of the connectors on any cable you plan to
connect. Do not force a connector into a port if it does not t. e device or your
projector could be damaged or could malfunction.
•
Make sure you connect the projector and video devices rst, and then connect the
power cord to the projector's power inlet and plug it into an electrical outlet.
g
Related Links
•
"C
onnecting to an HDMI Video Source" p.22
•
"Connecting to a Computer for HDMI Video and Audio" p.22
•
"Connecting to External USB Devices" p.23
•
"Connecting Headphones" p.24
•
"Connecting to an eARC/ARC Compatible AV System" p.24

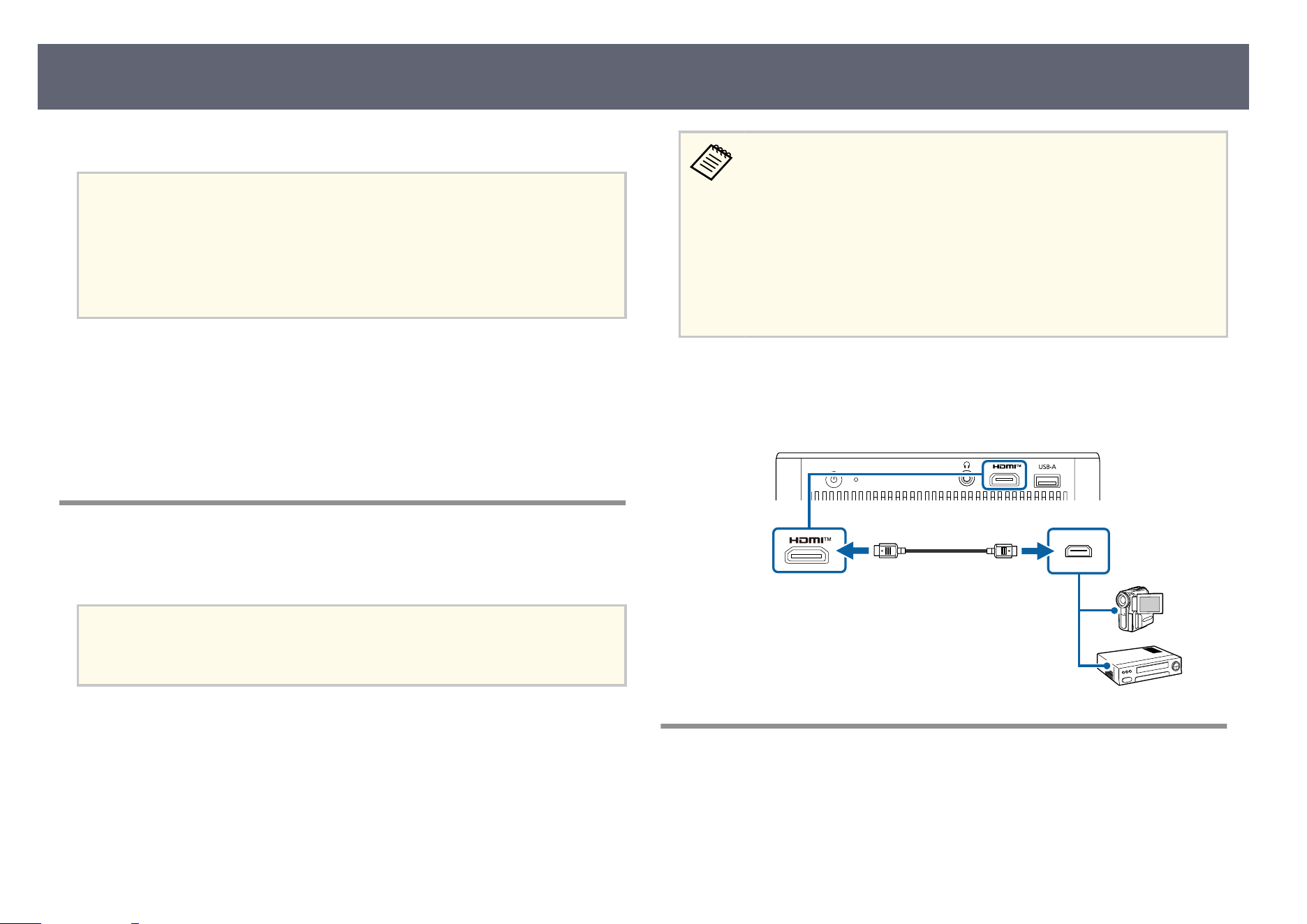

Connecting to an HDMI Video Source
If your video source has an HDMI port, you can connect it to the projector
usin
g an HDMI cable.
Attention
Do not turn on the video source before connecting it to the projector. Doing so could
damage the projector.
•
If t
he port on the device you connect has an unusual shape, use the
cable supplied with the device or an optional cable to connect to the
projector.
•
Some video devices are capable of outputting dierent types of signals.
See your video device manual to conrm what type of signals can be
output.
•
When sending 18 Gbps images such as 4K 60Hz 4:4:4, use an HDMI
cable (premium-high speed). If you use an incompatible cable, images
may not be displayed correctly.
a
Connect the HDMI cable to your video source's HDMI output port.
b
Connect the other end to the projector's HDMI port.

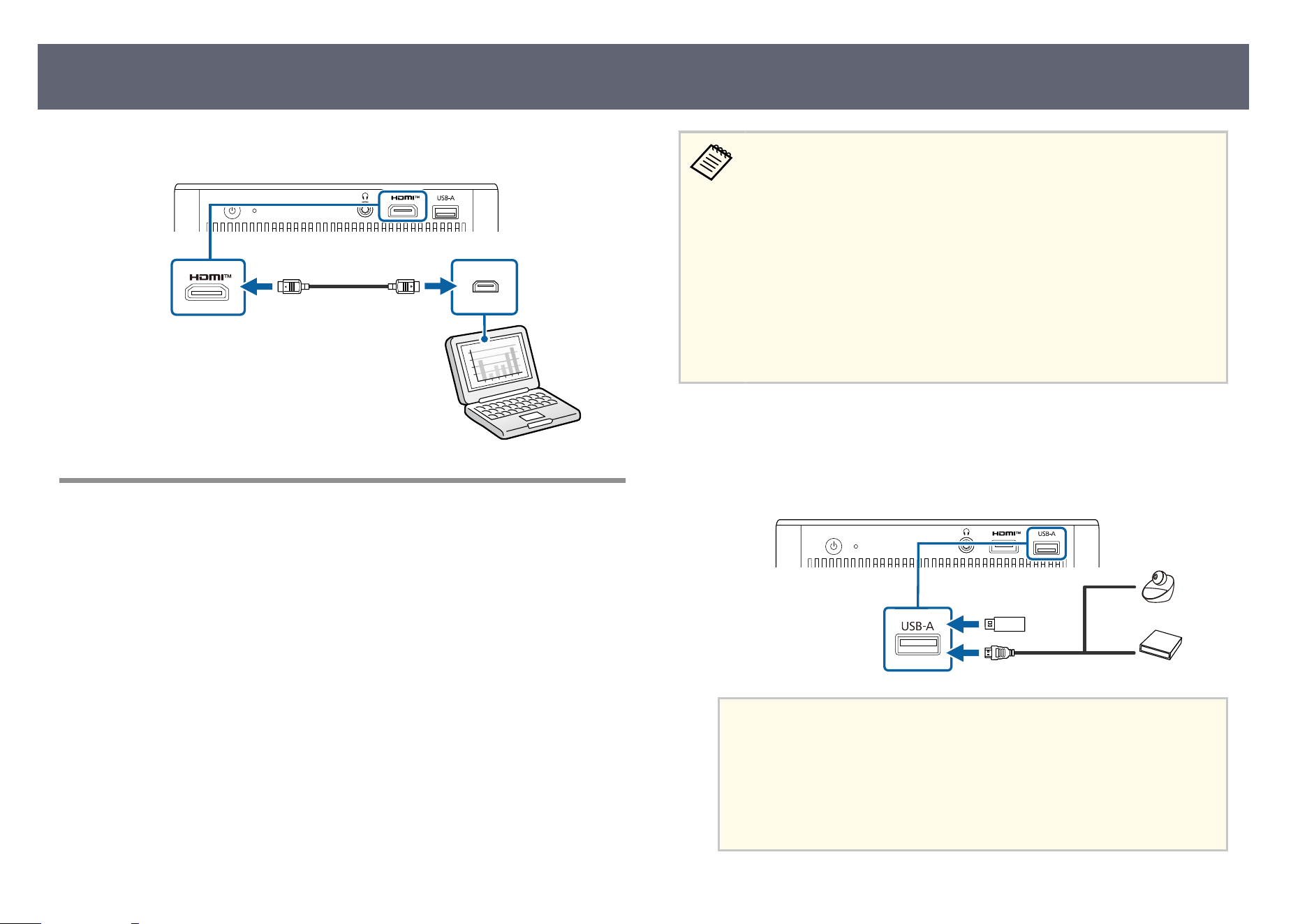

Connecting to a Computer for HDMI Video and Audio
If your computer has an HDMI port, you can connect it to the projector using
an HDMI c
able.
a
Connect the HDMI cable to your computer's HDMI output port.
Projector Connections
22
b
Connect the other end to the projector's HDMI port.
Connecting to External USB Devices
By connecting any of these devices to your projector, you can project images
and o
ther content or play audio without using a video device.
•
Microphone
•
USB ash drive
•
Digital camera
•
USB hard drive
•
e USB-A p
ort is not guaranteed to operate all devices that support
USB.
•
You may need an app to project content from your USB device.
•
USB hard drives must meet these requirements:
•
USB Mass Storage Class-compliant (not all USB Mass Storage Class
devices are supported)
•
Formatted in FAT16/32
•
Self-powered by their own AC power supplies (bus-powered hard
drives are not recommended)
•
Avoid using hard drives with multiple partitions
a
If your USB device came with a power adapter, plug the device into an
ele
ctrical outlet.
b
Connect the USB device to the projector's USB-A port as shown.
Attention
•
Us
e the USB cable supplied with or spe cied for use with the device.
•
If the USB cable is too long, the device may not operate correctly. We
recommend using a USB cable that is 9.8 feet (3 m) or less.
•
If you use a USB hub, the device may not operate correctly. We recommend
checking the operation in advance.
Projector Connections
23
c
Connect the other end to your device, if necessary.
Connec
ting Headphones
You can connect headphones to the projector's Audio Out port. You can control
th
e volume using the projector's remote control.
Attention
e pr
ojector's Audio Out port only supports 3-pin headphones. If you use any other
headphones, audio may not be output normally.
a
Connect the stereo headphone's mini-jack cable to the projector's Audio
Ou
t port.
Caution
D
o n
ot start a playback at a high volume setting. Sudden loud noises may cause
hearing loss.
Always lower the volume before powering o, so that you can power on and then
gradually increase the volume.

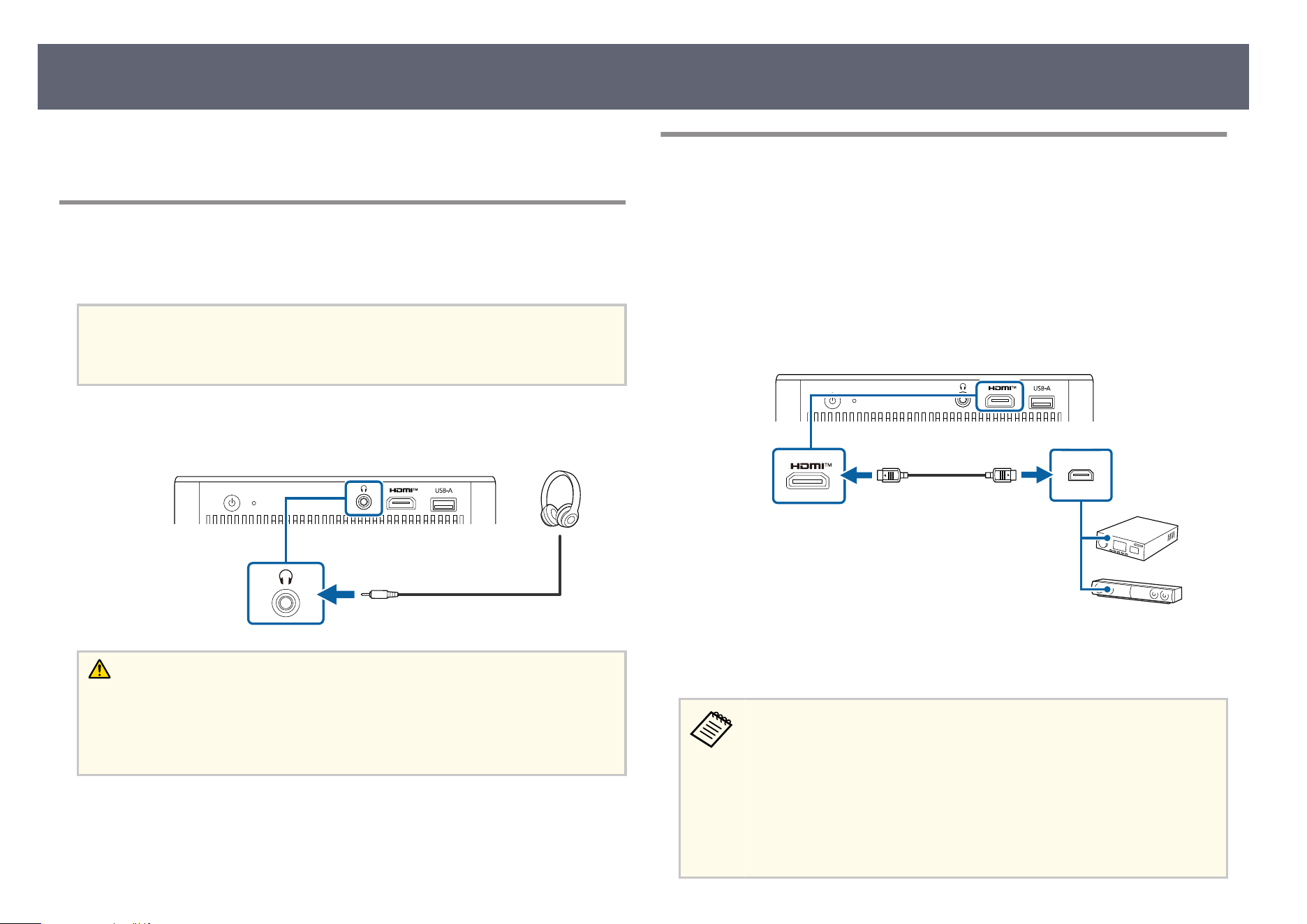

Connecting to an eARC/ARC Compatible AV System
If your AV system or speakers, such as a sound bar, has an HDMI port, you can
conn
ect them to the projector using an HDMI cable (with Ethernet) to output
audio to these devices.
a
Connect the HDMI cable to your AV system's HDMI output port (eARC
or AR
C compatible).
b
Connect the other end to the projector's HDMI port.
c
Make any necessary settings on the connected AV system. See your
dev
ice's documentation for more information.
•
To o
utput audio from the projector's HDMI port when using an ARC
connection, set Global CEC control to On in the projector's menu.
s Channels & Inputs > Inputs > Global CEC control
•
If audio is not output properly, try changing Auto to PCM as the
Digital Output setting in the projector's menu.
s Display & Sound > Audio Output > Digital Output
•
See the online Notices guide for eARC/ARC audio supported formats.
Projector Connections
24
e remote control uses the two AAA batteries that came with the projector.
Attention
Mak
e sure you read the safety instructions in the online Notices guide before
handling the batteries.

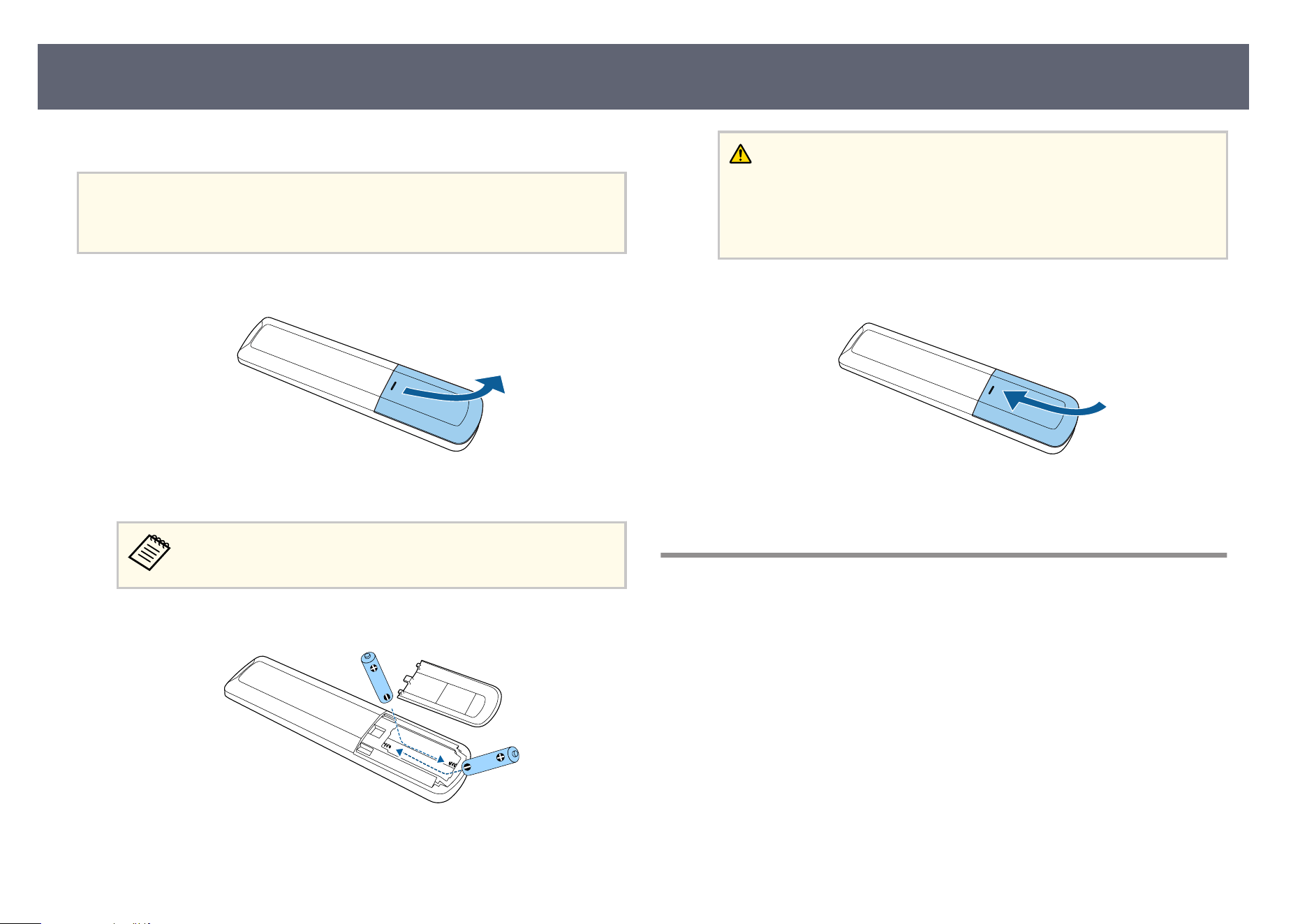

a
Remove the battery cover as shown.
b
Remove the old batteries, if necessary.
Dispose of used batteries according to local regulations.
c
Insert the batteries with the + an
d
– ends facing as shown.
Warning
Ch
eck the positions of the (+) and (–) marks inside the battery holder to
ensure the batteries are inserted the correct way. If the batteries are not used
correctly, they could explode or leak causing a re, injury, or damage to the
product.
d
Replace the battery cover and press it down until it clicks into place.
g
Related Links
•
"R
emote Control Operation" p.25
Remote Control Operation
e remote control lets you control the projector from almost anywhere in the
r
oom.

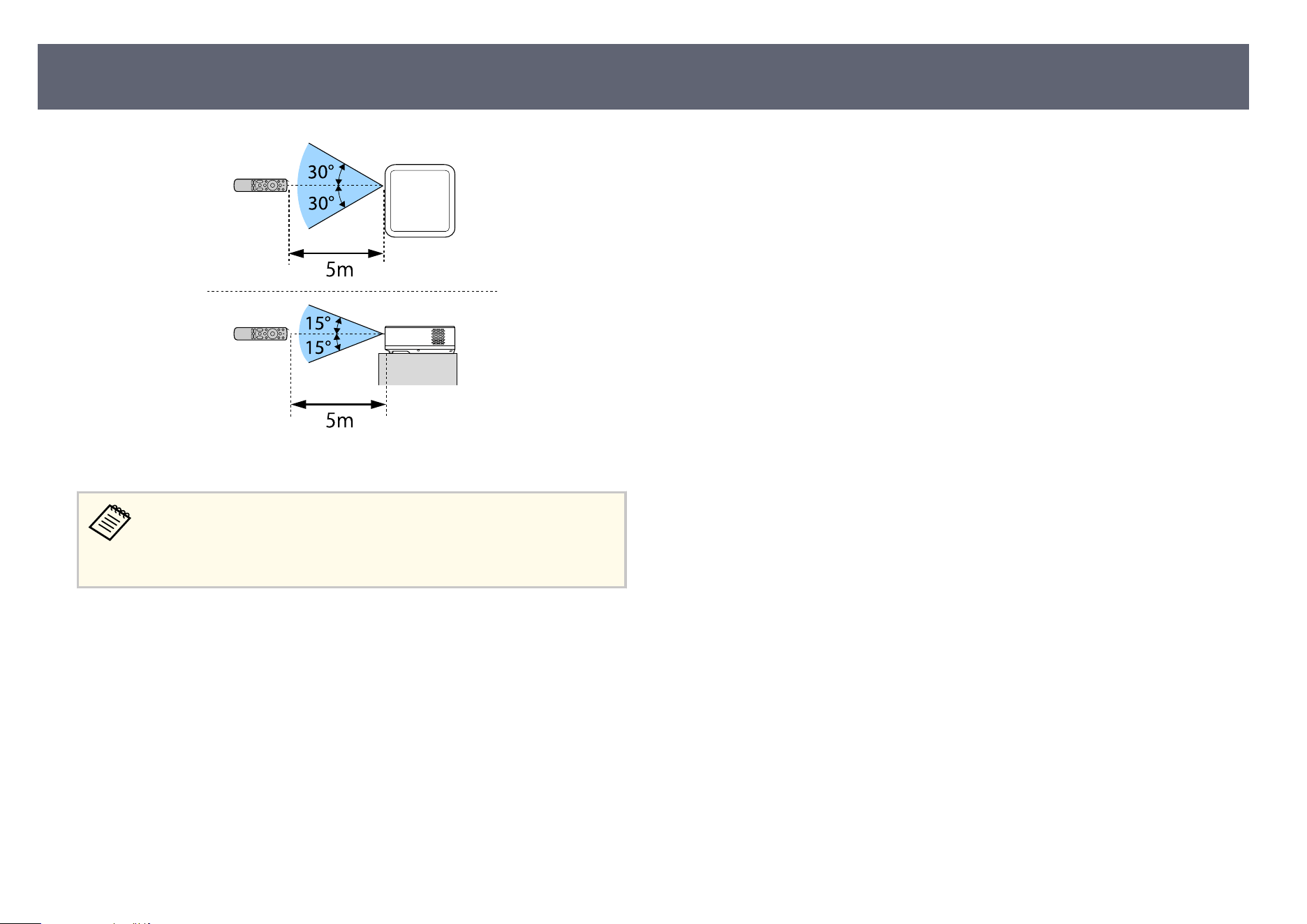

It is recommended that you aim the remote control at the projector's receivers
within the distance and angles listed here.
Installing Batteries in the Remote Control
25
16.4" (5 m)
Avoid using the remote control in conditions with bright uor
escent lights
or in direct sunlight, or the projector may not respond to commands. If
you are not going to use the remote control for a long time, remove the
batteries.
Installing Batteries in the Remote Control
26
When you turn on the projector for the rs
t time, you need to set up the
projector's OS using the initial setup wizard.
You can change each of the settings even aer com
pleting the initial setup.
a
Turn on the projector.
b

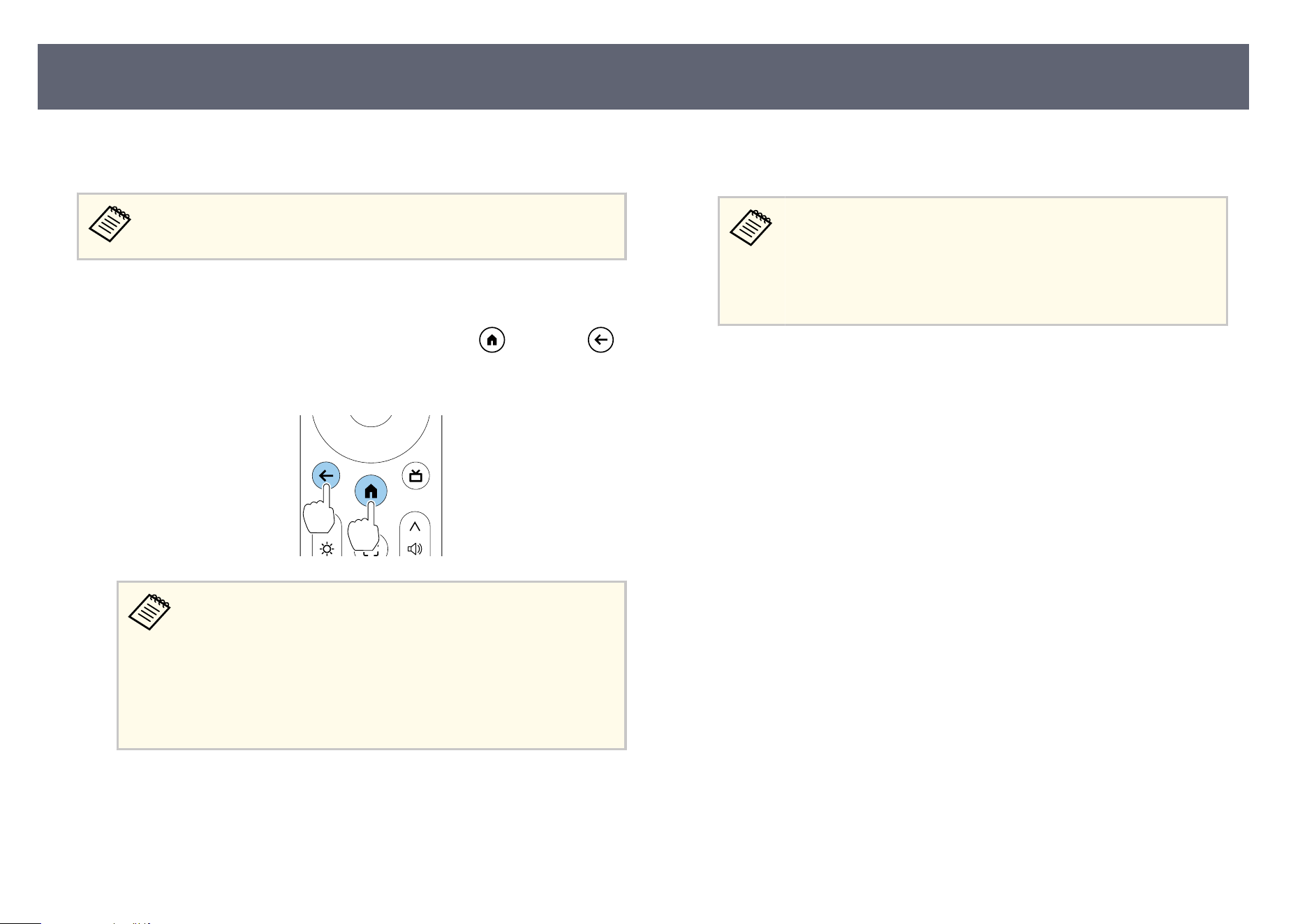

When the pairing screen is displayed, hold down the button and
button on the remote control at the same time to pair the remote control
and the projector.
•
Wh
en pairing, place the remote control within 11.8 inches (30
cm) of the projector.
•
When pairing starts, the indicator on the remote control ashes.
When pairing is complete, the indicator turns o.
•
You cannot pair multiple remote controls with the projector at
the same time. Pairing a new remote control will unpair the
existing one. Make sure the intended remote control is paired.
c
When the language selection screen is displayed, select the language you
want to use, and then follow the on-screen instructions to select your
country or region.
d
When the setting screen is displayed, follow the on-screen instructions to
mak
e the initial settings for the projector's OS.
•
We r
ecommend logging in with your Google Account to make
more detailed settings.
•
For instructions on how to create a Google Account, contact
Google or see the following website.
Google Account Help
e
When the Wi-Fi setting screen is displayed, select the wireless network
y
o
u want to use, and then follow the on-screen instructions to make
necessary settings.
•
An internet connection is required to view online content. Make sure
you can use the Wi-Fi service.
•
e customer is responsible are responsible for any communication
charges incurred when downloading the app or watching online
content.
f
Follow the on-screen instructions to make other necessary settings.
g
When you agree to the EPSON license terms, the initial setup wizard
c
los
es.
When you have nished the initial setup, the home screen is displayed.
g
Related Links
•
"Projector's Home Screen" p.28
Setting Up the Projector OS
27
Projector's Home Screen

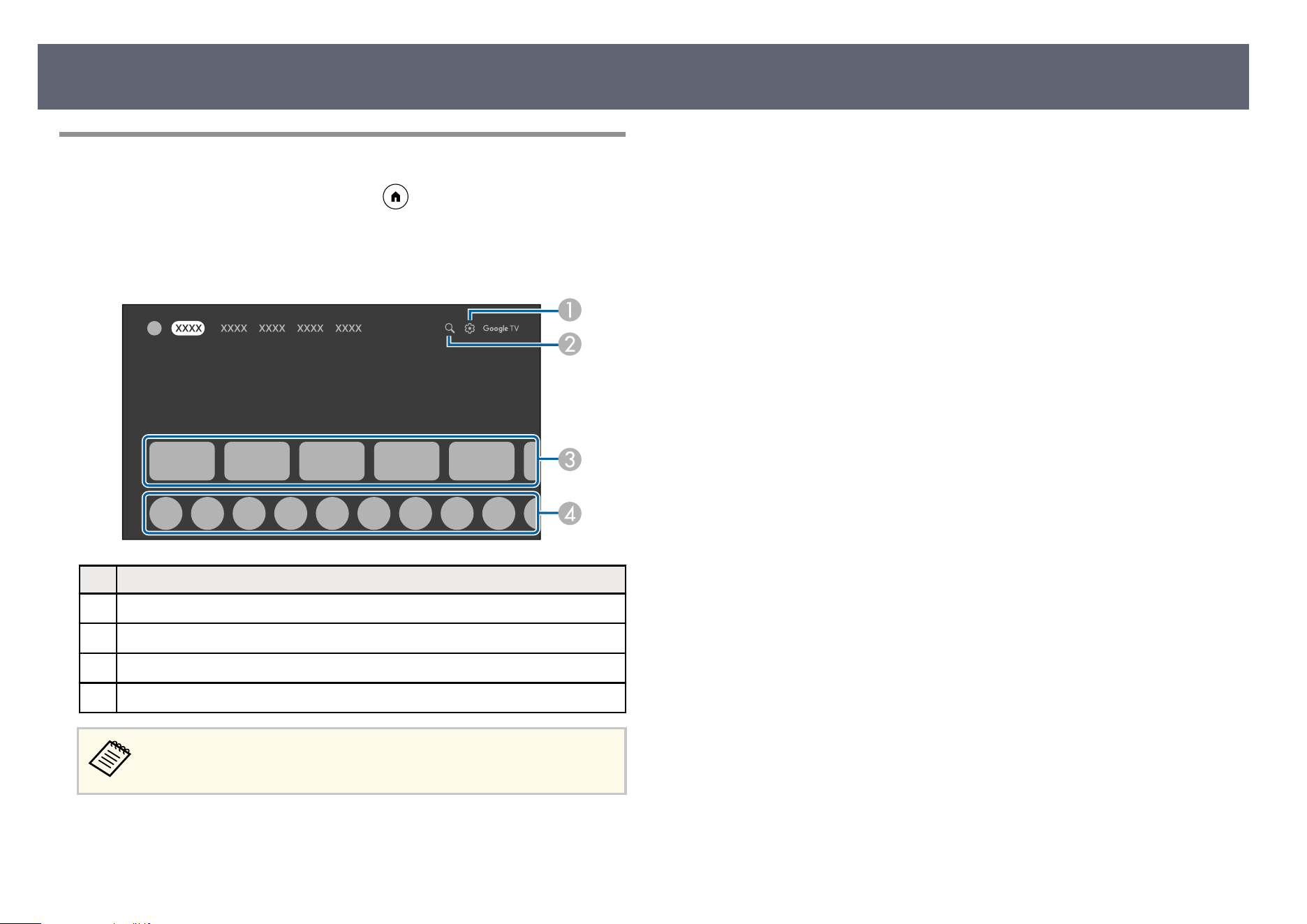

When you turn on the projector or press the button on the remote control,
th
e home screen is displayed.
You can easily access recommended online content and applications from the
home screen.
Description
A
Displays the dashboard menu.
B
Searches for online content.
C
Displays the online content recommended by the applications.
D
Displays the applications downloaded on the projector.
e content of the home screen may change depending on the version of
t
he projector's OS.
Setting Up the Projector OS
28
e Epson Projector Update app allows you to check the projector rmware and
u
pdate it to the latest version. is is necessary to keep the projector up to date.
Install the app, launch the app, and check for the latest rmware.
e Epson Projector Update app is automatically installed by the
p
rojector's initial setting wizard. To install it automatically, make sure you
log in with your Google Account, make the necessary Wi-Fi settings, and
connect the projector to the internet.
g
Related Links
•
"I
nstalling Epson Projector Update" p.29
Installing Epson Projector Update
Follow the steps below to manually install the Epson Projector Update app.

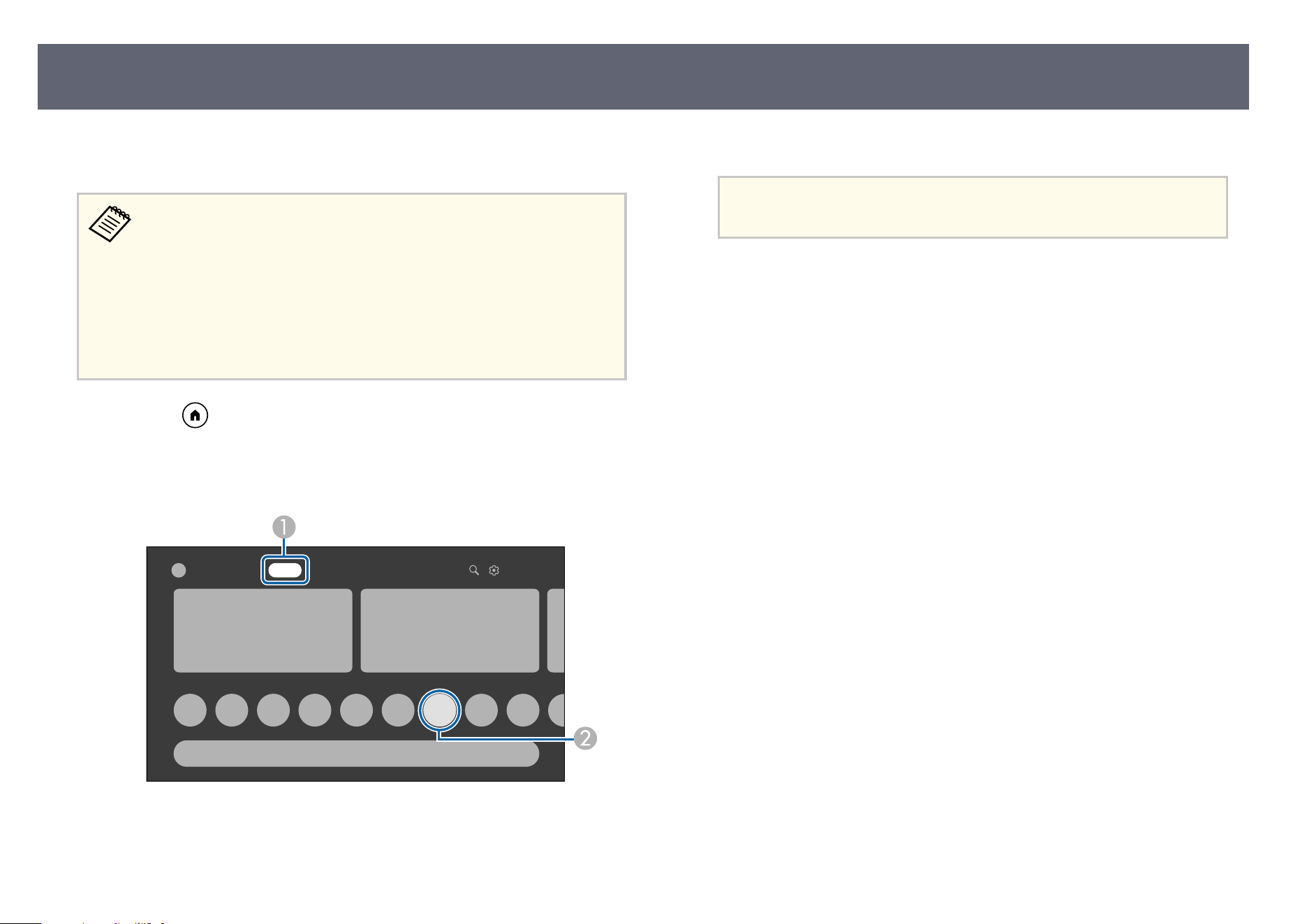

a

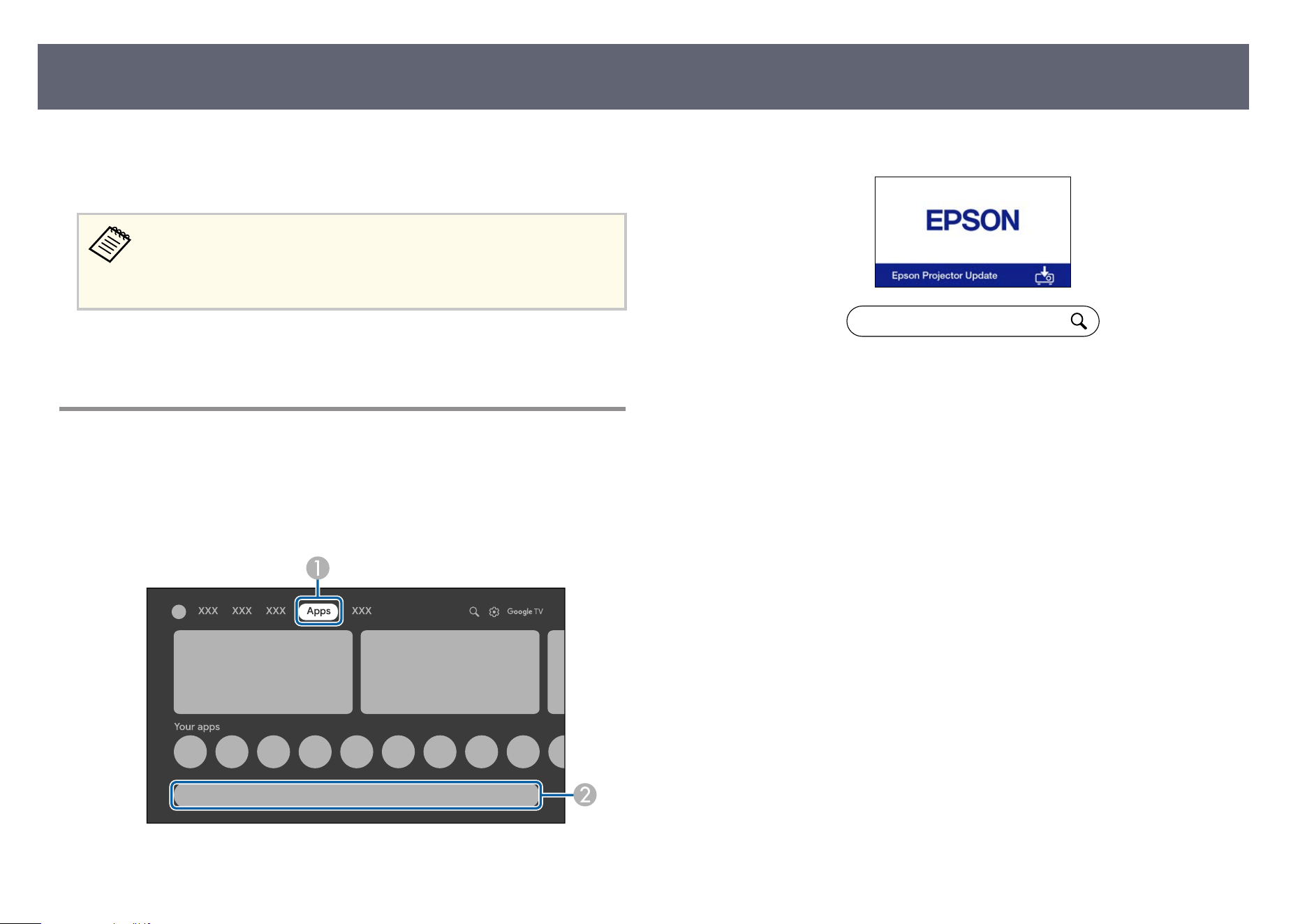

Select the A
pps icon at the top of the home screen and select the search
e
ld.
b
Search for "Epson Projector Update" to install it on the projector.
Epson Projector Update
c
Start the Epson Projector Update app and co
nr
m the latest projector
rmware is installed on the projector.
g
Related Links
•
"Updating Projector Firmware Using Epson Projector Update" p.54
About Epson Projector Update
29
Using Basic Projector Features
Fo
llow the instructions in these sections to use your projector's basic features.
g
Related Links
•
"Turning On the Projector" p.31
•
"Turning O the Projector (Suspended Mode)" p.33
•
"Projection Modes" p.34
•
"Adjusting the Image Height" p.35
•
"Image Shape" p.36
•
"Focusing the Image Using the Projector Menus" p.40
•
"Selecting an Image Source" p.41
•
"Image Aspect Ratio" p.42
•
"Adjusting Image Quality (Color Mode)" p.43
•
"Adjusting Image Quality in Detail" p.44
•
"Turning On Automatic Luminance Adjustment" p.45
•
"Adjusting the Light Source Brightness" p.46
•
"Controlling the Volume with the Volume Buttons" p.47
•
"Changing the Sound Mode" p.48
When you connect the video equipment to the projector, turn on the video
eq
uipment you want to use aer you turn on the projector.
a

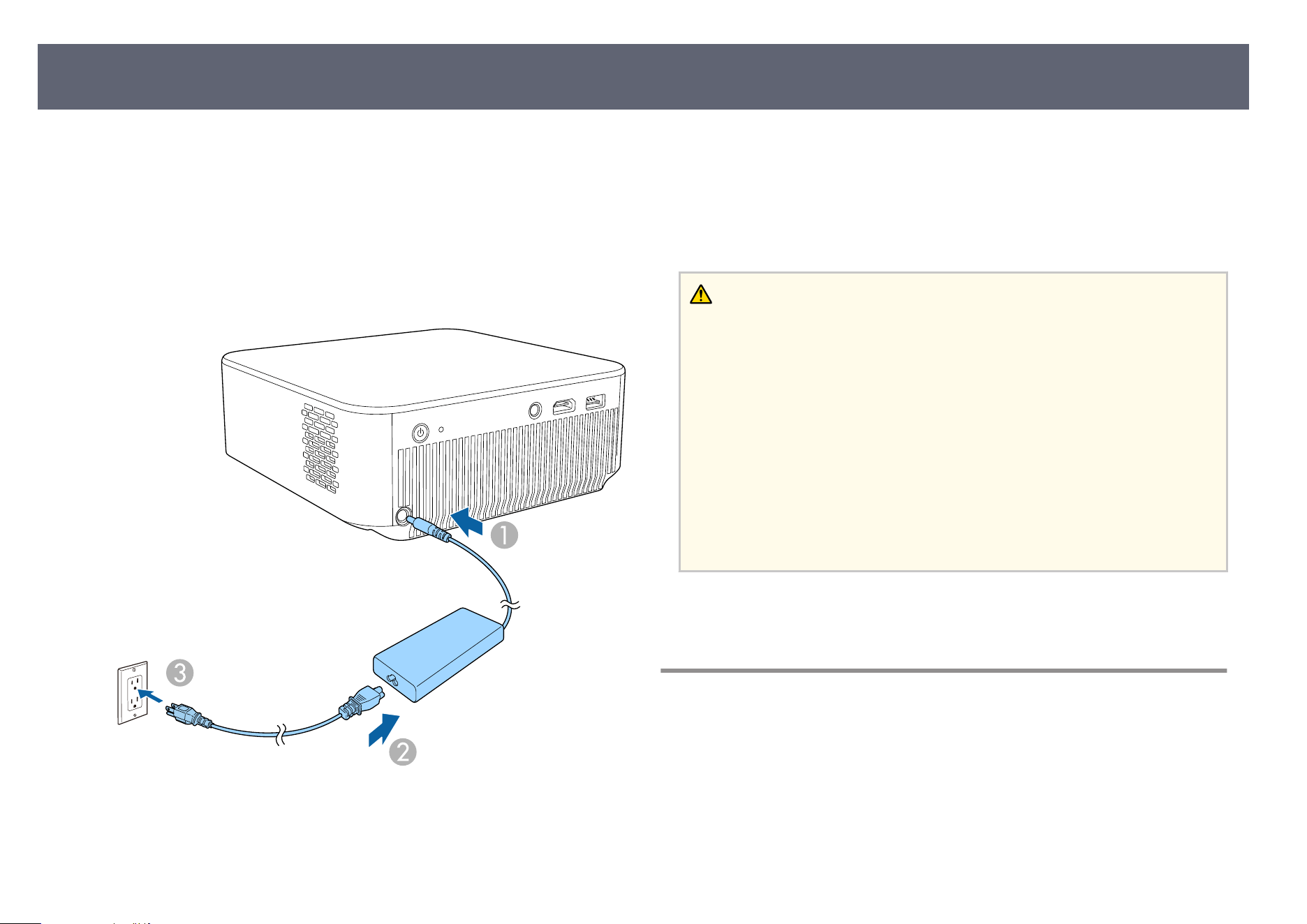

Connect the AC adapter to the projector's AC adapter port.
b
Connect the power cord to the AC adapter.
c
Plug the power cord into an electrical outlet.
e projector enters standby mode. is indicates that the projector is
r
eceiving power, but is not yet turned on.
d
Press the power button on the projector or remote control to turn on the
pr
ojector.
e status indicator turns white.
Auto Shape Correction automatically corrects the focus and any
distortion of the projected image.
Warning
•
N
e
ver look into the projector lens when the light source is on. is can damage
your eyes and is especially dangerous for children.
•
When turning on the projector at a distance using the remote control, make sure
there is no one looking into the lens.
•
During projection, do not block the light from the projector with a book or other
objects. If the light from the projector is blocked, the area on which the light
shines becomes hot which could cause it to melt, burn, or start a re. Also, the
lens may get hot due to the reected light which could cause the projector to
malfunction. To stop projection, turn o the projector.
•
Even when the projector is turned o, do not place any ammable objects such as
a book or cloth in front of the lens. If the projector is unexpectedly turned on for
some reason, it could result in a re.
g
Related Links
•
"A
C Adapter Safety Instructions" p.31
AC Adapter Safety Instructions
Follow these safety instructions when using the supplied AC adapter.
Turning On the Projector
31
Warning
•
Un
der the following conditions, unplug the projector from the outlet and refer all
repairs to qualied service personnel. Continuing to use under these conditions
may result in re or electric shock.
•
If smoke comes from the AC adapter.
•
If strange odors or strange noises come from the AC adapter.
•
If the AC adapter has been damaged.
•
If liquid or foreign objects get inside the AC adapter.
Warning
•
In
correct use of the AC adapter may cause malfunction, re, or electric shock.
Take the following precautions when using the AC adapter.
•
Do not use any AC adapter other than the one supplied with the projector.
•
e supplied AC adapter is designed specically for this projector model. Do
not use it with any other models.
•
Do not apply strong pressure or shocks to the AC adapter.
•
Do not hold the AC adapter with wet hands.
•
Do not install the AC adapter in a narrow space and do not cover it with cloth.
•
Do not touch the AC adapter for a long time while it is energized. It may cause
a low-temperature burn.
•
Do not spray ammable gas such as insecticide on the AC adapter.
•
Do not put the AC adapter in a high-pressure container or a cooking appliance
such as a microwave oven.
•
Do not place the AC adapter near the projector's air exhaust vent.
•
Do not wind the power cord around the AC adapter.
Turning On the Projector
32
Turn o the projector aer use.
Turn o this product when it is not in use to prolong the life of
t
he projector. Light source life varies depending on the environmental
conditions and usage. Brightness decreases over time.
a
Press the power button on the projector or remote control.
e ligh
t source turns o, and the status indicator turns o. e projector
enters suspended mode.
b
To transport or store the projector, make sure the status indicator on the
pr
ojector is o, and then unplug the power cord.
g
Related Links
•
"Turning O the Projector (Deep Standby Mode)" p.33
Turning O the Projector (Deep Standby Mode)
To reduce power consumption when the projector is not in use, turn o
the
projector completely using the remote control.
•
In de
ep standby mode, the projector consumes less power than in
suspended mode.
•
It takes longer for the projector to start up the next time you turn it on
than when it is in suspended mode.
a
Hold down the power button on the remote control.
b
Select O
K on the shutdown conrmation screen.
e
light source turns o, and the status indicator turns o. e projector
enters deep standby mode, reducing power consumption.
c
To transport or store the projector, make sure the status indicator on the
p
r
ojector is o, and then unplug the power cord.
Turning O the Projector (Suspended Mode)
33
Depending on how you positioned the projector, you may need to change the
pr
ojection mode so your images project correctly.
•
Front lets you project from in front of the screen.
•
Front/Ceiling ips the image over top-to-bottom to project upside-down
from a ceiling.
•
Rear ips the image horizontally to project from behind a translucent screen.
•
Rear/Ceiling ips the image over top-to-bottom and horizontally to project
from a ceiling and behind a translucent screen.
g
Related Links
•
"Changing the Projection Mode Using the Menus" p.34
•
"Projector Setup and Installation Options" p.17
Changing the Projection Mode Using the Menus
You can change the projection mode to ip the image over top-to-bottom using
the projector menus.
a
Turn on the projector and display an image.
b
Press the button on the remote control to open the dashboard.
c
Select
on the dashboard.
d
Select the menus in the following order:
s Pr
ojector > Advanced Settings > Projection
e
Select a projection mode and press [Enter].
f
Press
to exit the menus.
Projection Modes
34
If you are projecting from a table or other at sur
face and the image is too high
or low, you can adjust the image height using the projector's adjustable foot.
e larger the angle of tilt, the harder it becomes to focus. Locate the projector
so that it only needs to be tilted at a small angle.
a
Turn on the projector and display an image.
b

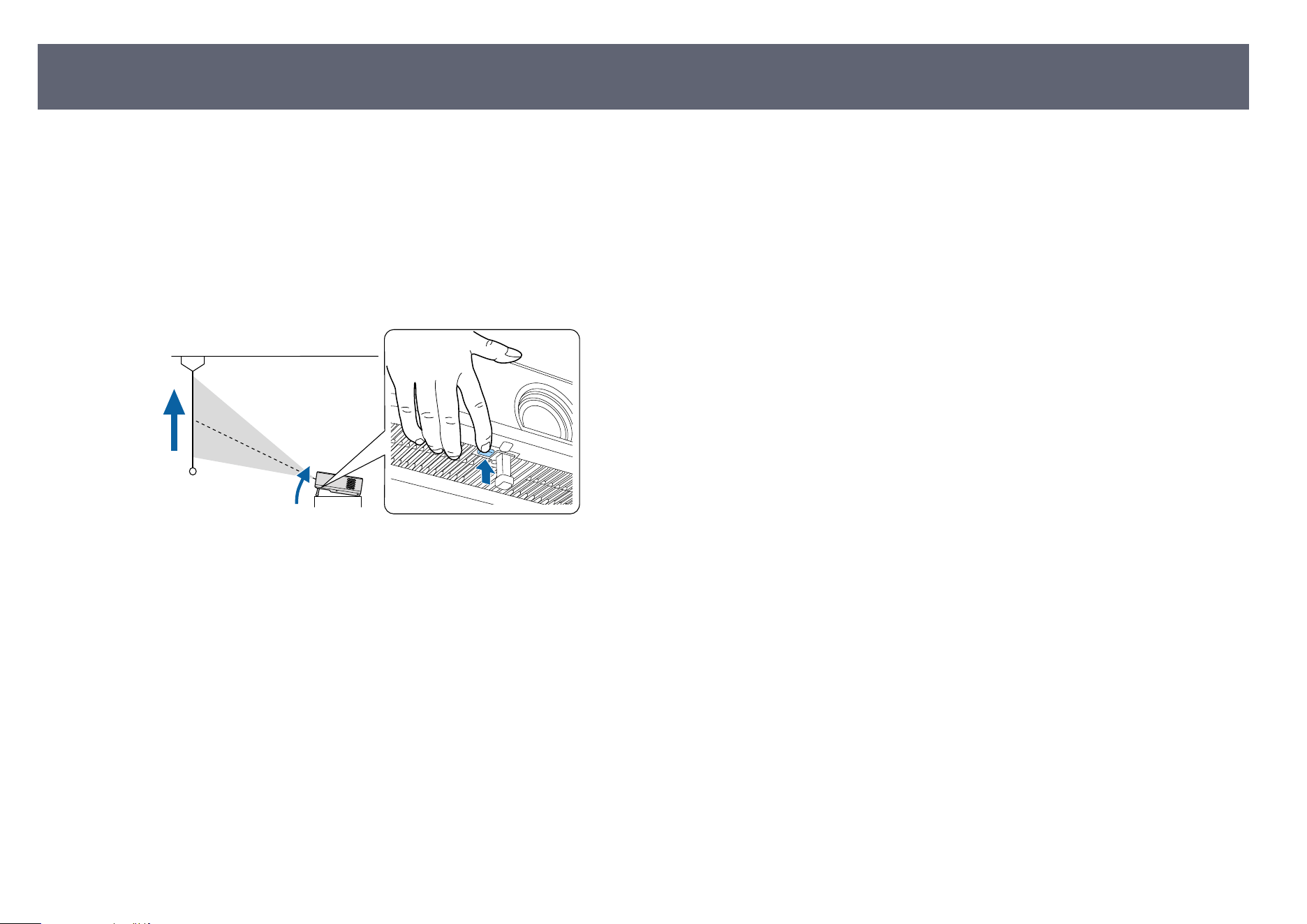

Press the foot release lever to extend and retract the front adjustable foot.
e foot extends from the projector.
Y
ou can adjust the position up to 8 degrees.
c
Release the lever to lock the foot.
If t
he projected image is unevenly rectangular, you need to adjust the image
shape.
g
Related Links
•
"Image Shape" p.36
Adjusting the Image Height
35
You can project an even, rectangular image by placing the projector directly in
fr
ont of the center of the screen and keeping it level. If you place the projector at
an angle to the screen, or tilt it up or down, or o to the side, you may need to
correct the image shape.
Aer correction, your image is slightly smaller.
For the best quality images, we recommend adjusting the installation position of
the projector to achieve the correct image size and shape.
g
Related Links
•
"Correcting the Image Shape and Focus Automatically" p.36
•
"Adjusting the Size and Position of the Image" p.37
•
"Automatically Correcting the Image Shape with Screen Fit" p.37
•
"Correcting the Image Shape with Quick Corner" p.38
Correcting the Image Shape and Focus Automatically
When the projector is moved or tilted, Auto Shape Correction automatically
corrects focus and any keystone distortion of the projected image.
Auto Shape Correction operates under the following conditions:
•
When the size of the projected image (diagonal length) before correcting the
focus and keystone distortion is from 30 to 100 inches.
•
When the projection distance is about 195.6 to 105 inches (77 to 267 cm).
•
When the installation angle of the projector toward the projection surface is
within 20º right, le, up, or down.
•
Au
to Shape Correction operates even if the size of the projected image
exceeds 100 inches. However, the adjustment may fail depending on
the installation angle of the projector, the brightness of the room, and
the material of the projection surface. If necessary, adjust the keystone
distortion and focus settings manually using the projector menu.
•
When an image is being projected at an angle and has been reduced
using the Zoom & Shi function, keystone distortion may not be
corrected. If the correction fails, adjust the reduction ratio of the image
so that it is closer to 100%.
s Projector > Keystone > Zoom & Shi
•
If y
ou set While Moving to O, Auto Shape Correction does not
automatically correct focus or keystone distortion of the projected
image when the projector is moved or tilted.
s Projector > Keystone > Auto Shape Correction > While Moving
•
To manually perform Auto Shape Correction, select Start Corrections
from the Projector menu.
s Projector > Keystone > Auto Shape Correction > Start
Corrections
•

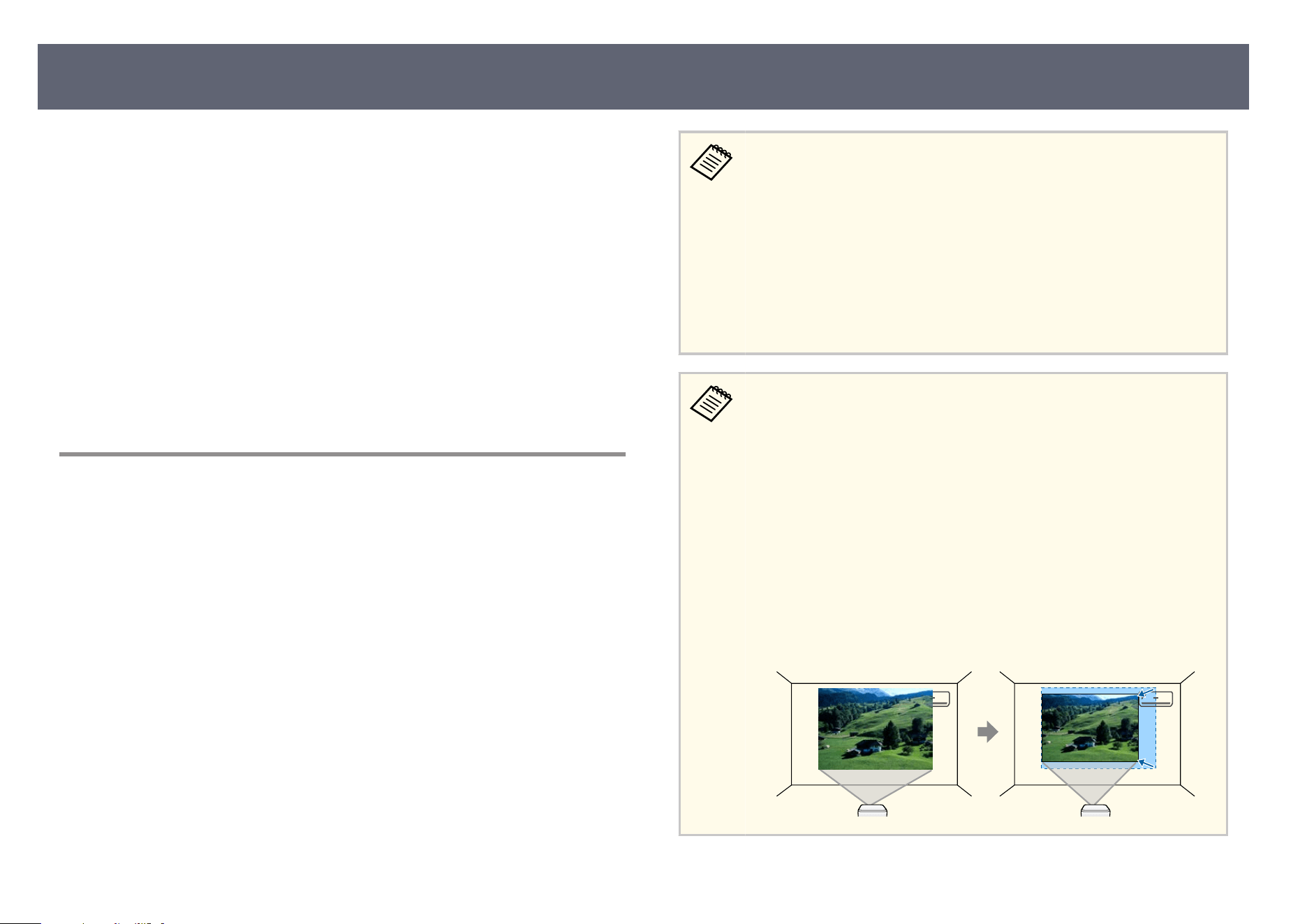

If you set Obstacle Avoidance to On, the image is projected so that it
avoids any obstacles in front of the projection surface. Your image is
slightly smaller.
s Projector > Keystone > Auto Shape Correction > Obstacle
Avoidance
Image Shape
36
g
Related Links
•
"P
rojector Feature Settings - Projector Menu" p.59
Adjusting the Size and Position of the Image

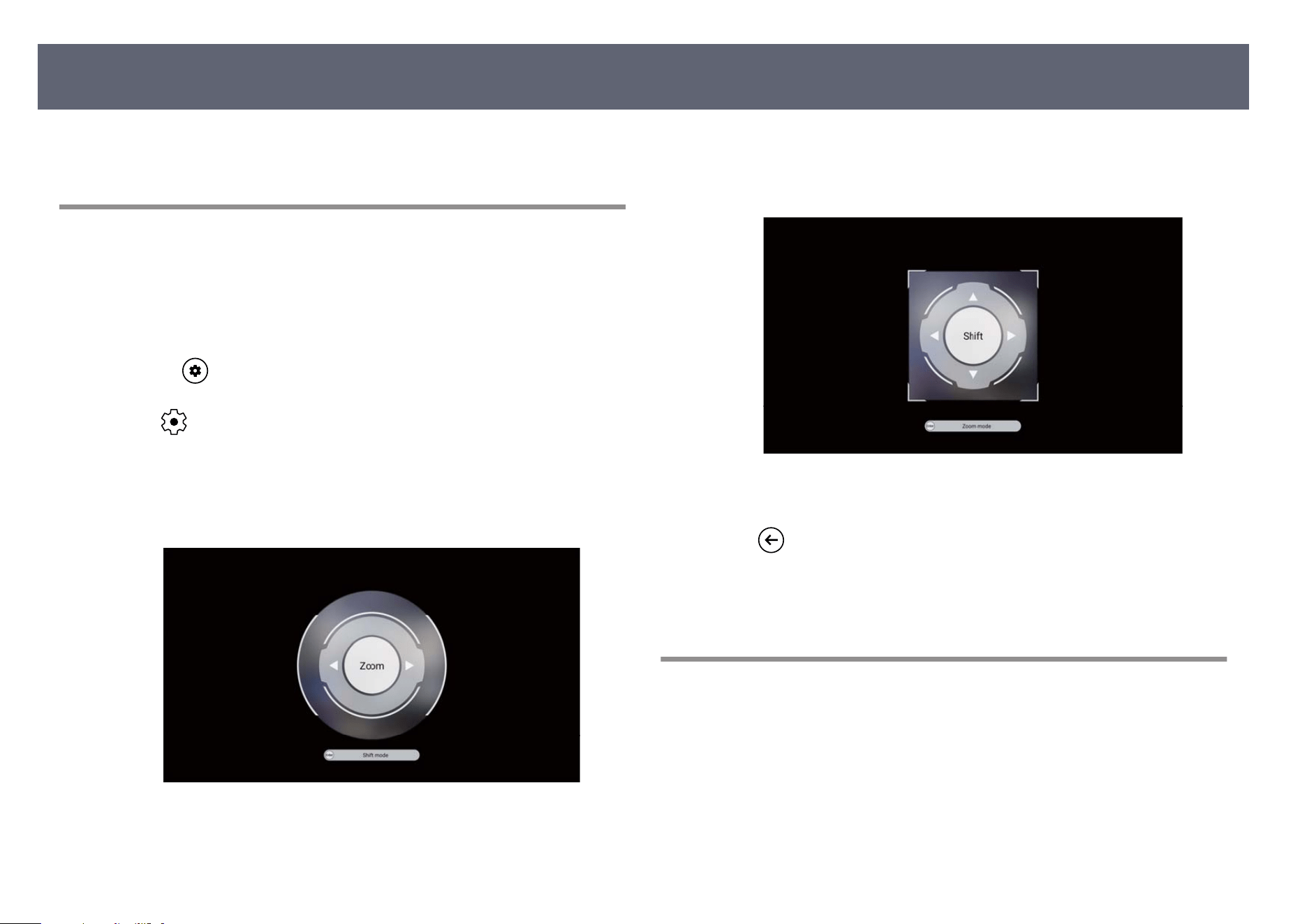

You can use the Zoom & Shi feature to adjust the size and position of the
projected image.
a
Turn on the projector and display an image.
b
Press the button on the remote control to open the dashboard.
c
Select
on the dashboard.
d
Select the menus in the following order:
s Projector > Keystone > Zoom & Shi
e zoom adjustment screen is displayed.
e
Use the le and r
ight arrow buttons to adjust the image size.
f
Press the [Enter] button.
e s
cr
een switches to Shi mode and the shi adjustment screen is
displayed.
g
Use the arrow buttons to adjust the image position.
h
Press
to exit the menus.
g
Relat
ed Links
•
"P
rojector Feature Settings - Projector Menu" p.59
Automatically Correcting the Image Shape with Screen
Fit
You can use the projector's Scr
een Fit feature to automatically correct the shape
and position of images to t on your screen.
Image Shape
37

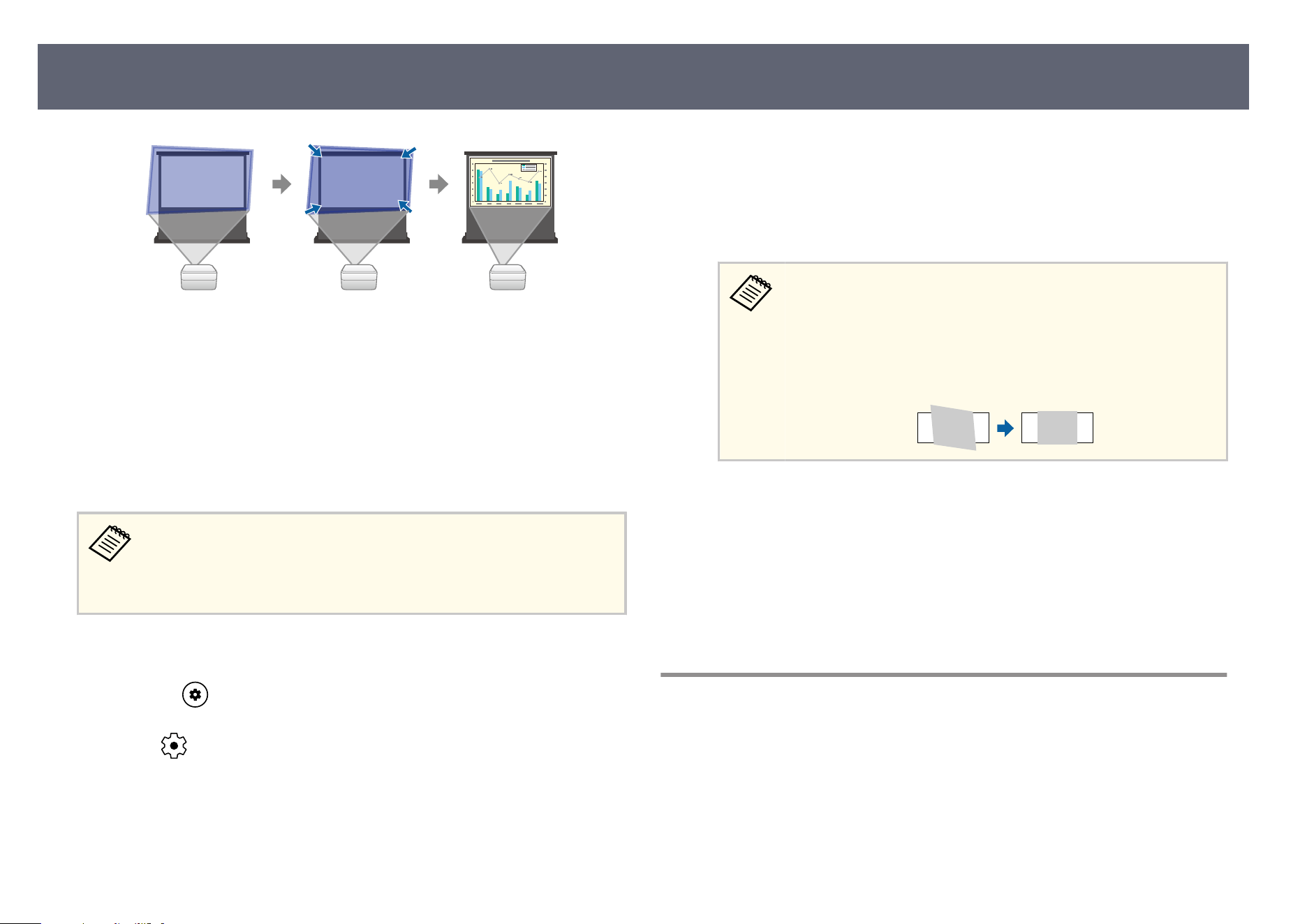

Screen Fit operates under the following conditions:
•
S
creen size is from 30 to 100 inches.
•
Projection distance is about 195.6 to 105 inches (77 to 267 cm).
•
Projection angle is within about 15º right, le, up, or down.
•
e room is not too dark.
•
e projection surface is not patterned and does not deec t the projector's
camera in some way.
When using Scr
een Fit, we recommend setting While Moving to O to
prevent Auto Shape Correction from unintentionally correcting the shape
of the projected image.
s Projector > Keystone > Auto Shape Correction > While Moving
a
Turn on the projector and display an image.
b
Press the button on the remote control to open the dashboard.
c
Select
on the dashboard.
d
Select the menus in the following order:
s Projector > Keystone > Screen Fit
You see a message on the screen.
e
Move the projector as necessary to display the message in the middle of
th
e screen.
f
Expand the projection area so that it extends beyond the edges of the
scr
een.
•
Mo
ve the projector farther away from the screen as necessary.
•
For example, when you project onto a wide screen in a small
room and you cannot extend the projection area beyond the
screen frame, the projection area must include at least the top
and bottom two sides of the screen so that Screen Fit detects the
screen height and adjusts the image to t the screen.
g
Select START.
When the adjustment screen is displayed, do not move the projector or
block the image. e projected image is corrected according to the aspect
ratio of the image being input and the completion message is displayed.
g
Related Links
•
"Projector Feature Settings - Projector Menu" p.59

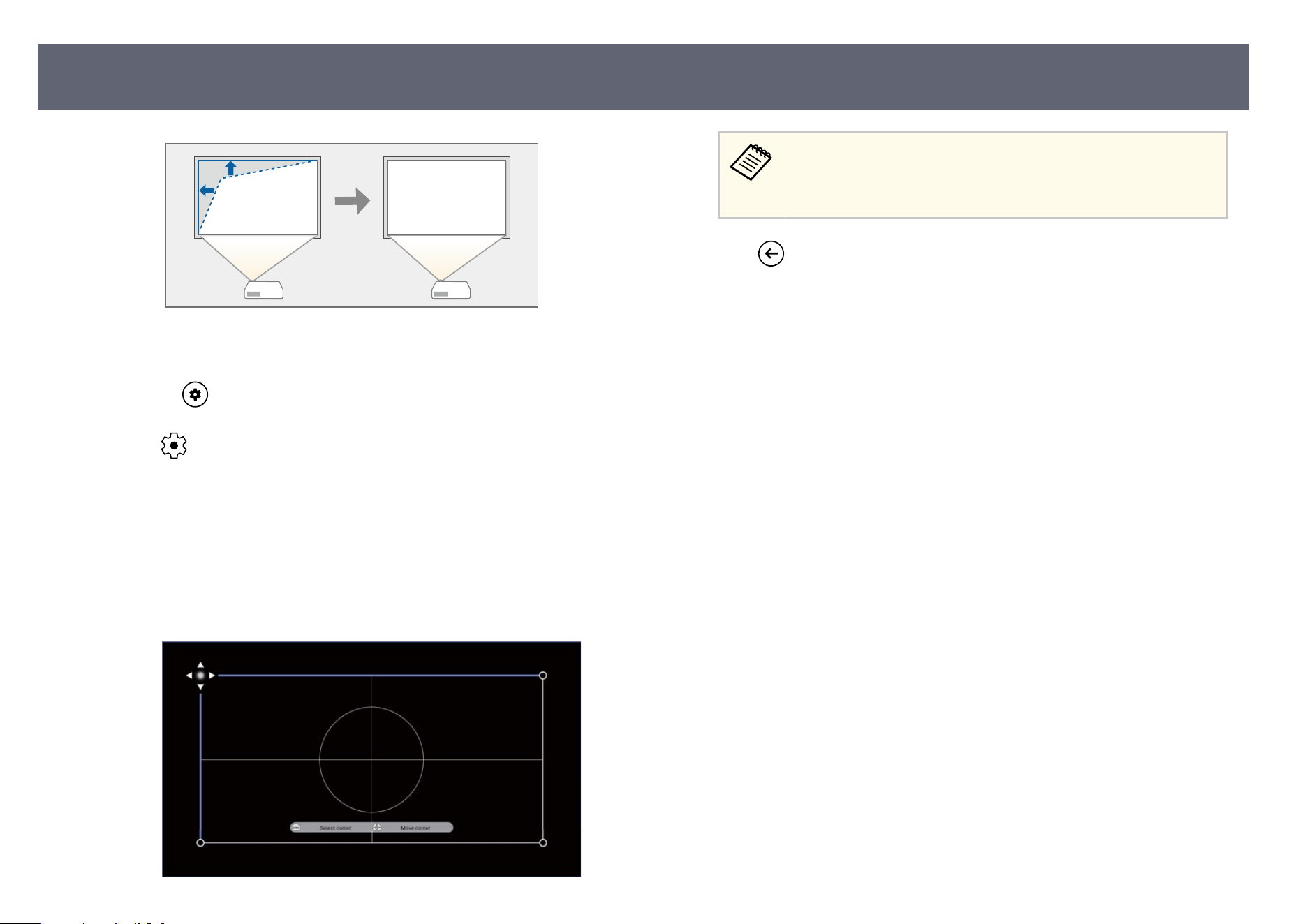

Correcting the Image Shape with Quick Corner
You can use the projector's Qui
ck Corner setting to correct the shape and size of
an image that is unevenly rectangular.
Image Shape
38
a
Turn on the projector and display an image.
b
Press the
button on the remote control to open the dashboard.
c
Select on the dashboard.
d
Select the menus in the following order:
s P
r
ojector > Keystone > Quick Corner
You see the Quick Corner screen.
e
Use the [Enter] button to select the point on the image you want to adjust,
an
d ad
just the image shape using the arrow buttons.
•
If t
he direction key on the screen turns gray, you cannot make
further adjustments in that direction.
•
To reset the corrections, press and hold the [Enter] button.
f
Press to exit the menus.
g
Related Links
•
"P
rojector Feature Settings - Projector Menu" p.59
Image Shape
39

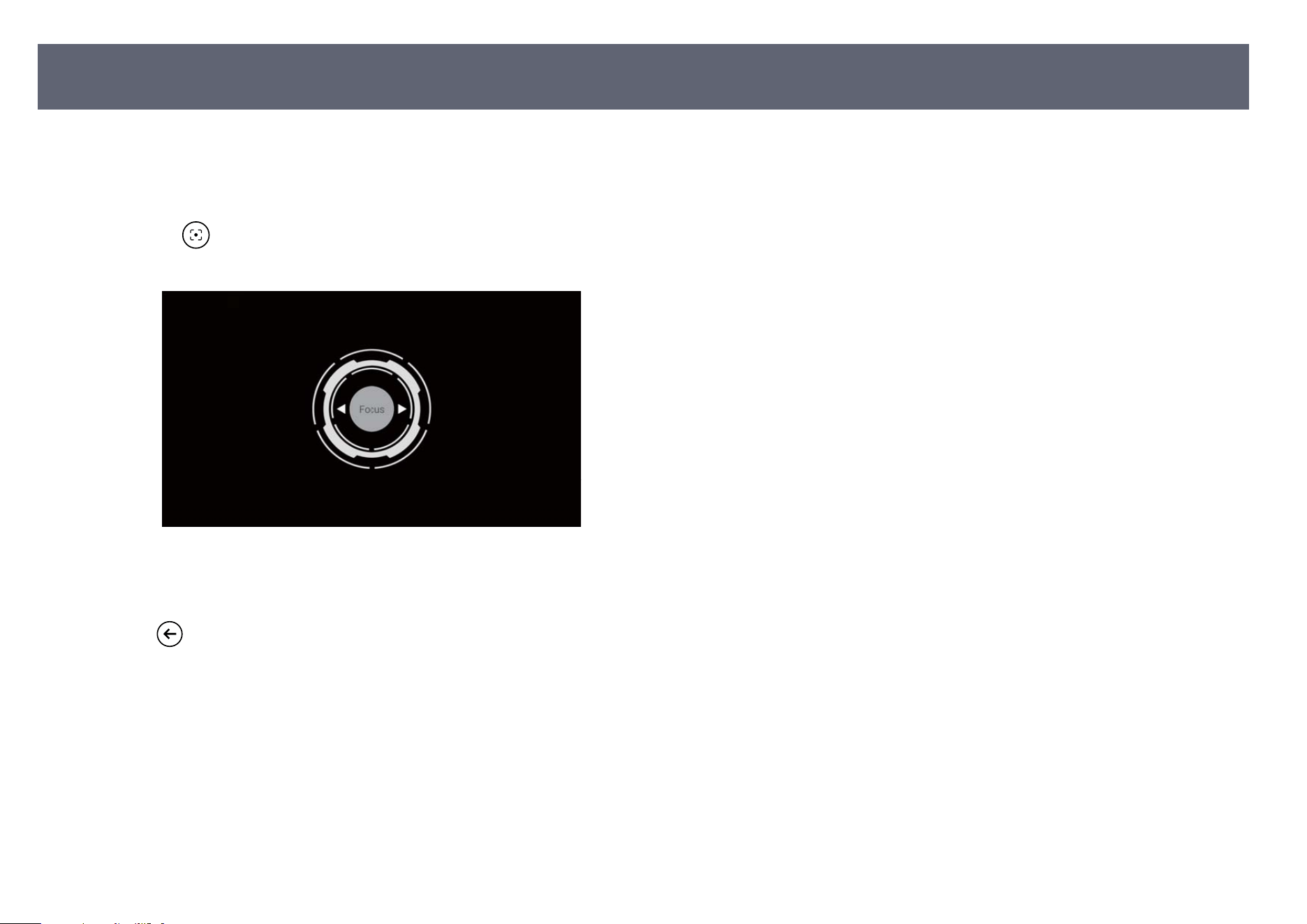

You can correct the focus using the projector menus.
a
Turn on the projector and display an image.
b
Press the
button on the remote control.
e fo
cus adjustment screen is displayed.
c
Press the le and right arrow buttons on the remote control to adjust the
focus setting.
d
Press to exit the menus.
Focusing the Image Using the Projector Menus
40
When multiple image sources are connected to the projector, such as a
com
puter and DVD player, you can switch from one image source to the other.
a
Make sure the connected image source you want to use is turned on.
b
For video image sources, insert a DVD or other video media and press
p
l
ay.
c
Press the
button on the remote control.
d
Press the up or down arrow button to select the image source you want.
When no image signal is detected, check the cable connections
b
et
ween the projector and the image source.
Selecting an Image Source
41
e projector can display images in dierent width-to-height ratios called
as
pect ratios. Normally, the input signal from your video source determines
the image's aspect ratio. However, you can change the aspect ratio for certain
images to t your screen.
If you always want to use a particular aspect ratio for a certain video input
source, you can select it using the projector's Screen menu.
You can select this setting only when the current input source is HDMI 1
.
g
Related Links
•
"C
hanging the Image Aspect Ratio" p.42
•
"Available Image Aspect Ratios" p.42
Changing the Image Aspect Ratio
You can change the aspect ratio of the displayed image.
a
Turn on the projector and display an image.
b
Press the button on the remote control to open the dashboard.
c
Select
on the dashboard.
d
Select the menus in the following order:
s Disp
lay & Sound > Screen
e
Select one of the available aspect ratios for your input signal.
f
Press
to exit the menus.
Available Image Aspect Ratios
You can select the following image aspect ratios.
Note that using the aspect ratio function of the projector to reduce,
enl
arge, or split the projected image for commercial purposes or for public
viewing may infringe upon the rights of the copyright holder of that image
based on copyright law.
Aspect mode Description
Super zoom Zooms into images. e rig
ht, le, top, and bottom
edges are missing.
4:3 Scales images to 4:3.
Movie expand 14:9 Scales images to 14:9.
Movie expand 16:9 Scales images to 16:9.
Full Displays images using the full size of the projection
ar
e
a.
Unscaled Displays images as they are.
Image Aspect Ratio
42
e projector oers dierent color modes to provide optimum brightness,
co
ntrast, and color for a variety of viewing environments and image types.
You can select the mode designed to match your image and environment, or
experiment with the available modes.
g
Related Links
•
"Changing the Color Mode" p.43
•
"Available Color Modes" p.43
Changing the Color Mode
You can change the projector's color mode to optimize the image for your
viewing environment.
a
Turn on the projector and display an image.
b
Press the button on the remote control to open the dashboard.
c
Select
on the dashboard.
d
Select the menus in the following order:
s Disp
lay & Sound > Display > Picture Mode
e
Select the color mode you want to use from the list.
f
Press
to exit the menus.
A
v
ailable Color Modes
You can set the projector to use these color modes, depending on your
environment and image types.
Color mode Description
Standard is is a standard mode that balances brightness
an
d color saturation. Standard mode is generally
recommended.
Cinema Best for enjoying content such as movies.
Vivid Best for enjoying content with bright colors.
Natural Reproduces natural colors. is
is the best option when
you want to adjust the image color.
Adjusting Image Quality (Color Mode)
43
e projector's Display menu provides several options for adjusting the quality
o
f your image based on the input source you are currently using. You can ne-
tune various aspects of how quality and colors are displayed in your projected
images.
s Display & Sound > Display
See "Display & Sound Menu" for details on adjusting the image quality.
g
Related Links
•
"Image Quality Settings - Display & Sound Menu" p.60
Adjusting Image Quality in Detail
44
You can turn on Dy
namic Contrast to automatically optimize the image
luminance. is improves the image contrast based on the brightness of the
content you project.
a
Turn on the projector and display an image.
b
Press the
button on the remote control to open the dashboard.
c
Select on the dashboard.
d
Select the menus in the following order:
s Dis
p
lay & Sound > Display > Advanced Settings > Dynamic Contrast
e
Select one of the following options:
•
O if yo
u do not want to adjust the brightness.
•
Normal for standard brightness adjustment.
•
High Speed to adjust brightness as soon as the scene changes.
f
Press
to exit the menus.
g
Related Links
•
"P
rojector Feature Settings - Projector Menu" p.59
Turning On Automatic Luminance Adjustment
45
You can adjust the brightness of your projector's light source.
a
Turn on the projector and display an image.
b
Press the up/down buttons on the remote control.
e Lig
ht Output adjustment gauge is displayed.
c
Press the
up/down buttons to adjust the brightness.
d
Press to exit the menus.
Adjusting the Light Source Brightness
46
e volume buttons control the projector's internal speaker system.
Y
ou can also control the volume of any external speakers you connected to the
projector.
You must adjust the volume separately for each connected input source.
To adjust the volume for the connected audio/video system, set the Glo
bal
CEC control setting to On in the projector's menu.
s Channels & Inputs > Inputs > Global CEC control
a
Turn on the projector and start a video.
b
To lower or raise the volume, press the up/down buttons on the
r
em
ote control.
A volume gauge appears on the screen.
Caution
Do n
ot start a playback at a high volume setting. Sudden loud noises may cause
hearing loss.
Always lower the volume before powering o, so that you can power on and then
gradually increase the volume.
Controlling the Volume with the Volume Buttons
47
e projector oers dierent sound modes to provide optimum sound for a
var
iety of image types.
You can select the mode designed to match your image, or experiment with the
available modes.
a
Turn on the projector and start a video.
b
Press the
button on the remote control to open the dashboard.
c
Select on the dashboard.
d
Select the menus in the following order:
s Dis
p
lay & Sound > Sound > Sound Mode
e
Select your sound mode.
f
Press
to exit the menus.
g
Related Links
•
"A
vailable Sound Modes" p.48
Available Sound Modes
You can set the projector to use these sound modes, depending on the input
so
urce you are using:
Sound mode Description
Cinema Best for audio from videos or movies. Low and high
p
i
tch sounds are emphasized.
Dialogue Best for hearing voices and spoken lines.
Music Best for music. Low and high pitch sounds are clearer.
Sound mode Description
Standard Outputs the audio using normal sound quality.
Changing the Sound Mode
48
Adjusting Projector Features
Fo
llow the instructions in these sections to use your projector's adjustment features.
g
Related Links
•
"Using the Projector as a Bluetooth
®
Speaker" p.50
•
"Shutting O the Image Temporarily" p.51
•
"Using Google Cast
™
" p.52
•
"HDMI CEC Features" p.53
•
"Updating Projector Firmware Using Epson Projector Update" p.54
•
"Initializing the Projector" p.55

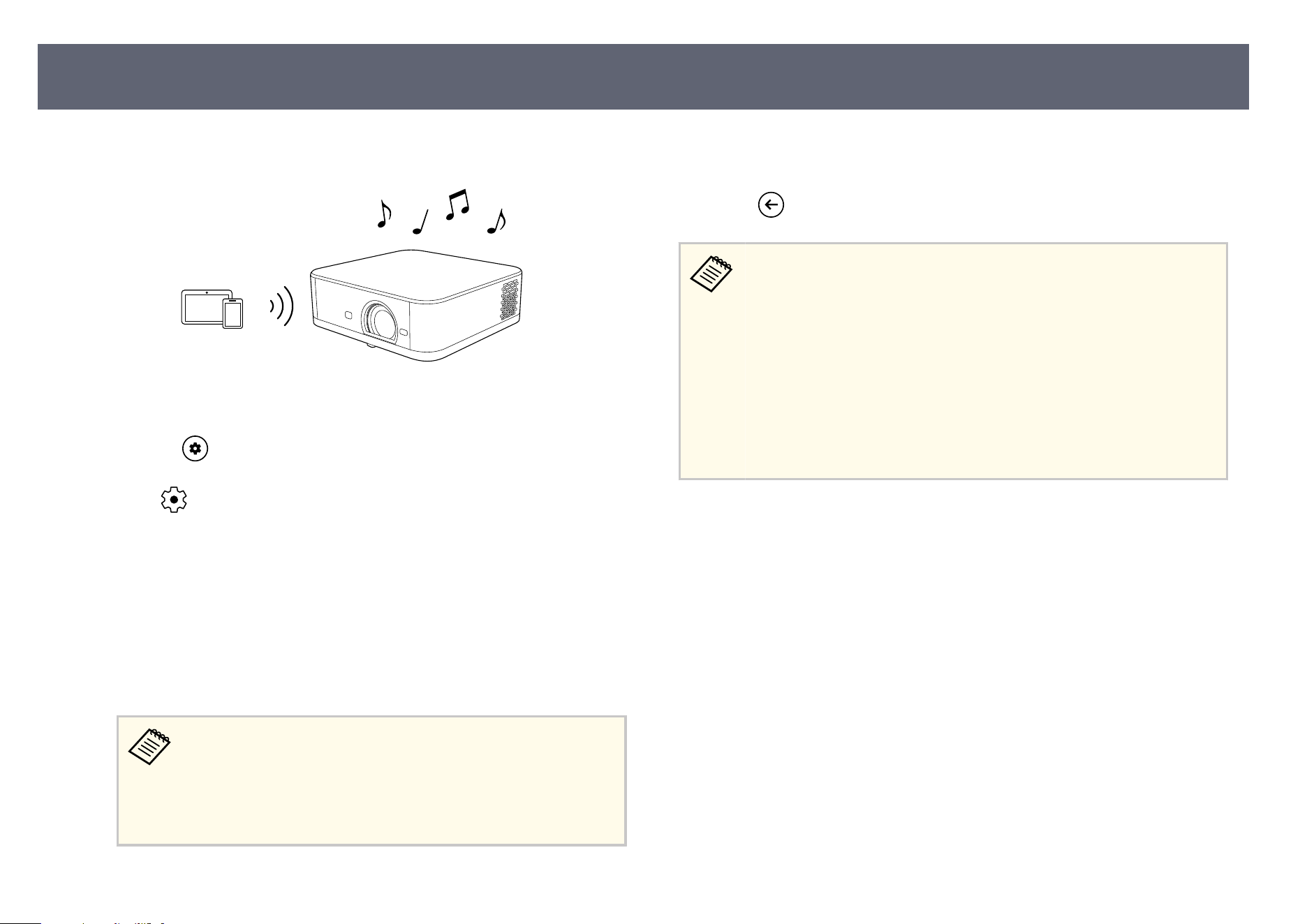

You can use the projector's speaker to output audio from a video/audio device
conn
ected by Bluetooth.
a
Turn on the projector and display an image.
b
Press the button on the remote control to open the dashboard.
c
Select on the dashboard.
d
Select the menus in the following order:
s P
r
ojector > Bluetooth Speaker Mode
e Bluetooth Speaker Mode screen is displayed.
e
Enable the Bluetooth function on the device you want to connect and
s
e
lect the projector name (this projector) from the available device list. See
the documentation supplied with the device for more information.
•
Yo
u can check and change the projector name from the
projector's Device name menu.
s System > About > Device name
•
To cancel a Bluetooth connection, disconnect from the
connected device.
e projected image turns o 10 seconds aer the Bluetooth connection is
es
tablished.
f
Press
to exit Bluetooth Speaker Mode.
•
ere
is a delay in the audio output from any Bluetooth audio device.
•
You cannot connect multiple video/audio devices by Bluetooth at the
same time.
•
You can also connect the projector to Bluetooth audio devices, such
as speakers or headphones, to output the projector's audio from these
devices. Select the menus in the following order to perform pairing
from the menu displayed.
s Remotes & Accessories > Pair accessory
•
Bluetooth audio devices are not supported in some countries and
regions.
Using the Projector as a Bluetooth
®
Speak
er
50
You can temporarily turn o
the projected image.
a
Press the
button on the remote control to open the dashboard.
b
Select on the dashboard.
c
Select the menus in the following order:
s Disp
lay & Sound > Display > Advanced Settings
d
Select Picture o to turn o the projected image.
e
T
o turn the image back on, press
.
g
Related Links
•
"I
mage Quality Settings - Display & Sound Menu" p.60
Shutting O the Image Temporarily
51
With Google Cast, you can stream entertainment from your favorite apps on
yo
ur phone, tablet or laptop to Epson projectors.
a
Connect your device or computer to the same wireless network as the
pr
ojector.
b
Open the Google Cast-enabled app and press
.
c
Select your projector from the list of devices.
You can check and change the projector name from the projector's
D
e
vice name menu.
s System > About > Device name
e app connects and starts casting to the projector.
d
T
o stop casting, press
in the app and choose the disconnect option.
Using Google Cast
™
52
When an audio/video source that meets the HDMI CEC standard is connected
to t
he projector's HDMI port, you can use the projector's remote control to
control certain features of the linked device.
g
Related Links
•
"Operating Connected Devices Using the HDMI CEC Features" p.53
Operating Connected Devices Using the HDMI CEC
Features
You can control connected audio/video devices using the HDMI CEC features.
•
Yo
u must also congure the connected device. See the documentation
supplied with the device for more information.
•
Some connected devices or functions of those devices may not
operate properly even if they meet the HDMI CEC standard. See the
documentation supplied with the device for more information.
•
Use a cable that supports the HDMI standard.
a
Press the button on the remote control to open the dashboard.
b
Select
on the dashboard.
c
Select the menus in the following order:
s Channels & Inputs > Inputs > Global CEC control
d
Set Global CEC control to on.
e
A
djust the following HDMI CEC settings as necessary.
•
To au
tomatically turn o the connected device when you turn o the
projector, set Allow TV to turn o connected devices to on.
•
To automatically turn on the projector when you turn on the connected
device, set Allow connected devices to turn on TV to on.
f
Press
to exit the menus.
Yo
u can use the projector's remote control to control the linked device such as
playback, stop, or adjust the volume.
g
Related Links
•
"Projector Feature Settings - Channels & Inputs Menu" p.58
HDMI CEC Features
53
You can get the latest version of the projector rm
ware by using Epson Projector
Update.
•
If t
he Epson Projector Update app is not installed, install it from the
home screen. Be sure to install the app to keep the projector up to date.
•
When the latest projector rmware is available, a notication
is automatically displayed on the screen. Follow the on-screen
instructions to update the rmware.
•
If there is not enough space in the internal storage, the update may
fail. Free up space by deleting unnecessary apps and caches, then try
updating again.
a
Press the button on the remote control.
b
Select A
pps and start Epson Projector Update by selecting it from the
ap
ps list.
XXXX XXXX Apps XXXX Google TV
Your apps
c
Follow the on-screen instructions to update the rm
ware.
Attention
Whi
le updating the rmware, do not operate or turn o the projector.
g
Related Links
•
"I
nstalling Epson Projector Update" p.29
Updating Projector Firmware Using Epson Projector Update
54
You can reset all of the projector settings to their default values.
If you initialize the projector, all the information such as installed apps,
Go
ogle Account login information, and the projector's menu settings
are deleted. Write down the settings you do not want to lose before
performing initialization.
a
Turn on the projector and display an image.
b
Press the button on the remote control to open the dashboard.
c
Select
on the dashboard.
d
Select the menus in the following order:
s Sy
stem > About > Reset > Factory reset
e
Follow the on-screen instructions to start initializing the projector.
g
Related Links
•
"S
ystem Menu" p.62
Initializing the Projector
55
Adjusting the Menu Settings
Fo
llow the instructions in these sections to access the projector menu system and change projector settings.
g
Related Links
•
"Using the Projector's Menus" p.57
•
"Projector Feature Settings - Channels & Inputs Menu" p.58
•
"Projector Feature Settings - Projector Menu" p.59
•
"Image Quality Settings - Display & Sound Menu" p.60
•
"Other Menus" p.62
You can use the projector's menus to adjust the settings that control how your
pr
ojector works. e projector displays the menus on the screen.
a
Press the
button on the remote control to open the dashboard.
b
Select on the dashboard.
c
Press the up or down arrow buttons to move through the menus listed on
th
e screen.
d
To change settings in the displayed menu, press the [Enter] button.
e
Press the arrow buttons to move through the settings.
f
Change the settings using the buttons as necessary.
g
When you ni
s
h changing settings on a menu, press
.
h
Press to exit the menus.
Using the Projector's Menus
57
Settings on the Channe
ls & Inputs menu let you control the audio/video device
you are currently using.
Setting Options Description
Inputs Switch input Switches the input source between Ho
me
and HDMI 1.
HDMI 1 Show this input: Sp
ecies whether to
show HDMI 1 in the list of input sources.
PIN lock: When enabling this setting, the
PIN code of the device that is connected
to the projector's HDMI port is required
when you switch the input source to
HDMI 1.
Edit names: Selects a name you want to
display as the name of the audio/video
device that is connected to the projector's
HDMI port.
No signal standby timeout: Sets the time
before the projector enters standby mode
when no signal is detected from the
HDMI 1 source.
Global CEC control Select On to control the connected audio/
v
ideo device using the projector's remote
control.
Allow TV to
tur
n o connected
devices
Select On to automatically turn o the
connected audio/video device when you
turn o the projector.
Allow connected
dev
ices to turn on
TV
Select On to automatically turn on
the projector when you turn on the
connected device, or when you start
playback on the connected device.
g
Relat
ed Links
•
"O
perating Connected Devices Using the HDMI CEC Features" p.53
Projector Feature Settings - Channels & Inputs Menu
58
Settings on the Pr
ojector menu provide correction methods to properly project
your image.
Setting Options Description
Focus — Adjusts the focus of the projected image.
Keystone Auto Shape
Correction
Automatically adjusts any horizontal/
vertical distortion of the projected image.
Screen Fit Automatically corrects the shape and
posi
tion of the projected image to t on
your screen.
Quick Corner Corrects the shape and alignment of
th
e projected image using an on-screen
display.
Zoom & Shi R
esizes the projected image and adjusts
the image position.
Reset to Defaults Resets all adjustment values on the
Ke
ystone menu to their default settings.
Advanced Settings Smart Eye
Pr
otection
Select On to enable the Smart Eye
Protection function.
When the projector's sensor detects
obstacles that are interfering with the
projection area, the brightness of the
light source is automatically reduced to
minimize glare.
Projection Selects the way the projector faces the
scr
een so the image is oriented correctly.
Wall Color
Co
rrection
Start Corrections: Adjusts the color of
the projected image so that it matches the
color of the projection surface.
Enable: Select On to enable the Wall
Color Correction function.
Setting Options Description
Bluetooth Speaker
Mo
de
— Opens the Bluetooth device connection
screen to switch to Bluetooth Speaker
Mode.
g
Related Links
•
"Correcting the Image Shape and Focus Automatically" p.36
•
"Adjusting the Size and Position of the Image" p.37
•
"Automatically Correcting the Image Shape with Screen Fit" p.37
•
"Correcting the Image Shape with Quick Corner" p.38
•
"Using the Projector as a Bluetooth
®
Speaker" p.50
Projector Feature Settings - Projector Menu
59
Settings on the Disp
lay & Sound menu let you adjust the quality of your image
and optimize the sound for the input source you are currently using.
Setting Options Description
Display Picture Mode Select your favorite color mode from the
lis
t.
Light Output Adjusts the brightness of the light source.
Yo
u cannot adjust the brightness if
the brightness of the light source dims
because the surrounding temperature is
too high or for other factors.
Brightness Lightens or darkens the overall image.
Contrast Adjusts the dieren
ce between light and
dark areas of the image.
Saturation Adjusts the overall vividness of the color.
Tint Adjusts the balance of green to magenta
to
nes in the image.
Sharpness Adjusts the sharpness or so
ness of the
image.
Advanced Settings See the table below for details.
Reset to Default Resets all adjustment values on the
Disp
lay menu to their default settings.
Screen See the list of
avail
able aspect
ratios.
Sets the aspect ratio (width-to-height
ratio) for the input source. (is setting
is available only when the current input
source is HDMI.)
Sound Sound Mode Select your favorite mode for sound
ou
tput from the projector's speaker
system according to the playback
contents.
Reset to Default Resets all adjustment values on the So
und
menu to their default settings.
Setting Options Description
Audio Output Digital Output Selects the sound output format when
yo
u output audio to an external audio
device.
Digital Output
De
lay
Adjusts the audio latency. If the audio is
fast, select a higher value.
Karaoke Karaoke Mode When Karaoke Mode is set to On,
audio f
rom the microphone and in
the projected content are simultaneously
output from the projector's speakers.
To use Karaoke Mode, use the optional
microphone (ELPKM01). (ELPKM01 is
available only in some countries and
regions.)
Karaoke Mode can be used in any of the
following cases:
•
When the current input source is
HDMI
•
When using the YouTube app
Karaoke Mode cannot be used in the
following cases:
•
When external speakers are connected
to the projector (by Bluetooth or cable)
•
When headphones are connected to
the projector
USB Mic Volume Adjusts the volume for the microphone
conn
ected by USB.
USB Mic sound
eec
ts
Selects the sound eect for the
microphone connected by USB.
Advanced Settings
Setting Description
Picture o T
urns o the projected image.
Image Quality Settings - Display & Sound Menu
60
Setting Description
Color Temperature Sets the color temperature according to the color mode
yo
u selected.
DNR Reduces ickering in images.
P
rojection Preferences Selects whether to prioritize brightness or color tone
wh
en projecting an image.
•
Fine: Prioritizes color tone.
•
Bright: Prioritizes brightness.
Dynamic Contrast Adjusts the projected luminance based on the image
br
ightness.
Scene Adaptive Gamma Adjusts the coloring according to the scene, and obtains
a mo
re vivid image. Higher values enhance the more
the contrast.
Dynamic Color Booster Automatically adjusts saturation according to the scene
and m
akes the projected image colorful.
Gamma Selects the gamma to adjust the coloring.
Game Mode Improves the response speed for images projected at
high s
peed, such as games. is setting is displayed only
when:
•
Frame Interpolation is set to O.
HDMI RGB Range Sets the video range to match the setting of the device
conn
ected to the HDMI port.
MPEG NR Reduces the noise or artifacts seen in MPEG video.
Local Contrast Control Enhances the contrast of the projected image.
Flesh Tone Lightens the skin tone of the image.
PC Mode Select On t
o project the image while preserving the
co
lor information of the input image signal. is setting
is available only when the current input source is
HDMI.
Setting Description
Frame Interpolation Adjusts the smoothness of image movement. is
s
etting is displayed only when:
•
Game Mode is set to O.
•
PC Mode is set to O.
Low Blue Light Reduces blue light in the projected image.
Color Tuner Set Enable to On to enable the Color Tuner settings.
A
djusts the individual R (red), G (green), B (blue),
C (cyan), M (magenta), Y (yellow), and Flesh Tone
components of the HUE, Saturation, and Brightness
settings.
Adjusts the individual R (red), G (green), and B (blue)
components of the oset and gain.
g
Related Links
•
"C
hanging the Color Mode" p.43
•
"Adjusting Image Quality in Detail" p.44
•
"Changing the Sound Mode" p.48
•
"Available Image Aspect Ratios" p.42
Image Quality Settings - Display & Sound Menu
61
Options on other menus let you customize various projector's OS features.
g
Related Links
•
"N
etwork & Internet Menu" p.62
•
"Accounts & Proles Menu" p.62
•
"Privacy Menu" p.62
•
"Apps Menu" p.62
•
"System Menu" p.62
•
"Accessibility Menu" p.62
•
"Remotes & Accessories Menu" p.63
•
"Help & Feedback Menu" p.63
Network & Internet Menu
Settings on the Network & Internet menu let you view network information
and set up the projector for controlling over a network.
Accounts & Proles Menu
Settings on the Acco
unts & Proles menu let you add new Google Accounts
used to log in to the projector, and make detailed settings for these accounts.
Privacy Menu
Settings on the Privac
y menu let you change your privacy and security settings.
Apps Menu
e A
pps menu displays your most recently used apps or all the apps that are
in
stalled on the projector.
System Menu
Settings on the Sy
stem menu let you customize various projector features.
Setting Description
Ambient Screensaver Allows you to make settings for the screen saver.
Power & Energy Allows you to make settings for power and energy
s
av
ing.
About Displays the projector's preferences and status.
Yo
u can return all the projector settings to their factory
default values from this menu.
Date & Time Adjusts the projector's system time and date settings.
Language Select the language used for the projector menus and
mes
sages.
Keyboard Allows you to make detailed settings for the virtual
ke
yboard installed in the projector's menu.
Storage Allows you to display the usage status of the internal
st
orage and clean the cache.
Cast Turns on/o the cast function.
S
ystem sounds Turns on/o the system sounds.
R
estart Restarts the projector.
g
Related Links
•
"I
nitializing the Projector" p.55
•
"Shutting O the Image Temporarily" p.51
Accessibility Menu
Settings on the Acces
sibility menu let you congure accessibility options, such
as subtitles and text reading.
Other Menus
62
Remotes & Accessories Menu
Settings on the Re
motes & Accessories menu let you pair the remote control
and the projector, or let you connect/disconnect your Bluetooth devices to the
projector.
Help & Feedback Menu
e Help & Feedback menu provides a link to the projector's OS help page, or
lets y
ou send feedback or comments about the product.
Other Menus
63
You may need to clean the projector's lens periodically, and clean the air
lt
er and air vents to prevent the projector from overheating due to blocked
ventilation.
e only user-replaceable parts are the remote control batteries. If any other
part needs to be replaced, contact Epson.
Warning
Bef
ore cleaning any part of the projector, turn it o and unplug the power cord.
Never open any cover on the projector, except as specically explained in this
manual. Dangerous electrical voltages in the projector can injure you severely.
Projector Maintenance
65
Clean the projector's lens periodically, or whenever you notice dust or smudges
on t
he surface.
•
To remove dust or smudges, gently wipe the lens with clean and dry lens-
cleaning paper.
•
If the lens is dusty, blow o dust using a blower, and then wipe the lens.
Warning
•
Bef
ore cleaning the lens, turn o the projector and unplug the power cord.
•
Do not use any ammable gas sprays such as air dusters to blow o dust. e
high heat generated by the projector may cause a re.
Attention
•
Do n
ot wipe the lens right aer you turn o the projector. Doing so could
damage the lens.
•
Do not use any harsh materials to clean the lens and do not subject the lens to
any impacts; otherwise, it could be damaged.
Cleaning the Lens
66
Before cleaning the projector case, turn o
the projector and unplug the power
cord.
•
To remove dust or dirt, use a so, dry, lint-free cloth.
•
To remove stubborn dirt, use a so cloth moistened with water and mild
soap. Do not spray liquid directly on the projector.
Attention
Do n
ot use wax, alcohol, benzene, paint thinner, or other chemicals to clean the
projector case. ese can damage the case. Do not use canned air, or the gases
may leave a ammable residue.
Cleaning the Projector Case
67
Regular lter maintenance is important to maintain your projector. Clean
t
he air lter when a message appears telling you the temperature inside the
projector has reached a high level. It is recommended that you clean these parts
about once every year. Clean them more oen than this if you use the projector
in an environment that is dustier than expected. (Assuming the projector is used
in an atmosphere in which airborne particulate matter is less than 0.04 to 0.2
mg/m3.)
g
Related Links
•
"Cleaning the Air Filters and Intake Vents " p.68

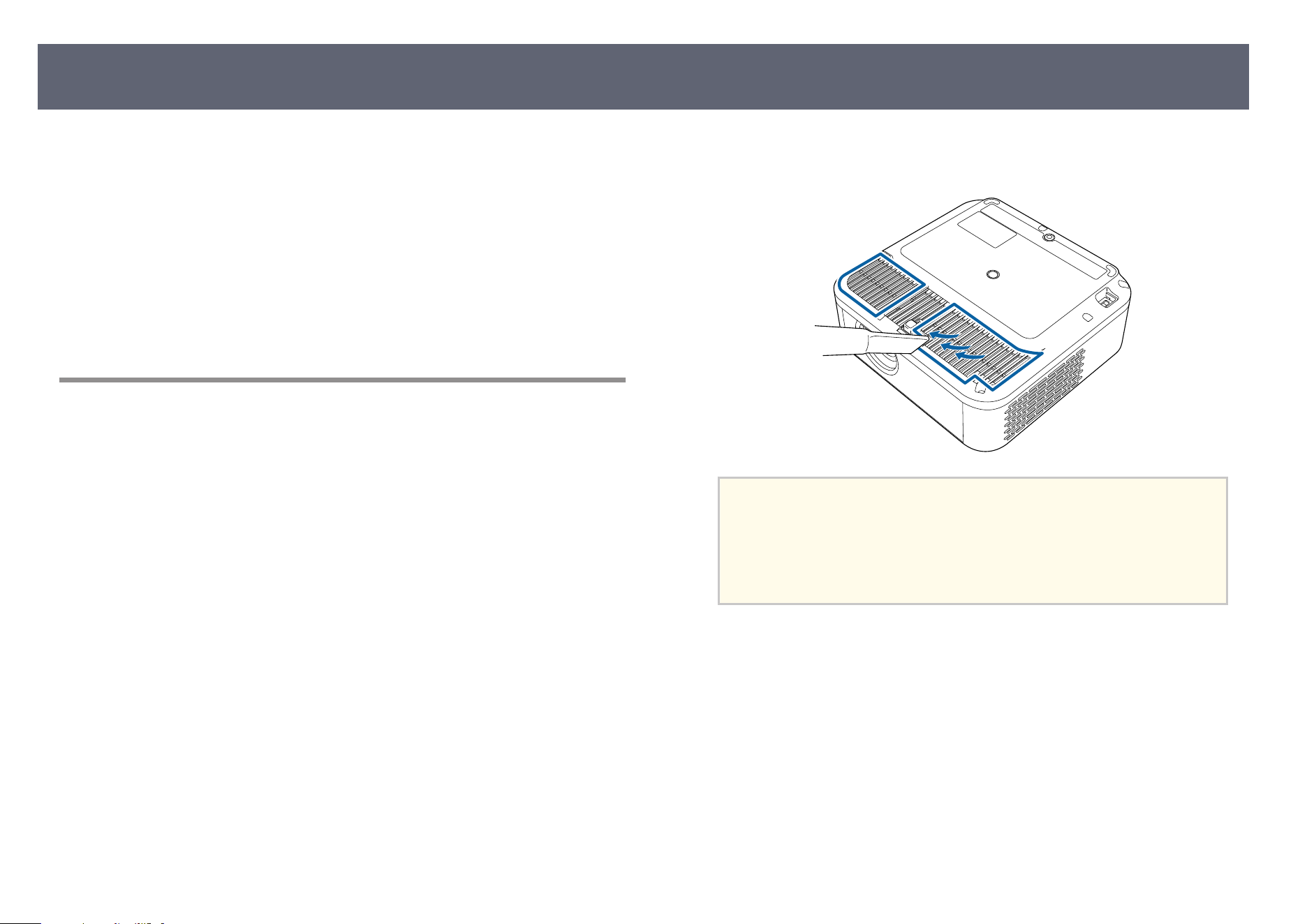

Cleaning the Air Filters and Intake Vents
You need to clean the projector's air lter or air intake vents in the following
situations:
•
e lter or vents get dusty.
•
e projector's Status indicator turns orange.
a
Turn o the projector and unplug the power cord.
b
G
ently remove the dust using a small vacuum designed for computers or a
v
er
y so brush (such as a paintbrush).
Attention
•
Do not use canned air. e gases may leave a ammable residue or push
dust and debris into the projector's optics or other sensitive areas.
•
If dust is dicult to remove or the air lter is damaged, contact Epson to
request help with replacing the air lter.
Air Filter and Vent Maintenance
68
Solving Problems
Ch
eck the solutions in these sections if you have any problems using the projector.
g
Related Links
•
"Projection Problems" p.70
•
"Projector Indicator Status" p.71
•
"Solving Projector Power-On or Power-O Problems" p.72
•
"Solving Image Problems" p.73
•
"Solving Sound Problems" p.78
•
"Solving Remote Control Operation Problems" p.80
•
"Solving HDMI CEC Problems" p.81
•
"Solving Wi-Fi Network Problems" p.82
•
"Solving Projector's OS Problems" p.83
If the projector is not working properly, turn it o,
unplug it, and then plug it
back in and turn it on.
If this does not solve the problem, check the following:
•
e indicators on the projector may indicate the problem.
•
e solutions in this manual can help you solve many problems.
If none of these solutions help, contact Epson for technical support.
Aer repairing the projector, Epson may return the projector to you in its
ini
tial status. Make sure you make a note of the account information of
each online service before you contact Epson.
Projection Problems
70

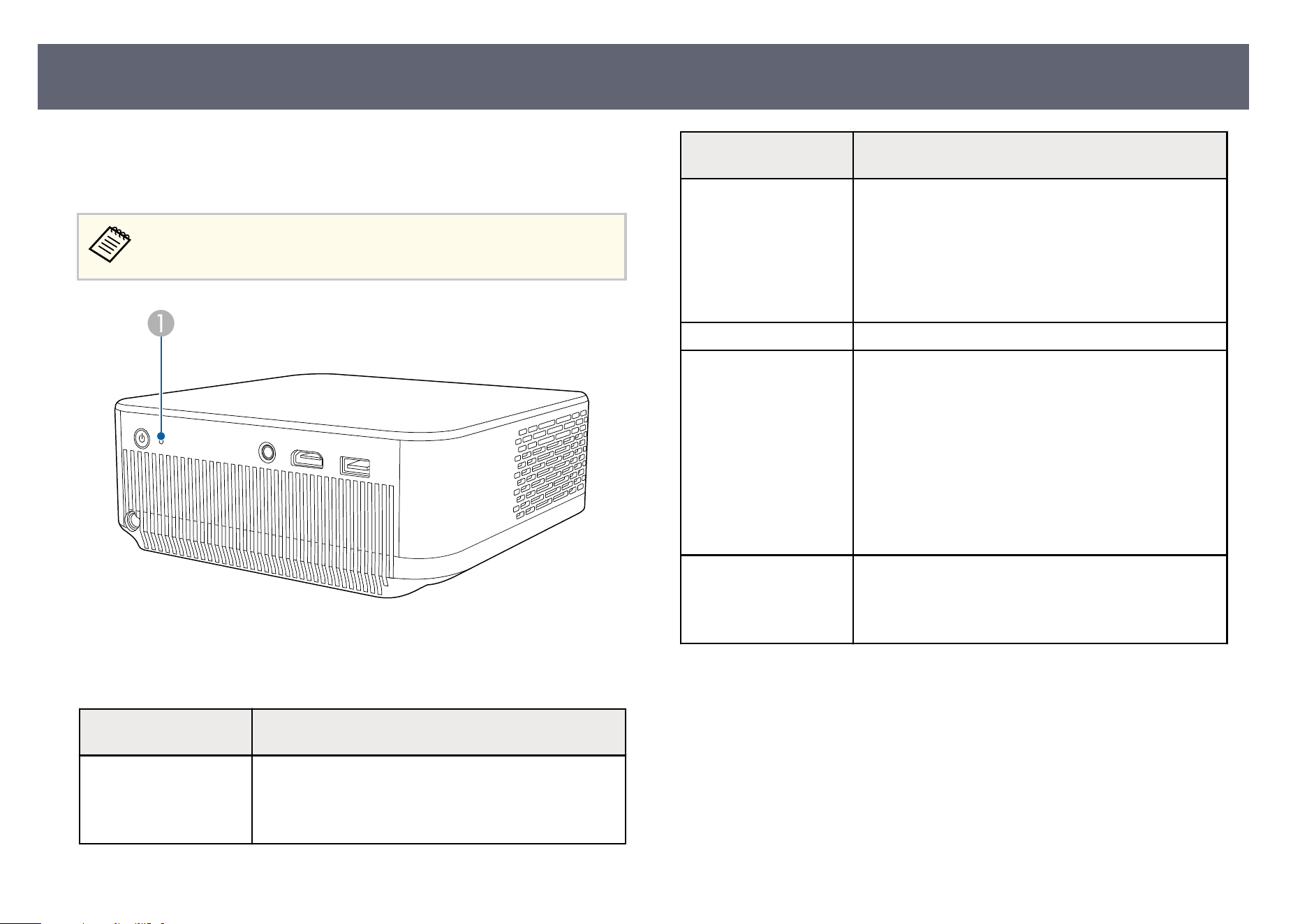

e indicators on the projector indicate the projector status and let you know
w
hen a problem occurs. Check the status and color of the indicators and then
refer to this table for a solution.
If the indicators display a pattern not listed in the table below, turn the
pr
ojector o, unplug it, and contact Epson for help.
A
Status indicator
Projector status
Indicator status/
Operation status
Problem and solutions
Lit white (Normal
op
eration)
e projector can display
images.
-
Indicator status/
Op
eration status
Problem and solutions
Flashing white (Warming
up o
r updating the
projector rmware)
When the rmware
update starts, a message
is displayed on the
screen.
Remote control operations may be disabled when the
indicator is ashing white.
O (Standby mode) When you press the power button, projection starts.
L
it orange (Warning
st
atus)
You can check the details
of the warning on the
screen.
e projector has overheated and turned o. Leave it
turned o to cool down for 5 minutes.
•
Make sure that the vents and air lter are not clogged
with dust or obstructed by nearby objects.
•
Make sure the environmental temperature is not too
hot.
•
Clean the air lter.
•
If the problem persists, unplug the projector and
contact Epson for help.
Flashing orange (Error
st
atus)
You cannot turn on the
projector.
Internal projector error.
Turn the projector o, unplug it, and contact Epson for
help.
g
Related Links
•
"C
leaning the Air Filters and Intake Vents " p.68
Projector Indicator Status
71
Check the solutions in these sections if the projector does not turn on when you
pr
ess the power button or it turns o unexpectedly.
g
Related Links
•
"Solving Projector Power Problems" p.72
•
"Solving Projector Shutdown Problems" p.72
Solving Projector Power Problems
If the projector does not turn on when you press the power button, try the
following steps until the problem is solved.
a
Make sure the power cord is securely connected to the projector, to a
wo
rking electrical outlet, and to the AC adapter.
b
If you are using the remote control, check the batteries of the remote
con
trol.
c
e power cord or the AC adapter may be defective. Disconnect the cord
an
d contact Epson for help.
g
Related Links
•
"Turning On the Projector" p.31
•
"Installing Batteries in the Remote Control" p.25
Solving Projector Shutdown Problems
If the projector's light source turns o
unexpectedly, try the following steps until
the problem is solved.
a
e p
rojector may have turned o aer the interval of time specied in
S
hut-O Timer in the projector's Power & Energy menu has passed. Press
the power button on the projector or remote control to turn the projector
back on.
s System > Power & Energy > Shut-O Timer
b
Aer switching to HDMI source, if there is no input signal for more
t
han the time specied in No signal standby timeout, the projector
automatically enters standby mode. Press the power button to wake the
projector from standby mode.
s Channels & Inputs > Inputs > HDMI 1 > No signal standby timeout
c
When the status indicator is lit orange, the projector has overheated and
tur
ned o.
e cooling fans may run in standby status depending on the
p
rojector settings. Also, when the projector wakes from standby
status, the fans may cause an unexpected noise. is is not a
malfunction.
g
Related Links
•
"S
ystem Menu" p.62
Solving Projector Power-On or Po
wer-O Problems
72
Check the solutions in these sections if you have any problems with projected
imag
es.
g
Related Links
•
"Solving Missing Image Problems" p.73
•
"Adjusting an Image that is not Rectangular" p.74
•
"Adjusting a Fuzzy or Blurry Image" p.74
•
"Fixing Partial Image Problems" p.75
•
"Adjusting an Image that Contains Noise or Static" p.75
•
"Adjusting an Image with Incorrect Brightness or Colors" p.75
•
"Adjusting an Upside-down Image" p.76
•
"Solving Auto Shape Correction Problems" p.76
Solving Missing Image Problems
If no image is displayed, try the following steps until the problem is solved.
a
Check the projector's status:
•
Ch
eck the status indicator to conrm that the projector is in normal
operating status.
•
Press the projector's power button to wake it from standby mode.
s System > Power & Energy > Shut-O Timer
s Channels & Inputs > Inputs > HDMI 1 > No signal standby
timeout
b
Check the cable connection:
•
Mak
e sure all necessary cables are securely connected and the power is
on for the projector.
•
Connect the video source directly to the projector.
•
Replace the HDMI cable with a shorter one.
We recommend using an HDMI cable that is 16.5 feet (5 m) or shorter.
If you use an HDMI cable that is longer than 16.5 feet (5 m), the signal
may deteriorate and the video and audio may become unstable.
•
When sending 18 Gbps images such as 4K 60Hz 4:4:4, use an HDMI
cable (premium-high speed).
c
Check the status of your video source:
•
Tur
n on the connected video source, and press the play button to start a
video, if necessary.
•
Make sure the connected device meets the HDMI CEC standard. See
the documentation supplied with the device for more information.
•
If you are projecting from a laptop computer, make sure it is set up to
display on an external monitor.
d
Check the following items:
•
Yo
u need an Internet connection to view online content. Make sure
your Wi-Fi is on.
•
Turn o the projector and the connected video source, and then turn
them back on.
•
Set the CEC function for the connected device again and restart the
device.
•
Make sure the computer's display resolution does not exceed the
projector's resolution and frequency limits. If necessary, select a
dierent display resolution for your computer. (See your computer
manual for details.)
•
Reset all of the projector settings to their default values.
g
Related Links
•
"System Menu" p.62
Solving Image Problems
73
Adjusting an Image that is not Rectangular
If the projected image is not evenly rectangular, try the following steps until the
pr
oblem is solved.
a
Place the projector directly in front of the center of the screen, facing it
sq
uarely, if possible.
b
Make sure that At P
ower-On from Shutdown and While Moving settings
are set to On in the Projector menu.
s Projector > Keystone > Auto Shape Correction > At Power-On from
Shutdown
s Projector > Keystone > Auto Shape Correction > While Moving
c
Select Start Corrections in the Auto Shape Correction menu to run the
A
uto Shape Correction setting.
s Projector > Keystone > Auto Shape Correction > Start Corrections
d
When projecting on a screen, use Scr
een Fit to automatically correct the
shape and position of the image so that it ts on your screen.
s Projector > Keystone > Screen Fit
When projecting on a screen, we recommend using S
cr
een Fit to
correct the shape of the projected image. Set While Moving to O
to prevent Auto Shape Correction from unintentionally correcting
the shape of the image.
s Projector > Keystone > Auto Shape Correction > While
Moving
e
Adjust the image shape manually using Q
ui
ck Corner in the Projector
menu.
s Projector > Keystone > Quick Corner
g
Related Links
•
"P
rojector Feature Settings - Projector Menu" p.59
Adjusting a Fuzzy or Blurry Image
If the projected image is fuzzy or blurry, try the following steps until the
problem is solved.
a
Press the button on the remote control to display the focus
ad
j
ustment screen and adjust focus manually.
b
Check the following items:
•
Posi
tion the projector close enough to the screen.
•
Position the projector so the keystone adjustment angle is not so wide
that it distorts the image.
c
Clean the projector's lens.
To avoid condensation on the lens aer bringing the projector
in from a cold environment, let the projector warm up to room
temperature before using it.
d
Adjust the Sharpness setting in the projector's Display & Sound menu to
im
prove image quality.
s Display & Sound > Display > Sharpness
e
If you are projecting from a computer, use a lower resolution or select a
res
olution that matches the projector's native resolution.
g
Related Links
•
"Image Quality Settings - Display & Sound Menu" p.60
Solving Image Problems
74
Fixing Partial Image Problems
If only a partial image is displayed, try the following steps until the problem is
so
lved.
a
Adjust the position of the projected image using the Zo
om & Shi setting
in the Projector menu.
s Projector > Keystone > Zoom & Shi
b
Select an appropriate aspect ratio from the Scr
een menu according to the
current input source. (Available only when the current input source is
HDMI.)
s Display & Sound > Screen
c
Make sure you select the correct projection mode. You can select this from
th
e Projection menu.
s Projector > Advanced Settings > Projection
d
Check your computer display settings to disable dual display and set the
res
olution within the projector's limits. (See your computer manual for
details.)
g
Related Links
•
"Projector Feature Settings - Projector Menu" p.59
•
"Image Quality Settings - Display & Sound Menu" p.60
Adjusting an Image that Contains Noise or Static
If the projected image contains electronic interference (noise) or static, try the
fo
llowing steps until the problem is solved.
a
Check the cables connecting your video source to the projector. ey
should be:
•
Separated from the power cord to prevent interference
•
Securely connected at both ends
•
Not connected to an extension cable
b
Adjust the DNR
setting in the projector's menu.
s Display & Sound > Display > Advanced Settings > DNR
c
If you adjusted the image shape using the projector controls, try
decr
easing the Sharpness setting in the projector's Display & Sound menu
to improve image quality.
s Display & Sound > Display > Sharpness
d
If you connected an extension power cable, try projecting without it to see
if it c
aused interference in the signal.
e
Select a computer video resolution and refresh rate that are compatible
wi
th the projector.
f
If you connected an A/V system that does not support eARC/ARC to the
HDMI p
ort, the image may be distorted.
g
Related Links
•
"Image Quality Settings - Display & Sound Menu" p.60
Adjusting an Image with Incorrect Brightness or Colors
If the projected image is too dark or bright, or the colors are incorrect, try the
fo
llowing steps until the problem is solved.
Solving Image Problems
75
When power is supplied through the USB-C port, the projected image will
be dimm
ed to reduce power consumption.
a
Try dierent color modes for your image and environment by selecting
the color mode setting in the projector's Picture Mode menu.
s Display & Sound > Display > Picture Mode
b
Check your video source settings.
c
Adjust the color settings in the Dis
p
lay menu.
s Display & Sound > Display
d
Make sure you selected the correct HDMI R
GB Range setting in the
projector's Display & Sound menu, if available for your image source.
(Available only for the HDMI source.)
s Display & Sound > Display > Advanced Settings > HDMI RGB
Range
e
Make sure all the cables are securely connected to the projector and your
vide
o equipment. If you connected long cables, try connecting shorter
cables.
f
Position the projector close enough to the screen.
g
Related Links
•
"I
mage Quality Settings - Display & Sound Menu" p.60
Adjusting an Upside-down Image
If the projected image is upside-down, select the correct projection mode.
s Pr
ojector > Advanced Settings > Projection
g
Related Links
•
"P
rojector Feature Settings - Projector Menu" p.59
Solving Auto Shape Correction Problems
Try the following steps if you cannot automatically correct focus and vertical/
horizontal distortion of the projected image in the following situations:
•
When you turn on the projector.
•
When the projector is moved or tilted.
a
Check the projector's status:
•
Rem
ove any obstacles that are blocking the projector's camera and
sensor.
•
Clean the projector's camera and sensor if they are dusty or dirty.
•
Do not move the projector while correcting the focus and keystone
distortion.
•
Set While Moving and At Power-On from Shutdown to On.
s Projector > Keystone > Auto Shape Correction > While Moving
s Projector > Keystone > Auto Shape Correction > At Power-On
from Shutdown
b
Check the installation environment of the projector.
•
A
u
to Shape Correction operates under the following conditions:
•
When the size of the projected image (diagonal length) before
correcting focus and keystone distortion is from 30 to 100 inches.
•
When the projection distance is about 195.6 to 105 inches (77 to 267
cm).
•
When the installation angle of the projector toward the projection
surface is within 20º right, le, up, or down.
Solving Image Problems
76
•
Rem
ove any obstacles between the projector and the projection surface
as these can interrupt the projection.
•
If you are using the projector in a bright room, darken the room.
Do not change the room brightness while performing Auto Shape
Correction. Otherwise, Auto Shape Correction may fail.
•
Project the image on to a plain and at surface. If the projection surface
is patterned or is not level, Auto Shape Correction may fail.
If you cannot correct focus and any distortion of the projected image due
to a m
alfunction of the projector's camera or sensor, a warning screen is
displayed. Contact Epson for help.
g
Related Links
•
"C
orrecting the Image Shape and Focus Automatically" p.36
Solving Image Problems
77
Check the solutions in these sections if you have any problems with projected
so
und.
g
Related Links
•
"Solving Missing or Low Audio Problems" p.78
•
"Solving Bluetooth Speaker Mode Problems" p.78
Solving Missing or Low Audio Problems
If there is no sound or the volume is too low, try the following steps until the
problem is solved.
a
Adjust the projector's volume settings using the up/down buttons on
the remote control.
b
Check the cable connection between the projector and your video source.
c
Check your video source to make sure the volume is turned up and the
audio o
u
tput is set for the correct source.
d
If you want to output audio from the projector's speakers, check that
Glo
bal CEC control is set to O.
s Channels & Inputs > Inputs > Global CEC control
e
If you want to output audio to an external audio device that supports
HDMI eAR
C/ARC using an HDMI cable, try the following solutions:
•
Set Global CEC control to On in the projector's menu when using an
ARC connection.
s Channels & Inputs > Inputs > Global CEC control
•
Make sure the HDMI cable is compliant with HDMI eARC and ARC.
•
Wh
en outputting audio to an external audio device that does
not support HDMI eARC/ARC using an HDMI cable, set Global
CEC control to O in the projector's menu.
s Channels & Inputs > Inputs > Global CEC control
•
See the online Notices guide for eARC/ARC audio supported
formats.
f
If audio is not output to an external audio device that supports HDMI
eAR
C/AR
C, try changing Auto to PCM as the Digital Output setting.
s Display & Sound > Audio Output > Digital Output
g
Related Links
•
"Projector Feature Settings - Channels & Inputs Menu" p.58
•
"Image Quality Settings - Display & Sound Menu" p.60
Solving Bluetooth Speaker Mode Problems
If you cannot connect a Bluetooth audio device to the projector, try the
fo
llowing solutions.
a
Select Bluetooth Speaker Mode in the Projector menu and press the
[En
ter] button on the remote control.
b
Select the projector name (this projector) from the list of available
Bl
uetooth devices displayed on your device.
You can check and change the projector name from the projector's
De
vice name menu.
s System > About > Device name
Solving Sound Problems
78
c
Check your Bluetooth audio device to make sure the volume is turned up
and t
he audio output settings are correct.
d
Make sure only one Bluetooth device is connected to the projector.
Yo
u cannot connect multiple Bluetooth audio devices to the projector at
the same time.
e
Make sure the device meets the projector's Bluetooth sp
ecications.
f
Check the following items:
•
Ch
eck for obstacles between the Bluetooth audio device and the
projector, and change their positions to improve communication.
•
Make sure the connected Bluetooth audio device is within the specied
communication distance.
•
Avoid using the projector near wireless networks, microwave ovens, 2.4
GHz cordless phones, or other devices that use the 2.4 GHz frequency
band. ese devices can interfere with the signal between the projector
and the Bluetooth audio device.
g
Related Links
•
"Using the Projector as a Bluetooth
®
Speaker" p.50
•
"Bluetooth Specications" p.90
Solving Sound Problems
79
If the projector does not respond to remote control commands or responds
slo
wly, try the following steps until the problem is solved.
If you lose the remote control, you can order another one. Contact Epson
fo
r help.
a
Check that the remote control batteries are installed correctly and have
power. If necessary, replace the batteries.
b
e buttons on the remote control may be stuck down and you may not be
ab
le to operate them. Return the buttons to their normal positions.
c
If the pairing screen is displayed, perform pairing again by holding down
th
e
button and button on the remote control at the same time for
abo
ut three seconds.
•
W
h
en pairing, place the remote control within 11.8 inches (30
cm) of the projector.
•
When pairing starts, the indicator on the remote control ashes.
When pairing is complete, the indicator turns o.
•
You cannot pair multiple remote controls with the projector at
the same time. Pairing a new remote control will unpair the
existing one. Make sure the intended remote control is paired.
d
Perform pairing again by displaying the pairing screen manually from the
R
e
motes & Accessories menu.
e
If the image is projected from the projector, make sure you are operating
th
e remote control within the reception angle and range of the projector.
f
Strong uorescent lighting, direct sunlight, or infrared device signals may
b
e interfering with the projector's remote receivers. Dim the lights or
move the projector away from the sun or interfering equipment.
g
e remote control may be defective. Contact Epson for help.
g
Relat
ed Links
•
"Remote Control Operation" p.25
•
"Installing Batteries in the Remote Control" p.25
•
"Projector Indicator Status" p.71
Solving Remote Control Operation Problems
80
If you cannot operate the connected devices from the projector, try the
fo
llowing steps until the problem is solved.
a
Make sure the cable meets the HDMI CEC standard.
b
Make sure the connected device meets the HDMI CEC standard. See the
do
c
umentation supplied with the device for more information.
c
Set Global CEC control to On in the Inputs menu.
s C
hannels & Inputs > Inputs > Global CEC control
d
Make sure all the cables are securely connected to the projector and your
vide
o equipment.
e
Make sure the connected devices are turned on and in standby status. See
th
e documentation supplied with the device for more information.
f
If you connect a new device or change the connection, set the CEC
fun
ction for the connected device again and restart the device.
g
Related Links
•
"Projector Feature Settings - Channels & Inputs Menu" p.58
•
"Projector Indicator Status" p.71
Solving HDMI CEC Problems
81
If you cannot connect to a Wi-Fi network, try the following solutions.
a
Make sure your Wi-Fi router and modem are working properly. Rebooting
th
ese devices may solve the network connection problem.
b
Check for obstacles between the Wi-Fi router and the projector, and
ch
ange their positions to improve communication.
c
You can check the network settings from Wi-F
i in the Network & Internet
menu.
d
If you initialize the projector, you need to select the network settings again
on t
he initial setup screen.
g
Related Links
•
"Initializing the Projector" p.55
Solving Wi-Fi Network Problems
82
Appendix
Ch
eck these sections for the technical specications and important notices about your product.
g
Related Links
•
"Optional Accessories" p.85
•
"Screen Size and Projection Distance" p.86
•
"Supported Monitor Display Resolutions" p.88
•
"Projector Specications" p.89
•
"External Dimensions" p.91
•
"List of Safety Symbols and Instructions" p.92
•
"Warning Labels" p.94
•
"Glossary" p.95
•
"Notices" p.96
e following optional accessories are available. Please purchase these products
as an
d when needed.
e following list of optional accessories is current as of: January 2026.
Details of accessories are subject to change without notice and availability may
vary depending on the country of purchase.
g
Related Links
•
"Mounts" p.85
•
"Microphone" p.85
Mounts
Safety Wire Set ELPWR01
Use when connecting the projector to the location where the projector is
installed to prevent it from falling.
Special expertise is required to suspend the projector from a ceiling.
g
Related Links
•
"M
ounting the Projector on a Tripod or Projector Stand (Floor-stand or
Ceiling-mount) " p.19
Microphone
Wireless Karaoke Microphone ELPKM01
Us
e with the projector's karaoke features.
Optional Accessories
85

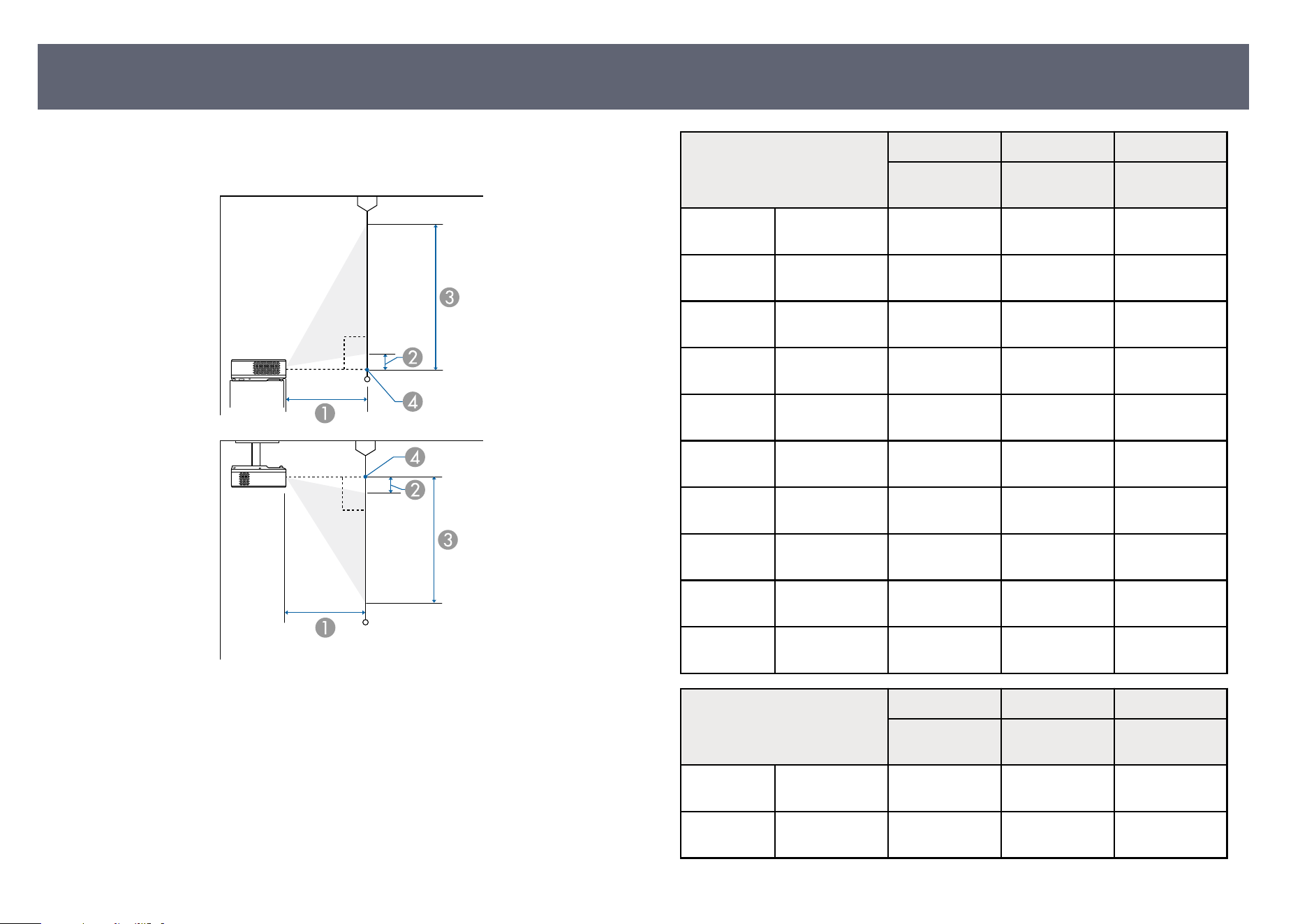

Check the table here to determine how far to place the projector from the screen
bas
ed on the size of the projected image.
A
Projection distance
B
Distance from the projector to the bottom of the screen
C
Distance from the projector to the top of the screen
D
Center of lens
16:9 screen size
A B C
Minimum
(Wide)
M
inimum
(Wide)
Minimum
(Wide)
30" 26 × 14.5" (66 ×
37 cm)
30.3" (77 cm) -1.6" (-4 cm) 13" (33 cm)
40" 35 × 19.7" (89 ×
50 cm)
41" (104 cm) -2.4" (-6 cm) 17.3"(-44 cm)
50" 43.7 × 24.4"
(111 × 62 cm)
52" (132 cm) -2.8" (-7 cm) 21.6" (55 cm)
60" 52.4 × 30" (133
× 75 cm)
62.6" (159 cm) -3.5" (-9 cm) 26" (66 cm)
70" 61 × 34.3" (155
× 87 cm)
73.2" (186 cm) -4" (-10 cm) 30.3" (77 cm)
80" 69.7 × 39.4"
(177 × 100 cm)
83.9" (213 cm) -4.7" (-12 cm) 34.7" (88 cm)
90" 78.4 × 44.1"
(199 × 112 cm)
94.5" (240 cm) -5.1" (-13 cm) 39" (99 cm)
100" 87 × 49.2" (221
× 125 cm)
105.1" (267 cm) -5.9" (-15 cm) 43.3" (110 cm)
120" 104.7 × 58.7"
(266 × 149 cm)
126.4" (321 cm) -7.1" (-18 cm) 52" (132 cm)
150" 130.7 × 73.6"
(332 × 187 cm)
158.3" (402 cm) -8.7" (-22 cm) 65" (165 cm)
4:3 screen size
A B C
Minimum
(W
ide)
M
inimum
(Wide)
Minimum
(Wide)
27" 21.7 × 16.1" (55
× 41 cm)
33.9" (86 cm) -2" (-5 cm) 14.2" (36 cm)
30" 24 × 18.1" (61 ×
46 cm)
37.8" (96 cm) -2" (-5 cm) 15.7" (40 cm)
Screen Size and Projection Distance
86
4:3 screen size
A B C
Minimum
(Wide)
M
inimum
(Wide)
Minimum
(Wide)
40" 31.9 × 24" (81 ×
61 cm)
50.8" (129 cm) -2.8" (-7 cm) 21.3" (54 cm)
50" 40.2 × 30" (102
× 76 cm)
63.8" (162 cm) -3.5" (-9 cm) 26.4" (67 cm)
60" 48 × 35.8" (122
× 91 cm)
76.8" (195 cm) -4.3" (-11 cm) 31.9" (81 cm)
70" 55.9 × 42.1"
(142 × 107 cm)
89.8" (228 cm) -5.1" (-13 cm) 37" (94 cm)
80" 64.2 × 48" (163
× 122 cm)
102.8" (261 cm) -5.9" (-15 cm) 42" (107 cm)
90" 72 × 54" (183 ×
137 cm)
115.8" (294 cm) -6.3" (-16 cm) 47.6" (121 cm)
100" 80 × 59.9" (203
× 152 cm)
128.7" (327 cm) -7.1" (-18 cm) 52.8" (134 cm)
120" 96.1 × 72" (244
× 183 cm)
155.1" (394 cm) -8.7" (-22 cm) 63.4" (161 cm)
122" 97.6 × 73.2"
(248 × 186 cm)
157.5" (400 cm) -8.7" (-22 cm) 64.6" (164 cm)
16:10 screen size
A B C
Minimum
(Wide)
M
inimum
(Wide)
Minimum
(Wide)
28" 23.6 × 15" (60 ×
38 cm)
30.7" (78 cm) -1.6" (-4 cm) 13" (33 cm)
40" 33.9 × 21.3" (86
× 54 cm)
44.8" (113 cm) -2.4" (-6 cm) 18.5" (47 cm)
50" 42.5 × 26.4"
(108 × 67 cm)
56.3" (143 cm) -3.1" (-8 cm) 23.2" (59 cm)
16:10 screen size
A B C
Minimum
(Wide)
M
inimum
(Wide)
Minimum
(Wide)
60" 50.8 × 31.9"
(129 × 81 cm)
67.7" (172 cm) -4" (-10 cm) 28" (71 cm)
70" 59.4 × 37" (151
× 94 cm)
79.1" (201 cm) -4.3" (-11 cm) 32.7" (83 cm)
80" 67.6 × 42.5"
(172 × 108 cm)
90.6" (230 cm) -5.1" (-13 cm) 37.4" (95 cm)
90" 76.4 × 47.6"
(194 × 121 cm)
102.4" (260 cm) -5.5" (-14 cm) 42.1" (107 cm)
100" 84.6 × 53.2"
(215 × 135 cm)
113.8" (289 cm) -6.3" (-16 cm) 46.9" (119 cm)
110" 93.3 × 58.3"
(237 × 148 cm)
125.2" (318 cm) -7.1" (-18 cm) 51.2" (130 cm)
120" 101.6 × 63.8"
(258 × 162 cm)
136.6" (347 cm) -7.5" (-19 cm) 55.9" (142 cm)
138" 116.5 × 73.2"
(297 × 186 cm)
157.5" (400 cm) -8.7" (-22 cm) 64.6" (164 cm)
Screen Size and Projection Distance
87
See the online No
tices guide for detailed information on compatible refresh rates
and resolutions for each compatible video display format.
Supported Monitor Display Resolutions
88
Product name EF-30
Dimensions (W × H × D) 7.8" × 2.7 × 7.5" (199 × 68 × 190 mm) (not including
rais
ed section)
LCD panel size 0.62"
Display method 3LCD
Number of pixels Full HD (1,920 (W) × 1,080 (H) dots) × 3
Screen resolution 2,073,600 pixels
Focus adjustment Powered
Zoom adjustment 1.0 to 3.33 (Digital)
Light source LED
Light source output
p
ower
Up to 14 W
Wavelength N/A
Light source life * Up to about 20,000 hours
Max. audio output 6 W × 2
Speaker 2 (Stereo with passive radiators)
Power supply 24.0 V DC 6.0 A
Operating power
co
n
sumption (100 to 120
V area)
When the light source brightness is 100%: 101 W
When the light source brightness is 50%: 57 W
Operating power
con
sumption (220 to 240
V area)
When the light source brightness is 100%: 95 W
When the light source brightness is 50%: 56 W
Standby power
con
sumption
Communication On: 2.0 W
Communication O: 0.5 W
Operating altitude Altitude 0 to 10,000' (0 to 3,048 m)
Operating temperature ** Altitude of 0 to 7,500 feet (2,286 m): 41 to 95 °F (5 to 35
°C) (Humidi
ty of 20 to 80%, No condensation)
Altitude of 7,500 to 10,000 feet (2,287 to 3,048 m): 41
to 86 °F (5 to 30 °C) (Humidity of 20 to 80%, No
condensation)
Storage temperature 14 to 140 °F (-10 to 60 °C) (Humidity of 10 to 90%, No
con
densation)
Mass Approx. 3.5 lb (1.6 kg)
* Approximate time until the light source brightness decreases to half of its
or
iginal value. (Assuming the projector is used in an atmosphere in which
airborne particulate matter is less than 0.04 to 0.2mg/m3. e estimated time
varies depending on the projector usage and operating conditions.)
** Light source brightness automatically dims if the surrounding temperature
gets too high.
e rating label is attached on the bottom of the projector.
g
Related Links
•
"AC Adapter Specications" p.89
•
"Connector Specications" p.90
•
"Bluetooth Specications" p.90
AC Adapter Specications
Manufacturer EPSON
Model E210-1B2400750M3
Power input to AC adapter 100-240V AC ±10% 50/60Hz 3.0 A
Output power 24.0V DC 7.5A 180.0 W
Projector Specic
ations
89

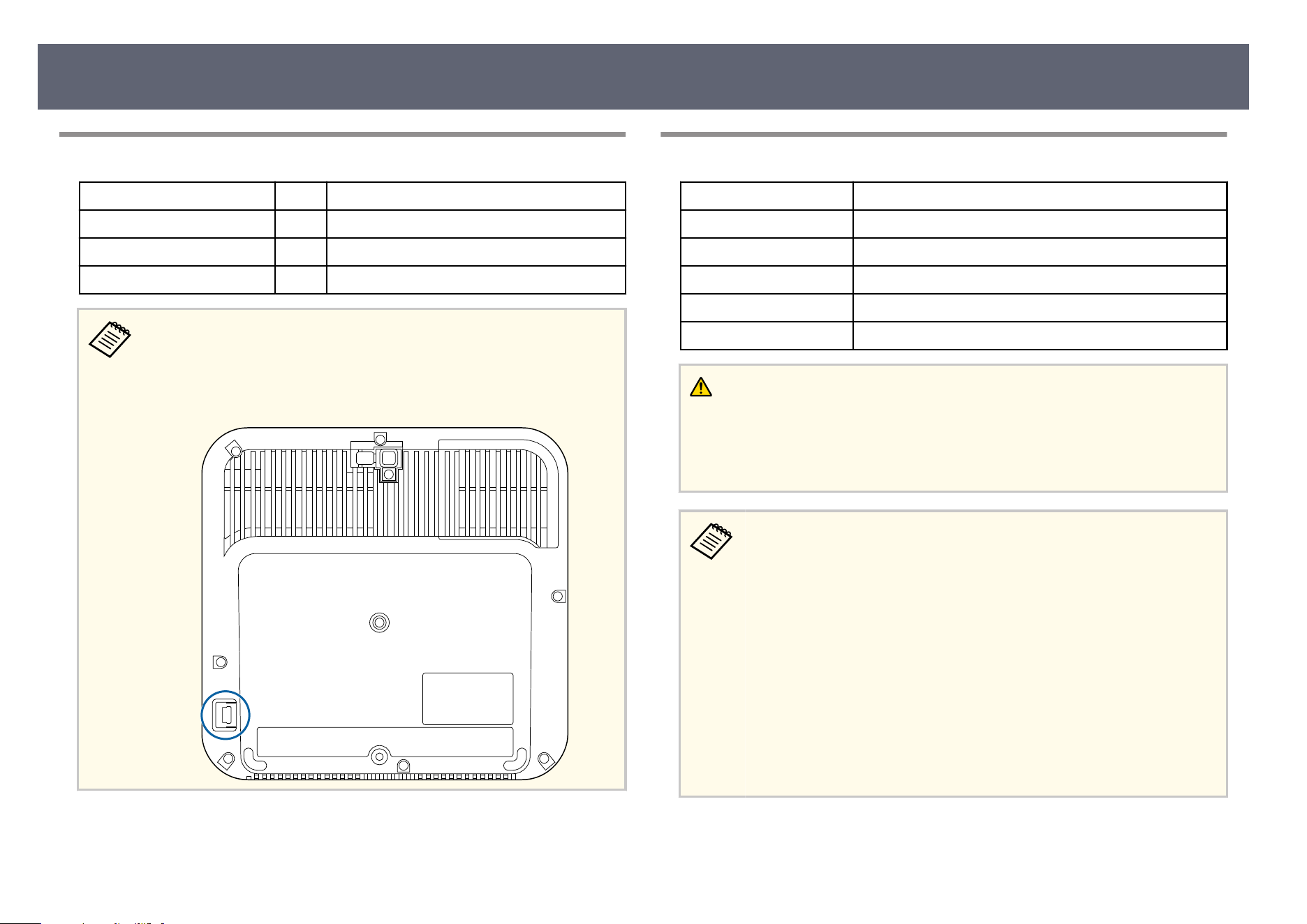

Connector Specic
ations
Audio Out port 1 Stereo mini pin jack (3-pin)
HDMI port 1 HDMI (Type A)
USB-A port 1 USB connector (Type A)
Service port 1 USB connector (Mini-B)
•
USB p
orts are not guaranteed to operate all devices that support USB.
•
e service port is not normally used.
•
See the following illustration for the location of the service port.
e service port has a cap. Do not remove it.
Bluetooth Specic
ations
Version Bluetooth Ver. 5.2
Output Class 2
Communication distance Approx. 32.8 feet (10 m)
Supported p
roles A2D
P, AVRCP , and HID
Frequency used 2.4 GHz band (2.402 to 2.480 GHz)
Supported codecs SBC
Warning
Do n
ot use the device near any medical equipment or equipment that is
automatically controlled, such as automatic doors or re alarms. Electromagnetic
interference from the device may cause such equipment to malfunction and cause an
accident.
•
Yo
u may not be able to connect depending on the standard and type of
device.
•
Even when connecting within the specied communication distance,
connections can be lost due to the strength of the signal.
•
e communication method for Bluetooth uses the same frequency
(2.4 GHz) as wireless LAN (IEEE802.11b/g/n/ax) or microwave
ovens. erefore, if these devices are used at the same time, radio
wave interference may occur, the audio may be interrupted, or
communication may not be possible. If you do need to use these
devices at the same time, make sure there is enough distance between
them and the Bluetooth device.
•
e Bluetooth function is enabled the rst time you turn on the
projector.
Projector Specic
ations
90

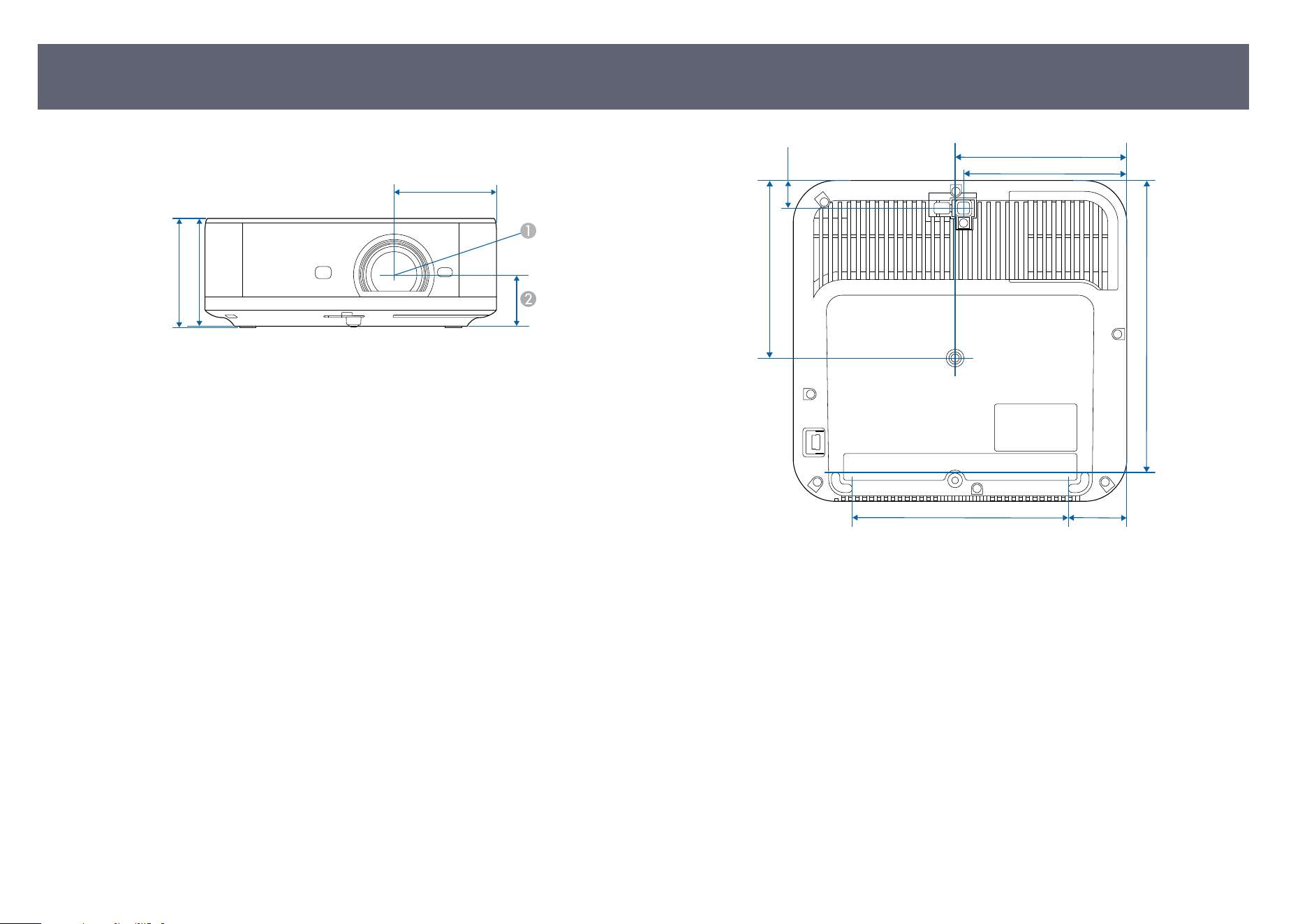

35
74.5
73.5
70
A
Center of lens
B
Distance from center of lens to tripod xing
point, 1.4" (35 mm)
2.9" (73.5 mm)
3" (74.5 mm)
2.8" (70 mm)
173.3
16.5
105.2
102.5
97.6
129 35
4" (102.5 mm)
3.8" (97.6 mm)
6.8" (173.3 mm)
1.4" (35 mm)
5.1" (129 mm)
4.1" (105.2 mm)
0.6" (16.5 mm)
e unit in these illustrations is mm.
External Dimensions
91

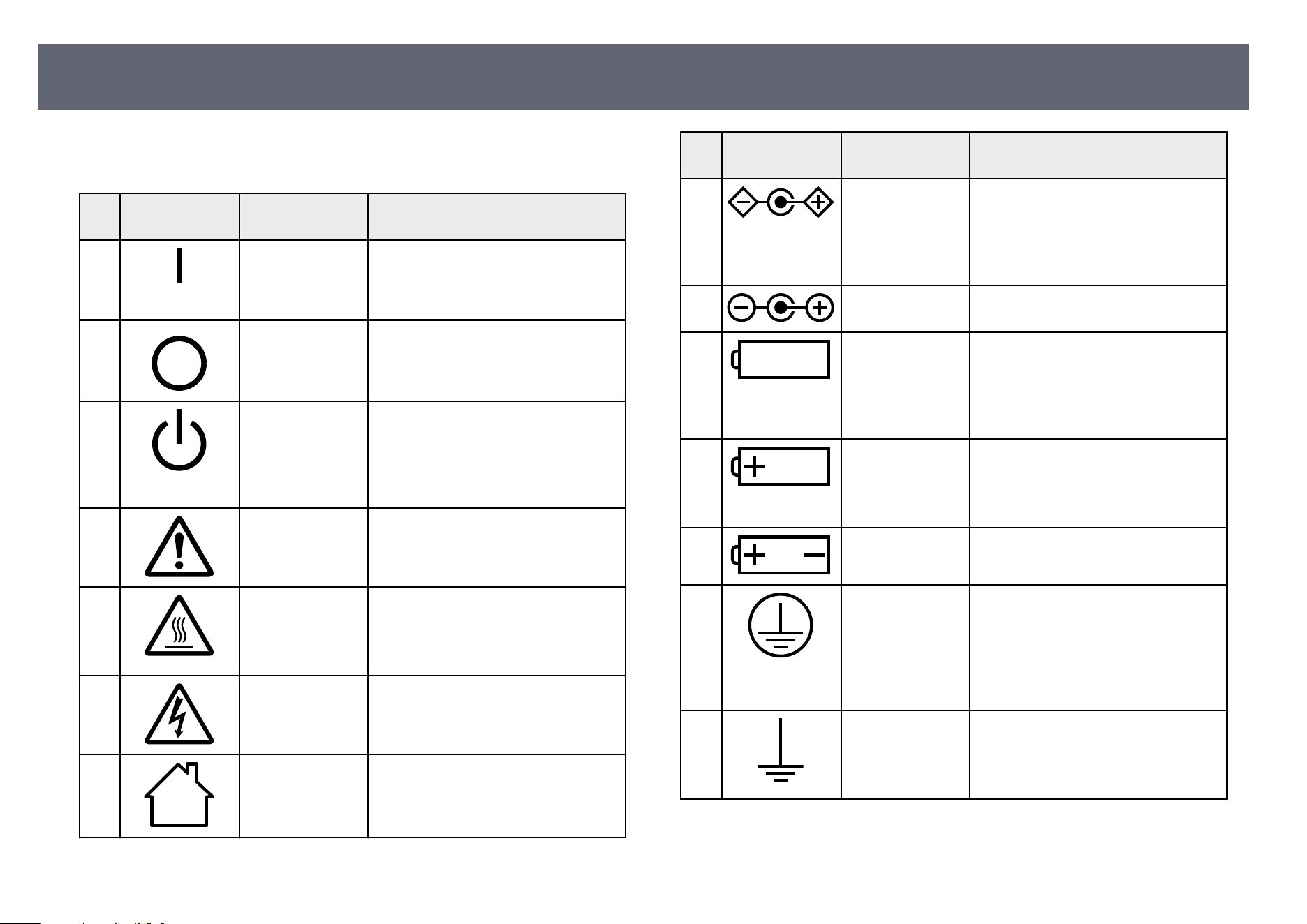

e following table lists the meaning of the safety symbols labeled on the
e
quipment.
No. Symbol mark Approved
st
andards
Description
A
IEC60417
No
. 5007
"ON" (power)
To indicate connection to the mains.
B
IEC60417
No
. 5008
"OFF" (power)
To indicate disconnection from the
mains.
C
IEC60417
No
. 5009
Stand-by
To identify the switch or switch
position by means of which part of the
equipment is switched on in order to
bring it into the stand-by condition.
D
ISO7000
N
o
. 0434B,
IEC3864-B3.1
Caution
To identify general caution when using
the product.
E
IEC60417
No
. 5041
Caution, hot surface
To indicate that the marked item can
be hot and should not be touched
without taking care.
F
IEC60417
No
. 6042
ISO3864-B3.6
Caution, risk of electric shock
To identify equipment that has risk of
electric shock.
G
IEC60417
No
. 5957
For indoor use only
To identify electrical equipment
designed primarily for indoor use.
No. Symbol mark Approved
st
andards
Description
H
IEC60417
No
. 5926
Polarity of d.c. power connector
To identify the positive and negative
connections (the polarity) on a piece
of equipment to which a d.c. power
supply may be connected.
I
— e same as No. 8.
J
IEC60417
No
. 5001B
Battery, general
On battery powered equipment. To
identify a device for instance a cover
for the battery compartment, or the
connector terminals.
K
IEC60417
No
. 5002
Positioning of cell
To identify the battery holder itself and
to identify the positioning of the cell(s)
inside the battery holder.
L
— e same as No. 11.
M
IEC60417
No
. 5019
Protective earth
To identify any terminal which is
intended for connection to an external
conductor for protection against
electric shock in case of a fault, or the
terminal of a protective earth electrode.
N
IEC60417
No
. 5017
Earth
To identify an earth (ground) terminal
in cases where neither the symbol No.
13 is explicitly required.
List of Safety Symbols and Instructions
92

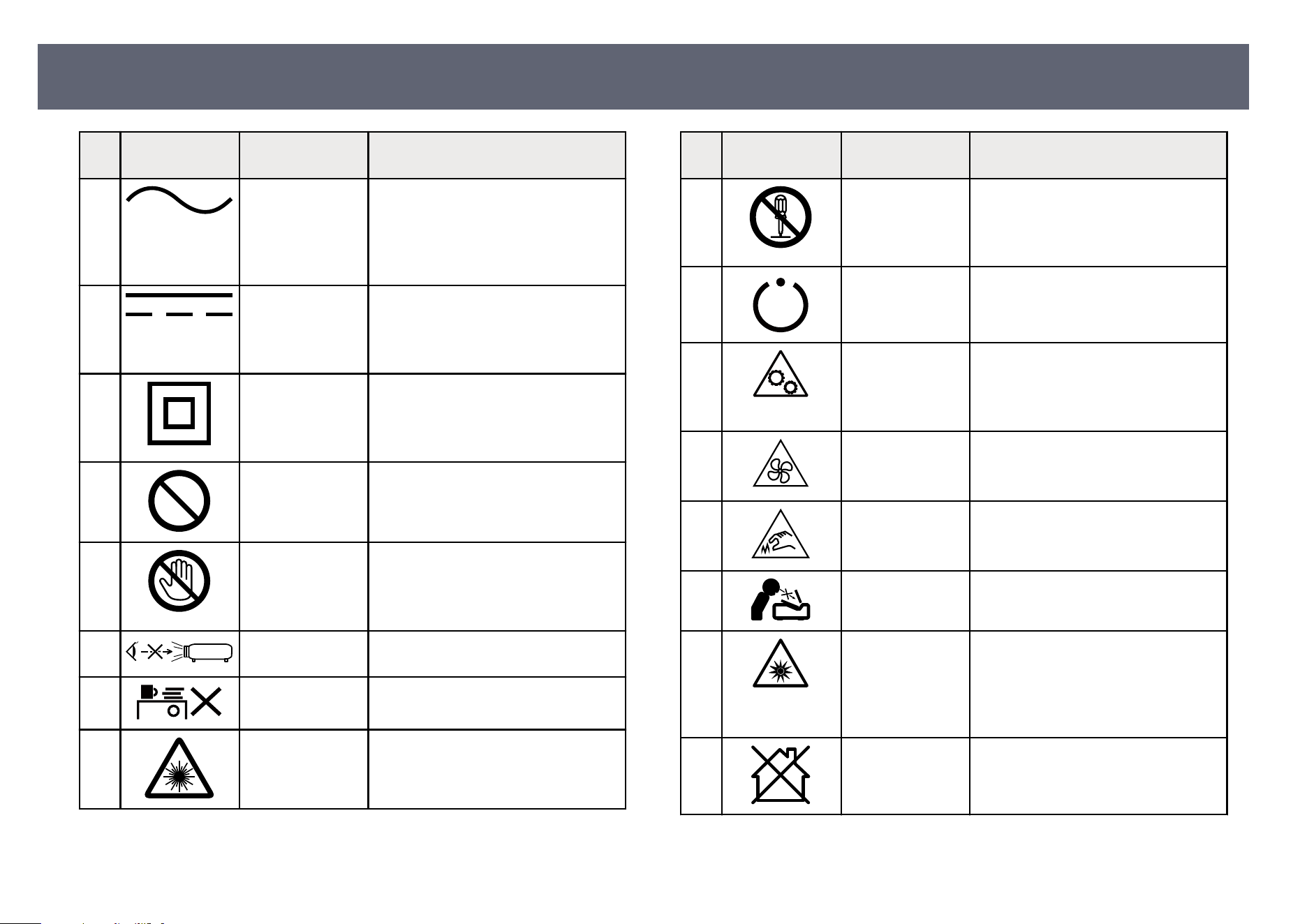

No. Symbol mark Approved
st
andards
Description
O
IEC60417
No
. 5032
Alternating current
To indicate on the rating plate that the
equipment is suitable for alternating
current only; to identify relevant
terminals.
P
IEC60417
No. 5031
Direct current
To indicate on the rating plate that the
equipment is suitable for direct current
only; to identify relevant terminals.
Q
IEC60417
No
. 5172
Class II equipment
To identify equipment meeting the
safety requirements specied for Class
II equipment according to IEC 61140.
R
ISO 3864 General prohibition
To iden
tify actions or operations that
are prohibited.
S
ISO 3864 Contact prohibition
To in
dicate injury that could occur
due to touching a specic part of the
equipment.
T
— Never look into the optical lens while
th
e projector is on.
U
— To indicate that the marked item don’t
pl
ace anything on projector.
V
ISO3864
IEC60825-1
Caution, laser radiation
To in
dicate the equipment has a laser
radiation part.
No. Symbol mark Approved
st
andards
Description
W
ISO 3864 Disassembly prohibition
To in
dicate a risk of injury, such as
electric shock, if the equipment is
disassembled.
X
IEC60417
No. 5266
Standby, partial standby
To indicate that part of the equipment
is in the ready status.
Y
ISO3864
IEC60417
No
. 5057
Caution, movable parts
To indicate that you must keep away
from movable parts according to
protection standards.
Z
IEC60417
No. 6056
Caution (Moving Fan Blades)
As a safety precaution, stay away from
the moving fan blades.
a
IEC60417
No
. 6043
Caution (Sharp Corners)
To indicate sharp corners that should
not be touched.
b
— To indicate that looking into the lens
whi
le projecting is prohibited.
c
ISO7010
N
o
. W027
ISO 3864
Warning, Optical radiation (such as
UV, visible radiation, IR)
Taking care to avoid injury to eyes and
skin when in the vicinity of optical
radiation.
d
IEC60417
No
. 5109
Not to be used in residential areas.
To identify electrical equipment which
is not suitable for a residential area.
List of Safety Symbols and Instructions
93

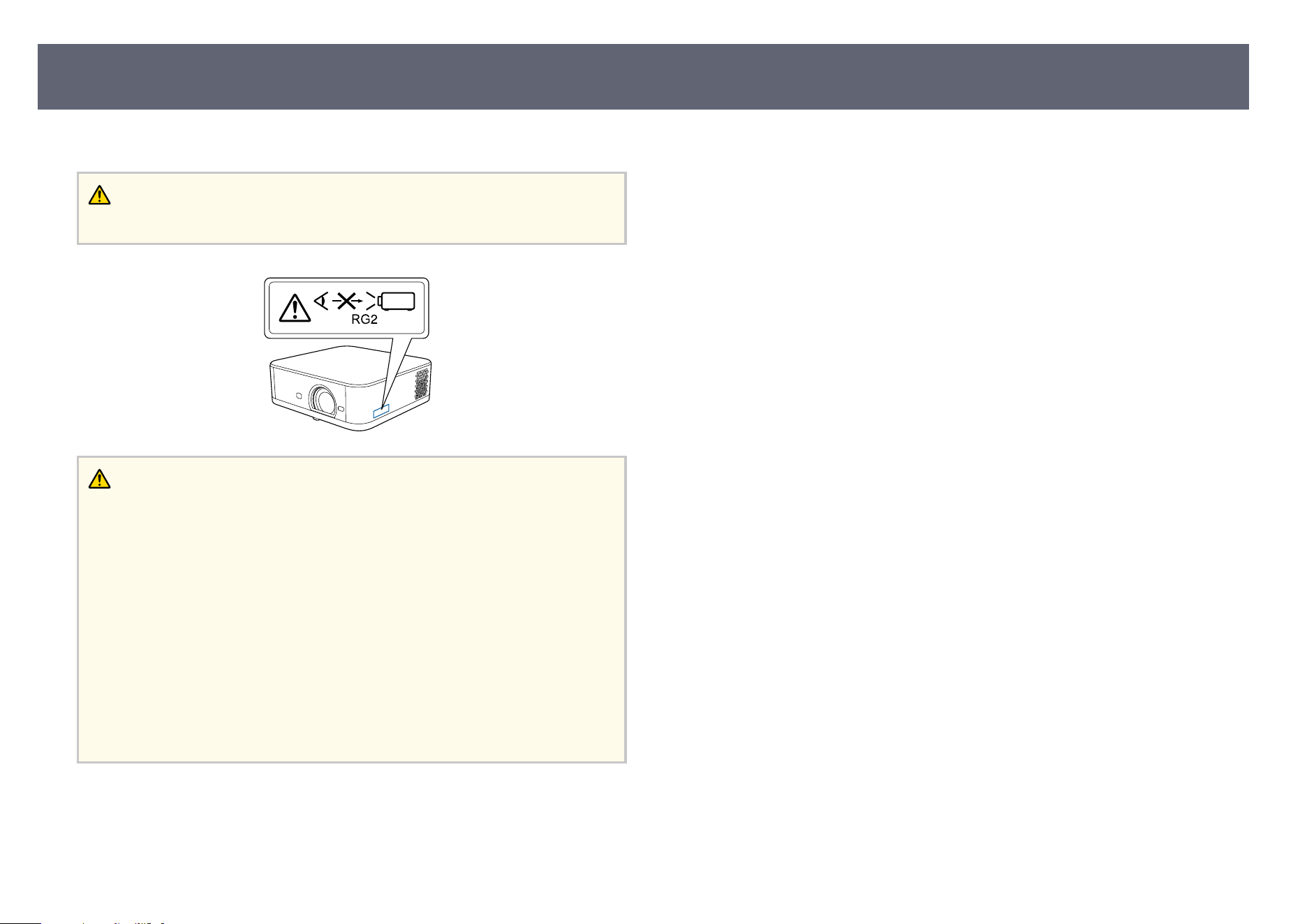

Warning labels are attached on the projector.
Warning
As w
ith any bright source, do not stare into the beam, RG2 IEC/EN 62471-5:2015.
Warning
•
Ne
ver look into the projector lens when the laser is on. is can damage your eyes
and is especially dangerous for children and pets.
•
When turning on the projector at a distance using the remote control, make sure
no one is looking into the lens.
•
Do not allow small children to operate the projector. Children must be
accompanied by an adult.
•
Do not look into the lens during projection. Also, do not look into the lens using
optical devices, such as a magnifying glass or telescope. is could cause visual
impairment.
•
If any problems occur with the projector, unplug the projector from the outlet and
contact Epson for help. Continuing to use it as it is may result in re or accidents,
and can also damage your eyes.
Warning Labels
94
is section briey explains the dicult terms that are not explained in the text
o
f this guide. For details, refer to other commercially available publications.
Aspect Ratio e ratio between an image's length and its height.
S
creens with a horizontal:vertical ratio of 16:9, such as HDTV
screens, are known as wide screens.
SDTV and general computer displays have an aspect ratio of 4:3.
Contrast e relative brightness of the light and dark areas of an image
c
an be increased or decreased to make text and graphics stand
out more clearly, or to make them appear soer. Adjusting this
particular property of an image is called contrast adjustment.
4K A screen size standard with a resolution of 3,840 (horizontal) ×
2,160 (ver
tical) dots.
Full HD A screen size standard with a resolution of 1,920 (horizontal) ×
1,080 (ver
tical) dots.
HDCP HDCP is an abbreviation for High-bandwidth Digital Content
Pr
otection.
It is used to prevent illegal copying and protect copyrights by
encrypting digital signals sent over DVI and HDMI ports.
Because the HDMI port on this projector supports HDCP, it can
project digital images protected by HDCP technology.
However, the projector may not be able to project images
protected with updated or revised versions of HDCP encryption.
HDMI
™
An abbreviation for High D eni
tion Multimedia Interface.
HDMI
™
is a standard aimed at digital consumer electronics
and computers. is is the standard by which HD images and
multichannel audio signals are digitally transmitted.
By not compressing the digital signal, the image can be
transferred at the highest quality possible. It also provides an
encryption function for the digital signal.
HDTV An abbreviation for Hig
h-Denition Television that refers to
high-denition systems which satisfy the following conditions:
•
Vertical resolution of 720p or 1080i or greater (p =
Progressive, i = Interlace)
•
Screen aspect ratio of 16:9
Pairing Register devices in advance when connecting with Bluetooth
dev
ices to ensure mutual communication.
SDTV An abbreviation for Standard Deni
tion Television that refers to
standard television systems which do not satisfy the conditions
for HDTV High-Denition Television.
Glossary
95
Check these sections for important notices about your projector.
g
Related Links
•
"FC
C Compliance Statement" p.96
•
"Innovation, Science and Economic Development Canada (ISED) Notices"
p.96
•
"Wireless LAN with Bluetooth Safety and Specications" p.97
•
"Restriction of Use" p.97
•
"Trademarks" p.97
•
"Copyright Notice" p.98
•
"Copyright Attribution" p.98
FCC Compliance Statement
FCC Compliance Statement For United States Users
Contains FCC ID: BKMAE-WXT5HM
Bluetooth remote controller FCC ID: BKMAE-B064E02W7
is device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) is device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
is equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. ese limits are designed
to provide reasonable protection against harmful interference in a residential
installation. is equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
•
Re
orient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit dierent from that to
which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
Caution
Changes or modications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment. Properly
shielded and grounded cables and connectors must be used for connection to
host computers and/or peripherals in order to meet FCC emission limits.
is transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
is equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment and meets the FCC radio frequency (RF) Exposure
Guidelines. is equipment should be installed and operated keeping the
radiator at least 7.8 inches (20 cm) or more away from person's body.
Innovation, Science and Economic Development
Canada (ISED) Notices
Contains IC: 1052D-WXT5HM
Bl
uetooth remote controller IC: 1052D-B064E02W7
is device contains license-exempt transmitter(s)/receiver(s) that comply
w
ith Innovation, Science and Economic Development Canada's license-exempt
RSS(s). Operation is subject to the following two conditions: (1) is device may
not cause interference. (2) is device must accept any interference, including
interference that may cause undesired operation of the device.
Notices
96
is equipment (without Bluetooth remote controller) complies with ISED
radi
ation exposure limits set forth for an uncontrolled environment and meets
RSS-102 of the ISED radio frequency (RF) Exposure rules.
is equipment should be installed and operated with a distance of at least 7.9
inches (20 cm) between the radiator and your body.
Wireless LAN with Bluetooth Safety and Specications
Contains WLAN/BT module model: WXT5HM2001
Bl
uetooth remote controller Model: B064E-02-W7
is document provides safety instructions and describes the specications.
Read this document carefully before use to ensure your safety and product
performance.
is device is restricted to indoor operation only.
Operating frequency range:
WXT5HM2001: 2.402-2.480GHz, 5.15-5.35GHz, 5.47-5.85GHz
B064E-02-W7: 2.402-2.480GHz
Data transmission is always initiated by soware, which is then passed down
through the MAC, through the digital and analog baseband, and nally to the
RF chip. Several special packets are initiated by the MAC. ese are the only
ways the digital baseband portion will turn on the RF transmitter, which it then
turns o at the end of the packet. erefore, the transmitter will be on only
while one of the aforementioned packets is being transmitted. In other words,
this device automatically discontinue transmission in case of either absence of
information to transmit or operational failure.
Restriction of Use
When this product is used for applications requiring high reliability/safety
suc
h as transportation devices related to aviation, rail, marine, automotive etc.;
disaster prevention devices; various safety devices etc; or functional/precision
devices etc, you should use this product only aer gi
ving consideration to
including fail-safes and redundancies into your design to maintain safety
and total system reliability. Because this product was not intended for use
in applications requiring extremely high reliability/safety such as aerospace
equipment, main communication equipment, nuclear power control equipment,
or medical equipment related to direct medical care etc, please make your own
judgment on this product’s suitability aer a full evaluation.
Trademarks
EPSON is a registered trademark of Seiko Epson Corporation.
Mac, OS X, an
d macOS are trademarks of Apple Inc.
Microso, Windows, and the Windows logo are trademarks or registered
trademarks of Microso Corporation in the United States and/or other
countries.
Google TV is the name of this device's soware experience and a trademark of
Google LLC. Google, YouTube and Google Cast are trademarks of Google LLC.
Netix is a registered trademark of Netix, Inc.
Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio,
and t
he double-D symbol are trademarks of Dolby Laboratories Licensing
Corporation.
e terms HDMI, HDMI High-Denition Multimedia Interface, HDMI Trade
dress and the HDMI Logos are trademarks or registered trademarks of HDMI
Licensing Administrator, Inc.
Wi-Fi
®
is a trademark of the Wi-Fi Alliance
®
.
e
Bluetooth
®
word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by Seiko Epson Corporation
is under license. Other trademarks and trade names are those of their respective
owners.
Adobe and Adobe Reader are either registered trademarks or trademarks of
Adobe Systems Incorporated in the United States and/or other countries.
Notices
97
USB Type-C
®
is a registered trademark of USB Implementers Forum.
Other product names used herein are also for identication purposes only and
may be trademarks of their respective owners. Epson disclaims any and all
rights in those marks.
Copyright Notice
All rights reserved. No part of this publication may be reproduced, stored in
a r
et
rieval system, or transmitted in any form or by any means, electronic,
mechanical, photocopying, recording, or otherwise, without the prior written
permission of Seiko Epson Corporation. No patent liability is assumed with
respect to the use of the information contained herein. Neither is any liability
assumed for damages resulting from the use of the information contained
herein.
Neither Seiko Epson Corporation nor its aliates shall be liable to the purchaser
of this product or third parties for damages, losses, costs, or expenses incurred
by the purchaser or third parties as a result of: accident, misuse, or abuse of this
product or unauthorized modications, repairs, or alterations to this product,
or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation's
operating and maintenance instructions.
Seiko Epson Corporation shall not be liable against any damages or problems
arising from the use of any options or any consumable products other than
those designated as Original Epson Products or Epson Approved Products by
Seiko Epson Corporation.
e contents of this guide may be changed or updated without further notice.
Copyright Attribution
is information is subject to change without notice.
© 2025 S
eiko Epson Corporation
Rev.00 2025.11 EN EAI
Notices
98
