Liebherr RBSFC 5220 PLUS BIOFRESH data-next-head> User Manual

User Guide

Quality, Design and Innovation

home.liebherr.com/fridge-manuals

Contents

1 Safety information and warnings......................... 3

1.1 Intended use................................................................. 3

1.2 Climate classes............................................................ 3

1.3 User group..................................................................... 3

1.4 Installation and commissioning................................ 3

1.5 Safe handling of the appliance.................................. 4

1.6 Cleaning......................................................................... 4

1.7 Faults, damage and repairs........................................ 4

1.8 Disposal......................................................................... 4

1.9 Conformity..................................................................... 4

1.10 SVHC substances in accordance with the REACH

Regulation..................................................................... 4

1.11 EPREL database........................................................... 4

1.12 Open source licences.................................................. 4

1.13 Spare parts.................................................................... 4

1.14 Symbols on the appliance.......................................... 4

1.15 Warning levels.............................................................. 5

2 Appliance at a glance............................................ 5

2.1 Scope of delivery.......................................................... 5

2.2 Overview of the appliance and features.................. 5

2.3 SmartDevice.................................................................. 5

2.4 Appliance range of use............................................... 6

2.5 Conformity..................................................................... 6

2.6 SVHC substances according to REACH regulation. 6

2.7 EPREL database........................................................... 6

2.8 Spare parts.................................................................... 6

3 Functionality of the Touch display....................... 6

3.1 Navigation and symbol explanation......................... 6

3.2 Menus............................................................................. 7

3.3 Sleep mode................................................................... 7

4 Putting into operation........................................... 8

4.1 Switching on appliance (first use)............................ 8

5 Storage.................................................................. 8

5.1 Information regarding storage................................... 8

5.2 Fridge compartment.................................................... 8

5.3 BioFresh......................................................................... 8

5.4 ****-freezer compartment*........................................ 9

5.5 Storage times............................................................... 9

6 Saving energy........................................................ 10

7 Controls................................................................. 10

7.1 Controls and displays.................................................. 10

7.1.1 Status display............................................................10

7.1.2 Display symbols........................................................ 10

7.2 Appliance functions..................................................... 10

7.2.1 Notes on the appliance functions..........................10

Switching the appliance off and on......................10

WiFi............................................................................. 11

Temperature..............................................................12

Temperature unit......................................................12

BioFresh B-Value ..................................................... 12

C-Value*.....................................................................13

D-Value.......................................................................13

SuperCool..................................................................13

HolidayMode............................................................. 13

SabbathMode............................................................14

E-Saver ......................................................................14

CleaningMode...........................................................15

Display brightness................................................... 15

Door alarm.................................................................16

Input lock...................................................................16

Device information...................................................16

Software.....................................................................17

Reminder....................................................................17

Demo mode............................................................... 17

Resetting to factory settings.................................18

7.3 Messages...................................................................... 18

7.3.1 Overview of warnings...............................................18

7.3.2 Ending warnings....................................................... 18

7.3.3 Overview of reminders............................................. 19

7.3.4 Ending reminders...................................................... 19

8 Features................................................................. 19

8.1 4-star freezer compartment*..................................... 19

8.2 Door rack....................................................................... 19

8.3 Shelves.......................................................................... 20

8.4 Dividing shelf................................................................ 20

8.5 VarioSafe *.................................................................... 21

8.6 Adjustable bottle shelf................................................ 23

8.7 Drawers.......................................................................... 24

8.8 Compartment lid for Fruit & Vegetable Safe........... 25

8.9 Bottle holder................................................................. 25

8.10 FlexCube........................................................................ 25

9 Maintenance.......................................................... 26

9.1 FreshAir carbon filter................................................... 26

9.2 Disassembling / assembling pull-out systems...... 26

9.3 Removing / inserting the variable bottle rack........ 27

9.4 Compartment lid for Fruit & Vegetable Safe........... 27

9.5 Defrosting the appliance............................................ 27

9.6 Defrosting the freezer compartment manually*.... 27

9.7 Cleaning the appliance............................................... 28

10 Customer help....................................................... 28

10.1 Technical specifications............................................. 28

10.2 Operating noises.......................................................... 29

10.3 Technical fault.............................................................. 29

10.4 Customer Service......................................................... 30

10.5 Model plate................................................................... 30

11 Shutting down....................................................... 31

12 Disposal................................................................. 31

12.1 Preparing the appliance for disposal........................ 31

12.2 Disposing of the appliance in an environmentally

friendly manner............................................................ 31

The manufacturer is continually working on the further

development of all types and models. Please be aware that

we reserve the right to make changes to the shape, equip‐

ment and technology.

2 * Depending on model and options

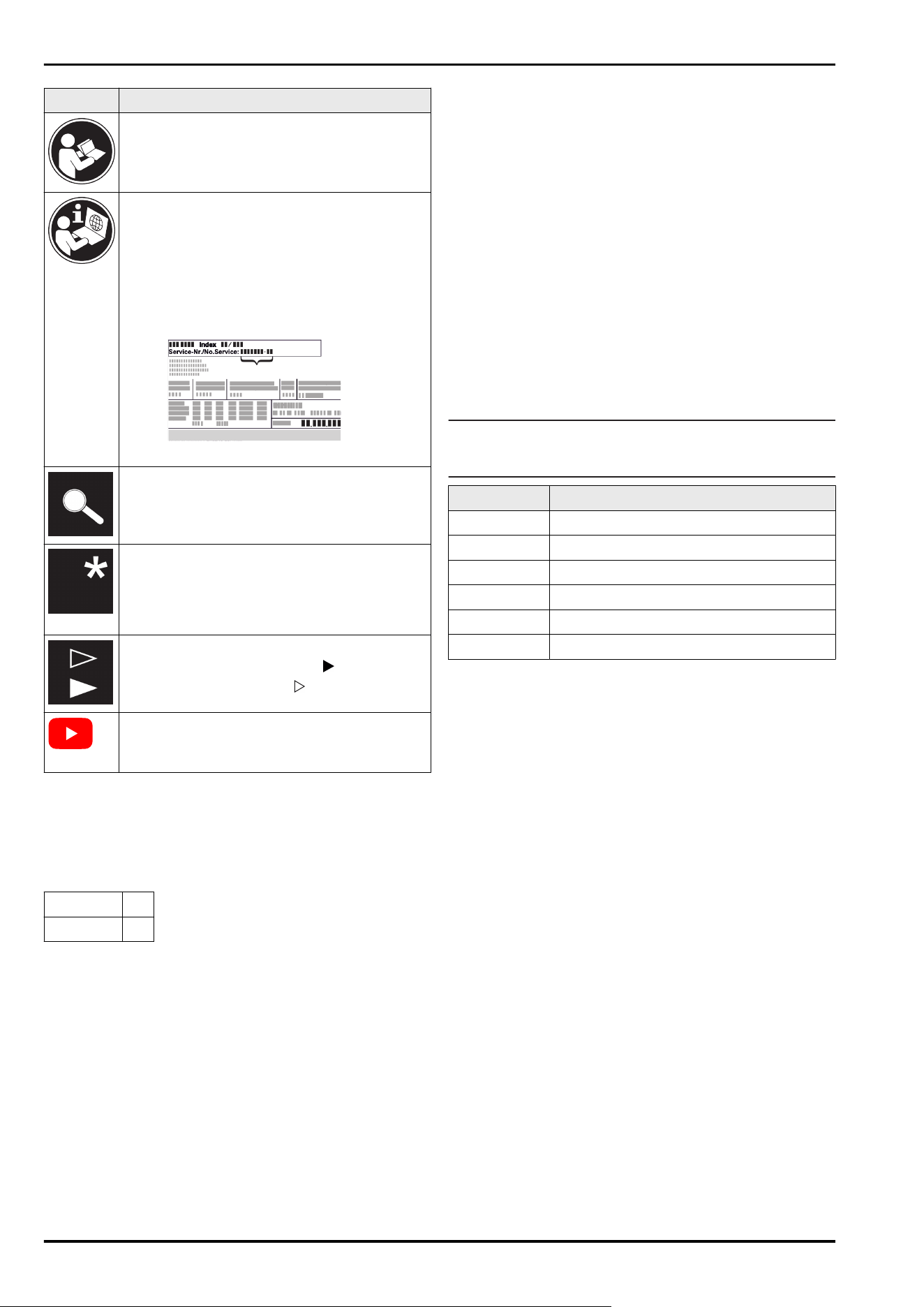

Symbol Explanation

Read instructions

Please read the information in these instruc‐

tions carefully to understand all of the benefits

of your new appliance.

Additional information on the Internet

The digital manual with additional informa‐

tion and in other languages can be found

via the QR code on the front of the

manual or by entering the service number at

home.liebherr.com/fridge-manuals.

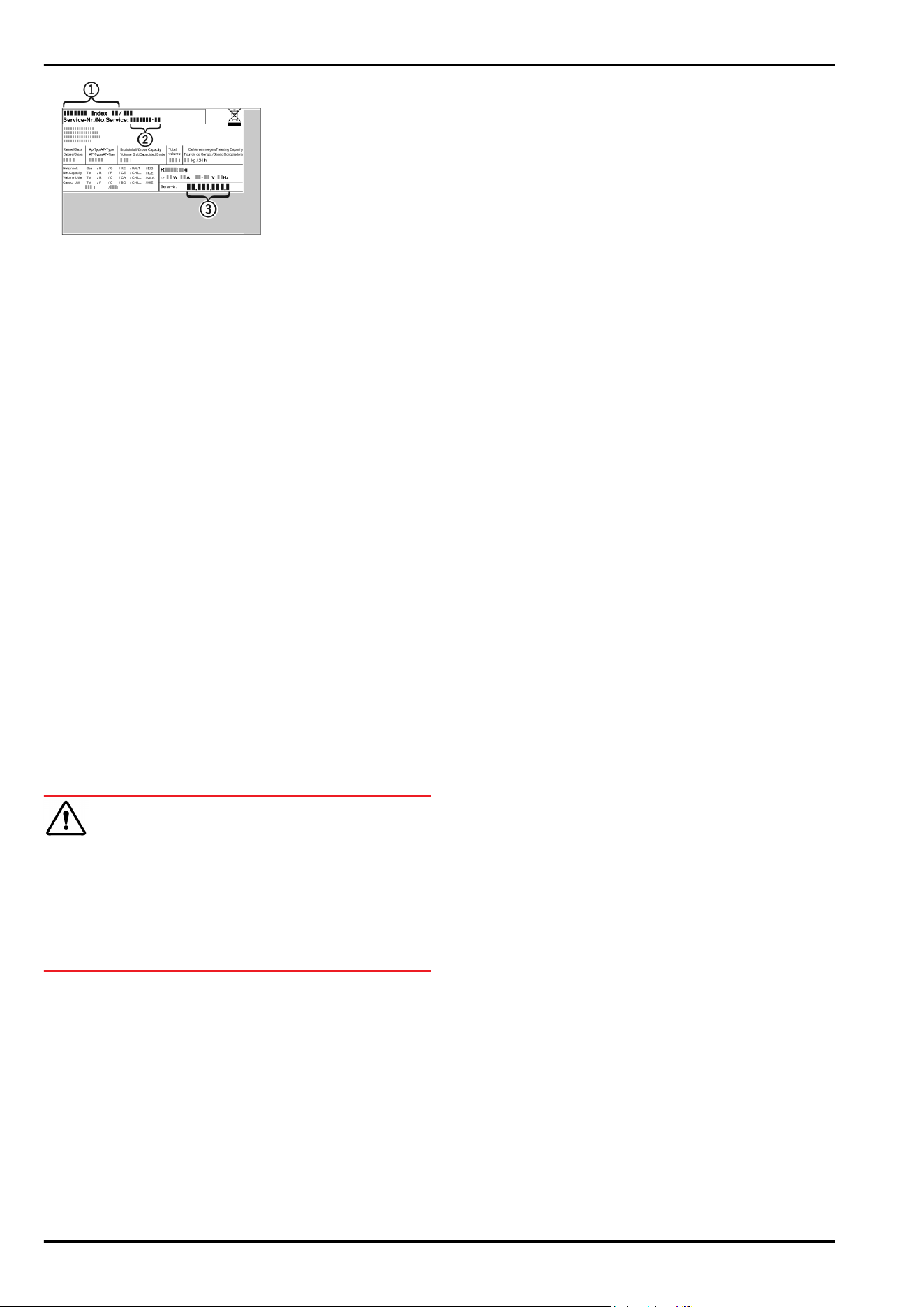

The service number can be found on the serial

tag:

Fig.Example illustration

Check appliance

Check all parts for transport damage. If you

have any complaints, please contact your

agent or customer service.

Differences

These instructions apply to a range of models,

so differences are possible. Sections that

apply to certain models only are marked with

an asterisk (*).

Instructions and results

Instructions are marked with a .

Results are marked with a .

Videos

Videos about the appliances are available on

the YouTube channels of Liebherr-Hausgeräte.

Open source licences:

The appliance contains software components that use

open source licences. Information on the open source

licences used can be found here: home.liebherr.com/

open-source-licences

These operating instructions apply to:

(S)RB..

52..

KB 52Vc20

1 Safety information and warnings

Keep this user information in a safe place so that you can

refer to it at any time.

If you pass on the appliance, pass this user information on

to subsequent owners.

To use the appliance properly and safely, read this user

information carefully before installation and use. Always

follow the instructions, safety instructions and warnings

contained therein. They are important so that you can install

and operate the appliance safely and properly.

1.1 Intended use

This appliance is intended for household use and similar

applications such as:

in staff kitchen areas in shops, offices and other work

areas

in agricultural environments and by guests in hotels,

motels and other accommodation

in bed and breakfasts

in catering and similar wholesale operations

Further uses:

This appliance is not suitable for freezing food.*

All other types of application are impermissible.

1.2 Climate classes

Depending on its climate class, the appliance is designed

for operation within certain ambient temperature limits. The

climate class for your appliance is printed on the type plate.

Note

► In order to guarantee fault-free operation comply with

the specified ambient temperatures.

Climate class for ambient temperatures from

SN 10°C to 32°C

N 16°C to 32°C

ST 16°C to 38°C

T 16°C to 43°C

SN-ST 10°C to 38°C

SN-T 10°C to 43°C

1.3 User group

This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory

or mental capabilities or lack of experience and knowl‐

edge if they have been given supervision or instruction

concerning use of the appliance in a safe way and under‐

stand the hazards involved.

Children must not play with the appliance.

Children must not carry out cleaning and user mainte‐

nance without supervision.

Children aged from 3 to 8 years are allowed to load and

unload refrigerating appliances.

1.4 Installation and commissioning

Only set up and connect the appliance in accordance

with the instructions in the user information.

Do not close the ventilation openings in the appliance

housing or in the installation housing.

Do not damage the mains cable. The appliance must not

be operated with a defective mains cable.

Do not place portable multiple sockets or power supply

units at the rear of the appliance.

It must be easy to access the socket so that the appli‐

ance can be quickly disconnected from the power supply

in case of an emergency. It must not be behind the appli‐

ance.

Appliances with anti-tip protection:

Secure the appliance with an anti-tip device in accord‐

ance with the instructions in the user information to

prevent the appliance from tipping over.

Safety information and warnings

* Depending on model and options 3

1.5 Safe handling of the appliance

Do not store any explosive substances, such as aerosol

containers with flammable propellant gas, in the appli‐

ance. These types of aerosol can be identified by the

list of contents printed on it, or by a flame symbol. Any

leaking gas may ignite due to electrical parts.

Keep burning candles, lamps and other objects with

naked flames away from the appliance, so that these do

not set fire to the appliance.

Alcoholic beverages and other containers bearing alcohol

must be sealed tight for storage. Any leaking alcohol may

ignite due to electrical parts.

Avoid prolonged skin contact with cold surfaces or with

cold/frozen food. Use gloves for protection, for example.

The refrigerant contained (information on the type plate)

is environmentally friendly but flammable. Leaking refrig‐

erant may ignite.

•

Do not damage the refrigeration circuit.

•

Do not use any ignition sources inside the appliance.

•

Do not use electrical appliances inside the appliance

(e.g. steam cleaners, heaters).

•

If the refrigerant leaks: remove any naked flames or

ignition sources from the vicinity of the leakage point.

Properly air the room. Inform customer service.

Only open the door for a short time. This prevents the

temperature inside the appliance from rising.

Do not reach between the door and the appliance when

opening and closing. Fingers may become trapped.

The temperature in the warmest part of the appliance

may be higher than the set temperature.

1.6 Cleaning

Regularly clean surfaces that come into contact with

food.

Clean the defrost water drain regularly.

Do not use an electric heater or steam cleaner, naked

flames or defrost spray to speed up the defrosting

process.

Do not remove the ice with sharp objects.

1.7 Faults, damage and repairs

If the mains connection cable of the appliance is

damaged, replace the mains connection cable.

Repairs and interventions on the appliance may only be

carried out by the customer service or by other qualified

personnel trained for this purpose.

In the event of malfunctions and appliance faults, pull

out the mains plug or switch off the fuse. Always hold

the plug when pulling out the mains plug. Never tug on

the cable.

1.8 Disposal

The appliance contains valuable materials and is marked

with the appropriate symbol. (see 1.14 Symbols on the

appliance)

•

Do not dispose of the appliance in the household

waste.

•

Dispose of the appliance free of charge at your

local recycling centre using the Class 1 collection

containers.

•

When purchasing a new appliance, return the old

appliance to the retailer free of charge.

•

Provide information about return options.

Your appliance may contain personal data.

•

Delete personal data before disposal.

The appliance contains refrigerant (information on the

type plate) and oil. The refrigerant inside the appliance

is environmentally friendly, but flammable. The oil it

contains is also flammable. Escaping refrigerant and oil

can ignite in high concentrations and in contact with an

external heat source.

•

Do not damage the refrigeration circuit.

•

Only dispose of the appliance in accordance with the

instructions in the user information.

1.9 Conformity

The coolant circuit has been tested for leak-tightness. The

appliance complies with the relevant safety regulations and

directives.

The full text of the EU Declaration of Conformity is available

at the following web address: www.liebherr.com

The BioFresh compartment fulfils the requirements of a

chiller compartment in accordance with DIN EN 62552:2020.

1.10 SVHC substances in accordance

with the REACH Regulation

You can use the following link to check whether your appli‐

ance contains SVHC substances in accordance with the

REACH Regulation:

home.liebherr.com/en/en/liebherr-experience/sustaina‐

bility/environment/scip/scip.html

1.11 EPREL database

From 1 March 2021, the information on energy labelling and

eco-design requirements will be available in the European

product database (EPREL). The product database can be

accessed via the following link https://eprel.ec.europa.eu/.

Here, you are asked to enter the model identifier. You will

find the model identifier on the type plate.

1.12 Open source licences

The appliance contains software components that use open

source licences. Information on the open source licences

used can be found here:

home.liebherr.com/open-source-licences

1.13 Spare parts

The spare parts availability for functional parts and stock‐

able parts of the equipment is 15 years.

1.14 Symbols on the appliance

This symbol may be found on the

compressor. It pertains to the oil in the

compressor and indicates the following

danger: Can be fatal if swallowed or with

penetration of the respiratory tract. This

information is only significant for recycling.

No risk exists with normal use. Do not

remove this symbol.

Safety information and warnings

4 * Depending on model and options

Warning: Fire hazard due to flammable

substances. This symbol is located on the

compressor and can also be found in other

places on the appliance. This symbol warns

of flammable substances. Do not remove

this symbol.

This or a similar symbol may be on the rear

of the appliance. It indicates that there are

vacuum insulation panels (VIP) or perlite

panels in the door and/or housing. This

information is only significant for recycling.

Do not remove this symbol.

This symbol is located on the type plate.

It indicates that the appliance contains

valuable materials and that you must not

dispose of it with household waste.

(see1.8Disposal)

1.15 Warning levels

DANGER

Identifies an immediately

dangerous situation that will

result in death or serious bodily

injuries if it is not prevented.

WARNING

Identifies a dangerous situation

that could result in death or

serious bodily injury if it is not

prevented.

CAUTION

Identifies an immediately

dangerous situation that could

result in slight or moderate injuries

if it is not prevented.

ATTENTION Identifies a hazardous situation

that could result in property

damage if it is not prevented.

Note Identifies useful information and

tips.

2 Appliance at a glance

2.1 Scope of delivery

Check all parts for transport damage. Contact your

dealer or customer service in the event of complaints.

(see 10.4 Customer Service)

Your new appliance comes with the following parts:

Standalone appliance

Features (depending on the model)

Installation materials (depending on the model)

“Quick Start Guide”

Service Brochure

2.2 Overview of the appliance and

features

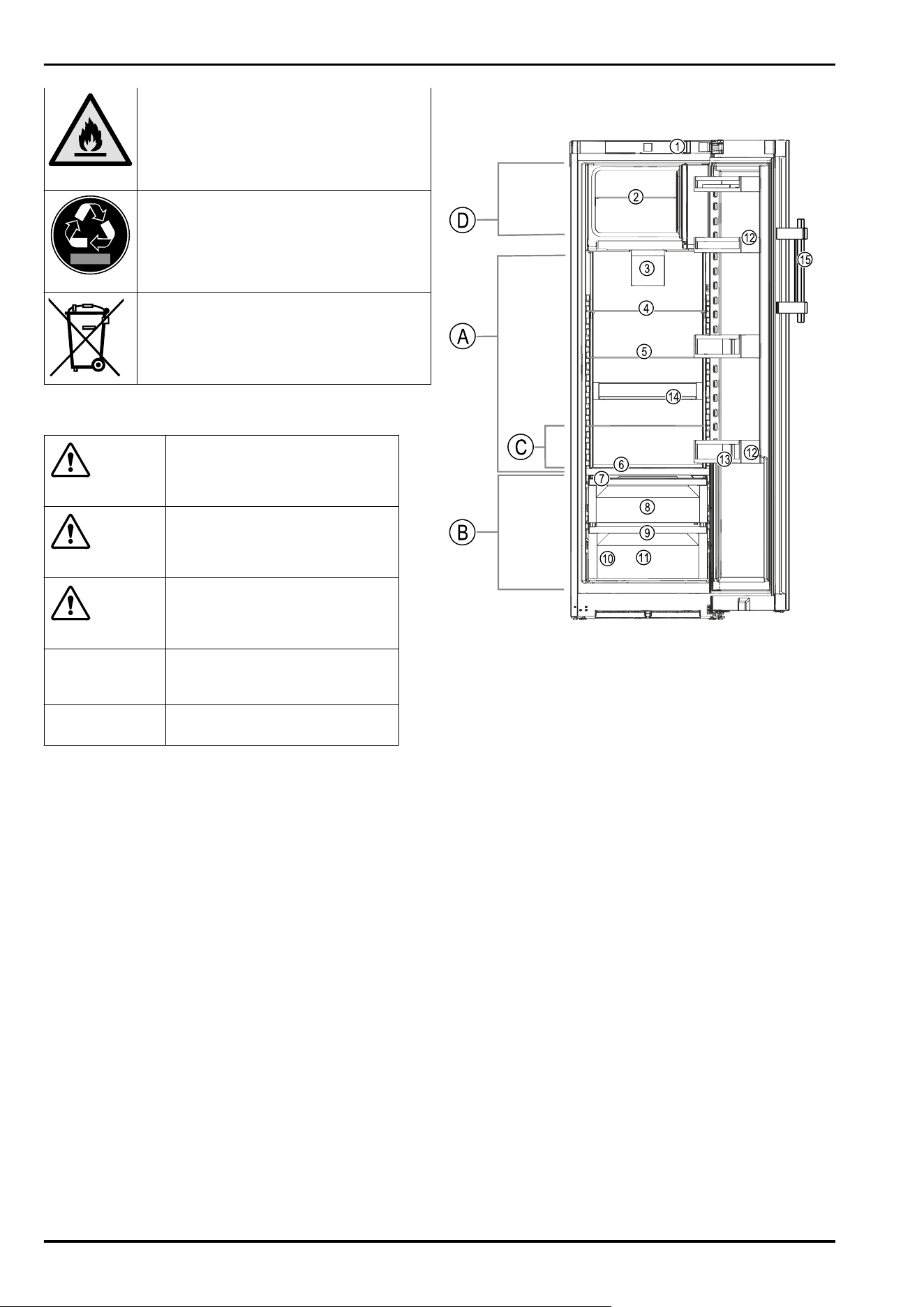

Fig. 1 Example illustration

Temperature range

(A)

Fridge compartment (B) BioFresh

ment*

Features

(1)

Controls (9) Outlet

(2) Glass plate for 4-star

freezer compartment*

(10) Serial tag

(3) Fan with FreshAiracti‐

vated charcoal filter

(11) Meat & Dairy Safe

(4) Separable storage

shelf

(12) Door rack

(5) Storage shelf (13) Bottle holder

(6) Variable bottle rack (14) VarioSafe*

(7) Compartment lid for

Fruit & Vegetable Safe

(15) Lever grip*

(8) Fruit & Vegetable Safe

2.3 SmartDevice

SmartDevice is the networking solution for your refrigerator.

If your appliance SmartDevice-enabled or compatible, you

can quickly and easily connect your appliance to your

WiFi. With the SmartDevice app, you can operate your appli‐

ance from a mobile device. Additional functions and setting

options are available in the SmartDevice SmartDevice app.

SmartDevice-

compatible appli‐

ance:

Your appliance is compatible for use

with the SmartDeviceBox. You must

first purchase and install the Smart‐

DeviceBox. In order to connect your

appliance to the WiFi, you need to

download the SmartDevice app.

Appliance at a glance

* Depending on model and options 5

More information

about SmartDe‐

vice:

smartdevice.liebherr.com

Purchasing the

SmartDeviceBox

in the Liebherr-

Hausgeräte store:

home.liebherr.com/shop/de/deu/

smartdevicebox.html

Downloading the

SmartDevice app:

After installing and configuring

the SmartDevice app, you can

connect your appliance to your Wi-Fi

(see WiFi) using the SmartDevice app

and the appliance's Wi-Fi function.

Note

The SmartDevice function is not available in the following

countries: Russia, Belarus, Kazakhstan.

You cannot use the SmartDeviceBox.

2.4 Appliance range of use

Intended use

The appliance is only suitable for cooling food products in

a domestic or household-like environment. This includes, for

example, use:

in staff kitchens, bed and breakfast establishments,

by guests in country houses, hotels, motels and other

accommodation,

for catering and similar services in the wholesale trade.

The appliance is not suitable for freezing food;*

The appliance is not suitable as a built-in unit.

All other types of use are not permitted.

Foreseeable misuse

The following applications are expressly forbidden:

Storing and refrigerating medicines, blood plasma, labo‐

ratory preparations or similar substances and products

based on the Medical Device Directive 2007/47/EC

Use in areas at risk of explosions

Misusing the appliance may lead to damage to the goods

stored or they may spoil.

Climate classifications

Depending on the climate classification the appliance is

designed to operate in restricted ambient temperatures. The

climate classification applying to your appliance is printed

on the rating plate.

Note

► Keep to the specified ambient temperatures in order to

guarantee that the appliance works properly.

Climate clas‐

sification

for ambient temperatures of

SN 10°C to 32°C

N 16°C to 32°C

ST 16°C to 38°C

T 16°C to 43°C

SN-ST 10°C to 38°C

Climate clas‐

sification

for ambient temperatures of

SN-T 10°C to 43°C

2.5 Conformity

The refrigerant circuit has been tested for leaks. The appli‐

ance complies with the applicable safety regulations and

with the corresponding directives.

The full text of the EU Declaration of Conformity is available

on the following website: www.Liebherr.com

The BioFresh compartment meets the requirements of a

cold storage compartment as set out in DIN EN 62552:2020.

2.6 SVHC substances according to

REACH regulation

You can check whether your appliance contains SVHC

substances according to REACH regulation at the following

link: home.liebherr.com/de/deu/de/liebherr-erleben/nach‐

haltigkeit/umwelt/scip/scip.html

2.7 EPREL database

Details about energy labelling and ecodesign requirements

will be available on the European product database (EPREL)

from 1st March 2021. You can access the product database

at the following link: https://eprel.ec.europa.eu/ You will be

asked to enter the model ID. You can find the model ID on

the nameplate.

2.8 Spare parts

The spare parts availability for functional parts and stock‐

able parts of the equipment is 15 years.

3 Functionality of the Touch

display

You operate your appliance using the Touch display. You

select appliance functions in the Touch display (hereafter

referred to as display) by tapping them. If you do not

perform any action on the display for 10 seconds, the

display either jumps back to the higher-level menu or

directly to the status display.

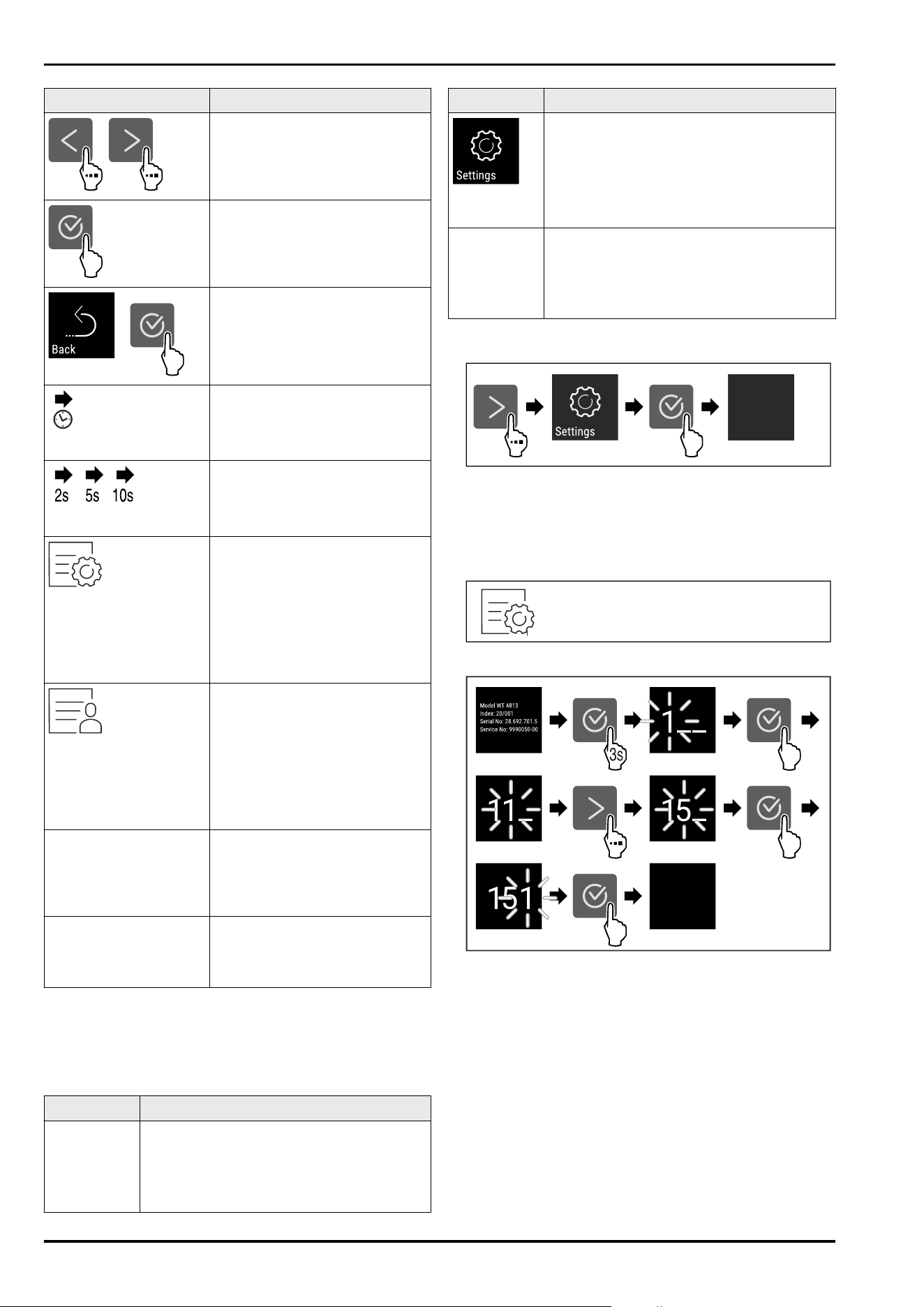

3.1 Navigation and symbol explanation

In the illustrations, different symbols are used to navigate

the display. The following table describes these symbols.

Symbol

Description

Press the Next navigation

arrow:

Navigates to the next option in

the menu.

Press the Back navigation

arrow:

Jumps back one option in the

menu.

Functionality of the Touch display

6 * Depending on model and options

Symbol Description

Press the navigation arrow

several times in succession:

Navigates in the menu to the

desired function.

Press the Confirm symbol:

Activates/deactivates function.

Opens submenu.

Press the Confirm symbol

together with the back icon:

Jumps back one menu level.

Arrow with clock:

It takes more than 10 seconds

for the following message to

appear in the display.

Arrow with a time indication:

It takes the specified amount of

time until the following message

appears in the display.

“Open Settings menu” symbol:

Navigates to the Settings menu

and opens the settings menu.

If necessary: Navigate to the

desired function in the Settings

menu.

(see 3.2.1 Opening the Settings

menu)

“Open Advanced menu” symbol:

Navigates to the Advanced menu

and opens the advanced menu.

If necessary: Navigate to the

desired function in the Advanced

menu.

(see 3.2.2 Opening the Advanced

menu)

No action for

10seconds

If you do not perform any action

on the display for 10 seconds,

the display either jumps back to

the higher-level menu or directly

to the status display.

Close the door and open

it again.

If you close the door and imme‐

diately open it again, the display

jumps directly back to the status

display.

Note: Illustrations of the display are shown in the English

version.

3.2 Menus

The appliance functions can be found in various menus.

Description

Main menu When you switch the appliance on, you are

automatically in the main menu.

From here you can navigate to the most

important appliance functions, to the

Settings menu and to the Advanced menu.

Menu Description

Settings

The Settings menu contains additional

appliance functions for setting up your

appliance.

(see 3.2.1 Opening the Settings menu)

Advanced

The advanced menu contains special appli‐

ance functions for setting up your appli‐

ance. Access to the Advanced menu is

protected by the numerical code 151.

(see 3.2.2 Opening the Advanced menu)

3.2.1 Opening the Settings menu

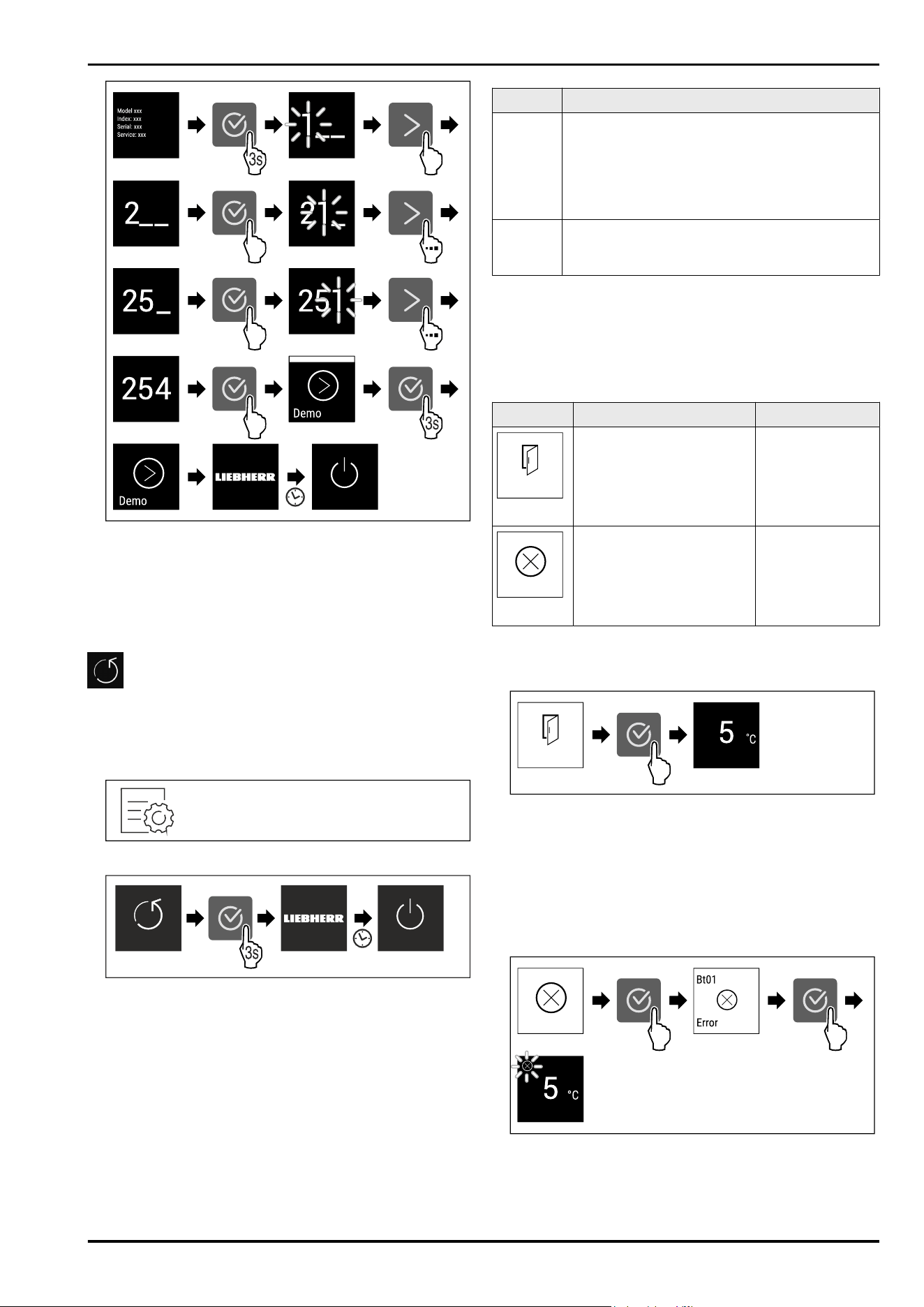

Fig. 2 Example illustration

► Carry out action steps according to the illustration.

▷ Settings menu is open.

► If necessary: Navigate to the desired function.

3.2.2 Opening the Advanced menu

Fig.3

Fig. 4 Example illustration, access with numerical code 151

► Carry out action steps according to the illustration.

▷ The expanded menu is open.

► If necessary: Navigate to the desired function.

3.3 Sleep mode

If you do not touch the display for 1 minute, the display

switches to sleep mode. In sleep mode, the display bright‐

ness is dimmed.

3.3.1 Ending sleep mode

► Press any navigation key.

▷ Sleep mode is ended.

Functionality of the Touch display

* Depending on model and options 7

4 Putting into operation

4.1 Switching on appliance (first use)

Make sure that the following requirements are fulfilled:

❑

The appliance has been installed and connected in

accordance with the installation instructions.

❑

All adhesive strips, adhesive and protective films and

transport locks are removed from inside and on the appli‐

ance.

❑

All marketing leaflets are removed from the drawers.

❑

You are familiar with the functionality of the Touch

display. (see3 Functionality of the Touch display)

Switch on the appliance using the Touch display:

► If the display is in sleep mode: Press the confirmation

symbol.

► Carry out action steps according to the illustration.

Fig. 5 Example illustration

▷ Status display appears.

▷ The appliance cools to the temperature set at the factory.

▷ The appliance starts in demo mode (status display with

DEMO appears): If the appliance starts in demo mode,

you can deactivate demo mode within the next 5 minutes.

(seeDemo mode)

More information:

Start the SmartDevice for the first time. (see 2.3 Smart‐

Device) and (seeWiFi)

Note

The manufacturer recommends:

► Stock with food: Wait for around 6 hours until the set

temperature is reached.

► Store frozen foods at -18°C or colder.*

► Observe the notes on storing food. (see 5.1 Information

regarding storage)

Note

Accessories can be purchased from the Liebherr-

Hausgeräte store at home.liebherr.com/shop/de/deu/

zubehor.html.

5 Storage

5.1 Information regarding storage

WARNING

Fire hazard from electrical appliances!

If you use electrical appliances in the food area of your

appliance, they can cause a fire.

► Do not use electrical appliances in the food area of the

appliance unless recommended by the manufacturer.

Note

The energy consumption increases and the cooling power

goes down if ventilation is not sufficient.

► Always keep air slots clear.

Observe the following specifications for storage:

Keep the air vents on the fan free.

In the freezer compartment: Package food properly.*

Package or cover foods that readily take on or give off

odours or taste in closed containers.

Package raw meat or fish in clean, closed containers.

This will prevent meat or fish from touching or dripping

onto other food.

Keep liquids in closed containers.

Leave space between goods to ensure good air circula‐

tion.

Store food according to the instructions on the pack‐

aging.

Always observe the best-before date indicated on the

packaging.

Note

Failure to follow these guidelines can lead to foodstuffs

spoiling.

5.2 Fridge compartment

The air circulation in the appliance creates different temper‐

ature zones. You will find the different temperature zones in

the appliance and equipment overview. (see 2.2 Overview of

the appliance and features)

5.2.1 Arranging your food properly

► Upper area and door: Store butter, cheese, tinned food

and tubes.

► Coldest temperature zone: Store perishable foods such

as pre-cooked meals.

5.3 BioFresh

BioFresh will extend the storage time for some fresh foods

compared to traditional refrigeration.

Note

If the temperature drops below 0°C foods may freeze.

► Store cold-sensitive produce such as cucumbers, auber‐

gines, courgettes and tropical fruit in the fridge compart‐

ment.

5.3.1 Fruit & Vegetable safe

This safe creates a storage climate of close to 0 °C. The

compartment lid ensures constant levels of humidity. This

storage climate is suitable for storing unpackaged food with

high intrinsic moisture (for example, lettuce, vegetables,

fruit).

The humidity in the compartment depends on the moisture

content of the chilled goods placed in it, and also depends

on how often the compartment is opened. You can regulate

the humidity level.

Arranging your food properly

► Store unpackaged fruit and vegetables.

If the humidity is too high:

► Regulate the humidity.

Putting into operation

8 * Depending on model and options

5.3.2 Meat & Dairy safe

This safe creates a storage climate of close to 0 °C. This

storage climate is suitable for more sensitive foods (e.g.

dairy products, meat, fish, sausage).

Arranging your food properly

► Store dry or packaged food.

5.4 ****-freezer compartment*

Here, a dry, frosty storage climate is created at -18 °C. The

frosty storage climate is suitable for storing frozen food for

several months, for making ice cubes or freezing fresh food.

The air temperature in the freezer compartment, measured

with a thermometer or other measuring device, may fluc‐

tuate. Temperature fluctuations are greater in a half-full

or empty freezer and it is possible to attain temperatures

warmer than -18°C.

5.4.1 Freezing food

The maximum amount of fresh food that you can

freeze within 24 hours is specified on the type plate

(see 10.5 Model plate) under “Freezing capacity ... kg/24h”.

To ensure that food quickly freezes through, adhere to the

following quantities per package:

Fruit and vegetables up to 1 kg

Meat up to 2.5 kg

Arranging your food properly

CAUTION

Risk of injury due to broken glass!

Bottles and cans containing drinks may burst when being

frozen. This applies particularly to sparkling drinks.

► Do not freeze bottles and cans containing drinks!

► For maximum freezing performance: Remove glass plate

before freezing.*

► Place packaged food in the freezer compartment.

Defrosting food

WARNING

Risk of food poisoning!

► Do not re-freeze thawed food.

► Use defrosted foodstuff as soon as possible.

You can defrost food in several ways:

In the fridge compartment

In the microwave

In the oven/fan-assisted oven

At room temperature

► Take out only as much food as necessary.

5.5 Storage times

Refer to the specified storage times as a guide.

In the case of foods with a minimum shelf life, the date

indicated on the packaging still applies.

5.5.1 Fridge section

Always follow the best-before date stated on the packaging.

5.5.2 BioFresh

Recommended storage periods in the Meat & Dairy-Safe

Butter at 1°C up to 90 days

Hard cheese at 1°C up to 110 days

Milk at 1°C up to 12 days

Sausage, cold meats at 1°C up to 8 days

Poultry at 1°C up to 6 days

Pork at 1°C up to 6 days

Beef at 1°C up to 6 days

Game at 1°C up to 6 days

Note

► Remember that high-protein foods perish quicker; shell‐

fish and crustaceans do not last as long as fish, and fish

does not last as long as meat.

Recommended storage periods in the Fruit & Vegetable-

Safe

Vegetables, salads

Artichokes at 1°C up to 14 days

Celery at 1°C up to 28 days

Cauliflower at 1°C up to 21 days

Broccoli at 1°C up to 13 days

Chicory at 1°C up to 27 days

Lettuce at 1°C up to 19 days

Peas at 1°C up to 14 days

Kale at 1°C up to 14 days

Carrots at 1°C up to 80 days

Garlic at 1°C up to 160 days

Turnip at 1°C up to 14 days

Lettuce at 1°C up to 13 days

Herbs at 1°C up to 13 days

Leeks at 1°C up to 29 days

Mushrooms at 1°C up to 7 days

Radishes at 1°C up to 10 days

Brussels sprouts at 1°C up to 20 days

Asparagus at 1°C up to 18 days

Spinach at 1°C up to 13 days

Savoy at 1°C up to 20 days

Fruit

Apricots at 1°C up to 13 days

Apples at 1°C up to 80 days

Pears at 1°C up to 55 days

Blackberries at 1°C up to 3 days

Dates at 1°C up to 180 days

Strawberries at 1°C up to 7 days

Figs at 1°C up to 7 days

Blueberries at 1°C up to 9 days

Storage

* Depending on model and options 9

Recommended storage periods in the Fruit & Vegetable-

Safe

Raspberries at 1°C up to 3 days

Currants at 1°C up to 7 days

Sweet cherries at 1°C up to 14 days

Kiwis at 1°C up to 80 days

Peaches at 1°C up to 13 days

Plums at 1°C up to 20 days

Cranberries at 1°C up to 60 days

Rhubarb at 1°C up to 13 days

Gooseberries at 1°C up to 13 days

Grapes at 1°C up to 29 days

5.5.3 Freezer compartment*

Recommended shelf-lives for various types of food

Ice cream at -18°C 2 to 6 months

Cold cuts, ham at -18°C 2 to 3 months

Bread, baked goods at -18°C 2 to 6 months

Game, pork at -18°C 6 to 9 months

Fatty fish at -18°C 2 to 6 months

Lean fish at -18°C 6 to 8 months

Cheese at -18°C 2 to 6 months

Poultry, beef at -18°C 6 to 12 months

Vegetables, fruit at -18°C 6 to 12 months

6 Saving energy

Pay attention to good ventilation. Do not cover ventilation

holes or grids.

Always keep the fan air slits clear.

Do not place the appliance in direct sunlight or near radi‐

ators or similar sources of heat.

If the appliance is placed directly next to an oven,

the energy consumption may increase slightly. This is

dependent on the service life and usage intensity of the

oven.

Energy consumption depends on the installation condi‐

tions, e.g. the ambient temperature (see 2.4 Appliance

range of use) . A warmer ambient temperature can

increase the energy consumption.

Open the appliance for as short a time as possible.

The lower the temperature is set the higher the energy

consumption.

Sort your food: home.liebherr.com/food.

Keep all food properly packed and covered. This prevents

frost from forming.

Only take food out for as long as necessary so that it

doesn’t warm up too much.

Inserting warm food: allow to cool down to room temper‐

ature first.

Thaw frozen food in the refrigerator.*

If there is a thick layer of frost in the appliance: defrost

the appliance.*

For longer periods of absence, use HolidayMode

(seeHolidayMode) .

7 Controls

7.1 Controls and displays

7.1.1 Status display

Fig.6

(1)

Temperature display of

the fridge section

The Status display shows the set temperature and is the

home display. From there, you can navigate to the options

and settings.

7.1.2 Display symbols

Display symbols provide information on the current appli‐

ance status:

Symbol

Appliance status

Standby

The appliance or temperature zone

is switched off.

Flashing number

Appliance is working. Temperature

flashes until the set value is

reached.

Flashing symbol

Appliance is working. Setting is

made.

Bar grows steadily

Function is activated.

7.2 Appliance functions

7.2.1 Notes on the appliance functions

The appliance functions are set at the factory so that your

appliance is fully functional.

Before you alter, activate or deactivate the device functions,

make sure that the following requirements are met:

❑

You have read and understood the descriptions of how

the display works. (see 3 Functionality of the Touch

display)

❑

You have familiarised yourself with the operating and

display elements of your appliance.

Switching the appliance off and on

Use this function to switch the entire appliance off and on.

Switching off the appliance

When you switch the appliance off, then the previously

saved settings are saved.

Make sure that the following requirements are fulfilled:

❑

Handling instructions (see 11 Shutting down) are carried

out.

Saving energy

10 * Depending on model and options

Fig.7

Fig.8

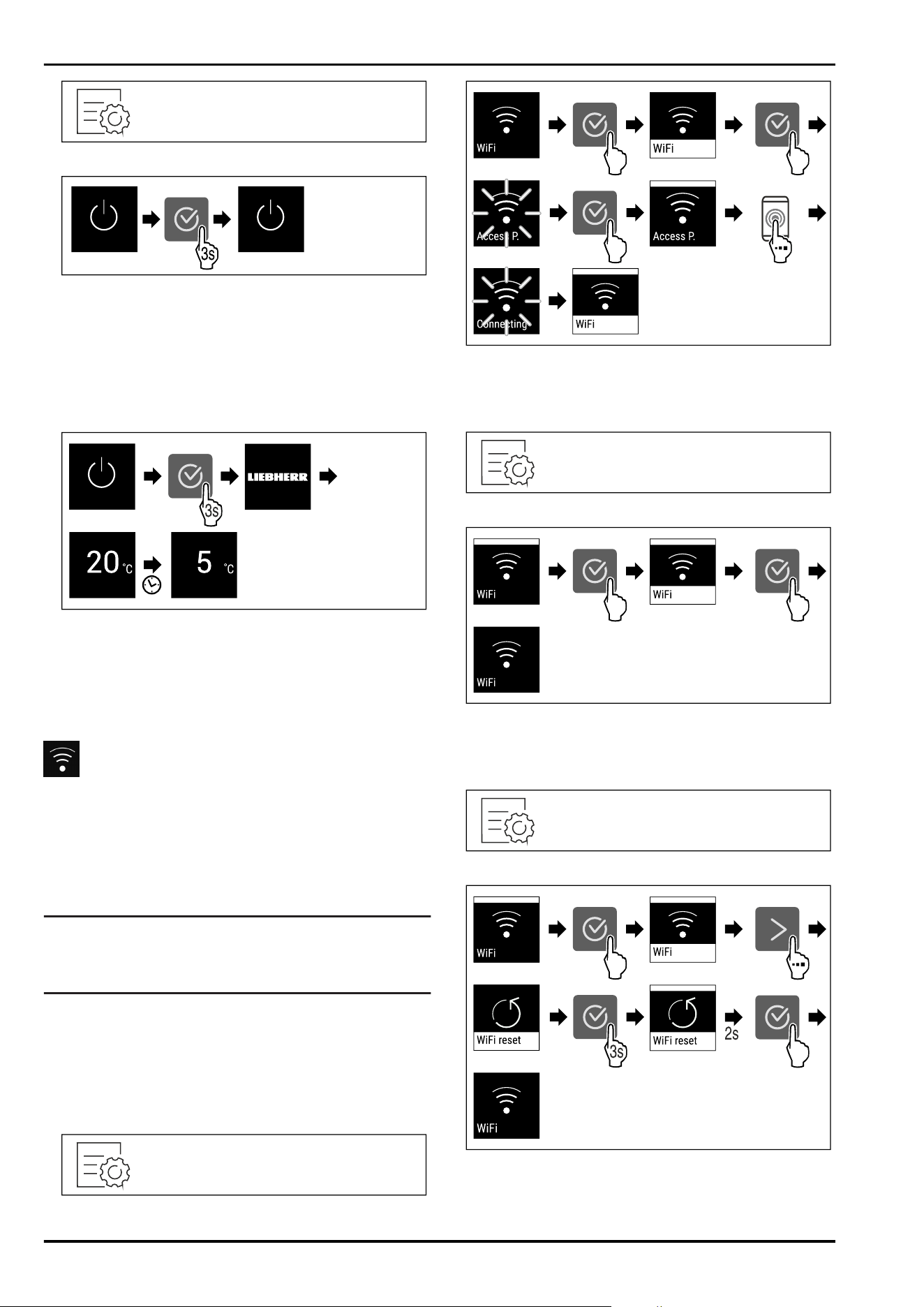

► Carry out action steps according to the illustration.

▷ Appliance is switched off.

▷ The standby symbol appears in the display.

▷ Display turns black.

Switching on the appliance

If the display is in sleep mode:

► Press any navigation key.

Fig. 9 Example illustration

► Carry out action steps according to the illustration.

When the appliance starts in demo mode:

► Deactivating demo mode. (see Deactivating demo mode)

▷ The appliance is switched on.

▷ Previous settings are restored.

▷ The appliance cools to the target temperature set.

WiFi

Use this function to connect your appliance to WiFi. You can

then operate it via the SmartDevice app on a mobile device.

You can also use this function to disconnect or reset the

WiFi connection.

To connect your device to WiFi, you need the SmartDevi‐

ceBox.

More information on the SmartDevice: (see 2.3 SmartDevice)

Note

The SmartDevice function is not available in the following

countries: Russia, Belarus, Kazakhstan.

You cannot use the SmartDeviceBox.

Establishing the WiFi connection for the first time

Make sure that the following requirements are fulfilled:

❑

You have purchased and inserted a SmartDeviceBox.

(see 2.3 SmartDevice)

❑

You have installed the SmartDevice app (see

apps.home.liebherr.com).

❑

Registration in the SmartDevice app is completed.

Fig. 10

Fig.11

► Carry out action steps according to the illustration.

▷ Connection is established.

Disconnecting from the WiFi

Fig.12

Fig.13

► Carry out action steps according to the illustration.

▷ There is no connection.

Resetting the WiFi connection

Fig. 14

Fig. 15

► Carry out action steps according to the illustration.

▷ WiFi connection and other WiFi settings are reset to

factory settings.

Controls

* Depending on model and options 11

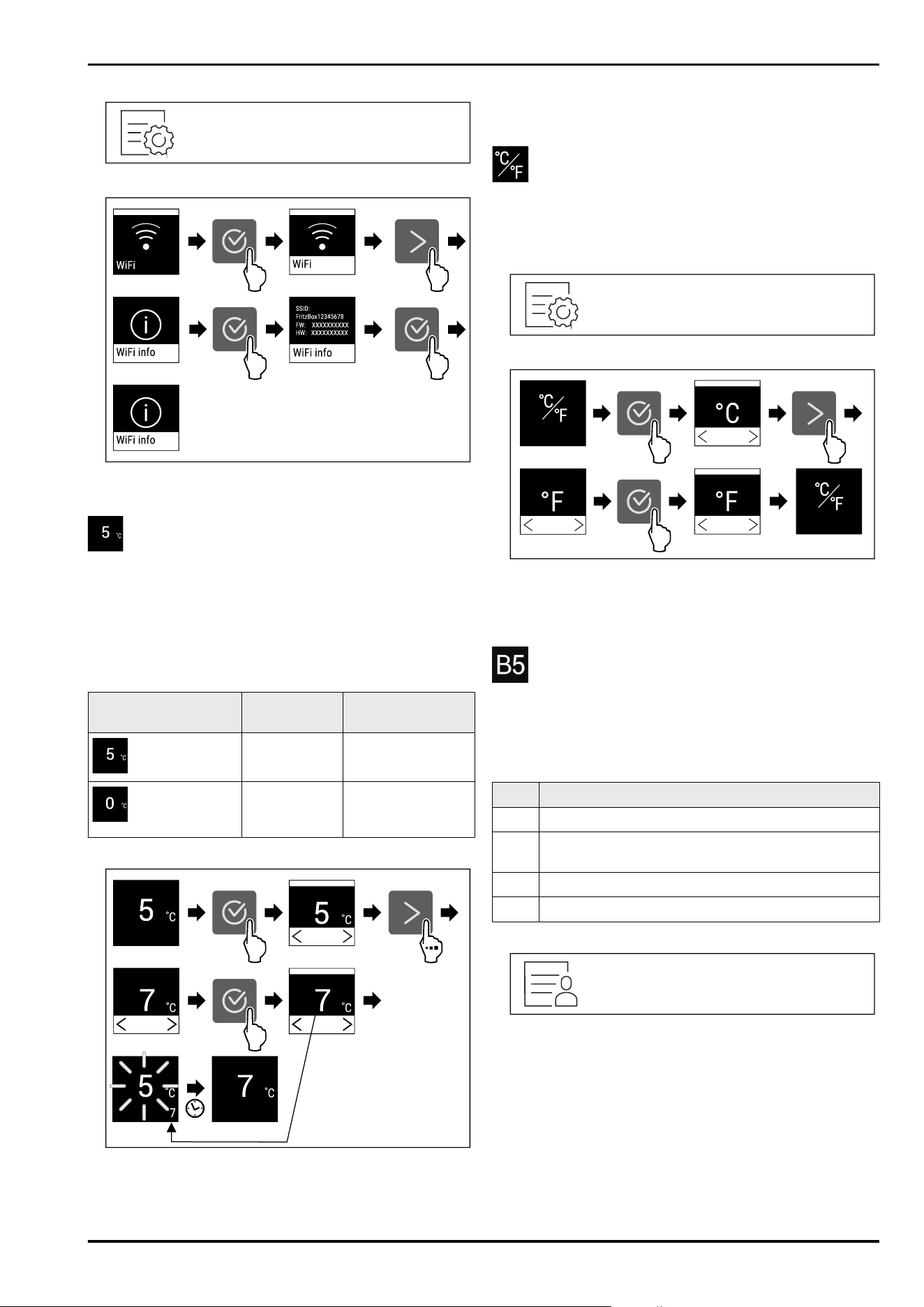

Showing information about the WiFi connection

Fig. 16

Fig.17

► Carry out action steps according to the illustration.

Temperature

Use this function to set the temperature.

The temperature depends on the following factors:

Frequency of door opening

Duration of door opening

Room temperature of the installation site

Type, temperature and quantity of food

Temperature zone

Factory-set

temperature

Recommended

setting

Fridge section

5°C 4°C

BioFresh

0°C B-Value

(see BioFresh B-

Value )

Setting the temperature in the fridge section

Fig. 18 Example illustration

► Carry out action steps according to the illustration.

▷ Temperature is set.

Setting the temperature in BioFresh

Set the temperature using the BioFresh B-Value.

(see BioFresh B-Value )

Temperature unit

Use this function to set the temperature unit. You can set

degrees Celsius or degrees Fahrenheit as the temperature

unit.

Setting the temperature unit

Fig. 19

Fig. 20 Example illustration: Switch from degreesCelsius

to degrees Fahrenheit.

► Carry out action steps according to the illustration.

▷ The temperature unit is set.

BioFresh B-Value

Use this function to set the BioFresh B-Value. With the

BioFresh B-Value, you can set BioFresh slightly warmer or

colder if necessary due to higher or lower ambient temper‐

atures. The BioFresh B-Value is pre-set to value B5 as deliv‐

ered. If you change the B-Value, refer to the following table:

Value

Description

B1 Lowest temperature

B1-B4 The temperature can drop below 0 °C which means

foods can easily freeze.

B5 Pre-set temperature

B9 Highest temperature

Setting the BioFresh B-Value

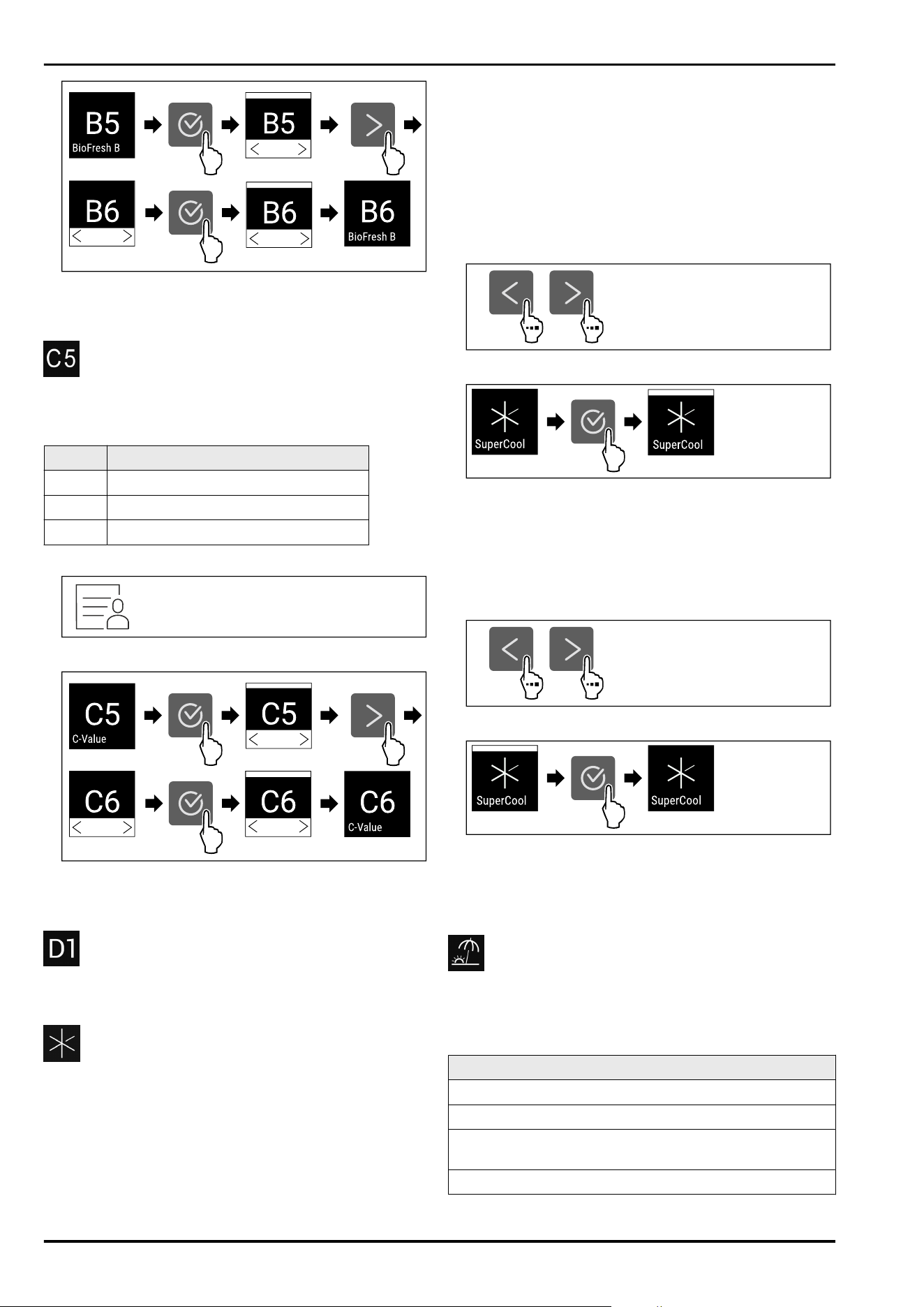

Fig.21

Controls

12 * Depending on model and options

Fig. 22 Example illustration: Switch from B5 to B6.

► Carry out action steps according to the illustration.

▷ The BioFresh B-Value is set.

C-Value*

Use this function to set the C-Value. You can use the C-

Value to make the **** freezer compartment slightly warmer

or colder. The C-Value is pre-set to value C5 as delivered.

Value

Description

C1 to C4 **** freezer compartment gets colder.

C5 Pre-set value

C6 to C9 **** freezer compartment gets warmer.

Setting the C-Value

Fig.23

Fig. 24 Example illustration: Switch from C5 to C6.

► Carry out action steps according to the illustration.

▷ The C-Value is set.

D-Value

The D-Value is pre-set for your appliance and is not

permitted to be changed.

SuperCool

You can use this function to activate or deactivate Super‐

Cool. If SuperCool is activated, then the appliance increases

the cooling capacity. It allows you to achieve lower cooling

temperatures. You can activate SuperCool when you would

like to cool a large quantity of food quickly.

If SuperCool is activated, then lower temperatures are

reached in the **** freezer compartment. You can activate

SuperCool when you would like to freeze food in the ****

freezer compartment.*

If the function is active, the appliance operates at higher

power. As a result, the appliance's operating noise may be

temporarily louder and energy consumption will increase.

Activating SuperCool

Time for activation of the function:

When you would like to store fresh food in the fridge

section: Activate the function when inserting food.

When you would like to store fresh food in the ****

freezer compartment: Activate function 3 hours before

inserting the food.*

Fig. 26

Fig.27

► Carry out action steps according to the illustration.

▷ SuperCool is activated.

Deactivating SuperCool

SuperCool is deactivated automatically after 18 hours.

However, you can also deactivate SuperCool manually at

any time:

Fig.28

Fig.29

► Carry out action steps according to the illustration.

▷ SuperCool is deactivated.

▷ The appliance continues to run in normal mode.

▷ The appliance cools to the temperature set previously.

HolidayMode

You can use this function to activate or deactivate Holiday‐

Mode. If you activate HolidayMode, the fridge section is set

to 15 °C. This saves you energy during longer periods of

absence and prevents bad odours and growth of mould.

Appliance status when HolidayMode is active

Fridge section cools to 15°C.

BioFresh cools to 15°C.

The set temperature is maintained in the **** freezer

compartment.*

SuperCool is deactivated.

Controls

* Depending on model and options 13

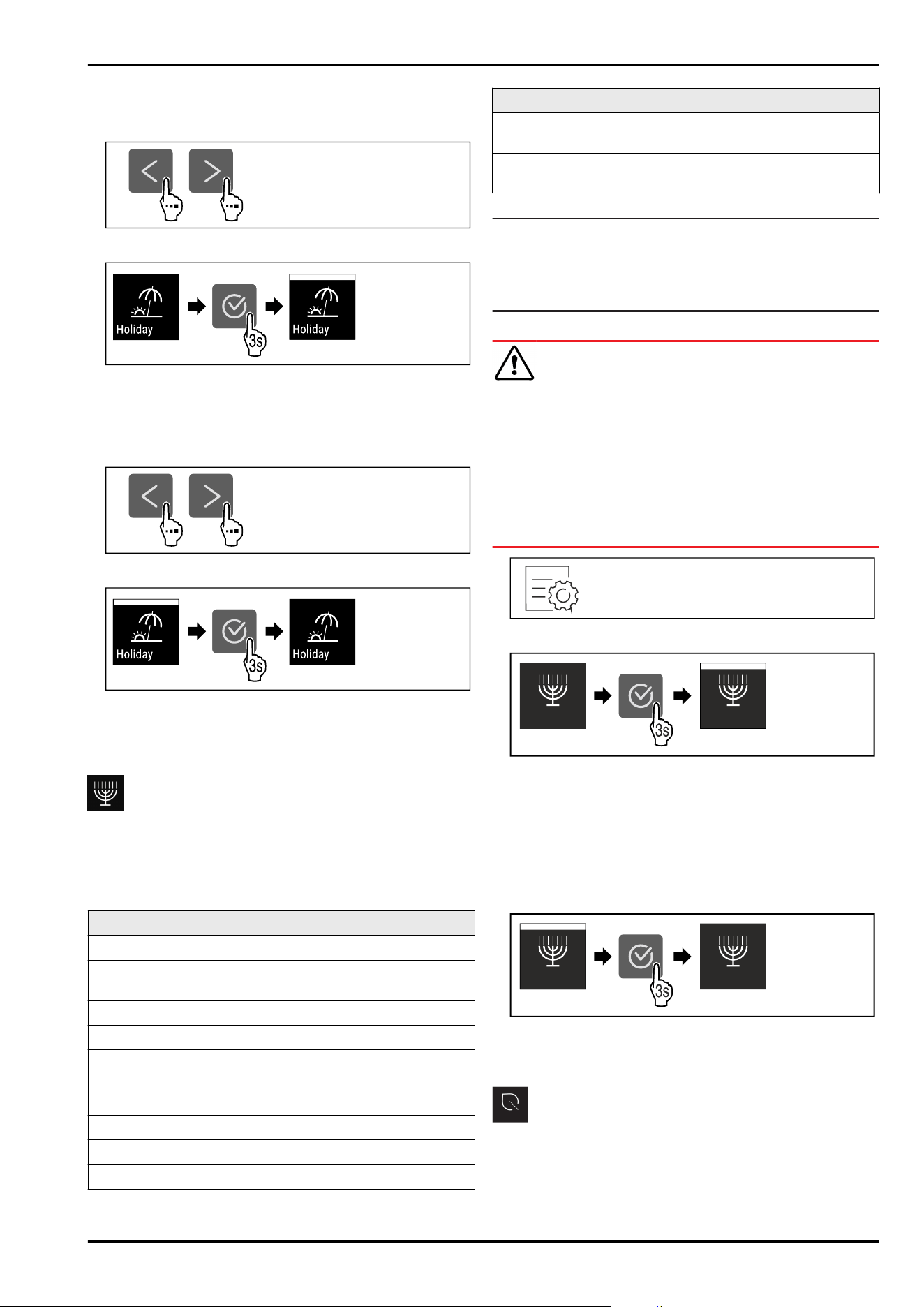

Activating HolidayMode

► Empty the fridge section completely.

► Empty BioFresh completely.

Fig.30

Fig.31

► Carry out action steps according to the illustration.

▷ HolidayMode is activated.

▷ Temperature display shows HolidayMode symbol.

Deactivating HolidayMode

Fig.32

Fig.33

► Carry out action steps according to the illustration.

▷ HolidayMode is deactivated.

▷ The appliance cools to the temperature set previously.

SabbathMode

You can use this function to activate or deactivate

SabbathMode. If you activate this function, some electronic

functions are switched off. As a result, your device meets

the religious requirements for Jewish holidays such as

Sabbath and complies with STAR-K Kosher certification.

Device status when SabbathMode is active

The status display shows SabbathMode permanently.

All functions on the display are locked except for the

Deactivate SabbathMode function.

Active functions remain active.

The display remains bright when you close the door.

The interior lighting is deactivated.

Reminders are not implemented. The set time interval

stops.

Reminders and warnings are not displayed.

There is no door alarm.

There is no temperature alarm.

Device status when SabbathMode is active

The defrosting cycle operates only for the specified time,

without considering the appliance consumption.

After a power failure, the appliance returns to

SabbathMode.

Device status

Note

This appliance has certification from the “Institute for

Science and Halacha”. (www.machonhalacha.co.il)

You can find a list of STAR-K-certified appliances at

www.star-k.org/appliances.

Activating SabbathMode

WARNING

Danger of food poisoning from spoiled food!

If you have SabbathMode activated and a power failure

occurs, no message appears in the status display about the

power failure. Once the power is restored, the appliance

continues to operate in SabbathMode. The power failure

may mean that food spoils and the consumption of this food

could lead to food poisoning.

After a power failure:

► Do not consume food that was frozen and has thawed

out.

Fig.34

Fig.35

► Carry out action steps according to the illustration.

▷ SabbathMode is activated.

▷ The status display shows SabbathMode permanently.

Deactivating SabbathMode

The SabbathMode is automatically deactivated after

80 hours. However, you can also deactivate SabbathMode

manually at any time:

Fig.36

► Carry out action steps according to the illustration.

▷ SabbathMode is deactivated.

E-Saver

You can use this function to activate or deactivate Energy

saving mode. If energy saving mode is activated, the energy

consumption decreases and the temperature in the device

increases. The food remains fresh, but the shelf life is short‐

ened.

Controls

14 * Depending on model and options

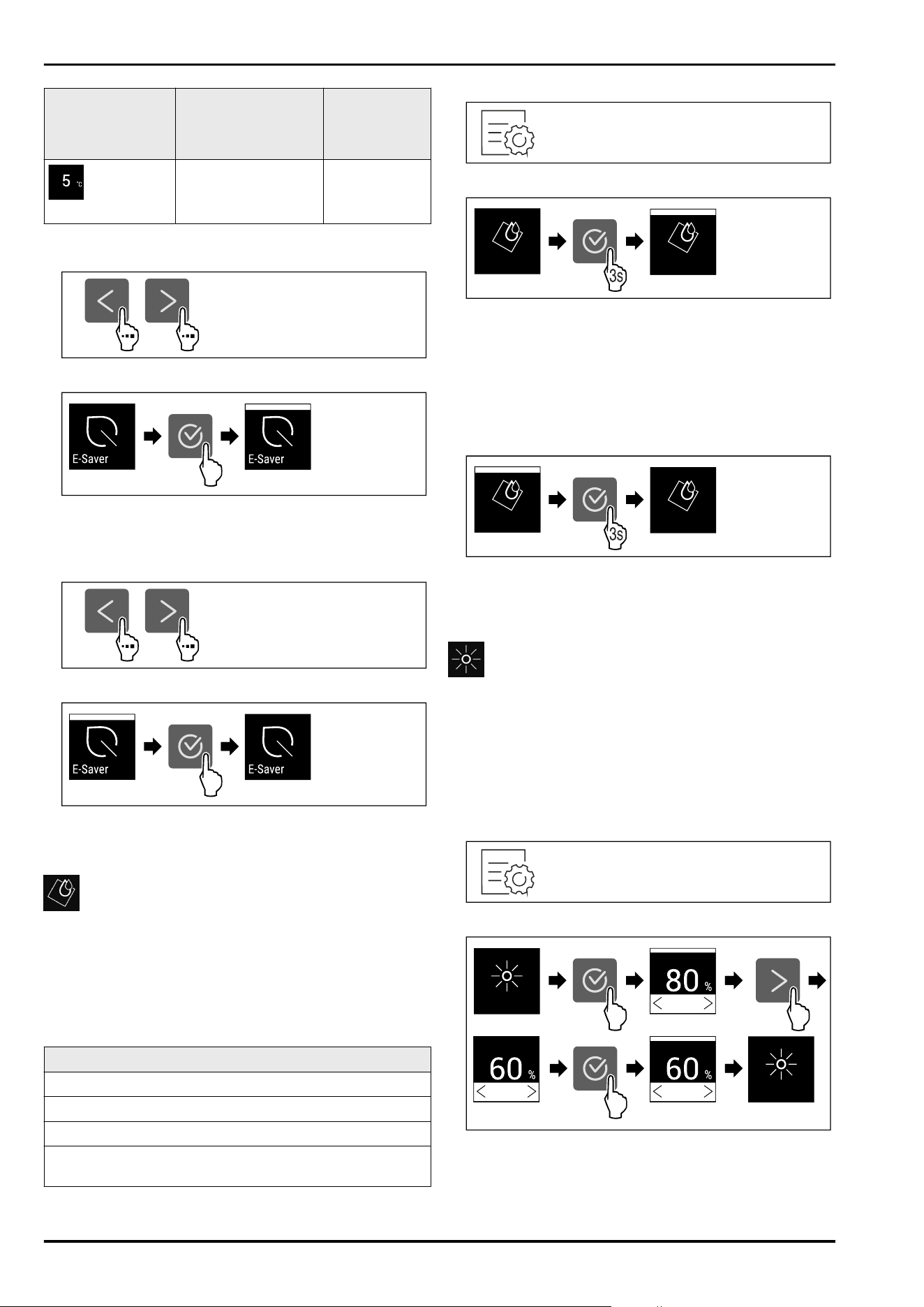

Temperature zone Recommended

setting (see Setting

the temperature in

the fridge section)

Temperature

with active E-

Saver

Fridge

section

4°C 7°C

Temperatures

Activating E-Saver

Fig.37

Fig.38

► Carry out action steps according to the illustration.

▷ Energy saving mode is activated.

Deactivating E-Saver

Fig. 39

Fig.40

► Carry out action steps according to the illustration.

▷ Energy saving mode is deactivated.

CleaningMode

You can use this function to activate or deactivate Cleaning‐

Mode. CleaningMode enables the appliance to be cleaned

conveniently.

This setting applies to the fridge section.

Application:

Clean the fridge section. (see 9.7Cleaning the appliance)

Device status when CleaningMode is active

The status display shows CleaningMode permanently.

The fridge section is switched off.

Interior lighting is activated.

The reminders and warnings are not displayed. No signal

tone sounds.

Device status

Activating CleaningMode

Fig. 41

Fig. 42

► Carry out action steps according to the illustration.

▷ CleaningMode is activated.

▷ The status display shows CleaningMode permanently.

Deactivating CleaningMode

CleaningMode is deactivated automatically after

60 minutes. However, you can also deactivate Cleaning‐

Mode manually at any time:

Fig.43

► Carry out action steps according to the illustration.

▷ CleaningMode is deactivated.

▷ The appliance cools to the temperature set previously.

Display brightness

Use this function to set the display brightness in stages.

You can select the following brightness levels:

40%

60%

80%

100 % (pre-setting)

Setting the brightness

Fig.44

Fig. 45 Example illustration: Switch from 80 % to 60%.

► Carry out action steps according to the illustration.

▷ The brightness is set.

Controls

* Depending on model and options 15

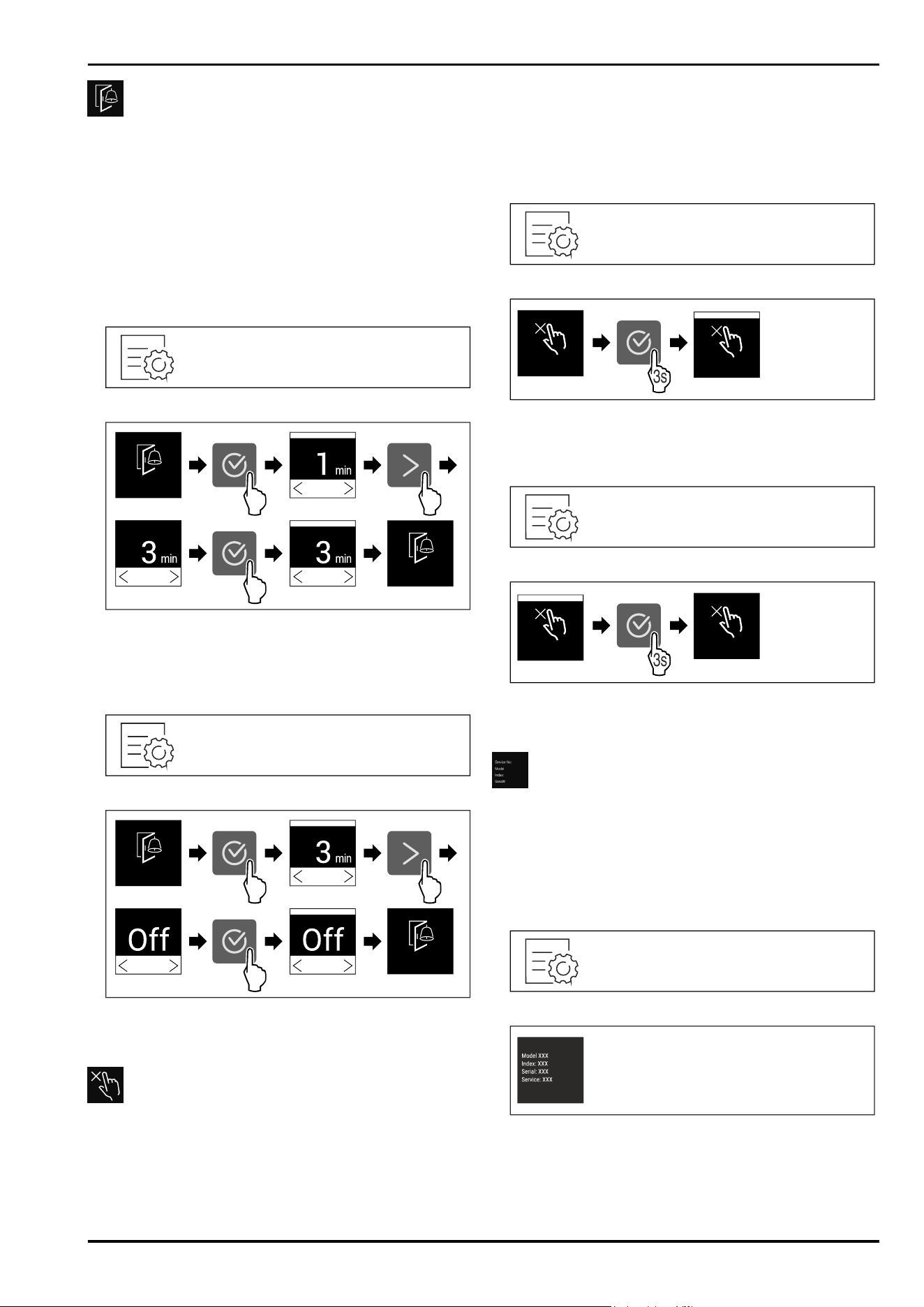

Door alarm

Use this function to activate or deactivate the door alarm.

The door alarm sounds if the door is open for too long. The

door alarm is activated on delivery. You can set how long

the door may be open before the door alarm sounds.

The following values can be set:

1 minute

2 minutes

3 minutes

Off

Setting the door alarm

Fig.46

Fig. 47 Example illustration: Change door alarm from

1 minute to 3 minutes.

► Carry out action steps according to the illustration.

▷ The door alarm is set.

Deactivating the door alarm

Fig. 49

Fig.50

► Carry out action steps according to the illustration.

▷ The door alarm is deactivated.

Input lock

You can use this function to activate or deactivate the input

lock. The input lock prevents the appliance being operated

accidentally, e.g. by children.

Application:

Avoid unintentional modification of functions.

Avoid unintentional switching off of the device.

Avoid unintentional temperature setting.

Activating the input lock

If you activate the input lock, you can continue to navigate

in the menus but you cannot select or change other func‐

tions.

Fig.51

Displ. Lock

Fig.52

► Carry out action steps according to the illustration.

▷ Input lock is activated.

Deactivating the input lock

Fig.53

Displ. Lock

Fig.54

► Carry out action steps according to the illustration.

▷ Input lock is deactivated.

Device information

Use this function to indicate the model name, index, serial

number and service number of your device. You will need

the device information when you contact customer service.

(see 10.4 Customer Service)

This function also opens the Advanced menu. (see 3 Func‐

tionality of the Touch display)

Indicating the device information

Fig.55

Fig.56

► Carry out action steps according to the illustration.

▷ Display indicates device information.

Controls

16 * Depending on model and options

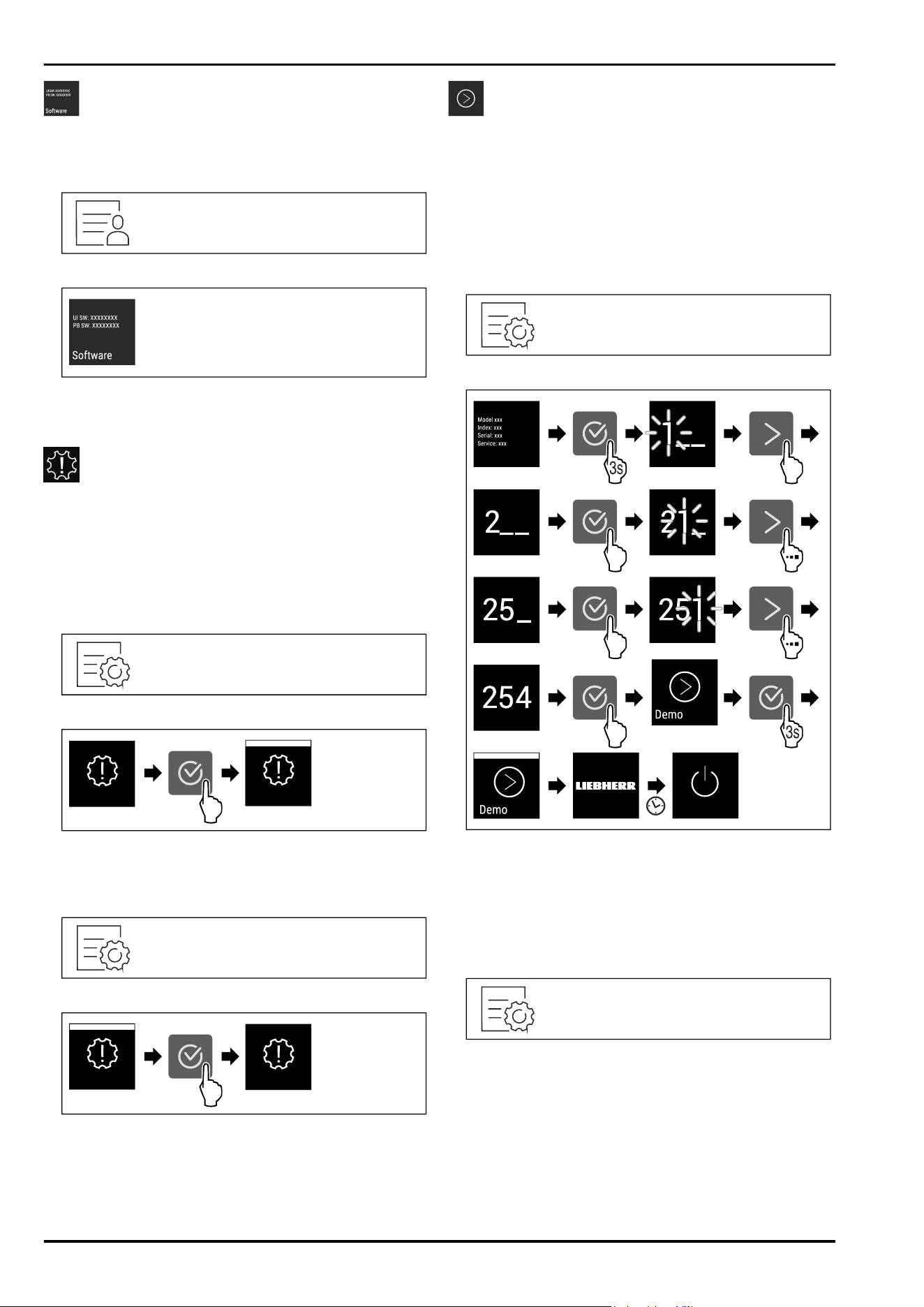

Software

Use this function to indicate the software version of your

device.

Indicating the software version

Fig.57

Fig.58

► Carry out action steps according to the illustration.

▷ Display indicates software version.

Reminder

Use this function to activate or deactivate the reminders.

The function is activated on delivery.

If the function is activated, the following reminders will

appear:

Replace the FreshAir activated carbon filter (see Replace

the FreshAir activated carbon filter)

Activating the reminder

Fig. 59

Fig.60

► Carry out action steps according to the illustration.

▷ Reminder is activated.

Deactivating the reminder

Fig.61

Fig. 62

► Carry out action steps according to the illustration.

▷ Reminder is deactivated.

Demo mode

Demo mode is a special feature for dealers who want to

demonstrate appliance features. If you activate demo mode,

all refrigeration functions are deactivated.

If you switch on your appliance and “Demo” appears in the

status display, then demo mode is already activated.

If you activate and then deactivate demo mode, the appli‐

ance will be reset to factory defaults. (see Resetting to

factory settings)

Activating demo mode

Fig.63

Fig.64

► Carry out action steps according to the illustration.

▷ Demo mode is activated.

▷ Appliance is switched off.

► Switch on the appliance. (see 4.1 Switching on appliance

(first use))

▷ “DEMO” appears in the status display.

Deactivating demo mode

Fig.65

Controls

* Depending on model and options 17

Fig.66

► Carry out action steps according to the illustration.

▷ Demo mode is deactivated.

▷ Appliance is switched off.

► Switch on the appliance. (see 4.1 Switching on appliance

(first use))

▷ Appliance is reset to factory settings.

Resetting to factory settings

Use this function to reset all settings to factory defaults.

All settings you have made so far are reset to their original

settings.

Performing a reset

Fig. 67

Fig.68

► Carry out action steps according to the illustration.

▷ Device is reset.

▷ Device is switched off.

► Restart the device. (see 4.1 Switching on appliance (first

use))

7.3 Messages

There are two categories of messages:

Category

Importance

Warning Warnings appear in the event of a door alarm or

malfunction.

Simple warnings can be cancelled by yourself.

In the event of serious malfunctions, you must

contact customer service. (see 10.4 Customer

Service)

Reminder Reminders remind you of general processes.

You can carry out these operations to end the

message.

7.3.1 Overview of warnings

Behaviour of the appliance in the event of warnings:

Warning appears on the display.

The alarm tone sounds at an ever-increasing volume.

The interior lighting pulsates for some warnings.

Message

Cause Exit the message

Door alarm

The message appears if

the door is open for too

long.

Carry out action

steps. (see Door

alarm)

Error

The message appears if

there is an appliance error.

A component of the appli‐

ance has a fault.

Carry out action

steps. (see Error)

7.3.2 Ending warnings

Door alarm

Fig. 69 Example illustration

► Carry out action steps according to the illustration.

-or-

► Close the door.

▷ The display returns to the status indicator.

You can set how long the door may be open before the door

alarm sounds. (see Setting the door alarm)

Error

Fig. 70 Example illustration

► Press the confirmation symbol.

▷ Error code is displayed.

► Note the error code.

► Press the confirmation symbol.

Controls

18 * Depending on model and options

▷ The display returns to the status indicator.

► Contact Customer Service. (see 10.4 Customer Service)

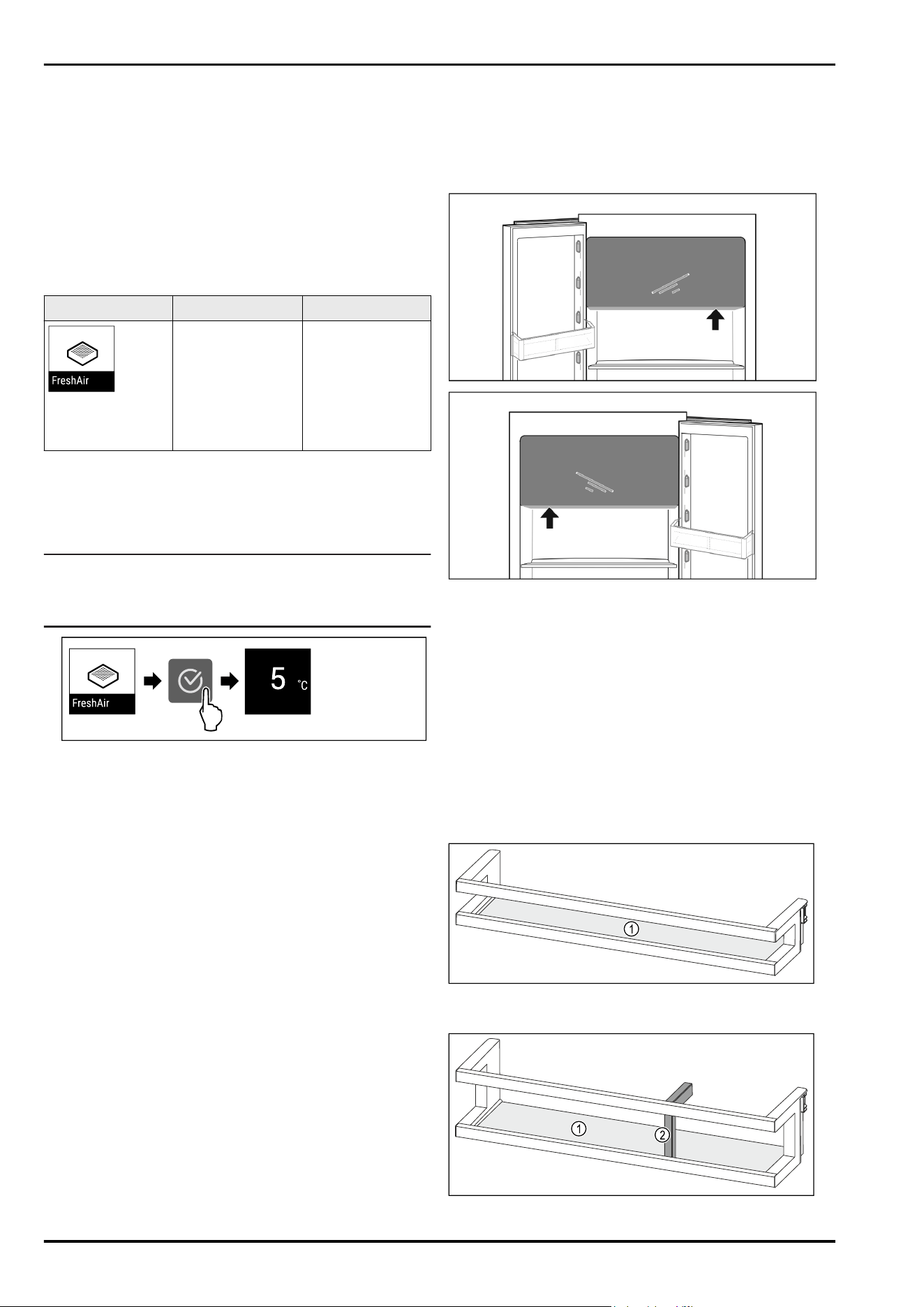

7.3.3 Overview of reminders

Behaviour of the appliance during reminders:

Reminder appears on the display.

Alarm tone sounds.

The interior lighting pulsates for some reminders.

The following reminders can be deactivated (see Deacti‐

vating the reminder) :

Replace the FreshAir activated carbon filter

Message Cause Exit the message

Replace the Fres‐

hAir activated

carbon filter

The message

appears when

the FreshAir acti‐

vated carbon filter

needs to be

replaced.

Carry out

action steps.

(see Replace the

FreshAir activated

carbon filter)

7.3.4 Ending reminders

Replace the FreshAir activated carbon filter

Liebherr recommends: Replace the FreshAir activated

carbon filter every 6 months.

Note

FreshAir activated charcoal filters can be purchased

from the Liebherr-Hausgeräte store at home.liebherr.com/

shop/de/deu/zubehor.html.

Fig. 71 Example illustration

► Press the confirmation symbol.

► Replace the activated carbon filter. (see 9.1 FreshAir

carbon filter)

▷ Activated carbon filter ensures optimum air quality in the

cooling unit.

▷ Reminder appears again after 6 months.

If you no longer wish to receive this reminder, you can deac‐

tivate it. (see Deactivating the reminder)

8 Features

8.1 4-star freezer compartment*

8.1.1 Opening/closing the freezer compartment

Fig.72

Opening the freezer compartment:

► Reach into the handle area from below.

► Push the handle plate while pulling the door towards you.

Closing the freezer compartment:

► Close the door while pushing from the front.

▷ Door is engaged.

8.2 Door rack

Door racks are suitable for storing drinks and food. You can

move door racks for your own individual use and take them

apart for cleaning. However, Liebherr recommends using the

door racks in the position in the door as delivered from the

factory.

Fig. 73 Example illustration, Door rack

(1)

Shelf

Features

* Depending on model and options 19

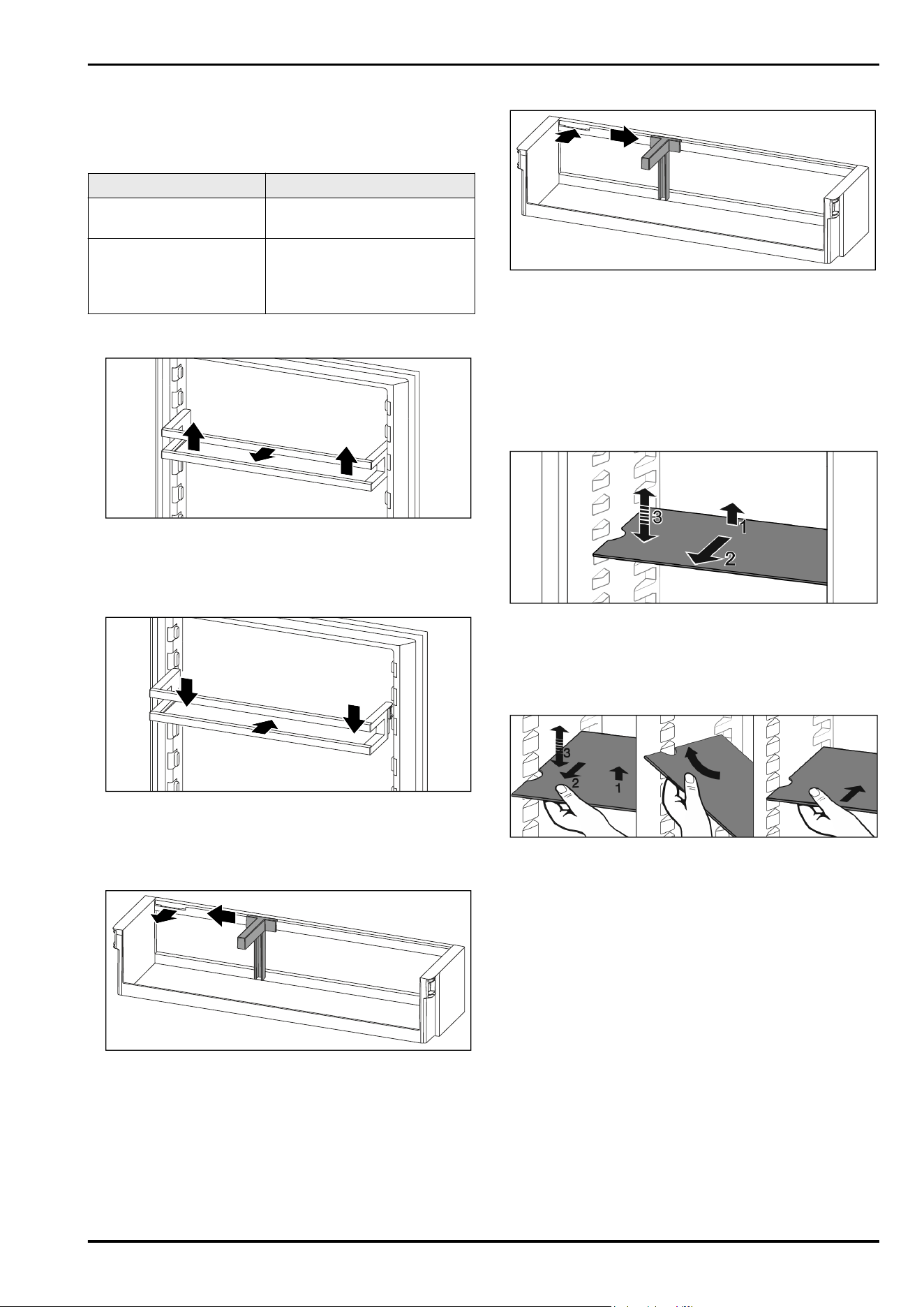

Fig. 74 Example illustration, Door rack with bottle holder

(1) Shelf (2) Bottle holder

The following table shows examples of what can be stored

in each door rack. Do not exceed the maximum loading

weight of the door.

Door rack Food

Door rack (see Fig.73) Butter, cheese, tinned food,

tubes

Door rack with bottle

holder (see Fig. 74)

Bottles

The sliding bottle holder

secures the bottles in the door

rack.

8.2.1 Removing the door rack

Fig. 75 Example illustration

► Push the door rack upwards.

► Pull the door rack forward.

8.2.2 Inserting the door rack

Fig. 76 Example illustration

► Slide in the door rack.

► Press the door rack down.

8.2.3 Removing the bottle holder

Fig.77

► Slide the bottle holder to the side as far as the recess.

► Remove the bottle holder forwards.

8.2.4 Inserting the bottle holder

Fig.78

► Insert the bottle holder in the recess.

► Push the bottle holder to the desired position to the side.

8.3 Shelves

8.3.1 Adjusting/removing the shelves

The shelves are prevented from being pulled out acciden‐

tally by pull out stops.

Fig.79

► Lift the shelf and pull forward.

▷ Line up the side runner.

► Adjust the height of the shelf: Lift or lower it to the

desired height and slide it in.

-or-

Fig.80

► Remove the shelf completely: Pull it out to the front.

► Easier removal: Set the shelf at an angle.

► Insert the shelf again: Slide it in all the way.

▷ The pull-out stoppers point downwards.

▷ The pull-out stoppers are behind the front support.

8.4 Dividing shelf

8.4.1 Using the dividing shelf

The shelves are prevented from being pulled out acciden‐

tally by pull out stops.

Features

20 * Depending on model and options

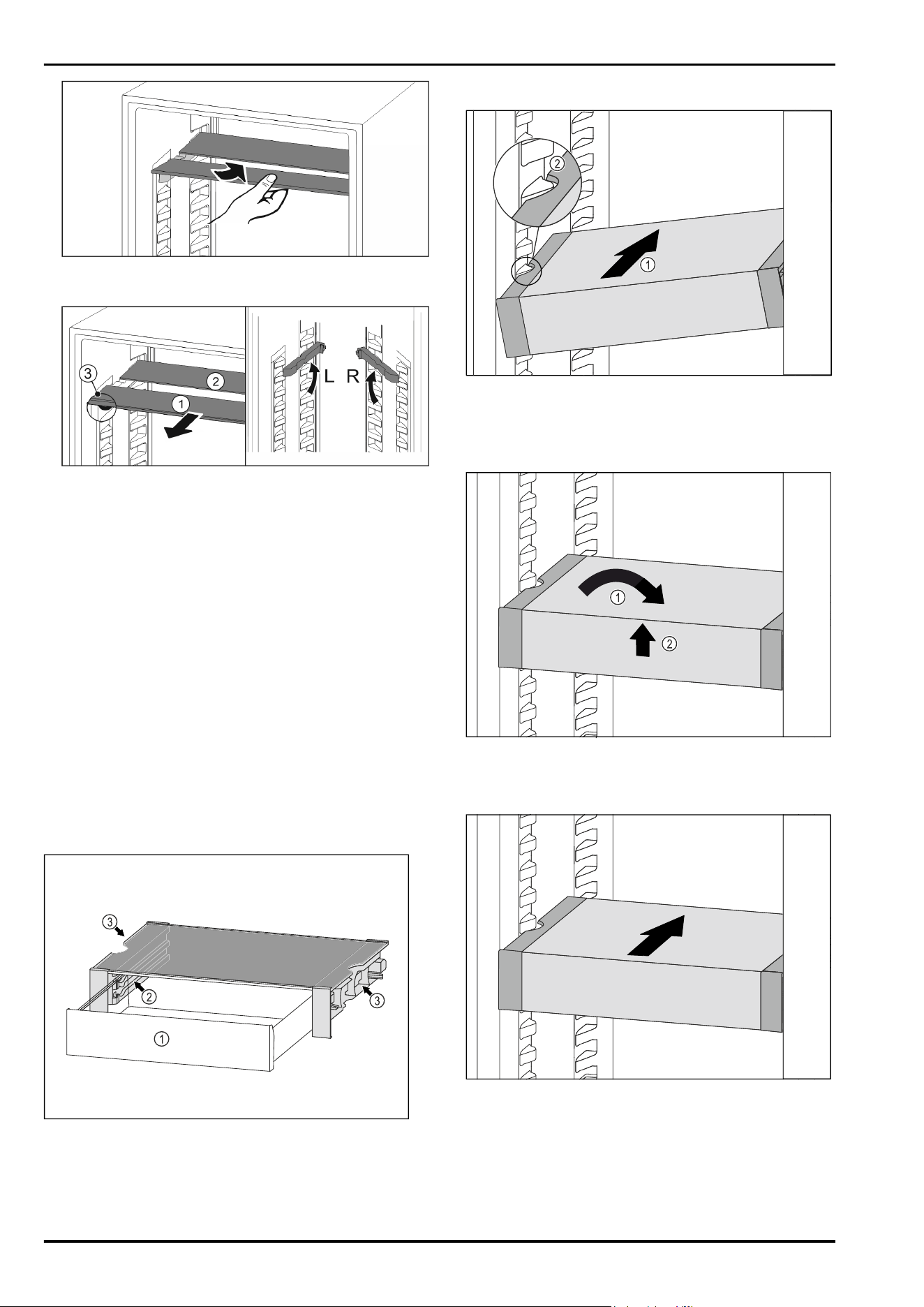

Fig.81

► Push the dividing shelf underneath as shown.

Fig.82

Adjusting the height:

► Pull the glass panels out Fig. 82 (1) from the front, one at

a time.

► Release the support rails and click in at the height you

want.

► Slide in the glass panels one at a time.

▷ Flat pull-out stoppers at the front, right behind the

support rails.

▷ High pull-out stoppers at the back.

Using both shelves:

► Hold the glass panel with one hand and pull it to the

front.

▷ The glass panel Fig.82(1) and trim strip are at the front.

▷ The stops Fig.82(3) point down.

Appliances with freezer compartment:*

► Do not place the support rails and dividing shelf in front

of the fan.*

8.5 VarioSafe *

The VarioSafe offers space in the refrigerator compartment

for small groceries, packages, tubes and jars, for example.

Fig.83

(1)

VarioSafe drawer (3) Recesses on the left and

right side panel

(2) Side panels with ribs

for VarioSafe drawer

8.5.1 Inserting the VarioSafe

Fig.84

► Insert the VarioSafe into the fridge section at an angle

Fig. 84 (1) until the recesses in the side Fig. 84 (2) of the

VarioSafe are at the level of the support rib in the fridge

section.

Fig.85

► Set VarioSafe straight. Fig.85(1)

► Lift VarioSafe at the front. Fig.85(2)

Fig.86

► Lift VarioSafe up toward the front.

► Push VarioSafe in to the rear.

► Lower VarioSafe.

▷ VarioSafe audibly engages.

▷ VarioSafe is inserted.

Features

* Depending on model and options 21

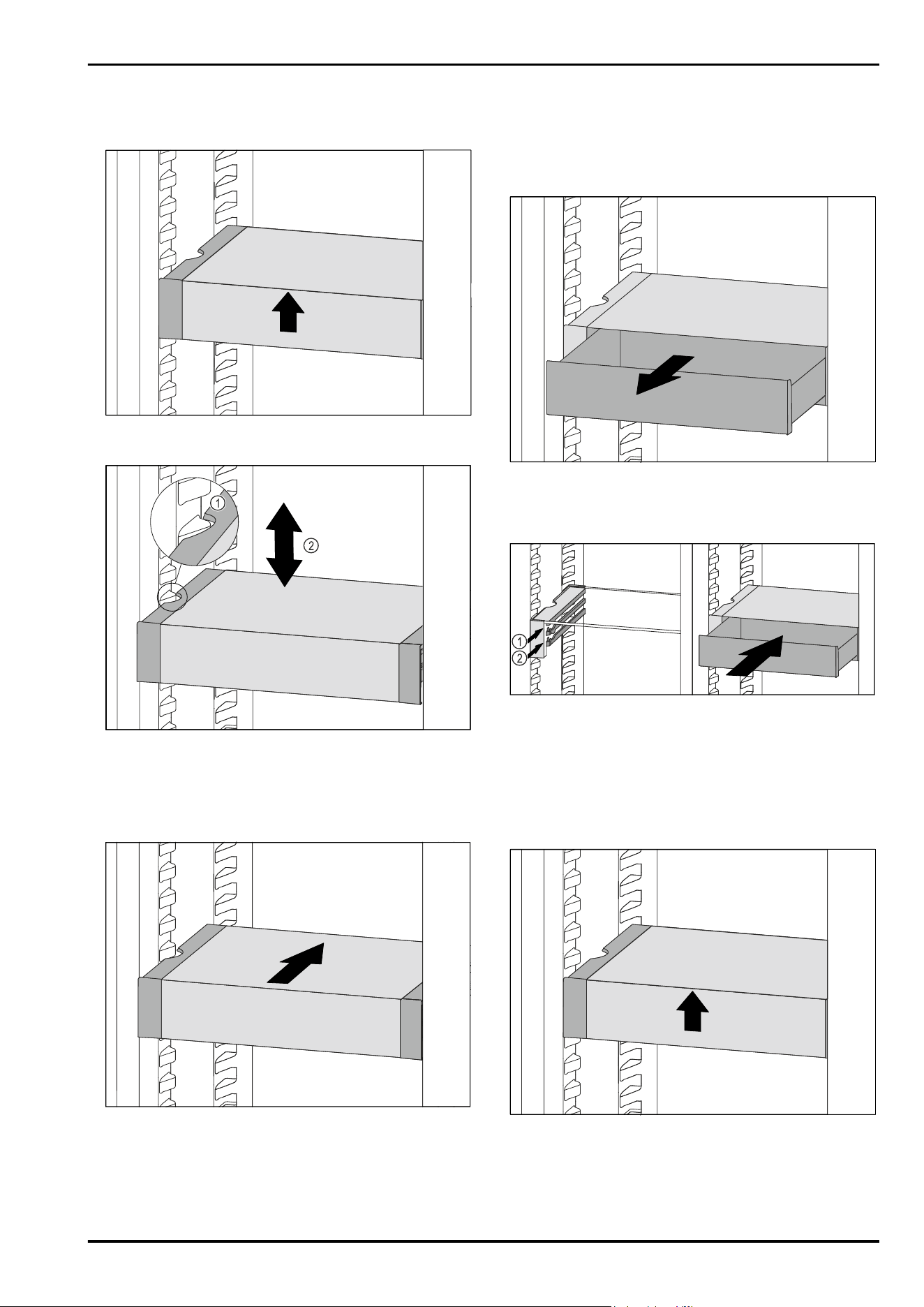

8.5.2 Repositioning the VarioSafe

You can move the VarioSafe as a whole in the refrigerator

compartment.

Fig. 87

► Lift VarioSafe at the front.

Fig.88

► Pull VarioSafe forwards until the recesses in the side of

the VarioSafe are at the level of the support rib in the

refrigerator compartment. Fig.88(1)

► Move VarioSafe up or down in the refrigerator compart‐

ment until the desired height is reached. Fig.88(2)

Fig.89

► Lift VarioSafe at the front.

► Push VarioSafe in to the rear.

▷ VarioSafe audibly engages.

▷ VarioSafe is offset in height.

8.5.3 Moving the VarioSafe drawer

You can use the VarioSafe drawer at two different heights.

If you would like to store taller foodstuffs in the VarioSafe

drawer, slide the VarioSafe drawer in on the bottom rib. If

you would like to store smaller foodstuffs in the VarioSafe

drawer, slide the VarioSafe drawer in on the top rib.

Fig.90

► Pull out the VarioSafe drawer as far as it will go.

► Lift the VarioSafe drawer up at the front.

► Remove the VarioSafe drawer to the front.

Fig. 91

► Lift the VarioSafe drawer up at the front.

► Place the VarioSafe drawer behind the stoppers on

desired rib Fig. 91(1) or Fig. 91(2).

▷ VarioSafe drawer is offset in height.

8.5.4 Removing the VarioSafe

You can remove the VarioSafe as a whole.

Fig.92

► Lift VarioSafe at the front.

Features

22 * Depending on model and options

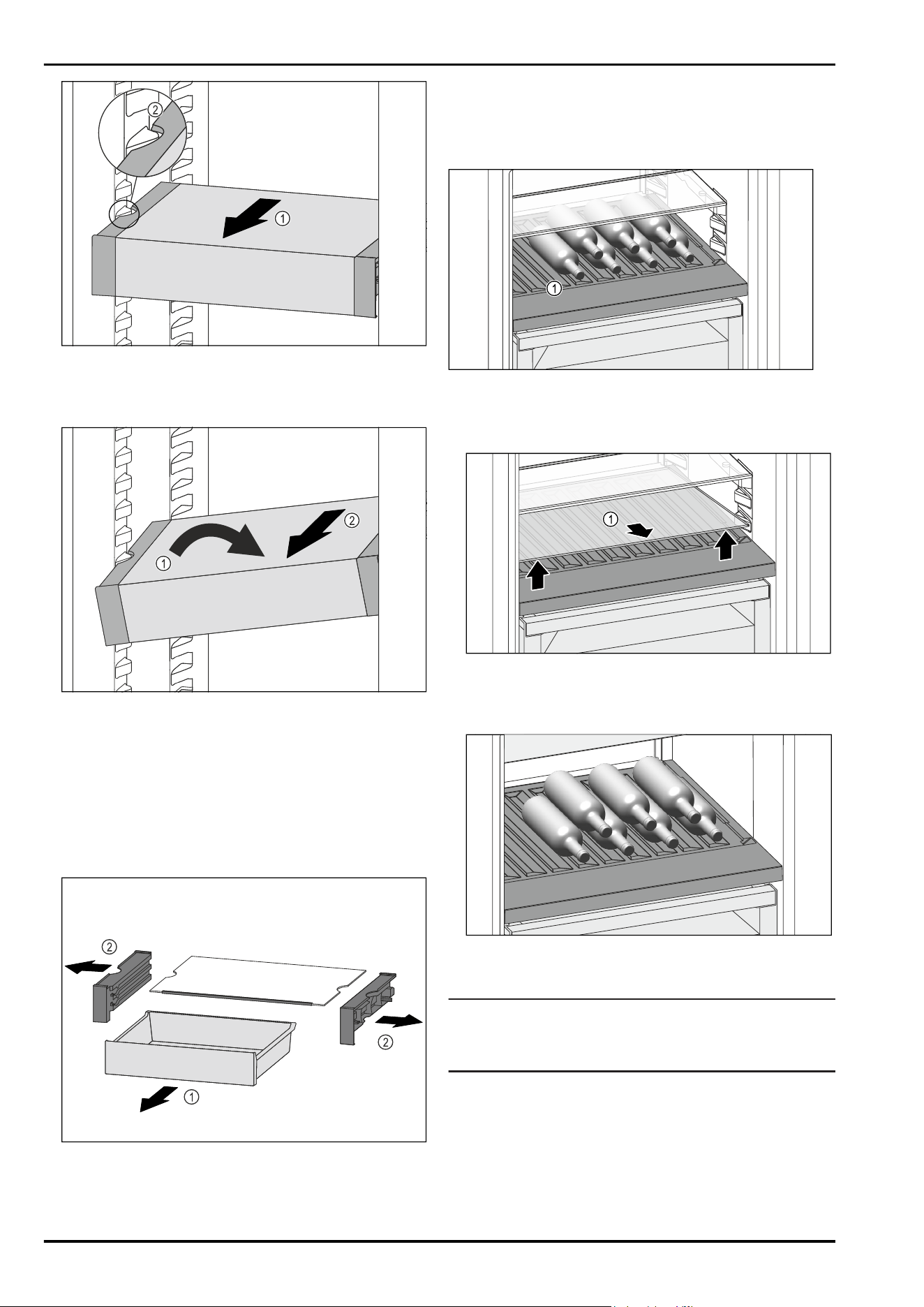

Fig. 93

► Pull VarioSafe forwards Fig. 93 (1) until the recesses in

the side of the VarioSafe are at the level of the support

rib in the fridge section. Fig. 93(2)

Fig. 94

► Set VarioSafe in refrigerator compartment at an angle.

Fig. 94(1)

► Take VarioSafe out to the front. Fig. 94(2)

▷ VarioSafe is removed.

8.5.5 Disassembling the VarioSafe

You can disassemble the VarioSafe into its individual parts if

you want to clean the VarioSafe or if you need to install or

remove parts.

Fig.95

► Remove VarioSafe as a whole. (see 8.5.4 Removing the

VarioSafe )

► Disassemble VarioSafe according to the illustration.

8.6 Adjustable bottle shelf

Either the glass shelf or the variable bottle rack can be used

in the bottom section of the refrigerator. The glass shelf is

inserted at delivery.

Fig. 96 Example illustration

(1)

Variable bottle rack

8.6.1 Using the variable bottle rack

Fig.97

► Lift the glass shelf Fig.97(1) at the front and remove.

► Store the glass shelf Fig.97(1) in a safe place outside the

appliance.

Fig.98

► Place bottles in the back row with their bases against the

back wall. (see Fig.98)

Note

When the bottles protrude over the variable bottle rack at

the front:

► Set the lower door rack one position higher.

8.6.2 Using the glass shelf

Ensure that the following requirements are met:

❑

Bottles have been removed.

❑

Variable bottle rack has been cleaned.

(see 9.3 Removing / inserting the variable bottle rack)

(see 9.7.4 Clean the components)

Features

* Depending on model and options 23

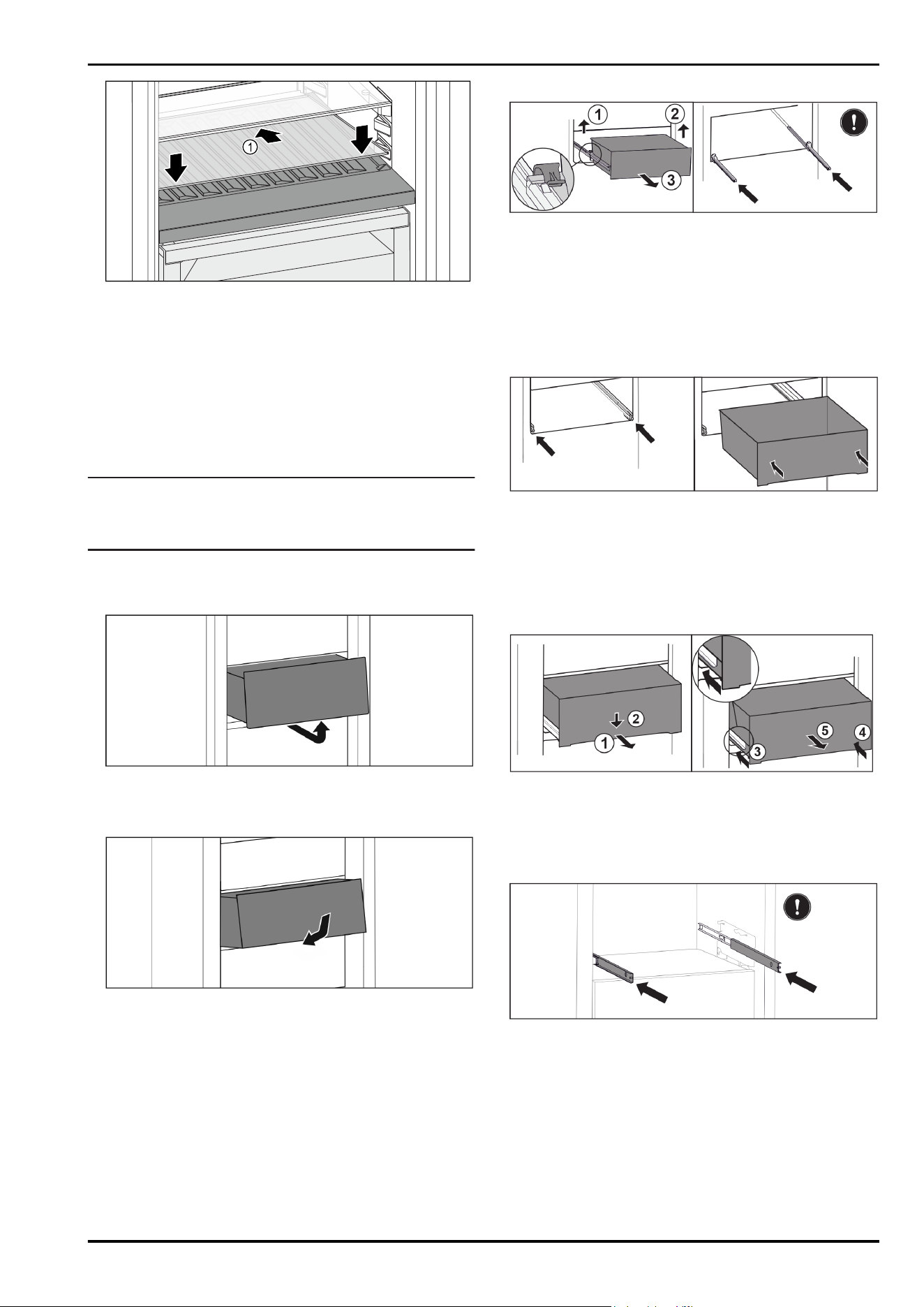

Fig.99

► Place the glass shelf Fig. 99 (1) at an angle, sloping it

downwards and backwards.

► Lower the glass shelf Fig.99(1) at the front.

8.7 Drawers

You can remove the drawers for cleaning.

The way to remove/insert the drawers varies depending

on the pull-out system. Your appliance can contain various

pull-out systems.

Note

The energy consumption increases and the cooling power

goes down if ventilation is not sufficient.

► Always keep the inside vents at the rear wall clear.

8.7.1 Drawer on rails

Removing drawer

Fig. 100

► Remove drawer as shown in the illustration.

Inserting drawer

Fig. 101

► Insert drawer as shown in the illustration.

8.7.2 Drawer on telescopic rails

The drawer runs on extendible rails (telescopic rails). There

are fully extendible telescopic rails and telescopic rails with

partial pull-out. Drawers which are fully extendible can be

pulled out fully from the appliance. Drawers with partial

pull-out cannot be removed fully from the appliance. The

system in your appliance depends on the type of appliance.

Fully extendible*

If you have fully extendible rails, there is a clamp located at

the back on the left and right of the rail.

Removing drawer

Fig. 102

► Pull out drawer as far as it will go.

► Lift left clamp and simultaneously pull drawer forwards

on the left. Fig. 102(1)

► Lift right clamp and simultaneously pull drawer forwards

on the right. Fig. 102(2)

► Remove drawer to the front. Fig. 102(3)

► Slide rails in.

Inserting drawer

Fig. 103

► Slide rails in.

► Place drawer on rails.

► Slide in drawer to the back.

▷ Drawer latches in audibly at the back.

Partial pull-out fridge compartment*

Removing drawer

Fig. 104

► Pull out drawer half-way. Fig. 104(1)

► Push the drawer down at the front. Fig. 104(2)

► Push the left rail in by about 2cm. Fig. 104(3)

► Push the right rail in by about 2cm. Fig. 104(4)

► Remove drawer to the front. Fig. 104(5)

Fig. 105

If the rails are not yet fully inserted after removing the

drawer:

► Push rails in completely.

Features

24 * Depending on model and options

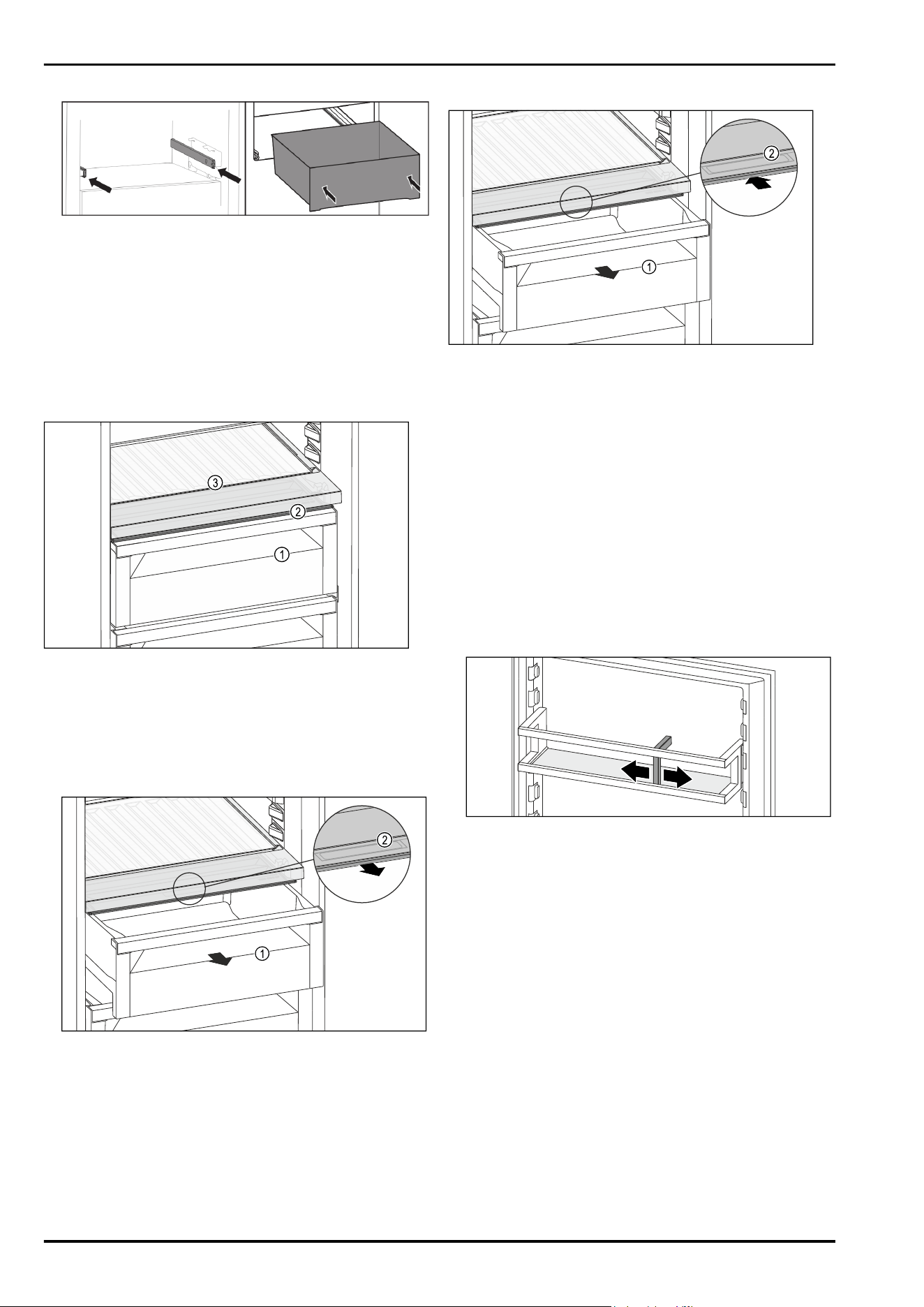

Inserting drawer

Fig. 106

► Slide rails in.

► Place drawer on rails.

► Slide in drawer to the back.

8.8 Compartment lid for Fruit & Vege‐

table Safe

The compartment lid ensures constant levels of humidity.

The compartment lid is directly on the drawer and can be

covered by shelves or additional drawers.

Fig. 107 Example illustration, compartment lid for

Fruit & Vegetable Safe

(1)

Fruit & Vegetable Safe

(2) Compartment lid for

Fruit & Vegetable Safe

(3) Variable bottle rack

8.8.1 Reducing the air humidity in the drawer

Fig. 108

► Pull out the drawer Fig. 108(1).

► Grasp the recessed grip Fig. 108 (2) on the compartment

lid and pull the compartment lid forwards at the same

time.

▷ When the drawer is closed, there is a small gap between

the compartment lid and the drawer.

8.8.2 Increasing the air humidity in the drawer

Fig. 109

► Pull out the drawer Fig. 109(1).

► Grasp the recessed grip Fig. 109 (2) on the compartment

lid and push the compartment lid backwards at the same

time.

▷ When the drawer is closed, the compartment lid seals

with the drawer.

8.8.3 Using Fruit & Vegetable Safe as

Meat & Dairy Safe

You can use the Fruit & Vegetable Safe as Meat & Dairy

Safe. To do this, you must reduce the humidity in the drawer.

(see8.8.1 Reducing the air humidity in the drawer)

8.9 Bottle holder

8.9.1 Using the bottle holder

Fig. 110

► Push the bottle holder onto the bottles.

▷ The bottles are prevented from falling over.

8.10 FlexCube

The FlexCube has different sized openings, so you can store

small items such as tubes, open yoghurt pots or quail

eggs in it. The FlexCube fits into all Liebherr door racks,

for example. If necessary, you can also set up several Flex‐

Cubes next to each other.

Features

* Depending on model and options 25

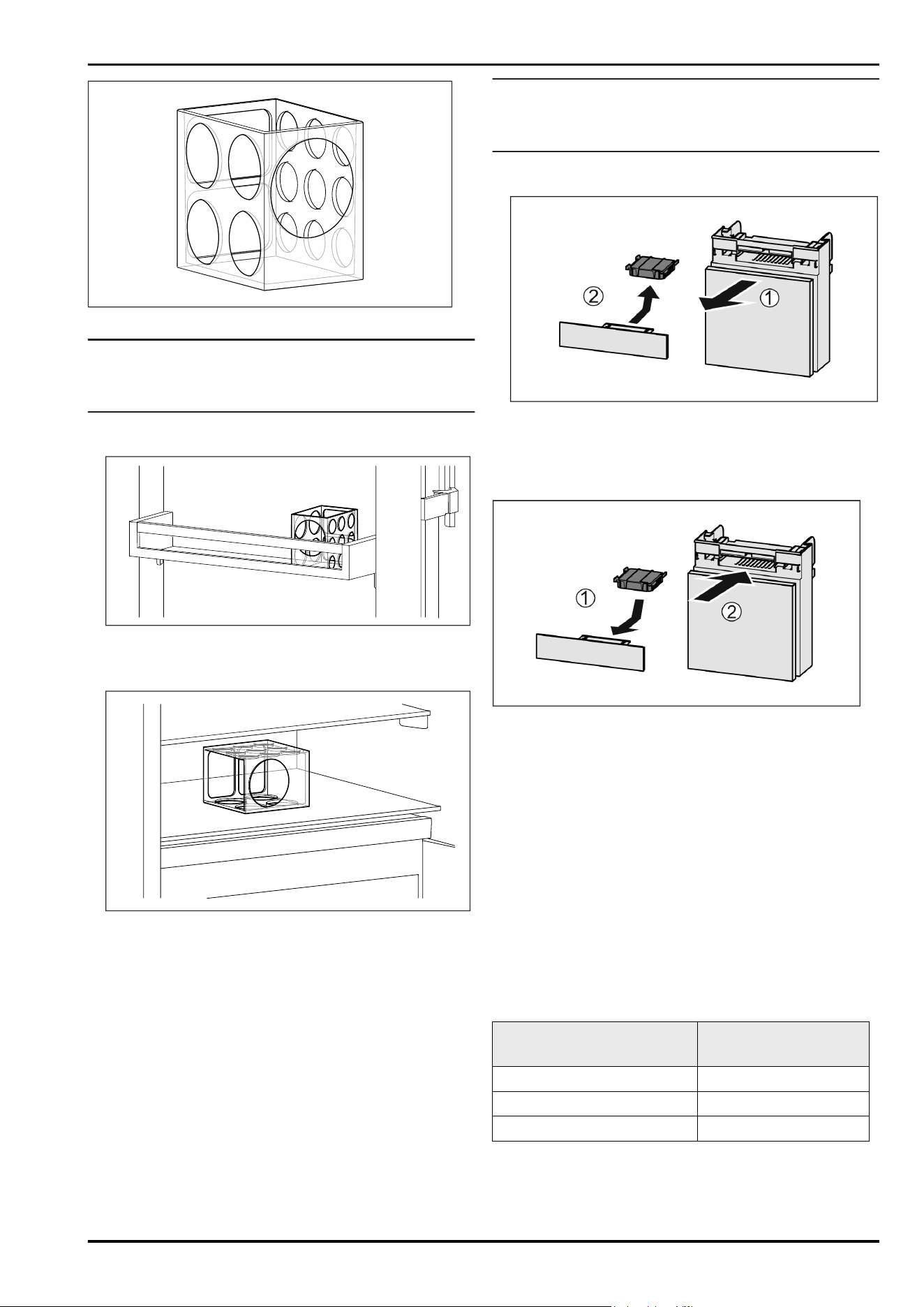

Fig. 111 Example illustration

Note

These accessories can be purchased from the Liebherr-

Hausgeräte shop at home.liebherr.com/shop/de/deu/

zubehor.html.

8.10.1 Using the FlexCube

Fig. 112 Example illustration

► Insert the FlexCube in the door rack.

-or-

Fig. 113 Example illustration

► Place FlexCube on shelf.

► Sort small parts into the FlexCube for storage.

9 Maintenance

9.1 FreshAir carbon filter

The FreshAir carbon filter is in the compartment above the

fan.

It guarantees the best air quality.

❑

Replace the carbon filter every 6 months.

When the reminder is set, a message on the display

prompts you to change it.

❑

The carbon filter can be disposed of with the regular

household waste.

Note

FreshAir activated charcoal filters can be purchased

from the Liebherr-Hausgeräte store at home.liebherr.com/

shop/de/deu/zubehor.html.

9.1.1 Removing the FreshAir carbon filter

Fig. 114

► Pull out the compartment Fig. 114(1).

► Remove the carbon filter Fig. 114(2).

9.1.2 Inserting the FreshAir carbon filter

Fig. 115

► Insert the carbon filter as shown in the diagram

Fig. 115(1).

▷ The carbon filter clicks into place.

If the carbon filter is pointing downwards:

► Push the compartment in Fig. 115(2).

▷ The carbon filter is now ready for use.

9.2 Disassembling / assembling pull-

out systems

9.2.1 Notes on disassembly

You can disassemble some of the pull-out systems for

cleaning. Your appliance can contain a variety of pull-out

systems.

The following pull-out systems can be disassembled or

cannot be disassembled:

Pull-out system

can be disassembled/

cannot be disassembled

Drawer on rails cannot be disassembled

Fully extendible* cannot be disassembled*

Fridge section partial pull-out* cannot be disassembled*

Maintenance

26 * Depending on model and options

9.3 Removing / inserting the variable

bottle rack

The variable bottle rack can be removed for cleaning.

9.3.1 Removing the variable bottle rack

Ensure that the following requirements are met:

❑

Bottles have been removed.

❑

Glass shelf has been removed. (see 8.6.1 Using the vari‐

able bottle rack)

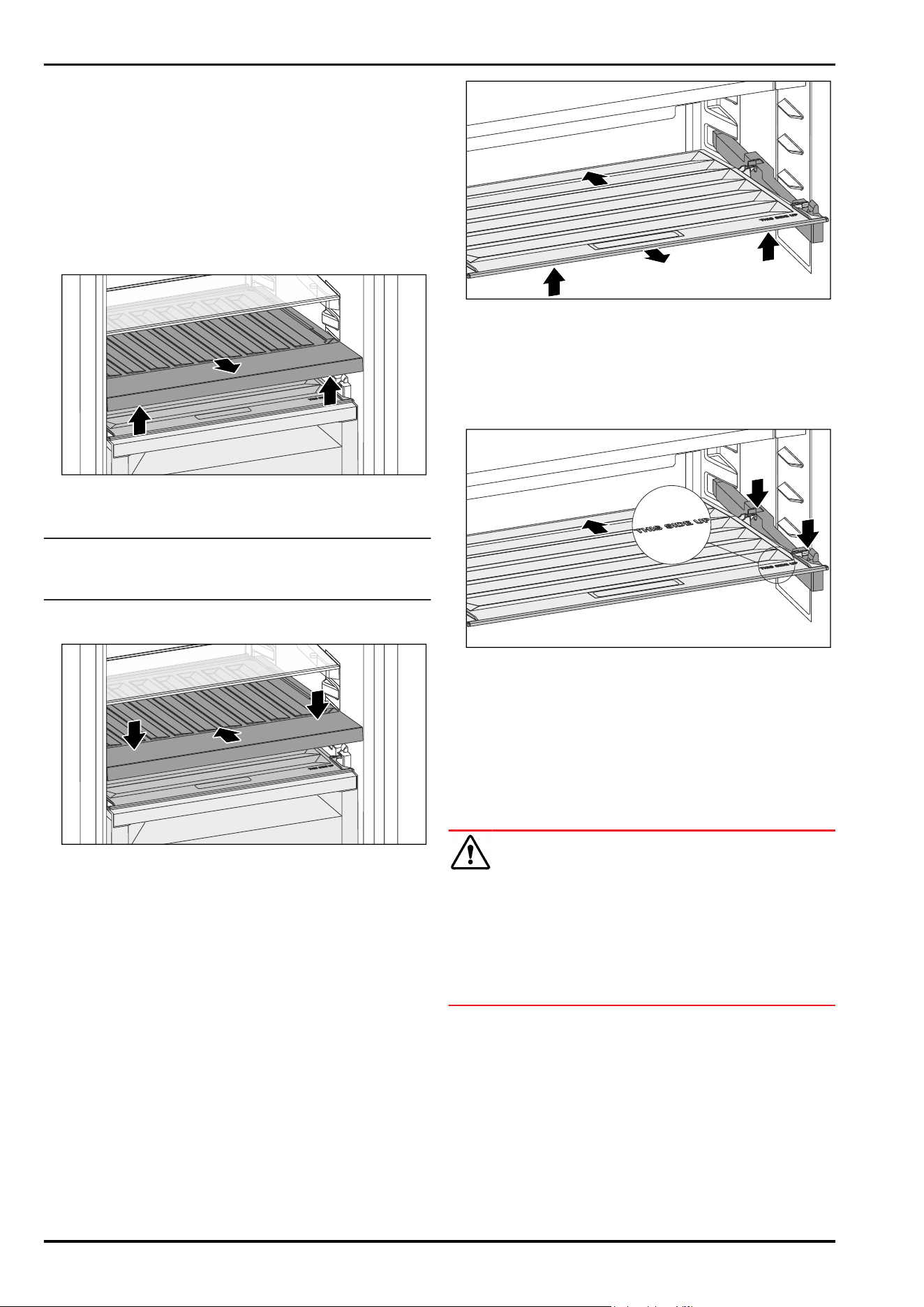

Fig. 116

► Lift the variable bottle rack at the front and pull it out.

▷ The compartment lid is visible.

Note

Liebherr recommends:

Do not place any items on the compartment lid below.

9.3.2 Inserting the variable bottle rack

Fig.117

► Push the variable bottle rack in to the end stop and press

it down.

► Insert the glass shelf. (see8.6.2Using the glass shelf)

-or-

► Use the variable bottle rack for bottles.

9.4 Compartment lid for Fruit & Vege‐

table Safe

You can remove the compartment lid for cleaning.

9.4.1 Removing the compartment lid

Ensure that the following requirements are met:

❑

The glass shelf directly above the variable bottle rack has

been removed.

❑

The variable bottle rack has been removed.

❑

The drawer directly below the compartment lid has been

removed. (see 8.7 Drawers)

Fig. 118

► Push the compartment lid backwards.

► Lift the compartment lid forwards.

► Remove the compartment lid forwards and upwards at an

angle.

9.4.2 Inserting the compartment lid

Fig. 119

If the THIS SIDE UP lettering is at the top:

► Insert the rear retaining parts into the relevant rear open‐

ings.

► Push the compartment lid backwards.

► Lower the compartment lid forwards and engage the

front retaining parts into the openings.

► Move the compartment lid into the required position.

9.5 Defrosting the appliance

WARNING

Improper defrosting of the appliance!

Injuries and damage.

► Do not use mechanical equipment or other methods to

speed up the defrosting process other than those recom‐

mended by the manufacturer.

► Do not use electrical heating or steam-cleaning appli‐

ances, naked flames or defroster sprays to defrost.

► Do not use sharp objects to remove ice.

Defrosting is performed automatically. The water from the

thawing process drains through the outlet and evaporates.

► Clean the drain opening at regular intervals.

(see 9.7Cleaning the appliance)

9.6 Defrosting the freezer compartment

manually*

A layer of frost or ice forms after prolonged use.

The following factors promote the formation of frost or ice:

- The appliance is opened frequently.

- Hot food is put in.

Maintenance

* Depending on model and options 27

► Switch the appliance off.

► Pull the mains plug out of the socket or switch the fuse

off.

► Wrap the frozen food in newspaper or blankets and store

in a cool place.

► Place a pan of hot water (not boiling) on the middle shelf.

▷ This speeds up the defrosting process.

► Leave the compartment and appliance door open during

defrosting.

► Remove loosened pieces of ice.

► Soak up the melted ice water with a sponge or cloth

several times as necessary.

► Clean the appliance. (see 9.7Cleaning the appliance)

9.7 Cleaning the appliance

9.7.1 Ready

WARNING

Danger of electric shock!

► Remove the refrigerator connector or interrupt the power

supply.

WARNING

Risk of fire

► Do not damage the refrigeration circuit.

► Empty the appliance.

► Remove mains connector.

-or-

► Activate CleaningMode. (seeCleaningMode)

9.7.2 Clean the housing

NOTICE

Improper cleaning!

Damage to the appliance.

► Only use soft cleaning cloths and ph-neutral all-purpose

cleaners.

► Do not uses abrasive sponges or steel wool which may

cause scratches.

► Do not use any sharp or abrasive cleaning agents, nor

any that contain sand, chloride or acid.

WARNING

Risk of injury and damage as a result of hot steam!

Hot steam can lead to burns and can damage the surfaces.

► Do not use any steam cleaners!

► Wipe the housing down with soft, clean cloth. If very

dirty, use lukewarm water with a neutral cleaner. Glass

surfaces can also be cleaned with glass cleaner.

9.7.3 Cleaning the interior

NOTICE

Improper cleaning!

Damage to the appliance.

► Only use soft cleaning cloths and ph-neutral all-purpose

cleaners.

► Do not uses abrasive sponges or steel wool which may

cause scratches.

► Do not use any sharp or abrasive cleaning agents, nor

any that contain sand, chloride or acid.

► Plastic surfaces: clean by hand with a soft clean cloth,

lukewarm water and a little detergent.

► Metal surfaces: clean by hand with a soft clean cloth,

lukewarm water and a little detergent.

► Drain hole: remove deposits using a thin item (for

example a cotton bud).

9.7.4 Clean the components

NOTICE

Improper cleaning!

Damage to the appliance.

► Only use soft cleaning cloths and ph-neutral all-purpose

cleaners.

► Do not uses abrasive sponges or steel wool which may

cause scratches.

► Do not use any sharp or abrasive cleaning agents, nor

any that contain sand, chloride or acid.

Clean with a soft, clean cloth, lukewarm water and some

detergent:

- Door rack

- Shelf

- Dividing shelf

- VarioSafe*

- Compartment lid for Fruit & Vegetable Safe

- Drawer

- Adjustable bottle shelf

Clean with a damp cloth:

- Retractable rails

Please note: The grease in the tracks is used for lubrica‐

tion and must not be removed!

Wash in the dishwasher up to 60°C:

- Bottle rack

- Holder of the dividing shelf

- FlexCube

► To disassemble components: see the relevant section.

► Clean the components.

9.7.5 After cleaning

► Wipe the appliance and the components dry.

► Connect and switch on the appliance.

The temperature is cold enough:

► Place the food inside.

► Repeat cleaning regularly.

10 Customer help

10.1 Technical specifications

Temperature range

Cooling 3°C to 9°C

BioFresh 0°C to 3°C

Customer help

28 * Depending on model and options

Maximum ice cube quantity / 24 hours

Freezer compart‐

ment*

see type plate under “Freezing

capacity …/ 24 h” *

Lighting

Class

Light source

This product contains one or more energy

efficiency class G light sources.

LED

The appliance may contain light sources with different

energy efficiency classes. The lowest energy efficiency class

is indicated.

10.2 Operating noises

The appliance makes different noises when it is on.

At higher temperatures the appliance uses less energy

but works for longer. It is quieter.

At lower temperatures the food is cooled faster. It is

louder.

Examples:

•

Functions on (see 7.2Appliance functions)

•

Fan running

•

Food recently added

•

High ambient temperature

•

Door open for a while

Noise

Possible cause Type of noise

Bubbling and

splashing

Coolant flowing

into the cooling

circuit.

Normal operating

noise

Hissing Coolant sprays

into the cooling

circuit.

Normal operating

noise

Humming The appliance

is cooling. The

volume depends

on the cooling

output.

Normal operating

noise

Noise Possible cause Type of noise

Humming and

rustling

The fan is running. Normal operating

noise

Clicking Components are

switched on and

off.

Normal switching

noise

Rattling or

humming

Valves or flaps are

working.

Normal switching

noise

Noise Possible

cause

Type of noise Lifting

Vibration Improper

setup

Defective

noise

Level the

appliance

using the

adjustable

feet.

Rattling Components,

items inside

the appliance

Defective

noise

Secure

components.

Leave

enough

space

between the

items.

10.3 Technical fault

Your appliance is designed and built to ensure it works reli‐

ably and has a long service life. In the unlikely event that

a fault occurs during operation, please check whether it is

due to an operating error. If so, you will be charged for the

callout and repair costs even if it falls within the warranty

period.

You can fix the following faults yourself.

10.3.1 Appliance function

Defect

Cause Remedy

The appliance is

not working.

→ The appliance is not switched on. ► Switch the appliance on.

→ The power plug is not properly

plugged into the socket.

► Check the power plug.

→ There is something wrong with the

power outlet fuse.

► Check the fuse.

→ Power cut ► Keep the appliance closed.

► Safeguarding food: Place cold packs on top of food or

use another freezer if the power cut lasts longer.*

► Do not refreeze defrosted food.*

→ The IEC socket is not plugged into

the appliance correctly.

► Check the IEC socket.

Temperature is not

cold enough.

→ The appliance door is not closed

properly.

► Close the appliance door.

→ The ambient temperature is too

high.

► Problem solution: (see2.4 Appliance range of use)

Customer help

* Depending on model and options 29

Defect Cause Remedy

→ The appliance was opened too

many times or for too long.

► Wait to see if the required temperature corrects itself.

If not, contact Customer Service. (see 10.4 Customer

Service)

→ The temperature is set incorrectly. ► Turn down the temperature and check after 24 hours.

→ The appliance is too close to a heat

source (oven, radiator, etc).

► Move the appliance or the heat source.

The door seal is

defective or needs

to be replaced for

another reason.

→ The door seal can be replaced. It

can be replaced without the need

for special tools.

► Contact Customer Service. (see 10.4 Customer Service)

The appliance

builds up too much

ice or condensa‐

tion.

→ The door seal may have slipped out

of its groove.

► Check that the door seal is well fitted in the groove.

The exterior

surfaces of the

appliance are

warm.*

→ The heat of the refrigeration circuit

is used to avoid condensation.

► This is normal.

10.3.2 Features

Defect Cause Remedy

The internal light

does not come on.

→ The appliance is not switched on. ► Switch the appliance on.

→ The door was open for longer than

15 minutes.

► Interior lighting switches off automatically after

about 15 minutes when the door is open.

→ The LED interior light is faulty or

the lid is damaged.

► Contact Customer Service. (see 10.4 Customer Service)

The freezer

compartment

cannot be closed.*

→ The lock is on when the door is

open.

► Use the handle again.

10.4 Customer Service

First check whether you can rectify the fault yourself

(see 10 Customer help) . If you cannot rectify the problem,

contact Customer Service.

You can find the address in the enclosed brochure “Liebherr-

Service” or at home.liebherr.com/service.

WARNING

Unprofessional repair!

Injuries.

► Have any repairs and action - not expressly specified -

on the appliance and mains cable carried out by service

personnel only. (see9 Maintenance)

► A damaged mains cable may only be replaced by the

manufacturer, the manufacturer’s Customer Service or a

similarly qualified person.

► In the case of appliances with an IEC connector, the

change may be made by the customer.

10.4.1 Contacting Customer Service

Make sure that the following appliance information is avail‐

able:

❑

Appliance name (model and index)

❑

Service no. (Service)

❑

Serial no. (S no.)

► Call up the appliance information via the display.

(see Device information)

-or-

► Refer to the type plate for appliance information.

(see 10.5 Model plate)

► Note down the appliance information.

► Notify customer service: Report errors and the appliance

information.

▷ This will help us to provide you with a faster, more accu‐

rate service.

► Follow further instructions from Customer Service.

10.5 Model plate

The model plate is behind the drawers on the inside of the

appliance.

Customer help

30 * Depending on model and options

Fig.120

(1) Appliance description (3) Serial no.

(2) Service no.

► Note the data on the model plate.

11 Shutting down

► Empty the appliance.

► Switch off appliance. (see Switching the appliance off

and on)

► Pull the mains plug out of the socket.

► Remove the IEC socket if required: Pull the IEC socket out

of the appliance plug and move it to the left and right at

the same time.

► Clean appliance. (see 9.7Cleaning the appliance)

► Leave the door open, so that no unpleasant odours arise.

12 Disposal

Ensure that the following requirements are met:

❑

Meaning of the symbols on the appliance: are familiar.

(see 1.14Symbols on the appliance)

❑

Notes on disposal are familiar. (see1.8Disposal)

12.1 Preparing the appliance for

disposal

► Shutting your appliance down. (see11Shutting down)

12.2 Disposing of the appliance in an

environmentally friendly manner

WARNING

Leaking coolant and oil!

Fire. The coolant contained in the appliance is eco-friendly,

but also flammable. The oil contained in the appliance

is flammable. Escaping coolant and oil can ignite if the

concentration is high enough and in contact with an

external heat source.

► Do not damage the pipelines of the coolant circuit and

the compressor.

► Observe the notes on transporting the appliance.

► Remove the appliance without damaging it.

► Dispose of appliance according to specifications.

Shutting down

* Depending on model and options 31

home.liebherr.com/fridge-manuals

Issue date:20251128

Part number index: 7083568-01

Liebherr-Hausgeräte Marica EOOD

Bezirk Plovdiv

4202 Radinovo

Bulgarien

Liebherr RBSFC 5220 PLUS BIOFRESH data-next-head> Refrigerator

Product's Documents

Operating instructions

Specifications

Liebherr RBSFC 5220 PLUS BIOFRESH Questions and Answers
