OUTDOOR COOKING

Deluxe Grill with Rotisserie

GABRxxCX2 / GSBRxxCX2 / GMBRxxCX2

Use & Care Manual

Installation & Operation

HESTAN OUTDOOR, MOST

POWERFUL, VERSATILE AND

RELIABLE RESIDENTIAL

GRILL AVAILABLE.

Message from Hestan:Message from Hestan:

Outdoor cooking is a perfectionist’s pursuit, and with your new investment,

you’ve now taken the ultimate step forward. We sincerely welcome you to

the Hestan Family. We’ve engineered and built our products so that your

guests will rave about your meal, but deep down, our customers know it

could’ve been just a little more tender, juicier – a pinch more salt in the rub

or a few seconds less on the flame. Yes, we’ve taken the time to know our

Hestan customer and we’re excited to be on this journey with you. Hestan

Outdoor was born from this same perfectionist passion. Our engineers

experimented, innovated, tweaked and tinkered until they created the most

powerful, versatile and reliable outdoor products available.

We pride ourselves on restless innovation, superior engineering and

purpose-built designs, but also our in-depth understanding of our target

consumer and the interests and needs of the ultimate end-users we serve

and covet. For many consumers, cooking outdoors is much more than an

act of food preparation. It’s a lifestyle activity that encompasses culinary,

leisure and social pursuits among others.

We are thankful and proud that you have chosen Hestan, and we yearn to

have you as a customer for life. We take your decision to choose Hestan

most seriously, and we promise to deliver the very best to you.

Welcome to Hestan OutdoorWelcome to Hestan Outdoor

IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED

EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING

PROPERTY DAMAGE, PERSONAL INJURY, OR DEATH.

Do not try lighting this appliance without reading the LIGHTING

INSTRUCTIONS section of this manual.

For outdoor use ONLY. This cooking appliance is not intended to be

installed in or on recreational vehicles, and/or boats.

Flammable Gas - disconnect all propane or natural gas supplies to this

unit before servicing.

Electrical Parts & Components – disconnect all power supplies and

batteries before servicing.

DANGER

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open lid.

4. If odor continues, keep away from the

appliance and immediately call your gas

supplier or your fire department.

DANGER

1. Do not store or use gasoline or

other flammable liquids or vapors

in the vicinity of this or any other

appliance.

2. An LP cylinder not connected

for use shall not be stored in

the vicinity of this or any other

appliance.

READ THIS MANUAL CAREFULLY AND COMPLETELY BEFORE USING YOUR

GRILL TO REDUCE THE RISK OF FIRE, BURN HAZARD, OR OTHER INJURY.

KEEP THIS MANUAL FOR FUTURE REFERENCE.

4 MODEL NUMBERS

6 RATING LABELS

6 PRECAUTIONS

9 REGULATORY / CODE REQUIREMENTS

9 PORTABLE LP CYLINDERS

10 LOCATION AND ASSEMBLY

12 INSTALLATION

12 GAS CONNECTIONS

20 ELECTRICAL CONNECTIONS

22 LIGHTING INSTRUCTIONS

25 USING YOUR GRILL

27 CLEANING AND MAINTENANCE

32 TROUBLESHOOTING

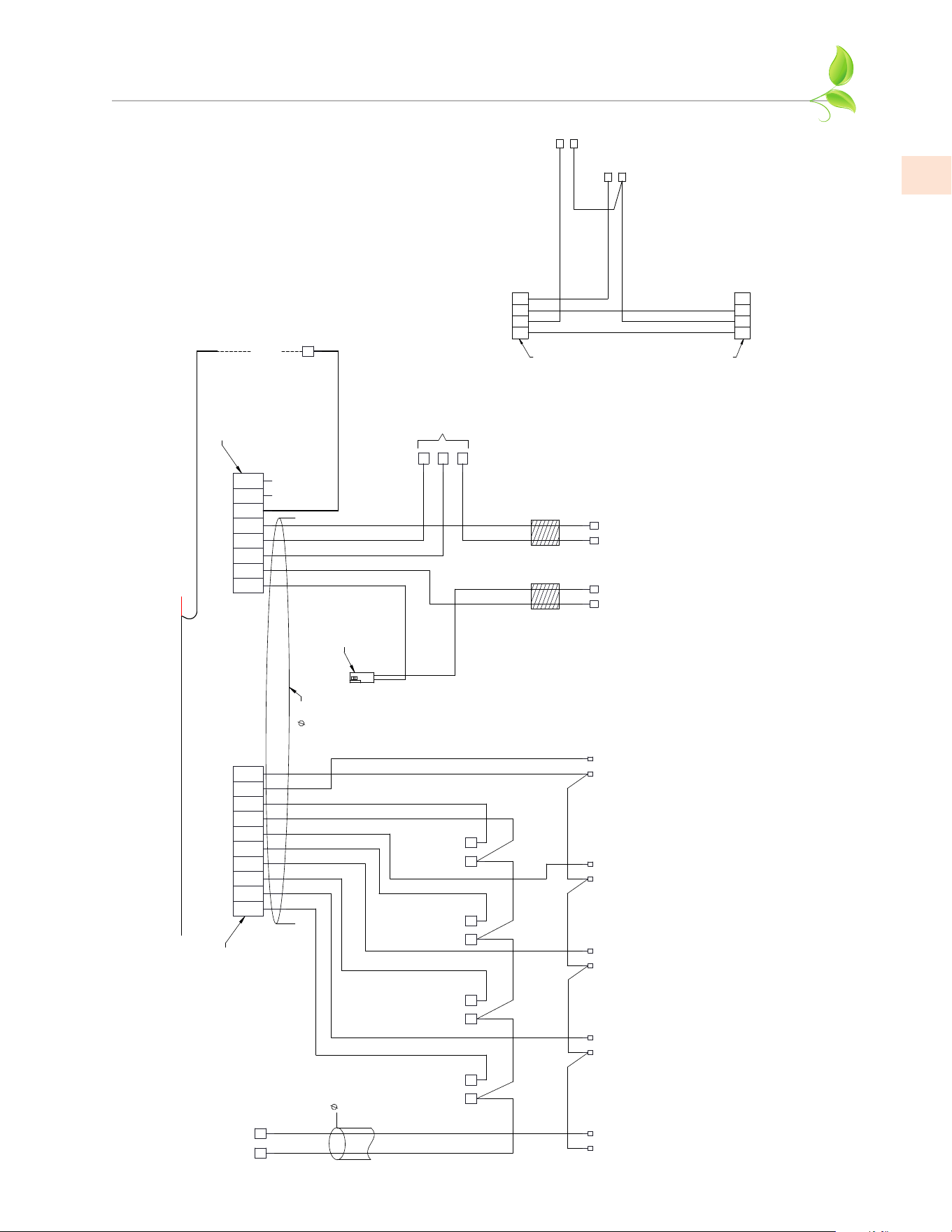

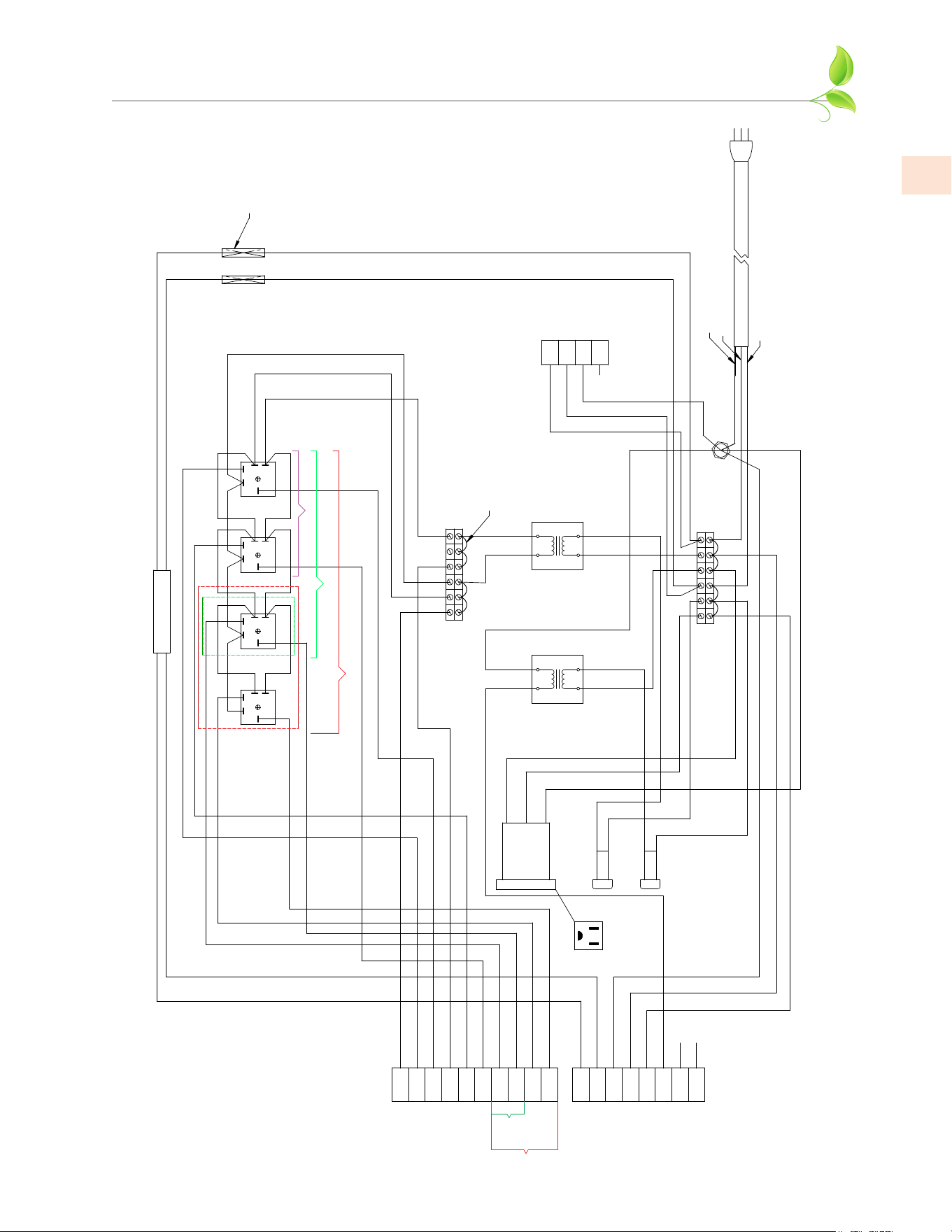

33 WIRING SCHEMATICS

36 PARTS LIST

36 SERVICE

36 WARRANTY

TABLE OF CONTENTS

DELUXE CART MODELS

Model No. Description

GABR36CX2-NG / -LP 36” FREESTANDING (ALL TRELLIS BURNERS) DELUXE CART WITH DOUBLE SIDE BURNER

GMBR36CX2-NG / -LP 36” FREESTANDING (SEAR AND TRELLIS BURNERS) DELUXE CART WITH DOUBLE SIDE BURNER

GSBR36CX2-NG / -LP 36” FREESTANDING (ALL SEAR BURNERS) DELUXE CART WITH DOUBLE SIDE BURNER

GABR42CX2-NG/ -LP 42” FREESTANDING (ALL TRELLIS BURNERS) DELUXE CART WITH DOUBLE SIDE BURNER

GMBR42CX2-NG / -LP 42” FREESTANDING (SEAR AND TRELLIS BURNERS) DELUXE CART WITH DOUBLE SIDE BURNER

GSBR42CX2-NG / -LP 42” FREESTANDING (ALL SEAR BURNERS) DELUXE CART WITH DOUBLE SIDE BURNER

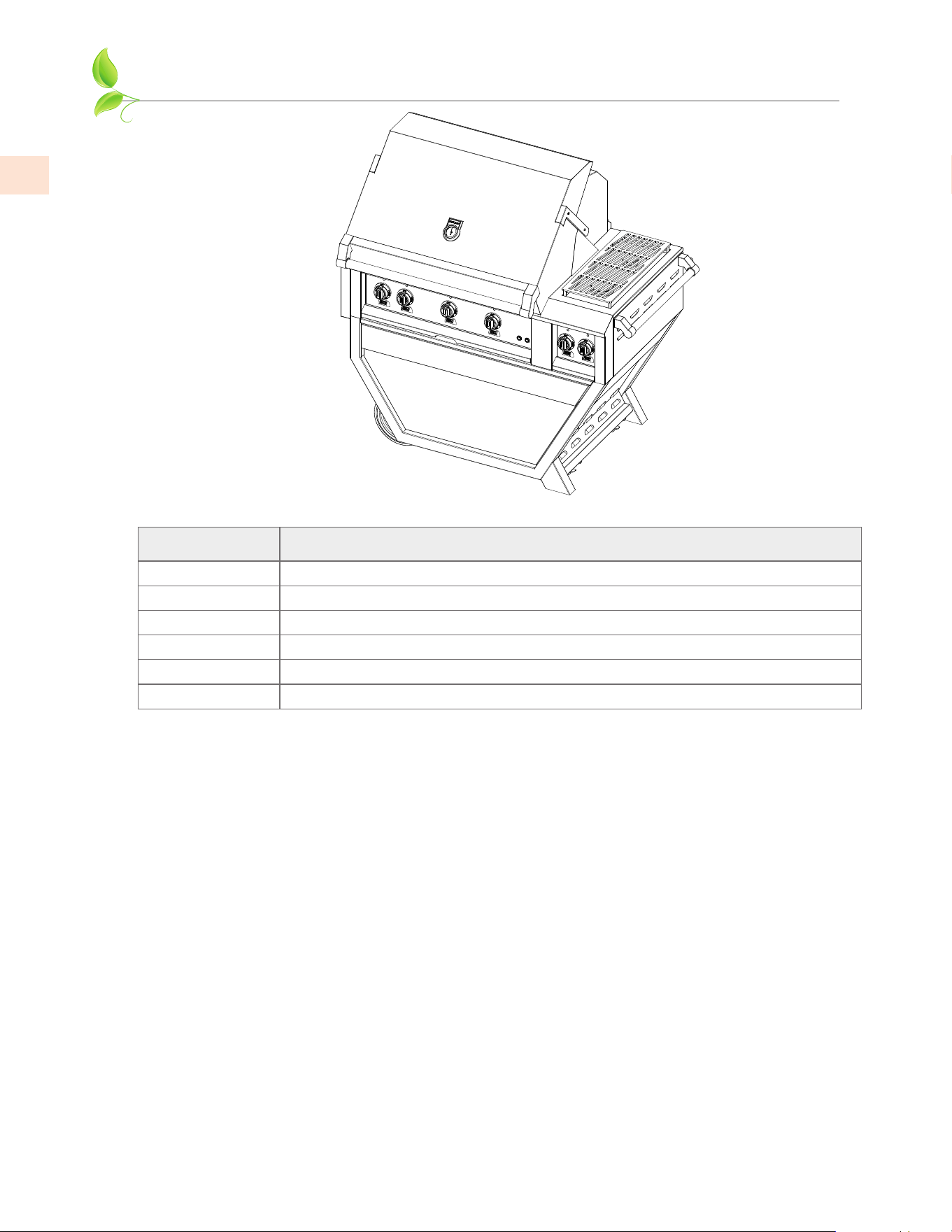

Deluxe Cart Model

MODEL NUMBERS

GRILLING IS A PERFECTIONIST’S PURSUIT.

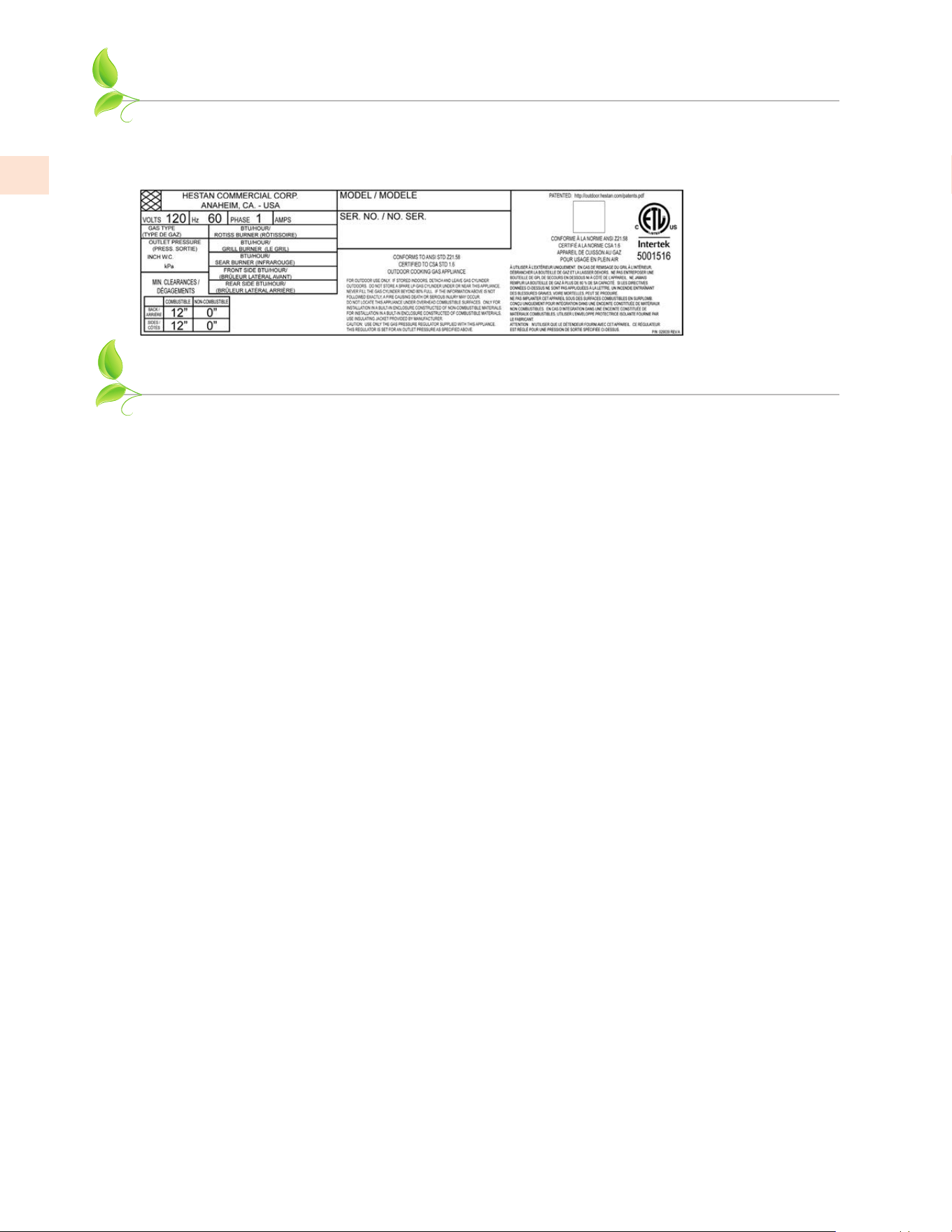

RATING LABEL

The rating label contains important information about your Hestan appliance such as the model

and serial number, gas type and manifold pressure, the BTU rating for each burner type, and the

minimum installation clearances.

PRECAUTIONS - BEFORE YOU USE YOUR GRILL

When properly cared for, your Hestan Deluxe Grill will provide safe, reliable service for many

years. However, extreme care must be used since the appliance produces intense heat, which can

cause serious injury or even death if the instructions are not followed carefully. When using this

appliance, basic safety practices must be followed as outlined below.

1. NEVER LEAVE THE GRILL OR SIDE BURNER UNATTENDED WHILE COOKING.

2. Children should not be left alone or unattended in an area where the appliance is being used.

Never allow them to sit, stand, or play on or around the appliance. Do not store items of

interest to children around or below the grill or inside the cart. Never allow children to crawl

inside of the cart.

3. Never operate the grill or side burner while under the influence of alcohol or drugs.

4. Never use the grill or side burner in windy conditions. If located in a consistently windy area,

oceanfront, mountaintop, etc., reposition the appliance in a protected area away from the wind.

Always adhere to the specified clearances as described in the INSTALLATION section of this

manual.

5. The appliance shall be used only outdoors and shall not be used in buildings, garages, sheds,

breezeways, or any enclosed areas. Do not operate the appliance under unprotected,

combustible construction. Use only in well-ventilated areas. See the INSTALLATION section

of this manual.

6. Do not use the appliance unless a leak check has been performed on all gas connections. See

the GAS CONNECTIONS section of this manual.

7. If the appliance is installed by a professional installer or technician, be sure that they show

you where your gas supply shut-off is located. All gas lines must have a shut-off that is easily

accessible. If you smell gas, check for leaks immediately. Check only with a soap and water

solution. Never check gas leaks with an open flame. See the GAS CONNECTIONS section of

this manual.

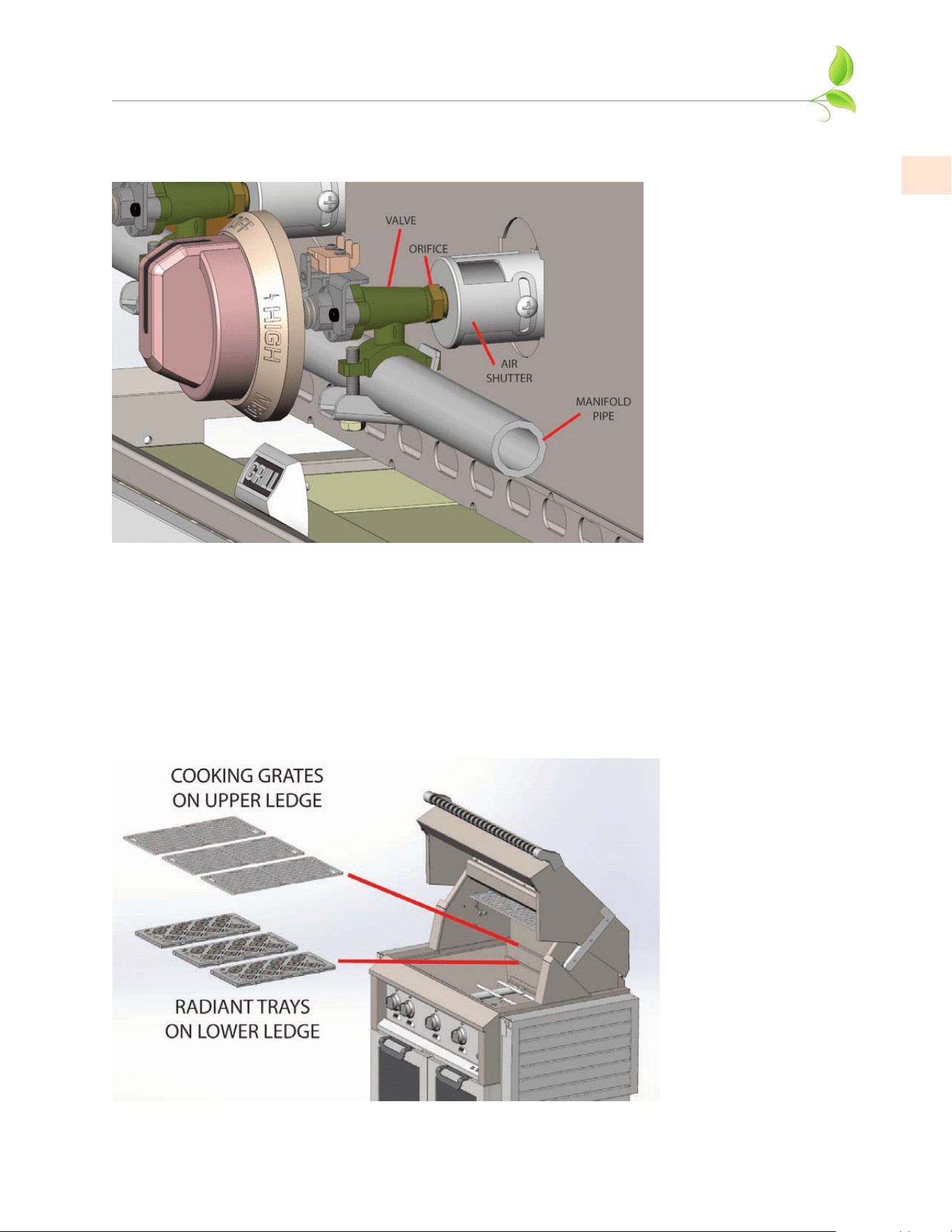

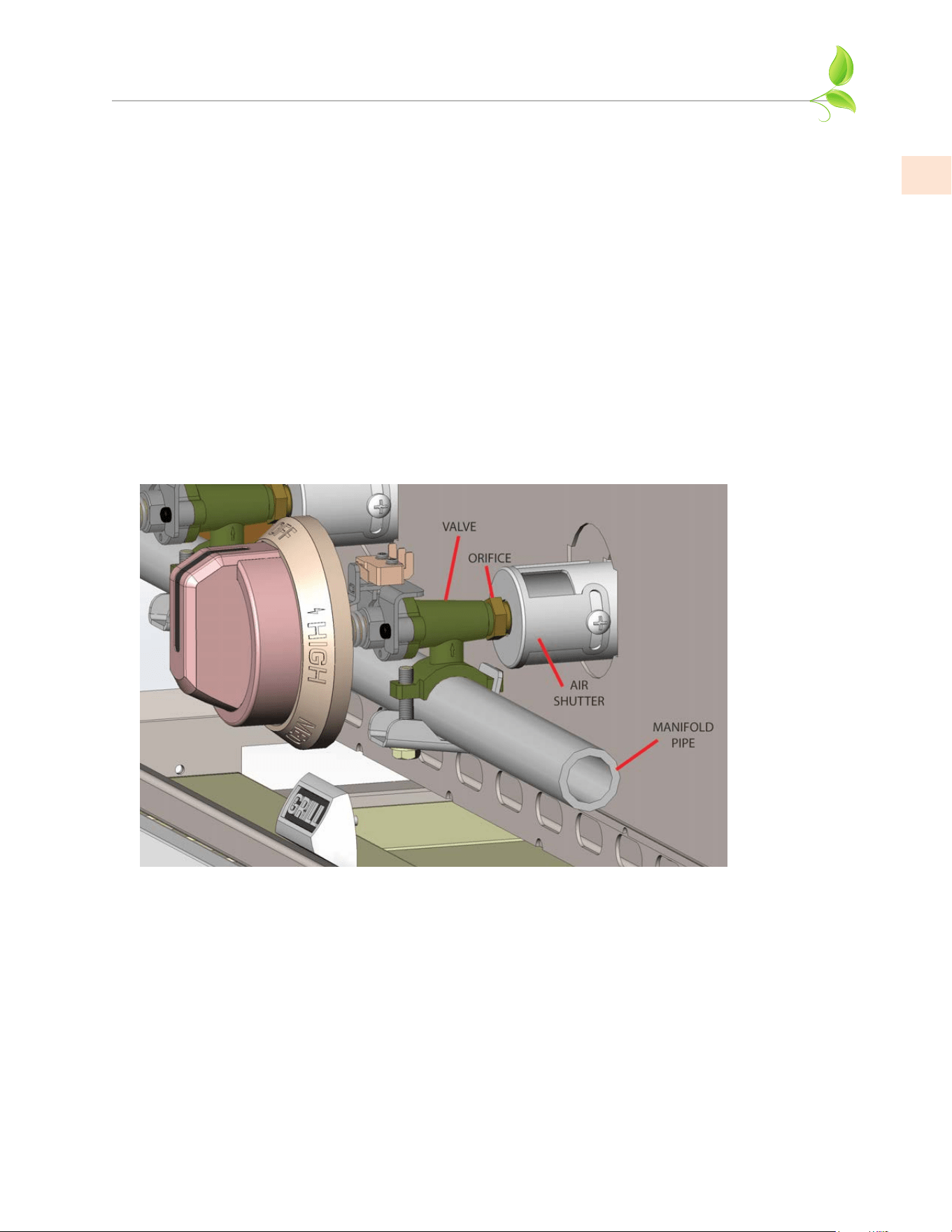

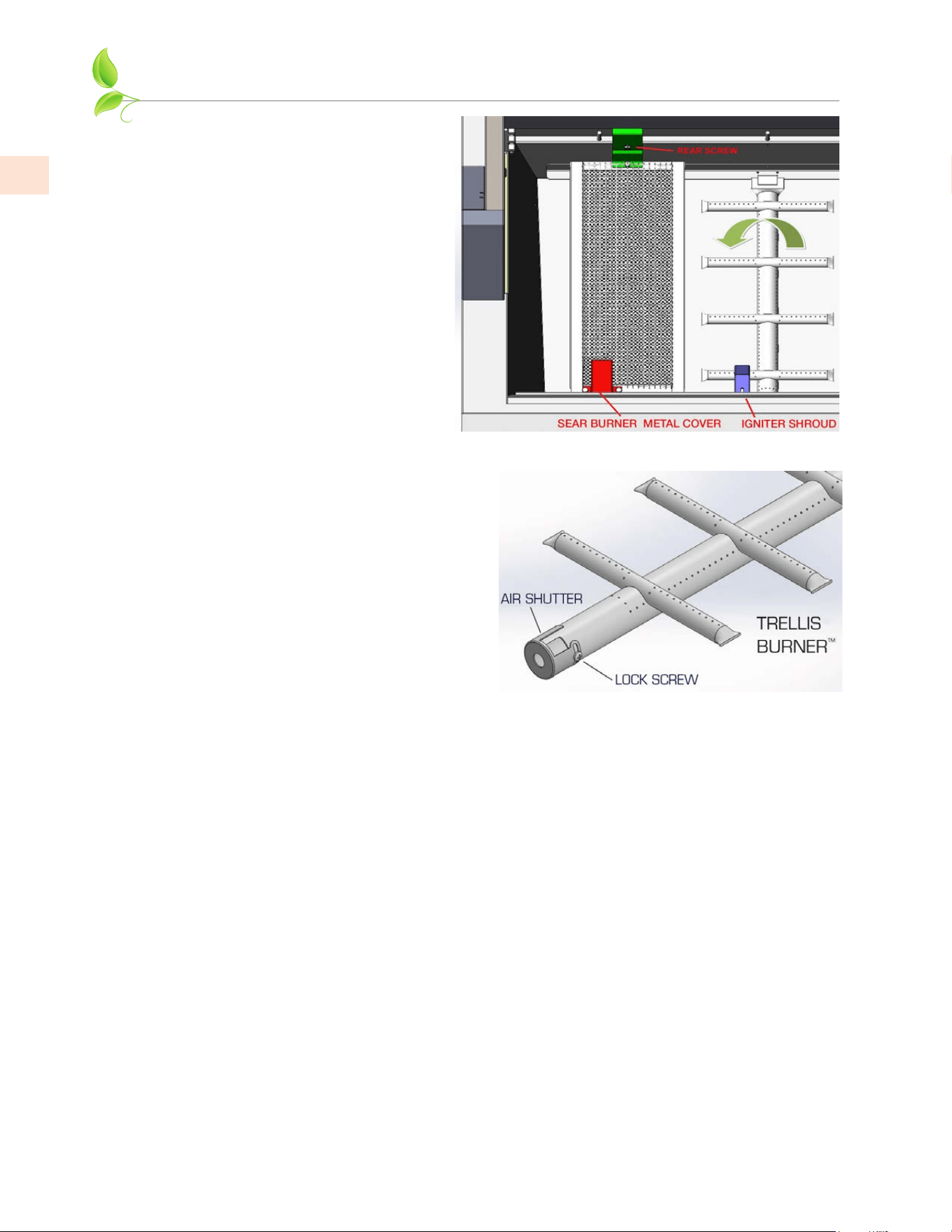

8. Check the regulator, hoses, burner ports, air shutter, and venturi / valve section carefully.

Always turn off gas at the source (tank or supply line) prior to inspecting parts.

9. When lighting a burner, always pay close attention to what you are doing. Be certain you are

turning the correct knob labeled for the burner you intend to use. If any burner does not light,

or goes out during operation, turn off all gas control knobs, open the hood and wait five (5)

minutes before attempting to re-light. See the LIGHTING INSTRUCTIONS section of this

manual.

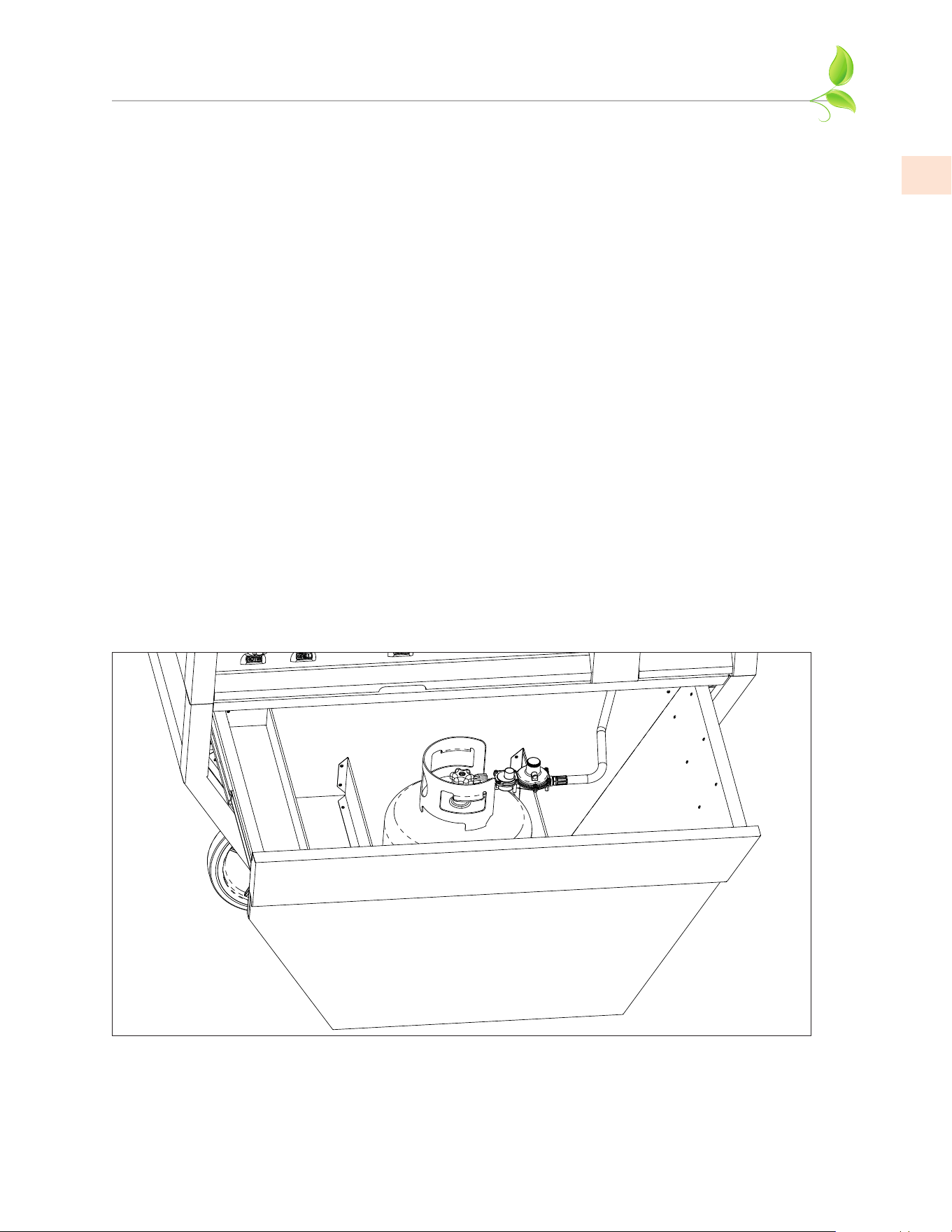

10. Portable LP cylinders - Always shut off the main valve on the liquid propane (LP) cylinder after

each use. Never use a dented or rusted LP cylinder. Never attach or disconnect an LP cylinder,

or move or alter gas fittings when the appliance is in operation or is hot.

Hestan Grill rating

label is located on

the underside of the

drip pan.

11. Inspect LP gas supply hose prior to each use of the appliance . The hose must be kept away

from heated areas of the appliance. If there is evidence of excessive abrasion or wear, or the

hose is cut, it must be replaced before using the appliance. The hose and LP regulator are

supplied as a complete assembly and must be replaced together. Do not attempt to repair or

replace the hose itself. Contact your Hestan dealer for genuine replacement P/N 014309. If

you have a appliance connected to an external stationary supply with a 10ft. hose, the same

inspection must be done on a regular basis. See details on pg. 13 “GAS CONNECTION TO A

STATIONARY SUPPLY”.

12. Keep any electrical supply cord away from the heated areas of the appliance. The cord is

provided with a 3-prong grounding plug which should not be removed or altered. Do not use

this appliance with an ungrounded, 2-prong adapter. The cord must be plugged into a properly

grounded GFCI-protected outlet. See INSTALLATION section of this manual.

13. Spiders and insects like to nest in the burners, venturis, valves, and orifices of the grill and side

burner, disrupting the gas flow in the burner. This very dangerous condition can cause a fire

behind the control panel, damaging the appliance and risking personal injury. If your appliance

has been unused for a long time, inspect and clean the burners, venturis, valves, and orifices. It

is recommended you inspect your appliance at least twice a year. See BURNER ADJUSTMENT

section of this manual for details.

14. Keep the areas surrounding the appliance free from combustible materials, trash, or

combustible fluids and vapors such as gasoline or charcoal lighter fluid. Do not obstruct the

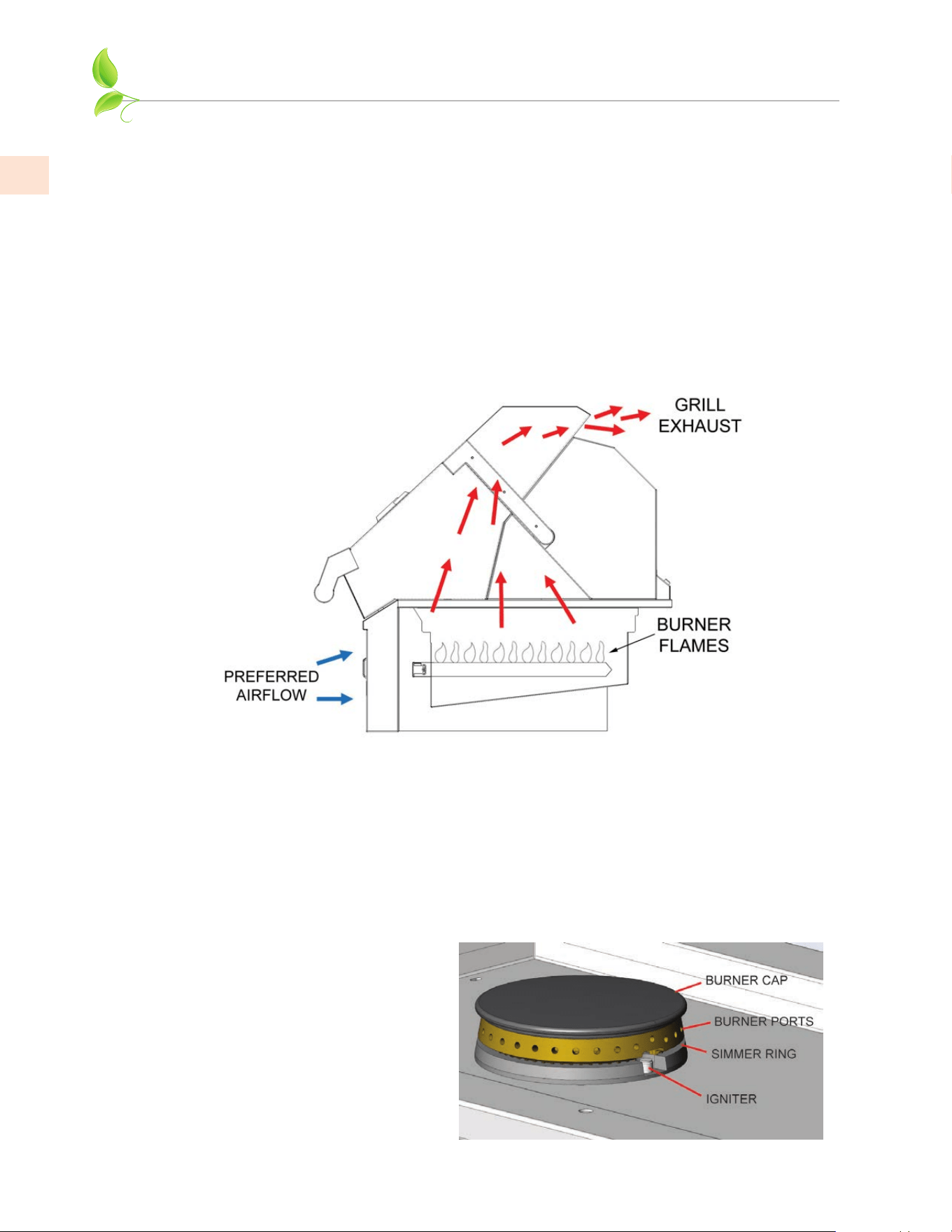

flow of combustion gases (rear) and ventilation airways (front).

15. If your appliance is mounted on a cart, keep the rear area free and clear of debris, extra LP

cylinders, etc. Do not block the ventilation louvers of the cart.

16. If your appliance is mounted on a cart and stored indoors, ensure that it is cool before moving.

If propane is used, the LP cylinder must be disconnected and stored OUTSIDE in a well-

ventilated area, out of the reach of children. A appliance cover is recommended, even when

stored indoors.

17. Never move the appliance when hot. When in use, portions of the grill and side burner are hot

enough to cause severe burns.

18. Always have an “ABC” type fire extinguisher accessible – never attempt to extinguish a grease

fire with water or other liquids.

19. Avoid wearing loose-fitting garments or long sleeves while using the appliance. They could

ignite. For personal safety, wear proper apparel while grilling/cooking. Some synthetic fabrics

are highly flammable and should not be worn while grilling/cooking.

20. Never let pot holders, grill covers, or other flammable materials come in contact with or too

close to any cooking grate, burner, or hot surface until it has cooled down sufficiently. Fabrics

may ignite and result in personal injury. Use only dry potholders. Moist or damp potholders

on hot surfaces may cause burns from steam. Do not use a towel or bulky cloth in place of

potholders. Do not let potholders touch hot portions of the cooking grates or warming racks.

21. Never touch the cooking grates, hood, or immediate surrounding metal surfaces with your bare

hands while grilling/cooking, as these areas become extremely hot and could cause burns. Use

only the handles and knobs provided for operation of the appliance.

22. Protect your hand when opening a hot grill hood. Use an insulated glove or mitt when

operating the grill. Always open the hood slowly to allow heat and smoke to escape before

fully opening. Keep your face and body as far away as possible when opening the hood. Never

lean over an open hot grill.

23. The grill hood must be fully opened while lighting the grill. Opening the gas valves on a closed

grill before lighting will not make it light sooner or more efficiently. It will only risk explosion

and personal injury, or death. Never lean over a hot grill surface, or look directly into the grill

when attempting to light. See the LIGHTING INSTRUCTIONS section of this manual.

PRECAUTIONS - BEFORE YOU USE YOUR GRILL

(continued)

24. The side burner metal cover must be removed while lighting. Leaving the cover in place while

lighting can result in an explosion and personal injury, or death. Never lean over a side burner

or look directly into the burner while attempting to light. See the LIGHTING INSTRUCTIONS

section of this manual.

25. Do not heat unopened food containers (cans) as pressure build-up will cause the container to

explode.

26. Do not use aluminum foil to line cooking grates or the drip tray. This will alter the airflow

to the grill or trap excessive heat in the control area. This can melt control knobs, wiring, or

igniters, and increase the risk of personal injury. Such damage is specifically excluded from our

warranty.

27. Never grill without the drip tray in place and pushed all the way to the back of the grill.

Without the drip tray, hot grease can leak downward creating a fire or explosion hazard.

28. Grease is extremely flammable. Let hot grease cool before attempting to handle or dispose

of it. Avoid letting grease deposits collect in the bottom of the grill by cleaning the drip tray

often. Never clean while the grill is on, or hot from recent use.

29. Grilling excessively fatty meats and oils will cause flare-ups. Internal fires or damage caused by

them or by the grill being left unattended, are not covered under the terms and conditions of

our warranty. This same precaution applies to the side burner.

30. Never use charcoal, pellets, wood, or any other solid fuel in the grill. Wood chips for smoking

are to be used with the smoker accessory only. See the SMOKER section of this manual.

31. Only certain types of glass, heatproof glass-ceramic, earthenware, or other glazed utensils

are suitable for use on this applaince. However, these types of materials may break with

sudden temperature changes. Use only on low or medium heat settings, and according to their

manufacturers’ directions.

32. Do not lean on side shelves or place a load of more than 25 lbs [11.3 kg] on a side shelf.

33. Do not repair or replace any part of the appliance unless specifically recommended in this

manual. All other warranty and non-warranty service should be referred to and performed by a

qualified technician.

34. For proper lighting and performance of the burners, keep the ports clean. It is necessary

to clean them periodically for optimum performance. The burners will operate only in one

position and must be mounted correctly for safe operation. See BURNER ADJUSTMENT

section of this manual.

35. Clean the appliance with caution. Avoid steam burns - do not use a wet sponge or cloth to

clean the appliance while it is hot. Some cleaners produce noxious fumes or can ignite when

applied to a hot surface. Be sure all appliance controls are turned off and the appliance is

cool before using any type of aerosol cleaner on or around the appliance. The chemical that

produces the spraying action could, in the presence of heat, ignite or cause metal parts to

corrode. Clean and perform general maintenance on the appliance twice a year. Watch for

corrosion, cracks, or insect activity. See the CLEANING AND MAINTENANCE section of this

manual.

PRECAUTIONS - BEFORE YOU USE YOUR GRILL

(continued)

REGULATORY / CODE REQUIREMENTS

Installation of this cooking appliance must be made in accordance with local codes. In the absence

of local codes, this unit should be installed in accordance with the National Fuel Gas Code

ANSI

Z223.1/NFPA 54

, Natural Gas and Propane Installation code

CSA B149.1

, or Propane Storage and

Handling Code

B149.2

All Electrical Components must be electrically grounded in accordance with local codes or in the

absence of local codes with the National Electrical Code

ANSI/NFPA 70

, or Canadian Electrical

code

CSA C22.1

STATE OF MASSACHUSETTS

Massachusetts requires all gas be installed using a plumber or gas fitter carrying the appropriate

Massachusetts license. All permanently installed natural gas or propane installations require a T

handle type manual gas valve be installed in the gas supply line to this appliance. This does not

apply to portable propane installations using a 20lb. cylinder.

CALIFORNIA PROPOSITION 65 - WARNING

WARNING:WARNING: This product can expose you to chemicals including carbon monoxide, which

is known to the State of California to cause birth defects or other reproductive harm.

For more information, go to www.P65Warnings.ca.gov.

PORTABLE LP GAS CYLINDERS

Use only a standard 20 lb. [9.1 kg] liquid propane (LP) gas cylinder - 12.25” diam. X 18.25” H

[31 cm X 47 cm] which features an Overfill Protection Device. The cylinder must be installed in

the upright position. Do not use a dented or rusty LP cylinder as it may be hazardous and should

be checked by your LP supplier. Never use a cylinder with a damaged valve. Never move or alter

the gas fittings. Check the expiration date on the cylinder collar as well. Do not refill an expired

cylinder, it must be replaced. If you buy refilled (exchange) LP cylinders, check this date as well.

The LP gas cylinder must be constructed and marked in accordance with the specifications for

LP gas cylinders of the U.S. Department of Transportation (DOT). The cylinder must be provided

with a shut off valve terminating in an LP gas supply cylinder valve outlet specified, as applicable,

for connection type QCC1 in the standard for compressed gas cylinder valve outlet and inlet

connections ANSI/CGA-V-I.

Certain liquid propane dealers may fill LP cylinders for use in the grill beyond cylinder filling

capacity. This “overfilling” may create a dangerous condition due to a build-up of excess pressure.

As a safety device, there is a pressure relief valve which will vent propane gas vapor to relieve this

excess pressure. This vapor is combustible and therefore can be ignited. To reduce this danger, you

should take the following safety precautions:

1. When you have your cylinder filled, be sure you tell the supplier to fill it to no more than 80%

of its total capacity.

2. If you own or use a spare cylinder, you should NEVER store it near or under the grill/cart unit

or burner box, or near any other ignition or heat source (like a water heater or furnace).

IF THE INFORMATION IN 1 AND 2 ABOVE IS NOT FOLLOWED EXACTLY, A FIRE

CAUSING DEATH OR SERIOUS INJURY MAY OCCUR.

3. The LP cylinder must be disconnected and stored OUTSIDE in a well-ventilated area, out of the

reach of children.

4. Do not store a full cylinder in direct sunlight.

LOCATING AND ASSEMBLING THE GRILL

When determining a suitable location for your grill, take into account concerns such as exposure

to wind, rain, sprinklers, proximity to traffic paths, and keeping any gas supply line runs as short as

possible.

Locate the grill only in a well-ventilated area. Never locate the grill in a building, garage,

breezeway, shed or other such enclosed areas without an approved ventilation system. Never

locate the grill over, under, or next to unprotected combustible construction.

During heavy use, the grill will produce a lot of heat and smoke. The grill is designed to take in

cool air at the front control panel area, and send the combustion products and smoke out the

exhaust gap at the rear of the hood. It is important to maintain this flow at all times (see Fig. 1).

Using the grill in windy areas can disrupt this proper flow and cause damage to your grill, or result

in burn hazards to the user. Similarly, windy areas can disrupt the Side Burner flame, especially on

low or simmer settings. This may cause nuisance sparking of the igniter. For installations which

consistenly receive wind at the rear of the grill, you will have little choice but to relocate the

appliance.

Ensure all packaging, straps, etc. have been removed from the grill. Remove any tie-down wires

from the burners.

Engage the brakes on the casters to prevent movement of the cart.

Ensure that the burner cap is mounted correctly on the burner ring of the Side Burner. Do not

operate the Side Burner without the burner cap in place (see image below).

Figure 1

Ensure that the burners are positioned correctly on their orifices, and are fully seated onto their

rear hanger brackets (see Fig. 2). The burners should not move side-to-side or front-to-back if

properly seated.

Above each Trellis Burner

™

is a stainless steel radiant tray containing specially shaped ceramic

briquettes. Position the radiant trays onto the lower ledge of the burner box in the grill, and then

install the cooking grates on the upper ledge (see Fig. 3). The burners and radiant trays work

together to create a very even heat, front-to-back, left-to-right. The radiant trays also serve to

minimize flare-ups, and prevent blockages of the burner ports from falling grease and debris. The

radiant trays and Trellis Burners must be used together and are integral to the performance of the

grill. Do not cook on the grill without them.

Note:Note: Infrared Sear Burners do not require the radiant trays. NEVER place a radiant tray over a

Sear Burner.

Figure 2

Figure 3

LOCATING AND ASSEMBLING THE GRILL

(continued)

INSTALLATION

CLEARANCES:

TO NON-COMBUSTIBLE CONSTRUCTION

A minimum of 4” [10 cm] clearance from the back of the Deluxe Grill to non-combustible

construction is required to allow the hood to be opened fully.

TO COMBUSTIBLE CONSTRUCTION

This appliance should NOT be installed over, under or next to unprotected combustible

construction. A minimum clearance to vertical combustible material, such as adjacent walls, is 12”

[30 cm] on the sides and the rear of the appliance.

The minimum vertical clearance to combustible materials means that ALL combustible materials

must be outside this 12” [30 cm] zone. As an example, if you have a stucco or tiled surface

and wood-frame construction beneath, or wood-frame walls adjacent or behind, the wood is

considered combustible, even though the grill is mounted in its stainless steel cart. If the grill was

parked close to these surfaces when grilling over an extended period of time, enough radiant heat

could reach the wood and potentially get hot enough to burn, in extreme circumstances.

VENTILATION OPENINGS

There are ventilation openings at the left and right sides, as well as the back and underside of the

Deluxe Grill cart. These openings are required to safely dissipate gas vapors if there is a leak inside.

Do not block any of these vent openings inside the cart with vinyl covers, towels, etc. or block the

vent openings outside the cart either.

GAS CONNECTIONS

GAS SUPPLY

The local gas authority or supplier should be consulted at the installation planning stage in order to

establish the availability of an adequate supply of gas (NG or LP). If it is a new installation, have the

gas authorities or supplier check the meter size and piping to assure that the unit is supplied with the

necessary amount of gas supply and pressure to operate the unit(s).

Gas connections should be made by a qualified plumber, or your professional outdoor appliance

installer.

All fixed (non-mobile) appliances must be fitted with an accessible upstream gas shutoff valve as a

means of isolating the appliance for emergency shut off and for servicing.

Make certain new piping and connections have been made in a clean manner and have been purged so

that piping compound, chips, etc. will not clog regulators, valves, orifices, or burners. Use pipe joint

compound / thread sealant approved for natural and LP gases.

NEVER CONNECT THE GRILL TO AN UNREGULATED GAS SUPPLY. Before proceeding, ensure the

appliance is fitted for Natural or Liquid Propane gas. Connecting to an improper gas type will result in

poor performance and increased risk of damage or injury. Gas type and gas consumption (BTU per hour)

for each burner type is shown on the rating label affixed to the underside of the drip tray.

Installation of this cooking appliance must be made in accordance with local codes. In the absence of

local codes, this unit should be installed in accordance with the National Fuel Gas Code No.

Z223.1/

NFPA 54

, Natural Gas and Propane Installation code

CSA B149-1

, or Propane Storage and Handling

Code B149.2.

NOTE:NOTE: See rating label for manifold pressure for the type of gas of your appliance.

CONVERSION KITS

Gas conversion kits are available from your Hestan dealer should you need to convert an LP unit to NG, or

vice-versa.

HIGH ALTITUDE KITS

If you live in a high altitude area, 2,000 ft. [610 m] or more above sea level, your appliance will require

different orifices for proper combustion and performance. High altitude kits are available through

Hestan Customer Service. Please have your model and serial number information ready when you call.

LP DELUXE GRILL

The Hestan Deluxe Grill for LP gas is supplied with a two-stage regulator/hose assembly for connection

to a standard 20 lb. LP portable gas cylinder (not included), which locates inside the large pull-out

drawer in the cart base. Take care to point the regulator & hose to the right of the drawer as shown in

the image below. This is necessary to avoid kinking or otherwise damaging the hose when pushing the

drawer back in. See page 15 for regulator connection information.

GAS CONNECTION TO A STATIONARY SUPPLY

Natural Gas (NG) units, or propane (LP) units connected to a stationary gas supply outside the grill

must be connected using a 10 ft. approved gas hose. This hose is supplied with NG units, or may be

purchased as an accessory for LP units.

When routing the hose behind your grill, be careful not to roll over the hose, or place it in an area

of high foot traffic which could create a tripping hazard (see next page). Make sure there are no

sharp bends in the hose. Periodically check the hose for scratches, nicks, brittleness, cracking,

which could all lead to a gas leak. Check for gas leaks if you ever smell gas (see LEAK TESTING

on pg. 16). As an added safety measure, shut off the gas supply after each grill use. Do not push

excess hose length back into the rear access hole of the grill cart. There is not enough room inside

the unit and the hose would get kinked or damaged by the opening/closing of the large drawer.

GAS CONNECTIONS

(continued)

GAS CONNECTION - NATURAL GAS (NG)

NOTE:NOTE: To ensure proper heating performance of this appliance, verify that the gas line supply

pressure is adequate. Use only the gas pressure regulator supplied with this appliance. This

regulator is set for a supply (inlet) pressure of 7-14 inch WC [1.74-3.48 kPa] to maintain 4 inch WC

[1.00 kPa] nominal outlet (manifold) pressure. Use the supplied 10 ft [3 m] gas hose to prevent

gas starvation. Ensure that the service pipe supplying the appliance is fitted with a shut-off valve

conveniently positioned and easily accessible as an emergency gas shut-off.

Your Hestan Deluxe Grill for use with Natural Gas is supplied with its own regulator which is

pre-installed inside the unit. If this regulator needs to be replaced, use only the type specified by

Hestan for this appliance. The 10 ft. [3 m] long hose is also pre-installed at the factory. Locate your

gas connection point near the rear of your grill. The hose as well as the connectors must comply

with the

Standard for Connectors for Outdoor Gas Appliances and Manufactured Homes, ANSI

Z21.75 • CSA 6.27

, and suitable for outdoor installation. Use the appropriate thread sealant on all

connections.

It is assumed you have a stationary incoming gas supply located near the rear of the unit, with a

shutoff valve pre-installed (see above image). To connect the hose assembly follow the next steps:

1. Remove the quick-disconnect coupling of the hose by sliding back the black sleeve. Install

this brass section onto the shutoff valve with appropriate thread sealent. See instruction tag

supplied with the hose for more detail.

2. Re-connect the coupling of the hose. Open the shutoff valve.

3. Proceed to LEAK TESTING section.

GAS CONNECTIONS

(continued)

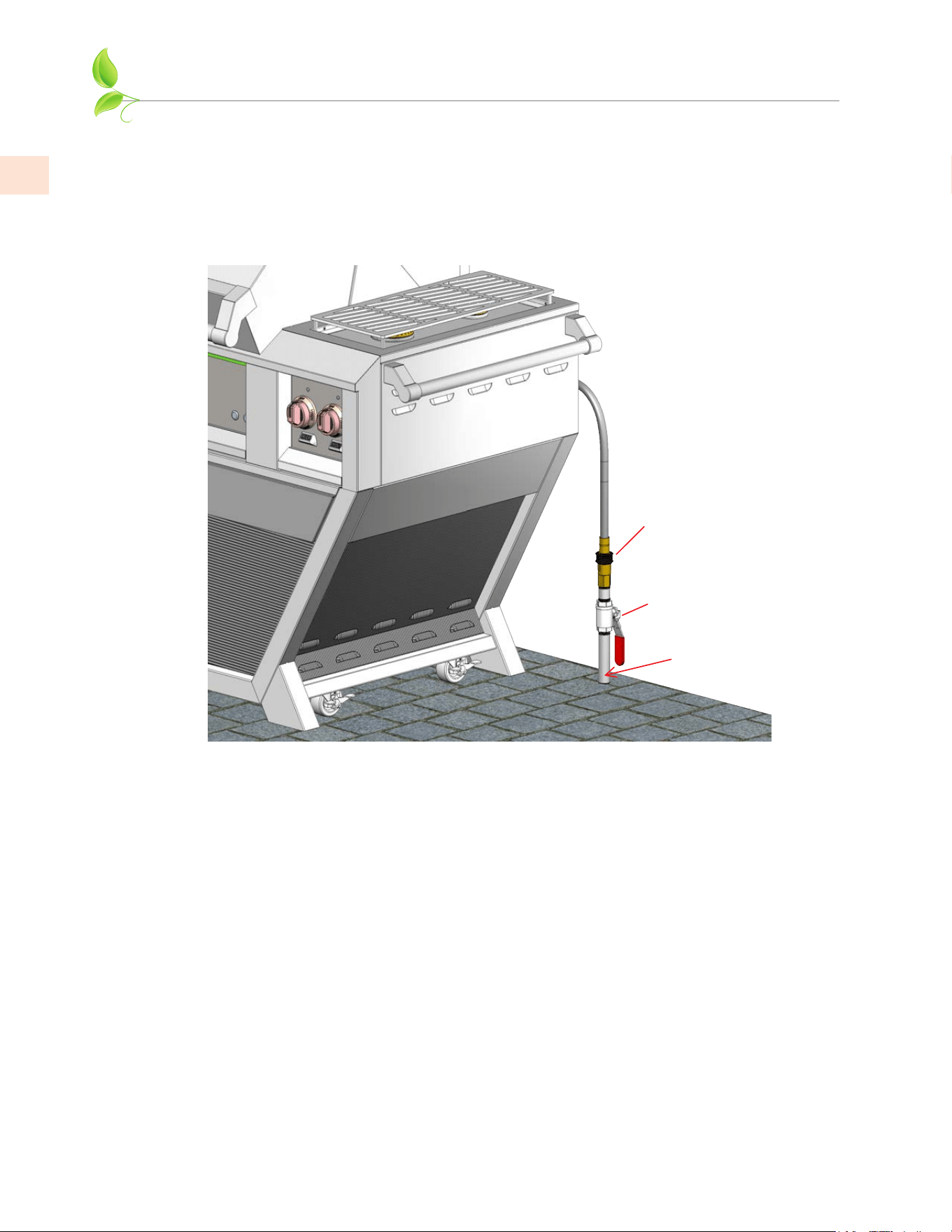

10 ft FLEX HOSE w/

QUICK DISCONNECT

INCOMING

NAT GAS SUPPLY

SHUTOFF VALVE

(SUPPLIED BY CUSTOMER)

HESTAN DELUXE GRILL

GAS CONNECTION - LIQUID PROPANE (LP) CYLINDER

Your Hestan Deluxe Grill for use with LP gas is supplied with a two-stage regulator/hose assembly

for connection to a standard 20 lb. LP gas cylinder (not included). This assembly must be used

WITHOUT alteration. If this assembly needs to be replaced, contact your Hestan dealer for

genuine replacement P/N 014309.

The hose as well as the connectors must comply with the

Standard for Connectors for Outdoor

Gas Appliances and Manufactured Homes, ANSI Z21.75 • CSA 6.27

, and suitable for outdoor

installation. Use the appropriate thread sealant on all thread connections.

NOTE:NOTE: To ensure proper heating performance of this appliance, verify that the supply (inlet)

pressure is adequate. Use only the gas pressure regulator supplied with this appliance. This

regulator is set to maintain 10 inch WC [2.49 kPa] nominal outlet (manifold) pressure.

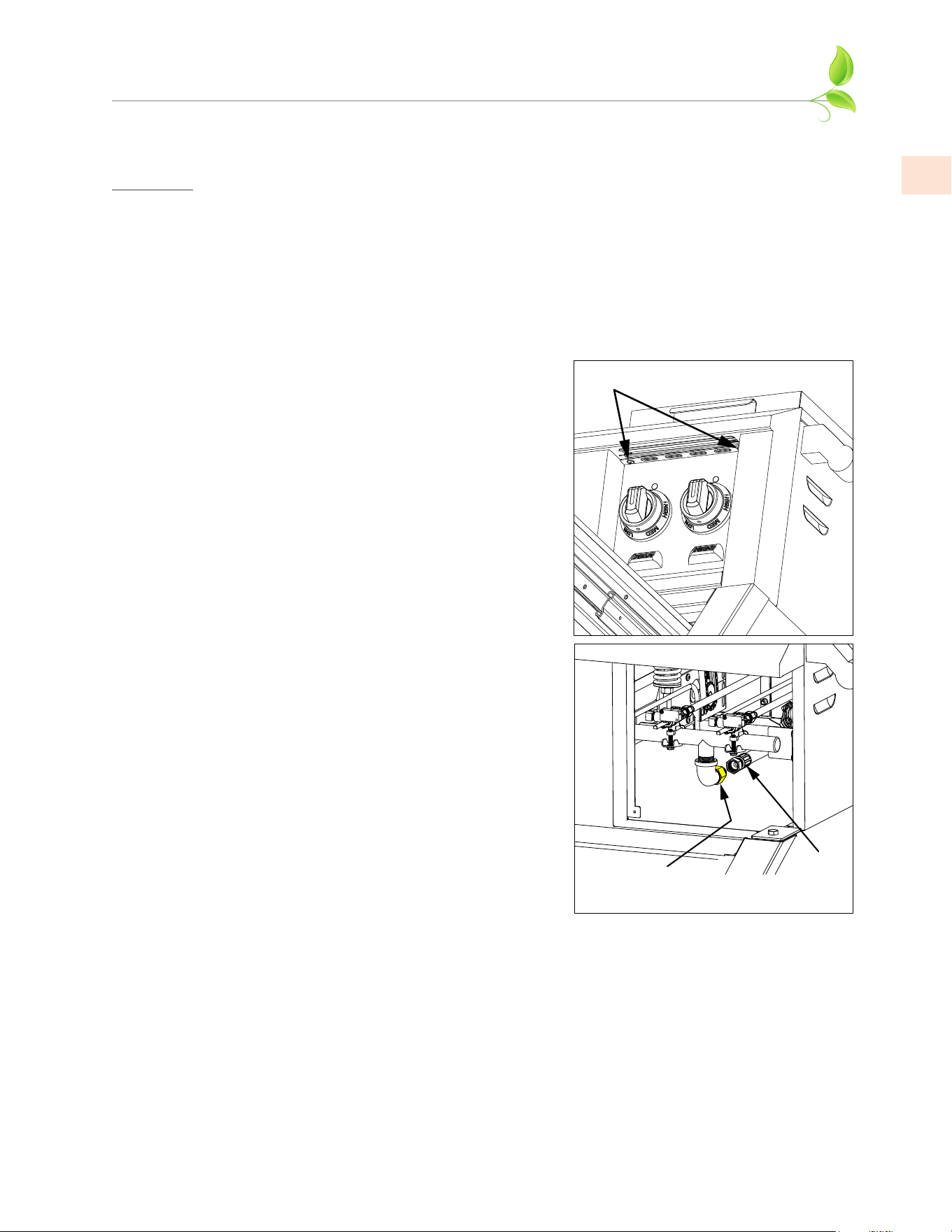

To connect the regulator / hose assembly follow these steps:

1. Remove the control knobs on the side burner area. Then

remove the 2 screws securing the control panel at the top,

and carefully tilt down. Disconnect the molded connector

for the LED light. Lift out the control panel and set aside.

2. Connect the LP regulator hose end to the brass adapter

already installed on the gas manifold pipe. Do not use

any thread sealant or Teflon tape on this connection.

Tighten the hose connection with a wrench.

3. Install a standard 20 lb. LP gas cylinder. Observe the

notes on page 13 about proper tank orientation and hose

placement to avoid kinking the hose when pushing the

drawer back in.

4. Proceed to the LEAK TESTING section of this manual.

Be sure to check all the fittings shown here. After

successful completion of the test, re-install the LED light,

control panel and knobs.

GAS CONNECTION - LP PIPED SYSTEMS

An LP piped system is one with a large central LP tank that feeds an entire household. These

systems are normally equipped with a high pressure regulator by the large LP tank, and low

pressure regulators close to the home. The gas line connectors must comply with the

Standard for

Connectors for Outdoor Gas Appliances and Manufactured Homes, ANSI Z21.75 • CSA 6.27

, and

suitable for outdoor installation. The connection to your grill is via the 10 ft [3 m] hose discussed

in the NG section on pg. 14.

If you have an LP grill, please contact Hestan Customer Service to order an LP Piped System Kit

for this unique installation. If you have a NG grill and are converting to an LP Piped System, please

supply this information to receive the correct kit.

Follow the same hose assembly/connection instructions given on the previous page, followed by

leak testing.

GAS CONNECTIONS

(continued)

2 SCREWS

HOSE

END

BRASS

ADAPTER

ITEMS REMOVED FROM VIEW FOR CLARITY

NOTE:NOTE: To ensure proper heating performance of this appliance, verify that the supply (inlet)

pressure is adequate (11-14 inch WC [2.74-3.48 kPa] pressure is preferred) to maintain 10 inch WC

[2.49 kPa] nominal outlet (manifold) pressure.

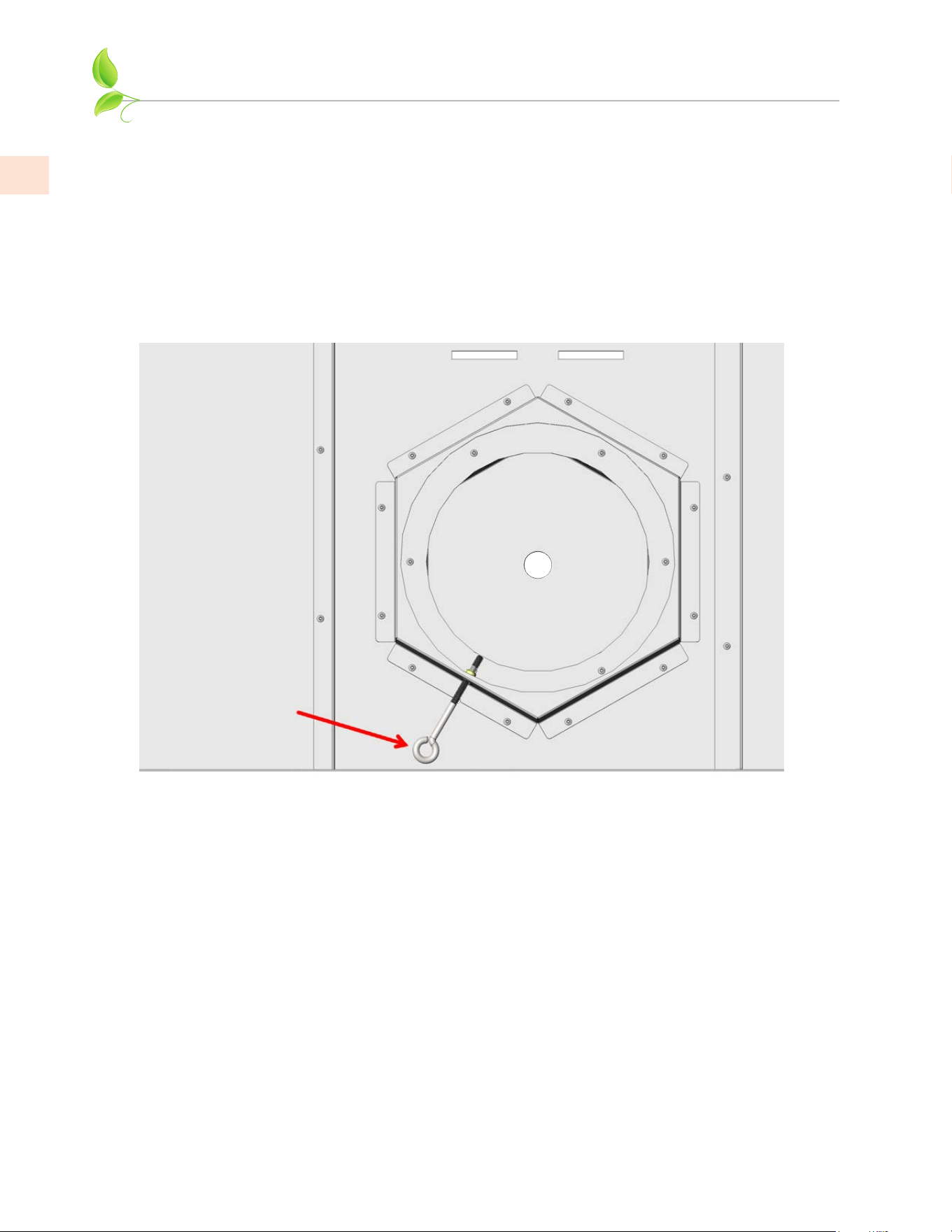

LP TANK RESTRAINT

Be sure to restrain the LP cylinder by securing it with the retention eyebolt as shown below. It is

important the tank does not fall over or stretch the hose which could cause a gas leak.

Take care to

point the regulator & hose to the right of the drawer as shown in the image on pg. 13. This is necessary

to avoid kinking or otherwise damaging the hose when pushing the drawer back in.

LP TANK

RESTRAINT

LEAK TESTING

GENERAL

Although all gas connections on your Hestan grill are leak tested at the factory prior to shipment, a

complete gas tightness check must be performed at the installation site due to possible movement

in shipment, or excessive pressure unknowingly being applied to parts of the unit. Periodically

check the whole system for leaks, or immediately check if the smell of gas is detected.

BEFORE TESTINGBEFORE TESTING

• Do not smoke while leak testing.

• Never leak test with an open flame.

• Make a soap solution of one part liquid detergent and one part water for leak testing purposes.

• Apply the solution to the gas fittings by using a spray bottle or a brush.

• For LP units, always check with a full LP cylinder.

GAS CONNECTIONS

(continued)

TO TEST

• Make sure all control valves are in the “OFF” position.

• Apply the soap solution described above to all fittings.

• Turn the gas supply on.

• Check all connections from the supply line, or LP cylinder up to and including the manifold

pipe assembly.

• Soap bubbles will appear where a leak is present. If a leak is present, immediately turn off gas

supply, tighten any leaking fittings, turn the gas supply back on, and recheck.

• If you cannot stop a gas leak, turn off the gas supply and call the dealer where you purchased

your grill.

• Do not use the grill or side burner until all connections have been checked and do not leak.

IMPORTANT NOTE - ALWAYS CHECK FOR LEAKS AFTER EVERY LP CYLINDER CHANGE.IMPORTANT NOTE - ALWAYS CHECK FOR LEAKS AFTER EVERY LP CYLINDER CHANGE.

If a leak is present, or if there is evidence of excessive abrasion or wear, or the hose is cut, it must

be replaced before using the grill. The hose and LP regulator are supplied as a complete assembly

and must be replaced together. Do not attempt to repair or replace the hose itself. Contact your

Hestan dealer for genuine replacement P/N 014309.

Check all gas supply fittings for leaks before each use. It is handy to keep a spray bottle of soapy

water near the shut-off valve of the gas supply line. Spray all the fittings. Bubbles indicate leaks.

GAS CONNECTIONS

(continued)

BURNER ADJUSTMENTS

Hestan grills feature the unique Trellis Burner

™

, and infrared Rotisserie and Sear Burners. The

following instructions apply only to the Trellis Burner.

TRELLIS BURNERTRELLIS BURNER

™™

FLAME ADJUSTMENT FLAME ADJUSTMENT

Each grill burner is tested and adjusted at the factory prior to shipment. The proper orifice for the

gas type, and the air-fuel (air shutter) adjustment was made at this time. However, variations in the

local gas supply, the elevation where you live, converting from one gas type to another, and other

factors might make it necessary to adjust the burner flames.

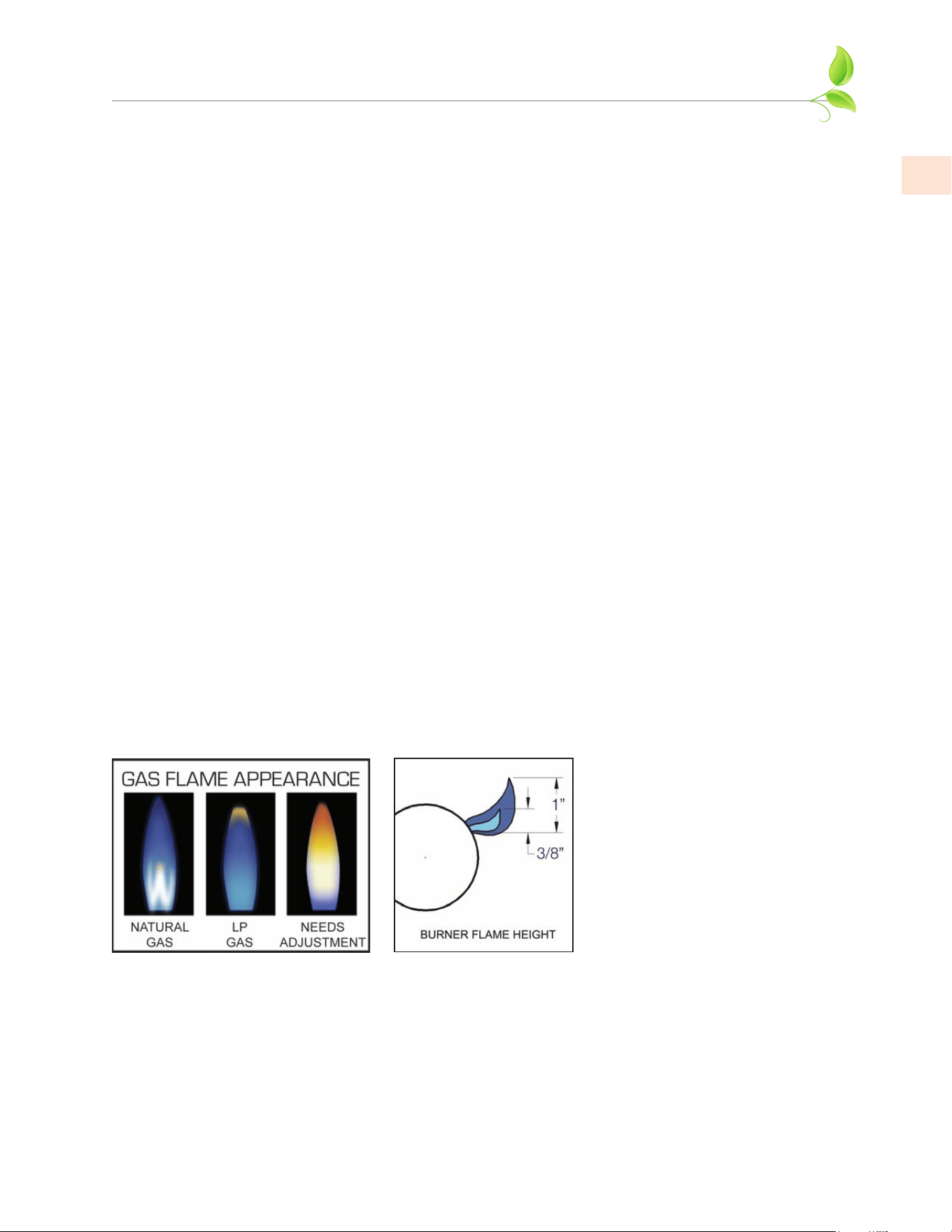

The flames of the burners should be visually checked and compared with the figures below.

Flames should be blue and stable

with no yellow tips (LP units

will have some yellow tipping).

There should be no excessive

noise or flame lifting. If any of

these conditions exist, remove

the burners and check if dirt,

debris, spider webs, etc., are

blocking the air shutter or burner

ports. Proceed with air shutter

adjustment if necessary.

AIR SHUTTER ADJUSTMENT

Remove the control panel to gain access to the

orifice area and air shutters on the burners. A

metal cap at the inlet of the burner called the

“AIR SHUTTER” regulates the amount of air

that enters into the burner for combustion

(see Fig. 4). The air shutter has a lock screw

which must be loosened prior to adjustment.

Remove the burner carefully from the grill.

With a marker pen, mark the current location

of the shutter opening, then loosen the screw

of the air shutter. Reinstall the burner. Make

certain that the burners are sitting properly on

the orifices taking care not to move or damage

the igniter electrodes. Reinstall the radiant trays.

Light the burner and adjust as follows:Light the burner and adjust as follows:

• Turn the valve on “HIGH”, light the burner and allow it to warm up for 10 minutes. Be careful

because the burner will be hot from this point forward.

• If the flame is yellow, indicating insufficient air, turn the air shutter counter-clockwise to allow

more air to the burner.

• If the flame is noisy and tends to lift away from the burner ports, indicating too much air, turn

the air shutter clockwise to reduce the amount of air to the burner.

• Once you have established a good flame, make a new mark with the marker pen.

• Remove the burner again and retighten the lock screw of the air shutter taking note of your

newly marked position.

• Repeat this process for each burner.

• Perform one last check that all burners are properly seated on their orifices and rear hanger

bracket.

• Reinstall all radiant trays and cooking grates.

• Reinstall the control panel and control knobs.

BURNER REMOVAL BEFORE

AIR SHUTTER ADJUSTMENT

Open your grill and remove the grates,

radiant trays, and burners from the

firebox area. Trellis burners are removed

by lifting up the rear of the burner, and

carefully twisting to clear the igniter

shroud. Sear burners have a small metal

cover over the igniter which must be

removed first. There is also a screw at

the rear firebox wall which must be

removed. The sear burner can then

be carefully removed using the same

twisting action to avoid breaking the

ceramic igniter.

GAS CONNECTIONS

(continued)

Figure 4

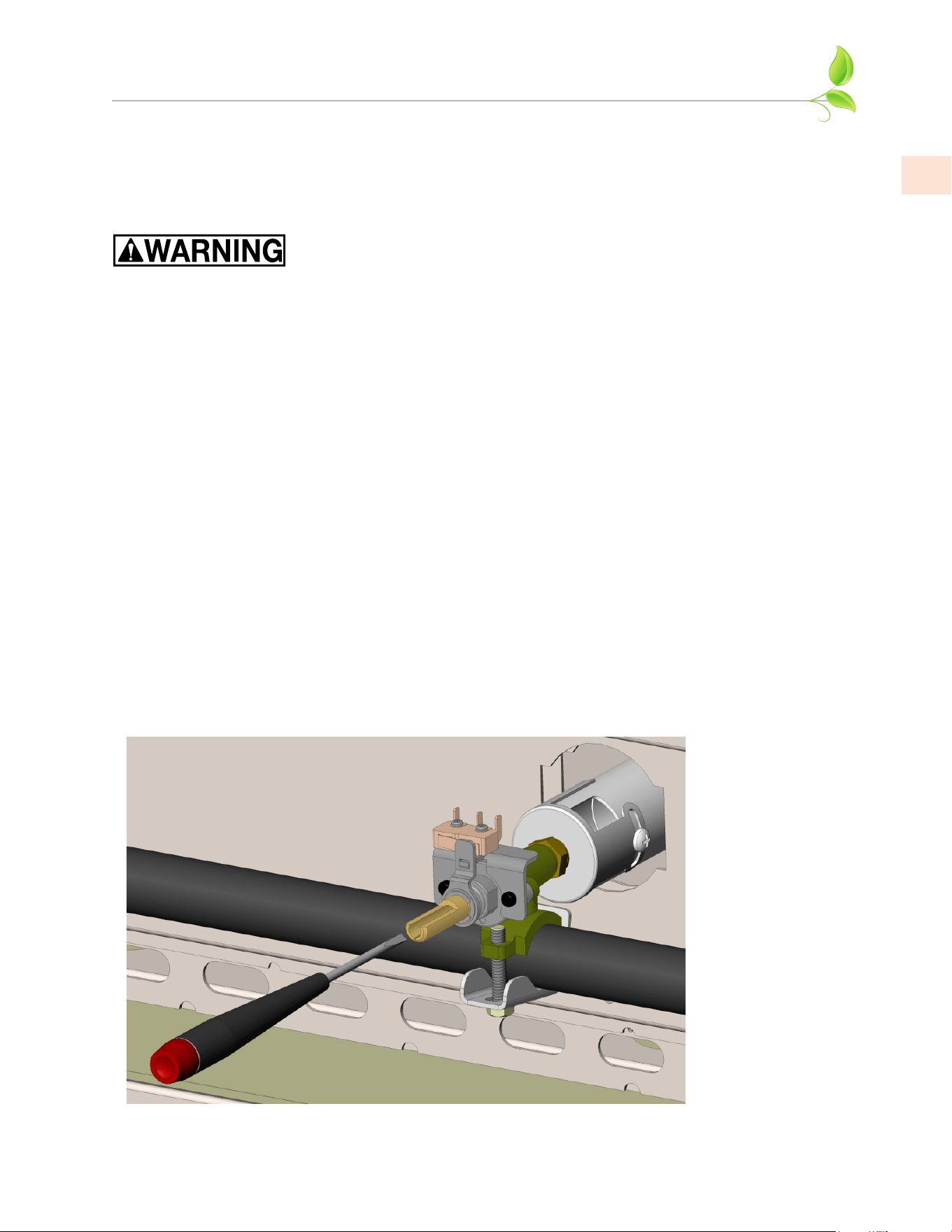

VALVE ADJUSTMENTS

The valves on your Hestan grill are preset at the factory for optimum performance. However, the

low setting on these valves are adjustable if altitude, low-heat performance, converting from one

gas to another, or other factors indicate an adjustment is needed. It is not recommended to adjust

the Rotisserie or Sear Burner valves.

NEVER ADJUST THE BURNER SO LOW THAT IT MAY GO OUT DURING USE.

DO NOT OPERATE THE GRILL WITH THE LOW HEAT SCREW REMOVED. GAS

CAN ESCAPE AND CAUSE A POTENTIALLY HAZARDOUS CONDITION.

ADJUSTMENT STEPS:

1. Remove the control knobs, drip tray, and control panel from the unit.

2. Follow lighting instructions by setting the control knob on “HI” and allow the burner to

preheat for 10 minutes.

3. Turn the control knob to “LOW” and wait for the burner temperature to drop and stabilize,

about 10 minutes. Attempting adjustment at any setting other than LOW can create a

dangerous condition.

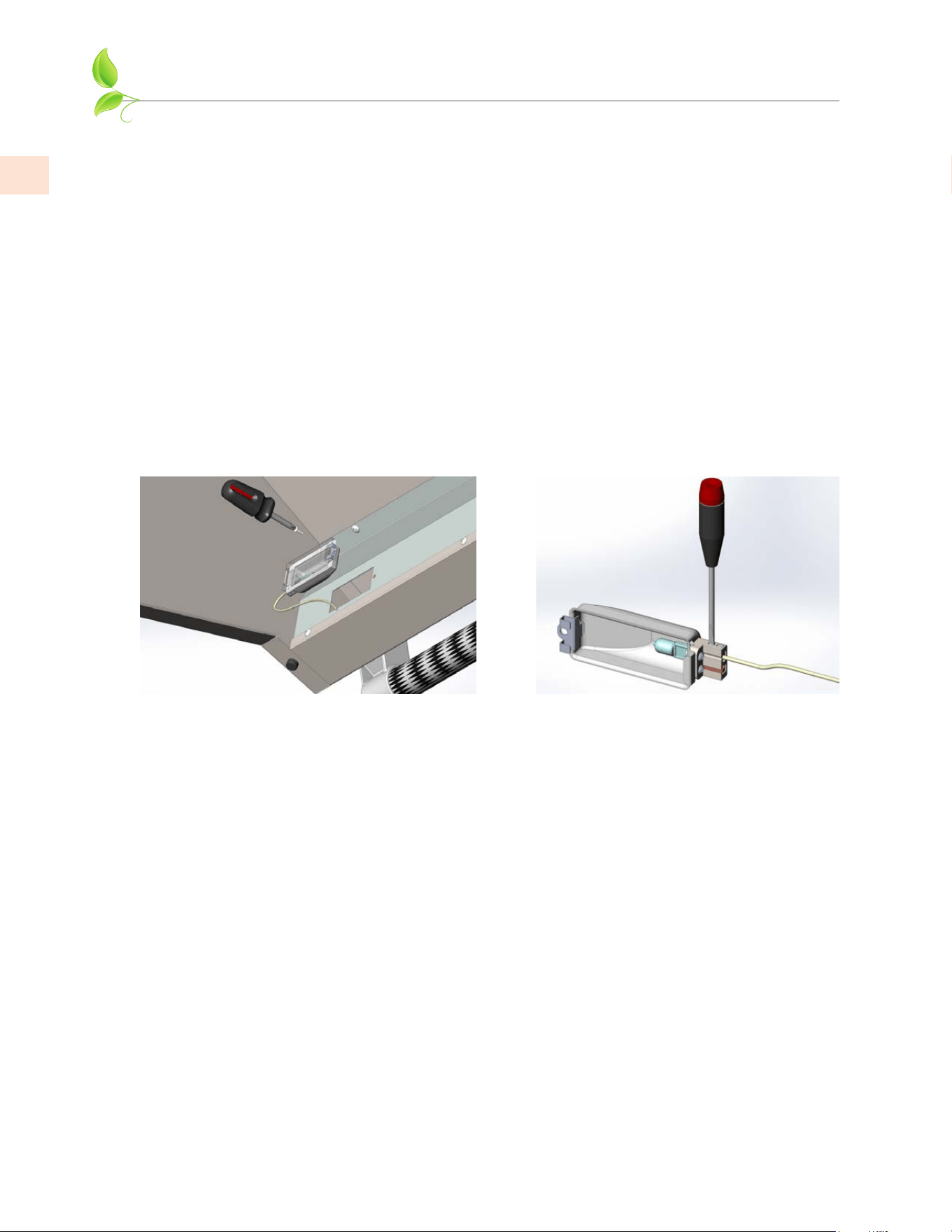

4. Insert a small flat-blade screwdriver into the valve stem to begin the adjustment

(see Fig. 5). The screw only has 2-3 complete revolutions of adjustment. After this, the screw

may continue to turn, but is actually coming out of the valve and could result in a gas leak. DO

NOT turn more that 3 revolutions!

5. Turn counter-clockwise very slowly to INCREASE the low flame. The flame will take a few

seconds to respond to the adjustments you are making.

6. Adjust the flame so the burner is still fully lit on all ports, without fluttering or going out. Turn

off the burner and re-light. Check the new low setting once again to assure proper adjustment

is reached. Reattach the control knob.

GAS CONNECTIONS

(continued)

Figure 5

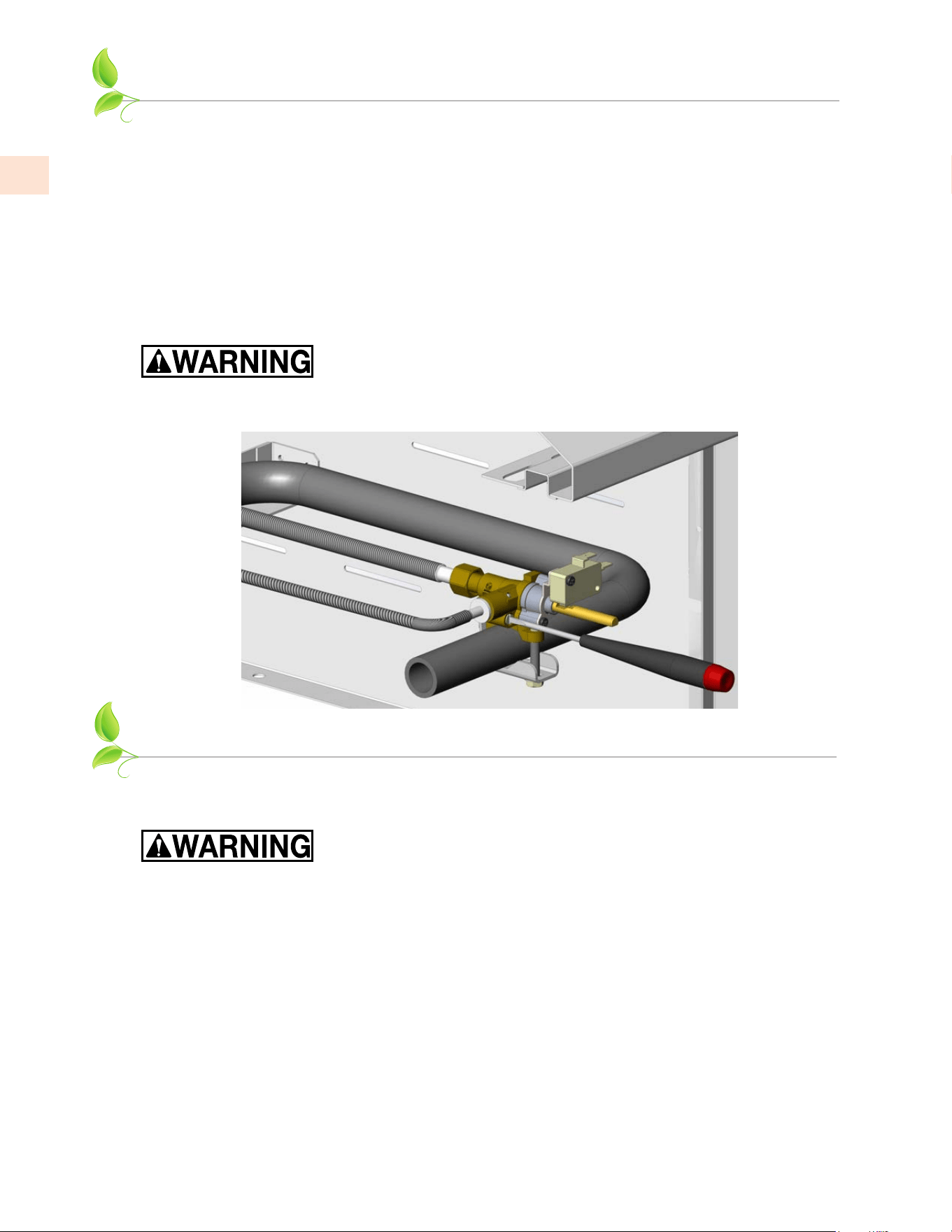

INFRARED BURNER FLAME ADJUSTMENT

Infrared burners do not require adjustment and need only be checked visually for proper

performance. On HIGH, an infrared burner should glow red evenly over its entire surface. A

diminished red glow and/or a large blue “halo” of flame on the surface of the infrared burner

indicates improper airflow or a blockage at the burner itself. Call for service.

SIDE BURNER FLAME ADJUSTMENT

Hestan side burners are preset at the factory for optimum performance. However, these valves also

feature a low flame (simmer) adjustment if altitude, low-heat performance, converting from one

gas to another, or other factors indicate an adjustment is needed. Follow the same procedure as

described above for Trellis Burner

™

valve adjustment.

NEVER ADJUST THE SIDE BURNER SO LOW THAT IT MAY GO OUT DURING USE.

GAS CONNECTIONS

(continued)

ELECTRICAL SUPPLY

Important: This appliance must be electrically grounded in accordance with local codes, or in the

absence of local codes with the National Electrical Code,

ANSI/NFPA 70-1990

Appliances equipped with a flexible electrical supply cord are provided with a three-prong

grounding plug. It is imperative that this plug be connected to a properly grounded three-prong

receptacle. If the receptacle is not the proper grounding type, contact an electrician. Do not

remove the grounding prong from this plug.

The grill is designed for 120 volt AC power and must be plugged into a Ground Fault Circuit

Interrupter (GFCI) protected circuit. Do not connect the appliance to the electrical supply until

after gas connections have been made and leak checks have been performed.

KEEP ANY ELECTRICAL CORD AND FUEL SUPPLY HOSE AWAY FROM ANY HEATED KEEP ANY ELECTRICAL CORD AND FUEL SUPPLY HOSE AWAY FROM ANY HEATED

SURFACES.SURFACES.

1. To protect against electric shock, do not immerse cord or plugs in water or other liquid.

2. Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on

or taking off parts.

ELECTRICAL SUPPLY

(continued)

3. Do not operate any outdoor cooking gas appliance with a damaged cord or plug, or after the

appliance malfunctions or has been damaged in any manner. Contact the manufacturer for

repair.

4. Do not let the cord hang over the edge of a table or touch hot surfaces.

5. Do not use an outdoor cooking gas appliance for purposes other than intended.

6. Use only a Ground Fault Circuit Interrupter (GFCI) protected circuit with this outdoor cooking

gas appliance.

7. Never remove the grounding prong or use with a 2-prong ground adapter.

8. Use only extension cords with a 3-prong grounding plug, rated for the power of the equipment,

and approved for outdoor use with a W-A marking.

ELECTRICAL BOX

IMPORTANT - READ ALL INSTRUCTIONS BEFORE YOU BEGIN

Some parts have sharp edges. Care must be taken when handling the various components to avoid

personal injury. Wear gloves when handling.

The electrical box is mounted inside the Deluxe cart on the rear wall of the unit. If a fuse should

blow and need to be replaced, you can access the fuses by removing the electrical box access panel

at the rear of the unit.

The appliance is designed for 120 volt AC power and must be plugged into a Ground Fault Circuit

Interrupter (GFCI) protected circuit. Do not connect the appliance to the electrical supply until

after gas connections have been made and leak checks have been performed.

KEEP ANY ELECTRICAL CORD AND FUEL SUPPLY HOSE AWAY FROM ANY HEATED

SURFACES.

LIGHTING INSTRUCTIONS

Hestan Grills feature hot-surface igniters for all Trellis Burners

™

, and infrared Rotisserie and Sear

Burners. The hot-surface igniters feature a “time-extender” function which maintain the hot glow

of the igniter for a longer period of time to ensure successful lighting of the burners.

Note:Note: The time extender feature applies to the main burners only, not the rotisserie.

The Side Burner features a spark-ignition system with flame-sensing technology which will relight

the flame should it go out.

All burners can be manually lit should that become necessary.

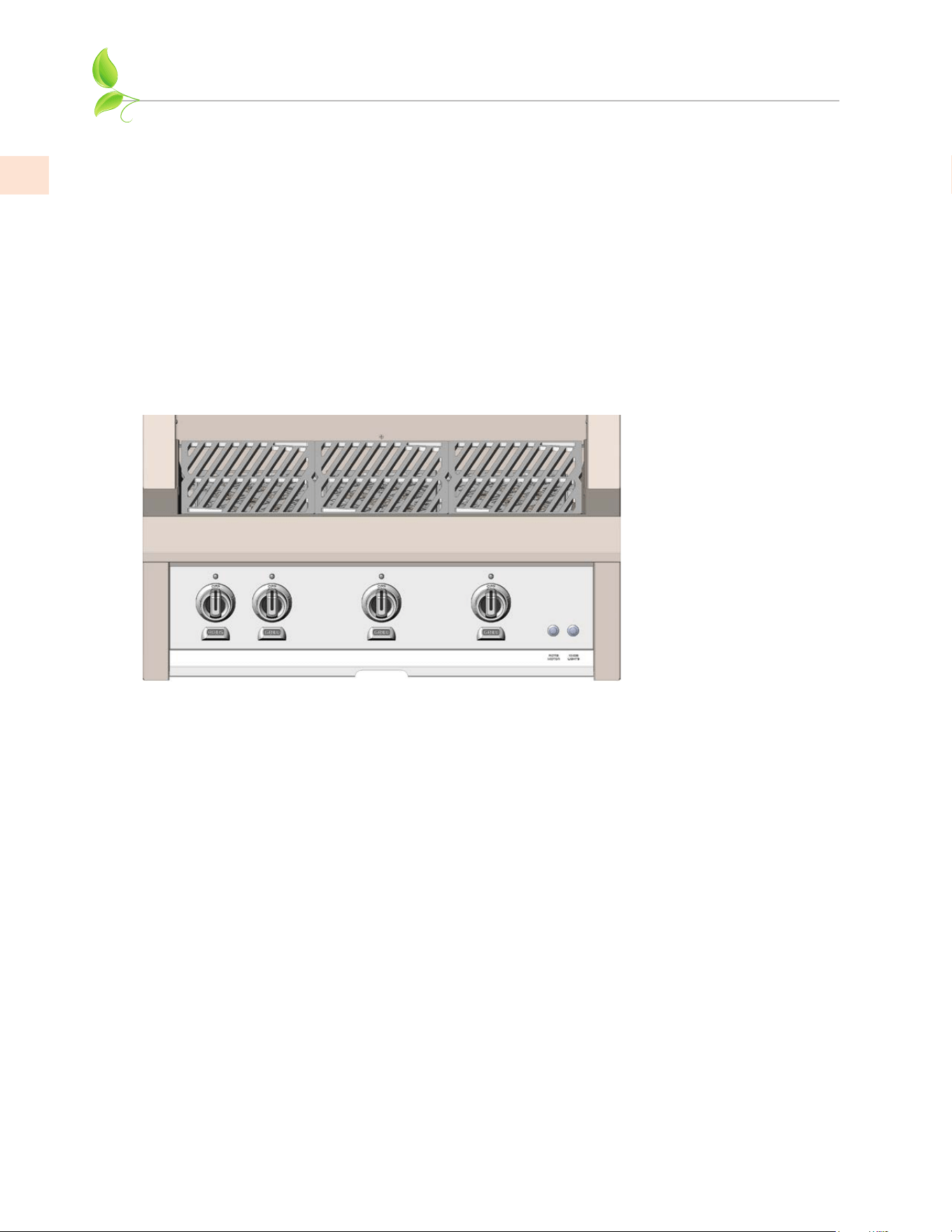

CONTROL KNOB LAYOUT

Seen here is a typical layout (36” model shown, Fig. 6) for the control knobs. The rotisserie control

is always to the far left side. Control panel LED lights and rotisserie motor switches are on the far

right.

The lighting instructions for all burners are visible when you pull out the drip tray.

LIGHTING GRILL BURNERS (Trellis Burner

™

or Sear Burner)

1. Read Use & Care Manual before lighting. Open lid during lighting. Stand as far away as

possible when lighting.

2. Push & hold selected knob for 5 seconds, then turn to “HIGH”. Burner should light. Once lit,

adjust flame as needed.

3. If burner does not light in 5 seconds, turn knob to “OFF” and wait 5 minutes before

re-lighting.

4. If burner fails to light, see USE & CARE MANUAL for match lighting instructions.

LIGHTING ROTISSERIE BURNER

1. Push & hold the knob for 5 seconds, then turn to the “HIGH”. Continue to hold in the knob for

at least 30 seconds after lighting. Rotisserie burner should stay lit and begin to glow. Release

the knob, burner should stay on.

2. If burner does not stay lit, turn knob to “OFF” and wait 5 minutes before re-lighting.

3. If burner fails to light, see USE & CARE MANUAL for match lighting instructions.

Figure 6

LIGHTING SIDE BURNERS

1. Remove cover during lighting.

2. Stand as far away as possible when lighting.

3. Push and turn selected knob to “HIGH” position. Igniter will spark until flame is established.

4. Once lit, turn knob to desired flame setting. If spark does not occur, check electrical supply.

5. If burner does not light in 5 seconds, turn knob to “OFF” and wait 5 minutes before re-lighting.

6. If burner fails to light, see match lighting instructions below.

Note:Note: The flame-sensing technology of the spark igniter will repeatedly spark (clicking sound) until

a flame is established. If you experience nuisance sparking during normal operation of the burner,

see the TROUBLESHOOTING section of this manual. A very low flame in windy conditions is

usually the cause of this nuisance sparking.

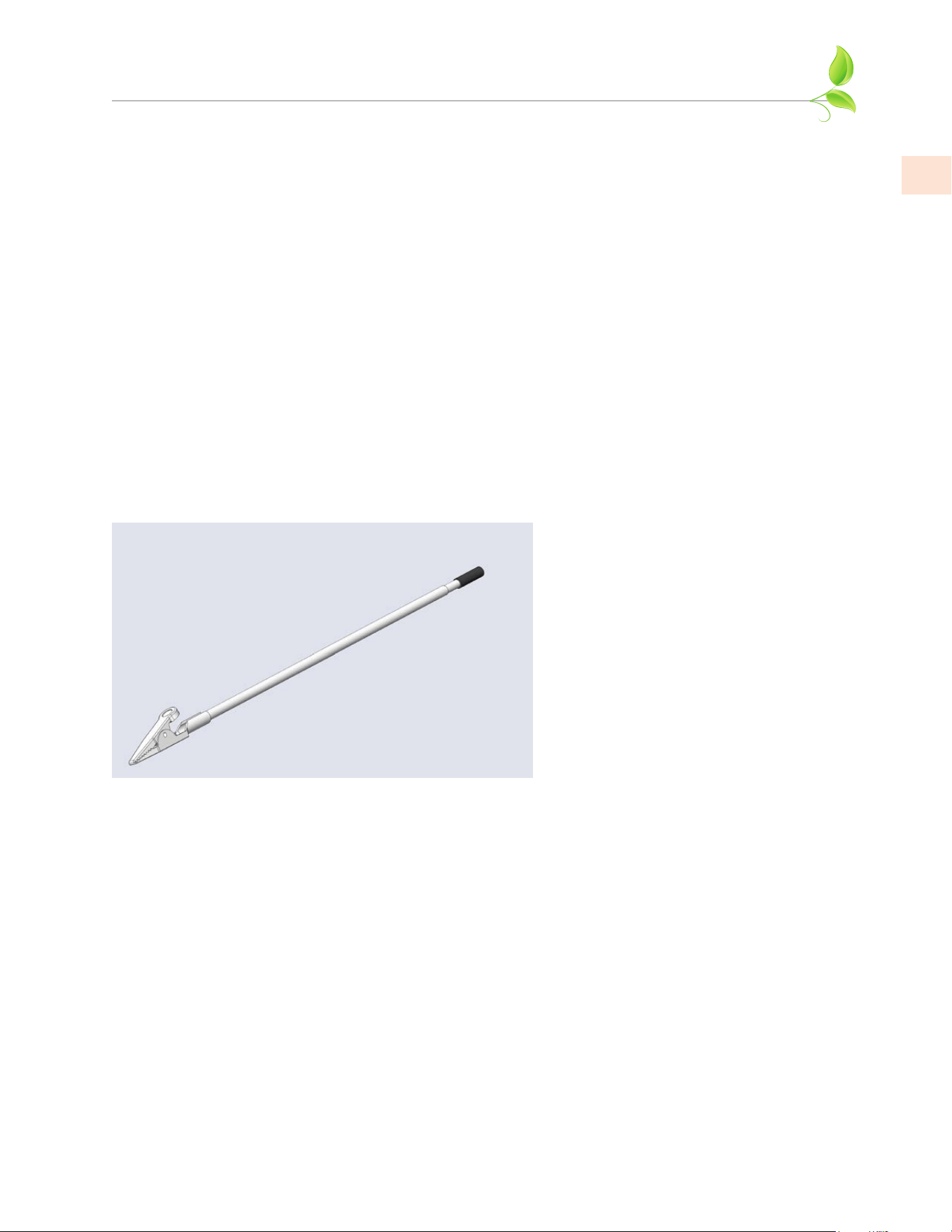

MATCH LIGHTING INSTRUCTIONS

If a burner will not light after several attempts, it can be lit with a match. Open the hood and allow

5 minutes for any accumulated gas to dissipate from the grill. Use a long-stem fireplace match, or

attach a short match to the match lighting clip provided with your Hestan Grill

(see below Fig. 7).

Figure 7

When attempting to light a burner with a match, be sure you selected the correct control knob for

that burner. Keep your face away as far as possible, and pass the lit match through the openings of

the cooking grates and radiant trays and position near the burner ports. Push and turn the control

knob to “HIGH” until the burner lights. Repeat this procedure for each burner if necessary. If

the burner does not light in 5 seconds, turn the control knob to “OFF” and wait 5 minutes before

trying again. If the burner will not light after several attempts, see the TROUBLESHOOTING

section of this manual. Side burners can be lit in the same manner, although a long match may not

be needed.

In sunny locations, infrared Rotisserie and Sear Burners may be difficult to see if they are lit. After

attempting to light, you can very carefully wave your hand 8-10 inches [20-25 cm] away from the

burner surface to feel the heat of the burner. If there is no heat, OR IF YOU SMELL GAS, shut off

the control knob and wait 5 minutes before attempting to re-light.

LIGHTING INSTRUCTIONS

(continued)

WE WILL NEVER BE

SATISFIED WITH THE

STATUS QUO;

WE ARE THE

RESTLESS ONES,

THE DREAMERS,

THE TINKERERS.

USING YOUR GRILL

Your Hestan Grill is a powerful and versatile cooking tool. Traditional grilling requires high heat

for searing and proper browning. Many meats are initially cooked on “HIGH” to sear / brown the

meat and lock in juices. After that, the temperature can be lowered to complete the cooking, such

as with large pieces of meat or poultry. This method will cook the food through without burning

the outside. Traditional barbecuing (foods cooked for a long time at low heat) is also possible with

your Hestan Grill. As with any new tool, it will take a little practice to get to know your new grill,

how hot it runs, cooking times for your favorite foods, etc. DO NOT leave the grill unattended

while cooking.

PREHEATING

A typical preheat time for the Trellis Burner

™

is about 10-15 minutes on “HIGH”. The infrared

Rotisserie and Sear Burners also require 10-15 minutes pre-heat time.

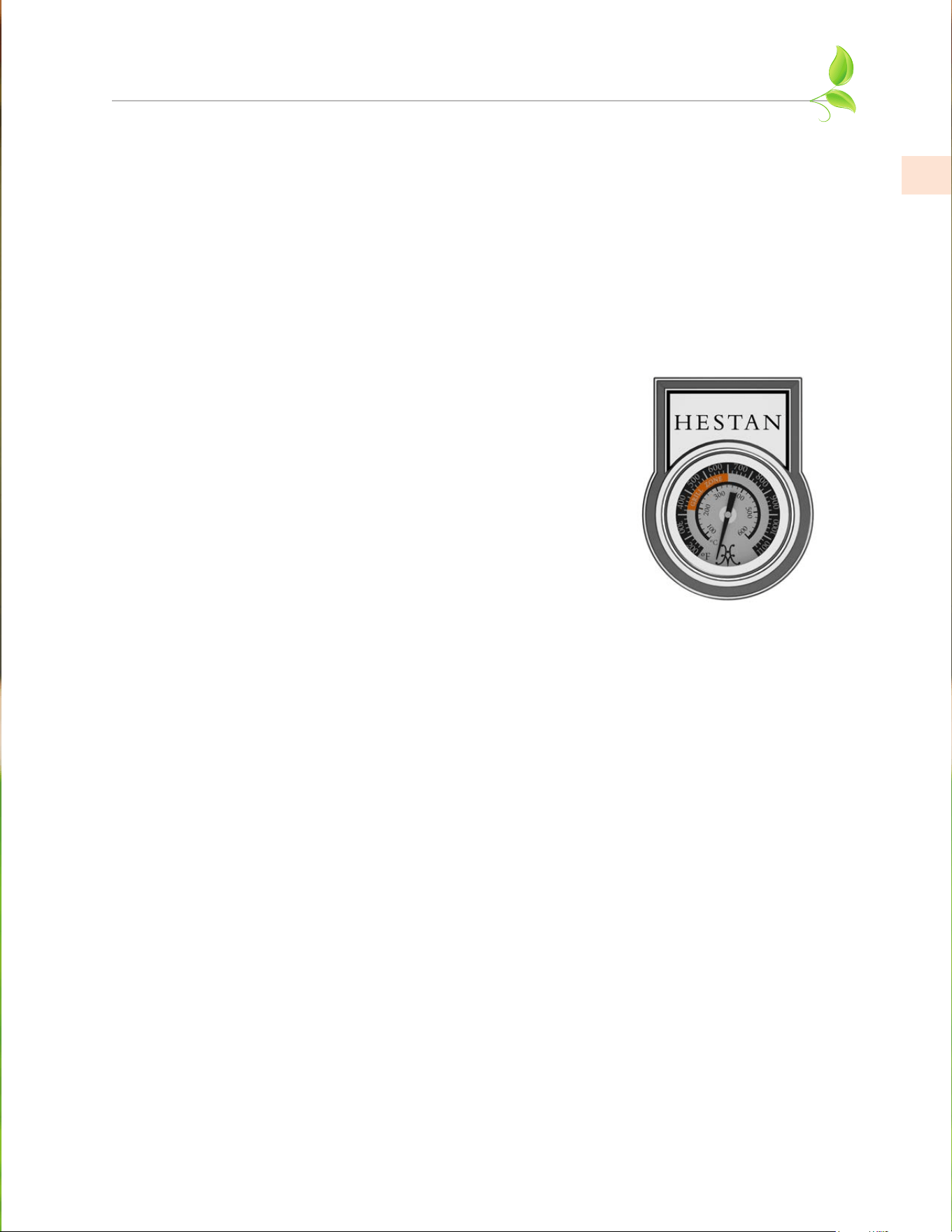

TEMPERATURE GAUGE

The large temperature gauge in your Hestan grill hood indicates

when your grill is ready for cooking. The dial reads the air

temperature in your grill, but is calibrated to approximate the

temperature at the cooking surface. (see Fig. 8)

COOKING WITH TRELLIS BURNERS

™

AND SEAR

BURNERS

The unique shape of the Hestan Trellis Burner was designed

with even heating in mind. The burners, along with the specially

designed valves, allow for a broad range of cooking temperatures.

The Trellis Burner can sear and grill your meats on high heat, or be

dialed down low for authentic barbecuing. The radiant briquette

trays are an integral part of this cooking system. They serve to

even out the heat, while also reducing flare-ups and vaporizing

drippings which release aromas that are absorbed by the meat.

For those seeking a little more, the extreme heat of the Hestan Infrared Sear Burners offer even

more power for those wishing a quick sear to lock in flavor, while still retaining temperature

control. However, your grilling times are much shorter. The mesh screen on the burners serve to

protect the ceramic tiles from food debris and drippings which might clog the thousands of pores

in the tiles. Most drippings and grease will instantly vaporize on contact with the hot screen and

tiles.

COOKING WITH THE ROTISSERIE

Rotisserie cooking provides an even delivery of heat to your foods. The constant rotation not only

cooks foods evenly, it also self-bastes the food as the juices rise to the surface and naturally flow

around it. The position of the Hestan rotisserie burner ensures no flare-ups are possible and heat

is not directed at you when the hood is open. Your foods will be more evenly cooked, more tender,

and juicier when slow-roasted on a Hestan rotisserie.

Before rotisserie cooking, swing the warming rack down and out of the way. It will rest in place

against the rear wall, or it can be removed from the grill. A roasting pan is provided with your grill

to catch excess drippings from clogging your burners below. Be sure you remove it after using your

rotisserie and before using the other burners.

The Hestan rotisserie system consists of three main parts: the motor, the spit & forks, and the

infrared Rotisserie Burner.

THE MOTOR

Your Hestan Grill features an integral, chain-driven, AC motor which can handle a load of 50

in-lbs and a maximum diameter of 10 inches [25 cm]. The Grill must be connected to AC power for

the rotisserie to work. The speed is not adjustable but should provide a respectable speed for the

majority of your rotisserie cooking needs.

Figure 8

THE SPIT & FORKS

The rotisserie can handle large food items up to 50 lbs. You should prepare your food items and

first mount it on the spit, then mount the forks. Push the pointed end of the spit through the food

and center on the spit. Push on one fork and embed into the food, then tighten the thumb screw

(use pliers if necessary). Repeat this process for the opposite fork. You should wrap any loose,

dangling pieces of food (like wings) with butcher’s string (never use nylon or plastic string).

With the food secured to the spit, slowly roll the spit in the palms of your hands to check for

balance. It should rotate smoothly. If you find it has a heavy side, adjust where the spit pierces the

meat. An unbalanced spit will cause uneven rotation and uneven cooking. It is normal for the spit

to flex with large foods during cooking.

Then mount the spit on the grill before lighting the rotisserie infrared burner. Lighting the burner

first could result in burning your hands while trying to mount the spit in the grill. Insert the

pointed end of the spit into the square drive receiver in the right wall of the grill, and rest the other

end on the rollers on the left wall of the grill. Turn on the motor to check the rotation and balance

of the food on the spit. Make adjustments as needed.

THE ROTISSERIE BURNER

The Hestan infrared rotisserie burner features a safety valve that automatically shuts off the gas

flow any time the burner is not properly lit, such as if it were to go out in windy conditions. The

location of the rotisserie burner should be less susceptible to strong wind conditions, but during

windy conditions, it’s best to keep the hood closed and to periodically check the burner. To light

the burner, see the LIGHTING INSTRUCTIONS section of this manual.

NOTICE:NOTICE: Avoid directing water on the Rotisserie Burner as this may damage the ceramic burner

panels. Water damage to your Rotisserie Burner is not covered by the warranty.

NOTE:NOTE: The grill thermometer should not be used for rotisserie cooking. It is not designed to read

direct infrared heat.

COOKING WITH SIDE BURNERS

Your Hestan Side Burner is a powerful cooking tool that complements your Hestan Grill. DO NOT

leave the Side Burner unattended while cooking.

Use your Hestan Side Burner like you would any residential gas cooktop in your home. Choose the

appropriate pot or pan for the burner. In other words, don’t put a small pot over a large burner.

For safety reasons, control the flame height so that it doesn’t go beyond, or curl up the sides of

your pot or pan. This behavior results in poor heating of the contents of the pan, burnt food on

the sides of the pan, wasted fuel, etc.

WOOD CHIP SMOKER

By using real wood chips in the smoker system of your Hestan grill, you can add extra flavor to all

of your grilled foods.

1. Soak the wood chips for at least 30 minutes before you plan to use the smoker. Drain

completely.

2. Fill the smoker tray with the drained wood chips.

3. Place the smoker tray on the cooking grate where the temperature is correct to smolder the

chips, not burn them. You do not want the chips to ignite. Smoke should begin in about

20-30 minutes.

4. When there is no more smoke, use the removal tool supplied with the smoker tray to carefully

remove it from the grill. Allow it to cool completely before attempting to refill the tray with

more chips.

USING YOUR GRILL

(continued)

STAINLESS STEEL CARE

Stainless Steel is widely used for catering and residential kitchen equipment because of its

strength, its ability to resist corrosion, and its ease of cleaning. Unfortunately, the metal is often

taken for granted and it is assumed that no problems will arise during its usage. However, some

care is required to ensure a long service life of the grill.

To maintain the original appearance of your Hestan grill, a regular cleaning routine should be

carried out using the following guidelines:

1. After use, following the safety precautions detailed earlier in this manual, wipe the grill with a

soft, damp, soapy cloth and rinse with clean, warm water. This should remove most substances

encountered during the grilling process.

2. For stubborn stains, including burnt-on grease and food-borne deposits, use a multipurpose,

non-abrasive, cream cleanser and apply with a soft damp cloth. Rinse with fresh water, as

described above. On no account should steel wool pads be used unless they are made of

stainless steel.

3. Harsh abrasives and metallic scouring materials should not be used for cleaning stainless steel

as they will leave scratch marks in the surface and damage the appearance of the grill. Likewise,

do not use wire brushes, scrapers or contaminated scouring pads.

4. For those areas with a directional grain, any cleaning with abrasives should be carried out along

this grain direction and not across it.

5. After use, always remove wet cleaning aids (such as cloths, pads, containers) from the surface,

to avoid formation of water marks or stains.

6. If required, dry the grill after use with a soft dry cloth or towel.

If the preceding guidelines are adhered to, your Hestan grill should offer excellent life and should

live up to its reputation of being “stainless”. Neglect of this practice, however, can lead to

deterioration of the surface and, in some extreme cases, corrosion of the steel itself. The two most

common types of corrosion that may be encountered, particularly on stainless steel, are rust marks

and pitting of the surface.

RUST-BROWN MARKSRUST-BROWN MARKS

These rust marks are likely the result of small particles of “ordinary-steel” which have become

attached to the surface and have subsequently rusted in the damp environment. The most common

source of such particles is from steel wool scouring pads, but contamination may also occur from

carbon steel utensils and old water supply pipes. These brown marks are only superficial stains,

which will not harm the grill. They should be removable using a soft damp cloth and a multi-

purpose, non-abrasive, cream cleanser. Occasionally, it may be necessary to resort to a proprietary

stainless steel cleanser to return the surface of the grill to its original condition. To avoid re-

occurrence of any “rust-staining”, it is essential that the source of the contamination is eliminated.

A Hestan grill cover will go a long way toward preventing this kind of contamination.

PITTINGPITTING

A more severe form of corrosion is pitting of the surface. The sources of this corrosive attack can

usually be attributed to certain household products such as bleach, household cleaners containing

bleach (sodium hypochlorite), and pool chlorine. If you see pitting of the stainless steel surface,

you can attempt to buff it out using stainless steel abrasive pads, but in most cases, pitting of the

surface cannot be removed.

FOODSTUFFSFOODSTUFFS

In general, stainless steel is fully resistant to all foodstuffs in common use. Only in isolated cases,

such as when concentrated salt and vinegar mixtures are allowed to remain in contact with the

steel for a prolonged period, can any surface marking result. Clean the surface as per instructions

above.

CLEANING AND MAINTENANCE

CARE OF PAINTED SURFACES (IF APPLICABLE)

Hestan grills are available in standard stainless steel, or 11 optional colors. The tough powder-

coating on these panels are commonly used on automotive parts, and commercial and residential

appliances because of their excellent chip resistance, and resistance to a variety of chemicals. The

finish should hold up well outdoors in most conditions. However, like any painted surface, special

care must be taken when cleaning this finish.

To clean your powder coated surface:

1. Carefully remove any loose deposits with a wet sponge.

2. Use a soft brush (non abrasive) or cloth, and a mild household detergent solution to remove

dust, salt and other deposits. Never use any solvent-based cleaners, stainless steel cleaners,

heavy degreasers, oven cleaners, etc. on the painted surfaces. They can permanently damage

the paint.

3. Rinse off with clean fresh water and dry with a clean cloth.

CARE & MAINTENANCE OF GRILL COMPONENTS

GRILL GRATE AND WARMING RACKGRILL GRATE AND WARMING RACK

The easiest way to clean the cooking grates is immediately after cooking is completed and after

turning off the flame. Wear a grill mitt to protect your hand from the heat and steam. Dip a brass

bristle grill brush in hot soapy water and scrub the hot grill rack. Dip the brush frequently in the

bowl of water. The steam created as water contacts the hot grill, assists the cleaning process by

softening any food particles. The food particles will fall through the grates and burn. If the grill is

allowed to cool before cleaning, then cleaning will be more difficult.

DRIP TRAYDRIP TRAY

The drip tray should be cleaned after every usage of the grill. Leaving a dirty drip tray in place will

attract insects and rodents. After allowing the grill to cool completely, remove the drip tray by

pulling it out of the grill. After cleaning, reinstall the tray.

GRILL BURNERSGRILL BURNERS

The briquette radiant trays should protect the Trellis Burners

™

completely. However, it may

become necessary to clean the burners, or to clean the firebox beneath the burners. Before

removal, make sure the gas supply is OFF and the control knobs are in the OFF position. Allow the

grill to cool completely, then lift off the cooking grates and radiant trays. To remove burners, lift

the rear of the burner out of the hanger bracket slightly, then rotate the burner to the left slightly

to clear the igniter shroud at the front of the firebox, then move the burner toward the rear of

the firebox until it is out. The burner is made out of a high-grade, 300-series stainless steel which

can be cleaned with a brass-bristle brush and warm, soapy water. Do not clean the ports with a

toothpick or other item which may break off inside the port. Use a paperclip or needle to do this.

Stubborn scale can be removed with a metal scraper. Be sure to rinse everything well and shake out

any water and debris trapped inside the burner tube.

Great care should be used when re-installing the burner. It must be correctly centered and secured

on the orifice before any attempt is made to relight the grill. The rear burner bracket should lie

flat and not have any side-to-side movement. See the LOCATING AND ASSEMBLY section of this

manual for details on proper burner installation.

ROTISSERIE BURNER CLEANINGROTISSERIE BURNER CLEANING

Due to the upper location of the Rotisserie Burner, it should not be necessary to clean it, unless

food debris or juices have sprayed onto the tiles. Should this happen, after removing the food item

& spit, turn the burner back on again for an additional 5 minutes to allow the burner to vaporize

any residue. Do not attempt to clean the tile ports with a toothpick or other item which may break

off inside the port. If needed, you may also wait until the burner has cooled completely and brush

the tile faces to remove any accumulated ash.

NOTICE:NOTICE: Avoid directing water on the Rotisserie Burner as this may damage the ceramic burner

panels. Water damage to your Rotisserie Burner is not covered by the warranty.

CLEANING AND MAINTENANCE

(continued)

SEAR BURNER CLEANINGSEAR BURNER CLEANING

When used correctly, it should not be necessary to clean Hestan Infrared Sear Burners. The hot

screen and tiles vaporize anything that falls on them. However, if food debris or drippings were

to fall on an unused (not lit) Sear Burner, you can remove the mesh screen and brush the screen

and tiles with a stiff brush. Be sure to do this only when completely cooled down. DO NOT use a

metal scraper on the tiles, or put a lot of pressure on the tile faces as they may crack. Alternatively,

you can turn on the sear burner to burn everything off.

NOTICE: NOTICE: Avoid directing water into the Sear Burner as this may fill up the inside of the burner

housing with water, not allowing it to burn properly. Water intrusion could also damage the

ceramic tiles. Water damage to your Sear Burner is not covered by the warranty.

ORIFICE CLEANINGORIFICE CLEANING

You will need to remove the burner first. It may also be helpful to remove the control panel to

get a better look at the orifice (see Fig. 9). Take note of how far the orifice is tightened onto the

valve. With the burner removed, remove the orifice from the valve and shine a flashlight through

the opening to ensure there is no blockage. Use a sewing needle to clear any debris. Be extremely

careful not to enlarge the hole or break off the needle. Once clean, be sure to carefully thread the

orifice onto the valve by hand, then use a wrench or deep socket wrench to tighten it securely to

the same position as before. Replace the burner as per previous instruction.

IGNITERSIGNITERS

The hot-surface igniters on your Hestan Grill do not require any maintenance and are well

protected from debris falling on them.

CLEANING THE BRIQUETTES AND TRAYS CLEANING THE BRIQUETTES AND TRAYS

After allowing the grill to cool completely, turn the radiant tray upside-down and operate the

grill on high for 30 minutes. The trays are “double sided” and can be left this way to burn off any

encrusted food or grease. The trays can occasionally be scrubbed clean with mild soap & water

and a plastic bristle brush. Allow them to cool completely, never handle hot trays. Replace the

briquette trays, ensuring that they sit level and do not rock. Light all of the burners and check for

proper flame characteristics.

CLEANING AND MAINTENANCE

(continued)

Figure 9

LIGHT BULB REPLACEMENTLIGHT BULB REPLACEMENT

1. Disconnect the power to your grill before any service or light bulb replacement. Be sure the

grill and the lights are completely cool. Halogen lights get extremely hot.

2. Open hood and remove the small screw holding the lamp assembly in place (Fig. 10). Remove

the lamp assembly, being careful not to drop the glass lens.

3. If needed, use a small flat-blade screwdriver to carefully pry off the lens and set aside. Loosen

the 2 screws closest to the lamp housing (Fig. 11). These screws hold the bulb in place. The

bulb should come out easily. The bulb is a 20W halogen “Bi-Pin” type, available at most

hardware stores & home centers.

4. Before installation, it is very important to clean the new bulb carefully with a clean, soft cloth,

or tissue paper. Grease, fingerprints, or oils in your skin can leave a residue on the glass surface

of the bulb which will create a hot-spot. The bulb will eventually crack at this hot-spot.

5. While still using a cloth or tissue paper, install the new bulb in the housing and tighten the

screws. Check that the other tiny screws are tight as well.

6. Re-install the lens and return the lamp assembly to the hood. Carefully install the screw to

secure the assembly to the hood.

CLEANING AND MAINTENANCE

(continued)

Figure 10 Figure 11

CARE & MAINTENANCE OF SIDE BURNER COMPONENTS

SIDE BURNER GRATESIDE BURNER GRATE

The easiest way to clean the cooking grate is immediately after cooking is completed and after

turning off the flame. Wear a grill mitt to protect your hand from the heat and steam. Dip a brass

bristle grill brush in hot soapy water and scrub the hot grate. Dip the brush frequently in the

bowl of water. The steam created as water contacts the hot grate, assists the cleaning process by

softening any food particles. If the Side Burner is allowed to cool before cleaning, then cleaning

will be more difficult.

BURNER CLEANINGBURNER CLEANING

Cleaning of the burner assembly itself should only be necessary in the event of a large spillover

which may have clogged the burner ports, etc. When the burner is completely cooled down,

remove the burner cap and clean up whatever debris, food, grease etc. you find using a warm, soapy

water solution. A toothbrush can be used to scrub difficult areas. Wipe with a clean cloth and

reassemble.

IGNITERSIGNITERS

The spark igniter on the Side Burner is partially exposed and can be contaminated in the event

you have a boil-over when using the Side Burner. You can gently clean them with a soapy water

solution and a toothbrush. Wipe down with a clean cloth.

NOTE: NOTE: Rough handling of the igniter can crack the ceramic body, causing it to fail. Handle with

care.

ADDITIONAL CONSIDERATIONSADDITIONAL CONSIDERATIONS

Always keep the area around the Grill and Side Burner free of obstructions and debris. Maintain at

least 12” [30 cm] of space around the appliance to ensure proper airflow, and keep all ventilation

openings clear and free of debris. Clean appliance after each use, and check for blockages,

especially at the burner orifices, after periods of prolonged non-use. To maintain the appearance

of your Hestan grill for many years, keep it covered when not in use. Backyard environments are

harsh on your grills’ finish. Long exposure to sun, water, yard chemicals and the elements could

diminish the appearance of the stainless steel. This is very evident in ocean-front locations.

Our appliance materials have been tested in saline solutions with higher salinity than seawater.

They have also been tested by exposure to highly acidic foods. During and after these tests, we

found these materials were able to withstand exposure over prolonged periods of time. However,

the above-mentioned corrosive substances, along with neglect, can lead to a situation whereby

conditions might combine to cause some damage to occur. Therefore, we suggest that you always

keep your appliance clean, dry and covered when not in use. This is even more important when

long term storage is required. Always store the appliance clean, dry and covered with your Hestan

Grill Cover. A dirty grill will attract insects and rodents which is highly unsanitary. In addition,

rodents are known to chew on the insulation of wiring which will cause permanent damage to the

wiring and possibly electrical components.

For those in desert communities, wind-driven sand is highly abrasive and constant exposure will

eventually pit and scratch the surface. Another reason to keep your Grill and Side Burner covered

when not in use.

CLEANING AND MAINTENANCE

(continued)

TROUBLESHOOTING GUIDE

Symptom Check

Burner will not light Gas supply not on / shutoff valve closed

LP gas cylinder empty

Power cord not plugged in, or no power to receptacle, or blown

fuse

Low gas pressure to unit

Burner ports near igniter are obstructed or dirty

Burner not installed correctly on orifice

Defective or clogged burner valve

Incorrect orifice or clogged orifice

Igniter defective (not glowing)

Defective regulator or regulator installed improperly

Burner will not stay lit Burner ports obstructed or dirty

Vent plugged on regulator or regulator installed improperly

Windy conditions

Low gas pressure

Slow to heat up Low gas pressure or low LP cylinder

Burner ports are obstructed or dirty

Defective or clogged burner valve

Incorrect orifice or clogged orifice

Gas Odor Burner went out or did not light

Loose or broken gas line

Ruptured pressure regulator

Burner not installed correctly on orifice

Poor combustion, air-fuel mixture not adjusted properly

Obstructed/dirty burner ports

Burner not working well / lazy

or yellow flame

Burner ports are obstructed or dirty, check for spider webs

Poor combustion, air-fuel mixture not adjusted properly

Gas pressure incorrect / incorrect regulator

Orifice sized incorrectly for gas type

Rotisserie will not light or will

not stay lit

Not holding in the control knob long enough

Windy conditions

Igniter defective (not glowing)

Power cord not plugged in, or no power to receptacle

Interior halogen lights not

working

Power cord not plugged in, or no power to receptacle

Check for burned-out bulb or fuse

Control panel LED lights not

working

Power cord not plugged in, or no power to receptacle

Check fuse on electrical box.

Rotisserie motor not working Power cord not plugged in, or no power to receptacle

Obstruction or broken chain-drive mechanism – call for service

Side burner will not light See “Burner will not light” above

Nuisance clicking of side

burner

Windy conditions

Flame too low

Food debris on electrode

WIRING SCHEMATIC

COM

12VDC OUT

120VAC IN

LED DRIVER

12VAC, 4.17A

XFMR

50VA

N (WHT)

L (BLK)

120VAC

12VAC, 4.17A

XFMR

50VA

N (WHT)

L (BLK)

120VAC

L(BLK or BRN)

N(WHT or BLU)

GND (GRN)

POWER CORD

FUSEFUSE

OUTLET

1 2 3 4

1 2 3 4 5 6

#4 #3 #2 #1

RED (+)

BLK (-)

BLU (N)

BRN (L)

CONN #1

CONN #2

IN-LINE SPLICE

2-PLCS

GND

STUD

HALOGEN

IGNITION

.75A, 250V

BLK

(L)

WHT

(N)

RED

BLK

GRN

WHT

BLK

BLU

BLU BLU BLU BLU

TIME DELAY

RELAY

12V

RED

(+)

BLK

(-)

BRN

(L)

BLU

(N)

TB1

TB2

GRN

BLU

GRN

WHT

BLK

WHT

GRN

WHT

BLK

WHT

BLK

WHT

WHT (N)

BLK (L)

JUMPER

8-PLCS

WHT

BLK

10-PIN

CONN.

8-PIN

CONN.

WHT

BLK

WHT

BLK

WHT

BLK

WHT

BLK

WHT

GRN

REAR

VIEW

CONN #3

WHT (N)

BLK (L)

GRN

4-PIN

CONN.

FOR

-036 & -042

ONLY

-036

FOR

-036

ONLY

FOR

-042

ONLY

-042

-030

GRILL ELECTRICAL BOX (36 & 42”)GRILL ELECTRICAL BOX (36 & 42”)

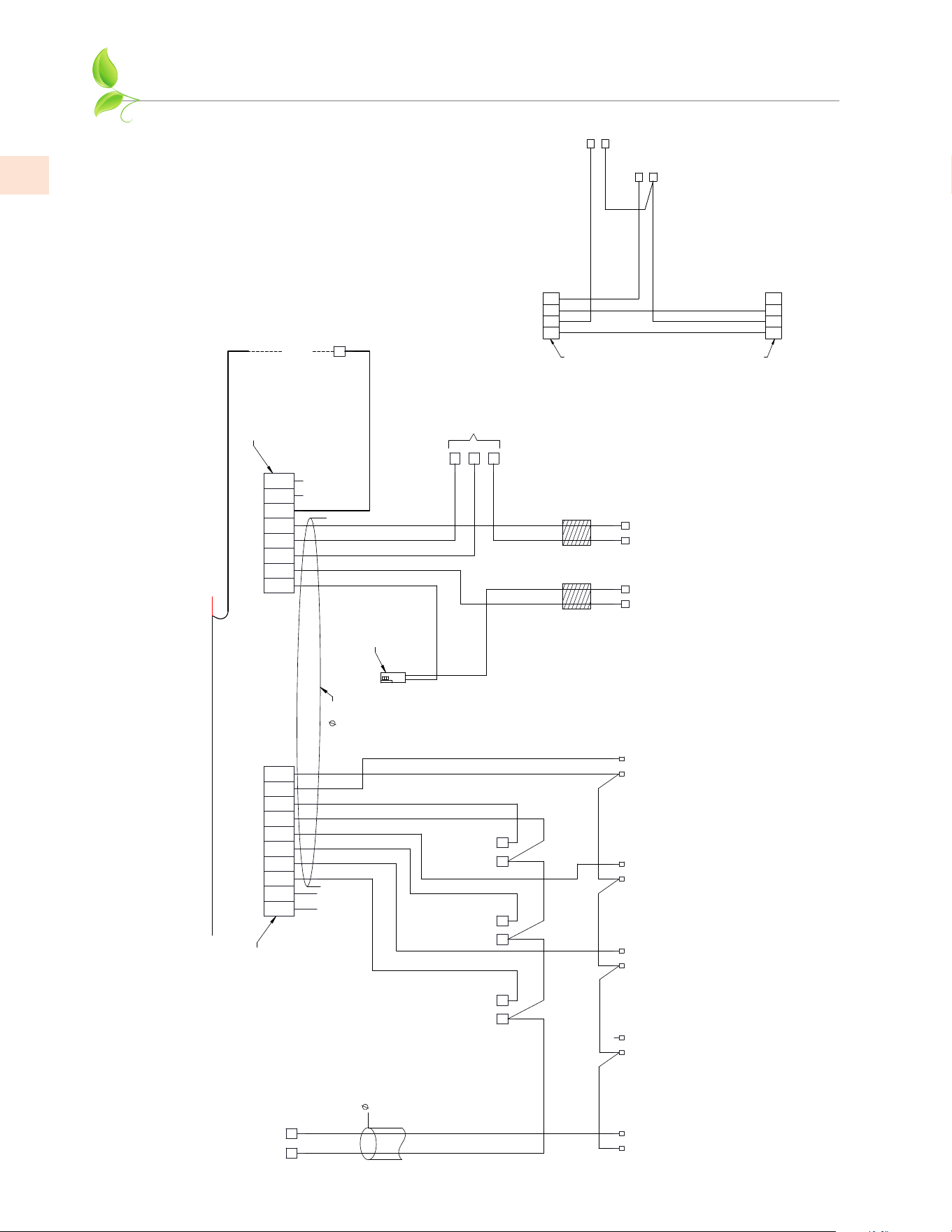

WIRING SCHEMATIC

(continued)

ROTISS

VALVE

LED

SWITCH

ROTISS

SWITCH

2-PIN

FEMALE

CONNECTOR

(-)

(+)

BLK

WHT

BLK

WHT

GRN

WHT

BLK

TAN

WHT

BLK

WHT

N/C

3/8"

SLEEVING

1/2"

SLEEVING

ROTISS

MOTOR

BLK

GRN

WHT

ROTISS

IGNITER

CONN. #1 (TO ELECT. BOX)

CONN. #2 (TO ELECT. BOX)

WHT

BLK

WHT

BLK

WHT

BLK

N/C

BLK

WHT

BLK

WHT WHT

WHT

BLK

WHT

TO HINGE

WIRES

TO LEFT

HALOGEN

LAMP

TO RIGHT

HALOGEN

IGNITER #1

IGNITER #2

IGNITER #3

TO “Y”

CONNECTOR

FOR LED

LIGHTS

10-PIN CONNECTOR

W/ FEMALE PINS

8-PIN CONNECTOR

W/ FEMALE PINS

LAMP

1 2 3 4

CONN. #3 (TO ELECT. BOX)

TO SIDE-BURNER

IGNITER BOX

WHT

GRN

RED

BLK

SIDE-BURNER

VALVE SWITCH

REAR

FRONT

RED

SIDE-BURNER

VALVE SWITCH

4-PIN CONNECTOR

W/ FEMALE PINS

4-PIN CONNECTOR

W/ FEMALE PINS

1 2 3 4

HARNESSHARNESS

36” 36”

WIRING SCHEMATIC

(continued)

ROTISS

VALVE

LED

SWITCH

ROTISS

SWITCH

2-PIN

FEMALE

CONNECTOR

(-)

(+)

BLK

WHT

BLK

WHT

GRN

WHT

BLK

TAN

WHT

BLK

WHT

N/C

3/8"

SLEEVING

1/2"

SLEEVING

ROTISS

MOTOR

BLK

GRN

WHT

ROTISS

IGNITER

CONN. #1 (TO ELECT. BOX)

CONN. #2 (TO ELECT. BOX)

WHT

BLK

WHT

BLK

WHT

BLK

WHT

BLK

WHT

WHT WHT

WHT

BLK

WHT

TO HINGE

WIRES

TO LEFT

HALOGEN

LAMP

TO RIGHT

HALOGEN

IGNITER #1

IGNITER #2

IGNITER #4

IGNITER #3

TO “Y”

CONNECTOR

FOR LED

LIGHTS

10-PIN CONNECTOR

W/ FEMALE PINS

8-PIN CONNECTOR

W/ FEMALE PINS

LAMP

1 2 3 4

CONN. #3 (TO ELECT. BOX)

TO SIDE-BURNER

IGNITER BOX

WHT

GRN

RED

BLK

SIDE-BURNER

VALVE SWITCH

REAR

FRONT

RED

SIDE-BURNER

VALVE SWITCH

4-PIN CONNECTOR

W/ FEMALE PINS

4-PIN CONNECTOR

W/ FEMALE PINS

1 2 3 4

HARNESSHARNESS

42” 42”

SERVICE

All warranty and non-warranty repairs should be performed by qualified service personnel. To

locate an authorized service agent in your area, contact your Hestan dealer, local representative,

or the manufacturer. Before you call, please have the model number and serial number

information ready. This information is shown on the rating sticker affixed to the underside of

the drip tray of your appliance.

Hestan Commercial Corporation

3375 E. La Palma Avenue

Anaheim, CA 92806

(888) 905-7463

PARTS LIST

Please visit the Hestan website to access the parts list for your Hestan Outdoor product:

www.hestanhome.com.www.hestanhome.com.

LIMITED WARRANTY

WHAT THIS LIMITED WARRANTY COVERSWHAT THIS LIMITED WARRANTY COVERS

Hestan Commercial Corporation (“HCC”) warrants to the original consumer purchaser of a

Hestan outdoor gas product (the “Product”) from an HCC authorized dealer that the Product

is free from defective materials or workmanship for a period of one (1) year from the date of

original retail purchase or closing date for new construction, whichever period is longer (“Limited

Warranty Period”). HCC agrees to repair or replace, at HCC’s sole option, any part or component

of the Product that fails due to defective materials or workmanship during the Limited Warranty

Period. This Limited Warranty is not transferable and does not extend to anyone beyond the

original consumer purchaser (“Purchaser”). This Limited Warranty is valid only on Products

purchased and received from an HCC authorized dealer in the fifty United States, the District of

Columbia and Canada. This Limited Warranty applies only to Products in non-commercial use

and does not extend to Products used in commercial applications.

HOW TO OBTAIN WARRANTY SERVICEHOW TO OBTAIN WARRANTY SERVICE

If the Product fails during the Limited Warranty Period for reasons covered by this Limited

Warranty, the Purchaser must immediately contact the dealer from whom the Product was

purchased or HCC at 888.905.7463.

Purchaser is responsible for making the Product reasonably accessible for service or for paying

the cost to make the Product reasonably accessible for service. Service is to be provided during

normal business hours of the authorized Hestan Commercial Service Provider. To the extent

Purchaser requests service outside of the normal business hours of the authorized Hestan

Commercial Service Provider, Purchaser will pay the difference between regular rates and

overtime or premium rates. Purchaser is required to pay all travel costs for travel beyond 50 miles

(one way) from the nearest authorized Hestan Commercial Service Provider.

EXTENSIONS TO ONE YEAR LIMITED WARRANTY PERIOD:EXTENSIONS TO ONE YEAR LIMITED WARRANTY PERIOD:

In addition to the One-Year Limited Warranty, the following components have extended

warranty coverage as specifically set forth below:

1. The Product’s stainless steel grill body, DiamondCut cooking grates and warming rack,

stainless Trellis grill burners, Sear burners and rotisserie infrared burner (where applicable)

are warranted to be free from defects in material and workmanship under normal non-

commercial use and service for the lifetime of the original Purchaser. This excludes surface

corrosion, scratches, and discoloration which may occur during normal use and is limited

to replacement of the defective part(s), with the Purchaser paying all other costs, including

labor, shipping and handling, as applicable.

2. The Product’s spit rod, briquette trays, manifolds, gas valves and sealed burner assemblies

(where applicable) are warranted to be free from defects in material and workmanship,

under normal non-commercial use and service, for a period of five (5) years from the

original date of purchase;. This is limited to replacement of the defective parts, with the

Purchaser paying all other costs, including labor, shipping, and handling, as applicable.

WHAT THIS LIMITED WARRANTY DOES NOT COVER:WHAT THIS LIMITED WARRANTY DOES NOT COVER:

This Limited Warranty does not cover and HCC will not be responsible for and will not pay

for: damage to or defects in any Product not purchased from an HCC authorized dealer; color

variations in color finishes or other cosmetic damage; failure or damage from abuse, misuse,

accident, fire, natural disaster, commercial use of the Product, or loss of electrical power or gas

supply to the Product; damage from alteration, improper installation, or improper operation

of the Product; damage from improper or unauthorized repair or replacement of any part or

component of the Product; damage from service by someone other than an authorized agent or

representative of the Hestan Commercial Service Network; normal wear and tear; damage from

exposure of the Product to a corrosive atmosphere containing chlorine, fluorine, or any other

damaging chemicals; damage resulting from the failure to provide normal care and maintenance

to the Product; damage HCC was not notified of within the Limited Warranty Period; and

incidental and consequential damages caused by any defective material or workmanship.

ARBITRATION:ARBITRATION:

This Limited Warranty is governed by the Federal Arbitration Act. Any dispute between

Purchaser and HCC regarding or related to the Product or to this Limited Warranty shall be

resolved by binding arbitration only on an individual basis with Purchaser. Arbitration will be

conducted by the American Arbitration Association (“AAA”) in accordance with its Consumer

Arbitration Rules or by JAMS. The arbitration hearing shall be before one arbitrator appointed by

the AAA or JAMS. The arbitrator shall not conduct class arbitration and Purchaser shall not bring

any claims against HCC in a representative capacity on behalf of others.

LIMITATION OF LIABILITY:LIMITATION OF LIABILITY:

This Limited Warranty is the final, complete and exclusive agreement between HCC and

Purchaser regarding the Product.

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED

ABOVE. NO WARRANTIES WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT ABOVE. NO WARRANTIES WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT

LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE SHALL APPLY AFTER THE LIMITED WARRANTY PERIOD STATED PARTICULAR PURPOSE SHALL APPLY AFTER THE LIMITED WARRANTY PERIOD STATED

ABOVE. NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM ABOVE. NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM

OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON HCC. HCC OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON HCC. HCC

ASSUMES NO RESPONSIBILITY THAT THE PRODUCT WILL BE FIT FOR ANY PARTICULAR ASSUMES NO RESPONSIBILITY THAT THE PRODUCT WILL BE FIT FOR ANY PARTICULAR

PURPOSE, EXCEPT AS OTHERWISE PROVIDED BY APPLICABLE LAW.PURPOSE, EXCEPT AS OTHERWISE PROVIDED BY APPLICABLE LAW.

HCC SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO HCC SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO

REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR

LIMITED WARRANTY

(continued)

CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THE CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THE

PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED,

AND EVEN IF HCC HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NO AND EVEN IF HCC HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NO

RECOVERY OF ANY KIND AGAINST HCC SHALL BE GREATER IN AMOUNT THAN THE RECOVERY OF ANY KIND AGAINST HCC SHALL BE GREATER IN AMOUNT THAN THE

PURCHASE PRICE OF THE PRODUCT. PURCHASE PRICE OF THE PRODUCT.

WITHOUT LIMITING THE FOREGOING, YOU ASSUME ALL RISK AND LIABILITY FOR WITHOUT LIMITING THE FOREGOING, YOU ASSUME ALL RISK AND LIABILITY FOR

LOSS, DAMAGE OR INJURY TO YOU AND YOUR PROPERTY AND TO OTHERS AND THEIR LOSS, DAMAGE OR INJURY TO YOU AND YOUR PROPERTY AND TO OTHERS AND THEIR

PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THE PRODUCT NOT PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THE PRODUCT NOT

CAUSED DIRECTLY BY THE NEGLIGENCE OF HCC. THIS LIMITED WARRANTY STATES CAUSED DIRECTLY BY THE NEGLIGENCE OF HCC. THIS LIMITED WARRANTY STATES

YOUR EXCLUSIVE REMEDY.YOUR EXCLUSIVE REMEDY.

No oral or written representation or commitment given by anyone, including but not limited

to, an employee, representative or agent of HCC will create a warranty or in any way increase

the scope of this express Limited One Year Warranty. If there is any inconsistency between

this Limited Warranty and any other agreement or statement included with or relating to the

Product, this Limited Warranty shall govern. If any provision of this Limited Warranty is found

invalid or unenforceable, it shall be deemed modified to the minimum extent necessary to make

it enforceable and the remainder of the Limited Warranty shall remain valid and enforceable

according to its terms.

INTERACTION OF LAWS WITH THIS LIMITED WARRANTY:INTERACTION OF LAWS WITH THIS LIMITED WARRANTY:

Some states, provinces or territories may not allow limitations on how long an implied

warranty lasts or the exclusion or limitation of incidental or consequential damages, so the

above limitations or exclusions may not apply to you. Some states, provinces or territories may

provide for additional warranty rights and remedies, and the provisions contained in this Limited

Warranty are not intended to limit, modify, take away from, disclaim or exclude any mandatory

warranty requirements provided by states, provinces or territories, including certain implied

warranties. This warranty gives you specific legal rights, and you may also have other rights

which vary depending on location.

Any questions about this Limited Warranty may be directed to

Hestan Commercial Corporation at (888) 905-7463

LIMITED WARRANTY

(continued)

Hestan GABR36CX2NGSS Outdoor Deluxe Built-In Grill 647 sq. in.

Product's Documents

Installation Guide.

Specifications

Hestan GABR36CX2NGSS Questions and Answers
