MB210 & MB210-WR
Compact Subwoofers
Installation Guide
Guía de instalación
Guide d’installation
Installationsanleitung
Guida all’installazione
Installatiehandleiding
2 • English
BoseProfessional.com
MB210/MB210-WR • Installation Guide
Important Safety Instructions
Please read and keep all safety and use instructions.
This product is intended for installation by professional installers only! This document
is intended to provide professional installers with basic installation and safety guidelines for
this product in typical xed-installation systems. Please read this document and all safety
warnings before attempting installation.
Do not attempt to service this product yourself. Refer all servicing to authorized service
centers, installers, technicians, dealers or distributors. To contact Bose Professional or to
nd a dealer or distributor near you, visit BoseProfessional.com.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water (MB210 only).
6. Clean only with a dry cloth (MB210 only).
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources, such as radiators, heat registers, stoves, or other
apparatus (including ampliers) that produce heat.
9. Only use attachments/accessories specied by the manufacturer.
10. Use only with the cart, stand, tripod, bracket, or table specied by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
WARNINGS/CAUTIONS:
Contains small parts which may be a choking hazard. Not suitable for children
under age 3.
This product contains magnetic material. Consult your physician on whether this
might affect your implantable medical device.
All Bose Professional products must be installed in accordance with local, state, federal
and industry regulations. It is the installer’s responsibility to ensure installation of the
loudspeakers and mounting system is performed in accordance with all applicable codes,
including local building codes and regulations. Consult the local authority having jurisdiction
before installing this product.
Unsafe mounting or overhead suspension of any heavy load can result in serious injury or
death, and property damage. It is the installer’s responsibility to evaluate the reliability of any
mounting method used for their application. Only professional installers with the knowledge
of proper hardware and safe mounting techniques should attempt to install any loudspeaker
overhead.
Do not mount the product in locations where condensation may occur (MB210 only).
This product is not intended for installation or use in indoor water facility areas (including,
without limitation, indoor pools, indoor water parks, hot tub rooms, saunas, steam rooms
and indoor skating rinks) (MB210 only).
Only use the mounting hardware supplied with this product.
The MB210 wall mounting kit is only for use with model MB210.
The MB210-WR wall mounting kit is only for use with model MB210-WR.
Do not mount on surfaces that are not sturdy, or that have hazards concealed behind them,
such as electrical wiring or plumbing. If you are not sure about installing the bracket, contact
a qualied professional installer. Ensure the bracket is installed according to local building
codes.
Do not use hydrocarbon based solvents, lubricants or cleaning agents of any type on or
around Bose Professional speakers, and associated mounting hardware, during installation.
The use of such hydrocarbon based lubricants, solvents or cleaning agents on or around
the mounting anchors and screws can lead to degradation of the plastic material, possibly
resulting in cracking and premature failure of the product.
Keep the product away from re and heat sources. Do NOT place naked ame sources,
such as lighted candles, on or near the product.
Regulatory Information
This product conforms to all applicable EU directive requirements. The complete
declaration of conformity can be found at the product-specic page:
BoseProfessional.com
This product conforms to all applicable Electromagnetic Compatibility
Regulations 2016 and all other applicable UK regulations. The complete
declaration of conformity can be found at the product-specic page:
BoseProfessional.com
This symbol means the product must not be discarded as household waste, and
should be delivered to an appropriate collection facility for recycling. Proper
disposal and recycling helps protect natural resources, human health and the
environment. For more information on disposal and recycling of this product,
contact your local municipality, disposal service, or the shop where you bought
this product.
China Restriction of Hazardous Substances Table
Names and Contents of Toxic or Hazardous Substances or Elements
Toxic or Hazardous Substances and Elements
Part Name
Lead
(Pb)
Mercury
(Hg)
Cadmium
(Cd)
Hexavalent
(CR(VI))
Polybrominated
Biphenyl
(PBB)
Polybrominated
diphenylether
(PBDE)
PCBs X O O O O O
Metal Parts X O O O O O
Plastic Parts O O O O O O
Speakers X O O O O O
Cables X O O O O O
This table is prepared in accordance with the provisions of SJ/T 11364.
O: Indicates that this toxic or hazardous substance contained in all of the homogeneous
materials for this part is below the limit requirement of GB/T 26572.
X: Indicates that this toxic or hazardous substance contained in at least one of the homoge-
neous materials used for this part is above the limit requirement of GB/T 26572.
Taiwan Restriction of Hazardous Substances Table
Equipment name: MB210 and MB210-WR Compact Subwoofers , Type designation: 785043, 811432
Restricted substances and its chemical symbols
Unit
Lead
(Pb)
Mercury
(Hg)
Cadmium
(Cd)
Hexavalent
chromium
(Cr+6)
Polybrominated
biphenyls (PBB)
Polybrominated
diphenyl ethers
(PBDE)
PCBs - ○ ○ ○ ○ ○
Metal Parts - ○ ○ ○ ○ ○
Plastic Parts ○ ○ ○ ○ ○ ○
Speakers - ○ ○ ○ ○ ○
Cables - ○ ○ ○ ○ ○
Note 1: “○” indicates that the percentage content of the restricted substance does not exceed the percentage of
reference value of presence.
Note 2: The “−” indicates that the restricted substance corresponds to the exemption.
Date of Manufacture: The eighth digit in the serial number indicates the year of
manufacture; “7” is 2007 or 2017.
EU Importer: Transom Post Netherlands B.V., Keizersgracht 391A, 1016 EJ, Amsterdam
| UK Importer: Transom Post Netherlands UK, Squires House 205a High Street, West
Wickham, BR4 0PH | Japan Importer: Transom Post International Japan KK Co., Ltd. PMO
Tamachi IV Shiba5-29-19, Minato-ku, Tokyo | Australia Importer: Transom Post Australia
Pty. Ltd., Level 14, 60 Margaret Street, Sydney, NSW 2000 | China Importer: Transom
Post (Shanghai) Audio Co. Ltd Room 2209, Building 1, 175 Longyao Road, Xuhui District,
Shanghai | Mexico Importer: POST INTL MEXICO, S. DE R.L. DE C.V. Insurgentes Sur
No. 1079, 1st oor, Colonia Noche Buena, Benito Juárez, C.P. 03270, Mexico City | UAE
Importer: 102 A, Sama Tower Sheikh Zayed Road, Dubai UAE
Bose Professional, 117 South St, Hopkinton, MA 01748 USA
Neutrik is a registered trademark of Neutrik AG.
Bose is a trademark of Bose Corporation.
PowerMatch and ControlSpace are trademarks of Transom Post OpCo LLC.
©2024 Transom Post OpCo LLC. No part of this work may be reproduced, modied,
distributed or otherwise used without prior written permission.
Warranty Information
This product is covered by a limited warranty.
For warranty details, visit BoseProfessional.com/Warranty.
BoseProfessional.com
Guía de instalación • MB210/MB210-WR Español • 3
Instrucciones importantes de seguridad
Lea y conserve todas las instrucciones de uso y seguridad.
Este producto está diseñado para ser instalado únicamente por instaladores
profesionales. Este documento está diseñado para proveer las pautas de seguridad
e instalación básicas a los instaladores profesionales de este producto en sistemas de
instalación ja comunes. Lea este documento y todas las advertencias de seguridad antes
de comenzar la instalación.
No intente reparar este producto por su cuenta. Remita todas las reparaciones a centros
de servicio, instaladores, técnicos o distribuidores autorizados. Para comunicarse con Bose
Professional o para encontrar un distribuidor cerca de usted, visite BoseProfessional.com.
1. Lea estas instrucciones.
2. Guarde estas instrucciones.
3. Preste atención a las advertencias.
4. Siga todas las instrucciones.
5. No use este aparato cerca del agua (MB210 solamente).
6. Límpielo solamente con un paño seco (MB210 solamente).
7. No obstruya ninguna abertura de ventilación. Realice la instalación conforme a las
instrucciones del fabricante.
8. No lo instale cerca de una fuente de calor, como radiadores, rejillas de calefacción,
estufas u otros aparatos (incluidos los amplicadores) que produzcan calor.
9. Use solamente los accesorios especicados por el fabricante.
10. Use solamente con el carro, el soporte de piso, el trípode, el soporte o la
mesa especicados por el fabricante o vendidos con el dispositivo. Cuando
se usa un carro, tenga precaución al moverlo con el dispositivo para evitar
lesiones por tropiezos.
ADVERTENCIAS/PRECAUCIONES:
Contiene piezas pequeñas que pueden provocar asxia. No recomendable para
niños menores de 3 años.
Este producto contiene materiales magnéticos. Consulte con su médico si esto
Todos los productos Bose Professional deben instalarse conforme a las leyes locales,
estatales, federales y del sector. Es responsabilidad del instalador garantizar que la
instalación del sistema de soporte y los altavoces se realice conforme a los códigos
aplicables, incluidos los códigos y las reglamentaciones de construcción locales. Consulte a
la autoridad local competente antes de instalar este producto.
El montaje inseguro o la suspensión en alturas de cualquier carga pesada puede provocar
lesiones graves o la muerte, además de daños a la propiedad. Es responsabilidad del
instalador evaluar la conabilidad de cualquier método de montaje utilizado para su
aplicación. Únicamente los instaladores profesionales con conocimiento de las herramientas
adecuadas y las técnicas de montaje seguro deberían intentar instalar cualquier altavoz en
altura.
NO realice alteraciones no autorizadas a este producto.
No monte el producto en lugares donde se pueda generar condensación (MB210
solamente).
Este producto no se ha diseñado para instalar o utilizar en áreas acuáticas recreativas
de interior (incluidas, entre otras, piscinas de interior, parques acuáticos de interior, salas
de baño caliente, saunas, cuartos de vapor y pistas de patinaje de interior) (MB210
solamente).
Utilice únicamente los componentes físicos de montaje incluidos en este producto.
El kit de montaje en pared MB210 está destinado únicamente para el uso con el modelo
MB210.
El kit de montaje en pared MB210-WR está destinado únicamente para el uso con el
modelo MB210-WR.
Monte únicamente en supercies que sean resistentes o que no presenten peligros ocultos,
como cableado eléctrico o plomería. Si no está seguro acerca de cómo instalar el soporte,
comuníquese con un instalador profesional cualicado. Asegúrese de que el soporte esté
instalado de acuerdo con los códigos locales de construcción.
No utilice ningún tipo de solventes, lubricantes ni productos de limpieza a base de
hidrocarburos sobre los altavoces Bose Professional o los accesorios de montaje asociados
durante la instalación. El uso de dichos solventes, lubricantes o productos de limpieza
sobre los anclajes de montaje y los tornillos puede degradar el material plástico, lo que
posiblemente ocasione grietas y fallas prematuras del producto.
Mantenga el producto lejos del fuego y de fuentes de calor. NO coloque encima ni cerca del
producto fuentes de llamas de fuego expuestas, como velas encendidas.
Información regulatoria
Este producto cumple con todos los requisitos correspondientes de la directiva
de la UE. La declaración de conformidad completa se puede encontrar en la
página especíca del producto: BoseProfessional.com
Este producto cumple con todas las Normas de Compatibilidad
Electromagnética aplicables del 2016 y las demás normativas aplicables del
Reino Unido. La declaración de conformidad completa se puede encontrar en la
página especíca del producto: BoseProfessional.com
Este símbolo signica que el producto no debe desecharse como residuo
doméstico y debe enviarse a una planta para tratamiento de residuos apropiada
para su reciclado. Una eliminación y un reciclado adecuados ayudan a proteger
los recursos naturales, la salud humana y el medioambiente. Para obtener más
información acerca de la eliminación y el reciclado de este producto,
comuníquese con su municipalidad local, un centro de servicios de desecho o
la tienda donde compró este producto.
Fecha de fabricación: El octavo dígito del número de serie indica el año de fabricación; p.
ej., "7" es 2007 o 2017.
Importador en la UE: Transom Post Netherlands B.V., Keizersgracht 391A, 1016 EJ,
Ámsterdam | Importador en el Reino Unido: Transom Post Netherlands UK, Squires
House 205a High Street, West Wickham, BR4 0PH | Importador de Japón: Transom
Post International Japan KK Co., Ltd. PMO Tamachi IV Shiba5-29-19, Minato-ku, Tokio |
Importador en Australia: Transom Post Australia Pty. Ltd., Level 14, 60 Margaret Street,
Sídney, NSW 2000 | Importador de China: Transom Post (Shanghai) Audio Co. Ltd Room
2209, Building 1, 175 Longyao Road, Xuhui District, Shanghái | Importador de México:
POST INTL MEXICO, S. DE R.L. DE C.V. Insurgentes Sur n.º 1079, piso 1, Colonia Noche
Buena, Benito Juárez, C.P. 03270, Ciudad de México | Importador de Emiratos Árabes
Unidos: 102 A, Sama Tower Sheikh Zayed Road, Dubái, Emiratos Árabes Unidos
Bose Professional, 117 South St, Hopkinton, MA 01748 USA
Neutrik es una marca comercial registrada de Neutrik AG.
Bose es una marca comercial de Bose Corporation.
PowerMatch y ControlSpace son marcas comerciales de Transom Post OpCo LLC.
©2024 Transom Post OpCo LLC. Ninguna parte de este trabajo podrá reproducirse,
modicarse, distribuirse ni usarse sin un permiso previo por escrito.
Información de la garantía
Este producto está cubierto con una garantía limitada.
Para obtener información sobre la garantía, visite BoseProfessional.com/Warranty.
BoseProfessional.com
MB210/MB210-WR • Guide d’installation4 • Français
Instructions importantes relatives à la sécurité
Merci de lire et de conserver le manuel d’instruction et de respecter
les consignes de sécurité.
Ce produit doit être installé par un technicien professionnel ! Ce document est destiné
à fournir aux techniciens professionnels les directives de montage et de sécurité relatives à
ce produit dédié à une installation xe. Veuillez lire ce document, ainsi que l’ensemble des
avertissements de sécurité avant de procéder à l’installation.
Ne tentez pas de réparer ce produit vous-même. Conez toutes les opérations de
maintenance à des centres de service, installateurs, techniciens, revendeurs ou
distributeurs agréés. Pour contacter Bose Professional ou pour trouver un revendeur ou un
distributeur près de chez vous, rendez-vous à l’adresse BoseProfessional.com.
1. Veuillez lire ces consignes.
2. Veuillez conserver ces consignes.
3. Respectez tous les avertissements.
4. Suivez toutes les consignes.
5. N’utilisez pas cet appareil à proximité d’eau ou de toute autre source d’humidité
(MB210 seulement).
6. Utilisez uniquement un chiffon sec pour le nettoyage (MB210 seulement).
7. Ne bloquez jamais les orices d’aération. Suivez les instructions du fabricant pour
l’installation.
8. N’installez pas cet appareil à proximité d’une quelconque source de chaleur, telle
qu’un radiateur, une arrivée d’air chaud, un four ou tout autre appareil (notamment les
amplicateurs) produisant de la chaleur.
9. Utilisez uniquement les accessoires spéciés par le fabricant.
10. Utilisez uniquement le chariot, le support, le trépied, l’équerre ou la table
spécié(e) par le fabricant ou vendu(e) avec l’appareil. Si vous utilisez un
chariot, faites attention à ne pas faire basculer l’ensemble chariot/appareil.
AVERTISSEMENTS/PRÉCAUTIONS :
Certaines petites pièces présentent un risque de suffocation. Ne les laissez pas
à la portée des enfants de moins de 3 ans.
Ce produit contient des composants magnétiques. Consultez votre médecin an
de savoir si ces composants peuvent avoir une incidence sur tout dispositif
médical implanté.
Tous les produits Bose Professional doivent être installés dans le respect des
réglementations locales et nationales. L’installateur est responsable du respect de tous
les codes et règlements locaux et nationaux en vigueur applicables à l’installation et au
montage des enceintes. Consultez les autorités locales compétentes avant d’installer ce
produit.
Tout montage non sécurisé d’une lourde charge peut provoquer des dégâts matériels et
des blessures graves, voire la mort. Il en va de la responsabilité de l’installateur d’évaluer la
abilité de la méthode de montage utilisée, en fonction de l’application. Seul un installateur
professionnel connaissant les accessoires et techniques de montage adaptés est qualié
pour installer des enceintes suspendues.
Ne montez pas le produit dans des endroits où de la condensation peut se former (MB210
seulement).
Ce produit n’est pas destiné à être monté ou utilisé dans des installations humides en
intérieur (par exemple piscine intérieure, parc aquatique intérieur, baignoire à remous,
sauna, hammam, patinoire intérieure, etc.) (MB210 seulement).
Utilisez uniquement les accessoires de montage fournis avec ce produit.
Le kit de montage mural MB210 ne doit être utilisé qu'avec le modèle MB210.
Le kit de montage mural MB210-WR ne doit être utilisé qu'avec le modèle MB210-WR.
Veillez à ne pas installer sur des surfaces peu résistantes ou dans lesquelles peuvent être
intégrés des ls électriques ou des tuyaux de plomberie. En cas de doute, faites appel à
un installateur professionnel. Veillez à installer le support conformément aux normes de
construction locales.
N’utilisez aucun type de solvant, d’huile de graissage ou de produit de nettoyage à base
d’hydrocarbure sur ou autour des enceintes Bose Professional et du matériel de montage
associé pendant l’installation. L’utilisation de ces solvants, huiles de graissage et produits
de nettoyage à base d’hydrocarbure sur ou autour des xations de montage et des vis peut
entraîner une dégradation du matériel en plastique et occasionner de potentielles ssures
ou une défaillance prématurée du produit.
Tenez le produit à l’écart du feu et des sources de chaleur. Ne placez JAMAIS d’objets
enammés, tels que des bougies allumées, sur l’appareil ou à proximité.
Informations réglementaires
Ce produit est conforme à toutes les directives en vigueur de l’Union
européenne. La déclaration de conformité complète est disponible sur la page
spécique au produit : BoseProfessional.com
Ce produit est conforme à toutes les règles sur la comptabilité
électromagnétique de 2016 applicables et à toutes les autres réglementations
britanniques en vigueur. La déclaration de conformité complète est disponible
sur la page spécique au produit : BoseProfessional.com
Ce symbole signie que le produit ne doit pas être jeté avec les déchets
ménagers, mais doit être déposé dans un centre de collecte approprié pour
recyclage. La mise au rebut adéquate et le recyclage permettent de protéger les
ressources naturelles, la santé humaine et l’environnement. Pour plus
d’informations sur l’élimination et le recyclage de ce produit, contactez votre
mairie, votre service d’enlèvement des ordures ou le magasin où vous avez
acheté ce produit.
Date de fabrication : Le huitième chiffre du numéro de série indique l’année de fabrication ;
par exemple, « 7 » correspond à 2007 ou à 2017.
Importateur pour l’UE : Transom Post Netherlands B.V., Keizersgracht 391A, 1016
EJ, Amsterdam | Importateur pour le Royaume-Uni : Transom Post Netherlands UK,
Squires House 205a High Street, West Wickham, BR4 0PH | Importateur pour le Japon
: Transom Post International Japan KK Co., Ltd. PMO Tamachi IV Shiba5-29-19,
Minato-ku, Tokyo | Importateur pour l’Australie : Transom Post Australia Pty. Ltd., Level
14, 60 Margaret Street, Sydney, NSW 2000 | Importateur pour la Chine : Transom Post
(Shanghai) Audio Co. Ltd Room 2209, Building 1, 175 Longyao Road, Xuhui District,
Shanghai | Importateur pour le Mexique : POST INTL MEXICO, S. DE R.L. DE C.V.
Insurgentes Sur No. 1079, 1st oor, Colonia Noche Buena, Benito Juárez, C.P. 03270,
Mexico City | Importateur pour les Émirats arabes unis : 102 A, Sama Tower Sheikh Zayed
Road, Dubai UAE
Bose Professional, 117 South St, Hopkinton, MA 01748 USA
Bose est une marque commerciale de Bose Corporation.
PowerMatch et ControlSpace sont des marques déposées de Transom Post OpCo LLC.
©2024 Transom Post OpCo LLC. Toute reproduction, modication, distribution ou autre
utilisation, même partielle, de ce document est interdite sans autorisation écrite préalable.
Informations relatives à la garantie
Cet appareil est couvert par une garantie limitée.
Pour en savoir plus sur la garantie, consultez la page BoseProfessional.com/
Warranty.
BoseProfessional.com
Installationsanleitung • MB210/MB210-WR Deutsch • 5
Wichtige Sicherheitshinweise
Bitte lesen Sie alle Sicherheitshinweise und Gebrauchsanleitungen
durch und bewahren Sie sie auf.
Dieses Produkt darf nur von fachkundigen Monteuren installiert werden!
Dieses Dokument soll fachkundigen Monteuren grundlegende Installations- und
Sicherheitsrichtlinien für dieses Produkt in typischen Festinstallationssystemen bieten. Bitte
lesen Sie dieses Dokument und alle Sicherheitshinweise vor der Installation durch.
Versuchen Sie nicht, dieses Produkt selbst zu warten. Lassen Sie jegliche Reparatur- und
Wartungsarbeiten nur von autorisierten Servicepartnern, Monteuren, Technikern, Händlern
oder Vertreibern durchführen. Die Bose Professional Kontaktdaten für Ihr Land sowie
Informationen zu Händlern oder Vertreibern in Ihrer Nähe nden Sie auf BoseProfessional.
com.
1. Lesen Sie die folgenden Anweisungen.
2. Bewahren Sie die Anweisungen auf.
3. Beachten Sie alle Warn- und Sicherheitshinweise.
4. Befolgen Sie alle Anweisungen.
5. Verwenden Sie dieses Gerät nicht in der Nähe von Wasser (nur MB210).
6. Reinigen Sie das Gerät nur mit einem sauberen, trockenen Tuch (nur MB210).
7. Achten Sie darauf, dass die Lüftungsöffnungen nicht blockiert sind. Stellen Sie das
Gerät nur in Übereinstimmung mit den Herstelleranweisungen auf.
8. Stellen Sie das Gerät nicht in der Nähe von Wärmequellen auf, wie zum Beispiel
Heizkörpern, Wärmespeichern, Öfen oder anderen Geräten (auch Verstärkern), die
Wärme erzeugen.
9. Verwenden Sie nur Zubehör-/Anbauteile, die vom Hersteller zugelassen sind.
10. Verwenden Sie für das Gerät nur Rollwagen, Ständer, Dreibeine,
Halterungen oder Tische, die vom Hersteller zugelassen sind oder
zusammen mit dem Gerät verkauft werden. Falls Sie einen Rollwagen
verwenden, dürfen Sie die Einheit aus Gerät und Rollwagen nur mit
Vorsicht bewegen, damit Verletzungen durch ein mögliches Umkippen
ausgeschlossen sind.
WARNHINWEISE:
Enthält kleine Teile, die verschluckt werden können und eine Erstickungsgefahr
darstellen. Nicht geeignet für Kinder unter drei Jahren.
Dieses Produkt enthält magnetische Materialien. Wenden Sie sich an Ihren Arzt,
wenn Sie wissen möchten, ob dies den Betrieb Ihres implantierten
medizinischen Geräts beeinussen kann.
Alle Produkte von Bose Professional müssen gemäß den örtlichen und staatlichen
Vorschriften sowie gemäß allen Branchenbestimmungen installiert werden. Der Monteur
ist dafür verantwortlich, sicherzustellen, dass die Installation der Lautsprecher und der
Halterung gemäß allen geltenden Vorschriften durchgeführt wird, einschließlich örtlicher
Bauvorschriften und -bestimmungen. Wenden Sie sich vor der Installation dieses Produkts
an die zuständige abnehmende Behörde.
Eine unsichere Befestigung schwerer Lasten oder deren Aufhängung über Kopf kann
zu schweren oder tödlichen Verletzungen und Sachschäden führen. Der Monteur
ist dafür verantwortlich, die Zuverlässigkeit der für die Anwendung verwendeten
Befestigungstechniken zu prüfen. Nur fachkundige Monteure mit Wissen über sachgemäße
Befestigungselemente und sichere Befestigungstechniken sollten Lautsprecher über Kopf
installieren.
Montieren Sie das Produkt nicht an Orten, an denen Kondenswasser auftreten kann (nur
MB210).
Dieses Produkt ist nicht für die Installation oder Verwendung in Bereichen mit
Wassereinrichtungen in Innenräumen (zum Beispiel Schwimmbädern, Wasserparks, Räume
mit Whirlpools, Saunas, Dampfbäder und Eislaufbahnen) gedacht (nur MB210).
Verwenden Sie nur die mit diesem Produkt mitgelieferten Befestigungsmittel.
Das Wandmontagekit MB210 ist nur für das Modell MB210 geeignet.
Das Wandmontagekit MB210-WR ist nur für das Modell MB210-WR geeignet.
Bei der Montage ist auf eine tragfähige Oberäche zu achten, in deren Nähe sich keine
gefährlichen Einrichtungen wie strom- oder wasserführende Leitungen benden. Wenn Sie
Bedenken haben, ziehen Sie einen qualizierten Fachmann zu Rate. Achten Sie darauf,
dass die Halterung gemäß den örtlichen Bauvorschriften angebracht ist.
Verwenden Sie keine auf Kohlenwasserstoff basierenden Lösungsmittel, Schmiermittel oder
Reinigungsmittel am oder in der Nähe des Bose Professional Lautsprechers oder während
der Installation mit dem zugehörigen Montagematerial. Diese Mittel können den Kunststoff
des Lautsprechers und der Montagevorrichtungen angreifen und zu Rissen im Material und
somit zu einem (vorzeitigen) Produktdefekt führen.
Halten Sie das Produkt von Feuer und Wärmequellen fern. Stellen Sie KEINE brennenden
Kerzen oder ähnliches auf das Gerät oder in die Nähe des Geräts.
Gesetzliche Hinweise
Dieses Produkt entspricht allen Anforderungen der geltenden EU-Richtlinien.
Die vollständige Konformitätserklärung nden Sie auf der entsprechenden
Produktseite unter: https://www.boseprofessional.com
Dieses Produkt erfüllt alle geltenden Vorschriften der elektromagnetischen
Kompatibilität 2016 sowie alle weiteren geltenden britischen Vorschriften. Die
vollständige Konformitätserklärung nden Sie auf der entsprechenden
Produktseite unter: https://www.boseprofessional.com
Dieses Symbol bedeutet, dass das Produkt nicht mit dem Hausmüll entsorgt
werden darf, sondern bei einer geeigneten Sammelstelle für das Recycling
abgegeben werden muss. Die ordnungsgemäße Entsorgung und das Recycling
tragen dazu bei, die natürlichen Ressourcen, die Gesundheit und die Umwelt zu
schützen. Weitere Informationen zur Entsorgung und zum Recycling dieses
Produkts erhalten Sie von Ihrer zuständigen Kommune, Ihrem Entsorgungsdienst
oder dem Geschäft, in dem Sie dieses Produkt gekauft haben.
Herstellungsdatum: Die achte Ziffer in der Seriennummer gibt das Herstellungsjahr an: „7“
ist 2007 oder 2017.
Importeur aus der EU: Transom Post Netherlands B.V., Keizersgracht 391A, 1016 EJ,
Amsterdam | Importeur aus Großbritannien: Transom Post Netherlands UK, Squires
House 205a High Street, West Wickham, BR4 0PH |Importeur aus Japan: Transom
Post International Japan KK Co., Ltd. PMO Tamachi IV Shiba5-29-19, Minato-ku, Tokio |
Importeur aus Australien: Transom Post Australia Pty. Ltd., Level 14, 60 Margaret Street,
Sydney, NSW 2000 | Importeur aus China: Transom Post (Shanghai) Audio Co. Ltd Room
2209, Building 1, 175 Longyao Road, Xuhui District, Shanghai | Importeur aus Mexiko:
POST INTL MEXICO, S. DE R.L. DE C.V. Insurgentes Sur No. 1079, 1st Floor, Colonia
Noche Buena, Benito Juárez, C.P. 03270, Mexiko-Stadt | Importeur aus den VAE: 102 A,
Sama Tower Sheikh Zayed Road, Dubai, VAE
Bose Professional, 117 South St, Hopkinton, MA 01748 USA
Neutrik ist eine eingetragene Marke von Neutrik AG.
Bose ist eine Marke der Bose Corporation.
PowerMatch und ControlSpace sind Marken von Transom Post OpCo LLC.
©2024 Transom Post OpCo LLC. Dieses Dokument darf ohne vorherige schriftliche
Genehmigung weder ganz noch teilweise reproduziert, verändert, vertrieben oder in anderer
Weise verwendet werden.
Garantiehinweise
Für dieses Produkt gilt eine eingeschränkte Garantie.
Einzelheiten zur Garantie nden Sie unter BoseProfessional.com/Warranty.
BoseProfessional.com
MB210/MB210-WR • Guida all’installazione6 • Italiano
Informazioni importanti sulla sicurezza
Leggere e conservare tutte le istruzioni per la sicurezza e per l'uso.
Questo prodotto deve essere installato esclusivamente da installatori professionisti!
Il presente documento ha lo scopo di fornire agli installatori professionisti le istruzioni di base
per l’installazione e la sicurezza del prodotto in tipici impianti da installazione ssa. Prima
dell’installazione, leggere questo documento e le avvertenze sulla sicurezza.
Non tentare di riparare il prodotto autonomamente. Per tutti gli interventi di assistenza, rivolgiti
ai centri assistenza, agli installatori, ai tecnici, ai rivenditori o ai distributori autorizzati. Per
contattare Bose Professional o per trovare il rivenditore o distributore più vicino, visita
BoseProfessional.com.
1. Leggere queste istruzioni.
2. Conservare queste istruzioni.
3. Prestare attenzione a tutte le avvertenze.
4. Seguire tutte le istruzioni.
5. Non utilizzare l'apparecchio in prossimità di acqua (solo MB210).
6. Per la pulizia utilizzare un semplice panno asciutto (solo MB210).
7. Non ostruire le aperture di ventilazione. Installare il prodotto in conformità con le
istruzioni fornite dal produttore.
8. Non installare in prossimità di fonti di calore, quali termosifoni, radiatori, stufe o altri
apparecchi (compresi gli amplicatori) che generino calore.
9. Utilizzare solo sistemi di ssaggio/accessori specicati dal produttore.
10. Utilizzare solo carrelli, supporti, treppiedi, staffe o tavoli specicati dal
produttore o venduti insieme all'apparecchio. Quando si utilizza un carrello,
prestare attenzione durante lo spostamento dell'insieme carrello/
apparecchio per evitare di rovesciarlo causando danni.
AVVISI/AVVERTENZE:
Contiene pezzi di piccole dimensioni che possono rappresentare un pericolo di
soffocamento. Non adatto per bambini di età inferiore a 3 anni.
Questo prodotto contiene materiale magnetico. Rivolgersi al proprio medico per
eventuali domande sui possibili effetti del prodotto sui dispositivi medici
impiantati nel corpo umano.
Tutti i prodotti Bose Professional devono essere installati in conformità con gli standard locali,
statali, federali e di settore. È responsabilità dell’installatore assicurare che l’installazione dei
diffusori e del sistema di montaggio venga eseguita in conformità con le normative vigenti,
compresi i regolamenti edilizi locali. Prima di installare il prodotto, chiedere informazioni
all’autorità locale preposta.
L’installazione non sicura o la sospensione di carichi pesanti può causare gravi lesioni
alle persone e danni alle cose. È responsabilità dell’installatore valutare l’afdabilità del
metodo di installazione utilizzato per l’applicazione specica. L’installazione di un diffusore in
posizione elevata può essere afdata solo ad installatori professionisti esperti di tecniche di
montaggio sicuro dell’hardware.
Non posizionare il prodotto in punti dove potrebbe formarsi condensa (solo MB210).
Questo prodotto non deve essere installato o utilizzato in aree di servizio o intrattenimento
vicine all’acqua (ad esempio, piscine coperte, parchi acquatici al chiuso, sale con vasche
riscaldate, saune, bagni turchi e piste di pattinaggio al chiuso) (solo MB210).
Utilizzare unicamente gli accessori di montaggio forniti con il prodotto.
Il kit di montaggio a parete MB210 può essere utilizzato solo con il modello MB210.
Il kit di montaggio a parete MB210-WR può essere utilizzato solo con il modello MB210-WR.
Non eseguire l’installazione su superci non sufcientemente robuste o dietro le quali si
nascondono elementi potenzialmente pericolosi, quali cavi elettrici o tubazioni idrauliche.
In caso di dubbi durante l’installazione della staffa, contattare un installatore professionista.
Vericare che la staffa sia installata in accordo ai parametri costruttivi locali.
Non utilizzare solventi a base di idrocarburi, lubricanti o detergenti di qualunque tipo
su o intorno ai diffusori Bose Professional e sui relativi hardware di montaggio durante
l’installazione. L’impiego di detergenti, lubricanti e solventi a base di idrocarburi su o intorno
a viti ed elementi di ancoraggio può danneggiare i materiali plastici e provocare spaccature e
danni prematuri del prodotto.
Tenere il prodotto lontano dal fuoco e da fonti di calore. NON collocare sorgenti di amme
libere (ad esempio, candele accese) sul prodotto o in prossimità di esso.
Informazioni sulle normative
Questo prodotto è conforme a tutti i requisiti delle direttive UE pertinenti. La
dichiarazione di conformità completa è disponibile nella pagina specica dei
prodotti: BoseProfessional.com
Questo prodotto è conforme a tutte le normative sulla compatibilità
elettromagnetica applicabili del 2016 e a tutte le altre normative applicabili del
Regno Unito. La dichiarazione di conformità completa è disponibile nella pagina
specica dei prodotti: BoseProfessional.com
Questo simbolo indica che il prodotto non deve essere smaltito con i riuti
domestici, ma deve essere consegnato a una struttura di raccolta appropriata per
il riciclaggio. Uno smaltimento e un riciclo corretti aiutano a preservare le risorse
naturali, la salute e l'ambiente. Per ulteriori informazioni sullo smaltimento e sul
riciclo di questo prodotto, rivolgersi alle autorità locali, al servizio di smaltimento
dei riuti o al negozio presso il quale è stato acquistato.
Data di produzione: l'ottava cifra del numero di serie corrisponde all'anno di produzione; ad
esempio "7" indica 2007 o 2017.
Importatore per l’UE: Transom Post Netherlands B.V., Keizersgracht 391A, 1016 EJ,
Amsterdam | Importatore per il Regno Unito: Transom Post Netherlands UK, Squires
House 205a High Street, West Wickham, BR4 0PH |Importatore per il Giappone: Transom
Post International Japan KK Co., Ltd. PMO Tamachi IV Shiba5-29-19, Minato-ku, Tokyo |
Importatore per l’Australia: Transom Post Australia Pty. Ltd., Level 14, 60 Margaret Street,
Sydney, NSW 2000 | Importatore per la Cina: Transom Post (Shanghai) Audio Co. Ltd
Room 2209, Building 1, 175 Longyao Road, Xuhui District, Shanghai | Importatore per il
Messico: POST INTL MEXICO, S. DE R.L. DE C.V. Insurgentes Sur No. 1079, 1st oor,
Colonia Noche Buena, Benito Juárez, C.P. 03270, Città del Messico | Importatore per gli
Emirati Arabi Uniti: 102 A, Sama Tower Sheikh Zayed Road, Dubai, Emirati Arabi Uniti
Bose Professional, 117 South St, Hopkinton, MA 01748 USA
Neutrik è un marchio registrato di Neutrik AG.
Bose è un marchio di Bose Corporation.
PowerMatch e ControlSpace sono marchi di Transom Post OpCo LLC.
©2024 Transom Post OpCo LLC. Nessuna parte di questo documento può essere
riprodotta, modicata, distribuita o usata in altro modo senza previa autorizzazione scritta.
Informazioni sulla garanzia
Questo prodotto è coperto da una garanzia limitata.
Per i dettagli sulla garanzia, visitare BoseProfessional.com/Warranty.
BoseProfessional.com
Installatiehandleiding • MB210/MB210-WR Nederlands • 7
Belangrijke veiligheidsinstructies
Lees alle veiligheidsinstructies en de gebruiksaanwijzing door en
bewaar deze.
Dit product is uitsluitend bestemd voor installatie door professionele installateurs!
Dit document is bedoeld om professionele installateurs essentiële installatie- en
veiligheidsrichtlijnen te bieden voor dit product in standaardsystemen voor vaste installatie.
Lees dit document en alle veiligheidswaarschuwingen voordat u een systeem probeert te
installeren.
Probeer dit product niet zelf te repareren. Neem voor alle onderhoud contact op met een
geautoriseerd servicecenter, installateur, technicus, dealer of distributeur. Om contact
op te nemen met Bose Professional en voor informatie over de dichtstbijzijnde dealer of
distributeur, gaat u naar BoseProfessional.com.
1. Lees deze instructies door.
2. Bewaar deze instructies.
3. Neem alle waarschuwingen in acht.
4. Volg alle instructies.
5. Gebruik dit apparaat niet in de buurt van water (alleen MB210).
6. Alleen met een droge doek reinigen (alleen MB210).
7. Zorg dat u de ventilatieopeningen niet blokkeert. Installeer het apparaat volgens de
instructies van de fabrikant.
8. Installeer het product niet in de buurt van warmtebronnen, zoals radiatoren,
warmteroosters, kachels of andere apparaten (waaronder versterkers) die warmte
produceren.
9. Gebruik uitsluitend aansluitstukken/accessoires die door de fabrikant worden
gespeciceerd.
10. Gebruik het apparaat uitsluitend in combinatie met het verrijdbare plateau,
het statief, de beugel of de tafel die door de fabrikant worden vermeld of
samen met het apparaat worden verkocht. Als u een verrijdbaar plateau
gebruikt, moet u het apparaat en het plateau voorzichtig verplaatsen zodat
deze niet kunnen omvallen en letsel veroorzaken.
WAARSCHUWINGEN:
Bevat kleine onderdelen die verstikkingsgevaar kunnen vormen. Niet geschikt
voor kinderen jonger dan 3 jaar.
Dit product bevat magnetisch materiaal. Raadpleeg uw arts om te vragen of dit
invloed kan hebben op uw implanteerbare medische hulpmiddel.
Alle Bose Professional-producten moeten worden geïnstalleerd volgens de plaatselijke
en landelijke voorschriften en industrienormen. Het is de verantwoordelijkheid van
de installateur om ervoor te zorgen dat de installatie van de luidsprekers en het
montagesysteem gebeurt met inachtneming van alle van toepassing zijnde voorschriften,
waaronder plaatselijke bouwvoorschriften. Neem contact op met de juiste plaatselijke
overheidsinstanties voordat u dit product installeert.
Het onveilig monteren of ophangen van een zware last kan leiden tot beschadiging van
uw eigendommen, ernstig letsel en overlijden. Het is de verantwoordelijkheid van de
installateur om de betrouwbaarheid te evalueren van de gebruikte montagemethode.
Alleen professionele installateurs met kennis van het juiste gereedschap en veilige
montagetechnieken mogen luidsprekers hoog ophangen.
Monteer het product niet op locaties waar condensatie kan optreden (alleen MB210).
Dit product is niet bedoeld voor installatie of gebruik in overdekte ruimten voor
wateractiviteiten (waaronder overdekte zwembaden, overdekte waterparken, stoomruimten,
sauna’s, bubbelbadkamers en overdekte ijsbanen) (alleen MB210).
Gebruik uitsluitend het montagemateriaal dat bij dit product is bijgeleverd.
De wandmontagekit MB210 is alleen voor gebruik met model MB210.
De wandmontagekit MB210-WR is alleen voor gebruik met model MB210-WR.
Niet bevestigen aan oppervlakken die niet sterk zijn of die mogelijke risico’s opleveren,
bijvoorbeeld vanwege elektrische bedrading of waterleidingen. Als u niet zeker weet hoe de
beugel moet worden bevestigd, raadpleegt u een bevoegde installateur. Zorg ervoor dat de
beugel wordt bevestigd volgens de plaatselijke bouwvoorschriften.
Gebruik bij de installatie geen oplosmiddelen, smeermiddelen of reinigingsmiddelen
op koolwaterstofbasis op of rond Bose Professional-luidsprekers en bijbehorende
montagematerialen. Het gebruik van dergelijke smeermiddelen, oplosmiddelen of
reinigingsmiddelen op koolwaterstofbasis op of rond de bevestigingsankers en schroeven
kan nadelige gevolgen hebben voor het kunststof materiaal en mogelijk scheuren en
vroegtijdige verzwakking van het product veroorzaken.
Houd het product uit de buurt van vuur en warmtebronnen. Plaats GEEN open vlammen,
zoals brandende kaarsen, op of bij het product.
Wettelijk verplichte informatie
Dit product voldoet aan alle vereisten van de van toepassing zijnde EU-
richtlijnen. De volledige conformiteitsverklaring kunt u vinden op de specieke
productpagina: BoseProfessional.com
Dit product voldoet aan alle van toepassing zijnde Electromagnetic Compatibility
Regulations 2016 en alle andere van toepassing zijnde voorschriften in het VK.
De volledige conformiteitsverklaring kunt u vinden op de specieke
productpagina: BoseProfessional.com
Dit symbool betekent dat het product niet mag worden weggegooid als
huishoudelijk afval en naar een geschikt inzamelpunt voor recycling moet
worden gebracht. Het op de juiste wijze afvoeren en recyclen helpt natuurlijke
hulpbronnen, de menselijke gezondheid en het milieu te beschermen. Voor
meer informatie over het afvoeren en recyclen van dit product neemt u contact
op met de gemeente waar u woont, de afvalverwerkingsdienst of de winkel waar
u dit product hebt gekocht.
Fabricagedatum: Het achtste cijfer in het serienummer geeft het fabricagejaar aan. ‘7’ is
2007 of 2017.
Europese importeur: Transom Post Netherlands B.V., Keizersgracht 391A, 1016 EJ,
Amsterdam | Importeur in het VK: Transom Post Netherlands UK, Squires House 205a
High Street, West Wickham, BR4 0PH | Importeur in Japan: Transom Post International
Japan KK Co., Ltd. PMO Tamachi IV Shiba5-29-19, Minato-ku, Tokio | Importeur in
Australië: Transom Post Australia Pty. Ltd., Level 14, 60 Margaret Street, Sydney, NSW
2000 | Importeur in China: Transom Post (Shanghai) Audio Co. Ltd Room 2209, Building 1,
175 Longyao Road, Xuhui District, Shanghai | Importeur in Mexico: POST INTL MEXICO,
S. DE R.L. DE C.V. Insurgentes Sur No. 1079, 1st oor, Colonia Noche Buena, Benito
Juárez, C.P. 03270, Mexico-Stad | Importer in de VAE: 102 A, Sama Tower Sheikh Zayed
Road, Dubai VAE
Bose Professional, 117 South St, Hopkinton, MA 01748 USA
Neutrik is een geregistreerd handelsmerk van Neutrik AG.
Bose is een handelsmerk van Bose Corporation.
PowerMatch en ControlSpace zijn handelsmerken van Transom Post OpCo LLC.
©2024 Transom Post OpCo LLC. Niets in deze uitgave mag worden gereproduceerd,
gewijzigd, gedistribueerd of op andere wijze worden gebruikt zonder voorafgaande
schriftelijke toestemming.
Garantie-informatie
Dit product wordt gedekt door een beperkte garantie.
Ga naar BoseProfessional.com/Warranty voor garantie-informatie.
8 • English MB210/MB210-WR • Installation Guide
BoseProfessional.com
Contents
Overview 9
Package Contents .................................................................................................................................................................................................................9
Product Warning ................................................................................................................................................................................................................... 9
Inspection & Maintenance ............................................................................................................................................................................................10
Maintaining Weather Resistance ....................................................................................................................................................................10
Recommended Tools ....................................................................................................................................................................................................... 10
Product Dimensions ...........................................................................................................................................................................................................11
MB210 ....................................................................................................................................................................................................................................11
MB210-WR.........................................................................................................................................................................................................................12
Input Panel ................................................................................................................................................................................................................................13
MB210 ...................................................................................................................................................................................................................................13
MB210-WR.........................................................................................................................................................................................................................13
Installation 14
MB210 ........................................................................................................................................................................................................................................... 14
Mounting the Subwoofer with the U-Bracket .......................................................................................................................................14
Using the Ground Feet ............................................................................................................................................................................................15
MB210-WR ................................................................................................................................................................................................................................ 16
Mounting the Subwoofer with the U-bracket ....................................................................................................................................... 16
Recommended Amplifier Power ..............................................................................................................................................................................17
Recommended Signal Processing ..........................................................................................................................................................................17
Technical Specifications 18
MB210 ........................................................................................................................................................................................................................................... 18
MB210-WR ................................................................................................................................................................................................................................ 19
English • 9Installation Guide • MB210/MB210-WR
BoseProfessional.com
Overview
Overview
Package Contents
Each compact subwoofer carton includes the following:
MB210 MB210-WR
Subwoofer 1 1
U-bracket 1 1
M8 screws 4 4
M4 screws — 4
Input cover — 1
Stick-on ground feet 4 —
4-pin Euroblock 1 —
Rubber washers 4 4
T3 square drive 1 1
Product Warning
The MB210-WR compact subwoofer is rated IP55 and is designed for outdoor environments.
WARNING: The MB210 compact subwoofer is NOT intended for outdoor environments. If the MB210 is
exposed to water or moisture, the integrity of the subwoofer will be compromised.
10 • English MB210/MB210-WR • Installation Guide
BoseProfessional.com
Overview
Inspection & Maintenance
WARNING: The loudspeaker and all mounting components must be inspected annually by a
qualified professional who is trained and certified in suspending loudspeaker systems. All rigging
parts and components used in the suspension of the loudspeaker system should be visually
inspected for signs of cracking, bending, water damage, corrosion, de-lamination, or any other
condition that could compromise the system's integrity and create a dangerous falling hazard.
Maintaining Weather Resistance
The MB210-WR compact subwoofer is water resistant and is rated IP55. To maintain water resistance, please
observe the following precautions:
1. Before, during, and after installation, check the surface of the loudspeaker enclosure to ensure that the
factory-applied, weather-resistant coating has not been damaged.
2. During install, angle the loudspeaker at least 5° downward to reduce the potential of rain compromising
the performance of the loudspeaker.
3. All mounting holes must be sealed off with stainless steel screws (included with applicable accessories) or
the included plastic plugs (pre-installed).
4. The gland nut that secures the loudspeaker cable is factory sealed. Do not remove the gland nut or the
weather-resistant seal will be broken.
5. The loudspeaker is rated IP55, which means the grille is designed to withstand normal and wind-driven
rain. The grille is not designed to withstand direct spraying of water (i.e. from a hose).
CAUTION: If the above instructions are not observed, the weather-resistant integrity of your MB210-
WR compact subwoofer could be compromised.
Recommended Tools
The following tools are recommended for assembly of a MB210/MB210-WR compact subwoofer:
Flathead screwdriver
#2 Phillips-head screwdriver
10-millimeter socket or wrench
5-millimeter hex key
T3 square drive (included)
English • 11Installation Guide • MB210/MB210-WR
BoseProfessional.com
Overview

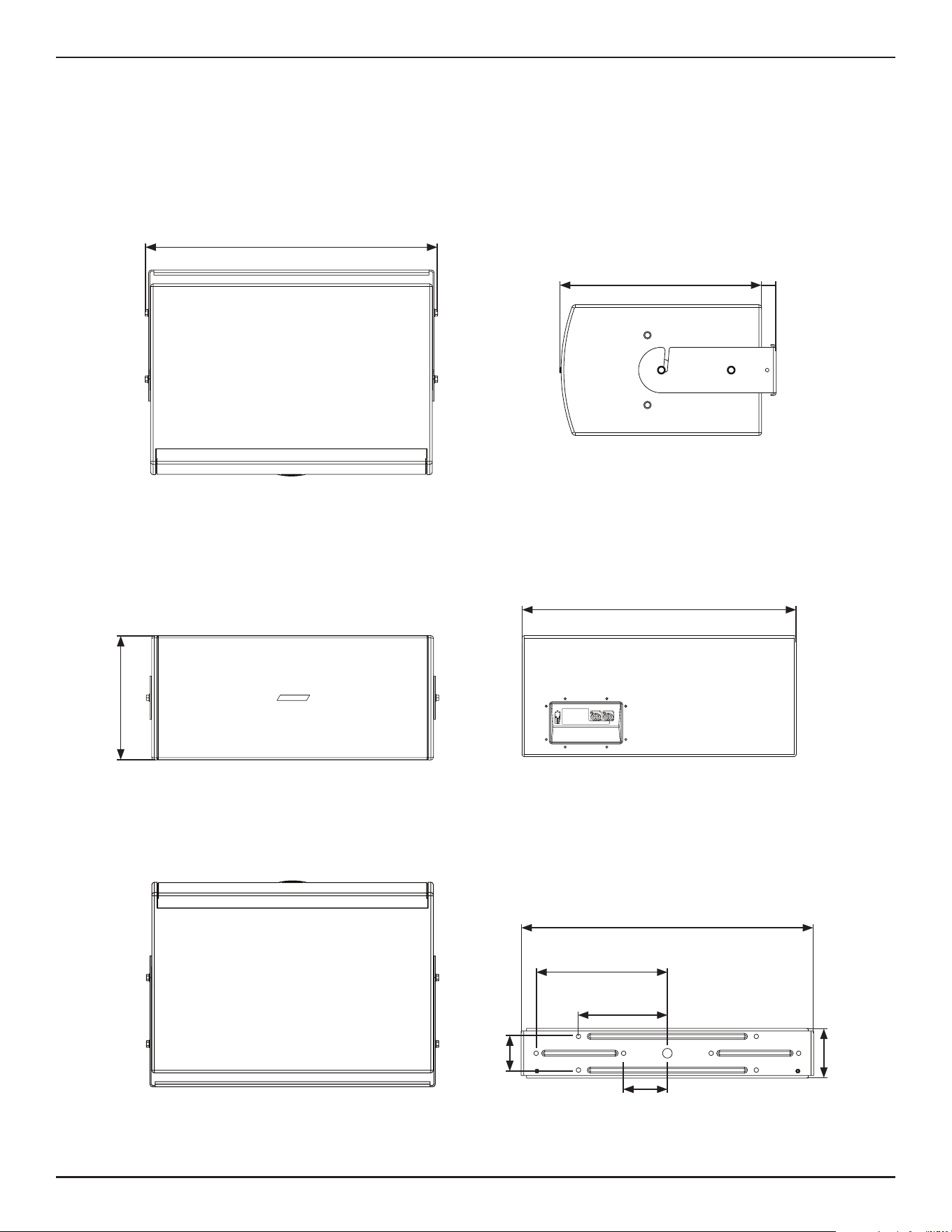

Product Dimensions
MB210
Product net weight: 18.6 kg (41.0 lb) / 21.8 kg (48.0 lb) with U-bracket
Top View Side View
Front View Rear View
No Bracket
Bottom View Rear View
Bracket Only
685 mm
27.0 in
450 mm
17.7 in
32 mm
1.3 in
114 mm
4.5 in
77 mm
3.0 in
100 mm
3.9 in
203 mm
8.0 in
300 mm
11.8 in
668 mm
26.3 in
291 mm
11.5 in
659 mm
26.0 in
12 • English MB210/MB210-WR • Installation Guide
BoseProfessional.com
Overview

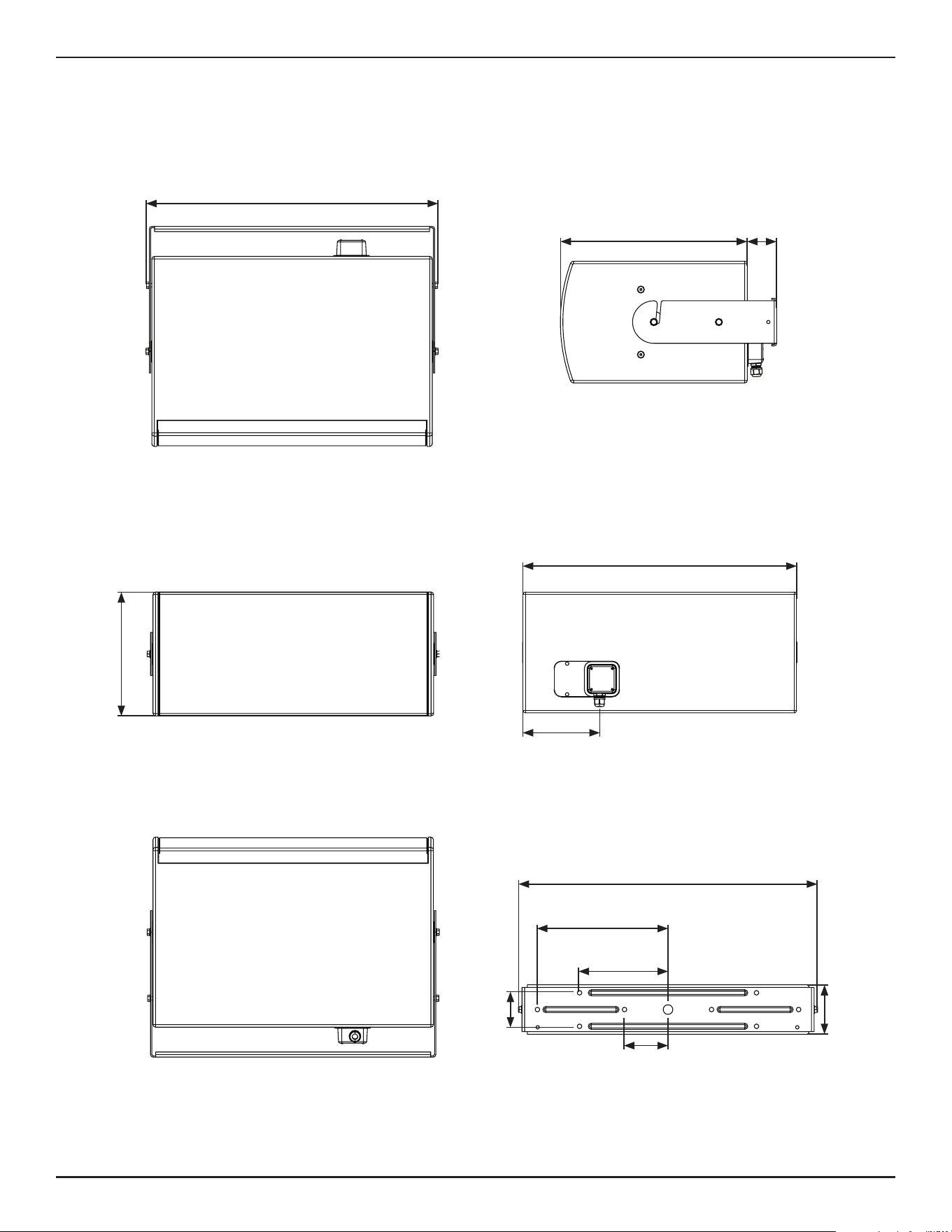

MB210-WR
Product net weight: 19.4 kg (42.8 lb) / 23.0 kg (50.6 lb) with U-bracket
Top View Side View
Front View Rear View
No Bracket
Bottom View Rear View
Bracket Only
685 mm
27.0 in
447 mm
17.6 in
70 mm
2.8 in
114 mm
4.5 in
77 mm
3.0 in
100 mm
3.9 in
203 mm
8.0 in
300 mm
11.8 in
671 mm
26.4 in
291 mm
11.5 in
659 mm
26.0 in
184 mm
7.3 in
English • 13Installation Guide • MB210/MB210-WR
BoseProfessional.com
Overview

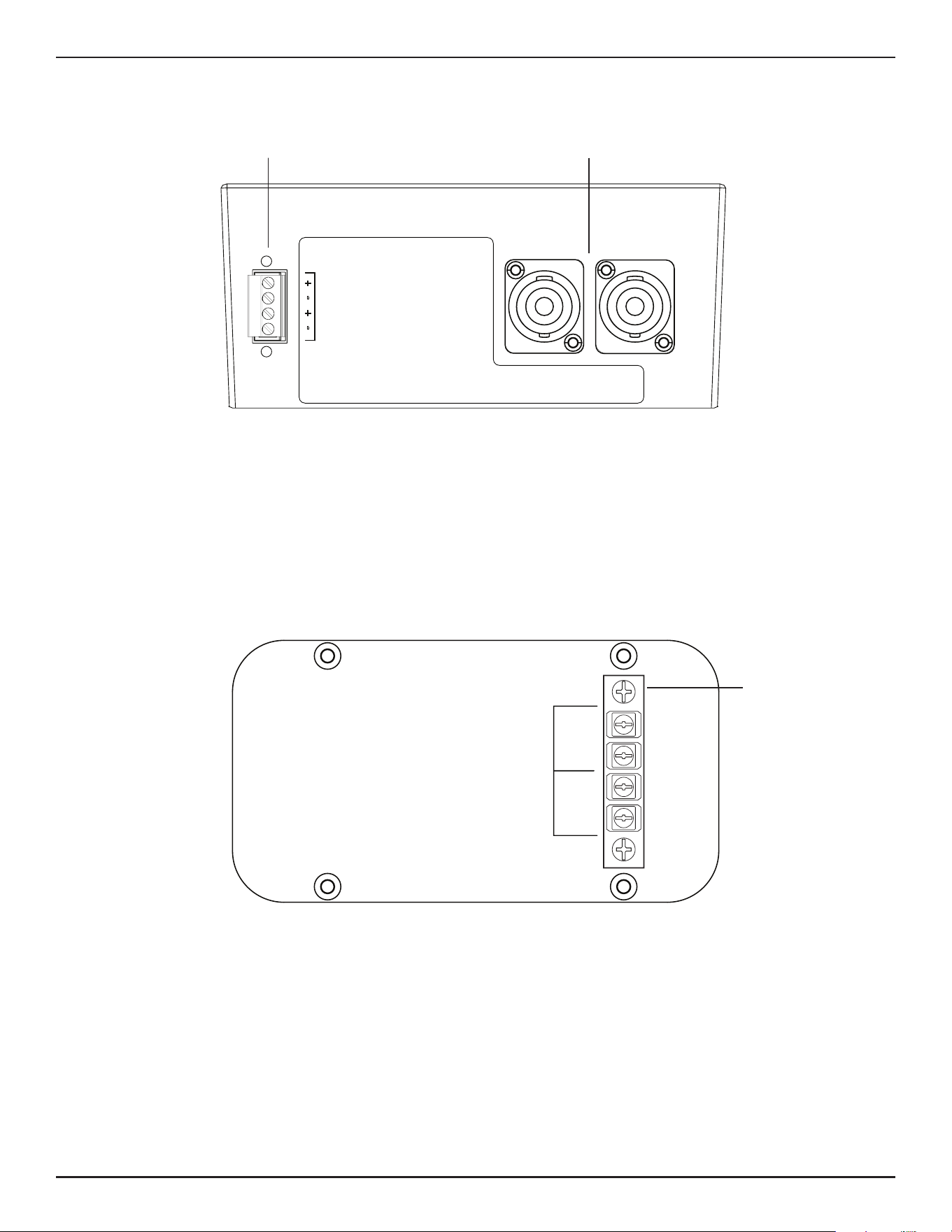

Input Panel
MB210
q Euroblock Connector (4-pin)
w NL4 connectors
MB210-WR
The input panel for the MB210-WR includes a single screw-terminal barrier strip. Each terminal accepts a wire
gauge of 10 AWG to 18 AWG.
+
–
+
–
LF
INPUT
THRU
q Barrier strip
q w
q
14 • English MB210/MB210-WR • Installation Guide
BoseProfessional.com
Installation
Installation
MB210

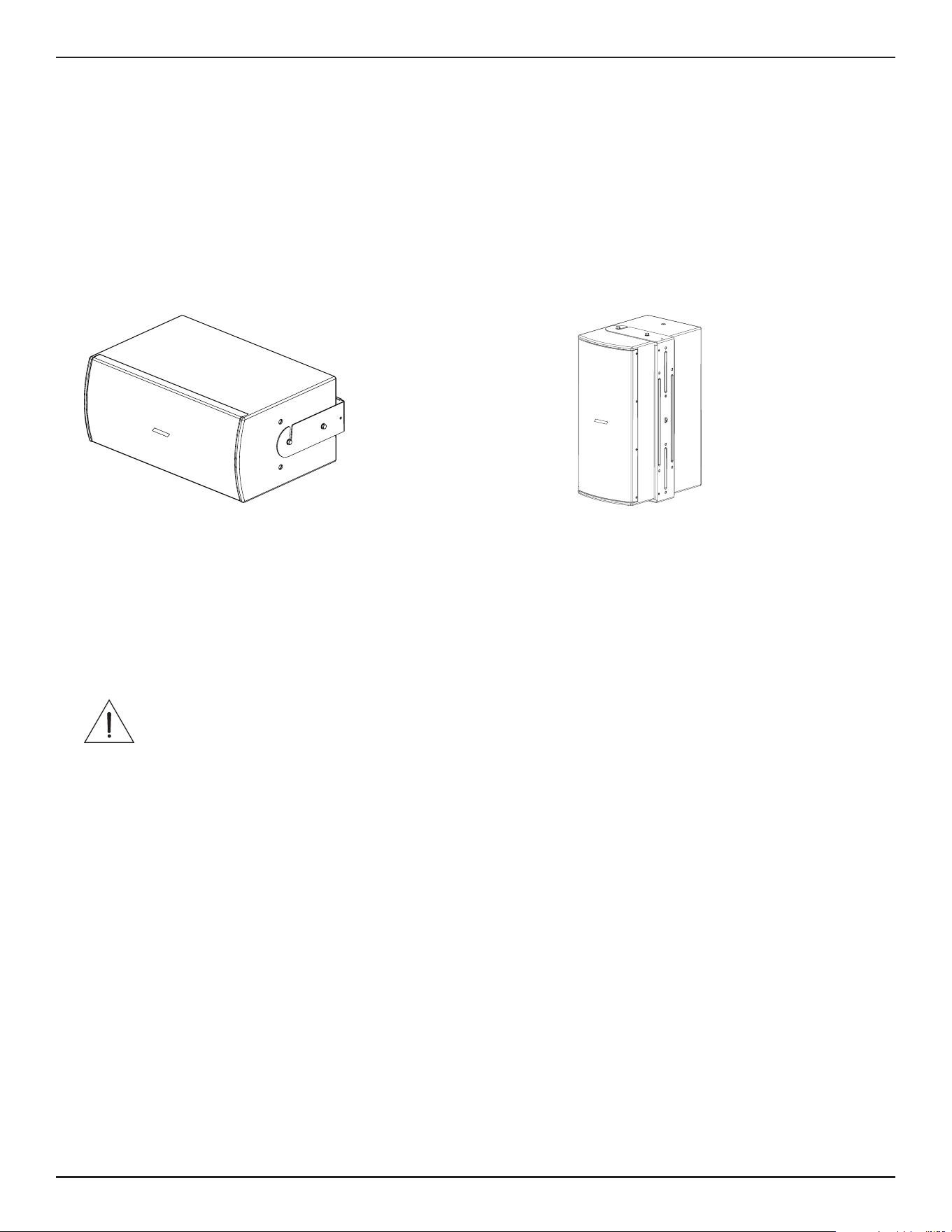

Mounting the Subwoofer with the U-Bracket
1. Choose a mounting location that will safely support the weight of the subwoofer. The subwoofer can be
mounted horizontally or vertically.
2. Remove packing materials and place the subwoofer on the floor beneath the planned suspension point.
3. Determine which threaded holes on the subwoofer are required for mounting, depending on the
subwoofer’s mounting orientation. See the following figures.
4. Using the included T3 square drive, remove the plastic inserts from the appropriate threaded holes on
each side of the subwoofer.
5. Insert one M8 screw and rubber washer into the threaded inserts that correspond to your chosen
attachment points on each side of the subwoofer. Do not tighten.
Note: Use only the included hardware to attach the U-bracket to the subwoofer.
6. Use the U-bracket as a guide to mark the fastening holes on the mounting surface.
7. Drill holes into the mounting surface using previously marked positions.
8. Attach the U-bracket to the building surface using appropriate fasteners (not included).
CAUTION: For attaching U-brackets to a surface, choose fasteners that are consistent with all
local building codes and requirements to support the weight of the subwoofer.
9. Place the subwoofer on the bracket by sliding the attached M8 screws into the bracket slots, keeping the
rubber washers between the bracket and the speaker enclosure.
10. Insert one M8 screw and rubber washer into the remaining threaded hole, on each side of the subwoofer.
Place the washer between the U-bracket and the subwoofer.
11. Tighten the four screws with a 10-millimeter socket tool, using a torque not to exceed 13.6 to 20.3
newton·meters (10 to 15 pound·feet).
12. Connect your wiring to your subwoofer.
English • 15Installation Guide • MB210/MB210-WR
BoseProfessional.com
Installation
Using the Ground Feet
The MB210 subwoofer can be placed on the ground in either the horizontal or vertical orientation, using the
ground feet. To attach the ground feet:
1. Remove the backing from the adhesive side of the first ground foot.
2. Position the ground foot in one corner of the loudspeaker, on the side that will be resting on the floor. See
the figures below.
3. Press the adhesive side of the ground foot onto the loudspeaker to adhere.
4. Repeat steps for the remaining three ground feet.

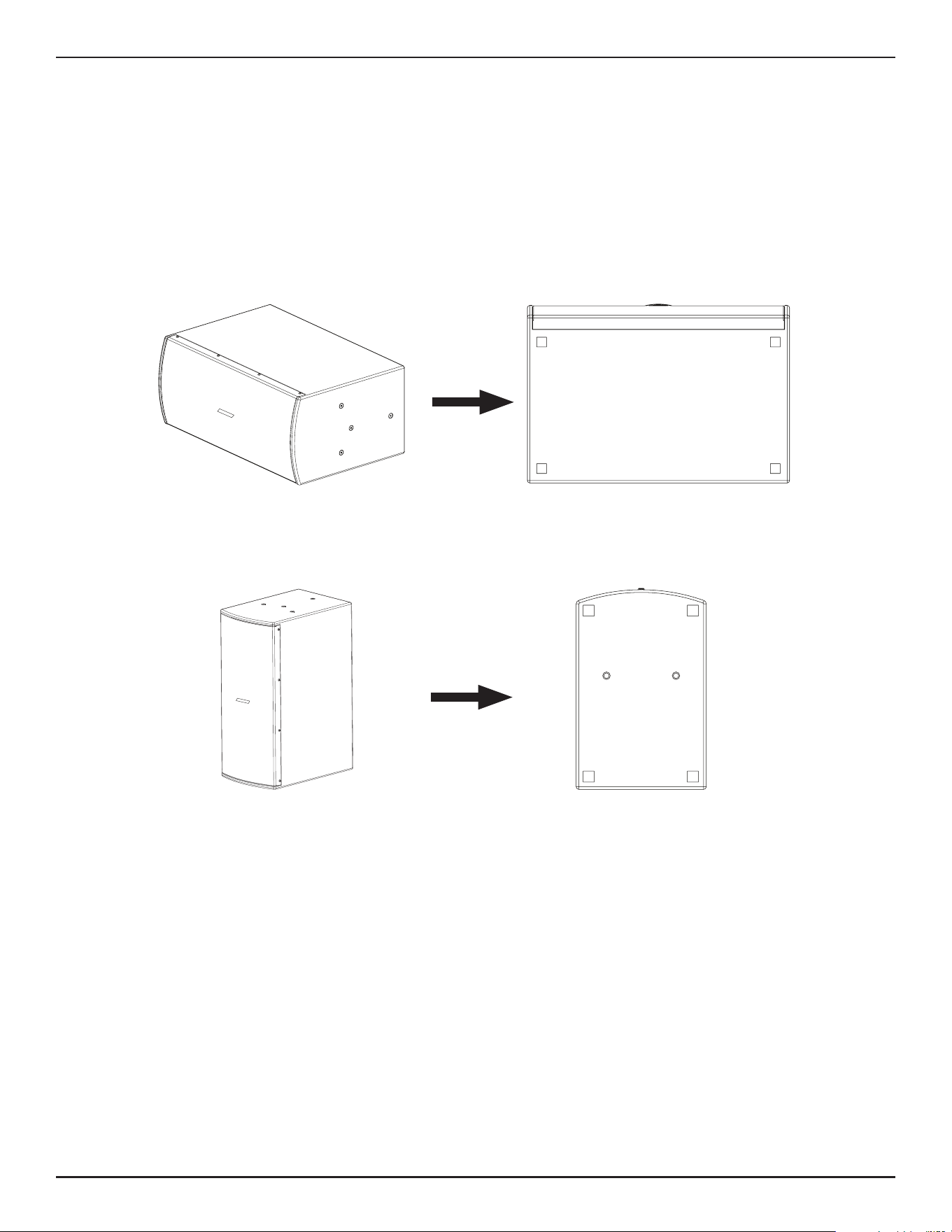

Ground feet position for horizontal orientation
Ground feet position for vertical orientation
16 • English MB210/MB210-WR • Installation Guide
BoseProfessional.com
Installation
MB210-WR
Mounting the Subwoofer with the U-bracket

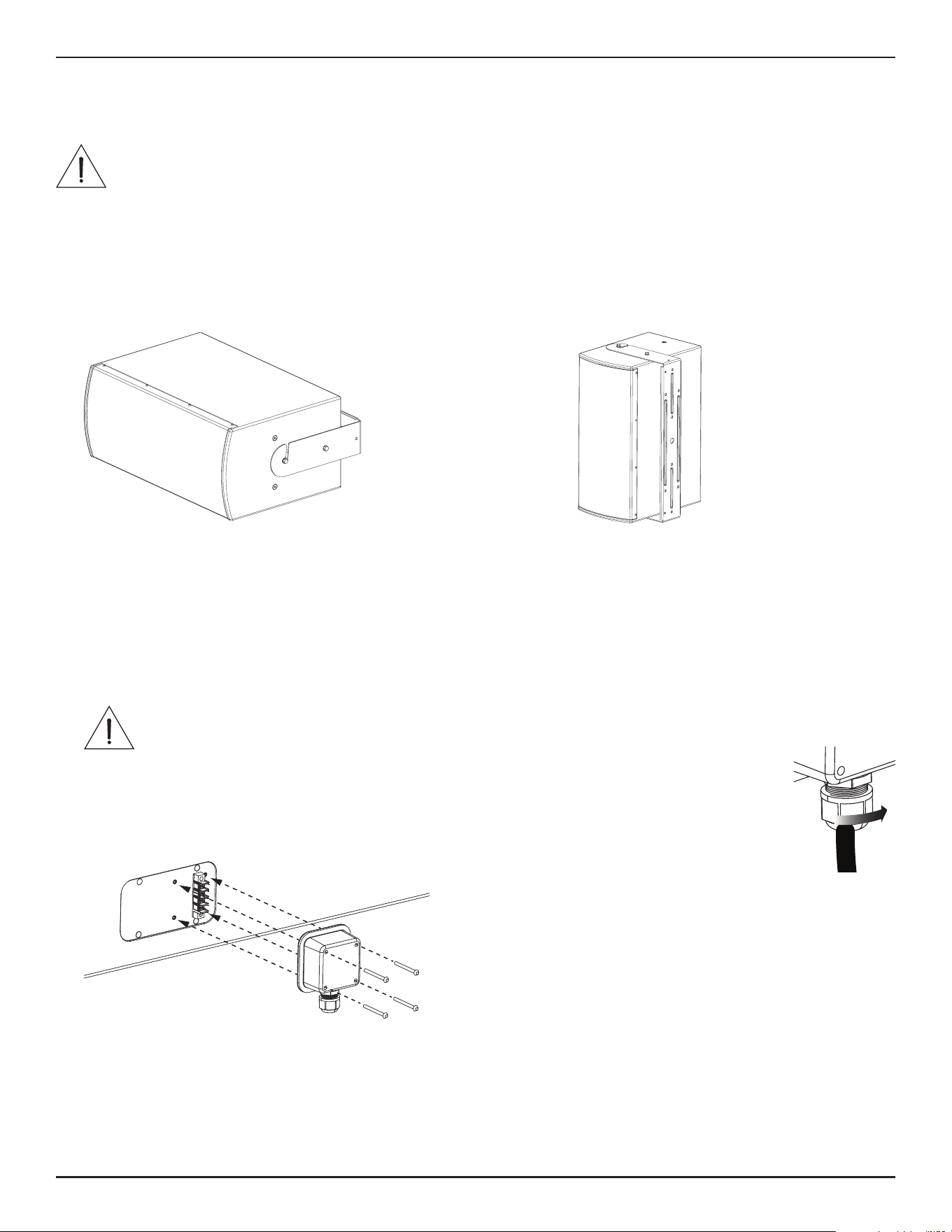

CAUTION: Before installation, determine the location and position of your subwoofer. Only remove
the plastic inserts that are necessary for your installation. The plastic inserts are factory sealed to
prevent water damage. If any insert is left unsealed after installation, the weather-resistant integrity
of your subwoofer could be compromised.
1. Choose a mounting location that will safely support the weight of the subwoofer. The subwoofer can be
mounted horizontally or vertically.
2. Remove packing materials and place the subwoofer on the floor beneath the planned suspension point.
3. Determine which threaded holes on the subwoofer are required for mounting, depending on the
subwoofer’s mounting orientation. See the following figures.
4. Using the included T3 square drive, remove the plastic inserts from the appropriate threaded holes on
each side of the subwoofer.
5. Insert one M8 screw and rubber washer into the threaded inserts that correspond to your chosen
attachment points on each side of the subwoofer. Do not tighten.
Note: Use only the included hardware to attach the U-bracket to the subwoofer.
6. Hold the U-bracket in the mounting location and mark the holes.
7. Drill holes into the mounting surface using previously marked positions.
8. Attach the U-bracket to the building surface using appropriate fasteners (not included).
CAUTION: For attaching U-brackets to a surface, choose fasteners that are consistent with all
local building codes and requirements to support the weight of the subwoofer.
9. Connect your wiring to your subwoofer.
10. Feed the wiring through the gland nut on the input panel cover and tighten the gland nut.
11. Attach the input cover using the included M4 screws.
12. Place the subwoofer on the bracket by sliding the attached M8 screws into the bracket slots, keeping the
rubber washers between the bracket and the speaker enclosure.
13. Insert one M8 screw and rubber washer into the remaining threaded hole, on each side of the subwoofer.
Place the washer between the U-bracket and the subwoofer.
14. Tighten the four screws with a 10-millimeter socket tool, using a torque not to exceed 13.6 to 20.3
newton·meters (10 to 15 pound·feet).
English • 17Installation Guide • MB210/MB210-WR
BoseProfessional.com
Installation
Recommended Amplifier Power
Selecting the proper amplifier size for a given loudspeaker requires analysis of the transducer long-term (or
RMS) power rating, dynamic range of the input-source material (crest factor), desired sound pressure levels,
and other factors. As a general guideline, to optimize MB210/MB210WR system performance, the following
amplifier configurations are recommended.
Loudspeaker Nominal Impedance Amp Power Rating
MB210 8 Ω 500 W to 2000 W
MB210-WR 8 Ω 500 W to 2000 W
Recommended Signal Processing
Digital signal processing (DSP) equipment is required for infrasonic protection, crossover, equalization, and
voltage limiting protection.
Recommended loudspeaker DSP presets are available in Bose Professional ControlSpace Designer software
and are designed for use with Bose Professional PowerMatch configurable professional amplifiers and
ControlSpace ESP and EX processor hardware (sold separately).
18 • English MB210/MB210-WR • Installation Guide
BoseProfessional.com
Technical Specifications
Technical Specifications
MB210
System Performance
Frequency Response (±3 dB)
1
45 to 180 Hz
Frequency Range (–10 dB) 37 to 270 Hz
Nominal Coverage Pattern (H × V) Omni-directional below 200 Hz
Recommended High-pass Filter 45 Hz with 24-dB/octave filter
Crossover 80 to 200 Hz (requires active crossover in DSP)
Bose Professional Extended Lifecycle Test
2
AES Transducer Test
3
Power Handling, long-term continuous 500 W 625 W
Power Handling, peak 2000 W 2500 W
Free Field Half-space Free Field Half-space
Sensitivity (SPL / 1 W @ 1 m)
4
90 dB 96 dB 90 dB 96 dB
Calculated Maximum SPL @ 1 m
5
117 dB 123 dB 118 dB 124 dB
Calculated Maximum SPL @ 1 m, peak 123 dB 129 dB 124 dB 130 dB
Transducers
Low Frequency 2 × 10-inch, high-excursion woofers
Nominal Impedance 8 Ω
Physical
Enclosure Material Baltic birch plywood
Finish Polyurethane coating, black or white
Grille Powder-coated perforated steel
Environmental Indoor only
Connectors 2 × Neutrik® NL4 with 4-pin Euroblock, all wired parallel
Suspension/Mounting 3 × M8 threaded inserts for U-bracket (per side)
Dimensions (H × W × D) – millimeters 291 × 685 × 482 with U-bracket
Dimensions (H × W × D) – inches 11.5 × 27.0 × 19.0 with U-bracket
Net Weight (loudspeaker only) 18.6 kg (41.0 lb)
Net Weight (with U-bracket) 21.8 kg (48.0 lb)
Shipping Weight 27.2 kg (59.9 lb)
Accessories Included steel U-bracket and 4 × adhesive-mounted rubber ground-stack feet
Footnotes
1. Frequency response and range measured on-axis in anechoic environment with recommended bandpass and EQ.
2. Bose Professional extended-lifecycle test using pink noise filtered to meet IEC268-5, 6-dB crest factor, 500-hour duration.
3. AES standard 2-hour duration with IEC system noise.
4. Sensitivity measured in anechoic environment with recommended bandpass and EQ.
5. Maximum SPL calculated using sensitivity and power ratings, exclusive of power compression.
English • 19Installation Guide • MB210/MB210-WR
BoseProfessional.com
Technical Specifications
MB210-WR
System Performance
Frequency Response (±3 dB)
1
45 to 180 Hz
Frequency Range (–10 dB) 37 to 270 Hz
Nominal Coverage Pattern (H × V) Omni-directional below 200 Hz
Recommended High-pass Filter 40 Hz with 24-dB/octave filter
Crossover —
Bose Professional Extended Lifecycle Test
2
AES Transducer Test
3
Power Handling, long-term continuous 500 W 625 W
Power Handling, peak 2000 W 2500 W
Free Field Wall/Ceiling Free Field Wall/Ceiling
Sensitivity (SPL / 1 W @ 1 m)
4
90 dB 96 dB 90 dB 96 dB
Calculated Maximum SPL @ 1 m
5
117 dB 123 dB 118 dB 124 dB
Calculated Maximum SPL @ 1 m, peak 123 dB 129 dB 124 dB 130 dB
Transducers
Low Frequency 2 × 10-inch, high-excursion woofers
Nominal Impedance 8 Ω
Physical
Enclosure Material Exterior-grade birch plywood
Finish Two-part polyurethane coating, black or white
Grille Powder-coated perforated stainless steel, acoustic foam, stainless steel mesh
Environmental Rated for direct-exposure outdoor installations (IEC 60529: IP55)
Connectors 1 × barrier strip (accepts 10 to 18 wire gauge)
Suspension/Mounting 3 × M8 threaded inserts for U-bracket (per side)
Dimensions (H × W × D) – millimeters 291 × 685 × 517 with U-bracket
Dimensions (H × W × D) – inches 11.5 × 27.0 × 20.4 with U-bracket
Net Weight (loudspeaker only) 19.4 kg (42.8 lb)
Net Weight (with U-bracket) 23.0 kg (50.6 lb)
Shipping Weight 27.7 kg (61.1 lb)
Accessories Included stainless-steel U-bracket
Footnotes
1. Frequency response and range measured on-axis in anechoic environment with recommended bandpass and EQ.
2. Bose Professional extended-lifecycle test using pink noise filtered to meet IEC268-5, 6-dB crest factor, 500-hour duration.
3. AES standard 2-hour duration with IEC system noise.
4. Sensitivity measured in anechoic environment with recommended bandpass and EQ.
5. Maximum SPL calculated using sensitivity and power ratings, exclusive of power compression.
