DOMINO COOKING HOBS
INSTALLATION ADVICES - INSTRUCTIONS FOR THE USE
GB
• CDHX32
• CH32XPK-19
22
Dear Customer,
Thank you for having purchased and given your preference
to our product.
The safety precautions and recommendations reported
below are for your own safety and that of others. They
will also provide a means by which to make full use of the
features oered by your appliance.
Please preserve this booklet carefully. It may be useful
in future, either to yourself or to others in the event that
doubts should arise relating to its operation.
This appliance must be used only for the task it
has explicitly been designed for, that is for cooking
foodstus. Any other form of usage is to be considered
as inappropriate and therefore dangerous.
The manufacturer declines all responsibility in the
event of damage caused by improper, incorrect or
illogical use of the appliance.
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN
ACCORDANCE WITH EC DIRECTIVE 2012/19/EC.
At the end of its working life, the product must not be disposed of as
urban waste. It must be taken to a special local authority dierentiated
waste collection centre or to a dealer providing this service.
Disposing of a household appliance separately avoids possible negative
consequences for the environment and health deriving from inappropriate
disposal and enables the constituent materials to be recovered to obtain
signicant savings in energy and resources. As a reminder of the need
to dispose of household appliances separately, the product is marked
with a crossed-out wheeled dustbin.
DECLARATION OF CE CONFORMITY
• This appliance has been designed to be used only for cooking. Any other use (such as
heating a room) is improper and dangerous.
• This appliance has been designed, constructed, and marketed in compliance with:
- Safety requirements of the “Low voltage” Directive 2014/35/EU;
- Safety requirements of the “EMC” Directive 2014/30/EU;
- Requirements of EU Directive 93/68/EEC;
- Requirements of EU Directive 2011/65/EU.
33
IMPORTANT SAFETY PRECAUTIONS AND RECOMMENDATIONS
IMPORTANT: This appliance is designed and manufactured
solely for the cooking of domestic (household) food and is
not suitable for any non domestic application and therefore
should not be used in a commercial environment.
The appliance guarantee will be void if the appliance is used
within a non domestic environment i.e. a semi commercial,
commercial or communal environment.
Read the instructions carefully before installing and using
the appliance.
• This appliance has been designed and manufactured in
compliance with the applicable standards for the household
cooking products and it fullls all the safety requirements shown
in this manual, including those for surface temperatures.
Some people with sensitive skin may have a more pronounced
temperature perception with some components although these
parts are within the limits allowed by the norms.
The complete safety of the appliance also depends on the correct
use, we therefore recommend to always pay a extreme attention
while using the product, especially in the presence of children.
• After having unpacked the appliance, check to ensure that it is
not damaged.
In case of doubt, do not use it and consult your supplier or a
professionally qualied technician.
• Packing elements (i.e. plastic bags, polystyrene foam, nails,
packing straps, etc.) should not be left around within easy reach
of children, as these may cause serious injuries.
• Some appliances are supplied with a protective lm on steel and
aluminium parts. This lm must be removed before using the
appliance.
• IMPORTANT: The use of suitable protective clothing/gloves is
recommended when handling or cleaning this appliance.
44
• Do not attempt to modify the technical characteristics of
the appliance as this may become dangerous to use. The
manufacturer declines all responsibility for any inconvenience
resulting from the inobservance of this condition.
• Do not operate your appliance by means of an external timer or
separate remote-control system.
• Do not carry out cleaning or maintenance operations on the
appliance without having previously disconnected it from the
electric power supply.
• Do not use a steam cleaner because the moisture can get into
the appliance therefore making it unsafe.
• Do not cover the hob with aluminium foils.
• Do not touch the appliance with wet or damp hands (or feet).
• Do not use the appliance whilst in bare feet.
• If you should decide not to use this appliance any longer (or
decide to substitute another model), before disposing of it, it
is recommended that it be made inoperative in an appropriate
manner in accordance to health and environmental protection
regulations, ensuring in particular that all potentially hazardous
parts be made harmless, especially in relation to children who
could play with unused appliances.
• The various components of the appliance are recyclable. Dispose
of them in accordance with the regulations in force in your country.
If the appliance is to be scrapped, remove the power cord.
• After use, ensure that the knobs/controls are in the o position.
• Children less than 8 years of age shall be kept away unless
continuously supervised.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
55
• The manufacturer declines all liability for injury to persons or
damage to property caused by incorrect or improper use of the
appliance.
• WARNING: During use the appliance and its accessible parts
become hot; they remain hot for some time after use.
– Care should be taken to avoid touching heating elements on
the hob.
– To avoid burns and scalds, young children should be kept
away.
• Make sure that electrical cables connecting other appliances in
the proximity of the cooktop cannot come into contact with the
hob.
• WARNING: Unattended cooking on a hob with fat or oil can be
dangerous and may result in re. NEVER try to extinguish a re
with water, but switch o the appliance and then cover ame e.g.
with a lid or a re blanket.
• WARNING: Danger of re: do not store items on the cooking
surfaces.
• Do not place or leave empty pans on the glass ceramic hob.
• Do not allow heavy or sharp objects to drop on the glass ceramic
hob.
• Do not scratch the hob with sharp objects. Don’t use the hob as
a work surface.
• WARNING: If the hob is cracked or otherwise damaged by falling
objects etc., disconnect the appliance from the electrical power
supply to avoid the possibility of electric shock and call Customer
Service.
• WARNING: When correctly installed, your product meets all
safety requirements laid down for this type of product category.
However special care should be taken around the underneath
of the appliance as this area is not designed or intended to be
touched and may contain sharp or rough edges, that may cause
injury.
• CAUTION: The cooking process has to be supervised. A short
term cooking process has to be supervised continuously.
66
• If the power supply cable is damaged, it must be replaced only
by an authorized service agent in order to avoid a hazard.
• If the appliance is not tted with a supply cord and a plug, or with
other means for disconnection from the supply mains having a
contact separation in all poles that provide full disconnection under
overvoltage category III conditions, means for disconnection
must be incorporated in the xed wiring in accordance with the
wiring rules.
• WARNING: The appliance and its accessible parts become hot
during use.
Care should be taken to avoid touching heating elements.
Children less than 8 years of age shall be kept away unless
continuously supervised.
• WARNING: Use only hob guards designed by the manufacturer
of the cooking appliance or indicated by the manufacturer of the
appliance in the instructions for use as suitable or hob guards
incorporated in the appliance. The use of inappropriate guards
can cause accidents.
ENERGY LABELLING/ECODESIGN
• Commission regulation (EU) No 66/2014 (implementing Directive 2009/125/EC of the
European Parliament and of the Council).
Reference to the measurement and calculation methods used to establish compliance with
the above requirements:
• Standard EN 60350-2 (hobs: electric cooking zones and/or areas).
USE OF THE APPLIANCE, ENERGY SAVING TIPS
HOB
ELECTRIC COOKING ZONES AND/OR AREAS

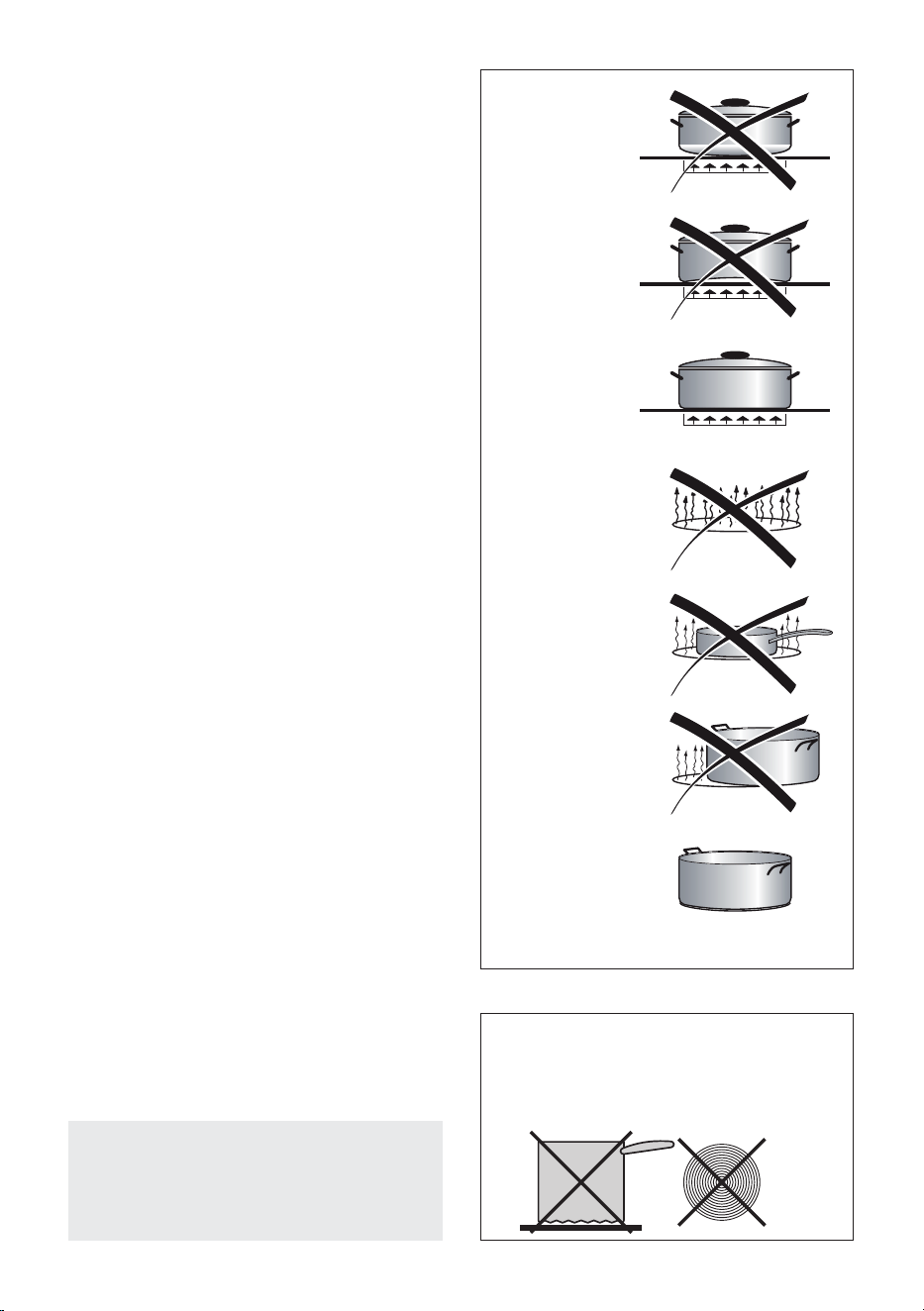

• Avoid pouring liquids on the zones/areas while they are hot.
• Use at-bottomed (electric hotplate type) pots and pans only.
• Use cooking receptacles which cover as much of the surface of the cooking zone/area
as possible.
• To save electricity, use lids whenever possible.
• When the pan comes to the boil, turn the heat down to the level desired. Remember
that the cooking zone/area will continue to produce heat for about ve minutes after it
has been turned o.
77
88
IMPORTANT :
• The appliance is designed and approved for domestic use only and should not be
installed in a commercial, semi commercial or communal environment.
Your product will not be guaranteed if installed in any of the above environments
and could aect any third party or public liability insurances you may have.
• This appliance is to be installed, regulated and adapted to function only by an authorized
person in compliance with the current local regulations in force and in observation of
the instructions supplied by the manufacturer.
Failure to comply with this condition will render the guarantee invalid.
• The appliance must be installed in compliance with regulations in force in your country
and in observation of the manufacturer’s instructions.
• Incorrect installation, for which the manufacturer accepts no responsibility, may cause
personal injury or damage.
• This appliance shall only be serviced by authorized personnel.
• Always disconnect the appliance from mains power supply before carrying out any
maintenance operations or repairs.
• Important: The use of suitable protective clothing/gloves is recommended when
handling or cleaning of this appliance.
• The appliance must be housed in heat-resistant units.
• The walls of the units must not be higher than work top and must be capable of
resisting temperatures of 105°C above room temperature.
• We would point out that the adhesive which bonds the plastic laminate to the
furniture must withstand temperatures not less than 150°C to avoid delamination.
• Do not install the appliance near inammable materials (eg. curtains).
WARNING!
When correctly installed, your product meets all safety requirements laid down for
this type of product category. However special care should be taken around the
underneath of the appliance as this area is not designed or intended to be touched
and may contain sharp or rough edges, that may cause injury.
Advice for
the installer
99
Fig. 1.2
INSTALLATION
1
TECHNICAL INFORMATION FOR THE INSTALLER

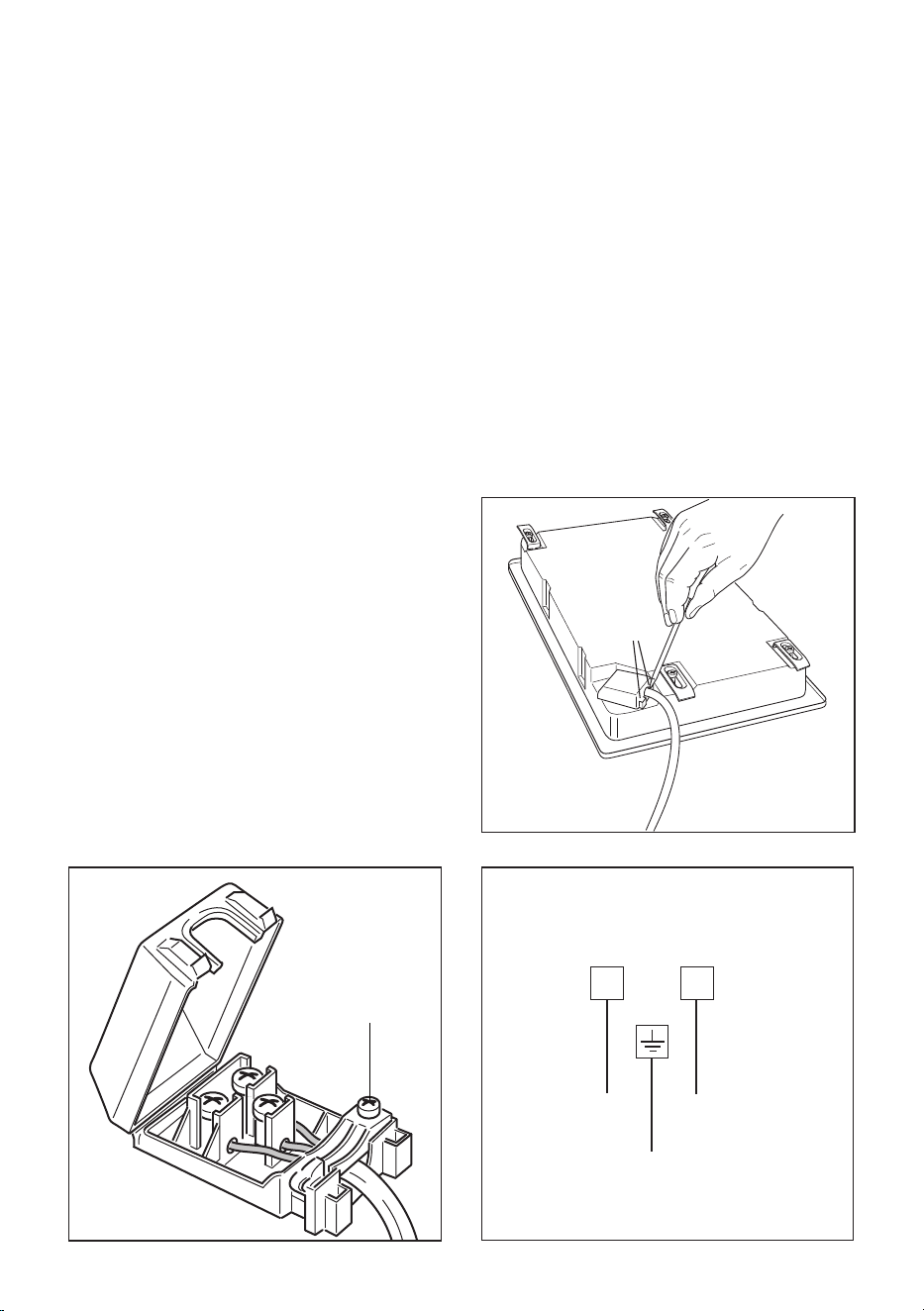

Some models only: Before installing the cooktop, remove the protective lm.

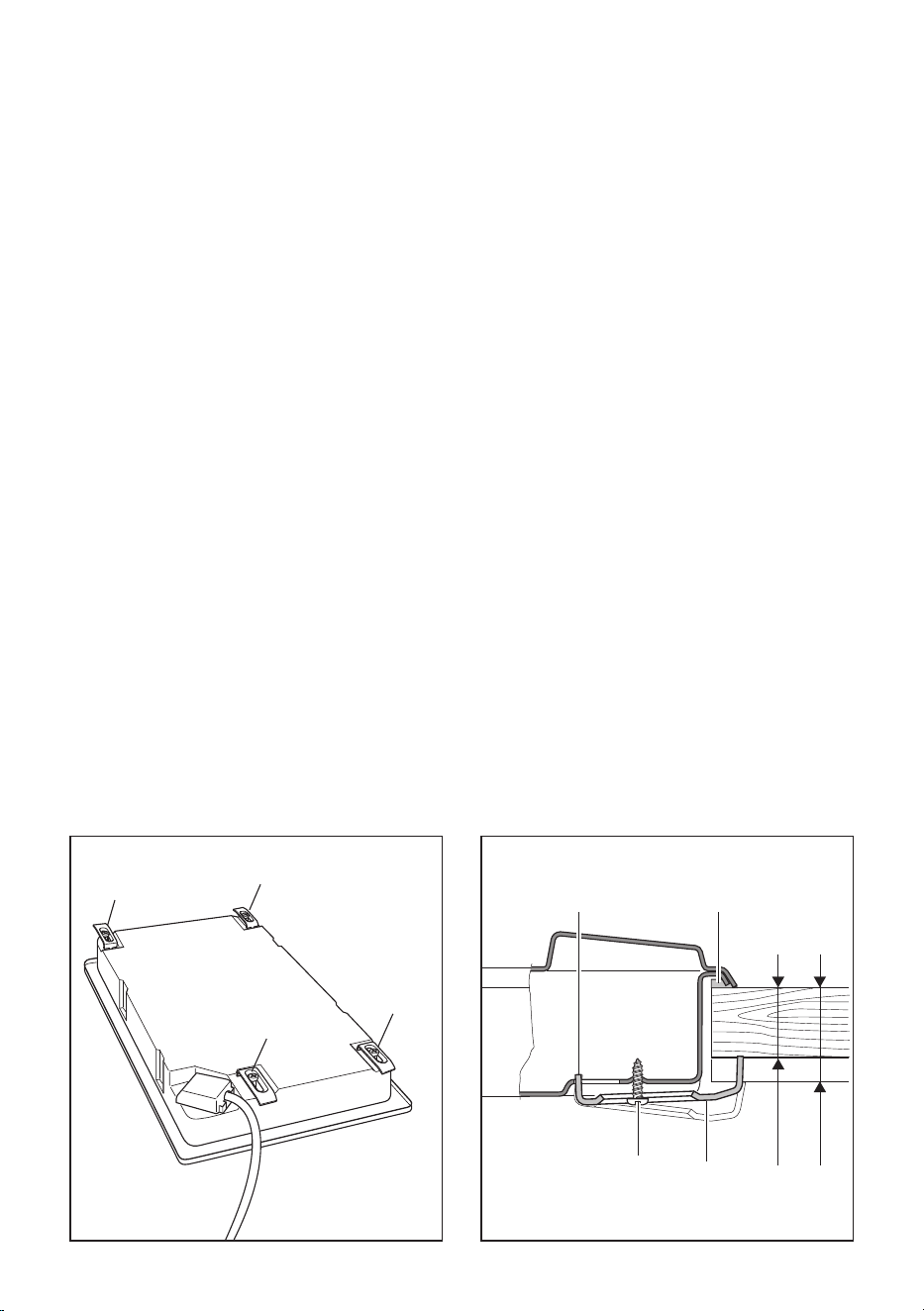

These cooking hobs are designed to be embedded into kitchen xtures measuring 600 mm
in depth and from 30 to 40 mm thick.

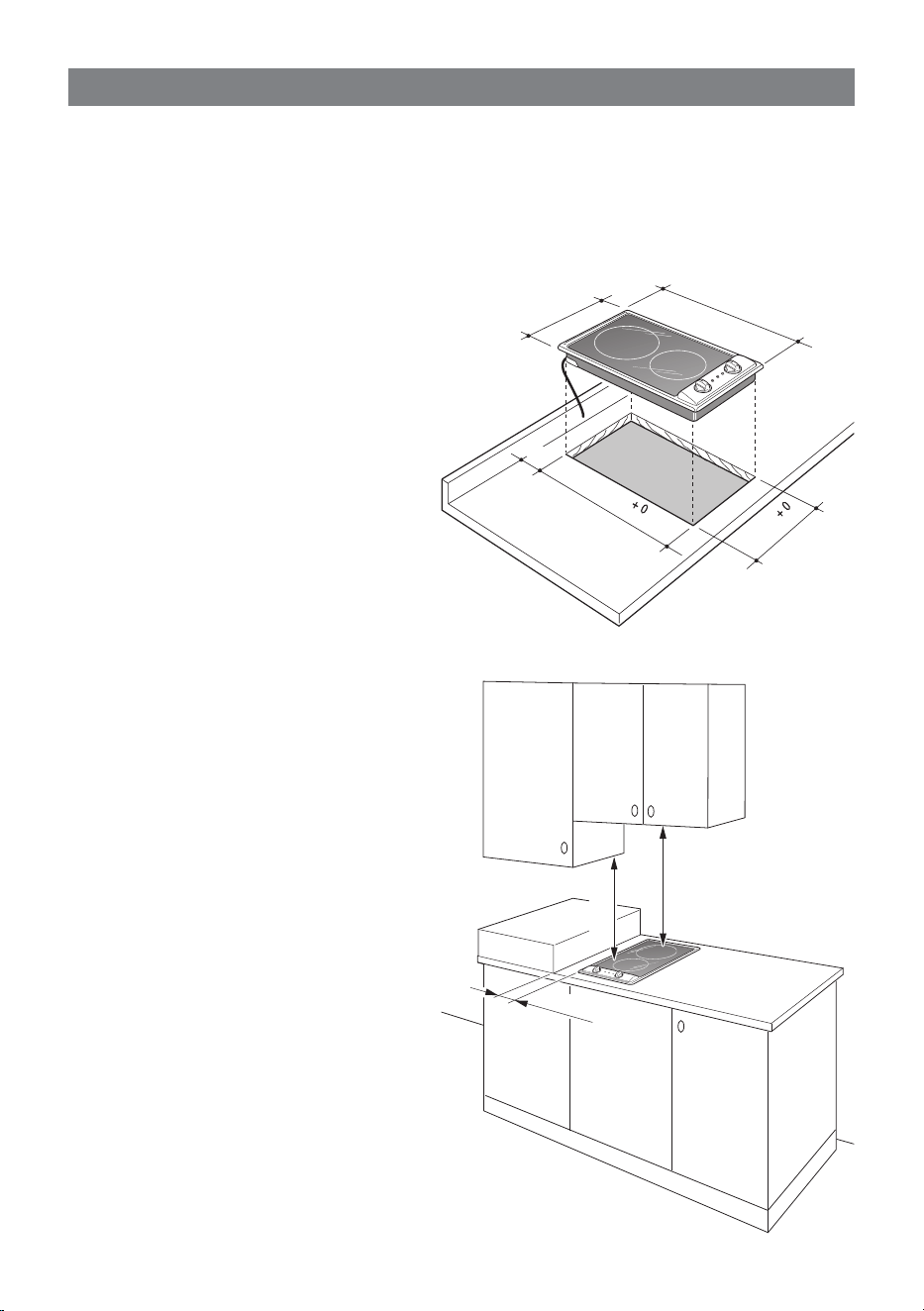

In order to install the cooker top into
the kitchen xture, a hole with the
dimensions shown in g. 1.1 has to
be made, keeping in consideration the
following:
• within the xture, between the
bottom side of the cooker top and
the upper surface of any other
appliance or internal shelf there
must be a clearance of at least 30
mm;
• the cooker top must be kept no less
than 50 mm away from any side
wall (g. 1.2);
• the cooker top must be kept at a
distance of no less than 50 mm
from the rear wall (g. 1.1);
• there must be a distance of at least
650 mm between the hob and any
wall cupboard or extractor hood
positioned immediately above (see
g. 1.2);
• the coatings of the walls of the unit
or appliances near the cooktop
must be heat resistant.
Do not instal the appliance near
inammable materials (eg. curtains).
490
510
270
288
– 2
– 2
50
450 mm
650 mm
50 mm
Fig. 1.1
1010
FASTENING THE COOKTOP
Each cooker top is provided with an installation kit including brackets and screws for
fastening the top to xture panels from 30 to 40 mm thick, gs. 1.4.
• Cut the unit.
• Stretch gasket “D” over the edge of the hole made, being careful to overlay the junction
edges
• Turn the cooktop over and put tabs “A” (g. 1.3) into the mountings, only tighten
screws “B” a few turns.
Make sure that the tabs are mounted correctly as shown in the gure 1.4. Turn the tabs
so that the cooktop can be put into the hole.
• Put the cooktop into the hole cut into the unit and position it correctly.
• Put tabs “A” into place, tooth “C” of the tabs should go into the hole.
• Tighten screws “B” until the cooktop is completely secured.
• Using a sharp tool cut o the part of gasket “D” which protrudes from the cooktop.
Take care not to damage the benchtop.
A
A
A
A
30 mm min.
40 mm max.
B
D
A
C
Fig. 1.4Fig. 1.3
1111
ELECTRICAL SECTION
2
IMPORTANT: The appliance must be
installed by a qualied technician
according with the current local
regulations and in compliance with
the manufacturer instructions.
Incorrect installation might cause
harm and damage to people, animals
or objects, for which the manufacturer
accepts no responsibility.
Connection to a good earth wiring
system is absolutely essential.
The manufacturer accepts no
responsibility for any inconvenience
caused by failure to comply with this
rule.
Before carrying out any work on the
electrical section of the appliance,
it must be disconnected from the
mains.
GENERAL
• Connection to the electric power
supply must be carried out by a
qualied technician and following the
appropriate safety regulations.
• The appliance must be connected to
the mains checking that the voltage
corresponds to the value given in the
rating plate and that the electrical
cable sections can withstand the load
specied on the plate.
• If the hob is supplied without plug, t a
standard plug which is suitable for the
power absorbed by the appliance and in
conformity with the local rules in force.
• The colours of the wires in the appliance
power cable may not correspond with
the colours marked on the terminals of
your electrical plug. The plug should
always be wired as follows:
– connect the green/yellow wire to
the terminal marked with the letter
“E” or the earth symbol “ ” or
coloured green/yellow;
– connect the blue wire to the
terminal marked with the letter “N”
or coloured black;
– connect the brown wire to the
terminal marked with the letter “L”
or coloured red.
• The plug must be connected to an
outlet connected to the grounding unit
in conformity to security norms.
• If the appliance is to be connected
directly to the mains, it must be placed
with an omnipolar switch with minimum
opening between the contacts of 3 mm
between the appliance and the mains.
• The power supply cable must not touch
the hot parts and must be positioned
so that it does not exceed 50°C above
ambient.
• Once the appliance has been installed,
the power switch or power plug must
always be in a accessible position.
• If the power supply cable is damaged it
must be substituted by a suitable cable
available in the after sales service.
• The appliance must have its own
supply; any other appliances installed
near it must be supplied separately.
– N.B. For connection to the mains,
do not use adapters, reducers or
branching devices as they can
cause overheating and burning.
– If the hob surface is cracked
disconnect the appliance from the
mains and contact the After-Sales
Service.
In the event that installation should
require modications to the mains supply
wiring system, it is recommended that a
qualied technician be called to carry out
substitution.
The technician will also have to verify that
the cross-section of the electric cables
on the power point match the appliance’s
power rating.
1212
220 V
PE
N
L
1
(L )
2
Fig. 2.1
F
A
Fig. 2.2 Fig. 2.3
SECTION OF THE SUPPLY CABLE
TYPE “H05RR-F”
220 - 240 V 50-60 Hz 3 x 1,5 mm
2
(*) (**)
(*)
Connection possible with plug and outlet
(**) Connection with wall box connection.
220-240 V~
REPLACING THER POWER SUPPLY CABLE
Important! This appliance must be connected to the electricity supply only by an
authorised person.
WARNING: If the power supply cable is damaged, it must be replaced only by an
authorised service agent in order to avoid a hazard.
• The supply cable must be replaced with a cable of the same type.
• Turn the cooktop over and unhook the terminal board cover by inserting a screwdriver
into the two hooks “A” (g. 2.1).
• Open the cable gland by unscrewing screw “F” (g. 2.2), unscrew the terminal screws
and remove the cable.
• The new supply cable, of suitable type and section, is connected to the terminal board
following the diagram in g. 2.3.
• Pull the feeder cable and block it with cable gland.
• Close the terminal block cover (check the two hooks “A” are correctly hooked).
Note: The earth conductor must be left about 3 cm longer than the others.
1313
Advice for
the users
1414

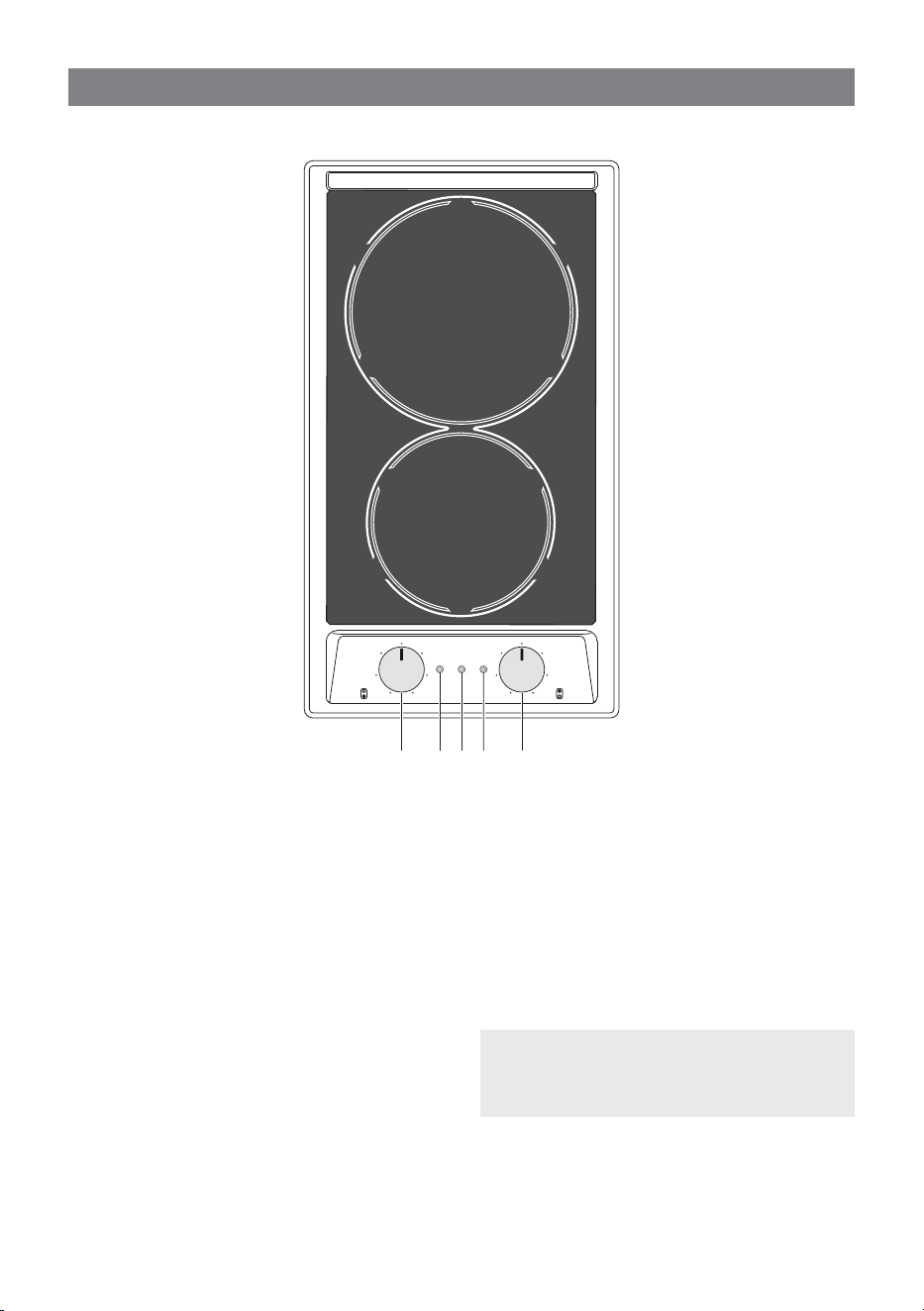

FEATURES
• Electrical insulation Class I.
CONTROL PANEL
1. “3-circuit” front cooking zone Ø 145 mm 1200 W
2. “3-circuit” rear cooking zone Ø 180 mm 1700 W
CONTROL PANEL DESCRIPTION
3. Front zone control knob
4. Rear zone control knob
5. Front zone residual heat indicator
6. Rear zone residual heat indicator
7. Power on indicator light
Fig. 1.1
VITROCERAMIC HOB
1
Attention: Detach the appliance from the mains if the ceramic glass is cracked and contact
the After-Sales Service.
Metallic objects such as knives, forks, spoons and lids should not be placed on the hob
surface since they can get hot.
3 5 7 6 4
2
1
2
3
4
5
6
1
0
2
3
4
5
6
1
0
Caution! Do not cover the hob with
aluminium foils.
1515
WARNING: If the surface is cracked,
switch o the appliance to avoid the
possibility of electric shock.
The ceramic surface of the hob allows a fast
transmission of heat in the vertical direction,
from the heating elements underneath the
ceramic glass to the pans set on it.
The heat does not spread in the horizontal
direction, so that the glass stays “cool” at
only a few centimeters from the cooking
plate.
Check that the hob is clean and then switch
on by turning the control knob.
When the top is working, the pilot light will
be on.
When the hob temperature is above 60°C,
the corresponding indicator light will come
on to indicate that the hob is hot.
This light will stay on even after the hob
has been switched o to indicate that the
hob is still hot.
The residual heat persists for some time
after the hob has been switched o.
During this time avoid touching the
hob and take particular care if there are
children nearby.
The light will go out automatically when the
hob temperature drops below 60°C.
IMPORTANT NOTE:
The heating elements incorporate a
thermolimiter that switches ON/OFF the
element in all settings to protect any
overheating of the ceramic glass.
The use of incorrect pans and/or wrong
pan positioning will cause the temperature
limiter to operate more frequently, resulting
in a reduction of cooking performance.

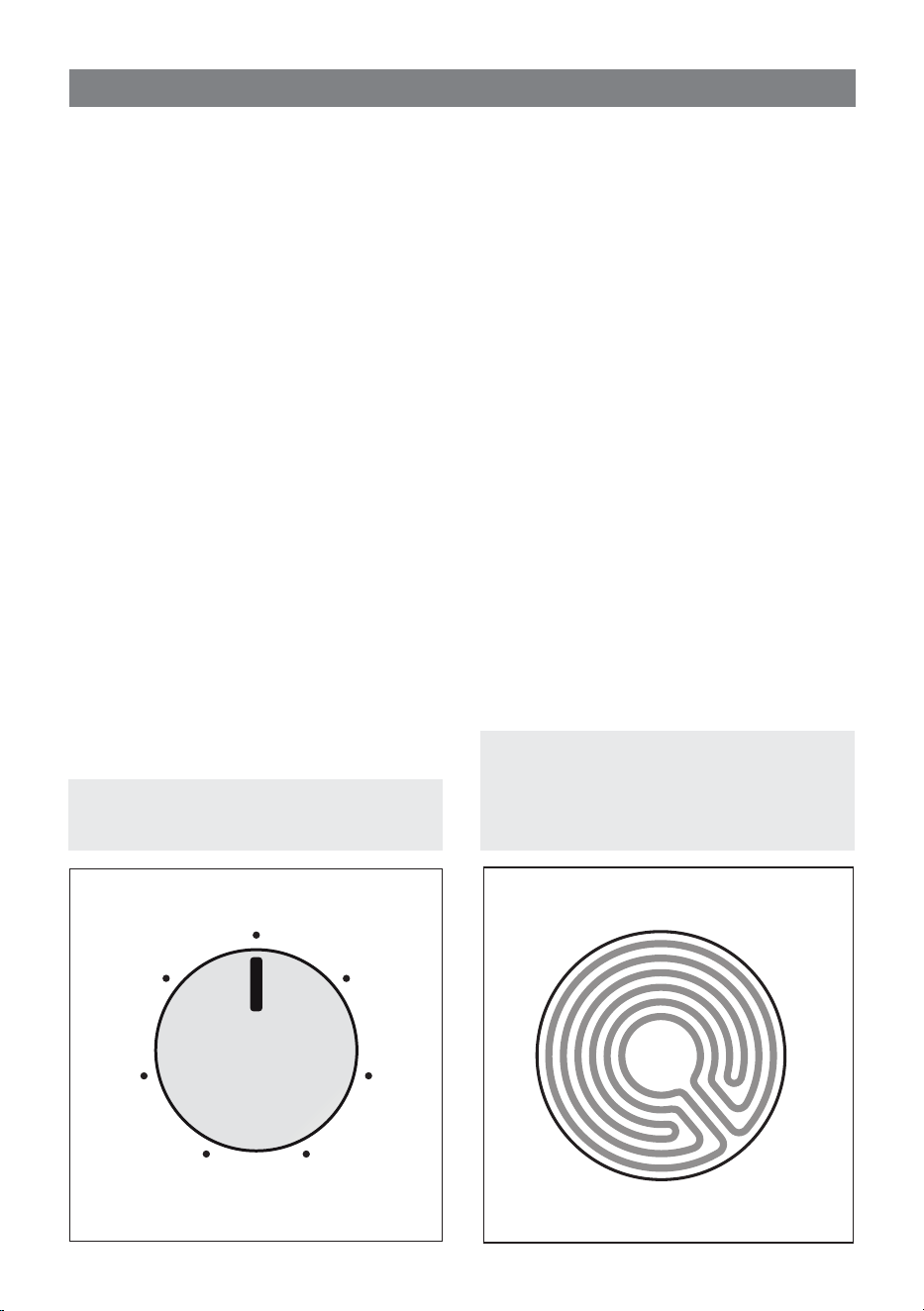

“3-CIRCUIT” RADIANT ZONES
The heating element (g. 2.2) consists of
3 electrical resistances which can operate
together or separately according to the
setting of the 7-position switch (g. 2.1).
It reaches the required temperature very
quickly.
Fig. 2.2
HOW TO USE THE HOB
2
NOTE: The knob and symbols may
vary.
2
3
4
5
6
1
0
Fig. 2.1
1616
Heating
Cooking
Roasting-frying
1
2
3
4
5
6
Fig. 2.3
After a short period of use, experience will
teach you which setting is the right one for
your needs.
COOKING HINTS
Knob
setting
TYPE OF COOKING
0 Switched OFF
1
2
For melting operations
(butter, chocolate).
2
To maintain food hot and to
heat small quantities of liquid
(sauces, eggs).
3
To heat bigger quantities;
to whip creams and sauces
(vegetables, fruits, soups).
3
4
Slow boiling, i.e.: boiled
meats, spaghetti, soups,
continuations of steam
cooking of roasts, stews,
potatoes.
4
For every kind of frying,
cutlets, uncovered cooking,
i.e.: risotto.
4
5
Browning of meats,
roasted potatoes, fried sh,
omelettes, and for boiling
large quantities of water.
6
Fast frying, grilled steaks,
etc.
Cooking zone
controlled by a 7
position switch
1717
COOKING HINTS:
• To reduce the cooking time, you can
turn the control knob to the max when
you switch the plate on. After a short
time you can set the control knob to
the position required for cooking.
• You should only use pots and pans
with at bases (pans with the test mark
for glass-ceramic hobs are available
from specialist shops). The diameter
of the pan should match that of the
cooking plate (or be slightly bigger) to
make the most of the energy.
• Since the cooking surface will stays
hot for a certain time after the plate
has been switched o, you can switch
it o 5 or 10 minutes before the end of
the cooking. The residual heat of the
hob will complete the cooking.
• To save electricity, use pan lids
whenever possible.
• Never cook the food directly on the
glass ceramic cooktop.
WARNING: Hobs become very hot with
use, and retain their heat for a long time
after cooking has nished (about 30
minutes).
Children should be supervised at all
times and be prevented from touching
the hot surfaces, until such time as the
appliance has cooled.
Caution!
The cooking hob becomes very hot
during operation.
Keep children well out of reach.
DO NOT USE GLASSWARE ON CERAMIC HOBS.
DO NOT USE PANS WITH ROUGHT CIRCULAR
MACHINED BASE.
Fig. 2.5
DISTORTED
PANBASE
WRONG
DISTORTED
PANBASE
WRONG
LEVEL
PANBASE
CORRECT
WRONG
WASTING
POWER
WRONG
WASTING
POWER
WRONG
WASTING
POWER
CORRECT
COMPLETE USE
OF THE HEAT
Fig. 2.4
1818
ADVICE FOR SAFE USE OF THE
COOKTOP
• Before switching on make sure that
you have the correct knob for the
hotplate chosen. It is advisable to
put the pan on the hotplate before
switching
on and to take it away after
switching o.
• Use cookware with at and even
bottoms (be careful when using cast
iron vessels). Uneven bottoms can
scratch the glass ceramic surfaces. Be
careful that the bottom is clean and dry.
• Pots with aluminium bottoms may
leave silver streaks or spots on the bob.
• Do not leave wet or damp lids on the bob.
• The glass-ceramic surface and pans
must be clean. Carefully eliminate any
food remains (especially containing
sugar), dirt etc. with the aid of a
cleansing agent.
• Make sure that the handles of
cookware do not stick out over the
edge of the cooker, to avoid them
being knocked over by accident. This
also makes it more dicult for children
to reach the cooking vessels.
• Do not lean over the cooking zones
when they are switched on.
• Do not drop heavy or sharp objects
on the glass ceramic cooktop. If the
surface is broken or damaged unplug
the appliance and contact the after-
sales service.
• Do not put aluminium foil or plastic
objects on the cooking zones when
they are hot.
• Remember that the cooking zones
remain hot for some time after they are
switched o (about 30 mm.).
• Follow the cleaning instructions carefully.
• If you note a crack in the cooktop,
switch the appliance o immediately
and call the After-Sales Service.
Do not scratch the cooktop with
cutting or sharp objects.
Do not use the glass ceramic surface
as a work surface.
CLEANING THE CERAMIC HOB
Before you begin cleaning make sure
that the appliance is switched o.
Remove any encrustation using a scraper
specic for glass ceramic surfaces.
Dust or food particles can be removed with
a damp cloth.
If you use a detergent, please make sure
that it is not abrasive or scouring.
Abrasive or scouring powders can damage
the glass surface of the hob. All traces of
the cleaner have to be removed with a
damp cloth.
It is highly recommended to keep o the
hob any article which can melt: plastic,
aluminium foil, sugar, sugar syrup mixtures
etc.
If any of these products has melted on
the ceramic surface, you should remove it
immediately (when the surface is still hot)
by using a scraper to avoid any permanent
damage to the surface of the hob.
Avoid using any knife or sharp utensil since
these can damage the ceramic.
Do not use steel wool or an abrasive
sponge which could scratch the surface
permanently.
ATTENTION: MOST IMPORTANT!
If cleaning the glass ceramic hob using
a special tool (i.e. scraper) take extra
care to avoid damage to the seal at the
edges of the glass ceramic surface.
Fig. 2.6
1919
GENERAL ADVICE
• Before you begin cleaning, you must ensure that the appliance is switched o.
• It is advisable to clean when the appliance is cold and especially when cleaning the
enamelled parts.
• Be very careful that no water penetrates inside the appliance.
• Avoid leaving alkaline or acidic substances (lemon juice, vinegar, etc.) on the surfaces.
• Avoid using cleaning products with a chlorine or acidic base.
• Under no circumstances should any external covers be removed for servicing or
maintenance except by suitable qualied personnel.
• Do not use a steam cleaner because the moisture can get into the appliance thus
make it unsafe.
• Important: The use of suitable protective clothing/gloves is recommended when
handling or cleaning of this appliance.
• Stainless steel surfaces: clean with a suitable product. Always dry thoroughly.
• IMPORTANT: Do not use any abrasive products (e.g. certain types of sponge) and/
or aggressive products (e.g. caustic soda, products containing corrosive substances),
which could cause irreparable surface damage.
WARNING
When correctly installed, your product meets all safety requirements laid down for
this type of product category. However special care should be taken around the rear
or the underneath of the appliance as these areas are not designed or intended to be
touched and may contain sharp or rough edges, that may cause injury.
ENAMELLED PARTS
All the enamelled parts must be cleaned with a sponge and soapy water only or other non-
abrasive products. Dry preferably with a microbre or soft cloth.
STAINLESS STEEL SURFACE
ONLY SOAP/WARM WATER MUST BE USED TO CLEAN THE STAINLESS STEEL
SURFACES.
PAINTED PARTS AND SILKSCREEN PRINTED SURFACES
Clean using an appropriate product. Always dry thoroughly.
IMPORTANT: these parts must be cleaned very carefully to avoid scratching and abrasion.
You are advised to use a soft cloth and neutral soap.
CAUTION: Do not use abrasive substances or non-neutral detergents as these will
irreparably damage the surface.
CLEANING AND MAINTENANCE
3
Cod. 1106457/GB - ß1
The manufacturer will not be responsible for any inaccuracy resulting from printing or transcript errors
contained in this brochure. We reserve the right to carry out modications to products as required,
including the interests of consumption, without prejudice to the characteristics relating to safety or
function.
GB
