DLP
®
Projector
User manual
English
2
TABLE OF CONTENTS
SAFETY ............................................................................................... 4
Important Safety Instruction....................................................................................................... 4
Battery Safety Instruction .......................................................................................................... 6
Cleaning the Lens...................................................................................................................... 6
Laser Radiation Safety Information ........................................................................................... 7
Copyright ................................................................................................................................... 7
Disclaimer .................................................................................................................................. 7
Trademark Recognition ............................................................................................................. 8
FCC ........................................................................................................................................... 8
Declaration of Conformity for EU countries ............................................................................... 9
WEEE ........................................................................................................................................ 9
CTUVUS .................................................................................................................................... 9

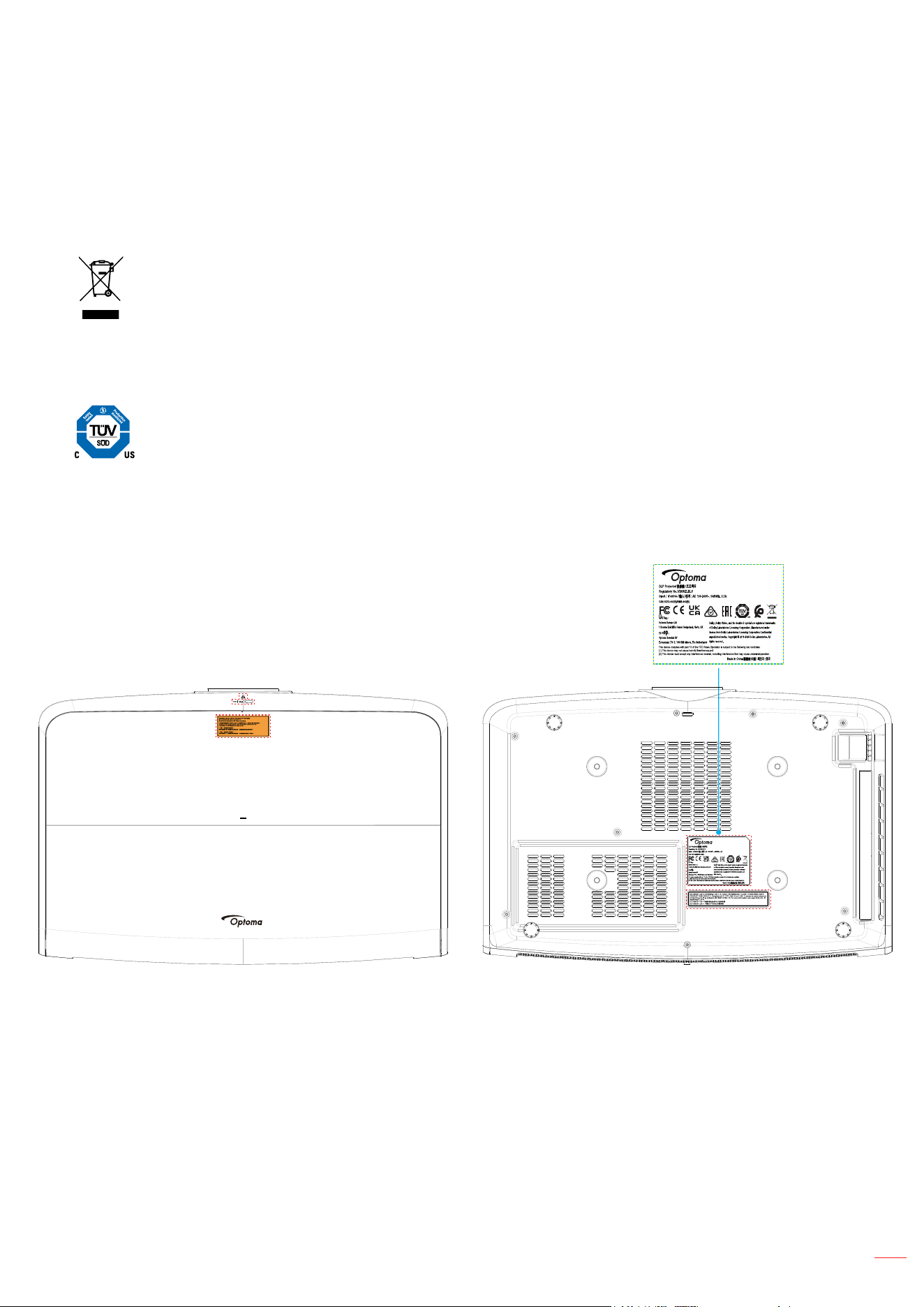

Specications and Warning labels ............................................................................................. 9
INTRODUCTION ............................................................................... 10
Package Overview.................................................................................................................... 10
Standard accessories ............................................................................................................... 10

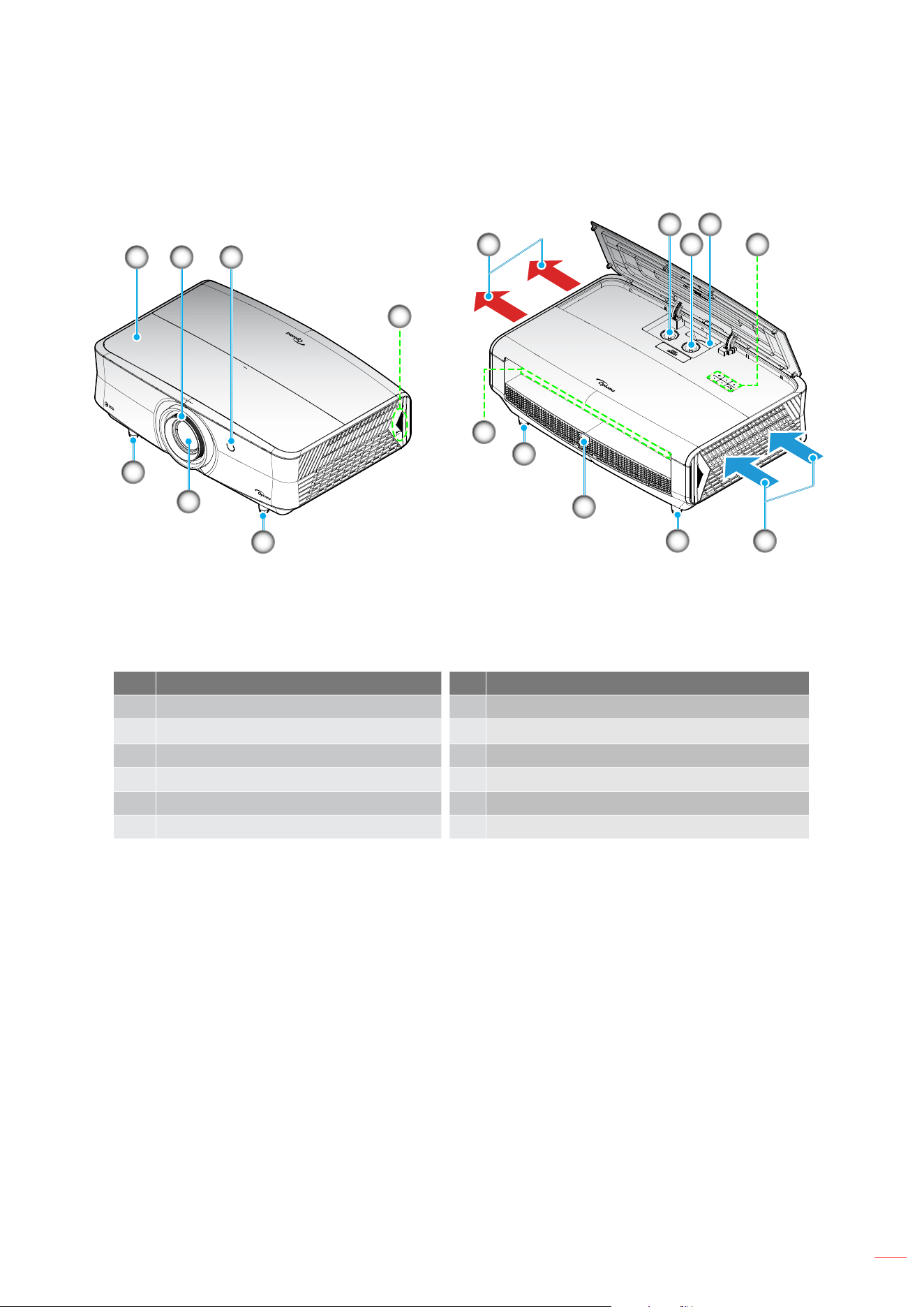

Product Overview ..................................................................................................................... 11

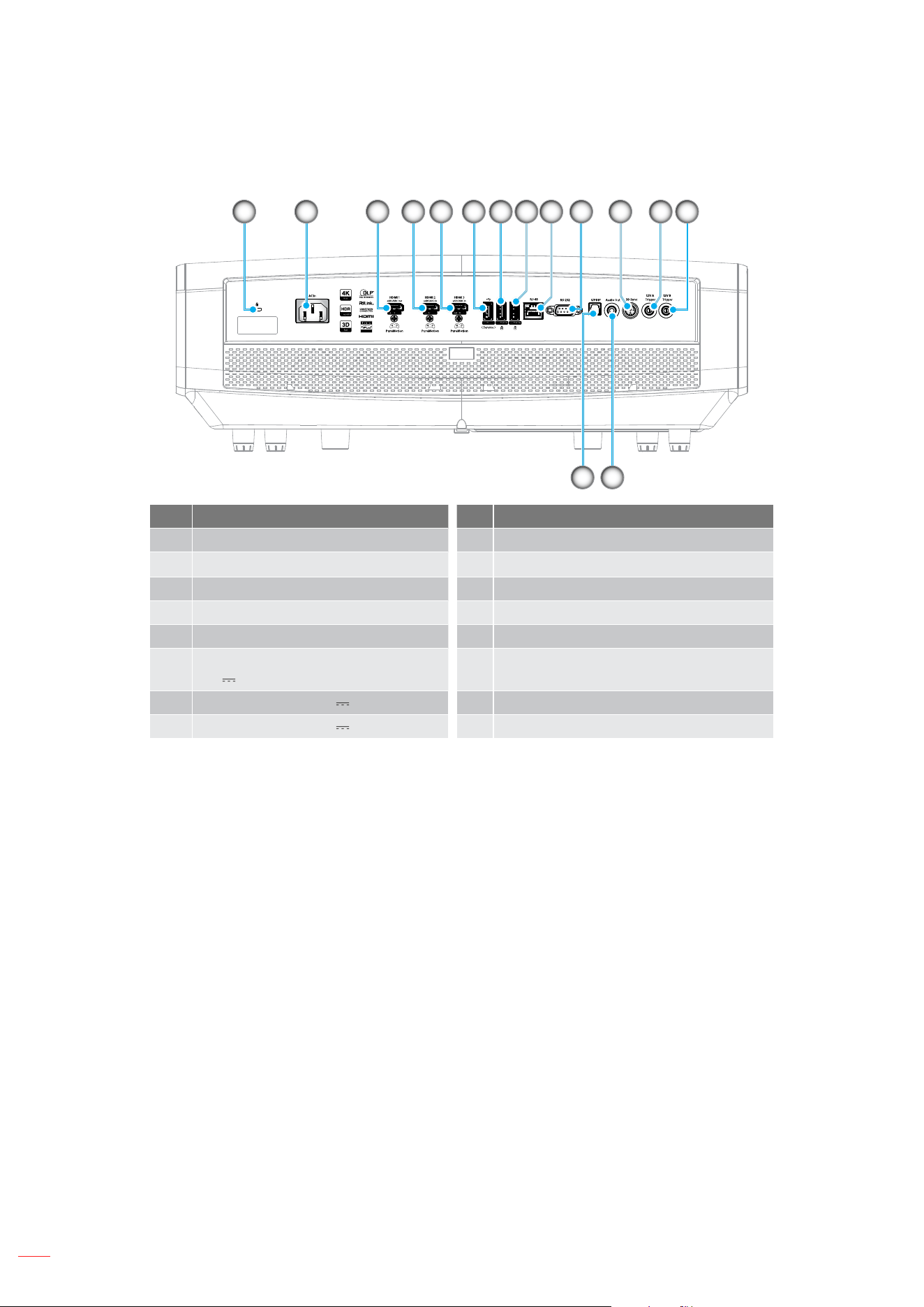

Connections.............................................................................................................................. 12

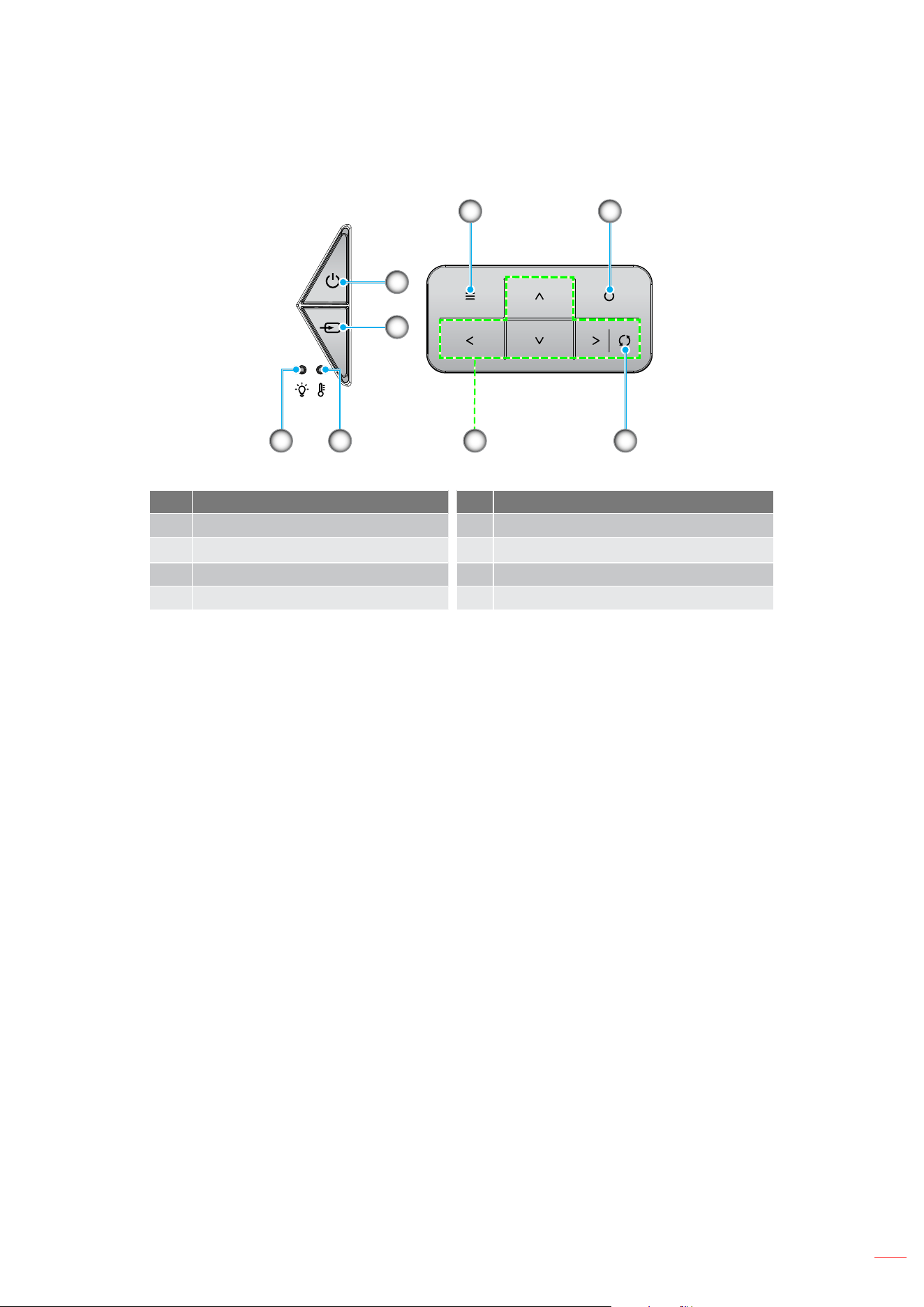

Keypad ..................................................................................................................................... 13

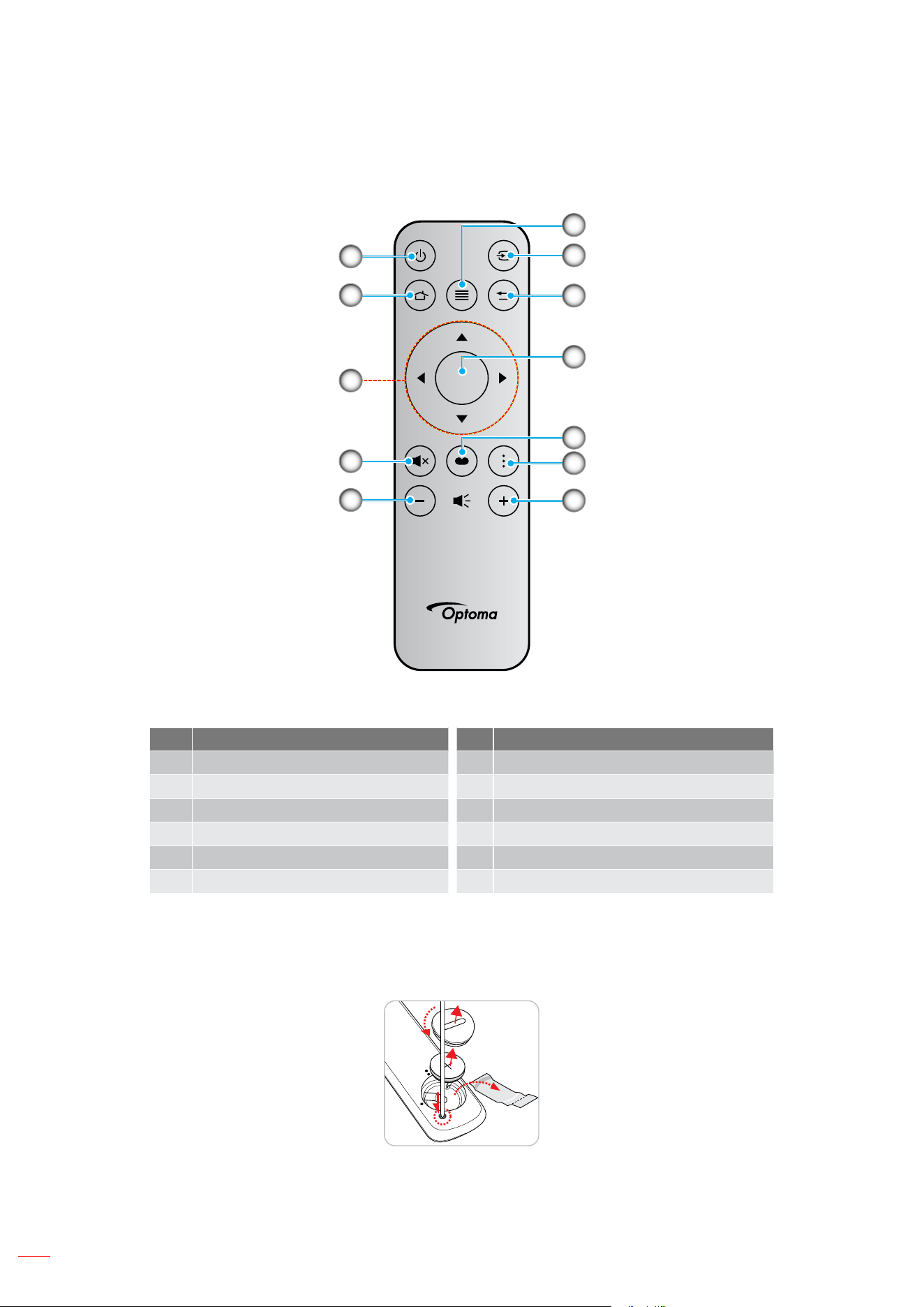

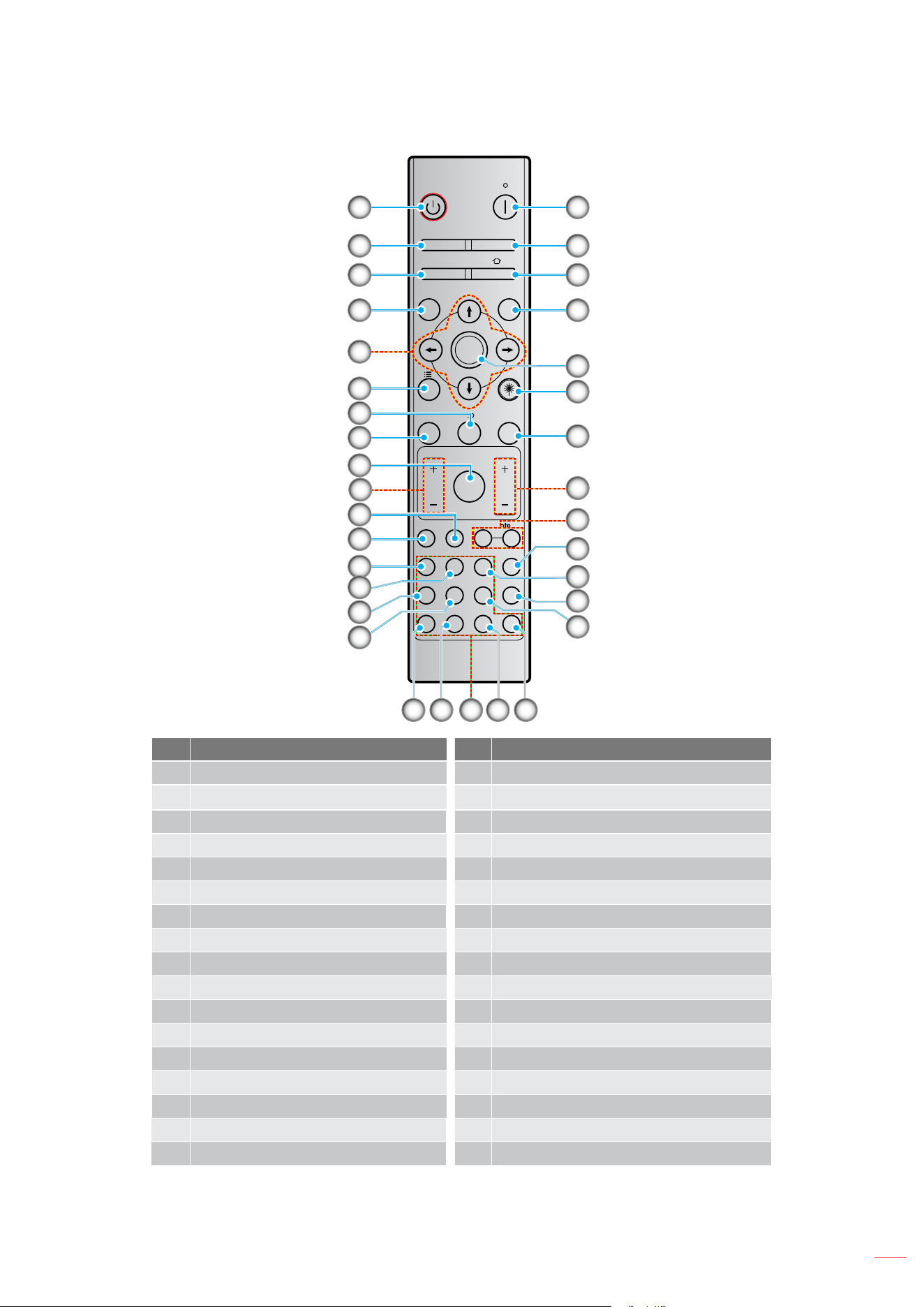

Remote control ......................................................................................................................... 14
SETUP AND INSTALLATION ........................................................... 16

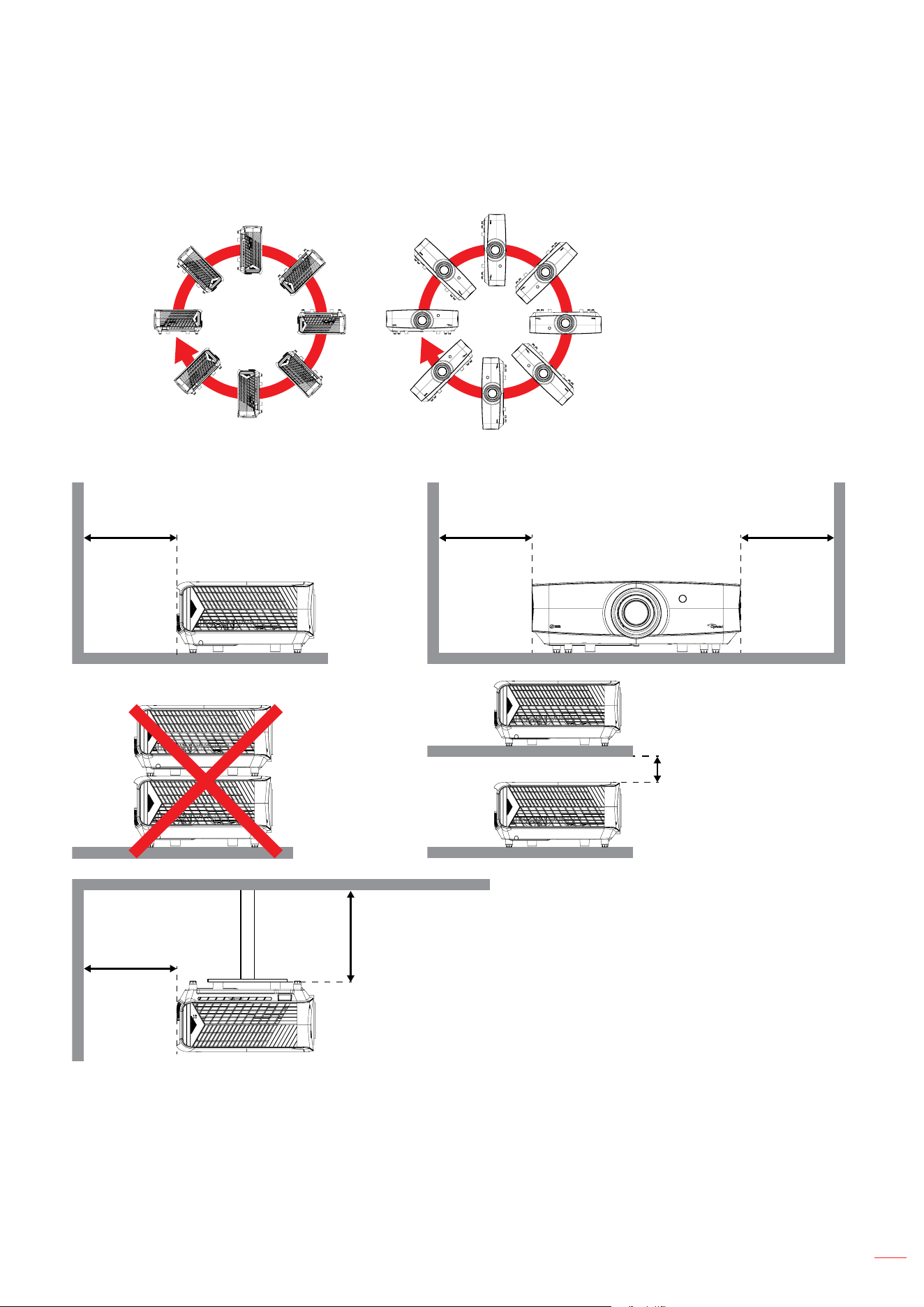

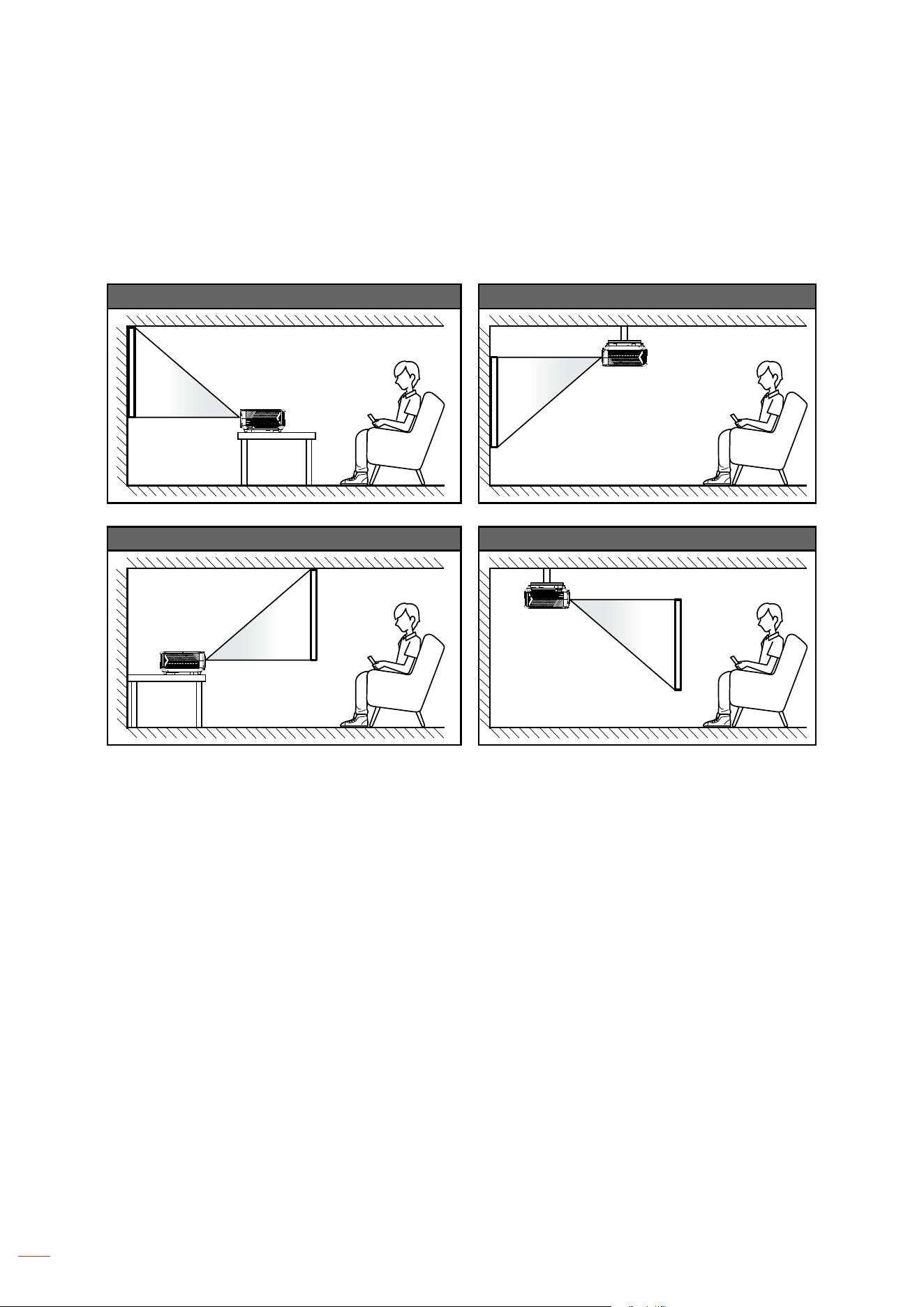

Installing the projector .............................................................................................................. 16

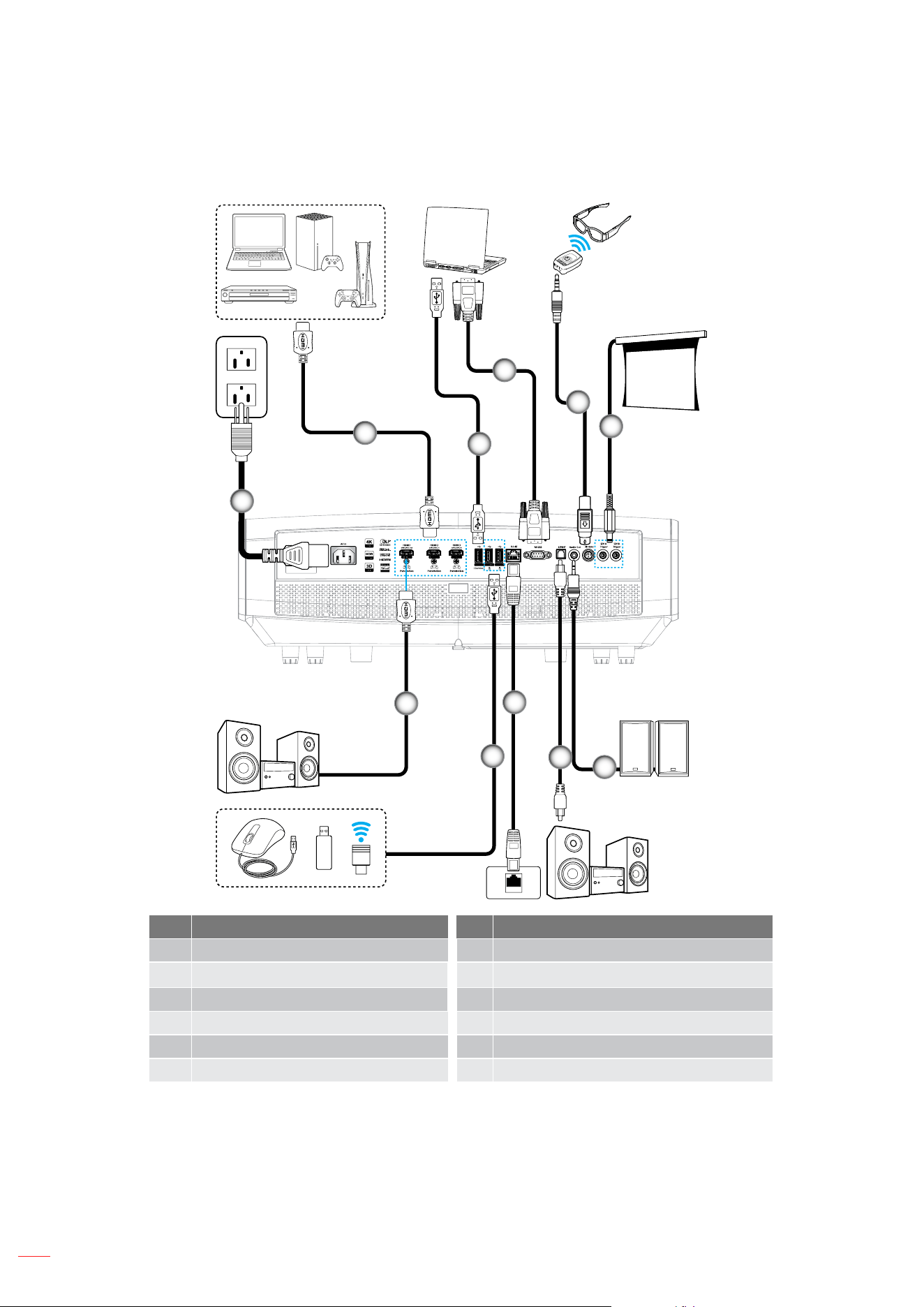

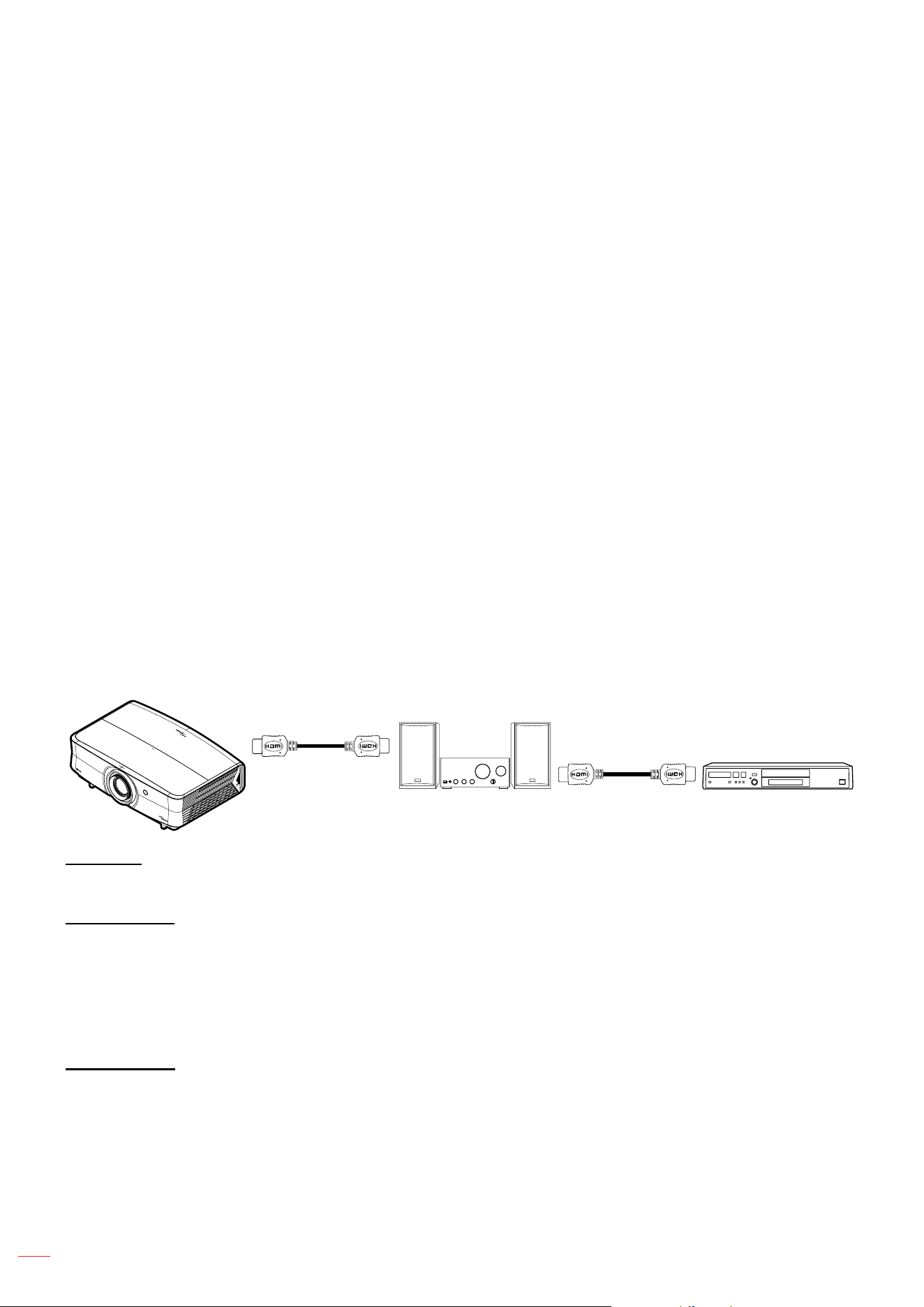

Connecting sources to the projector ......................................................................................... 18

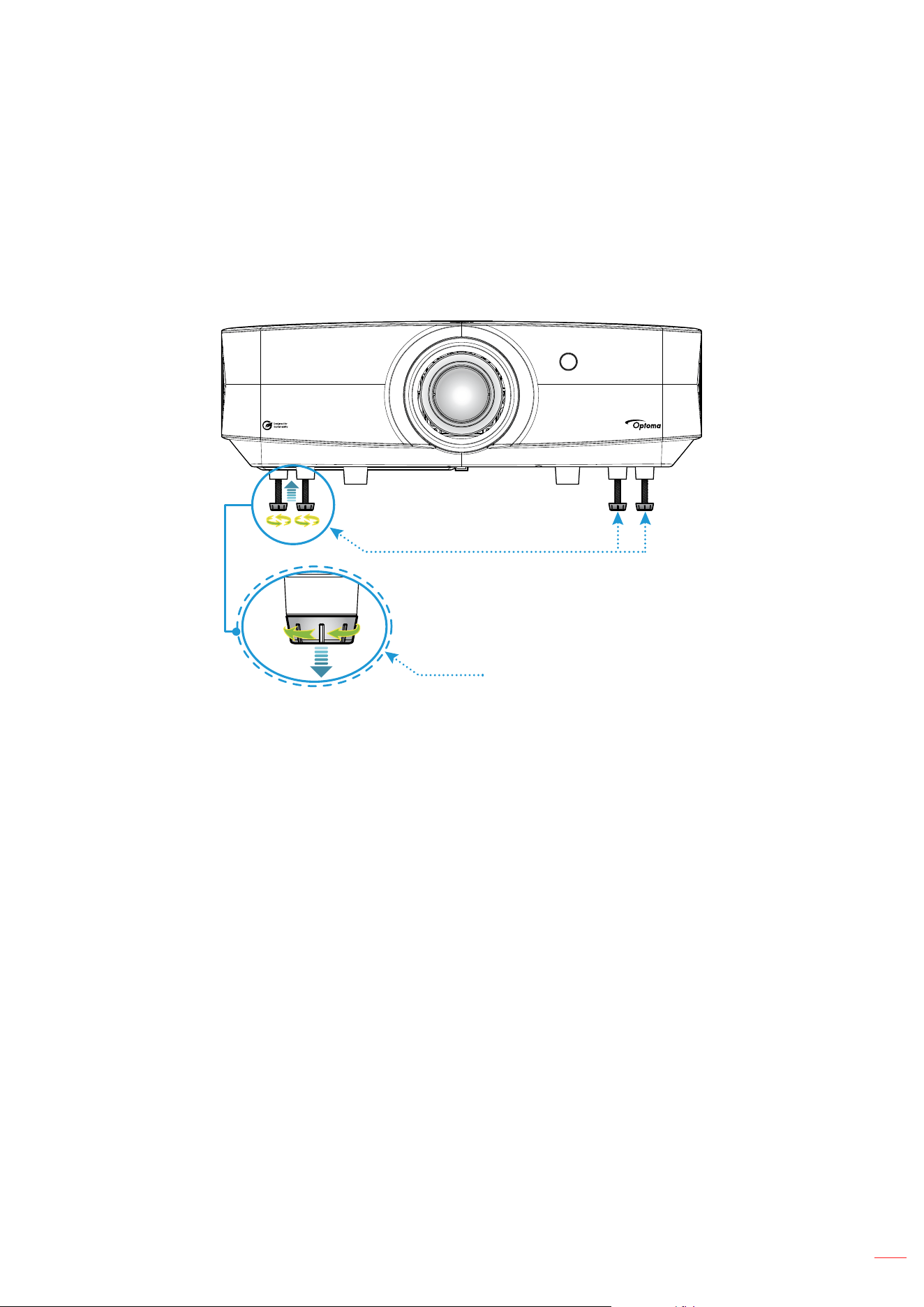

Adjusting the projector image ................................................................................................... 19

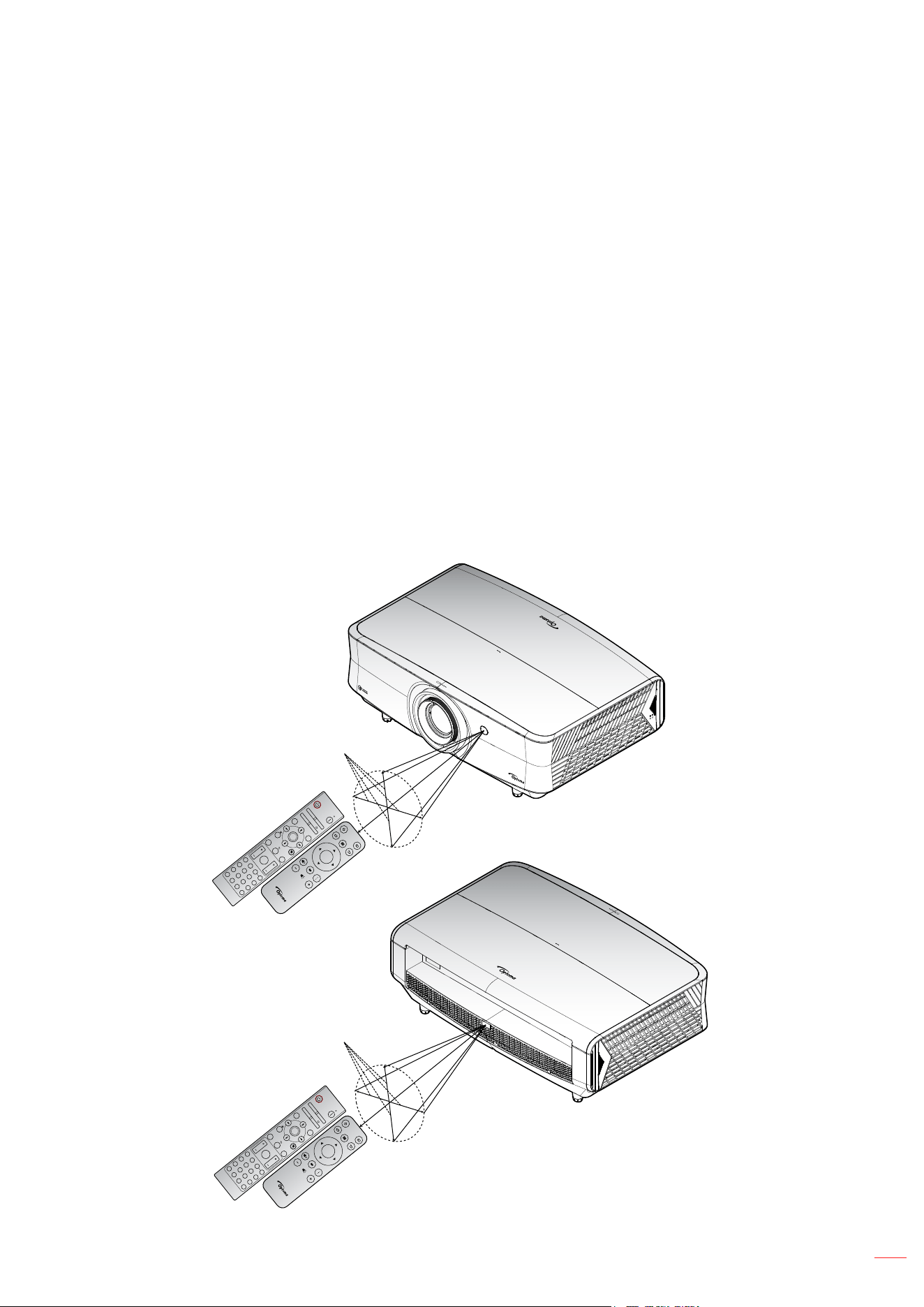

Remote setup ........................................................................................................................... 21
USING THE PROJECTOR ............................................................... 24

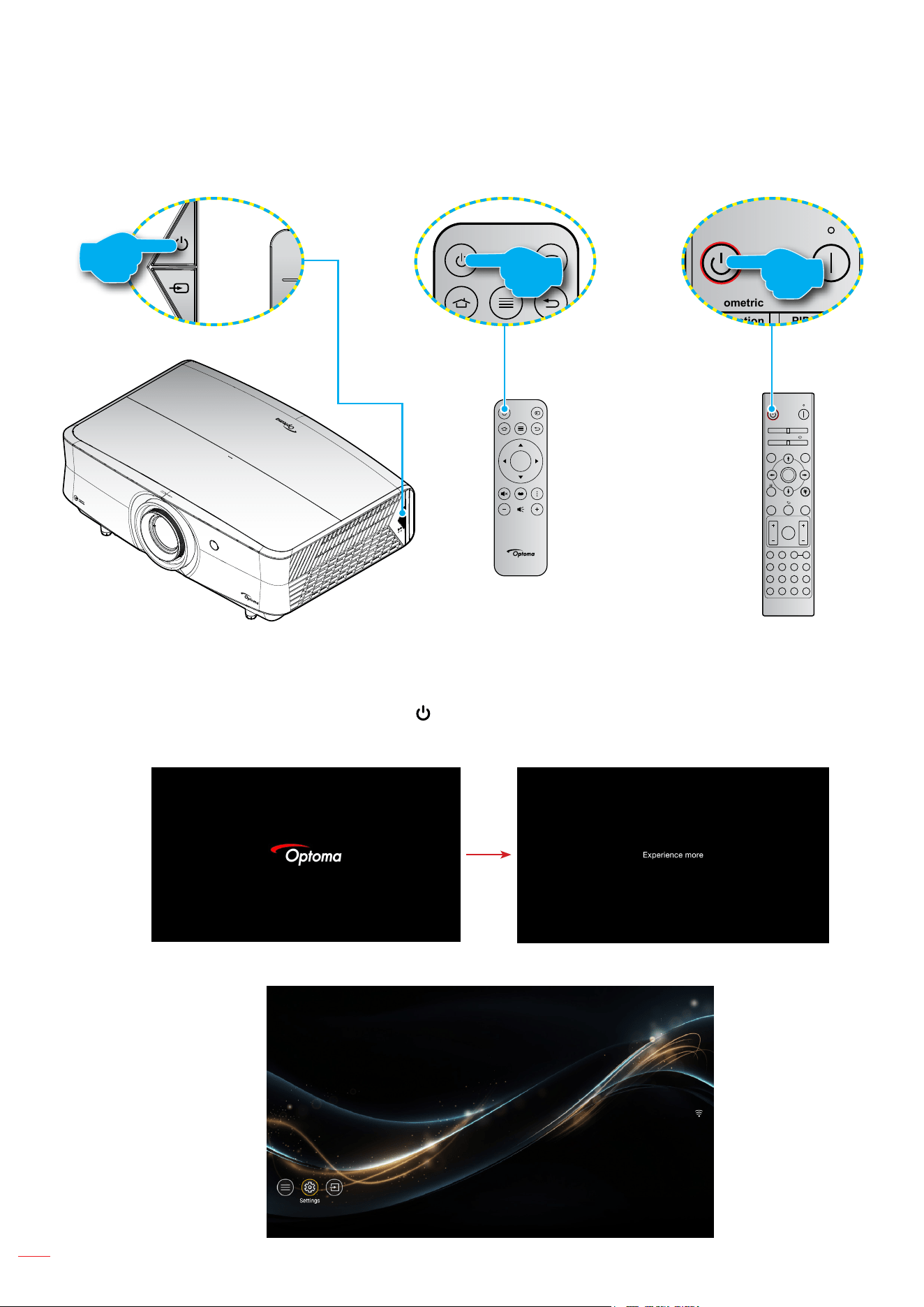

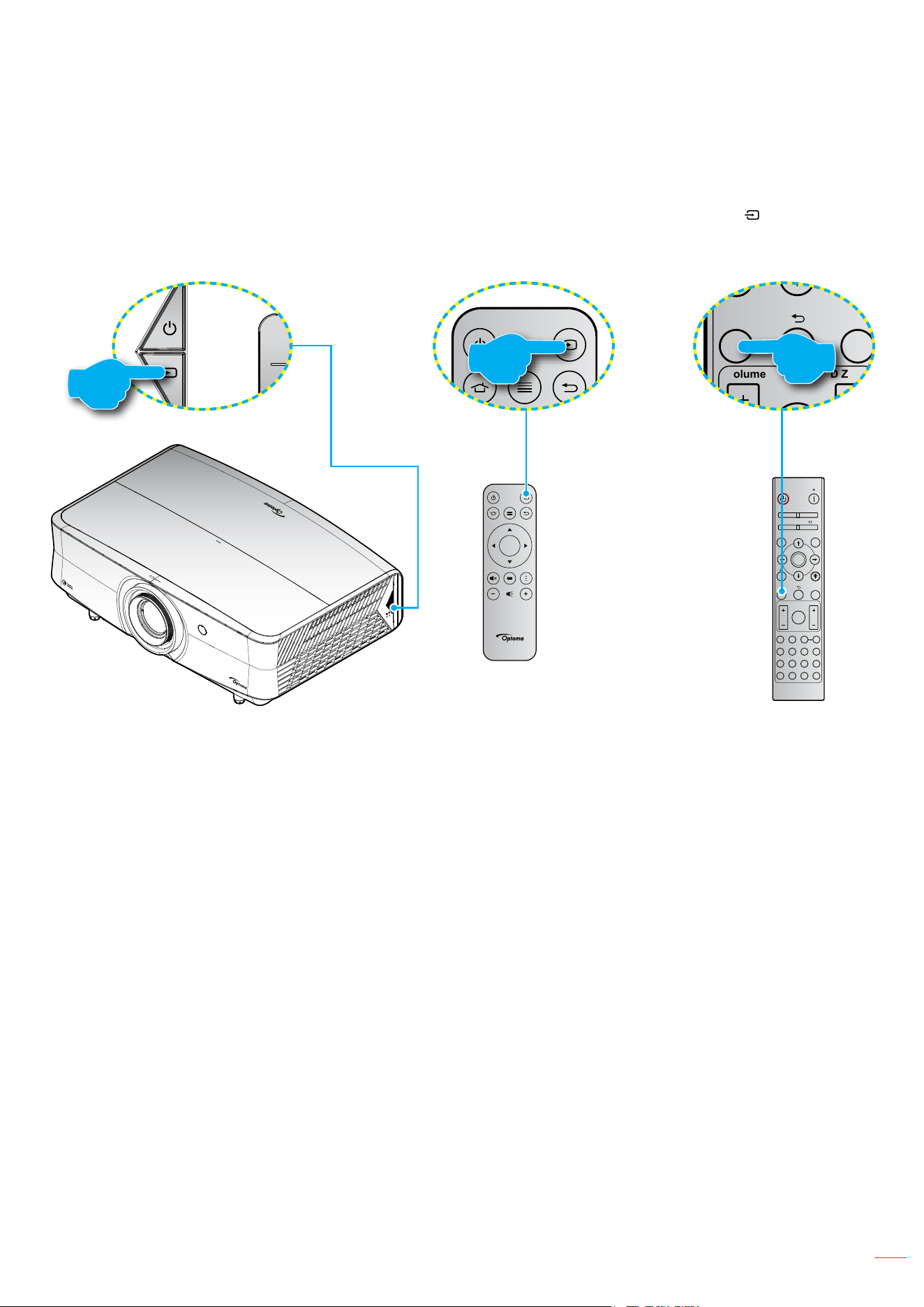

Powering on / o the projector .................................................................................................. 24
Selecting an input source ......................................................................................................... 27

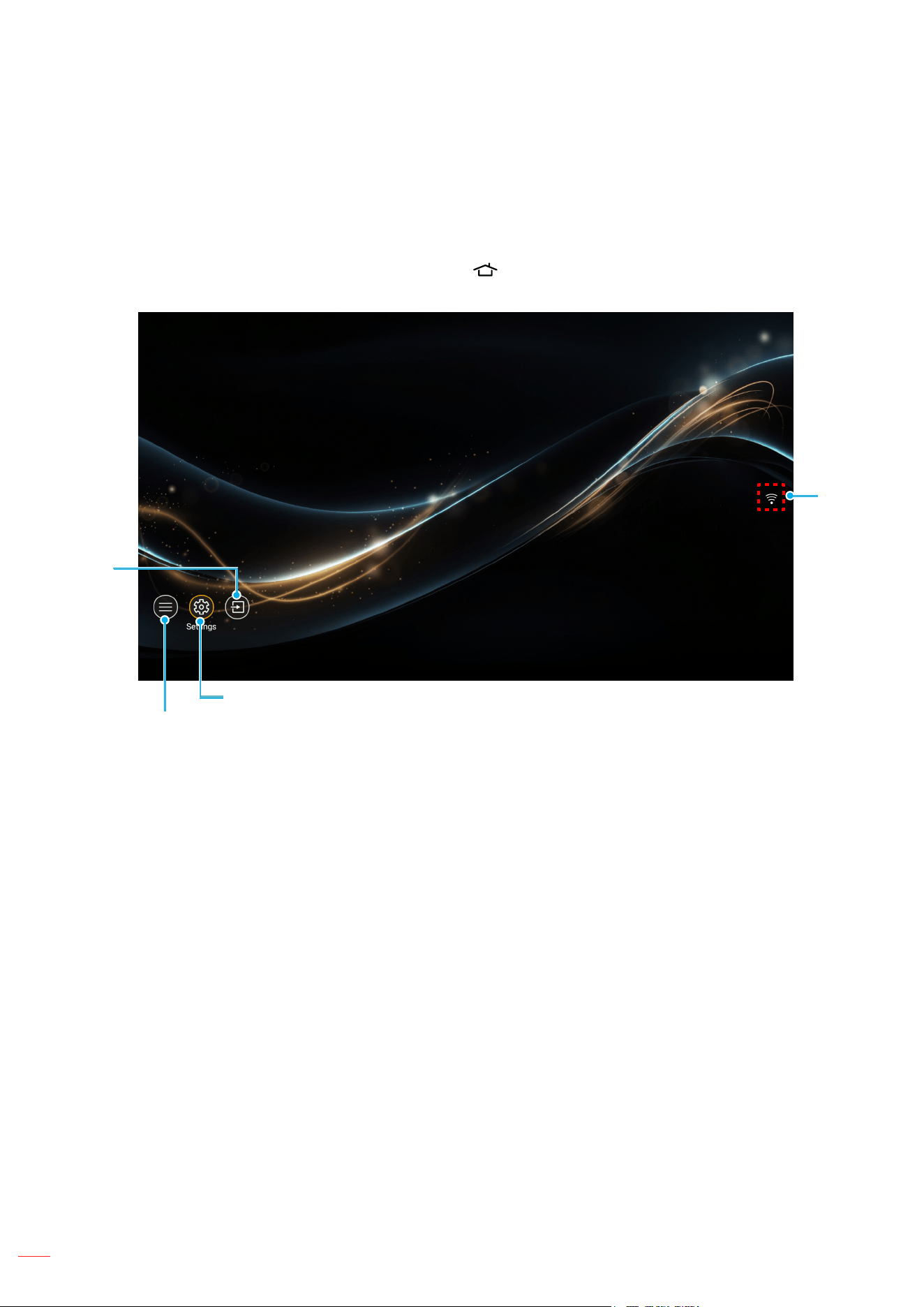

Launcher screen overview........................................................................................................ 28

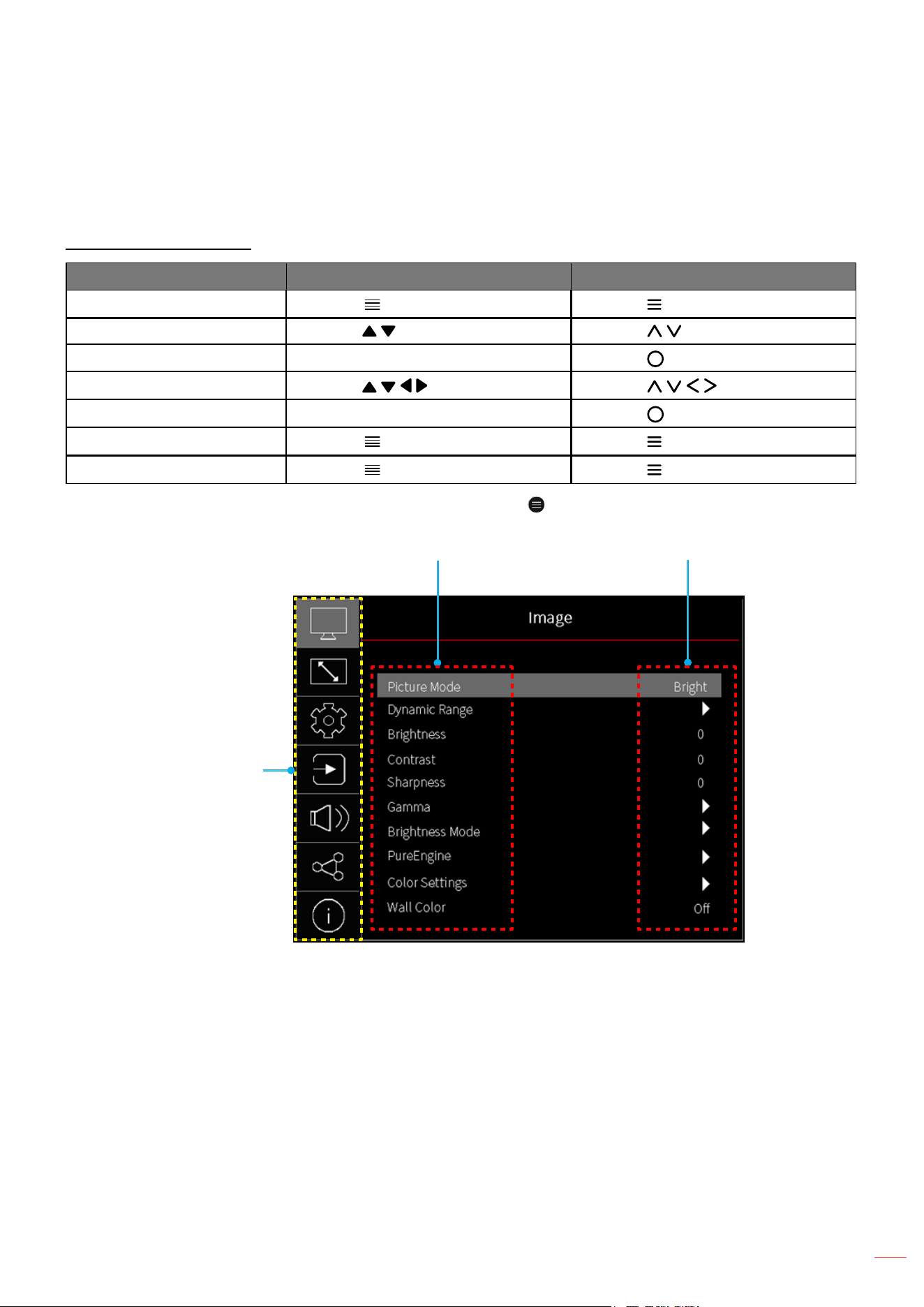

Menu navigation and features .................................................................................................. 29
OSD Menu tree......................................................................................................................... 30
Image menu.............................................................................................................................. 37
Display menu ............................................................................................................................ 42
Setup menu .............................................................................................................................. 45
Audio menu .............................................................................................................................. 49
Control menu ............................................................................................................................ 50
Information menu...................................................................................................................... 63

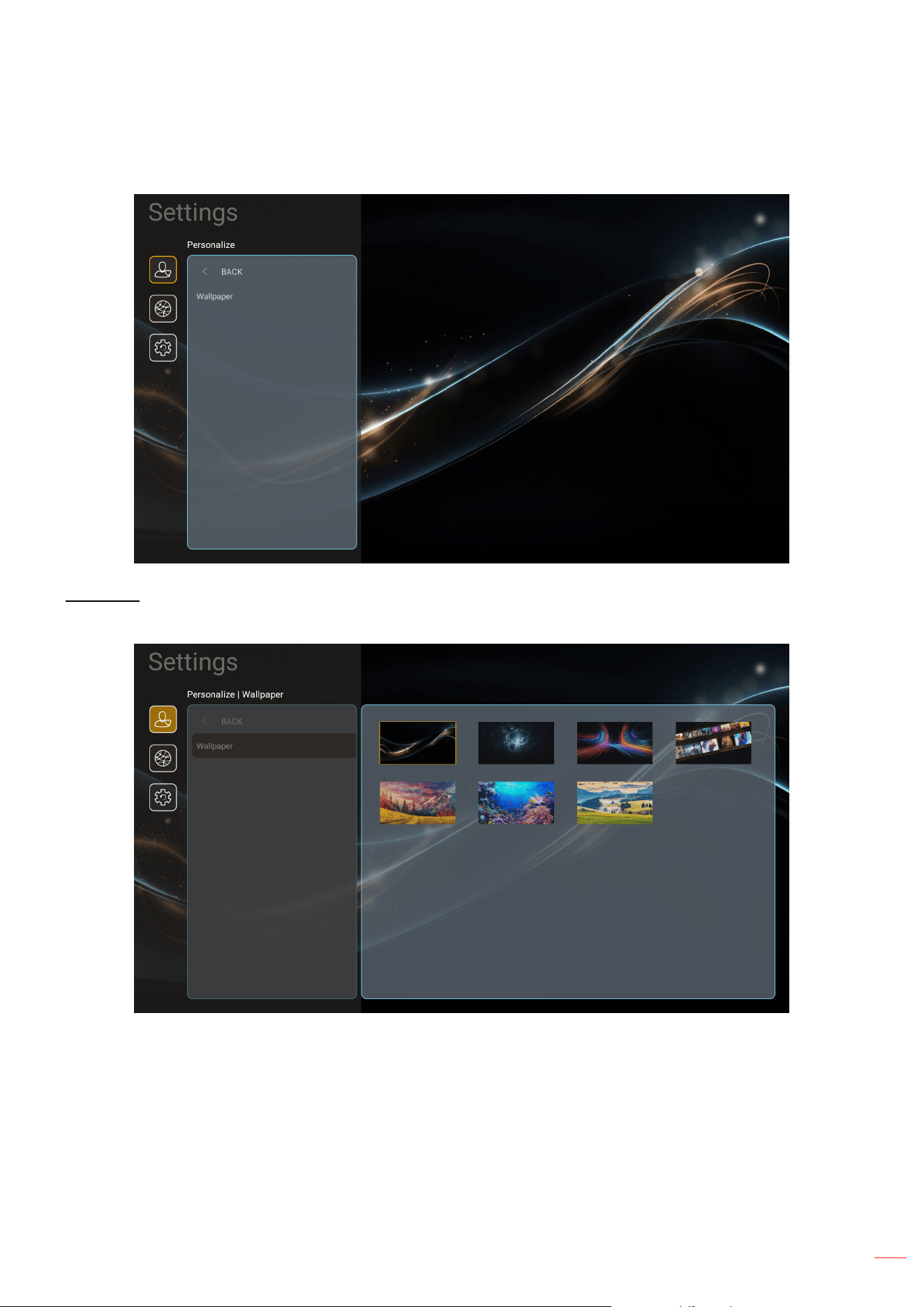

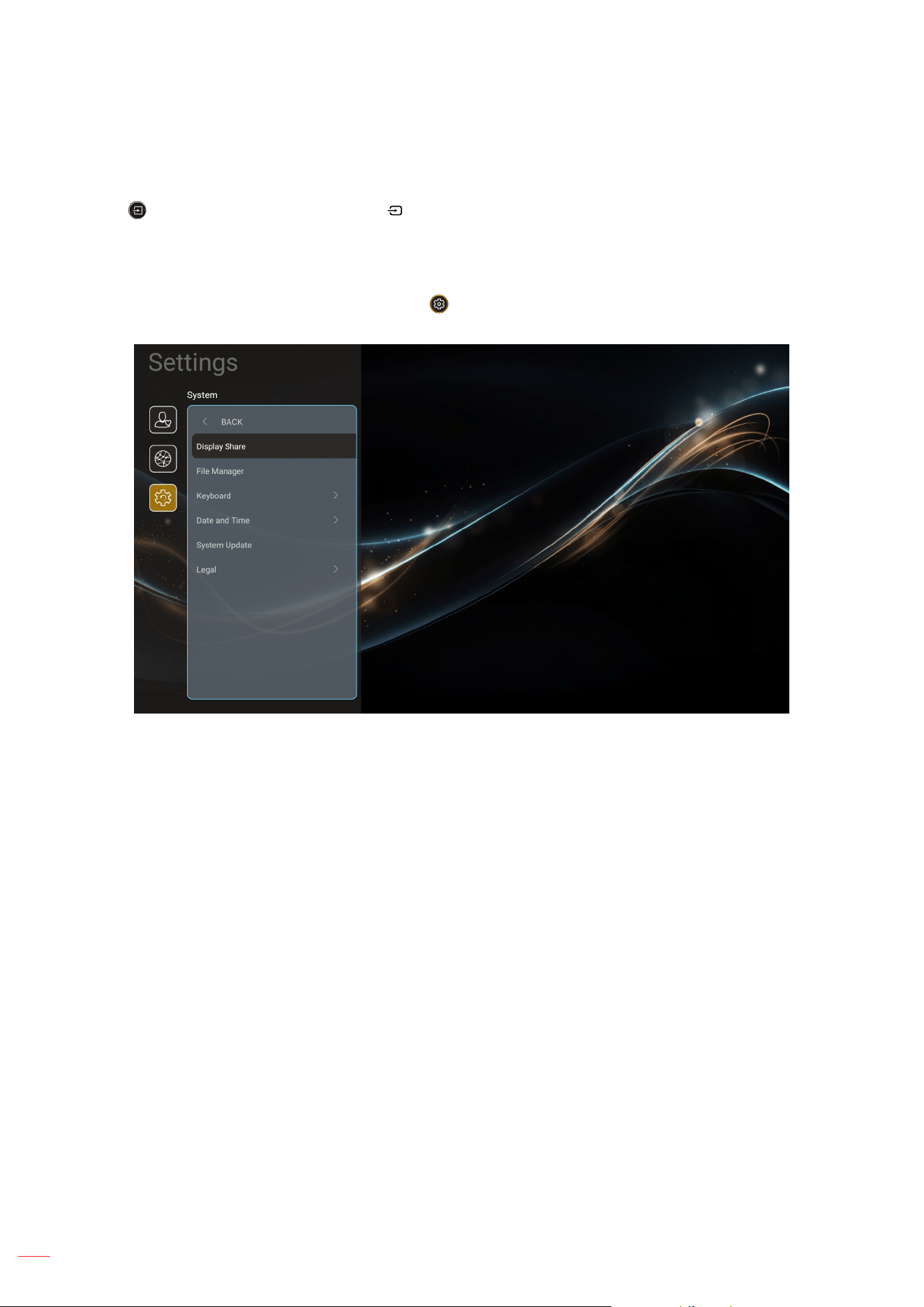

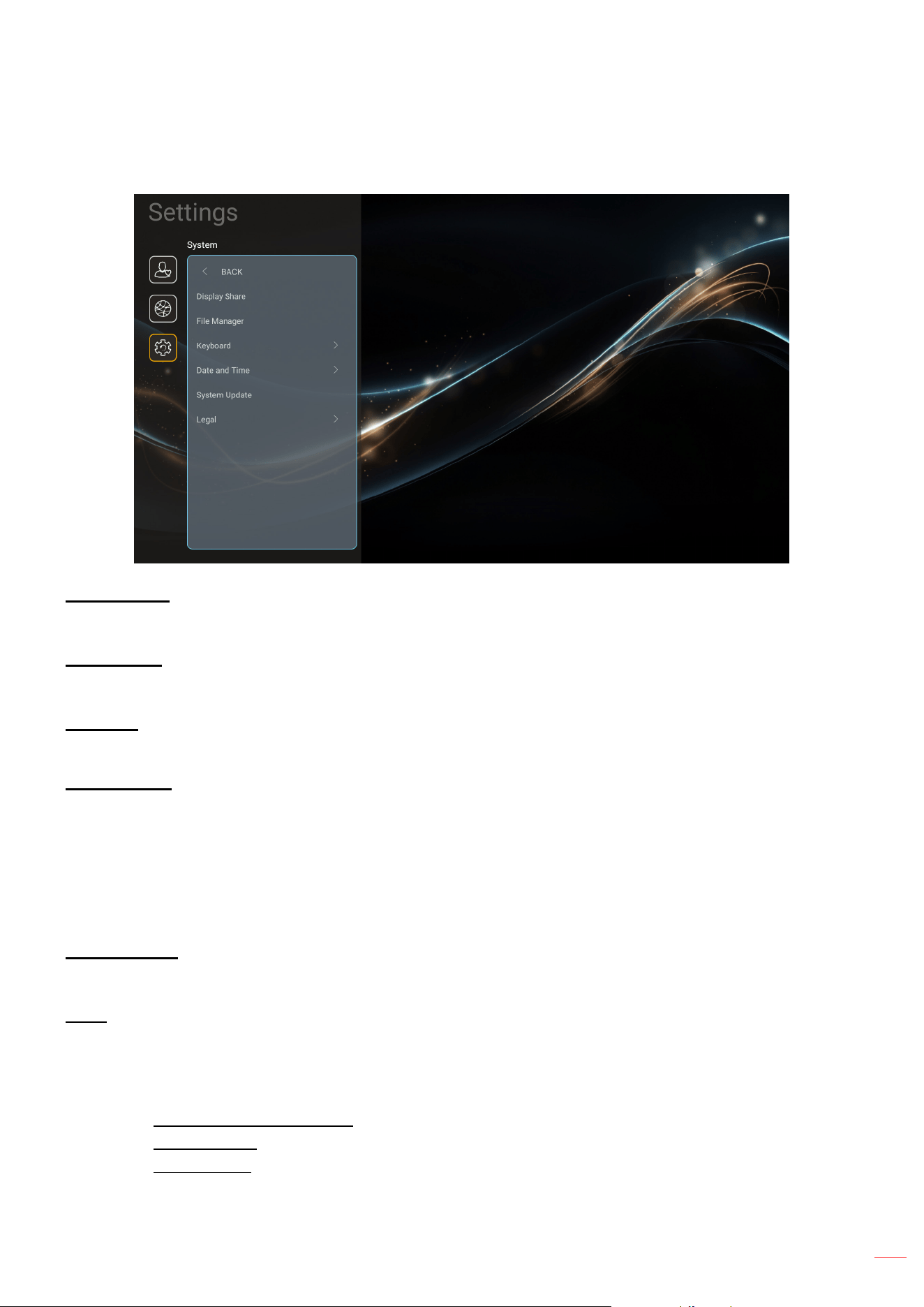

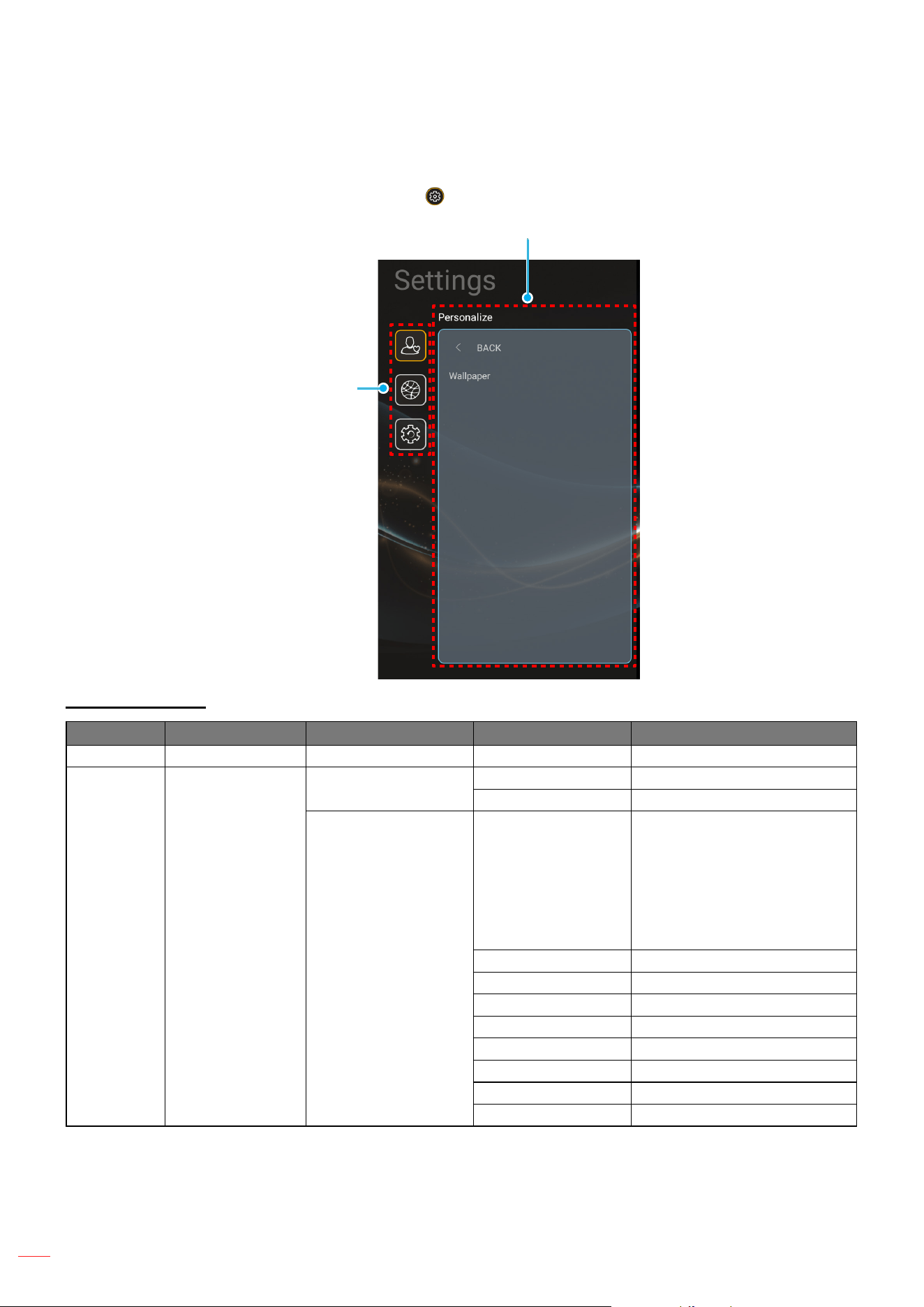

System settings ........................................................................................................................ 64
Selecting an input source manually .......................................................................................... 70
Selecting an app ....................................................................................................................... 70
English
3
ADDITIONAL INFORMATION .......................................................... 73
Compatible resolutions ............................................................................................................. 73

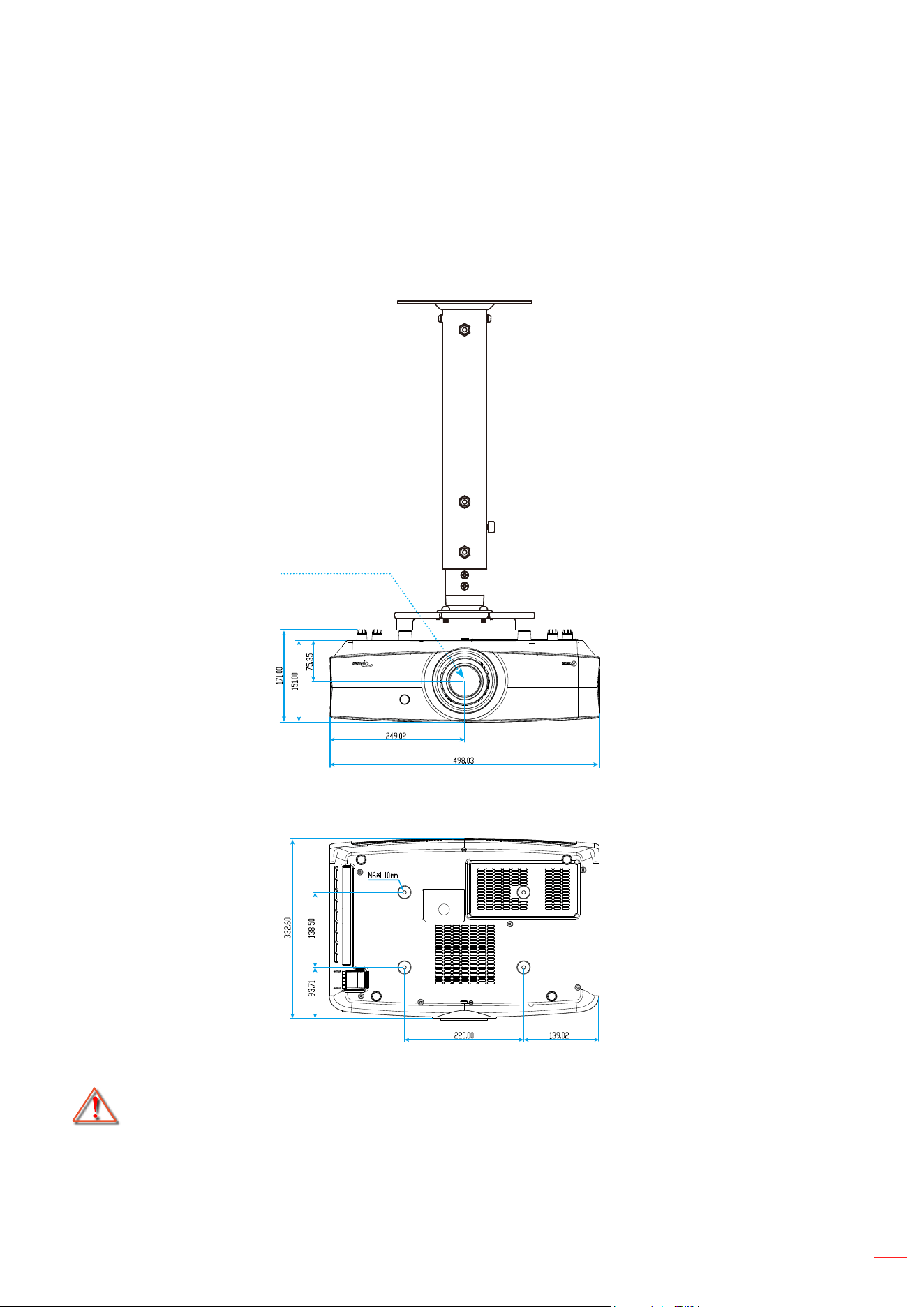

Projector dimensions and ceiling mount installation ................................................................. 77

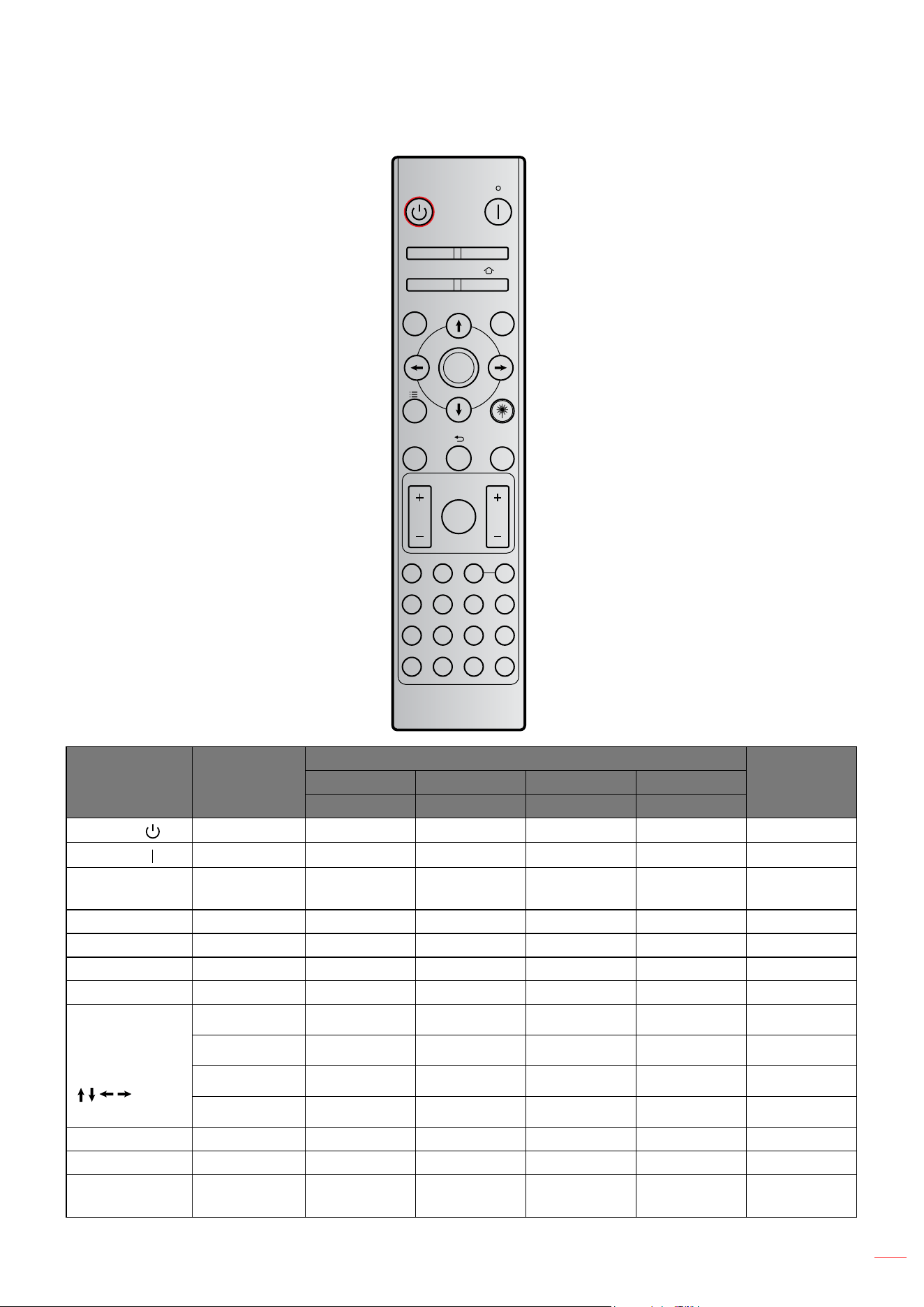

IR remote codes ....................................................................................................................... 78
Troubleshooting ........................................................................................................................ 81
Warning indicators .................................................................................................................... 83
Specications ........................................................................................................................... 85
Optoma global oces ............................................................................................................... 86
English
4

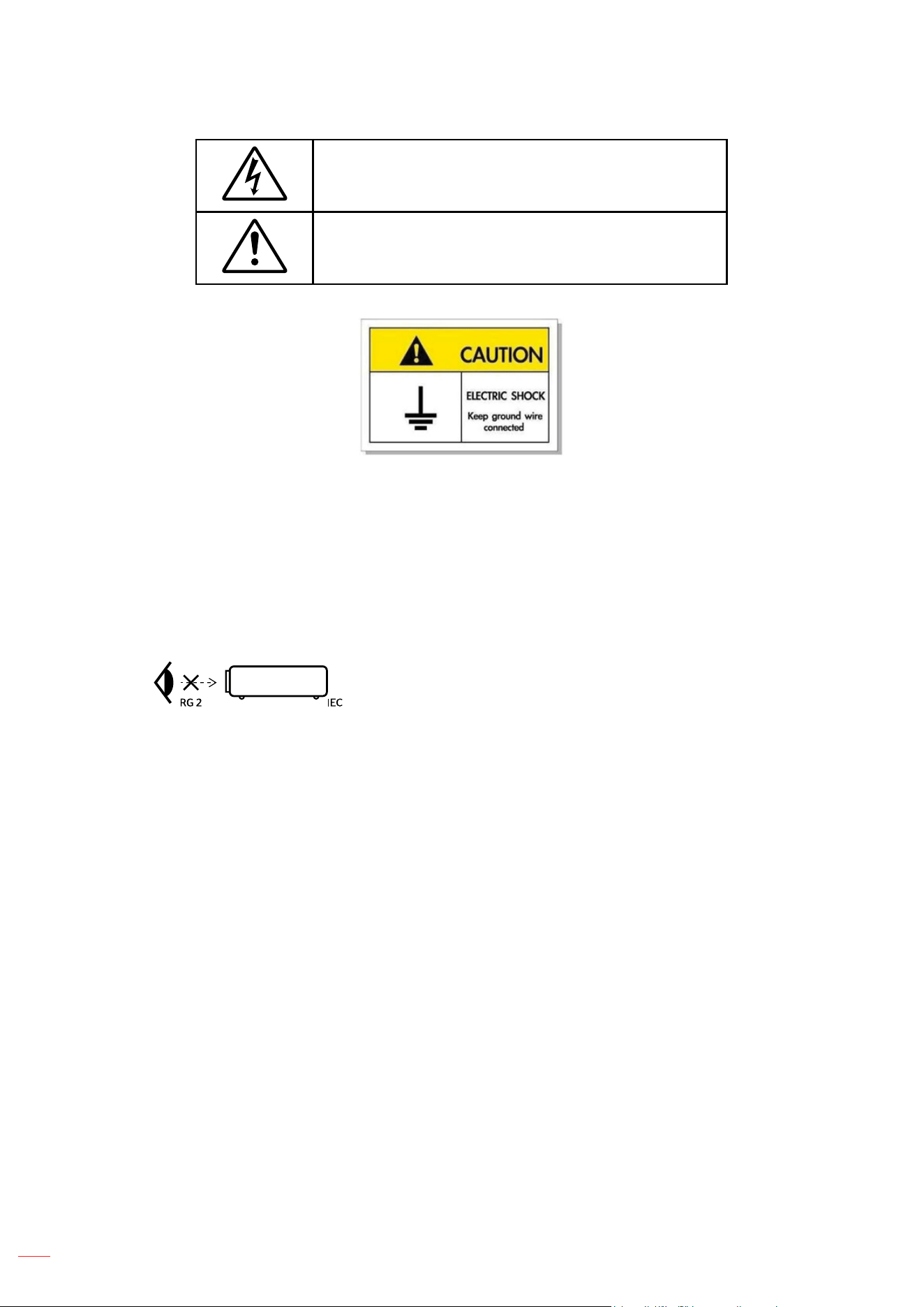

SAFETY
The lightning ash with arrow head within an equilateral triangle is
intended to alert the user to the presence of uninsulated "dangerous
voltage" within the product's enclosure that may be of sucient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
Please follow all warnings, precautions and maintenance as recommended in this user’s guide.
• To avoid electric shock, the unit and its peripherals must be properly grounded (earthed).
• This equipment is equipped with a three-pin grounding-type power plug.
• Do not remove the grounding pin on the power plug.
• This is a safety feature. If you are unable to insert the plug into the outlet, contact an electrician.
• Do not defeat the purpose of the grounding plug.
Important Safety Instruction
• As with any bright source, do not stare into the direct beam, RG2 IEC 62471-5:2015.
• This projector is class 1 laser product of IEC/EN 60825-1:2014 and risk group 2 with the requirements
of IEC 62471-5:2015.
• Supervise children: no staring, and avoid use of optical aids!
• Notice is given to supervise children and to never allow them to stare into the projector beam at any
distance from the projector.
• Notice is given to use caution when using the remote control for starting the projector while in front of
the projection lens.
• Notice is given to the user to avoid the use of optical aids such as binoculars or telescopes inside the
beam.
• Do not block any ventilation openings. To ensure reliable operation of the projector and to protect from
over heating, it is recommended to install the projector in a location that does not block ventilation.
As an example, do not place the projector on a crowded coee table, sofa, bed, etc. Do not put the
projector in an enclosure such as a book case or a cabinet that restricts air ow.
• To reduce the risk of re and/or electric shock, do not expose the projector to rain or moisture. Do not
install near heat sources such as radiators, heaters, stoves or any other apparatus such as ampliers
that emits heat.
• Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short
out parts that could result in re or electric shock.
English
5
• Do not use under the following conditions:
± In extremely hot, cold or humid environments.
(i) Ensure that the ambient room temperature is within 0°C ~ 40°C
(ii) Relative humidity is up to 80%
± In areas susceptible to excessive dust and dirt.
± Near any appliance generating a strong magnetic eld.
± In direct sunlight.
• Do not use the unit if it has been physically damaged or abused. Physical damage/abuse would be
(but not limited to):
± Unit has been dropped.
± Power supply cord or plug has been damaged.
± Liquid has been spilled on to the projector.
± Projector has been exposed to rain or moisture.
± Something has fallen in the projector or something is loose inside.
• Do not place the projector on an unstable surface. The projector may fall over resulting in injury or the
projector may become damaged.
• Do not block the light coming out of the projector lens when in operation. The light will heat the object
and may melt, cause burns or start a re.
• Please do not open or disassemble the projector as this may cause electric shock.
• Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous
voltages or other hazards. Please call Optoma before you send the unit for repair.
• See projector enclosure for safety related markings.
• The unit should only be repaired by authorized service personnel.
• Only use attachments/accessories specied by the manufacturer.
• Do not look into straight into the projector lens during operation. The bright light may harm your eyes.
• This projector will detect the life of the light source itself.
• When switching the projector o, please ensure the cooling cycle has been completed before
disconnecting power. Allow 90 seconds for the projector to cool down.
• Turn o and unplug the power plug from the AC outlet before cleaning the product.
• Use a soft dry cloth with mild detergent to clean the display housing. Do not use abrasive cleaners,
waxes or solvents to clean the unit.
• Disconnect the power plug from AC outlet if the product is not being used for a long period of time.
• Do not setup the projector in places where it might be subjected to vibration or shock.
• Do not touch the lens with bare hands.
• Remove battery/batteries from remote control before storage. If the battery/batteries are left in the
remote for long periods, they may leak.
• Risk of re or explosion if the battery is replaced by an incorrect type.
• Do not use or store the projector in places where smoke from oil or cigarettes may be present, as it
can adversely aect the quality of the projector performance.
• Please follow the correct projector orientation installation as non standard installation may aect the
projector performance.
• Use a power strip and or surge protector. As power outages and brown-outs can KILL devices.
English
6

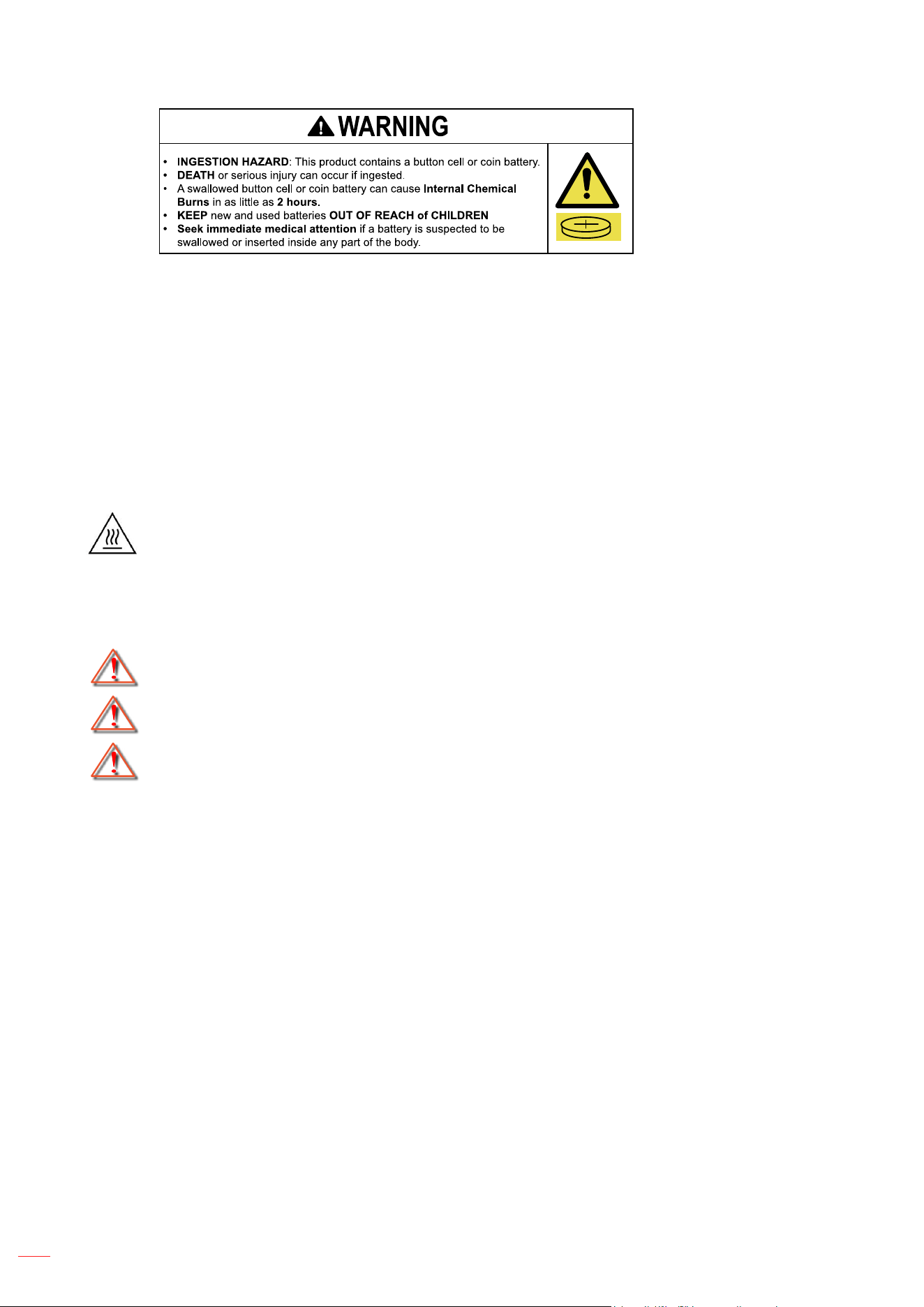

Battery Safety Instruction
Cleaning the Lens
• Before cleaning the lens, be sure to turn o the projector and unplug the power cord to allow it to
completely cool down.
• Use a compressed air tank to remove the dust.
• Use a special cloth for cleaning lens and gently wipe the lens. Do not touch the lens with your ngers.
• Do not use alkaline/acid detergents or volatile solvents such as alcohol for cleaning lens. If the lens is
damaged due to the cleaning process, it is not covered by the warranty.
CAUTION!
Hot surface, Do not touch
• Do not place your hands, face, or other objects in front of the projector lens while the projector
is operating. Doing so can cause the object to get extremely hot, and possibly resulting in a re
or damage due to the heat emitted from the light output. Things placed in front of the lens may
overheat and burn or start a re.
• Do not spray ammable gas to get rid of dust and dirt that accumulate in the lens. Doing so
could cause a re.
Warning: Do not use a spray containing ammable gases to remove dust or dirt from the lens. This
may cause a re due to excessive heat inside the projector.
Warning: Do not clean the lens if the projector is warming up as this may cause the lens’ surface lm
to peel o.
Warning: Do not wipe or tap the lens with a hard object.

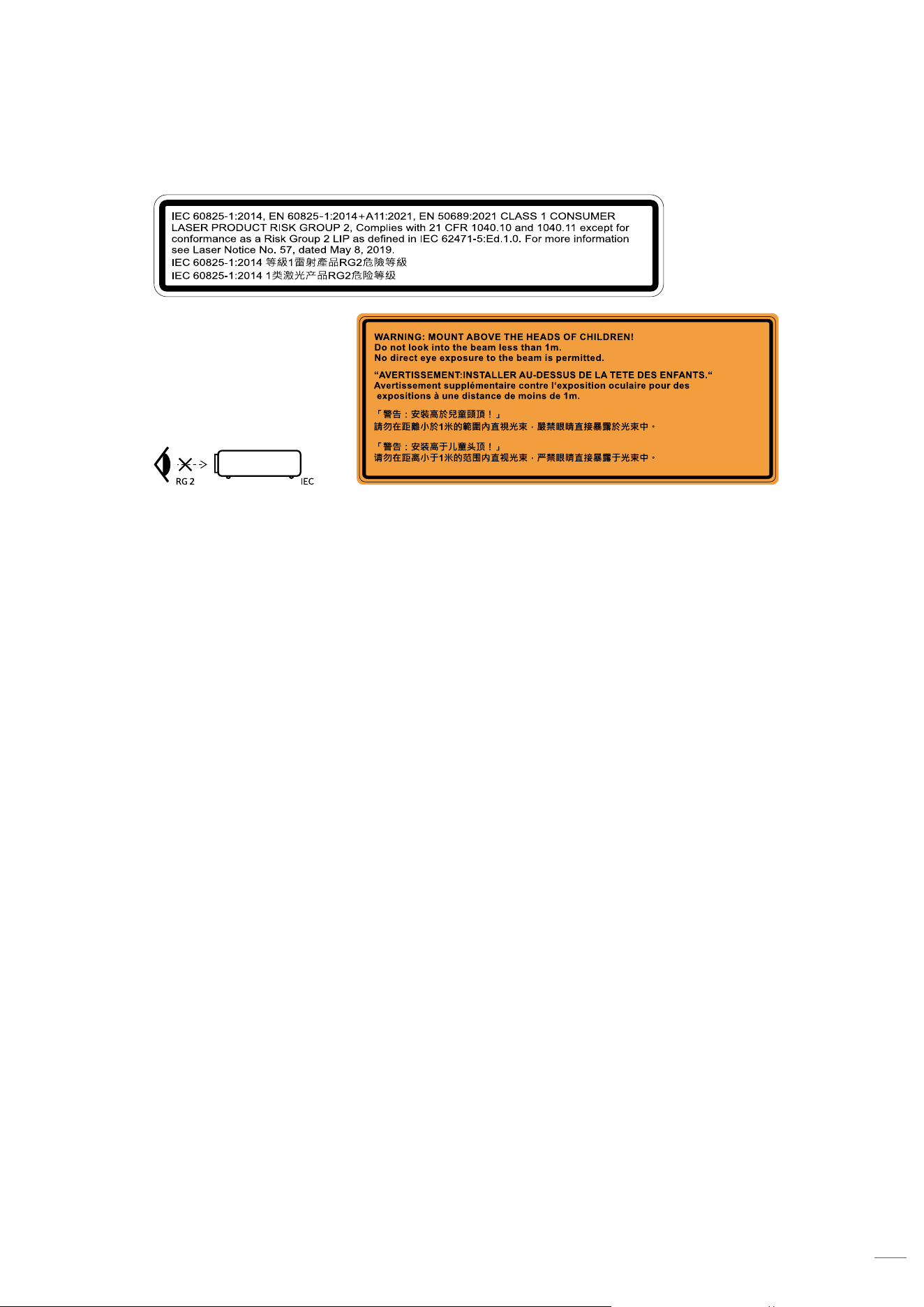

Laser Notice
IEC 60825-1:2014/EN 60825-1+A11/EN50689:2021 CLASS 1 CONSUMER LASER PRODUCT, IEC 62471-
5:2015 RISK GROUP 2.
The product’s intended use as a consumer laser product and compliant with EN 50689:2021.
CLASS 1 CONSUMER LASER PRODUCT
EN 50689:2021
English
7
Laser Radiation Safety Information
• Complies with 21 CFR 1040.10 and 1040.11 except for conformance as a Risk Group 2 LIP as dened
in IEC 62471-5:Ed. 1.0. For more information see Laser Notice No. 57, dated May 8, 2019.
• IEC 60825-1:2014/EN 60825-1+A11/EN50689:2021 CLASS 1 CONSUMER LASER PRODUCT, IEC
62471-5:2015 RISK GROUP 2
• Additional instructions to supervise children, no staring, and not use optical aids.
• Additional instructions to install above the reach of children.
• WARNING: MOUNT ABOVE THE HEADS OF CHILDREN. The use of a ceiling mount is
recommended with this product to place it above the eyes of children.
• Caution - use of controls or adjustments or performance of procedures other than those specied
herein may result in hazardous radiation exposure.
• When turning on the projector, make sure no one within projection range is looking at the lens.
• Keep any items (magnifying glass etc.) out of the light path of the projector. The light path being
projected from the lens is extensive, therefore any kind of abnormal objects that can redirect light
coming out of the lens, can cause an unpredictable outcome such as a re or injury to the eyes.
• Any operation or adjustment not specically instructed by the user’s guide creates the risk of
hazardous laser radiation exposure.
• Do not open or disassemble the projector as this may cause damage by the exposure of laser
radiation.
• Do not stare into beam when the projector is on. The bright light may result in permanent eye damage.
Not following the control, adjustment or operation procedure may cause damage by the the exposure of laser
radiation.
Copyright
This publication, including all photographs, illustrations and software, is protected under international copyright
laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced
without written consent of the author.
© Copyright 2024
Disclaimer
The information in this document is subject to change without notice. The manufacturer makes no representations
or warranties with respect to the contents hereof and specically disclaims any implied warranties of
merchantability or tness for any particular purpose. The manufacturer reserves the right to revise this publication
and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any
person of such revision or changes.
English
8
Trademark Recognition
Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pending
applications in other countries throughout the world.
HDMI, the HDMI Logo, and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.
DLP
®
, DLP Link and the DLP logo are registered trademarks of Texas Instruments and BrilliantColor
TM
is a
trademark of Texas Instruments.
Dolby, Dolby Vision, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing
Corporation. Manufactured under license from Dolby Laboratories Licensing Corporation. Condential unpublished
works. Copyright © 2013–2024 Dolby Laboratories. All rights reserved.
This product complies with the HDR10+ Projector Device Version 1.1. The HDR10+™ logo is a trademark or
registered trademark of HDR10+ Technologies, LLC in the United States and other countries.
All other product names used in this manual are the properties of their respective owners and are Acknowledged.
FCC
This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15
of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this device does cause
harmful interference to radio or television reception, which can be determined by turning the device o and on is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the device and receiver.
• Connect the device into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.
Notice: Shielded cables
All connections to other computing devices must be made using shielded cables to maintain compliance with FCC
regulations.
Caution
Changes or modications not expressly approved by the manufacturer could void the user's authority, which is
granted by the Federal Communications Commission, to operate this projector.
Operation Conditions
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause undesired operation.
Notice: Canadian users
This Class B digital apparatus complies with Canadian ICES-003.
Remarque à l'intention des utilisateurs canadiens
Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada.
English
9
Declaration of Conformity for EU countries
• EMC Directive 2014/30/EU (including amendments)
• Low Voltage Directive 2014/35/EU
• RED 2014/53/EU (if product has RF function)
WEEE
Disposal instructions
Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure
utmost protection of the global environment, please recycle it.
CTUVUS
Specications and Warning labels
Specications and Warning labels are placed at the following location:
Note: For power supply, power ratings, and product information, please refer to the label on the bottom of the
product.
English
10
INTRODUCTION
Thank you for purchasing an Optoma laser projector. For full list of features please visit the product page on our
website, where you will also nd additional information and documentation such as FAQs.
Package Overview
Carefully unpack and verify that you have the items listed below under standard accessories. Some of the items
under optional accessories may not be available depending on the model, specication and your region of
purchase. Please check with your place of purchase. Some accessories may vary from region to region.
The warranty card is only supplied in some specic regions. Please consult your dealer for detailed information.

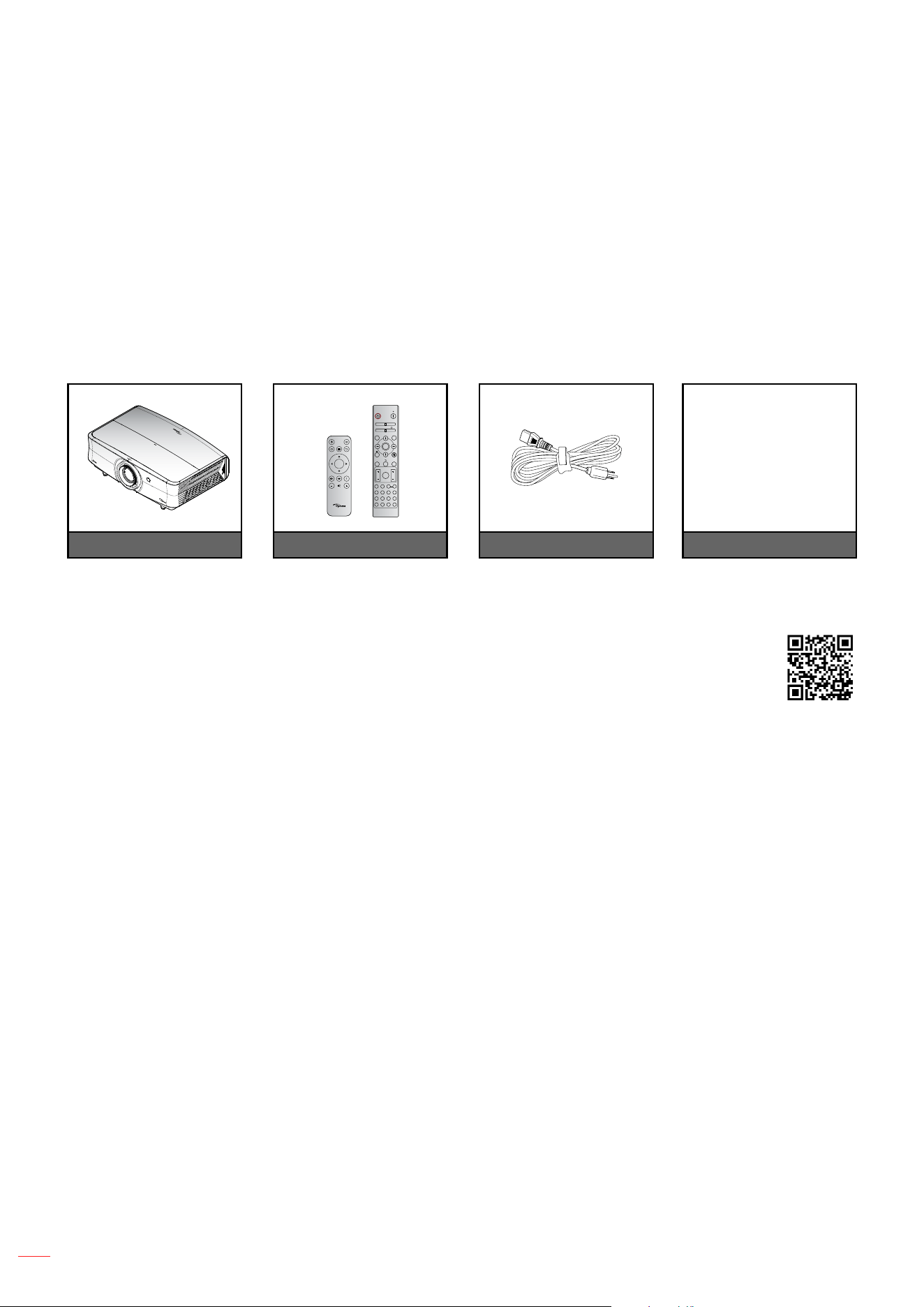

Standard accessories
Projector Remote control Power cable
F3
On
Geometric
Mode
Correction PIP/PBP
Off
F1 F2
AV Mute
ENTER
Source
Volume D Zoom
Info.
VGA
1
S-Video
2
HDMI1
3
HDMI2
HDMI3
Format Freeze Remote
ID All
HDBaseT
4
Video
5
DVI
6
BNC
7
YPbPr
8
DisplayPort
9
3D
0
Re-Sync
Menu
F3
Note:
• For access to the setup information, user manual, warranty information, and product updates
– please scan the QR Code or visit the following URL:
https://www.optoma.com/support/download
• Accessories may dier in dierent countries.
• Wi-Fi dongle is an optional accessory.
Documentation
Quick Start User Manual
Enter
English
11
INTRODUCTION
Product Overview
1 2 3
12
10
10
4
3
10
10
9
11
5
6
7
8
4
Note:
• Do not block projector intake and exhaust vents.
• When operating the projector in an enclosed space, allow at least 30 cm clearance around the intake
and exhaust vents.
No Item No Item
1. Top Cover 7. Lens Shift Dial (Vertical)
2.
Focus Ring
8.
Zoom Lever
3. IR Receiver 9. Ventilation (inlet)
4. Keypad 10. Tilt-Adjustment Foot
5. Ventilation (outlet) 11. Input / Output
6. Lens Shift Dial (Horizontal) 12. Lens
English
12
INTRODUCTION
Connections
21 43 5 6 7 8 9
10
14
11 12 13
15
No Item No Item
1. Kensington
TM
Lock Port 9. RJ-45 Connector (*4)
2. Power Socket 10. RS232 Connector
3. HDMI 1 (v2.0) Connector 11. 3D Sync Connector
4. HDMI 2 (v2.0) Connector 12. 12V OUT Connector
5. HDMI 3 (v2.1) Connector (*1) 13. 12V OUT Connector
6.
Service and USB Power Out
(5V 1.5A) Connector (*2)
14. AUDIO OUT Connector
7. USB Power Out (5V 0.9A) (*3) 15. S/PDIF Connector
8. USB Power Out (5V 0.9A) (*3)
Note: (*1) Support up to 3840 x 2160/120hz and support HDR10+.
(*2) For rmware upgrade.
(*3) Support Multi-media and WiFi dongle.
(*4) Support LAN control, IoT control, and FOTA(FW upgrade).
English
13
INTRODUCTION
Keypad
1
3 4
2
5678
No Item No Item
1. Power and On/Standby LED 5. Re-Sync
2.
Source
6.
Four Directional Select Keys
3. Menu 7. Temp LED
4. Enter 8. Laser LED
English
14
INTRODUCTION

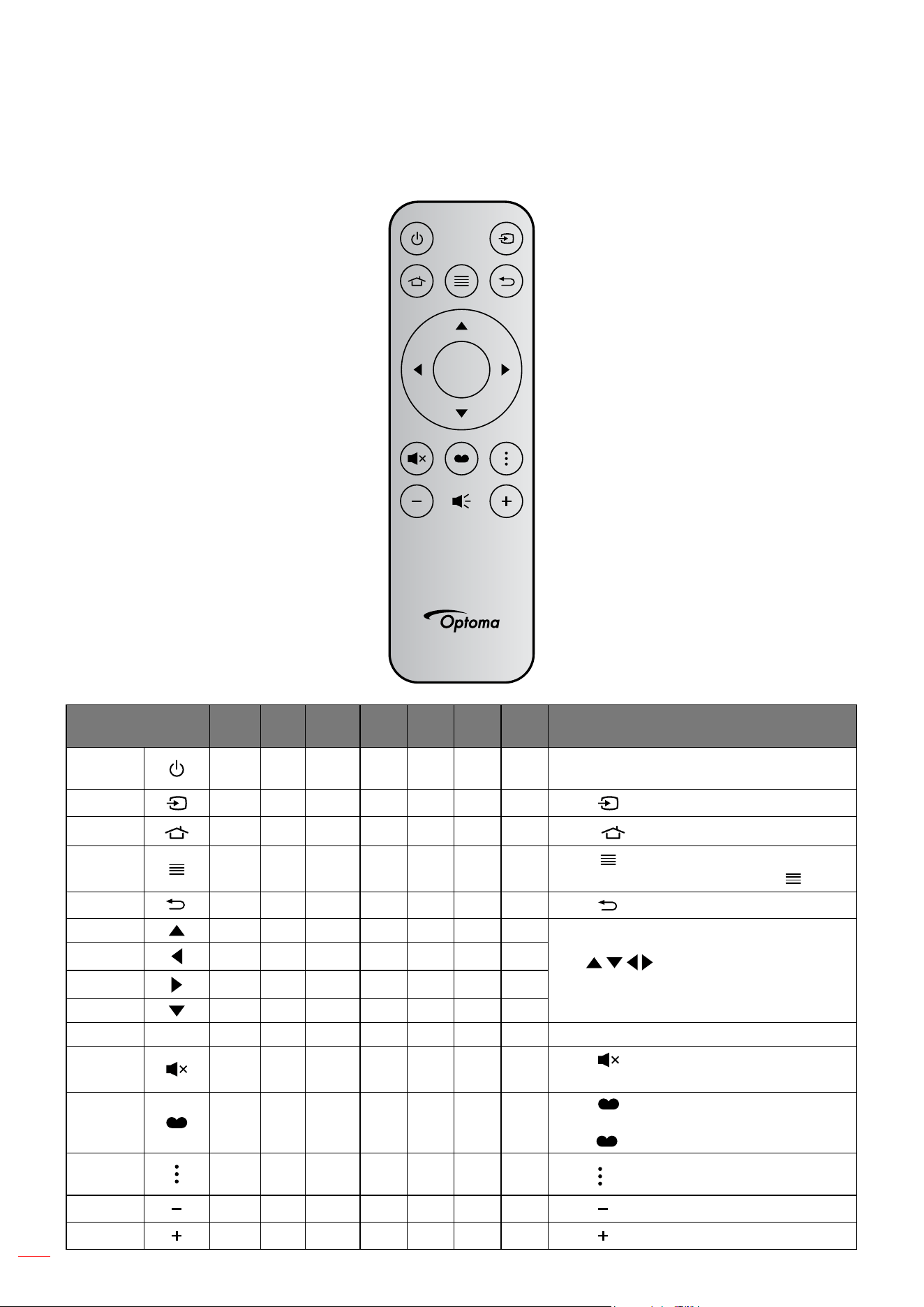

Remote control
Enter
7
8
11
12
1
2
3
4
5
10
6
9
No Item No Item
1. Power On / O 7. Source
2. Home 8. Return
3. Four Directional Select Keys 9. Enter
4. Mute 10. Display Mode
5. Volume - 11. APP menu
6. Menu 12. Volume +
Note:
• Some keys may have no function for models that do not support these features.
• Before using the remote control for the rst time, remove the transparent insulation tape. For more
information on battery installation, refer to page 21.
3
V
O
L
T
S
CR2032
• The inclusion of the battery for the remote control may vary depending on the region.
English
15
INTRODUCTION
F3
On
Geometric
Mode
Correction PIP/PBP
Off
F1 F2
AV Mute
ENTER
Source
Volume D Zoom
Info.
VGA
1
S-Video
2
HDMI1
3
HDMI2
HDMI3
Format Freeze Remote
ID All
HDBaseT
4
Video
5
DVI
6
BNC
7
YPbPr
8
DisplayPort
9
3D
0
Re-Sync
Menu
F3
10
1
2
3
4
5
6
8
7
9
11
34
33
32
31
12
13
15
14
16
19
2017 2118
27
26
29
30
28
25
24
23
22
No Item No Item
1. Power on 18. YPbPr (not supported)
2.
Geometric Correction 19. Numeric keypad (0-9)
3. Function button (F1) (Assignable) 20. Display port (not supported)
4. Mode 21. 3D
5. Four directional select keys 22. DVI (not supported)
6. APP settings 23. HDMI3
7. Back 24. HDMI1
8. Source 25. HDMI2
9. Menu 26. Remote ID / Remote all
10. Volume - / + 27. Digital Zoom - / +
11. Freeze 28. Re-sync
12. Format (Aspect Ratio) 29. Laser pointer (*)
13. VGA (not supported) 30. Enter
14. S-Video (not supported) 31. AV Mute
15. HDBase-T (not supported) 32. Home
16. Video (not supported) 33. PIP/PBP (not supported)
17. BNC (not supported) 34. Power o
Note:
• Some keys may have no function for models that do not support these features.
• (*) Function availability depends on the region.
English
16
SETUP AND INSTALLATION
Installing the projector
Your projector is designed to be installed in one of four possible positions.
Your room layout or personal preference will dictate which installation location you select. Take into consideration
the size and position of your screen, the location of a suitable power outlet, as well as the location and distance
between the projector and the rest of your equipment.
Table mount front Ceiling mount front
Table mount rear Ceiling mount rear
Projector should be placed at on a surface and 90 degrees / perpendicular to the screen.

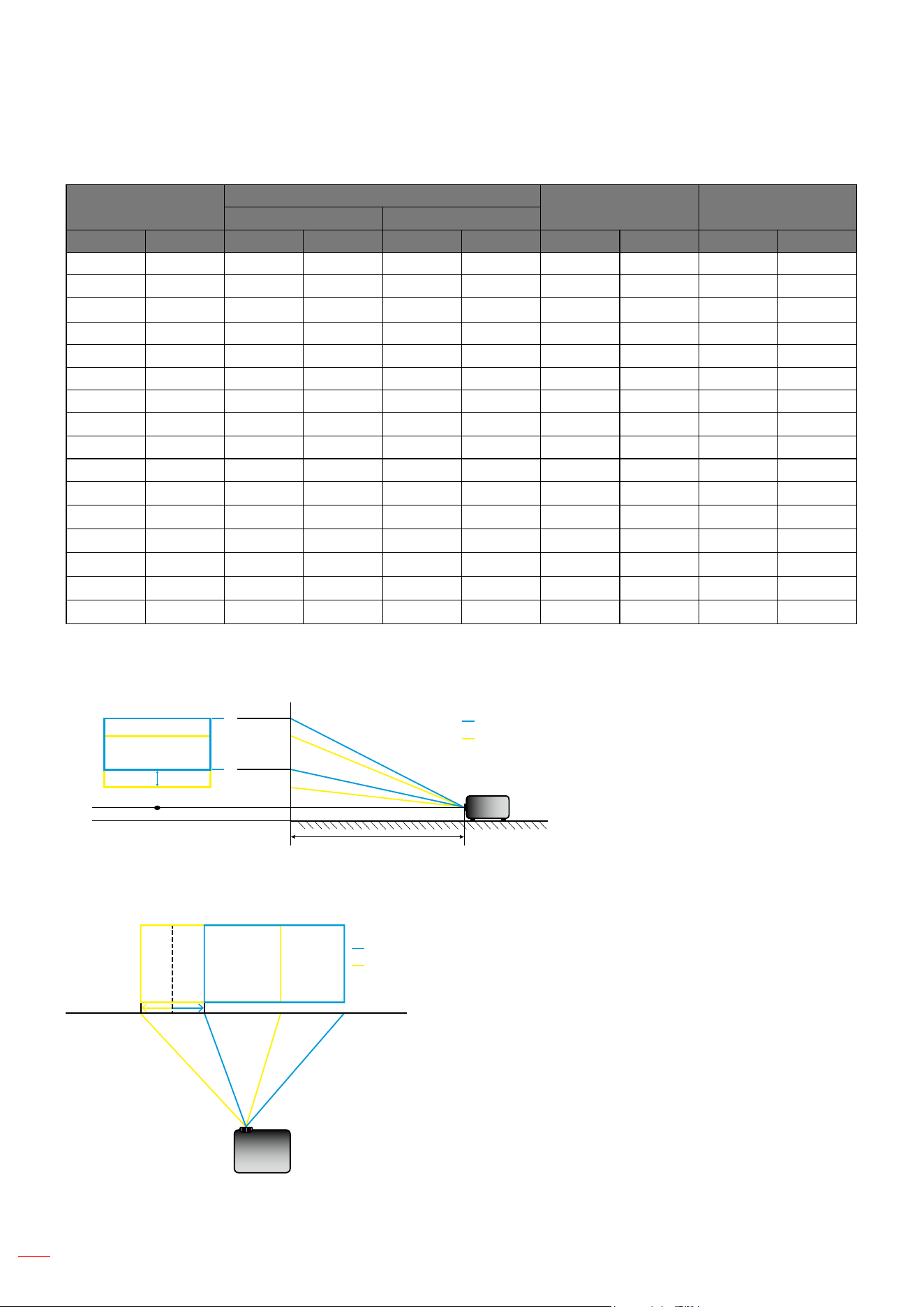

• How to determine projector location for a given screen size, please refer to distance table on page
76.
• How to determine screen size for a given distance, please refer to distance table on page 76.
Note: The further away the projector is placed from the screen the projected image size increases and vertical
oset also increases proportionally.
English
17
SETUP AND INSTALLATION
Projector installation notice
• 360° free orientation operation
• Allow at least 30 cm clearance around the exhaust vent.
Minimum 100mm
(3.94 inches)
Minimum 300mm
(11.81 inches)
Minimum 300mm
(11.81 inches)
Minimum 100mm
(3.94 inches)
Minimum 100mm
(3.94 inches)
Minimum 100mm
(3.94 inches)
• Ensure that the intake vents do not recycle hot air from the exhaust vent.
• When operating the projector in an enclosed space, ensure that the surrounding air temperature within
the enclosure does not exceed operation temperature while the projector is running, and the air intake
and exhaust vents are unobstructed.
• All enclosures should pass a certied thermal evaluation to ensure that the projector does not recycle
exhaust air, as this may cause the device to shutdown even if the enclosure temperature is with the
acceptable operation temperature range.
English
18
SETUP AND INSTALLATION
Connecting sources to the projector
MOLEX
MOLEX
MOLEX
1
2
3
4
5
6
7
8
9
10
11
No Item No Item
1. Power Cord 7. Speaker Cable
2.
HDMI Cable
8.
S/PDIF Out Cable
3. USB Cable 9. RJ-45 Cable
4. RS232 Cable 10. USB Cable
5. 3D Emitter Cable 11. HDMI Cable
6. 12V DC Jack
Note: To ensure the best image quality and avoid connection errors, we recommend the use of High Speed or
Premium Certied HDMI cables up to 5 meters.
English
19
SETUP AND INSTALLATION
Adjusting the projector image
Image height
The projector is equipped with elevator feet for adjusting the image height.
1. Locate the adjustable foot you wish to adjust on the underside of the projector.
2. Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector.
Tilt-Adjustment Feet
Tilt-Adjustment Ring
English
20
SETUP AND INSTALLATION

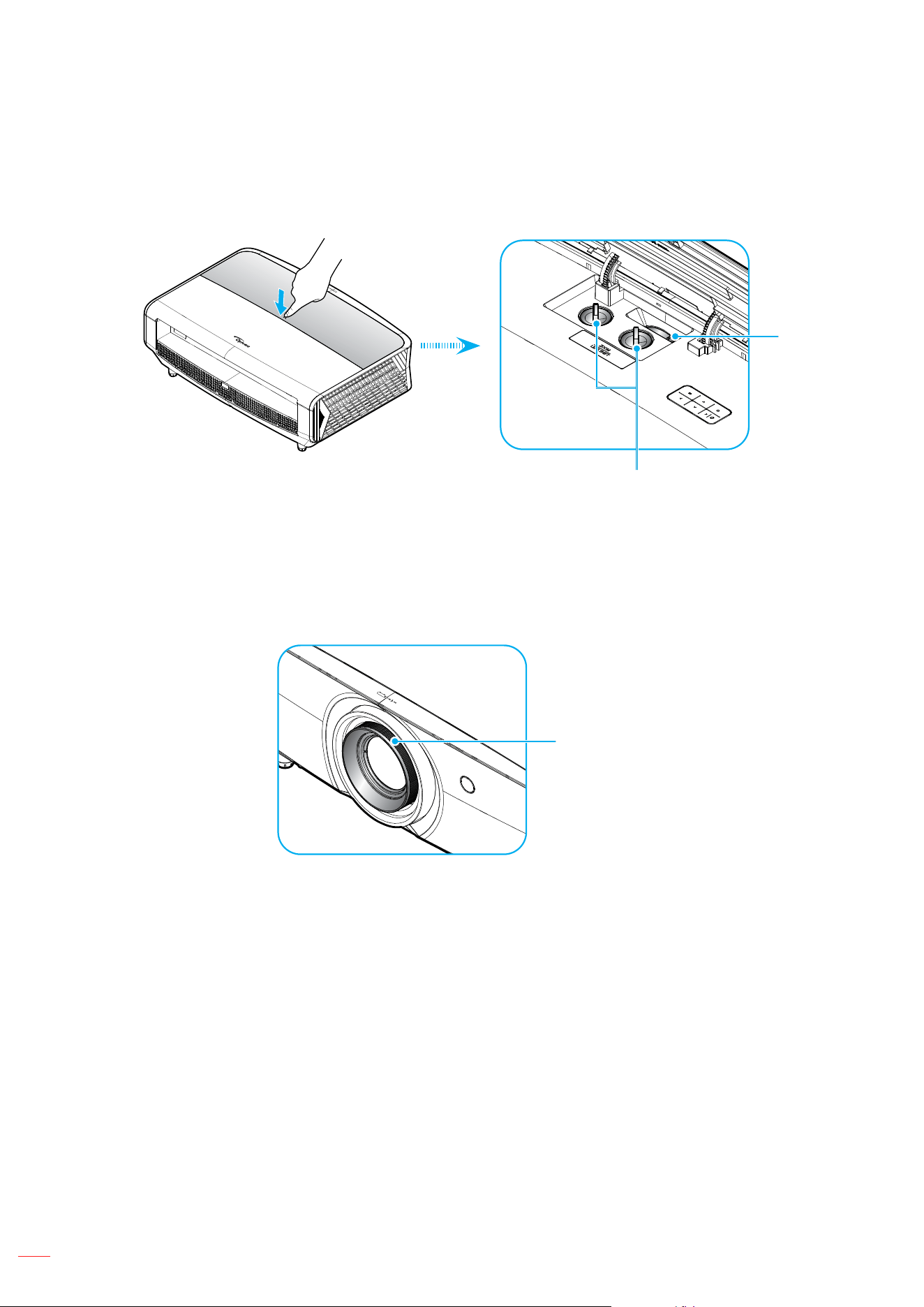

Zoom, lens shift, and focus
• To adjust the image size and position, do the following:
a. Push down rmly on the middle of the top cover to unlock the latch. Then open the top cover.
Lens Shift Dials
Zoom Lever
b. To adjust the image size, turn the zoom lever clockwise or counterclockwise to increase or decrease
the projected image size.
c. To adjust the image position, turn the lens shift dial clockwise or counterclockwise to adjust the
position of the projected image vertically or horizontally.
• To adjust the focus, turn the focus ring clockwise or counterclockwise until the image is sharp and
legible.
Focus Ring
Focus adjustment
Note: The projector will focus at a distance of 1m to 10m.
English
21
SETUP AND INSTALLATION
Remote setup

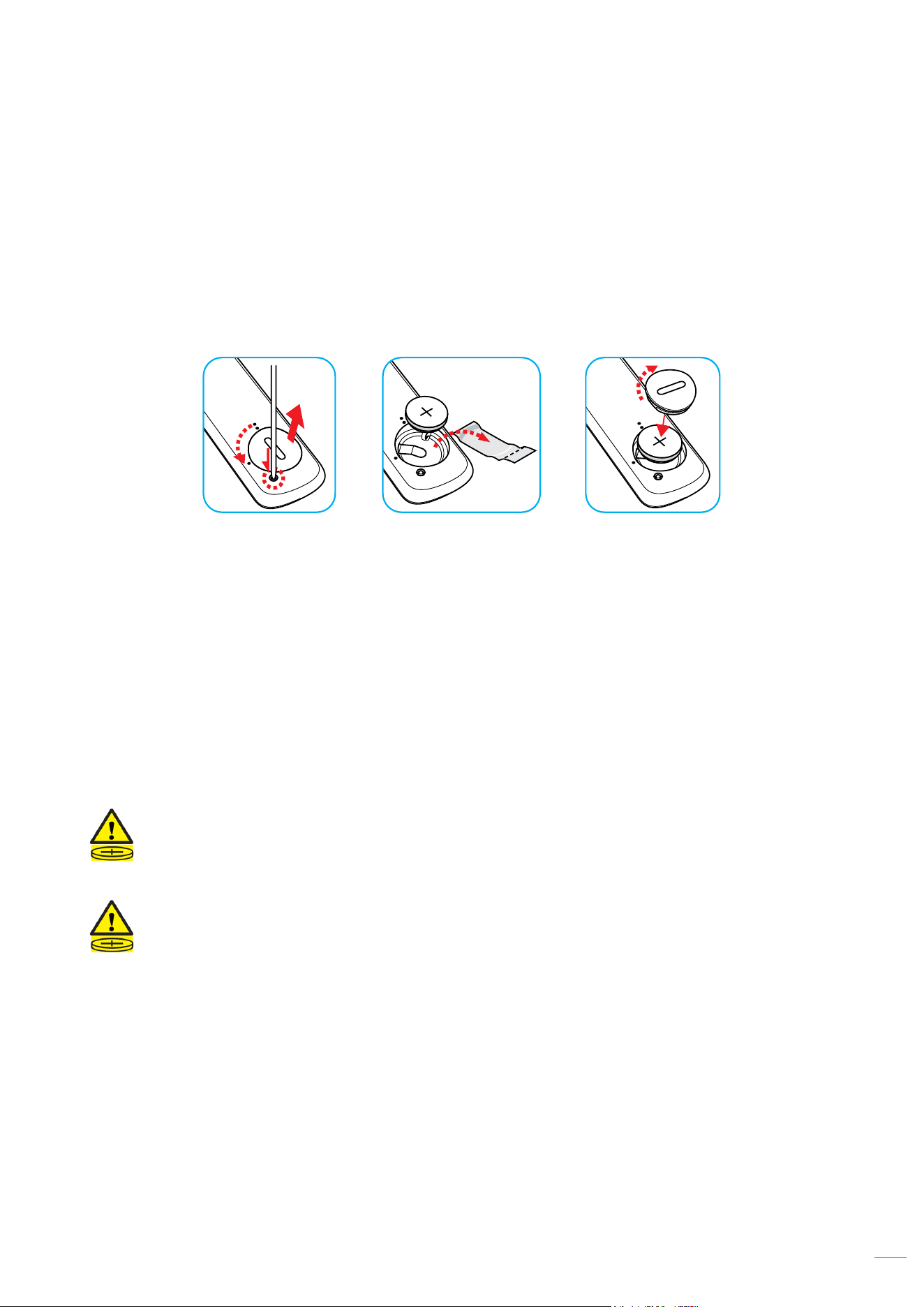

Installing / replacing the battery
1. Push the button and unscrew the battery cover. Use a coin to turn the battery cover counterclockwise
until the cover opens.
2. Install new battery into the compartment.
Remove the old battery and install new one (CR2032). Ensure that the side with a “+” is facing up.
3. Put the cover back. Then use a coin to turn the battery cover clockwise to lock it in place.
3
V
O
L
T
S
CR2032
3
V
O
L
T
S
CR2032
CAUTION:
To ensure safe operation, please observe the following precautions:
• Use CR2032 type battery.
• Avoid contact with water or liquid.
• Do not expose the remote control to moisture or heat.
• Do not drop the remote control.
• If the battery has leaked in the remote control, carefully wipe the case clean and install new battery.
• Risk of an explosion if battery is replaced by an incorrect type.
• Dispose of used battery according to the instructions.
Warning: Do not ingest battery, Chemical Burn Hazard.
• This product contains a coin / button cell battery. If the coin / button cell battery is
swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
Warning: Keep new and used batteries away from children.
• If the battery compartment does not close securely, stop using the product and keep it
away from children.If you think batteries might have been swallowed or placed inside any
part of the body, seek immediate medical attention.
English
22
SETUP AND INSTALLATION

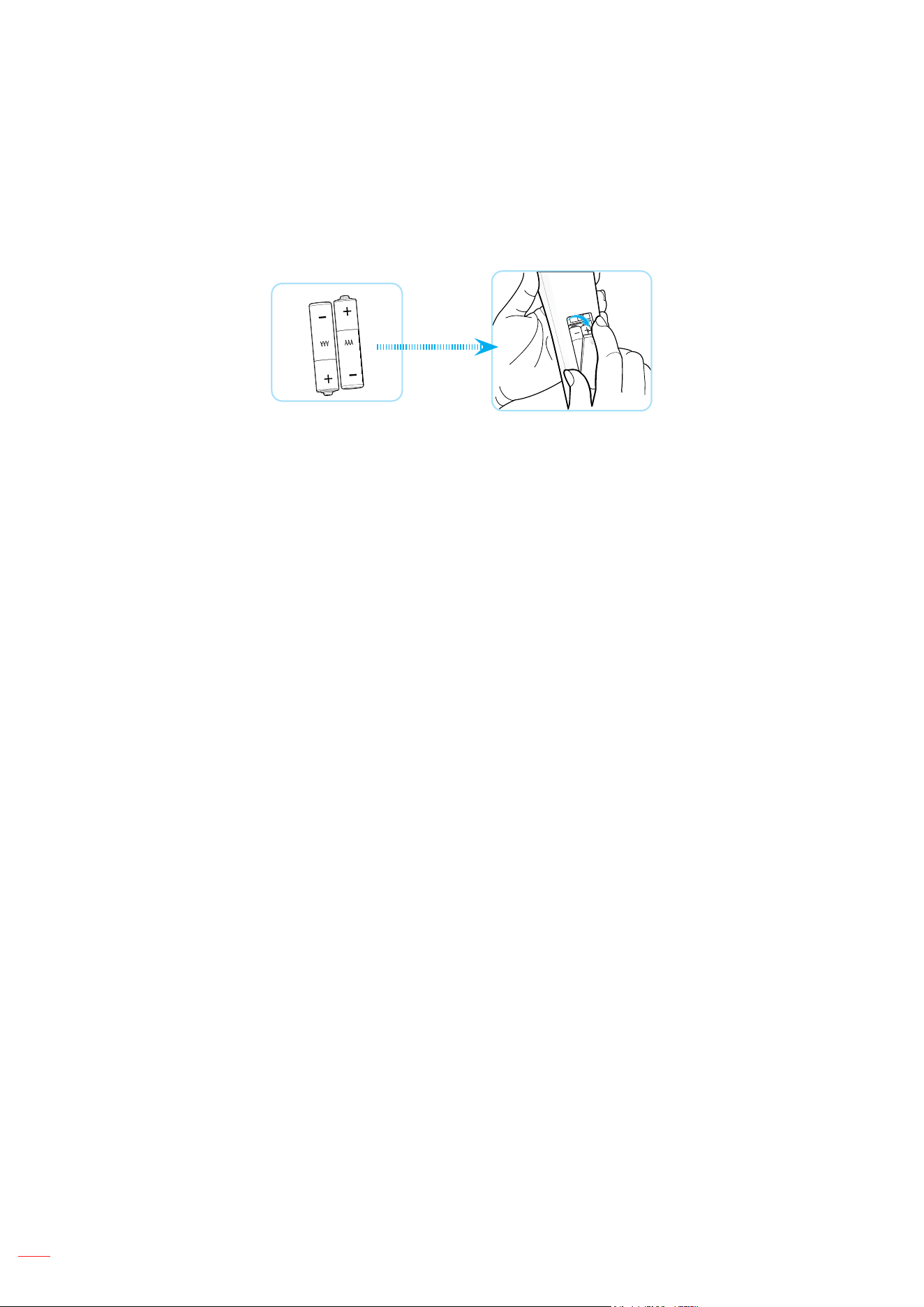

Installing / replacing the batteries
Two AAA size batteries are supplied for the remote control.
1. Remove the battery cover on the back of the remote control.
2. Insert AAA batteries in the battery compartment as illustrated.
3. Replace back cover on remote control.
Note: Replace only with the same or equivalent type batteries.
CAUTION: To ensure safe operation, please observe the following precautions:
• Replacement of a battery with an incorrect type that can defeat a safeguard (AAA size battery type).
• Disposal of a battery into a re, hot oven, mechanically crushing or cutting of a battery, may result in
an explosion.
• Leaving a battery in an extremely high temperature surrounding environment that can result in an
explosion or the leakage of ammable liquid or gas.
• A battery subjected to extremely low air pressure that may result in an explosion or the leakage of
ammable liquid or gas.
• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or
cause a chemical leak in the old batteries.
• Remove batteries as soon as they are depleted. Chemicals that leak from a battery which comes into
contact with your skin can cause a rash. If you nd any chemical leakage, wipe thoroughly with a cloth.
• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.
• If you are not using the remote control for an extended period of time, please remove the batteries to
reduce risk of chemical leak.
English
23
SETUP AND INSTALLATION
Eective range
Infra-Red (IR) remote control sensor is located on the top and front sides of the projector. Ensure to hold the
remote control at an angle within 30 degrees perpendicular to the projector’s IR remote control sensor to function
correctly. The distance between the remote control and the sensor should not be longer than 6 meters (19.7 feet)
when holding in an angle ±15° and not longer than 8 meters (26.2 feet) when aiming the sensor at 0°.
• Make sure that there are no obstacles between the remote control and the IR sensor on the projector
that might obstruct the infra-red beam.
• Make sure the IR transmitter of the remote control is not being shined by sunlight or uorescent lamps
directly.
• Please keep the remote controller away from uorescent lamps for over 2 m or the remote controller
may malfunction.
• If the remote control is close to Inverter-Type uorescent lamps, it might become ineective from time
to time.
• If the remote control and the projector are within a very short distance, the remote control might
become ineective.
• When you aim at the screen, the eective distance is less than 5 m from the remote control to the
screen and reecting the IR beams back to the projector. However, the eective range might change
according to screens.
Enter
F3
On
Geometric
Mode
Correction PIP/PBP
Off
F1 F2
AV Mute
ENTER
Source
Volume D Zoom
Info.
VGA
1
S-Video
2
HDMI1
3
HDMI2
HDMI3
Format
Freeze
Remote
ID
All
HDBaseT
4
Video
5
DVI
6
BNC
7
YPbPr
8
DisplayPort
9
3D
0
Re-Sync
Menu
F3
Enter
F3
On
Geometric
Mode
Correction PIP/PBP
Off
F1 F2
AV Mute
ENTER
Source
Volume D Zoom
Info.
VGA
1
S-Video
2
HDMI1
3
HDMI2
HDMI3
Format
Freeze
Remote
ID
All
HDBaseT
4
Video
5
DVI
6
BNC
7
YPbPr
8
DisplayPort
9
3D
0
Re-Sync
Menu
F3
Approx. ±15°
Approx. ±15°
English
24
USING THE PROJECTOR
Powering on / o the projector
Enter
Enter
or or
F3
On
Geometric
Mode
Correction PIP/PBP
Off
F1 F2
AV Mute
ENTER
Source
Volume D Zoom
Info.
VGA
1
S-Video
2
HDMI1
3
HDMI2
HDMI3
Format Freeze Remote
ID All
HDBaseT
4
Video
5
DVI
6
BNC
7
YPbPr
8
DisplayPort
9
3D
0
Re-Sync
Menu
F3
F3
On
Geometric
Mode
Correction PIP/PBP
Off
F1 F2
AV Mute
ENTER
Source
Volume D Zoom
Info.
VGA
1
S-Video
2
HDMI1
3
HDMI2
HDMI3
Format Freeze Remote
ID All
HDBaseT
4
Video
5
DVI
6
BNC
7
YPbPr
8
DisplayPort
9
3D
0
Re-Sync
Menu
F3
Powering on
1. Securely connect the power lead and signal/source cable. When connected, the Power LED will start
breathing blue light.
2. Turn on the projector by pressing the “ ” button on the projector keypad or the remote control. The
Power LED will start ashing blue.
The Optoma boot logo and then animation are displayed on the screen.
3. A launcher screen will display in approximately 10 seconds and the Power LED will turn steady blue.
English
25
USING THE PROJECTOR

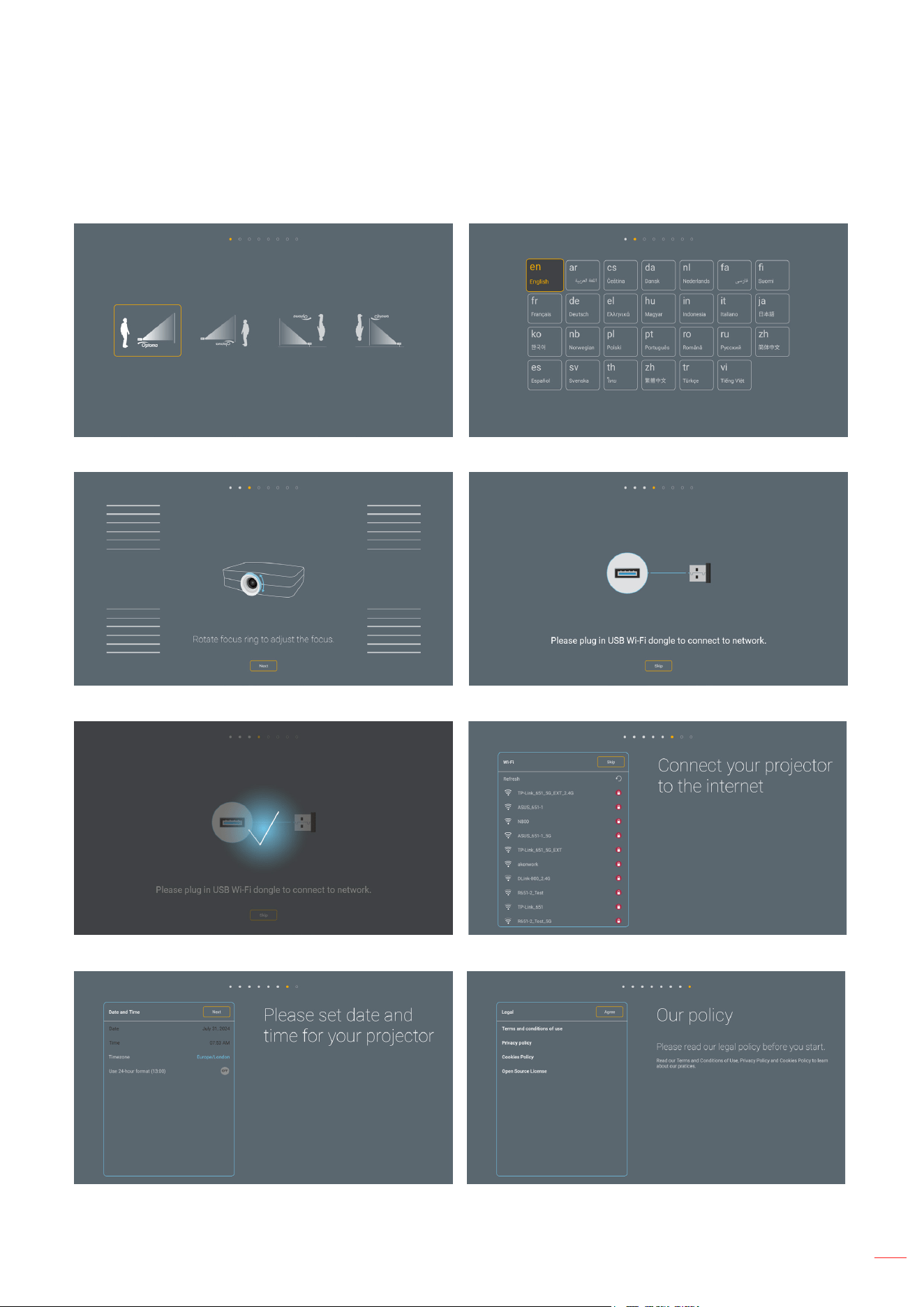

The rst time the projector is turned on, you will be prompted to do the initial setup including selecting the projection
orientation, preferred language, conguring network settings, and more. Once the Setup Complete! screen
appears, it indicates the projector is ready to use.
[Projection screen] [Language screen]
[Focus adjustment screen] [Wi-Fi dongle installation screen]
[Wi-Fi dongle installation screen (continued)] [Network screen]
[Date and time screen] [Regulation screen]
English
26
USING THE PROJECTOR
Powering o
1. Turn o the projector by pressing the button on the projector keypad or the remote control.
2. The following message will be displayed:
Power O
Press power key again.
3. Press the button again to conrm, otherwise the message will disappear after 15 seconds.
When you press the button for the second time, the projector will shut down.
4. When the projector is in standby mode, simply press the button again to turn on the projector.
5. Disconnect the power lead from the electrical outlet and the projector.
Note: It is not recommended that the projector is turned on immediately, right after a power o procedure.
English
27
USING THE PROJECTOR
Selecting an input source
Turn on the connected source that you want to display on the screen, such as computer, notebook, video player,
etc. The projector will automatically detect the source. If multiple sources are connected, press the button on the
projector keypad or the remote control to select the desired input.
or
Enter
Enter
F3
On
Geometric
Mode
Correction PIP/PBP
Off
F1 F2
AV Mute
ENTER
Source
Volume D Zoom
Info.
VGA
1
S-Video
2
HDMI1
3
HDMI2
HDMI3
Format Freeze Remote
ID All
HDBaseT
4
Video
5
DVI
6
BNC
7
YPbPr
8
DisplayPort
9
3D
0
Re-Sync
Menu
F3
F3
On
Geometric
Mode
Correction PIP/PBP
Off
F1 F2
AV Mute
ENTER
Source
Volume D Zoom
Info.
VGA
1
S-Video
2
HDMI1
3
HDMI2
HDMI3
Format Freeze Remote
ID All
HDBaseT
4
Video
5
DVI
6
BNC
7
YPbPr
8
DisplayPort
9
3D
0
Re-Sync
Menu
F3
or
English
28
USING THE PROJECTOR
Launcher screen overview
The Launcher screen is the Home page to start the projector. It contains system status, shortcuts to access various
apps, and more.
To navigate the Launcher screen, simply use the buttons on the remote control.
You can return to the Home screen at any time by pressing “ ” on the remote control, regardless of your position in
the user interface.
OSD Menu
System Settings
Input Source
Status Bar
Note: The selected menu or item is highlighted in yellow color, for example “Settings” on the image above.
English
29
USING THE PROJECTOR
Menu navigation and features
The projector has multilingual on-screen display menus that allow you to make image adjustments and change a
variety of settings.
General menu navigation
Operation Using the Remote Control Using the Projector Keypad
Open the OSD menu
Press the button
Press the button
Select an item Press the / button
Press the / button
Enter the submenu Press the Enter button
Press the button
Adjust the setting
Press the / / / button
Press the / / / button
Conrm the selection Press the Enter button
Press the button
Move to the previous item
Press the button
Press the button
Close the OSD menu
Press the button
Press the button
Note: You can also open the OSD menu by selecting OSD menu ( ) on the Home screen.
Submenus
Settings
Main Menu
English
30
USING THE PROJECTOR
OSD Menu tree
Note: The OSD menu tree items and features are subject to models and region. Optoma reserve the right to add
or remove items to improve product performance without notice.
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Picture Mode
Vivid
HDR
HLG
Cinema
Game
Reference
WCG
Bright
Dolby Vision Bright
Dolby Vision Dark
Dolby Vision Vivid
HDR10+
AI-PQ
3D
ISF Day
ISF Night
ISF Day HDR
ISF Night HDR
ISF 3D
Dynamic Range HDR / HLG
Auto / O
Brightness
-50 ~ 50
Contrast -50 ~ 50
Sharpness 1 ~ 15
Gamma
Film
Graphics
1.8
2.0
2.2
2.4
Brightness Mode
DynamicBlack 1
DynamicBlack 2
DynamicBlack 3
Power = 100% / 95% / 90% / 85%
/ 80% / 75% / 70% / 65% / 60% /
55% / 50%
PureEngine Ultra
PureContrast O / 1 / 2 / 3
PureLight O / 1 / 2 / 3
PureColor O / 1 / 2 / 3
PureMotion O / 1 / 2 / 3
PureDetail O / 1 / 2 / 3
Color Settings
Color
-50 ~ 50
Tint
-50 ~ 50
BrilliantColor™
1 ~ 10
English
31
USING THE PROJECTOR
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Color Settings
Color
Temperature
Warm
Standard
Cool
Cold
11 Points RGB
Balance
-50 ~ 50
Color Gamut
Native
DCI-P3
Rec.709
CMS
Color
White / Red / Green / Blue / Cyan /
Magenta / Yellow
Hue
-50 ~ 50
Saturation
-50 ~ 50
Luminance
-50 ~ 50
Reset
No
Yes
RGB Gain/Bias
Red Gain -50 ~ 50
Green Gain -50 ~ 50
Blue Gain -50 ~ 50
Red Bias -50 ~ 50
Green Bias -50 ~ 50
Blue Bias -50 ~ 50
Reset
No
Yes
Color Space Auto / RGB(0~255) / RGB(16~235)
Wall Color
O
Blackboard
Light Yellow
Light Green
Light Blue
Pink
Grey
3D
3D Mode
O
On
3D Sync Type
DLP-Link
3D Sync
3D Format
Auto
Side by Side
Top and Bottom
Frame Sequential
Frame Packing
3D Sync Invert
O
On
Reset
No
Yes
Reset
English
32
USING THE PROJECTOR
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Display
Low Latency
Mode
On
ALLM
O
Aspect Ratio
4:3
16:9
V-Stretch
Full [Video]
21:9
32:9
Native
Auto
Geometric
Correction
V Keystone
-30 ~ 30
H Keystone -30 ~ 30
Four Corner
Adjustment
Warping
O
On
Warping
Adjustment
Press “Up”/ ”Down”/ ”Left”/ “Right”
to focus the point and press “OK”
to select the point.
Then press “Up”/ ”Down”/”Left”/
“Right” to shift the selected point
location. [Default: Top-Left].
Grid Color
Green
Magenta
Red
Cyan
Reset
Edge Mask
0 ~ 10
Digital Zoom Zoom
-5 ~ 20
Image Shift
H
-100 ~ 100
V
-100 ~ 100
Reset
Setup
Test Pattern
Green Grid
Magenta Grid
White Grid
White
O
Projection
Orientation
Front
Rear
Ceiling-Top
Rear-Top
Language
English
Arabic
Czecho
Danish
Dutch
English
33
USING THE PROJECTOR
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Setup
Language
Farsi
Finnish
French
German
Greek
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Romania
Russian
Simplied Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnam
Menu Settings
Menu Location
Top Left
Top Right
Center
Bottom Left
Bottom Right
Menu Timer
O
5s
10s
20s
30s
Information Hide
O
On
High Altitude
O
On
Power Settings
Direct Power On
O
On
Signal Power On
O
On
Auto Power O
(min.)
0, 2 ~ 180 (1 min increments)
Sleep Timer
(min.)
0 ~ 990 (30 min increments)
English
34
USING THE PROJECTOR
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Setup
Power Settings
Power Mode
(Standby)
Eco
Communication
12V Trigger A
O
On
12V Trigger B
O
On
Security
Security
O
On
Security Timer
Month
Day
Hour
Change
Password
Keypad Settings Keypad Lock
O
On
Background
Color
None
Blue
Red
Green
Grey
Device Reset
Reset OSD
No
Yes
Reset All Settings
No
Yes
Input
Auto Source
O
On
Rename Input
Source
HDMI 1 / HDMI 2
/ HDMI 3 / HOME
Default
Custom
Input Hide
HDMI 1 / HDMI 2
/ HDMI 3 / HOME
No
Yes
HDMI CEC
Settings
HDMI Link
O
On
Power On Link
Mutual
PJ Device
Device PJ
Power O Link
Mutual
PJ Device
Device PJ
Reset
No
Yes
English
35
USING THE PROJECTOR
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Audio
Volume
0 ~ 10
Mute
O
On
Audio Mode
Auto
Standard
Movie
Game
Audio Output
Auto
Internal Speaker
Line Out (3.5mm)
Audio Output
Settings
Analog
SPDIF
eARC
Reset
No
Yes
Control
Device ID
0 ~ 99
LAN
Network Status
(read only; Connected / Disconnected)
MAC Address
(read only)
DHCP
O / On
IP Address
192.168.0.100
Subnet Mask
255.255.255.0
Gateway
192.168.0.254
DNS 1
192.168.0.51
DNS 2
0.0.0.0
Reset
Control
Crestron
O
On
Extron
O
On
PJ Link
O
On
AMX Device
Discovery
O
On
Telnet
O
On
HTTP
O
On
Control 4
O
On
Reset
No
Yes
English
36
USING THE PROJECTOR
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Information
Regulatory
Serial Number
Source Info.
Source
Resolution(00x00)
Refresh Rate(0.00Hz)
Picture Mode
Color Info.
Color Bit Depth
Color Gamut
Color Space
Power Mode
(Standby)
Communication/Eco
Light Source
Hours
Brightness Mode
Device ID
00 ~ 99
IP Address
Network Status
Mac Address
Bluetooth
Remote Status
FW Version
DDP
MCU
Scalar
English
37
USING THE PROJECTOR
Image menu
Learn how to congure image settings.
Submenus
• Picture Mode
• Dynamic Range
• Brightness
• Contrast
• Sharpness
• Gamma
• Brightness Mode
• PureEngine
• Color Settings
• Wall Color
• 3D
Picture Mode
There are several predened display modes that you can choose from to suit your viewing preference. Each mode
has been ne-tuned by our expert colour team to ensure superior colour performance for wide range of content.
• Vivid: Selecting this mode balances colour saturation and brightness for a brighter display. Choose
this mode for setups with ambient lighting, or where brighter images/presentations are necessary.
• HDR / HLG: Decodes and displays High Dynamic Range (HDR) / Hybrid Log Gamma (HLG) content
for the deepest blacks, brightest whites, and vivid cinematic color using DCI-P3 color gamut. This
mode will be automatically enabled if HDR/HLG is set to Auto (and HDR/HLG Content is sent to
projector – 4K UHD Blu-ray, 1080p/4K UHD HDR/HLG Games, 4K UHD Streaming Video). While
HDR/HLG mode is active, other display modes (Cinema, Reference, etc.) cannot be selected as
HDR/HLG delivers color that is highly accurate, exceeding the color performance of the other display
modes.
• Cinema: Provides the best balance of detail and colors for watching movies.
• Game: Optimises your projector for maximum contrast and vivid colours allowing you to see shadow
detail when playing video games.
• Reference: This mode reproduces colours as close as possible the image the way the movie director
intended. Color, color temperature, brightness, contrast and gamma settings are all congured to
Rec.709 color gamut. Select this mode for the most accurate colour reproduction when watching
movies.
• WCG (Wide color gamut): Provides a wider range of colors. WCG is a non-HDR display mode and
can only be used with SDR content. WCG along with Reference Picture Mode represent the most
color accurate non-HDR Picture Modes (SDR).
• Bright: This mode is suitable for environments where extra-high brightness is required, such as using
the projector in well-lit rooms.
• Dolby Vision Bright: Dolby Vision Decodes and Displays stunning HDR images by decoding dynamic
metadata which allows excellent tone mapping on a per scene basis and superior Bit Depth and
Contrast. Dolby Vision Bright features brighter visual brightness than Dolby Vision Dark, providing
whiter whites and enhancing warm and skin tones.
English
38
USING THE PROJECTOR
• Dolby Vision Dark: Dolby Vision Decodes and Displays stunning HDR images by decoding dynamic
metadata which allows excellent tone mapping on a per scene basis and superior Bit Depth and
Contrast. Dolby Vision Dark focuses on darker visual brightness than Dolby Vision Bright, resulting in
more robust contrast including deeper blacks.
Note: The Source Content (Streaming Video, 4K HDR Blu-ray and 4K Games) and Source Player
(FireTV 4K Stick/Cube, Shield TV 4K, Xbox Series X, 4K HDR Blu-ray Player) must support
Dolby Vision. PS5 does not support Dolby Vision.
• Dolby Vision Vivid: Dolby Vision Decodes and Displays stunning HDR images by decoding dynamic
metadata which allows excellent tone mapping on a per scene basis and superior Bit Depth and
Contrast.Dolby Vision Vivid applies a more bright and more vivid optical algorithm, providing higher
brightness and more vivid visual performance.
• HDR10+: Decodes and displays HDR10+ content by decoding dynamic metadata on a frame-by-frame
basis, enhancing the details in bright and dark areas of HDR10+ content and delivering superior HDR
over HDR10 visual experience.
Note: The Source Content (Streaming Video, 4K HDR Blu-ray and 4K Games) and Source Player
(FireTV 4K Stick/Cube, Shield TV 4K, Xbox Series X, 4K HDR Blu-ray Player) must support
HDR10+. PS5 does not support HDR10+.
• AI-PQ (AI-Picture Quality): Real-time face and scene recognition using the integrated AI
processing units for the best visual experience. The AI-PQ optimizes the image quality on all screens
simultaneously.
• 3D: Optimized settings for watching 3D content.
Note: To experience the 3D eect, you will need to have compatible DLP Link 3D glasses. See 3D
section for more information.
• ISF Day: Optimize the image with the ISF Day mode to be perfectly calibrated and high picture quality.
• ISF Night: Optimize the image with the ISF Night mode to be perfectly calibrated and high picture
quality.
• ISF Day HDR: Optimize the image with the ISF Day HDR mode to be perfectly calibrated and high
picture quality.
• ISF Night HDR: Optimize the image with the ISF Night HDR mode to be perfectly calibrated and high
picture quality.
• ISF 3D: Optimize the image with the ISF 3D mode to be perfectly calibrated and high picture quality.
Note: When utilizing HDR, HDR10+, Dolby Vision and eARC, please use 4K120/8K30 HDMI 2.1 Cables (as these
are high quality and low to no signal attenuation).
Dynamic Range
HDR / HLG
Congure the High Dynamic Range (HDR) / Hybrid Log Gamma(HLG) setting and its eect when displaying video
from 4K Blu-ray players and streaming devices.
• Auto: Auto detect HDR/HLG/HDR10+/Dolby Vision signal.
• O: Turn o HDR/HLG/HDR10+/Dolby Vision Processing. When set to O, the projector will NOT
decode HDR/HLG/HDR10+/Dolby Vision content.
Brightness
Adjust the brightness of the image.
Contrast
The contrast controls the degree of dierence between the lightest and darkest parts of the picture.
English
39
USING THE PROJECTOR
Sharpness
Adjust the sharpness of the image.
Gamma
Set up gamma curve type. After the initial setup and ne tuning is completed, utilize the Gamma Adjustment steps
to optimize your image output.
• Film: For home theater.
• Graphics: For PC / Photo source.
• 1.8 / 2.0 / 2.2 / 2.4: For specic PC / Photo source.
Brightness Mode
Adjust the brightness mode settings.
• DynamicBlack1/ DynamicBlack2/ DynamicBlack3: Use to automatically adjust the picture
brightness in order to give optimum contrast performance.
• Power: Choose the power percentage for brightness mode.
PureEngine Ultra
Adjust the PureEngine parameters.
• PureContrast: Use to automatically optimize the brightness of the display during dark / light movie
scenes to be shown in incredible detail.
• PureLight: Use to enhance the bright area brighter for SDR/ HDR. Select between O, 1, 2, 3 for the
varying levels on bright area.
• PureColor: Use to signicantly increase the image’s vividness.
• PureMotion: Use to preserve a natural motion of the displayed image.
• PureDetail: Use to signicantly increase the image’s sharpness.
English
40
USING THE PROJECTOR
Color Settings
Color
Adjust a video image from black and white to fully saturated color.
Tint
Adjust the color balance of red and green.
BrilliantColor™
This adjustable item utilizes a new color-processing algorithm and enhancements to enable higher brightness while
providing true, more vibrant colors in picture.
Color Temperature
Select a color temperature from Warm, Standard, Cool, or Cold.
11 Points RGB Balance
Adjust the color balance of red, green and blue.
Color Gamut
Adjust the color gamut from Native, DCIP-3, and Rec.709.
CMS
Select the following options:
• Color: Adjust the red, green, blue, cyan, yellow, magenta, and white level of the image.
• Hue: Adjust the color balance of red and green.
• Saturation: Adjust a video image from black and white to fully saturated color.
• Luminance: Adjust the luminance of the selected color.
• Reset: Return the factory default settings for color adjustment.
RGB Gain/Bias
This setting allows to congure the brightness (gain) and contrast (bias) of an image.
• Red / Green / Blue Gain:: Adjust the color of the image’s bright areas.
• Red / Green / Blue Bias: Adjust the color of the image’s dark areas.
• Reset: Return the factory default settings for gray scale (white balance) adjustment.
Color Space
Select an appropriate color matrix type from the following: Auto, RGB(0-255), or RGB(16-235).
Wall Color
Designed to adjust the colors of the projected image when projecting on to a wall without a screen. Each mode has
been ne-tuned by our expert colour team to ensure superior color performance.
There are several predened modes that you can choose from to suit the colour of your wall. Select between o,
blackboard, light yellow, light green, light blue, pink, and grey.
Note: For accurate color reproduction, we recommend using a screen.
English
41
USING THE PROJECTOR
3D
Note:
• This projector is a full 3D projector with DLP-Link 3D solution.
• Please ensure that 3D glasses are in use for DLP-Link 3D content before enjoying your video.
• This projector supports frame sequential (page-ip) 3D via HDMI1/HDMI2/HDMI3 ports.
• To reach the best performance, resolution 1920x1080 is recommended, please note that 4K (3840x2160)
resolution is not supported in 3D mode.
3D Mode
Use this option to disable or enable the 3D function.
• O: Select “O” to turn o 3D mode.
• On: Select “On” to turn on 3D mode.
3D Sync Type
Use this option to select 3D technology.
• DLP-Link: Select to use optimized settings for DLP 3D Glasses.
• 3D Sync: Select to use optimized settings for IR, RF or polarized 3D Glasses.
3D Format
Use this option to select the appropriate 3D format content.
• Auto: When a 3D identication signal is detected, the 3D format is selected automatically.
• Side by Side: Display 3D signal in “Side-by-Side” format.
• Top and Bottom: Display 3D signal in “Top and Bottom” format.
• Frame Sequential: Display 3D signal in “Frame Sequential” format.
• Frame Packing: Display 3D signal in “Frame Packing” format.
3D Sync Invert
Use this option to enable/disable the 3D sync invert function.
Reset
Return the factory default setting for 3D settings.
• No: Select to cancel Reset.
• Yes: Select to return the factory default settings for 3D.
Reset
Return the factory default settings for image settings.
English
42
USING THE PROJECTOR
Display menu
Learn how to congure the settings to properly project images according to your installation circumstances.
Submenus
• Low Latency Mode
• Aspect Ratio
• Geometric Correction
• Edge Mask
• Digital Zoom
• Image Shift
Low Latency Mode
Enable this feature to reduce response times (input latency) when gaming with PC, Xbox Series X|S, PS4, PS5,
Switch, Steam Deck, Asus Ally X and more. All geometry settings (example: Keystone, Warping) will be disabled
when Low Latency Mode is enabled. Geometry settings require processing and processing hurts “impact lag”.
Source Timing Input Lag
1080p60 ~20ms
1080p120 ~12.5ms
1080p240 ~8.5ms
4K60 ~20ms
ALLM allows supported Game Consoles (Xbox Series X|S, PS5, and PC (with supported GPU – Graphics
Processing Unit) to send a signal to the projector which will result in the projector automatically enabling low-
latency, low-lag mode for gaming. To use ALLM, set ALLM setting under Display on the main menu in the OSD to
“ALLM”. When ALLM is enabled, there is no need to turn low latency on and o.
Aspect Ratio
Select the aspect ratio of the displayed image between the following options:
• 4:3: This format is for 4:3 input sources.
• 16:9: This format is for 16:9 input sources, like HDTV and DVD enhanced for Wide screen TV.
• V-Stretch: This mode stretches a 2.35:1/2.4:1 image vertically removing the black bars.
• Full [Video]: Use this special 2.0:1 aspect ratio to display both 16:9 and 2.35:1 aspect ratio movies
without black bars at the top and bottom of the screen.
• 21:9: This format is for 21:9 input source, like HDTV and DVD enhanced for Wide screen TV.
• 32:9: This format is for 32:9 input source, like HDTV and DVD enhanced for Wide screen TV.
• Native: This format displays the original image without any scaling.
• Auto: Automatically selects the appropriate display format.
Note:
• Detailed informations about V-Stretch mode:
± Some Letter-Box Format DVDs are not enhanced for 16x9 TVs. In this situation, the image will
not look right when displaying image in 16:9 mode. In this situation, please try to use the 4:3
mode to view the DVD. If the content is not 4:3, there will be black bars around the image in
16:9 display. For this type of content, you can use V-Stretch mode to ll the image on the 16:9
display
± If you use an external anamorphic lens, this V-Stretch mode also allows you to watch a 2.35:1
content (include Anamorphic DVD and HDTV lm source) that supports anamorphic wide is
enhanced for 16x9 Display in a wide 2.35:1 image. In this case, there are no black bars. Light
source power and vertical resolution are fully utilized
English
43
USING THE PROJECTOR
• To use the Full Screen format, do the following:
a) Set the screen aspect ratio to 2.0:1.
b) Select “Full Screen” format.
c) Align the projector image correctly on the screen.
4K UHD DMD scaling table:
16:9 screen 480i/p 576i/p 720p 1080i/p 2160p
4x3 Scale to 2880 x 2160
16x9 Scale to 3840 x 2160
21x9 Scale to 3840 x 1644
32x9 Scale to 3840 x 1080
V-Stretch Get the central 3840 x 1620 image, and then scale to 3840 x 2160 for display
Full screen Scale to 5068 x 2852 (132% Enlarge), then get the central 3840x2160 image
Auto If the source is 4:3, auto resize to 2880 x 2160
4K UHD DMD auto mapping rule:
Auto
Input resolution Auto/Scale
H-resolution V-resolution 3840 2160
4:3
800 600 2880 2160
1024 768 2880 2160
1280 1024 2880 2160
1400 1050 2880 2160
1600 1200 2880 2160
Wide Laptop
1280 720 3840 2160
1280 768 3600 2160
1280 800 3456 2160
SDTV
720 576 2700 2160
720 480 3240 2160
HDTV
1280 720 3840 2160
1920 1080 3840 2160
English
44
USING THE PROJECTOR
Geometric Correction
V Keystone
Adjust image distortion vertically and make a squarer image. Vertical keystone is used to correct a keystoned
image shape in which the top and bottom are slanted to one of the sides. This is intended for use with vertically
on-axis applications.
H Keystone
Adjust image distortion horizontally and make a squarer image. Horizontal keystone is used to correct a keystoned
image shape in which the left and right borders of the image are unequal in length. This is intended for use with
horizontally on-axis applications.
Four Corner Adjustment
This setting allows the projected image to be adjusted from each corner to make a square image when the
projection surface is not level.
Warping
Enable or disable warping adjustment.
Warping Adjustment
Press p/q/t/u keys to focus the point and press the Enter key to select the point. Then press p/q/t/u to shift
the selected point location.
Grid Color
Select a grid color for warp pattern between green, magenta, red, and cyan.
Reset
Return the factory default setting for geometric correction settings.
Edge Mask
Use this function to remove the video encoding noise on the edge of video source.
Digital Zoom
Use to reduce or magnify an image on the projection screen. Digital Zoom is not the same as optical zoom and can
result in degradation of image quality.
Note: Zoom settings are retained on power cycle of the projector.
Image Shift
Adjust the projected image position horizontally (H) or vertically (V).
Reset
Return the factory default settings for display settings.
English
45
USING THE PROJECTOR
Setup menu
Learn how to set up the projector.
Submenus
• Test Pattern
• Projection Orientation
• Language
• Menu Settings
• High Altitude
• Power Settings
• Security
• Keypad Settings
• Background Color
• Device Reset
Test Pattern
Select the test pattern from green grid, magenta grid, white grid, white, or disable this function (o).
Projection Orientation
Select the preferred projection between front, rear, ceiling-top, and rear-top.
Language
Select the multilingual OSD menu.
Menu Settings
Menu Location
Select the menu location on the display screen.
Menu Timer
Set the duration where the OSD menu stays visible on the screen.
Information Hide
Enable this function to hide the information message.
High Altitude
When “On” is selected, the fans will spin faster. This feature is useful in high altitude areas where the air is thin.
Power Settings
Direct Power On
Choose “On” to activate Direct Power mode. The projector will automatically power on when AC power is supplied,
without pressing the “Power” key on the projector keypad or on the remote control.
Signal Power On
Choose “On” to activate Signal Power mode. The projector will automatically power on when a signal is detected,
without pressing the “Power” key on the projector Keypad or on the remote control.
Note:
• If the “Signal Power On” option is turned “On”, the power consumption of the projector in standby
mode will be over 3W.
• This function is applicable with HDMI source.
English
46
USING THE PROJECTOR
Auto Power O (min.)
Sets the countdown timer interval. The countdown timer will start, when there is no signal being sent to the
projector. The projector will automatically power o when the countdown has nished (in minutes).
Sleep Timer (min.)
Sets the countdown timer interval. The countdown timer will start, with or without a signal being sent to the
projector. The projector will automatically power o when the countdown has nished (in minutes).
Note: The Sleep Timer is reset every time when the projector is powered o.
Power Mode (Standby)
Set the power mode setting.
• Eco: Choose “Eco.” to save power dissipation further < 0.5W.
• Communication: More power consumption that allows controlling the projector over the network.
12V Trigger A / 12V Trigger B
Use this function to enable or disable the trigger.

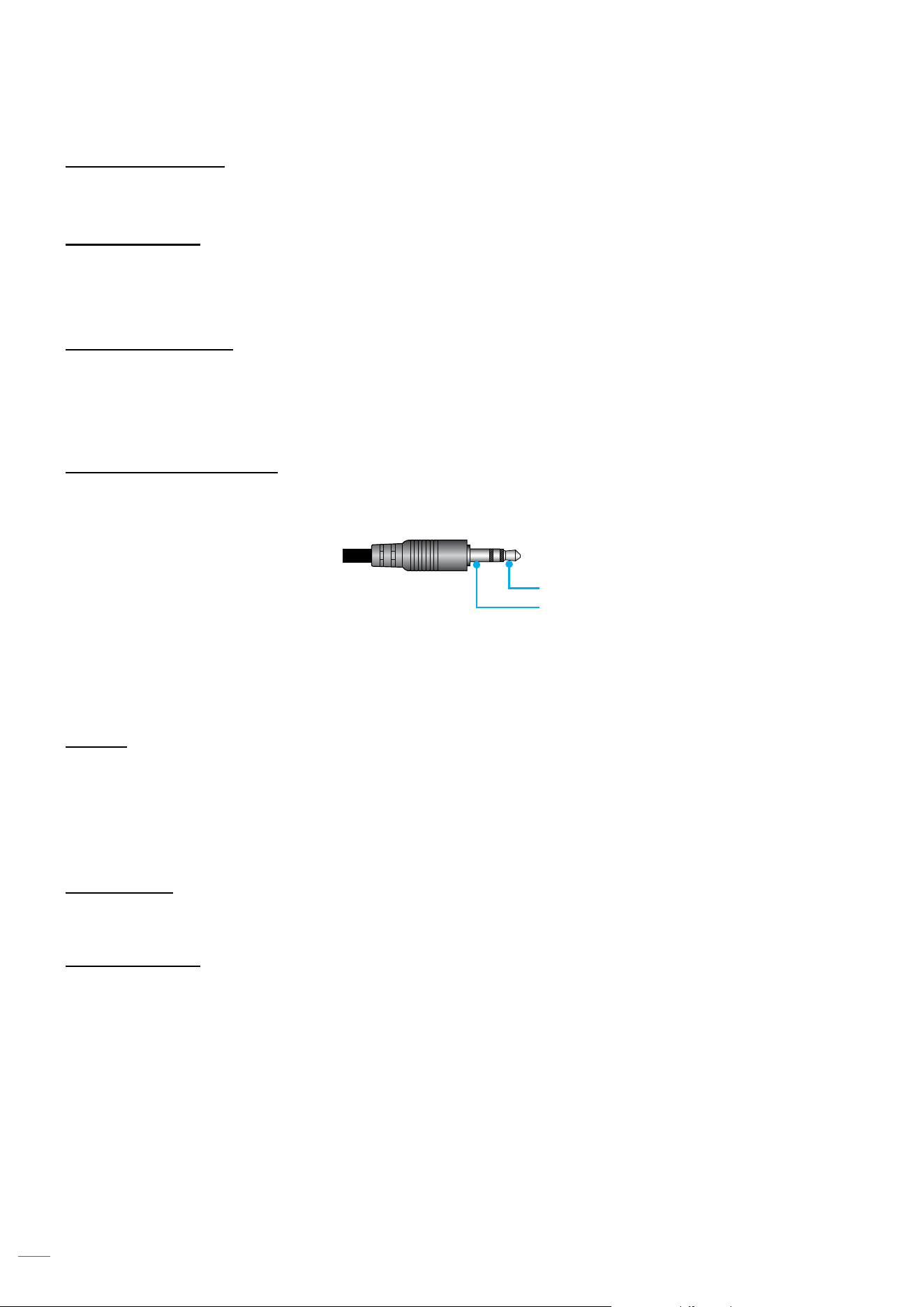

Note: 3.5mm mini jack that outputs 12V 500mA (max.) for relay system control.
+12V
GND
• On: Choose “On” to enable the trigger.
• O: Choose “O” to disable the trigger.
Security
Security
Enable this function to prompt for a password before using the projector.
• On: Choose “On” to use security verication when the turning on the projector.
• O: Choose “O” to be able to switch on the projector without password verication.
Note: The default password is 1234.
Security Timer
Select the time (Month/Day/Hour) function to set the number of hours the projector can be used. Once this time has
elapsed you will be requested to enter your password again.
Change Password
Use to set or modify the password that is prompted when turning the projector on.
English
47
USING THE PROJECTOR
Keypad Settings
Keypad Lock
When the keypad lock function is “On”, the Keypad will be locked. However, the projector can be operated by the
remote control. By selecting “O”, you will be able to reuse the Keypad.
Background Color
Use this function to display a blue, red, green, grey color, or none when no signal is available.
Note: If the background color is set to “None”, then the background color is black.
Device Reset
Reset OSD
Return the factory default settings for OSD menu settings.
Reset All Settings
Return the factory default settings for all settings.
English
48
USING THE PROJECTOR
Input menu
Learn how to congure the projector input settings.
Submenus
• Auto Source
• Rename Input Source
• Input Hide
• HDMI CEC Settings
Auto Source
Choose this option to let the projector automatically nd an available input source.
Rename Input Source
Use to rename the input function for easier identication. The available options include HDMI 1, HDMI 2, HDMI 3,
and HOME.
Input Hide
Select the input options that you want to hide from the input source menu. The available options include HDMI 1,
HDMI 2, HDMI 3, and HOME.
HDMI CEC Settings
Note: When you connect HDMI CEC-compatible devices to the projector with HDMI cables, you can control them
on the same power on or power o status using the HDMI Link control feature in the projector’s OSD. This
lets one device or multiple devices in a group power on or power o via HDMI Link Feature in a typical
conguration, your DVD player may be connected to the projector through an amplier or home theater
system.
HDMI
Amplier
HDMI
DVD Player
HDMI Link
Enable/disable the HDMI Link function.
Power On Link
CEC power on command.
• Mutual: Both projector and CEC device will be turned on simultaneously.
• PJ Device: The CEC device will be turned on only after the projector is switched on.
• Device PJ: The projector will be switched on only after the CEC device is turned on.
Power O Link
CEC power o command.
• Mutual: Both projector and CEC device will be turned o simultaneously.
• PJ Device: The CEC device will be turned o only after the projector is switched o.
• Device PJ: The projector will be switched o only after the CEC device is turned o.
Reset
Return the factory default settings for input settings.
English
49
USING THE PROJECTOR
Audio menu
Learn how to congure audio settings.
Submenus
• Volume
• Mute
• Audio Mode
• Audio Output
• Audio Output Settings
Volume
Adjust the volume level.
Mute
Use this option to temporarily turn o the sound.
• O: Choose “O” to turn mute o.
• On: Choose “On” to turn mute on.
Note: “Mute” function aects both internal and external speaker volume.
Audio Mode
Select the appropriate audio mode between Auto, Standard, Movie, and Game.
Audio Output
Select the audio output between Auto, Internal Speaker, and Line Out (3.5mm).
Audio Output Settings
Select the audio output format between analog, SPDIF, and eARC.
Note: eARC support Dolby ATMOS Pass Through to a Dolby ATMOS Soundbar or AVR with Dolby ATMOS
Support.
Reset
Return the factory default settings for audio settings.
English
50
USING THE PROJECTOR
Control menu
Control menu is used to congure the settings that allow the projector to communicate with other projectors or
control devices.
Submenus
• Device ID
• LAN
• Control
Supplemental information
• Using the web control panel
• Using RS232 command by Telnet
Device ID
ID denition can be set up by menu (range 0-99), and allow user control an individual projector by using RS232
command.
Note: For a full list of RS232 commands, please refer to the RS232 user manual on our website.
LAN
Congure the projector’s network settings.
Network Status
Display the network connection status. (Read only)
MAC Address
Display the MAC address. (Read only)
DHCP
Turn on DHCP to automatically acquire IP address, subnet mask, gateway, DNS 1, and DNS 2.
IP Address
Assign the projector’s IP address.
Subnet Mask
Assign the projector’s subnet mask.
Gateway
Assign the projector’s gateway.
DNS 1 / DNS 2
Assign the projector’s DNS.
Reset
Reset the network settings to default factory values.
English
51
USING THE PROJECTOR
Control
This projector can be controlled remotely by a computer or other external devices through the wired network
connection. It allows the user to control one or more projectors from a remote control center, such as powering the
projector on or o, and adjusting the image brightness or contrast.
Use the Control submenu to select a control device for the projector.
Crestron
Control the projector with Crestron controller and related software.
For more information, please visit http://www.crestron.com.
Extron
Control the projector with Extron devices.
For more information, please visit http://www.extron.com.
PJ Link
Control the projector with PJLink v2.0 commands.
For more information, please visit http://pjlink.jbmia.or.jp/english.
AMX Device Discovery
Control the projector with AMX devices.
For more information, please visit http://www.amx.com.
Telnet
Control the projector using RS232 commands though Telnet connection.
For more information, refer to “RS232 by Telnet Function” on page 62.
HTTP
Control the projector with web browser. (Port: 8088)
For more information, refer to “How to use web browser to control your projector” on page 52.
Control 4
Control the projector with Control 4 controller and related software.(Port: 53595)
Control Port
Control
Crestron Port 41794
Extron Port 2023
PJ Link Port 4352
AMX Device Discovery Port 9131
Telnet Port 23
HTTP Port 8088
Control 4 Port 53595
Note:
• Crestron is a registered trademark of Crestron Electronics, Inc. of the United States.
• Extron is a registered trademark of Extron Electronics, Inc. of the United States.
• AMX is a registered trademark of AMX LLC of the United States.
• PJLink applied for trademark and logo registration in Japan, the United States of America, and other
countries by JBMIA.
• For more information about the various types of external devices which can be connected to the LAN
/ RJ45 port and remotely control the projector, as well as the supported commands for these external
devices, please contact the Support-Service directly.
English
52
USING THE PROJECTOR
Setup Network Control

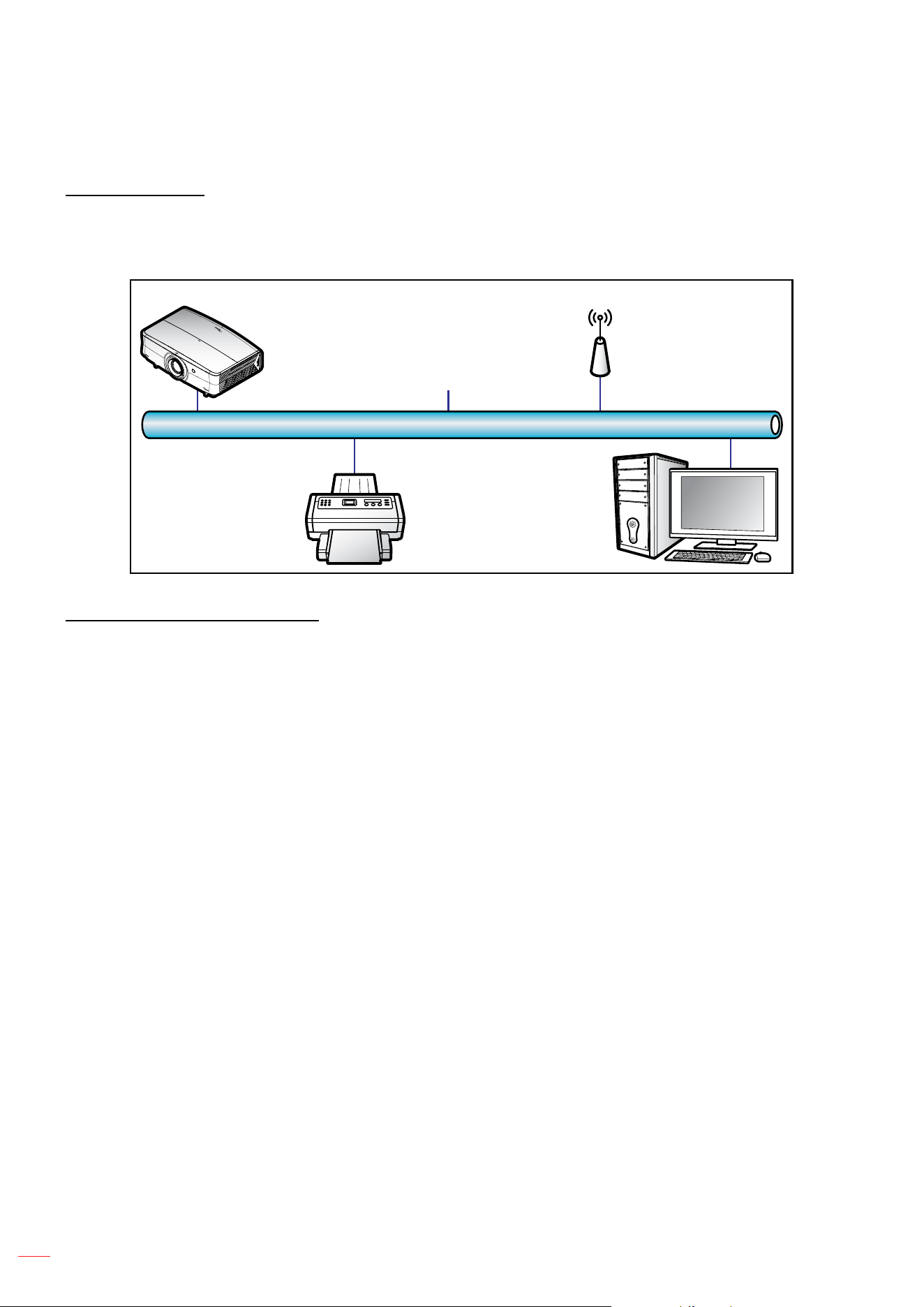

LAN RJ45 function
For simplicity and ease of operation, the projector provides diverse networking and remote management features.
The LAN / RJ45 function of the projector through a network, such as remotely manage: Power On / O, brightness,
and contrast settings. Also, you can view the projector status information, such as: Video- Source, Sound-Mute, etc.
(Ethernet)
Projector
Wired LAN terminal functionalities
This projector can be controlled by using a PC (laptop) or other external device via LAN / RJ45 port and compatible
with Crestron / Extron / AMX (Device -Discovery) / PJLink.
• Crestron is a registered trademark of Crestron Electronics, Inc. of the United States.
• Extron is a registered trademark of Extron Electronics, Inc. of the United States.
• AMX is a registered trademark of AMX LLC of the United States.
• PJLink applied for trademark and logo registration in Japan, the United States of America, and other
countries by JBMIA.
The projector is supported by the specied commands of the Crestron Electronics controller and related software,
for example RoomView®.
http://www.crestron.com/
This projector is compliant to support Extron device(s) for reference.
http://www.extron.com/
This projector is supported by AMX (Device Discovery).
http://www.amx.com/
This projector supports all commands of PJLink Class 2.
http://pjlink.jbmia.or.jp/english/
For more detailed information about the various types of external devices which can be connected to the LAN /
RJ45 port and remote control the projector, as well as the supported commands for these external devices, please
contact the Support-Service directly.
How to use web browser to control
your projector
English
53
USING THE PROJECTOR
How to use web browser to control your projector
1. Turn “On” the DHCP option on projector to allow a DHCP server to automatically assign an IP address.
2. Open the web browser in your PC and type in the projector’s IP address
(“Control > LAN > IP Address”).
3. Enter the user name and password, and click “Login”.
The projector’s conguration web interface opens.
Note:
• The default user name is “admin”.
• The steps in this section is based on Windows 10 operating system.

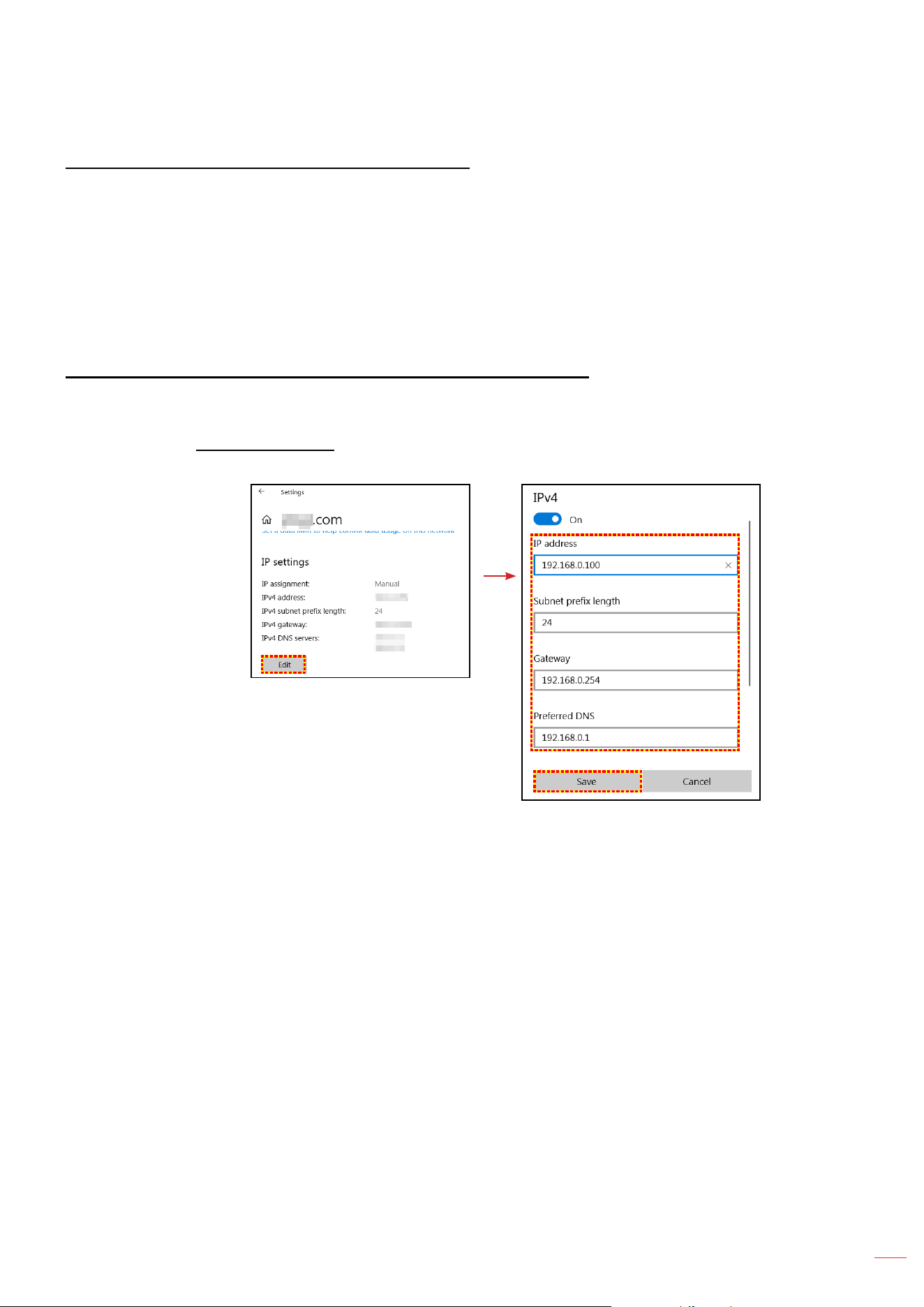

Making a direct connection from your computer to the projector*
1. Turn “O” the DHCP option on the projector.
2. Congure the IP address, Subnet Mask, Gateway, and DNS on projector (“Control > LAN”).
3. Open Network & Internet page on your PC, and assign the identical network parameters to your PC
as set on projector. Click “OK” to save the parameters.
4. Open the web browser on your PC and type in to the URL eld the IP address and port, assigned in
step 3. Then press “Enter” key.
Note: Port table, refer to page 51.
English
54
USING THE PROJECTOR

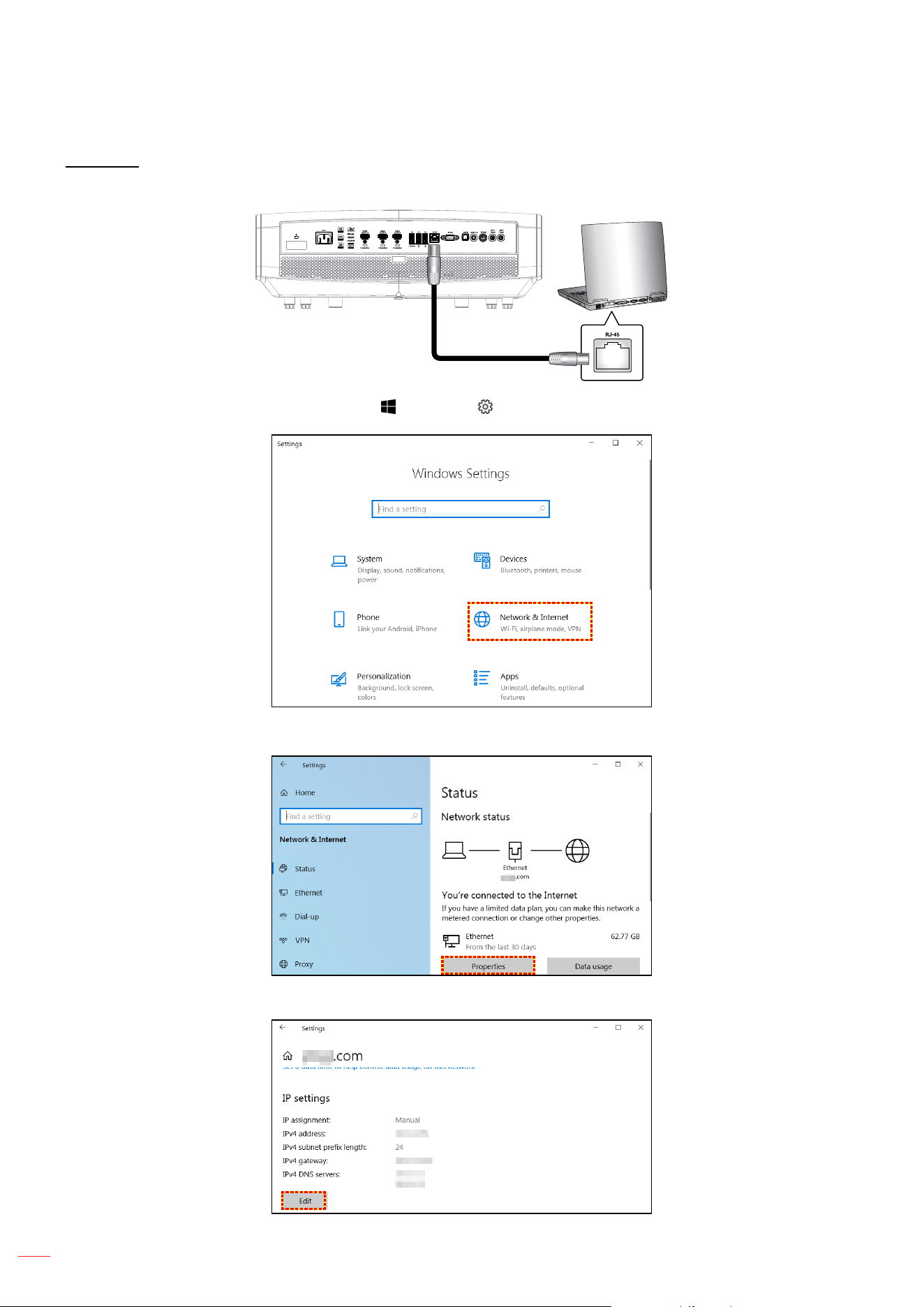

LAN RJ45
1. Connect an RJ45 cable to RJ45 ports on the projector and the PC (laptop).
2. On the PC (Laptop), select Start > Settings > Network & Internet.
3. In the Ethernet section, select Properties.
4. In the IP settings section, select Edit.
English
55
USING THE PROJECTOR

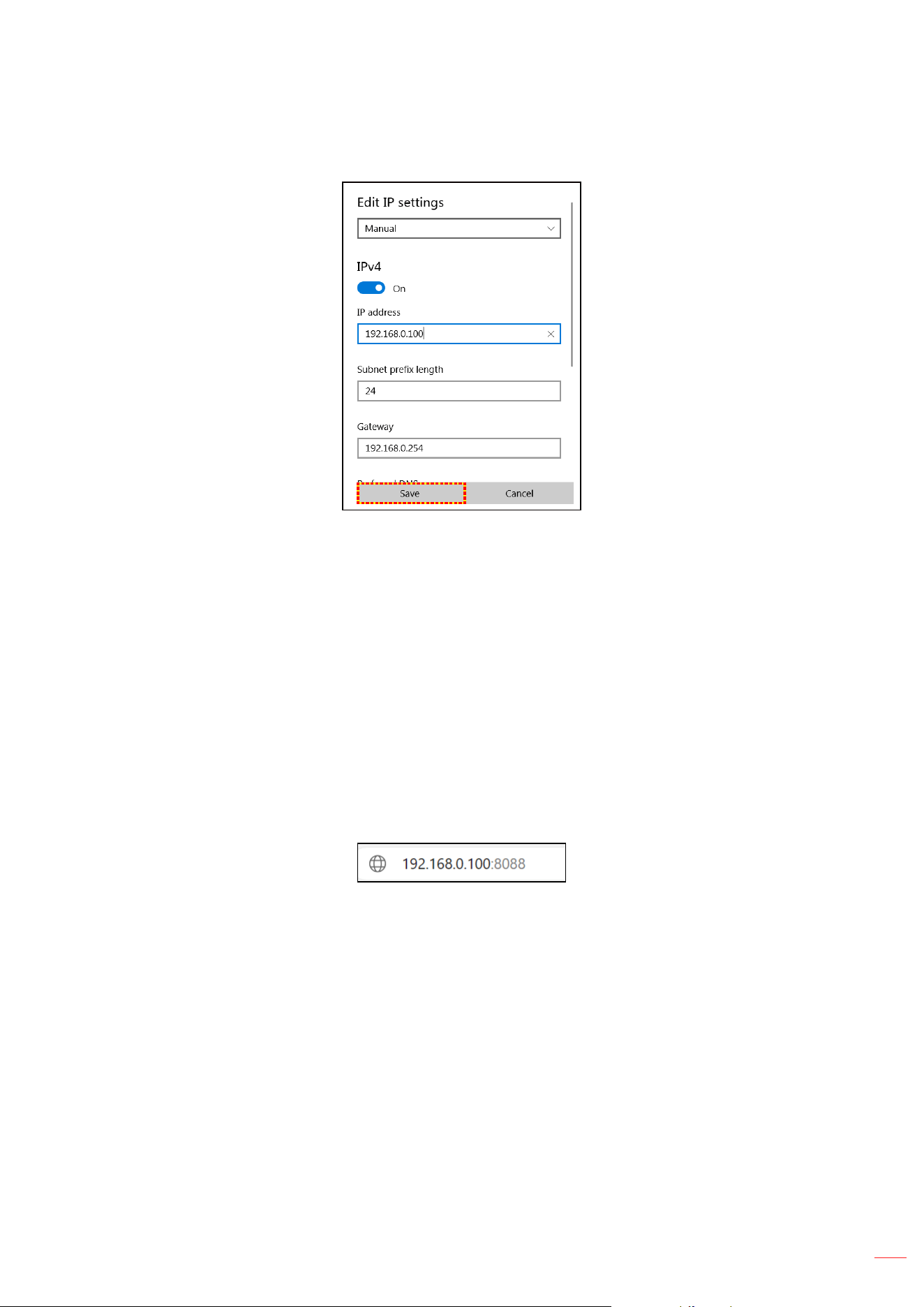

5. Type in the IP address and Gateway, then select “Save”.
6. Press the “Menu” button on the projector.
7. Open on projector Control > LAN.
8. Enter the following connection parameters:
± DHCP: O
± IP Address: 192.168.0.100
± Subnet Mask: 255.255.255.0
± Gateway: 192.168.0.254
± DNS: 192.168.0.51
9. Press “Enter” to conrm settings.
10. Open a web browser, for example Microsoft Edge or Chrome with Adobe Flash Player 9.0 or higher
installed.
11. In the Address bar, input the projector’s IP address and port: 192.168.0.100:8088.
12. Press “Enter”.
English
56
USING THE PROJECTOR
The projector is setup for remote management. The LAN / RJ45 function displays as follows:

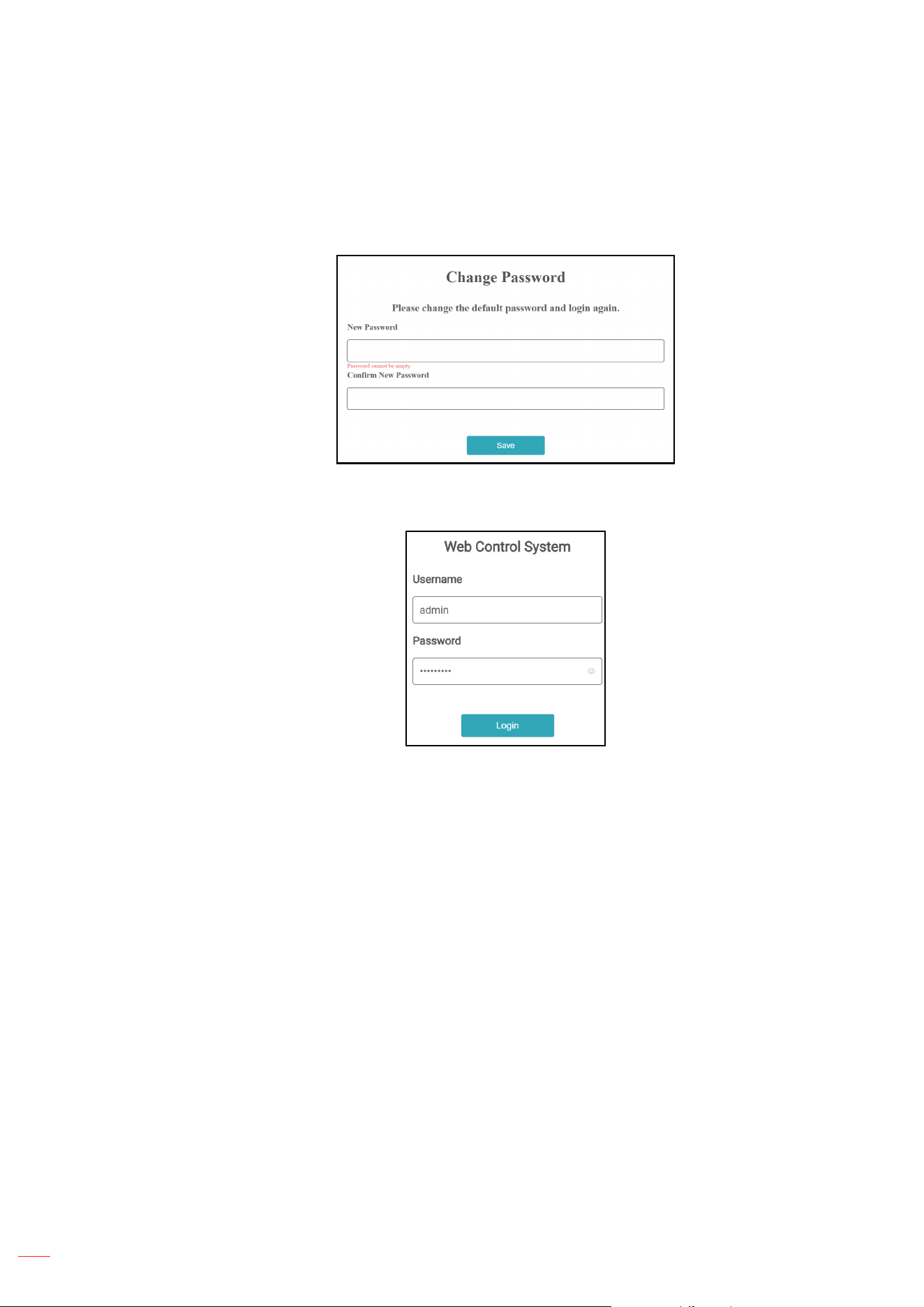

Log in
When you open the web page for the rst time, you will see a screen like the one below.
Please change the default password.
After you have changed the default password, you have to log in again. When you open the web page,
enter the new password in the “Password” eld and click Login.
English
57
USING THE PROJECTOR

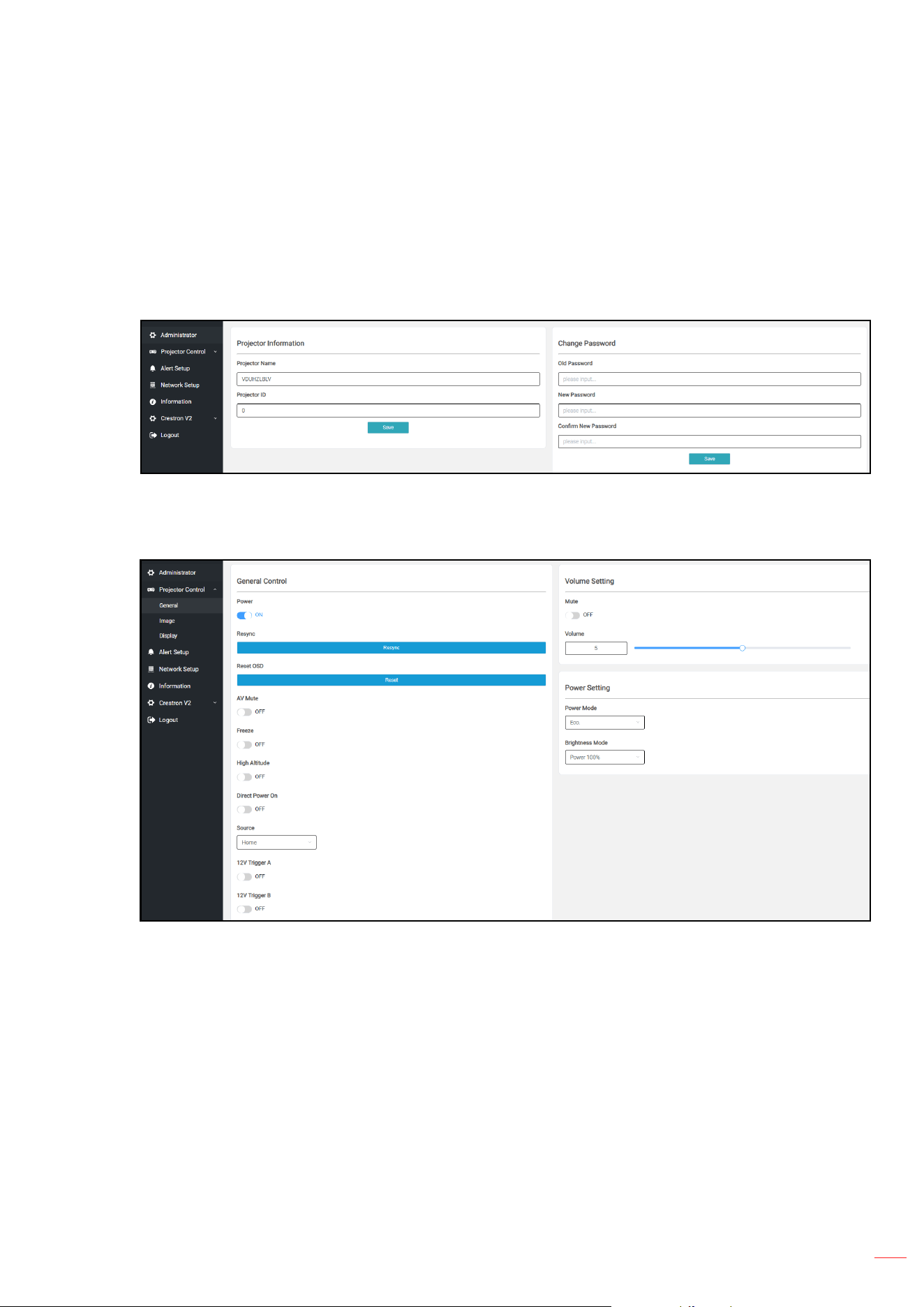

Administrator
The projector name set here is also used in PJLink control.Only alphanumeric characters can be used
as projector name. The maximum number of characters is 32.
You can use only alphanumeric characters in the password. The minimum number of characters is 8. If
you enter an invalid character, “Invalid Character” warning is displayed.
If the characters of new password and the characters of conrm (new) password do not match, error
message will be displayed. In this case, re-enter the password.
Projector Control
You can control the projector with this item. The items for control are described in this section.
[General]
English
58
USING THE PROJECTOR

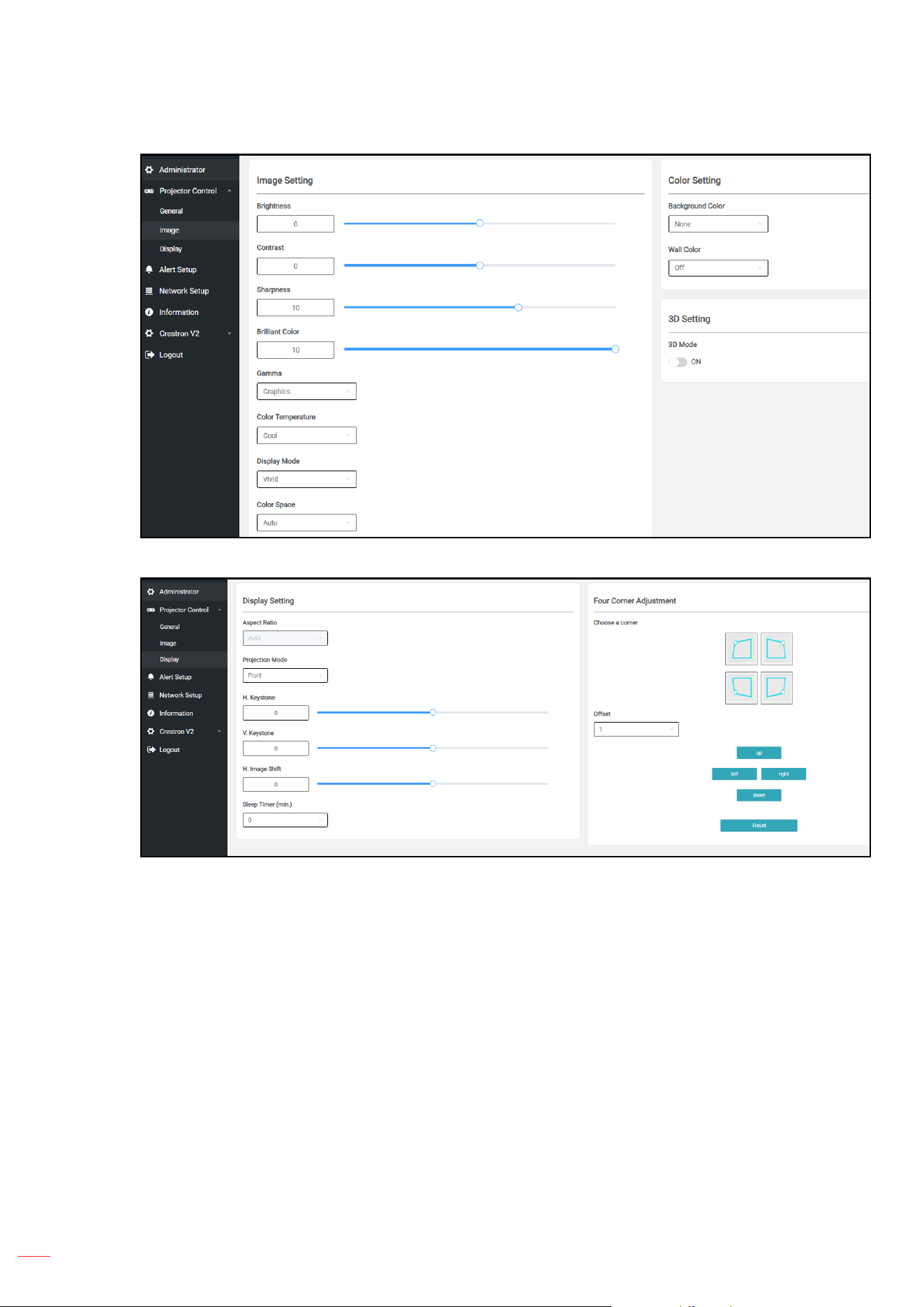

[Image]
[Display]
English
59
USING THE PROJECTOR

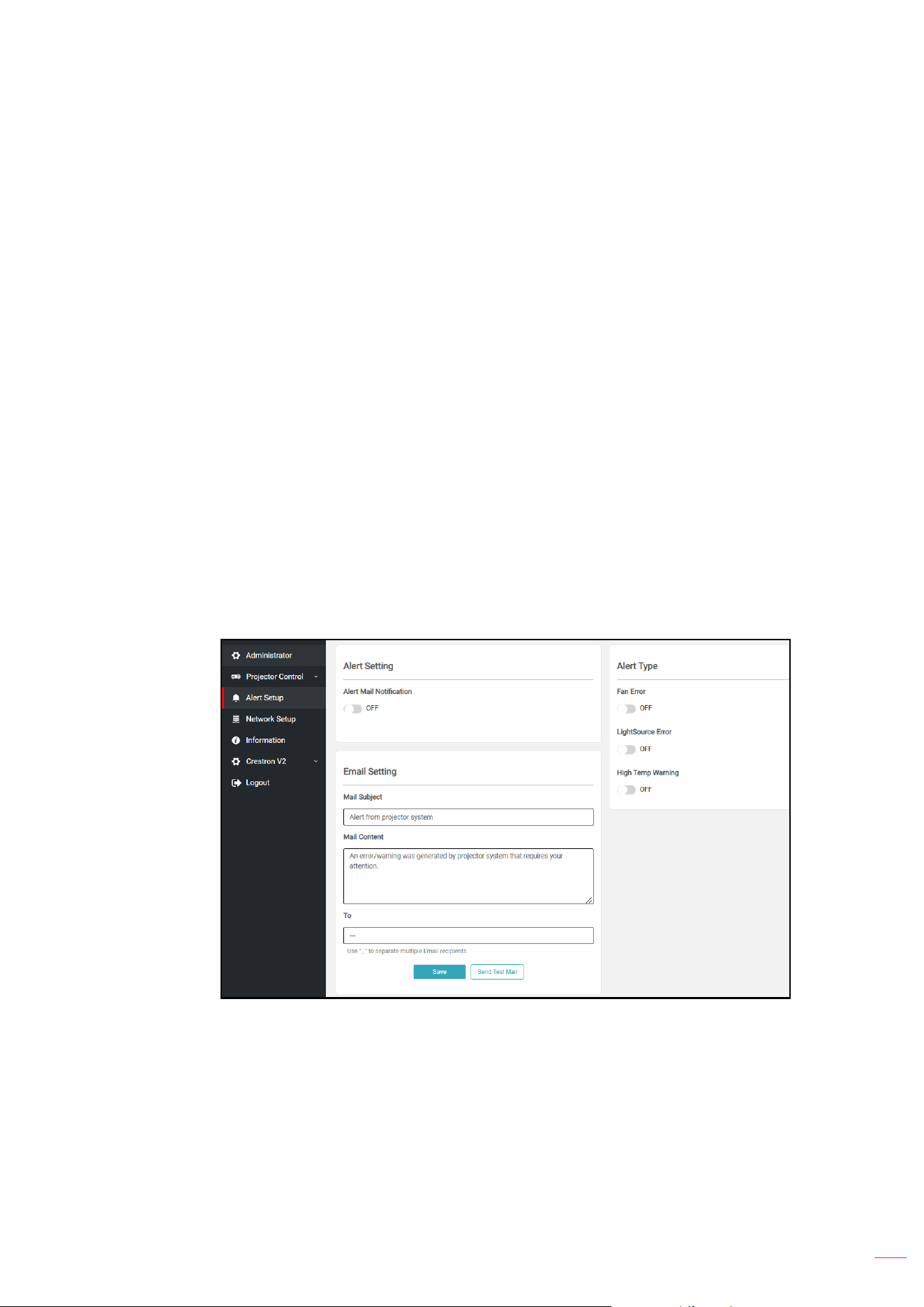

Alert Setup
You can send email alerts when an error occurs. You can carry out settings for alert mail in this
section.
1. Alert types: Check the type of error for which you want to send alert mail.
2. Alert mail notication: Check and perform the following settings:
- SMTP Setting: Set the following:
a) SMTP Server: Server address (server name) (SMTP server)
b) Port: SMPT secure port. Ex. 25, 465, 587, 2525
c) User Name: User name of the mail server
d) Password: Mail server password
e) From: email address of the sender
- Email Setting: Set the following:
a) Mail Subject
b) Mail Content
c) To: Enter the e-mail address of the sender.
3. Click “Save” to x the value.
4. Send Test Mail.
When you click [Send Test Mail], test email will be sent. The text will be “Email Test xxx.xxx.xxx.xxx *”.
English
60
USING THE PROJECTOR

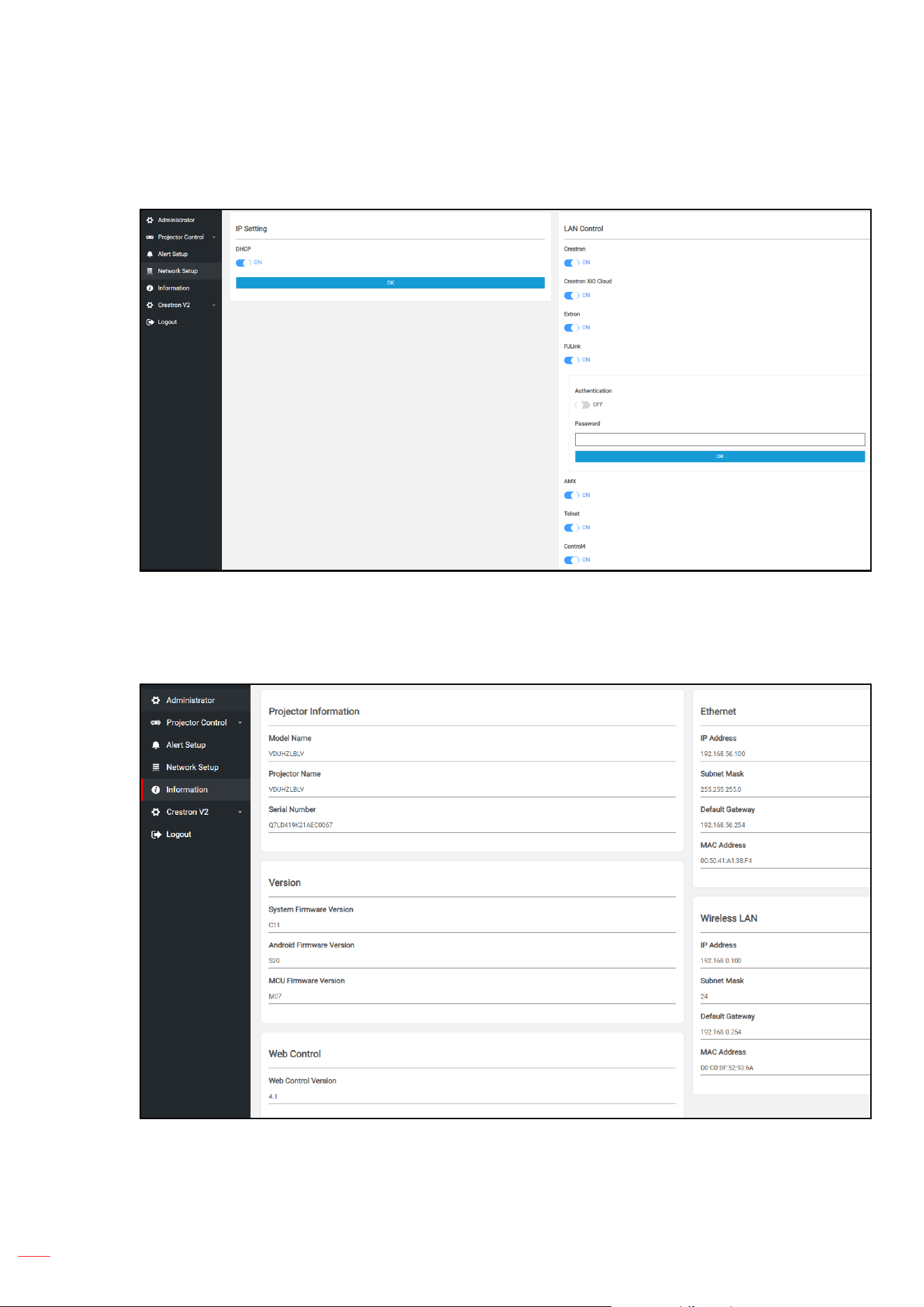

Network Setup
Set the network of the projector.
Information
The current status of the projector is displayed. You can check projector model name, rmware
version, web control version, and current network congurations.
English
61
USING THE PROJECTOR

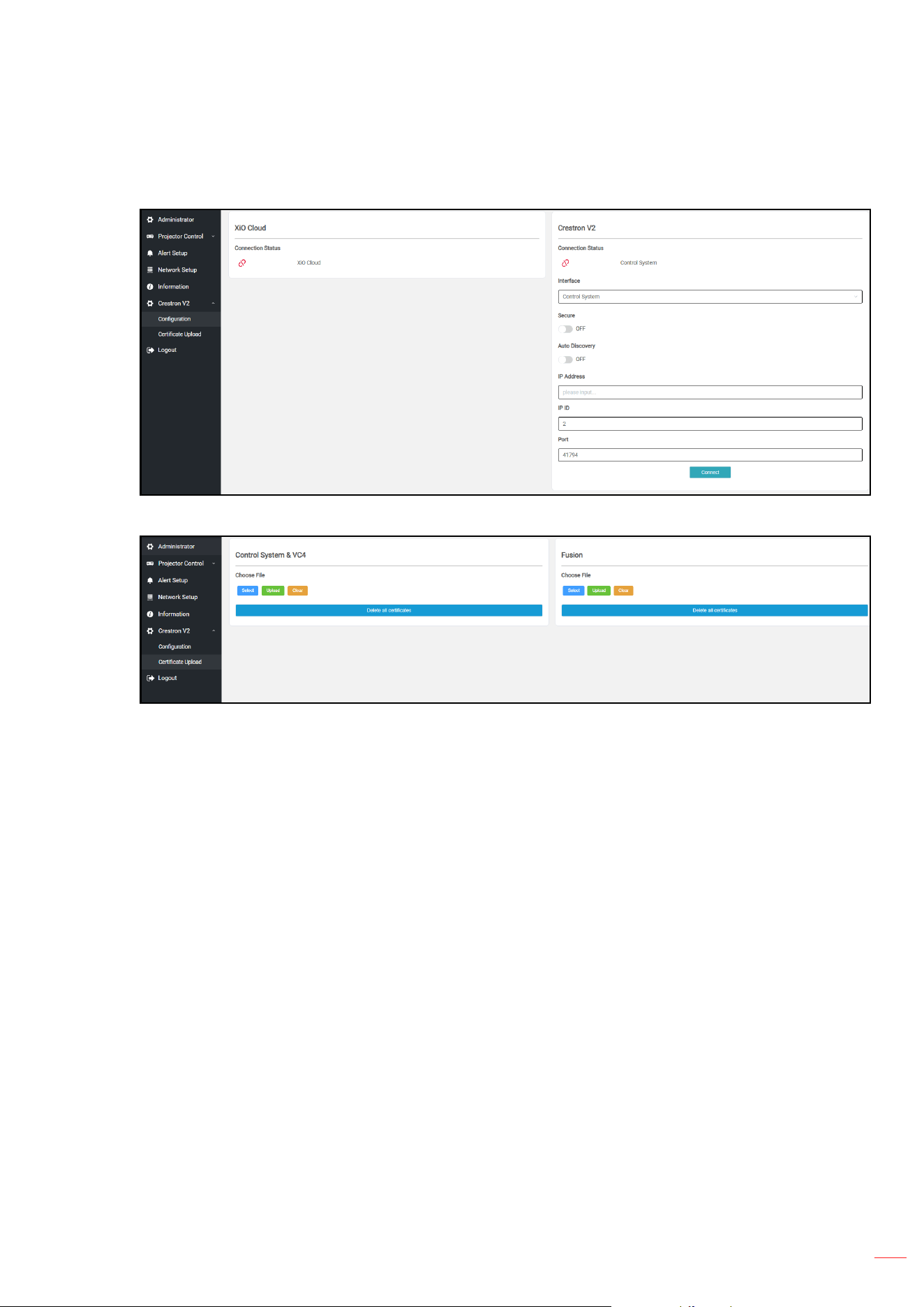

Crestron V2
View the connection status and congure Crestron related settings.
[Conguration]
[Certicate Upload]
English
62
USING THE PROJECTOR
RS232 by Telnet Function
As an alternative method of control, this projector has RS232 command control by TELNET for LAN / RJ45
interface.
Quick Start-Guide for “RS232 by Telnet”
• Check and get the IP address on OSD of the projector.
• Make sure that the PC / laptop can access the web-page of the projector.
• Make sure that “Windows Firewall” setting is set to disabled in case of “TELNET” function ltering out
by PC / laptop.

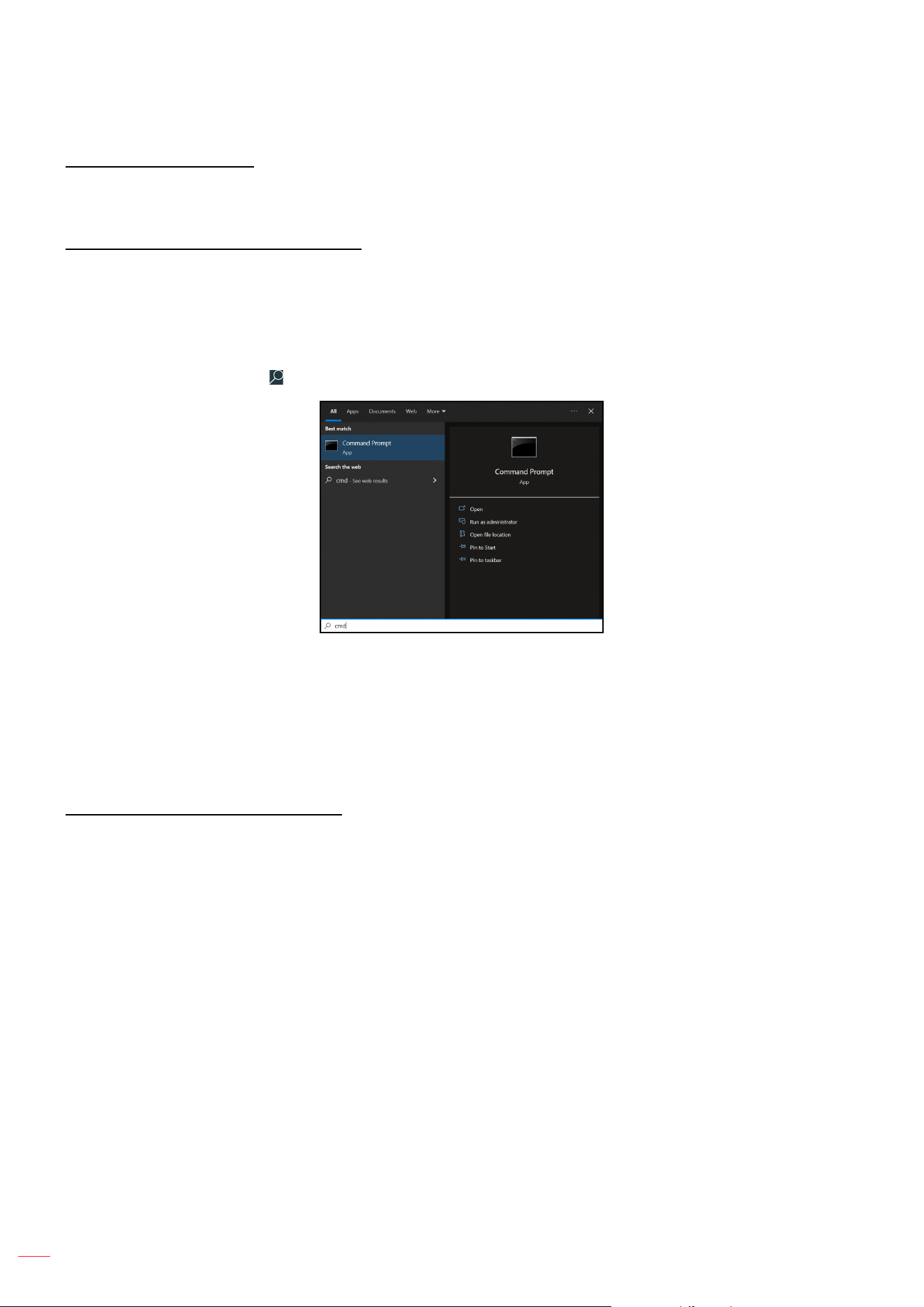

1. Click on Search and then enter “cmd” as a search word. Press the “Enter” key.
2. Open the Command Prompt app.
3. Input the command format as follows:
± telnet ttt.xxx.yyy.zzz 23 (“Enter” key pressed)
± (ttt.xxx.yyy.zzz: IP-Address of the projector)
4. If Telnet-Connection ready, and user can have RS232 command input, then press the “Enter” key and
Telnet connection should be ready for RS232 command control.
Specication for “RS232 by TELNET”:
1. Telnet: TCP.
2. Telnet port: 23 (for further details, please contact the Optoma service team).
3. Telnet utility: Windows “TELNET.exe” (console mode).
4. To end the Telnet session, just close the Command Prompt app window.
5. Windows Telnet utility directly after TELNET connection ready.
± Limitation 1 for Telnet-Control: There cannot be more than 50 bytes for successive network
payload for Telnet-Control application.
± Limitation 2 for Telnet-Control: There cannot be more than 26 bytes for successive RS232
command for Telnet-Control.
± Limitation 3 for Telnet-Control: Minimum delay for next command must be more than 200 (ms).
Reset
Return the factory default settings for control settings.
English
63
USING THE PROJECTOR
Information menu
View the projector information about its status and settings. The projector information is read only.
• Regulatory
• Serial Number
• Source Info.
• Picture Mode
• Color Info.
• Power Mode (Standby)
• Light Source Hours
• Brightness Mode
• Device ID
• IP Address
• Network Status
• Mac Address
• Bluetooth Remote Status
• FW Version
English
64
USING THE PROJECTOR
System settings
On the Launcher screen, select the Settings menu ( ) to congure various system settings.
Main Menu
Submenus
Settings menu tree
Level 1 Level 2 Level 3 Level 4 Value
Personalize Wallpaper Optoma style…
Network Wireless
Wi-Fi
O
On [Default]
Available Networks SSID
(When WiFi On)
Enter password for
[Wi-Fi name]
(When entering
password)
[Pop up dialog]
- Title: Enter password for [Wi-Fi
name]
- Subtitle: Password
- Input: (Input text)
- Checkbox: Show password
- Button: “Cancel”/ “OK”
Internet Connection
IP Address
MAC Address
SubNet Mask
Gateway
DNS1
DNS2
Signal Strength
English
65
USING THE PROJECTOR
Level 1 Level 2 Level 3 Level 4 Value
Network Wireless
Available Networks SSID
(When WiFi On)
Proxy Settings
None
Manual
[Pop up dialog]
Title: Enter a valid hostname.
Subtitle: Proxy hostname
Input hint: proxy.example@com
Button: “Cancel”/ “OK”
IP Settings
DHCP
Static
[Pop up dialog]
Title: Enter a valid IP address.
Subtitle: IP address
Input hint: 192.168.1.128
Button: “Cancel”/ “OK”
Cancel
Forget
[Pop up dialog]
Hint: [Wi-Fi name]
Title: Forget network
Content: Your device will no longer
join this Wi-Fi network.
Button: “Cancel”/ “OK”
Other Options
Add New Network
[Pop up dialog]
Title: Enter the name for Wi-Fi
network
Input: (Input text)
Button: “Cancel”/ “OK”
[Pop up dialog]
Content: Type of security
Button: None, WEP, WPA/WPA2
PSK, 802.1xEAP
Portable Hotspot
Portable
Wi-Fi
Hotspot
On
O
Network
name
[Pop up dialog]
Title: Rename network
Input: (Input text)
Button: “Cancel”/”OK”
Security
[Pop up dialog]
Title: Type of security
Button: None, WPA2
PSK
Password
[Pop up dialog]
Title: Change password
Input: (Input text)
Description: The
password must have at
least 8 characters.
Checkbox: Show
password
Button: “Cancel”/”OK”
English
66
USING THE PROJECTOR
Level 1 Level 2 Level 3 Level 4 Value
System
Display Share
File Manager
Keyboard
Current keyboard
Manage keyboards
Other Keyboard
On
O [Default]
Kika Keyboard
On [Default]
O
Date and Time
Select time zone
-12:00, -11:00, -10:00, -09:30,
-09:00, -08:00, -07:00, -06:00,
-05:00, -04:00, -03:30, -03:00,
-02:00, -01:00, 00:00, +01:00,
+02:00, +03:00, +03:30, +04:00,
+04:30, +05:00, +05:30, +05:45,
+06:00, +06:30, +07:00, +08:00,
+08:30, +8:45, +09:00, +09:30,
+10:00, +10:30, +11:00, +12:00,
+12:45, +13:00, +14:00
Daylight Saving Time
On
O [Default]
Use 24-hour format
On
O [Default]
System Update
Legal
Terms and Conditions of
Use
Privacy Policy
Cookies Policy
Open Source License
Note:
• Functions vary depending on model denition.
• All specications are subject to change without notice.
English
67
USING THE PROJECTOR
Personalize menu
Wallpaper
Set the wallpaper for the Home screen.
English
68
USING THE PROJECTOR
Network menu
Wireless
Congure wireless network settings.
• Wi-Fi: Set the Wi-Fi option to “On” to enable wireless network feature.
• Available Network SSID: Select your desired wireless access point and enter or congure the
necessary connection parameters (if required), for example password, proxy settings, and IP address.
For information, you can review the signal strength.
Choose “Cancel” to return to the Network menu without saving settings. Choose “Forget” to delete the
wireless network prole.
Note: Whenever you need to input symbols, the system will automatically pop-up an onscreen
keyboard.
• Other Options: Congure advanced wireless network settings, such as “Add New Network” (manually
enter network name), and “Portable Hotspot” (congure the projector to behave as a wireless access
point for other devices).
English
69
USING THE PROJECTOR
System menu
Display Share
Launch Display Share app. See page 71.
File Manager
Launch File Manager app. See page 72.
Keyboard
Select and manage the keyboard.
Date and Time
Congure date and time settings.
• Select time zone: Select the time zone in your location.
• Daylight Saving Time: Set to “On” if daylight saving time is observed in your region.
• Use 24-hour format: Set to “On” to display time in 24-hour format. Set to “O” to display time in
12-hour format (AM/PM).
System Update
System will look for updates automatically every time the projector is connected to the Internet (OTA).
Legal
Review legal documents including “Terms and Conditions of Use”, “Privacy Policy”, “Cookies Policy”, and
“Open Source License”.
Note: You can review legal documents online as well. Please refer to the following web addresses:
• Terms and Conditions of Use: https://www.optoma.com/terms-conditions/.
• Cookies Policy: https://www.optoma.com/cookies-policy/.
• Privacy Policy: https://www.optoma.com/software-privacy-policy/.
English
70
USING THE PROJECTOR
Selecting an input source manually
If the Auto Source function is o and the desired input source is not visible on the Home screen, select Input
Source ( ) on the Home screen or press the button on the remote control and then select your preferred input
source.
Selecting an app
To view all installed apps, select the Settings menu ( ). Then select your desired app (Display Share or
File Manager).
English
71
USING THE PROJECTOR

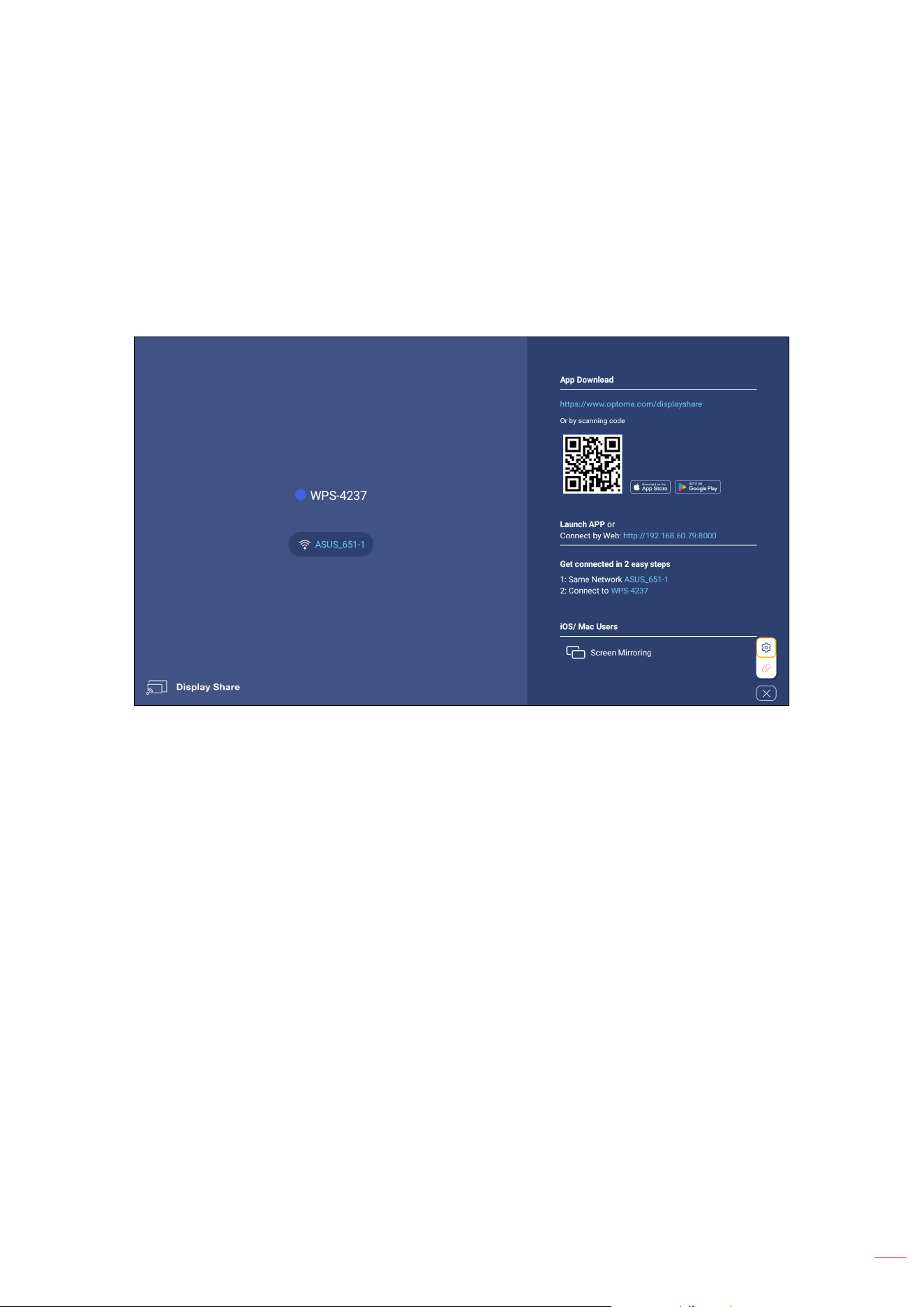

Display Share
To get the App, you can do either of the following:
• if you are using the mobile device, scan the QR code on the screen.
• if you are using the computer, simply go to the link.
Then install the Display Share app in your computer or mobile device.
Before you get started, make sure to connect your computer or mobile device to the same Wi-Fi as the projector.
Then follow the on-screen instructions to operate the App.
Note: For initial activation of the iOS screen mirroring function, please ensure the projector is connected to the
internet, then launch the Display Share app. You are only required to perform this initial step once and after
the initial connection is established, the Display Share app does not need to be open for future use of the
iOS screen mirroring function.
English
72
USING THE PROJECTOR

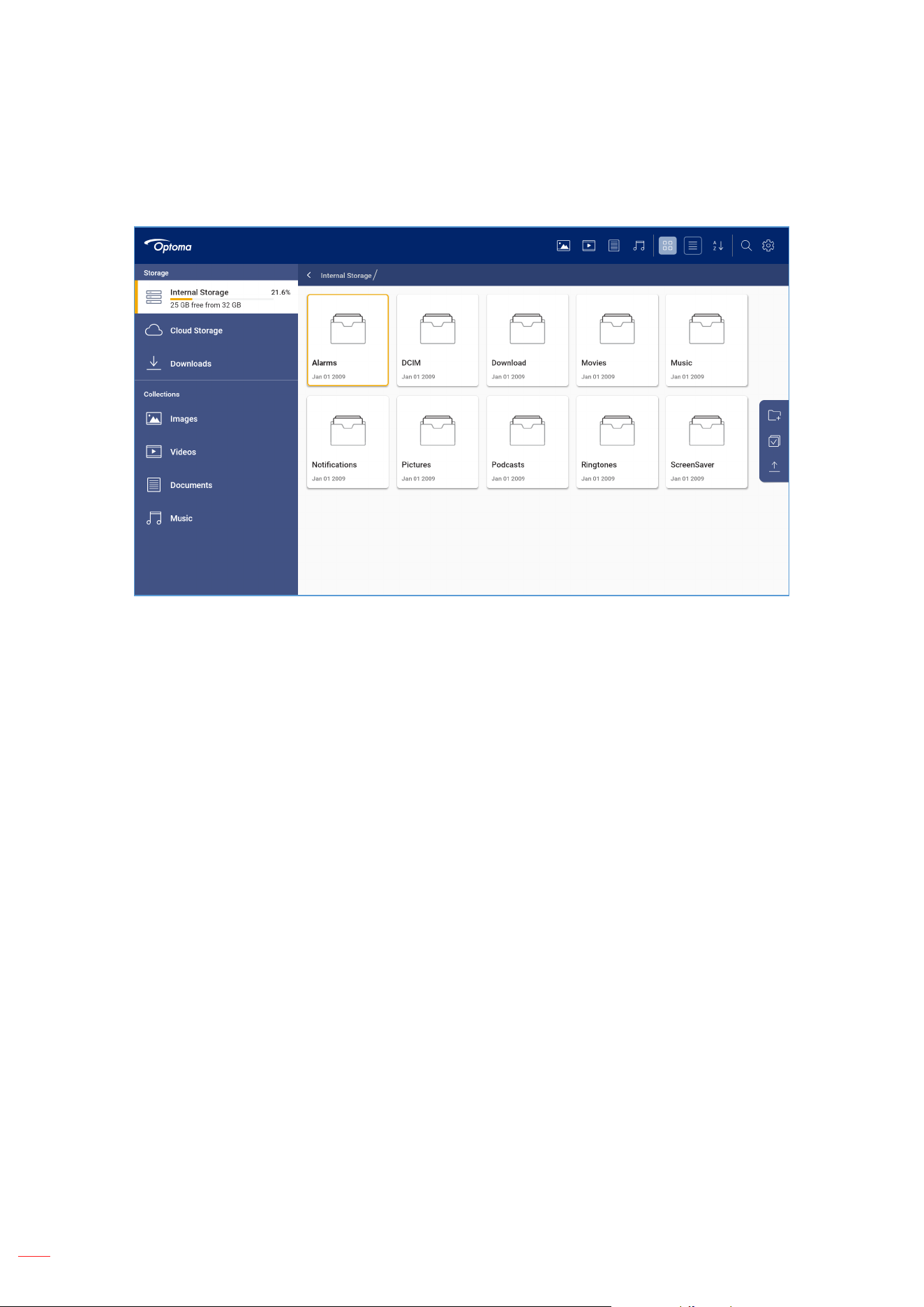

File Manager
With the File Manager app, you can manage the les stored in the internal storage, external storage, and cloud
storage.
English
73
ADDITIONAL INFORMATION
Compatible resolutions
Input Signal for HDMI
Signal Resolution Refresh Rate(Hz) Notes for Mac
VGA
640x480 60/67/72/75 Mac 60/75
720x400 70
SVGA
800x600 56/60/72/75 Mac 60/75
832x624 75 Mac 75
XGA 1024x768 60/70/75/120 Mac 60/70/75
SDTV(480P) 720x480 60
SDTV(576P) 720x576 50
HDTV(720P) 1280x720 60/120 Mac 60
WXGA
1280x800 60 Mac 60
1440x900 60
WXGA 1366x768 60
SXGA
1280x1024 60/75 Mac 60/75
1440x900 60
SXGA+ 1400x1050 60
UXGA 1600x1200 60
HDTV(1080I) 1920x1080 60
HDTV(1080p) 1920x1080 24/50/60/120/240 Mac 60
WQHD 2560x1440 120
UHD(2160p)
3840x2160 24/30/50/60/120
4096x2160 24/50/60/120
3D Support Timing
HDMI1.4a 3D Timing For Blue-Ray 3D
Signal Timing
720p (Frame Packing) 1280x720@50Hz
720p (Frame Packing) 1280x720@60Hz
1080p (Frame Packing) [email protected]/24Hz
720p (Top and Bottom) 1280x720@50Hz
720p (Top and Bottom) 1280x720@60Hz
1080p (Top and Bottom) [email protected]/24Hz
1080i(Side by Side(Half)) 1920x1080@50(25)Hz
1080i(Side by Side(Half)) 1920x1080@60(30)Hz
PC 3D timing
Signal Timing
Frame Sequential
1920x1080@120Hz
1280x720@120Hz
1024x768@120Hz
English
74
ADDITIONAL INFORMATION
EDID (Digital)
B0/Established Timing B0/Standard Timing B0/Detail Timing
Resolution V [Hz] H [KHz] Resolution V [Hz] Ratio Resolution V [Hz]
720x400 70.0 31.5 1024x768 120.0 4:03 3840x2160 60.0
640x480 60.0 31.5 1280x720 60.0 16:09
640x480 66.6(67) 34.9 1280x720 120.0 16:09
640x480 72.0 37.9 1280x800 60.0 16:10
640x480 75.0 37.5 1280x1024 60.0 5:04
800x600 56.0 35.1 1440x900 60.0 16:10
800x600 60.0 37.9 1400x1050 60.0 4:03
800x600 72.0 48.1 1600x1200 60.0 4:03
800x600 75.0 46.9
832x624 75.0 48.9
1024x768 60.0 48.4
1024x768 70.0 56.5
1024x768 75.0 60.0
1280x1024 75.0 80.0
1152x870 75.0 67.5
B1/Video Mode B1/Detail Timing
Resolution V [Hz] Resolution V [Hz] Normal
640x480p 4:3 60.0 1920x1080 240.00 V
720x480p 16:9 60.0 2560x1440 120.00 V
1280x720p 16:9 60.0
1920x1080i 16:9 60.0
1920x1080p 16:9 60.0
720x576p 16:9 50.0
1280x720p 16:9 50.0
1920x1080i 16:9 50.0
1920x1080p 16:9 50.0
1920x1080p 16:9 24.0
1920x1080p 16:9 120.0
2560 x 1080p 64:27 50.0
2560 x 1080p 64:27 60.0
3840 x 2160p 16:9 24.0
3840 x 2160p 16:9 30.0
3840 x 2160p 16:9 50.0
3840 x 2160p 16:9 60.0
4096 x 2160p 256:135 24.0
4096 x 2160p 256:135 60.0
3840x2160 16:9 120.0
*Only For HDMI 2.1
4096x2160 256:135 120.0
*Only For HDMI 2.1
English
75
ADDITIONAL INFORMATION
Audio Data
Format eARC SPDIF LPCM
LPCM(IEC 60958 PCM[30,31] V V V
Dolby Digital(5.1) V V
DTS V V
Dolby Digital Plus(7.1) V
DTS-HD
Dolby TrueHD/MAT V
ATMOS Passthrough V
English
76
ADDITIONAL INFORMATION
Image size and projection distance
(a) Screen Size
(b) Projection Distance
(c) Image Height (d) Vertical Oset
minimum maximum
inch mm inch mm inch mm inch mm inch mm
30.00 762 31.38 797 50.20 1275 14.71 374 2.35 60
40.00 1016 41.84 1063 66.94 1700 19.61 498 3.14 80
50.00 1270 52.29 1328 83.67 2125 24.51 623 3.92 100
60.00 1524 62.75 1594 100.41 2550 29.42 747 4.71 120
70.00 1778 73.21 1860 117.14 2975 34.32 872 5.49 139
80.00 2032 83.67 2125 133.87 3400 39.22 996 6.28 159
90.00 2286 94.13 2391 150.61 3825 44.12 1121 7.06 179
100.00 2540 104.59 2657 167.34 4250 49.03 1245 7.84 199
110.00 2794 115.05 2922 184.08 4676 53.93 1370 8.63 219
120.00 3048 125.51 3188 200.81 5101 58.83 1494 9.41 239
130.00 3302 135.97 3454 217.55 5526 63.73 1619 10.20 259
140.00 3556 146.42 3719 234.28 5951 68.64 1743 10.98 279
150.00 3810 156.88 3985 251.01 6376 73.54 1868 11.77 299
200.00 5080 209.18 5313 334.69 8501 98.05 2491 15.69 398
250.00 6350 261.47 6641 418.36 10626 122.57 3113 19.61 498
300.00 7620 313.77 7970 502.03 12751 147.08 3736 23.53 598
Desired image size:
V+
Height
Screen
Projection distance
V-
V+
V-
Side view
Vertical top
Vertical bottom
Lens shift range
Lens shift range:
H+H-
Top view
H+
H-
Horizontal right
Lens shift range
Screen
Horizontal left
Distance
English
77
ADDITIONAL INFORMATION
Projector dimensions and ceiling mount installation
1. To prevent damage to your projector, please use the Optoma ceiling mount.
2. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to
the projector meet the following specications:
• Screw type: M6*10
• Minimum screw length: 10mm
Unit: mm
Lens
Note: Please note that damage resulting from incorrect installation will void the warranty.
Warning:
• If you buy a ceiling mount from another company, please be sure to use the correct screw size.
Screw size will vary depending on the thickness of the mounting plate.
• Be sure to keep at least 10 cm gap between the ceiling and the bottom of the projector.
• Avoid installing the projector near a heat source.
English
78
ADDITIONAL INFORMATION
IR remote codes
Enter
Key
Key
num
MTX.
Format Data0 Data1 Data2 Data3
Description
Power
on / o
K12 04 F1 32 CD 71 8E
Refer to the “Powering on / o the
projector” on page 24.
Source K3 11 F1 32 CD 18 E7
Press to select an input signal.
Home K13 03 F1 32 CD 92 6D
Press to return to the Home screen.
Menu K8 17 F1 32 CD 0E F1
Press to launch the on-screen display
(OSD) menu. To exit OSD, press again.
Return K4 10 F1 32 CD 86 79
Press to return to the previous page.
Up K7 18 F2 32 CD 11 EE
Use to select items or make
adjustments to your selection.
Left K14 02 F2 32 CD 10 EF
Right K5 09 F2 32 CD 12 ED
Down K2 19 F2 32 CD 14 EB
Enter Enter K9 16 F1 32 CD 0F F0 Conrm your item selection.
Mute K15 01 F1 32 CD 52 AD
Press to turn o/on the projector
built-in speaker.
Display
Mode
K10 15 F1 32 CD 91 6E
Press to display the Display Mode
menu. To exit the Display Mode menu,
press again.
APP
menu
K6 08 F1 32 CD 25 DA
Press to open the APP menu.
Volume - K11 12 F2 32 CD 0C F3
Press to decrease the volume.
Volume + K1 05 F2 32 CD 09 F6
Press to increase the volume.
English
79
ADDITIONAL INFORMATION
F3
On
Geometric
Mode
Correction PIP/PBP
Off
F1 F2
AV Mute
ENTER
Source
Volume D Zoom
Info.
VGA
1
S-Video
2
HDMI1
3
HDMI2
HDMI3
Format Freeze Remote
ID All
HDBaseT
4
Video
5
DVI
6
BNC
7
YPbPr
8
DisplayPort
9
3D
0
Re-Sync
Menu
F3
Key
Printing-key
denition
Key code
RepeatBYTE1 BYTE2 BYTE3 BYTE4
customer 0 customer 1 data 0 data 1
Power On
On 32 CD 02 #BYTE3 F2
Power O
O 32 CD 2E #BYTE3 F2
Geometric
Correction
Geometric
Correction
32 CD 96 #BYTE3 F2
PIP/PBP PIP/PBP 32 CD 78 #BYTE3 F2
F1 F1 32 CD 26 #BYTE3 F2
Home F2/Home 32 CD 27 #BYTE3 F2
Mode Mode 32 CD 95 #BYTE3 F2
Four
directional
select keys
( / / / )
Up arrow 32 CD C6 #BYTE3 F2
Down arrow 32 CD C7 #BYTE3 F2
Left arrow 32 CD C8 #BYTE3 F2
Right arrow 32 CD C9 #BYTE3 F2
Enter Enter 32 CD C5 #BYTE3 F2
AV Mute AV Mute 32 CD 03 #BYTE3 F2
APP Settings
Info./
APP Menu
32 CD 25 #BYTE3 F2
English
80
ADDITIONAL INFORMATION
Key
Printing-key
denition
Key code
RepeatBYTE1 BYTE2 BYTE3 BYTE4
customer 0 customer 1 data 0 data 1
Laser
Laser N/A
Source Source 32 CD 18 #BYTE3 F2
Back F3/Back 32 CD 66 #BYTE3 F2
Re-Sync Re-Sync 32 CD 04 #BYTE3 F2
Volume
Volume + 32 CD 09 #BYTE3 F2
Volume - 32 CD 0C #BYTE3 F2
D Zoom
D Zoom + 32 CD 08 #BYTE3 F2
D Zoom - 32 CD 0B #BYTE3 F2
Menu Menu 32 CD 88 #BYTE3 F2
Format Format 32 CD 15 #BYTE3 F2
Freeze Freeze 32 CD 06 #BYTE3 F2
Remote
ID 3201~ 3299 N/A
All 32CD N/A
1 / VGA 1/VGA 32 CD 8E #BYTE3 F2
2 / S-Video 2/S-Video 32 CD 1D #BYTE3 F2
3 / HDMI1 3/HDMI1 32 CD 16 #BYTE3 F2
HDMI2 HDMI2 32 CD 9B #BYTE3 F2
4 / HDBaseT 4/HDBaseT 32 CD 70 #BYTE3 F2
5 / Video 5/Video 32 CD 1C #BYTE3 F2
6 / DVI 6/DVI 32 CD 19 #BYTE3 F2
HDMI3 HDMI3 32 CD 98 #BYTE3 F2
7 / BNC 7/BNC 32 CD 1A #BYTE3 F2
8 / YPbPr 8/YPbPr 32 CD 17 #BYTE3 F2
9 / DisplayPort 9/DisplayPort 32 CD 9F #BYTE3 F2
0 / 3D 0/3D 32 CD 89 #BYTE3 F2
English
81
ADDITIONAL INFORMATION
Troubleshooting
If you experience a problem with your projector, please refer to the following information. If a problem persists,
please contact your local reseller or service center.
Image problems
No image appears on-screen
• Ensure all the cables and power connections are correctly and securely connected as described in the
"Installation" section.
• Ensure the pins of connectors are not crooked or broken.
• Ensure that the "Mute" feature is not turned on.
Image is out of focus
• Turn the focus ring clockwise or counterclockwise until the image is sharp and legible.
(Please see page 20).
• Make sure the projection screen is between the required distance from the projector.
(Please refer to page 76).
The image is stretched when displaying 16:9 DVD title
• When you play anamorphic DVD or 16:9 DVD, the projector will show the best image in 16: 9 format
on projector side.
• If you play the V-Stretch format DVD title, please change the format as V-Stretch in projector OSD.
• If you play 4:3 format DVD title, please change the format as 4:3 in projector OSD.
• Please setup the display format as 16:9 (wide) aspect ratio type on your DVD player.
Image is too small or too large
• Turn the zoom lever clockwise or counterclockwise to increase or decrease the projected image size.
(Please see page 20).
• Move the projector closer to or further from the screen.
• Press "Menu" on the projector panel, go to "Display → Aspect Ratio". Try the dierent settings.
Image has slanted sides:
• If possible, reposition the projector so that it is centered on the screen and below the bottom of the
screen.
Image is reversed
• Select "Setup Projection Orientation" from the OSD and adjust the projection direction.
English
82
ADDITIONAL INFORMATION
Other problems
The projector stops responding to all controls
• If possible, turn o the projector, then unplug the power cord and wait at least 20 seconds before
reconnecting power.
If the Lens Shift knobs stop responding (to move the image up/down/left/right), please follow the below
steps:
• Turn the lens shift knobs clockwise or counterclockwise with a press-down force. This will release
the protection mechanisms and allow them to work once again. (The lens shift knobs have this lock
function to prevent from being broken. It will make an obvious sound, to let users know it has already
reached the limit position.)
Remote control problems
If the remote control does not work
• Check the operating angle of the remote control is pointed within ±15° to the IR receiver on the
projector.
• Make sure there are not any obstructions between the remote control and the projector. Move to within
6 m (19.7 ft) of the projector.
• Make sure batteries are inserted correctly.
• Replace batteries if they are exhausted.
English
83
ADDITIONAL INFORMATION
Warning indicators
When the warning indicators (see below) light up or ash, the projector will automatically shutdown:
• “Laser” LED indicator is lit red and if “Power” indicator ashes red.
• “Temp” LED indicator is lit red and if “Power” indicator ashes red. This indicates the projector has
overheated. Under normal conditions, the project can be switched back on.
• “Temp” LED indicator ashes red and if “Power” indicator ashes red.
Unplug the power cord from the projector, wait for 30 seconds and try again. If the warning indicator light up or
ash, please contact your nearest service center for assistance.
LED lightning messages
Message
Power LED Temp LED Laser LED
(Red) (Blue) (Red) (Red)
Standby state
(Input power cord)
Steady light - - -
Power on (Warming) -
Flashing
(0.5 sec o / 0.5 sec
on)
- -
Power on and Laser lighting - Steady light - -
Power o (Cooling) -
Flashing
(0.5 sec o / 0.5
sec on). Back to red
steady light when
cooling fan turns o.
- -
Error (Laser failure) Flashing - - Steady light
Error (Fan failure) Flashing - Flashing -
Error (Over temp.) Flashing - Steady light -
Standby State
(Burn in mode)
- Flashing - -
Burn-in (Warming) (*) - Flashing - -
Burn-in (Cooling) (*) - Flashing - -
Burn in (Laser lighting) (*) -
Flashing
(3 sec on / 1 sec o)
- -
Burn in (Laser o) (*) -
Flashing
(1 sec on / 3 sec o)
- -
Note:
• (*)If power is less than 0.5W and the power LED is red, change the power LED to ashing red.
a) Turn all LEDs o after the OSD menu disappears.
b) Power LED on: No signal; OSD disappears.
c) Power LED o: Signal is detected; OSD disappears.
English
84
ADDITIONAL INFORMATION
• Power o:
Power O
Press power key again.
• Temperature warning:
Warning
TEMPERATURE TOO HIGH
Please:
1. Make sure air in and outlets are not blocked.
2. Make sure the environment temperature is under 45 degree C.
If the problem persists in spite of the above.
Please contact a service center for repair.
English
85
ADDITIONAL INFORMATION
Specications
Item Description
Maximum Resolution
• HDMI (2.1): 3840x2160@120Hz
• HDMI port is up to 3840*2160/120Hz (FRL)
Lens
• Throw ratio: 1.2~1.92
• F-stop: 2.3~2.8
• Focal length: 17.3~27.88mm
• Zoom range: 1.6X
Oset 126%±5%
Image size 30.6”~301.1” (Optimized@82’’)
I/Os
• HDMI 2.0 x2
• HDMI 2.1 x1
• USB Type-A x3
- 1 for Power USB 5V/1.5A and DLPC7541 FW upgrade
- 2 for Power USB 5V/0.9A and multi-media, Wi-Fi dongle, Andriod TV processor
FW upgrade
• RJ45 x1
• S/PDIF x1 (Support PCM, Dolby Digital)
• 3D Sync x1 (3D Sync signal output, Mini-Din 3 Pin connector)
• 12V Trigger x2 (DC output. 3.5mm jack female; 12V/0.5A max.)
• Audio Out x1 (3.5mm jack, female, black)
• RS232 x1 (Male (9-Pin D-sub) type)
Colour 1073.4 Million color
Scan rate
• Horizontal scan rate: 15~255 KHz
• Vertical scan rate: 24~240Hz, 240 Hz for 1080P
Speaker 5W x2
Power consumption
• Minimum (ECO mode):
- 165 W (typical), 190 W (max.) @110VAC
- 160 W (typical), 184 W (max.) @220VAC
• Maximum (Bright mode):
- 300 W (typical), 345 W (max.) @110VAC
- 295 W (typical), 339 W (max.) @220VAC
Input current 3.7A
Installation orientations Front, Rear, Ceiling, Rear-top
Dimensions (W x D x H)
• Without feet: 498.1 x 331.1 x 154 mm (19.4 x 13.1 x 6.1 inches)
• With feet: 498.1 x 331.1 x 171 mm (19.4 x 13.1 x 6.7 inches)
Weight 8.9kg ±0.3kg
Environmental Operating in 0~40°C, 10% to 80% humidity (non-condensing)
Note: All specications are subject to change without notice.
English
86
ADDITIONAL INFORMATION
Optoma global oces
For service or support, please contact your local oce.
USA
Optoma Technology, Inc. 888-289-6786
47697 Westinghouse Drive. 510-996-4794
Canada
Optoma Technology, Inc. 888-289-6786
47697 Westinghouse Drive. 510-996-4794
Latin America
Optoma Technology, Inc. 888-289-6786
47697 Westinghouse Drive. 510-996-4794
Europe
1 Bourne End Mills
Hemel Hempstead
Hertfordshire +44 (0) 1923 691 800
HP1 2UJ +44 (0) 1923 691 888
www.optoma.eu
Service Tel : +44 (0)1923 691865
Benelux BV
Optoma Benelux BV +31 (0) 36 8200 250
Europalaan 770 D +31 (0) 36 548 9052
1363BM Almere
The Netherlands
www.optoma.nl
France
Bâtiment E +33 1 41 46 12 20
81-83 avenue Edouard Vaillant +33 1 41 46 94 35
Spain
C/ José Hierro, 36 Of. 1C 28529 Rivas +34 91 499 06 06
VaciaMadrid, Spain +34 91 670 08 32
Deutschland
Optoma Deutschland GmbH +49 (0) 2161 68643 0
Am Nordpark 3 +49 (0) 2161 68643 99
Deutschland
Scandinavia
Postboks 9515 Åskollen +47 32 98 89 90
Kniveveien 29 +47 32 98 89 99
3036
Norway
Korea
https://www.optoma.com/kr/
Japan
https://www.optoma.com/jp/
Taiwan
https://www.optoma.com/tw/
China
Room 2001, 20F, Building 4, +86-21-62947376
No.1398 Kaixuan Road, +86-21-62947375
Changning District www.optoma.com.cn
Shanghai, 200052, China
Australia
https://www.optoma.com/au/
www.optoma.com
