USER’S OPERATION MANUAL
Before operating this unit, please read this manual
thoroughly, and retain for future reference.
English
CFDN2216AS
Contents
Brief Introduction .......................................................................................................................................................
01
Important safety instructions .......................................................................................................................... 03
Installing your new appliance ......................................................................................................................... 07
Description of the appliance ........................................................................................................................... 20
Display controls .......................................................................................................................................................... 21
Using your appliance ............................................................................................................................................ 24
Cleaning and care .................................................................................................................................................. 29
Helpful hints and tips .............................................................................................................................................. 31
Troubleshooting ........................................................................................................................................................ 32
Disposal of the appliance .................................................................................................................................. 36
Thank you for choosing our appliance. We are sure you will find your new
refrigerator a pleasure to use. Before you use the appliance, we recommend
that you carefully read through these instructions, which provide details about
installing and using the product.
Brief i
n
troduction
Please ensure that everyone using this appliance is familiar with its
operation and safety features. It is important that you install the appliance
correctly and pay careful attention to the safety instructions.
We recommend that you keep this user's manual with the appliance for
future reference.
This appliance is intended to be used in households and similar
applications such as:
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have supervision or been given instruction
concerning use of the appliance. Children should be supervised to ensure
that they do not play with the appliance.
Do not store explosive substances such as aerosol cans with a flammable
propellant in this appliance.
1. Kitchen areas in shops, offices and other working environments;
2. Hotels, motels and other residential environments;
3. Bed and breakfast environments;
4. Catering and similar non-commercial applications.
Note
01
Connect to potable water supply only.
Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food storage compartments of
the appliance, unless they are of the type recommended by the
manufacturer.
When disposing of the appliance do so only at an authorized waste disposal
center. Do not expose to flame.
If the power cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
Warning
Brief i
n
troduction
02
It is important to use your appliance safely. We recommend that you
follow the guidelines below.
Store any food in accordance with the storage instructions from the
manufacturer.
Don't try to repair the appliance yourself. It is dangerous to alter the
specifications or modify this product in any way. Any damage to the power
cord may cause a short circuit, fire or electric shock.
Don't place too much food directly against the air outlet on the rear wall of
both the refrigerator and freezer compartment, as it may affect important
air circulation.
Don't place hot items near the plastic components of this appliance.
Frozen food must not be refrozen once it has been thawed out.
Don't store bottled or canned drinks (especially carbonated drinks) in the
freezer compartment. Bottles and cans may explode.
Use caution consuming popsicles or ice cubes straight from the freezer as
this can cause freezer burn to the mouth and lips.
General safety and daily use
Keep all packaging away from children to avoid risk of suffocation.
Protect children from being scalded by touching the compressor at the rear
bottom of appliance
Don't place items on top of the appliance as this could cause injury should
they fall off.
Never allow children to play with the appliance by hanging or standing over
or on the doors, racks, shelves and drawers etc.
Safety for children and other persons
Important safety instructions
03
To avoid the risks that are always present when using an electric
appliance, we recommend that you pay attention to the instructions
about electricity below.
Unpack and check through the appliance. Should any damage be evident,
don't plug in the appliance but contact the shop immediately from which
you purchased it. Keep all packing materials in this case.
We recommend that you wait for 4 hours before connecting the appliance
to allow the refrigerant to flow back into the compressor.
The appliance must be applied with single phase alternating current of
110~115V/60Hz If the voltage fluctuates exceeding the upper limit, A.C.
automatic voltage regulator of more than 350W should be applied to the
refrigerator for safety use.
The power plug must be accessible when the appliance is installed.
This appliance must be grounded.
This appliance is fitted with a plug, in accordance with local standard. The
plug should be suitable for use in all houses fitted with sockets in
accordance with current specifications.
If the fitted plug is not suitable for your socket outlets, it should be cut off
and carefully disposed of. To avoid a possible shock hazard, do not insert
the discarded plug into a socket. If in doubt contact a qualified, registered
electrician.
Do not use extension cords or multiple sockets which could cause
overloading of wiring circuits and could cause a fire. Always plug your
appliance into its own individual electrical socket which has a voltage
rating that matched the rating plate.
Electrical safety
Important safety instructions
04
Make sure that the plug is not squashed or damaged. Otherwise, it may
cause short circuit, electric shock or overheat and even cause a fire.
Do not insert the power plug if the socket is loose, there is a risk of electric
shock or fire.
Do not insert the power plug if the socket is loose, there is a risk of electric
shock or fire.
Switch off the appliance and disconnect it from the main power before you
clean or move it.
Never unplug the appliance by pulling on the electrical cord. Always grip
the plug firmly and pull straight out from the socket to prevent damaging
the power cord.
Do not operate the appliance without the cover of interior lighting.
Any electrical component must be replaced or repaired by a qualified
electrician or authorized service engineer. Only genuine replacement parts
should be used.
Do not use electrical appliances such as ice cream makers inside the food
storage compartments of the appliance unless they are approved by the
manufacturer.
To avoid eye injury, do not look directly into the LED light located in the
refrigerator compartment. If it is not functioning correctly, consult a
qualified, registered electrician or replace it in accordance with the
"Cleaning and Care" chapter.
Electrical safety
Important safety instructions
05
06
Refrigerant
The refrigerant isobutene (R600a) is contained within the refrigerant circuit
of the appliance. During transportation and installation of the appliance,
ensure that none of the components of the refrigerant circuit become
damaged.
The refrigerant (R600a) is flammable.
1.
2.
Don't store products which contain flammable propellants (e.g. spray cans)
or explosive substances in the appliances.
Should the refrigerant circuit be damaged:
Avoid open flames (candles, lamps etc.) and other sources of ignition.
Thoroughly ventilate the room in which the appliance is situated.
Caution: Risk of Fire
Important safety instructions
Installing your new appliance
Before using the appliance for the first
time, you should be aware of the
following tips.
07
For proper installation, this
refrigerator must be placed on a
level surface of hard material
that is the same height as the
rest of the flooring. This surface
should be strong enough to
support a fully loaded
refrigerator.
The rollers, which are not casters,
should be only used for forward
or backward movement. Moving
the refrigerator sideways may
damage your floor and the
rollers.
Warning

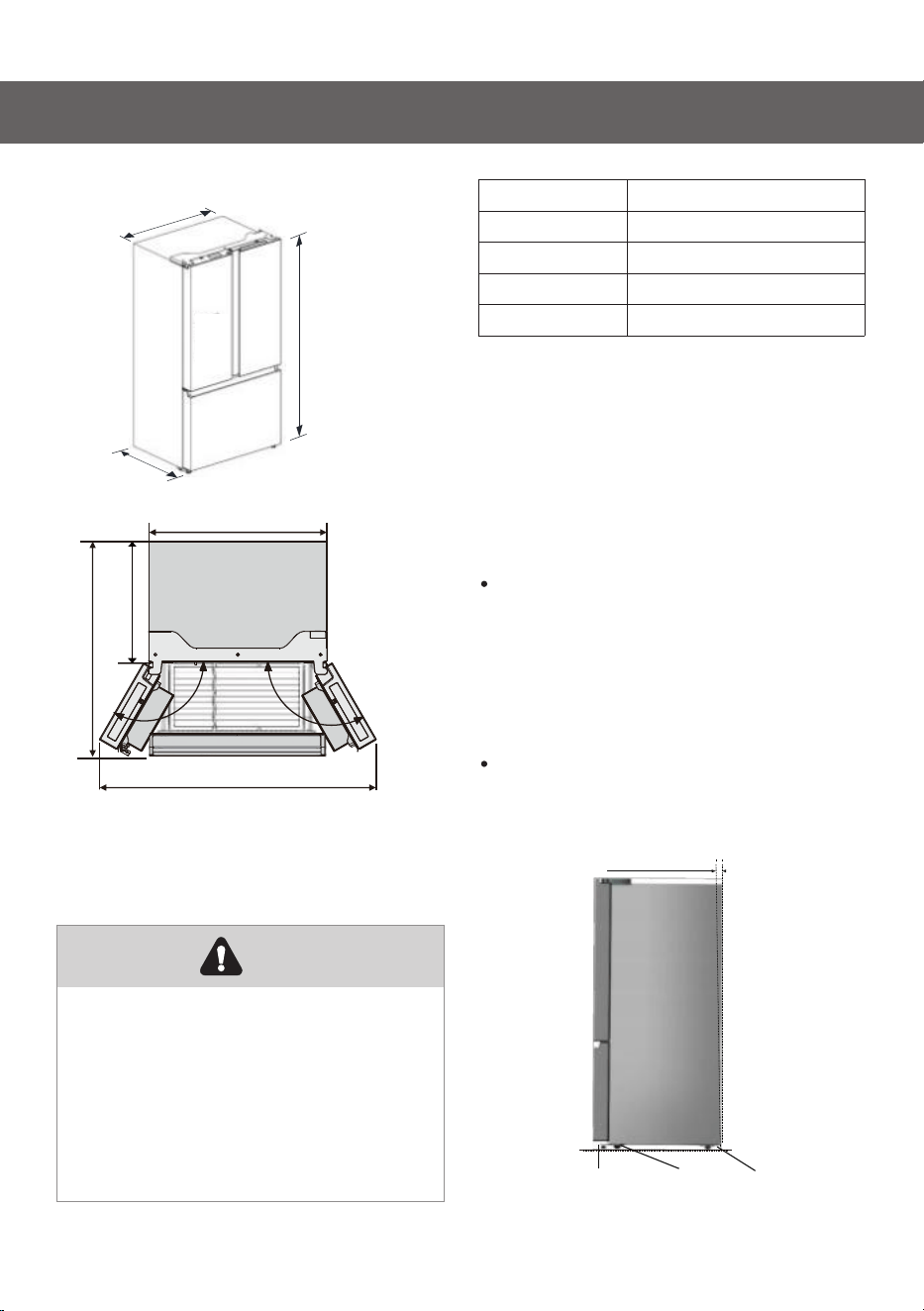

In order to improve efficiency of
the cooling system and save
energy, it is necessary to maintain
good ventilation around the
appliance for the dissipation of
heat. For this reason, sufficient
clear space should be available
around the refrigerator.
Suggest:
It is advisable for there to be at
least 2"(50mm) of clearance from
the back of the fridge to the wall,
at least 1/2"(12mm) of clearance
from its top, at least 1/2"(12mm)
from its side to the wall and a clear
space in front to allow the doors to

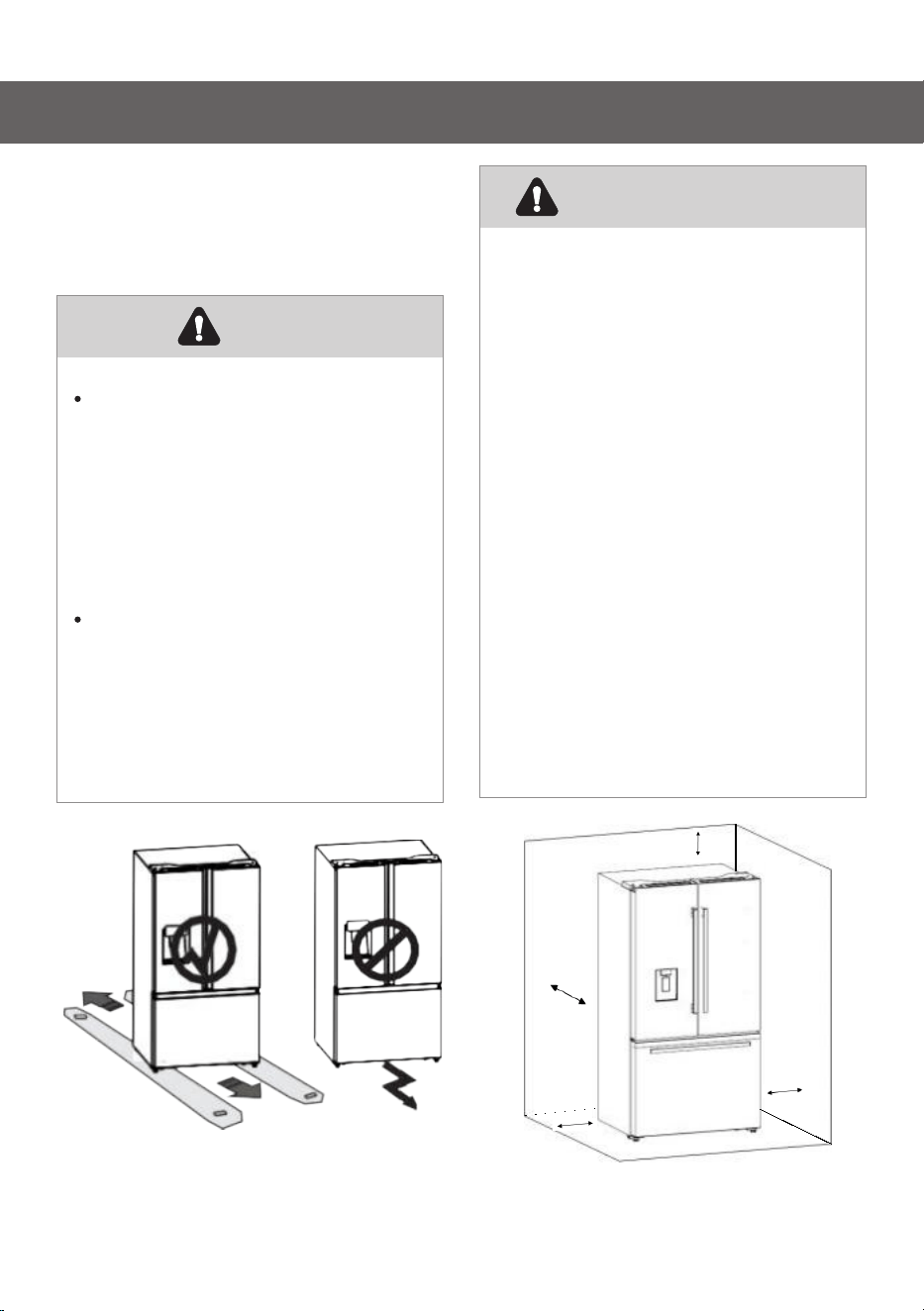

open 125°. As shown in the
following diagrams.
Ventilation of appliance
1/2"
2"
1/2"
1/2"
Installing your new appliance
Before using the appliance for the first
time, you should be aware of the
following tips.
Ambient temperature
+
50°F to +90°F
+61°F to +90°F
+61°F to +100°F
+
61°F to +109°F
Climate class
SN
N
S
T
T
Stand your appliance in a dry place to
avoid high moisture damage. Keep
the appliance out of direct sunlight,
rain or frost. Stand the appliance away
from heat sources such as stoves, fires
or heaters.
This appliance performs well in
the climate class from SN to ST. It
may not work properly if being left
at a temperature above or below
the indicated range for a long
period.
Note
08
For sufficient leveling and air
circulating in the lower rear section of
the appliance, the bottom feet may
need to be adjusted. You can adjust
them manually by hand or by using a
suitable tool.
To allow the doors to self-close, tilt
the top backwards by 0.1" - 0.2
".
(2.5-5mm)
Leveling of appliance
Adjustable
bottom feet
Front roller
Rear roller
0.1"-0.2"
35.98“
28.74”
70.2“
35.75"
51.93"
43.9"
24.02"
125°
Installing your new appliance
Screws

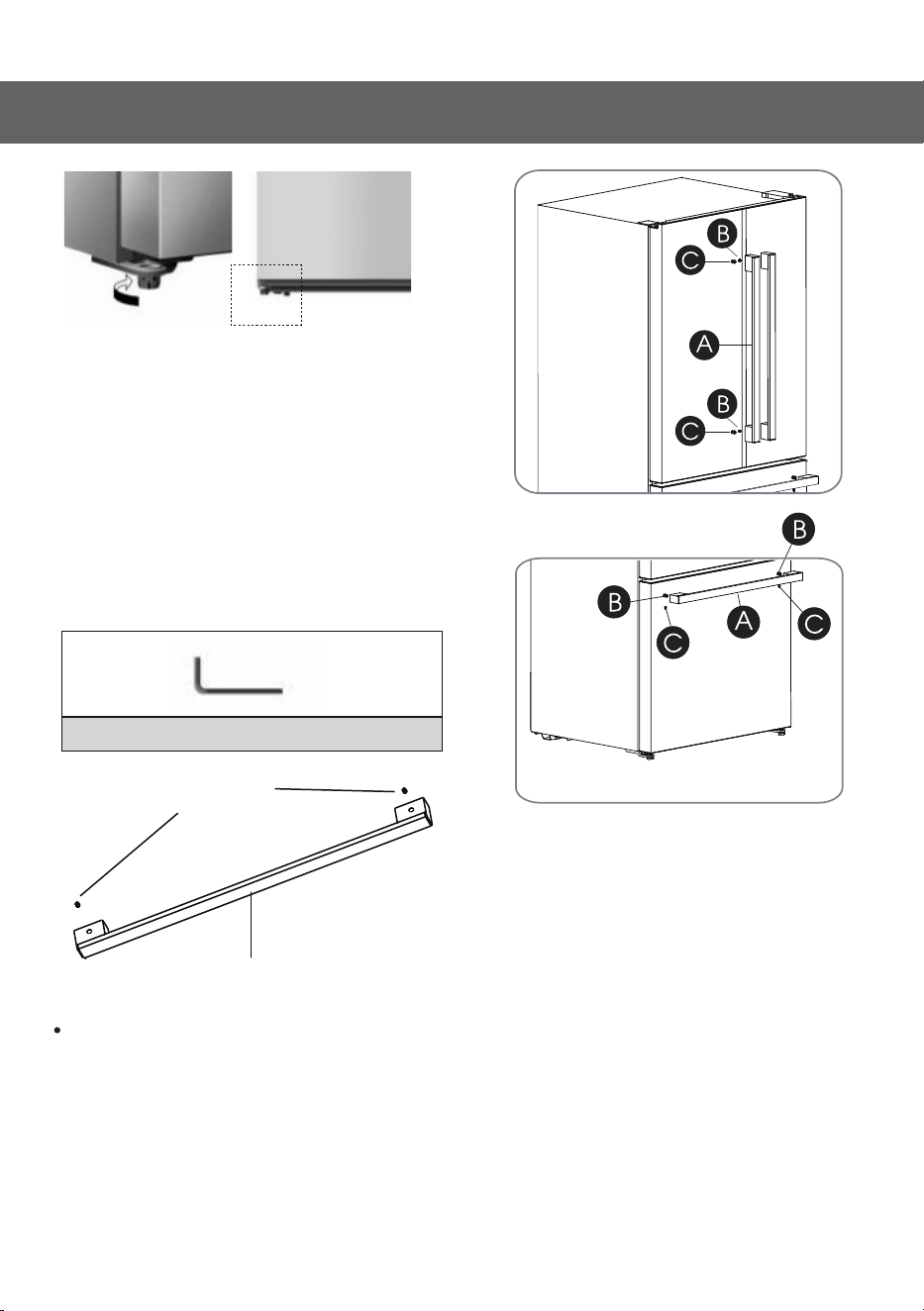

Installing the handles
Before you use the appliance, you have
to install the handles Handles and set
screws are provided in refrigerator.
Please follow procedures below to
install and reverse the handle.
Tools you will need(Provided in bag)：
Allen Wrench (1/8",3mm)
In case your home access door is too
narrow for the refrigerator to pass
through, remove the refrigerator
doors and drawers. If you do not
need to remove the appliance doors,
proceed to Installing Water Lines' on
page 8.
If you need to remove the doors,
continue below.

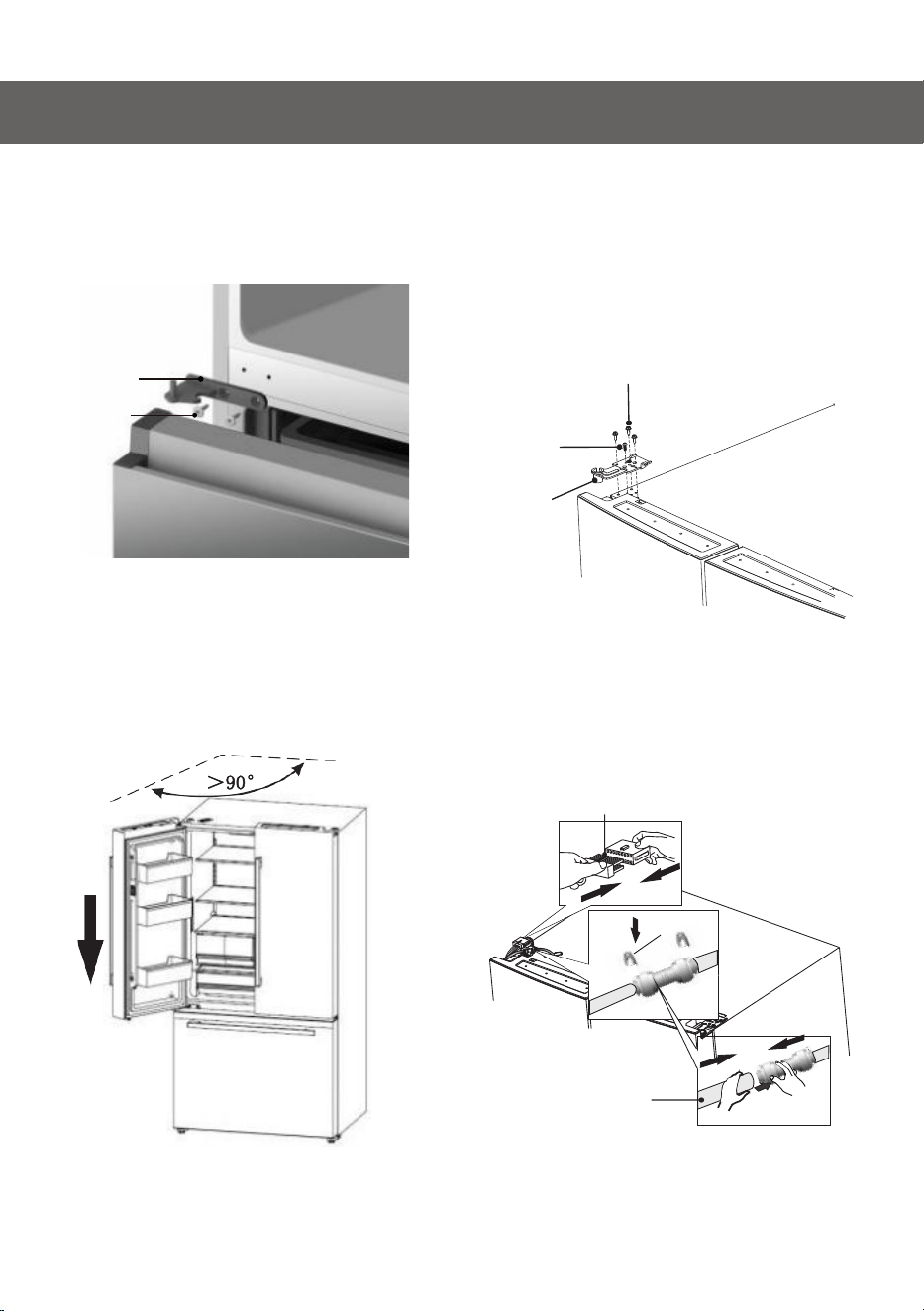

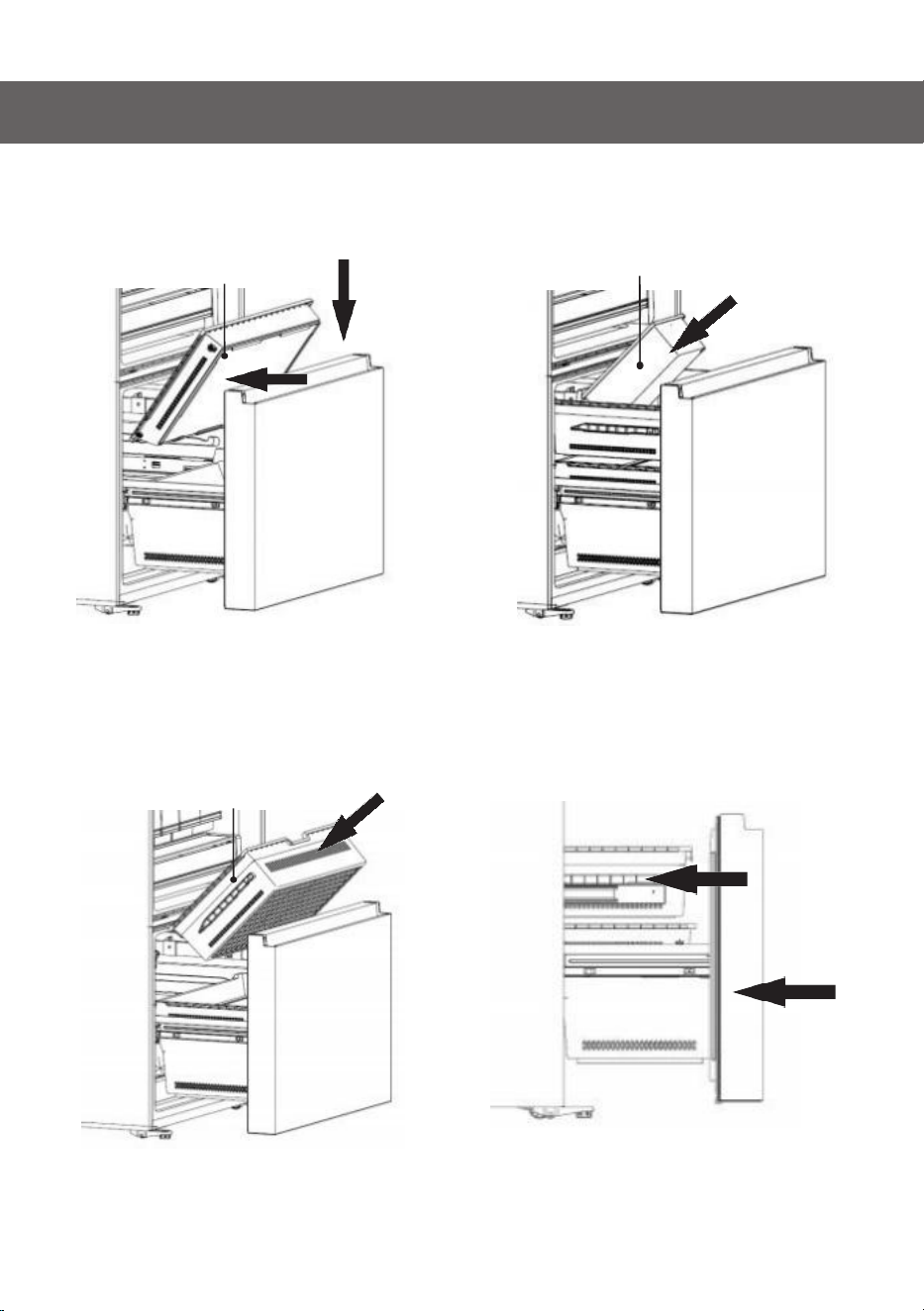

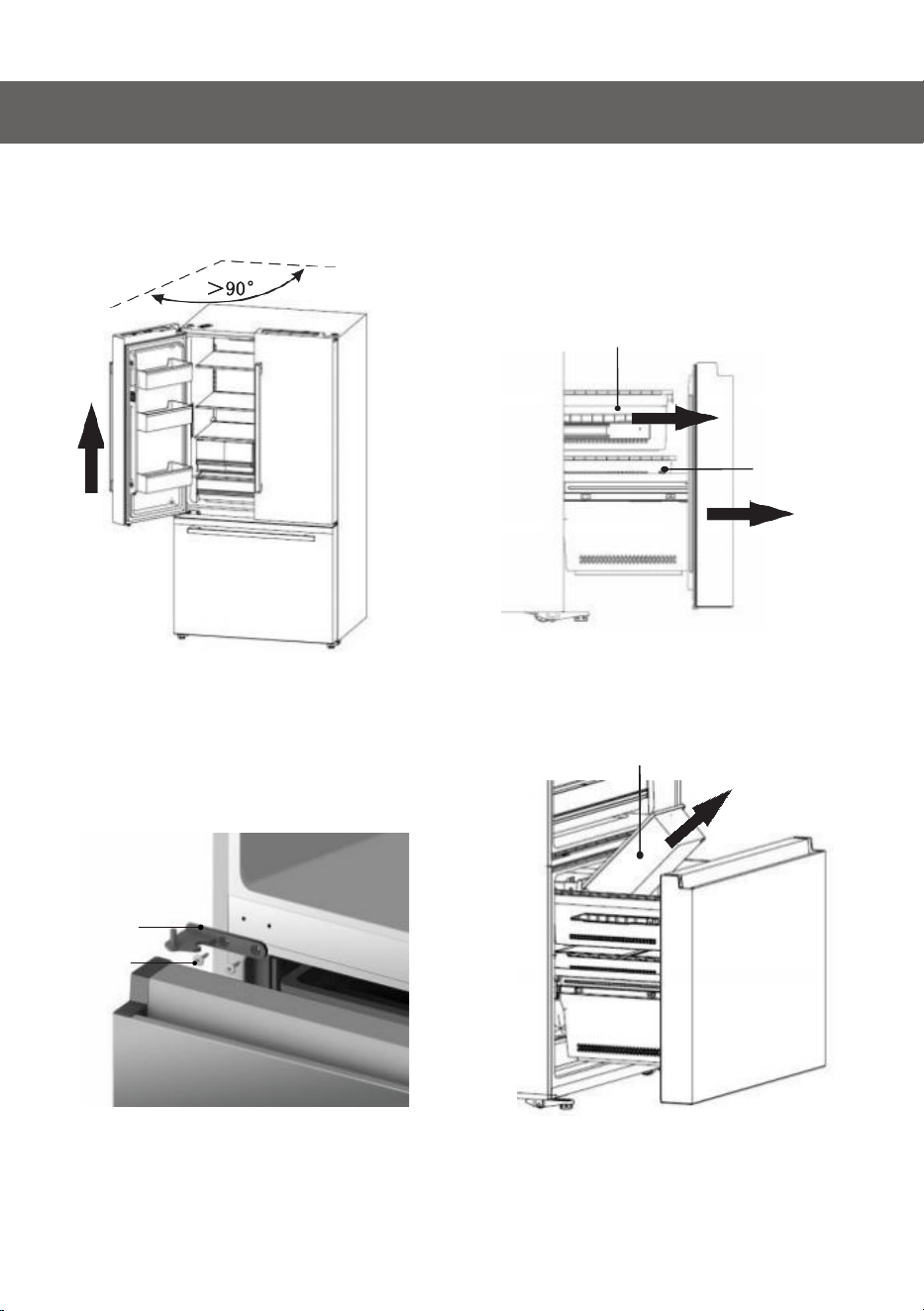

Door Removal
09
Handle
Take out the screw hole covers on the
doors, install the handle supports(C).
Place the handle(A) on the door by
fitting the handle over the handle
supports(C), then fasten the
screws(B) with 3mm Allen wrench.
Adjustable
bottom feet
Installing your new appliance
Tools you will need(Not provided)：
Allen Wrench (5/32",4mm)
Philips Screwdriver
Wrench (5/16",8mm)

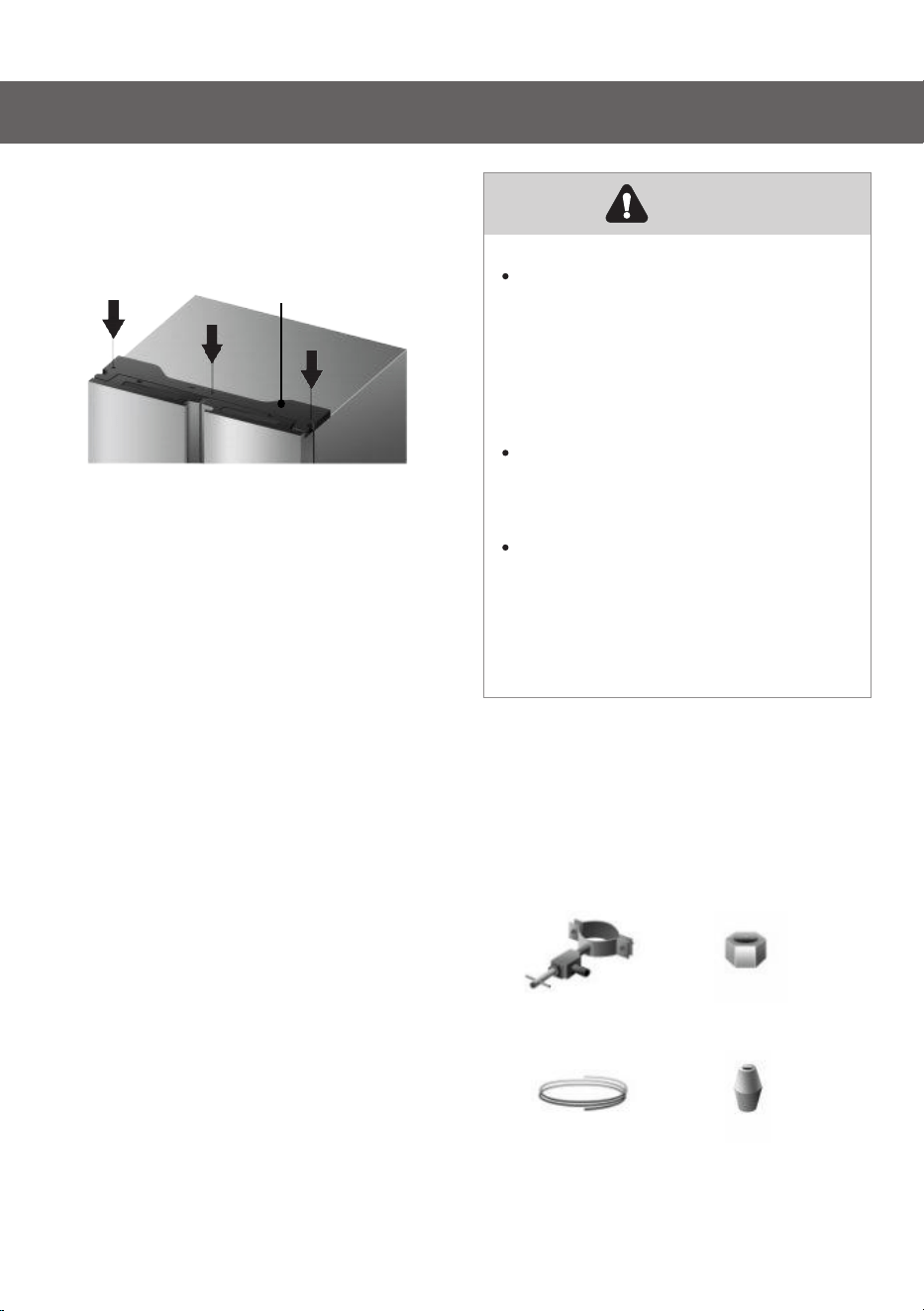

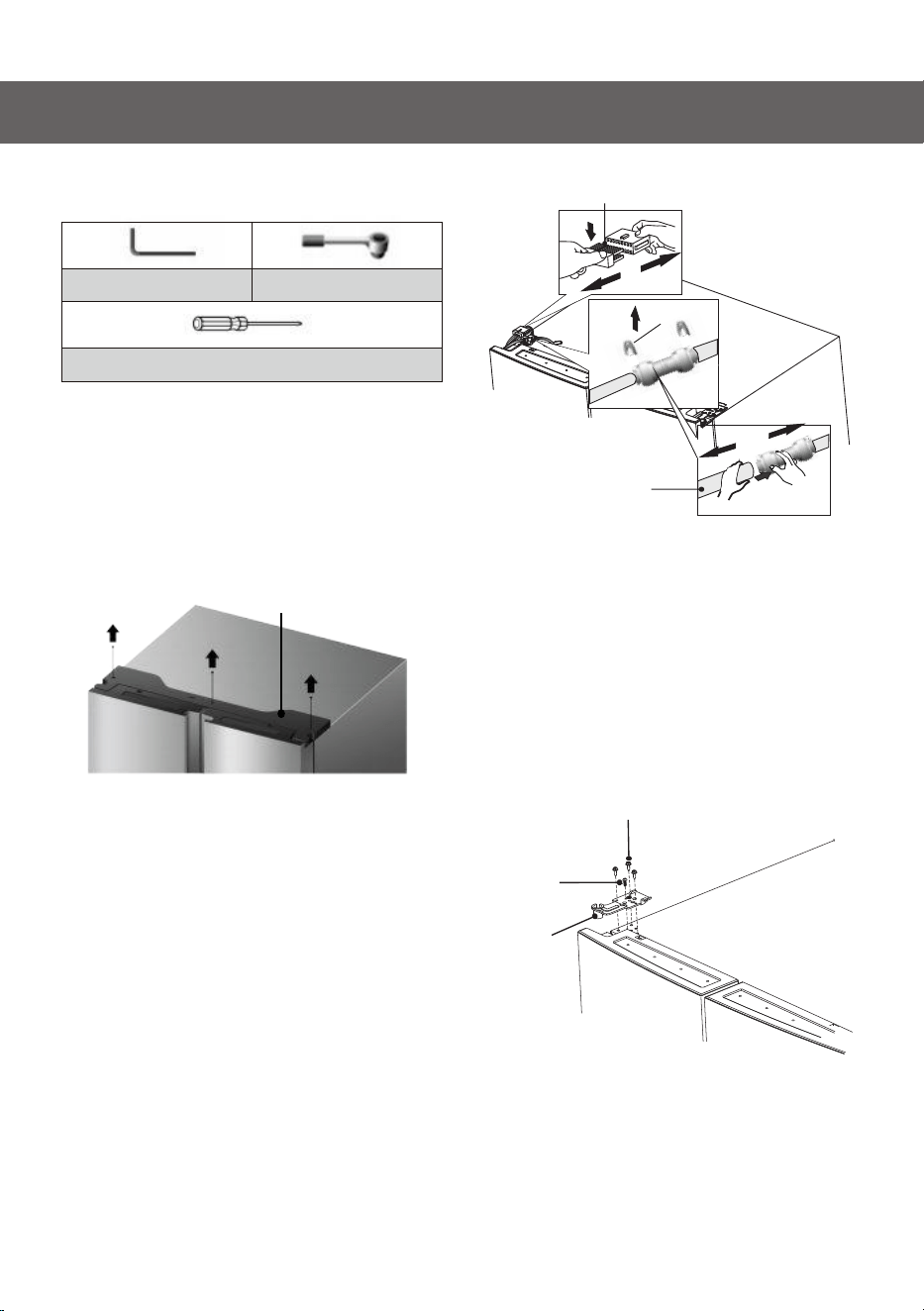

1. With the door closed, remove the 3
screws holding the top cover with
Philips (+) screwdriver, and then
remove the top cover with the entire
harness attached.
2. Separate the two connectors on
the left side door. To remove the wire
connector, press the top of the
connector and separate it from the
other one. To remove the water
coupler from the hinge, twist and pull
the clips from the coupler. Remove
the water line while pressing the
movable part of the water line
coupler.
3. Remove the screws fixed on the
hinges with a wrench ( 5/16",8mm)
and 1 ground screw attached to the
hinge with Philips (+) screwdriver.
Remove the upper left and right door
hinges .
Screws
Ground
screw
Upper
door hinge
Top cover
Water line
Connector
10
Clip
Installing your new appliance
4. Use both hands to open the door
more than 90°. Lift it up and take it
off.
＞90°
5. Remove the 4 hex head bolts
hinges with an Allen wrench
(5/32",4mm). Remove the lower left
and right door hinges.
Disassembling the freezer door
1. Pull out the freezer door, the
upper and middle tray to the final
position.
2. Take out the ice storage box (if
equipped).
Upper freezer
drawer
Door hinge
Hex head
bolts hinge
Ice storage box
Middle
tray
11
Installing your new appliance

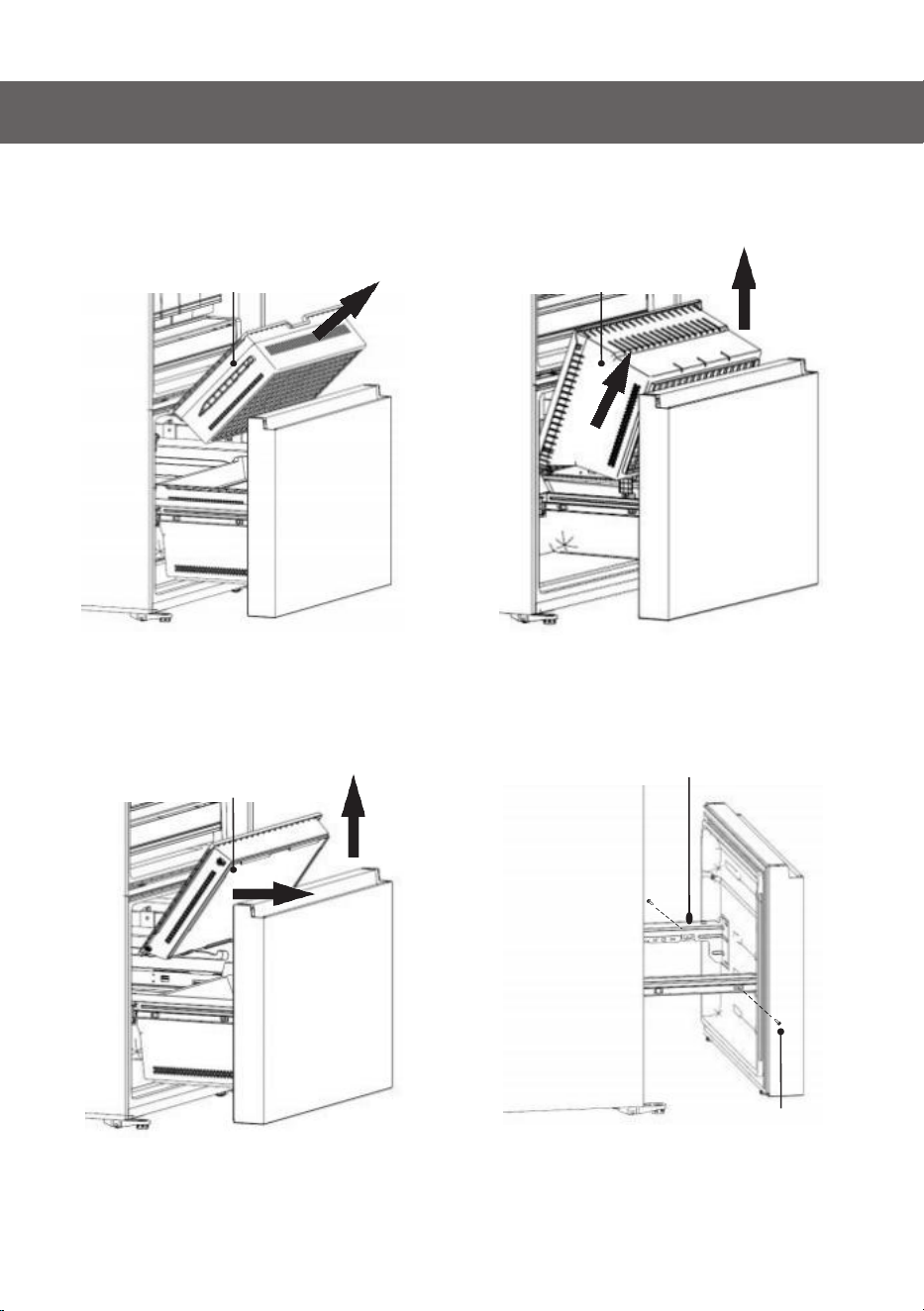

3. Take out the upper freezer drawer
by lifting it up from the rail system.
5. Remove the lower freezer drawer
by lifting it up.
6. Remove 2 screws holding the
support.
4. Pull the middle tray to the end
and remove it by lifting up.
Upper freezer
drawer
Middle tray
Lower freezer
drawer
Support
Screws
12
Installing your new appliance

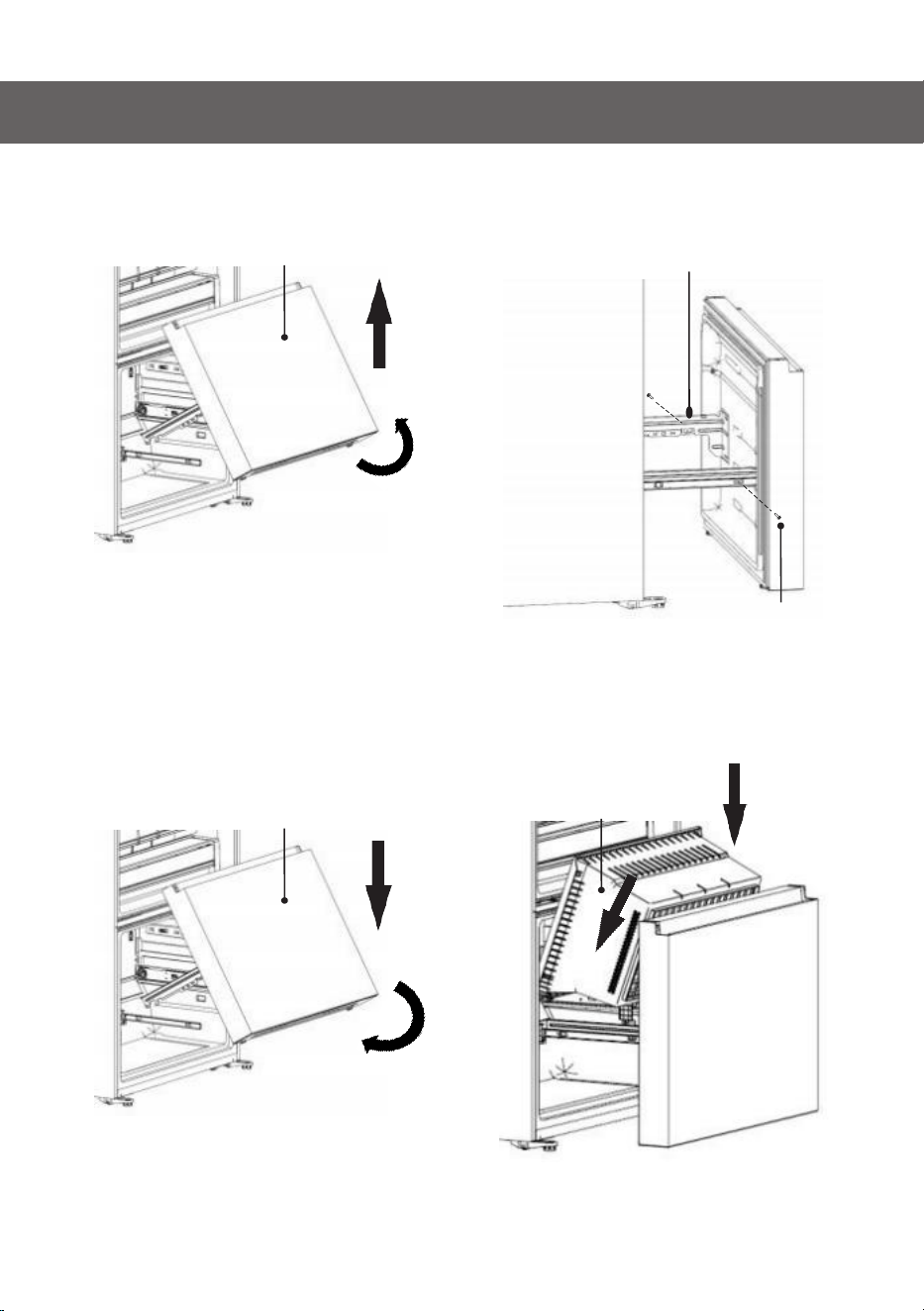

7. Remove the freezer door by lifting
it up
Freezer door
13
To reattach the drawer after you
moved the appliance to its final
location, assemble the parts in reverse
order.
1. Assemble the freezer door by pull it
back.
Freezer door
2. Install the 4 screws fixing the
drawer supports.
Support
Screws
3.
Put back the lower freezer drawers.
Lower freezer
drawer
Installing your new appliance
4. Put the middle tray on the
support.
Middle tray
5. Put back the upper freezer drawer
by lifting it up from the rail system.
Upper freezer
drawer
6. Put back the ice storage box (if
equipped).
Ice storage box
7 Pull back the freezer door.
14
Installing your new appliance
1. Install and tighten the middle
hinge.
Door hinge
Hex head
bolts hinge
2. Align the hole on the bottom,
hold the door with one hand, and
assemble the door with the other
hand.
＞90°
3. Install the upper hinge screws with
a wrench. Use a Phillips screwdriver
to tighten the screws and upper
hinge.
Screws
Ground
screw
Upper
door hinge
Water line
Connector
Clip
4. Install the connectors and water
line.
15
Installing your new appliance
Installing the water lines
A water dispenser with a filter is one of
the helpful features on your new
appliance.
To help promote better health, the
water filter removes unwanted particles
from your water. However, it does not
sterilize or destroy microorganisms. You
may need to purchase a water
purifying system to do that.
In order for the ice maker to operate
properly, a water line is required.
The inlet water pressure must be
between 207kPa and 700kPa.
The water connection must be
made by a qualified plumber.
Operation outside the water
pressure range may cause
malfunction, severe and
damaging water leaks.
Under normal conditions, a200cc
(5.75 oz.) cup can be filled in
about 10 seconds.
If the refrigerator is installed in an
area with low water pressure
(below 30psi), you can install a
booster pump to compensate
for the low pressure.
Warning
What do you need to do before
you start.
1. Power drill and 1/4’’ drill bit.
2. 1/2’’ or adjustable wrench.
3. Flat blade and Philips head
screwdrivers.
1 ferrule
(sleeve)
Saddle-type
Shut offvalve
(1/4” outlet)
one 1/4”
compression
1/4” extension
tubing
5. Install the top cover.Each wire
should be correctly placed in each
buckle position
Top cover
16
Installing your new appliance
4. You need to purchase several item
to complete this connection. You may
find these items sold as a kit at local
hardware store

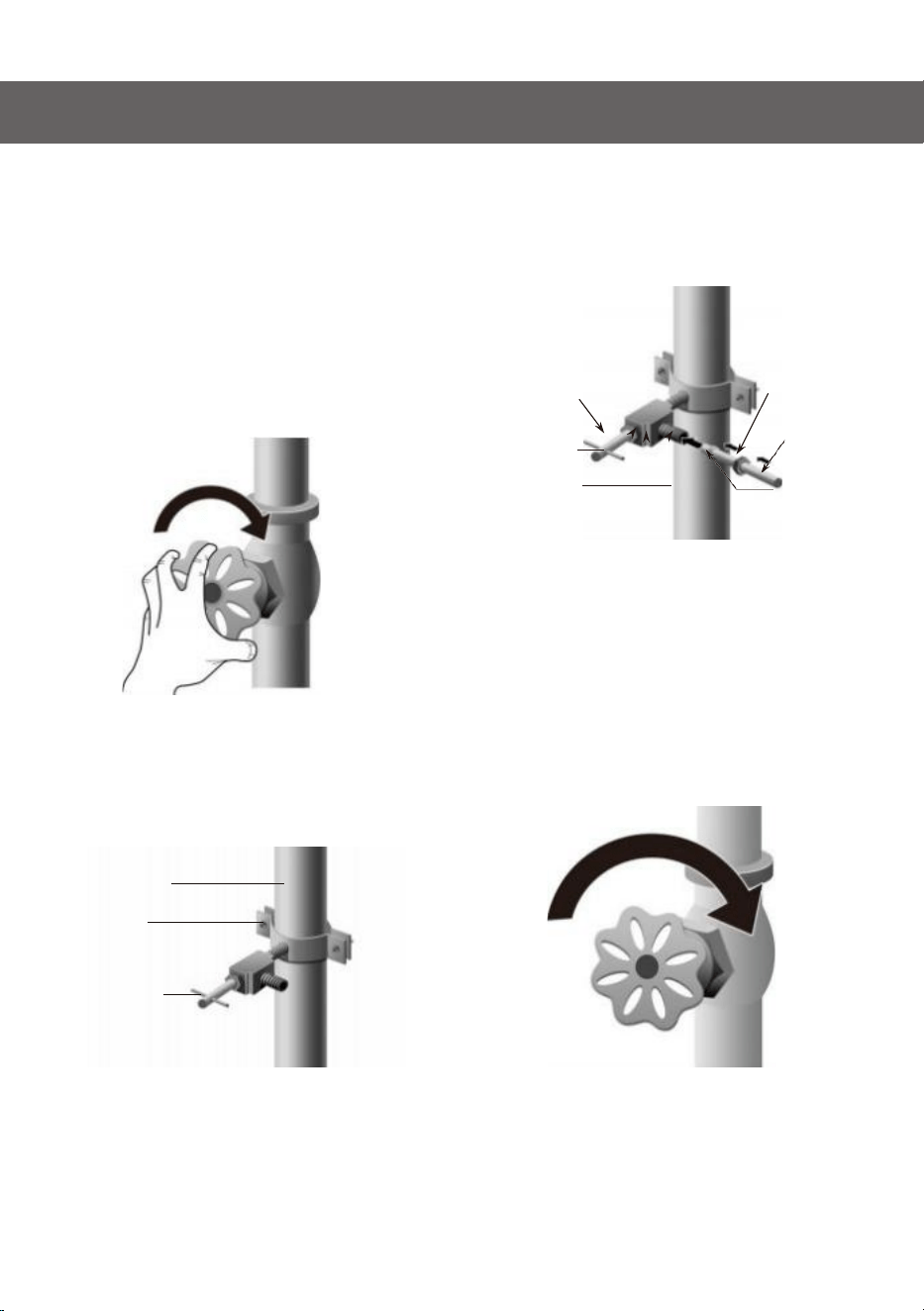

Connecting to the water supply
line
1.First, shut off the main water supply.
2. Using a power drill and a 1/4’’ drill bit
drill into the cold-water line and
connect the saddle-type shutoff valve.
Cold water line
Pipe clamp
Shut off Valve
3. Connect 1/4’’ extension tubing to
shutoff valve outlet.
Saddle-Type
Shutoff Valve
Packing Nut
Outlet Valve
1/4” Extension
tubing
Compression Nut
Ferrule(sleeve)
4.
Flush the tubing. Turn the main
water supply on and flush out the
tubing until the water is clear. Then,
shut the water off at the water valve
after about a quart of water has
flushed through the tubing.
17
Installing your new appliance

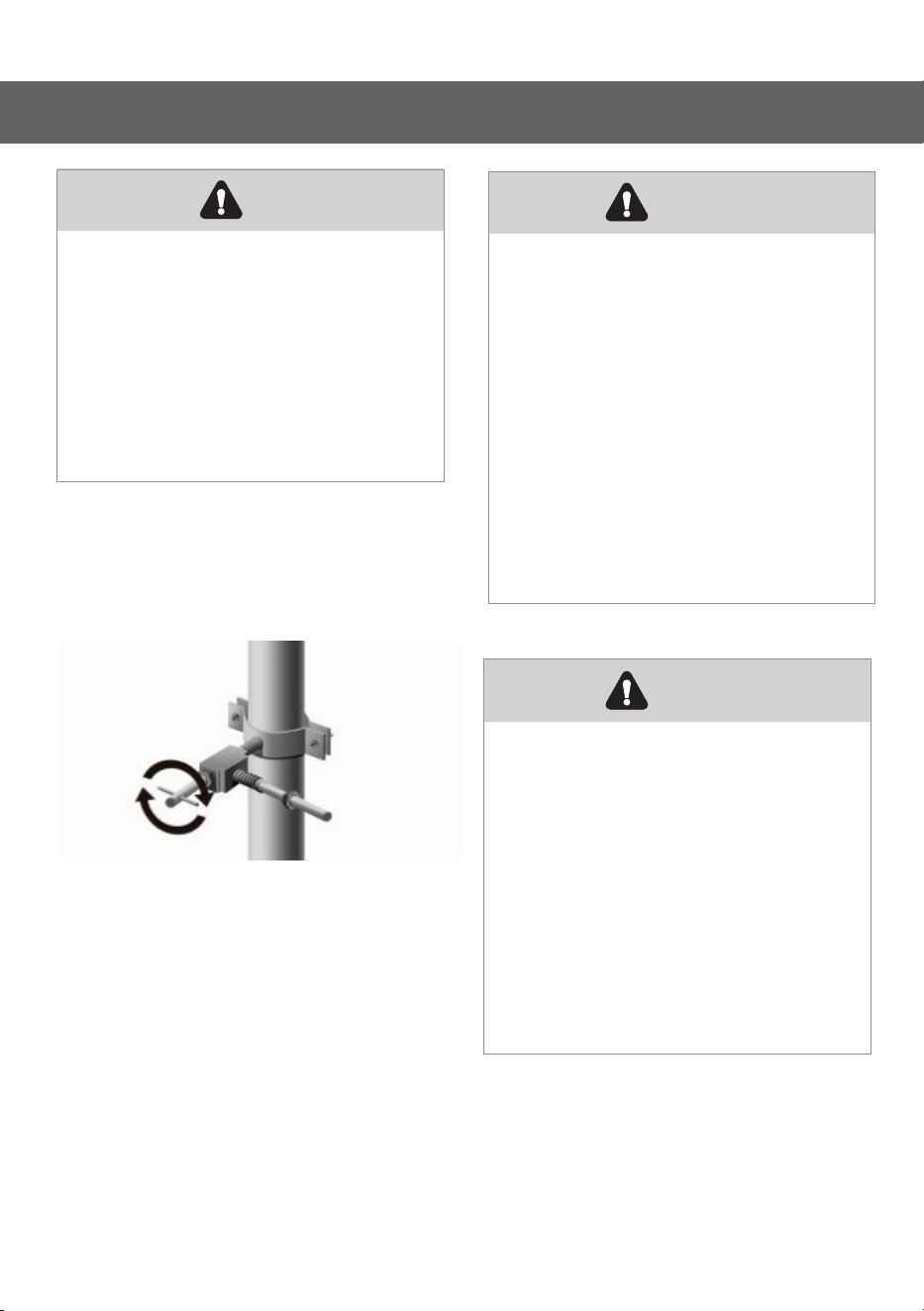

5. Turn the water on and check for
leakage.
Ensure that the water line does
not get pinched or bent when
installing.
This can result in improper water
flow through the line and will
affect the functionality of the
fridge.
Note
After connected to the water
supply line, please open the water
valve to flush the filter for 5 minutes
before use. The initial dark
discoloration of water is normal.
When you connect the water line to
the appliance and press the lever
of the dispenser for the first time, it
is normal that there will be a sound
of exhaust coming out from the
appliance.
Note
1. The water line must be connected
to the cold water pipe. If it is
connected to the hot water pipe, it
may cause the purifier to
malfunction.
2. Avoid contamination of pipes
during installation.
3. Connect to potable water supply
only.
Warning
Check to see if leaks occur at the
water line connections
CAUTION!
18
Installing your new appliance
2. Unplug refrigerator or disconnect
power.
3. Close shut off value.
4. Thread a 1/4 " compression nut and
ferrule (sleeve) onto the free end and of
1/4" water line.
5. Insert the free end and of the 1/4"
water line into the brass fitting attached
to the water inlet on the back of the
refrigerator.

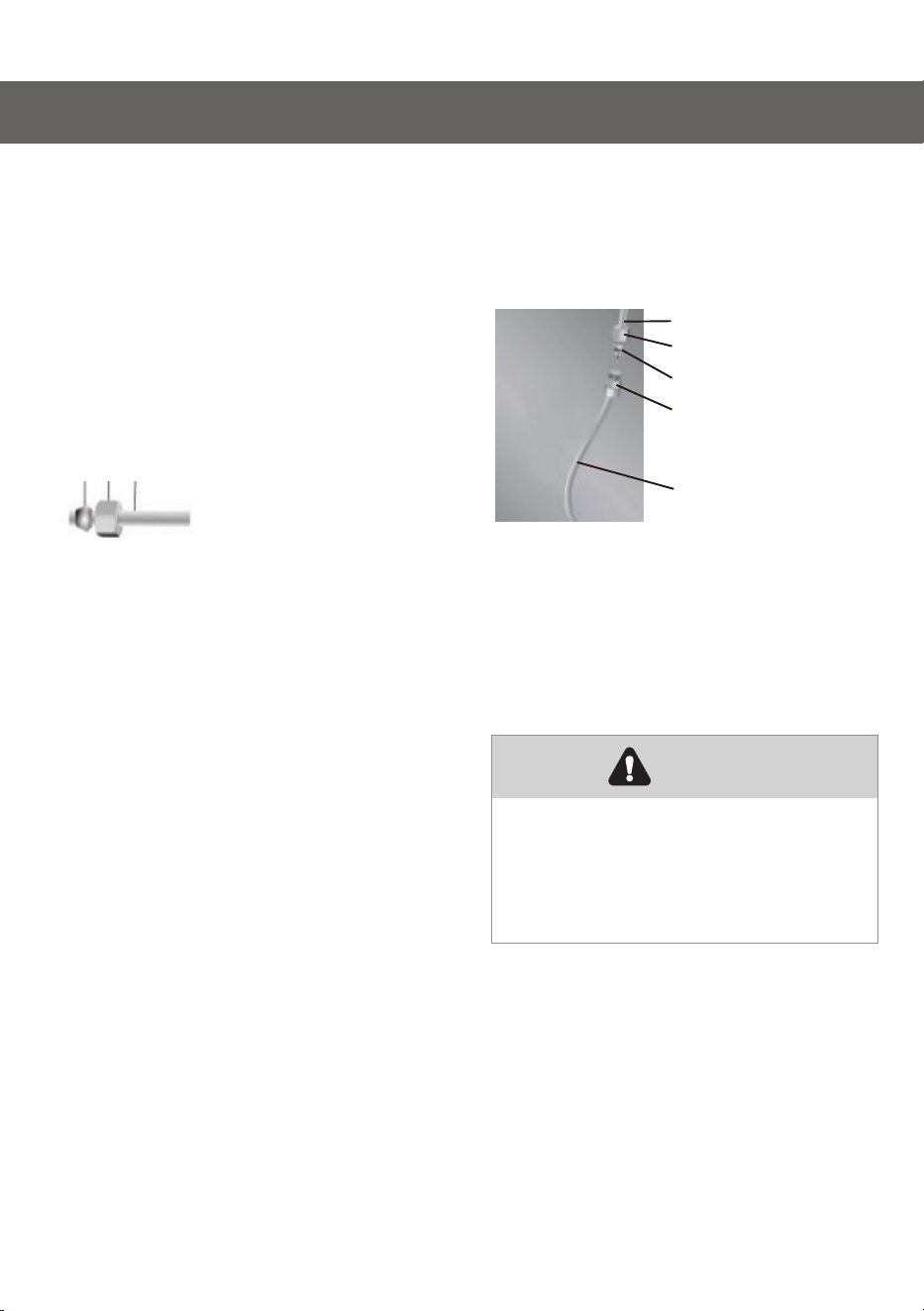

Connect Water Line to Refrigerator
IMPROTANT: If you turn the refrigerator
on before the water is connected, turn
off the ice maker.
1. You may need to purchase below
items to complete this connection. And
you may find these items sold as a kit at
a local hardware store.
a b c
Ferrule (Sleeve) -1 pcs
1/4" Compression Nut - 1 pcs
1/4" Water Line - 1 pcs
a
b
c
7. Confirm 1/4" water line is secure by
gently pulling on it.
8. Turn on water supply and check for
leaks, and correct any leaks.
e
d
c
1/4" Water Line
1/4" Compression Nut
Ferrule(Sleeve)
Brass Fitting
b
a
Water Inlet
6. Slide the 1/4" compression nut over
the ferrule (sleeve) and screw the 1/4"
compression nut onto the brass ftting.
The accessory bag contains
middle hinge washers and an Allen
wrench(1/8",3mm)
Note
19

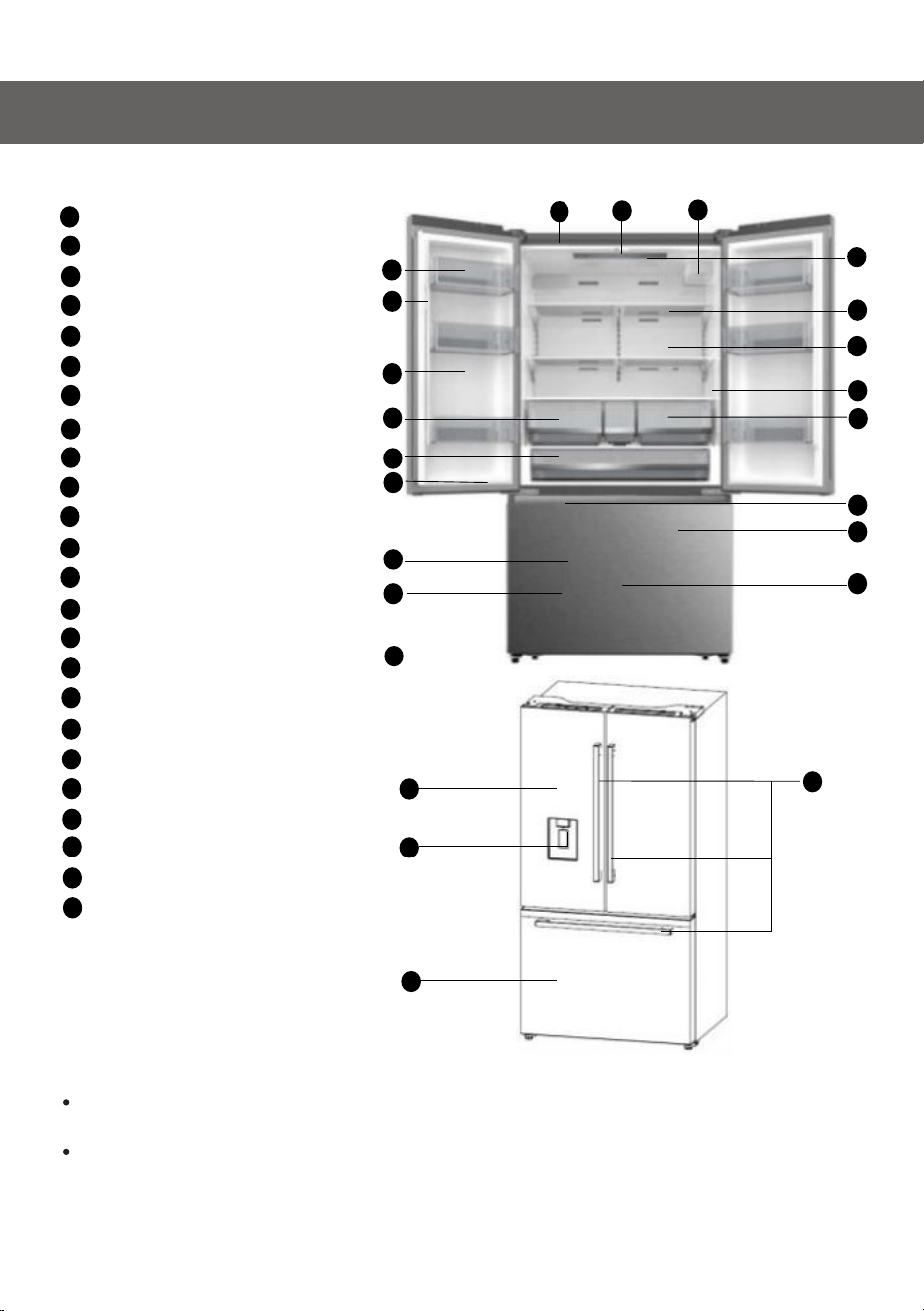

Description of the appliance
2
4
5
7
8
6
3
1
2
1
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Door bin
Vertical baffle part
Water dispenser (behind)
Fruit and vegetables crisper
Multi-function drawer
Freezer LED light
Middle tray
Lower freezer drawer
Adjustable bottom feet
Top cover
Vertical baffle guide block
Water filter
Display board
Glass shelf
Wind channel
Refrigerator LED light (both sides)
Crisper cover
Ice maker
Upper freezer drawer
Lower diaphragm（inside）
Refrigerator door
Water dispenser
Freezer door
Handles
9
11 12
13
15
14
16
17
19
20
21
22
23
24
10
Due to unceasing modification of our products, your refrigerator may be slightly different
from this instruction manual, but its functions and using methods remain the same.
To get the best energy efficiency of this product, please place all shelves, drawers and
baskets on their original position as per the illustration above.
18
20

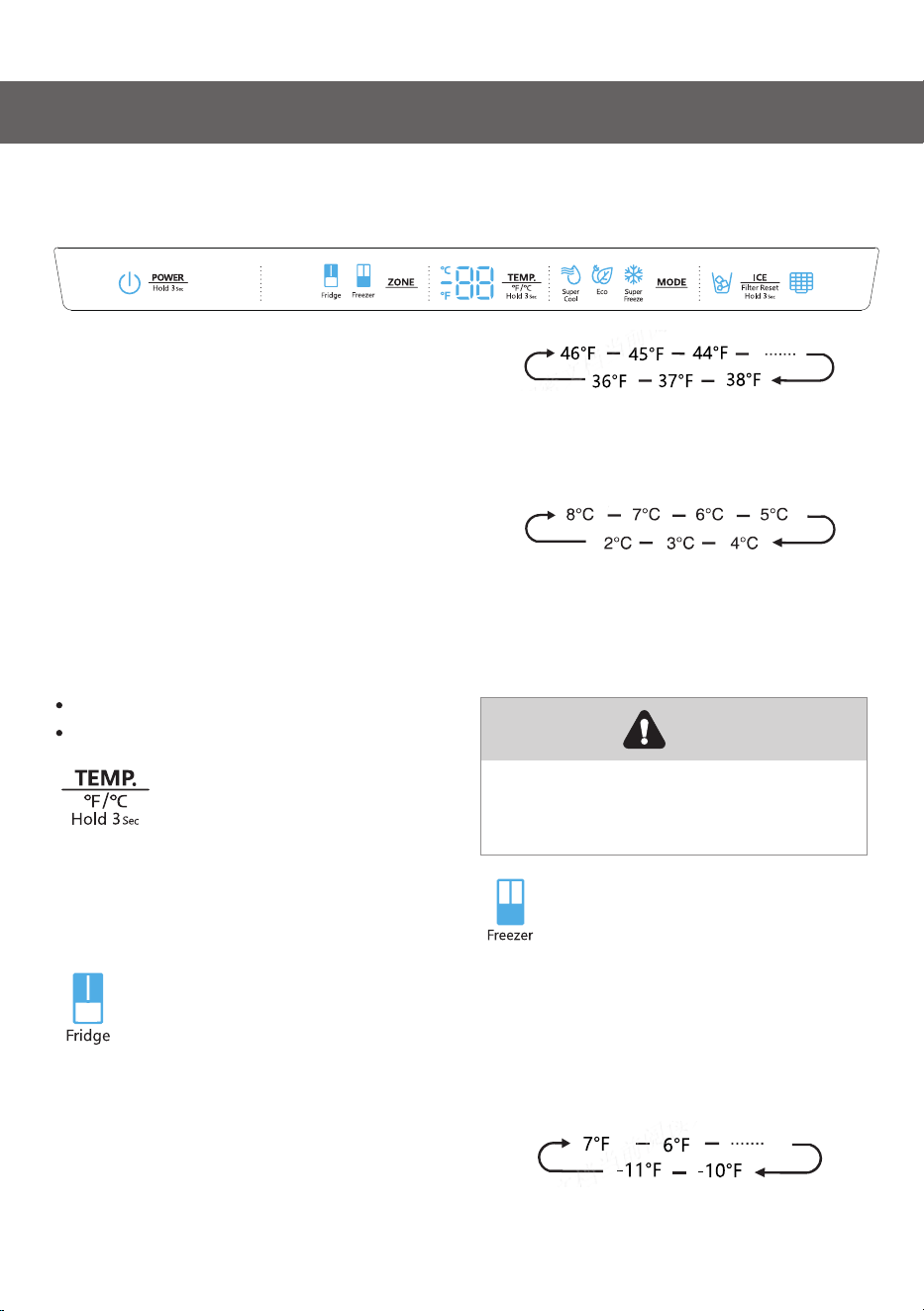

Display controls
Your product has one control panel which is installed on the fridge door. Use your
appliance according to the following control guidelines.
When you set a temperature, you are
setting an average temperature for
the entire compartment. The actual
compartment temperatures may
vary from the temperatures
displayed depending on the amount
and placement of stored food, and
the surrounding room temperature.
Setting Compartment Temperatures
Recommended Temperature
Settings
Fridge Compartment: 39°F (4°C)
Freezer Compartment: 0°F (-18°C)
"°F /°C"
To toggle between Celsius and
Fahrenheit on the display, press and
hold the "TEMP." button for three
seconds.
"Fridge temperature control"
Press the "ZONE" button until the
"Fridge" icon appears, then press the
"TEMP." button repeatedly to cycle
through the available temperature
settings from 46°F to 36°F.
Release the "TEMP." button control
when the desired temperature setting
appears.
If you have set the temperature type
to °C, the temperature setting cycle
from 8°C to 2°C.
Each press of the button decrease
the setting by one degree.
Note
"Freezer temperature control"
Press the "ZONE" button until the
"Freezer" icon appears, then press the
"TEMP." button repeatedly to cycle
through the available temperature
settings from 7°F to -11°F.
21
Display controls
If you have set the temperature type
to °C , the temperature setting cycle
from -14°C to -24°C.
Each press of the button decrease
the setting by one degree.
Note
Release the "TEMP." button control
when the desired temperature setting
appears.
"Super Cool"
The Super Cool feature helps to keep
food stored in the refrigerator at the set
temperature during periods of high
usage, large grocery loads, or
temporarily warm room temperatures.
The Super Cool feature lowers the
temperature in the fridge
compartment.
2. Super Cool will automatically turn off
after 3 hours.
3. When Super Cool function is on you
can turn it off by pressing the
"MODE" button or setting fridge
temperature. To manually turn off the
Super Cool function, the fridge
temperature setting will revert back to
the previous setting.
"Super Freeze"
Super Freeze will quickly lower the
temperature within the freezer so food
will freeze faster than usual. This
feature also helps to keep vitamins
and nutrition of fresh food and keep
for longer period.
1. Press the "MODE" button to activate
this function. The "Super Freeze" icon
will be illuminated and the
temperature for the freezer is set to
-11°F(-24°C).
2. Super Freeze will automatically turn
off after 52 hours.
3. When Super Freeze function is on
you can turn it off by pressing the
"MODE" button or setting freezer
temperature. To manually turn off the
Super Freeze function,the freezer
temperature setting will revert back to
the previous setting.
1. Press the "MODE" button to activate
this function. The "Super Cool" icon will
be illuminated and the fridge
temperature indicator will display 36°F
(2°C).
22
Display controls
When you selecting the Super
Freeze function, ensure there are
no bottled or canned
drinks(especially carbonated
drinks) in the freezer
compartment. Bottles and cans
may explode.
Note
"Eco"
Press the "MODE" button to turn on the
energy saving function, the "Eco" icon
will be illuminated. When the Eco
function is on, the temperature of
fridge is automatically switched to
43°F (6°C)and the temperature of
freezer is automatically switched to 1°F
(-17°C). When Eco function is on, you
can switch it off by pressing the
"MODE" button or adjusting the fridge/
freezer temperature, the refrigerator
temperature setting will revert back to
the previous setting.
"ICE"
The ice maker is located inside the
freezer compartment, near the top of
the compartment. When the ice
maker makes ice, the ice is stored in
freezer tray.
Press the "ICE" button to turn the ice
maker on or off. When the ice maker
is turned on, the " "icon lights.
To use ice, open the freezer
compartment door, then pull open
the freezer tray and get the ice.
When the power function is on, the
refrigerator is stopped cooling.
Note
POWER
Press and hold the "POWER" button for
3 seconds to turn the power function
on or off. When the power function is
on, the icon lights and the display
panel will show " -- ".
Water Filter
After the refrigerator has dispensed
about 1000 gallons of water, the filter
icon " " will blink, reminding you to
replace the water filter.
The state of the water filter is calculated
by the main control board and
transmitted to the display panel. The
first time the power is switched on and
the water enters the filter, the filter state
is calculated at 99%. When the water
filter state drops to 15%, the icon " " is lit.
23
Display controls
Demo mode
Demo mode is for store display, and it
prevents the refrigerator from
generating cool air. In this of Cooling
off Mode, the refrigerator may seem
like it is working but it will not make
cool air. The display panel will show
special segments as follow.
To switch off demo mode, press and
hold "POWER" and "ICE"buttons at the
same time for three seconds and the
buzzer gave a long sound.
Door Open Alarm
lf a door is open for longer than 2
minutes, an alarm will sound to alert
you and the control panel will display
"dr". The alarm will sound 3 times
every minute for 8 minutes.
To turn off the alarm, close all doors
completely.
Using your appliance
This section tells you how to use most
of the useful features. We recommend
that you read through them carefully
before using the appliance.

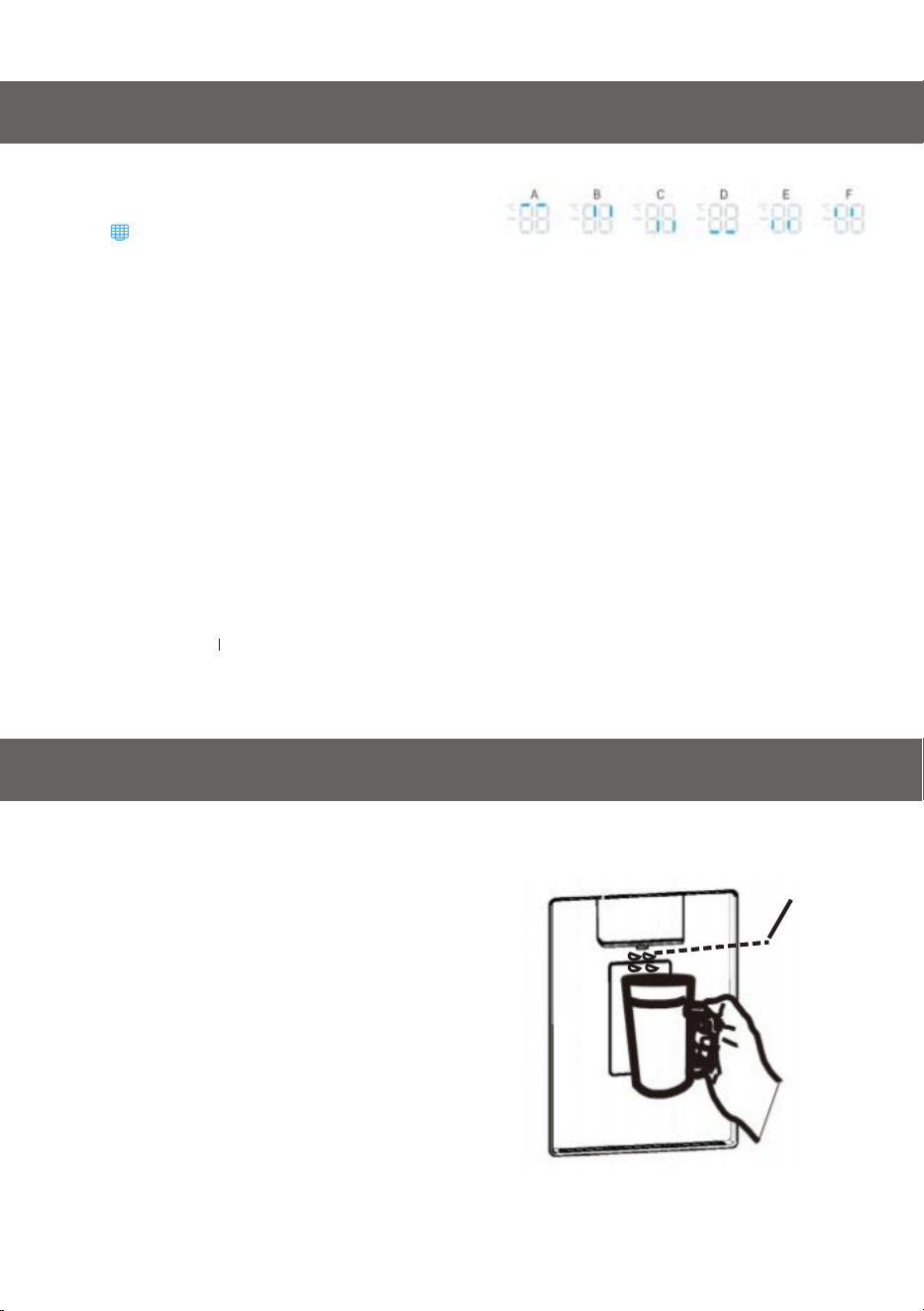

Getting Cold Water
The water dispenser is located in the
fridge door. To get water, push the
water button. Then move your glass
down the dispenser lever (A) in the
suggested position and press it. After
stopping water collection, wait for two
seconds to prevent water dripping.
Suggested
position
About 30mm
When the filter state reaches 10%, the
icon " " will flash. The user needs to
replace the filter and long press the
ICE Button for 3 seconds to reset the
water filter state. The filter state will
then be re-calculated to 99%.
24
Using your appliance
All water provided to the refrigerator
flows through an alkaline water filter.
In the filtering process, the pressure
of the water that has flowed out of
the filter is increased, and the water
becomes saturated with oxygen and
nitrogen. When water flows out into
the air, the pressure plummets and
the oxygen and nitrogen get
supersaturated, which results in gas
bubbles. The water may temporarily
look misty or cloudy due to these
oxygen bubbles. After a few seconds,
the water will look clear.
Water clouding phenomenon

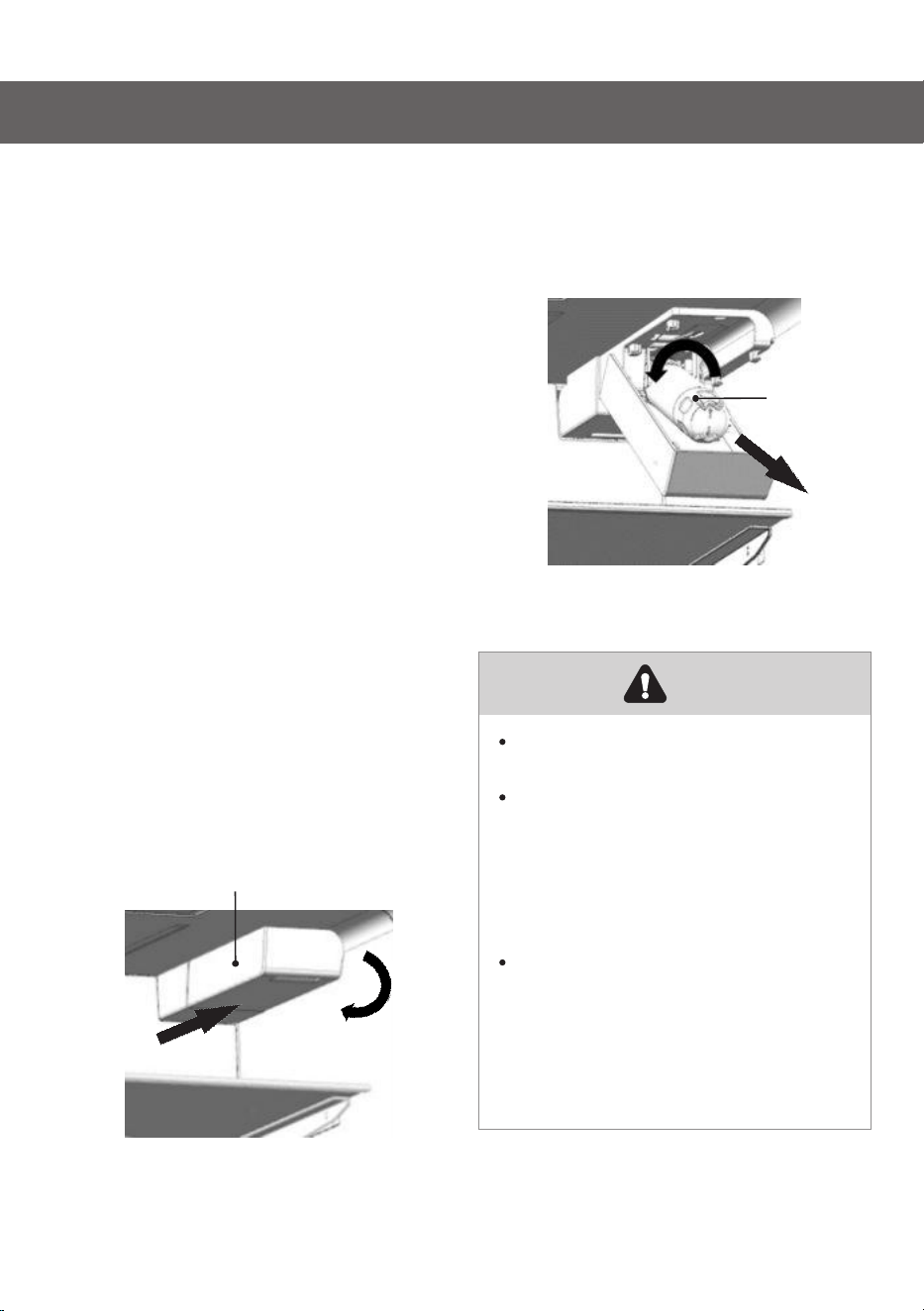

1. Shut off the water supply. Pull out
the cover about 1.5 cm and open.
Changing the water filter
Filter cover
2. Turn the water filter about 1/4
turn, counter-clockwise. Then pull
the water filter from the filter holder.
Filter
Note
To change the water filter easily,
shut off the water supply valve.
Sometimes, it is hard to
disassemble the water filter
because impurities in the water
cause it to stick. If you are having
difficulties, grip the water filter
firmly and pull it out.
When you pull the water filter, a
little water can leak from the
opening. This is normal. To
minimize the water leaks, keep
the filter cartridge horizontal
when pulling it.
To drink the freshest and cleanest
water from your refrigerator,
change the filter on time. To change
the water filter, follow these steps:
25
3.Insert the new filter into the filter
holder.
U
sing your appliance

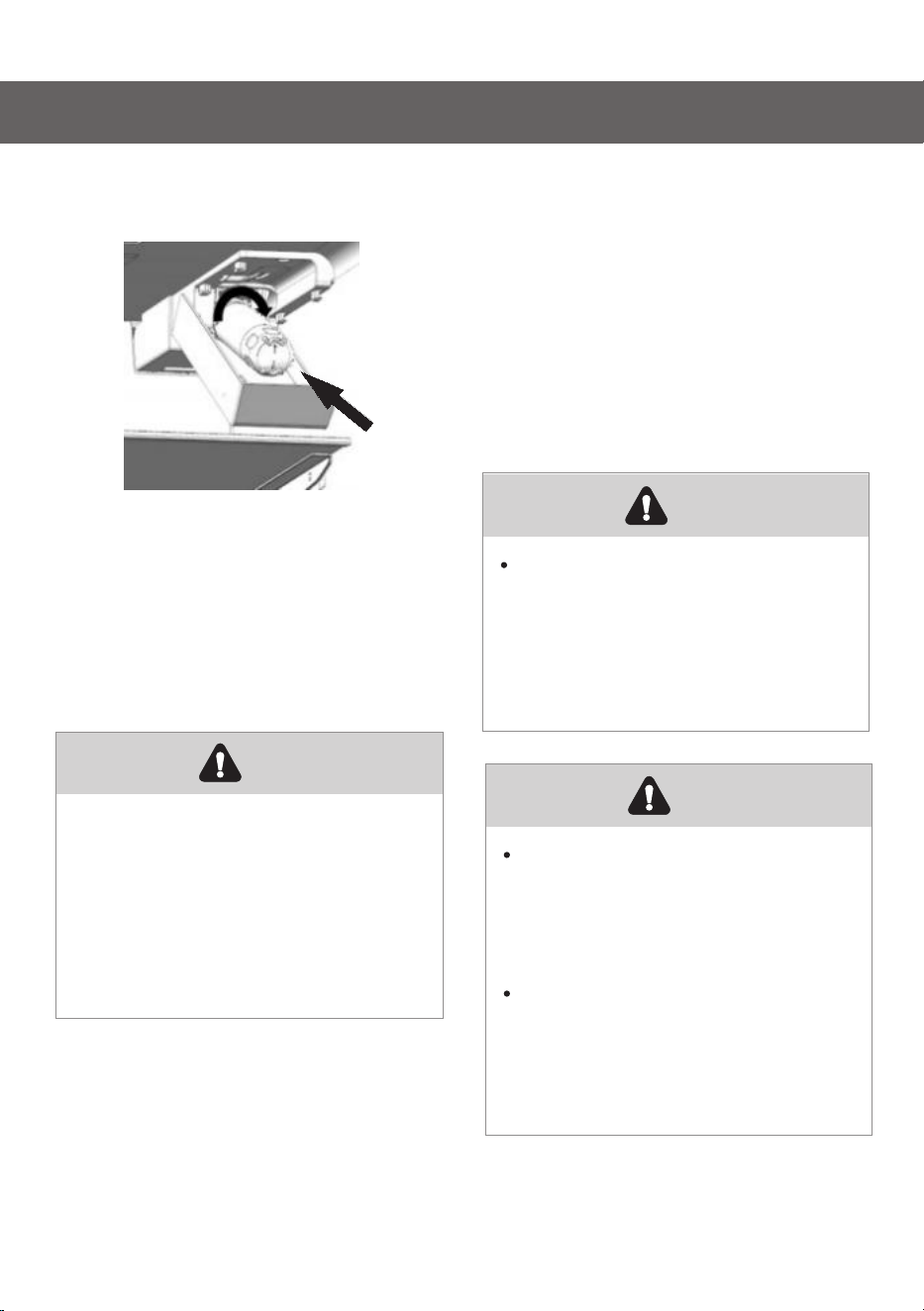

4. Push the filter, and then turn it
clockwise until it locks. If you have
trouble inserting the water filter
because of high water pressure, shut
off the water supply valve.
5. If you turned off the water supply,
turn it back on.
Removing any residual matter
inside the water supply line after
installing the water filter
It is recommended to change the
water filter every 6 months.
After turning on the water supply,
you should check the leaks. If leaks
occur, repeat the steps 1- 5. If leaks
persist, discontinue use and call
Hisense customer service.
Note
1. After the water filter is replaced,
dispense 2.5 gallons of water (flush for
approximately 5 minutes) to remove
trapped air and contaminants from the
system.
2. Additional flushing may be required
in some households.
3. Open the refrigerator door and make
sure there are no water leaks coming
from the water filter.
Sometimes, it is hard to
disassemble the water filter
because impurities in the water
cause it to stick. If you are having
difficulties, grip the water filter
firmly and pull it out.
Note
Be sure to flush the dispenser
thoroughly, otherwise water may
drip from the dispenser. This
means that there is still
air
in the line.
Do not dispense the entire 2.5
gallon amount continuously.
Depress and release the
dispenser pad for cycles of 30
seconds ON and 60 seconds OFF.
Note
26
Using your appliance
Reverse osmosis water supply
The pressure of the water supply
coming out of a reverse osmosis
system going to the water inlet valve of
the refrigerator needs to be between
30 and 100psi (207 and 700kPa). If a
reverse osmosis water system is
connected to your cold water supply,
the water pressure to the reverse
osmosis system needs to be a
minimum of 40 to 60 psi (276 to 414
kPa). If the water pressure to the
reverse osmosis system is less than 40
to 60 psi (276 to 414 kPa):
Check to see whether the sediment
filter in the reverse osmosis system is
blocked. Replace the filter if necessary.
Allow the storage tank on the reverse
osmosis system to refill after heavy
usage.
If your refrigerator has a water filter, it
may further reduce the water pressure
when used in conjunction with a
reverse osmosis system. To resolve it,
remove the water filter.
Using your fridge compartment
The refrigerator compartment is
suitable for storage of vegetables and
fruit. Food inside should be sealed for
storage in order to avoid losing
moisture or flavor permeating into
other foods.
Glass shelves
To remove the glass shelves, tilt up the
front of the shelf in the direction
shown (E) and lift it up vertically (F).
Pull the shelf out.
Never close the refrigerator door
while the shelves, crisper and/or
telescopic slides are extended. It
may damage both them and the
refrigerator.
Caution

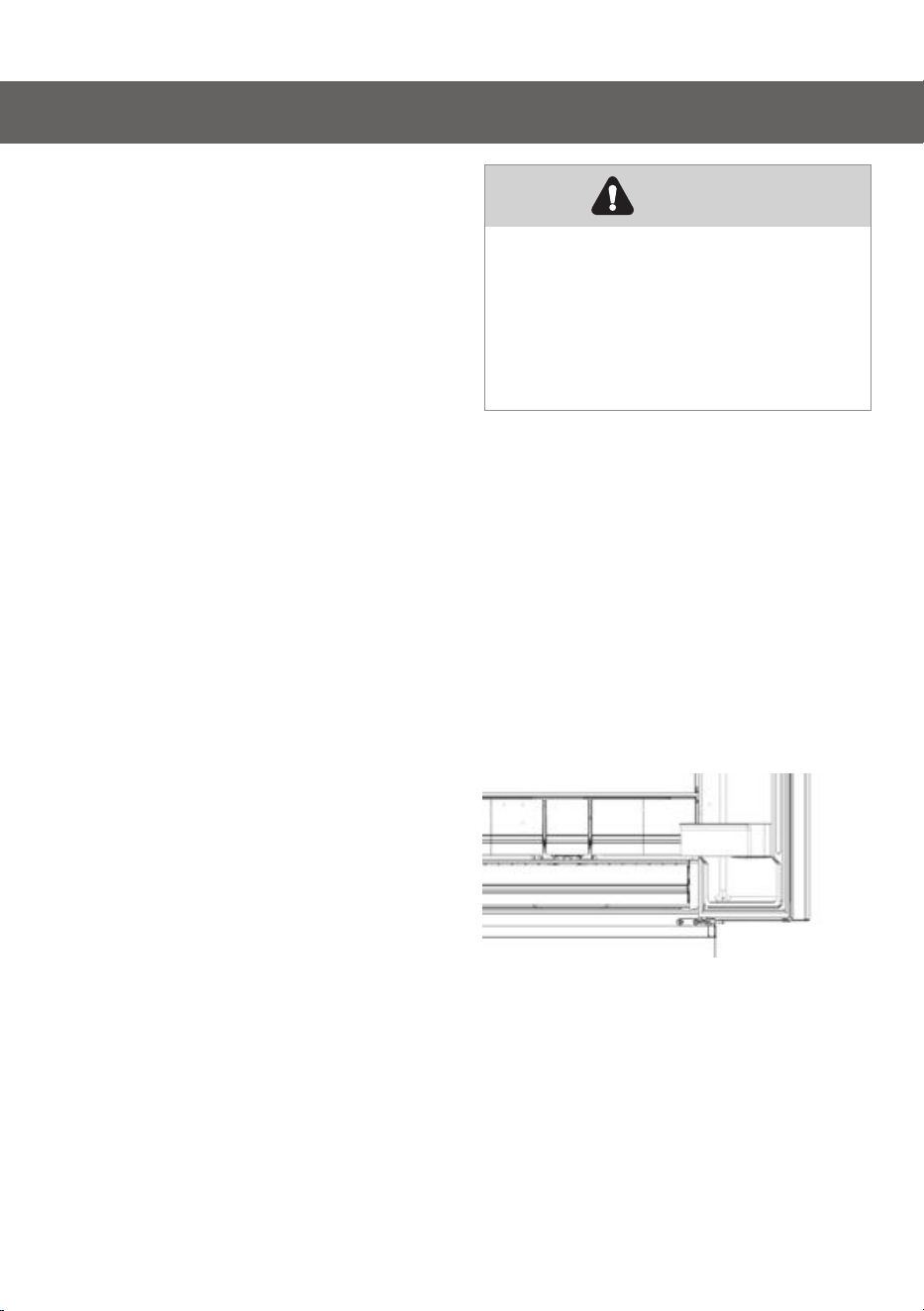

Door baskets
The refrigerator compartment is
provided with six door baskets, which
are suitable for the storage of canned
liquid, bottled drinks and packaged
food.
To remove the door baskets, simply lift
the racks up and pull straight out.
To relocate the door baskets, slide it in
above the desired location and push
down until it stops.
27
Using your appliance
E
F

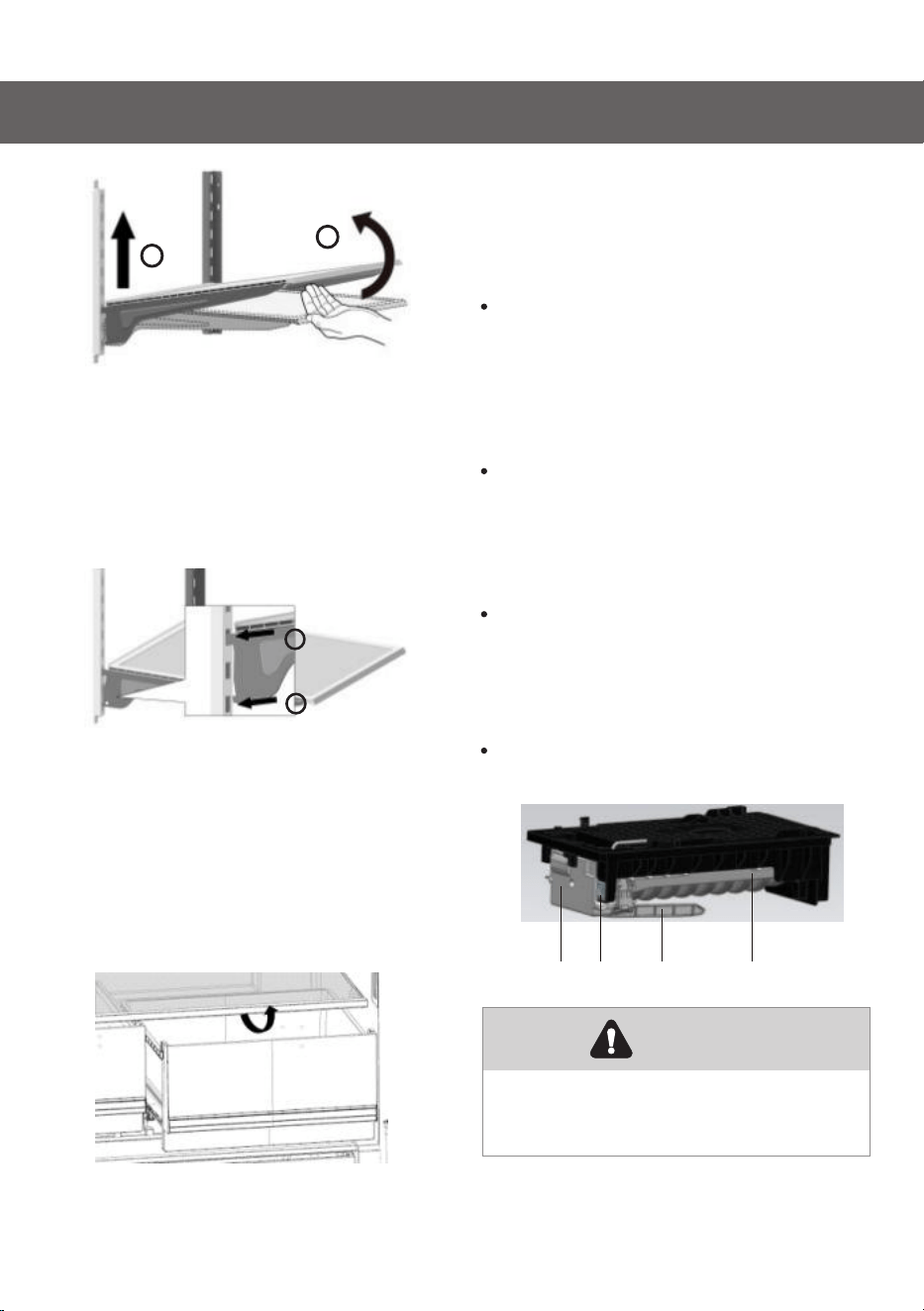

To re-install the glass shelves, tilt the
front of the shelf up and guide the
shelf hooks into the slots at a desired
height (G). Then lower the front of the
shelf so that the hooks can drop into
the slots (H)
G
H
Vegetable and fruit crispers
The crispers are suitable for storage of
vegetables and fruit. To take them out,
open the door to the final location first.
Then pull out the drawer and tilt up the
front of the crisper after moving
slightly in the direction of the arrow.
Ice Maker in Freezer
If the water line is connected, set the
ice maker power switch to the ON
position.
The ice maker will not begin to the
operate until it reaches its operating
temperature of 15°F(-9°C) or below. It
will then begin operation
automatically if the ice maker power
switch is at the ON position.
Following installation, allow 24 hours
to produce the first batch of ice.
Discard the first three batches of ice
produced. Allow 2 to 3 days to fill the
ice storage container.
If the ice in the ice container clumps,
break up ice using a plastic utensil
and discard. Do not use a sharp tool
to break up the ice. This can cause
damage to the ice container.
Do not store any items other than ice
in the ice storage container.
Feeler Arm Ice Storage
Container
Motor
Switch
Do not allow children to touch the
ice maker. This could cause injury.
Caution
28
For hygienic reasons the appliance
(including exterior and interior
accessories) should be cleaned at
least every two months.
Don’t use sharp objects to clean
with, as they are likely to scratch
the surface.
Don’t use thinner, car cleaner,
bleach, oil, abrasive cleansers or
organic solvent such as benzene
for cleaning. They may damage
the surface of the appliance and
may cause fire.
Caution
To avoid electrical shock, the
appliance must not be
connected to the main power
supply during cleaning. Before
cleaning, switch the appliance
off and remove the plug from
the main socket.
Warning
Wipe the digital panel and display
panel with a clean, soft cloth.
Spray water onto a cleaning cloth
instead of spraying directly on the
surface of the appliance. This helps
ensure an even distribution of
moisture to the surface.
Clean the doors, handles and
cabinet surfaces with a mild
detergent and then wipe dry with a
soft cloth.
Exterior cleaning

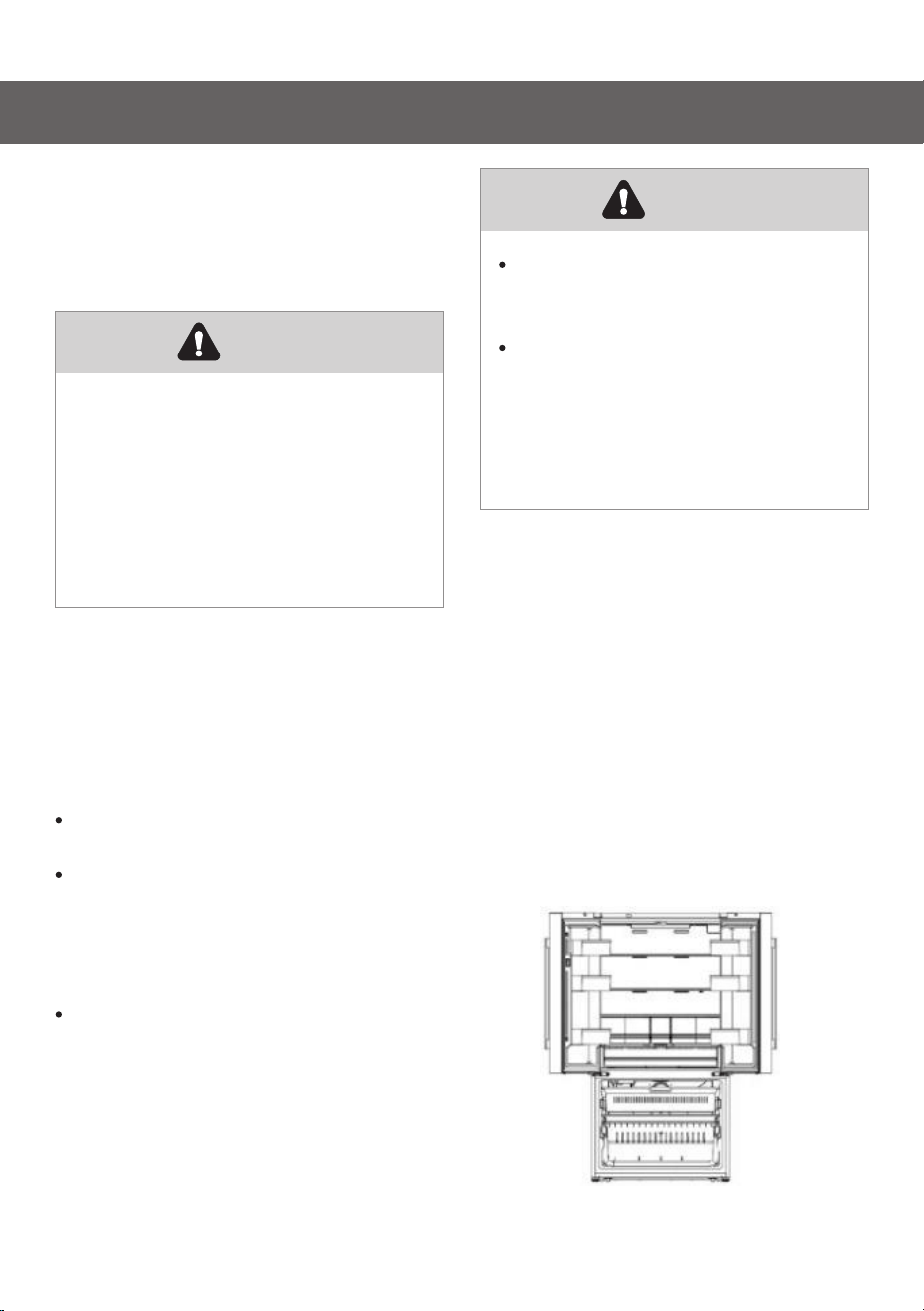

You should clean the appliance
interior regularly. It will be easier to
clean when food stocks are low. Wipe
the inside of the fridge and freezer
with a weak solution of backing soda
and water, and then rinse with warm
water using a wrung-out sponge or
cloth. Wipe completely dry before
replacing the shelves and baskets.
Thoroughly dry all surfaces and
removable parts before putting them
back into place.
Interior cleaning
Cleaning and care
To maintain good appearance of your
appliance, you should clean it
regularly.
29
Cleaning and care
Do not use sharp objects to
remove frost from the freezer
compartment
Only after the interior is
completely dry should the
appliance be switched back on
and plugged back into the main
socket.
Warning
Door seals cleaning
Take care to keep door seals clean.
Sticky food and drinks can cause seals
to stick to the cabinet and tear when
you open the door. Wash seal with a
mild detergent and warm water. Rinse
and dry it thoroughly after cleaning.
Although this appliance
automatically defrosts, a layer of frost
may occur on the freezer
compartment’s interior walls if the
freezer door is opened frequently or
kept open too long. If the frost is too
thick, choose a time when the freezer
is nearly empty and proceed as
follows:
1. Remove existing food and
accessories baskets, unplug the
appliance from the mains power
and leave the doors open.
Ventilate theroom thoroughly to
accelerate theprocess.
2. When defrosting is completed,
clean your freezer as described
above.
The LED light must be replaced by
a competent person. If the LED
light is damaged, follow the steps
below：
1. Unplug your appliance.
2. Remove the light cover by
lifting up and pulling out.
3. Hold the LED light with one
hand and pull it while pressing
the connector latch with the
other hand.
4. Replace the LED light and snap
it correctly in place and replace
the light cover
Warning
Only after the door seals are
completely dry should the
appliance be powered on.
Caution
30
Helpful hints and tips
We recommend that you follow the
tips to save energy.
Try to avoid keeping the door open
for long periods in order to
conserve energy. Ensure the
appliance is away from any sources
of heat (direct sunlight, electric
oven or cooker etc.)
Don’t set the temperature colder
than necessary.
Don’t store warm food or
evaporating liquid in the appliance.
Place the appliance in a well
ventilated, humidity free room.
If the diagram shows the correct
combination for the drawers,
crisper and shelves, do not adjust
the combination as this is designed
to be the most energy efficient
configuration.
Energy saving tips
Do not place hot food directly into
the refrigerator or freezer, the
internal temperature will increase
resulting in the compressor
having to work harder and
consume more energy.
Do cover or wrap the food,
particularly if it has a strong flavor.
Place food properly so that air
can circulate freely around it.
Hints for fresh food refrigeration
For Meat: (all types) wrap in cling
wrap and place on the glass shelf
above the vegetable drawer. Always
follow food storage times and use
by dates suggested by
manufacturers.
Cooked food, cold dishes, etc.:
They should be covered and placed
on any shelf.
Fruit and vegetables:
They should be stored in the special
drawer provided.
Butter and cheese:
Should be wrapped in airtight foil or
plastic film wrap.
Milk bottles:
Should have a lid and be stored in
the door racks.
Hints for refrigeration
When first starting-up or after a
period out of use, let the appliance
run at least 2 hours on the higher
settings before putting food in the
compartment.
Prepare food in small portions to
enable it to be rapidly and
completely frozen and to make it
possible to subsequently thaw only
the quantity required.
Wrap up the food in aluminum foil
or cling wraps which are airtight.
Hints for freezing
31
Helpful hints and tips
Do not allow unfrozen food to touch
the food which is already frozen to
avoid temperature rise of the latter.
Iced products (ice cubes, popsicles):
if consumed immediately after
removal from the freezer
compartment, will probably cause
frost burns to the skin.
It is recommended to label and
date each frozen package in order
to keep track of the storage time.
Ensure that frozen food has been
stored correctly by the food retailer
Hints for the storage of frozen
food refrigeration
If the appliance needs to be switched
off for an extended period, the
following steps should be taken to
prevent mould on the appliance.
1. Remove all food.
2. Remove the power plug from the
mains socket.
3. Clean and dry the interior thoroughly.
4. Ensure that all the doors are wedged
open slightly to allow air tocirculate.
Switching off your appliance
Once defrosted, food will deteriorate
rapidly and should not be re-frozen.
Do not exceed the storage period
indicated by the food manufacturer.
Troubleshooting
If you experience a problem with your appliance or are concerned that ine
appliance is not functioning correctly, you can carry out some easychecks before
calling for service, please see below. You can carry out someeasy checks according
to this section before calling for service.
1. Don’t try to repair the appliance yourself. If the problem persists after you
have made the checks mentioned below, contact a qualified electrician,
authorized service technician or the shop where you purchased the product.
2. A child entrapment warning statement is included below.
Warning
32
Troubleshooting
Problem
Possible Cause & Solution
Appliance is not
working correctly
Check whether the power cord is plugged into the power
outlet properly.
Check the fuse or circuit of your power supply, replace if
necessary.
Risk of child entrapment. Before you throw away your old refrigerator or
freezer:
-Take off the doors.
-Leave the shelves in place so that children may not easily climb inside.
Danger
The room temperature may be too low. Try setting the
refrigerator or freezer temperature to a colder level to
solve this problem
It is normal that is normal that the freezer is not operating
during the defrost cycle, or for a short time after the
appliance is switched on to protect the
compressor.
Odours from the
compartments
The interior may need to be cleaned.
Some food, containers or wrapping cause odours.
Noise from the
appliance
The sounds below are quite normal:
Compressor running noises.
Air movement noise from the small fan motor in the
freezer compartment or other compartments.
Gurgling sound similar to water boiling.
Popping noise during automatic defrosting.
Clicking noise before the compressor starts.
Clicking noise when you get the water.
The motor running noises when you get ice.
33
Troubleshooting
Noise from the
appliance
Other unusual noises are due to the reasons below and
may need you to check and take action:
The cabinet is not level.
The back of appliance touches the wall.
Bottles or containers have fallen or are rolling.
The motor runs
continuously
It is normal to frequently hear the sound of the motor, it will
need to run more when in following circumstances:
Temperature setting is set colder than necessary.
Large quantity of warm food has recently been stored
within the appliance.
The temperature outside the appliance is too high.
Doors are kept open too long or too often.
After your installing the appliance or it has been switched
off for a long time.
A layer of frost
occurs in the
compartment
Check that the air outlets are not blocked by food and
ensure food is placed within the appliance to allow
sufficient ventilation. Ensure the door can be fully
closed . To remove the frost, please refer to the
cleaning and care chapter.
Problem
Possible Cause & Solution
Temperature
inside is too
warm
You may have left the doors open too long or too
frequently;
Or the doors are kept open by some obstacle;
Or the appliance is located with insufficient clearance at
the sides, back and top.
Temperature
inside is too cold
Increase the temperature by following the “Display controls”
chapter.
Check whether the top of the refrigerator is tilted back by
0.1"-0.2"（2.5-5mm)to allow the doors to self-close, or if
something inside is preventing the doors from closing.
Doors can’t be
closed easily
34
Troubleshooting
The light is not
working
The LED light may be damaged. Refer to replace LED
lights in cleaning and care chapter.
The control system has disabled the lights due to the
door being kept open too long, close and reopen the
door to reactivate the lights.
Problem
Possible cause & Solution
Hear water
bubbling in the
refrigerator
This is normal. The bubbling comes from the refrigerant
coolant liquid circulating through the refrigerator.
Water dispenser
is not functioning
Is the water storage box installed accurately? Make sure
there is enough water in the water storage box.
Is water line broke or bent? Make sure the water line is
unblocked and clear of any obstruction.
Is the water storage box frozen for the refrigerator
temperature is too low? Try selecting a warmer setting
on the display panel.
Is the water pump working?
Did you wait for 24 hours after installation of the water
supply line before making ice? If it is not sufficiently cool, it
may take longer to make ice, such as when first installed.
Is the water line connected and the water valve open?Did
you manually stop the ice making function?
Is there any ice blocked within the ice maker bucket?
Is the water pressure less than 30psi? Install a booster
pump to compensate for the low pressure.
Is the freezer temperature too warm? Try setting the
freezer temperature lower.
Ice maker is not making the ice fast enough. Please wait
for at least 90 minutes.
Remove the bucket and check if the ice clums or sticks to
the wall, break up ice using a plastic utensit and discard.
Ice is not making
35
It is prohibited to dispose of this appliance as household waste.
Packaging materials
Packaging materials with the recycle symbol are recyclable. Dispose of the
packaging into a suitable waste collection container to recycle it.
Before disposal of the appliance
1. Pull out the mains plug from the mains socket.
2. Cut off the power cord and discard with the mains plug
Disposal of the appliance
Refrigerators contain refrigerant and gases in the insulation.
Refrigerant and gases must be disposed of professionally as they may cause
eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damage
prior to proper disposal.
Correct Disposal of this product
This marking indicates that this product should no be
disposed with other household wastes throughout the EU.
To prevent possible harm to the environment or human
health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the
return and collection systems or contact the retailer where
the product was purchased. They can take this product for
environmental safe recycling.
Warning
36
