FULL BODY HARNESS &
HALF BODY HARNESS
USER MANUAL
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
1
MODEL NO.: Q-3A、Q-2A-S、Q-2A-M、Q-2A-L、Q-2C、B-1A
Have product questions? Need technical support? Please feel free to
contact us:
CustomerService@vevor.com
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
FULL BODY HARNESS &
HALF BODY HARNESS
2
WARNING:
Please read this manual carefully before using the product. Failure to
do so may result in serious injury. SAVE THIS MANUAL
GENERAL INSTRUCTIONS
DEVICE IDENTIFICATION SHEET
Trademark
Reference
standards
ANSI/ASSE 359 or
ASTM F1772
All instructions attached to the device must be read and understood
carefully before use. Attention! This sheet contains only the general
instructions.
1) TRAINING AND PHYSICAL FITNESS.
The activities related to the use of this device are potentially dangerous
and its use is reserved exclusively to competent and trained persons or
persons directly supervised by competent and trained persons. Before
using the device, it is essential to: have received adequate training and
instruction and, where required, specific training for the use of the devices;
be familiar with the device; be in perfect psycho-physical shape. Attention!
Consumption of alcohol or psychotropics, including medication that may
alter perception, balancea and concentration, is to be avoided.
2) WARNINGS. Before use: ensure that all equipment is in perfect
operating conditions, that it is appropriate for the intended use and that all
the elements and components are compatible with each other and comply
with the rules, regulations and directives currently in place; check that the
system is assembled correctly and that the various components work
without interfering with one another. Before and during use: check the
perfect closure of the lever and the associated locking of any connectors
used.
2.1- Devices to be used with ropes. Before and during each use: always
verify the compatibility of the rope/s used: some ropes may be or become
more or less smooth due to different factors (e.g. construction of the sheath;
possible surface treatments; inadequate diameter; wet, icy, dry or muddy
ropes etc.); check the correct positioning of the rope/s inside the device;
pay attention to potential foreign bodies that can prevent the correct
functioning of the device on the rope/s.
2.2 - Conditions for use. This equipment is meant to be used in climatic
conditions typically tolerated by human beings (the permitted temperature
range is shown on the specific instructions). Pay attention to the following
conditions, since they could jeopardize the strength of the device: humidity,
frost, extreme temperatures, aging, inadequate storage. Attention! Do not
apply and avoid the contact with the following substances, that could
damage the device and compromise its safety: chemical substances leg.
paint, solvents, adhesives, corrosive substances, reagents, etc.);
3
self-adhesive labels; other potentially harmful products/substances.
Attention! When using textile devices, be careful to the contact with sharp
edges and, when necessary, use protective devices.
2.3 - Responsibilities. Each individual is responsible for his/her own
choices and actions: anyone who is not capable of assuming this
responsibility must not use these devices under any circumstances. The
responsibility of the manufacturer is limited to manufacturing defects and
materials used. Attention! Do not use a device for activities exceeding its
limitations or for uses that are different to those intended! Attention! Being
equipped with personal protective devices does not justify exposing
oneself to potentially lethal risks. Attention! There are many incorrect or
erroneous usage procedures and only the procedures indicated as correct
are allowed: any other possible usage procedure must be considered as
forbidden.
2.4 - Materials. All materials and treatments (unless otherwise specified)
are antiallergic and do not cause skin irritation or sensitization.
2.5 - Warnings. Such warnings relate only to the devices reporting, in the
specific instructions, the ANSI/ASSE 359 or ASTM F1772 standard. Before
each use: make sure that all the devices show the correct reference to the
standard and that are in perfect working order; make sure that the
maintenance sheets of each device are correctly updated; make sure you
have carefully considered the safest way of access, equipped yourself

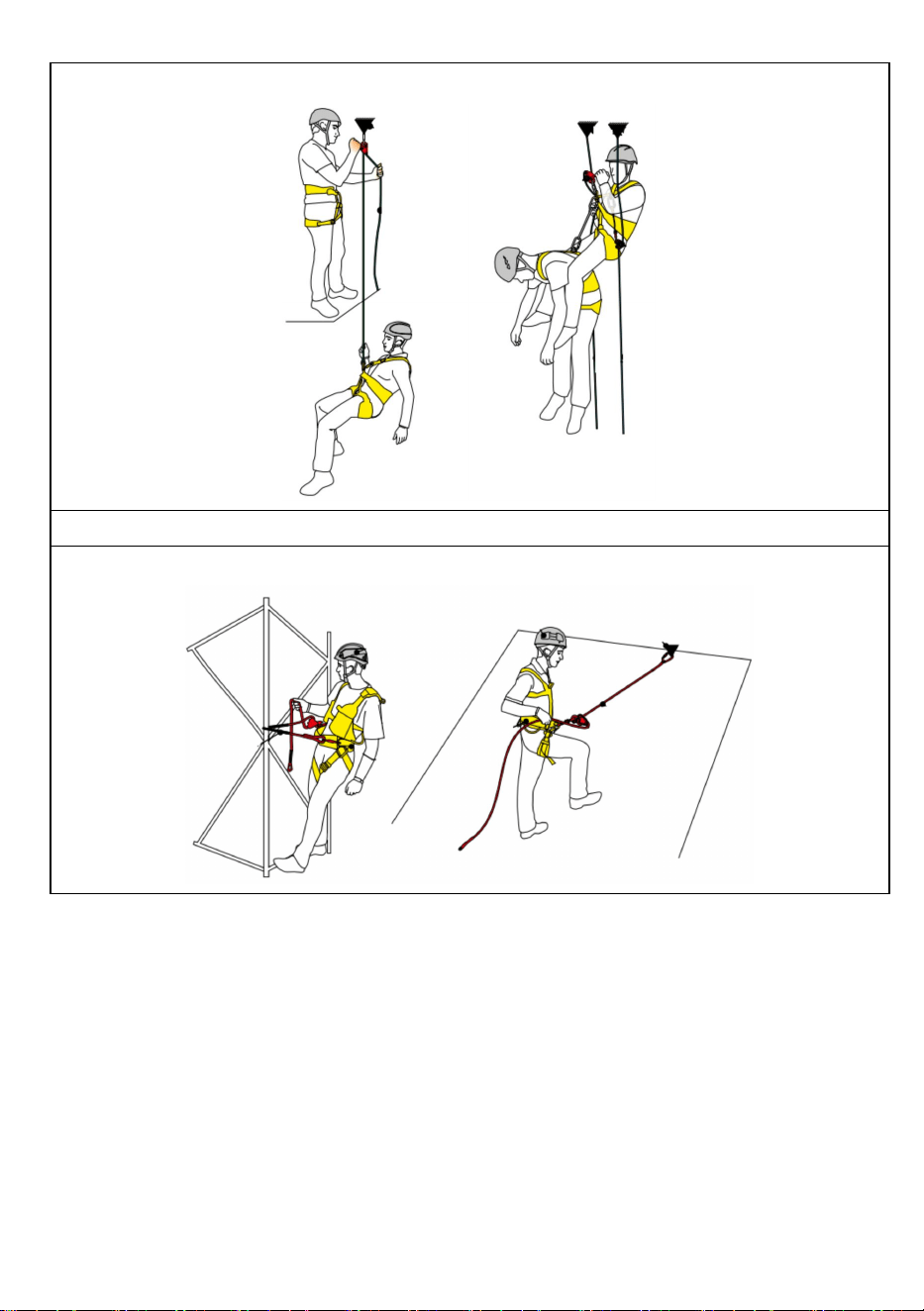

properly and provided for a rescue procedure to recover the incapacitated
operator or to deal with any emergency that may arise during work; inform
the user of the existence of the arranged rescue procedure. During each
use: pay attention to the dangers that could jeopardize the performance of
the device (e.g. twisting or dragging of lanyards or rescue ropes on sharp
edges; chemical reagents; electrical conductivity; pendulum falls etc.). For

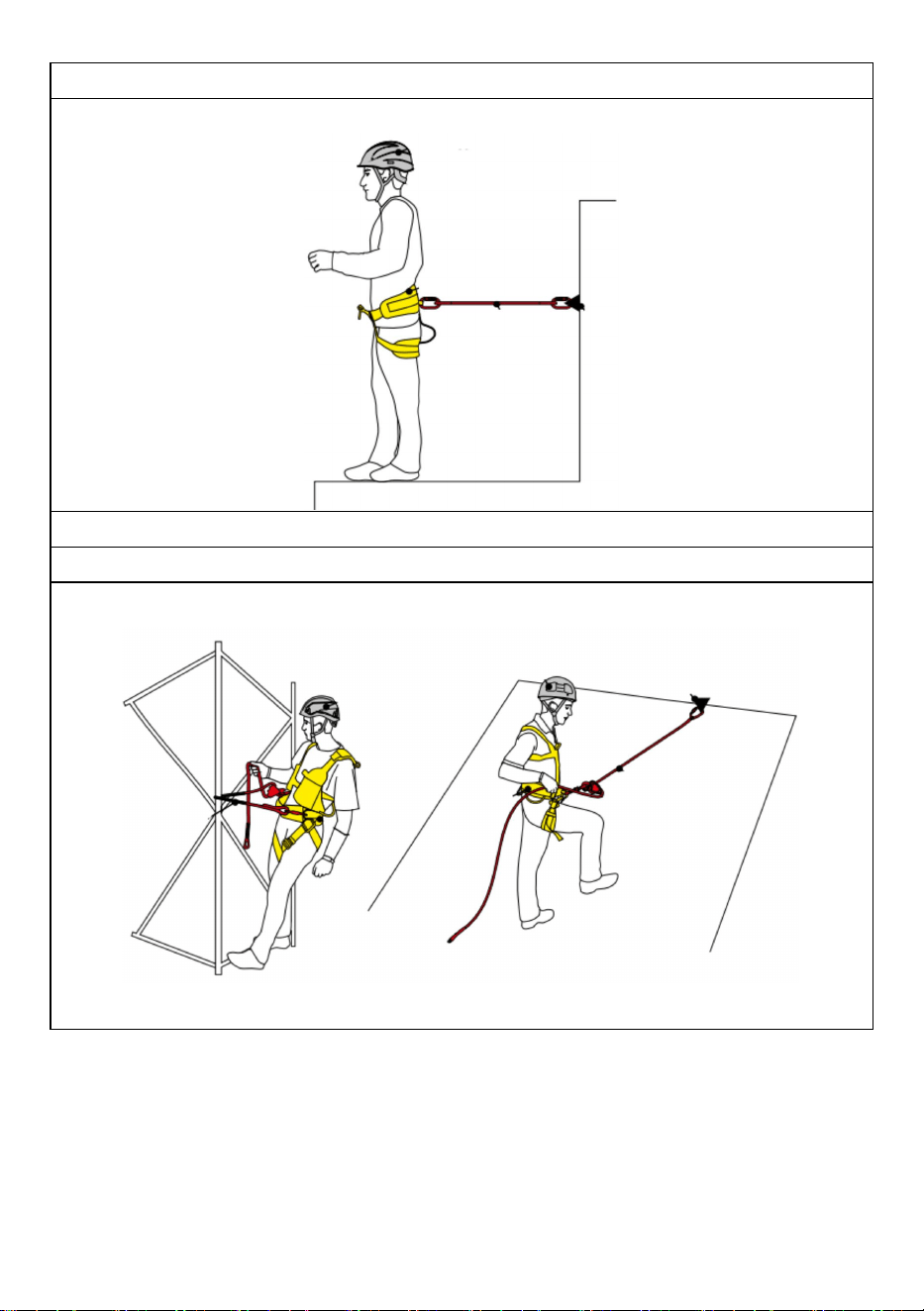

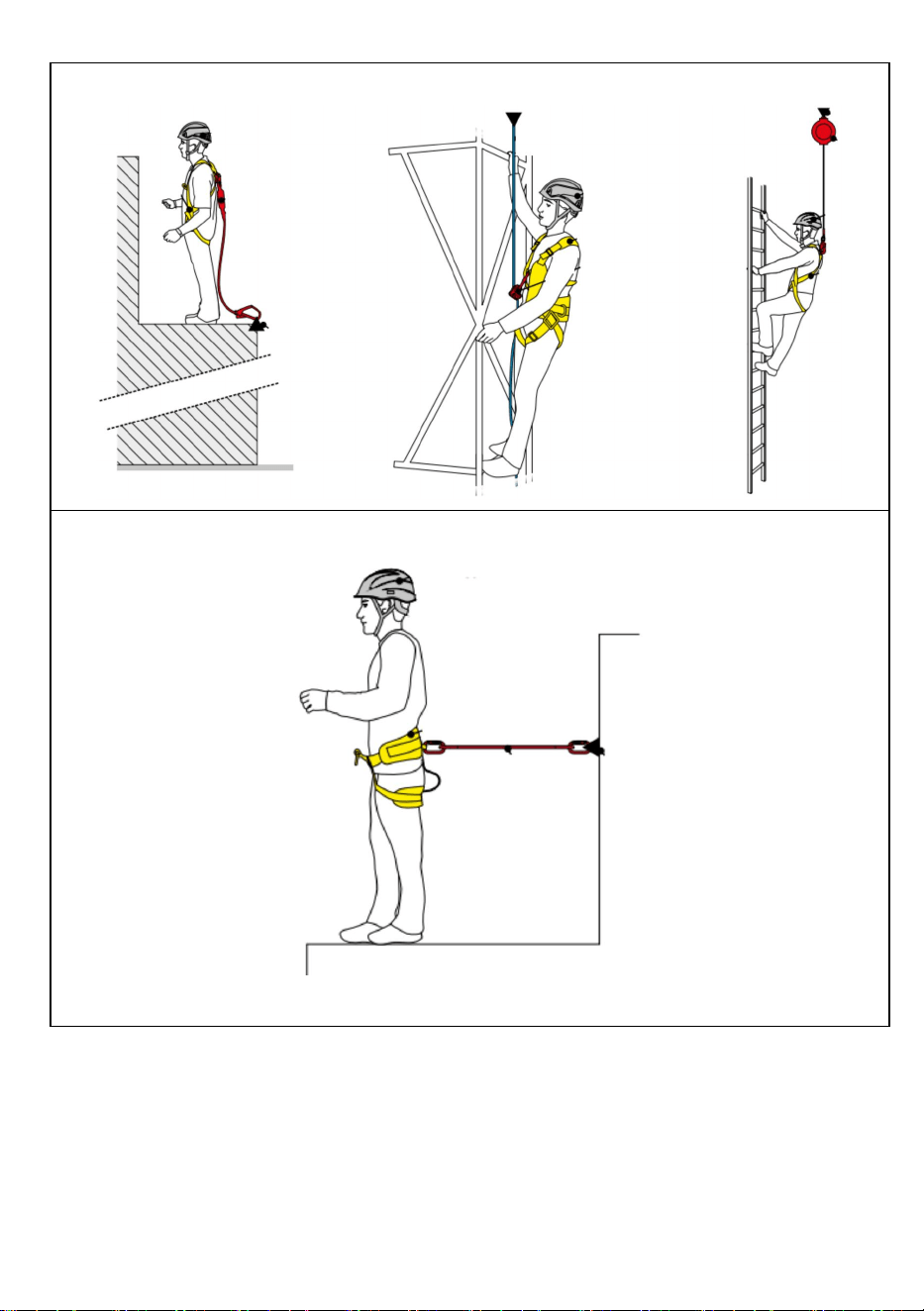

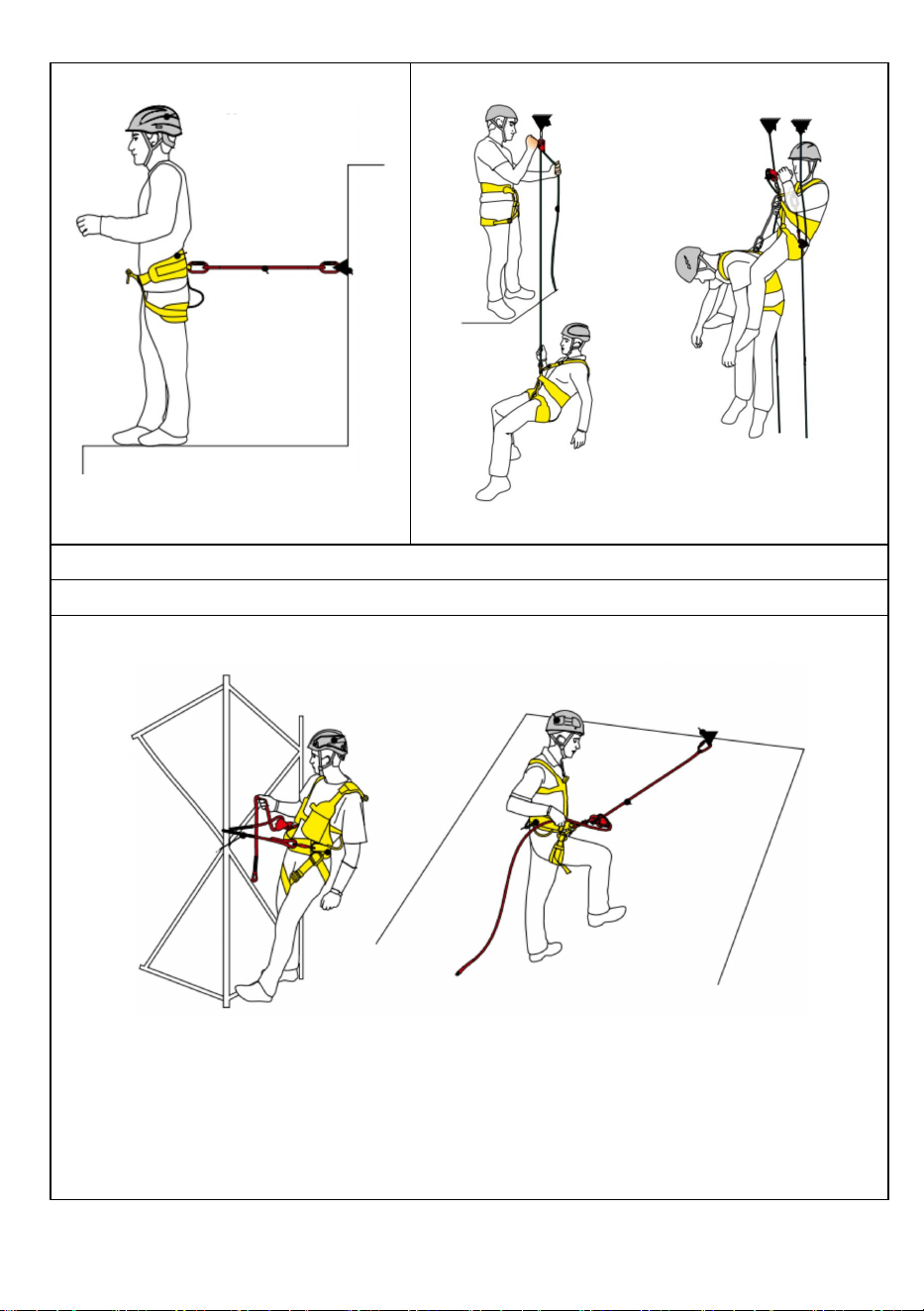

devices intended for use in a fall arrest system: for the operator's safety it
is necessary that the device or anchor point is always correctly positioned
and that the work is carried out so that the risk of falling and the length of a
fall are minimized; before any use, verify the free space required below the
user at the work station so that, in the event of a fall, there is no collision
with the ground or other obstacles on the path of the fall; consider that a
body harness is the only acceptable body holding device that can be used
in a fall arrest system.

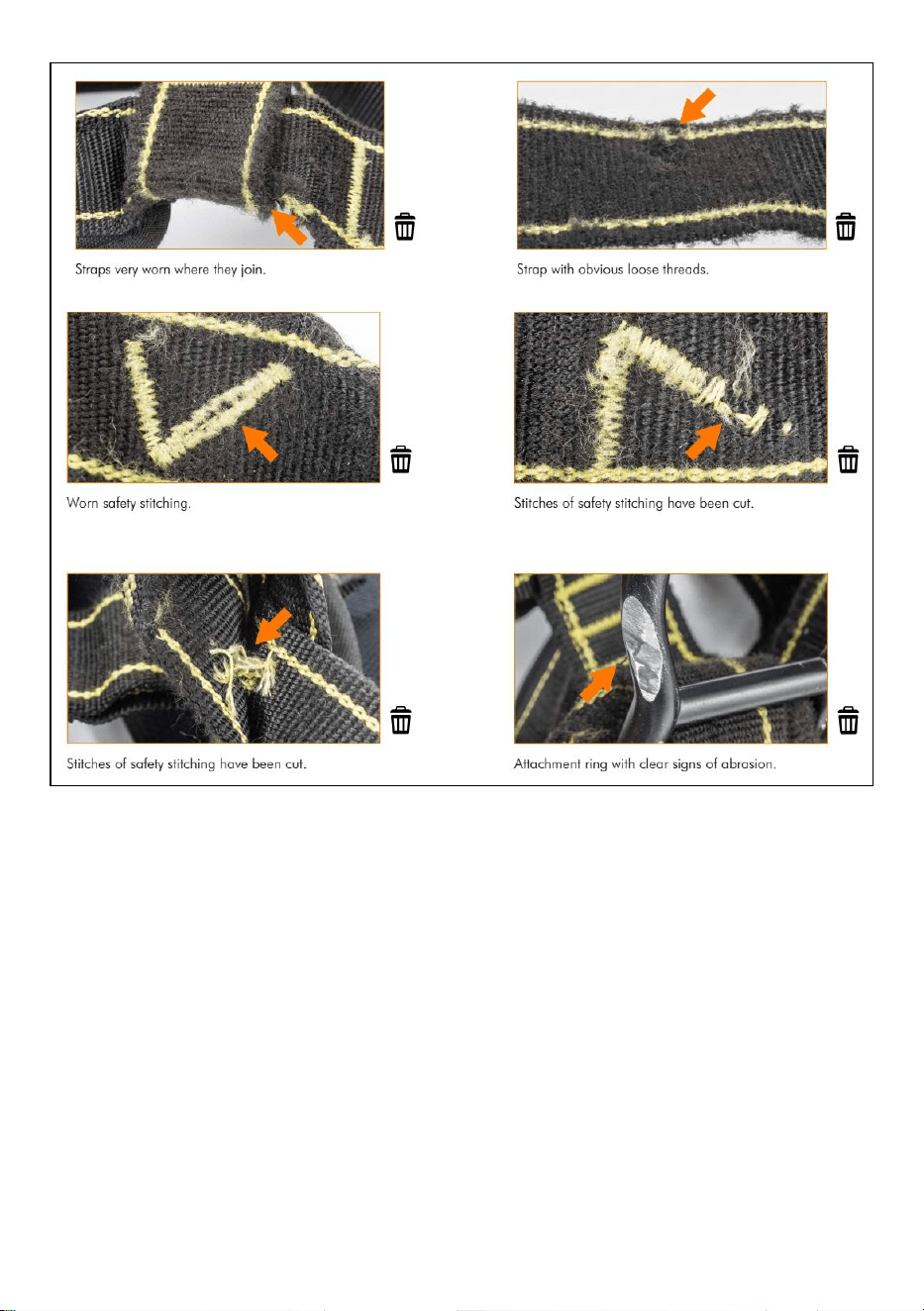

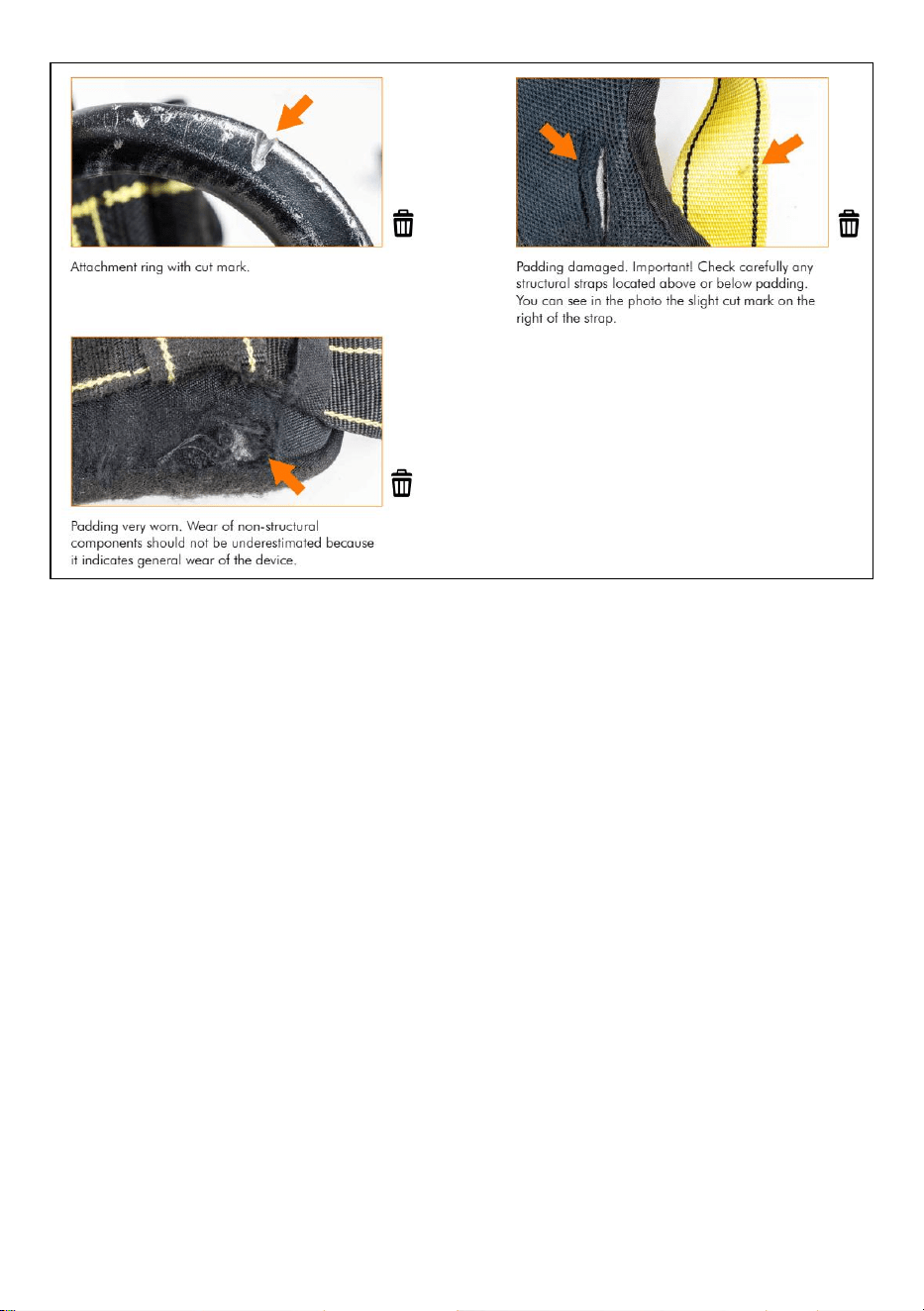

3) INSPECTIONS.
Inspections carried out by the user are necessary to ensure that the device
is in an efficient condition, functions correctly and can be used. Before and
after each use: verify that the metal and plastic parts, if present, do not
show deformations, sharp edges, abnormal variations in color, corrosion
and oxidation;a verify that the metal and plastic parts, if present, do not
show cuts, cracks, incisions or signs of wear with a depth greater than 1
mm; verify that the textile parts, if present, and their stitching do not show
cuts, abrasions, fraying, wear, burns, damage due to exposure to heat or
ultraviolet rays, excessive stretching, corrosion and traces of mold or
chemicals, paying attention in checking any hidden areas as well; verify
that the stitching, if present, do not show cut, pulled or loose threads; verify,
feeling with the fingers the whole length of the devices made of rope, that
the inner core does not show cuts, points of emptiness, splits, swelling;
verify that any moving parts (e.g. opening levers, locking cams, etc.)
4
correctly rotate without jamming and, where provided with a spring, once
released slowly automatically return to their position; verify that there is no
dirt, particularly near any gap le.g. sand. deposits of material).
4) DEVICES FOR PERSONAL USE.
Each device, beside exceptions, is to be considered for strictly personal
use and, where necessary, it must be prescribed that it is delivered
individually to the user. In case of use by a second user, carry out and
inspection of the device before and after use and, where required, note the
details on the appropriate sheet. Attention! Never use a device if you do not
know the related complete life path or if it is provided without the correct
documentation (instructions for use, any inspection sheet, etc.).

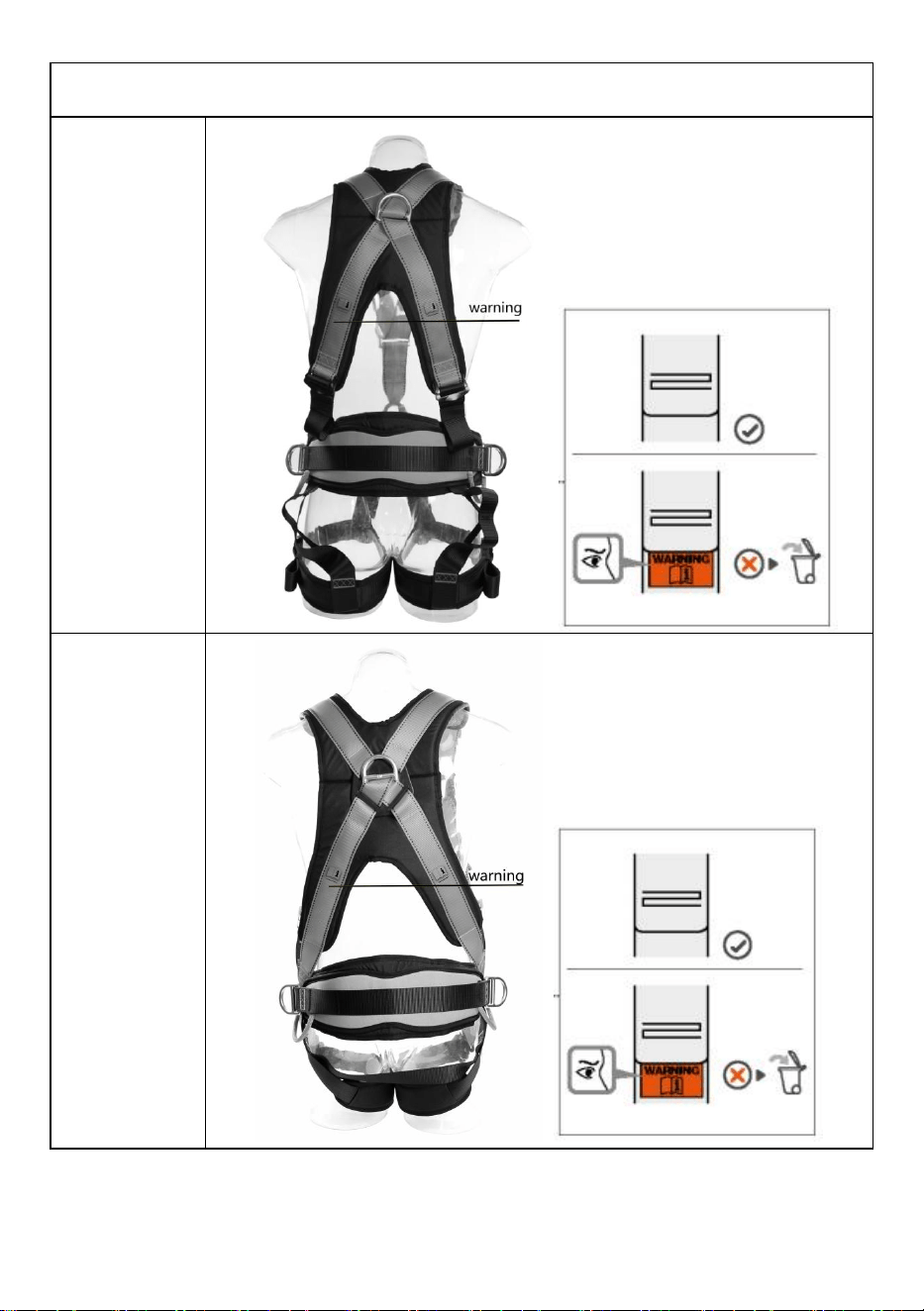

5) MARKING.
The indications on the device can appear in different places depending on
the dimension of the device.
1) Product name. 2) Product code. 3) Product definition.4) Name of the
manufacturer or of the responsible for placing the product on the market. 5)
Warning that the device is designed to be used by only one person. 6)
Reference standard.
6) LIFE SPAN.
It is difficult to predetermine with accuracy the real lifespan of a device
because it is influenced by several factors (environment in which the
equipment is used, climatic factors, storage conditions, frequency and
intensity of use, etc.). Nevertheless, it is possible to estimate the device's
maximum lifespan, consisting of an initial period of optimal storage and a
period of use. For textile and plastic products, the maximum lifespan is 12
years from the date of manufacture, of which no more than 10 years from
the date of the first use. The maximum life span of metallic products is
theoretically indefinite, but it is still advisable to replace them after 10 years
of use. Attention! The life span of a device can be limited even to just one
use, where it is involved in an exceptional event (major falls, extreme
temperatures, contact with harmful chemical agents or sharp edges, etc.).
7
）
INTERRUPTION OF USE / ELIMINATION.
Stop using the device immediately: if the maximum life span has been
exceeded; if it is obsolete, incompatible with more modern devices or
outclassed due to standards' updates; if the result of the inspections is not
satisfactory; if there are doubts on the functioning or on the good condition
of the device; if it has been exposed to an exceptional event or a hard fall:
even if there is no visible defect or degradation, its initial strength and
resistance could be seriously reduced. Atfention! Destroy discarded
products to avoid any further use. Attention! Do not use the device again
until receiving a written confirmation from a competent person authorized
by the manufacturer, stating that it is acceptable to use the device again.
8) PERIODIC INSPECTION.
It is generally recommended, at least every 12 months, a thorough
inspection of the device by the manufacturer, by a competent person
authorized by the manufacturer or by a competent person according to the
current national regulations on PPE inspection. Attention! Such inspection
5
is mandatory only for devices for which it is indicated in the specific
instructions. Nevertheless, regular inspections are essential to ensure the
continued efficiency and durability of the device, on which the safety of the
user depends. The carrying out of the periodic inspections does not
exempt the user from the obligation to carry out the checks before and
after each use, nor to request an extraordinary periodic inspection at the
occurrence of exceptional events (e.g. fall from low height, etc.) or in in
case of doubts on the proper functioning of the device. The data of the
device and the results of the inspections must be reported respectively in
the identification sheet of the device and in the periodic inspection one.
The instructions for use and any additional documents must be kept for the
entire life of the device. Attention! In absence of the document showing the
data of the device and the results of the checks, or if illegible, refrain from
using the device. Attention!
8.1 -Frequency of inspections. The minimum frequency of 12 months
can be changed according to the national regulations in force or to the
frequency, intensity and mode of use (e.g. heavy uses, use in the marine
environment, corrosive atmospheres etc.).
8.2- Device identification sheet (Fig. A). A) Trademark. B) Manufacturer.
C) Product (type, model, code). D) User (company, name and address). E)
Serial number. F) Year of manufacture. G) Purchase date. H) Date of first
use. I) Expiry date. L) Reference standards.
8.3 - Device periodic inspection sheet (Fig. B). O) Date. P) Reason of
the inspection: periodic inspection or additional check. Q) Name and
signature of the person responsible for the inspection. R) Notes (defects
found, repairs performed or other relevant information). S) Inspection
results: device fit for use, device unfit for use. T Date of next inspection.
9) NOTIFIED BODIES.
On the specific instructions for use are indicated the notified bodies
pertaining to the product, they are listed on this instruction.
10)
DISPOSAL.
At the end of the lifespan of the equipment, i.e. at the end of its working life,
it is compulsory to take care of its disposal, taking into account the
potential impact on the environment. For this purpose, it is recommended
that the products are disposed in accordance with the laws in force in the
country where the disposal is taking place.
11) TAMPERING AND REPAIRS.
Any alteration or tampering immediately voids the guarantee and it is
forbidden, as it can compromise the safety of the device itself. Repairs,
where feasible, must be carried out exclusively by the manufacturer or by a
competent person expressly authorized by the manufacturer, in
compliance with what is indicated in the inspection and/or maintenance
procedures.
12) LUBRICATION.
If necessary, clean any moving parts of metal devices with compressed
air and lubricate them by using exclusively silicone-based spray oil.
Attention! An excessive quantity of oil encourages dirt and dust to stick.
Remove any excess oil using a cloth. Attention! Check that the lubrication
6
does not compromise the interaction between the device and the other
components of the system le.g. ropes).
13) MAINTENANCE AND CLEANING.
Avoid contact with sources of heat or with abrasive or sharp materials. To
disinfect, use a dilute ammonia solution according to the safety instructions
provided with the product. After washing, or in the case of damp or wet
equipment, leave to dry in the open air away from direct sources of heat.
14) STORAGE AND TRANSPORT.
For optimal storage, put away the devices completely dry at room
temperature in well ventilated areas. Do not expose the devices to
chemically aggressive substances, persistent dusts or dirt or environments
with high concentrations of salt. During transport, avoid compressions,
exposure to direct sunlight and contact with sharp objects. Do not leave the
devices in the car or in closed environments exposed to the sun. For the
transport use the protective case supplied or, if absent, a packaging that
preserves the integrity of the product.
15) GUARANTEE.
The guarantee is valid for 3 years as from the purchase date. and covers
for any manufacturing defect or defect in the materials used. The following
are excluded from the guarantee: normal wear, inadequate maintenance
and storage, incorrect or improper usage, unauthorised tampering or
repairs, lack of observance of the instructions for use. The manufacturer
declines all liabilities concerning the direct, indirect or accidental
consequences, including any consequence that derives from the incorrect
use of the devices, including correct use of the device in unsuitable
situations that do not ensure proper safety levels. For the user safety it is
essential that the retailer provides the devices instruction for use,
maintenance, repair and periodic check in the language of the country
where they will be used, whenever the devices are sold outside of the
original country of destination.
TECHNICAL SPECIFICATIONS
Type
Full body harness
Model
Q-3A
Q-2A-S/Q-2A-M/Q-2A-L
Q-2C
Main Material
Polyester
Color
Yellow + Black
Size
Universal
Small/Medium/Large
Universal
Product
Dimensions
(L*W*H)(mm)
340*240*110
340*240*110
290*240*120
Packing Size
(L*W*H) (mm)
350*250*120
350*250*120
300*250*130
7
Net Weight (kg)
2.1
2.8/2.87/2.9
2.3
Gross Weight (kg)
2.28
2.99/3.03/3.06
2.4
Type
Half Body Harness
Model
B-1A
Main Material
Polyester
Color
Yellow + Black
Size
Universal
Product Dimensions
(L*W*H)(mm)
340*240*110
Packing Size
(L*W*H) (mm)
350*250*120
Net Weight (kg)
2.1
Gross Weight (kg)
2.28
PRODUCT INSTRUCTIONS
MODEL NO.: Q-3A
—Harness construction
9
A11
Sternal Attachment
A13
Waist Attachment
A12
Frontal Attachment
A14
Dorsal Attachment
—Harness A11 Sternal Attachment and A14 Dorsal Attachment
10
Fall Arrest
Restraint
11
Rescue

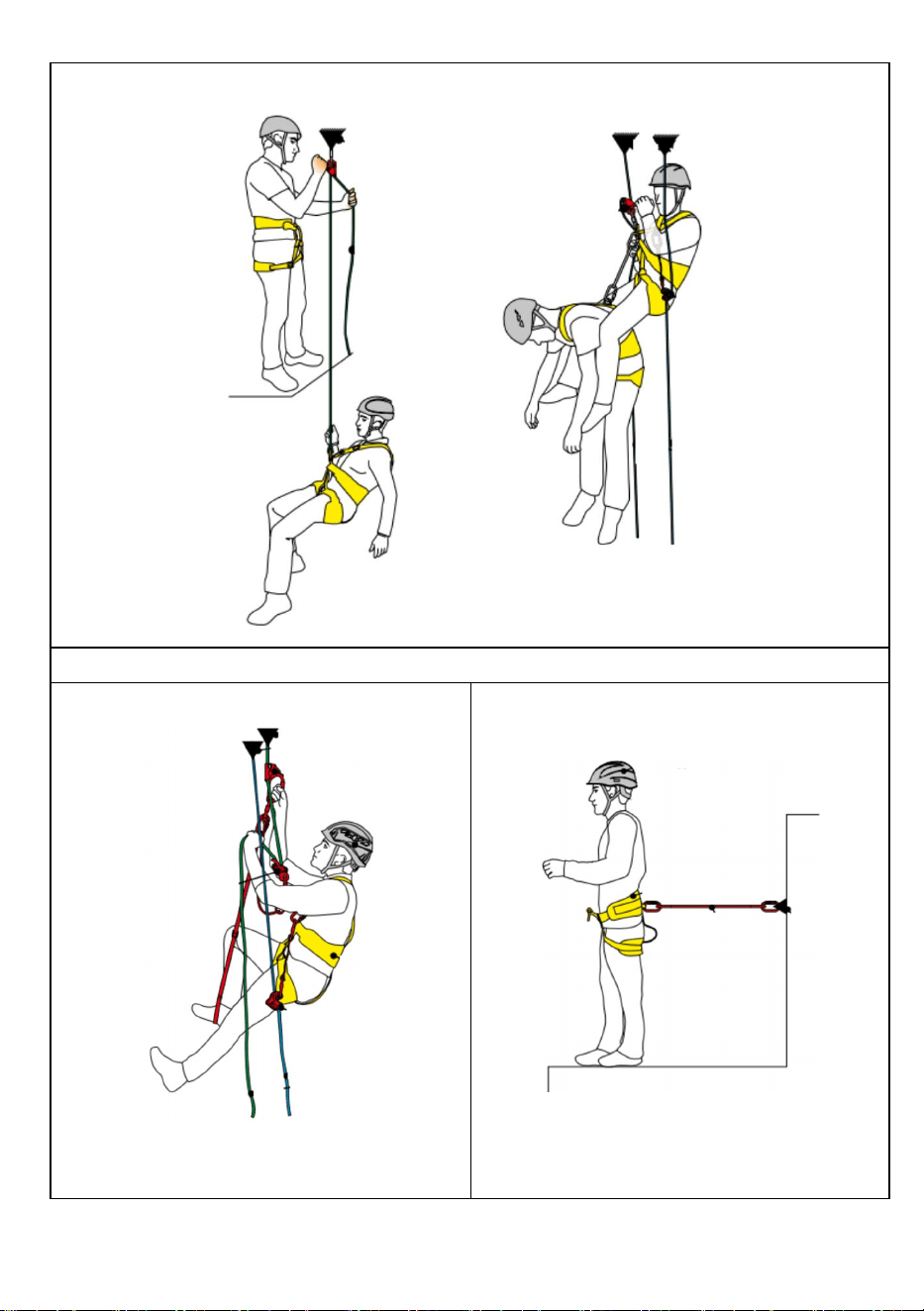

—Harness A12 Frontal Attachment
Rope access
Restraint
12
Rescue
—Harness A13 Waist Attachment
Positioning
14
—Harness Attachment Point
B12
Dorsal Attachment
B13
Waist Attachment
—Harness B12 Dorsal Attachment
Fall Arrest
15
Restraint
Rescue

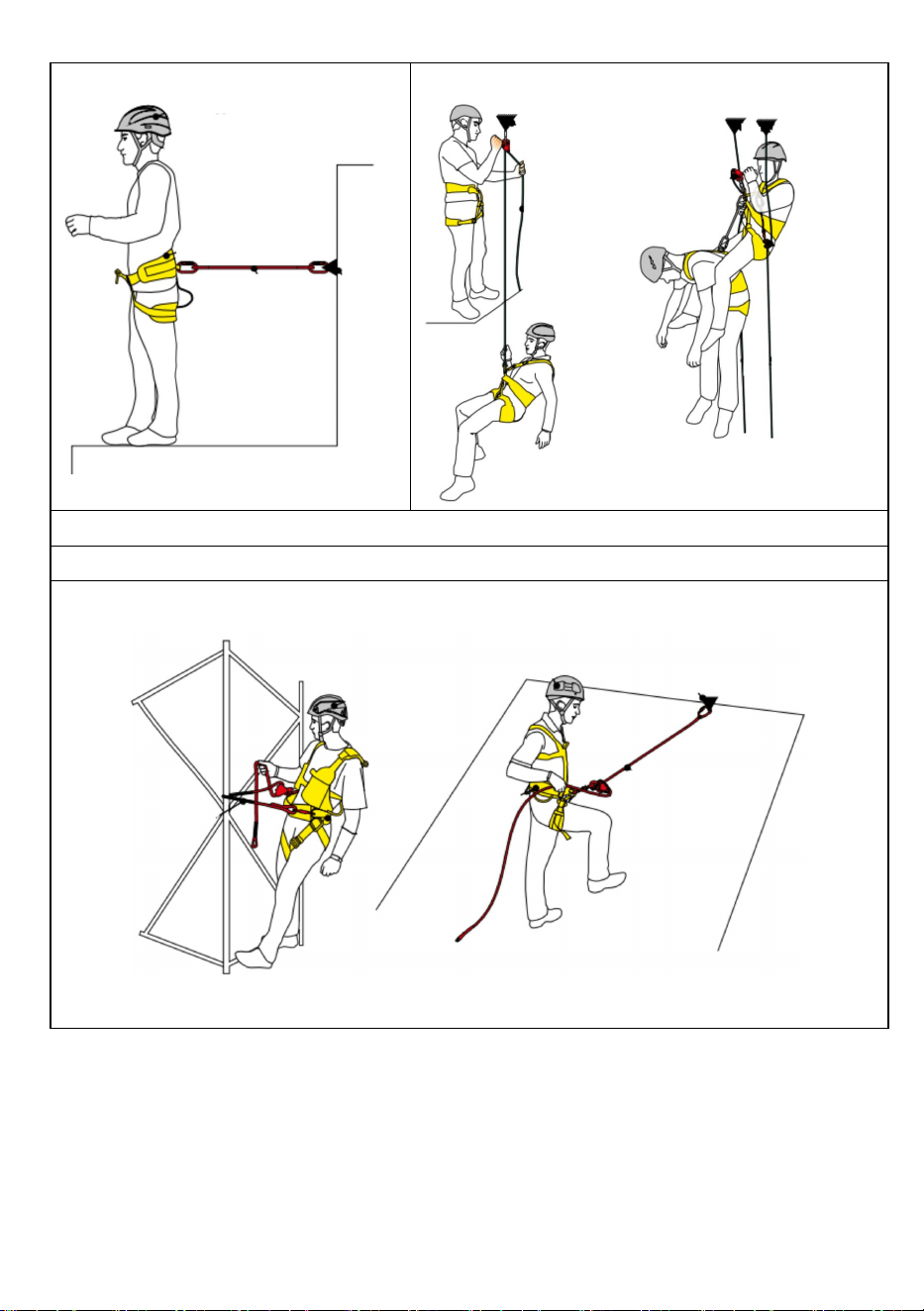

—Harness B13 Waist Attachment
Positioning
17
—Harness Attachment Point
C8
Dorsal Attachment
C9
Waist Attachment
—Harness C8 Dorsal Attachment
Fall Arrest
18
Restraint
Rescue
—Harness C9 Waist Attachment
Positioning
20
—Harness D8 Frontal Attachment
Restraint
—Harness D9 Waist Attachment
Positioning
23
Harness donning and setup
These instructions explain how to correctly use your equipment. Only certain techniques and uses are
described.
1. Field of application Personal protective equipment (PPE).Full-body fall
arrest harness. This product must not be pushed beyond its limits, nor be
used for any purpose other than that for which it is designed. Responsibility
WARNING Activities involving the use of this equipment are inherently
dangerous. You are responsible for your own actions, decisions and safety.
Before using this equipment, you must: Read and understand all
Instructions for Use. Get specific training in its proper use. Become
acquainted with its capabilities and limitations. Understand and accept the
risks involved. Failure to heed any of these warnings may result in severe
injury or death. This product must only be used by competent and
responsible persons, or those placed under the direct and visual control of
a competent and responsible person. You are responsible for your actions,
your decisions and your safety and you assume the consequences of
same. If you are not able, or not in a position to assume this responsibility,
or if you do not fully understand the Instructions for Use, do not use this
equipment.
2. Compatibility
Verify that this product is compatible with the other elements of the system
in your application (compatible =good functional interaction).

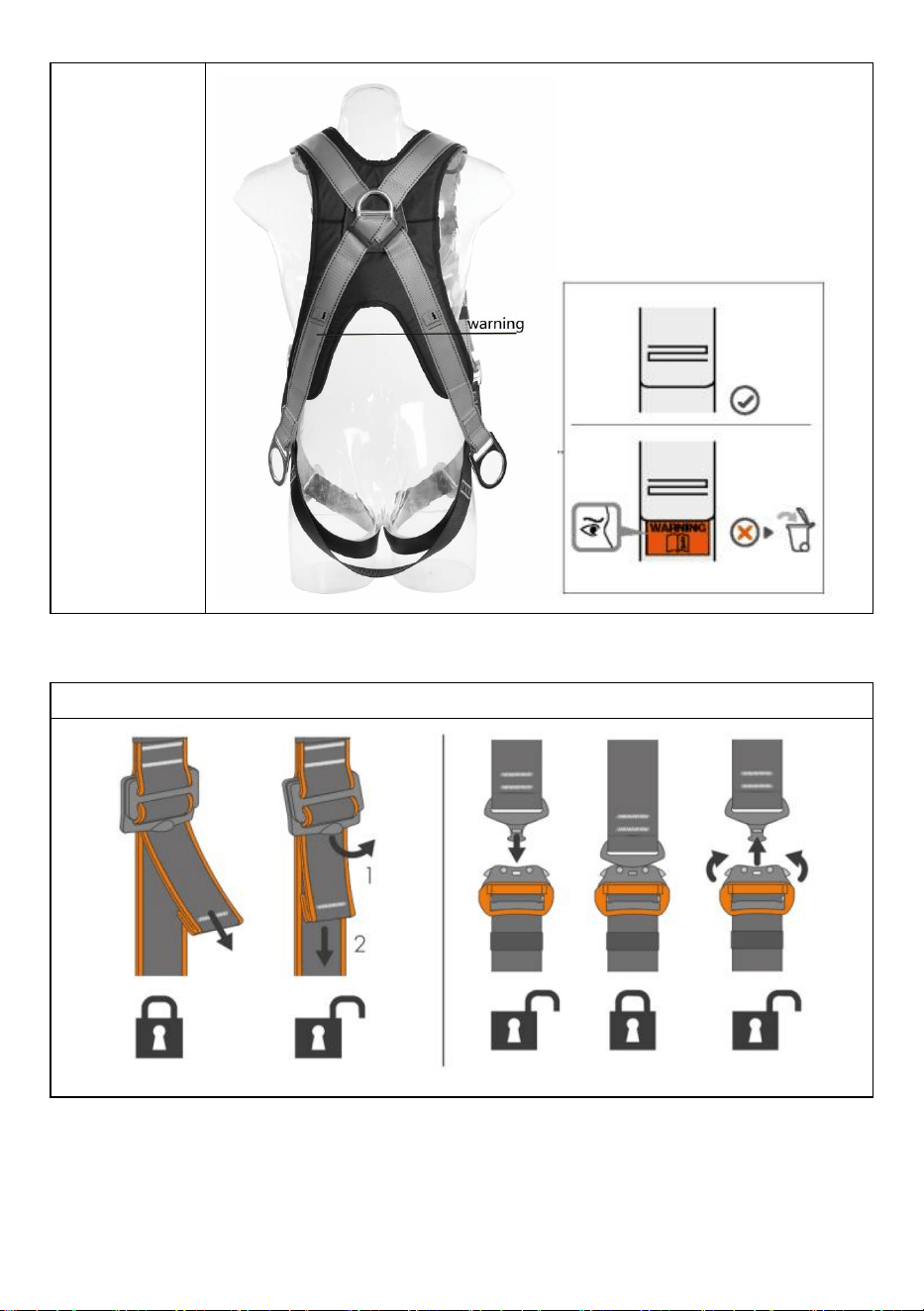

3. Harness setup

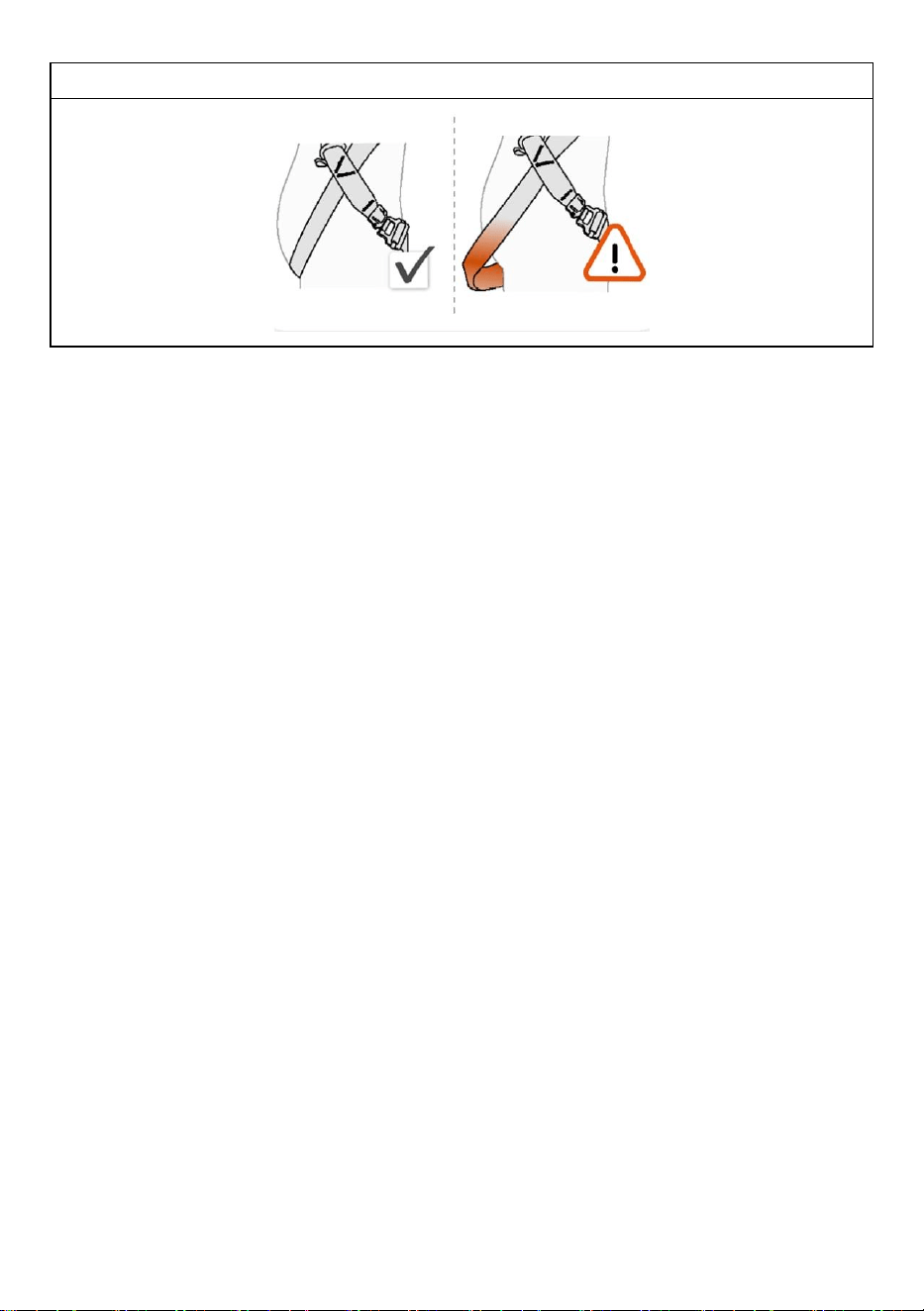

Be sure to correctly stow the excess webbing (folded flat) in the keepers.
Beware of foreign objects that could impede the operation of the FAST LT
PLUS buckles (e.g. pebbles, sand, clothing...). Verify that they are securely
fastened. Adjustment and suspension test Your harness must be adjusted
to fit snugly to reduce the risk of injury in the event of a fall. In a safe
environment, you must move around and hang in the harness from each
attachment point, with your equipment, to verify that the harness fits
properly, provides adequate comfort for the intended use and that it is
optimally adjusted. To ensure adequate protection, this harness must be
properly sized and adjusted to fit the user. See the diagrams on adjustment
and the function test. Do not use this harness if you are unable to adjust it
to fit properly. Replace it with a different size or model of harness.
4. Fall arrest harness. Sternal attachment point. Dorsal attachment point.
Textile dorsal attachment point for self-retracting device The sternal
attachment point, the dorsal attachment point or the textile dorsal
attachment point for self-retracting device must be connected to a fall
arrest system that meets current standards. Only these attachment points
24
are to be used for connecting a fall arrest system, for example a mobile fall
arrester, an energy absorber... For ease of identification, these points are
marked with the letter 'A'. Be sure to always use the two loops together.
Specifics on the textile dorsal attachment point for self-retracting device
This attachment point is designed only for connecting a self-retracting fall
arrest system. Be sure to follow the recommendations for use of the
system provided by the manufacturer. Clearance: amount of free space
below the user The free space below the user must be sufficient to prevent
the user from hitting an obstacle in the event of a fall. For the clearance
calculation, take into account the length of any connectors that will have an
effect on the fall distance. Specific details on calculating clearance are
found in the Instructions for Use of the other components (energy
absorbers, mobile fall arrester...). In a fall, the fall arrest attachment point
elongates. This elongation (approximately 0.5 ml maximum) must be taken
into account for the clearance calculation.
5. Rescue
The sternal attachment point or the dorsal point may be used for rescue.
6. Fall arrest lanyard connector-holder
A. To be used only as a connector-holder for unused lanyard ends.
B. In the event of a fall, the connector-holder releases the lanyard-end
connector, to avoid impeding deployment of the energy absorber. Warning:
this is not a fall arrest attachment point.
7. Equipment loops must only be used for equipment. WARNING -
DANGER: never use equipment loops for belaying, rappelling, tying in, or
anchoring a person.
8. ANSI/ASSE Z359 requirements for proper use and maintenance of
full-body harnessesNote: these are general requirements and information
provided by ANSI/ASSE Z359; the manufacturer of this equipment may
impose more stringent restrictions on the use of the products they
manufacture, see the manufacturer's instructions.
9. It is essential that the users of this type of equipment receive proper
training and instruction, including detailed procedures for the safe use of
such equipment in their work application. ANSI/ASSE Z359.2, minimum
requirements for a managed fall protection program, establishes guidelines
and requirements for an employer's managed fall protection program,
including policies, duties and training, fall protection procedures,
eliminating and controlling fall hazards, rescue procedures, incident
investigations and evaluating program effectiveness.
10. Correct fit of a full-body harness is essential to proper performance.
Users must be trained to select the size and maintain the fit of their
full-body harness.
11. Users must follow manufacturer's instructions for proper fit and sizing,
paying particular attention to ensure that buckles are connected and
aligned correctly, leg straps and shoulder straps are kept snug at all times,
chest straps are located in the middle chest area, and leg straps are
positioned and snug to avoid contact with the genitalia should a fall occur.
12. Full-body harnesses that meet ANSI/ASSE Z359.11 are intended to be
used with other components of a personal fall arrest system that limit
maximum arrest forces to 1800 pounds (8 kN) or less.
13. Suspension intolerance, also called suspension trauma or orthostatic
intolerance, is a serious condition that can be controlled with good harness
design, prompt rescue, and postfall suspension relief devices. A conscious
25
user may deploy a suspension relief device allowing the user to remove
tension from around the legs, freeing blood flow, which can delay the onset
of suspension intolerance. An attachment element extender is not intended
to be attached directly to an anchorage or anchorage connector for fall
arrest. An energy absorber must be used to limit maximum arrest forces to
1800 pounds (8 kN). The length of the attachment element extender may
affect free fall distances and free fall clearance calculations.
14. Full-body harness (FBH) stretch, the amount the FBH component of a
personal fall arrest system will stretch and deform during a fall, can
contribute to the overall elongation of the system in stopping a fall. It is
important to include the increase in fall distance created by FBH stretch, as
well as the FBH connector length, the settling of the user's body in the FBH,
and all other contributing factors when calculating total clearance required
for a particular fall arrest system.
15. When not in use, unused lanyard legs that are still attached to a
full-body harness D-ring should not be attached to a work positioning
element or any other structural element on the full-body harness unless
deemed acceptable by the competent person and manufacturer of the
lanyard. This is especially important when using some types of Y-style
lanyards, as some [dangerous shock] load may be transmitted to the user
through the unused lanyard leg if it is not able to release from the harness.
The lanyard parking attachment is generally located in the sternal area to
help reduce tripping and entanglement hazards.
16. Loose ends of straps can get caught in machinery or cause accidental
disengagement of an adjuster. All full-body harnesses shall include
keepers or other components which serve to control the loose ends of
straps.
17. Due to the nature of soft loop connections, it is recommended that soft
loop attachments only be used to connect with other soft loops or
carabiners. Snap hooks should not be used unless approved for the
application by the manufacturer.
18. Dorsal
The dorsal attachment element shall be used as the primary fall arrest
attachment, unless the application allows the use of an alternate
attachment. The dorsal attachment may also be used for travel restraint or
rescue. When supported by the dorsal attachment during a fall, the design
of the full-body harness shall direct load through the shoulder straps
supporting the user, and around the thighs. Supporting the user, post fall,
by the dorsal attachment will result in an upright body position with a slight
lean to the front with some slight pressure to the lower chest.
Considerations should be made when choosing a sliding versus fixed
dorsal attachment element. Sliding dorsal attachments are generally easier
to adjust to different user sizes, and allow a more vertical rest position post
fall, but can increase FBH stretch.
19. Sternal
The sternal attachment may be used as an alternative fall arrest
attachment in applications where the dorsal attachment is determined to be
inappropriate by a competent person, and where there is no chance to fall
in a direction other than feet first. Accepted practical uses for a sternal
attachment include, but are not limited to, ladder climbing with a guided
type fall arrestor, ladder climbing with an overhead self-retracting lifeline for
fall arrest, work positioning, and rope access. The sternal attachment may
26
also be used for travel restraint or rescue. When supported by the sternal
attachment during a fall, the design of the full-body harness shall direct
load through the shoulder straps supporting the user, and around the
thighs. Supporting the user, post fall, by the sternal attachment will result in
roughly a sitting or cradled body position with weight concentrated on the
thighs, buttocks and lower back. Supporting the user during work
positioning by the sternal attachment will result in an approximate upright
body position.If the sternal attachment is used for fall arrest, the competent
person evaluating the application should take measures to ensure that a
fall can only occur feet first. This may include limiting the allowable free fall
distance. It may be possible for a sternal attachment incorporated into an
adjustable style chest strap to cause the chest strap to slide up and
possibly choke the user during a fall, extraction, suspension... The
competent person should consider full-body harness models with a fixed
sternal attachment for these applications.
20. Frontal
The frontal attachment serves as a ladder climbing connection for guided
type fall arrestors where there is no chance to fall in a direction other than
feet first, or may be used for work positioning. Supporting the user, post fall
or during work positioning, by the frontal attachment will result in a sitting
body position, with the upper torso upright, with weight concentrated on the
thighs and buttocks. When supported by the frontal attachment, the design
of the full-body harness shall direct load directly around the thighs and
under the buttocks by means of the sub-pelvic strap. If the frontal
attachment is used for fall arrest, the competent person evaluating the
application should take measures to ensure that a fall can only occur feet
first. This may include limiting the allowable free fall distance.
21. Shoulder
The shoulder attachment elements shall be used as a pair, and are an
acceptable attachment for rescue, and entry/retrieval. The shoulder
attachment elements shall not be used for fall arrest. It is recommended
that the shoulder attachment elements be used in conjunction with a yoke
which incorporates a spreader element to keep the full-body harness
shoulder straps separated.
22. Waist
The waist attachment shall be used solely for travel restraint. The waist,
attachment element shall not be used for fall arrest. Under no
circumstances is it acceptable to use the waist attachment for purposes
other than travel restraint. The waist attachment shall only be subjected to
minimal loading through the waist of the user, and shall never be used to
support the full weight of the user.
23. USER INSPECTION, MAINTENANCE AND STORAGE OF
EQUIPMENT
Users of personal fall arrest systems shall, at a minimum, comply with all
manufacturer instructions regarding the inspection, maintenance and
storage of the equipment. The user's organization shall retain the
manufacturer's instructions and make them readily available to all users.
See ANSI/ASSE Z359.2, Minimum requirements for a managed fall
protection program regarding user inspection, maintenance and storage of
equipment.
(1). In addition to the inspection requirements set forth in the
manufacturer's instructions, the equipment shall be inspected by the user
27
before each use and, additionally, by a competent person, other than the
user, at interval of no more than one year for:- absence or illegibility of
marking sabsence of any elements affecting the equipment form, fit or
function- evidence of defects in or damage to hardware elements including
cracks, sharp edges, deformation, corrosion, damage from chemicals,
excessive heating, alteration and excessive wear- evidence of defects in or
damage to strap or ropes including fraying, unsplicing, unlaying, kinking,
knotting, roping, broken or pulled stitches, excessive elongation, chemical
attack, excessive soiling, abrasion, alteration, needed or excessive
lubrication, excessive aging and excessive wear
。
（ 2 ） Inspection criteria for the equipment shall be set by the user's
organization. Such criteria for the equipment shall equal or exceed the
criteria established by this standard or the manufacturer's instructions,
whichever is greater.
（
3
）
When inspection reveals defects in, damage to, or inadequate
maintenance of equipment, the equipment shall be permanently removed
from service or undergo adequate corrective maintenance, by the original
equipment manufacturer or their designate, before return to service.
24.Maintenance and storage
（
1
）
Maintenance and storage of equipment shall be conducted by the
user's organization in accordance with the manufacturer's instructions.
Unique issues, which may arise due to conditions of use, shall be
addressed with the manufacturer.
（
2
）
Equipment which is in need of, or scheduled for maintenance shall be
tagged as "unusable" and removed from service.
（
3
）
Equipment shall be stored in a manner as to preclude damage from
environmental factors such as temperature, light, UV, excessive moisture,
oil, chemicals and their vapors or other degrading elements.
PERIODIC CHECKING OFPERSONAL PROTECTIVE EQUIPMENT
PERIODIC CHECKING OF PERSONAL PROTECTIVE EQUIPMENT
GENERAL REMARKS
Carrying out regular periodic checks (at intervals predetermined by the
manufacturer) is vital for ensuring the equipment's efficiency and durability
and the user's safety. The performance of regular periodic inspections is
required by the ANSI/ASSE 359 or ASTM F1772 standard and it is
therefore mandatory only for some devices categories, whose instructions
for use will expressly indicate such obligation. Carrying out periodical
controls doesn't relieve the user nor from the obligation to perform the
controls before and after each use, neither to require an extraordinary
periodic check, in case an outstanding event occurs (ex, a fall, even from a
low height, a change of user etc.), or in case of doubts about the correct
functioning of the device. Attention! Before first use, the owner/user of PPE
must fill in the "device identification sheet" when present in the user's
instructions of the same, Attention! The Inspector, after having carried out
the periodic inspection, is responsible for the proper functioning of a PPE.
The check must be performed with the highest accuracy, without haste and
after completing all the necessary steps.
The regular periodic checks must be carried out:if the previous use of the
28
device is unknown;at least every 12 months, with normal/standard use;in
the presence of anomalies found during the inspections before and after
each use; except for exceptions, whenever there is a change of user;filling
the periodic inspection sheet in,;Attention! The periodic inspection sheet
also exists in the optimized version for kits or systems of PPE.Attention!
Provided that that the minimum mandatory frequency for the periodic
inspection is 12 months, it can be increased (i.e. 3 months, 6 months etc.)
according to the national regulations in force or the frequency, intensity and
method of use (i.e. heavy use, use in a marinel environment, corrosive
atmospheres etc.).
The periodic inspection sheet must be filled out:following the specific
procedure for each type of device . climbingtechnology.com);consulting the
photographic material available, where present;consulting the instructions
for use of the device;examining the device in a suitable, tidy and well-lit
environment. The photographic material at the end of the procedures is
accompanied by an explicative caption and by the following symbols:
The device is in good condition or has only minor damages: it is
therefore suitable for use.
The device has medium/major damages that affect its primary
functions and, as a consequence, must be discarded.
The device has defects that can be solved through lubrication or
cleaning. If such defects are not solved, the device must be
discarded.
The device has defects.
DEVICE PERIODIC CHECK SHEET
1) HISTORY AND GENERAL CHECK
1.1
Check the existence and the readability of the marking details。
1.2
Check that device has not exceeded the storage and/or in-use
lifetime, as stated in the specific instructions for use.
1.3
Check that the device is intact and no parts are missing (check
against a new product).
1.4
Check that the device has not been modified outside the factory
or serviced in a non-approved centre (check against a new
product).
1.5
Check that the device has not experienced an exceptional event
(e.g. fall from height, violent blow, etc.). Even in the absence of
visible defects or deterioration, the original strength could be
seriously reduced.
29
2) VISUAL CHECK
2.1
CHECKING STRAPS
Make sure there are no cuts, abrasions, loose threads, wear, burn
marks or traces of chemical substances. Inspect the webbing of
waist belt, leg loops, shoulder straps, connecting elements
between parts and, if present, textile attachment loops and
elasticated parts. Pay particular attention to check parts hidden
by buckles, rings, where straps cross one another and by
padding. Caution! Carefully inspect the webbing closest to where
(if present) the fastening buckles and the loop for the
chest-to-waist belt connector are located.
2.2
CHECKING SAFETY STITCHING
Safety stitching is different from other stitching: it uses thicker
thread and larger stitches and is a different colour from the strap. l
Make sure there are no cut, loose or pulled threads, wear,
abrasion, corrosion or traces of chemical substances. Check the l
stitching of the leg loops, waist belt, shoulder straps, other
connecting straps and, if present, attachment points formed of
woven l fabric. Pay particular attention to check the stitching for
attachment rings/loops, where straps cross one another and in
areas hidden by buckles and by padding.
2.3
CHECKING METAL PARTS (ATTACHMENT RINGS, BUCKLES
ETC.)
Check all attachment rings: ventral, side, sternal, back. Check all
buckles present: on the waist belt, on the leg loops, on shoulder.
straps, and on other connecting straps. Make sure they are not
bent and there are no cuts, cracks, oxidation or corrosion. Make
sure there is no foreign material residue in cavities.
2.4
CHECKING OTHER COMPONENTS
Check the state of the padding of the waist belt, leg loops and
shoulder straps. Make sure there are no cuts, abrasions, loose
threads, wear, corrosion or traces of chemical substances. Check
as well the stitching on these components.
Check the gear lops. Make sure there are no cuts, abrasions,
loose threads, wear, corrosion or traces of chemical substances.
Important! Even though they are not structural components,
damaged gear loops are hazardous because equipment attached
to them can fall. You are advised to remove unsafe gear loops,
notifying this modification on the periodic inspection sheet.
Check strap retaining loops (non-structural element). Make sure
there are no cuts, abrasions, loose threads, wear, corrosion or
traces of chemical substances.
30
3) FUNCTIONAL CHECK
3.1
CLOSURE BUCKLES
Check that closure buckles open and close correctly without
restrictions.
3.2
ADJUSTMENT BUCKLES
The adjustment buckles of the waist belt, leg loops and shoulder
straps should allow adjustment without restrictions. They should
keep the strap firmly fixed and should only release the strap when
they are manually opened.
3.3
ELASTIC STRAPS
The elastic straps which support the legs loops should be
undamaged and functioning properly.
3.4
HEST CONNECTION (IF PRESENT)
Check that the lower part of the harness is correctly connected to
the chest harness as shown in the instructions. Verify the
presence of the integrated connector. Attention!
DEVICE PERIODIC CHECK SHEET
No.
Date
Reason
for
check
Name and
signature of
the person
responsible
for
checking.
Notes
(defects
found,
repairs
performed or
other
relevant
information)
Check
results
Date
of
next
check
1
Periodic
Additional
Device fit for use.
Device unfit for
use
2
Periodic
Additional
Device fit for use.
Device unfit for
use
3
Periodic
Additional
Device fit for use.
Device unfit for
use
4
Periodic
Additional
Device fit for use.
Device unfit for
use
5
Periodic
Additional
Device fit for use.
Device unfit for
use
31
6
Periodic
Additional
Device fit for use.
Device unfit for
use
WARNINGS
PHOTO APPENDIX
32
33
34
Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai
Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: VEVOR STORE INC, 9448 RINCHMOND PL #E
RANCHO CUCAMONGA, California, 91730 United States of America
Made In China
REP
EC
SHUNSHUN GmbH
Römeräcker 9 Z2021,76351
Linkenheim-Hochstetten,Germany
REP
UK
Pooledas Group Ltd
Unit 5 Albert Edward House, The Pavilions
Preston, United Kingdom
