USER MANUAL
Ver:1

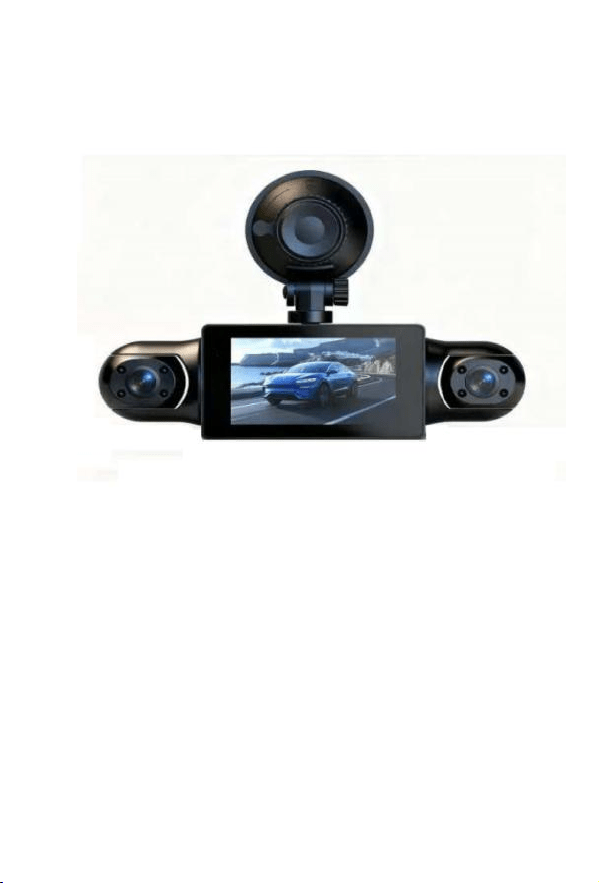

product features:
4 cameras: 3 cameras on the machine +1 rear pull camera
There is no gap between the archives and the archives. 3.0,
inch screen
High definition wide-angle camera
Video file format: AVI
Built-in microphone (speaker)
Support high capacity TF (micro SD) memory card
Supports overvoltage protection for the car start pulse
One-click emergency data protection
G-sensor collision sensing lock function
Supports the rear camera function
Supports voltage reduction line function (optional)
Built-in WIFI function
product description
product mix

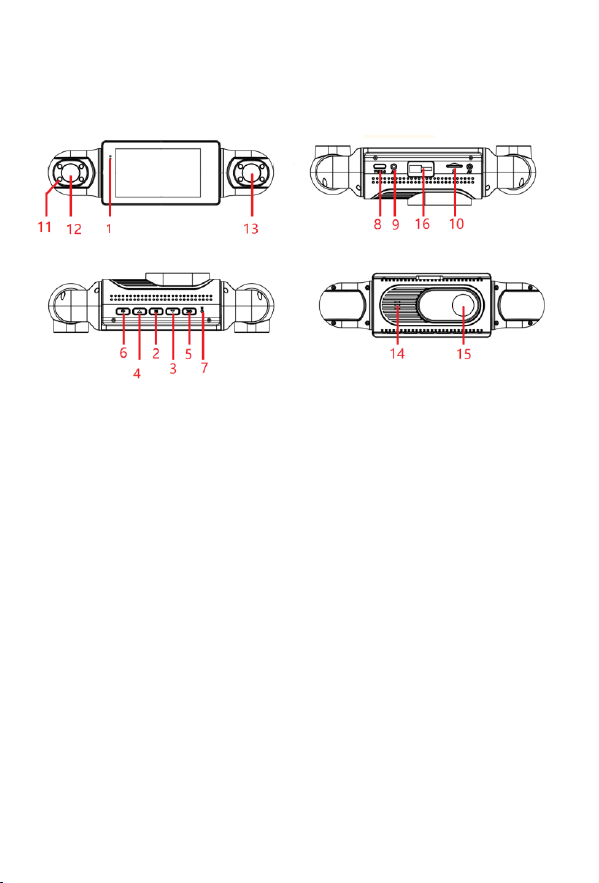

Key and function description：
1) Work indicator light: the red indicator light is on after starting up, the blue indicator light
flashes during recording, and the red indicator light is on during charging
2) Menu key: Short press this key to call up the function setting menu;
Short press this key during recording to add to the current video file
Lock, save as non-deleteable file, long press this button to switch between shooting mode,
photo mode and playback mode
3) Upward key: Select the function key upward in the menu option. In standby or recording
state, this key is the infrared light on/off function, and long press can open/close WiFi.
4) Down arrow: Select the function key in the menu option. Short press this key to switch
the screen camera display;
5) OK key: video confirmation key. In camera mode, short press this key to start video
recording, and press again to stop video recording. In photo mode, press this key to take
photos. In playback mode and menu mode, it is the confirmation key
6) Power button: short press to turn on, long press to turn off, standby state, short press to
turn off the screen.
7) Reset hole: Dead reset button hole
8) Power interface: used to connect the external vehicle charging power or voltage
reduction line to provide working power for the machine;
9) Rear camera interface: rear view lens video input port
10) TF card slot: memory card slot
11) Infrared lamp: night vision light
12) Left camera: left view window
13) Right camera: the right view window
14) Speaker: an amplification hole for playing video or audio files, with sound reminders
15) Front camera: front view window
16) Bracket opening: the slot for installing the bracket
Special function description：
1) G-sensor function: When the gravity acceleration (1g=9.80 m/s^2) occurs, the machine
will automatically lock and save the video of the accident as an undeliverable file;
G-sensor gravity sensor can be selected in the menu. The device has four sensitivity
options: off, low, medium and high. The factory default is off;
2) One-click lock function: During the recording process, short press the menu button, and
the machine will lock the current video and save it as an undelable file.
3) Automatic on/off: support the car power supply to automatically start the video recording
after the car starts, and automatically save and shut down after the car shuts off;
4) Parking Mode: When parking mode is activated, if the vehicle is turned off or the ignition
is turned off, and the dashcam enters an automatic shutdown program, the camera will
activate to record for 30 seconds before automatically shutting down. If the vehicle detects
another vibration, it will restart the recording function. The video from the parking
surveillance camera will be automatically locked.
Note: The parking mode function must be activated when the driving recorder is
automatically turned off. After manual start or shutdown, the parking monitoring will not
work;
This function is not available when the battery or car battery is completely dead
5) Time-Lapse Recording (This option requires a voltage drop cable to function; car
charging does not support this feature): Enter the time-lapse recording settings: You can
choose: Off / 2 hours / 4 hours / 8 hours / 24 hours. Once this function is enabled, the
system will continue to record for the selected duration after the engine is turned off (ACC
power loss). The system defaults to being off. Note: This function cannot be used when the
car battery is completely drained.
Basic operation instructions for video/camera taking:
1) Power On and Off: Short press the power button to turn on; the power indicator light
will turn on. After turning on, long press the power button to turn off; this light will turn off.
2) Camera Mode: Short press the OK button to start recording. During recording, a red
dot will start flashing on the screen, and the blue indicator light will also start flashing,
entering the recording mode;
3) Photo mode: Long press the menu button to switch to photo mode, and the photo icon
will be displayed in the upper left corner of the screen;
Short press the OK button to take a picture, when taking a picture, hear a "click",
indicating that the photo is completed;
4) Video/photo playback: Long press the menu button, the playback icon will be
displayed in the upper left corner of the screen. Press the up/down key to select the
camera file to view, and short press the OK key to play the selected video file;
5) Menu Settings: In standby mode, short press the menu key to call up the setting menu;
by short pressing the up or down keys, you can cycle through the settings; select the
setting item that needs to be changed, and enter the change by short pressing the OK
key;
6) Exit the Settings menu: Short press the menu button to exit the Settings state;
Four: Time and date Settings
In standby mode, press the menu button to enter the Settings item. Press the up/down
keys to select the date/time setting option. Press OK to enter. Press OK to switch
between year/month/day/hour/min/sec. Adjust the required value by pressing the
up/down keys. Press OK to confirm the modification and exit the time setting.
Note: When this product is used due to improper operation, it will crash
Phenomenon, you can reset the key and then start up, you can return to normal.
Installation Guide:
1. Turn off the car engine.
2. Insert the TF card into the recorder slot.
[Note] Please use high-speed TF card (C10 or above)
3. Secure the recorder to the front windshield of the car.
4. Plug the on-board charger into the car lighter.
5. Connect the USB port of the recorder to the on-board charger with a charging extension
cord. When wiring, lay the charging extension cord along the edge of the car windshield.
Note: If the voltage reduction line is used, connect the BAT+/ ignition ACC/GND-3
interfaces to the corresponding position of the central control
6. Please install the rear camera on the back of the cleaned rear windshield or above the
license plate, insert the rear camera cable into the rear camera cable port, and thread it
through the gap in the roof until it reaches the rear camera installation position. Connect
the rear camera properly, and connect the red wire of the rear camera to the positive
terminal of the parking light power supply,
7. Adjust the position of the lens to ensure that the lens is level with the ground.
8. Start the engine and check that the machine is installed correctly.
[Note] When the machine is installed correctly, the system working indicator light is lit; the
machine starts to enter the recording state, and the video recording indicator light flashes.
Please check whether the picture on the display screen is normal.

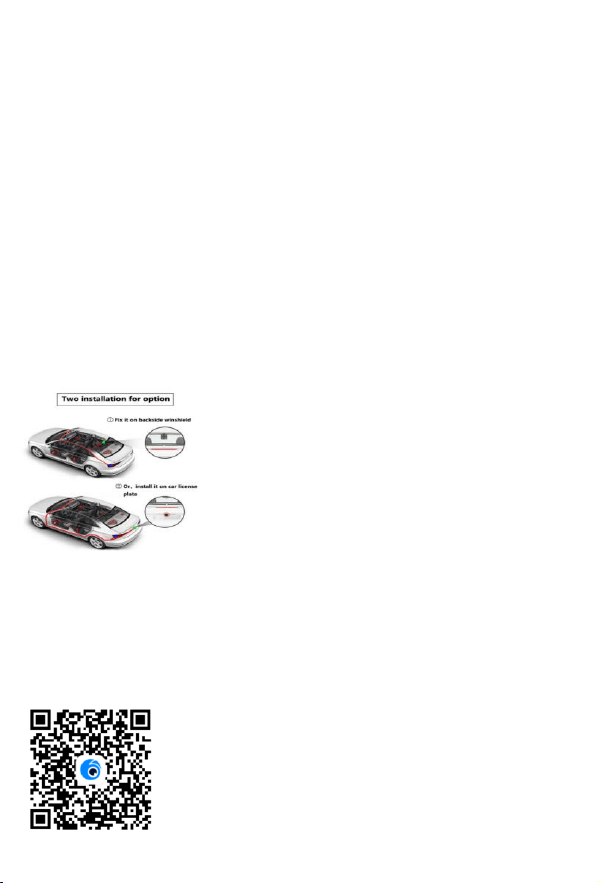

Schematic diagram of rear camera installation wiring (optional)
Application installation and WiFi connection instructions:
1. In standby mode, press the menu key to enter the menu options, select WiFi Settings
and select on. Short press OK button to confirm entering WiFi mode. The screen
displays WiFi name /WiFi password, or long press up button to open/close WiFi.
2. In the menu options, select the product information screen to display the WiFi name
/WiFi password
3. Scan the QR code below with your mobile phone to download and install the app.
For Android phones, select "Safe Download", and for IOS systems, it will automatically
jump to the App Store for download

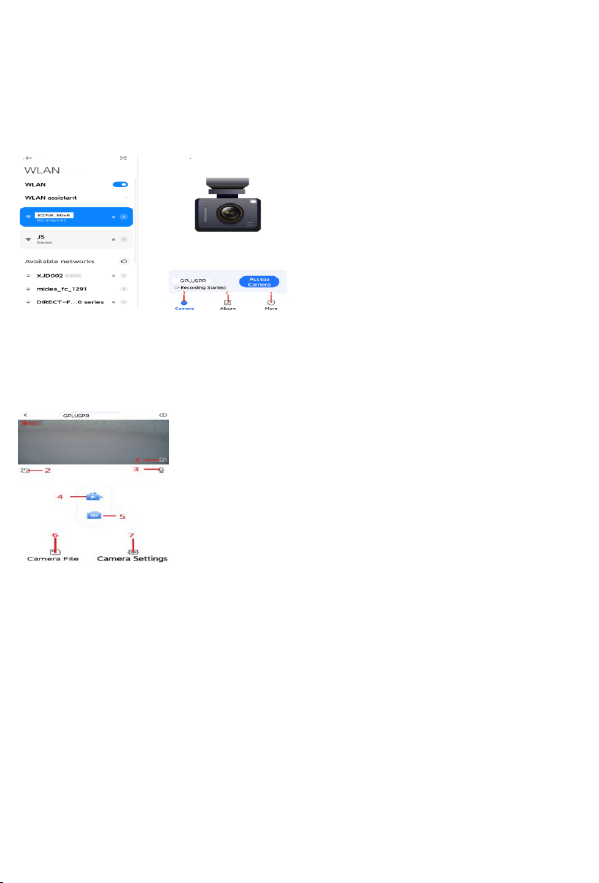

4. Add devices
IPhone: Enter the system WiFi, select GPLUSPR**** and enter the WiFi password. The
default password is 12345678 connection. Enter "Viidure" application to complete the
addition;
Android phone: Enter the "Viidure" application, click "Add recorder", follow the addition
wizard to enter the system WiFi interface, select GPLUSPR**** and input the WiFi
password. The default password is 12345678 connection. Click "Return" to complete
the addition after the connection is completed;
APP function Introduction
1. Video recorder: This page manages the video recorder, allowing you to add, view,
delete and access the video preview interface of the video recorder;
2. Photo album: manage pictures and videos downloaded from the tape recorder to the
phone;
3. More: language Settings, feedback on problems and information about the APP;
Introduction of recorder function
1. Full screen display: Click full screen to watch the video;
2. Lens switching display: Click to switch the display of the lens;
3. Microphone: Click to turn on or off the microphone sound;
4. Video recording: Click pause/start, and save the video on the video recorder after
completion;
5. Take photos: Click to complete the photo, and save it to the video recorder after
completion;
6. Recorder files: Enter the file list on the recorder and classify it into loop video,
capture event, emergency event, parking monitoring, local album;
Download audio files
Click "Record File" to enter the file list interface, click the "Select" button, select the
picture or video to download, click "Download" to start downloading the file, after the
download is completed, the file will be saved in the mobile phone, you can view it
through the "Album";
The audio file is played
Click "VCR file" to enter the file list interface, no need to download, directly play the
video on the VCR, you can also shoot the current playback picture;
Download: Download the video to your phone;
Delete: delete the selected file;
gramophone record
Entering "Album" can manage the pictures or videos downloaded to the phone. Click
"All" to enter the list of all videos in this category. The file list is arranged by date. Click
"Select" to select multiple files for operation;
Video: All video files;
Photos: All photo files;
Urgent: Collision sensing documents;
Recorder Settings: Enter the recorder Settings interface to set the microphone switch,
recording resolution, video file duration, etc.;
specifications of the products
Product features
High definition camera, high definition
recording
G-sensor
Built-in (in case of accidents
Save it in the background and do not
delete it)
LCD screen size
3.0 inches
camera lens
wide-angle lens
language
Support multiple languages
Video file format
AVI
Video resolution
1920*1080P/1280*720P
Video coding format
MJPG
Turn on and off the car
Support the ignition of the car, and
delay the shutdown of the engine
Year, month and day
support
memory card
TF (up to 64 GB supported)
Photographic mode
12 million
Photo format
JPEG
microphone
support
Pull the camera back
support
The voltage reduction line
Support (optional)
WIFI function
support
Power interface
5V/2A
Under normal operation, if there is a problem with the product, please refer to the
following methods to solve it:
Do not take photos or video: check if the TF card has enough space and is locked.
When recording, it will stop automatically: due to the huge amount of HD video data,
please use a high-speed TF card compatible with SDHC. The high-speed TF card will
have the C10 logo.
When replaying images and videos, the "File Error" prompt appears: An error occurred
while storing data on the TF card, resulting in incomplete files. Please use the camera's
"Format" function to reformat the TF card. The footage looks hazy: Check if the lens is
dirty, with dust or fingerprints; before shooting, wipe the lens head with lens paper.
When shooting scenes such as sky or water, the image is very dark: in large contrast
scenes, the camera's exposure function will be affected. You can correct it by adjusting
the "EV" value in the machine Settings menu.
Horizontal stripe interference in the image: This is caused by incorrect "light source
frequency" Settings. Please set it to "50Hz" or "60Hz" according to the local power
supply frequency.
When the machine is down: press the reset button briefly to restore the mac
FCC Statement
This device complies with Part 15 of the FCC Rules.Operation is
subject to the following two conditions:
(1)This device may not cause harmful interference.
(2)This device must accept any interference received,including
nterference that may cause undesired operation.
Caution: Any changes or modifications not expressly approved by
the party responsible for compliance could void the user's
authority to operate the equipment.
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device under Part 15 of the FCC
Rules.These limits are designed to protect reasonably against
harmful interference in a residential installation.This equipment
generates uses and can radiate radio frequency energy and,if not
installed and used by the instructions, may cause harmful
interference to radio communications.However,there is no
guarantee that interference will not occur in a particular
installation. Suppose this equipment does cause harmful
interference to radio or television reception,which can be
determined by turning the equipment off and on.In that case,the
user is encouraged to try to correct the interference by one or
more of the following measures:
(1)Reorient or relocate the receiving antenna.
(2)Increase the separ ation between the equipment and receiver.
(3)Connect the equipment to an outlet on a circuit different from
the receivers.
(4)Consult the dealer or an experienced radio/TV technician for help.
RF Exposure Information
This equipment complies with FCC radiation exposure limits set forth for
an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator and your
body.
